USER MANUAL MB Mini Mountain Buggy

INSTRUCTIONS - INSTRUCTES - INSTRUCCIONES - GERBRAUCHSANWEISUNG - INSTRUKSJONER - INSTRUKTIONER FOR YOUR CHILD'S SAFETY READ THESE INSTRUCTIONS CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

mountain buggy®

mini

mountainbuggy.com

Congratulations on choosing the mountain buggy mini!

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

Configurations / Konfigurationen / Configuraciones / Configuratives

Features / Caractérisiques / Produkteigenschaften / Características / Kenmerken

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

MOUNTAIN BUGGY MINI

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

GENERAL INSTRUCTIONS

This document contains important information and must be kept for future reference.

Please read thoroughly before commencing installation as incorrect installation can be dangerous.

Please register your product purchase through our online warranty registration by visiting: www.mountainbuggy.com/register

This vehicle is intended for children from newborn to 5 years.

Maximum weight in the newborn position 20lbs/9kg

Maximum weight in the upright main seat 44lbs/20kg

CLEANING & CARING

Check the MB mini for cuts & bruises. If your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.mountainbuggy.com/support) from here you can access a local customer care team.

Caring for MB mini

Unlike children, your MB mini likes to stay clean.

• Brush dirt off frame and wheels regularly.
- Clean with non-abrasive household cleaner and a soft cloth.
- Wash off sand and salt after visiting the beach.
• Always dry frame if wet.
• Fabrics can be sponge cleaned with warm water, using a mild natural soap.
• Do not use detergents or bleach.
- Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
• Take care to avoid damage to foam rubber. Foam rubber is not under warranty.
- Improper care will void any warranties. Do not use the MB mini if deterioration is detected or suspected.
- To ensure continued ease of use, lubricate your brake wire with a silicone based or other plastic friendly grease. Apply to the areas of your brake wire that move against the plastic wheel housings.

IMPORTANT IMPORTANT

• Always load/unload your children on level ground.
- Ensure the brake is engaged during the loading and unloading of children.
- Care should be taken if the stroller is used on stairs or escalators.
• Always use the safety strap.
- Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for: Fraying - especially webbing straps and safety harness.
Wear - locks, snap fasteners, tyres, plastic and moving parts.
Safety - locks must not be loose.

Tyres

- Tyres are not under warranty. Tyre are affected by heat especially when inside parked cars.

For rights & remedies, refer www.mountainbuggy.com/warranty

MOUNTAIN BUGGY MINI

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

This product complies with requirements applicable in market of sale, refer www.mountainbuggy.com/certification

WARNINGS

To avoid injury:

- Only use with mountain buggy mini accessories.

WARNINGS

European Safety Standard states:

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

• This vehicle is intended for children from newborn up to 5 years and up to a maximum weight of 20kg/44lbs.

• It may be dangerous to leave your child unattended.

• The buggy shall only be used for a maximum of 1 child.
  • Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used.

• Any load attached to the handle affects the stability of the stroller.
  • Always use the crotch strap in combination with the waist belt.
• Check that the stroller body or seat unit attachment devices are correctly engaged before use.
• This product is not suitable for running or skating.
• Ensure that all locking devices are engaged before use.
• Use a harness as soon as your child can sit unaided.
• Do not place more than 5kg/11lbs in the parcel tray.

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

• The parking device shall be engaged during the loading and unloading of children.
  • Do not add a mattress thicker than 20mm.

WARNINGS

American Safety Standard states:

• Never leave your child unattended in the stroller.
  • Always use the safety harness to avoid serious injury from falling or sliding out.
  • Always secure all safety harness straps. Child may slip into leg openings and strangle. Never use in a reclined carriage position unless child securely restrained.
• This vehicle is intended for children from newborn to 5 years and up to a maximum weight of 20kg/44lbs.
  • To prevent the stroller from becoming

unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame.

• Do not place more than 5kg/11lbs in the parcel tray.
  • Excessive weight may cause a hazardous unstable condition to exist.

WARNINGS

Australia / New Zealand Safety Standard states:

To avoid injury or death:

• Always apply the brakes whenever the stroller is stationary.
• Do not leave children unattended.
- Secure the child in the harness at all times.
- Do not carry extra children or bags on this stroller.

MOUNTAIN BUGGY MINI

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

• Make sure children are clear of any moving parts if you adjust the stroller.
• Use the harness at all times.
- When not in use disconnect shoulder straps from the waist buckle or strap as harness can form loops that can lead to strangulation.
- Do not use this seat with any other models of stroller.
- It is unsafe to use accessories other than those approved by the vehicles manufacturer.
- Care should be taken if the stroller is used on stairs or escalators.
- The stroller should not be used near an open fire or exposed flame.
- This vehicle is intended for children up to a maximum weight of 20kg/44lbs.
- Do not place more than 5kg/11lbs in the parcel tray.

WARNINGS

Canadian Safety Standard states:

• Never leave your child unattended in the stroller.
  • Always use the safety harness to avoid serious injury from falling or sliding out.
• Do not place more than 5kg/11lbs in the parcel tray.
• The stroller may become unstable if a parcel bag, other than one recommended by the manufacturer, is used.
• The stroller may become unstable if the recommended load is exceeded.
  • Take care when folding or unfolding the stroller to prevent your fingers being entrapped.
  • Maximum weight in the upright main seat 44lbs/20kg.

Félicitations!

Blank white image with no visible content, text, or symbols

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Blank white image with no visible content, text, or symbols

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Blank white image with no visible content, text, or symbols

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Blank white image with no visible content, text, or symbols

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

European Safety Standard:

American Safety Standard:

Australia / New Zealand Safety Standard:

Canadian Safety Standard:

Technical diagram of a two-wheeled stroller with numbered parts for identification

01 Handle bar
02 Wrist strap
03 Sunhood
04 Harness
05 Single hand fold

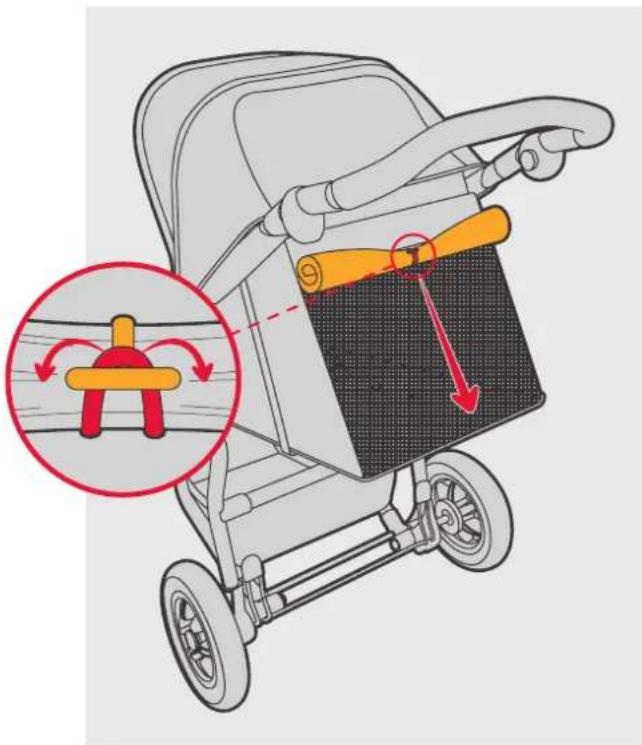

06 Parcel tray
07 Recline strap

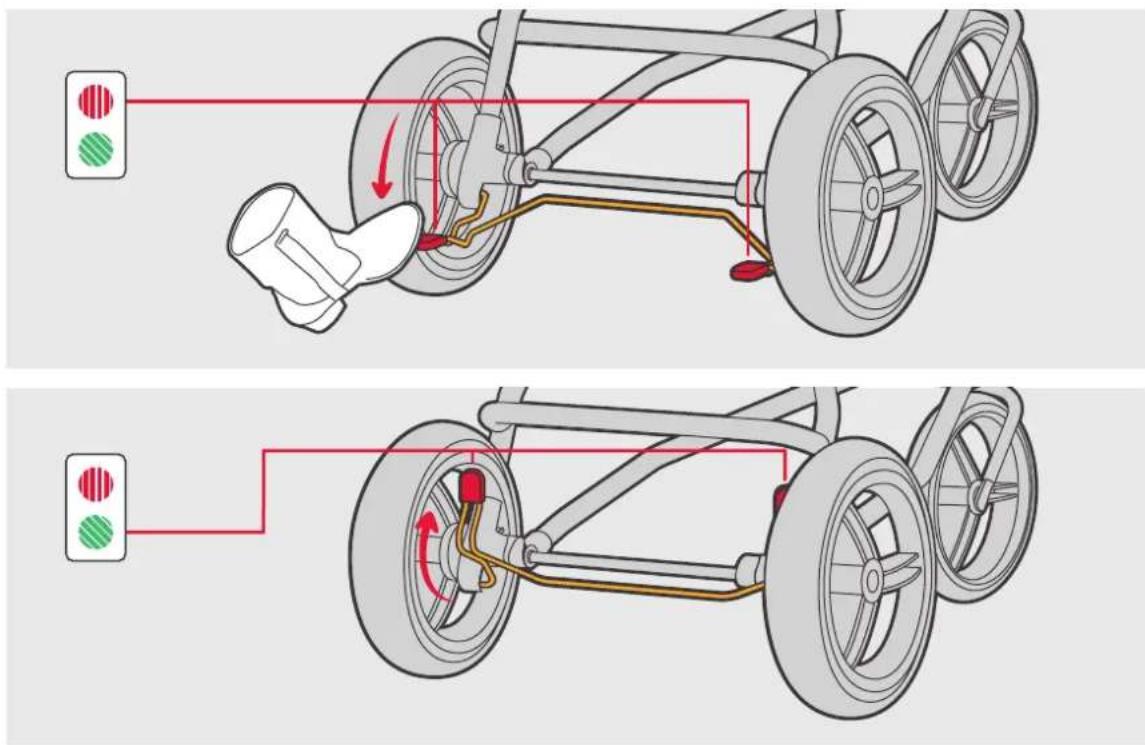

08 Brake

Diagram illustrating the assembly of a stroller with labeled parts and motion arrows, including wheel rim, steering wheel, and interior details.

1

Technical line drawing of a car chassis with highlighted components and a magnified inset showing a red circular detail (no text or symbols)

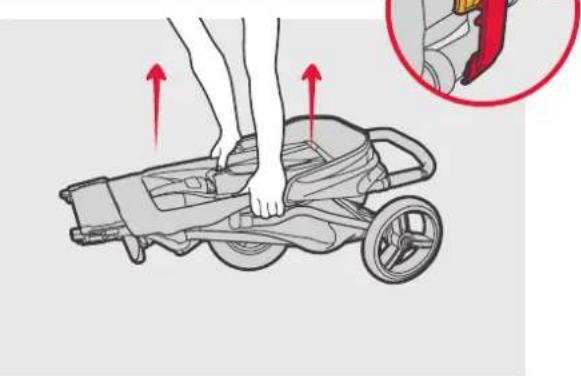

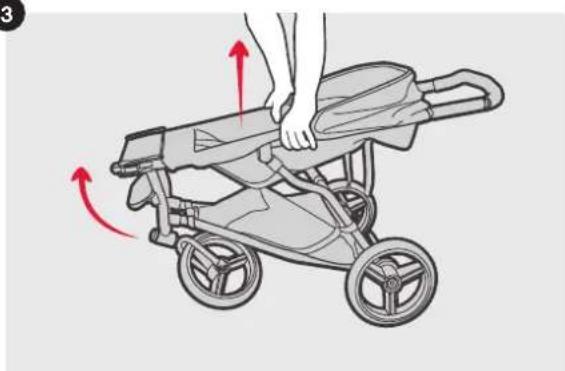

Illustration of a person using a stroller with arrows indicating motion, and a magnified inset showing a tool interacting with the device (no text or symbols present)

3

Illustration of a baby stroller with red directional arrows indicating motion (no text or symbols)

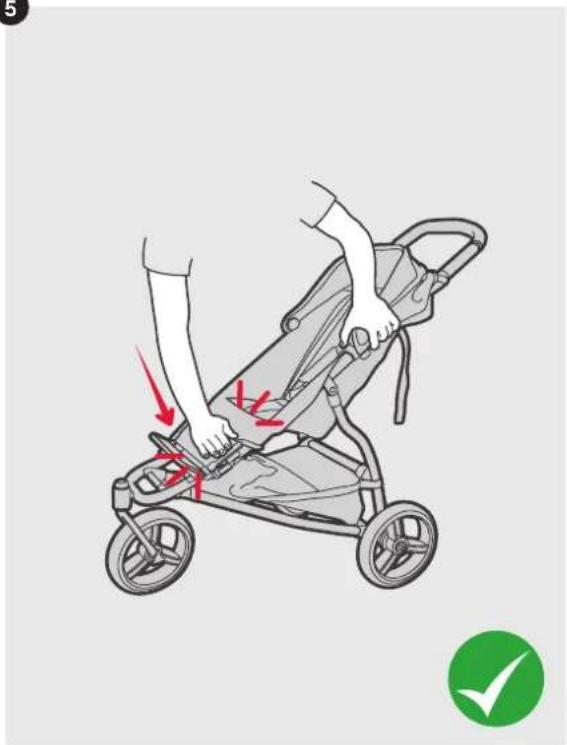

5

Illustration of a baby stroller with hands adjusting the seat, showing red arrows indicating movement (no text or symbols)

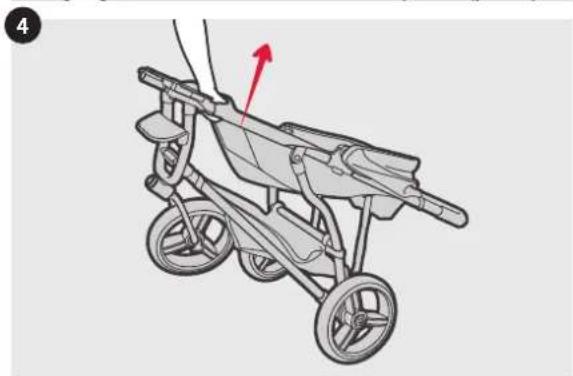

4

Illustration of a baby stroller with hand and red motion arrows indicating movement (no text or symbols)

MOUNTAIN BUGGY MINI

Instructions / gebrauchsanweisung / instrucciones / instructies

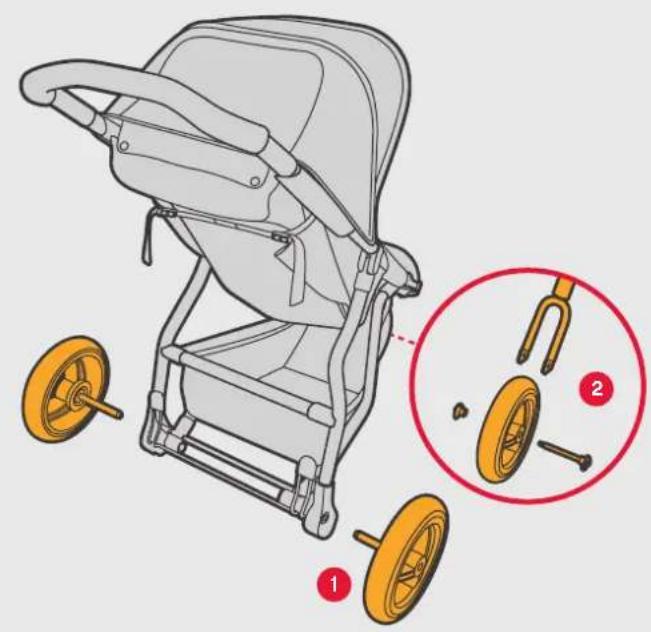

Diagram of a stroller with labeled parts and a magnified view showing two yellow wheels with metal pins.

Instructions / gebrauchsanweisung / instrucciones / instructies

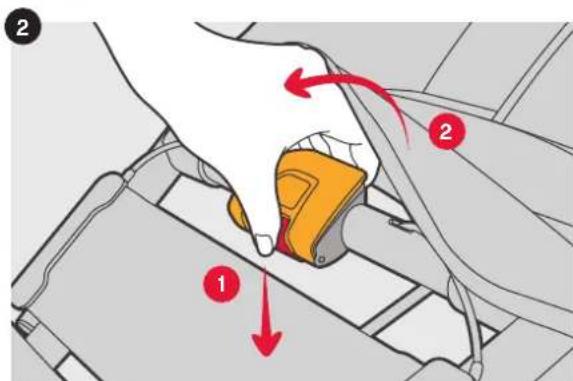

Illustration of a bicycle steering wheel with a red-handled lever and orange wheel (no text or symbols)

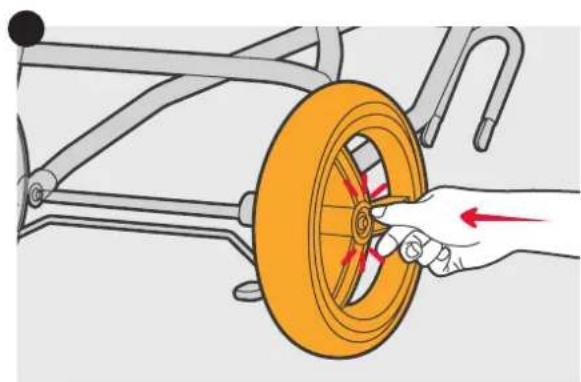

Illustration of a hand operating a yellow wheel with red arrows indicating clockwise motion (no text or symbols)

Diagram of a bicycle with red directional arrows indicating motion, no text or symbols present

Diagram of a mechanical component with a yellow valve and red adjustment knobs, no text or symbols present

MOUNTAIN BUGGY MINI

Instructions / gebrauchsanweisung / instrucciones / instructies

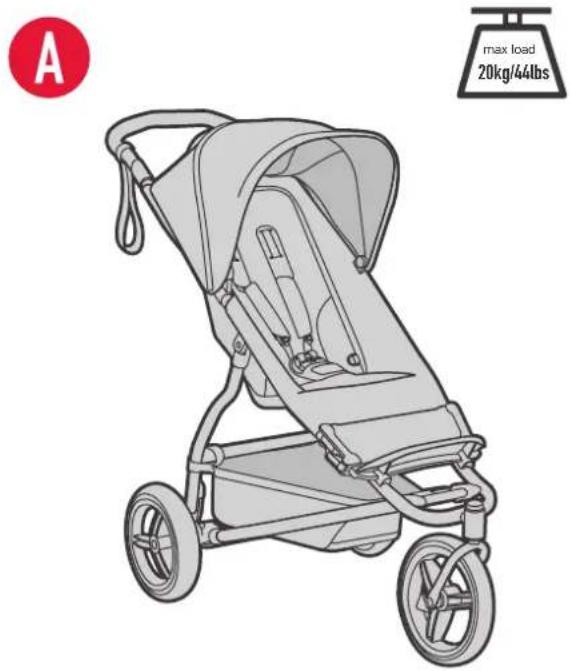

A max load 20kg/44lbs

Illustration showing three steps of a bird's netting technique: feeding, opening the canopy, and adjusting a tool.

Diagram illustrating vehicle suspension system with traffic light and valve mechanism, showing two scenarios of driving motion.

MOUNTAIN BUGGY MINI

Instructions / gebrauchsanweisung / instrucciones / instructies

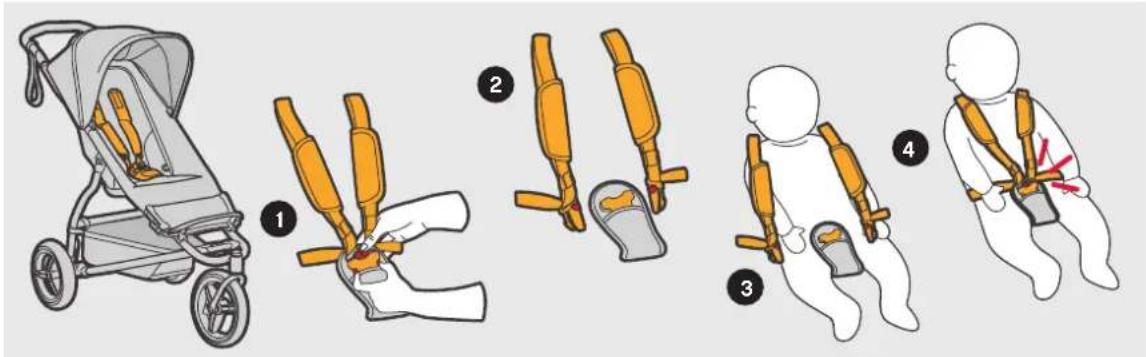

Illustration showing five steps of a baby car seatbelt replacement, from stroller to seatbelt with highlighted safety.

Diagram illustrating how to tie a car seatbelt using cable harness, showing step-by-step instructions with red arrows indicating rotation.

Instructions / gebrauchsanweisung / instrucciones / instructies

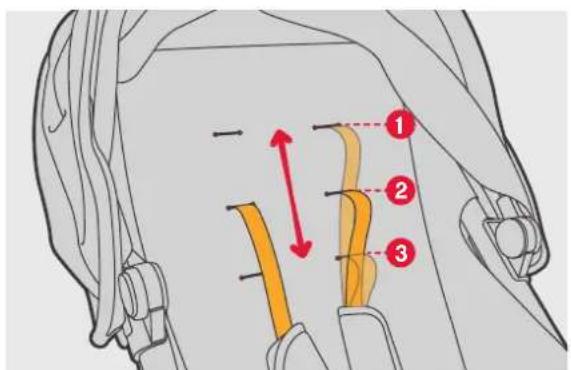

Diagram showing three labeled parts (①, ②, ③) with directional arrows and a central orange bar, likely illustrating a mechanical or anatomical process.

Diagram of a car interior showing orange and yellow curved components with red directional arrows indicating motion (no text or symbols)

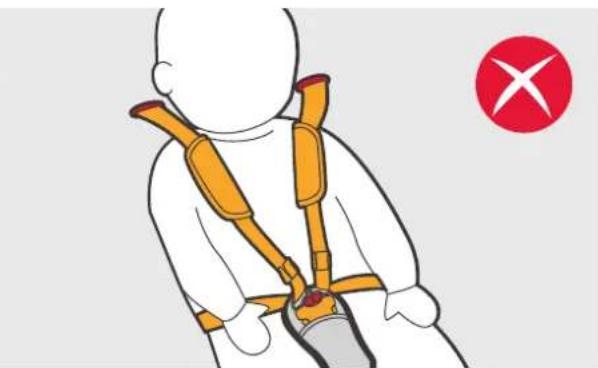

Illustration of a child wearing an orange safety harness, with a green checkmark icon (no text or symbols on the diagram itself)

Illustration of a child wearing a yellow safety harness, with a red circular symbol containing a white cross (no text or symbols on the diagram itself)

MOUNTAIN BUGGY MINI

Instructions / gebrauchsanweisung / instrucciones / instructies

Illustration of a stroller being adjusted for a hand using a lock switch, showing the wheel and seat assembly (no text or symbols)

Diagram showing a hand pressing a car seatbelt with red arrows indicating motion or force, labeled with numbers 1 and 2.

Illustration of a stroller with a hand pointing to the side panel (no text or symbols present)

3

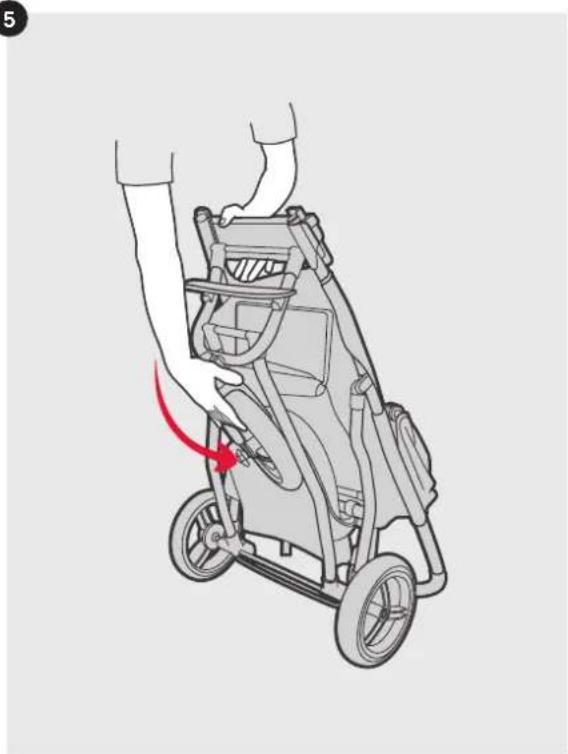

5

Illustration of a person using a stroller with a red arrow indicating motion (no text or symbols)

6

Diagram illustrating car wheel assembly with highlighted component and safety instructions

MOUNTAIN BUGGY MINI

Instructions / gebrauchsanweisung / instrucciones / instructies

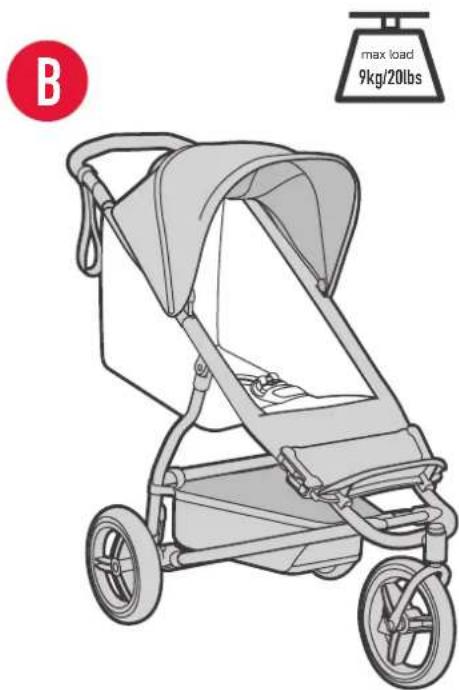

B max load 9kg/20lbs

Illustration showing how to adjust a stroller using a cable, with close-ups of the components and motion arrows indicating changes.

Diagram illustrating the use of a car seatbelt device with red arrows indicating force application and a magnified view showing internal components.

Illustration of a stroller with orange seat and red directional arrows indicating motion (no text or symbols)
