USER MANUAL Nano Urban Mountain Buggy

mountain buggy®

life without limit™

IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

IMPORTANT – A LIRE ATTENTIVEMENT ET À CONSERVER POUR RÉFÉRENCE ULTÉRIEURE.

WICHTIG – BITTE SORGFÄLTIG LESEN UND FÜR SPÄTERES NACHLESEN UNBEDINGT AUFBEWAHREN.

IMPORTANTE – LEER DETENIDAMENTE Y MANTENERLAS PARA FUTURAS CONSULTAS.

BELANGRIJK – LEES ZORGVULDIG EN BEWAR VOOR LATERE RAADPLEGING.

IMPORTANTE – LEGGERE ATTENTAMENTE E CONSERVARE PER FUTURO RIFERIMENTO.

VIKTIG – LES N∅YE OG OPPBEVAR FOR FREMTIDIG BRUK.

VIKTIGT – LÄS NOGGRANT OCH SPARA FÖR FRAMTIDA BRUK.

TÄRKEÄÄ – LUE HUOLELLISESTI JA SÄILYTÄ VASTAISUUDEN VARALLE.

important information

• Always load / unload your child on level ground.
- Ensure the brake is engaged during the loading and unloading of your child.
- Care should be taken if the buggy is used on stairs or escalators.
• Always use the wrist safety strap.
- Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for:

• Fraying – especially webbing straps and safety harness;
• Wear – locks, snap fasteners, tyres, plastic and moving parts;
• Safety – locks must not be loose.

important information

Tyres

• Tyres are not under warranty.
  • They are puncture proof, but like all moving parts, are subject to wear.
• Replacements can be purchased.

warranty

All of our products have a one year warranty from date of purchase against defects in material and workmanship.*

Additionally, when you register your product online within 30 days of purchase, you are eligible for a 2 year warranty free of charge.

Once registered, you can further extend the warranty to 3 years by purchasing an extended warranty within 30 days of purchase.

Please register your product purchase online now at mountainbuggy.com/register

*you may be entitled to other rights in some countries.

care information

If your product is damaged in any way, or you're not sure how to use it, please consult our web support team (mountainbuggy.com/support).

• Brush dirt off frame and wheels regularly.
• Clean frame with non-abrasive household cleaner and a soft cloth and always dry frame if wet.
• Wash off sand and salt after visiting the beach.
• Fabrics can be sponge cleaned with warm water, using a mild natural soap. Do not use detergents or bleach.
• Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
  • Take care to avoid damage to leather work.
• Improper care will void any warranties. Do not use this product if damage is suspected.

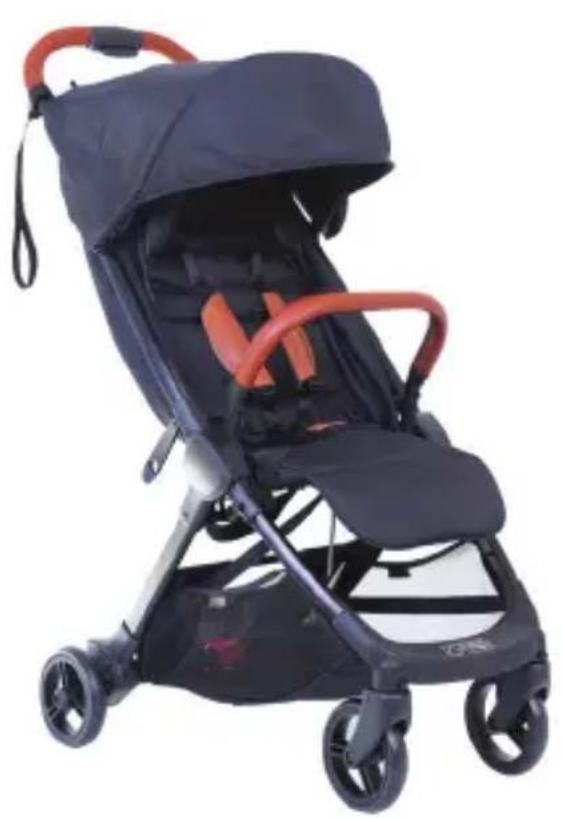

Black and orange children's stroller with blue and orange design, no visible text or symbols

max load
22kg / 48lbs

Black and white baby stroller with orange handle, no visible text or symbols

Black children's stroller with black covers and wheels, no visible text or symbols

max load 9kg / 20lbs

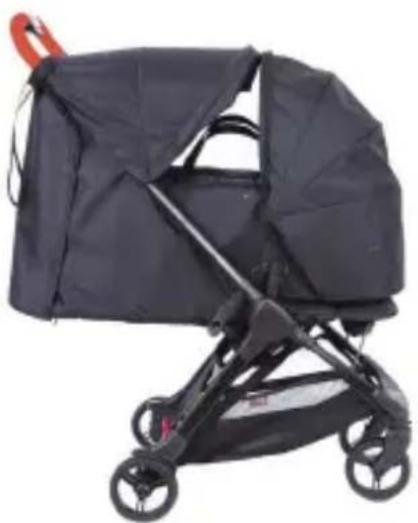

*cocoon sold separately

Black and white photo of a children's stroller with a green accent, no visible text or symbols

max load 13kg / 28lbs

*protect™ sold separately

Black and gray stroller with orange handle, no visible text or symbols

*foot muff sold separately

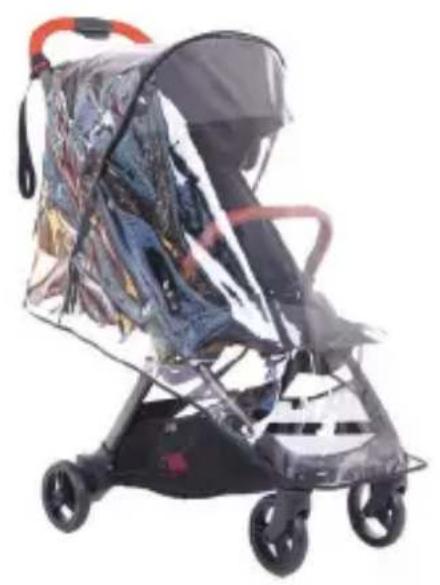

Black and white photo of a baby stroller with transparent cover and red handle (no visible text or symbols)

Black and white photo of a baby stroller with orange handle, no visible text or symbols

Black and white photo of a dark blue children's stroller with orange handle (no text or symbols visible)

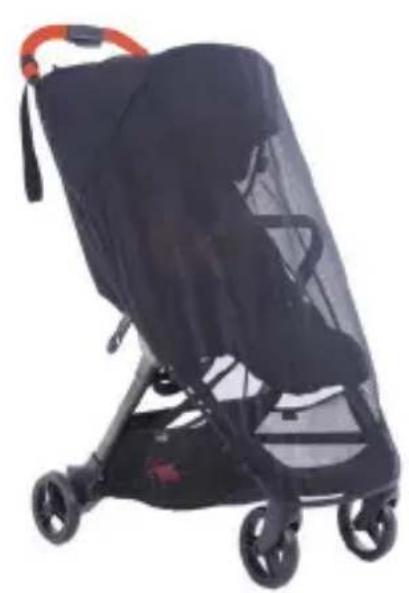

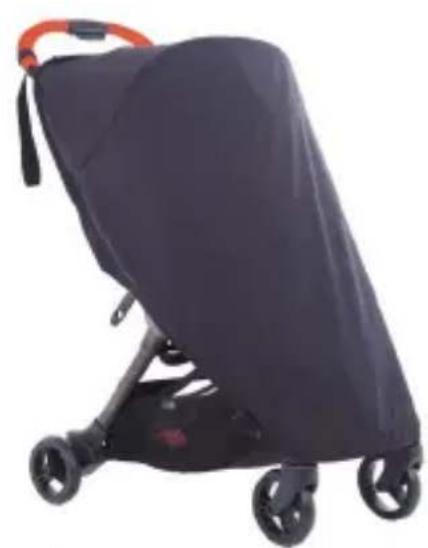

*covers
sold separately

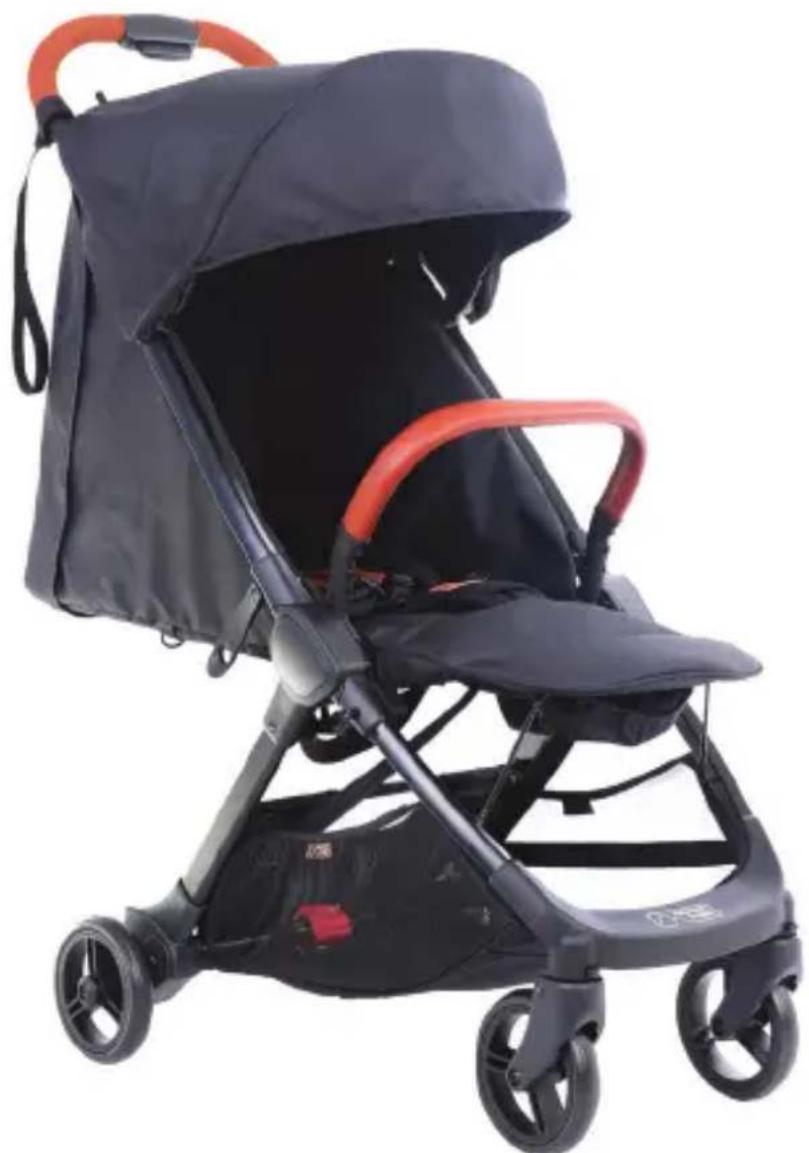

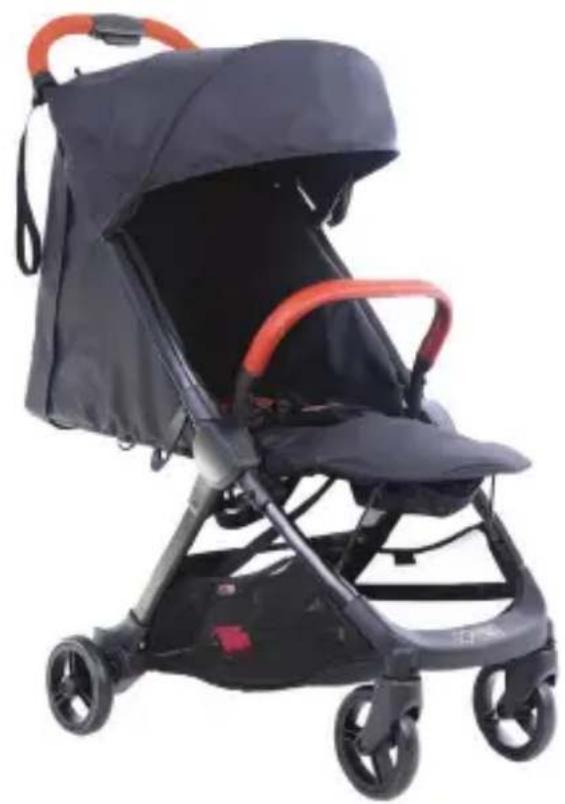

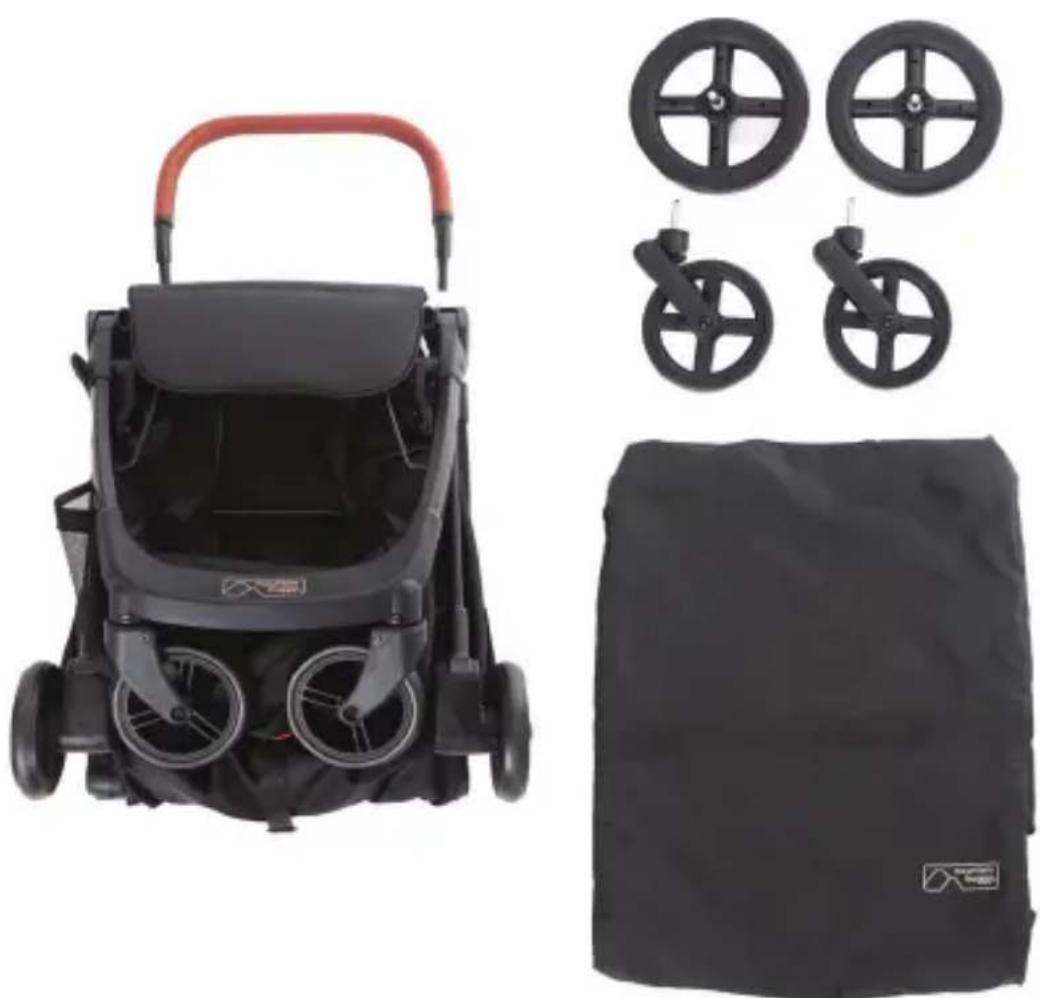

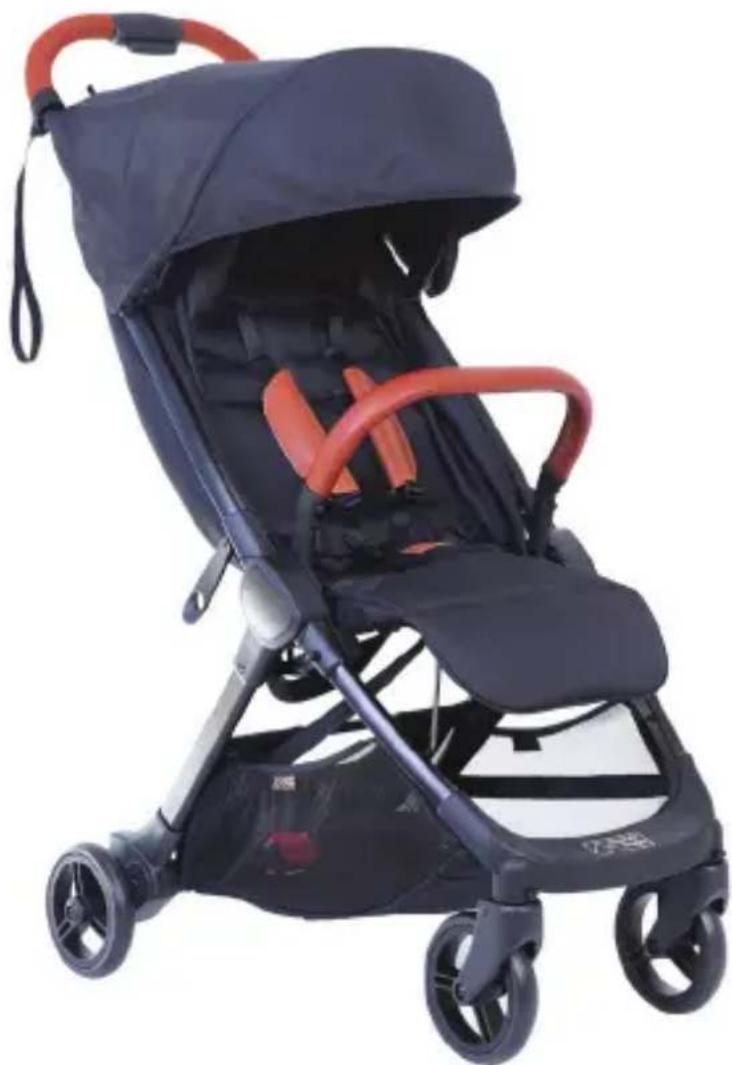

what's in the box

Product photo of a black stroller with red handle and three circular wheels, alongside a black cover (no text or symbols visible)

Black and red baby stroller with black body and orange seat, no visible text or symbols

max load

22kg / 48lbs

unpacking

Four black athletic bags with handles, one being folded and others lying down (no text or symbols visible)

01

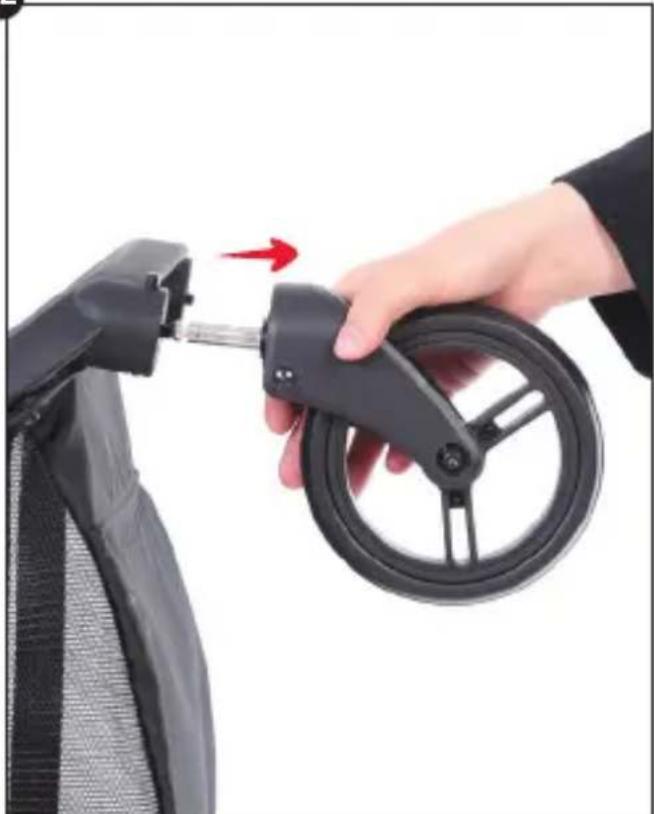

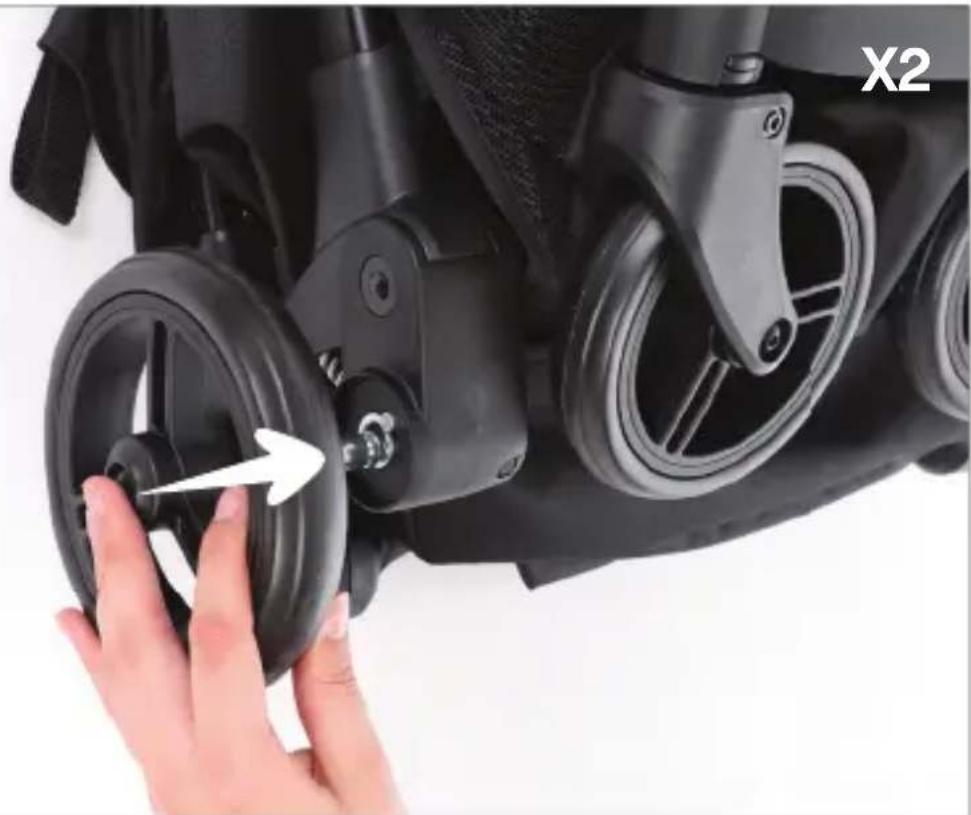

attaching wheels

Close-up of a black stroller with wheels and a hand adjusting the wheel (no text or symbols visible)

02

Top-down view of a black and orange electric vehicle stroller with visible wheels and front cover (no text or symbols)

01

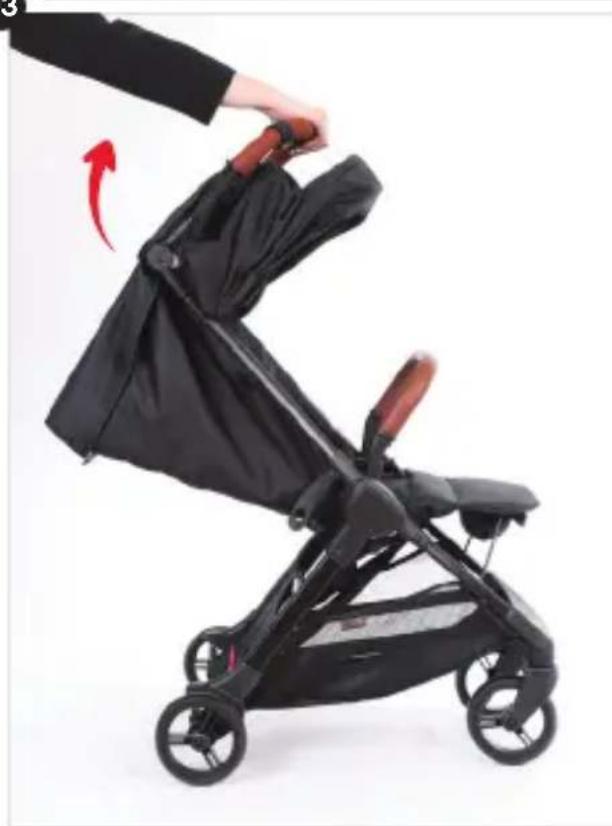

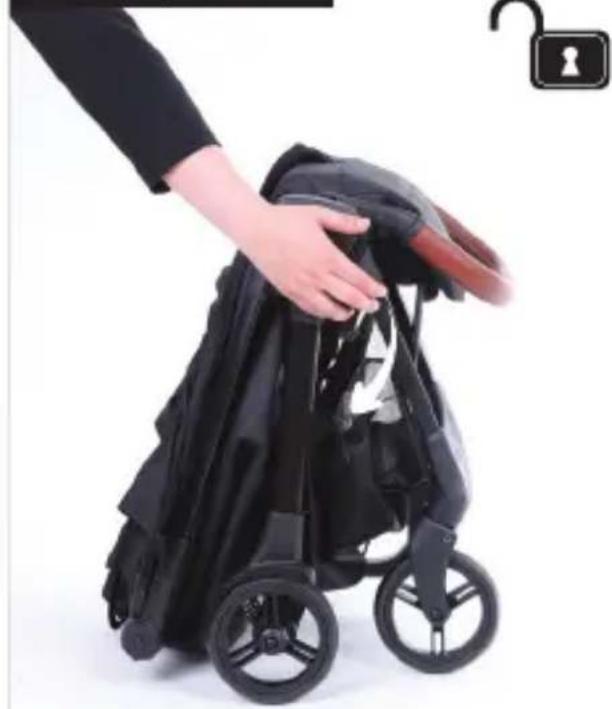

unfolding

A person holding a black stroller with a red strap, being relaxed by hand (no text or symbols visible)

02

Hand holding a black stroller with red handle, accompanied by an inset showing hand pressing a lock on a car (no text or symbols visible)

03

Black stroller with red handle and arrow indicating motion (no text or symbols)

04

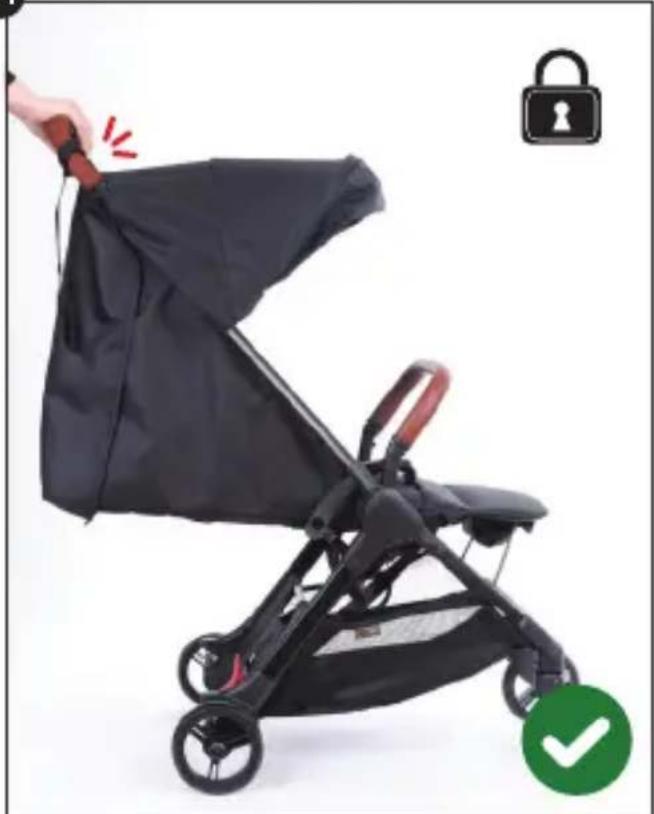

Black stroller with red handle and wide canopy, no visible text or symbols

01

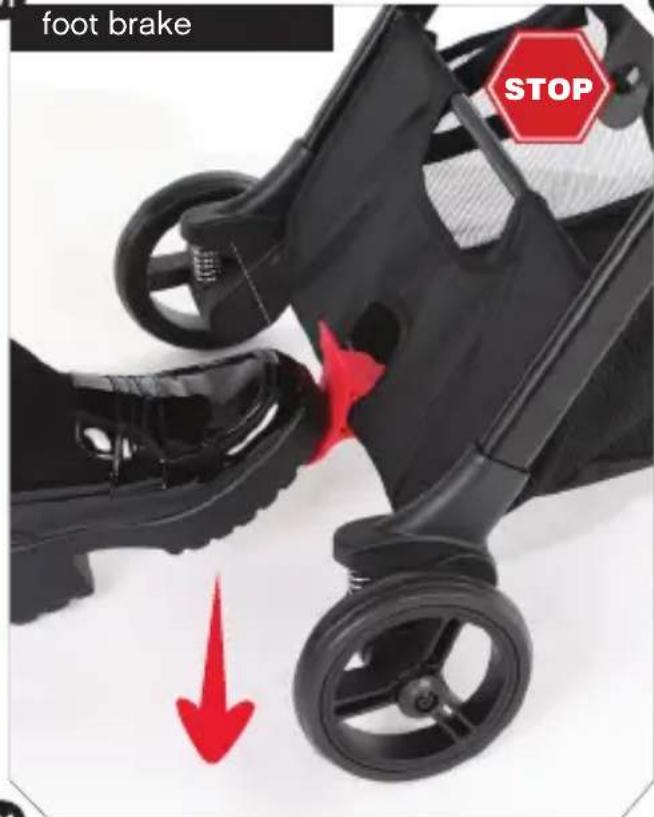

foot brake STOP

02

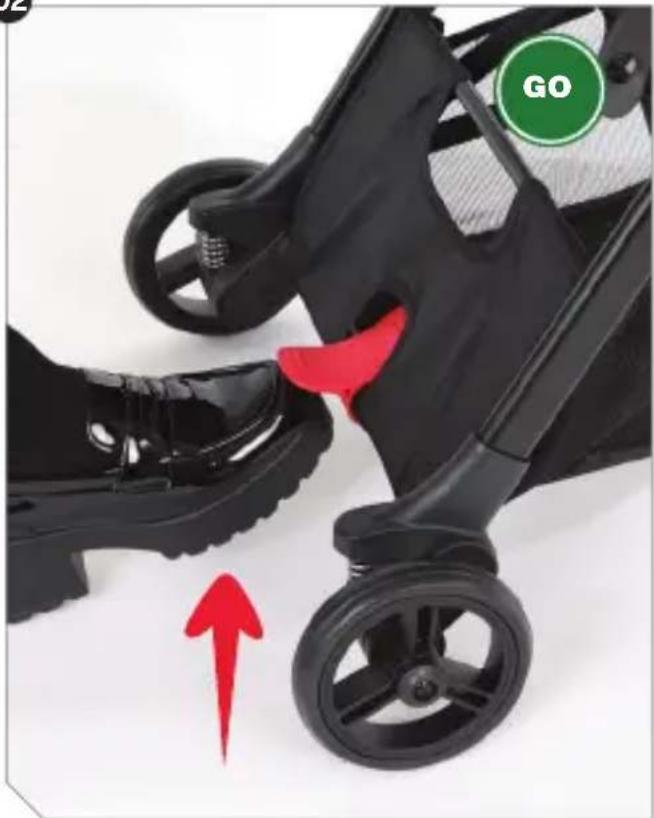

Close-up of a black stroller with red buttons and a green circular 'GO' label, showing wheels and a red upward arrow (no text or symbols on the main subject)

01

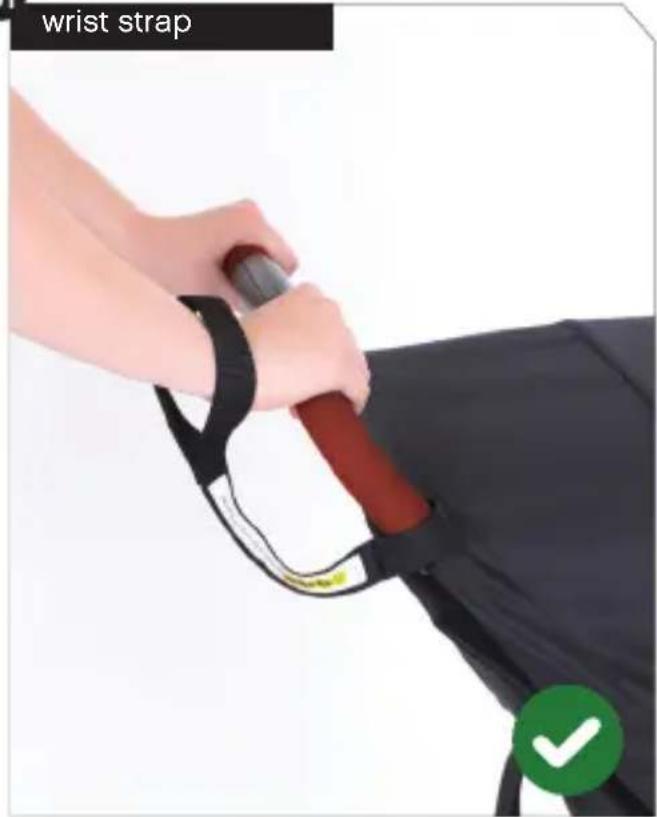

wrist strap

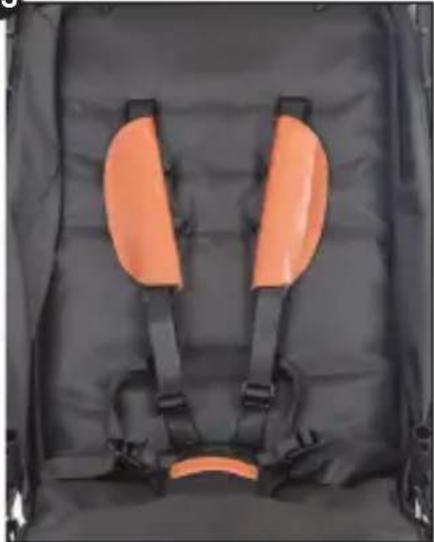

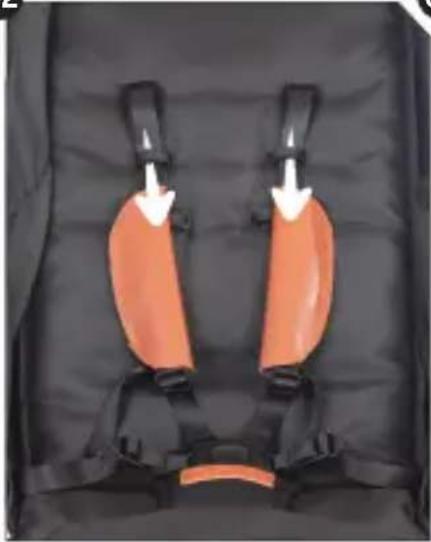

01

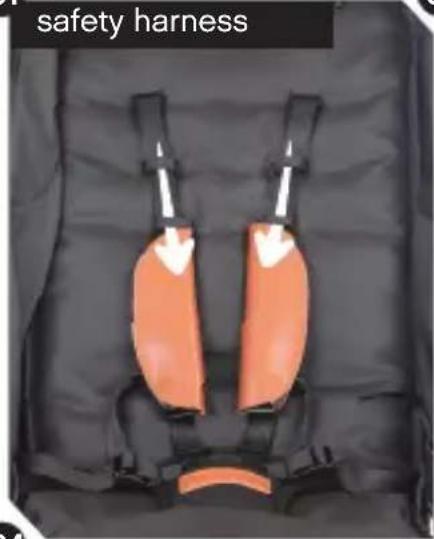

Safety harness component with orange straps and black back cover (no text or symbols visible)

02

Close-up of a car seatbelt with orange seatbelt straps and black straps, no visible text or symbols

03

Back cover of a car seat with orange seatbelt and black straps (no text or symbols visible)

04

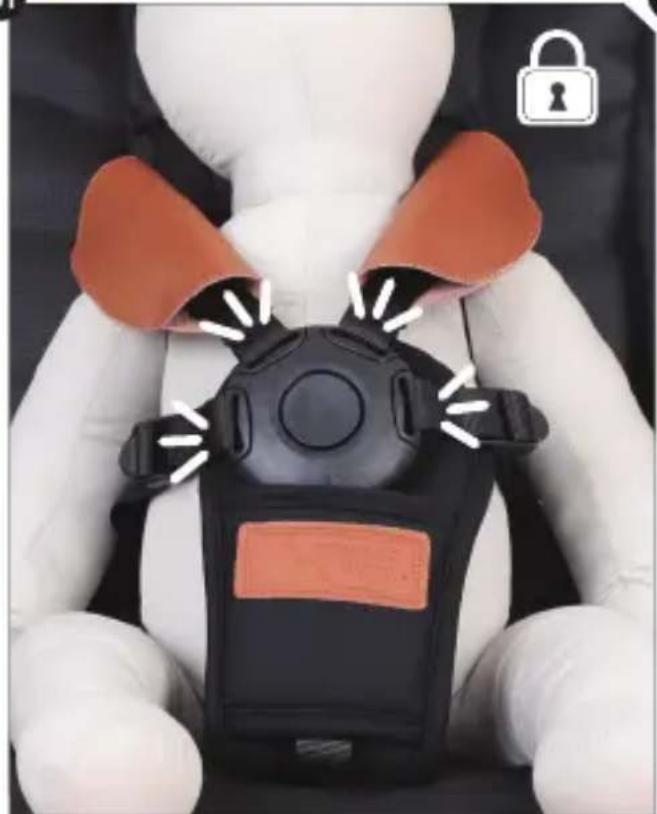

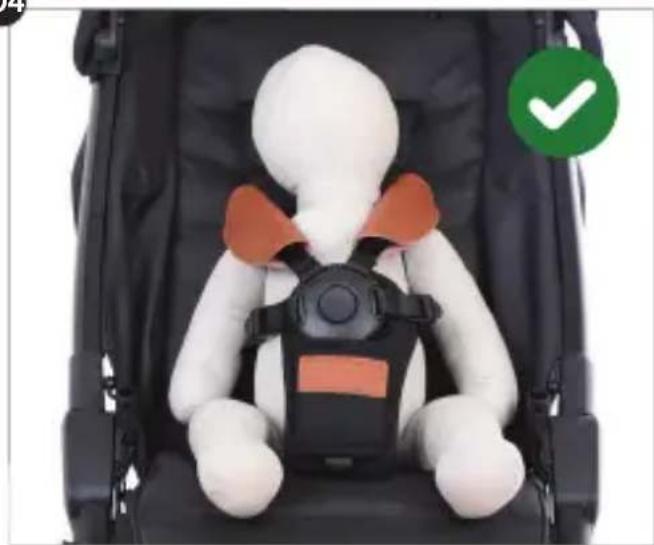

White baby car seat with orange straps and black seatbelt, set in a black chair (no text or symbols visible)

Person wearing a black safety harness and orange ear protection seat, seated in a black chair with a red 'X' symbol (no text or symbols on the device itself)

01

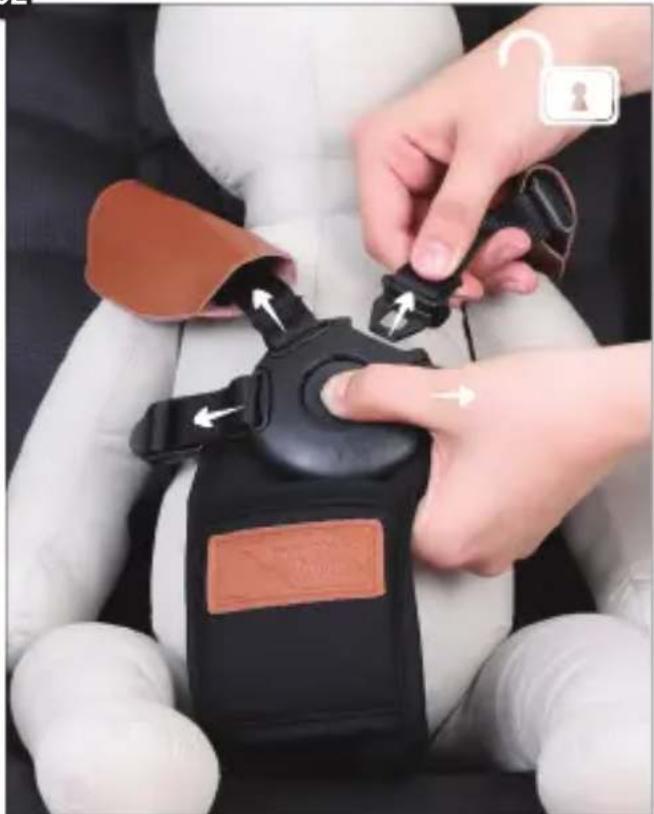

Close-up of hands adjusting a black belt buckle buckle (no text or symbols visible)

02

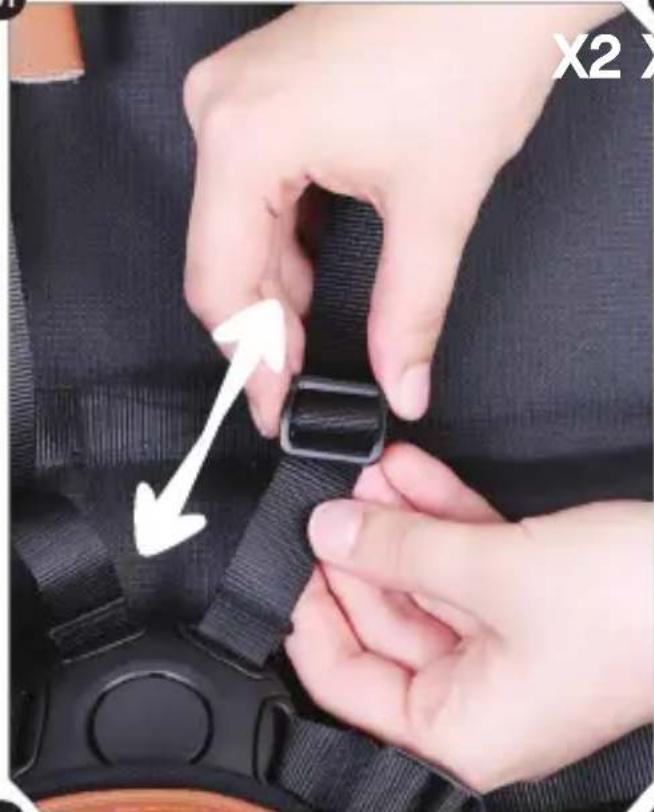

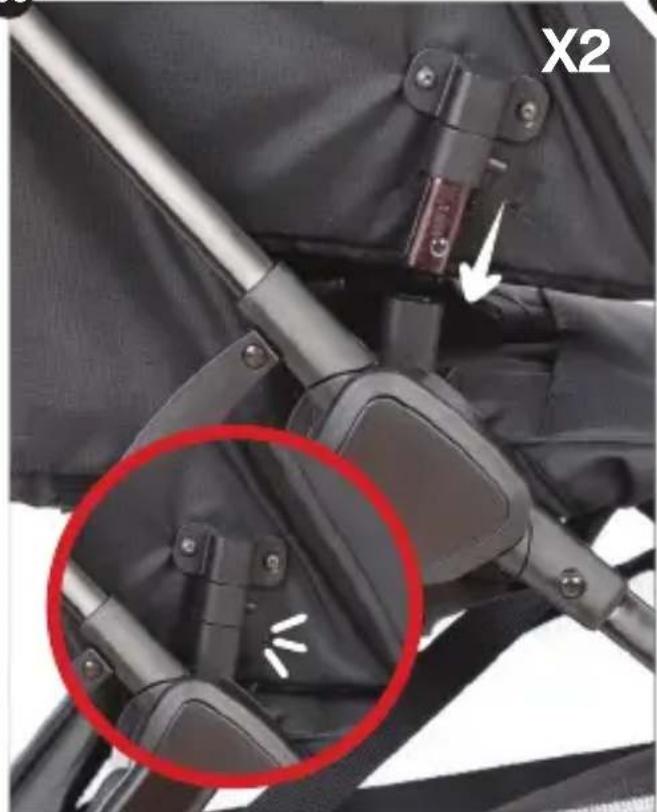

X2 X2

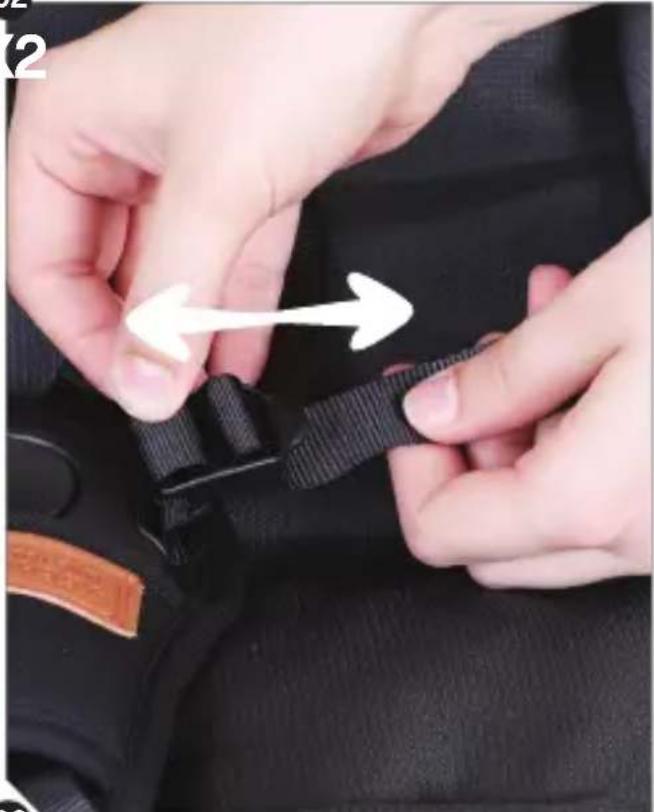

Close-up of hands adjusting a black fabric with a white arrow indicating a step (no text or symbols)

01

Close-up of a white cartoon character wearing a black and orange backpack with a padlock icon above (no text or symbols on the character itself)

02

Close-up of hands adjusting a black and orange medical device with a lock icon (no text or symbols visible)

01

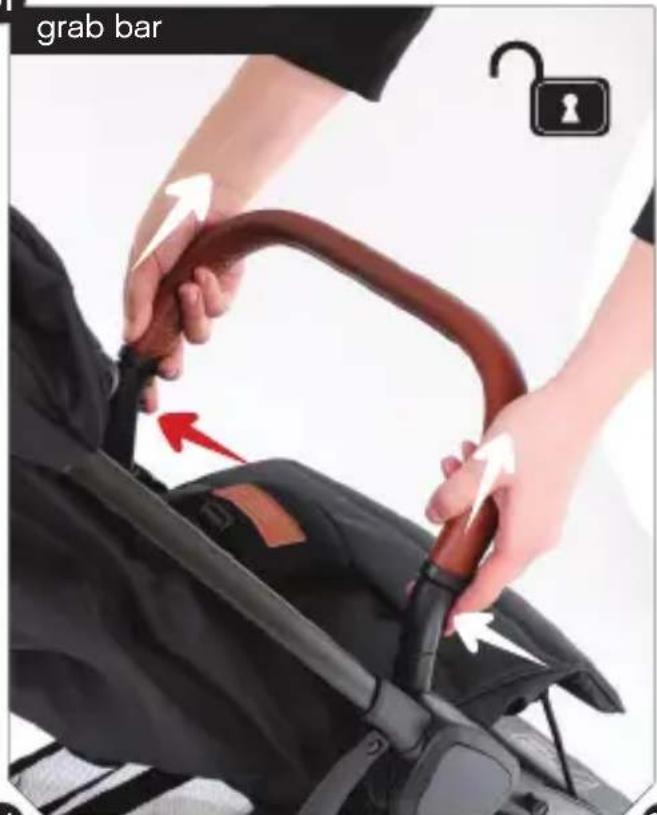

grab bar

01

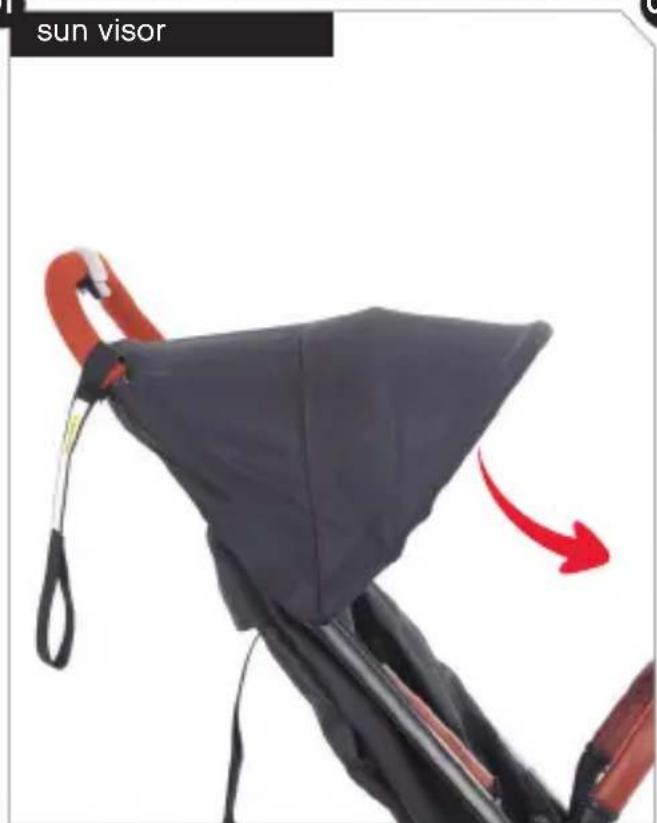

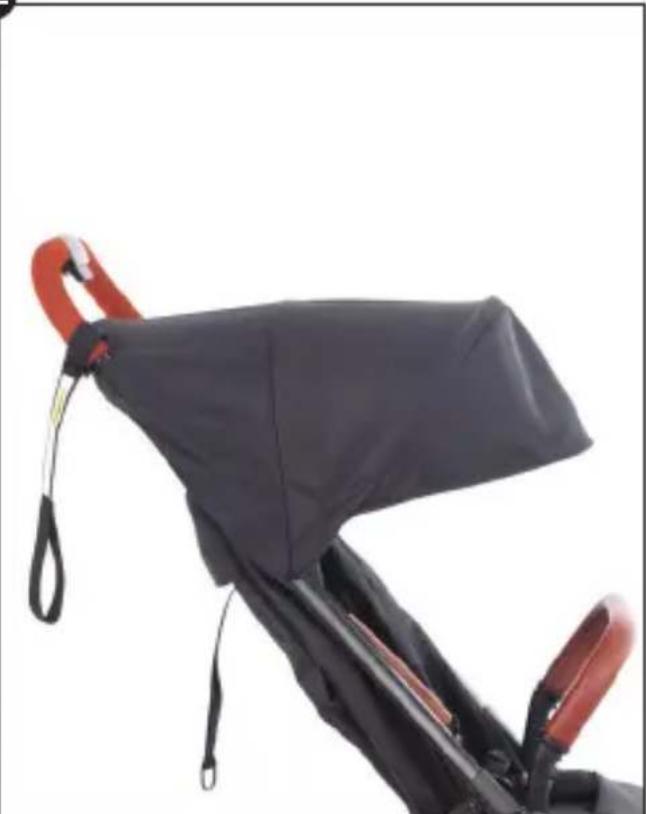

sun visor

02

Close-up of a black athletic backpack with red straps and a white seat cover, no visible text or symbols.

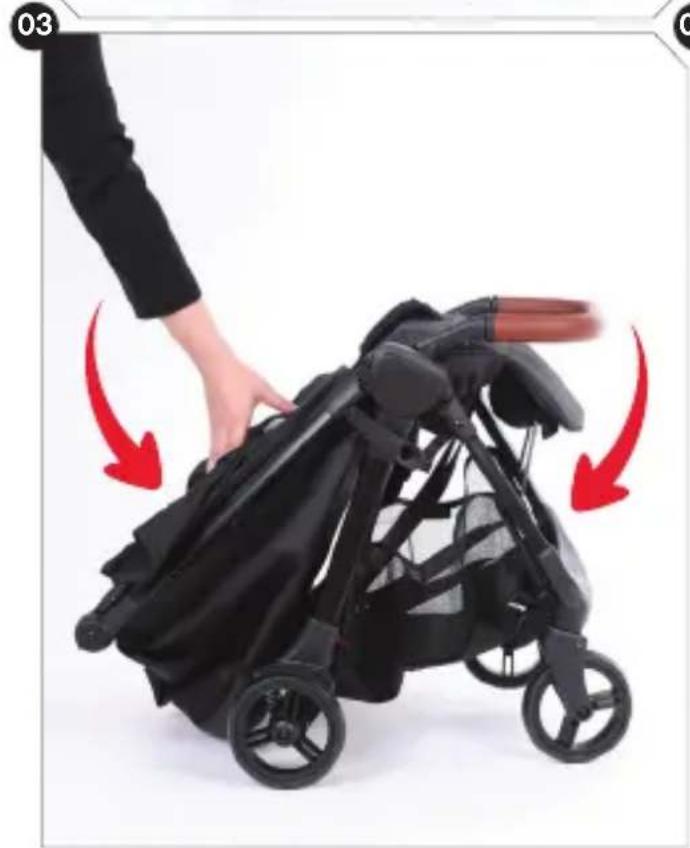

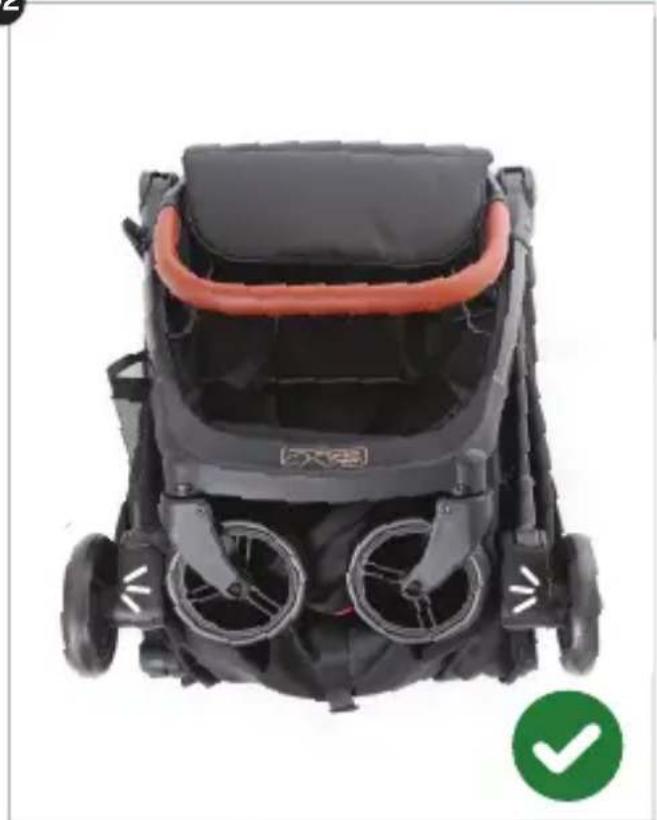

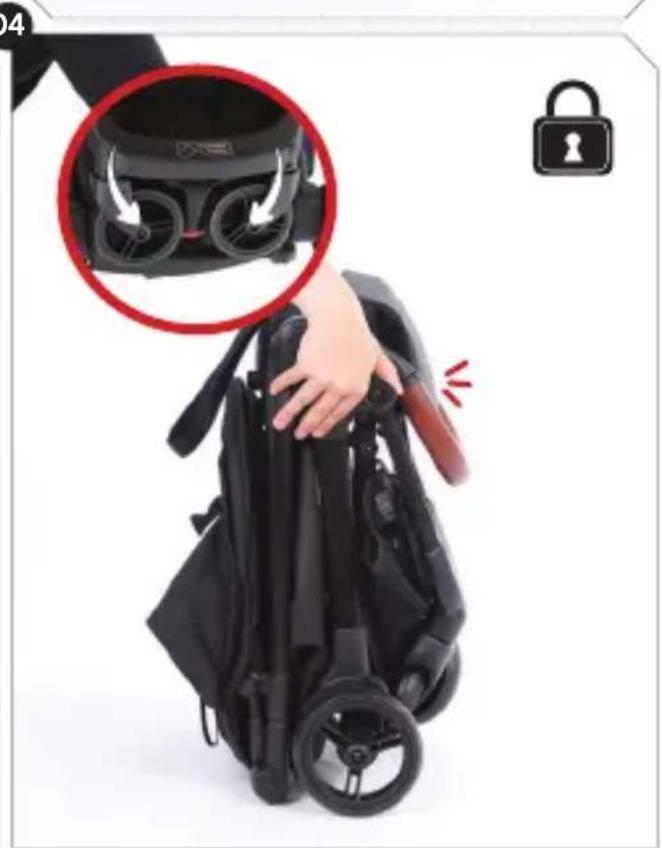

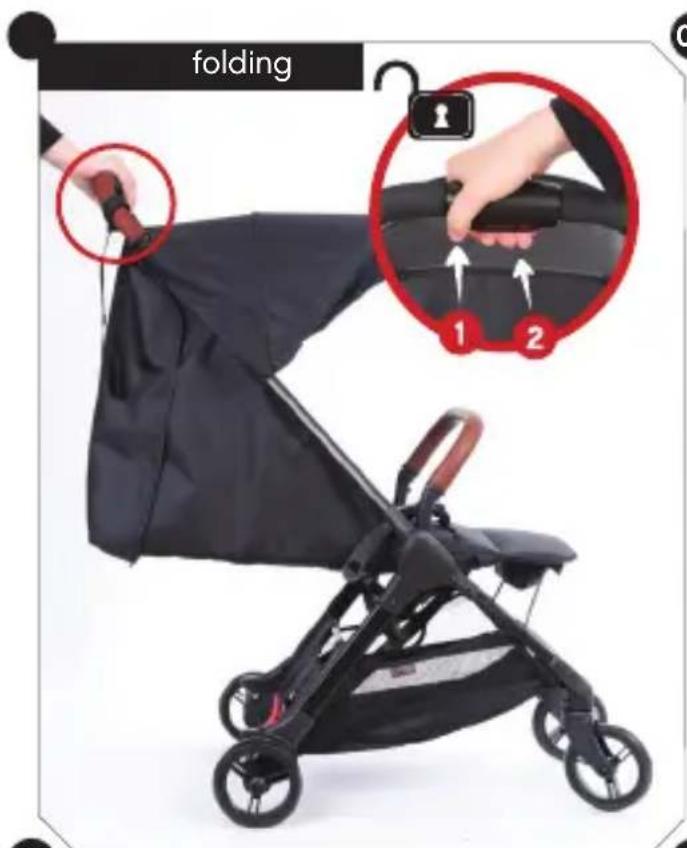

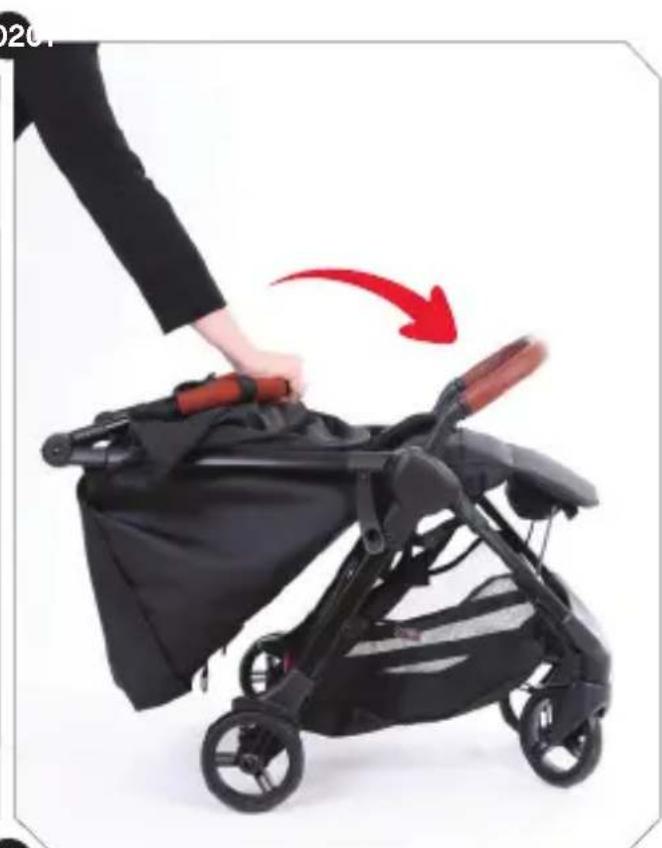

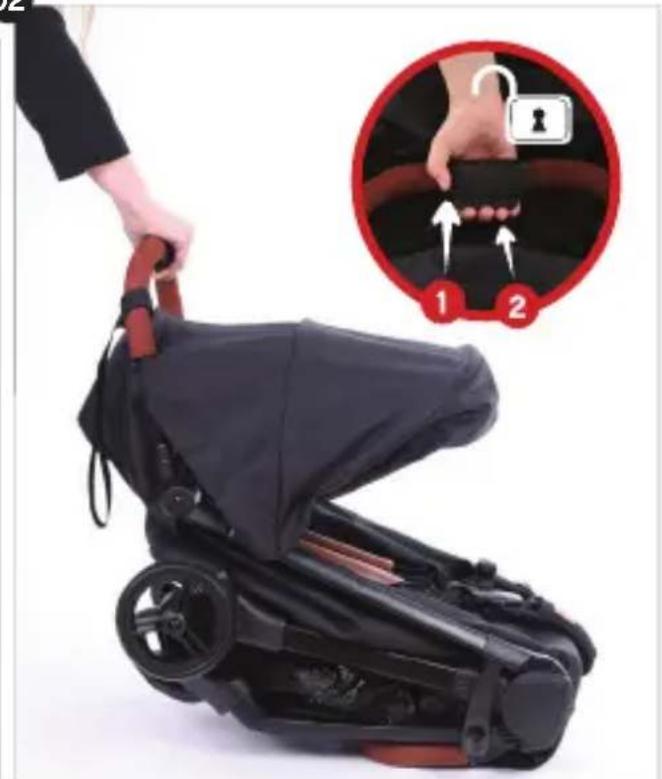

folding 1 2

Person pushing a black stroller with a red arrow indicating motion (no text or symbols visible)

Person assembling a black stroller with red directional arrows indicating motion (no text or symbols)

Person assembling a black stroller with a red-handled tool, showing a close-up of the device's interior (no text or symbols visible)

01

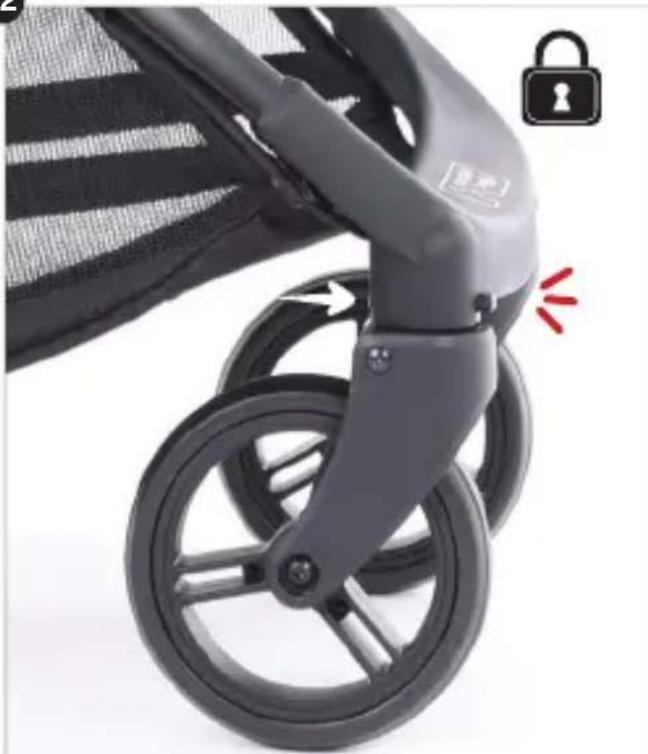

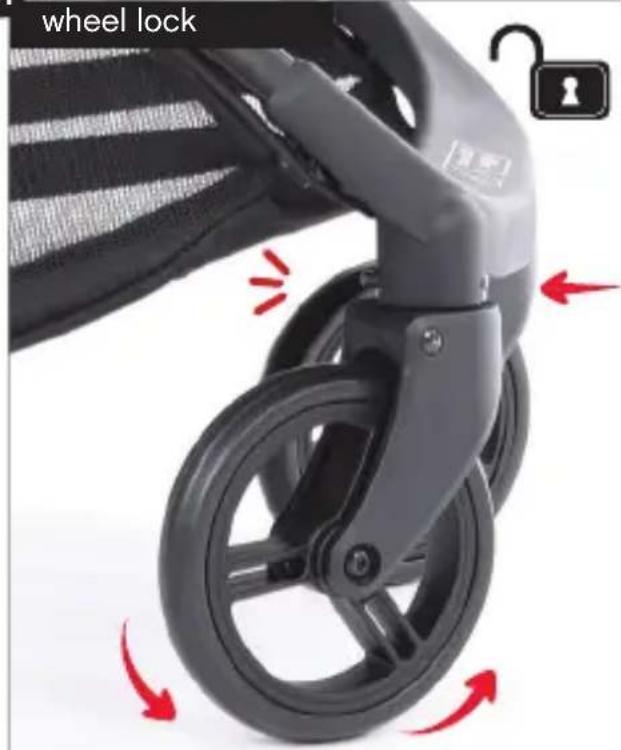

wheel lock

02

Close-up of a stroller with black handle and wheels, no visible text or symbols

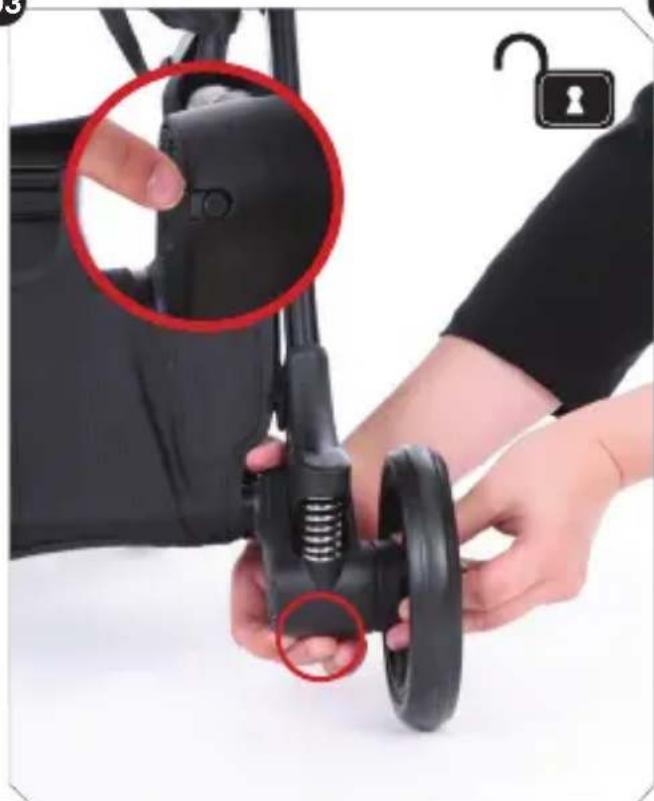

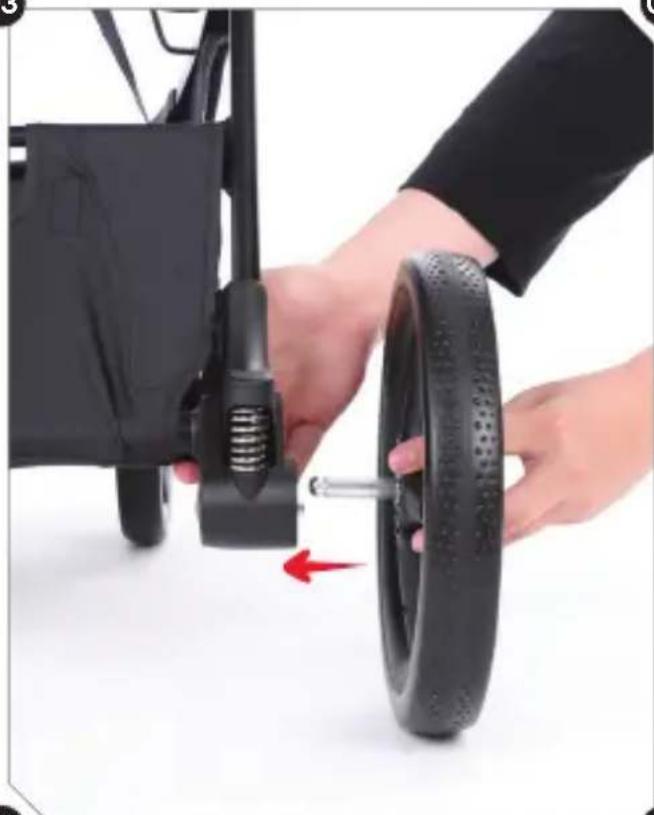

01

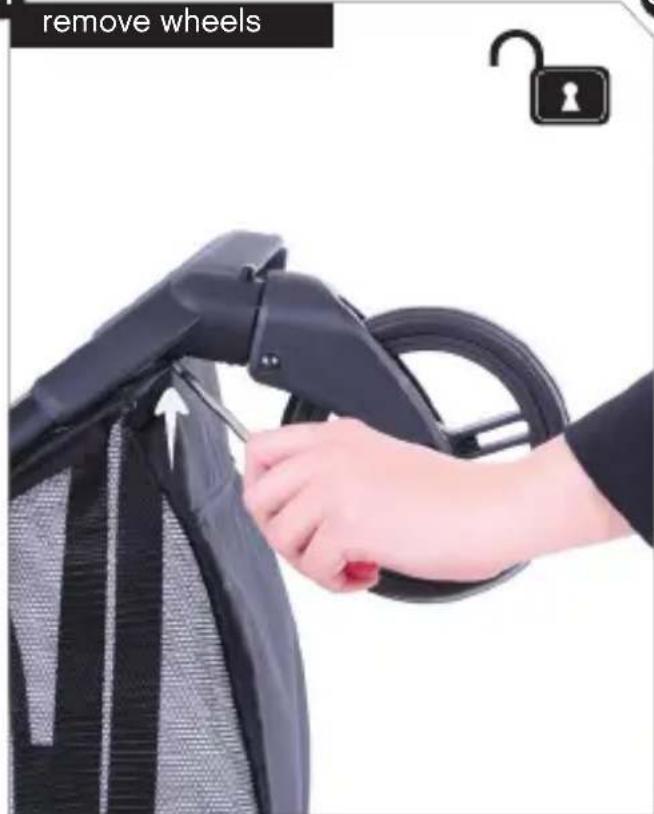

remove wheels

02

Hand holding a black metal chain device with a red arrow indicating motion (no text or symbols visible)

03

Close-up of hands assembling a black stroller with red circular annotations highlighting the component (no text or symbols present)

04

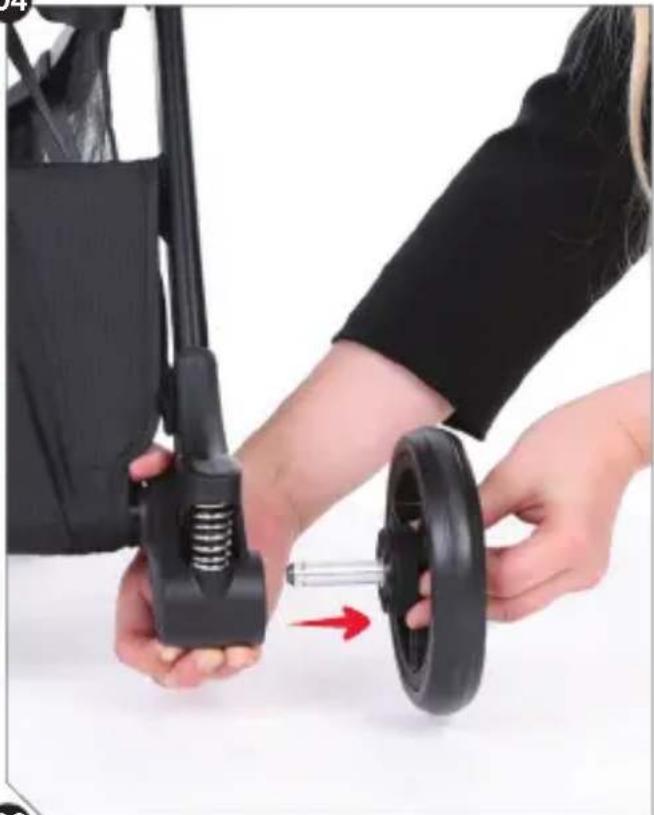

Person assembling a black stroller with a red arrow indicating motion (no text or symbols visible)

01

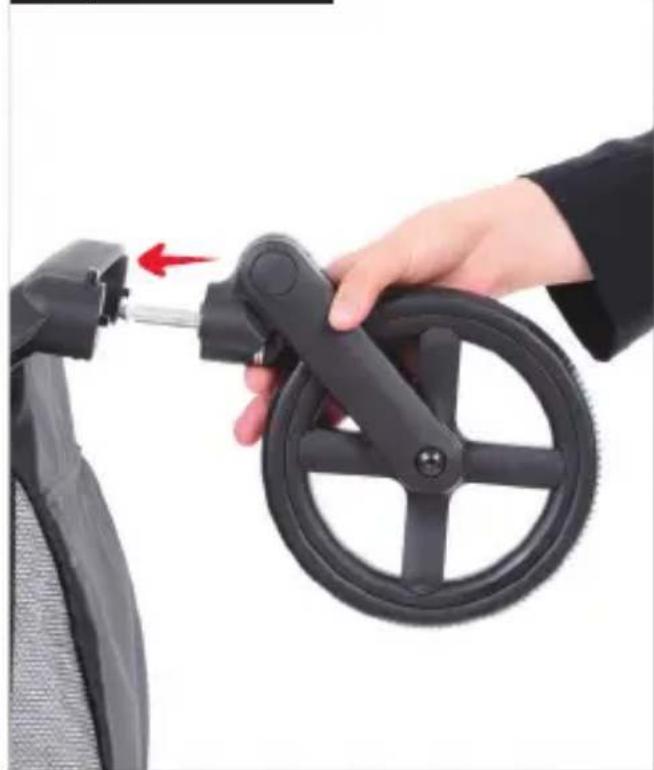

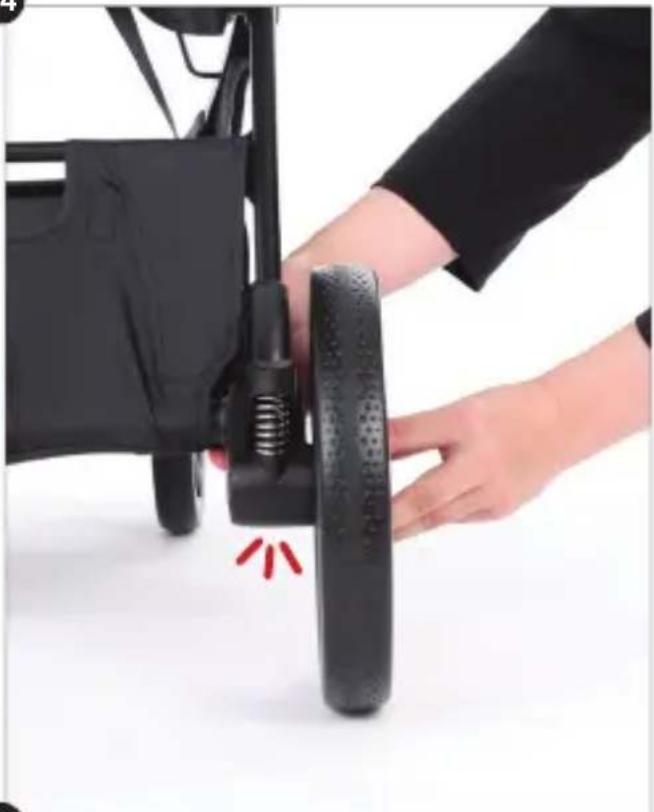

large wheels

Hand holding a black stroller with a red arrow indicating the handle, against a white background (no text or symbols)

02

Close-up of a black children's stroller with visible wheel and handle, no text or symbols present

03

Close-up of hands adjusting a black bicycle tire with a spring and wheel (no text or symbols visible)

04

Close-up of a hand adjusting a black electric scooter wheel, with red screw points indicating the wheel (no text or symbols visible)

05

Black and white stroller with orange handle and green checkmark icon (no text or symbols on body)

01

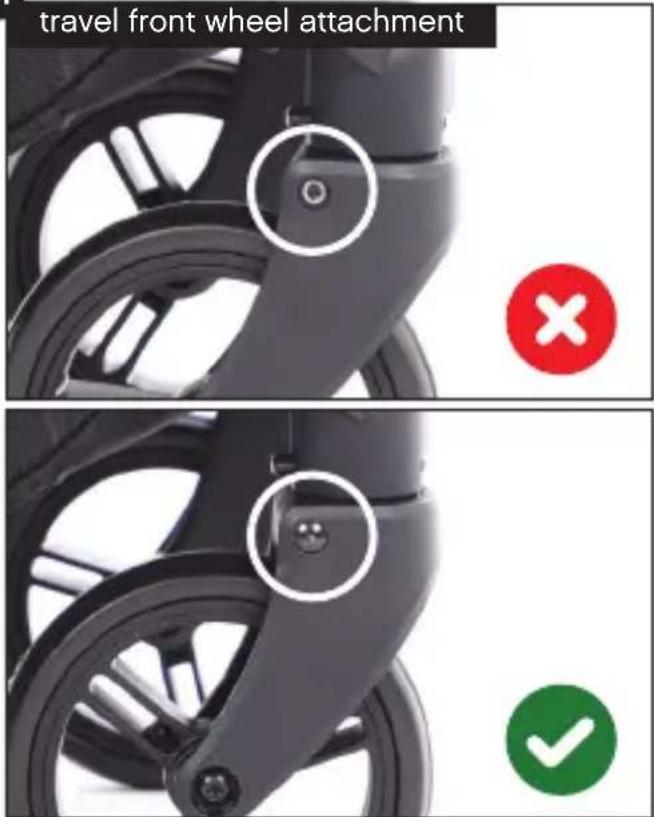

travel front wheel attachment × ✓

01

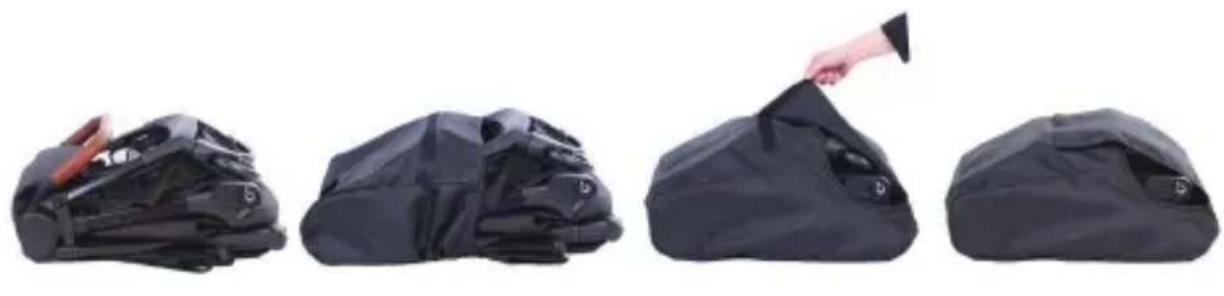

travel bag

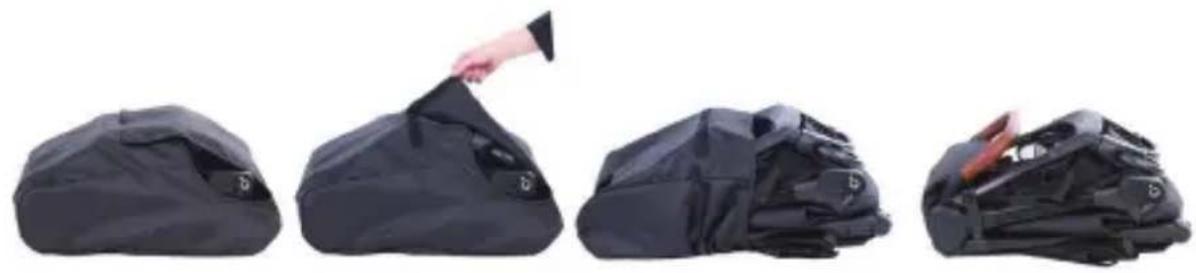

Four black athletic bags with different sizes and designs, arranged in a row (no text or symbols visible)

01

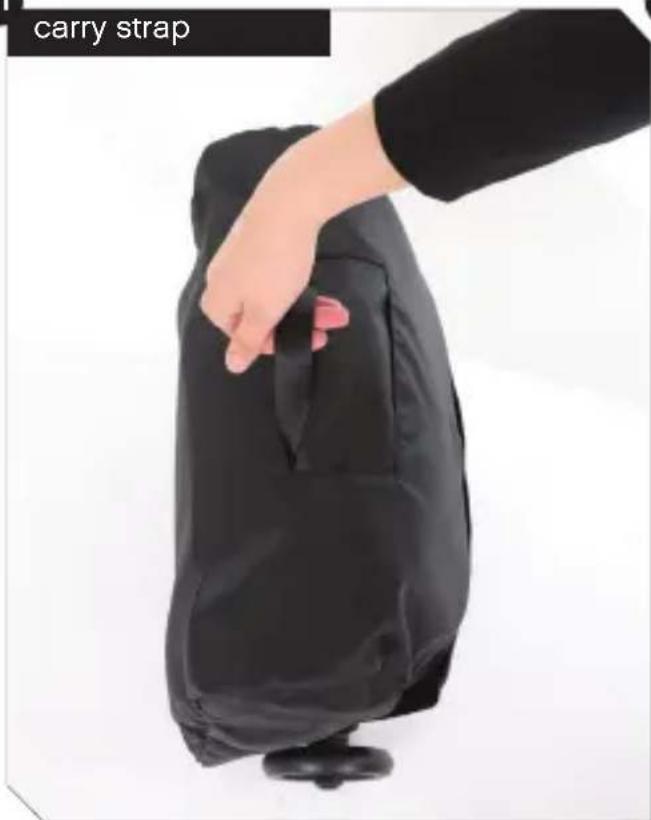

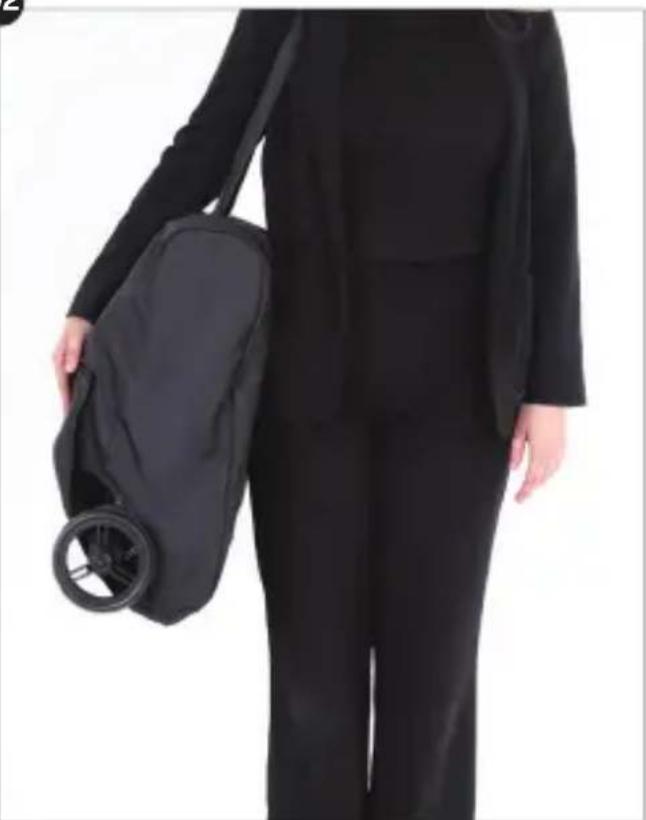

carry strap

carry strap

02

Person in black business suit holding a black bag (no visible text or symbols)

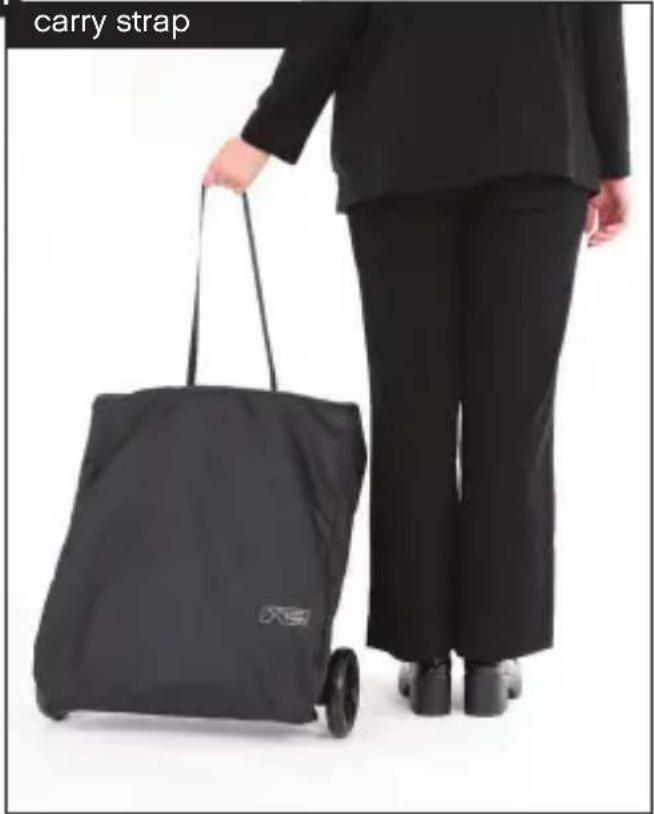

carry strap

Person in black suit carrying a large black tassel with wheels, standing against white background (no text or symbols)

Black and white baby stroller with orange handle, no visible text or symbols

max load

22kg / 48lbs

01

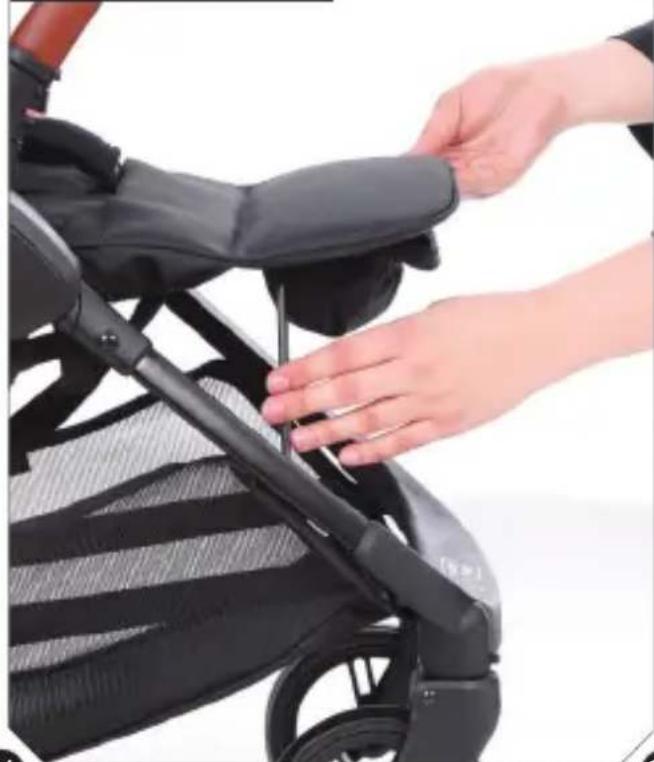

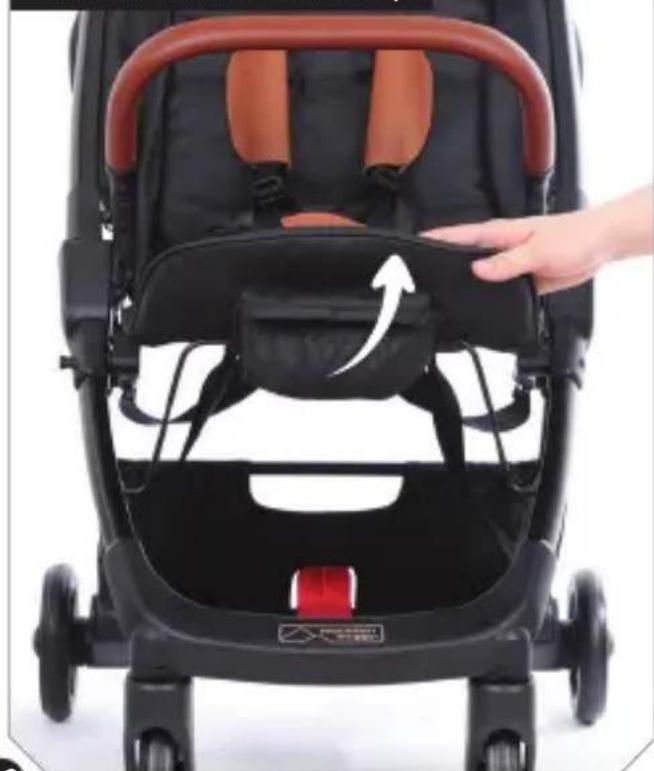

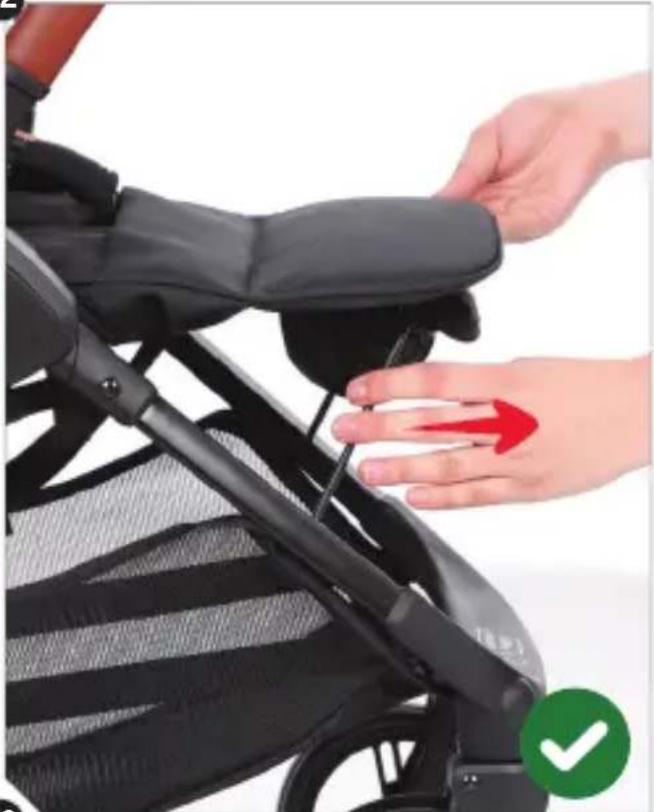

leg rest

Close-up of a person adjusting a black athletic seatbelt, no visible text or symbols

02

Close-up of a hand adjusting the seat of a black stroller, with a red arrow indicating the handle and a green checkmark (no text or symbols on the device itself)

01

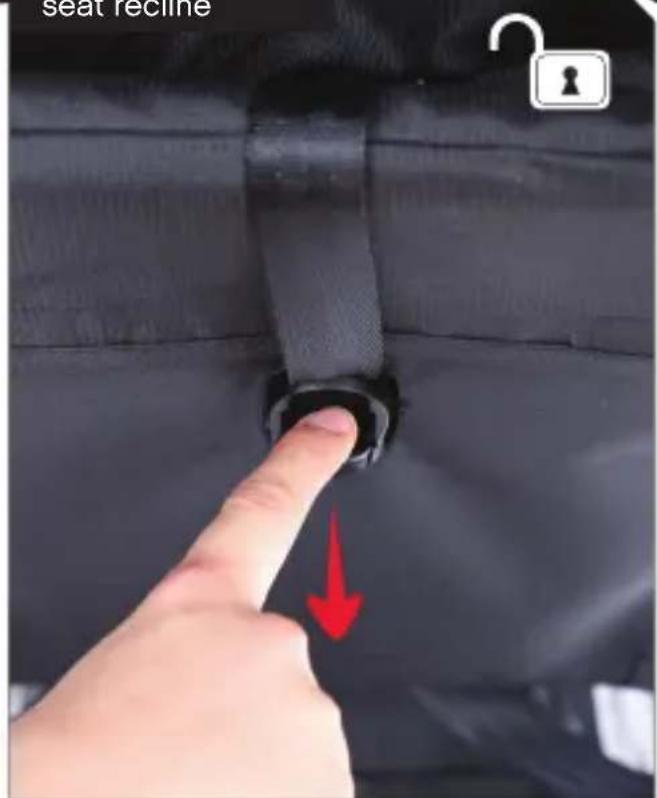

seat recline

seat recline

02

Black stroller with red handle and black canopy, showing a red arrow indicating motion (no text or symbols)

03

Diagram showing how to adjust the backrest of a stroller, with a magnified view highlighting the lock mechanism.

04

Close-up of a hand pressing down on a black athletic bag with a white arrow indicating the fold (no text or symbols visible)

05

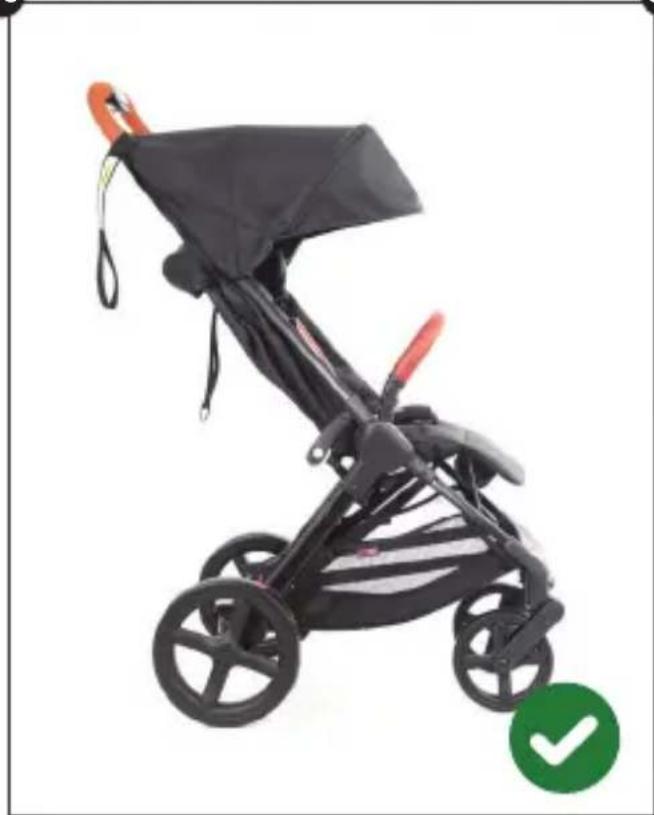

Black and red baby stroller with green checkmark icon (no text or symbols on body)

01

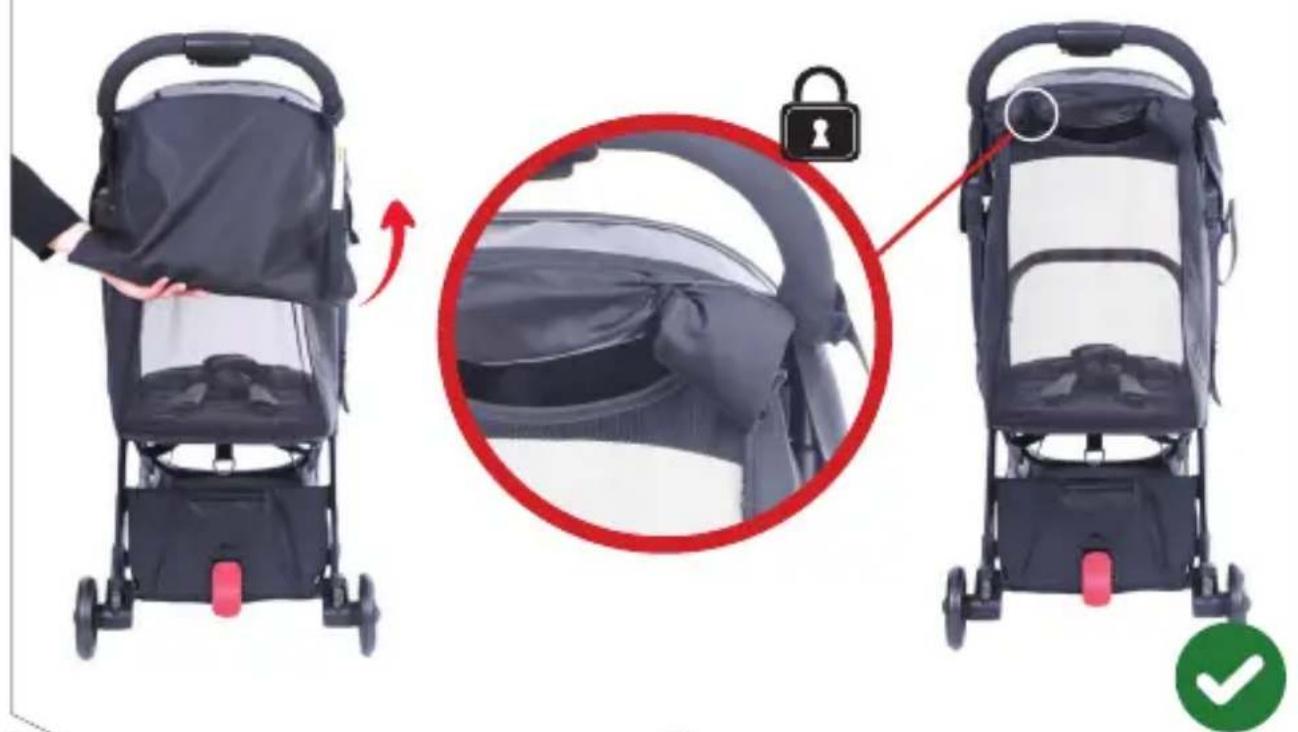

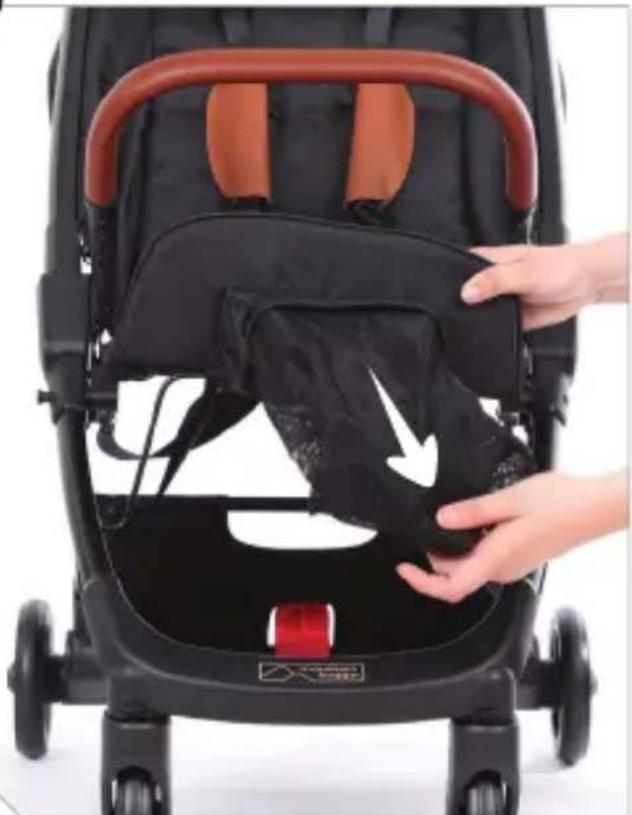

mesh wall (USA/CAN only)

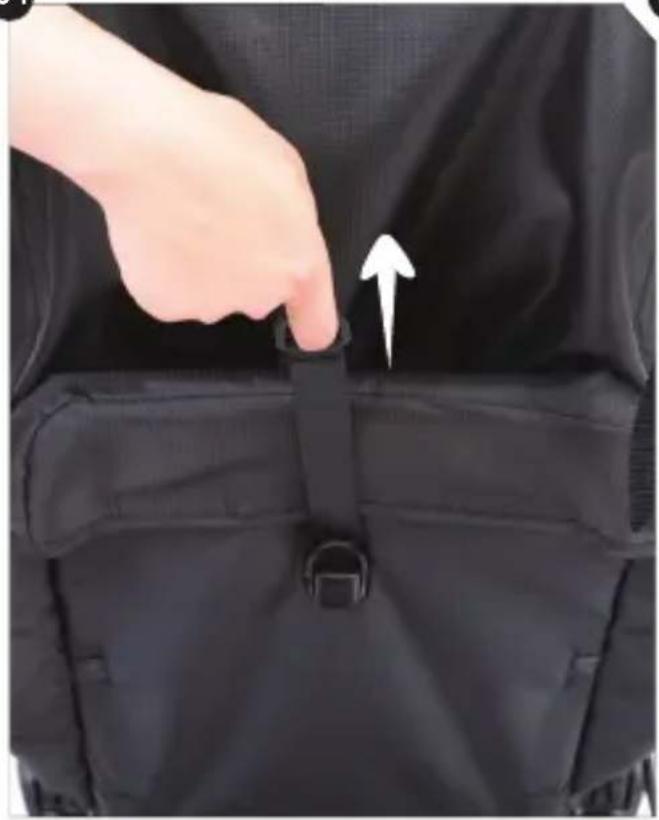

Back view of a black stroller with orange seat and hand adjusting the back panel (no text or symbols visible)

02

Close-up of a baby stroller with hand adjusting the back panel, showing black fabric and white arrow (no text or symbols)

03

Black stroller with red lighting and a green checkmark icon (no text or symbols on the device itself)

Close-up of hands adjusting a black car seatbelt buckle, showing the detail and application (no text or symbols visible)

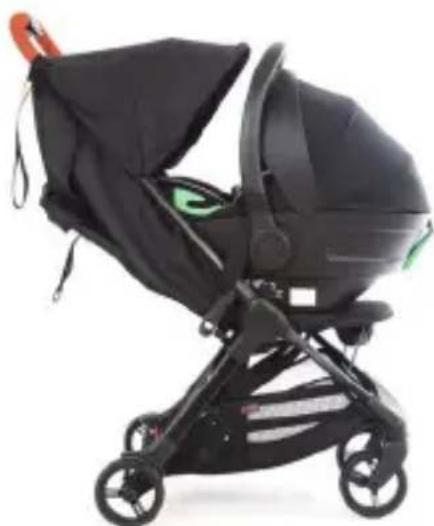

Black and white photo of a children's stroller with twin canopy and green eyes (no text or symbols visible)

max load

13kg / 28lbs

04

Close-up of hands adjusting a black car seatbelt with white arrows indicating fastening (no text or symbols visible)

05

Black and white photo of a baby stroller with a green checkmark on the side (no text or symbols visible)

04

Close-up of a black children's stroller with hands adjusting the seat, showing white arrows indicating movement or change (no text or symbols visible)

05

Close-up of hands adjusting a black car seatbelt buckle, showing white arrows and green accents (no text or symbols visible)

06

Close-up of a hand adjusting a black belt buckle with a white arrow pointing to the buckle (no text or symbols visible)

07

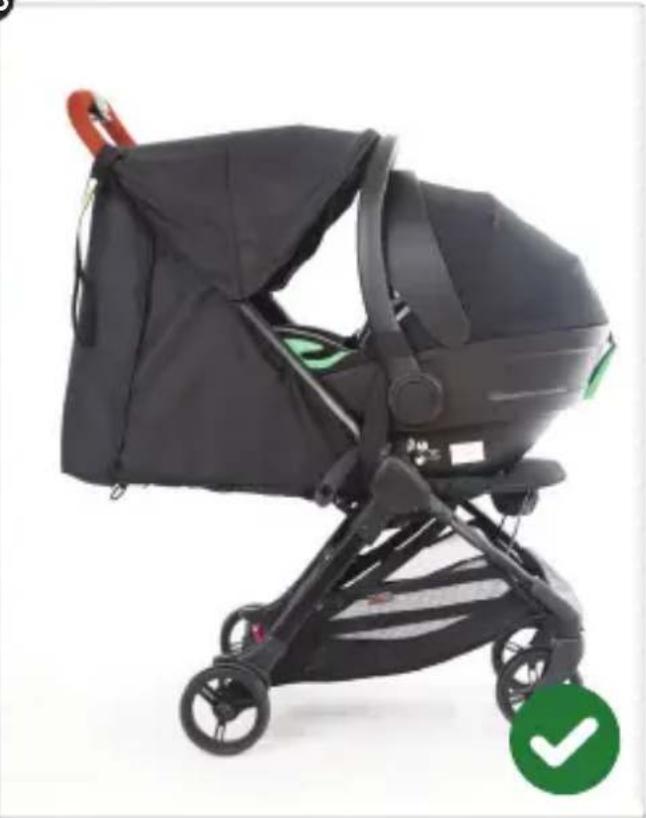

Black and white photo of a baby stroller with green safety goggles, no visible text or symbols

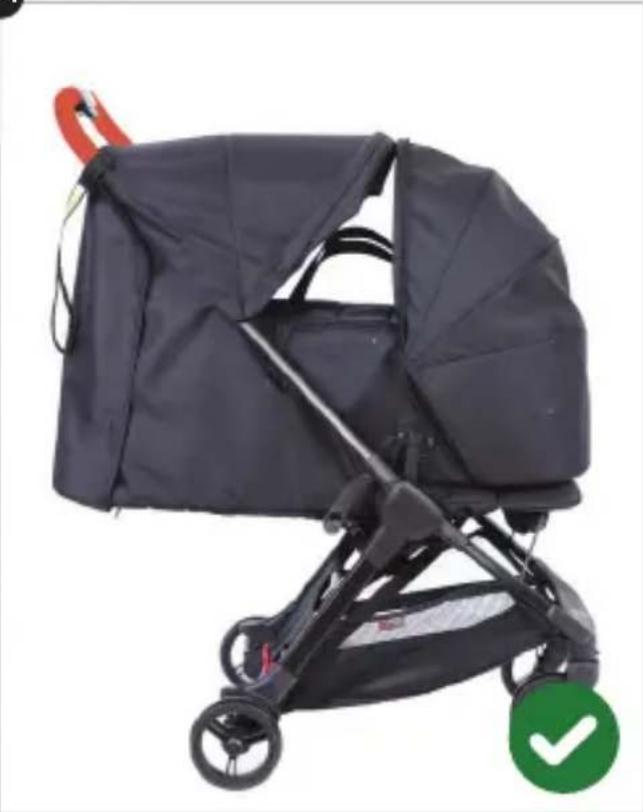

Black and white photo of a two-wheeled stroller with a red handle, no visible text or symbols

cocoon sold separately

max load

9kg / 20lbs

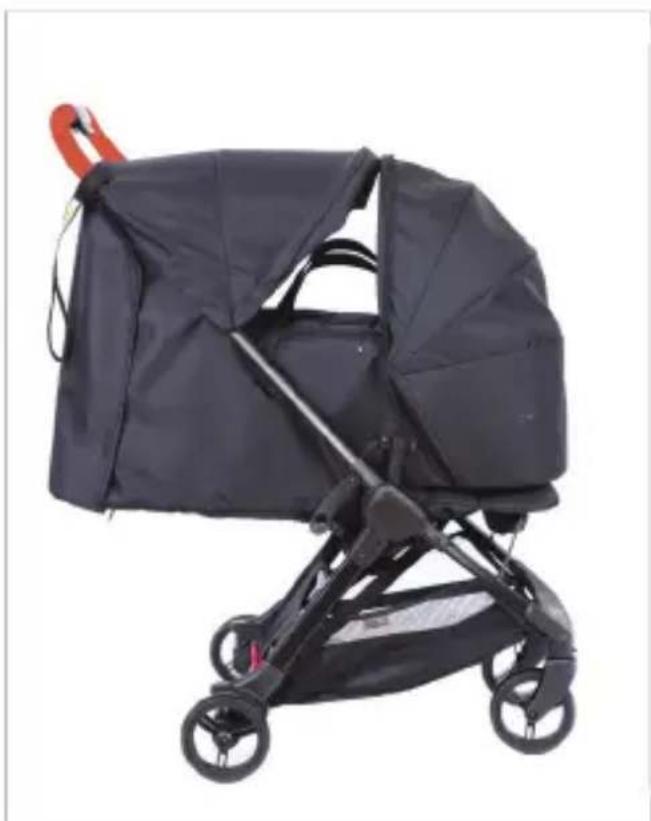

01

Person styling a baby's seat using a coiled cord, with red arrows indicating movement direction (no text or symbols)

02

Person assembling a dark gray stroller with red directional arrows indicating motion (no text or symbols)

03

Close-up of a bicycle seatbelt mechanism with a red circle highlighting the component (no text or symbols visible)

04

Black and white photo of a baby stroller with a red handle, no visible text or symbols

Black and gray baby stroller with orange handle, no visible text or symbols

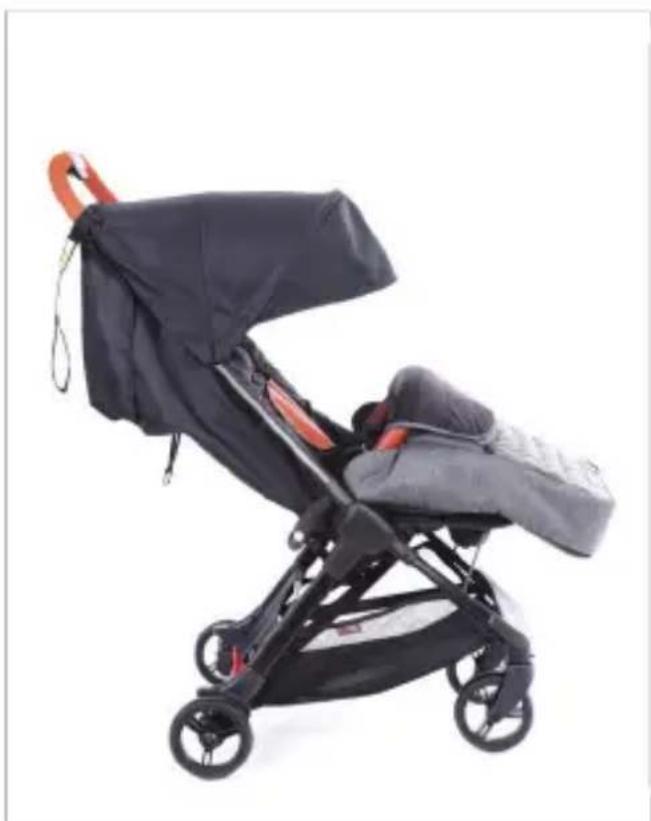

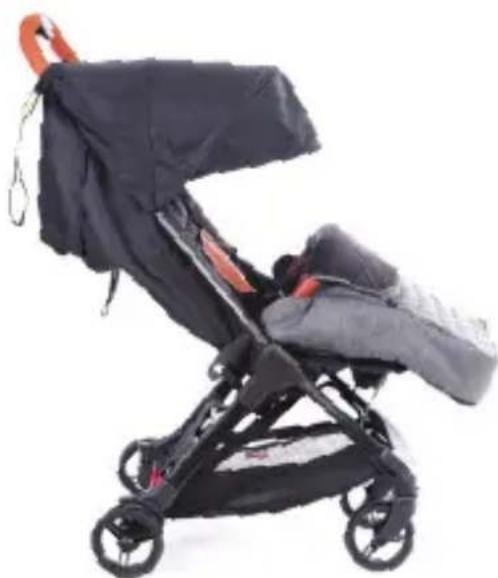

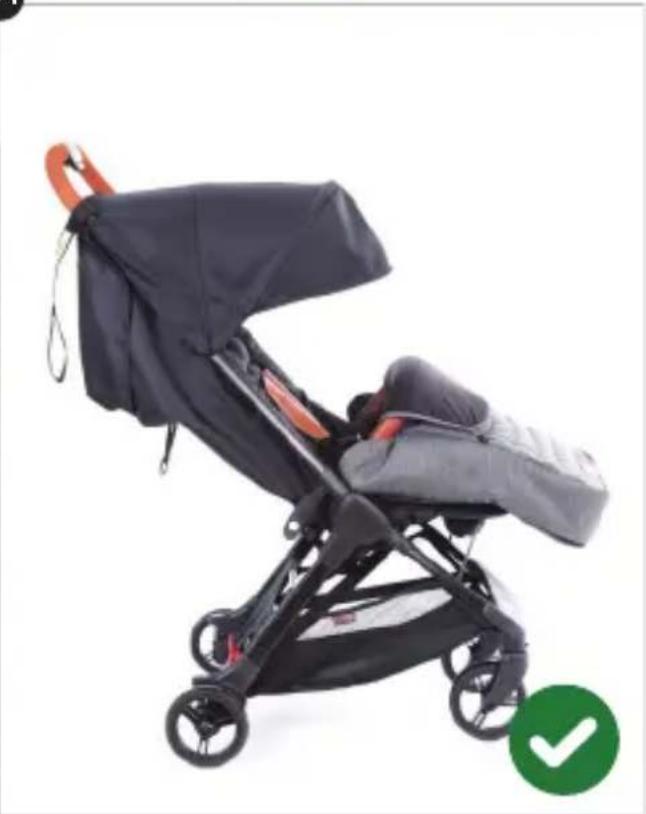

foot muff sold separately

01

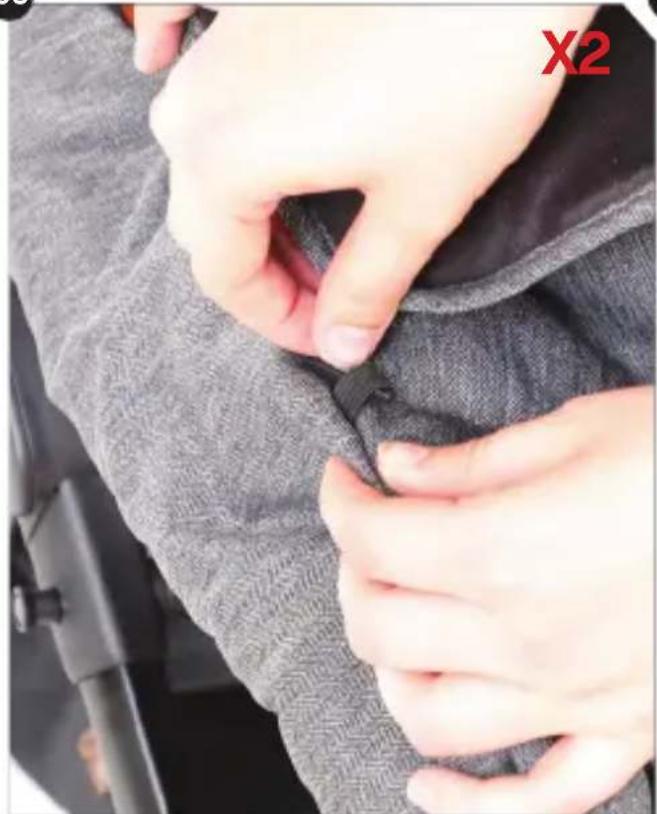

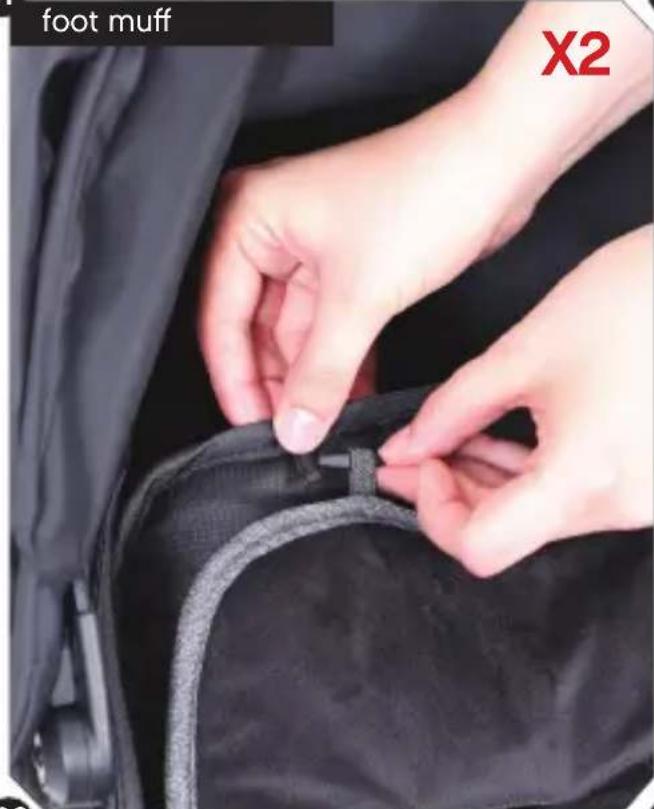

foot muff X2

02

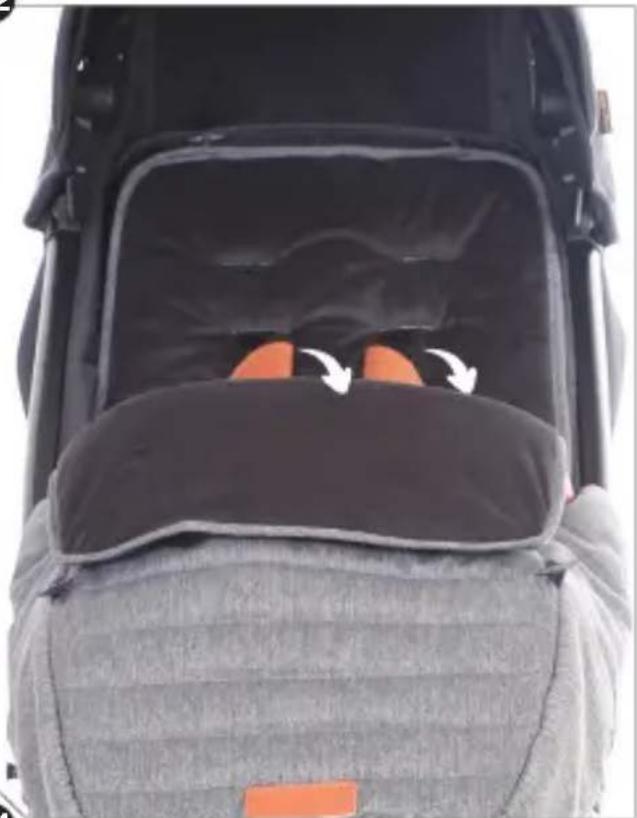

Interior view of a car's backrest with orange buttons and white arrows indicating motion (no text or symbols)

03

Close-up of hands adjusting a dark fabric piece on a gray garment (no visible text or symbols)

04

Model of a baby stroller with orange handle and gray body, no visible text or symbols

WARNINGS

European safety standard states:

• This buggy is suitable for children from birth to 22kg or 4 years, whichever comes first. • It is recommended that the most reclined position be used for newborn babies. • The buggy shall only be used for a maximum of 1 child. • Never leave the child unattended. • Ensure that all the locking devices are engaged before use. • To avoid injury ensure that the child is kept away when unfolding and folding this product. • Do not let the child play with this product. • Always use the restraint system. • Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use. • This product is not suitable for running or skating. • The parking device shall be engaged during the loading and unloading of children. • Any load attached to the handle and/or back of the backrest and/or the sides of the buggy will affect stability of the buggy. • Do not place more than 5kg in the parcel tray. • Do not place more than 1kg in the bottle holder. • Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used. • No additional mattress shall be added unless recommended by the manufacturer. • A car seat used on

this product complies with requirements applicable in market of sale, refer to mountainbuggy.com/certification

a stroller does not replace a cot or a bed. Should your child need to sleep, place them in a suitable pram, cot or bed.

WARNINGS

American safety standard states:

- Never leave your child unattended in the buggy. - Avoid serious injury from falling or sliding out. Always use the safety harness. • Always secure all safety harness straps. • Child may slip into leg openings and strangle. Never use in reclined carriage position unless child is securely restrained. • In the reclined position, the mesh wall (stored under the front seat) must be used. The user must attach the wall to the grab bar using the buckle and hook & loop attachments. • This buggy is intended for children up to a maximum weight of 48lbs. • Parcels or accessory items, or both, placed on the buggy may

cause the buggy to become unstable. • Do not place more than 11lbs in the parcel tray. • Excessive weight may cause a hazardous unstable condition to exist.

WARNINGS

Australia / New Zealand safety standard states: To avoid injury or death:

• Always apply the brakes whenever the buggy is stationary. • Do not leave children unattended. • Secure the child in the harness at all times. • Do not carry extra children or bags on this buggy. • Make sure children are clear of any moving parts if you adjust the buggy. • Use the harness at all times. • When not in use, never leave the harness buckled, as harness can form loops which may pose a strangulation hazard. • It is unsafe

to use accessories other than those approved by the manufacturer. • Do not use this seat with any other models of buggy. • Care should be taken if the buggy is used on stairs or escalators. • The buggy should not be used near an open fire or exposed flame. • This buggy is intended for children up to a maximum weight of 22kg • Do not place more than 5kg in the parcel tray. • Do not place more than 1kg in the bottle holder. • Use the tether strap to stop the buggy rolling away. • The buggy is designed for use on flat or gently sloping surfaces and may be unstable on higher sloping and uneven surfaces, resulting in the possibility of the buggy tipping over. • Due care should be exercised when folding or unfolding the buggy, as there is potential for fingers or body parts to be injured. • When folding the buggy, please check visually that the automatic frame lock is engaged. • The buggy should only be carried or lifted when it is properly folded. Do not carry or lift the buggy by the wheels, the grab bar or the harness – position your hands at the centre of the side frame.

WARNINGS

Canadian safety standard states:

• Maximum weight in the upright main seat is 22kg.
- Do not place more than 5kg in the parcel tray. • The buggy will become unstable if the manufacturer's recommended load is exceeded. • To avoid injuries from finger entrapment, keep child away from this product when unfolding and folding it. • In the reclined position, the mesh wall (stored under the front seat) must be used. The user must attach the wall to the grab bar using the buckle and hook & loop attachments.

Information Importante
