Product Type	Double Stroller
Brand	Mountain Buggy
Model	Duet
Recommended Age	From birth to 6 years
Maximum weight (main seat)	18 kg (40 lbs)
Maximum weight (newborn position)	9 kg (20 lbs)
Maximum basket weight	5 kg (11 lbs)
Number of seats	2
Recommended tire pressure	20-22 psi (max)
Tire dimensions	2" x 12"
Brake type	Foot brake with lubricatable metal rod
Restraint system	5-point harness with crotch strap
Safety wrist strap	Included (to wrap around wrist)
Not recommended for	Running, rollerblading, escalators
Frame maintenance	Brush and rinse with clean water, dry
Fabric cleaning	Damp sponge + mild soap, no detergent or bleach
Recommended lubrication	Brake rod: lubricant or cooking oil
Spare parts available	Tires, inner tubes, repair kits
Warranty	Registration required at www.mountainbuggy.com/register
Country of design	New Zealand
Country of manufacture	China

Frequently Asked Questions - Duet Mountain Buggy

What is the maximum weight supported by the Duet stroller?

The maximum weight is 18 kg (40 lbs) for the main seat in upright position, and 9 kg (20 lbs) in newborn position. The basket supports up to 5 kg (11 lbs).

How to maintain the stroller tires?

Tires should be inflated to a maximum of 20-22 psi (valve identical to a car tire). In case of a puncture, use a standard inner tube (2" x 12") or a repair kit. Do not overinflate.

Can I use the stroller for jogging?

No, this stroller is not designed for running or rollerblading. It is intended for normal walking use.

How to clean the stroller fabrics?

Use a damp sponge with mild soap and warm water. Never use detergents or bleach. Air dry.

Is the harness mandatory?

Yes, always fasten the harness (waist and crotch strap) as soon as the child can sit up alone. This prevents falls or slipping.

How to lubricate the brake?

Apply lubricant or cooking oil generously to the metal brake rod for optimal operation.

What accessories are compatible?

Use only accessories approved by Mountain Buggy. Do not hang any bags on the frame, use only the provided storage basket.

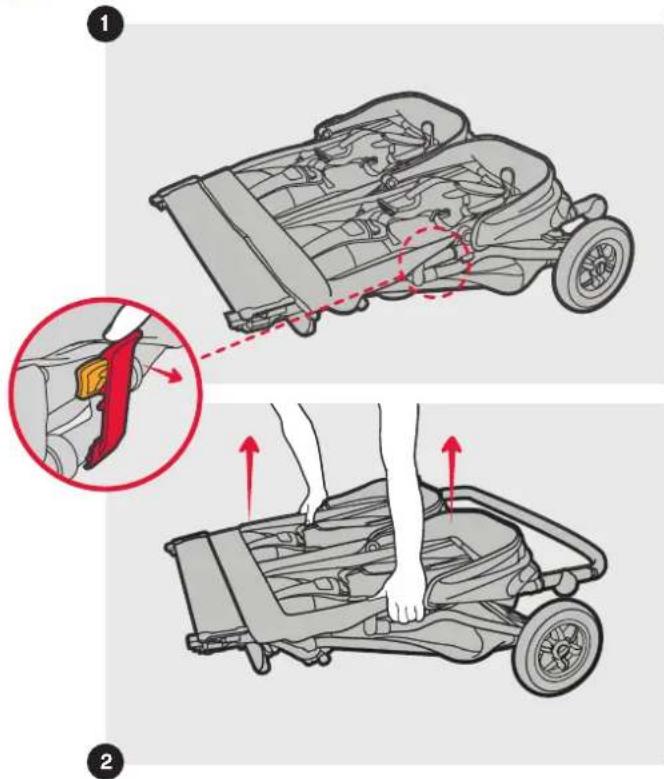

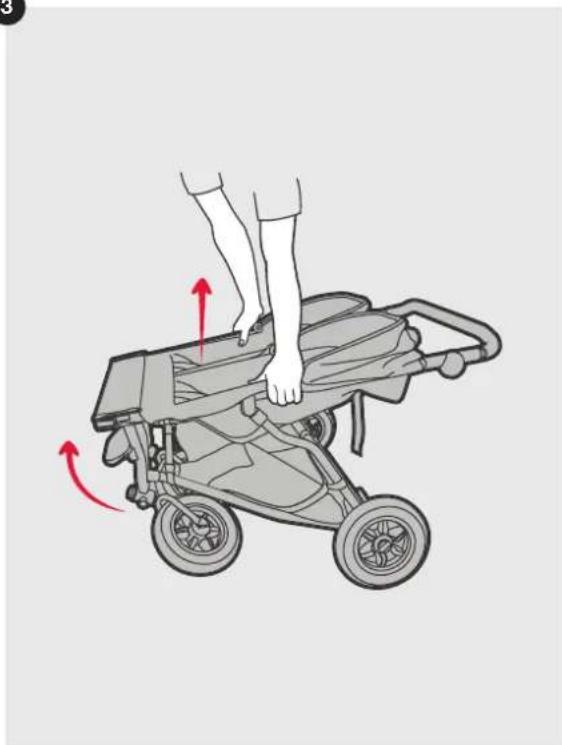

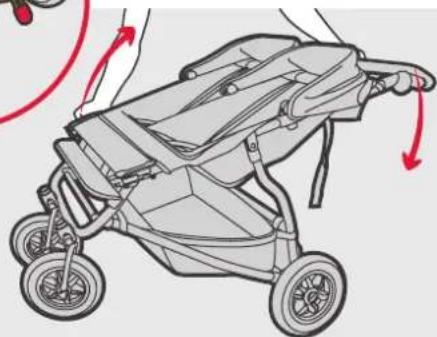

How to fold and unfold the stroller?

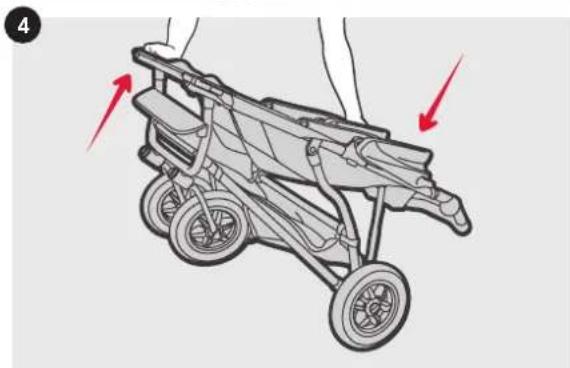

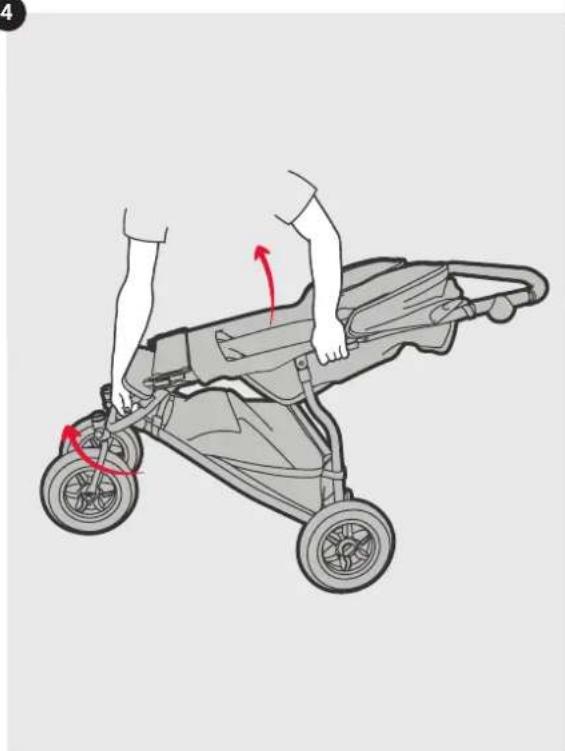

Refer to the manual for detailed steps. Be careful not to pinch your fingers when folding/unfolding. Ensure all locking mechanisms are properly engaged.

Can I add an extra mattress?

No, do not add a mattress thicker than 20 mm to avoid any risk of suffocation or imbalance.

What to do if the stroller seems unstable?

Check that you are not exceeding the maximum loads (seat 18 kg, basket 5 kg). Do not hang anything on the handlebar. If the problem persists, contact Mountain Buggy support.

USER MANUAL Duet Mountain Buggy

INSTRUCTIONS - INSTRUCTIES - INSTRUCCIONES - GERBRAUCH SANWEISUNG - INSTRUKSIONER - INSTRUKTIONER FOR YOUR CHILD'S SAFETY READ THESE INSTRUCTIONS CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

mountain buggy®

duo ^TM

duet™

philandteds.com

Congratulations on choosing the mountain buggy duo™ / duet™!

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

Configurations / Konfigurationen / Configuraciones / Configuratives

Features / Caract risiques / Produkteigenschaften / Caracter sticas / Kenmerken

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

DUO™ / DUET™

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

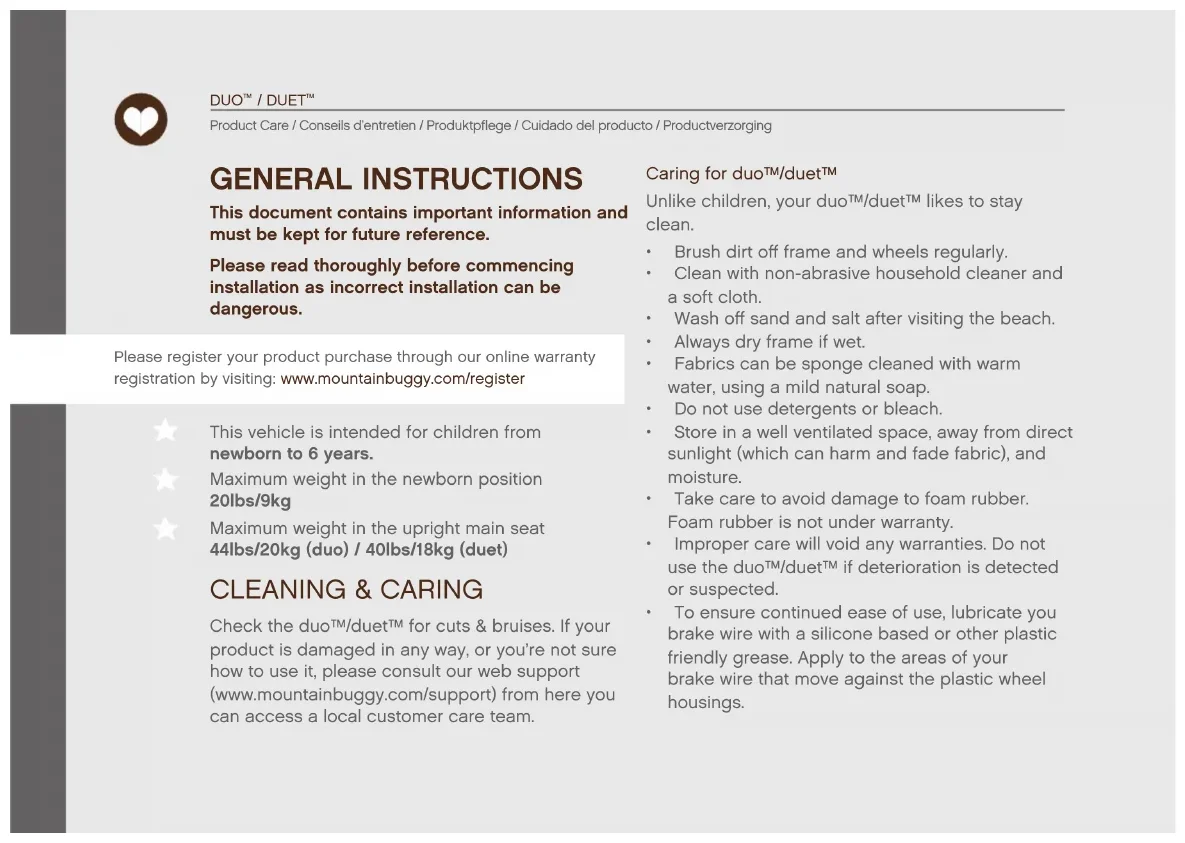

GENERAL INSTRUCTIONS

This document contains important information and must be kept for future reference.

Please read thoroughly before commencing installation as incorrect installation can be dangerous.

Please register your product purchase through our online warranty registration by visiting: www.mountainbuggy.com/register

This vehicle is intended for children from newborn to 6 years.

Maximum weight in the newborn position 20lbs/9kg

Maximum weight in the upright main seat 44lbs/20kg (duo) / 40lbs/18kg (duet)

CLEANING & CARING

Check the duo™/duet™ for cuts & bruises. If your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.mountainbuggy.com/support) from here you can access a local customer care team.

Caring for duo™/duet™

Unlike children, your duo™/duet™ likes to stay clean.

• Brush dirt off frame and wheels regularly.
- Clean with non-abrasive household cleaner and a soft cloth.
- Wash off sand and salt after visiting the beach.
• Always dry frame if wet.
- Fabrics can be sponge cleaned with warm water, using a mild natural soap.
- Do not use detergents or bleach.
- Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
• Take care to avoid damage to foam rubber. Foam rubber is not under warranty.
- Improper care will void any warranties. Do not use the duo™/duet™ if deterioration is detected or suspected.
- To ensure continued ease of use, lubricate you brake wire with a silicone based or other plastic friendly grease. Apply to the areas of your brake wire that move against the plastic wheel housings.

IMPORTANT IMPORTANT

• Always load/unload your children on level ground.
- Ensure the brake is engaged during the loading and unloading of children.
- Care should be taken if the stroller is used on stairs or escalators.
• Always use the safety strap.
- Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for:
Fraying - especially webbing straps and safety harness.
Wear - locks, snap fasteners, tyres, plastic and moving parts.
Safety - locks must not be loose.

Tyres & Tubes

• The valve is car-size. Manually inflate to 20 – 22psi max. Releasing air gives a softer ride but lower pressure reduces tread life.
• New inner tubes and tyres are generally available (21/4" x 121/2" tyre) from your dealer, cycle or specialist wheel shops. Standard tyre kits can repair punctures.
• A flat tyre can result from grit holding the valve open; to check: inflate tyre, deflate rapidly, and re-inflate.
• Tyres and tubes are not under warranty. Do not over inflate. Tyre pressure is affected by heat especially when inside parked cars.

For rights & remedies, refer www.mountainbuggy.com/warranty

DUO™ / DUET™

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

This product complies with requirements applicable in market of sale, refer www.mountainbuggy.com/certification

WARNINGS

To avoid injury:

- Only use with mountain buggy duo™/duet™ accessories.

WARNINGS

European Safety Standard states:

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

- This vehicle is intended for children from newborn up to 6 years and up to a maximum weight of 20kg/44lbs (duo) / 18kg/40lbs (duet).

• It may be dangerous to leave your child unattended.
  • The buggy shall only be used for a maximum of 2 children.
• Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used.
  • Any load attached to the handle affects the stability of the stroller.

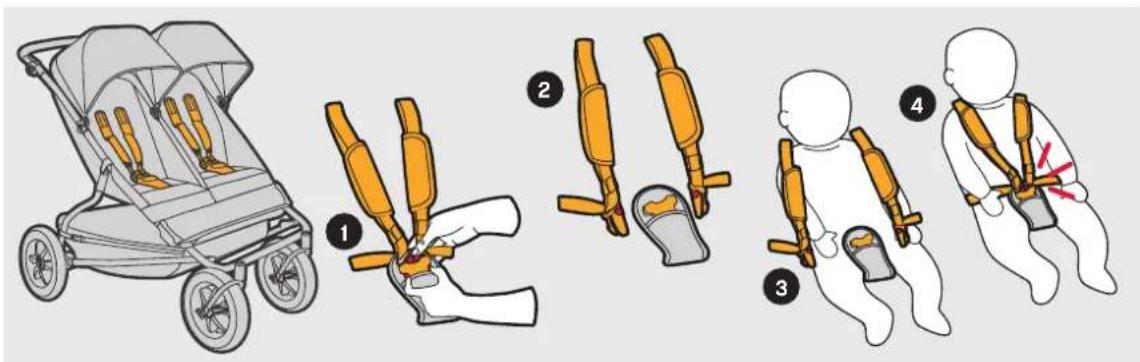

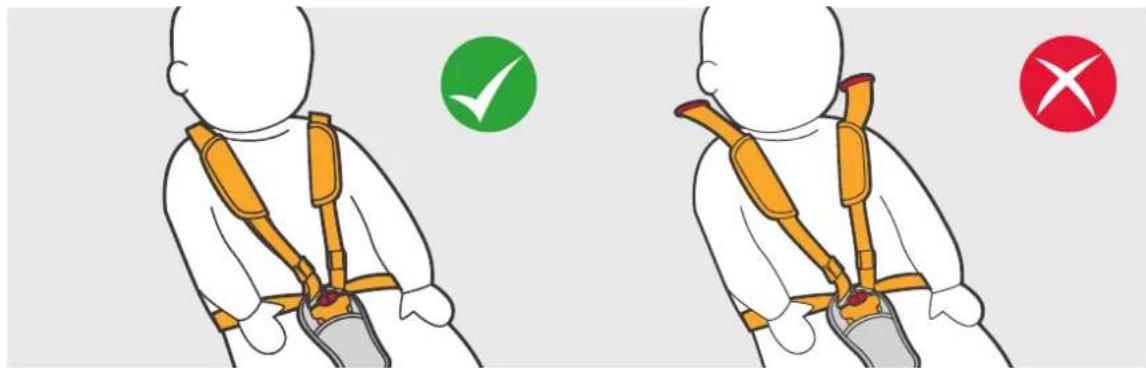

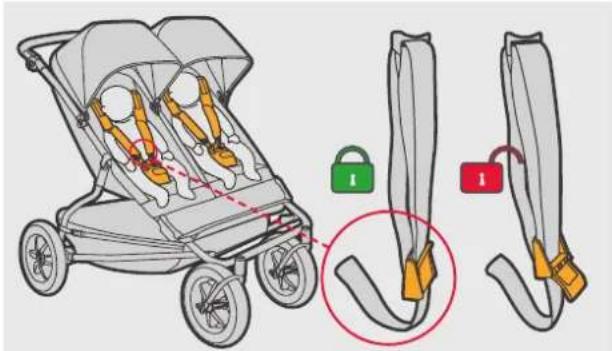

  • Always use the crotch strap in combination with the waist belt.
• Check that the stroller body or seat unit attachment devices are correctly engaged before use.
  • This product is not suitable for running or skating.
• Ensure that all locking devices are engaged before use.
  • Use a harness as soon as your child can sit unaided.
• Do not place more than 5kg/11lbs in the parcel tray.

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

• The parking device shall be engaged during the loading and unloading of children.
  • Do not add a mattress thicker than 20mm.

WARNINGS

American Safety Standard states:

• Never leave your child unattended in the stroller.
  • Always use the safety harness to avoid serious injury from falling or sliding out.
  • Always secure all safety harness straps. Child may slip into leg openings and strangle. Never use in a reclined carriage position unless child securely restrained.
• This vehicle is intended for children from newborn to 6 years and up to a maximum weight of 20kg/44lbs (duo) / 18kg/40lbs (duet).
  • To prevent the stroller from becoming

unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame.

• Do not place more than 5kg/11lbs in the parcel tray.
  • Excessive weight may cause a hazardous unstable condition to exist.

WARNINGS

Australia / New Zealand Safety Standard states:

To avoid injury or death:

• Always apply the brakes whenever the stroller is stationary.
• Do not leave children unattended.
• Secure the child in the harness at all times.
- Do not carry extra children or bags on this stroller.

DUO™ / DUET™

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

• Make sure children are clear of any moving parts if you adjust the stroller.
• Use the harness at all times.
- When not in use disconnect shoulder straps from the waist buckle or strap as harness can form loops that can lead to strangulation.
- Do not use this seat with any other models of stroller.
- It is unsafe to use accessories other than those approved by the vehicles manufacturer.
- Care should be taken if the stroller is used on stairs or escalators.
- The stroller should not be used near an open fire or exposed flame.
- This vehicle is intended for children up to a maximum weight of 20kg/44lbs (duo) / 18kg/40lbs (duet).
- Do not place more than 5kg/11lbs in the parcel tray.

WARNINGS

Canadian Safety Standard states:

• Never leave your child unattended in the stroller.
  • Always use the safety harness to avoid serious injury from falling or sliding out.
• Do not place more than 5kg/11lbs in the parcel tray.
• The stroller may become unstable if a parcel bag, other than one recommended by the manufacturer, is used.
• The stroller may become unstable if the recommended load is exceeded.
  • Take care when folding or unfolding the stroller to prevent your fingers being entrapped.

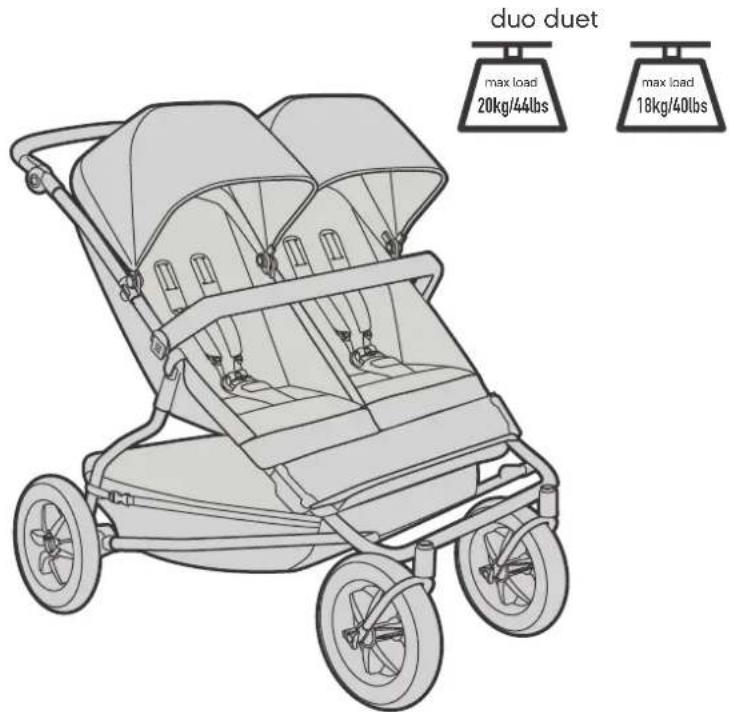

  • Maximum weight in the upright main seat 44lbs/20kg (duo) / 40lbs/18kg (duet).

Blank white image with no visible content, text, or symbols

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Blank white image with no visible content, text, or symbols

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text or symbols

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Blank white image with no visible content, text, or symbols

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Blank white image with no visible content, text, or symbols

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

Solid gray vertical bar with no text, symbols, or markings

European Safety Standard:

American Safety Standard:

Australia / New Zealand Safety Standard:

Canadian Safety Standard:

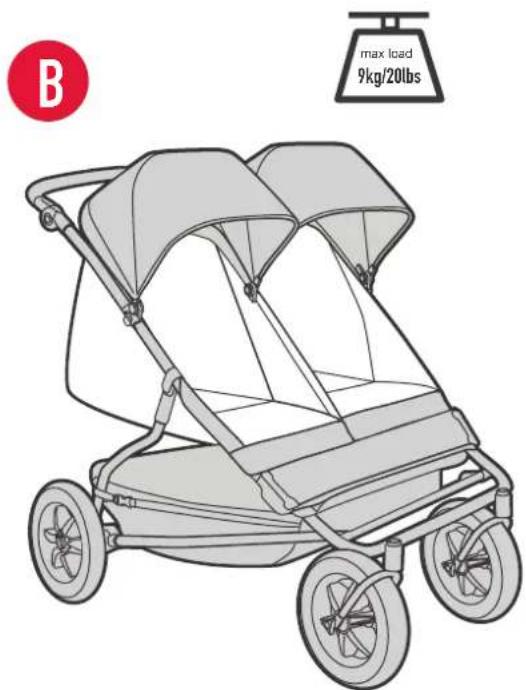

Line drawing of a two-wheeled stroller with two canopy cover (no text or symbols)

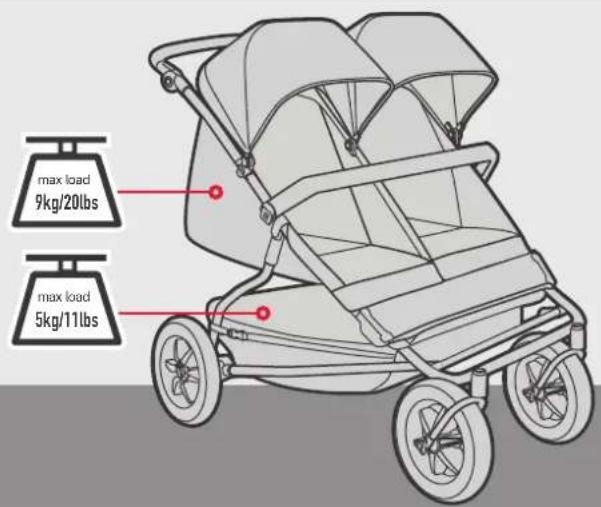

max load 9kg/20lbs max load 5kg/11lbs

B

DUO™ / DUET™

Configurations / Konfigurationen / Configuraciones / Configuraties

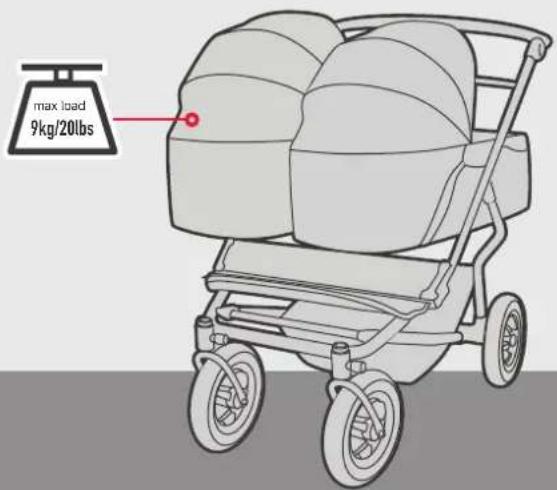

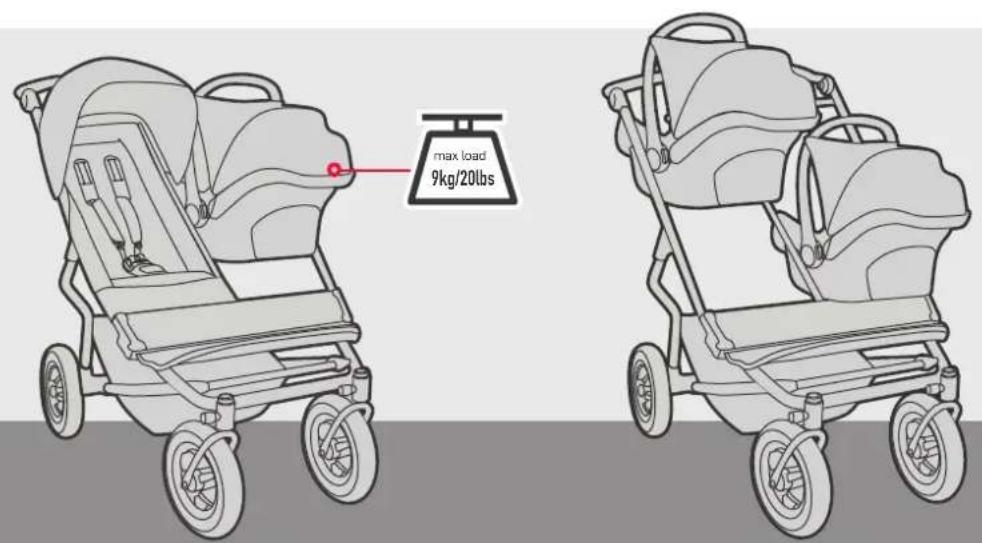

max load 9kg/20lbs

travel system

Line drawing of a two-wheeled stroller with rear seats and wheels (no text or symbols)

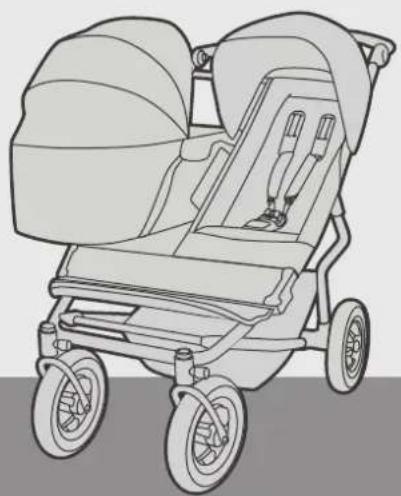

max load 9kg/20lbs

carrycot

DUO™ / DUET™

Features / Caractérisiques / Produkteigenschaften / Características / Kenmerken

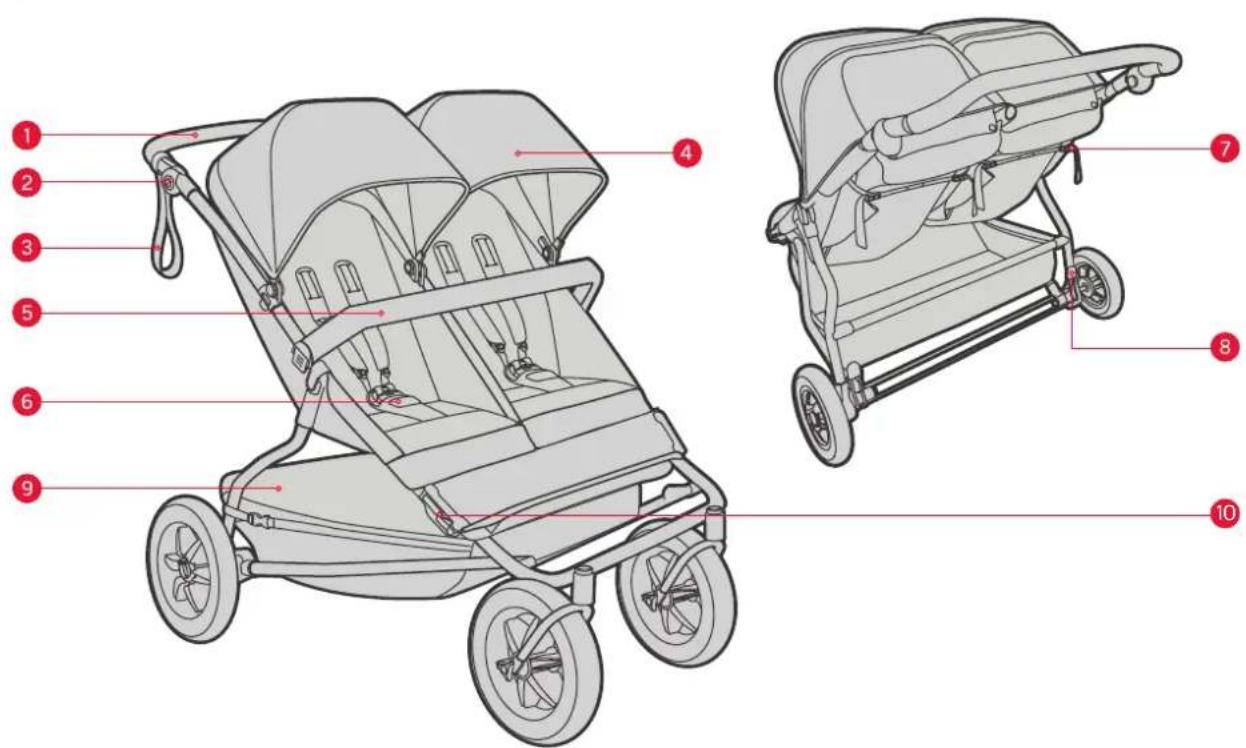

Technical diagram of a two-wheeled stroller with numbered parts for identification

Features / Caractérisiques / Produkteigenschaften / Características / Kenmerken

01	Handle bar	01	Guidon	01	Griff	01	Manubrio

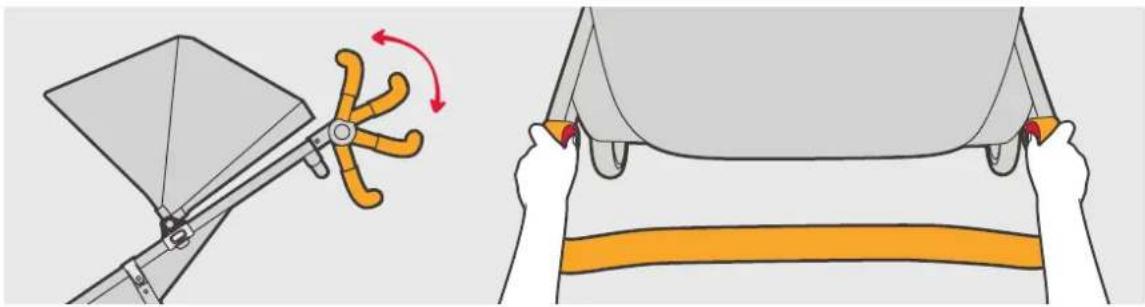

02	Handle bar adjustor	02	Bouton de réglage de la poignée	02	Hanbremse	02	Freno de mano
03	Wrist strap			03	Jogging-Band	03	Correa para la muñeca
04	Sunhood	03	Sangle poignet	04	Sonnenverdeck	04	Tapa sol

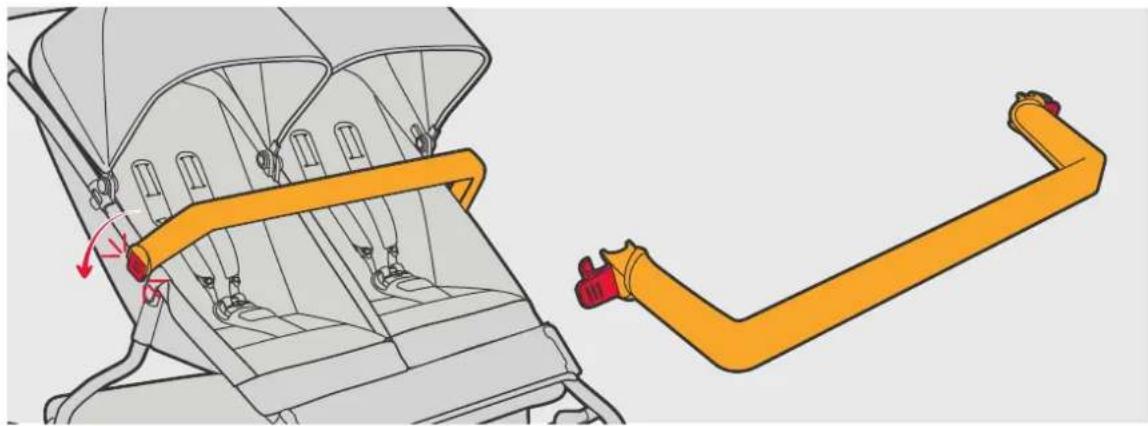

05	Grab bar	04	Capote	05	Buggybügel	05	Barra delantera

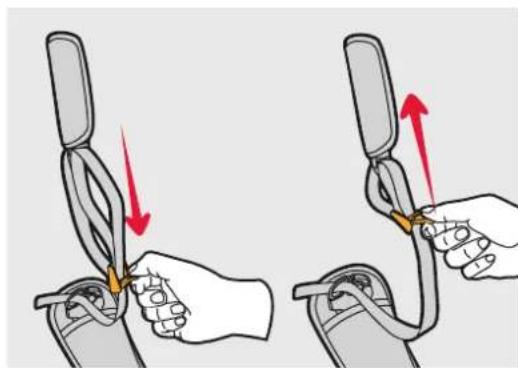

06	Harness	05	Arceau de maintien	06	Gurt	06	Arnés

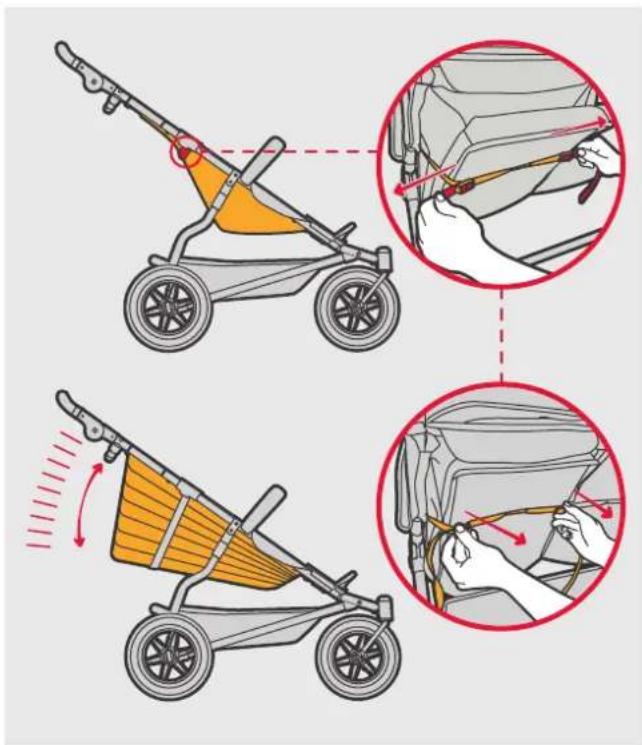

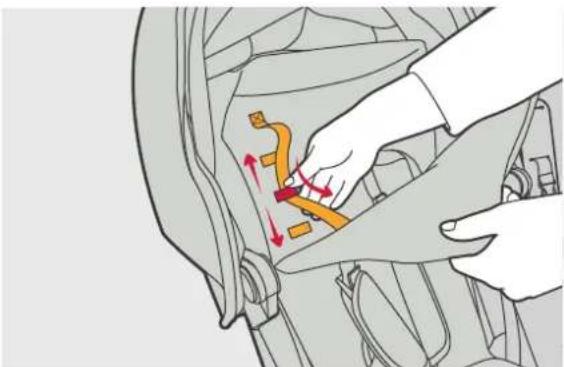

07	Recline strap	06	Harnais	07	Liege- Verstellriemen	07	Correa de reclinación

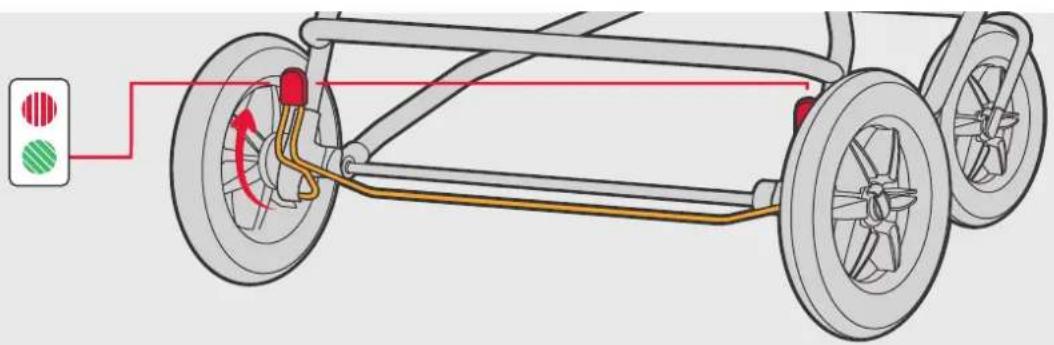

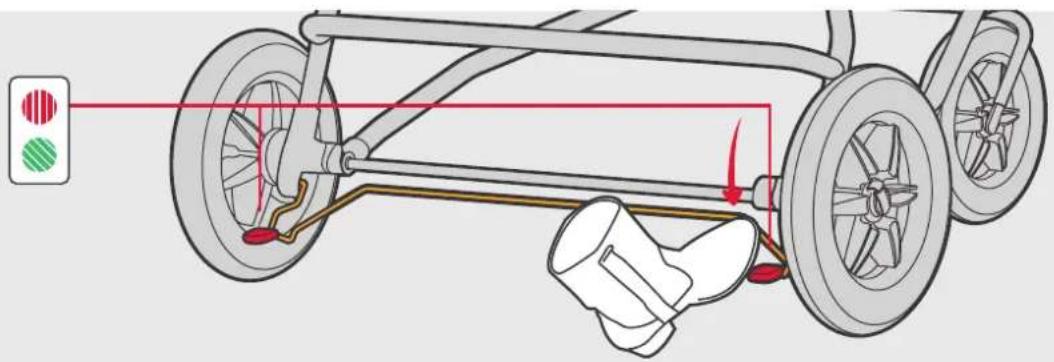

08	Brake	07	Sangle pour l'inclinaison	08	Bremse	08	Freno
09	Parcel Tray	08	Frein	09	Gepäckablage	09	Canastilla
10	Fast fold	09	Panier de rangement	10	Sicheres Lenken mit nur einer Hand	10	Mecanismo de plegar fastfold
		10	Pliage facile d'une main

01	Duwstang	01	Styre	01	Handtag
02	Handrew	02	Styrejustering	02	Handtagsjustering
03	Polsband	03	Händleddsstropp	03	Handledsrem
04	Zonnekap	04	Søn hette	04	Søn huv
05	Bumper	05	Grip bar	05	Stödhandtaget
06	Veiligheidsharnas	06	Sele	06	Sele
07	Zit-positie verstelriem	07	Hvil stropp	07	Lutning band
08	Rem	08	Brems	08	Broms
09	Boodschappenmandje	09	Pakke skuffen	09	Paket bricka
10	Met één hand in te klappen	10	Rask fold	10	Snabb faldigt

DUO™ / DUET™

Instructions / gebrauchsanweisung / instrucciones / instructies

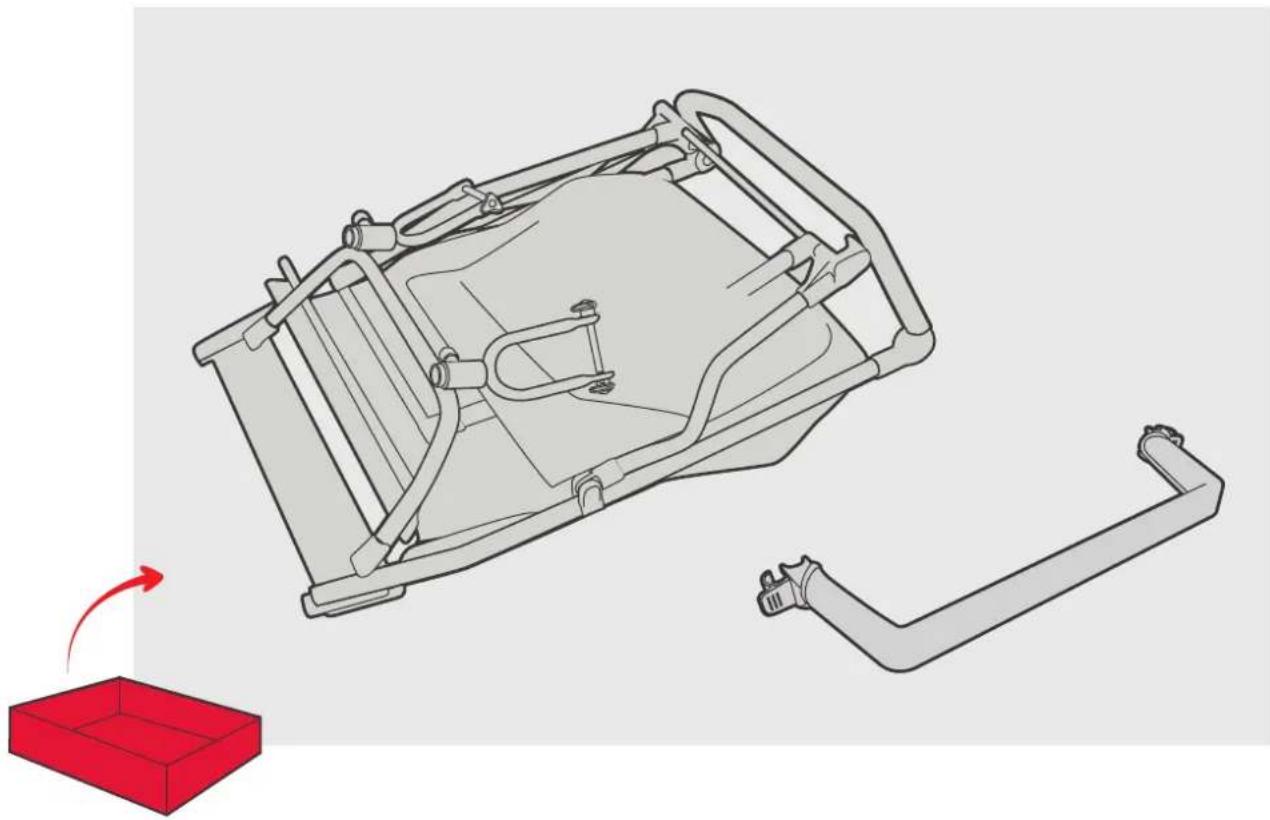

Technical line drawing of a mechanical assembly with a red box and bracket, no text or symbols present

Illustration of a dog's forward bend and wheel assembly with a red box, no text or symbols present

DUO™ / DUET™

Instructions / gebrauchsanweisung / instrucciones / instructies

Diagram illustrating car seatbelt usage and safety instructions, showing hand positioning and red warning labels

3

Illustration of a baby stroller with hands and red arrows indicating motion (no text or symbols)

DUO™ / DUET™

Instructions / gebrauchsanweisung / instrucciones / instructies

4

Illustration of a person pushing a stroller with red motion arrows indicating rotation (no text or symbols)

5

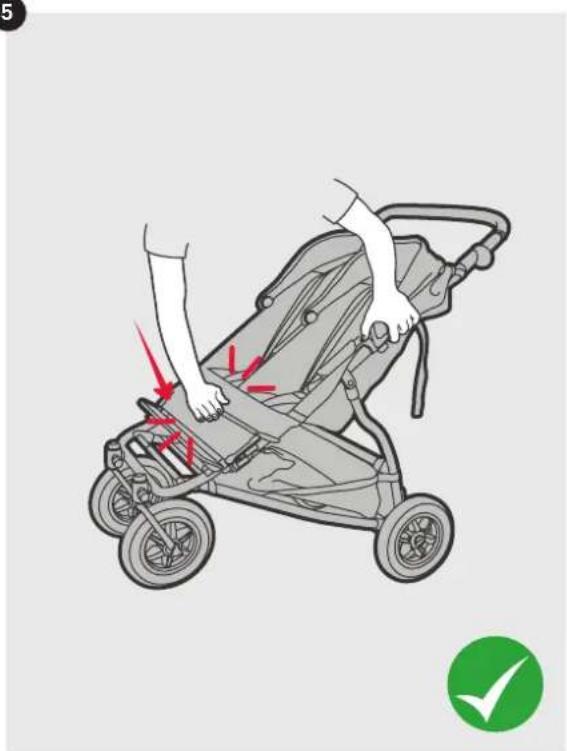

Illustration of a baby stroller with hands and red arrows indicating motion or force, no text or symbols present

DUO™ / DUET™

Instructions / gebrauchsanweisung / instrucciones / instructies

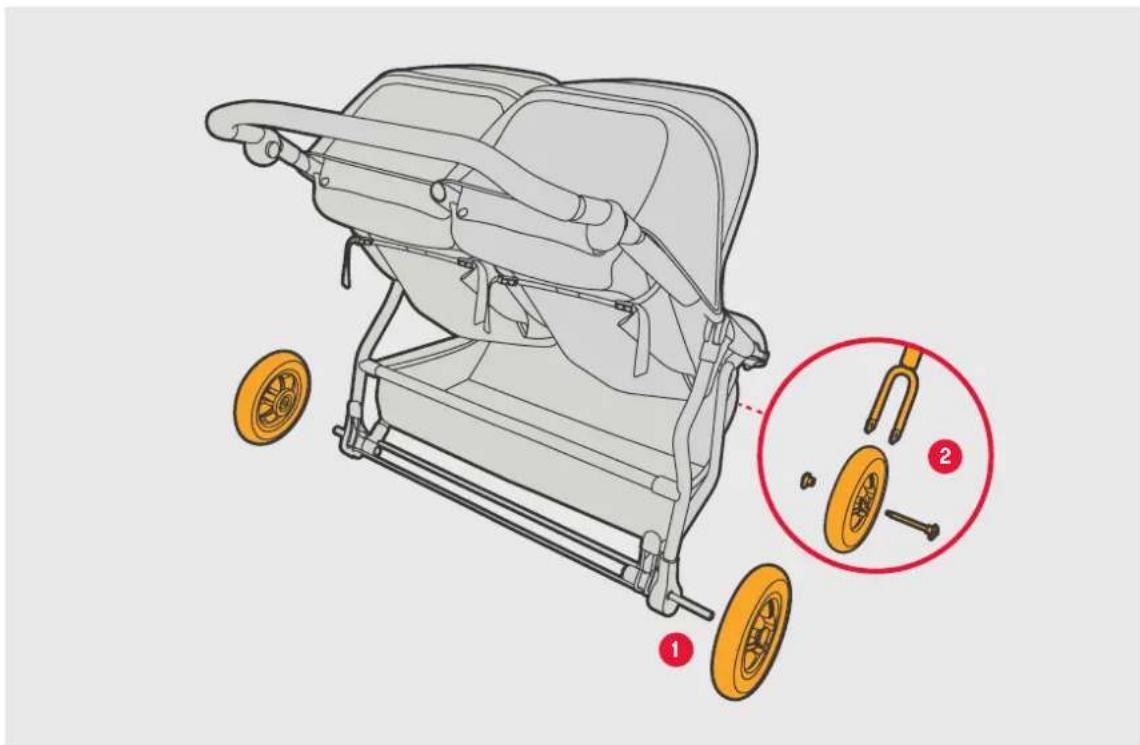

Diagram of a stroller with labeled parts and a magnified view showing two components with numbered annotations.

DUO™ / DUET™

Instructions / gebrauchsanweisung / instrucciones / instructies

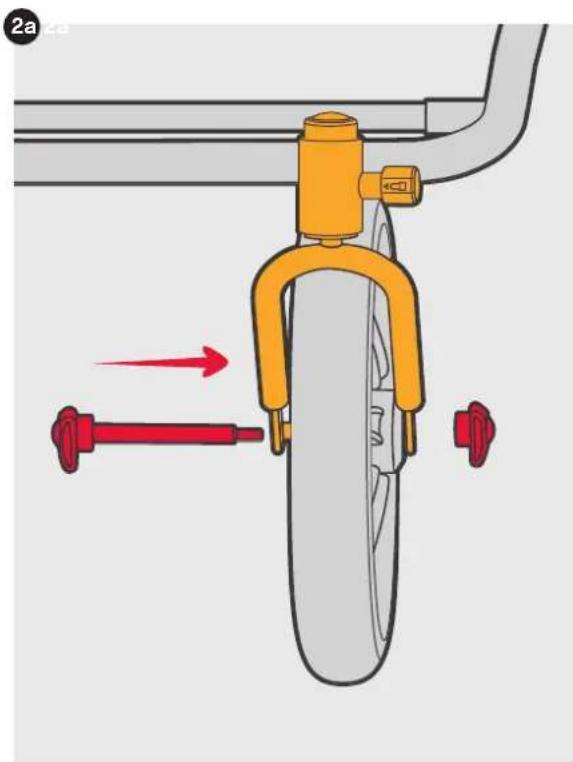

2a 2b →

Diagram of a yellow valve assembly with red valves, mounted on a gray aircraft wing (no text or labels)

DUO™ / DUET™

Instructions / gebrauchsanweisung / instrucciones / instructies

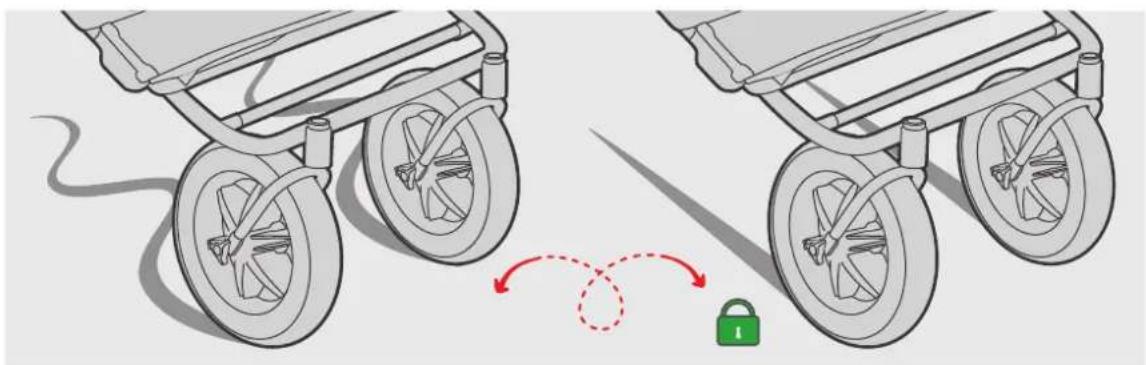

Illustration of two stroller wheels with a padlock icon indicating rotation and movement (no text or symbols)

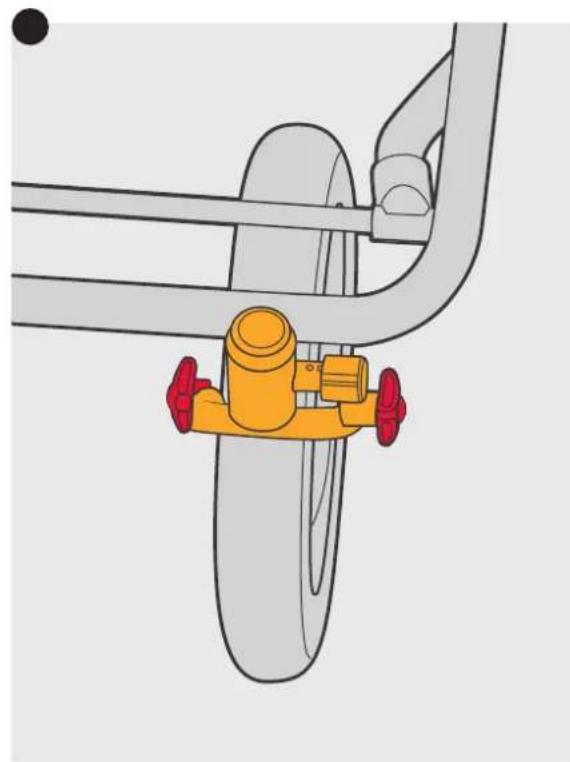

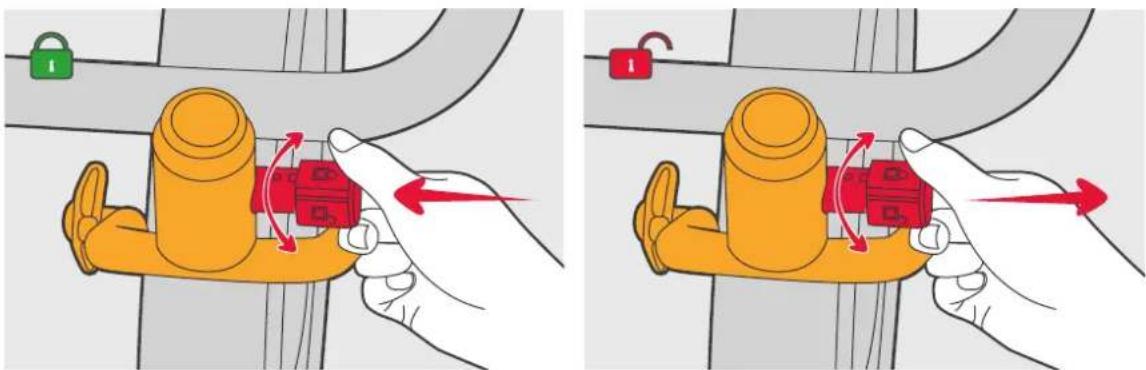

Illustration showing two-step installation of a red valve with lock and padlock, indicating clockwise adjustment.

DUO™ / DUET™

Instructions / gebrauchsanweisung / instrucciones / instructies

duo duet max load 20kg/44lbs max load 18kg/40lbs

DUO™ / DUET™

Instructions / gebrauchsanweisung / instrucciones / instructies

Illustration of a person inside a car seatbelt with orange canopy and red belt (no text or symbols)

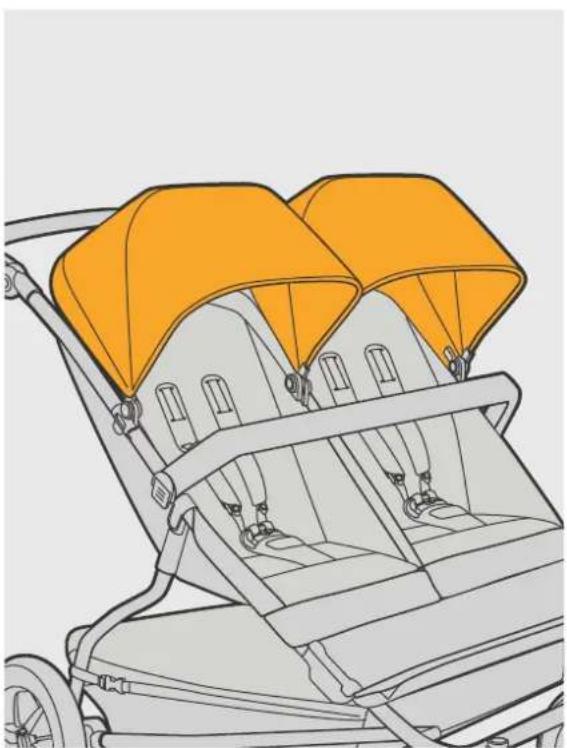

Illustration of a stroller with two orange canopy cover (no text or symbols)

DUO™ / DUET™

Instructions / gebrauchsanweisung / instrucciones / instructies

Technical illustration of a car seat assembly with orange belt and red adjustment arrows (no text or symbols)

Illustration showing a mechanical device being adjusted to form a fabric or garment, with no visible text or symbols.

Diagram illustrating vehicle wheel assembly with traffic light and sensor placement, showing red and green signal paths.

Diagram of a vehicle chassis with steering wheel and orange railings, showing red and green directional indicators (no text or symbols)

DUO™ / DUET™

Instructions / gebrauchsanweisung / instrucciones / instructies

Diagram illustrating car seatbelting and locking mechanism for a two-wheeled stroller, with labeled parts and safety symbols.

Illustration of two hands manipulating a cable or connector, with red arrows indicating motion direction (no text or symbols)

Instructions / gebrauchsanweisung / instrucciones / instructies

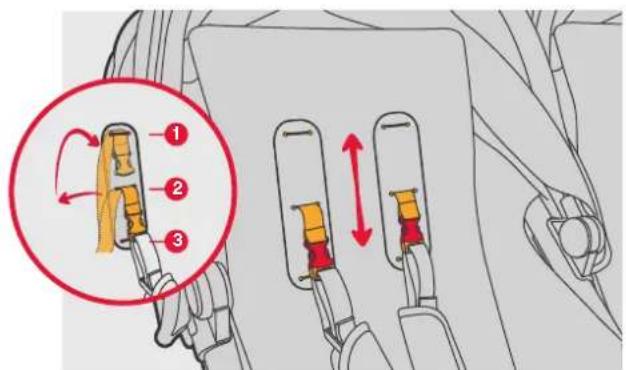

Diagram showing a mechanical device with three labeled parts and directional arrows indicating motion or movement.

Illustration of hands adjusting a car interior panel with orange arrows indicating movement or force (no text or symbols)

Illustration showing two child car seatbelt scenarios with check and cross icons indicating safety status.

DUO™ / DUET™

Instructions / gebrauchsanweisung / instrucciones / instructies

Illustration of a car chassis with hands operating the wheel, showing a red arrow indicating motion (no text or symbols present)

Diagram of a vehicle chassis with red sensors and wheels, enclosed in a red circle (no text or symbols)

Illustration of a stroller with hand positioning and red arrows indicating motion (no text or symbols)

Illustration of hands adjusting a vehicle seatbelt with orange tool (no text or symbols)

Illustration of a stroller with red arrows indicating motion direction (no text or symbols)

3

5

Illustration of a baby stroller with hands adjusting the seat area, showing a red curved arrow indicating motion (no text or symbols present)

6

Diagram illustrating car wheel assembly with highlighted safety zones and component details

DUO™ / DUET™

Instructions / gebrauchsanweisung / instrucciones / instructies

B max load 9kg/20lbs

Illustration showing how to adjust the stroller of a car, with close-ups of hand positioning and motion arrows indicating changes.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and inventions featured in this publication. These include, without limitation, the Mountain Buggy, life without limit, and INLINE trade marks and product names. We actively pursue people who infringe our intellectual property.

©Phil & Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

Line drawing of a two-wheeled stroller with twin back compartments and wheels (no text or symbols)
