Electronic modulating room thermostat for OpenTherm appliances

OpenTherm®

Danfords 20°C

Installation Instructions User Instructions

Locking & Limiting....9

User Instructions 10-11

NL

Technische Specifi caties 12

Positionering 13

Installatie....14

Bedrading 15-16

Montage....17

Blokkeren & Begrenzen 18

Specifi cations
Code Number 087N773800
Temperature range 8-30°C
Maximum ambient temperature 45°C
Control type P + I
OpenTherm software version 2.3
Domestic hot water keep hot feature •
Holiday mode •
ID 14 low load control •
Thermostat output Data
Construction EN60730-2-9
IP rating IP20
Supply voltage 24V DC from boiler
Wiring, non-polarised 2 wire bus	•
Control pollution situation	Degree 2
Ball hardness test	75°C
Dimensions (mm)	86 high x 85 wide x 42 deep

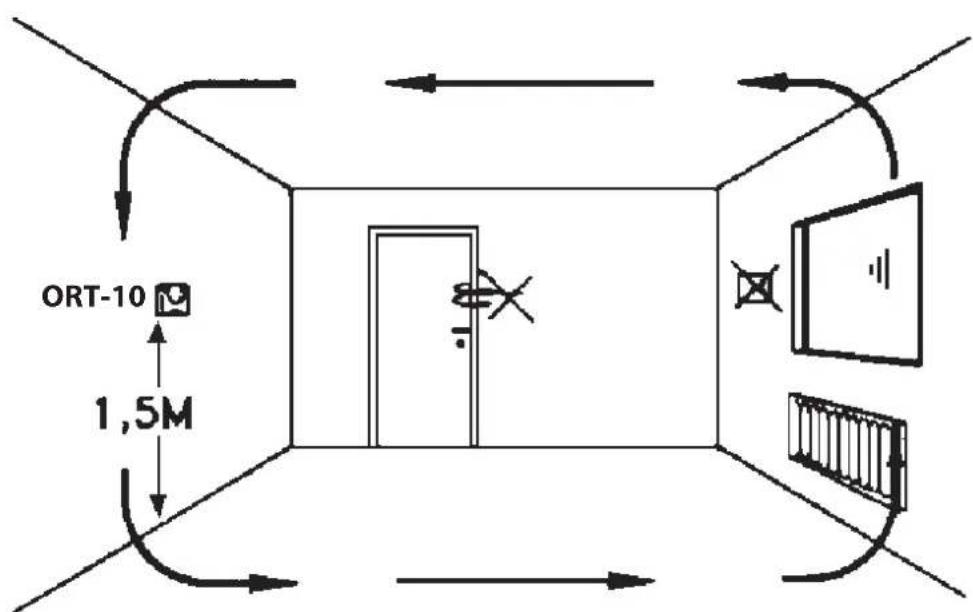

Positioning

Positioning

ORT-10 1,5M

Installation

Line drawing of hands using a screwdriver to adjust a device (no text or symbols present)

Technical line drawing of an open mechanical housing with a rotating arrow indicating rotation (no text or symbols)

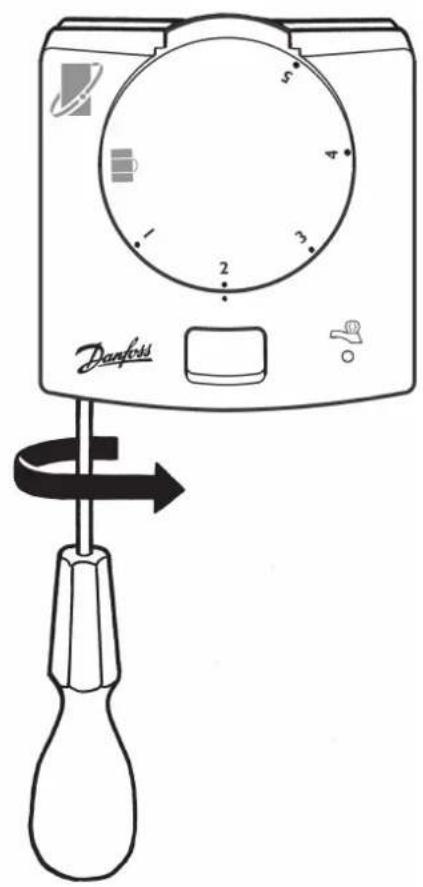

Wiring

Wiring

X F c b p

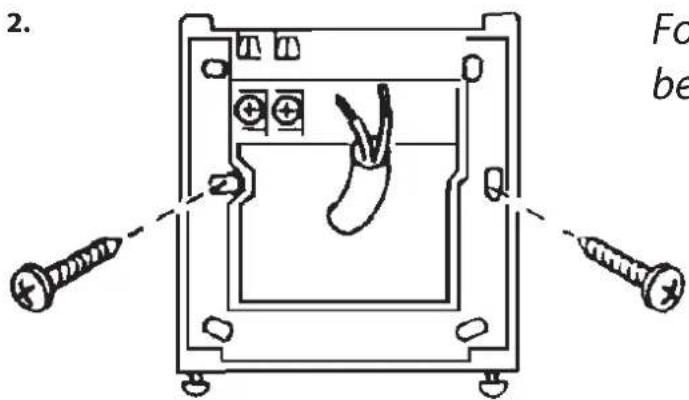

For surface mounted wiring, cutouts are provided on the backplate to enable correct positioning of the cable.

2. Fo be

For recessed wiring, cabling can be connected as in diagram 2.

ORT-10

Set-back connections in ORT-10 3 4 External volt free contactor/ switch

Important - To avoid damage to Boiler and Thermostat, connect only to OpenTherm connections on boiler, do not connect to any other power source.

By connecting a volt free switch over terminals 3 + 4 you can provide an external override to enable a forced 8°C frost protection + HW store off condition.

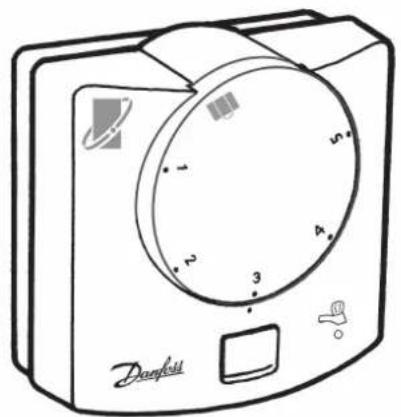

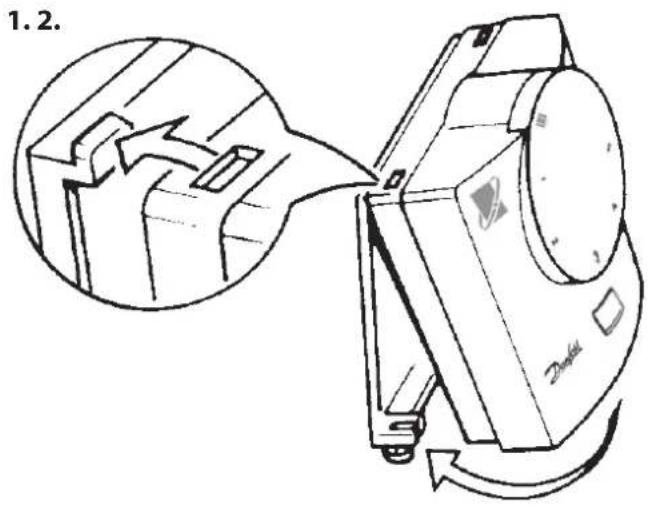

Mounting

Mounting

1.2.

1.

Danfus 1 2 3 4 5

Danfield

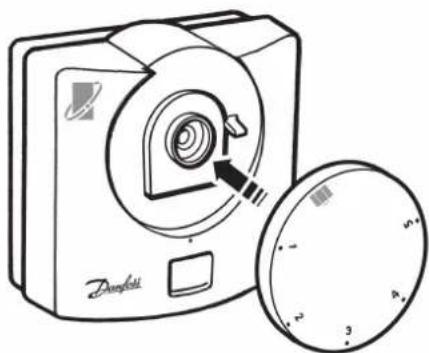

Locking and Limiting

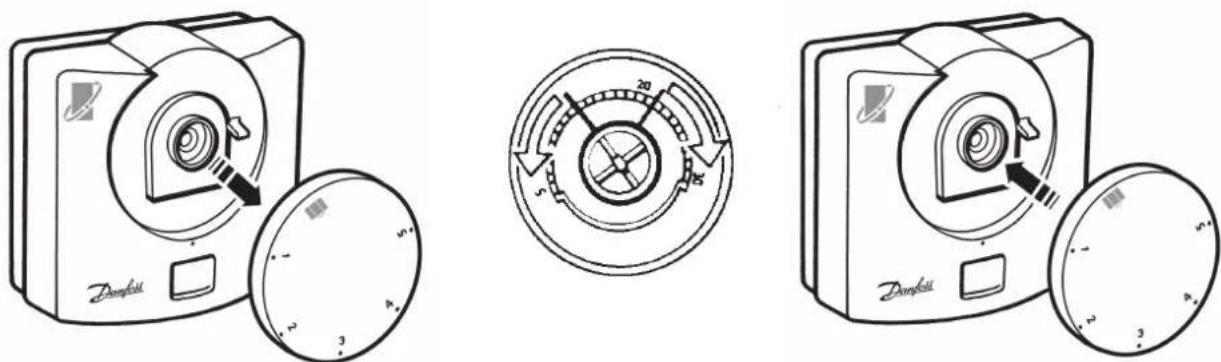

1. Before removing dial, turn until setting 1 aligns with reference mark on front case.
2. Remove dial, lock or limit as required (see note below).
3. Replace dial, ensuring setting 1 aligns with reference mark on case.

Important Note:

If Holiday Function is required DO NOT adjust lower limit.

Technical diagram showing three views of a Dunfell washing machine with labeled parts and dial indicators.

User Instructions

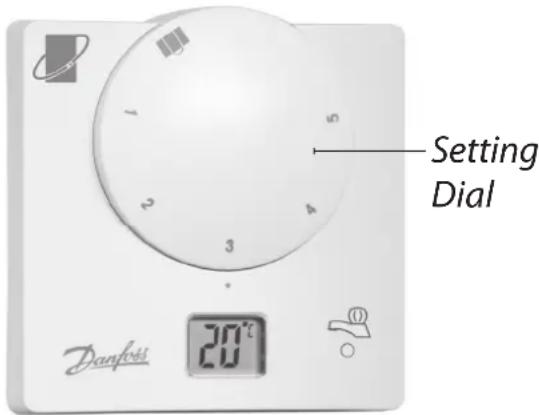

Setting Dial Danföld 20°C

Unlike normal room thermostats, the ORT-10 varies the heat output of the Opentherm condensing boiler to which it is connected. This adds to the boiler efficiency significantly by ensuring that the boiler keeps in economical condensing mode whenever possible.

Daily use is as easy as setting

the thermostat dial to the required setting, the advanced electronics and software within the thermostat establish two-way communication with the Opentherm boiler to ensure optimal operation.

In addition to the room temperature control, the ORT-10 also incorporates a feature which, dependant on boiler type, allows the domestic hot water store in the boiler to be kept hot or to be turned off, for example when on holiday. To select hot water and heating off, simply turn the thermostat dial to the holiday position

or press the button if you still wish to control the central heating only.

Settings

Room Temperature Setting 10 – 30°C: Set dial to required room temperature, domestic hot water store in boiler is kept hot*. The LCD will flash to show set point and then display room temperature.

Holiday Setting : Controls room temperature at 8^ C, (frost setting), domestic hot water store in boiler is turned off.

button: Pressing this switches off the boilers HW store*. Unit will display to confirm.

*(This feature is dependant upon boiler type).

Indication

Start-Up: When boiler is first turned on the LCD will flash for 20 seconds.

Normal Operation: Flame symbol will be displayed whenever the boiler is fi ring. The bars to the right of the displayed temperature visually indicate the level of modulation at the boiler. 1 bar =25%, 2 bars = 50% etc.

Holiday Mode: When thermostat is put into, or taken out of holiday setting the LCD will flash for 20 seconds.

Alarm Mode: Should a fault occur with the boiler the LCD will display Er (or Er + associated error code if boiler functions support) to warn of failure. For details of errors codes please consult your boiler manual.
