USER MANUAL Runner Pro I Christopeit

Woman standing on a treadmill in athletic wear, viewed from behind (no text or symbols visible)

Assembly and exercise instructions for Order No. 98301

Technical schematic diagram of a mechanical assembly with numbered components for identification and assembly reference.

Technical diagram of a treadmill with numbered parts and labeled control buttons

Garantiebestimmungen

Technical diagram of a treadmill with numbered components and an inset showing cable connections labeled 53, 48R, and 69.

Schritt 2:

Technical diagram of a treadmill with numbered parts and labeled parts

Schritt 4:

Technical diagram of a treadmill with numbered components and close-up insets showing cable connections.

Schritt 5:

Line drawing of a treadmill with labeled parts (no text or symbols on the device itself)

Schritt 6:

Kontrolle

Line drawing of a treadmill with control panel and motion arrow (no text or symbols)

Technical line drawing of a mechanical lifting device with no visible text or symbols

Illustration of a hand pressing down on a treadmill with a tool, no text or symbols present

Technical line drawing of a mechanical assembly with dashed circular annotations highlighting components (no text or symbols)

ON OFF fuse

Links Display (Puls):

1. Summary of Parts Page 3 - 4
2. Important Recommendations and Safety Information Page 13
3. Technical data Page 14 - 15
4. Assembly Instructions With Exploded Diagrams Page 16 - 17
5. Maintenance and adjusting Page 18
6. Console Key pad functions Page 19 - 20
7. Training Instructions Page 21

Dear customer,

We congratulate you on your purchase of this home training sports unit and hope that we will have a great deal of pleasure with it. Please take heed of the enclosed notes and instructions and follow them closely concerning assembly and use.

Please do not hesitate to contact us at any time if you should have any questions.

Important Recommendations and Safety Instructions

Our products are all tested and therefore represent the highest current safety standards. However, this fact does not make it unnecessary to observe the following principles strictly.

1. Assembly the machine exactly as described in the installation instructions and use only the enclosed, specific parts of the machine contained in the parts list. Before assembling, verify the completeness of the delivery against the delivery notice and the completeness of the carton against the parts list in the installation and operating instructions. In case of repair please ask your dealer for advice.

2. Check the firm seating off all screws, nuts and other connections before using the machine for the first time and at regular intervals (every 1-2 months) to ensure that the trainer is in a safe condition. Replace defective components immediately and/or keep the equipment put of the use until repair.

3. Set up the machine in a dry, level place and protect it from moisture and water. Uneven parts of the floor must be compensated by suitable measures and by the provided adjustable parts of the machine if such are installed. Ensure that no contact occurs with moisture or water.

4. Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine if the area of the machine must be specially protected against indentations, dirt etc.

5. Before beginning training, remove all objects within a radius of 2 metres from the machine.

6. Do not use aggressive cleaning agents to clean the machine and employ only the supplied tools or suitable tools of your own to assemble the machine and for any necessary repairs. Remove drops of sweat from the machine immediately after fi nishing training.

7. Your health can be impaired by incorrect or excessive training. Consult a doctor before beginning a planned training programme. He can define the maximum exertion (pulse, Watts, duration of training etc.) to which you may expose yourself and can give you precise information on the correct posture during training, the targets of your training and your diet. Never train after eating large meals. Observe that this machine is not suitable for therapeutic purposes.

8. Only train on the machine when it is in correct working order. Use original spare parts only for any necessary repairs.

9. When setting the adjustable parts, observe the correct position and the marked, maximum setting positions and ensure that the newly adjusted position is correctly secured. Please remove the Tools you need to adjust after adjusting a new position.

10. Unless otherwise described in the instructions, the machine must only be used for training by one person at a time.

11. Wear training clothes and shoes which are suitable for fitness training

with the machine. Your clothes must be such that they cannot catch during training due to their shape (e.g. length). Your training shoes should be appropriate for the trainer, must support your feet firmly and must have non-slip soles.

1. If you notice a feeling of dizziness, sickness, chest pain or other abnormal symptoms, stop training and consult a doctor.

2. Never forget that sports machines are not toys. They must therefore only be used according to their purpose and by suitably informed and instructed persons.

3. People such as children, invalids and handicapped persons should only use the machine in the presence of another person who can give aid and advice. Take suitable measures to ensure that children never use the machine without supervision.

4. Ensure that the person conducting training and other people never move or hold any parts of their body into the vicinity of moving parts.

5. At the end of its life span this product is not allowed to dispose over the normal household waste, but it must be given to an assembly point for the recycling of electric and electronic components. You may find the symbol on the product, on the instructions or on the packing.

The materials are reusable in accordance with their marking. With the re-use, the material utilization or the protection of our environment. Please ask the local administration for the responsible disposal place.

1. This machine is a speed-dependant machine, i.e. the power increases with increasing speed, and the reverse.

2. The maximum permissible load (=body weight) is specified as 120 kg. Evaluate your body weight before you starting the exercise.

Runner Pro I Order No. 98301

Technical data: Issue: 01. 06. 2009

● 1, HP Motor (peak 1,5 HP) with speed from 1 - 12 km/h

- 5 installed training programs

• 1 individual program

• Hand pulse measurement

- Manual incline

● Vibration absorbing running surface

● Safety pin for emergency stop

- Foldable for save space

- Big Display computer showing at same time: speed, distance, time, heart rate and approx. calories

• Max. body weight 120 KG

● Walking surface approx. L 115, W 38 cm

Space requirement approx. L 145, W 69, H 125 cm

Space requirement foldable approx. L 70, W 69, H 138 cm

Please check after opening the packing that all the parts shown in the following parts lists are there. Once you are sure that this is the case, you can start assembly.

Please contact us if any components are defective or missing, or if you need any spare parts or replacements in future:

Runner Pro I Order No. 98301

Technical data: Issue: 01. 06. 2009

● 1, HP Motor (peak 1,5 HP) with speed from 1 - 12 km/h

- 5 installed training programs

• 1 individual program

• Hand pulse measurement

- Manual incline

● Vibration absorbing running surface

● Safety pin for emergency stop

- Foldable for save space

- Big Display computer showing at same time: speed, distance, time, heart rate and approx. calories

• Max. body weight 120 KG

● Walking surface approx. L 115, W 38 cm

Space requirement approx. L 145, W 69, H 125 cm

Space requirement foldable approx. L 70, W 69, H 138 cm

Please check after opening the packing that all the parts shown in the following parts lists are there. Once you are sure that this is the case, you can start assembly.

Please contact us if any components are defective or missing, or if you need any spare parts or replacements in future:

Assembly Instructions

Before beginning assembly, be sure to observe our recommendations and safety instructions.

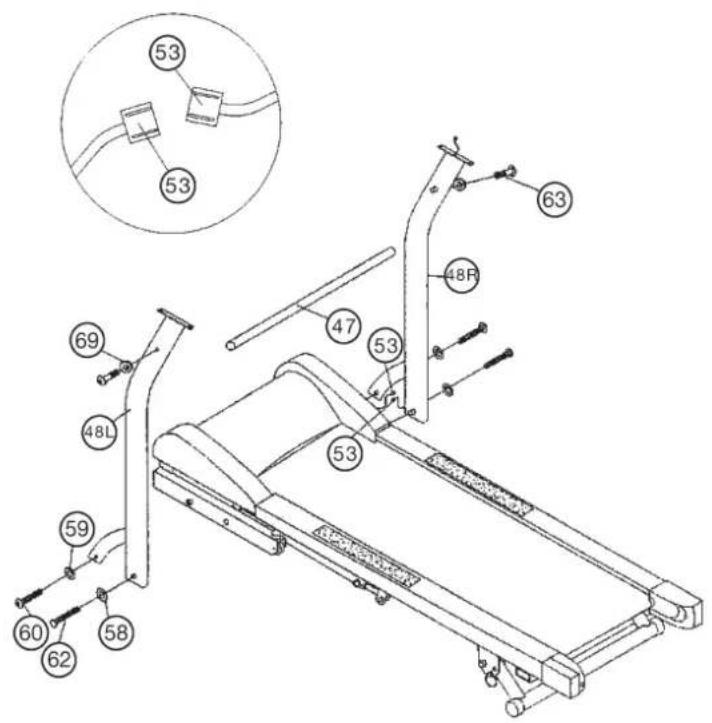

Step 1:

Installation of the left support (48L) and the right support (48R) on the foot (2) with the screws M8x80 (60), screws M8x60 (63), screws M14x90 (62), washers 8//16 (59), washers 14//22 (58) and washers 8//20 (69).

1. Place the screws (60+62+63) and the washers (58+59+69) accessibly beside the foot (2).
2. Place the left support (48L) at the foot so that the hole patterns in the foot are aligned. (Note: The transport rollers (34) pre-assembled in the foot (2) must point backwards (opposite to the line of sight when standing on the machine during training. Right and left are specified as viewed standing on the machine during training.)
3. Push one screw (60+62) through each hole and tighten the left support (48L) at foot (2) firmly.
4. Connect the plugs of computer cables (53) and proceed as described in 1. - 4. with the right support (48R) on the right hand side of the foot (2).
5. Screw the connection tube (47) at support left and right (48L+48R) tightly, by using screw (63) and washer (69).

Technical diagram of a treadmill with numbered components and an inset showing cable connections labeled 53 and 48R.

Step 2:

Installation of the handrail connection tube (55) with handle bar (46) At support Left + right (48) with screws M8x15 (64) and washers 8//16 (59).

1. Place on each screw (64) one washer (59) and put them accessibly beside the foot (2).
2. Put the plugs of computer cable (53) and hand pulse cable (54) together.
3. Place the handle bars (46) with handrail connection tube (55) onto the ends of support left and right (48L+48R) and tighten them firmly by using the screws (64) with washer (57). (Observe that the cable won't squeeze.)

55 53 46 59 64 53 53 53

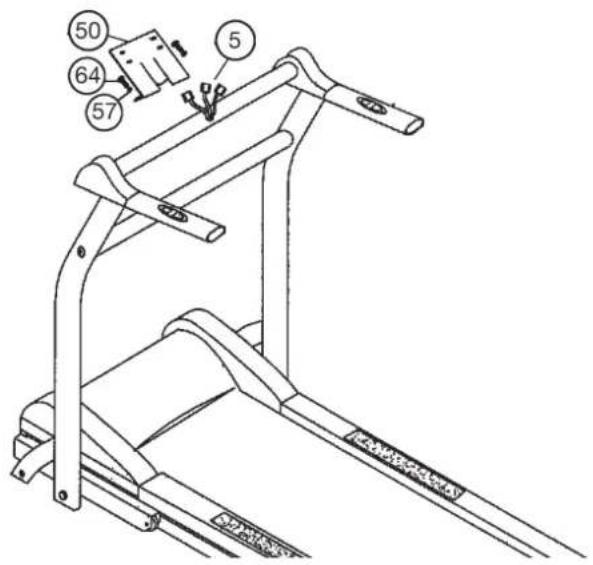

Step 3:

Installation of the base of computer (50) at handrail connection tube (55) with the screws M8x15 (64) and curved washers 8//20 (57).

1. Place on each screw (64) one washer (57) and put them accessibly in front of the foot (2).
2. Place the base of computer (50) against the handrail connection tube (55) and tight it firmly by using the screws (64) with washer (57).

50 64 57 5

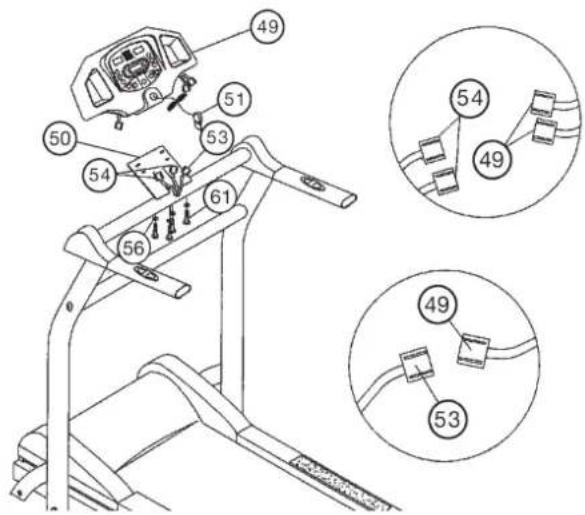

Step 4:

Installation of the computer (49) on the base of computer (50) with screws M5x10 (61) and washers 5//10 (56).

1. Place on each screw (61) one washer (56) and put them accessibly in front of the foot (2).
2. Place the computer (49) at base of computer (50) and align the holes in the computer (49) with the holes in the bracket (50).
3. Screw the screws (61) with washers (56) through the holes and tighten firmly.
4. Connect the ends of the computer cable (53) and hand pulse cables (54)
   with the plugs of the computer (49).
5. Place the safety clip (51) in appropriate position onto the computer (49).

Technical diagram of a treadmill with numbered components and close-up insets showing cable connectors and connectors.

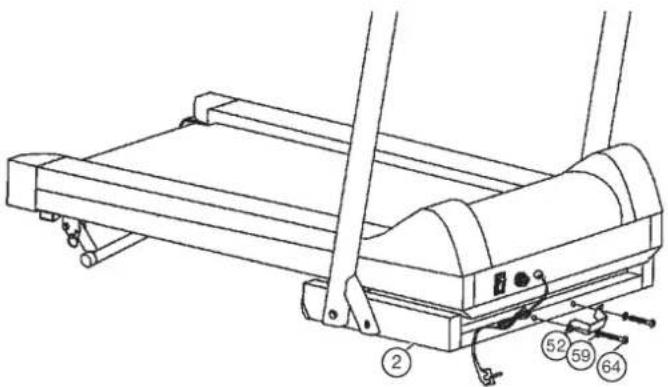

Step 5:

Installation of the under prop (52) at bottom frame (2) with the screws M8x15 (64) and washers 8//16 (59).

1. Place on each screw (64) one washer (59) and put them accessibly in front of the foot (2).
2. Place the under prop (52) against appropriate position in front of the foot (2) and tight it firmly by using the screws (64) with washer (59).

Line drawing of a treadmill with labeled parts (no text or symbols on the device itself)

Step6:

Checks

1. Check the correct installation and function of all screwed and plug connections.
2. When everything is in order, familiarise yourself with the machine at a low resistance setting.

Note:

Please keep the tool set and the instructions in a safe place as these may be required for repairs or spare parts orders becoming necessary later.

Line drawing of a treadmill with control panel and directional arrow indicating motion (no text or symbols)

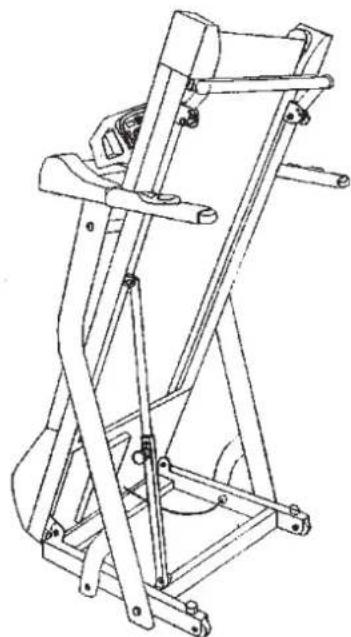

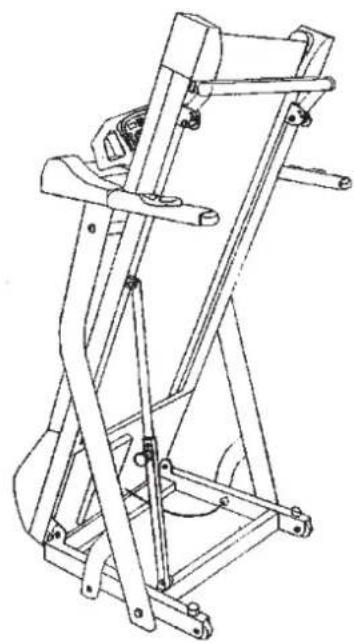

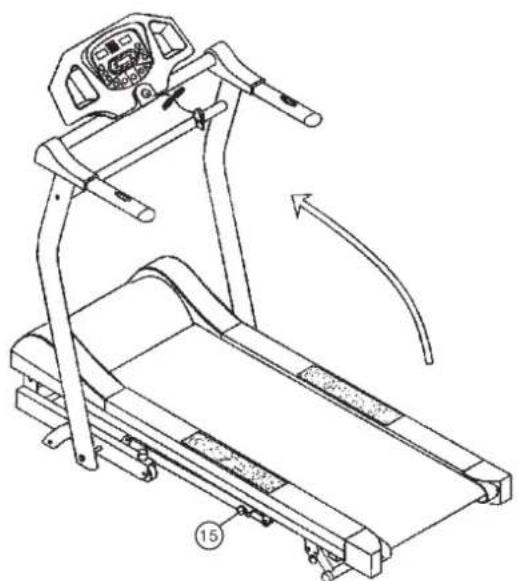

How to move/store your treadmill:

1. Pull the locking knop (15) and place your hand on the end cap of the system frame then folding the system frame up and lock it with locking knob.
2. Place your hands on top of the handrails, than lean the machine toward your body sideways, this way you can move it easily.

Technical line drawing of a mechanical lifting device (no text or symbols)

Maintenance and adjusting

1. Lubrication for the running belt:

In order to keep the machine in the best condition, please add some Silicone oil between the running belt and the running board after 50 hours or 1 to 2 month of use. But the running belt may slip, if you lubricate too much. To lubricate the belt please pull the walking belt up and injection the silicone oil into the gap between belt and walking deck.

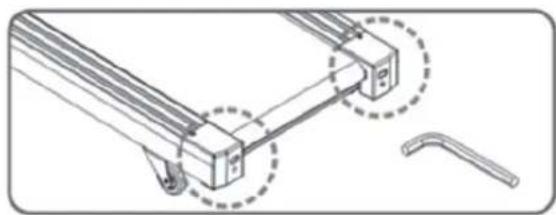

2. Adjusting running belt:

You need to adjust the walking belt to the normal position, per the following steps if it is off.

1. Set speed at 3-5km.
2. Using the Allen key to adjust the belt tension bolt on the end cap of the system frame.
3. If you want to move the belt towards left, turn the right tension bolt clockwise.
4. If you want to move the belt towards right, turn the left tension bolt clockwise.
5. If you have already done according to the steps above and it is still not at the good range, then the running belt should be damaged already, please contact your local dealer for replacement.

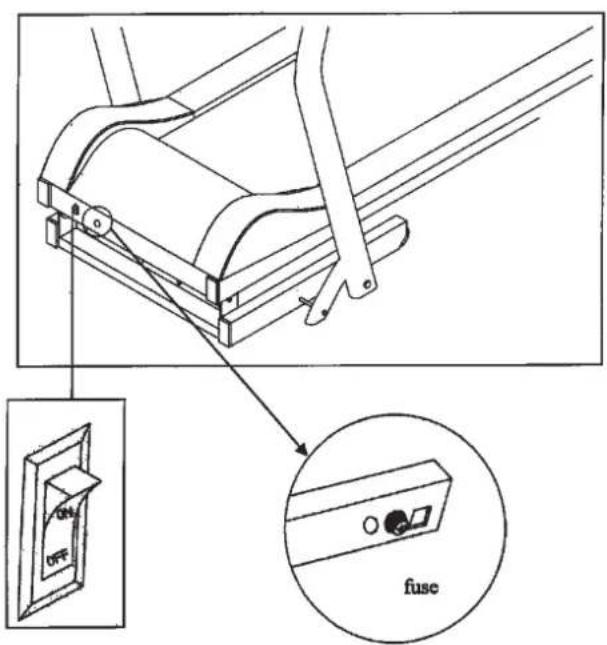

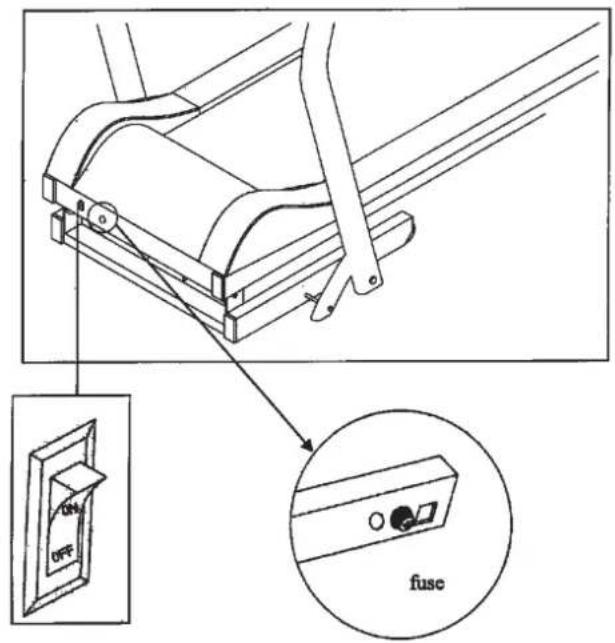

3. No light on the Display:

1. Check if the power plug is properly connected.
2. Check if the safety key on the computer is in place.
3. Check if the wire in the right post is properly connected.
4. Check the fuse (10A/250V) No. 45 and change if necessary.

Remind! Before you inspect any wire or electrician part, please ensure that the Power supply has been turned off.

4. Running belt slips:

1. Make sure the walking belt is not too loose.
2. Make sure the motor belt is not too loose.

5. Abnormal noise from the machine

1. Check if any screw of machine is loose.
2. Check if the motor belt is off.
3. Check if the running belt is off.

Note:

Please contact your local dealer if you have checked all the above listed things but the problem is still there.

Line drawing of a hand pressing down on a treadmill tray (no text or symbols)

Technical line drawing of a mechanical assembly with dashed circular annotations (no text or symbols)

ON OFF fuse

USER MANUAL OF COMPUTER 98301

Birks top Puls Km h 6 Zelt Km 12 4 Runde Kal 10 2 8 Programm F Start: stop Km h Km h

The instruction of windows and key:

1. Three windows display the details of all functions.

A: left window display:pulse data.
B: right window display: speed data.
C: center window scan or fi x display: the data of time, distance calories an RACETRACK number. When the window display a data, the LED of the relevant function will light. Press MODE key can select scan or fi x display, When scan display a function, the relevant LED will coruscate.
D: As playground in the computer sticker is 16 pcs LED of RACE-TRACK, one cycle is 400M.
E: There are manual mode, time down mode, distance down mode, calories down mode and the LED of TIME,DIST,LAP,CALO around the center window.

2. Function key: program, mode, stop/start, speed up, speed down.

A: PROGRAM key:on the stop status,press program key can select Program circularly :normal manual mode->time down mode->distance down mode->calories down mode->P1->P2->P3->P4->P5->P6->fat->normal manual mode->--
B: MODE key:on the no setting status,press MODE key can select the display of center circularly :fi x display of time->fi x display of distance->fi x display of calories->fi x display of lap number->scan display time->scan display distance->scan display calories->scan display lap number->fi x display time->-- when it is in scan ,each function displays for 5 seconds If on the fat mode,the operation of MODE key will be recommended in the introduction of FAT.
C: START/STOP key: if stop status, press key, the motor will running, If start status, press key, the motor will slow stop.
D: SPEED UP key:if setting status,press key will increase setting value.If the motor running status,press key will up speed value.
E: SPEED DOWN key: if setting status, press key will reduce setting value If the motor running, press key will down speed value.

3: SPEED shortcut key: 2KM/H,4KM/H,6KM/H,8KM/H,10KM/H,12KM/H In the motor running, press one of keys will let the speed of motor as display value.

The instruction of PROGRAM:

1: The manual mode include: normal mode, time down mode, distance down mode, calories down mode
2: 6 speed programs: P1, P2, P3, P4, P5, P6.
3: 1 fat test mode

HOW TO START THE COMPUTER:

1: Put the safety key on the relevant place of faceplate, turn the power switch on, the all segment of LED will light for 2 seconds, and the Buzzer beep, then into normal of MANUAL MODE.
2: press the START/STOP key, the window of speed display:5-4-3-
2-1, the buzzer beep each seconds, then the motor running.

MANUAL MODE:

1: How to start manual mode:

A: Turn the power switch on, it enter the normal manual mode
B: Put the safety key out faceplate in any status, then Put the safety key on Faceplate again, it will go into the normal manual mode and the speed window will display E07 with the buzzer beep each seconds
C: On stop status, press program key can go into the normal manual mode

2: Three counter down mode: time down, distance down, calories down.

A: On the beginning of normal mode, the center window will display time: 0:00, and the relevant LED will light.
B: On the normal manual mode, Press program key, it will enter time down mode, the center window will display time, the initial value is 30:00, press speed up or down key setting value. The range is: 8:00-99:00. At the same time, the relevant LED will light.
C: On the time down mode, Press program key, it will enter distance down mode, the center window will display distance and light, the initial value: 1.0km, at the same time, the distance LED will light, press speed up or down key can set the value of distance, the range is: 1.0-99.00km.
D: On the distance down mode, Press program key, it will enter calories down mode, the center window will display calories and light, the initial value: 50kcal. At the same time, press speed up or down key can set the calorie's range: 20-9990kcal

RANGE OF ALL FUNCTIONS:

	INITIAL		INITIALVALUE
TIME(MIN:SEC)	0:00	30:00	8:00-99:00	0:00-99:59
SPEED(KM/H)	0.0	N/A	N/A	1.0-12.0
DISTANCE(KM)	0.00	1.00	1.00-99.00	0.00-99.99
PULSE(BPM)	P	N/A	N/A	40-199
CALORIES(KCAL)	0	50	20-9990	0-9999

1 press START/STOP key, the motor will start to run, the initial speed is 1.0km/h.
2 Press speed up or down key to adjust value of speed.
3 press START/STOP key again the motor will be slow down until stop.
4 press START/STOP again, the speed will increase slowly until the value as the display in the window.
5 press SPEED shortcut key will adjust speed quickly.
6 Put the safety key out from faceplate, the motor will stop quickly, the speed window display E07, the buzzer beep each second (the data of other windows won't change) Put the safety key on faceplate, all segment of LED light for 2 seconds, then enter normal manual mode. All parameter reset to zero.
7 When the setting time count down to zero, the speed will be slow down until stop the buzzer beep each one second for five times, then the center window change to fi x display time, press START/STOP key, the speed will increase slowly until the value as the display in the window, the time will be in counter up.
8 When the setting distance count down to zero, the speed will slow down until stop the buzzer beep each one second for five times, then center window change to fi x display distance, press START/STOP key, the motor start form 1.0km/h, the speed will increase slowly until the value as the display in the window, the distance will count up.

9 When the setting calories count down to zero, the speed will slow down until stop the buzzer beep each one second for five times, then the center window change to fix display calories, press START/STOP key, the motor start form 1.0km/h, the speed will increase slowly until the value as the display in the window, the calories will count up.

10 if the value no setting will counter up.

PROGRAM MODE:

1 initial setting time is 30mins, press speed up or down key to adjust value.
2 press START/STOP key, the motor will start to run, speed according to the inner setting value of program.
3 press speed up or down key can adjust speed.
4 press SPEED shortcut key can set speed as the setting value from speed key.
5 each program is 20 speed level
6 The buzzer will beep for 3 seconds before the change of different speed levels.
7 press START/STOP key, the speed will slow down until stop.
8 press START/STOP key, the speed will increase slowly until the value as the display in the window from 1.0KM/H.
9 only can set time, the setting time range:8:00—99:00
10 When the setting time count down to zero, the speed will slow down until stop the buzzer beep each one second for five times, then the center window change to five x display time, press START/STOP key, the motor start form 1.0km/h, the speed will increase slowly until the value as the display in the window. When the time count up, each inner setting value of time can function for 1:30 and it will function again each half hour.
11 Put the safety key out from faceplate, the motor will stop quickly, the speed window display E07, the buzzer beep each second (the data of other windows won't change) Put the safety key on faceplate, all segment of LED light for 2 seconds, then enter normal manual mode. All parameter reset to zero.

PROGRAM SPEED TABLE:

	P1		P2	P3	P4	P5	P6
S1		1.0		1.0	1.0	1.0	1.0	1.0
S2		1.5		2.0	3.0	4.0	3.0	3.0
S3		2.5		2.0	6.0	6.0	6.0	6.0
S4		3.5		3.0	3.0	8.0	3.0	8.0
S5		4.5		3.0	6.0	6.0	2.0	8.0
S6		4.5		4.0	6.0	5.0	3.0	8.0
S7		3.5		4.0	3.0	4.0	6.0	8.0
S8		2.5		5.0	6.0	3.0	3.0	6.0
S9		1.5		5.0	3.0	2.0	2.0	3.0
S10		1.0		1.0	1.0	1.0	1.0	1.0

Function of safety key

Put the safety key out from faceplate on any status, the speed window display is E07,the buzzer beep each second(the data of other windows won't change) Put the safety key on faceplate,all segment of LED light for 5 seconds, then it will enter normal manual mode. All parameter reset to zero.

FAT TESTING:

1: When the motorized treadmill stop, press program key can select body fat.
2: the pulse window display setting value, the speed window display setting function.
3: After enter the function of body fat testing, the speed window display "01", it expresses sex, pulse window display 01 for man, press speed up or speed down key to select 01 (man) or 02 (woman)
4: press mode key, speed window display 02 to enter the setting of age, pulse window display 25(years old), press speed up or speed to set age (age range:1-99).

5: press mode key, speed window display 03 to enter the setting stature, pulse window display 170(mm), press speed up or speed down to adjust range of stature(range:100-200mm)
6: press mode key, speed window display 04 to enter the setting weight, pulse window display 70(kg), press speed up or speed down to adjust weight(weight range:20-150kg)
7: press mode key, speed window display 05 to enter the setting body fat testing, pulse window display 00(xx%), the user must put two hands on pulse sensor for 8 seconds, the pulse window will display body fat testing value.

Training instructions

You must consider the following factors in determining the amount of training effort required in order to attain tangible physical and health benefits:

1. Intensity:

The level of physical exertion in training must exceed the level of normal exertion without reaching the point of breathlessness and / or exhaustion. A suitable guideline for effective training can be taken from the pulse rate. During training this should rise to the region of between 70% to 85% of the maximum pulse rate (see the table and formular for determination and calculation of this).

During the first weeks, the pulse rate should remain at the lower end of this region, at around 70% of the maximum pulse rate. In the course of the following weeks and months, the pulse rate should be slowly raised to the upper limit of 85% of the maximum pulse rate. The better the physical condition of the person doing the exercise, the more the level of training should be encreased to remain in the region of between 70% to 85% of the maximum pulse rate. This should be done by lengthening the time for the training and / or encreasing the level of difficulty.

If the pulse rate is not shown on the computer display or if for safety reasons you wish to check your pulse rate, which could have been displayed wrongly due to error in use, etc., you can do the following:

a. Pulse rate measurement in the conventional way (feeling the pulse at the wrist, for example, and counting the number of beats in one minute).
b. Pulse rate measurement with a suitable specialised device (available from dealers specialising in health-related equipment).

2.Frequency

Most experts recommend a combination of health-conscious nutrition, which must be determined on the basis of your training goal, and physical training three times a week. A normal adult must train twice a week to maintain his current level of condition. At least three training sessions a week are required to improve one's condition and reduce one's weight. Of course the ideal frequency of training is fi ve sessions a week.

3. Planning the training

Each training session should consist of three phases: the warm-up phase, the training phase, and the cool-down phase. The body temperature and oxygen intake should be raised slowly in the warm-up phase. This can be done with gymnastic exercises lasting fi ve to ten minutes.

Then the actual training (training phase) should begin. The training exertion should be relatively low for the first few minutes and then raised over a period of 15 to 30 minutes such that the pulse rate reaches the region of between 70% to 85% of the maximum pulse rate.

In order to support the circulation after the training phase and to prevent aching or strained muscles later, it is necessary to follow the training phase with a cool-down phase. This should be consist of stretching exercises and / or light gymnastic exercises for a period of fi ve to ten minutes.

4. Motivation

The key to a successful program is regular training. You should set a fixed time and place for each day of training and prepare yourself mentally for the training. Only train when you are in the mood for it and always have your goal in view. With continuous training you will be able to see how you are progressing day by day and are approaching your personal training goal bit by bit.

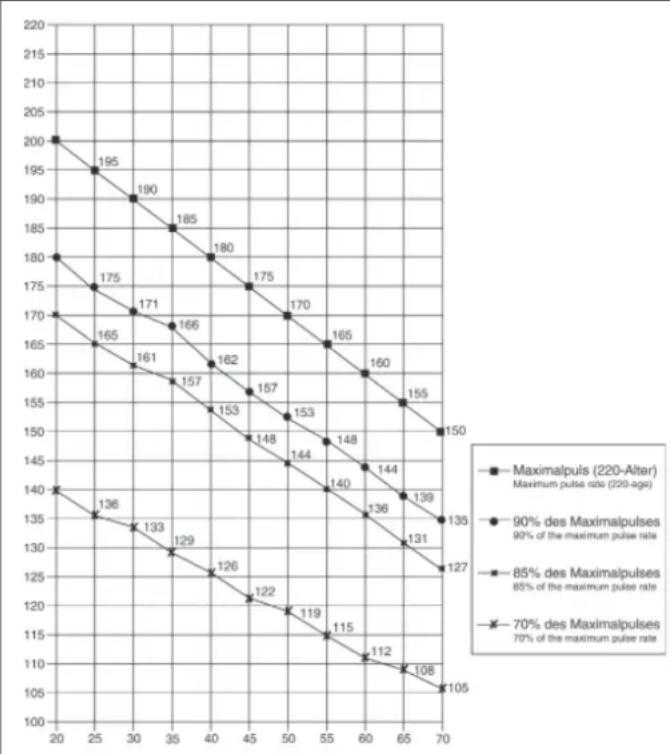

Calculation formula: Maximum pulse rate = 220 - age (220 minus your age)
90% of the maximum pulse rate = (220 - age) x 0.9
85% of the maximum pulse rate = (220 - age) x 0.85
70% of the maximum pulse rate = (220 - age) x 0.7

F

Sommaire

Dimensions approximatives : L 145 x I 69 x H 125 cm

Dimensions approximatives en position repliée: L 70 x I 69 x H 138 cm

Technical diagram of a treadmill with numbered components and an inset showing cable connections labeled 53 and 48R.

Etape 2:

Technical diagram of a treadmill with numbered parts and Chinese labels

Technical diagram of a treadmill with numbered components and close-up insets showing cable connectors and connectors.

Line drawing of a treadmill with labeled parts (no text or symbols on the device itself)

Etape 6: Contrôle

Line drawing of a treadmill with control panel and directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical lifting device (no text or symbols)

Line drawing of a hand pressing down on a treadmill with a tool, no text or symbols present

Technical line drawing of a mechanical assembly with dashed circular annotations (no text or symbols)

ON OFF fuse

Technical diagram of a treadmill with numbered components and an inset showing cable connections labeled 53 and 48R.

Stap 2:

Technical diagram of a treadmill with numbered components and close-up insets showing cable connectors and connectors.

Line drawing of a treadmill with labeled parts (no text or symbols on the device itself)

Stap 6: Controle:

Line drawing of a treadmill with control panel and directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical lifting device (no text or symbols)

Line drawing of a hand pressing down on a treadmill with a tool nearby (no text or symbols)

Technical line drawing of a mechanical linkage assembly with dashed circular annotations (no text or symbols)

ON OFF fuse

Kuder log Kuder Puts Km. h 6 Zelt Km 12 4 Runde Kal 10 2 8 Programm F Start stop Km. h Km. h

Beeldschermen:

Linker beeldscherm (puls):

3. Planning van de training

Technical diagram of a treadmill with numbered components and an inset showing cable connections labeled 53, 48R, and 69.

War 2:

Technical diagram of a treadmill with numbered parts and Chinese labels

Technical diagram of a treadmill with numbered components and close-up insets showing cable connectors and connectors.

Line drawing of a treadmill with labeled parts (no text or symbols on the device itself)

Шаг 6: Контроль

Line drawing of a treadmill with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical lifting device (no text or symbols)

Line drawing of a treadmill with a hand holding a tool near the handle (no text or symbols)

Technical line drawing of a mechanical assembly with dashed circular annotations (no text or symbols)

ON OFF fuse

top Sports

© by Top-Sports Gilles GmbH D-42551 Velbert (Germany)

Service:

Tel.: [phone]

Fax: [phone]

Christopeit Sport® Germany
