Product type	Electric oil radiator
Brand	SILVERCREST
Model	KH 9
Rated voltage	220-240 V ~ 50 Hz
Heat output	2300 - 2600 W
Thermostat setting	Continuously variable
Number of heating elements	9 fins
Heat levels	3 (I, II, III)
Fan function	Yes, with switch and indicator light
Frost protection	Yes, automatic activation at 0°C
Casters	Yes, 2 rails with 4 casters
Dimensions (approx.)	Height 65 cm, Width 38 cm, Depth 25 cm
Weight (approx.)	12 kg
Cable length	Approximately 1.5 m
Fluid type	Special oil
Overheat safety	Yes, overheat protection
Protection class	Class I (grounded)
Protection rating	IP20 (indoor use)
Cleaning	Slightly damp cloth, no aggressive cleaners
Accessories included	2 caster rails, 2 fixing brackets, 4 wing nuts, instructions
Warranty	3 years from date of purchase
After-sales service (France)	Kompernass Service: 902 884 663
Importer	KOMPERNASS GMBH, 44867 BOCHUM, GERMANY

Frequently Asked Questions - KH 9 SILVERCREST

How to turn on the KH 9 heater?

Make sure the thermostat (3) and heat level switch (2) are set to MIN/O. Plug in the appliance. Set the switch to 'III' and the thermostat to MAX. The 'Power' indicator (1) lights up.

What to do if the heater does not heat?

Check that the appliance is plugged in and the thermostat is not set to MIN. Make sure the heat level switch is set to a position other than '0'. If the 'Power' indicator is off, the thermostat may have reached the desired temperature.

How to use the fan function?

Activate the fan convector switch (4) to the ON position. The integrated indicator lights up and hot air is blown through the outlet (5). For quick heating, combine this function with a high heat level.

How to set the desired temperature?

Turn the thermostat (3) to MAX to heat quickly. Once room temperature is reached, slowly turn the thermostat back until you hear a 'click': the 'Power' indicator goes off. The temperature is then maintained.

Can the heater be used in a bathroom?

No, it must not be used near water (bathtub, shower, sink) or in damp rooms. The appliance is not waterproof and poses a risk of electric shock.

How to activate the frost protection?

Plug in the appliance, set the heat level switch (2) to 'I', 'II' or 'III' and the thermostat (3) to MIN. The heater automatically turns on if the temperature drops to 0°C and turns off above that.

What to do if the appliance leaks oil?

Do not restart. Unplug it immediately and have it checked by a qualified professional. The oil is special and any leak requires repair.

How to clean the KH 9 heater?

Allow the appliance to cool down, then unplug it. Clean with a slightly damp cloth. For stubborn dirt, use a mild detergent. Do not use abrasive or chemical products.

Can I use an extension cord?

No, using an extension cord is prohibited. The power cord must be plugged directly into an installed and grounded wall socket.

What are the available heat levels?

The switch (2) offers three levels: 'I' for slow heating, 'II' for medium heating, and 'III' for fast heating. You can also combine with the fan for faster heating.

USER MANUAL KH 9 SILVERCREST

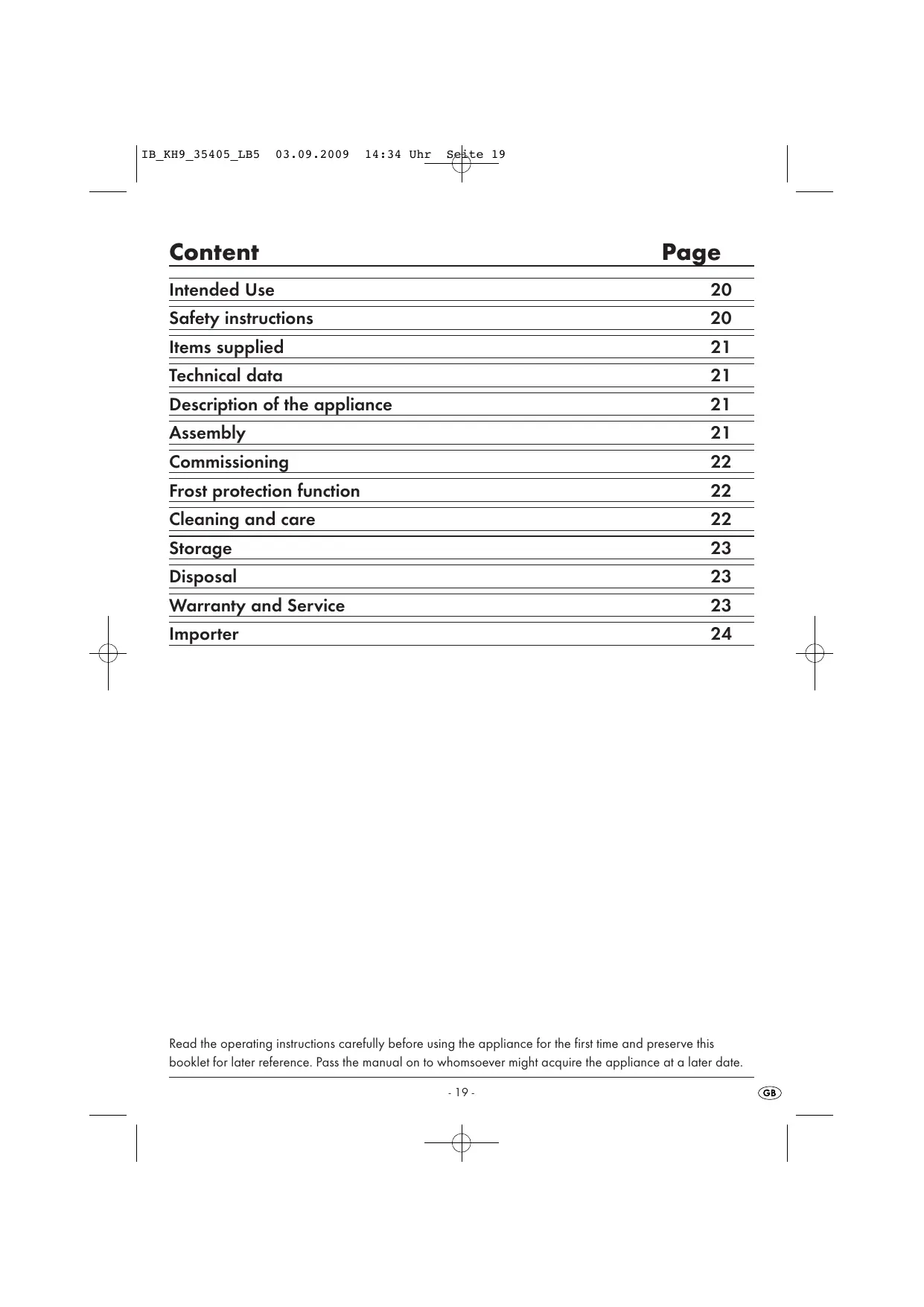

Content	Page
Intended Use	20
Safety instructions	20
Items supplied	21
Technical data	21
Description of the appliance	21
Assembly	21
Commissioning	22
Frost protection function	22
Cleaning and care	22
Storage	23
Disposal	23
Warranty and Service	23
Importer	24

Read the operating instructions carefully before using the appliance for the first time and preserve this booklet for later reference. Pass the manual on to whomsoever might acquire the appliance at a later date.

OIL-FILLED RADIATOR KH 9

Intended Use

This appliance in intended exclusively for heating in domestic households. It is not suitable for commercial or industrial applications.

Safety instructions

Risk of electrocution!

• Connect the oil radiator only to correctly installed and earthed mains sockets. Ensure that the voltage supplied through the mains socket tallies completely with the details given on the appliance rating plate.
• Do not fold or crush the power cable.
• To disconnect, always pull the plug itself out of the power socket, do not pull on the power cable.
• Never touch the oil radiator, the power cable or the plug with wet hands.
• Do not use extension cables.
• Under no circumstances may the appliance be submersed in fluids or fluids be allowed to permeate the housing. Do not expose the appliance to humidity and do not use it outdoors. There is the danger of electrocution. Should liquids enter the housing, unplug the appliance from the power socket immediately and arrange for it to be repaired by a qualified technician.

• Under no circumstances should the oil radiator be used in the vicinity of water, for example in a bath, shower, washbasin or in humid cellar rooms. The proximity of moisture presents a danger, even when the appliance is switched off.

• In event of operating malfunctions and before cleaning the appliance, remove the power plug from the wall socket.

• Arrange for defective power plugs and/or cables to be replaced at once by qualified technicians or our Customer Service Department.
• This heating appliance has been filled with a specific volume of a special oil. Should the appliance become damaged or leak oil then it may no longer be taken into use. Arrange for the appliance to be checked and/or repaired by qualified technicians.
• Do not open the housing or attempt to repair the appliance yourself. Should you do so, the safety concept of the device may be compromised and the warranty becomes void. Permit only authorised technicians to repair a defective appliance.
• Never place the appliance in the close vicinity of sources of heat and protect the power cable from potential damage.
• Do not place water-filled receptacles, e.g. flower vases, on the appliance.

Risk of fire!

• Never place the appliance close to inflammable materials, liquids or gases. Ensure there is at least one meter of space to all sides and above the appliance.
• Never leave a switched-on oil radiator unsupervised.
• This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
  Children should be supervised to ensure that they do not play with the appliance.

• ALWAYS position the appliance on a level and heat resistant surface.

• Do not place open fire sources, e.g. candles, on the appliance.

Warning: To avoid an overheating of the oil radiator it may not be covered!

• Clean the appliance at regular intervals.
• Do not use an external timing switch or a separate remote control system to operate the appliance.
• Do not position the appliance underneath a mains power socket.

Injury hazard

• Lay the power cable in such a way that no one can tread on or trip over it.
• Do not use extension cables. In an emergency the power plug must be quickly accessible.

Items supplied

Oil Radiator

2 Roller rails
2 Mounting bracket
4 Wing nuts

Operating instructions

Technical data

Rated voltage: 220 - 240V 50Hz

Heat output: 2300 - 2600 W

Thermostat: Infinitely variable

Heating gills: 9

Description of the appliance

Control lamp "Power"
Heat level switch
3 Thermostat
4 Warm air switch with integrated warm air control lamp
5 Warm air outlet
Cold air intake
Power cable retainer
Mounting bracket
9 Roller rails
10 Wing nuts

Assembly

Use the fold-out page of these instructions to assist you with the assembly.

1. Take the oil radiator and all components from the package and remove all packaging materials.
2. Place the oil radiator, with the base uppermost, on a soft surface, for example a carpet.
3. Place a mounting bracket under the heater element so that the parts with a screw thread project upwards.
4. Lay a roller railer over it, such that the screw threads protrude through the holes. Check to ensure that the recesses on the roller railers face outwards. The screw ends projecting from the appliance must reach into the recesses.
5. Screw one wing nut 10 onto each of the threaded ends of the mounting bracket 8 until it is hand tight.
6. Proceed in the same manner with the other side.
7. Turn the appliance over and place it on the rollers.

Commissioning

1. Unwind all of the power cable from the power cable retainer 7.

① Note:

Ensure that the thermostat 3 and the heat level switch 2 are standing at MIN resp. 0.

1. Insert the power plug into a wall power socket.
2. Place the heat level switch 2 at "III" and the thermostat 3 at MAX. The control lamp "Power" 1 glows.

1 Important:

With the heat level switch 2 you can regulate how quickly the appliance warms up. If you wish to heat it up particularly quickly, select heat level "III", if a slow warming up is preferred, select heat level "I". Using the thermostat 3 you can set it to the desired temperature.

1. When the desired room temperature has been reached, slowly turn the thermostat 3 back until a quiet "click" is heard and the control lamp "Power" 1 extinguishes. The momentary room temperature will now be retained. It could be that every now and then the control lamp "Power" 1 switches itself on and then back off. This means that the programmed room temperature had fallen below this level for a short period and the appliance had warmed itself back up.

① Note:

If you want to heat a room up particularly quickly, activate additionally the warm air switch 4.

When the warm air switch 4 is positioned at ON, the warm air control lamp 4 glows and warm air is blown through the warm air outlet 5 into the room.

1. If you wish to switch the appliance off, first place the warm air switch 4 at the position OFF. Next, turn the heat level switch 2 to "0" and then the thermostat 3 to MIN.
2. Remove the plug from the wall power socket.

Frost protection function

You can programme this oil radiator so that, if the room temperature falls near to 0^ , it switches itself on and begins to radiate heat automatically:

1. Insert the power plug into a wall socket.
2. Position the heat level switch ② at "I", "II" or "III", and the thermostat ③ at MIN.

The oil radiator will now switch itself on if the temperature falls near to 0^ . When the temperature rises above 0^ , the oil radiator switches itself off automatically. The oil radiator will switch on and off periodically to maintain the room temperature above 0^ .

Cleaning and care

Injury hazard

Allow the appliance to cool down before cleaning it! Risk of Burns!

Remove the power plug from the wall socket.

There is a risk of electric shock!

Clean the appliance with a lightly moist cloth. For stubborn soiling use a mild detergent on the cloth.

Attention!

Do not use any aggressive, abrasive or chemical cleaning agents. These could damage the surfaces.

Storage

If you do not intend to use the appliance for a long period, clean it as described in the section "Cleaning and care".

Wrap the power cable around the power cable retainer 7.

Store the appliance at a clean and dry location.

Disposal

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2002/96/EC.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations for the disposal of used oil.

In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

Warranty and Service

You receive a 3-year warranty for this device as of the purchase date. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, not for worn parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

In the event of misuse and improper handling, use of force and manipulations not carried out by our authorised service centre, the warranty will become void. Your statutory rights are not restricted in any way by this warranty.

GB DES Ltd

Units 14-15

Bilston Industrial Estate

Oxford Street

Bilston

WV147EG

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

IE Kompernass Service Ireland

Tel: [phone] (0,082 EUR/Min.)

Standard call rates apply. Mobile operators may vary.

e-mail: [e-mail]

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com
