Read the operating instructions carefully before using the appliance for the first time

and preserve this booklet for later reference. Pass the manual on to whomsoever might acquire the appliance at a later date.

Zmiotka akumulatorowa 6

GD Rechargeable Elect

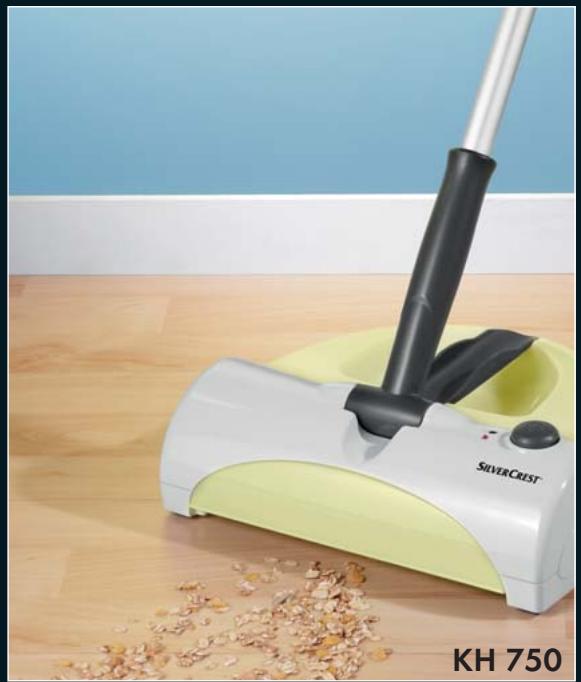

Floor Sweeper KH 750

This rechargeable battery floor sweeper

for the sweeping of dry dirt in dry enclosed rooms

and only for private use. lt must only be operated

with the enclosed accessories.

The rechargeable battery floor sweeper is not

intended for the sweeping of gravelfaced concrete,

gravel and similar surfaces, not for deeppile carpets

and wet floor coverings or for commercial use. Use only as described in this manual. Do not allow the

appliance to be used as toy. Do not let children use

this devices unsupervised.

Voltage/frequency (charger) 230 V - / 50 Hz

Prior to initial use

Before starting the device satisfy yourself that.

the floor sweeper, the charger and its cable are in perfect condition and …

all packaging materials have been removed from the device.

+_ Do not allow individuals (including children) to use the appliance whose physical, sensorial or mental abilities or lack of experience and know- ledge hinder their safe usage of it ifhey have not previously been supervised or instructed in its correct usage.

Tell children about the appliance and its poten-

tial dangers so that they do not play with it.

À Danger of Electrocution! + Arrange for defective power plugs and/or

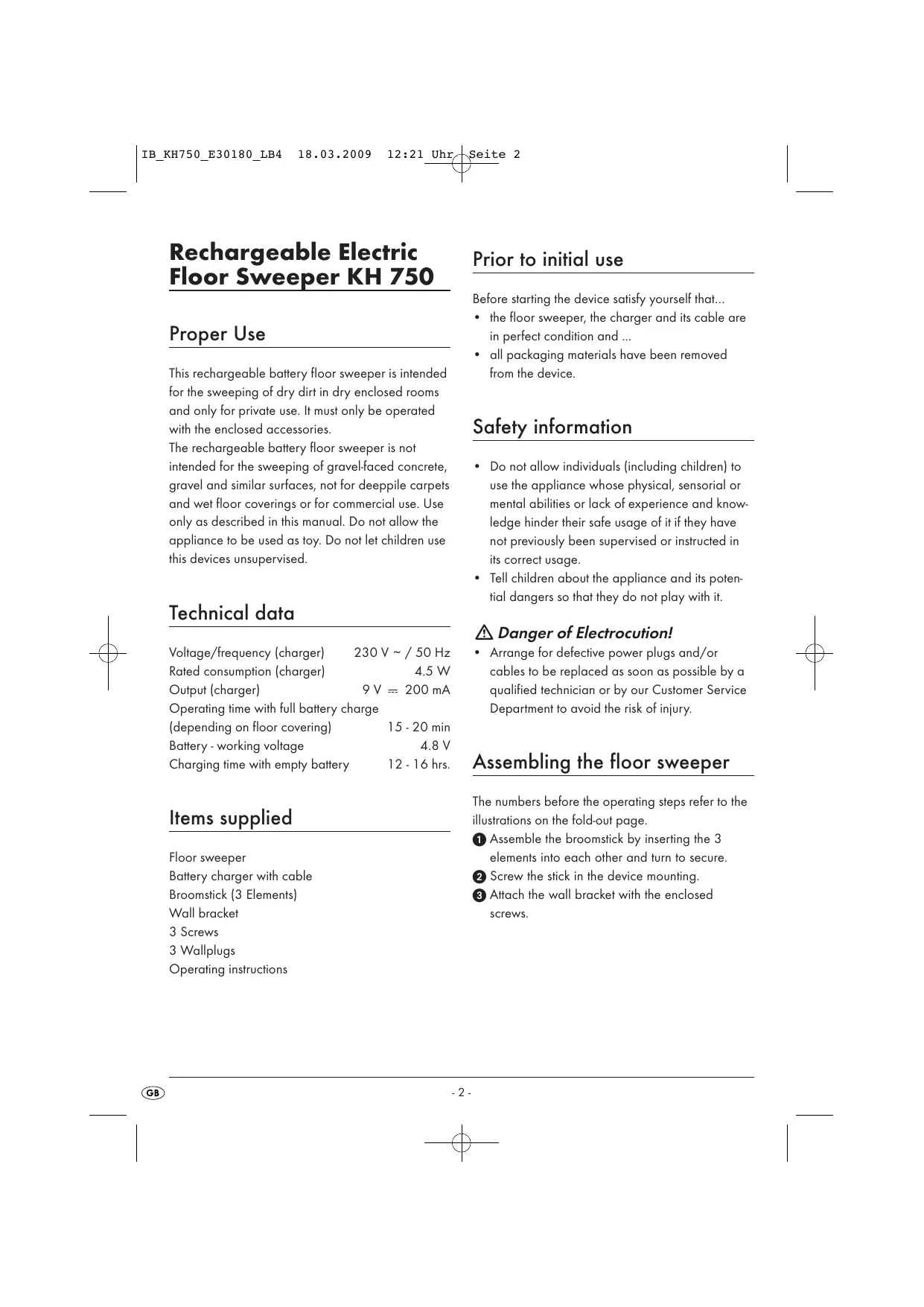

Rated consumption (charger) 45W cables to be replaced as soon as possible by a Output (charger) 9V = 200 mA qualified technician or by our Customer Service Operating time with full battery charge Department to avoid the risk of injury. {depending on floor covering) 15-20 min Battery - working voltage 48V Charging time with empty battery 2-16hs. Assembling the floor sweeper The numbers before the operating steps refer to the Items supplied illustrations on the fold-out page. © Assemble the broomstick by inserting the 3 Floor sweeper elements into each other and turn to secure. Battery charger with cable @ Screw the stick in the device mounting Broomstick (3 Elements) @ Aïiach the wall bracket with the enclosed Wall bracket screws. 3 Screws 3 Wallplugs Operating instructions -2- Fan

IB_KH750 E30180 LB4 18.03.2009 12:21 pre te 3

Working with the floor sweeper

The rechargeable battery floor sweeper is supplied With an empty Ni-MH rechargeable battery. To ensure that the battery will receive its full efficiency it is necessary to charge the battery for 16 hours prior to initial use. Charging processes thereafter take 12-16 hours.

With fully charged battery the device provides an operating time of 15 - 20 minutes before recharging becomes necessary.

To charge the battery, ensure that the battery brush

@ if necessary, switch it off at the switch,

@ insert the plug of the charger in the charging jack of the device then insert the mains plug in a 230 V - 50 Hz socket.

@ he red charging lamp is illuminated during the charging process. If this is not the case, check the plug connections.

Once the charging process is over, the device switches over to the charge maintenance position {management function). However, it is not advisable to leave the device permanently connected to the mains charging device so as to prevent the batteries from possibly getting damaged.

+ Only use the enclosed charger (9V — 200 mA). Other charging devices could irreparably damage the appliancel

+ Only operate the device with the enclosed rechargeable battery. lf could otherwise get damaged.

+_ Do not attempt to remove the rechargeable battery for charging.

+_ Do not attempt to open the rechargeable battery jacket or dismantle the battery, this would destroy it.

+ Never use the device with the dirt container removed. The dirt would only be swirled around!

+ _Keep end of rotating brush, wands and other openings away from your face and bodÿ. Risk of injuryl

@ Press the switch to start the rechargeable battery floor sweeper. Press again to switch off the device.

+ Guide the rechargeable battery floor sweeper over the floor.

+ You can leave the floor sweeperstick locked in vertical position during work interruptions.

With some types of carpet the rechargeable battery floor sweeper could rattle or bounce. In this case work slowly and in the opposite direction.

How to clean the dirt container: To maintain the efficiency ofthe rechargeable battery floor sweeper, empty the dirt container after every use. @ Press the unlocking button of the dirt container to detach it from the device. © With a slight upward movement, pull the dirt container horizontally from the device. + Empty the dirt container and re-insert.

How to clean the brush:

IFthe brush roller cannot be turned any longer because of accumulated coarse dirt or threads, proceed as follows:

IB_KH750 E30180 LB4 18.03.2009 12:21 pre te 4

+_ Turn over the rechargeable battery floor sweeper and hold it so that the flat side with the brush roller faces you.

© Remove the small cover on the righthand side.

+_ Loosen the drive belt by pushing it to the right.

© Lift the brush roller on the righthand side and remove the guide bushing with the washer ©.

© Now pull the brush roller from the device to the righthand side.

+ Remove the dirt [on both sides of the bristle) and clean the brush.

After cleaning, proceed as follows to re-install the

+_ Insert the drive bel in the compartment and place it around the motor drive pulley.

+_ Place the washer on the guide bushing and insert the brush roller into the left guide channel.

Pull the drive belt over the guide bushing and re-insert the brush roller into the right channel.

Now pull the drive belt over the drive cog of the brush roller.

+_ Fitthe brush cover by first introducing the lower lugs in the recesses and press the cover in at the top.

+ Ensure that the device is not inadvertenily switched on with the dirt container removed or while cleaning the brush.

+_ Do not clean the device during the charging process.

Use the supplied wall bracket for practical and space-saving storage or when charging the device.

À Caution: + Do not expose the rechargeable battery floor sweeper to extreme temperatures or moisture.

Do not therefore store it near ovens, heating ele- ments, burners or in the bathroom.

Never leave the device without it having been switched off the rechargeable battery could be damaged through depletion.

normal domestic waste. This product is

D Do not dispose of the appliance in your

subject to the European guideline

Dispose of the appliance through an approved dis- posal centre or at your community waste facility. Observe the currently applicable regulations.

In case of doubt, please contact your waste disposal centre.

Batteries may not be disposed of with normal domestic waste. AÏl consumers are statutorily obli- ged to dispose of batteries at the collection point in their community/district or with the original supplier. The purpose of this obligation is to ensure that batteries can be disposed of in an environmentally friendly manner. Only dispose of batteries when they are fully discharged.

Dispose of all packaging materials in an environmentally friendly manner.

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manv-factured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In he case of a warranty claim, please make contact by telephone with our service depart ment. Only in this way can a postfree despatch for your goods be assured.

The warranty covers only claims for material and maufacturing defects, not for wearing parts or for damage to fragile components. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and im- proper handling, use of force and internal tampe- ring not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.
