AY-XPC9JR - Air-conditioner SHARP - Free user manual and instructions

Brand	SHARP
Model	AY-XPC9JR
Type	Split air conditioner
Power supply	220-240 V ~ 50 Hz
Refrigerant	R410A
Cooling capacity	9000 BTU/h (estimated)
Main functions	Cooling, heating, dehumidification, ventilation, Plasmacluster, automatic cleaning
Filters	Air filter + air purifying filter (type AZ-F920F)
Filter cleaning	Every 2 weeks
Purifying filter replacement	Every 3 to 6 months
Timer	On/Off timer, stop after 1 hour
Remote control batteries	2 AAA batteries (R03)
Remote control range	Up to 7 meters
Auxiliary mode	Yes (AUX button on indoor unit)
Memory function	Yes (except timer)
Energy class	Not specified in the manual
Indoor unit dimensions	Not specified
Indoor unit weight	Not specified

Frequently Asked Questions - AY-XPC9JR SHARP

How to clean the air conditioner filters?

Turn off the appliance and unplug it. Open the panel, remove the air filters, then the purifying filters. Clean the air filters with a vacuum cleaner or with warm soapy water, dry them in the shade. Reassemble everything. Clean the air filters every 2 weeks.

What to do if the air conditioner is not cooling enough?

Check that the filters are clean, that the air inlets/outlets are not blocked, that the thermostat is set correctly, that windows and doors are closed, and that no heating device is running in the room. If the problem persists, contact after-sales service.

How to use the stop timer?

Press the stop timer button, set the desired time with the time adjustment buttons, then confirm with SET/C. The appliance will stop at the programmed time. The timer also activates an automatic sleep function that adjusts the temperature during the night.

What is the Plasmacluster function?

Plasmacluster is an ionizer that produces positive and negative ions to reduce mold and bacteria in the air. Press the PLASMACLUSTER button to activate it. A blue light turns on on the unit.

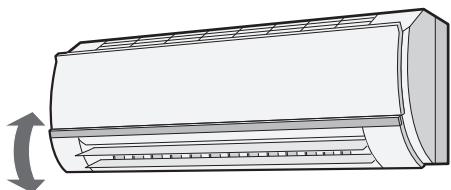

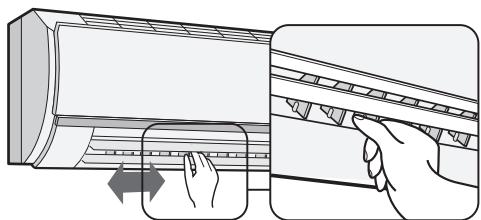

How to adjust the airflow direction?

For vertical adjustment, use the SWING button on the remote control to oscillate the flap, then press again to fix it at the desired position. For horizontal adjustment, move the horizontal flaps manually.

What to do if the remote control does not work?

Check that the batteries are correctly inserted and not depleted. Point the remote control at the indoor unit's receiver, without obstacles. If necessary, use auxiliary mode (AUX button on the unit).

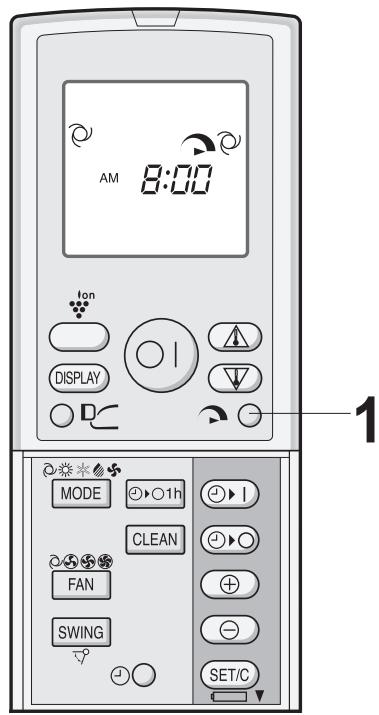

How to use the Full Power mode?

Press the FULL POWER button during operation for quick cooling or heating. The temperature display turns off and the green light turns on. To cancel, press the button again or change mode.

Why does water or steam come out of the air conditioner?

In cooling or dry mode, condensation may form and produce steam at the air outlet if humidity is high. In heating mode, steam may escape from the outdoor unit during defrosting. This is normal.

How to perform automatic cleaning?

Press the CLEAN button when the appliance is off. The appliance runs for 40 minutes to dry the interior and reduce mold. The blue Plasmacluster light turns on. To cancel, press CLEAN then ON/OFF.

Where to find the replacement filter?

The replacement air purifying filter is model AZ-F920F. You can purchase it from your nearest Sharp dealer. Replace it every 3 to 6 months.

USER MANUAL AY-XPC9JR SHARP

Device of this mark is a trademark of Sharp Corporation.

Plasmacluster is a registered trademark

or a trademark of Sharp Corporation.

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge. In some countries your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users.

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

Pb

The battery supplied with this product contains traces of Lead.

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.

For Switzerland: The used battery is to be returned to the selling point.

For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery.

Contains fluorinated greenhouse gases covered by the Kyoto Protocol R410A (Global warming potential 1980)

CONTENTS

• IMPORTANT SAFETY INSTRUCTIONS......GB-1
  PART NAMES.. GB-2
  USING THE REMOTE CONTROL GB-4
• SETTING AIR PURIFYING FILTER .......GB-5
  TIPS ON SAVING ENERGY. .GB-5
  AUXILIARY MODE .GB-5
  BASIC OPERATION. GB-6
• ADJUSTING THE AIR FLOW DIRECTION...GB-7
  PROGRESSIVE AIRFLOW .GB-8
  FULL POWER OPERATION .GB-8
• PLASMACLUSTER OPERATION ..... GB-9
  SELF CLEAN OPERATION.. GB-9
• ONE-HOUR OFF TIMER. GB-10
• TIMER OPERATION . GB-10
  TIPS ABOUT INDICATOR PANEL.GB-12
  MAINTENANCE . GB-12
• ADDITIONAL NOTES ON OPERATION .......GB-13
  BEFORE CALLING FOR SERVICE .GB-14

IMPORTANT SAFETY INSTRUCTIONS

WARNING FOR USE

1 Do not pull or deform the power supply cord. Pulling and misuse of the power supply cord can result in damage to the unit and cause electrical shock.
2 Be careful not to expose your body directly to the outlet air for a long time. It may affect your physical conditions.
3 When using the air conditioner for infants, children, elderly, bedridden, or disabled people make sure the room temperature is suitable for those in the room.
4 Never insert objects into the unit. Inserting objects can result in injury due to the high speed rotation of internal fans.
5 Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe, water pipe, lightning rod or telephone grounding wire. Incomplete grounding may cause electric shock.
6 If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation immediately and turn the circuit breaker OFF.
The appliance shall be installed in accordance with national wiring regulations. Improper cable connection can cause the power supply cord, plug and the electrical outlet to overheat and cause fire.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Use only the manufacture-specified power cord for replacement.
9 Do not splash or pour water directly on the unit. Water can cause electrical shock or equipment damage.

WARNINGS FOR INSTALLATION/ REMOVAL/REPAIR

• Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electric shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the installation/ removal/repair of the unit.

CAUTIONS FOR USE

1 Open a window or door periodically to ventilate the room, especially when using gas appliances. Insufficient ventilation may cause oxygen shortage.
2 Do not operate the buttons with wet hand. It may cause electric shock.
3 For safety, turn the circuit breaker off when not using the unit for an extended period of time.
4 Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly in place.
5 Do not put anything on the outdoor unit nor step on it. The object or the person may fall down or drop, causing injury.
6 This unit is designed for residential use. Do not use for other applications such as in a kennel or greenhouse to raise animals or grow plants.
7 Do not place a vessel with water on the unit. If water penetrates into the unit, electrical insulations may deteriorate and cause electric shock.
8 Do not block the air inlets nor outlets of the unit. It may cause insufficient performance or troubles.
9 Be sure to stop the operation and turn the circuit breaker off before performing any maintenance or cleaning. A fan is rotating inside the unit and you may get injured.
10 This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

CAUTIONS FOR LOCATION/ INSTALLATION

• Make sure to connect the air conditioner to power supply of the rated voltage and frequency.
  Use of a power supply with improper voltage and frequency can result in equipment damage and possible fire.
• Do not install the unit in a place where inflammable gas may leak. It may cause fire.

Install the unit in a place with minimal dust, fumes and moisture in the air.

• Arrange the drain hose to ensure smooth drainage. Insufficient drainage may cause wetting of the room, furniture etc.
• Make sure a leak breaker or a circuit breaker is installed, depending on the installation location, to avoid electrical shock.

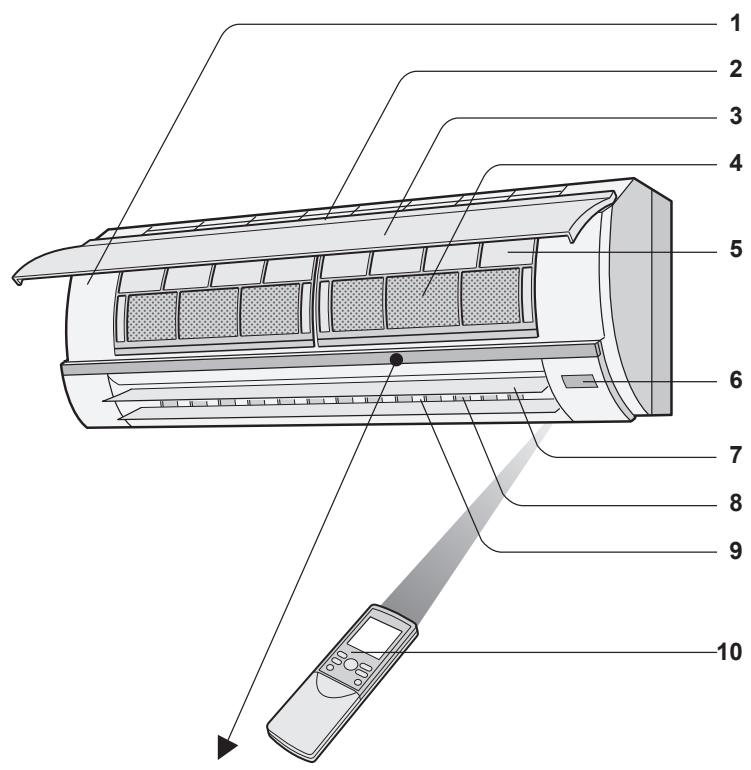

PART NAMES

INDOOR UNIT

1 AUX Button
2 Inlet (Air)
3 Open Panel
4 Air Purifying Filter
5 Air Filters
6 Receiver Window
7 Vertical Adjustment Louvre
8 Horizontal Adjustment Louvre
9 Outlet (Air)
10 Remote Control

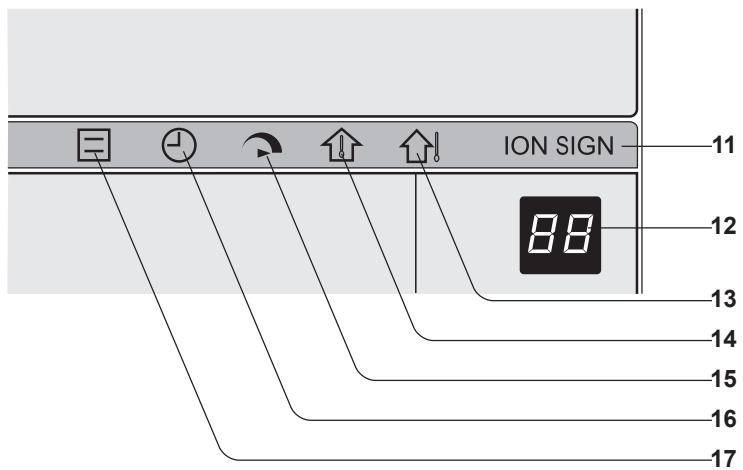

11 PLASMACLUSTER Lamp (blue)
12 TEMPERATURE INDICATOR
13 OUTDOOR Temp. Lamp (green
14 ROOM Temp. Lamp (green
15 FULL POWER Lamp (green
16 TIMER Lamp (orange 心 ）
17 OPERATION Lamp (red)

NOTE:

Actual units might vary slightly from those shown above.

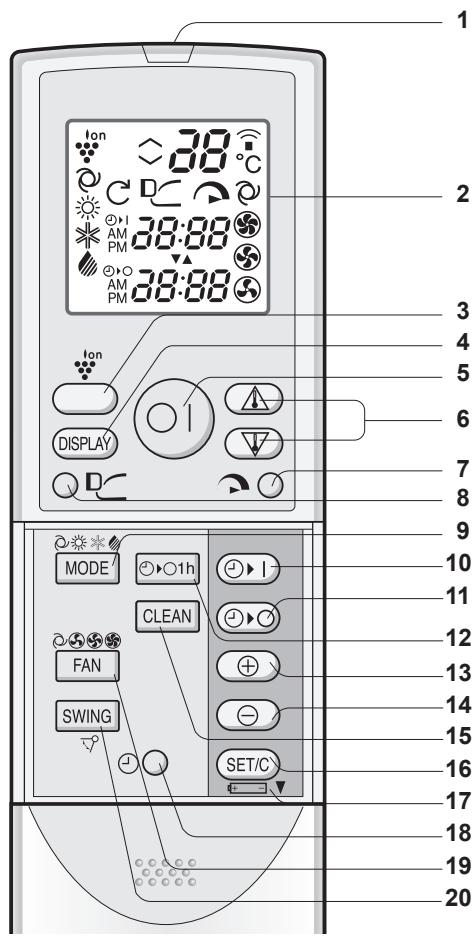

REMOTE CONTROL

1 TRANSMITTER
2 DISPLAY (Liquid Crystal Display)
3 PLASMACLUSTER Button
4 DISPLAY Button
5 ON/OFF Button
6 THERMOSTAT Button
7 FULL POWER Button

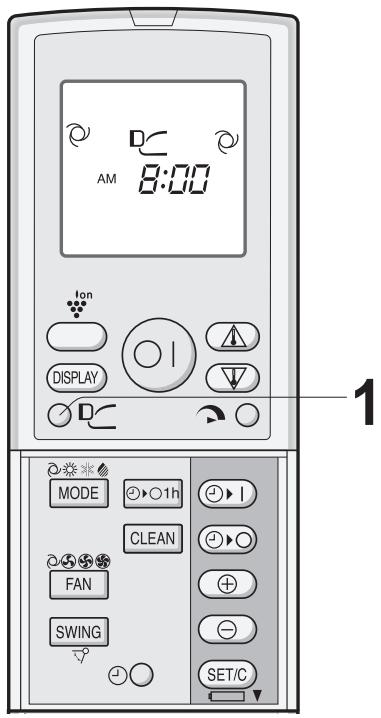

8 PROGRESSIVE AIRFLOW Button
9 MODE Button
10 TIMER ON Button (for setting the timer)

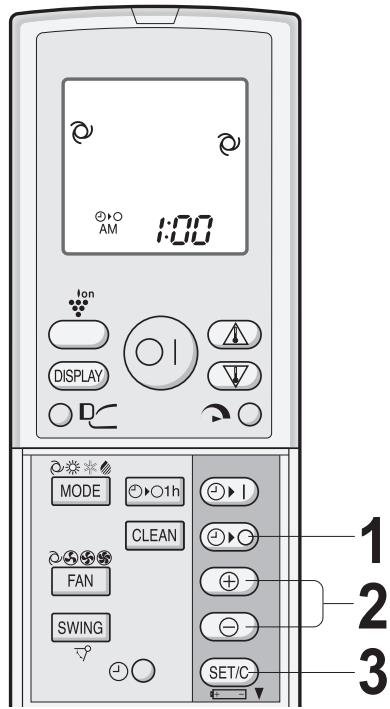

11 TIMER OFF Button (for setting the timer)
12 ONE-HOUR OFF TIMER Button
13 TIME ADVANCE Button
14 TIME REVERSE Button

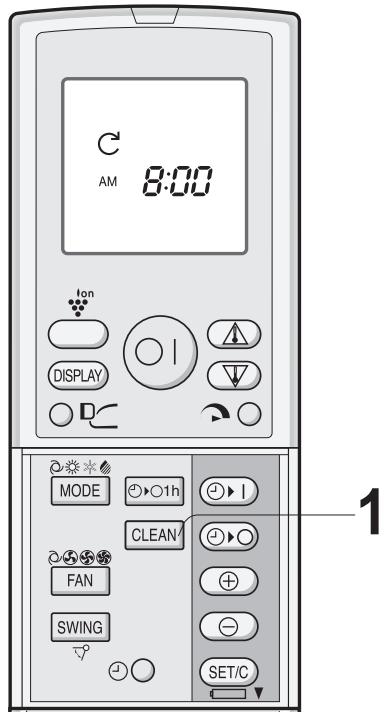

15 SELF CLEAN Button
16 TIMER SET/CANCEL Button
17 Indicates battery compartment is below this mark
18 CLOCK Button
19 FAN Button

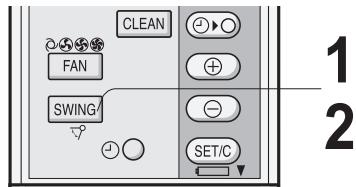

20 SWING Button

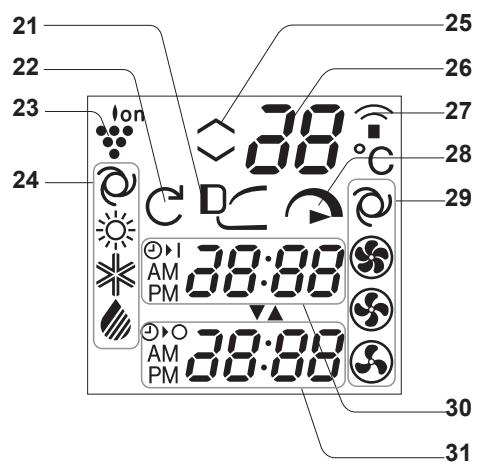

L.C.D. REMOTE CONTROL DISPLAY

21 PROGRESSIVE AIRFLOW Symbol
22 SELF CLEAN Symbol
23 PLASMACLUSTER Symbol
24 MODE Symbols

：AUTO

HEAT

COOL
：DRY

25 Thermostat setting for AUTO and DRY modes
26 TEMPERATURE Indicator
27 TRANSMITTING Symbol
28 FULL POWER Symbol
29 FAN SPEED Symbols

O: AUTO

: HIGH

LOW
SOFT

30 TIMER ON Indicator/CLOCK

Indicates the on timer preset time or current time.

31 TIMER OFF Indicator

Indicates the preset time for off timer or one-hour off timer.

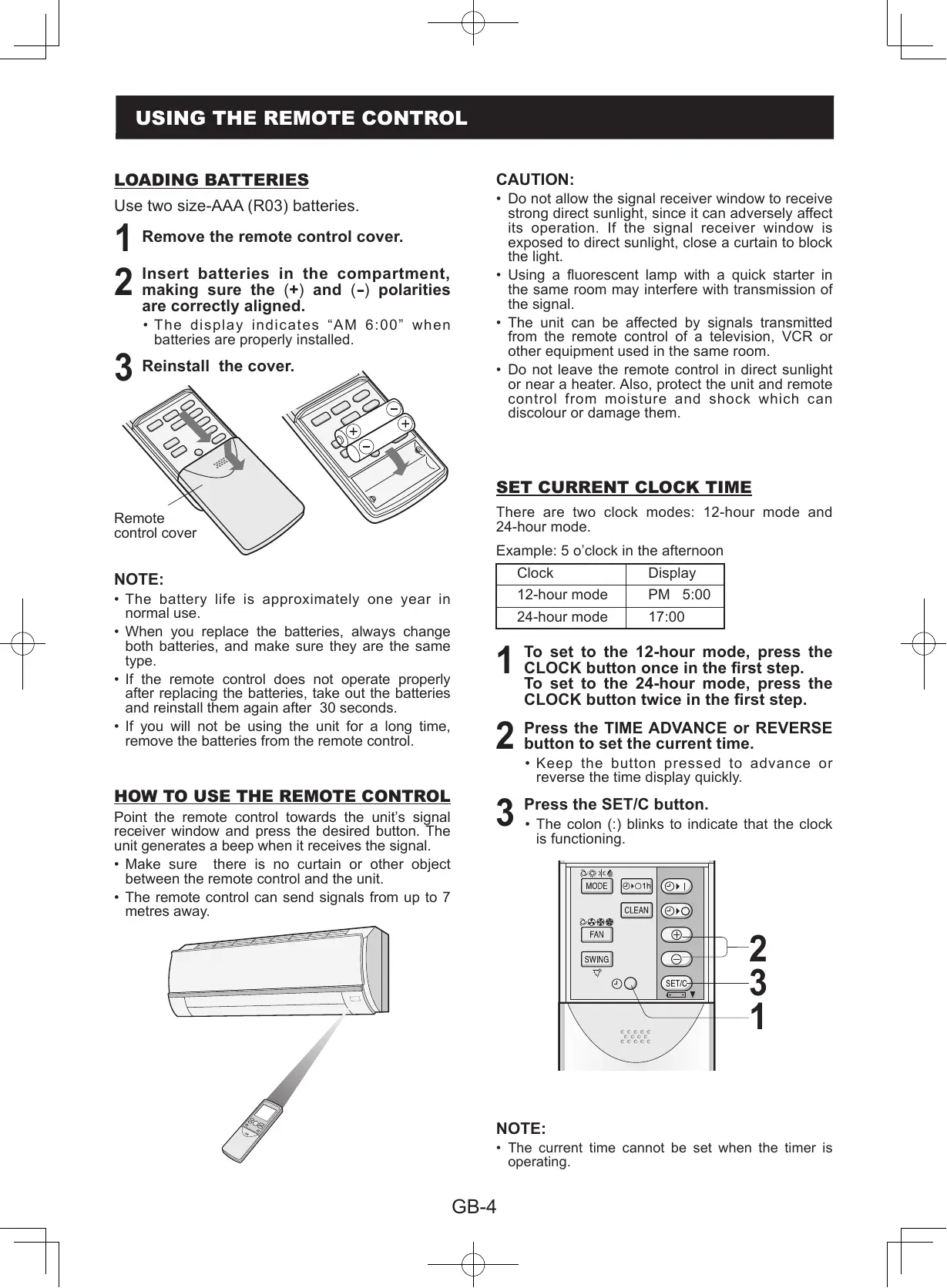

USING THE REMOTE CONTROL

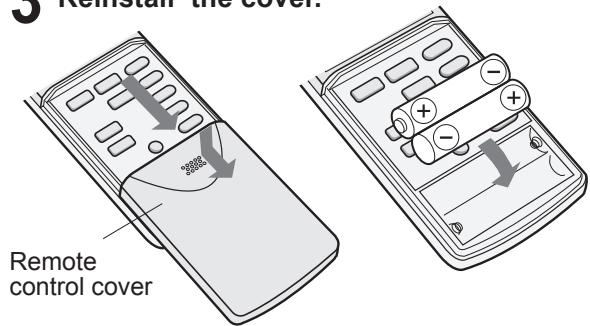

LOADING BATTERIES

Use two size-AAA (R03) batteries.

1 Remove the remote control cover.
2 Insert batteries in the compartment, making sure the (+) and (-) polarities are correctly aligned.

• The display indicates "AM 6:00" when batteries are properly installed.

3 Reinstall the cover.

NOTE:

• The battery life is approximately one year in normal use.
• When you replace the batteries, always change both batteries, and make sure they are the same type.
• If the remote control does not operate properly after replacing the batteries, take out the batteries and reinstall them again after 30 seconds.
• If you will not be using the unit for a long time, remove the batteries from the remote control.

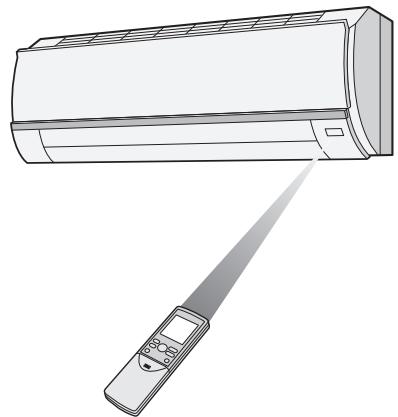

HOW TO USE THE REMOTE CONTROL

Point the remote control towards the unit's signal receiver window and press the desired button. The unit generates a beep when it receives the signal.

• Make sure there is no curtain or other object between the remote control and the unit.
• The remote control can send signals from up to 7 metres away.

CAUTION:

• Do not allow the signal receiver window to receive strong direct sunlight, since it can adversely affect its operation. If the signal receiver window is exposed to direct sunlight, close a curtain to block the light.
• Using a fluorescent lamp with a quick starter in the same room may interfere with transmission of the signal.
• The unit can be affected by signals transmitted from the remote control of a television, VCR or other equipment used in the same room.
• Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit and remote control from moisture and shock which can discolour or damage them.

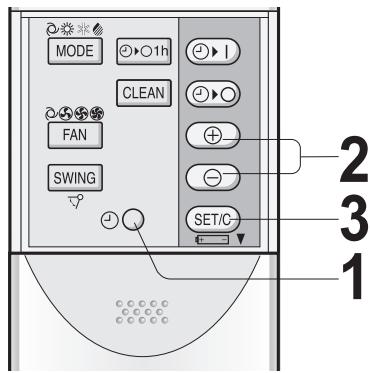

SET CURRENT CLOCK TIME

There are two clock modes: 12-hour mode and 24-hour mode.

Example: 5 o'clock in the afternoon

Clock	Display
12-hour mode	PM 5:00
24-hour mode	17:00

1 To set to the 12-hour mode, press the CLOCK button once in the first step. To set to the 24-hour mode, press the CLOCK button twice in the first step.

2 Press the TIME ADVANCE or REVERSE button to set the current time.
- Keep the button pressed to advance or reverse the time display quickly.
Press the SET/C button.
- The colon (:) blinks to indicate that the clock is functioning.

NOTE:

• The current time cannot be set when the timer is operating.

SETTING AIR PURIFYING FILTER

The air purifying filters are packed as accessory of this unit. During operation of the air conditioner, the filters remove dust and tobacco smoke from the air and discharges clean air.

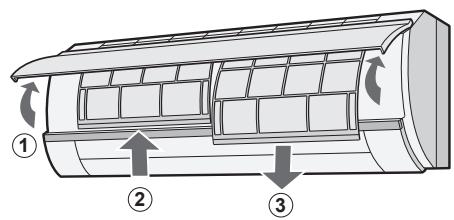

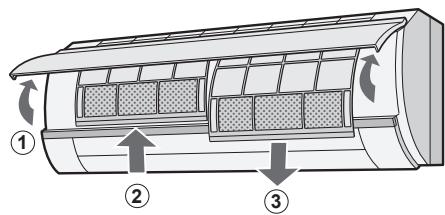

1 Take out the air filters.

① Open the open panel.
② Push the air filters up slightly to unlock them.
③ Pull the air filters down to remove them.

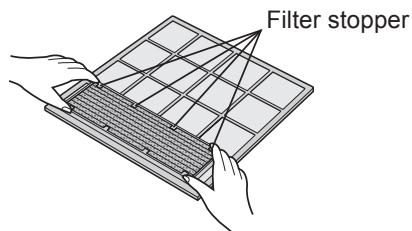

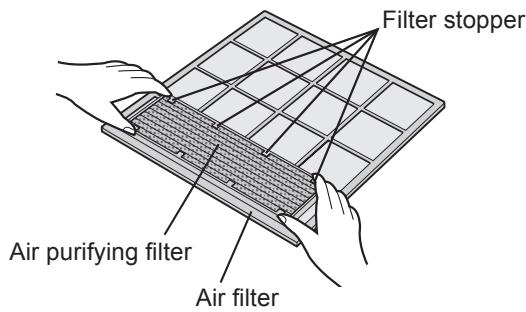

2 Set the air purifying filter under the filter stoppers located on the air filter.

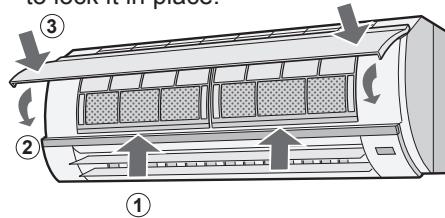

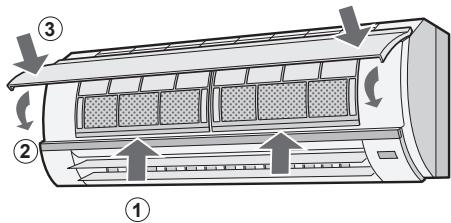

Reinstall the air filters.

① Reinstall the air filters in the original positions.
② Close the open panel.
③ Push the arrow-marked of the panel firmly to lock it in place.

Precautions:

• The filters are sealed in a plastic bag to keep their dust collection effect.
  Do not open the bag until using the filters. (Otherwise the filters life may get shorter.)
• Do not expose the filters to direct sunlight. (Otherwise they may deteriorate.)

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air conditioner.

SET THE CORRECT TEMPERATURE

• Setting the thermostat 1^ C higher than the desired temperature in the COOL mode and 2^ C lower in the HEAT mode will save approximately 10 percent in power consumption.
• Setting the temperature lower than necessary during cooling operation will result in increased power consumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

• Blocking direct sunlight during cooling operation will reduce power consumption.
• Close the windows and doors during cooling and heating operations.

SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR CIRCULATION

KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION

MAKE MOST OF THE TIMER OFF FUNCTION

DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN EXTENDED PERIOD OF TIME

• The indoor unit still consumes a small amount of power when it is not operating.

AUXILIARY MODE

Use this mode when the remote control is not available.

TO TURN ON

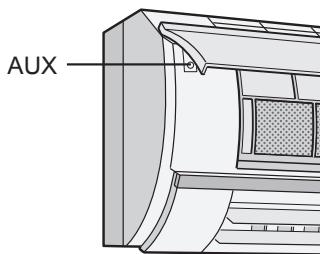

Lift the open panel of the indoor unit and press the AUX. button.

• The red OPERATION lamp ( 三 ) on the unit will light and the unit will start operating in the AUTO mode.
• The fan speed and temperature setting are set to AUTO.

TO TURNOFF

Press the AUX. button again.

• The red OPERATION lamp ( ) on the unit will turn off.

NOTE:

• If the AUX button is pressed during normal operation, the unit will turn off.

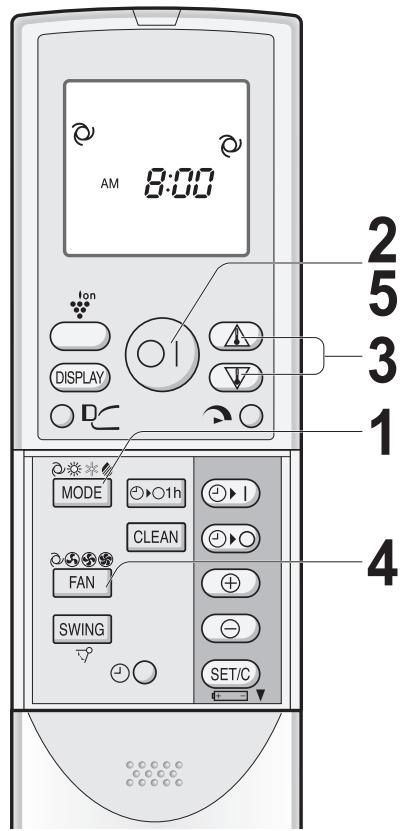

Press the MODE button to select the operation mode.

2 Press the ON/OFF button to start operation.

• The red OPERATION lamp ( ] ) on the unit will light.

3 Press the THERMOSTAT button to set the desired temperature.

AUTO/DRY MODE

• The temperature can be changed in 1^ increments within the range of 2^ higher to 2^ lower from the temperature automatically determined by the air conditioner.

(Example: 1^ higher)

(Example: 2^ lower)

COOL/HEAT MODE

• The temperature can be set within the range of 18 to 32^ .

Press the FAN button to set the desired fan speed.

• In the DRY mode, the fan speed is preset to AUTO and cannot be changed.

5 To turn off the unit, press the ON/OFF button again.

• The red OPERATION lamp ( ) on the unit will turn off.

ADJUSTING THE AIR FLOW DIRECTION

When using your air-conditioner with multi-system

With a multi system air conditioner, multiple indoor units can be connected to one outdoor unit. When the setting mode differs among indoor unit(s), the indoor unit(s) operated later may not work.

• When the indoor unit(s) is/are operating in HEAT mode, the remaining unit(s) can not operate in COOL or DRY mode.
• When the indoor unit(s) is/are operating in COOL or DRY mode, the remaining unit(s) can not operate in HEAT mode.

When the mode of the indoor unit(s) later operated is/are different from those which is/are in operation, after a few seconds, a long BEEP will be emitted and the temperature indicator on the indicator panel will indicate " - - " and the OPERATION lamp and TIMER lamp will blink alternately. This shows that the later operated unit(s) is/are not working. In such case, change the mode to the same mode which the other indoor unit(s) is/are operating in.

VERTICAL AIR FLOW DIRECTION

1 Press the SWING button on the remote control once.

• The vertical adjustment louvres will swing continuously.
  2 Press the SWING button again when the vertical adjustment louvres are at the desired position.

NOTE:

• The adjusted position will be memorized and will be automatically set to the same position when operated the next time.

TIPS ABOUT AUTO MODE

In the AUTO mode, the temperature setting and mode are automatically selected according to the room temperature and outdoor temperature when the unit is turned on.

• During operation, if the outdoor temperature changes, the temperature settings will automatically slide as shown in the chart.

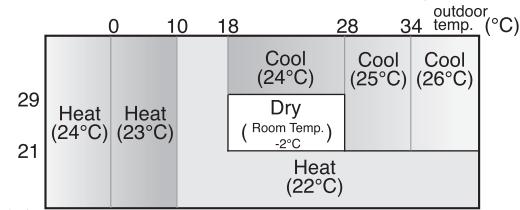

Modes and Temperature Settings

(°C) The figures in ( ) are temperature settings

• When using your air-conditioner with multi-system, mode of the unit operated first will have priority over other unit(s) without reference to the above chart.

Adjustment range

COOL and DRY modes

HEAT mode

HORIZONTAL AIR FLOW DIRECTION

Hold the horizontal adjustment louvre as shown in the diagram and adjust the air flow direction.

CAUTION:

Never attempt to adjust the vertical adjustment louvres manually.

• Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction when the remote control is used for adjustment.
• When the vertical adjustment louvre is positioned at the lowest position in the COOL or DRY mode for an extended period of time, condensation may result.

Do not adjust the horizontal adjustment louvre to the extreme left or right in the COOL mode with the fan speed set to "SOFT ( )" for an extended period of time. Condensation may form on the louvres.

PROGRESSIVE AIRFLOW

Press the PROGRESSIVE AIRFLOW button during cooling or dry operation when you do not want to feel cold air. Vertical adjustment louvre is set obliquely upward to deliver cool air to the ceiling.

Press the button during heating operation. Vertical adjustment louvre is set downward to deliver the warm air down to the floor and warm you.

1 During operation, press the PROGRESSIVE AIRFLOW button.

• The remote control will display “D”。

TO CANCEL

Press the PROGRESSIVE AIRFLOW button again.

NOTE:

• The PROGRESSIVE AIRFLOW setting is cancelled when you press FULL POWER button while PROGRESSIVE AIRFLOW is set.
• If you want PROGRESSIVE AIRFLOW operation in FULL POWER mode, press PROGRESSIVE AIRFLOW button during FULL POWER operation.

In this operation, the air conditioner works at the maximum power to make the room cool or warm so rapidly that you can use it just after you come home.

1 To activate the FULL POWER operation, press the FULL POWER button during operation.

• The remote control will display " ".
• The temperature display will go off.
• The green FULL POWER lamp ( ) on the unit will light up.

TO CANCEL

Press the FULL POWER button again.

• FULL POWER operation will also be cancelled when the operation mode is changed, or when the unit is turned off.
• The green FULL POWER lamp ( ) on the unit will turn off.

NOTE:

• You can not set the temperature or fan speed during the FULL POWER operation.

PLASMACLUSTER OPERATION

The Plasmacluster Ion generator inside the air conditioner will release positive and negative plasmacluster ions into the room.

Approximately the same numbers of positive and negative ions released into the air will reduce some airborne mold.

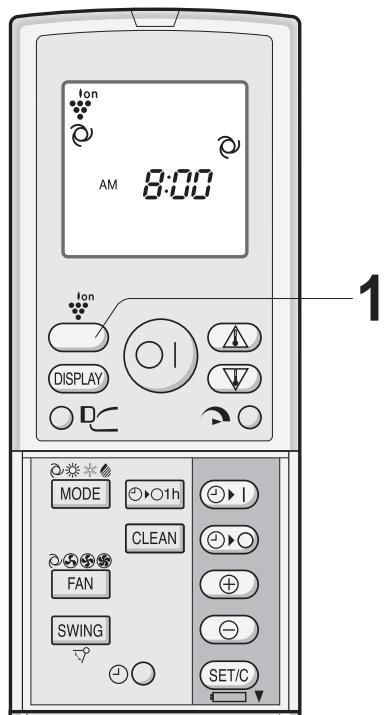

1 During operation, press the PLASMACLUSTER button.

• The remote control will display “ ” .
• The blue PLASMACLUSTER lamp on the unit will light up.

TO CANCEL

Press the PLASMACLUSTER button again.

• The PLASMACLUSTER lamp on the unit will turn off.

NOTE:

• Use of the PLASMACLUSTER operation will be memorized, and it will be activated the next time you turn on the air conditioner.
• To turn off the PLASMACLUSTER lamp, press the DISPLAY button.
• To perform the PLASMACLUSTER operation without accompanying heat, cool or dry mode, press the PLASMACLUSTER button while the unit is not operating. The mode symbol of the remote control will go off and the fan speed can not be set AUTO.

SELF CLEAN OPERATION

SELF CLEAN operation will reduce the growth mold fungus with Plasmacluster ions, and dry inside of the air conditioner unit. Utilize the operation at seasonal change over terms. Mold fungus already grown can not be eliminated by this operation.

Press the SELF CLEAN button when the unit is not operating.

• The remote control displays "C".
• The blue PLASMACLUSTER lamp on the unit will light up.
• The unit will stop operation after forty minutes.
• The remaining operation time will be indicated on the TEMPERATURE INDICATOR of the indoor unit in minute decrements.

TO CANCEL

Press the SELF CLEAN button.

Alternatively, turn the unit off by pressing the ON/OFF button.

• The blue PLASMACLUSTER lamp on the unit will turn off.

NOTE:

• You cannot set the temperature, fan speed, air flow direction or timer setting during the SELF CLEAN operation.

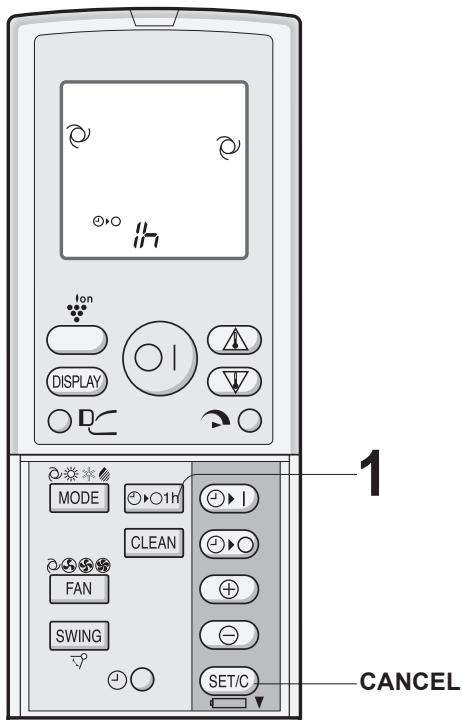

ONE-HOUR OFF TIMER

When the ONE-HOUR OFF TIMER is set, the unit will automatically turn off after one hour.

1 Press the ONE-HOUR OFF TIMER button.

The remote control displays " ① 0
- The orange TIMER lamp ( Ⓞ ) on the unit will light up.
- The unit will stop operating after one hour.

TO CANCEL

Press the TIMER CANCEL (SET/C) button.

• The orange TIMER lamp ( ① ) on the unit will turn off.

Alternatively, turn the unit off by pressing the ON/OFF button.

• The red OPERATION lamp ( ] ) and the orange TIMER lamp ( ➀ ) on the unit will turn off.

NOTE:

• The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF operations.
• If the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will operate for an hour at the formerly set condition.
• If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER is activated, press the ONE-HOUR OFF TIMER button again during operation.
• If TIMER ON and/or TIMER OFF are set, TIMER CANCEL button cancels every setting.

TIMER OPERATION

TIMER OFF

Press the TIMER OFF ( ) button.
The TIMER OFF indicator will blink; press the TIME ADVANCE or REVERSE button to set the desired time.

(The time can be set in 10-minute increments.)

3 Point the remote control at the receiver window on the unit and press the TIMER SET (SET/C) button.

• The orange TIMER lamp ( ① ) on the unit will light.
• The unit will generate a beep when it receives the signal.

When the TIMER OFF mode is set, the temperature setting is automatically adjusted to prevent the room from becoming excessively hot or too cold while you sleep. (Auto Sleep function)

COOL/DRY MODE:

• One hour after the time operation begins, the temperature setting rises 1^ C higher than the original temperature setting.

HEAT MODE:

• One hour after the timer operation begins, the temperature setting drops 3^ C lower than the original temperature setting.

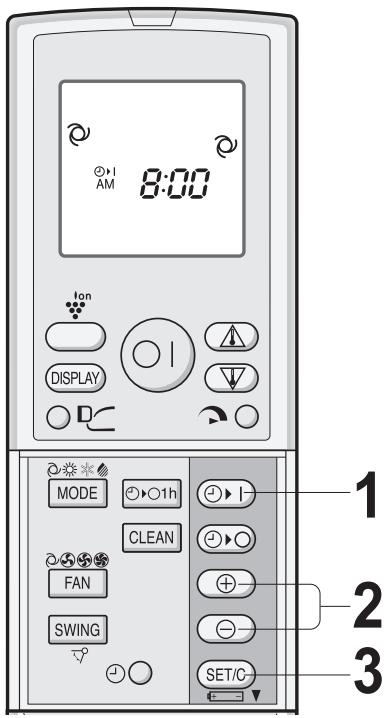

TIMER ON

Press the TIMER ON ( |) button.
2 The TIMER ON indicator will blink; press the TIME ADVANCE or REVERSE button to set the desired time.

(The time can be set in 10-minute increments.)

3 Point the remote control at the receiver window on the unit and press the TIMER SET (SET/C) button.

• The orange TIMER lamp ( ) on the unit will light.
• The unit will generate a beep when it receives the signal.

4 Select the operation condition.

NOTE:

• The unit will turn on prior to the set time to allow the room to reach the desired temperature by the programmed time. (Awaking function)

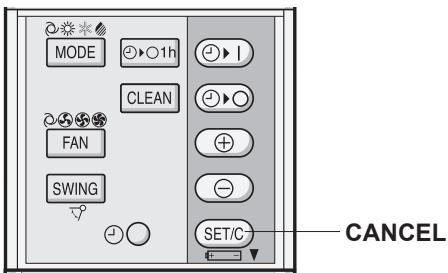

TO CANCEL TIMER MODE

Press the TIMER CANCEL (SET/C) button.

• The orange TIMER lamp ( ① ) on the unit will turn off.
• The current clock time will be displayed on the remote control.

NOTE:

• If any TIMER ON, TIMER OFF and ONE-HOUR OFF TIMER are set, the TIMER CANCEL button cancels all settings.

TO CHANGE TIME SETTING

Cancel the TIMER setting first, then set it again.

COMBINED USE OF ON AND OFF TIMERS

You can use the ON and OFF timers in combination.

Example:

To stop operation at 11:00 p.m. and resume operation to bring the room temperature to the desired level by 7:00 a.m.

1 Set the TIMER OFF to 11:00 p.m. during operation.
2 Set the TIMER ON to 7:00 a.m.

The arrow (▼ or ▲) between the TIMER ON indicator and the TIMER OFF indicator shows which timer will activate first.

NOTE:

• You cannot programmed the ON-TIMER and OFF-TIMER to operate the unit at different temperatures or other settings.
• Either timer can be programmed to activate prior the other.

TIPS ABOUT INDICATOR PANEL

The indicator panel will change each time you press the DISPLAY button in the following manner.

Room Temp. Lamp

The room temperature is displayed.

The outdoor temperature is displayed.

No display.

NOTES:

• The displayed temperatures are rough estimates and may vary from the actual temperatures.
• Temperature display ranges
• Room temperature: 0^ 40^ ( L_ is displayed when less than 0^ and H , when higher than 40^ )
• Outdoor temperature: -9^ 45^ ( L_ is displayed when less than -9^ and H , when higher than 45^ )
• • • is displayed during the first about 0~120 seconds of operation while the temperatures are being detected.
• During SELF CLEAN operation, the indicator panel will display remaining time of the operation. Room and outdoor temperature will not be displayed even if you press the DISPLAY button.

Single use

• Only the room temperature can be displayed for 5 seconds when the unit is not in operation.

Multi use

• • is displayed for 5 seconds when the unit is not in operation.

MAINTENANCE

Be sure to disconnect the power cord from the wall outlet or turn off the circuit breaker before performing any maintenance.

CLEANING THE FILTERS

The air filters should be cleaned every two weeks.

1 Turn off the unit.
2 Remove the filters.

① Lift the open panel.
② Push the air filters up slightly to unlock them.
③ Pull the air filters down to remove them.

3 Take off the air purifying filters from the air filters.
4 Clean the filters. Use a vacuum cleaner

Use a vacuum cleaner to remove dust. If the filters are dirty, wash them with warm water and a mild detergent. Dry filters in the shade before reinstalling.

5 Reinstall the air purifying filters.

6 Reinstall the filters.

① Reinstall the filters in the original positions.
② Close the open panel.
(3) Push the arrow-marked of the panel firmly to lock it in place.

CLEANING THE UNIT AND THE REMOTE CONTROL

• Wipe them with a soft cloth.
• Do not directly splash or pour water on them. It can cause electrical shock or equipment damage.
• Do not use hot water, thinner, abrasive powders or strong solvents.

ADDITIONAL NOTES ON OPERATION

MAINTENANCE AFTER AIR CONDITIONER SEASON

1 Operate the unit in the SELF CLEAN operation to allow the mechanism to thoroughly dry.
2 Stop the operation and unplug the unit. Turn off the circuit breaker, if you have one exclusively for the air conditioner.
3 Clean the filters, then reinstall them.

MAINTENANCE BEFORE AIR CONDITIONER SEASON

1 Make sure that the air filters are not dirty.
2 Make sure that nothing obstructs the air inlet or outlet.

CHANGING THE AIR PURIFYING FILTER

The filters should be changed every 3 6 months

1 Remove the air filters.
2 Change the air purifying filters.

① Take off the old air purifying filters from the air filters.
② Set the new air purifying filters, under the filter stoppers located on the air filters.

3 Reinstall the air filters.

NOTE:

• The dirty air purifying filters are not washable for reuse. The new filters are available at your nearest dealer.

Replacement filter: Type AZ-F920F

Disposal of Filters

Please dispose of replaced filters according to the local disposal laws and regulations.

AIR PURIFYING filter materials

Filter:Polypropylene

Frame:Polyester

• The built-in protective device may prevent the unit from operating when used out of this range.
• Condensation may form on the air outlet if the unit operates continuously in the COOL or DRY mode when humidity is over 80 percent.

WHEN POWER FAILURE OCCURS

This air conditioner has a memory function to store settings when a power failure occurs.

After power recovery, the unit will automatically restart in the same settings which were active before the power failure, except for timer settings.

If the timers were set before a power failure, they will need to be re-set after power recovery.

PREHEATING FUNCTION

In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to prevent cold air from blowing out of the unit.

DE-ICING FUNCTION

• When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icer provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stop operating.
• After de-icing is completed, the unit automatically resumes operation in the HEAT mode.

HEATING EFFICIENCY

• The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside air temperature therefore greatly affects the heating efficiency.
• If the heating efficiency is reduced due to low outside temperatures, use an additional heater.
• It takes time to warm up and heat the entire room because of the forced air circulation system.

BEFORE CALLING FOR SERVICE

The following conditions do not denote equipment malfunctions

UNIT DOES NOT OPERATE

The unit will not operate if it is turned on immediately after it is turned off. The unit will not operate immediately after the mode is changed. This is to protect the internal mechanisms. Wait 3 minutes before operating the unit.

UNIT DOES NOT SEND OUT WARM AIR

The unit is preheating or de-icing.

ODORS

Carpet and furniture odors that entered into the unit may be sent out from the unit.

CRACKING NOISE

The unit may produce a cracking noise. This sound is generated by the friction of the front panel and other components expanding or connecting due to a temperature change.

A LOW BUZZING NOISE EMITTED

This is a sound emitted when the unit is generating Plasmacluster ions.

SWISHING NOISE

The soft, swishing noise is the sound of the refrigerant flowing inside the unit.

WATER VAPOUR

• In the COOL and DRY operation, water vapour can sometimes be seen at the air outlet due to the difference between the room air temperature and the air discharged by the unit.
• In the HEAT operation, water vapour may flow out of the outdoor unit during de-icing.

THE OUTDOOR UNIT DOES NOT STOP

After stopping the operation, the outdoor unit will rotate its' fan for about a minute to cool down the unit.

ODOR EMITTED FROM THE PLASMACLUSTER AIR OUTLET

This is the smell of ozone generated from the Plasmacluster Ion generator. The ozone concentration is very small, posing no adverse effect on your health. The ozone discharged into the air rapidly decomposes, and its density in the room will not increase.

When using your air conditioner with multi-system

INDOOR UNIT BECOMES WARM EVEN WHEN IDLE

This is because the refrigerant also floes through the idle indoor unit's pipes when the other unit is operated in HEAT mode.

INDOOR UNIT BECOMES WARM EVEN WHEN NOT DURING HEATING OPERATION

When the PLASMACLUSTER button is pressed while the unit is not operating, the PLASMACLUSTER operation will be performed without accompanying air conditioning mode (eg. HEATING or COOLING). At this time, you may feel warm air coming out from the unit air outlet if HEATING is performed with units in other rooms. Indoor fan will decrease its rotating speed and will turn ON and OFF depending on the room temperature.

UNIT DOES NOT OPERATE IN YOUR REQUESTED MODE

• When one indoor unit is operating in COOL or DRY mode, you can not operate the other unit in HEAT mode. (After a few seconds, a long BEEP will be emitted, and the temperature indicator on the indicator panel will indicate "---" and the OPERATION lamp and TIMER lamp will blink alternately.)
• When one indoor unit is operating in HEAT mode, you can not operate the other unit in COOL nor DRY mode. (After a few seconds, a long BEEP will be emitted, and the temperature indicator on the indicator panel will indicate "---" and the OPERATION lamp and TIMER lamp will blink alternately.)

UNIT DOES NOT SEND OUT AIR (PLASMACLUSTER operation without accompanying air conditioning mode, SELF CLEAN operation)

The other unit(s) is/are de-icing.

If the unit appears to be malfunctioning, check the following points before calling for service.

IF THE UNIT FAILS TO OPERATE

Check to see if the circuit breaker has tripped or the fuse has blown.

IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY

• Check the filters. If dirty, clean them.
• Check the outdoor unit to make sure nothing is blocking the air inlet or outlet.
• Check the thermostat is proper setting.
• Make sure windows and doors are closed tightly.
• A large number of people in the room can prevent the unit from achieving the desired temperature.
• Check whether any heat-generating appliances are operating in the room.

IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL

• Check whether the remote control batteries have become old and weak.
• Try to send the signal again with the remote control pointed properly towards the unit's signal receiver window.
• Check whether the remote control batteries are installed with the polarities properly aligned.

Please call for service when TEMPERATURE INDICATOR on the indicator panel blink.

DEBIT D'AIR PROGRESSIF

UN FAIBLE BOURDONNEMENT EST ÉMIS

PROGRESSIVER LUFTSTROM

PLASMACLUSTER-BETRIEB

Whenever you use a condition to make a system multiple, you must also use the following conditions:

Com um ar condicionado de sistemas multiplo, poder ser ligadas multiplas unidas interiores a unaunda unidade exterior.Quando o modo definido for Differente entre as unidade interiores, a(s) unidade(s) interior(es) comandada(s) emultimate lugar poder nao funciona.
