USER MANUAL CMPT-STL6T5 Infiniton

User Manual for your

Range Hood

CMPT-STL6T5

Simple line drawing of a rectangular block with a horizontal base (no text or symbols)

NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.

CONTENTS

1. Specification of your cooker hood....1
2. Important Safety Information....2-4
3. Using your cooker hood....5
4. Cleaning and Maintenance....6-8
5. Installation....9-13

5.1. Electrical Connection....9
5.2. Before Beginning Installation....9-10
5.3. Installing your cooker hood....10-13
5.4. Extraction Mode & Recirculation Mode.....13

1. Trouble Shooting....14

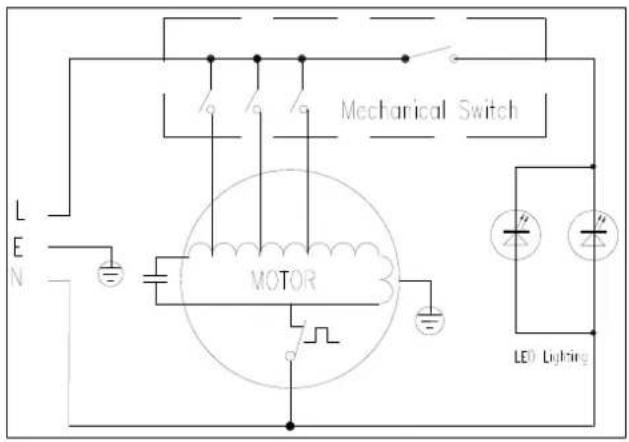

2. Electrical Connection....15
3. After-sales Services....15

1. SPECIFICATION OF YOUR COOKER HOOD

Before using your cooker hood, please know more about your product specification, including the safety advice and operational instructions. Meanwhile, your cooker hood will be installed correctly if it is in accordance with this method mentioned in the user manual.

Dimension

Length (Cover) 600mm

Width (Cover) 500mm

Height (Cover) 845mm

Dimension of Chimney Section:

150mmX2000mm

Your stainless steel Cooker Hood is fitted with:

● High extraction tangential motor
- Button control operation
3 Speeds
● 3 Metallic grease filter
- 2 LED lights

Extraction capacity: 1050 m³/hr

Extendable portion: a pair of air circulating activated carbon filters.

2. IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of information contained in this booklet, please contact the Technical Department.

IMPORTANT: Any installation work must be carried out by a qualified electrician or competent person.

• The cooker hood must be installed in accordance with the installation instruction and all measurements followed.
• If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety Regulations.
• It is dangerous to alter the specifications or to modify this product in any way. Do not tamper with it or attempt to modify the appliance in any way.
• When installing the cooker hood, ensure that the following recommended distances are being observed between the cooker top and the bottom of the cooker hood:

√ Electric cookers: 700mm
√ Gas cookers: 700mm
√ Coal/oil cookers: 800mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS THAN 700mm ABOVE YOUR COOKER.

• When installed between adjoining wall cabinets, the cabinets must not overhang the hob.
• The edges of the cooker hood are sharp – be mindful for this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GRESE FILTERS!
• If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced type.

- If other types of flue or appliance are fitted, ensure that there is an adequate supply of air in the room.

- When the cooker hood is being used in its extractor function, make sure the ventilation smoke duct is of fireproof materials, and the bent corners is greater than 90 degrees, otherwise it will affect the normal function of the cooker hood.

- Ensure the ducting for the extractor function has the same diameter as the outlet hole all the way through.

- Keep young children from using, playing with or tampering with the cooker hood. Older children and inform persons should be supervised if they are using the cooker hood.

- Your cooker hood is for domestic use only.

- Please dispose of the packing material carefully – children are especially vulnerable to it.

● Dirty oil is an even greater fire risk.

● Always put lids on pots and pans when cooking on a gas cooker.

- The manufacturer refuses to accept any responsibility for damages arising to the hood or it catching on fire for failure to observe fire safety advice in these instructions.

- Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. Note that it removes odors form your room, not steam.

Prohibition sign with crossed-out circles and human figures, indicating no smoking or alcohol use

Simple black-and-white icon of a house with windows and trees, no text or symbols present.

Illustration of a firefighter in full gear holding a long tool, with flames in the background (no text or symbols)

Illustration of a cooking pot with a lid and handle, no text or symbols present

- WARNING: ALWAYS ENSURE THAT THE COOKER HOOD HAS BEEN DISCONNECTED FROM THE POWER SUPPLY BEFORE CARRYING OUT ANY WORK ON THE HOOD, INCLUDING REPLACING LIGHT BULBS.

- Do not connect the ducting system of this appliance to any existing ventilation system which is being used for any other purpose.

- Do not install above a cooker with a high level grill.

● Never leave frying pans unattended during use as overheated fats and oils might catch fire.

Illustration of a person cooking with a pan (no text or symbols)

- Do not attempt to use the cooker hood if it is damaged in any way. Never attempt to use it without the grease filters fitted or if the filters are excessively greasy!

● Never flambé cook under this cooker hood.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

● Never flambé cook under this cooker hood.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels

- There is a fire risk if cleaning is not carried out in accordance with the instructions;

● CAUTION: Accessible parts may become hot when used with cooking appliances.

- The range hood is only intended to be installed over a hob with no more than four hob elements.

● Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- The power of LED should not exceed 2W. the voltage range of LED for AC220-240V or DC12V.

The power of the single lamp (E14 lampholder) should not exceed 28W. the voltage range of lamp for AC220-240V. The lamp bulb (E14) is should be replaced by it must be replaced by the manufacturer or the maintenance department or a similar professional to avoid danger.

IBA/C-15-220/240-E14-22

THE MANUFACTURER DECLINCES ALL RESPONSIBILITY IN THE EVENT OF FAILURE TO OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR INSTALLATION, MAINTENANCE AND SUITABLE USE OF THE HOOD.

3. USING YOUR COOKER HOOD

1. Please ensure your cooker hood has been installed correctly.
2. Find the control panel, and see the buttons below.
3. Different buttons have different functions. Please know the buttons and their functions before suing.

IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK.

○ ○ ○ Pause Low Middle High Light

➢ Push the pause button to stop the appliance working.
➢ Push the low button, and the motor runs at low speed.
➢ Push the middle button, and the motor runs at mid speed.
➢ Push the high button, and the motor runs on high speed.
➢ Push the light button, and the right and left lighting lamps will come. Push it again and lamps will turn off.

IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK. OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING.

4. CLEANING AND MAINTENANCE

IMPORTANT: BEFORE CLEANING, MAKE SURE THE POWER IS CUT OFF, AND UNPLUG THE PLUG FROM THE OUTLET.

CLEANING

• Clean the external parts of your cooker hood with mild liquid detergent and new damp cloth.
  ● Never use abrasive powder, corrosive solvents or brushes.
• Never insert pointed objects into the cooker hood's protective grid.
• Only clean control panel and grease filter with mild liquid detergents and a new damp cloth.
• If you are using the appliance in recirculation mode, then be sure to replace the carbon filter at the recommended interval (see section on “Fitting the carbon filter”). A build up of grease could cause a fire hazard.
  ● Never attempt to clean the area above the grease filters.
• Your cooker hood includes a grease filter which helps to absorb grease particles to protect your kitchen & furniture from greasy residues.
  ● To prevent this fire hazard, the filter should be cleaned regularly.
• Depending on use, this should be done every 10-15 days or at least once a month, using hot water and normal washing-up detergent.
  ● DO NOT WASH THE GREASE FILTER IN A DISHWASHER.

MAINTENANCE

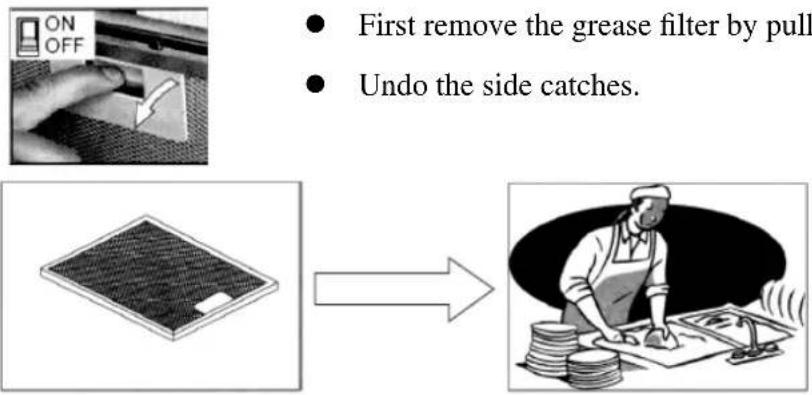

• First remove the grease filter by pull • Undo the side catches.

● Soak the grease filter in hot water and washing up liquid for about an hour.
● Rinse them off thoroughly with hot water.
- Repeat the process or change the grease filter if required.
● Refit the grease filters once they have dried.

ON OFF

IMPORTANT: LET THE GREASE FILTERS DRY THOROUGHLY BEFORE REFITTING THEM IN THE COOKER HOOD.

CHANGING A LIGHT BULB

IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

• Remove the grease filters;
  ● Prior to touching the light bulbs ensure they are cooled down;

● Find the light fixture which is inside the exposed section of the canopy.

● Unscrew the light bulb that needs to be replaced and separate the power supply quick joint terminal of the light bulb.

- Check the model and parameter of new light bulb newly installed. Connect the power supply quick joint terminal. And replace the old light bulb.

● IMPORTANT: Defective bulbs should be replaced immediately.

- If the lights still do not work, make sure that the lamps are fitted properly into their housing before you call for technical assistance.

● Refit the grease filters.

ON OFF

FITTING THE CARBON FILTER

If the appliance is being used in recirculation mode then it is necessary to fit carbon filters. This will help to absorb unpleasant odors caused by cooking.

IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD

ON OFF

FROM YOUR MAINS SUPPLY.

Close-up of a mechanical component with a circular annotation highlighting a feature (no visible text or symbols)

Close-up of a hand holding a small object with an arrow indicating direction (no visible text or symbols)

1. Remove the grease filters.

2. Hook the carbon filter over the pins that are located at the end of the motor.

3. Turn the carbon filter anticlockwise, until you feel it click into place.

- Repeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor.

●Refit the grease filters.

● The carbon filters should be replaced every three months of if they show signs of damage.

5. INSTALLATION

IMPORTANT: Before installation and usage, read all the

STOP

instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filters.

The manufacturer declines all responsibility in the event of the installer failing to observe all the accident prevention regulations in force, which are necessary for normal use and the regular operation of the electric system.

5.1. ELECTRICAL CONNECTION

YOUR COOKER HOOD IS INTENDED FOR FITTED AND PERMANENT INSTALLATION.

• The power cable must be connected to the terminals marked L (live) and N (neutral) in the hood and fixed with a cable clamp.
• The cooker hood's power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3mm.

- Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

5.2. BEFORE BEGINNING INSTALLATION

• Check that the product purchased is of suitable size for the chosen installation area.
• Carry out all necessary masonry work prior to the fitting of the cooker hood.
• Ensure that all electrical connections are carried out by a suitably qualified person.

• Before commencing installation of the cooker hood the grease filter should be removed.

• Check inside the product and ensure that there is no transit packaging or any other materials, such as packets of screws, guarantee etc. These should be removed and kept for future use.

• If possible, disconnect and move freestanding or slot-in cookers from their position, to provide easier access to the rear wall and ceiling. If this is not possible, then a thick, protective covering should be placed over the worktop, hob top or cooker. This will help to protect these surfaces from damage and debris.
• Select a flat surface for assembling the cooker hood. Cover that surface with a protective covering and place all cooker hood parts and fittings on it.
• In addition check whether there is an electrical socket available, which will be accessible after the hood is mounted. If you are going to use the appliance in extractor mode, you should also ensure that there is space to connect a fumes discharge device to the outside.
• Raw plugs are provided to secure the hood to most types of walls and ceilings. However a qualified technician must verify the suitability of the materials, in accordance with the type of wall and ceiling. The wall and ceiling must strong enough to take the weight of the hood.

Do not tile, grout or silicone this appliance to the wall. This appliance is designed to be surface mounted only.

5.3. INSTALLING YOUR COOKER HOOD

IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLATION

YOUR COOKER HOOD WHETHER TO USE IT IN EXTRACTION

MODE OR RECIRCULATION MODE. PLEASE TURN TO PAGE 17

NOW TO UNDERSTAND THE DIFFERENCES BETWEEN THERES TWO MODES.

- The cooker hood should not be exposed to a direct heat source from the cooking device underneath it, i.e. naked flame from a gas burner or heat from electric hob zones without a pan on them.

● We recommend that at least two people install this hood.
● The lights on this appliance should only be used during operation of the cooker hood. They should not be left on permanently and used as a lighting source.

IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION PROCESS HAS BEEN COMPLETED.

1) Remove the metal grease filters.

ON OFF

①

2) Position the hood against the wall that you are intending to install it and mark the position of the support holes that are to be drilled.

Technical diagram showing a structural support system with labeled components and an inset magnified view of a circular component.

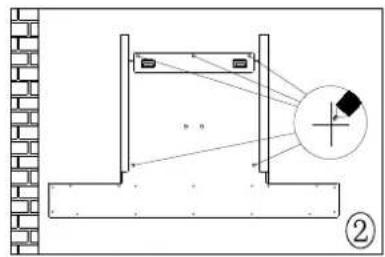

3) Using a drill bit with an 8 mm diameter, make holes in the wall on the positions that you have marked in step 2, and insert raw plug into the holes that you have drilled.

Ø8 ③

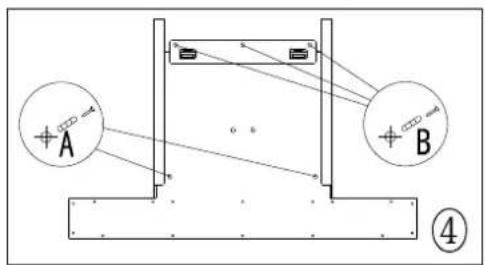

4) Screw the hook into the wall at Hole B.

A B ④

Diagram of a mechanical device with rotating arrows, enclosed in a brick wall frame (no text or symbols)

Diagram illustrating a ventilation system with labeled components and airflow directions, including a cylindrical component and a base platform.

5) Hang the cooker hood onto the hook. And fix the machine into the wall at Hole A

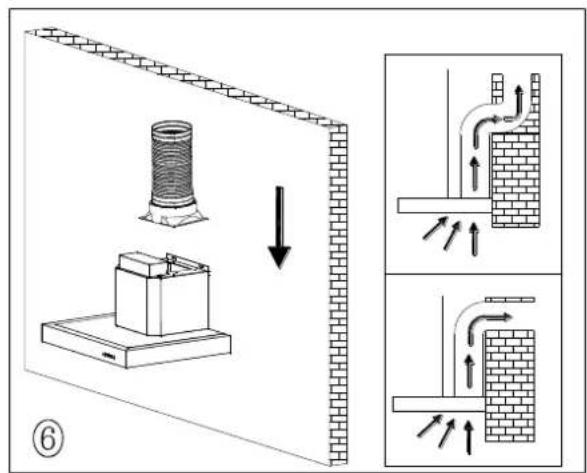

6) Connect the check valve onto the top of the chimney section. And then connect the ducting hose to the check valve.

• The other end of the ducting hose should be connected to your discharge outlet that is suitable for cooking vapors. It should have a cross section of at least 150 ~m^2 .
• The maximum distance between the check valve and your discharge outlet should be 3 meters, with one 90 degree bend.

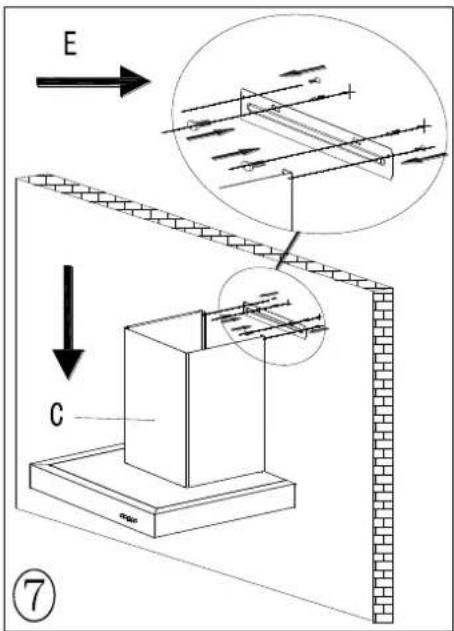

7) Install the Chimney Section C and Fixing Bracket E

- Connect the Chimney Section C and Fixing Bracket E. Put the bottom part of this coupling on the cooker hood. Mark the fixing holes between the bracket and wall with a pencil. And remove the Chimney Section and Fixing Bracket E.

- Using a drill bit with an 8 mm diameter make holes in the wall on the positions that you have marked, and insert raw plugs. Screw the

chimney section and bracket fixing into the wall tightly.

E C ⑦

8) Installing the fixing bracket F

* Screw the chimney section D and fixing bracket F. Insert chimney section C and lift it upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. Use a pencil to mark the holes for positioning the sides of the chimney D and fixing bracket F. Remove the himney section adn fixing bracket F.

- Use an 8mm bit, drill out holes marked on the wall, and insert raw plugs. Screw the chimney bracket F onto the wall.

9) Insert Chimney D into Chimney C and lift it upwards until it reaches the ceiling. Screw the chimney bracket F tightly.

Technical diagram of a mechanical assembly with an inset showing a magnified view of a component (no text or symbols present)

5.4. EXTRACTION MODE OR RECIRCULATION MODE

What is the difference between extraction and recirculation modes?

To get optimum performance form your cooker, the air will be taken out of the room via external ducting.

Unfortunately if you live in a flat or the hood is too far from an outside wall, this may not be possible. The only alternative is to recirculate the air.

In recirculation mode stale air is taken via the grease filter, and passed through a charcoal filter for purification. The air then re-enters the kitchen via an opening in the hood.

What is a charcoal filter and do I need one?

All cooker hoods have a grease filter but if you are using your cooker hood in recirculation mode, then a charcoal filter must be fitted in addition to the grease filter.

6. TROUBLESHOOTING

IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Service Department, please refer to the checklist below.

My cooker hood will not start

• Check that the hood is connected to the electricity supply.
• Check that the fan speed control is set correctly.

My cooker hood is not working effectively.

● The fan speed is not set high enough.
● The grease filter is dirty and requires cleaning.
● The kitchen is not well ventilated enough.
- If the hood is set up for recirculation mode, check that the carbon filters do not need replacing.
- If the hood is set up for extraction mode, check that the ducting hose and discharge outlet are not blocked.

My cooker hood has switched off during operation.

● The safety cut-out device has been tripped;
● Turn off the hob and then wait for the safety cut-out device to reset.
- IMPORTANT: If you have installed your cooker hood too low, the safety cut-out device will frequently trip. Your cooker hood may become damaged if the safety cut-out device is tripped frequently.

7. ELECTRICAL CONNECTION

LE N MOTOR Mechanical Switch LED Lighting

8. AFTER-SALES SERVICES

Contact local distributor

INFINITON

Simple line drawing of a rectangular block with a horizontal base (no text or symbols)

Prohibition sign with crossed-out human figure and silhouette, indicating no violation or prohibition

Simple black-and-white icon of a house with windows and trees, no text or symbols present.

Illustration of a firefighter in uniform holding long fire extinguishers (no text or symbols)

Illustration of a cooking pot with a lid and handle, no text or symbols present

Illustration of a person cooking with a pan (no text or symbols)

Diagram showing a small solar panel transforming into a worker printing documents, with Chinese text labels.

Close-up of a mechanical component with a circular outline highlighting a feature (no visible text or symbols)

Close-up of a hand holding a small object with an arrow pointing to it, no visible text or symbols

Do not tile, grout or silicone this appliance to the wall. This appliance is designed to be surface mounted only.

5.3. INSTALANDO SU CAMPANA

Technical diagram showing a structural support system with a magnified circular detail and labeled components

Diagram of a mechanical device with rotational motion arrows, enclosed in a brick wall frame (no text or symbols)

Diagram illustrating airflow or ventilation process with labeled components and directional arrows

Technical diagram showing a structural assembly with an inset magnified view of a component, labeled with dimension 'a' and directional arrow.

L E N MOTOR Mechanical Switch LED Lighting

8. SERVICIOS POSVENTA

Simple line drawing of a rectangular block with a horizontal base (no text or symbols)

NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance.

Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.

CONTEÚDO

Prohibition sign with crossed-out human figure and text, symbolizing no smoking or alcohol use

Simple black-and-white icon of a house with windows and trees, no text or symbols present.

Illustration of a firefighter in full gear holding long blades, with smoke and flames in the background (no text or symbols)

Simple illustration of a cooking pot with a lid and handle, no text or symbols present.

Illustration of a person cooking with a pan (no text or symbols)

Diagram showing a small solar panel transforming into a processing step with a worker and stacks of coins.

Interior view of a room with metallic furniture and a small white wall-mounted fixture (no visible text or symbols)

COLOCANDO O FILTRO DE CARBONO

Close-up of mechanical components with dashed lines indicating alignment or inspection (no visible text or symbols)

Close-up of a hand holding a dark object with an arrow pointing to it, no visible text or symbols

5. INSTALAÇÃO

Technical diagram showing a structural support system with labeled components and an inset circle indicating a cross-section view.

Diagram of a mechanical device with rotating arrows, enclosed in a brick wall frame (no text or symbols)

Diagram illustrating a ventilation system with labeled components and airflow directions, including a cylindrical component and a base platform.

5) Pendure o exaustor no gancho. E fixe a máquina na parede no buraco A

Technical diagram of a mechanical assembly with an inset showing a magnified view of a component (no text or symbols present)

My cooker hood has switched off during operation.

LE N MOTOR Mechanical Switch LED Lighting

8. SERVIÇOS DE PÓS-VENDA
