USER MANUAL ECT-906 Infiniton

Line drawing of a tall industrial chimney mounted on a base (no text or symbols)

Manual del usuario

modelo: ECT-906

The instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

● The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
- The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. (When the range hood is located above a gas appliance, this distance shall be at least 65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. The distance of 65 cm can be reduced for:non-combustible parts of range hoods, and parts operating at safety extra low voltage,Provided these parts do not give access to live parts if deformed;)
- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the hood.
- For Class I appliances, check that the domestic power supply guarantees adequate earthing.
- Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm. The route of the flue must be as short as possible.
● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.
- When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
● Regulations concerning the discharge of air have to be fulfilled.

Illustration of a lamp illuminating a steaming lamp with a control panel (no text or symbols)

USE

● The cooker hood is only for home use, not suitable for barbecue, roast shop and other commercial purposes.

● Never use the hood for purposes other than for which it has been designed.

● Never leave high naked flames under the hood when it is in operation.

- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

● Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

● Do not flame under the range hood; risk of fire.

● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

● Children should be supervised to ensure that they do not play with the appliance.

● Cleaning and user maintenance shall not be made by children without supervision.

● "CAUTION: Accessible parts may become hot when used with cooking appliances".

Diagram showing a structural angle measurement setup with a 2° angle indicator and two vertical supports.

MAINTENANCE

● The cooker hood and its filter should be cleaned regularly according to the instruction.
- Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
● Clean and/or replace the Filters after the specified period(Fire hazard).
● Clean the hood using a damp cloth and a neutral liquid detergent.
● The appliance uses 4 hob elements at most.

Simple line drawing of a house with a chimney and fire extinguisher, no text or symbols present

The symbol is packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

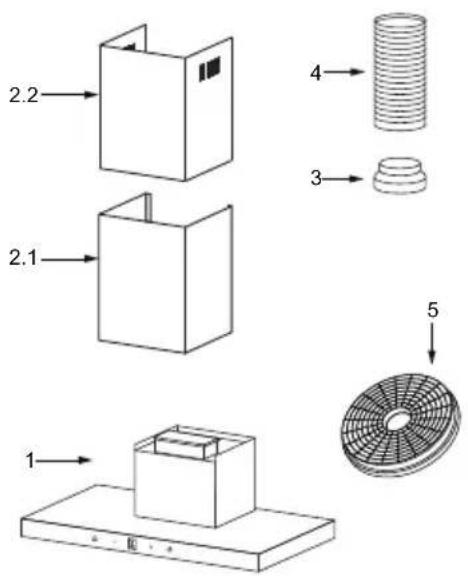

Ref.	Qty.	Product Components
1	1	Hood Body,complete with: Controls, Light, Blower,Filter.
2.1	1	Lower Decorative Chimney
2.2	1	Upper Decorative Chimney
3	1	Flange (optional)
4	1	Exhaust Pipe
5	2	The Activated Charcoal filter (optional)

Qty. Documentation

1 Instruction Manual

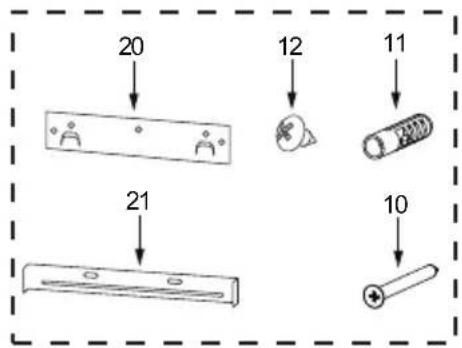

Ref. Qty. Optional Installation Components
10	7 Screws 5 x 50
11	7 Wall Plugs
12	6 Screws 4,2 x 9,5
20 1	Hood fixing bracket
21	2 Chimney fixing bracket

2.2 2.1 4 3 5 1

20 12 11 21 10

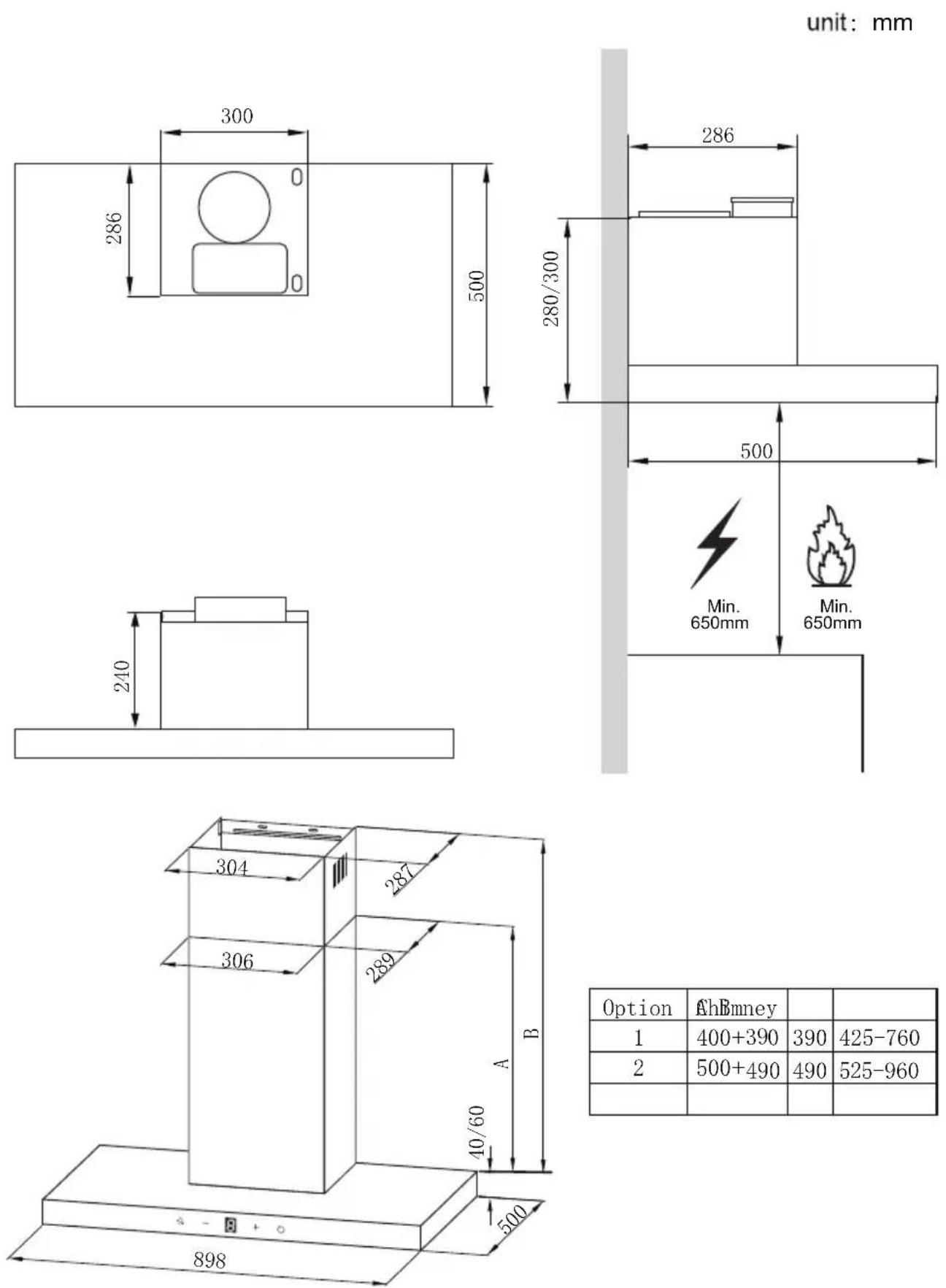

Option	A'hBmney
1	400+390	390	425-760
2	500+490	490	525-960

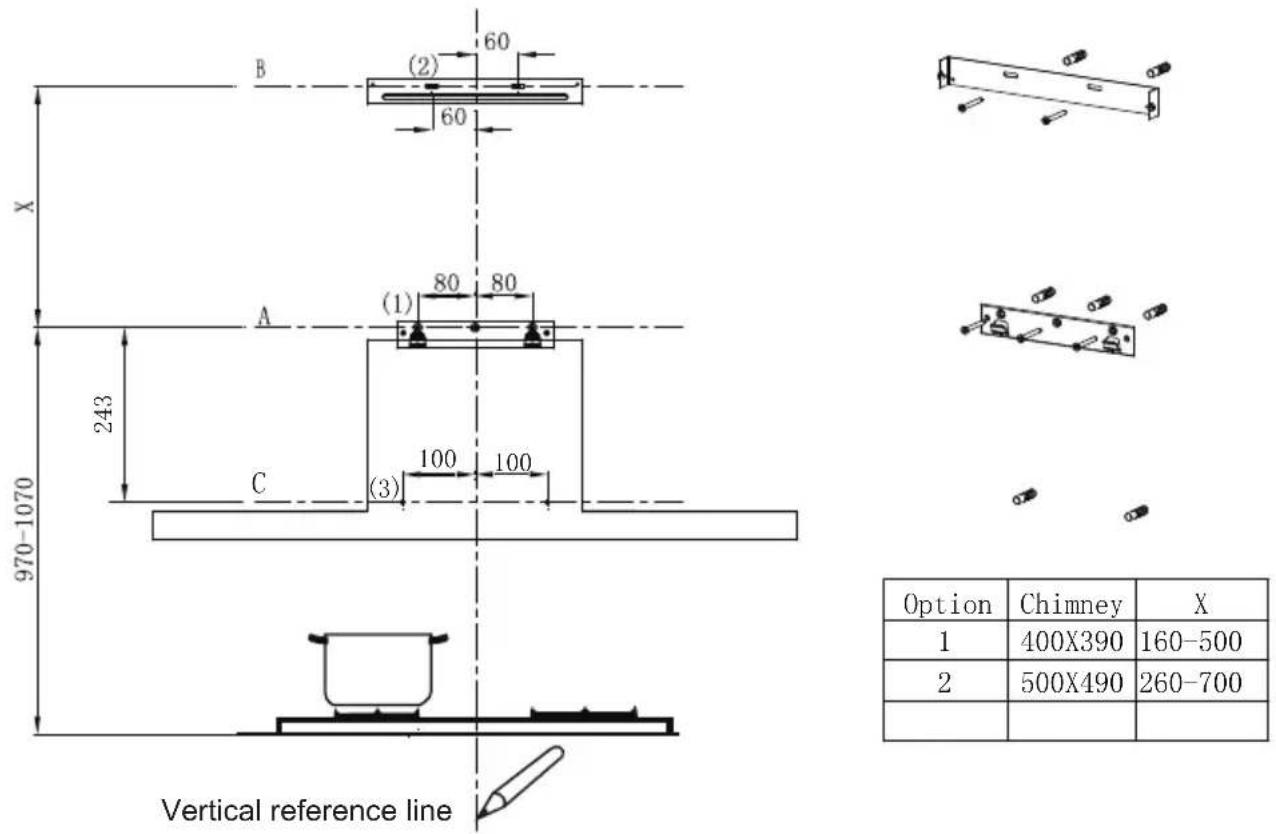

WALL DRILLING AND BRACKET FIXING

Option	Chimney	X
1	400X390	160-500
2	500X490	260-700

As a first step, proceed with the following drawings:

• A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted.
  ● A horizontal line A at 970 – 1070 mm above the cooker top.
  ● A horizontal line B at a X mm above the horizontal line A.
  ● A horizontal line C at a 243 mm below the horizontal line A.

Mark Points:

● Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
- Repeat this operation on the other side and on the vertical reference line, checking that the three marks are leveled.
● Mark a point (2) on the horizontal line B, 60 mm to the vertical reference line.
- Repeat this operation on the other side, checking that the two marks are on the same horizontal line.
- Mark a point (3) on the horizontal line C, 100 mm to the vertical reference line. Repeat this operation on the other side, checking that the two marks are leveled.

Fix the brackets :

● Drill holes at the marked points with a 10 mm drill bit.
- Insert the Wall Plugs 11 into the holes.
● Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A.
● Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.

Lower decorative chimney

● Fix the exhaust pipe on the hood body, connect chimney and hood body with 2 screws 12. connect chimney fixing bracket and chimney with 2 screws 12.

4 X Screws ( ST4.2*9.5 )

Hook the hood body

● Hook the hood body to the bracket 20.
● Level the hood body itself.
- Remove the filter from the inside of the hood body, fix the screws 10 to Wall Plugs 11 at the points (3).

Simple line drawing of a rectangular block above a horizontal bar with a vertical centerline (no text or symbols)

Right

Simple line drawing of a rectangular block resting on a horizontal bar with a vertical centerline (no text or symbols)

Wrong

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

Ø150 9 Ø120

• If to install a 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet.
  ● Fix the pipe 4 in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

Upper Decorative Chimney

• Insert the upper decorative chimney 2.2 into the lower decorative chimney 2.1 and drag it up to the horizontal line B
• Connect upper decorative chimney 2.2 and chimney fixing bracket 21 with 2 screws 12 .

2 X Screws (ST4.2*9.5)

Speed adjustment.

Five circular icons with corresponding symbols: one with a leaf and number 1, four with crescent and star, three with crescent and star, and one with a sun.

1	OFF MOTOR SWITCH: Press on this switch to stop the motor operation.
	SPEED SWITCH: Press on this switch, the motor runs at LOW speed.
	SPEED SWITCH: Press on this switch, the motor runs at MEDIUM speed.
	SPEED SWITCH: Press on this switch, the motor runs at HIGH speed.
	ON/OFF LIGHTING SWITCH: Press on this switch to turn on the lights, and press again to turn them off.

GREASE FILTERS

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.

Illustration of a hand pressing a device on a screen, showing a curved arrow (no text or symbols)

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters.
• Remove the saturated activated charcoal filter.
  ● Fit the new filters.
• Replace the metal grease filters.

FIX REMOVE REMOVE FIX

LIGHTING

LIGHT REPLACEMENT(Completed by professionals)

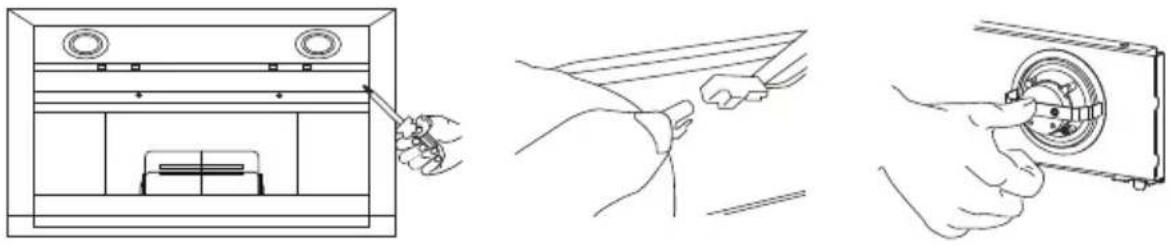

Replacing the light modules

• Cannot replaced the light bulbs, the entire light module has to be replaced.
• When changing the light modules, the contacts are live.

• Before changing the light module(s), unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

• Remove the grease filter and carefully remove the 2 screws from the front plate (a cross headed screwdriver will be needed to remove the screws).

• Disconnect the terminal of LED light.
• Press LED light on the back of the front plate, take the LED light out.
• Replace the lamp(commercially available LED lamp (max.1.5w).

Three-step diagram showing hand installation of a cabinet, cable being inserted, and cleaning a circular component (no text or symbols)

	Max Power	Voltage	Picture Lamp Cap ILCOS D code
Square / Diameter: 33.2mm x 120mm	1.5W DC	12 V		— —	DSS-1.5-S-33.2/120

• Press LED light on the front of front plate, install the LED light on the front plate.
• Connect the terminal of LED light and light leads.
• Carefully fasten the 2 screws on the front plate, reinstall the grease filter.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Fault Cause	Solution
Light on, but motor does not work	The blades are blocked.	Check the blades.
	The capacitor is damaged. Replace capacitor.
	The motor is damaged. Replace motor.
	The internal wiring of motor is cut off/disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged. Replace lights.
	Power cord loose.	Connect the wires as the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened. Fasten the motor tightly.
	The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough	Tighten the hanging screw and make it horizontal.

MiLECTRIC

Line drawing of a tall industrial chimney mounted on a base (no text or symbols)

Manual del usuario

modelo: ECT-906

Simple line drawing of a laboratory setup with a conical flask, heating a test tube, and a control panel (no text or symbols)

e en, ite 2°

de o).

Simple line drawing of a rectangular block with a vertical centerline and two horizontal bars below (no text or symbols)

Simple line drawing of a rectangular block with a horizontal bar and a vertical centerline, no text or symbols present.

Correcto Incorrecto

CONEXIONES

Simple line drawing of two cylindrical objects with protrusions, placed on a dashed base (no text or symbols)

MONTAJE DE LA CHIMENEA

Technical diagram showing a door opening and a cylindrical component with internal structure, annotated with dashed circular arrows indicating direction.

Five circular icons with corresponding symbols: one with a leaf and number 1, four with crescent and star, three with crescent and star, and one with a sun.

Illustration of a hand using a smartphone to interact with a device (no text or symbols visible)

FIX REMOVE REMOVE FIX

LUCES

REEMPLAZO DE LAS LUCES

Reemplace los módulos de las luces

Three-step diagram showing a front panel, hand tool application, and close-up of a circular component being inserted (no text or symbols)

Line drawing of a tall industrial chimney mounted on a base (no text or symbols)

Manual del usuario

modelo: ECT-906

RECOMENDAÇÕES E SUGESTÕES

Simple line drawing of a laboratory setup with a conical flask, thermometer, and heating lamp (no text or symbols)

2°

MANUTENÇÃO

Simple line drawing of a house with a chimney and fire, no text or symbols present

Pure technical line drawing of a mechanical bracket assembly without any text, numbers, or symbols

Option	Chimney	X
1	400X390	160-500
2	500X490	260-700

Simple line drawing of a rectangular block with a vertical centerline and two horizontal bars below (no text or symbols)

Simple line drawing of a rectangular block with a horizontal bar and a vertical centerline, no text or symbols present.

Correto Incorrect

CONEXÕES

VERSÃO DO DISPOSITIVO DE ESCAPE A SAÍDA DO AR.

Simple line drawing of two cylindrical objects with protrusions, placed on a dashed base (no text or symbols)

MONTAGEM DA CHAMINÉ

Technical diagram showing a door opening and a coiled spring assembly inside a housing (no text or symbols)

Five circular icons with symbols: one with a leaf and number 1, four with crescent and star, and one with a sun.

Illustration of a hand using a smartphone to interact with a device (no text or symbols visible)

FILTRO DE CARBONO ACTIVO (OPCIONAL - NÃO INCLUIDO)

FIX REMOVE REMOVE FIX

LUZES

SUBSTITUIÇÃO DAS LUZES

Substitua os módulos de luzes

Three-step diagram showing a door panel being inserted, then holding a circular component with a handle (no text or symbols)
