Before using your new Infiniton product, please read this user manual carefully to learn how to safely and efficiently use the features offered by this device.

Content	English
Safety instructions	3
Installation	5
How to use	7
Troubleshooting	8
Manteinance and cleaning	9

Tips on how to get the most out of your new cooker hood

The operation of an Infiniton cooker hood is very simple thanks to the technology we have created to make your day-to-day life easier. Follow these simple tips and enjoy your kitchen.

Turn it on a few minutes before you start cooking, a small gesture that helps to keep the air clean of impurities. Do not turn it off just after cooking, leave it running for a few more minutes until it completes its function of purifying the cooking vapours.

Protect the stainless steel surface easily

To preserve the original appearance of your new Infiniton stainless steel cooker hood, it is advisable to treat it with a clean cloth impregnated with a specific product that prevents fingerprints and marks. There are baby oils and professional products that treat stainless steel to prevent dust, lint and dirt in general from sticking to it.

What is the recommended distance between the hob and the hood?

It will always depend on each model, although the minimum distance between the cooking zone and the extraction zone is generally

extraction zone will generally be 55 cm for vitro-ceramic or induction hobs. If the hob is a gas hob, the recommended distance will be slightly greater, 65 cm.

For built-in modules, this minimum distance should always be 50 cm for electric hobs and 65 cm for gas hobs.

In extra-flat hood models, the distance may be reduced to 43 cm if a glass-ceramic or induction hob is used.

Prevents odours

Our engineering team recommends using the extended run function, if the hood does not have this function, you can leave it running for 5 to 10 minutes manually to absorb the rest of the vapours given off during cooking.

Preventing odours while the hood is operating

When this happens, your filter is probably saturated and cannot absorb any more grease. If this happens, the solution is simple: clean it and if it is in bad condition, you will have to replace it.

Grease filters should be cleaned once a month, either by hand or in your dishwasher. In the latter case, try to do it at a low temperature. Place the filters of your cooker hood carefully on the grilles and not next to other pieces of crockery. If you do it by hand, we recommend that you soak them in hot soapy water for a couple of hours and then brush the filters, wash them again and leave them to drain.

How to clean the metallic filters of a cooker hood?

The filters can be cleaned by hand or in the dishwasher. Tips for washing by hand: soak the filters in hot soapy water, clean them and rinse them thoroughly, then just drain them well.

then just drain them well. To do this in the dishwasher, be careful not to wash them together with the crockery or cutlery if they are excessively greasy. Treat them beforehand with a concentrated degreaser to remove the most stubborn grease.

This manual explains the correct installation and use of your cooker hood, please read it carefully before use, even if you are familiar with the product. Please read it carefully before use, even if you are familiar with the product. The manual should be kept in a safe place for future reference.

CAUTION! The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.

Prohibition sign with pictogram of two people crossed out, indicating no prohibition or rejection

- There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.

- There is a fire risk if cleaning is not carried out in accordance with the instructions.

- Regulations concerning the discharge of air have to be fulfilled.

- Clean your appliance periodically by following the method given in the chapter MAINTENANCE.

- For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

- Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.

- Cleaning and user maintenance shall not be made by children without supervision.

- When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

WARNING! Danger of fire: do not store items on the cooking surfaces.

WARNING! A steam cleaner is not to be used.

WARNING! NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

NEVER TO DO

- Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!

- Do not install above a cooker with a high level grill.

• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.

- Never leave naked flames under the cooker hood

• If the cooker hood is damaged, do not attempt to use.
• Do not flambé under the cooker hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of open flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

Illustration of a desk lamp illuminating a wall-mounted device with a crossed-out black X mark (no text or symbols)

ALWAYS TO DO

IMPORTANT! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.

- The cooker hood must be installed in accordance with the installation instructions and all measurements followed.

- All installation work must be carried out by a competent person or qualified electrician.

- Please dispose of the packing material carefully. Children are vulnerable to it.

• Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.

- Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

WARNING! Before obtaining access to terminals, all supply circuits must be disconnected.

• Always put lids on pots and pans when cooking on a gas cooker.

- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.

- Cooker hood is for domestic use only

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

INSTALLATION (VENT OUTSIDE)

MOUNTING OF THE V-FLAP

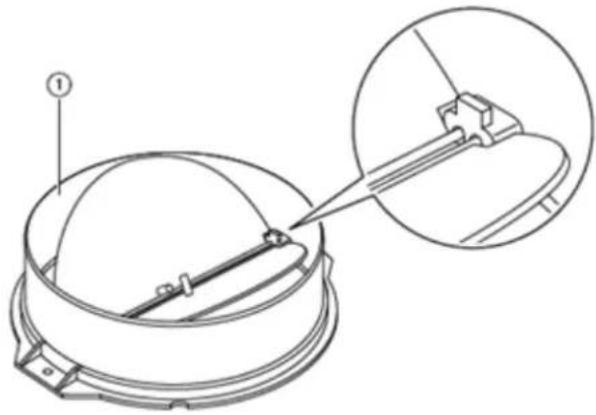

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations.

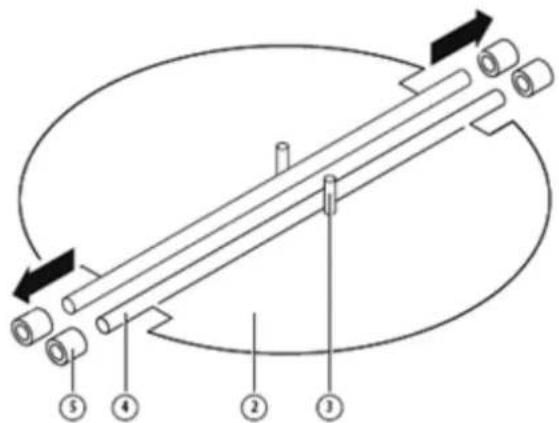

To mount the V-flap 1 you should:

1. Mount the two half parts (2) on the body (6).
2. The pin (3) must be facing upwards.
3. The shaft (4) must be inserted into the holes (5) of the body;
4. Repeat all operations for the other half of the flap.

Diagram of a mechanical or optical setup with numbered components and directional arrows indicating motion or flow.

Technical line drawing of a mechanical component with an inset close-up showing a detail (no text or symbols)

Installing the cooker hood

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking surface for best effect.

65cm 75cm Pic1

1. Drill a hole in the cupboard according to the size in pic below. Make sure the distance between the edge of the hole and the edge of the cupboard edge is at least 35mm.

265mm

Size of the cavity: 665x265mm

1. Remove the aluminum filter and remove the two front panel screws.
2. Use a screwdriver to secure the 8pcs ST4*18 screws and fix the hood body to the cupboard.
3. Replace the front panel with the two screws and replace the filter.
4. Install the v-flaps to the outlet and fix the expansion pipe to the outlet with a cable tie.

Exploded view diagram of a cabinet or enclosure showing internal components and mounting holes (no text or labels)

Diagram of a mechanical device with a cylindrical component and a base, showing motion arrows (no text or symbols)

Note: The expansion pipe is not included in the product.

WARNING!	For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual.
	Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

The control panel has 5 buttons:

LOW

MED

HIGH

Light

On / Off

Once connected to the power supply, the indicator light will turn on, all outputs will close and the hood will enter standby mode.

The indicator light will turn off automatically after recalling if there is no activity.

1. Power On: Press the power button once, the indicator light will turn on and the hood will operate on low speed. The low speed indicator light will illuminate. Press the power button again to turn it off, and its indicator light will turn off. All hood functions will close, the hood will enter standby mode and begin to run in a circular motion.

The speed buttons and the light button can operate separately and are not controlled by the power button. When a certain function button is pressed, the hood will operate in that mode. If the power button is pressed in any state, the cooker hood will turn off without any operation.

1. Press the light button once; the light will turn on. The indicator light of the lamp button and the power button will turn on.

2. Press the light button again to turn off the lights. The indicator light on the light button and the power button will turn off.

3. Press the Suction Power HIGH button once, the motor will run at high speed, the indicator light on the Suction Power HIGH button will illuminate. Press the Suction Power HIGH button again and the motor stops. The indicator light on the Suction Power HIGH button and the power button will go out.

4. Press the MEDIUM Suction Power button once, the motor will run at medium speed, the indicator light on the MEDIUM Suction Power button and the power button will illuminate. Press the power button again and the motor will stop. The indicator light on the MEDIUM suction power button and the power button will go out.

5. Press the LOW Suction Power button once, the motor will run at low speed, the LOW Suction Power button indicator light and the power button will illuminate. Press the Suction Power LOW button again and the motor will stop. The indicator light on the Suction Power LOW button and the power button will turn off.

6. Low speed, medium speed and high speed cannot operate at the same time. When the hood is in high speed, press the low speed button, and it will switch to low speed immediately; when it is in low speed, press the medium speed button, and it will switch to medium speed immediately, and so on.

7. When the cooker hood working in high speed, it will automatically switch to mid speed after seven minutes working.

Whenever there is a problem with the appliance, check if you can solve it by following the tables below. If the problem persists, please contact customer support.

PROBLEM POSSIBLE	CAUSE SOLUTION
Light on, but motor does not work	Fan switch turned offFan switch failedMotor failed	Select a fan switch position.Contact service center.Contact service center.
Light does not work, motor does not work	House fuses blownPower cord loose or disconnected	Reset/Replace fuses.Refit cord to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealedLeakage from the connection of chimney and cover	Take down the one way valve and seal with sealant.Take chimney down and seal.
Lights not working Broken/Faulty globes	Replace globes as per this	instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines The fixing screw not tight enough		Tighten the hanging screw and make it horizontal.

Note: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

CAUTION! Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

Note External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructionsto ensure the best possible result is achieved withoutdamage.

General

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemonjuice, vinegar etc.) on the surfaces.

Stainless steel

The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life expectancy.Dry with a clean soft cloth. A specialized stainlesssteel cleaning fluid may be used.

Note: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

Control panel surface

The inlay control panel can be cleaned using warmsoapy water. Ensure the cloth is clean and well wrungbefore cleaning. Use a dry soft cloth to remove anyexcess moisture left after cleaning.

Important! Using neutral detergents and avoid using harsh cleaning chemicals, stronghousehold detergents or products containing abrasives, as this will affect the appearance of the appliance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

Grease mesh filters

The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with a mild detergent and then brush it gently with a soft brush. Do not apply too much pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery andkitchen utensils.It is advisable not to use rinseaid.

Technical line drawing of a metal HVAC unit with ventilation grilles and mounting brackets (no text or symbols)

Installing grease mesh filters

To install filters for the following four steps:

1. Angle the filter into the slots at the back of the hood.
2. Push the button on the handle of the filter.
3. Release the handle once the filter fits into a resting position.
4. Repeat to install all filters.

Illustration of a hand holding a tablet with a download arrow, enclosed in a circular frame (no text or symbols)

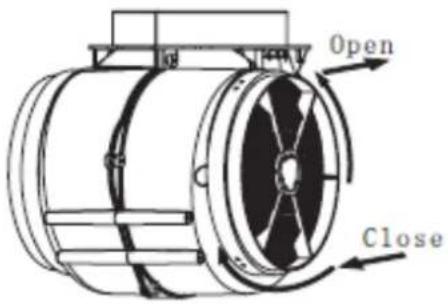

Carbon filter - not supplied

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed every 3 to 6 months according to your cooking habits. The installation procedure of activated carbon filter is as below:

1. Before installing or replacing the carbon filters, disconnect the mains power to the unit.
2. Press the filter lock and remove the mesh filter.
3. Turn the carbon filter on both sides of the motor anti-clockwise.
   Replace thecarbon filters with the new carbon filters.
4. Place the mesh filter.
5. Connect the power supply to the wall socket.

Open Close

Note: Make sure the filter is securely locked. Otherwise, it would loosen and cause danger. When activated carbon filter attached, the suction power will be lowered.

Bulb replacement

IMPORTANT!

Yellow triangular warning sign with black exclamation mark symbol

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.

Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact with hands.

When handling bulbs hold with a cloth or gloves to ensure perspiration does not come in contact with the bulb as this can reduce the life of the bulb.

Note: Before changing the lights, make sure that the appliance is turned off and unplugged. Protect against danger when changing lights, such as wearing gloves.

To change the cooker hood lights, follow the steps below:

Remove the grease filter.

Use a tool or the hand to press the spring splinter of both sides of LED light to the inside, until the light is pressed out. Then slightly pull the light connecting wire out and replace the lights.

Apply the reverse procedure to install the light back.

ILCOS D code for this lamp is: DSR-1.5/30-S-64

• LED modules- round lamp
• Max wattage: 2×1.5 W
• Voltage range: DC 12V
• Dimensions:

64

Technical line drawing of a mechanical component with a hand operating a button, showing internal structure without any text or symbols.

Technical line drawing of a device with cable and connector, no text or symbols present

Service & Disposal

• Any electrical work required to service the appliance must be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorised Service Centre, and only original spare parts must be used.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

Packing materials

Materials with the symbol 🎨 are recyclable. Dispose of the packaging in a suitable collection container for recycling.

Disposal of the device

1. Disconnect the plug from the socket.
2. Cut the power cord and discard it.

Energy saving

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

1. Install the cooker hood in a proper place where there is efficient ventilation.
2. Clean the cooker hood regularly so as not to block the airway.
3. Remember to switch off the cooker hood light after cooking.
4. Remember to switch off the cooker hood after cooking.

INFINITON

EXAUSTOR

Line drawing of a microwave oven in a kitchen setting, showing front and interior views (no text or symbols)

CMPG-702

ean: 8445639002438

Prohibition sign with two stick figures, one crossed out by a diagonal line

Illustration of a lamp illuminating a steaming lamp with a crossed-out black X mark (no text or symbols)

SEMPRE FAZER

Diagram of a mechanical or optical setup with numbered components and directional arrows indicating motion or flow.

Technical line drawing of a mechanical component with an inset close-up showing a detail (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Exploded view diagram of a multi-case appliance or enclosure with internal components and mounting holes (no text or labels)

Diagram of a mechanical device with a cylindrical component and a base, showing motion arrows (no text or symbols)

Technical line drawing of a metal enclosure with ventilation grilles and mounting holes (no text or symbols)

Illustration of a hand holding a tablet with a finger pointing at it, showing a curved arrow (no text or symbols)

Open Close

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Technical line drawing of a mechanical component with a hand inserting a cylindrical part (no text or symbols)

Technical line drawing of a device with a cable and connector, no text or symbols present

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

QR code image with a central logo, likely linking to a website or digital content.

¿Necesitas ayuda?

QR code image with a central logo, likely linking to a digital resource or website.

QR code image containing encoded data, with a central logo or watermark

Silhouette of a person wearing a headset with a crossed wrench icon (no text or symbols)

QR code image with a central logo, likely linking to a digital resource or website.

QR code with central logo, likely linking to a digital service or website

QR code with central Facebook logo, likely linking to a digital resource or website

INFINITON

QR code image containing encoded data, with a central logo or watermark

TÉRMINOS Y REGISTRO DE GARANTÍA

QR code image containing encoded data, with a central logo or watermark symbol
