Brand	Infiniton
Model	CMPTRAL-SS90
Product Type	Cooker Hood (Chime)
Installation Type	Wall-mounted, ducted or recirculation
Minimum Distance from Cooktop	650 mm (some models lower, check instructions)
Exhaust Pipe Diameter	120 mm or 150 mm
Motor Speeds	Low, Medium, High, Boost
Lighting	1.5 W LED, 12 V DC
Light Type	Round, diameter 70 mm, ILCOS DSR-1.5-S-70
Grease Filters	Metal self-supporting, washable
Grease Filter Cleaning Frequency	Every 2 months (or more if heavy use)
Charcoal Filter (Recirculation)	Optional, not washable, replace every 4 months
Control Panel	Buttons for motor speeds, light, boost delay
Timer Function	3-minute delay shut-off
Power Supply	220-240 V, 50/60 Hz (typical, verify rating plate)
Safety Features	Earth connection required; min distance from cooktop
Product Weight	Approximately 12 kg (estimated)

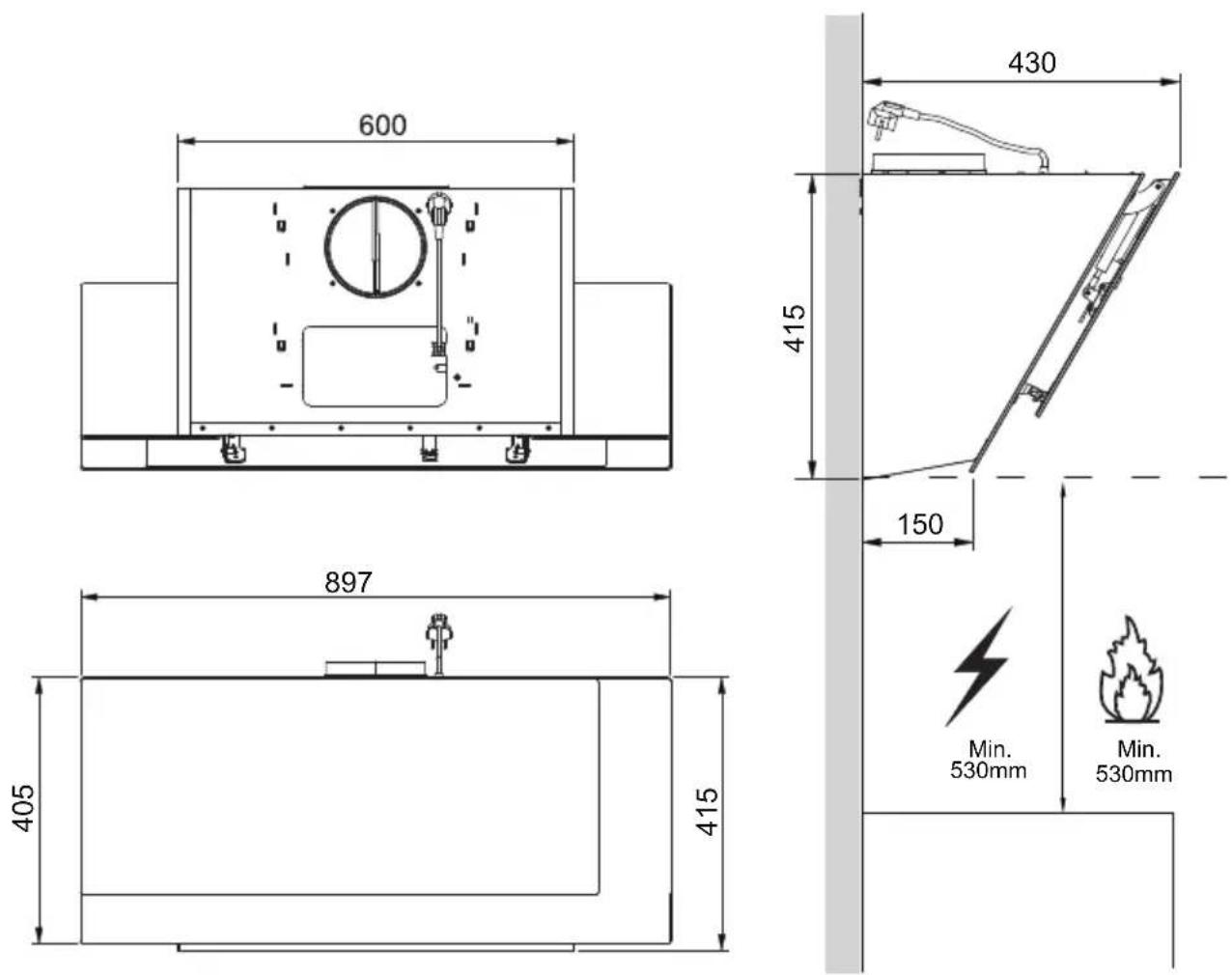

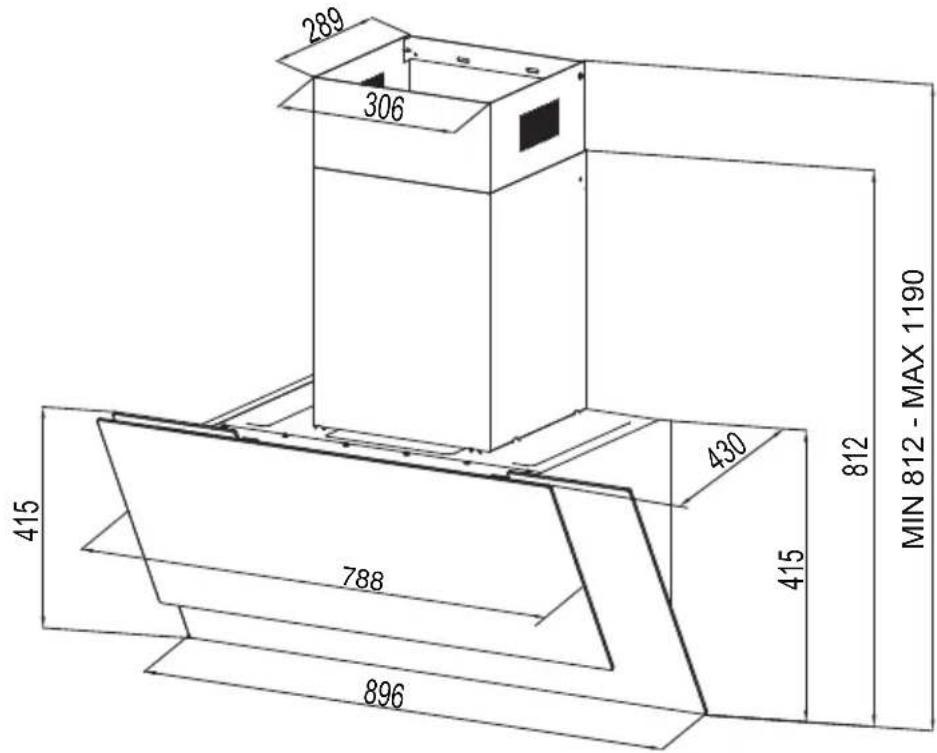

Dimensions (W x D x H)	Not specified; refer to installation drawing
Recommended Use	Domestic kitchen odor extraction
Warranty	Refer to manufacturer documentation

Frequently Asked Questions - CMPTRAL-SS90 Infiniton

What is the minimum safety distance between the cooker top and the hood?

The minimum safety distance is 650 mm. However, some models can be installed at a lower height; always refer to the installation instructions for your specific model.

How do I clean the metal grease filters?

Remove the filters by pulling them downwards after opening the panel. Wash them every 2 months in a dishwasher or by hand. Avoid bending them. Ensure they are completely dry before reinserting, with the handle facing outwards.

How often should the activated charcoal filter be replaced?

The activated charcoal filter is not washable and should be replaced approximately every 4 months, or more frequently with heavy usage. It is only used in recirculation mode.

The motor does not work, but the light is on. What could be the issue?

Possible causes include blocked blades, a damaged capacitor, a damaged motor, or cut/disconnected internal wiring. Check and replace the faulty component as needed.

How do I replace the LED light?

Switch off the hood and unplug it. Remove the grease filter. Lever the light out from its fitting. Disconnect the connector, replace with a new 1.5W LED (12V, round, diameter 70 mm), reconnect, and reinstall.

Can I use the hood without ducting?

Yes, the hood can be used in recirculation mode by installing activated charcoal filters. The air is filtered and recirculated back into the kitchen.

What is the boost function?

The boost function (button B) turns the motor to maximum speed for intensive odor removal. It can be activated when the motor is on.

Why is my hood vibrating?

Vibration may be caused by a damaged blade, loose motor, or loose installation. Check and tighten fastenings, and replace damaged parts.

How do I install the decorative chimney?

Fix the chimney fixing bracket to the lower decorative chimney, then hook the lower chimney onto the hood body. For the upper chimney, widen its sides and hook it between the wall and the bracket, then secure with screws.

What should I do if oil leaks from the hood?

Oil leakage often occurs if the outlet or air ventilation entrance are not tightly sealed. Disassemble and seal with glue. Also check the connection between the U-shaped section and cover, and seal if necessary.

USER MANUAL CMPTRAL-SS90 Infiniton

Line drawing of a cabinet or enclosure with mounting base and ventilation slots (no text or symbols)

Manual del usuario

modelo: CMPTRAL-SS90

Simple line drawing of a laboratory setup with a lamp, control panel, and heating element (no text or symbols)

Two circular fan-like structures with radial blades, one labeled with number 5 (no text or symbols on the fan itself)

Simple line drawing of a rectangular object with a horizontal base (no text or symbols)

Simple line drawing of a rectangular frame with no text or symbols

CorrectoIncorrecto

Technical diagram showing a mechanical assembly with a dashed circular inset view of a component (no text or symbols present)

PANEL DE CONTROL

Hand holding a small object with a scroll inside, enclosed in a circular frame (no text or symbols visible)

Hand holding a mechanical component with a circular base and flange (no text or symbols visible)

Line drawing of a hand gripping a piece of wood or metal, with no text or symbols present.

The instructions for Use apply to several versions of this appliance. Accordingly, you find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

● The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
● The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
- For Class I appliances, check that the domestic power supply guarantees adequate earthing.
- Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm. The route of the flue must be as short as possible.
- Do not connect the extractor hood to exhaust ducts carrying combustion flumes (boilers, fireplaces, etc.).
- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
- If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

USE

● The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
● Never use the hood for purposes other than for which it has been designed.
● Never leave high naked flames under the hood when it is in operation.
- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
- Do not flame under the range hood; risk of fire.
● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
● Children should be supervised to ensure that they do not play with the appliance.
● Cleaning and user maintenance shall not be made by children without supervision.
● "CAUTION: Accessible parts may become hot when used with cooking appliances".

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
  ● Clean and/or replace the Filters after the specified lime period (Fire hazard).
  ● Clean the hood using a damp cloth and a neutral liquid detergent.
  ● The appliance uses 4 hob elements at most.

The symbol is packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Simple line drawing of a laboratory setup with a conical flask, heating a test tube, and a control panel (no text or symbols)

Simple line drawing of a campfire setup with a pot and fire, no text or symbols present

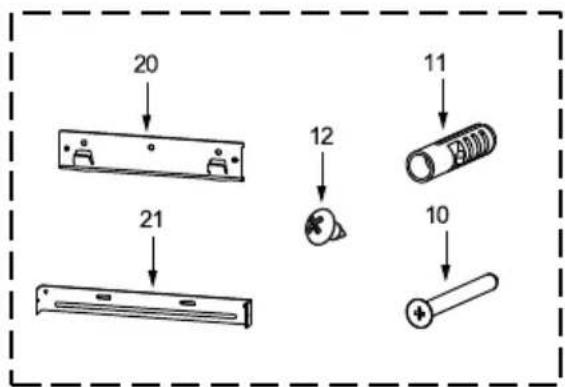

Ref.	Qty.	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filter.
2.1	1	Lower Decorative Chimney (optional)
2.2	1	Upper Decorative Chimney (optional)
3	1	Flange (optional)
4	1	Exhaust Pipe
5	2	The Activated Charcoal filter (optional)

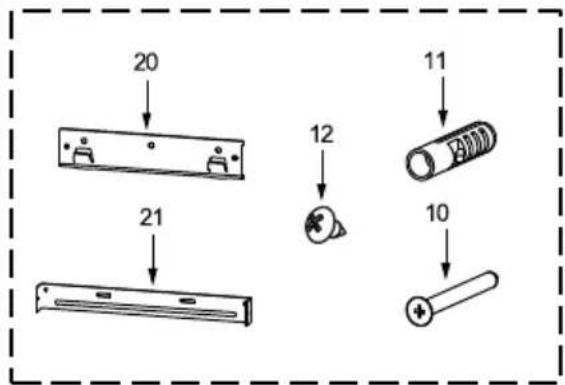

Ref.	Qty	Installation Components
10	7	Screws 5 x 50
11	7	Wall Plugs
12	6	Screws 4.2 x 9.5
20	1	Hood fixing bracket ( optional )
21	2	Chimney fixing bracket ( 0 / 1 optional )

Qty.	Documentation
1	Instruction Manual

Two circular fan-like structures with radial blades, one labeled with number 5 (no text or symbols on the structures themselves)

EN-4

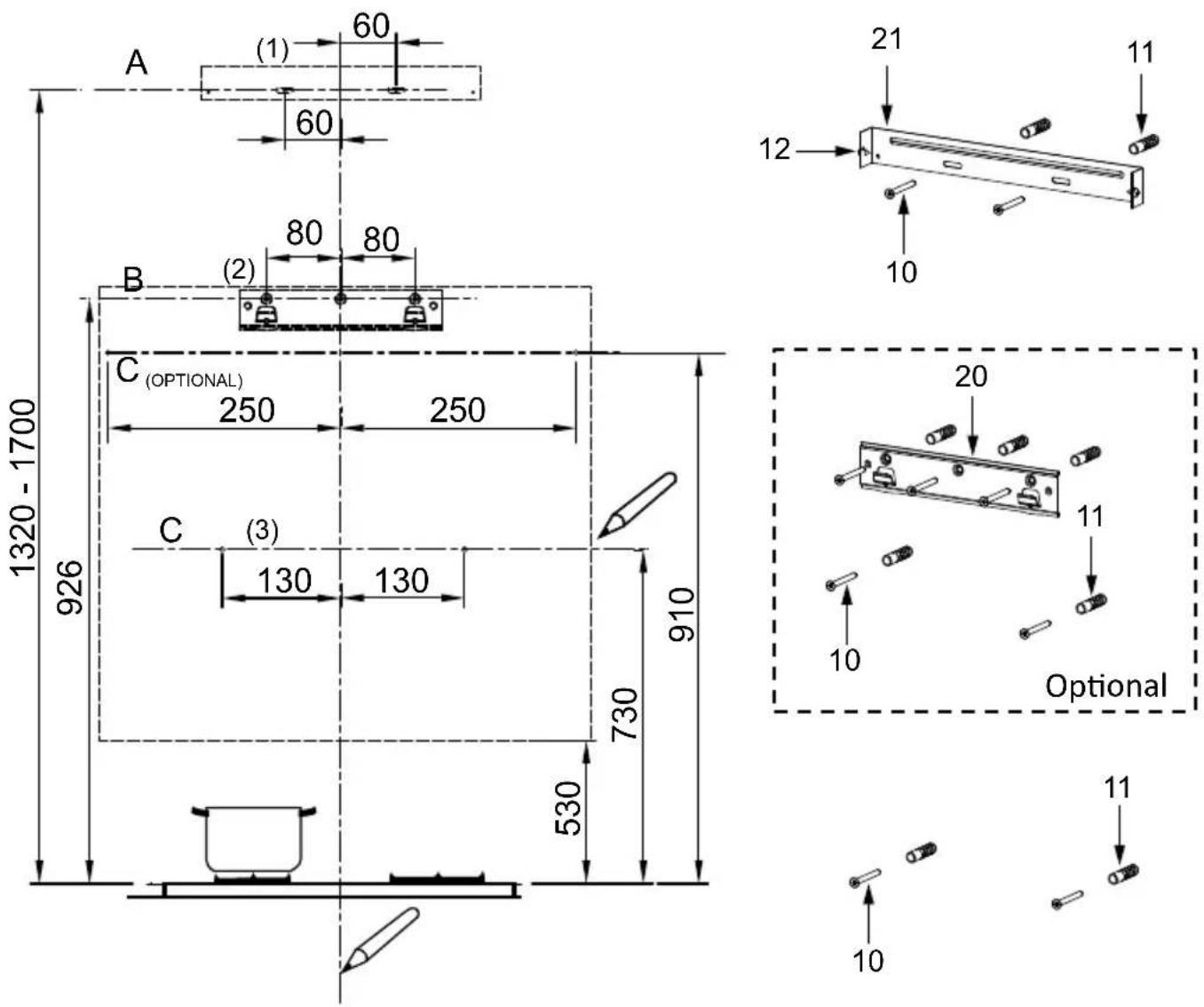

As a first step, proceed with the following drawings:

• A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted.
  ● A horizontal line A at 1320 – 1700 mm above the cooker top.
  ● A horizontal line B at a minimum 926 mm above the cooker top.
  ● A horizontal line C at a minimum 730 (910 optional) mm above the cooker top.

Mark Points:

● Mark a point (1) on the horizontal line A, 60 mm to the right of the vertical reference line.
- Repeat this operation on the other side, checking that the two marks are leveled.
● Mark a point (2) on the horizontal line B, 80 mm to the right of the vertical reference line.
- Repeat this operation on the other side and on the vertical reference line, checking that the three marks are leveled.

• Mark a point (3) on the horizontal line C, 130 (250 optional) mm to the right of the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are on the same horizontal line.

Fix the brackets (Optional):

• Drill at the marked points (1) (2) (3), using a 10 mm drill bit.
• Insert the Wall Plugs 11 into the holes (1) (2) (3).
  ● Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) supplied with the hood.
  ● Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) supplied with the hood.

Hook the hood body:

• Open the panel.
• Remove the Metal grease filter using the handles provided.
• Hook the hood body to the bracket 20.
  ● Level the hood body itself.

Simple line drawing of a flat rectangular object with no text or symbols

Simple line drawing of two overlapping rectangular shapes with no text or symbols

Right Wrong

● From the inside of the hood body, fix the screws 10 to Wall Plugs 11 at the points (3).
● Fit the filter into the hood.
- Close the panel.

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• To install a 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet.
• Fix the pipe 4 in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

The chimney can only be installed with exhausting hood.

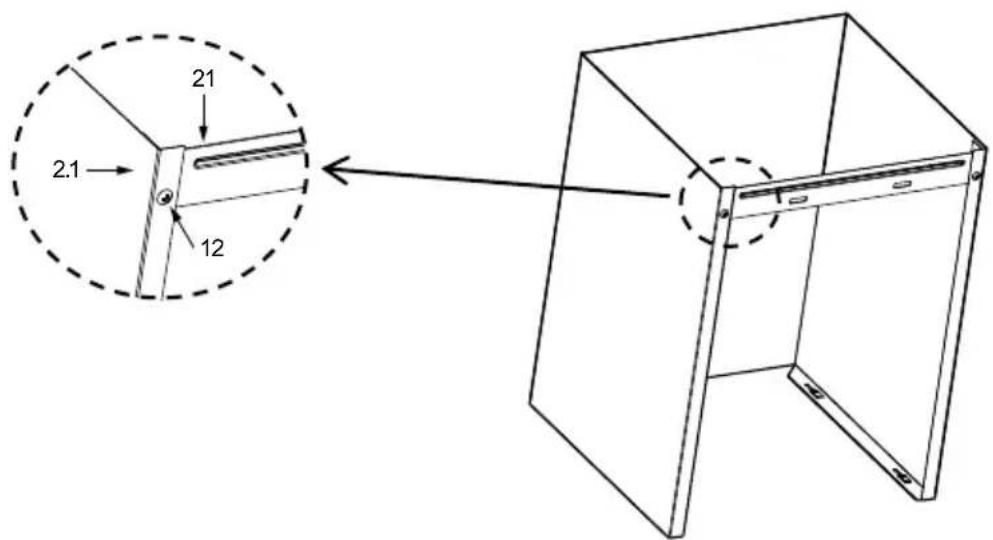

Lower Decorative Chimney

● Fix a Chimney fixing bracket 21 onto the Lower Decorative Chimney with 2 screws 12 (4.2 x 9.5) supplied with the hood.

- Slightly widen the two sides of the flue and hook them onto the hood body, making sure that they are well seated.

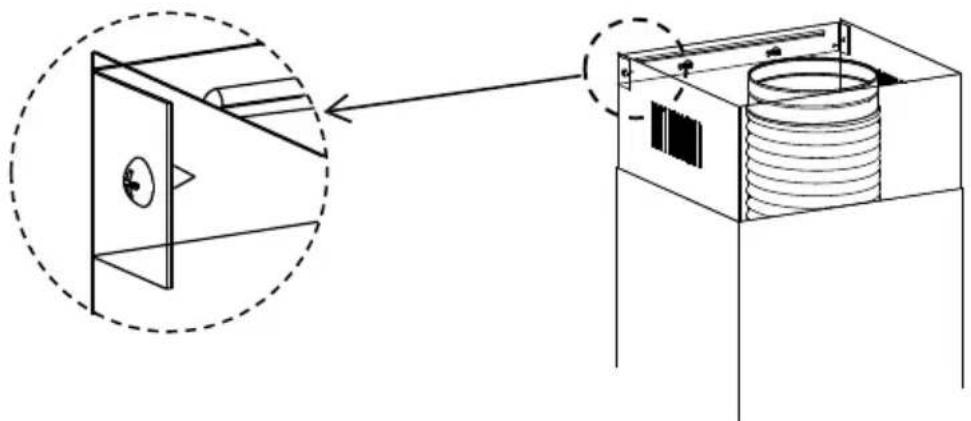

Upper Decorative Chimney

• Slightly widen the two sides of the upper chimney and hook them between the wall and the bracket 21 which is fixed on the Lower Decorative Chimney.
  ● Fix the upper chimney onto the bracket 21 with 2 screws 12 (4.2 x 9.5) supplied with the hood.

Technical diagram showing a mechanical assembly with a dashed circular inset view of a component (no text or symbols present)

Button Function		Remarks
	Turns the Motor ON.	When is off.
	Enable shutdown the Motor with a 3 minutes delay meanwhile flashes.	When is on.
	Turns the Motor OFF.	When is flashing.
	Turns the Motor on at speed Low.	Buttons + are on.
	Turns the Motor on at speed Medium.	Buttons + are on.
	Turns the Motor on at speed High.	Buttons + are on.
	Turns the Lighting System on and off at maximum intensity.	Button on.
B	Turns the Motor on at speed BOOST.	Buttons + B are on.

GREASE FILTERS

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
  ● Pull the comfort panels to open them.

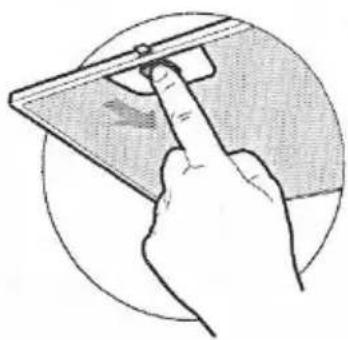

• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.
• Close the comfort panel.

Hand holding a tablet with a scroll, enclosed in a circular frame (no text or symbols visible)

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

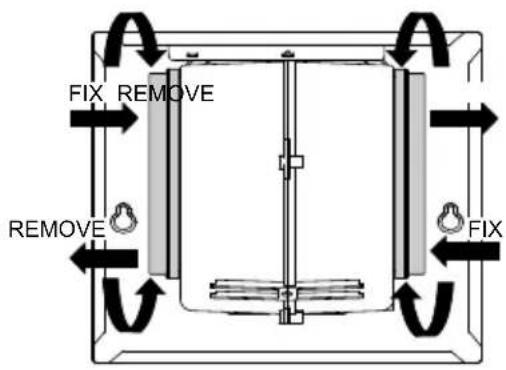

REPLACING THE ACTIVATED CHARCOAL FILTER

• Open the comfort panels pulling them downwards.
• Remove the metal grease filters
• Remove the saturated activated charcoal filter.
  ● Fit the new filters.
• Replace the metal grease filters.
• Close the comfort panel

LIGHT REPLACEMENT

1.5W LED light.

• Switch off the extractor hood and isolate the extractor hood by pulling out the mains plug or switching off the fuse.
• Remove the grease filter.
• Remove the light by levering its fitting from the hood body(this may require pressure or force to be applied).

	Max Power	Voltage	Picture Lamp Cap ILCOS D code
Round/ Diameter : 70mm	1.5W DC	12 V		——	DSR-1.5-S-70

Simple line drawing of a mechanical component or tool with no visible text, numbers, or symbols.

Line drawing of a hand holding a mechanical component with a circular housing (no text or symbols)

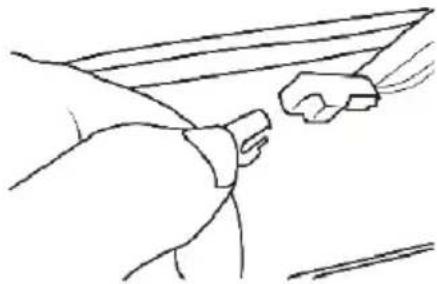

• Disconnect the connector of the light.
• Replace the light with a new one of the same type, making sure that you connect the light with the light cable correctly.
  ● Reinstall the light back to the hood body.

Line drawing of a hand gripping a car with a handle (no text or symbols)

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Fault	Cause	Solution
Light on, but motor does not work	The blades are blocked.
	The capacitor is damaged.	Replace capacitor.
	The motor is damaged.	Replace motor.
	The internal wiring of motor is cut off/disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged.	Replace lights.
	Power cord loose.	Connect the wires as per the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
	Leakage from the connection of U-shaped section and cover.	Take U-shaped section down and seal with soap or paint.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened.	Fasten the motor tightly.
	The cooker hood is not tightly fixed.	Fixed the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough	Tighten the hanging screw and make it horizontal.

Simple line drawing of a heating setup with a lamp, fan, and control panel (no text or symbols)

USO

Simple line drawing of a house with a stove and fire, no text or symbols present

Two circular fan-like structures with radial blades, one labeled with a number 5 (no text or symbols on the structures themselves)

PT-4

Two simple line drawings of rectangular electronic devices, one open and one closed, with no text or symbols.

Correto Incorreto

Superior de la chimenea decorativa

• Levante ligeiramente os dois lados da chaminé superior e engate-a entre a parede e o suporte 21 que está fixo à parte inferior da chaminé decorativa.
  ● Fixar a chaminé superior no suporte 21 com dois parafusos 12 (4.2X 9.5) fornecidos com a tampa

Technical diagram showing a mechanical assembly with a dashed circular inset view of a component (no text or symbols present)

PAINEL DE CONTROLE

Hand holding a small object with a finger, enclosed in a circular frame (no text or symbols visible)

FILTRO DE CARBONO ACTIVO (OPCIONAL - NÃO INCLUIDO)

Line drawing of a hand holding a mechanical component with a circular head and handle (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Empty white rectangle with a thin black border (no text or symbols)
