USER MANUAL CMPE-61B Infiniton

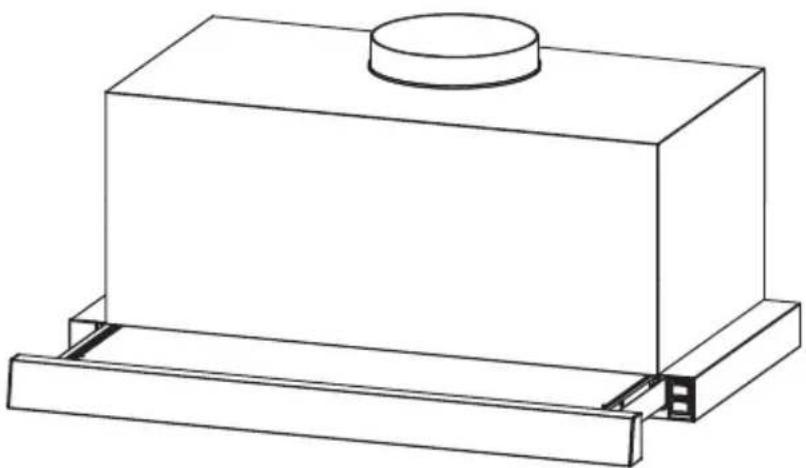

Technical line drawing of a rectangular mechanical component with a circular top and base plate (no text or symbols)

Manual del usuario

modelo: CMPE-61B

CMPE-63X

Simple line drawing of a laboratory setup with a conical flask, thermometer, and heated tube (no text or symbols)

2°

Simple line drawing of a house with a chimney and a person standing on a platform, no text or symbols present.

Technical line drawing of a rectangular block with a circular top and base, showing a force arrow labeled '1' (no text or symbols beyond basic lines)

3 4 4 3

Two circular fan-like structures with radial blades, one labeled with number 2 (no text or symbols on the fan itself)

unit: mm

ES-4

METHOD 1

Technical line drawing of a mechanical assembly with two components and mounting brackets (no text or symbols)

240 75 480 400 255 40 280 595 136 OPTIONAL28/18

Technical line drawing of a mechanical housing or enclosure with mounting base and cylindrical top (no text or symbols)

235 75 400

Pure mechanical part diagram showing a rectangular block with a central vertical dashed line (no text or symbols)

Simple line drawing of a rectangular frame with a vertical dashed centerline (no text or symbols)

Correcto Erróneo

Información

Two identical rectangular panels with a central icon: one with a light bulb, the other with two circular symbols (no text or labels)

FILTROS DE GRASA

LIMPIEZA DE METALES AUTOPORTANTE EN FILTROS DE GRASA

Illustration of a hand holding a tablet device with a download arrow (no text or symbols)

FIJAR REMOVER REMOVER FIJAR

Technical line drawing of a mechanical assembly with no visible text or symbols

Two rectangular electronic components with mounting holes, shown in isometric line drawing without any text or symbols.

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

	Puissance max	Tension Illustration Code		ILCOS D
Cuadrado/Diámetro : 33.2mm x 120mm	1.5W	220V-240V		DSS-1.5-S-33.2/120

Technical line drawing of a rectangular mechanical component with a circular top and base plate (no text or symbols)

Manual del usuario

modelo: CMPE-61B

CMPE-63X

The instructions for Use apply to several versions of this appliance. Accordingly, you find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

● The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

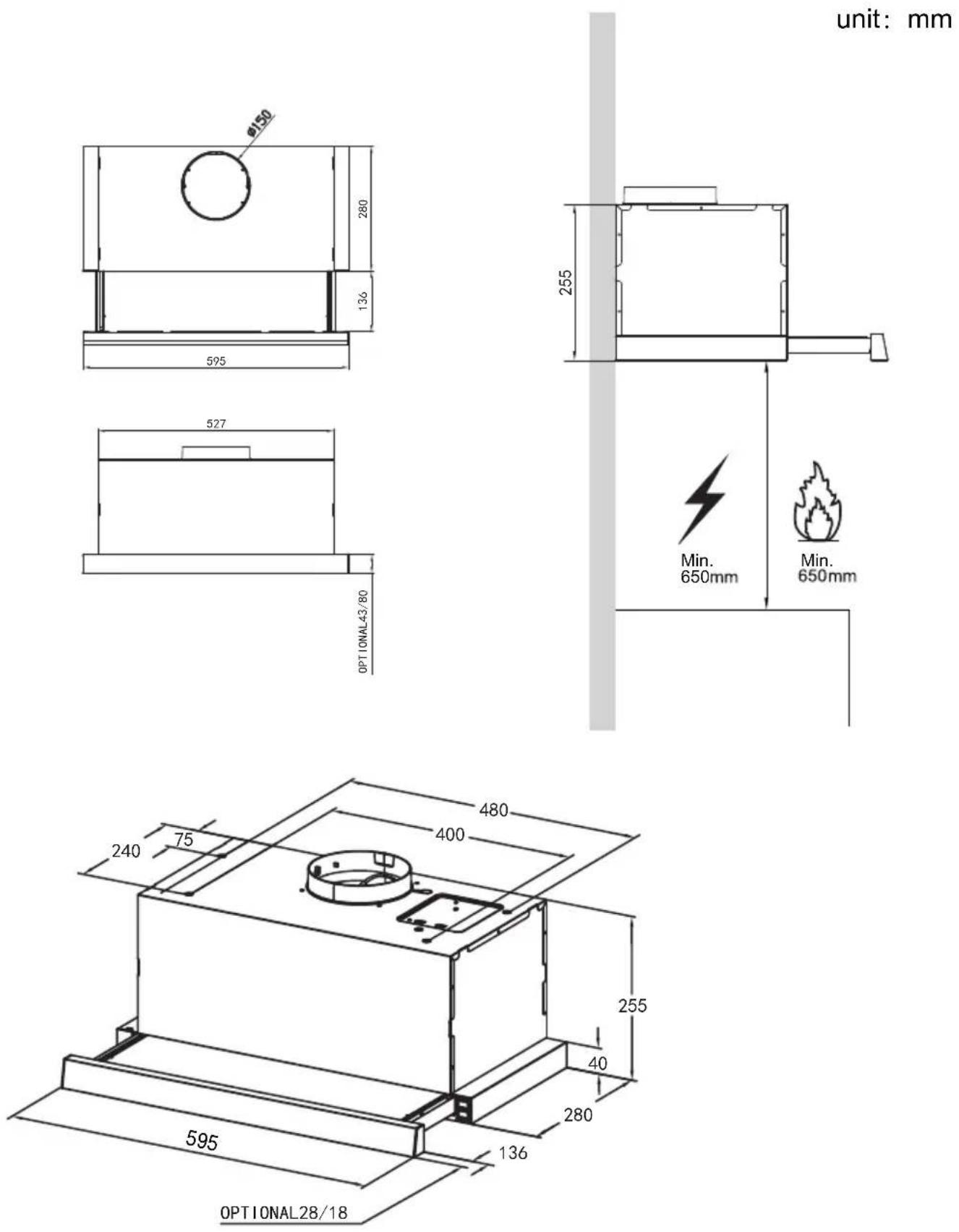

● The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
- For Class I appliances, check that the domestic power supply guarantees adequate earthing.
- Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm. The route of the flue must be as short as possible.
- Do not connect the extractor hood to exhaust ducts carrying combustion flumes (boilers, fireplaces, etc.).
- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
- If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

USE

● The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
● Never use the hood for purposes other than for which it has been designed.
● Never leave high naked flames under the hood when it is in operation.
- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
● Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
● Do not flame under the range hood; risk of fire.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
● Children should be supervised to ensure that they do not play with the appliance.
● Cleaning and user maintenance shall not be made by children without supervision.
● "CAUTION: Accessible parts may become hot when used with cooking appliances".

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
  ● Clean and/or replace the Filters after the specified lime period (Fire hazard).
  ● Clean the hood using a damp cloth and a neutral liquid detergent.
  ● The appliance uses 4 hob elements at most.

The symbol is packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Simple line drawing of a heating setup with a lamp, condenser, and control panel (no text or symbols)

2°

Simple line drawing of a campfire setup with a stove and fire, no text or symbols present

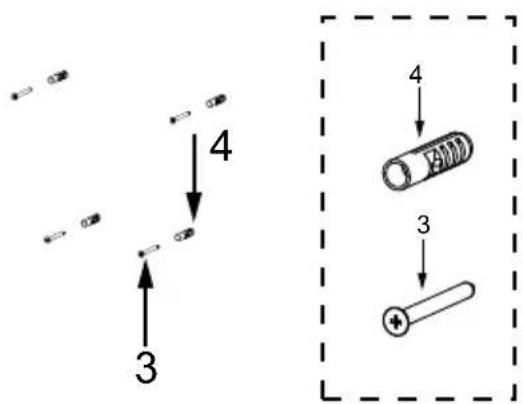

Ref.	Qty.	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filter.

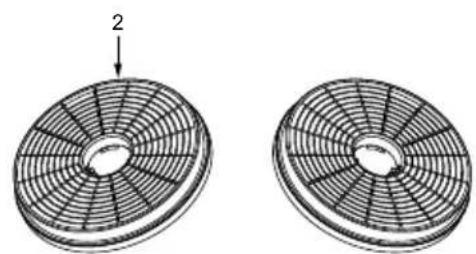

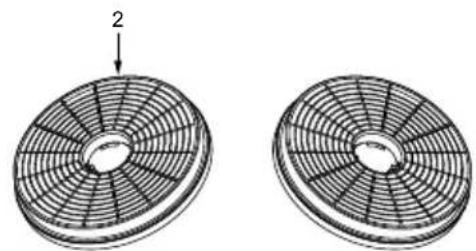

2	2	The Activated Charcoal filter ( 2 ptional )
3	4	Screws 5x50
4 4		Wall Plugs

Simple line drawing of a rectangular block with a circular top and a side support, no text or symbols present.

3 4 4 3

Two circular fan-like structures with radial blades, one labeled with number 2 (no text or symbols on the fan itself)

unit: mm

EN-4

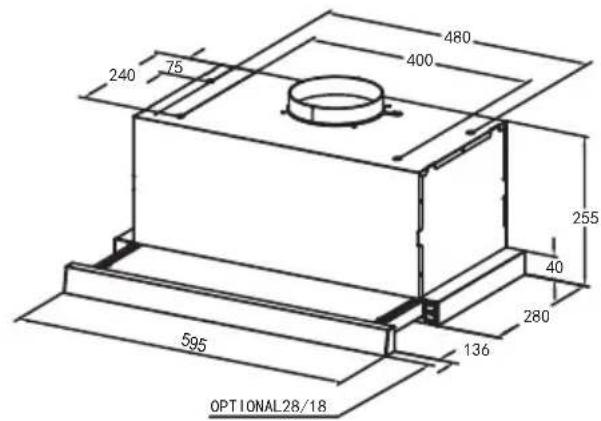

METHOD 1

Technical line drawing of a mechanical assembly with two components and mounting brackets (no text or symbols)

240 75 480 400 255 40 280 595 136 OPTIONAL28/18

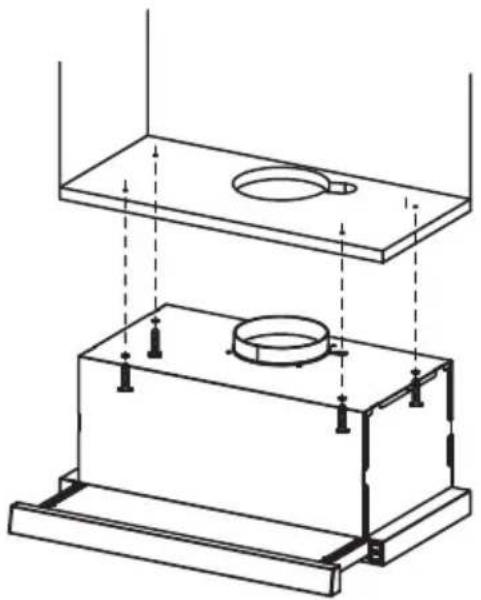

• According to the figure, make sure the position of hood in the cabinet. The wood strips should be line up with the 4 keyholes slots on the top of the range hood. On the cabinet, install 4 screws (supplied) according to the relative position of 4 key holes on the bottom of hood. The extent of screwing should be convenience to the next installation.
• Hang the hood and let it's 4 key holes aim at screws, the 4 screws should be in the narrow parts of key holes. Screws should be fasten firmly, make sure that the installation between the hood and cabinet is enough fasten.
• Install screws in the security holes, in case of front and back moving of hood, so that the using is safer.

Information

When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.

METHOD 2

Technical line drawing of a mechanical housing or enclosure with mounting base and cylindrical top (no text or symbols)

235 75 400

z In the installation surface in cabinet don't adapt to install the cooker hood, then as per fig, fix the position of cooker hood on the wall.
z ☐ On the wall, install 2 screws ( supplied ) according to the relative position of 2 key holes on the back of hood.
z The extent of screwing should be convenience to the next installation.
z Also install screws in the security holes, in case of front and back moving of hood, so that the using is safer.

Installation of hoods built in combi cabinets is the same as previous method.

Information

Congratulations on the purchase our cooker hood which is designed to include many superior features that permit you the fullest expression of your living. Before installing and/or using the cooker hood carefully read all the instruction.

Pure technical diagram of a mechanical assembly with no text or symbols

Simple line drawing of a rectangular frame with a vertical axis and horizontal base (no text or symbols)

Right Wrong

Information

The cooker hood must not be installed and connected to flues where other appliances are installed and which run off other energy supplied different to electricity(water heater boiled cookers(range/agas)etc.).

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• To install a 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet.
  ● Fix the pipe 4 in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

Ø150 9 Ø120

Operation

Check beforehand

Check the safe condition of the appliance:

• Check whether there are visible defects.
• Check that all parts of the appliance have been securely fitted.

● In the right part of the cooker hood.
● There are 2 speeds for the motor and on off switch of the lamp.
- Locker switch for operation.

Motor Operation

• [ ○]=Off
• [ ]=Low Power Setting
• [ ||]=High Power Setting

Light Operation

• [ ]=Off
- [☀] = On

Two identical rectangular panels with a central icon: one with a light bulb, the other with two circular symbols (no text or labels)

GREASE FILTERS

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

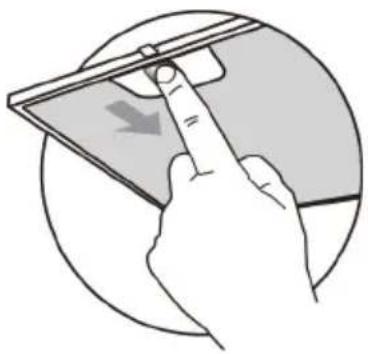

  ● Pull the comfort panels to open them.
• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.
• Close the comfort panel.

Illustration of a hand holding a tablet device with a download arrow (no text or symbols)

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

REPLACING THE ACTIVATED CHARCOAL FILTER

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters
• Remove the saturated activated charcoal filter.
  ● Fit the new filters.
• Replace the metal grease filters.

FIX REMOVE REMOVE FIX

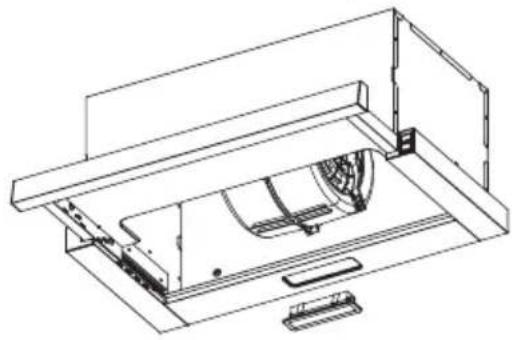

Changing the light

Lightning inside the appliance is provided by a 1.5W LED light.

To replace the LED light, proceed as follows:

1. Disconnect the appliance from the mains or switch off the circuit breaker.
2. Remove the metal filters (see Cleaning and Replacing Filters).
3. Remove the light by levering its fitting from the hood body(this may require pressure or force to be applied) and disconnect the connector of the light.
4. Replace the light with a new one of the same type, making sure that you connect the light with the light cable correctly.
5. Install the metal filter back in place.

Technical line drawing of a mechanical assembly with no visible text or symbols

Two rectangular electronic components with mounting holes, shown in line drawing style (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

	Max Power	Voltage Picture ILCOS D code
Square Diameter: 33.2mmx120mm	1.5W	220V-240V		DSS-1.5-S-33.2/120

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Fault	Cause	Solution
Light on, but motor does not work	The blades are blocked.
	The capacitor is damaged.	Replace capacitor.
	The motor is damaged.	Replace motor.
	The internal wiring of motor is cut off/disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged.	Replace lights.
	Power cord loose.	Connect the wires as per the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
	Leakage from the connection of U-shaped section and cover.	Take U-shaped section down and seal with soap or paint.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened.	Fasten the motor tightly.
	The cooker hood is not tightly fixed.	Fixed the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough	Tighten the hanging screw and make it horizontal.

INFINITON

Technical line drawing of a rectangular mechanical component with a circular top and base plate (no text or symbols)

Manual del usuário

modelo: CMPE-61B

CMPE-63X

Illustration of a laboratory setup with a conical flask, thermometer, and evaporating substance (no text or symbols)

2°

MANUTENÇÃO

Simple line drawing of a house with a chimney and a person standing beside it, no text or symbols present.

Technical line drawing of a rectangular block with a circular top and base, showing a force arrow labeled '1' (no text or symbols beyond basic lines)

3 4 4 3

Two circular fan-like structures with radial blades, one labeled with number 2 (no text or symbols on the fan itself)

unit: mm

ES-4

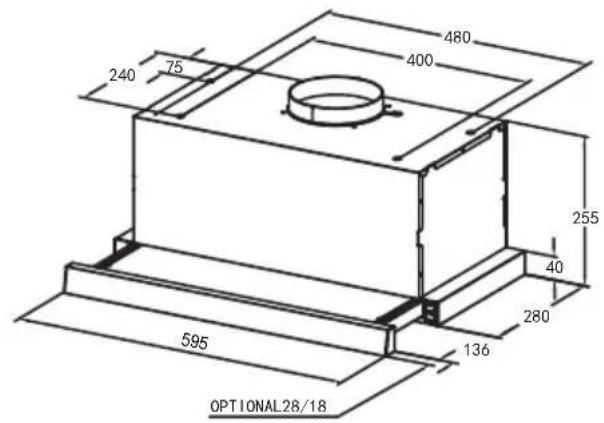

MÉTODO 1

Technical line drawing of a mechanical assembly with two components and mounting brackets (no text or symbols)

240 75 480 400 255 40 280 595 136 OPTIONAL28/18

Technical line drawing of a mechanical housing or enclosure with mounting base and cylindrical top (no text or symbols)

235 75 400

Pure mechanical part diagram showing a rectangular block with a central vertical dashed line (no text or symbols)

Simple line drawing of a rectangular frame with a vertical dashed centerline (no text or symbols)

Certo Errado

informação

Two identical rectangular electronic devices with indicator lights and symbols, no text or labels present.

FILTRO DE GRAXA

Illustration of a hand holding a tablet device with a download arrow (no text or symbols)

FILTRO DE CARBONO ACTIVO (OPCIONAL - NÃO INCLUIDO)

FIJAR REMOVER REMOVER FIJAR

SUBSTITUIÇÃO DAS LUZES

Mudando a luz

Technical line drawing of a mechanical assembly with no visible text or symbols

Two rectangular electronic components with mounting holes, shown in isometric line drawing without any text or symbols.

Technical line drawing of a mechanical component or housing (no text or symbols)

Technical line drawing of a mechanical component with a flanged top and a rectangular base (no text or symbols)

	Puissance max	Tension Illustration Code		ILCOS D
Cuadrado/Diámetro : 33.2mm x 120mm	1.5W	220V-240V		DSS-1.5-S-33.2/120
