Sun Plug - Mp3 player Zipy - Free user manual and instructions

Product type	MP3 Player
Brand	Zipy
Model	Sun Plug
Dimensions	Approximately 10 x 5 x 1.5 cm
Weight	Approximately 50 g
Power supply	Rechargeable Lithium-ion battery 400 mAh
Storage capacity	8 GB built-in
Supported audio formats	MP3, WMA, WAV, FLAC
Battery life	Up to 20 hours
Connectivity	USB 2.0 for file transfer and charging
Screen	LCD 1.44 inches
Main functions	Audio playback, FM radio, voice recording, lyrics display
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture or extreme temperatures. Do not disassemble.
Spare parts and repairability	Contact after-sales service for repairs. Spare parts not available at retail.
General information	User manual downloadable in PDF format from the manufacturer's website.

Frequently Asked Questions - Sun Plug Zipy

How to turn the Zipy Sun Plug player on and off?

To turn on, press and hold the Power button for 2 seconds. To turn off, press and hold until the screen turns off.

How to transfer music to the player?

Connect the player to your computer using the provided USB cable. It will appear as a removable disk. Copy your music files to the 'Music' folder or root directory. Safely disconnect it before removing.

What audio formats are supported?

The Zipy Sun Plug supports MP3, WMA, WAV, and FLAC formats. Make sure your files are encoded in one of these formats.

How to use the FM radio?

From the main menu, select 'Radio'. Plug in the earphones (they serve as antenna). Use the navigation buttons to search for stations. Press the center button to save a station.

What to do if the battery does not hold charge?

Check that you are using a compatible charger (5V, 500mA minimum). If the problem persists, the internal battery may be worn out. Contact after-sales service for a replacement.

How to reset the player if it freezes?

Locate the small 'Reset' hole on the back of the player. Insert a paperclip or pointed object to press briefly. The player will restart.

The screen stays black, what to do?

Make sure the battery is charged. Plug it into the mains for at least 30 minutes. If the screen still does not turn on, try a reset. If nothing works, contact support.

Audio playback skips or crackles, how to fix?

This may be due to a corrupted file or poor earphone connection. Test with a different file or other earphones. Also check that the headphone jack is fully inserted.

Can I use Bluetooth earphones with this player?

No, the Zipy Sun Plug is not equipped with Bluetooth. You must use wired earphones with a 3.5mm headphone jack.

Where can I download the complete user manual?

The manual is available for free in PDF format on the website notice-facile.com or on the official Zipy website. Search for 'Zipy Sun Plug manual' in your search engine.

USER MANUAL Sun Plug Zipy

Illustration of a green and olive-colored ZIPY bank card with a black screen and triangular handle (no text or symbols on the card itself)

ZiPY

Precauciones

Illustration of a yellow and green ZiPy branded device with a black screen and triangular handle (no text or symbols on the device itself)

ZiPY

Precauciones

Illustration of a yellow and green ZiPy branded device with a black screen and triangular handle (no text or symbols on the device itself)

ZiPY

Instructions de precautions

CONDITIONS DE GARANTIE AID

Illustration of a yellow and green ZiPy branded device with a black screen and triangular handle (no text or symbols on the device itself)

ZiPY

Precaution

• The material provided in this manual is for informational purposes only. The products described here in are subject to change without prior notice, due to the continuous development of the brand.
• When the product is used by children, they should be supervised by an adult.
• It is dangerous for you to lose the perception of sound in the environment.
• Do not expose this device to high temperatures, which can cause anomalies in the system. This reason will void your warranty.

Diagram and Function Indication

When switch turned to:

......

LED ON

......

LED OFF

......

DC OUT

Functions

Internal 750mAh Lithium battery:

• Charge iPhone and most smart phone
• Charged by Solar energy / via USB
  Super bright LED Torch
  DC output 5.5V 500mA

Charging Rechargeable battery

Methods to charge build-in battery:

• By Solar energy
• Via USB

There are two methods to charge the re-chargeable battery:

1. Use solar energy:

Place the Portable Solar Charger under sunlight. When the re-chargable battery is being charged, the LED indicator will turn to red. When the re-chargable battery is fully charged, the LED indicator will turn to green. To fully charged the battery, around 15 hours is needed.

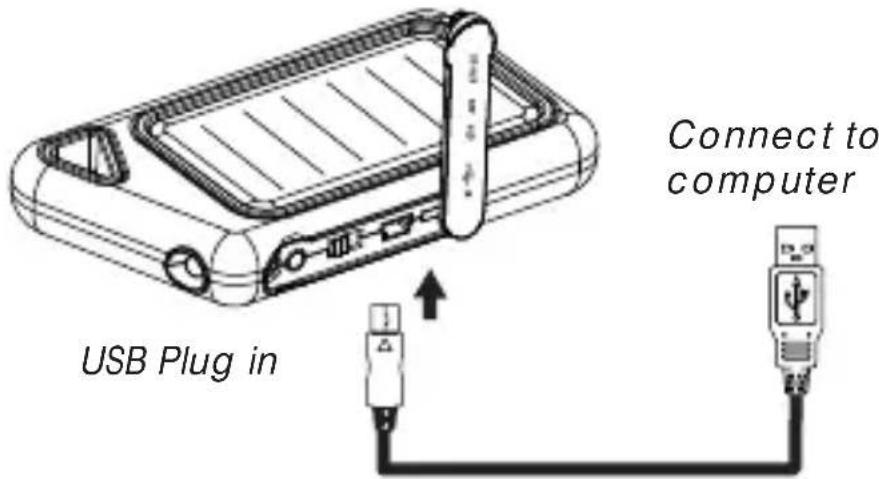

1. Use USB In:

Connect the Portable Solar Charger with Mini USB cable, and connect it with computer. When the re-chargable battery is being charged, the LED indicator will turn to red. When the re-chargable battery is fully charged, the LED indicator will turn to green. To fully charged the battery, around 5 hours is needed.

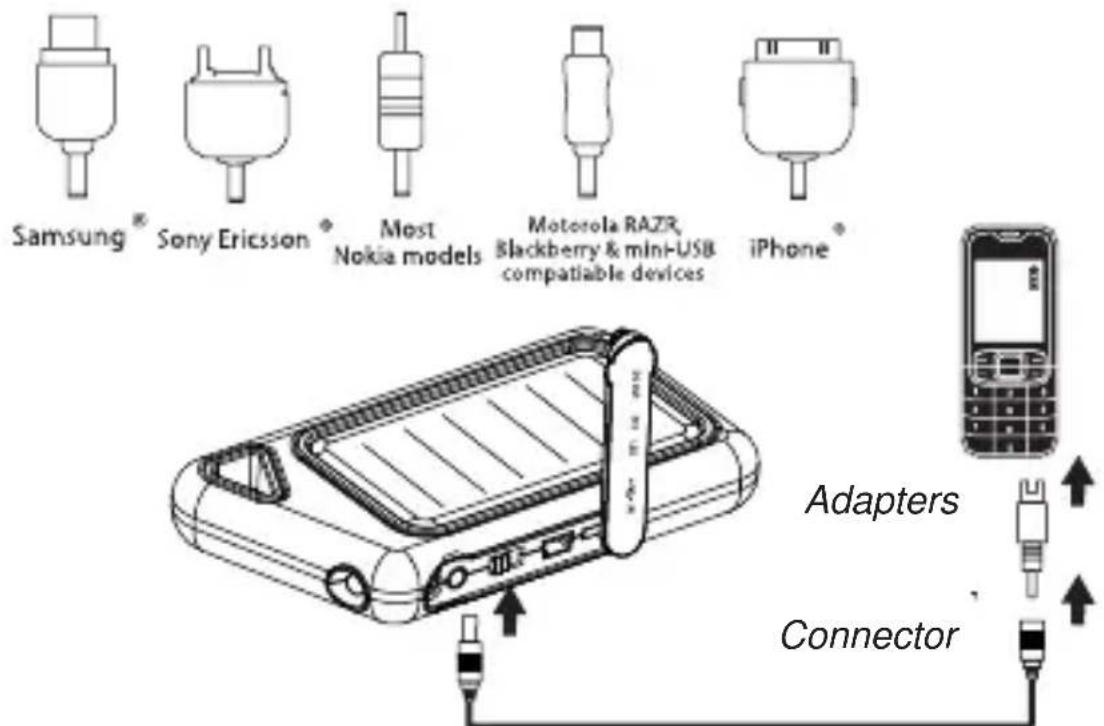

Charging for mobile devices

1. Select a suitable adapter for the device
2. Plug the adapter into the connector cord and the device
3. Plug the connector cord into the solar charger

Charge mobile phones model:

When charging the devices, The devices will indicate that it is being charged. The battery capacity of the Portable Solar Charger is decreasing. When the device is fully charged, the Portable Solar Charger will stop charging the device. The battery capacity of charger remain and it is stop decreasing.

When the battery capacity of the Portable Solar Charger is run out or it all transfer to the device. The Portable Solar Charger will stop charging the device.

When charging Re-chargeable battery with USB In and connect to DC Out:

Portable Solar charger will stop charging the re-chargeable battery and charging the device

When charging Re-chargeable battery with Solar energy and connect to DC Out:

The Re-chargeable battery can be charged by solar energy and connect to DC Out to charge the device at the same time.

Use and Care

• Please charge the product at least once in every six months.
• Do not subject the product to extreme force, shock or fluctuations in temperature or humidity.
• Do not wipe with an abrasive, solvents or chemicals.
• Do not immerse the product in water. Do not try to dry the product in a microwave oven.
• Do not tamper with the internal components.

WARNING :

CHOKING HAZARD- Small parts not for children under 3 years old.

AID WARRANTY CONDITIONS

AID, in compliance with the Customer Protection Law (Ley 23/2003, July 10th, of Warranty in the Sale of Consumer Goods, BOE no. 165, 11/07/2003), offers Direct Warranty to Spain and Portugal customers for all our brands' products: ZIPY, MUSE, NEW ONE, AC-RAYAN, TNB, BARKAN, BRASFORMA, THE COMPLEMENTS, and GO BY ZIPY, under the following conditions

A – Our products have a two year warranty. During the first year original defects that may be detected are repaired. In those cases stipulated by law, the buyer will be entitled to the replacement of the device by a new one, provided that the defects are not due to the negligence or exclusive fault of the buyer in handling the device. During the second year the buyer will need to prove that the malfunctioning of the device is due to a manufacturing defect. In both cases the warranty will apply provided that:

1. The product has been used for its destined purpose alone.
2. It was not opened, manipulated or altered in any way by someone other than the Official Technical Service.
3. It has not undergone shock, flood, overheating, electric overcharge or any other external circumstance that may constitute a possible reason of INVALIDATING the warranty.
4. The product will be returned to AID in proper packaging together with the receipt where the brand and type of product, the date of the purchase, the name and address of the shop that sold it and the reason for the malfunctioning should be clearly stated.

Any of the following circumstances invalidates the present warranty

1. Breaking the ports, the screen or the glass.
2. Loss of liquid from the screen.
3. Wearing out, obvious marks of incorrect manipulation, unappropriate use, ill-treatment, shock, falls, dirt, and so on.
4. The data contained in the products are under no circumstances covered by any warranty whatsoever, nor are they to be considered during the physical repairing process of the products. AID guarantees absolute confidentiality of the data.
5. AID does not cover the incorrect configuration or installation of the software / hardware on the part of the client, neither as a component nor as a peripheral, included prives / controllers included.
6. The legislation on guarantees sets certain limits. “the guarantee does not cover additional components such as batteries, nor any elements that are subject to maintenance due to its use such as earphones”. These accessories have a 6 months guarantee.
7. Waterproof bags have a 48-hour trial period, such as indicated on the product itself, therefore once this time period is elapsed they will no longer be covered by any guarantee.
8. Final users do not need to send us the device accessories, especially if they are not the original ones, since we will not be held responsible for them.

CASES

1. If the product is out our guarantee, the AID technical department will facilitate a budget for the repair by fax or e-mail. Said budget will need to be authorized in writing, sealed and signed, and the user will have to satisfy the repair fee as well as the freight.
2. If the budget is not accepted a diagnosis fee will be charged. (6€)
3. Repairs have a 90 days guarantee, provided that the breakdown is under the same concept and in the case of budgeted breakdowns alone.un devis.

B – All the freight costs for the product will be covered by AID using only the transportation company designed by AID following the authorization procedure.

The expenses derived from incorrect or unjustified returns on the part of the client will be covered by the client alone.

C – Any incidence detected at the moment of the reception of the merchandise must be immediately notified at the AID Post-Sales Department: [e-mail] in compliance with Article 366 from the Code of Commerce, AID will not consider complaints about breakages, shocks or absence of boxes or pieces 24 hours after the delivery of the merchandise.

In the case of shipments originated in Canarias, Ceuta and Melilla, AID will not pay the customs tax nor any kind of reimbursable expenses.

DECLARATION OF CONFORMITY

ACCESORIOS INTELIGENTES DIGITAL S.A.

C/CARPINTEROS, 6, OF-13 VILLA VICIOSA DE ODÓN. 28670 MADRID

We declare under our sole responsibility that the product:

Solar charger : Sun Plug which belongs to the brand Zipy, made in China

Conforms with the requirements of the Directives below by compliance with the following standards listed:

EN55022:2006+A1:2007

EN61000-3-2:2006+A1:2009+A2:2009,

EN61000-3-3:2008

EN55024:1998+A1:2001+A2:2003

EN61000-4-2:2009, EN61000-4-3:2006

EN61000-4-6:2009

EN61000-4-8:2005, EN61000-4-11:2004

In accordance with the provisions of the Directive 99/05/EC, European Parliament and Council on March 9, 1999, transposed into Spanish legislation by Royal Decree 1890/2000, of November 20, 2000.

Place and date of issue:

August, 11, 2011

Signed by: Miguel Fauro

Waste management for all of your containers and domestic packagings that you deposit in the recycling bin.

The packaging contains removable materials in order to treat them later in waste management.

Deposit the packaging materials in the yellow bin.
