DHT945X - Heating DE DIETRICH - Free user manual and instructions

Product type	Extractor hood
Brand	DE DIETRICH
Model	DHT945X
Usage	Domestic, removal of cooking odors
Minimum installation height	650 mm above the cooking surface
Air outlet diameter	120 mm or 125 mm
Operating modes	External extraction or recirculation
Motor speeds	4 speeds: minimum, medium, maximum, turbo
Lighting	9 W fluorescent lamp
Grease filters	Self-supporting metal, dishwasher safe
Grease filter cleaning frequency	Every 2 months (more often with heavy use)
Odor filters (recirculation)	Activated carbon filters, non-washable
Charcoal filter replacement frequency	Every 3-4 months (more often with heavy use)
Power supply	220-240 V, connection with bipolar switch (contact gap ≥3 mm)
Electrical class	Class I (earthing mandatory)
External maintenance	Damp cloth and neutral liquid detergent
Dimensions (approximate)	Standard for built-in hood (refer to drilling diagram)
Weight	Not specified, approximately 10-15 kg
Spare parts	Filters, lamps, directional grille, flanges, screws (given in the manual)
Warranty	Refer to the manufacturer's general conditions

Frequently Asked Questions - DHT945X DE DIETRICH

What is the minimum installation height between the hood and the cooker?

The minimum safety distance is 650 mm above the cooking surface.

Can I use the hood in recirculation mode without an external duct?

Yes, you must install an activated carbon filter and drill a 125 mm hole in the upper cabinet for the directional grille.

How to clean the grease filters?

Remove the filters one by one and wash them in the dishwasher or by hand with a neutral detergent. Allow to dry before reinstalling.

How often should I replace the charcoal filter?

Every 3 to 4 months, or more often if the hood is used intensively. Charcoal filters are not washable.

How to replace the hood lighting?

Remove the metal clamps, slide out the glass ceiling light, replace the lamp with a new 9 W (fluorescent) one, and reassemble.

What to do if the hood does not turn on?

Check that there is no power cut and that a speed has been selected. If the problem persists, consult a professional.

Does the diameter of the exhaust duct have to be exact?

Use a diameter of 120 mm or more. A duct that is too narrow reduces performance.

Can I install the hood above a gas cooker?

Yes, but respect the minimum height of 650 mm and ensure sufficient ventilation of the room.

Why does the hood stop during operation?

This may be due to a power cut or the triggering of the omnipolar cut-off device. Check the circuit breaker.

Where can I find spare parts such as filters?

Filters and lamps are available from your usual retailer or on the DE DIETRICH website.

USER MANUAL DHT945X DE DIETRICH

Campana extractora decorative

Cappa arredamento

Designafzuigkap

Exaustor decorative

De Dietrich

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS 5
CHARACTERISTIQUES 6
INSTALLATION 8
UTILISATION 10
ENTRETIEN 11

INHALTSVERZEICHNIS

DE

You have just acquired a DE DIETRICH hood and we would like to thank you.

Our research teams have created this new generation of appliances for you. Their quality, design, features and technological advances make them exceptional products, and reveal our unique know-how.

Your new DE DIETRICH hood will blend harmoniously into your kitchen and will perfectly combine cooking performance and ease of use. We wanted to offer you a product of excellence.

In the DE DIETRICH product line, you will also find a wide range of hobs, ovens, microwaves, dishwashers and fridges, that you can coordinate with your new DE DIETRICH hood

Of course, in an ongoing effort to best satisfy your demands with regard to our products, our after-sales service department is at your disposal and ready to listen in order to respond to all of your questions and suggestions (contact Information at the end of this booklet).

Visit our website www.dedietrich-electromenager.com, where you will find our latest innovations as well as useful and complementary information.

DE DIETRICH

Setting New Values

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning:

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

www.dedietrich-electromenager.com

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

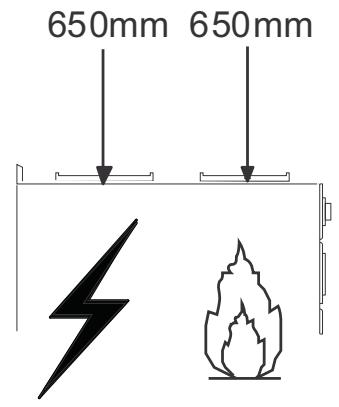

• The minimum safety distance between the cooker top and the extractor hood is 650mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.

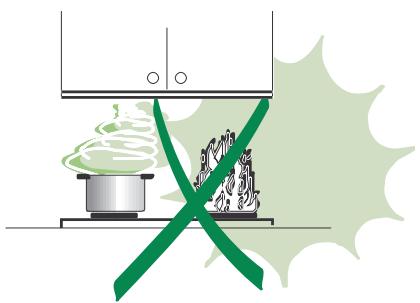

• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

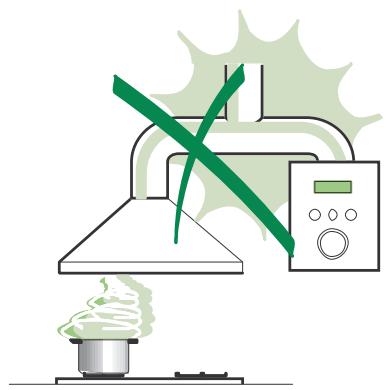

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol _max on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

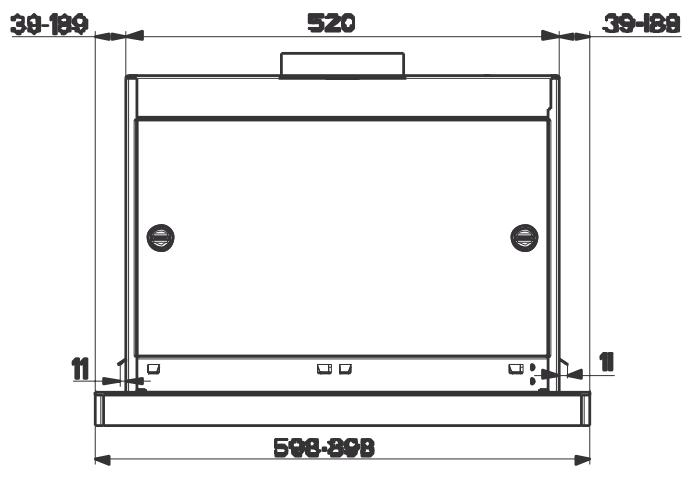

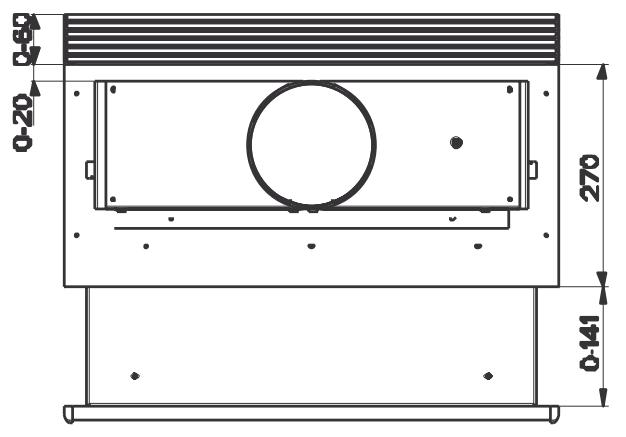

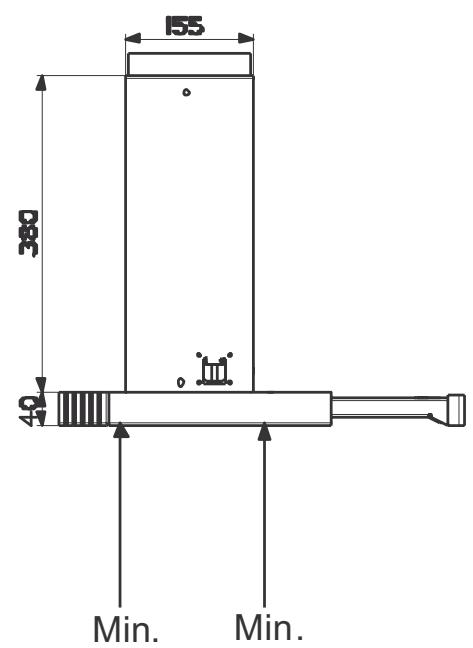

Dimensions

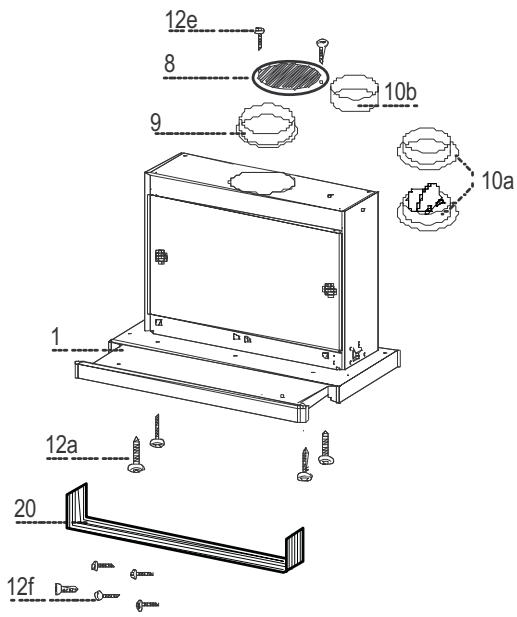

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
8	1	Directional Air Outlet grille
9	1	Flange ø 150 mm
10a	1	Flange ø 120 mm
10a	1	Dumper ø 120 mm
10b	1	Adapting ring ø 120-125 mm
20	1	Closing element

Ref.	Q.ty	Installation Components
12a	4	Screws 3,5 x 16
12e	2	Screws 2,9 x 12,7
12f	5	Screws 2,9 x 9,5

Q.ty Documentation

1 Instruction Manual

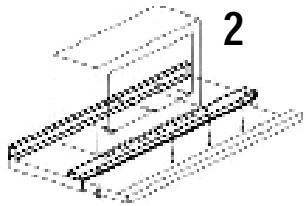

Drilling the Support surface and Fitting the Hood

• The Hood can be fitted directly on the lower surface of the Wall Units (650 mm min. above the Cooker Top) using the snap-on Side Supports.
• Make an opening on the lower surface of the Wall Unit, as indicated. (fig.1)
• Before carrying out the installation, the wooden transportation protections screwed on the visor and on the canopy body must be removed. (fig.2)

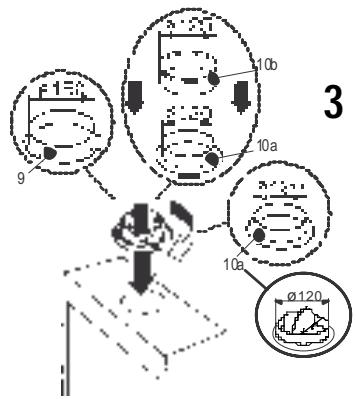

• Choose the correct flange measure basing on the air outlet diameter and insert it to the upper air outlet opening. (fig.3)

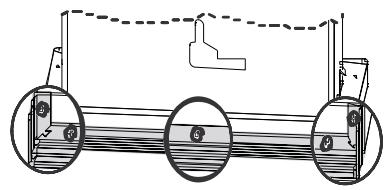

• Screw the closing profile 20 onto the rear part of the hood, using the screws 12f (2.9 x 9.5) provided. (fig.4)
• Open the sliding suction panel.
• Remove the metal grease filters one by one after having disconnected the relative fastening elements.
• Close the sliding suction panel again.

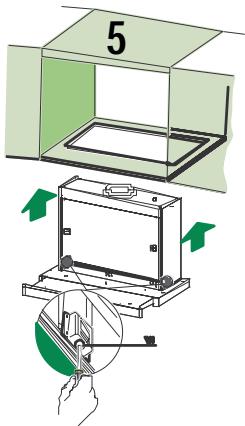

• Insert the Hood until the snap-on side supports click into place. (fig.5)
• Open the sliding suction panel.
• Lock in position by tightening the screws Vf from underneath the Hood. (fig.5)

• If necessary, adjust the whole filter holder unit and proceed as follows:

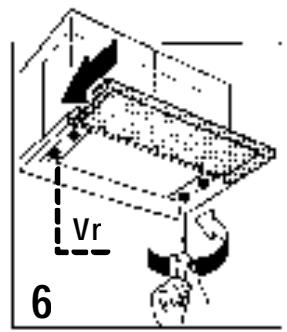

• Loosen the four adjustment screws Vr and close the sliding panel again. (fig.6)

• Move the entire filter holder unit until it is properly aligned with the wall unit. (fig.7)
• Keeping the hood canopy still, remove the sliding panel and lock the adjustment screws again. (fig.6)

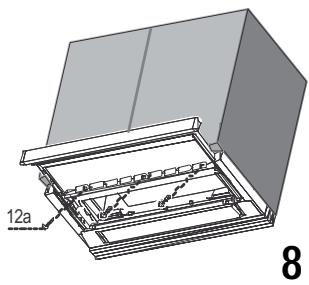

• The hood can now be fastened to the wall unit using the four screws 12a (3.5 x 16) provided. (fig.8)

• Replace the metal grease filters.

• Close the sliding suction panel again.

4

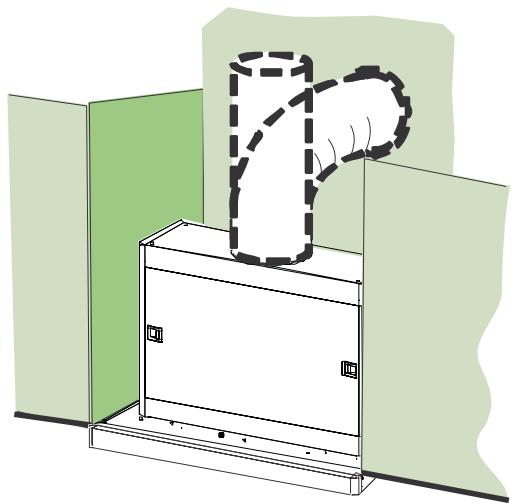

DUCTING VERSION AIR EXHAUST SYSTEM

When installing the hood in ducting version, a rigid or a flexible pipe with the diameter corresponding to the flange diameter is used in order to connect the hood to the air outlet piping.

Fix the pipe with an adequate quantity of pipe clamps (not supplied).
- Remove possible charcoal filters.

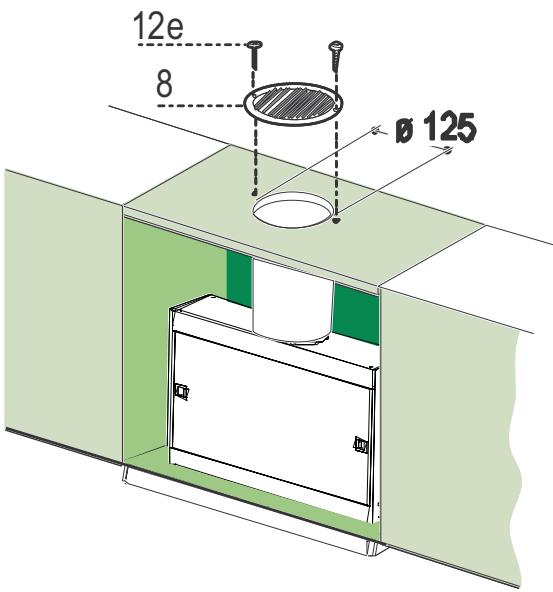

RECIRCULATION VERSION AIR OUTLET

• Cut a hole 125mm in any shelf that may be positioned over the hood.
• Insert the flange 10a on the hood body outlet.
• Connect the flange to the outlet on the shelf over the hood using a flexible or rigid pipe 120 ~mm .
  Fix the pipe in position using sufficient pipe clamps (not supplied).
  Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12 e (2,9 x 12,7) provided.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm..

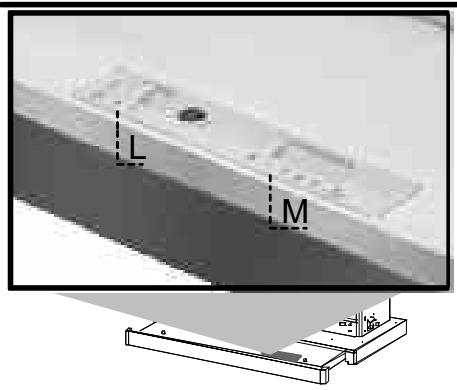

By pulling out the sliding panel it is possible to automatically activate all the hood functions. By simply closing the sliding panel all the functions are switched off.

SWITCH		FUNCTIONS
L	Light	Switches the lighting system on and off
M	Motor	Switches the extractor motor on and off
		1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.
		2. Medium speed, suitable for most operating conditions, thanks to an optimum relation between hood performance and noise.
		3. Maximum speed, suitable when the highest cooking vapour emission has to be eliminated for longer periods.
		i. Intensive speed, suitable for the strongest cooking vapours and odours.

Grease filters

CLEANING METAL CASSETTE GREASE FILTERS

• The filters must be cleaned every 2 months, or more frequently in case of particularly heavy use of the hood. Filters can be washed in a dishwasher.
  Pull out the sliding suction panel.
• Remove the filters one by one, after having disconnected the relative fastening elements.
• Wash the filters, taking care not to bend them. Let them get dry before refitting them. (The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When refitting the filters, make sure that the handle is visible on the outside.
• Close the sliding suction panel.

Charcoal filter (Recycling version)

REPLACING CHARCOAL FILTERS

• These filters are not washable and cannot be regenerated, and must be replaced approximately every four months or more frequently by particularly heavy use.

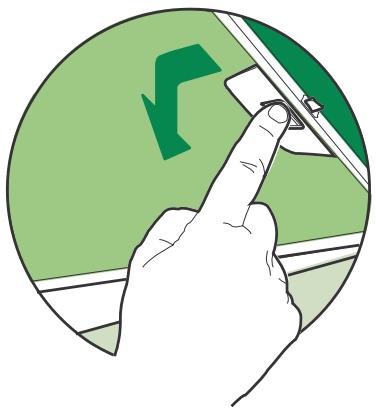

  Pull out the sliding suction panel.
• Remove the grease filters.

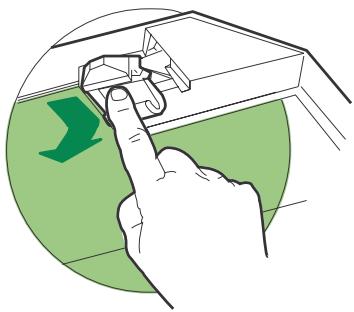

• Remove the saturated carbon filter by releasing the fixing hooks
• Fit the new filter by hooking it into its seating.
• Replace the grease filters.
• Close the sliding suction panel.

Lighting

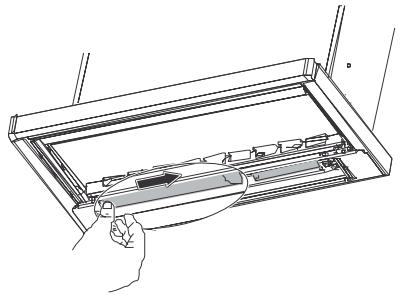

LIGHT REPLACEMENT

9 W fluorescent lights.

• Remove the metal terminals fixing the glass.
• Slide the glass cover out of one of the fastening clips. Lower the unfastened part of the glass cover slightly, so that the cover can be completely removed.
• Replace the light with a new one of the same type and rating.
• Replace the glass cover in reverse order.

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that: · The power is not cut off. · A speed has been selected.
The hood is not operating effectively...	Ensure that: · The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared. · The kitchen is sufficiently ventilated to allow for fresh air intake. · The carbon filter is not worn (hood operating in recycling mode).
The hood stopped working	Ensure that: · The power is not cut off. · The single-pole cut-off device was not activated.

To preserve your appliance, we recommend that you use Clearit cleaning products.

Professional expertise serving individuals

Clearit offers you professional products and solutions designed for the daily care of your household appliances and kitchens.

They are on sale at your regular retailer, along with a complete line of accessories and consumable products.

L ampar as fluorescentes de 9 W
