Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Contents

01 Before you start

What's in the box 5

Loading the batteries in the remote control. 5

Using the remote control 5

02 Connections

Connecting using a video cable 6

Connecting using an HDMI cable 6

Connecting to a TV. 6

Connecting to an AV receiver or amplifier. 7

Audio signals that can be output from this unit's HDMI OUT terminal 7

Connecting the FM antenna 7

Connecting optional Bluetooth® adapter (optional) 7

Connecting USB storage devices 8

Plugging in 8

03 Part names and functions

Remote control. 9

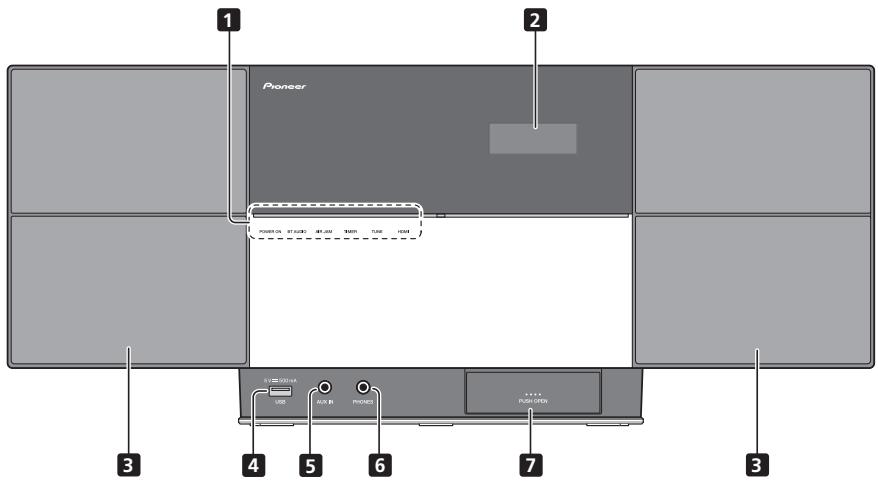

Front panel 12

Top panel. 13

04 iPod/iPhone playback

Confirming what iPod/Phone models are

supported 14

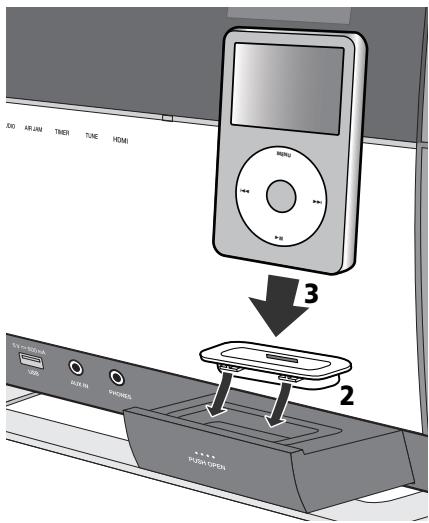

Connecting your iPod/iPhone 14

Connecting your TV 15

Playing your iPod/iPhone 15

05 Disc playback

Playing discs or files 16

Eject a disc from this unit. 16

Example of display on the front panel display . 16

Playing in the desired order (Programmed Play) 17

06 Bluetooth® Audio playback (optional)

Music playback using Bluetooth wireless

technology. 18

Remote control operation. 18

Connecting optional Bluetooth® adapter 18

Setting the PIN code 19

Pairing Bluetooth® adapter and Bluetooth wireless technology device. 19

Listening to Music Contents of Bluetooth wireless technology device. 20

AIRJAM 20

07 USB playback

Playing files stored on USB storage devices 21

Playing in the desired order (Programmed Play) 21

08 Using the tuner

Connect the FM antenna. 22

Listening to the FM radio broadcasts. 22

Saving stations. 22

Listening to station presets 22

09 Other connections

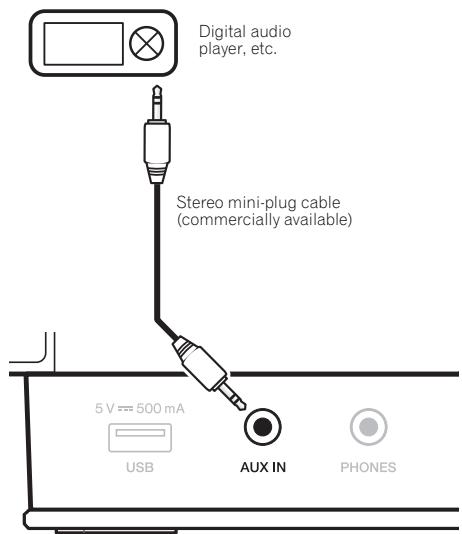

Connecting auxiliary components 23

10 Changing the settings

Initial settings 24

Setting the clock display. 24

Setting the time format. 24

Setting the volume limit 24

Setting the PIN code 24

Settings for DVD/CD and USB playback 25

Audio Settings parameters. 25

Video Adjust parameters 25

Initial Settings parameters 25

Setting the HDMI Resolution settings back to their defaults. 26

Sound settings 27

Using sound retriever 27

Using virtual surround 27

Adjusting the bass and treble 27

Restoring all the settings to the defaults. 27

11 Using the timer

Setting the clock. 28

Setting the wake-up timer 28

Turning the wake-up timer on/off. 28

Using the wake-up timer. 28

Using the sleep timer. 28

12 Playable discs and files on discs or USB storage devices

Playable discs. 29

Playable files. 30

13 Additional information

Troubleshooting 32

Language Code Table and Country/Area Code

Table 35

Setting the TV system 36

Cautions on use 36

Handling discs 37

About iPod/iPhone 37

Specifications. 38

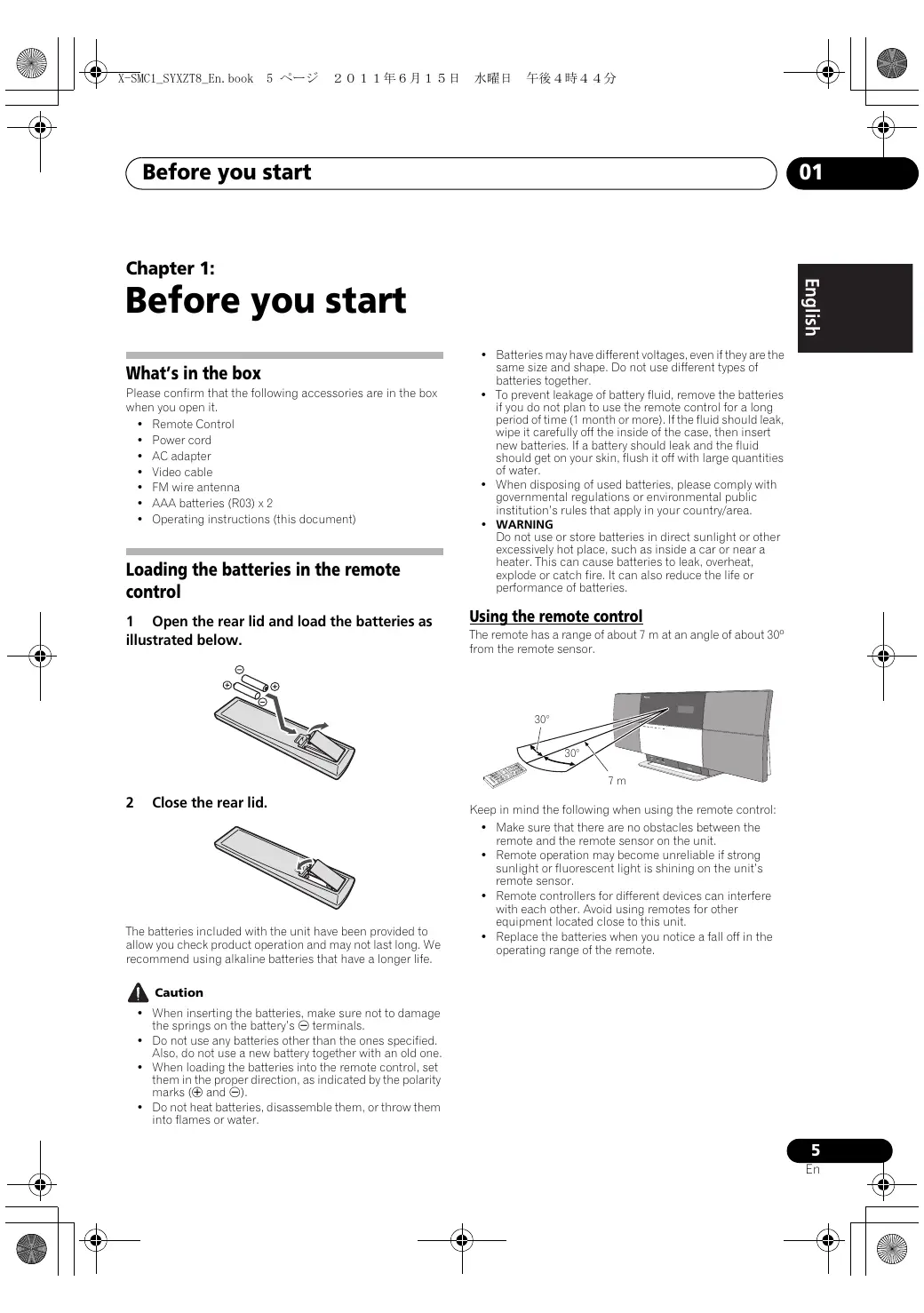

Chapter 1: Before you start

What's in the box

Please confirm that the following accessories are in the box when you open it.

Remote Control
Power cord
- AC adapter
Video cable
FM wire antenna
- AAA batteries (R03) × 2
- Operating instructions (this document)

Loading the batteries in the remote control

1 Open the rear lid and load the batteries as illustrated below.

2 Close the rear lid.

The batteries included with the unit have been provided to allow you check product operation and may not last long. We recommend using alkaline batteries that have a longer life.

Caution

• When inserting the batteries, make sure not to damage the springs on the battery's terminals.
• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.
• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks ( and ).
• Do not heat batteries, disassemble them, or throw them into flames or water.

WARNING

• Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.
• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.
• When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.
  Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.
  The remote has a range of about 7m at an angle of about 30^ from the remote sensor.
  Keep in mind the following when using the remote control:
• Make sure that there are no obstacles between the remote and the remote sensor on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit's remote sensor.
• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.
• Replace the batteries when you notice a fall off in the operating range of the remote.

Using the remote control

Chapter 2:

Connections

• Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
• Connect the power cord after all the connections between devices have been completed.

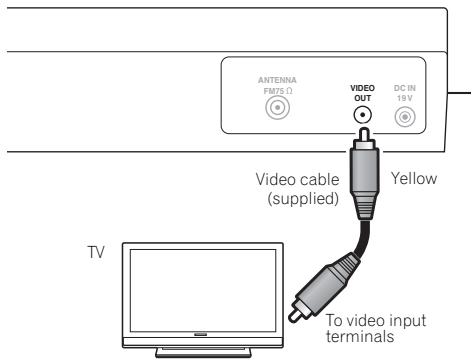

Connecting using a video cable

• When an iPod/iPhone is connected to this unit, the TV output setting of iPod/iPhone is automatically set to 'ON'.
• Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television.

This unit's rear panel

Connecting using an HDMI cable

By using an HDMI cable, digital signals can be transferred to an HDMI-compatible TV on a single cable with no loss of picture or sound quality. After connecting, adjust unit resolution and HDMI color settings according to the HDMI-compatible TV. Also refer to the operating instructions with the HDMI-compatible TV.

HOMI

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

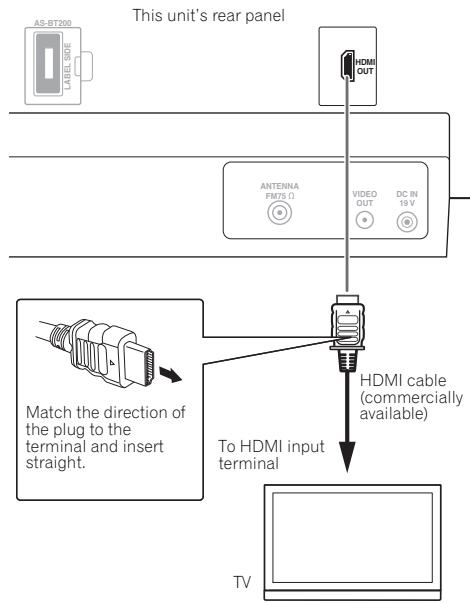

Connecting to a TV

• If you connect this unit to your television with the HDMI cable, sound can not be transferred from your television to this unit. To listen to sound, connect the rear panel AUX IN mini-plug jack to your television.

Note

1 - Some iPod allow the TV output setting to be changed while connected.
- When the iPod/iPhone is disconnected from this unit, the iPod/iPhone's TV output setting returns to its original state.
2 - When playing a disc or USB storage device content, this unit can transfer digital signals by the HDMI OUT terminal. Use the video cable for playing other content.
- This unit's interface is designed based on the High-Definition Multimedia Interface specification.
- When an HDMI-compatible device is connected, the resolution is displayed on the front panel display.
- The resolution of video signals output from this unit's HDMI OUT terminal is changed manually. Change the HDMI Resolution setting (page 26). Settings for two units can be stored in memory.
This unit is designed for connection to HDMI-compatible devices. It may not operate properly if connected to DVI devices.

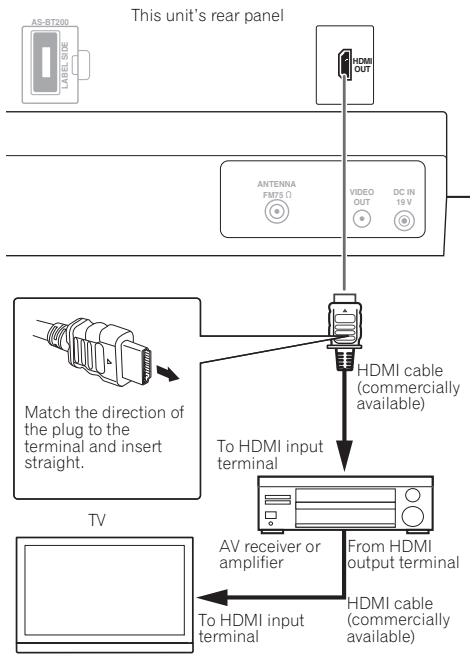

Connecting to an AV receiver or amplifier

Audio signals that can be output from this unit's HDMI OUT terminal

44.1 kHz to 96 kHz, 16-bit/20-bit/24-bit 2-channel linear PCM audio (including 2-channel downmixing)
- Dolby Digital 5.1-channel audio
- DTS 5.1-channel audio
MPEG audio

DOLBY

DIGITAL

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Connecting the FM antenna

Connect the FM antenna plug onto the center pin of the FM antenna socket.

Connecting optional Bluetooth® adapter (optional)

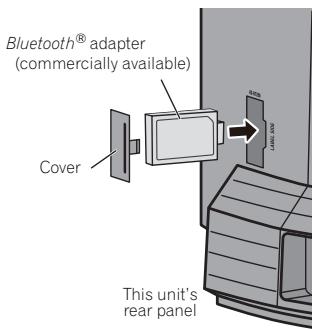

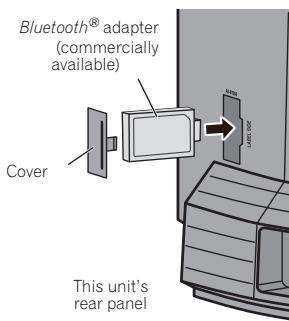

Connect the Bluetooth® adapter (Pioneer Model No. AS-BT200) to AS-BT200 terminal on the rear panel.

• Open the AS-BT200 terminal's cover and connect the Bluetooth® adapter with the label side facing to the right, then close the cover.

Connecting USB storage devices

Plugging in

Important

• Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

After you've finished making all connections, plug the unit into an AC outlet.

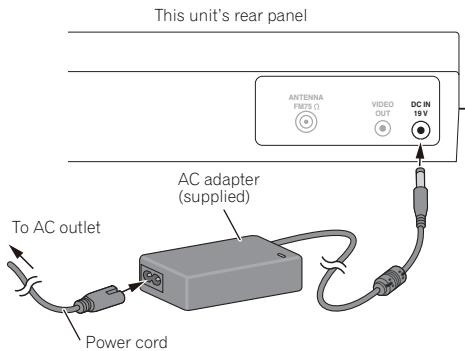

1 Plug the supplied AC adapter into the DC IN socket on the back of the unit.
2 Plug the supplied power cord into the AC adapter then plug the other end into an AC outlet.

Chapter 3:

Part names and functions

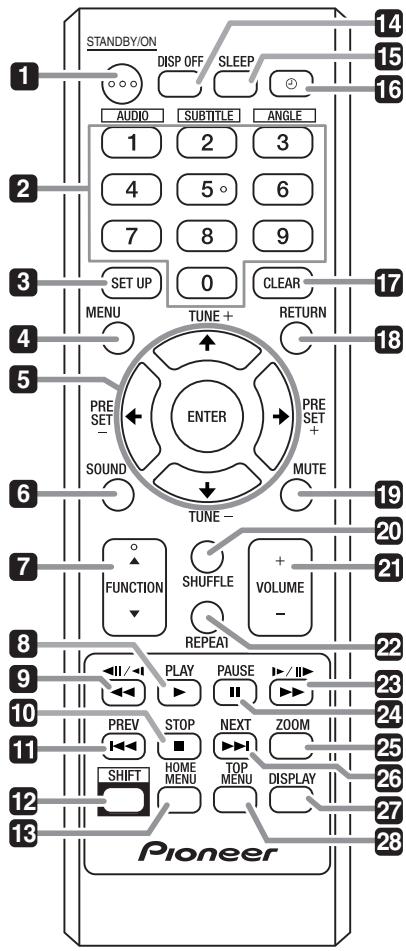

Remote control

1 STANDBY/ON

Press to turn the power on and off.

2 Number buttons (0 to 9)

Use these to specify and play the folder, track or file you want to view/listen to. Also use them to select the station preset when using the tuner, etc.

AUDIO*

For discs or files including multiple audio streams/ channels, the audio stream/ channel can be switched during playback. For files stored in iPod/iPhone, this button is not available.

SUBTITLE*

On DVD-Video or DivX discs containing subtitles in multiple languages, the subtitle can be switched during playback.

ANGLE*

On DVD-Video discs containing multiple angles, the angle can be switched during playback.

3 SET UP

Use this to change initial settings of the unit. (page 24)

4 MENU

• Press to display the menu screen or Disc Navigator.
• Select and play the title, chapter, track or file from the Disc Navigator.
• For iPod/iPhone, this button is not available.

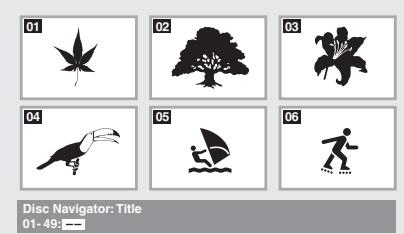

Ex.: DVD-Video Disc Navigator

5 / / /

Use these to select items, change settings and move the cursor.

ENTER

Use this to implement the selected item or enter a setting that you have changed.

PRESET +/-

Use these to select station presets.

TUNE +/-

Change the frequency one step at a time. To search for stations automatically, press and hold for about a few second.

6 SOUND

Turns Virtual Surround and Sound Retriever on and off (page 27). Also use to adjust the Bass and Treble.

7 FUNCTION ▲/▼

Use to change the input source. The source changes as below.

iPod BT AUDIO1 AIR JAM1 DVD/CD USB

FM AUX Return to the beginning (Undisplayed)

8 PLAY

Press to start playback.

9

• Press during playback to fast-reverse.
• Press in the pause mode to move backward frame-by-frame. (DVD-Video or DVD VR discs only)
• Press and hold in the pause mode for slow play in the reverse direction. (DVD-Video or DVD VR discs only)

10 STOP

Press to stop playback.

11 PREV

Press to return to the beginning of the currently playing track or file. Press twice to move back to the beginning of the previous track or file.

12 SHIFT

Press to access the 'boxed' commands (above the buttons) on the remote. These buttons are marked with an asterisk () in this section.

13 HOME MENU

When selecting a DVD or USB storage device input, press to display/ hide the HOME MENU. When selecting another input, this button is not available.

Audio Settings (page 25)
Video Adjust (page 25)
- Play Mode

The Play Mode function may not work for some discs or files. For files stored on iPod/iPhone, this function is not available.

A-B Repeat

The specified section within a single title or track is played repeatedly.

Repeat

Plays titles, chapters, tracks or files repeatedly.

Random

Plays titles, chapters or tracks in random order.

Program (page 17)

Plays titles, chapters, tracks or files in the order in which you program them.

Search Mode

Plays the specified number or time within the title, chapter, track or file.

The Play Mode function may not work for some discs or files. For files stored in iPod/iPhone, this function is not available.

• Disc Navigator (MENU on page 9)
• Initial Settings (page 25)

14 DISP OFF

Press to turn the front panel display off when you do not need it.

Note

1 Optionally available. To use BT AUDIO and AIR JAM function, you need to connect the commercially available Bluetooth® adapter: AS-BT200 to the unit. See page 18 for details.

15 SLEEP

Use to put the unit in the sleep mode and select the amount of time before sleep (page 28).

16

Use to turn on and off the timer.

17 CLEAR

Press to clear the selected item.

Use this for example if you input the wrong number.

18 RETURN

Press to return to the previous screen. Also, use to cancel the clock setting or the sound setting.

19 MUTE

Press to temporarily silence the sound.

20 SHUFFLE

Perform shuffle play of tracks on the selected iPod/iPhone or DVD/CD.

21 VOLUME + / -

Use to set the listening volume. (Default setting: 10)

22 REPEAT

Perform repeat play of tracks on the selected iPod/iPhone or DVD/CD.

23 ▶/11

Press during playback to fast-forward.
- Press in the pause mode to move forward frame-by-frame. (DVD-Video, DVD VR, Video CD or DivX discs only)
- Press and hold in the pause mode for slow play in the forward direction. (DVD-Video, DVD VR, Video CD or DivX discs only)

24 II PAUSE

Press to stop playback temporarily. Press again to resume.

25 ZOOM

Zooming on the image. For images stored in iPod/iPhone, this button is not available.

26 NEXT

Press during playback to skip ahead to the beginning of the next track or file.

27 DISPLAY

The elapsed time, amount remaining, etc., are displayed. (When playing files stored in iPod/iPhone or playing in FM or AUX mode, they are not displayed.)

28 TOP MENU

Press to display the top menu of the DVD-Video.

Front panel

1 POWER ON

When the power is on, this indicator lights.

BT AUDIO

When BT AUDIO is selected as the input source, this indicator lights.

AIR JAM

When AIR JAM is selected as the input source, this indicator lights

TIMER

When the wake-up timer is set to ON, this indicator lights.

TUNE

When the tuner receives FM broadcasts, this indicator lights.

HDMI

When this unit is recognized by another HDMI compatible component, this indicator lights.

2 Front panel display
3 Speaker units
4 USB terminal
5 AUX IN

Use to connect auxiliary components.

6 PHONES

Use to connect headphones.

7 iPod/iPhone connector ports

Note

1 Optionally available. To use BT AUDIO and AIR JAM function, you need to connect the commercially available Bluetooth® adapter: AS-BT200 to the unit. See page 18 for details.

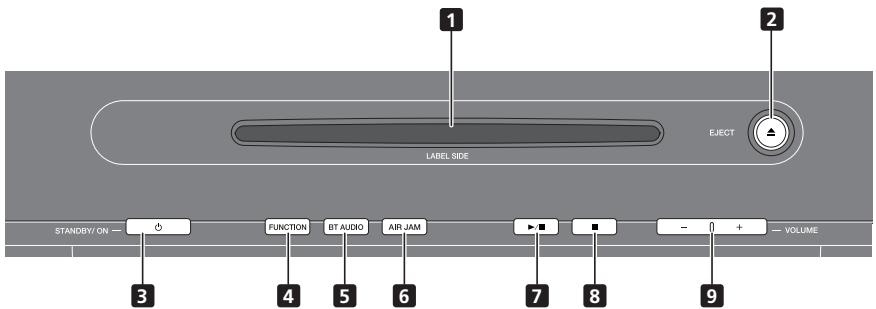

Top panel

1 Disc slot
2 EJECT

Eject the disc.

3 STANDBY/ON

Press to turn the power on and off.

4 FUNCTION

Use to change the input source. The source changes as below.

iPod BT AUDIO ^1 AIRJAM ^1 DVD/CD USB FM AUX Return to the beginning (Undisplayed)

5 BT AUDIO

Switches the input source to Bluetooth® Audio.

6 AIR JAM

Switches the input source to AIR JAM.

7 11

Press to start playback. During playback, pause/unpause playback.

8

Press to stop playback.

9 VOLUME - / +

Use to set the listening volume. (Default setting: 10)

Note

1 Optionally available. To use BT AUDIO and AIR JAM function, you need to connect the commercially available Bluetooth® adapter: AS-BT200 to the unit. See page 18 for details.

Chapter 4:

iPod/iPhone playback

Merely by connecting your iPod/iPhone to this unit, you can enjoy high-quality sound from your iPod/iPhone. This unit can also be connected to a television set, letting you view videos and images from your iPod/iPhone. When connecting to a television set, use the included video cable. This unit can not transfer music, movies and images from an iPod/iPhone via the HDMI OUT terminal.

Playback setting for iPod/iPhone music and images can be performed from this unit or the iPod/iPhone itself. This unit cannot be used to record CD, tuner or other content on an iPod/iPhone.

Confirming what iPod/iPhone models are supported

The iPod/iPhone playable on this unit are shown below.

iPod/iPhone	Audio	Video
iPod nano 1/2G	✓	—
iPod nano 3/4/5/6G	✓	✓*
iPod classic	✓	✓
iPod touch 1/2/3/4G	✓	✓
iPhone	✓	✓
iPhone 3G	✓	✓
iPhone 3GS	✓	✓
iPhone 4	✓	✓

• The iPod nano 6G cannot play back video, but can play slide shows only.

Tip

• This system has been developed and tested for the software version of iPod/iPhone indicated on the website of Pioneer (http://pioneer.jp/homeaiv/support/ios/eu/).
• Installing software versions other than indicated on the website of Pioneer to your iPod/iPhone may result in incompatibility with this system.

Connecting your iPod/iPhone

Caution

• When connecting iPod/iPhone devices, always use the dock adapter provided with iPod/iPhone devices, or a commercially available adapter designed to support iPod/iPhone. The iPod/iPhone cannot be connected without a dock adapter; attempting to connect an iPod/ iPhone without it will cause damage or malfunction.
• An iPod/iPhone universal dock adapter is not supplied with this unit.

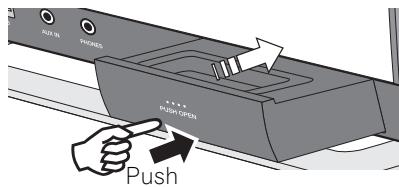

1 Open the iPod/iPhone connector port.2

2 Attach the dock adapter to iPod/iPhone connector port.

When attaching the dock adapter, be sure to orient the frontback directions of the dock adapter correctly. To attach, first place the protruding tabs on the front side of the adapter into the depressions on the iPod/iPhone connector port and press into position. When attaching the adapter, be careful not to strike the connectors.

Note

1 - Pioneer does not guarantee that this unit plays iPod/iPhone models other than the ones specified.

• Some functions may be restricted depending on the model or software version.
• iPod/iPhone is licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.
• Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.
• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from iPod/iPhone failure.
• For detailed instructions on using the iPod/iPhone, please refer to the manual supplied with the iPod/iPhone.

2 When opening or closing the iPod/iPhone connector port, support the top of the unit with your hand to prevent it from moving

3 Connect your iPod/iPhone.

• When your iPod/iPhone is not connected to the unit, close the iPod/iPhone connector port firmly.

Connecting your TV

To watch iPod/iPhone images on a television, connect it using the included video cable. For details, see Connecting using a video cable on page 6.

• When an iPod/apple is connected to the unit, the TV output setting of the iPod/apple is automatically set to ON.2

Caution

• Before making or changing the connections, switch off the power and disconnect the power cord from the power outlet. Plugging in should be the final step.

Playing your iPod/iPhone

Caution

• When your iPod/iPhone is connected to this unit and you wish to operate the iPod/iPhone directly, be sure to steady the iPod/iPhone with the other hand to prevent malfunctions due to faulty contacts.

1 Connect your iPod/iPhone.

• If an iPod/iPhone is connected when this unit is on, playback of the iPod/iPhone will not begin.

2 Press FUNCTION / to select iPod as the input source.

P_od is shown on the front panel display.

3 Press PLAY.

• The available iPod/iPhone's playback control by this unit is , , , , , , .

• In the following case, operate your iPod/iPhone directly: - Searching a file by artist name or genre.

• Playing in the repeat or shuffle mode.

• Watching images stored in iPod/iPhone on your television.

Important

If this unit can not play the iPod/iPhone when Err is displayed, perform the following troubleshooting checks:

• Check whether the iPod/iPhone is supported by this unit.
• Reconnect the iPod/iPhone to the unit. If this doesn't seem to work, try resetting your iPod/iPhone.

If the iPod/iPhone cannot be operated, check the following items:

• Is the iPod/iPhone connected correctly? Reconnect the iPod/iPhone to the unit.
• Is the iPod/iphone experiencing a hangup? Try resetting the iPod/iphone, and reconnect it to the unit.

Tip

• iPod/iphone recharging occurs whenever an iPod/ iPhone is connected to this unit. (This function is supported in standby mode as well.)
• When the unit is turned on while another function is selected, playback will not automatically begin even if an iPod/iPhone is connected.
• If the unit is set to standby when an iPod/iPhone is connected, the iPod/iPhone's power will be turned off automatically.

Note

1 For detailed instructions on using the iPod/iPhone, please refer to the manual supplied with the iPod/iPhone.
2 • Some iPods allow the TV output setting to be changed while connected.
- When the iPod/iPhone is disconnected from this unit, the iPod/iPhone's TV output setting returns to its original state.
3 For detailed instructions on using the iPod/iPhone, please refer to the manual supplied with the iPod/iPhone.

Chapter 5:

Disc playback

Playing discs or files

1 Press STANDBY/ON to turn the power on.

The selected input is displayed on the front panel display.

• When playing a DVD-Video or DivX discs, turn the TV on and switch TV input before starting.
• You can change the screen display language of the unit (OSD Language on page 26).

2 Press FUNCTION / to select DVD/CD as the input source.

Please wait until the indicator changes from flashing 'd,Sc' to - - - - -'.

When a disc has been slotted in the disc slot already, press EJECT to eject the disc.

3 Slot a disc.

Playback starts automatically.

• By using the number buttons (0 to 9), you can specify and play the title, chapter, track or file you want to view/listen to.

• Hold the disc as shown in the illustration, insert it in the center of the disc slot, and press in gently from above.
• The disc will then be automatically drawn into the slot.
• If the disc does not load smoothly, do not attempt to force it. Remove it from the slot and try inserting it again. Attempting to force a disc causes damage or malfunction.
• Do not touch the recording surface of the disc, since the disc may not play properly if it has fingerprints or other soiling.
• 8 cm discs cannot be played. Also do not attempt to use adapters for 8 cm CD to play such discs, since malfunction may result.

Eject a disc from this unit

Press EJECT on the top panel.

Tip

• When no operation has done in DVD/CD mode for more than 30 minutes, the power will automatically turn off.

Example of display on the front panel display

When the power is turned on (On)

When the power is turned off (OFF)

When the disc is being loaded (LOAd)

When the title menu or menu is displayed (titLE)

When the GUI is displayed or operated (GUI)

When the disc is stopped (StOP)

When no disc is loaded

Playing in the desired order (Programmed Play)

DVD-Video

WMA

Video CD

MP3

CD(R/RW)

DivX

1 Press HOME MENU.

The HOME MENU is displayed.

2 Use / to select Play Mode, then press ENTER.

The Play Mode screen is displayed.

3 Use / to select Program, then press ENTER or .

4 Use / to select Create/Edit, then press ENTER.

The Create/Edit screen differs according to the disc or file.

5 Use / / / to select the title, chapter, track or file, then press ENTER.

• To add to a program, first select the place in the program (the program step), next select the title, chapter or track, then press ENTER (files are added at the end of program).
• Press RETURN to return to the previous screen. If you return to the previous screen when inputting it, the settings you have programmed are cleared.
• To delete a step, highlight it and press CLEAR.

6 Press PLAY to start playback.

To play a program that has already been set, select Playback Start from the program screen, then press ENTER.
- To resume normal playback, select Playback Stop from the program screen, then press ENTER. The program remains in memory.
- To cancel the entire program, select Program Delete from the program screen, then press ENTER.
- Programs can be played repeatedly. Select Program Repeat from Repeat on the Play Mode screen during programmed playback.
- Programs cannot be played in random order (random play is not possible during programmed play).

Chapter 6:

Bluetooth® Audio playback (optional)

Remote control operation

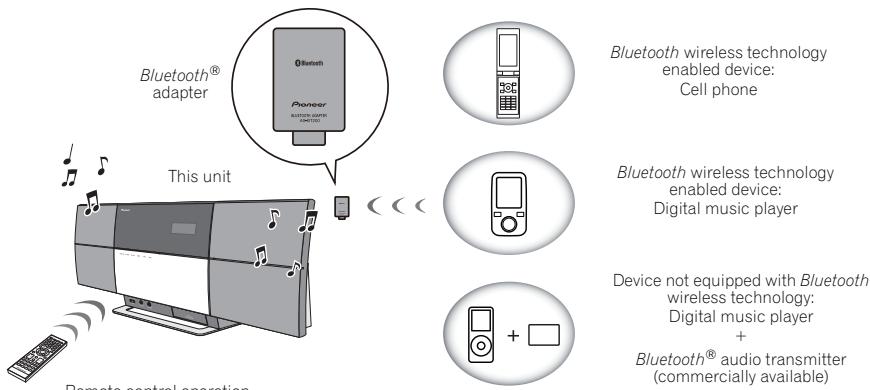

Music playback using Bluetooth wireless technology

When the Bluetooth® adapter (Pioneer Model No. AS-BT200) is connected to this unit, a product equipped with Bluetooth wireless technology (portable cell phone, digital music player, etc.) can be used to listen to music wirelessly. Also, by using a commercially available transmitter supporting Bluetooth wireless technology, you can listen to music on a device not equipped with Bluetooth wireless technology. The AS-BT200 model supports SCMS-T contents protection, so music can also be enjoyed on devices equipped with SCMS-T type Bluetooth wireless technology.

Remote control operation

The remote control supplied with this unit allows you to play and stop media, and perform other operations.2

Connecting optional Bluetooth® adapter

1 Connect the Bluetooth® adapter to the unit when the unit is in standby mode.

• Remove the AS-BT200 terminal's cover and connect the Bluetooth® adapter with the label side facing to the right, then close the cover.

Note

• The Bluetooth wireless technology enabled device must support A2DP profiles.
  Pione does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology enabled devices.
  The Bluethood® word mark and logos are registered trademarks owned by Bluethood SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.
  2 • The Bluetooth wireless technology enabled device must support AVRCP profiles.
• Remote control operations cannot be guaranteed for all Bluetooth wireless technology enabled devices.

2 Press STANDBY/ON to turn the power on.
3 Press FUNCTION / or BT AUDIO on the front panel of the unit to select BT AUDIO as the input source.

The BT AUDIO indicator lights and bt -R is shown on the front panel display.

Setting the PIN code

Set this unit's PIN code to the same setting as that for the Bluetooth wireless technology device used. Supported PIN code setting values include 0000, 1234 or 8888.

Default setting: 0000

1 Press SET UP continuously to select btpn.
Each time SET UP is pressed the item on the front panel display changes accordingly.

2 Press ENTER continuously to select the PIN code.

Each time / is pressed the item on the front panel display changes accordingly.
- You can select the PIN number from 0000/1234/8888.

3 Press ENTER.

The PIN code is stored.

4 Press SET UP.

The setting is completed.

Pairing Bluetooth® adapter and Bluetooth wireless technology device

"Pairing" must be done before you start playback of Bluetooth wireless technology content using Bluetooth® adapter. Make sure to pair devices the first time you operate the system or any time pairing data is cleared. "Pairing" is the step necessary to register Bluetooth wireless technology device to enable Bluetooth communications. For more details, see also the operating instructions of your Bluetooth wireless technology device.

1 Press FUNCTION / or BT AUDIO on the front panel of the unit to select BT AUDIO as the input source.

The BT AUDIO indicator lights.

• When Bluetooth® adapter AS-BT200 is connected, bt -R is shown on the front panel display for 2 seconds, then rdy is shown.
• When no Bluetooth® adapter is connected, be -R is shown on the front panel display for 2 seconds, then no RdP is shown.

2 Turn on the Bluetooth wireless technology device that you want to pair, place it near the system and set it into pairing mode.

Pairing starts.

3 Check to see that the Bluetooth® adapter is detected by the Bluetooth wireless technology device.

• If the Bluetooth wireless technology device cannot be connected to the unit, perform the connection operation from the Bluetooth wireless technology device.

Note

1 When the Bluetooth® adapter is not connected and BT AUDIO is selected as the input source, the error message noAdP. will be shown on the front panel display.
2 - Pairing is required when you first use Bluetooth wireless technology device and Bluetooth® adapter.
To enable Bluetooth communication, pairing should be done with both of your system and Bluetooth wireless technology device.

Listening to Music Contents of Bluetooth wireless technology device

1 Press FUNCTION / or BT AUDIO on the front panel of the unit to select BT AUDIO as the input source.

The BT AUDIO indicator lights and bt -R is shown on the front panel display.

2 Make connection between the Bluetooth wireless technology device and the unit.

• See Pairing Bluetooth® adapter and Bluetooth wireless technology device above.

3 Press PLAY to start playback.

The following operations are now possible for Bluetooth wireless technology devices, using the remote control.

Button	What it does
▶PLAY	Starts normal playback.
II PAUSE	Pauses playback.
■ STOP	Stops playback.
▶ PREV	Press to skip to the start of the current file, then previous files.
←	Press and hold to start fast reverse scanning.*
▶NEXT	Press to skip to the next file.
▶	Press and hold to start fast forward scanning.*

• This function may work differently depending on the connected device.

Tip

• When no Bluetooth wireless technology device is connected and no operation has been done for 30 minutes or more, the power will automatically turn off.

AIR JAM

Air Jam — a Pioneer-exclusive application and available for free.

Air Jam lets you connect multi compatible devices to this unit using Bluetooth wireless technology. With it, you can make a group playlist directly on a supported device to play in your home theater through the unit. You and your friends can add songs from your devices to the playlist.

1 Press FUNCTION / or AIR JAM on the front panel of the unit to select AIR JAM as the input source.

The AIR JAM indicator lights.

• When Bluetooth® adapter AS-BT200 is connected, R-J is shown on the front panel display for 2 seconds, then rERdy is shown.
• When no Bluetooth® adapter is connected, R-J is shown on the front panel display for 2 seconds, then no RdP is shown.

For more details on using Air Jam, access our website.

http://pioneer.jp/product/soft/iapp_airjam/en.html

Chapter 7:

USB playback

Playing files stored on USB storage devices

• This unit may not recognize a USB storage device, play files or supply power to a USB storage device. For details, see When a USB storage device is connected on page 33.
• Pioneer does not guarantee that any file recorded on a USB storage device will play or that power will be supplied to a USB storage device. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB storage devices caused by connection to this unit.

1 Press STANDBY/ON to turn the power on.

The selected input is displayed on the front panel display.

2 Press FUNCTION / to select USB as the input source.

'U Sb' is shown on the front panel display.

3 Connect a USB storage device.

The Disc Navigator appears automatically.

4 Use / / / to select the file, then press ENTER.

Playback starts.

• If you press PLAY, this unit will automatically play files stored on a USB storage device.
• Turn the power off before removing the USB storage device.

Tip

• When a USB storage device is not playing and the unit has not been operated for 30 minutes or more, the power will automatically turn off.

Playing in the desired order (Programmed Play)

This unit can play repeatedly files stored in the USB storage device. For details, see Playing in the desired order (Programmed Play) on page 17.

Chapter 8: Using the tuner

This unit can not transfer FM radio from the HDMI OUT terminal.

Connect the FM antenna

Connect the FM antenna plug onto the center pin of the FM antenna socket. For details, see Connecting the FM antenna on page 7.

Listening to the FM radio broadcasts

The tuner can receive FM broadcasts, and can save your favorite stations.

1 Press FUNCTION / to select FM as the input source.

The tuned frequency will be displayed on the front panel display (e.g., '85.50').

2 Tune into a station.

When the tuner receives FM broadcasts, the TUNE indicator lights.

There are two ways to do this:

Automatic tuning To search for stations, press and hold TUNE +/- for about a few seconds. This unit will start searching for the next station, stopping when it has found one. Repeat to search for other stations.

Manual tuning - To change the frequency one step at a time, press TUNE +/-.

Saving stations

You can save up to 9 station presets so that you always have easy access to your favorite stations without having to tune in manually each time.2

- Manually saving station presets

1 Press FUNCTION / to select FM as the input source.

The tuned frequency will be displayed on the front panel display.

2 Tune into a station.

3 Press and hold a number button (1 to 9) for three seconds.

The tuned frequency is preset to the selected number button. The previous station preset is overwritten.

- Automatically saving station presets

1 Press and hold PRESET + for three seconds.

Auto tuning starts.

• The tuned frequencies will be preset to the buttons in numerical order.
• Auto tuning stops automatically after setting up the FM band, or after the limit of 9 presets has been reached.

Listening to station presets

1 Press FUNCTION / to select FM as the input source.

The tuned frequency will be displayed on the front panel display.

2 Press the number button (1 to 9) that stores the FM radio station.

Tip

• Press PRESET +/- repeatedly to selected the station preset in numerical order.

Note

To ensure optimum reception, make sure the FM antenna is fully extended and not coiled or hanging at the rear of the unit.
2 When a new broadcast frequency is stored in a station containing a previously stored frequency, the previous frequency will be overwritten with the new one.

Chapter 9:

Other connections

• Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.
• If the AUX IN miniplug jack is connected to auxiliary phones jack, the volume of the unit will be adjusted by the volume on the playback component. If the sound is distorted after you lower the volume of the unit, try lowering the volume on the auxiliary playback component.
  This unit can not transfer the external input's sound from the HDMI OUT terminal.

Connecting auxiliary components

Connect the rear panel AUX IN mini-plug jack to your auxiliary playback component.

• This method can be used to play music on this unit from iPods/iPhones that do not support use of an iPod Dock.

This unit's front panel

- Press FUNCTION / to select AUX as the input source.

When AUX is selected, R in ' is displayed on the front panel display.

Tip

• When no auxiliary component is connected to the AUX IN mini-plug jack and the unit has not been operated for 30 minutes or more, the power will automatically turn off.

Chapter 10:

Changing the settings

Initial settings

Setting the clock display

Activate and deactivate the clock display.

1 Press SET UP continuously to select

CL ON.

Each time SET UP is pressed the item on the front panel display changes accordingly.

2 Press ENTER to select CC or CLOFF.

Each time ENTER is pressed the item on the front panel display changes accordingly.

CL ON -The clock display is activated.

CLOFF - The clock display is deactivated.

3 Press SET UP.

The setting is completed.

Setting the time format

1 Press SET UP continuously to select

F 24H.

Each time SET UP is pressed the item on the front panel display changes accordingly.

2 Press ENTER to select F 24H or F 12H.

Each time ENTER is pressed the item on the front panel display changes accordingly.

F 24H-24-hour (24H) clock is displayed.

F 12H-12-hour (12H) clock is displayed.

3 Press SET UP.

The setting is completed.

Setting the volume limit

You can set the volume level limit of this unit.

1 Press SET UP continuously to select

L OFF.

Each time SET UP is pressed the item on the front panel display changes accordingly.

2 Press ENTER to select L OFF or L ON.

Each time ENTER is pressed the item on the front panel display changes accordingly.

L OFF - You can adjust the volume level up to the maximum volume level of this unit.

L ON - You can adjust the volume levels between 0 and 30.

3 Press SET UP.

The setting is completed.

Setting the PIN code

See Setting the PIN code on page 19.

Settings for DVD/CD and USB playback

1 Press HOME MENU.

HOME MENU screen appears.

2 Use / / / to select the item, then press ENTER.

3 Use / / / to change the setting, then press ENTER.

Closing the HOME MENU screen.

Press HOME MENU.

The factory default settings are indicated in italic.

Important

• The following settings are available for a disc or USB storage device content. They are not available for iPod/iPhone, tuner, external input (AUX).
• In the USB mode, you can only change the Play Mode and Audio Settings on the HOME MENU screen.

Audio Settings parameters

Settings	What it does
Equalizer (Off /Rock/Pop/Live/Dance/ Techno/Classic/Soft)	Select according to the genre of music to be listened to.
Audio DRC (High/Medium/Low/Off)	·This makes loud sounds weaker and weak sounds louder. Change the setting for example when watching movies late at night. ·This setting only affects Dolby Digital sound. ·The effect depends on the volume of the connected TV, AV receiver or amplifier, speakers, etc. Try different settings, and choose the one providing the strongest effect.
Dialog (High/Medium/Low/Off)	Change this setting if the dialog sound is too low and hard to hear. This setting only affects multichannel sound.

Video Adjust parameters

Settings	What it does
Sharpness (Fine/Standard /Soft)	Adjusts the picture's sharpness.
Brightness (-20 to +20)	Adjusts the picture's brightness.
Contrast (-16 to +16)	Adjusts the ratio of the brightness of the brightest and darkest portions of the picture.
Gamma (-3 to +3)	Adjusts the look of the dark portions of the picture.
Hue (green 9 to red 9)	Adjusts the balance between green and red.
Chroma Level (-9 to +9)	Adjusts the density of the colors. This setting is effective for sources with many colors, such as cartoons.

Brightness, Contrast, Gamma, Hue and Chroma Level are set to 0 upon purchase.

Initial Settings parameters

• Use these settings to make detailed unit settings.
• Initial Settings cannot be selected during playback. Stop the disc first.

Digital Audio Out settings
Video Output settings

Settings	What it does
HDMI Out	Select the audio signals to be output from the HDMI OUT terminal (LPCM (2CH)/Auto/Off) according to the connected HDMI-compatible device.

Settings	What it does
TV Screen	Change the picture display format (4:3 (Letter Box)/4:3 (Pan & Scan)/16:9 (Wide)/16:9 (Compressed)), according to the connected TV.
HDMI Resolution	Change the resolution of the video signals output from the HDMI OUT terminals (720x480i/720x480p/1280x720p/1920x1080i/1920x1080p). If the image does not appear correctly after changing the setting, return the setting to “720x480p.” Refer to Setting the HDMI Resolution settings back to their defaults on page 26.
HDMI Color	Change the video signals output from the HDMI OUT terminal (Full range RGB/RGB/Component).

Language settings

Settings	What it does
Audio Language	Change the language when listening to the sound of DVD-Video discs (English/available languages/ Other Language).
Subtitle Language	Change the language of the subtitles displayed for DVD-Video discs (English/available languages/ Other Language).
DVD Menu Lang.	Change the language used for the menu displays of DVD-Video discs (w/ Subtitle Lang./available languages/Other Language).
Subtitle Display	Select whether to display subtitles (On) or not (Off).

• If the above setting is used to select "Other Language," perform operations while referring to Language Code Table and Country/Area Code Table on page 35.

Display settings
Options settings

Settings	What it does
OSD Language	Change the language of the operation messages (Play, Stop, etc.) displayed on the TV screen (English/available languages).
Angle Indicator	Select whether to display the angle mark on the TV screen (On) or not (Off).
On Screen Display	Select whether to display operation messages (Play, Stop, etc.) on the TV screen (On) or not (Off).

Settings	What it does
Parental Lock	Restrict DVD-Video viewing (Password/Level Change/Country Code). See Language Code Table and Country/Area Code Table on page 35 in order to set the "Country Code."
DivX VOD	Display the registration code required for playing DivX VOD files (Activate/Deactivate).

Setting the HDMI Resolution settings back to their defaults

1 Press STANDBY/ON to turn the power off.
2 Press STANDBY/ON while pressing VOLUME -

Use the buttons on this unit's top panel. The power turns on.

Sound settings

Using sound retriever

1 Press SOUND to select Sound Retriever.
2 Use / to select S or S OFF.

The newly set value displays for 5 seconds, and then the setting is completed.

S - The selected sound effect is activated.
S-Off -The selected sound effect is deactivated.

About Sound Retriever

This function enhances sound data lost during compression of MP3 and other file types, allowing the user to enjoy sound quality closer to that of the original signal data.

Using virtual surround

1 Press SOUND to select Virtual Surround.
2 Use / to select S or S.

The newly set value displays for 5 seconds, and then the setting is completed.

5 0n -The selected sound effect is activated.
S OFF -The selected sound effect is deactivated.

Adjusting the bass and treble

Use the bass and treble controls to adjust the overall tone.
1 Press SOUND to select Bass or Treble.
2 Use / to adjust the bass or treble.

You can adjust low and high sounds on a scale of -5 to +5 (eleven steps).

B5 -Bass+5
B -Bass-5
b S-Treble +5
b -5-Treble-5

The newly set value displays for 5 seconds, and then the setting is completed.

Restoring all the settings to the defaults

Note

• Use the steps below to restore the above settings to their defaults.

1 Press STANDBY/ON to turn the power on.
2 Press STANDBY/ON while pressing.

Use the buttons on this unit's top panel. '88888.' is displayed while the settings are being restored.

Chapter 11:

Using the timer

Setting the clock

Default setting: 000

1 With the power turned on, press

The current time is displayed on the front panel display.

2 Press again.

RdUCL is displayed on the front panel display.

3 Press ENTER.

The hour blinks on the front panel display.

4 Use / to set the hour, then press ENTER.

The minute blinks on the front panel display.

5 Use ↑/↓ to set the minute, then press ENTER.

The newly set value displays for 5 seconds, and then the setting is completed.

Setting the wake-up timer

1 With the power turned on, press FUNCTION

/ to select an input source.

• iPod, DVD/CD, FM and AUX can be selected as the input source.

2 Press 日

The current time is displayed on the front panel display.

3 Press twice.

SEt RL is displayed on the front panel display.

4 Press ENTER.

The hour blinks on the front panel display.

• While hour or minute digits are blinking, volume level can be adjusted.

5 Use / to set the hour, then press ENTER.

The minute blinks on the front panel display.

• While hour or minute digits are blinking, volume level can be adjusted.

6 Use ↑/↓ to set the minute, then press ENTER.

Turning the wake-up timer on/off

1 With the power turned on, press

The current time is displayed on the front panel display.

2 Press three times.

The newly set value displays for 5 seconds on the front panel.

3 Press ENTER to select RL On or ALOFF.

The newly set value displays for 5 seconds, and then the setting is completed.

AL On - The wake-up timer is set to on.

ALOFF - The wake-up timer is set to off.

Using the wake-up timer

1 Press STANDBY/ON to turn the power off.

2 At the wake-up time, this unit will turn on automatically and play the selected input function.

If this unit is not operated for 60 minutes or more after playback is started by the wake-up timer, power will automatically turn off (standby mode).

Note

• If at the wake-up time iPod/Phone is not connected to this unit or a disc is not inserted, this unit will be turned to on and not play back the track.
  Some discs may not be played automatically at the wake-up time.

Using the sleep timer

The sleep timer switches off the unit after a specified time so you can fall asleep without worrying about it.

- Press SLEEP repeatedly to select a switch off time.

Choose between 5 min, 15 min, 30 min, 60 min, 90 min or OFF. The newly set value displays for 3 seconds, and then the setting is completed.

• If you press SLEEP while the sleep timer is set, the remaining time will be displayed.

Note

1 The sleep timer can be set by pressing SLEEP while the remaining time is displayed.

Chapter 12:

Playable discs and files on discs or USB storage devices

Playable discs

DVD-Video	• Commercially available DVD-Video discs • DVD-R/ -RW/ -R DL and DVD+R/ +RW/ +R DL discs recorded in the Video mode
DVD VR	DVD-R/ -RW/ -R DL discs recorded in the VR mode
Video CD	Video CDs
CD(R/RW)	• Commercially available audio CDs • CD-R/ -RW/ -ROM discs containing music recorded in the CD-DA format
JPEG	JPEG files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices
DivX®	DivX video files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices
WMA	WMA files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices
MP3	MP3 files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB storage devices

FUJICOLOR-CD

Only the discs that have been finalized can be played.
- Discs recorded in packet write mode (UDF format) are not compatible with this unit.
- 8 cm discs cannot be played. Also do not attempt to use adapters for 8 cm CD to play such discs, since malfunction may result.

DVD is a trademark of DVD Format/ Logo Licensing Corporation.
is a trademark of FUJIFILM Corporation.
Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corporations.

Note

• For detailed instructions on files that iPod/iPhone can play, refer to the manual supplied with the iPod/iPhone.
• This unit does not support multisession discs or multiborder recording.
• Multisession/multiborder recording is a method in which data is recorded on a single disc in two or more sessions/borders. A "session" or "border" is one recording unit, consisting of a complete set of data from lead-in to lead-out.

Discs that cannot be played

• Blu-ray discs
  HD DVDs
  AVCHD
  AVCREC
  DVD-Audio discs
  DVD-RAM discs
  SACDs
  CD-G

About region numbers

DVD player and DVD-Video discs are assigned region numbers according to the region in which they are sold. This player's region number(s) is (are) as shown below.

DVD-Video: 2

(For Russian model: 5)

Discs not including these numbers cannot be played. Discs playable on this player are as shown below.

DVDs: 2 (including 2) and ALL

(For Russian model: 5 (including 5) and ALL)

Regarding copy protected CDs

This unit is designed to conform to the specifications of the audio CD format. This unit does not support the playback or function of discs that do not conform to these specifications.

About playing DualDiscs

A DualDisc is a new two-sided disc, one side of which contains DVD content - video, audio, etc. - while the other side contains non-DVD content such as digital audio material.

• The DVD side of a DualDisc can be played on this unit (excluding any DVD-Audio content).
• The non-DVD, audio side of the disc is not compatible with this unit.
• It is possible that when loading or ejecting a DualDisc, the opposite side to that being played will be scratched. Scratched discs may not be playable.
• For more detailed information on DualDisc specifications, please refer to the disc manufacturer or disc retailer.

Playing discs created on computers or BD/DVD recorders

• It may not be possible to play discs recorded using a computer due to the application settings or computer's environment settings. Record discs in a format playable on this unit. For details, contact the dealer.
• It may not be possible to play discs recorded using a computer or a BD/DVD recorder, if burn quality is not good due to characteristics of the disc, scratches, dirt on the disc, dirt on the recorder's lens, etc.

Playable files

Only discs recorded in ISO9660 Level 1, Level 2 and Joliet can be played.
- Files protected by DRM (Digital Rights Management) cannot be played.
- Files other than the ones below (WMV, MPEG4-AAC, etc.) are not guaranteed to play.

Supported video file formats

DivX

• DivX is a media technology created by DivX, Inc. DivX media files contain image data.
• DivX files may also include such advanced playback functions as menu screens and selection of multiple subtitle languages/ audio tracks.

DIVAX ™

DivX Certified® to play DivX® video, including premium content.

DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc. and are used under license.
File extensions:.avi and .divx (these must be used for this unit to recognize DivX video files). Note that all files with the .avi extension are recognized as MPEG4, but not all of these are necessarily DivX video files and therefore may not be playable on this unit.
- Files not containing DivX video signals cannot be played, even if they have the extension ".avi".

Displaying external subtitle files

• The font sets listed below are available for external subtitle files. You can see the proper font set on-screen by setting the Subtitle Language on page 26 to match the subtitle file.
• This unit supports the following language groups:

Group 1	Afrikaans (af), Basque (eu), Catalan (ca), Danish (da), Dutch (nl), English (en), Faroese (fo), Finnish (fi), French (fr), German (de), Icelandic (is), Irish (ga), Italian (it), Norwegian (no), Portuguese (pt), Rhaeto-Romanic (rm), Scottish (gd), Spanish (es), Swedish (sv)
Group 2	Albanian (sq), Croatian (hr), Czech (cs), Hungarian (hu), Polish (pl), Romanian (ro), Slovak (sk), Slovenian (sl)
Group 3	Bulgarian (bg), Byelorussian (be), Macedonian (mk), Russian (ru), Serbian (sr), Ukrainian (uk)
Group 4	Hebrew (iw), Yiddish (ji)
Group 5	Turkish (tr)

• Some external subtitle files may be displayed incorrectly or not at all.
• For external subtitle files the following subtitle format filename extensions are supported (please note that these files are not shown within the disc navigation menu):.srt, .sub, .ssa, .smi
• The filename of the movie file has to be repeated at the beginning of the filename for the external subtitle file.
• The number of external subtitle files which can be switched for the same movie file is limited to a maximum of 10.

Supported image file formats

JPEG

Resolution: Up to 3072 x 2048 pixels

File extensions: .jpg and .JPG (must be used for this unit to recognize JPEG files - do not use for other file types)

• This unit supports baseline JPEG.
  This unit supports Exif Ver.2.2.
• This unit does not support progressive JPEG.

Supported audio file formats

• This unit does not support VBR (Variable Bit Rate).
• This unit does not support lossless encoding.

Windows Media™ Audio (WMA)

Sampling frequencies: 32kHz 44.1 kHz and 48 kHz

Bit rate: Up to 192 kbps

File extensions: .wma and .WMA

• This unit supports files encoded using Windows Media Player Ver. 7/ 7.1, Windows Media Player for Windows XP and Windows Media Player 9 Series.
• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/ or other countries.
  This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

MPEG-1 Audio Layer 3 (MP3)

Sampling frequencies: 32kHz 44.1 kHz and 48 kHz

Bit rate: Any (128 kbps or higher recommended)

File extensions: .mp3 (these must be used for this unit to recognize MP3, WMA and MPEG-4 AAC files - do not use for other file types)

Chapter 13:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

General problem

Problem	Check	Remedy
Settings you have made have been cleared.	Was the power cord unplugged forcibly while this unit's power was on?	Be sure to press STANDBY/ON on this unit's front panel or press STANDBY/ON on the remote control and wait for the POWER ON indicator on the front panel display to turn off before unplugging the power cord.
Difference in volume between DVDs, CDs, MP3, WMA, iPod/iPhone and Tuner.	This is not a problem with this unit.	The volume may sound differently depending on the input source and recording format.
This unit cannot be operated with the remote control.	Are you operating from far away?	Operate from within a distance of Operate within 7 m (23 ft.), 30° of the remote sensor on the front panel (page 5).
	Is the remote control sensor exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.?	The remote control signals may not be received properly if the remote control sensor is exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.
	Are the batteries dead?	Replace the batteries (page 5).
Disc cannot be played or disc is ejected automatically.	Is the disc scratched?	Scratched discs may not play.
	Is the disc dirty?	Wipe the dirt off the disc (page 37).
	Is the disc properly slotted?	Slot a disc with the label side facing front.
	Does the disc have the right region number?	Discs with the region number "2 (including 2)" and "ALL" can be played on this unit.
	Is this unit placed in a humid location?	There could be condensation inside. Wait a while for the condensation to evaporate. Do not place this unit near an air-conditioner, etc. (page 36).
Picture is stretched, or aspect ratio cannot be switched.	Is the aspect ratio properly set on the connected TV?	Refer to the TV's operating instructions and set the TV's aspect ratio properly.
	Is TV Screen properly set?	Set TV Screen properly (page 26). This setting is available for a disc or USB storage device content. For movies and images stored in iPod/iPhone, operate your iPod/iPhone.
During playback, picture is disturbed or dark.	This is not a problem with this unit.	This unit supports Rovi copy protection. With some TVs, the picture may not display properly when playing discs including copy prevention signals. This is not a malfunction.
	Are this unit and TV connected via a video deck?	When this unit and TV are connected via a video deck, this unit's analog copy protect function may cause the picture being played on the video deck not to display properly. Connect this unit and TV directly.
	Is the TV system properly set?	The factory default setting is AUTO. If the picture is distorted, switch the TV system to the one used in your country or region (NTSC or PAL) (page 36).
Sound and image are intermittent during disc playback.	Sound volume may be too high.	Sound and image may be unsteady if sound volume is set too high; in this case, lower the sound volume.
Folder or file names are not recognized.	Have you exceeded the maximum number of folder or file names this unit can recognize?	Up to 299 folders can be recognized on one disc. Up to 648 files can be recognized within one folder. Depending on the folder structure, however, this unit may not be able to recognize certain folders or files.
Time is required to play JPEG files.	Are you playing large files?	Some time may be required to display large files.
Black bars are displayed when playing JPEG files.	Are you playing files with different aspect ratios?	Black bars may be displayed along the top and bottom or sides when JPEG files with different aspect ratios are played.
The unit turns off automatically.		If no operation has done for 30 minutes or more, the unit turns off automatically.

When a USB storage device is connected

Problem	Check	Remedy
USB storage device is not recognized.	Is the USB storage device properly connected?	Connect the device securely (all the way in).
	Is the USB storage device connected via a USB hub?	This unit does not support USB hubs. Connect the USB storage device directly.
		This unit only supports USB mass storage class devices.
		This unit supports portable flash memory and digital audio playback devices.
		Only the FAT16 and FAT32 file systems are supported. Other file systems (ex. FAT, NTFS, etc.) are not supported.
		This device does not support the use of external hard disc drives.
	This is not a problem with this unit.	Turn the power off then back on.
		Some USB storage devices may not be recognized properly.
File cannot be played.	Is the file copyright-protected (by DRM)?	Copyright-protected files cannot be played.
	This is not a problem with this unit.	Files stored on a computer cannot be played.
		It may not be possible to play some files.
Folder or file names are not displayed or are not properly displayed.	Do the folder of file names contain more than 14 characters?	The maximum number of characters displayable for the folder and file names on the Disc Navigator is 14.
Folder or file names are not displayed in alphabetical order.	This is not a problem with this unit.	The order of the folder and file names displayed on the Disc Navigator depends on the order in which the folders or files were recorded on the USB storage device.
Much time is required to recognize the USB storage device.	What is the USB storage devices capacity?	Some time may be required to load the data when large capacity USB storage devices are connected (this could take several minutes).
Power is not supplied to the USB storage device.	Is Err displayed on the front panel display? No power is supplied if the power consumption is too high.	Turn the power off then back on.
		Turn the power off, then disconnect and reconnect the USB storage device.
		Press FUNCTION ▲/▼ to switch to the other mode, then switch again to the USB mode. (When the input is switched back to USB, ‘USB’ is displayed on the front panel display.)

When connected to an HDMI-compatible device

Problem	Check	Remedy
Picture is not displayed.	Is the resolution properly set?	Set HDMI Resolution properly for the connected device (page 26).
		Restore HDMI Resolution to the default setting (720x480p) (page 26).
	Is the HDMI cable properly connected?	Connect the cable securely (all the way in).
		With some cables, 1080p video signals will not be output.
Sound is not produced or is distorted.	Is HDMI Out properly set?	Set HDMI Out to LPCM (2CH) or Auto (page 26).
Multichannel audio signals are not output.	Is HDMI Out properly set?	Set HDMI Out to Auto (page 26).
Colors are not properly displayed on TV screen.	Is HDMI Color properly set?	Change the HDMI Color setting (page 26).

When an iPod/iPhone is connected

Problem	Remedy
Can't operate the iPod/ iPhone by the remote control.	Make sure the iPod/iPhone is connected correctly (refer to Connecting your iPod/iPhone on page 14).
Can't operate the iPod/ iPhone.	Make sure the iPod/iPhone is connected correctly (refer to Connecting your iPod/iPhone on page 14).If the iPod/iPhone is experiencing a hangup, try resetting the iPod/ iPhone, and reconnect it to the unit.

Language Code Table and Country/Area Code Table

Language Code Table

Language names (codes) and input codes:

Japanese (ja), 1001

English (en), 0514

French (fr), 0618

German (de), 0405

Italian (it), 0920

Spanish (es), 0519

Chinese (zh), 2608

Dutch (nl), 1412

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab), 0102

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie), 0905

Inupiak (ik), 0911

Indonesian (in), 0914

Icelandic (is), 0919

Hebrew (iw), 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km), 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (In), 1214

Laothian (Io), 1215

Lithuanian (lt), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Nauru (na), 1401

Nepali (ne), 1405

Norwegian (no), 1415

Occitan (oc), 1503

Oromo (om), 1513

Oriya (or), 1518

Panjabi (pa), 1601

Polish (pl), 1612

Pashto,Pushto (ps),1619

Quechua (qu), 1721

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa), 1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Siswati (ss), 1919

Sesotho (st), 1920

Vietnamese (vi), 2209

Volapuk (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

Country/Area Code Table

Country/Area name, Input codes and Country/ Area code

United States, 2119, us

Argentina, 0118, ar

United Kingdom, 0702, gb

Italy, 0920, it

India, 0914, in

Indonesia, 0904, id

Australia, 0121, au

Austria, 0120, at

Netherlands, 1412, nl

Canada, 0301, ca

Korea, Republic of, 1118, kr

Singapore, 1907, sg

Switzerland, 0308, ch

Sweden, 1905, se

Spain, 0519, es

Thailand, 2008, th

Taiwan, 2023, tw

China, 0314, cn

Chile, 0312, cl

Denmark, 0411, dk

Germany, 0405, de

Japan, 1016, jp

New Zealand, 1426, nz

Norway, 1415, no

Pakistan, 1611, pk

Philippines, 1608, ph

Finland, 0609, fi

Mexico, 1324, mx

Russian Federation, 1821, ru

Brazil, 0218, br

France, 0618, fr

Belgium, 0205, be

Portugal, 1620, pt

Hong Kong, 0811, hk

Malaysia, 1325, my

Setting the TV system

• This setting is available for a disc or USB storage device content. For iPod/iPhone's TV out setting, operate your iPod/iPhone.
• If the picture of the disc being played is distorted, switch the TV system to the one used in your country or region.
• When the TV system is switched, the types of discs that can be played are limited.
• The factory default setting is AUTO.

1 Press STANDBY/ON to turn the unit's power off.

2 Press STANDBY/ON while pressing VOLUME+.

Use the buttons on the unit's top panel.

The power turns on and the TV system switches as shown below.

• AUTO NTSC
• NTSC PAL
  PAL AUTO

Types of discs/files	Format	Playing setting
		NTSC	PAL	AUTO
DVD-Video	NTSC	NTSC	PAL	NTSC
DVD VR	PAL	NTSC	PAL	PAL
Video CD
DivX®
CD(R/RW)	—	NTSC	PAL	NTSC or PAL
WMA
MP3
JPEG no disc

Cautions on use

When moving this unit

When moving this unit, be sure to first check that there is no disc loaded and disconnect the iPod/iPhone. Then press STANDBY/ON on this unit (or STANDBY/ON on the remote control), wait for the POWER ON indicator on the front panel display to turn off, then unplug the power cord. Damage may occur if the unit is transported or moved with a disc inserted, or when another device is connected to the iPod/iPhone connector port, USB terminal, or AUX IN mini-plug jack.

Place of installation

• Choose a stable place near the TV or stereo system being used with this unit.

• Do not place this unit on top of a TV or color monitor. Also install it away from cassette decks and other devices easily affected by magnetic forces.

Avoid the following locations:

• Places exposed to direct sunlight
• Humid or poorly ventilated places
• Extremely hot places
• Places exposed to vibrations
• Places in which there is much dust or cigarette smoke
• Places exposed to soot, steam or heat (kitchens, etc.)

Do not place objects on this unit.

Do not place any objects on top of this unit.

Do not obstruct the ventilation holes.

Do not use this unit on shaggy rugs, beds, sofas, etc., or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage.

Do not expose to heat.

Do not place this unit on top of an amplifier or other component that generates heat. When rack mounting it, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier.

• Turn off the unit's power when not using it.
  Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the unit's power is on. If this happens, turn the unit's power off.

About condensation

If this unit is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which this unit is installed rises suddenly due to heater operation, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, this unit will not operate properly and playback is not possible. Let this unit stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible. Condensation can also occur in the summer if this unit is directly exposed to the air flow from an air-conditioner. If this happens, move this unit to a different place.

Cleaning the product

• Unplug the power cord from the power outlet when cleaning this unit.
• Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a soft, dry cloth.
• Alcohol, thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet.
• When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully.

Cleaning the lens

• This unit's lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners for players are commercially available, we advise against using them since some may damage the lens.

About copyrights

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Handling discs

Storing

Always place discs in their cases and store them vertically, avoiding hot, humid places, places exposed to direct sunlight and extremely cold places.
- Be sure to read the cautions included with the disc.

Cleaning discs

• Discs may not play if there are fingerprints or dust on them. In this case, use a cleaning cloth, etc., to gently wipe the disc from the inside towards the outside. Do not use dirty cleaning cloths.

• Do not use benzene, thinner or other volatile chemicals. Also do not use record spray or antistatic agents.
• For tough dirt, apply some water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe off the moisture with a dry cloth.
• Do not use damaged (cracked or warped) discs.
• Do not let the signal surface of discs get scratched or dirty.
• Do not attach pieces of paper or stickers to discs. Doing so could warp discs, making it impossible to play them. Also note that rental discs often have labels attached to them, and the label's glue may have oozed out. Check that there is no glue around the edges of such labels before using rented discs.

About specially shaped discs

Specially shaped discs (heart-shaped, hexagonal, etc.) cannot be played on this unit. Do not attempt to play such discs, as they could damage this unit.

About iPod/iPhone

Made for

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Specifications

Amplifier section

RMS Power Output:

Front Left/Right .20 W + 20 W

(1 kHz, 10%, T.H.D., 8 Ω)

Speaker section

Enclosure. Passive radiator

System 1-way system

Speakers:

Fullrange. 6.6 cm cone

Passive radiator 7.7 cm cone

Frequency range . 60 Hz to 20 kHz

Miscellaneous

iPod 5V,1A

USB .5V,500mA

AS-BT200 .5V,100mA

Power consumption 25 W

On standby. 0.5 W

Dimensions

520 mm (W) x 218 mm (H) x 156 mm (D)

Weight (without package) 3.7 kg

ACadapter

Power requirements. .AC 100 V to 240 V, 50 Hz/60 Hz

Rated Output. DC 19 V, 3.42 A

- Accessories

Remote control 1

AAA batteries (R03) 2

Video cable 1

FM wire antenna 1

ACadapter. 1

Power cord

Operating instructions (This document)

Note

• Specifications and the design are subject to possible modifications without notice, due to improvements.
• This product is not designed for use in Japan.

© 2011 PIONEER CORPORATION.

All rights reserved.

IMPORTANT

Initial Settings. 24

Parametres Initial Settings. 25

A propos de I'Pod/iPhone. 37

iPod/iPhone	Audio	Vidente
iPod nano 1/2G	✓	—
iPod nano 3/4/5/6G	✓	✓*
iPod classic	✓	✓
iPod touch 1/2/3/4G	✓	✓
iPhone	✓	✓
iPhone 3G	✓	✓
iPhone 3GS	✓	✓
iPhone 4	✓	✓

La lecture commence.

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab), 0102

Norwegian (no), 1415

Frisian (fy), 0625

Irish (ga), 0701

Scotts-Gaelic (gd), 0704

Galician (gl), 0712

Guarani (gn), 0714

Gujarati (gu), 0721

Hausa (ha), 0801

Hindi (hi), 0809

Croatian (hr), 0818

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie), 0905

Inupiak (ik), 0911

Indonesian (in), 0914

Icelandic (is), 0919

Hebrew (iw), 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km), 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (In), 1214

Laothian (lo), 1215

Lithuanian (lt), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Siswati (ss), 1919

Sesotho (st), 1920

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa), 1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Swahili (sw), 1923

Tamil (ta), 2001

Telugu (te), 2005

Tajik (tg), 2007

Thai (th), 2008

Tigrinya (ti), 2009

Turkmen (tk), 2011

Tagalog (tl), 2012

Setswana (tn), 2014

Tonga (to), 2015

Turkish (tr), 2018

Tsonga (ts), 2019

Tatar (tt), 2020

Twi (tw), 2023

Ukrainian (uk), 2111

Urdu (ur), 2118

Uzbek (uz), 2126

Vietnamese (vi), 2209

Volapuk (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

(1 kHz, 10%, T.H.D., 8Ω)

Section Enceintes

© 2011 PIONEER CORPORATION.

Initial Settings. 24

iPod/iPhone	Audio	Video
iPod nano 1/2G	✓	—
iPod nano 3/4/5/6G	✓	✓*
iPod classic	✓	✓
iPod touch 1/2/3/4G	✓	✓
iPhone	✓	✓
iPhone 3G	✓	✓
iPhone 3GS	✓	✓
iPhone 4	✓	✓

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab), 0102

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie), 0905

Inupiak (ik), 0911

Indonesian (in), 0914

Icelandic (is), 0919

Hebrew (iw), 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km), 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (In), 1214

Laothian (lo), 1215

Lithuanian (lt), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Siswati (ss), 1919

Sesotho (st), 1920

Norwegian (no), 1415

Occitan (oc), 1503

Oromo (om), 1513

Oriya (or), 1518

Panjabi (pa), 1601

Polish (pl), 1612

Pashto,Pushto (ps),1619

Quechua (qu), 1721

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa), 1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Vietnamese (vi), 2209

Volapuk (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

(1 kHz, 10%, T.H.D., 8Ω)

© 2011 PIONEER CORPORATION.

© 2011 PIONEER CORPORATION. All rights reserved.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002_B3_En
