USER MANUAL HTP-700 PIONEER

Audio/Video Multi-Channel Receiver Subwoofer

Audio/video multikanaals receiver subwoofer

S-DV595T

Speaker System

Audio/Video Multi-Channel Receiver Subwoofer

Audio/video multikanaals receiver subwoofer

S-SWR600

Speaker System

Front Surroud System

Surround Voor system

SX-SWR1

Audio/Video Multi-Channel Receiver Subwoofer

Audio/video multikanaals receiver subwoofer

S-SWR500FS

Speaker System

Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu)

Operating Instructions

Mode d'emploi

Handleiding

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_A1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230V or 120V ) written on the rear panel.

D3-4-2-1-4*A1En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment

D3-4-2-1-7a_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10cm at top, 10cm at rear, and 10cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*A1_En

Operating Environment

Operating environment temperature and humidity: +5^ to +35^ (+41^ to +95^) less than 85% RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*A1En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement.

S002*A1En

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-1a_A1_En

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*A1En

Information for users on collection and disposal of old equipment and used batteries

(Symbol for equipment)

Symbol examples) for batteries

Pb

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_En

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT: THE MOULDED PLUG

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark

on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer.

If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral Brown:Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

D3-4-2-1-2-2*A1_EN

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.

1 Setup Guide (HTP-700)

What's in the box

Please confirm that the following items are all supplied.

Receiver subwoofer (SX-SWR1) box

Receiver subwoofer x1

Dry cell batteries (AAA size IEC R03) x2
Remote control x1

Power cords x2

iPod cable x1

Large non-skid pads (for receiver subwoofer) x4

Microphone (for Auto MCACC setup) x1

FM wire antenna x1
Warranty card Operating instructions (This document)

Speakers (S-DV595T) box

Front/surround speakers x4

Speaker stand bases x4

Center speaker x1

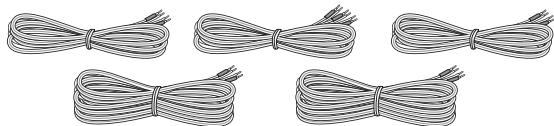

Speaker cables (for front speaker x2, for center speaker x1, for surround speaker x2)

Screws x12

Small non-skid pads (for speaker stand bases) x16

Commercially available

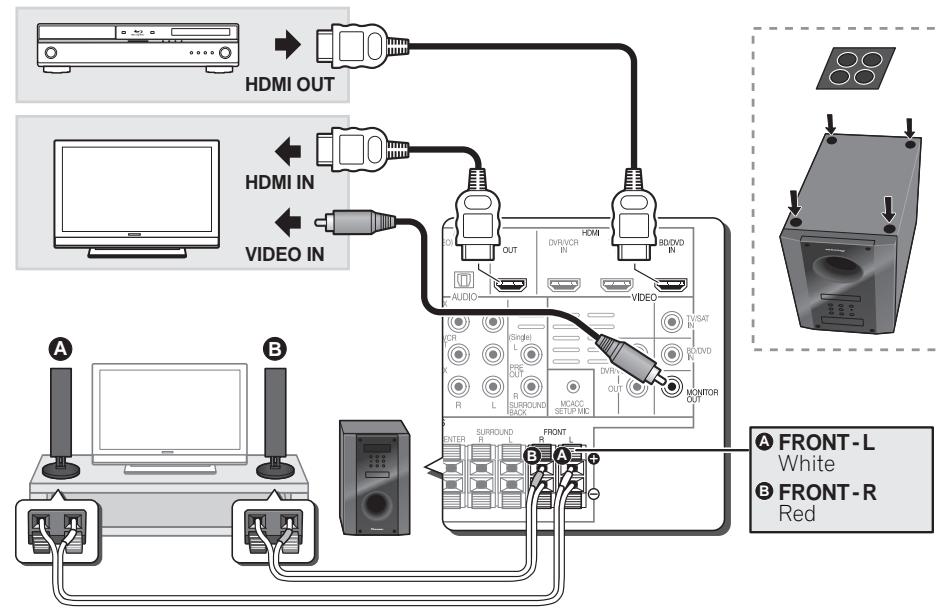

Connection

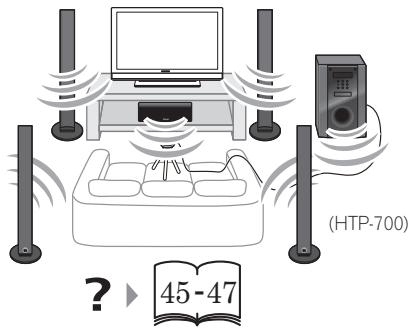

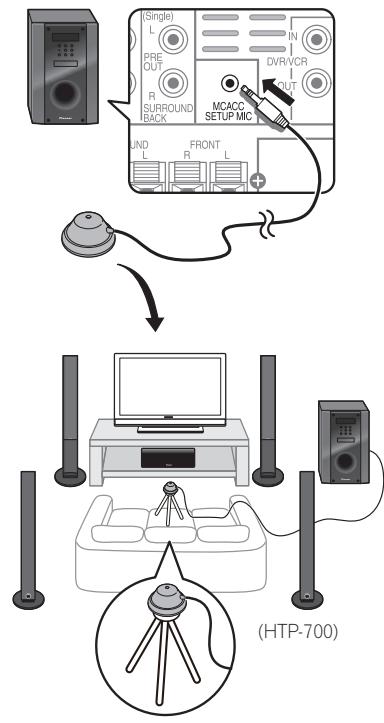

10 For enjoying your self (MCACC)

1 Setup Guide (HTP-600)

What's in the box

Please confirm that the following items are all supplied.

Receiver subwoofer (SX-SWR1) box

Receiver subwoofer x1

Dry cell batteries (AAA size IEC R03) x2

Large non-skid pads (for receiver subwoofer) x4

Microphone (for Auto MCACC setup) x1

Power cords x2

iPod cable x1

FM wire antenna x1
Warranty card Operating instructions (This document)

Speakers (S-SWR600) box

Front speakers x2

Speaker cables (for front speaker x2, for center speaker x1, for surround speaker x2)

Center speakers x2

kers x2

Brackets × 2

Mounting brackets x6

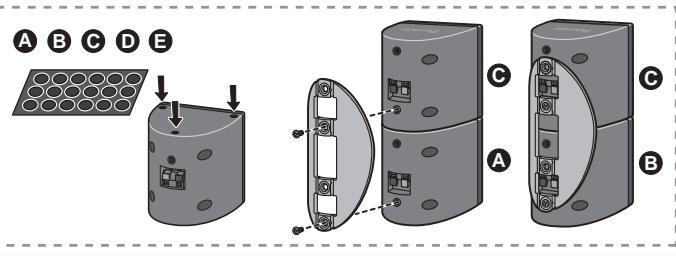

Small non-skid pads (for speaker stand bases) x18

Surround speakers x2

Commercially available

Connection

10 For enjoying your self (MCACC)

1 Setup Guide (HTP-FS500)

What's in the box

Please confirm that the following items are all supplied.

Receiver subwoofer (SX-SWR1) box

Receiver subwoofer x1

Dry cell batteries (AAA size IEC R03) x2

Large non-skid pads (for receiver subwoofer) x4

Microphone (for Auto MCACC setup) x1

Power cords x2

iPod cable x1

FM wire antenna x1
Warranty card Operating instructions (This document)

Speakers (S-SWR500FS) box

A

B
Front speakers x2

Speaker stand bases x2

Poles x2

Speaker cables x2

Gaskets x2

Screws (short) x8

Screws (long) x4

Commercially available

Connection

10 For enjoying your self (MCACC)

For enjoying your self (MCACC)

1

2
3

4

5

6

Home theater

BD/DVD

Off

Radio

1

2

3

#

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Contents

Setup Guide (HTP-700) 4

Setup Guide (HTP-600) 6

Setup Guide (HTP-FS500) 8

For enjoying your self (MCACC) ...10

Home theater. 11

01 Speaker Setup (HTP-700)

Safety precautions when setting up.14

Home theater sound setup 14

Preparing the speakers 14

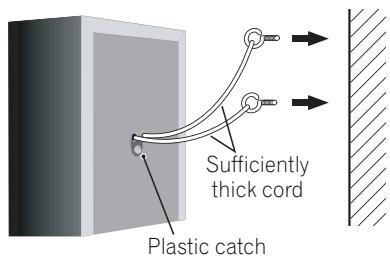

Securing your front and surround speakers 16

Wall mounting the center speaker. 17

Before mounting. 17

Additional notes on speaker placement...17

01 Speaker Setup (HTP-600)

Safety precautions when setting up.18

Home theater sound setup 18

Preparing the speakers 18

Wall mounting the speakers 20

Before mounting. 20

Additional notes on speaker placement...21

01 Speaker Setup (HTP-FS500)

Safety precautions when setting up. 22

Home theater sound setup 22

Preparing the speakers 22

Wall mounting the front speakers 24

Before mounting. 24

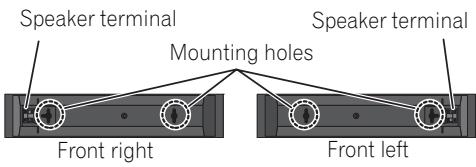

Attaching the speakers 25

Additional notes on speaker placement...25

For Enhanced Sound Quality. 25

02 Connecting up

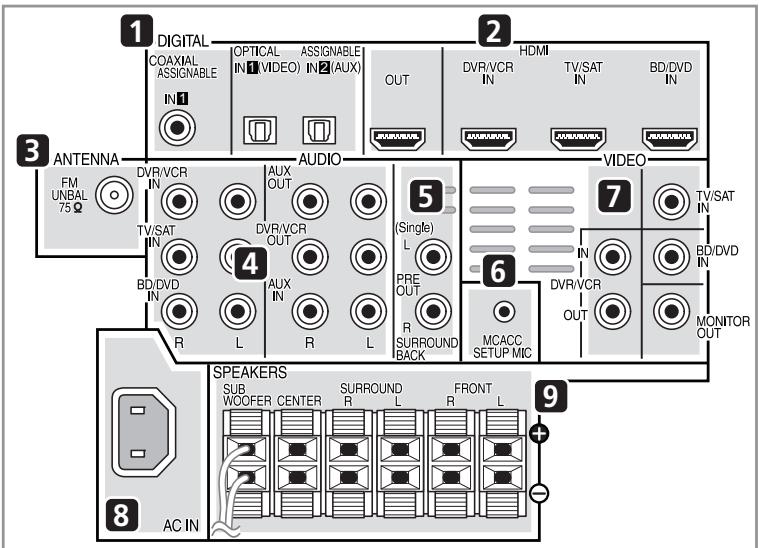

Rear panel. 26

Making cable connections 27

About video outputs connection 27

HDMI cables. 27

Analog audio cables. 28

Digital audio cables 28

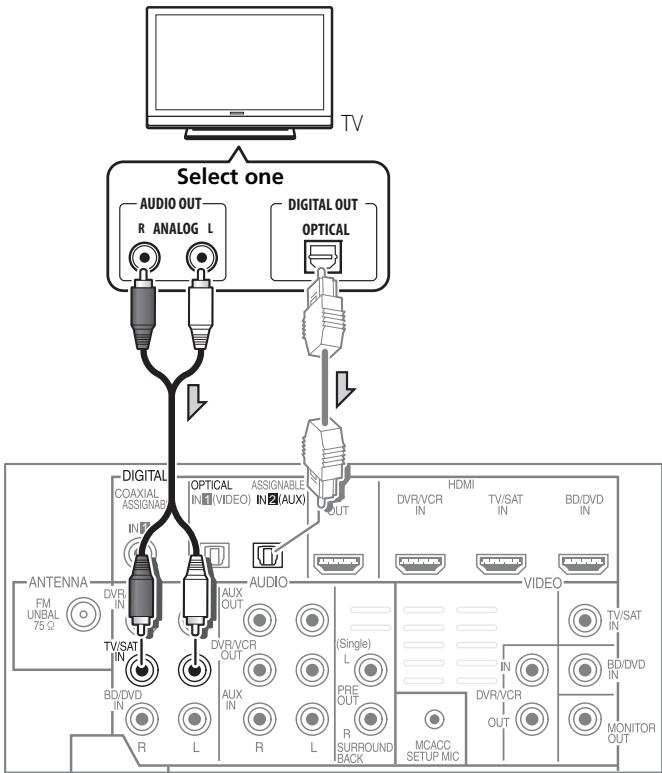

Connect your TV (For TV audio) 29

Connecting your TV and playback components 30

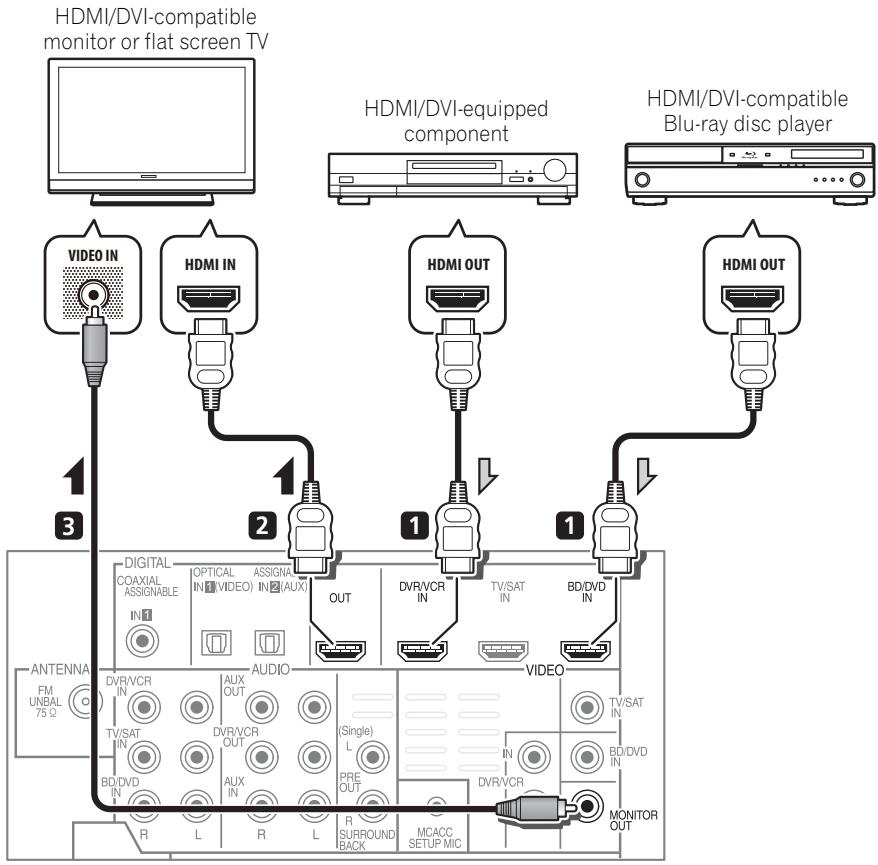

Connecting using HDMI. 30

Connecting your component with no HDMI terminal 31

Connecting an HDD/DVD recorder, VCR and other video sources 32

Connecting a satellite receiver or other digital set-top box. 33

Connecting other audio components .34

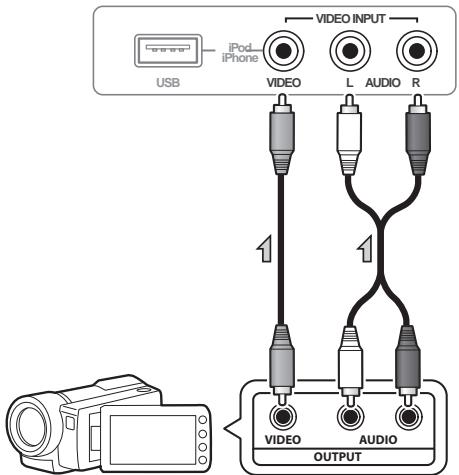

Connecting to the front panel video terminal 35

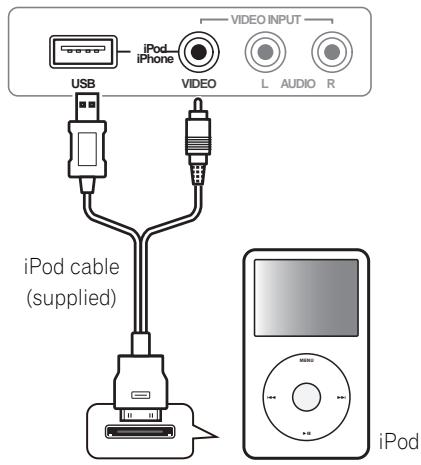

Connecting an iPod/Phone 35

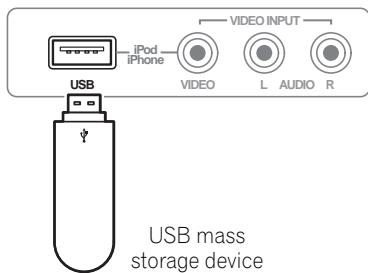

Connecting a USB device 35

Connecting the FM antenna 36

Connecting external antennas 36

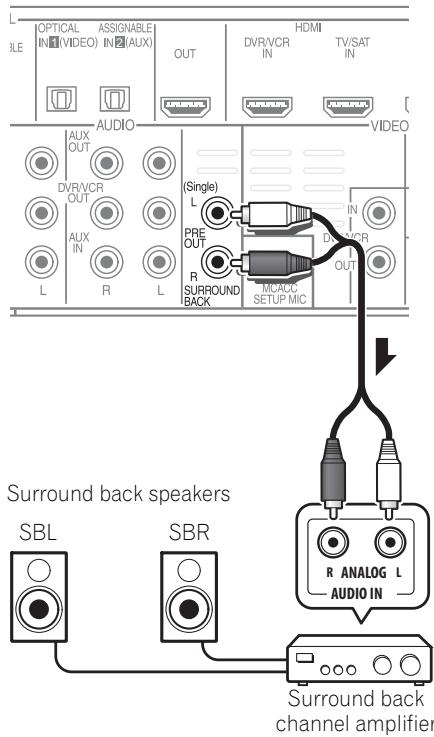

Use the PRE OUT outputs to connect the surround back speakers 36

Plugging in the system 37

03 Controls and displays

Front panel 38

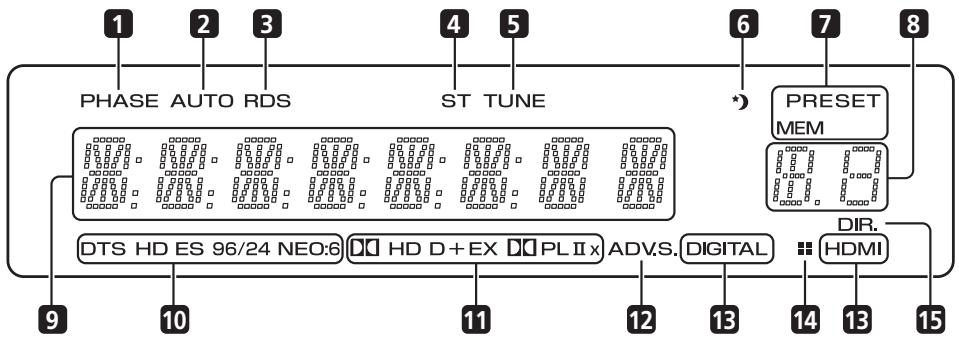

Display 39

Remote control 41

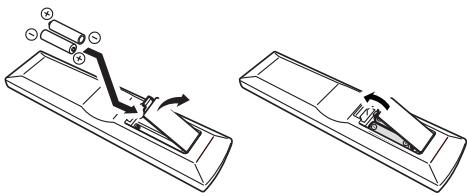

Putting the batteries in the remote control 44

Using the remote control 44

04 Getting started

Automatically setting up for surround

sound (MCACC) 45

Other problems when using

the Auto MCACC Setup 47

Basic operation 47

Choosing the input signal 48

05 iPod/USB playback

Playing an iPod 49

iPod playback 49

Watching photos and video content 51

About iPod. 51

Playing a USB device. 52

Basic playback controls. 52

Compressed audio compatibility 53

06 Using the tuner

Listening to the radio 54

Improving FM stereo sound. 54

Saving station presets 54

Listening to station presets 55

Naming preset stations 55

An introduction to RDS 55

Searching for RDS programs. 56

Displaying RDS information 56

07 Listening to your system

Selecting Listening mode. 57

Auto playback 57

Listening in surround sound 57

Using the Advanced surround effects . . . 58

Listening in stereo 58

Using Front Stage Surround Advance 59

Using Stream Direct 59

Using the Sound Retriever 59

Listening with Acoustic Calibration EQ . . . 60

Better sound using Phase Control 60

Functions when surround back speakers are connected 61

Surround sound mode. 61

Using surround back channel processing. 62

Setting the Up Mix function 62

Setting the Audio options. 63

08 The System Setup menu

Using the System Setup menu 66

Manual speaker setup 66

Speaker Setting. 67

Channel Level 67

Speaker Distance 68

09 Controlling the rest of your system

Setting the remote to control other components 69

Selecting preset codes directly 69

Clearing all the remote control settings...69

Controls for TVs. 70

Controls for other components 71

Preset Code List 73

10 Additional information

Troubleshooting. 78

HDMI 80

Important information regarding

the HDMI connection 80

iPod messages 81

USB messages 81

Resetting the main unit. 81

Specifications 82

SX-SWR1 Receiver subwoofer. 82

S-DV595T Speaker system. 82

S-SWR600 Speaker system. 83

S-SWR500FS Speaker system. 83

Cleaning the unit. 83

Chapter 1-1

Speaker Setup (HTP-700)

Safety precautions when setting up

When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers.

Home theater sound setup

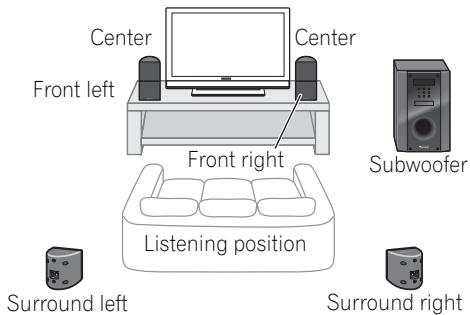

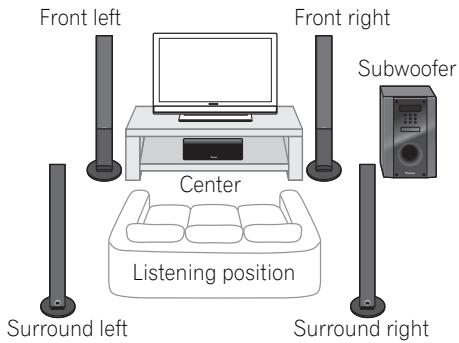

This is a standard multichannel surround sound speaker setup for optimal 5.1 channel home theater sound. The front left and right speakers should be about 1.8m to 2.7m apart.

Preparing the speakers

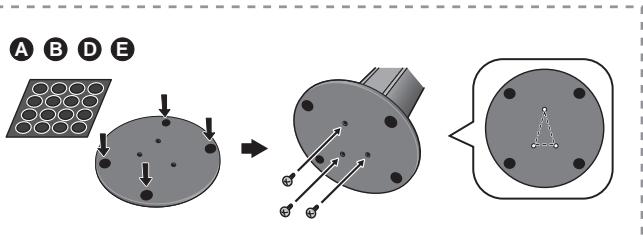

1 Attach the non-skid pads to the base of each speaker stand bases and the receiver subwoofer.

For speaker stand bases:

Use the supplied adhesive to attach four small pads to the base (bottom) of each speaker stand base.

Small non-skid pads

For subwoofer:

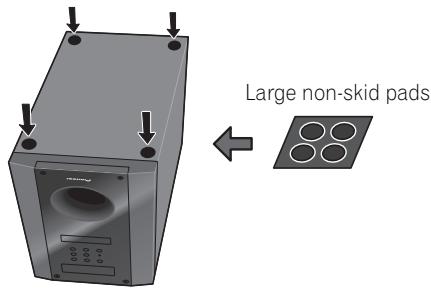

Use the supplied adhesive to attach four large pads to the base of subwoofer.

Large non-skid pads

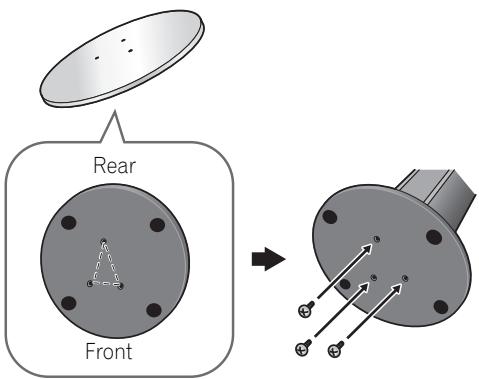

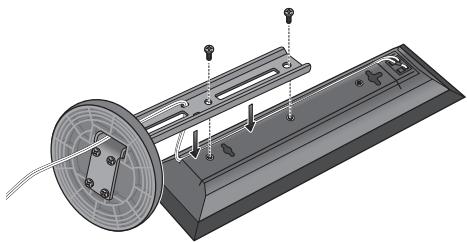

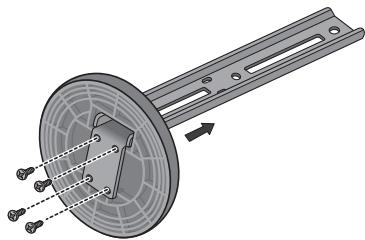

2 Attach the speaker stand bases to the stems using the screws provided.

Once you have aligned the stem and base, secure with the small screws at the points shown below. Note that the speaker should face in the direction of the base of the isosceles triangle.

Caution

• Be careful not to tighten screws excessively.
• If excessive force is used to tighten screws, the threads of screw and/or nut may be damaged. Use a middle-sized manual screwdriver during assembly.
• Do not use power screwdrivers or oversized screwdrivers that may exert excessive force on the screws and nuts.
• Confirm that no foreign matter is stuck to the stand base or the tall speaker during assembly.

• If the unit is assembled with foreign matter stuck between the stand base and the tall speaker the unit may not be assembled securely, resulting in tipping or falling.

• Do not stand on the speaker stand base of the tall speaker to push or swing the speaker. The speaker may fall and break, or someone may be injured. Pay special attention to children.

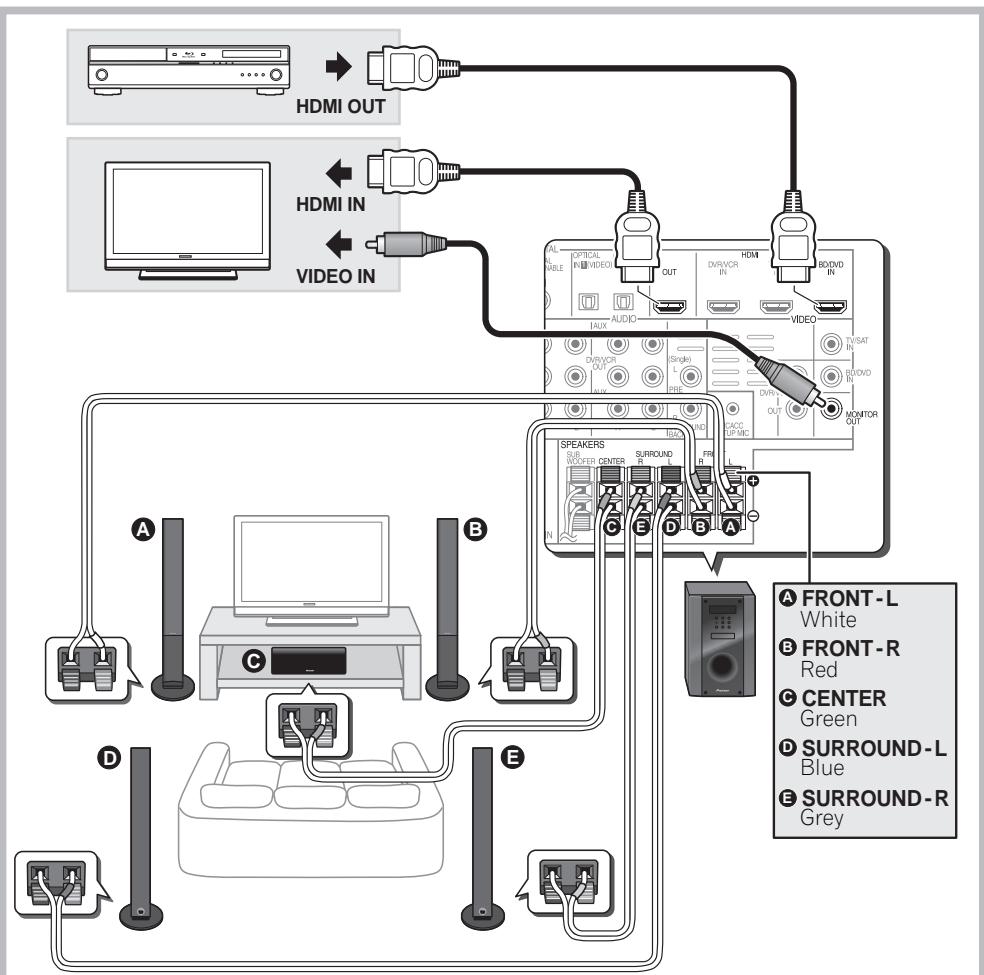

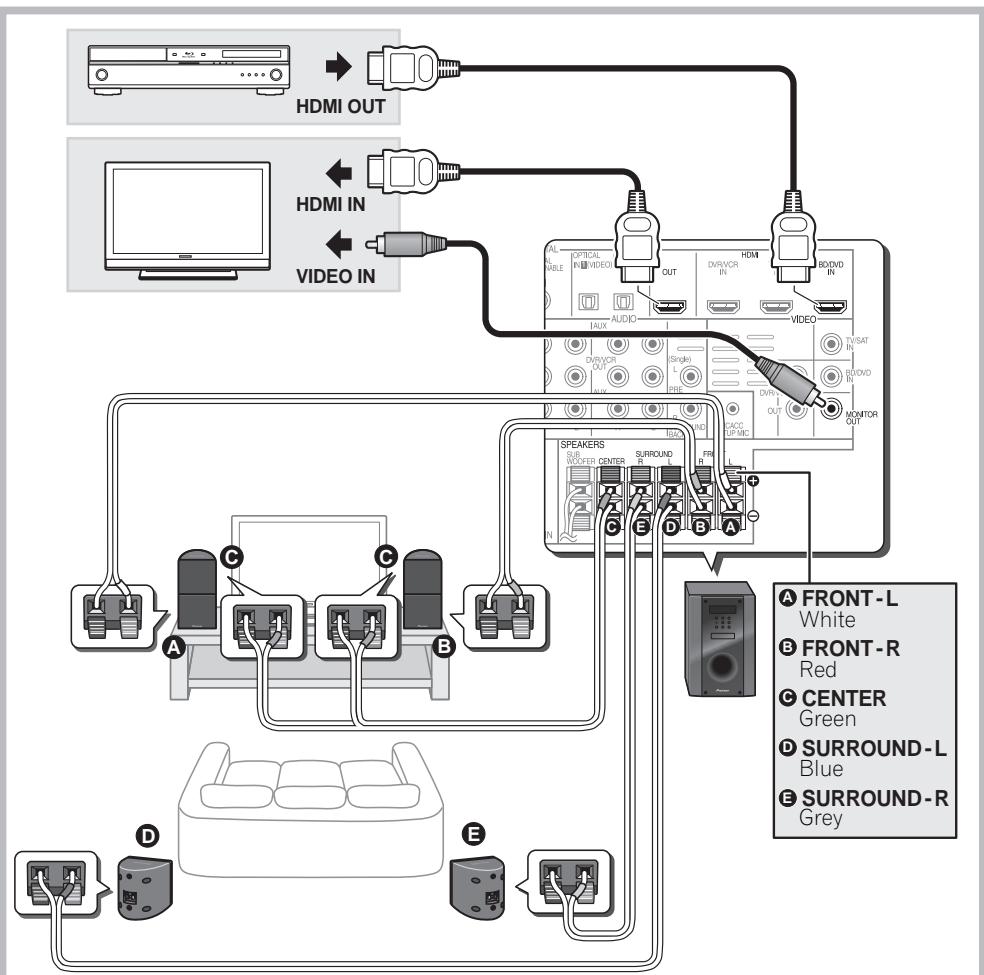

3 Connect each speaker.

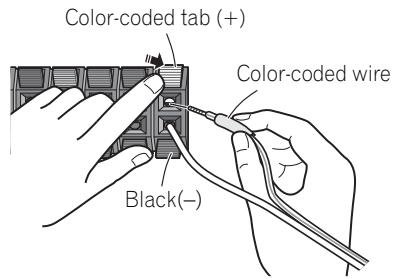

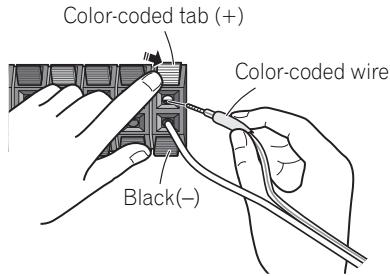

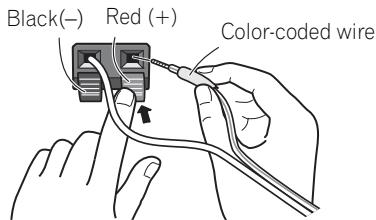

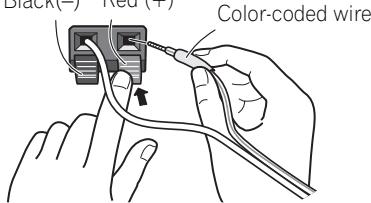

Connect the wires to the speaker. Each speaker in the illustration can be identified by means of the color-coded indicator provided on the rear-surface label.

Front left: White

Front right: Red

Center:Green

Surround left: Blue

Surround right: Gray

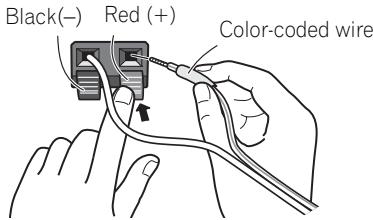

Match the color-coded wire with the color indicator on the label, then insert the color-coded wire into the red (+) side and the other wire into the black (-) side.

Connect the other end to the color-coded speaker terminals on the rear of the receiver subwoofer.

Caution

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
• Do not connect any speakers other than those supplied to this system.
• Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.
• After connecting the plugs, pull lightly on the cables to make sure that the ends of the cables are securely connected to the terminals. Poor connections can create noise and interruptions on the sound.
• If the cable's wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the amp. This may cause the amp to stop functioning, and may even damage the amp.

Securing your front and surround speakers

• Secure each of the front and surround speakers using the plastic catch provided.

Screw two supporting hooks into the wall behind the speaker. Pass a thick cord around the hooks and through the plastic catch so that the speaker is stabilized (make sure to test that it supports the weight of the speaker). After installing, make sure the speaker is securely fixed.

Caution

• The plastic catch is not a mounting fixture, and the speaker should not be hung directly from the wall using this catch. Always use a cord when stabilizing the speaker.
• Pioneer disclaims all responsibility for any losses or damage resulting from improper assembly, installation, insufficient strength of the installation materials, misuse, or natural disasters.
• When placing this unit, ensure that it is firmly secured and avoid areas where it may be likely to fall and cause injury in the event of a natural disaster (such as an earthquake).

Wall mounting the center speaker

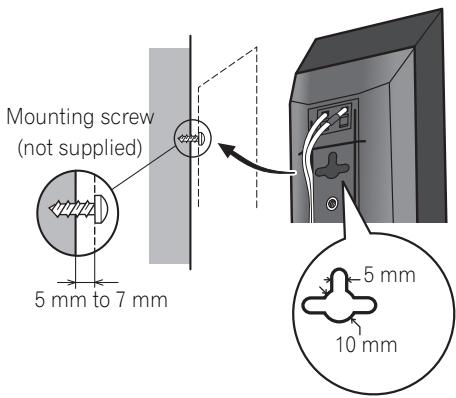

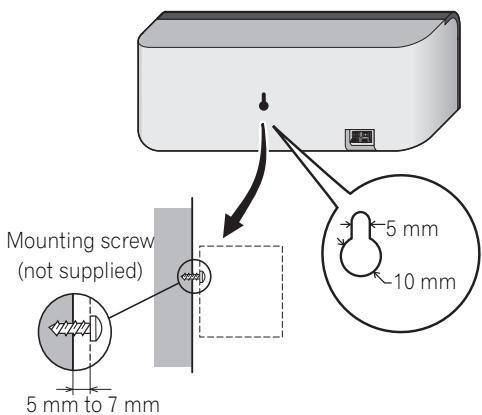

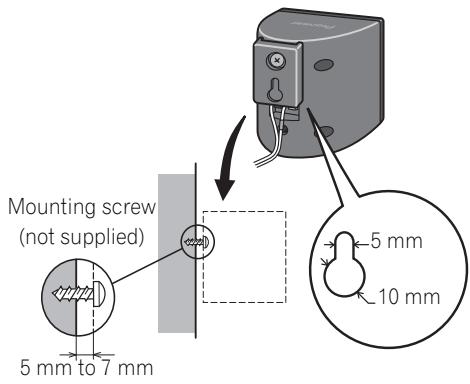

The center speaker have a mounting hole which can be used to mount the speaker on the wall.

Before mounting

• Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls.
• Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

Caution

If you are unsure of the qualities and strength of the wall, consult a professional for advice.
- Pioneer is not responsible for any accidents or damage that result from improper installation.

Additional notes on speaker placement

Install the main front left and right speakers at an equal distance from the TV.
- Install the surround speakers slightly above ear level for optimum effect.

Precautions:

• When installing the center speaker on top of the TV, be sure to secure it with tape or some other suitable means. Otherwise, the speaker may fall from the TV due to external shocks such as earthquakes, endangering those nearby or damaging the speaker.
• Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the bare speaker wire touches the back panel it may cause the power to cut off as a safety measure.
• The front, center and surround speakers supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker is installed extremely close to the screen of a television set. If this case happens, turn the power switch of the television set OFF, and turn it ON after 15 min. to 30 min. If the problem persists, place the speaker system away from the television set.
• The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the subwoofer.
• Do not attach the front/surround speakers and subwoofer to a wall or ceiling. They may fall off and cause injury.
• Do not stand on the speaker stand base of the tall speaker to push or swing the speaker. The speaker may fall and break, or someone may be injured. Pay special attention to children.

Chapter 1-2

Speaker Setup (HTP-600)

Safety precautions when setting up

When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers.

If the speakers are to be used in a stacked configuration, always use the provided brackets to secure them together (page 19).

Home theater sound setup

This is a standard multichannel surround sound speaker setup for optimal 5.1 channel home theater sound. The front left and right speakers should be about 1.8m to 2.7m apart.

*When center speakers are placed in the center.

Preparing the speakers

1 Attach the non-skid pads to the base of each speakers and the receiver subwoofer.

For front, center and surround speakers:

Use the supplied adhesive to attach three pads to the base (bottom) of each speaker.

For subwoofer:

Use the supplied adhesive to attach four large pads to the base of subwoofer.

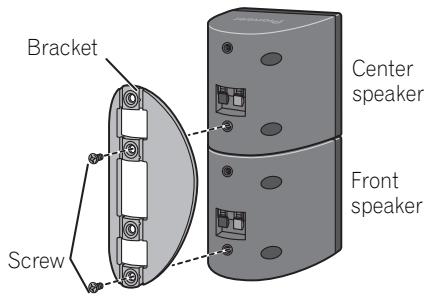

2 (When mounting center speakers to right and left) Stack the speakers and fix with the bracket.

Each speaker is provided with a color-coded indicator on the model label on the rear side to assist identification. Refer to the color indicators and install the speakers correctly.

As shown in the illustration, stack the speakers. Align the bracket with the respective upper and lower screw holes as shown in each figure below and fasten the screws securely.

Model label
Color indicator

Left

Center speaker

Front speaker

Right

Caution

• Do not attempt to carry the speakers when they are connected with the bracket. Doing so may cause damage to the bracket or worsen damage to the bracket and speakers in the event they are dropped.

3 Connect each speaker.

Connect the wires to the speaker. Each speaker in the illustration can be identified by means of the color-coded indicator provided on the rear-surface label.

Front left: White

Front right: Red

Center:Green

Surround left: Blue

Surround right: Gray

Match the color-coded wire with the color indicator on the label, then insert the color-coded wire into the red (+) side and the other wire into the black (-) side.

Black(-) Red (+)

• When connecting the center speakers, connect the Y-cable dual end to the two center speakers in the same way.

To receiver subwoofer

Connect the other end to the color-coded speaker terminals on the rear of the receiver subwoofer.

Caution

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
• Do not connect any speakers other than those supplied to this system.
• Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.
• After connecting the plugs, pull lightly on the cables to make sure that the ends of the cables are securely connected to the terminals. Poor connections can create noise and interruptions on the sound.
• If the cable's wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the amp. This may cause the amp to stop functioning, and may even damage the amp.

Wall mounting the speakers

All the speakers (except the subwoofer, which should be placed on the ground) have holes for mounting brackets, and depending on the speaker setup you choose, you can wall-mount the front, center and surround speakers.

• Make sure to tighten the supplied screw as securely as possible when attaching the bracket to the back of the speaker.

Before mounting

• Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls.
• Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

Caution

If you are unsure of the qualities and strength of the wall, consult a professional for advice.
- Pioneer is not responsible for any accidents or damage that result from improper installation.

Additional notes on speaker placement

Install the main front left and right speakers at an equal distance from the TV.
- Install the surround speakers slightly above ear level for optimum effect.

Precautions:

• When installing the center speaker on top of the TV, be sure to secure it with tape or some other suitable means. Otherwise, the speaker may fall from the TV due to external shocks such as earthquakes, endangering those nearby or damaging the speaker.
• The front, center and surround speakers supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker is installed extremely close to the screen of a television set. If this case happens, turn the power switch of the television set OFF, and turn it ON after 15 min. to 30 min. If the problem persists, place the speaker system away from the television set.
• The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the subwoofer.
• Do not attach the subwoofer to the wall or ceiling. They may fall off and cause injury.

Chapter 1-3

Speaker Setup (HTP-FS500)

Safety precautions when setting up

When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers.

Home theater sound setup

This is a standard speaker setup. The front left and right speakers should be about 1.8 m to 2.7 m apart.

Preparing the speakers

1 Attach the non-skid pads to the base of receiver subwoofer.

Use the supplied adhesive to attach four pads to the base of subwoofer.

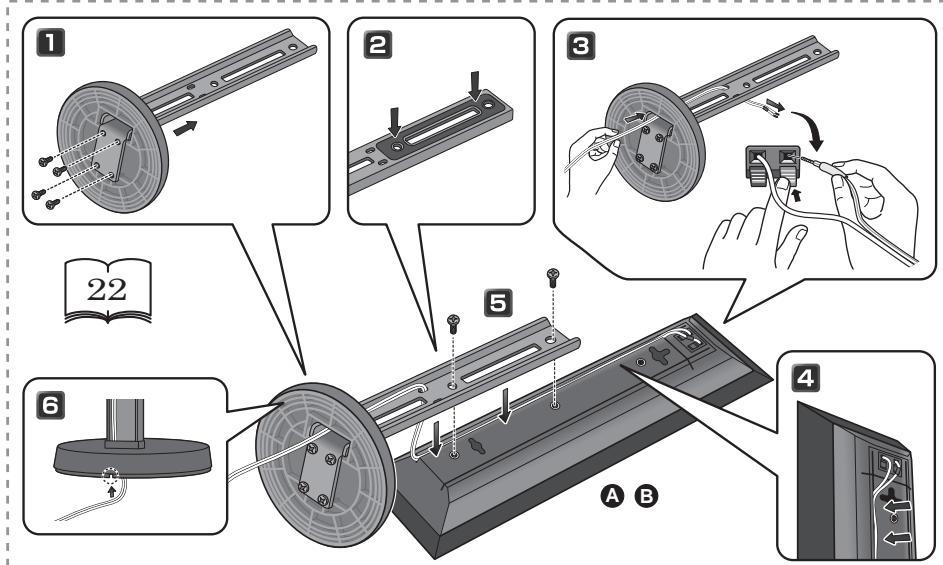

2 Insert the pole from the holes behind the base and secure with the 4 screws.

Caution

• Be careful not to tighten screws excessively.
• If excessive force is used to tighten screws, the threads of screw and/or nut may be damaged. Use a middle-sized manual screwdriver during assembly.
• Do not use power screwdrivers or oversized screwdrivers that may exert excessive force on the screws and nuts.
• Confirm that no foreign matter is stuck to the stand base or the tall speaker during assembly.
• If the unit is assembled with foreign matter stuck between the stand base and the tall speaker the unit may not be assembled securely, resulting in tipping or falling.

3 Affix the gasket to the pole.

Affix the gasket to the surface of the pole where the speaker will be mounted.

4 Insert the speaker cable from the hole behind the base through to the pole.

5 Connect each speaker.

Connect the wires to the speaker. Each speaker in the illustration can be identified by means of the color-coded indicator provided on the rear-surface label.

Front left: White

Front right: Red

Match the color-coded wire with the color indicator on the label, then insert the color-coded wire into the red (+) side and the other wire into the black (-) side.

Connect the other end to the color-coded speaker terminals on the rear of the receiver subwoofer.

• When connections are completed, secure the speaker cables. Fix the cables to the groove in the speakers.

Caution

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
• Only those speakers supplied, or purchased as an officially supported option, should be connected to this system.
• Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.
• After connecting the plugs, pull lightly on the cables to make sure that the ends of the cables are securely connected to the terminals. Poor connections can create noise and interruptions on the sound.
• If the cable's wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the amp. This may cause the amp to stop functioning, and may even damage the amp.

6 Secure the speaker and the pole with 2 screws.

• Confirm that the speaker cable does not become pinched between the pole and the speaker.

• Put the speaker cable in the back of the base of the stand.

Wall mounting the front speakers

The front speakers have a mounting hole which can be used to mount the speaker on the wall.

Before mounting

• Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls.
• Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

Caution

• If you are unsure of the qualities and strength of the wall, consult a professional for advice.
• Pioneer is not responsible for any accidents or damage that result from improper installation.

Attaching the speakers

The front speaker can be hung vertically or horizontally on the wall. Use one hole to hang it vertically and two holes to hang it horizontally.

When installing the speaker horizontally, set it up so that the speaker terminal on the back side of the speaker is on the outside on the end of the surface, farthest away from the other speaker.

Additional notes on speaker placement

• Install the front left and right speakers at an equal distance from the TV.

Precautions:

• Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the bare speaker wire touches the back panel it may cause the power to cut off as a safety measure.

• The front speakers supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker is installed extremely close to the screen of a television set. If this case happens, turn the power switch of the television set OFF, and turn it ON after 15 min. to 30 min. If the problem persists, place the speaker system away from the television set.

• The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the subwoofer.

• Do not attach the subwoofer to a wall or ceiling. They may fall off and cause injury.

For Enhanced Sound Quality

A home theater system can be easily constructed using just the front (right/left) speakers and the subwoofer of this set, but by adding optional S-SWR5CR speaker systems, you can enjoy genuine 5.1 channel surround sound.

Take the following points into account when connecting the optional speaker systems:

• When the contents of these Operating Instructions from chapter 2 on describe a specific model, use those portions dealing with the HTP-600.
• For information regarding the installation and connection of optional speaker systems, consult the information provided with the optional speaker systems, together Speaker Setup (HTP-600) on page 18 portion of these Operating Instructions.
• See Automatically setting up for surround sound (MCACC) on page 45 to set up your system again using MCACC.

Chapter 2

Connecting up

Rear panel

1 Coaxial/Optical digital audio inputs (x3)

Use for digital audio sources, including DVD players/recorders, digital satellite receivers, CD players, etc.

2 HDMI inputs (x3)/output (x1)

Multiple inputs and one output for high-quality audio/video connection to compatible HDMI devices.

3 FM antenna socket

4 Stereo analog audio inputs/outputs

Use for connection to audio sources such as CD players, tape decks, turntables, etc.

5 Surround back pre-amplifier outputs

Use to connect separate amplifiers for surround back channels.

6 MCACC SETUP MIC jack

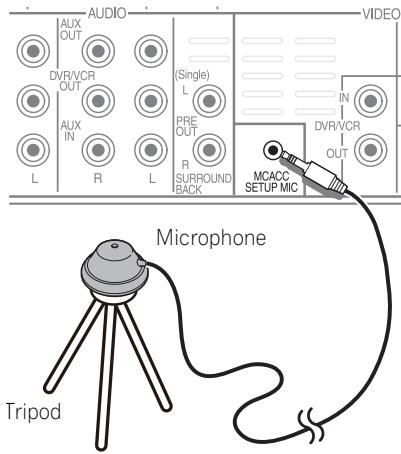

Use to connect the supplied microphone for the Auto MCACC setup (page 45).

7 Video inputs/outputs

Use for connection to video sources, such as DVD players/recorders, VCRs, etc.

8 AC IN - Power inlet

9 SPEAKERS terminals

Match the colors of the speaker cables to their respective connectors.

Making cable connections

Make sure not to bend the cables over the top of this unit. If this happens, the magnetic field produced by the transformers in this unit may cause a humming noise from the speakers.

Caution

• When connecting this system or changing connections, be sure to switch power off and disconnect the power cord from the wall socket.

After completing all connections, connect the power cords to the wall socket.

About video outputs connection

This system is not loaded with a video converter. When you use HDMI cable for connecting to the input device, the same cables should be used for connecting to the TV.

HDMI cables

The HDMI cables transfers uncompressed digital video, as well as almost every kind of digital audio that the connected component is compatible with, including DVD-video, DVD-Audio, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio (see below for limitations), Video CD/Super VCD, CD, SACD (DSD 2 ch only) and 192kHz / 8 ch (Max. number of channel inputs) PCM.

Be careful to connect the terminal in the proper direction.

About HDMI

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD players, DTV, set-top boxes, and other AV devices. HDMI was developed to provide the technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface (DVI) in one specification. HDCP is used to protect digital content transmitted and received by DVI-compliant displays.

HDMI has the capability to support standard, enhanced, or high-definition video plus standard to multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs.

This system is also compatible with the DeepColor and x.v.Color feature (x.v.Color is trademarks of Sony Corporation).

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

Note

1. Set the HDMI parameter in Setting the Audio options on page 63 to THRU (THROUGH) and set the input signal in Choosing the input signal on page 48 to HDMI, if you want to hear HDMI audio output from your TV or flat screen TV (no sound will be heard from this system).
2. If the video signal does not appear on your TV or flat screen TV, try adjusting the resolution settings on your component or display. Note that some components (such as video game units) have resolutions that may not be displayed. In this case, use a (analog) composite connection.
3. The signals input from the (analog) composite video inputs of this unit will not be output from the HDMI OUT.
4. When the video signal from the HDMI is 480i, 480p, 576i or 576p, Multi Ch PCM sound and HD sound cannot be received.

Important

• Compared to existing digital audio transmission formats (optical and coaxial), HDMI format digital audio transmissions requires a longer time to be recognized. Due to this, interruption in the audio may occur when switching between formats or beginning playback.

Additionally, turning on/off the component connected to this unit's HDMI OUT terminal or disconnecting/connecting the HDMI cable may cause noise or interrupted audio.

Analog audio cables

Use stereo RCA phono cables to connect analog audio components. These cables are typically red and white, and you should connect the red plugs to R (right) terminals and white plugs to L (left) terminals.

Digital audio cables

Commercially available coaxial digital audio cables or optical cables should be used to connect digital components to this system.

Coaxial digital audio cable

Optical cable

Standard RCA video cables

These cables are the most common type of video connection and are used to connect to the composite video terminals. The yellow plugs distinguish them from cables for audio.

Note

1 - When connecting optical cables, be careful when inserting the plug not to damage the shutter protecting the optical socket.
- When storing optical cable, coil loosely. The cable may be damaged if bent around sharp corners.
- You can also use a standard RCA video cable for coaxial digital connections.

Connect your TV (For TV audio)

This will allow you to play the sound from the TV's built-in tuner.

- Connect the analog audio outputs from your TV to the TV/SAT inputs on this system.

Use a stereo RCA phono cable.

• If your TV has a built-in digital decoder, you can also connect an optical digital audio output from your TV to the DIGITAL

OPTICAL IN 2 (AUX) input on this system.

Use an optical cable for the connection.

Note

In this case, you'll need to tell the system which digital input you connected the TV to (see Choosing the input signal on page 48).

Connecting your TV and playback components

Connecting using HDMI

If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray disc player, etc.), you can connect it to this system using a commercially available HDMI cable.

1 Connect the HDMI output on your BD/DVD player to the HDMI BD/DVD IN input on this system.

Use an HDMI cable for the connection.

2 Connect the HDMI OUT on this system to an HDMI input on your TV.

3 Connect the MONITOR OUT on this system to the composite video input on your TV.

The OSD will not appear if you have connected using the HDMI output to your TV. Use composite connections for system setup.

Use a standard RCA video cable.

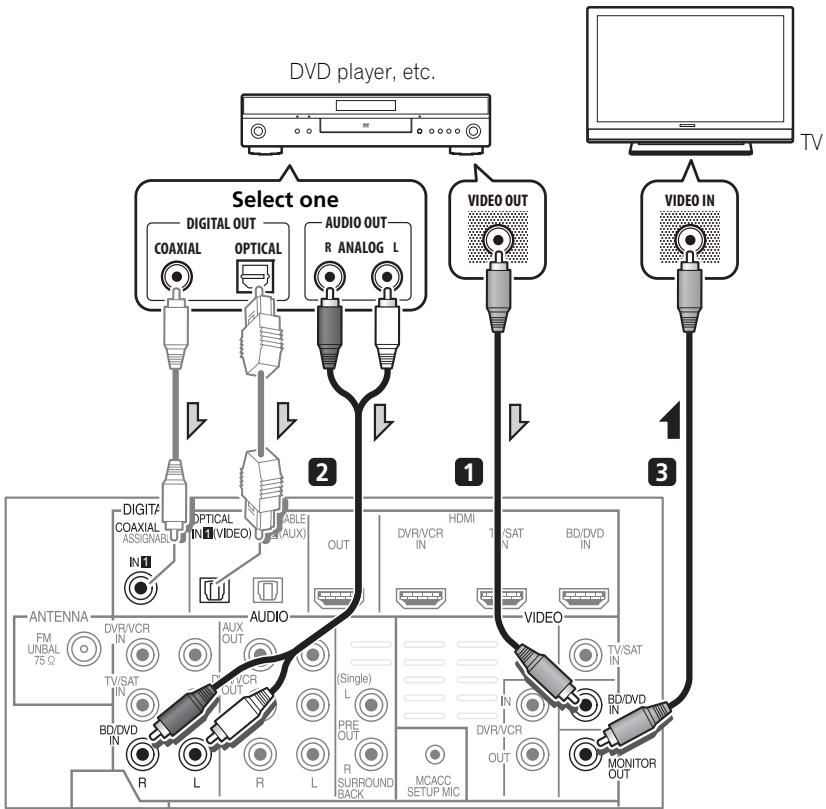

Connecting your component with no HDMI terminal

This diagram shows connections of a TV and DVD player (or other playback component) with no HDMI terminal to the system.

1 Connect the composite video output on your DVD player to the VIDEO BD/DVD input on this system.

Use a standard RCA video cable.

2 Connect the audio output on your DVD player to the AUDIO BD/DVD IN inputs on this system.

Use a stereo RCA phono cable. If your component has a digital output, you can also use an optical cable or coaxial cable for the connection.

3 Connect the MONITOR OUT on this system to the composite video input on your TV.

Use a standard RCA video cable.

Note

In this case, you'll need to tell the system which digital input you connected the component to (see Choosing the input signal on page 48).

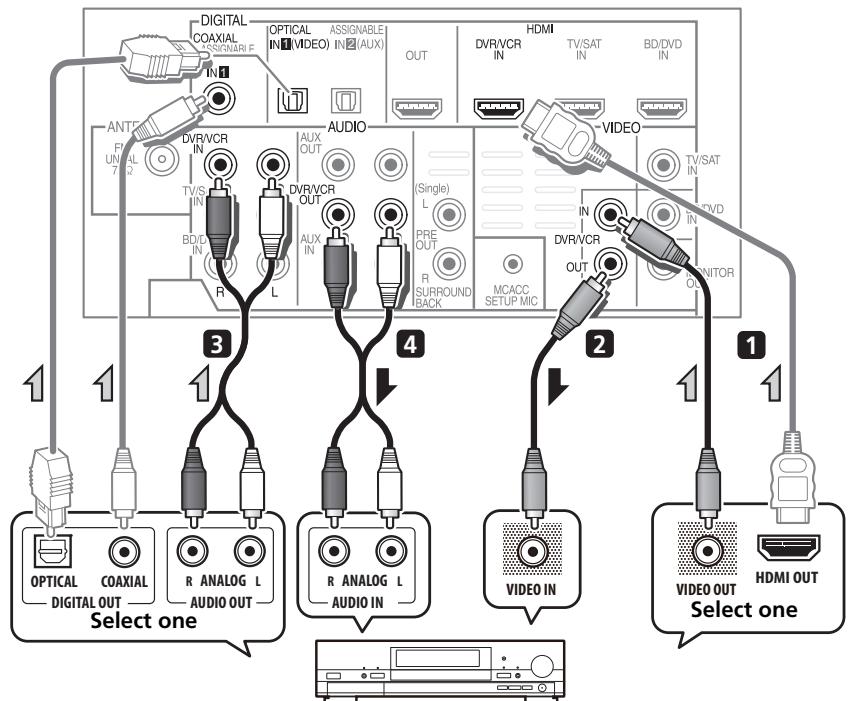

Connecting an HDD/DVD recorder, VCR and other video sources

This system has audio/video inputs and outputs suitable for connecting analog or digital video recorders, including VCRs and HDD/DVD recorders.

DVR, VCR, LD player, etc.

1 Connect the composite video output on your video component to the VIDEO DVR/VCR input on this system.

Use a standard RCA video cable.

• If the video component connected is equipped with an HDMI output, an HDMI cable may also be used for connection. In this case, use an HDMI cable to connect the TV as well.

2 Connect the VIDEO DVR/VCR OUT on this system to the composite video input on your video component.

3 Connect the audio output on your video component to the AUDIO DVR/VCR IN inputs on this system.

Use a stereo RCA phono cable. If your component has a digital output, you can also use an optical cable or coaxial cable for the connection.

4 Connect a video inputs on the recorder to theVIDEO DVR/VCR output on this system.

Use a standard RCA video cable.

Note

1 In this case, you'll need to tell the system which digital input you connected the component to (see Choosing the input signal on page 48).

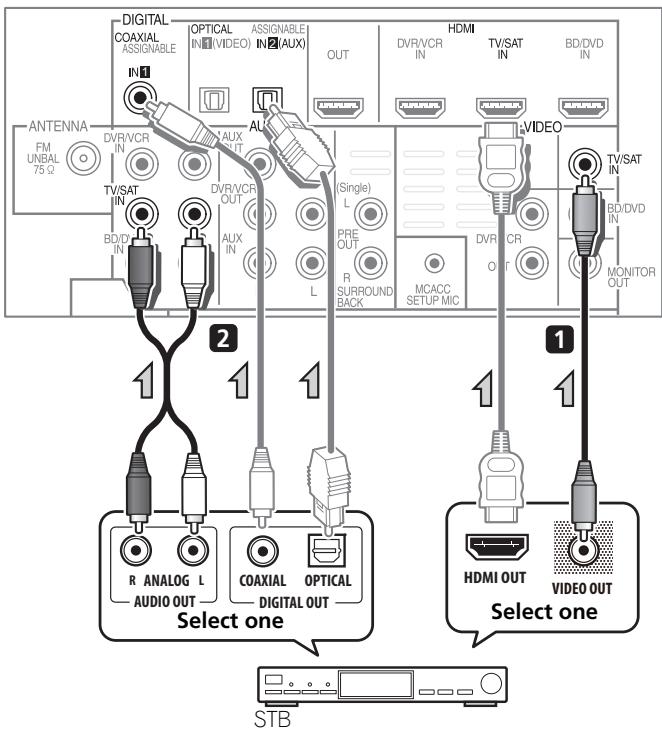

Connecting a satellite receiver or other digital set-top box

Satellite and cable receivers, and terrestrial digital TV tuners are all examples of so-called 'set-top boxes'.

1 Connect the composite video output on your set-top box to the VIDEO TV/SAT input on this system.

Use a standard RCA video cable.

• If the set-top box connected is equipped with an HDMI output, an HDMI cable may also be used for connection. In this case, use an HDMI cable to connect the TV as well.

2 Connect the audio output on your set-top box to the AUDIO TV/SAT IN inputs on this system.

Use a stereo RCA phono cable. If your component has a digital output, you can also use an optical cable or coaxial cable for the connection.

Note

In this case, you'll need to tell the system which digital input you connected the TV to (see Choosing the input signal on page 48).

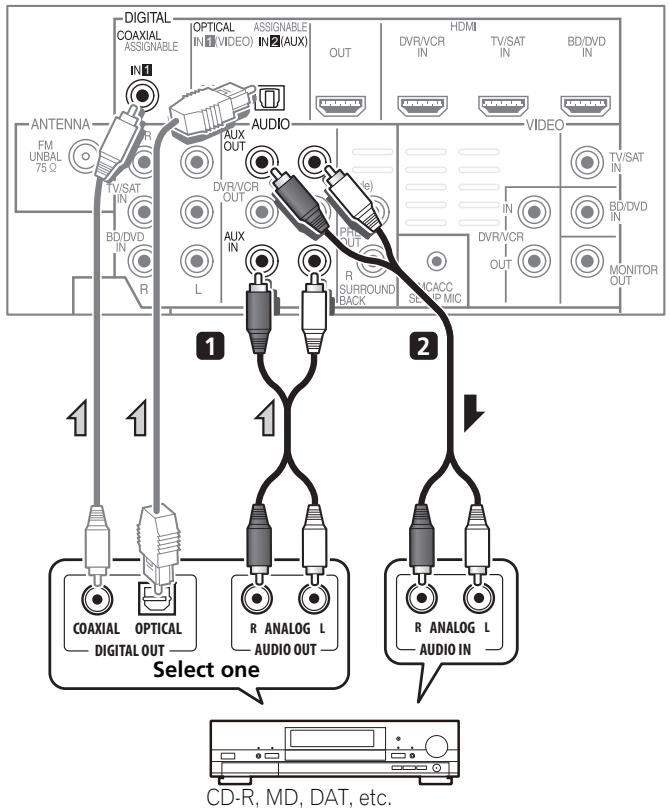

Connecting other audio components

The number and kind of connections depends on the kind of component you're connecting. Follow the steps below to connect a CD-R, MD, DAT, tape recorder or other audio component.

1 Connect the analog audio outputs of the component to a set of spare audio inputs on this system.

Use a stereo RCA phono cable. If your component has a digital output, connect this to a digital input on the system as shown.

2 If you're connecting a recorder, connect the analog audio outputs to the analog audio inputs on the recorder.

The example shows an analog connection to the AUX OUT analog output jack using a stereo RCA phono cable.

Note

1 Note that you must connect digital components to analog audio jacks if you want to record to/from digital components (like an MD) to/from analog components.

Connecting to the front panel video terminal

Front video connections are accessed via the front panel using the VIDEO button on the remote control. There are standard audio/video jacks. Hook them up the same way you made the rear panel connections.

• Remove the panel cover when making connections to the front panel.

Video camera, etc.

Connecting an iPod/iPhone

This system has a dedicated iPod /iPhone terminal that will allow you to control playback of audio content from your iPod/iPhone using the controls of this system.

• Switch the system into standby then use the supplied iPod cable to connect your iPod to the iPod/iPhone terminal on the front panel of this system.

• Remove the panel cover when making connections to the front panel.

• For the cable connection, refer to also the operating instructions for iPod.

• For instructions on playing the iPod, see Playing an iPod on page 49.

Connecting a USB device

It is possible to playback files using the USB interface on the front of this system.

• Switch the system into standby then connect your USB device to the USB terminal on the front panel of this system.

• Remove the panel cover when making connections to the front panel.

• For instructions on playing the USB device, see Playing a USB device on page 52.

Connecting the FM antenna

Connect the FM wire antenna as shown below. To improve reception and sound quality, connect external antennas (see Connecting external antennas below).

- Push the FM antenna plug onto the center pin of the FM antenna socket.

For best results, extend the FM antenna fully and fix to a wall or door frame. Don't drape loosely or leave coiled up.

Connecting external antennas

To improve FM reception connect an external FM antenna to the FM UNBAL 75 Ω.

Use the PRE OUT outputs to connect the surround back speakers

Connect the PRE OUT outputs of the system and additional amplifier to add a surround back speaker.

• You can use the additional amplifier on the surround back channel pre-outs for a single speaker as well. In this case plug the amplifier into the left (L (Single)) terminal only.

Plugging in the system

Only plug in after you have connected all your components to this system including the speakers.

1 Plug the supplied power cord into the AC IN socket on the back of the system.

2 Plug the other end into a power outlet.

CAUTION

• Handle the power cord by the plug part. Do not pull out the plug by tugging the cord, and never touch the power cord when your hands are wet, as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, or other object on the power cord or pinch the cord in any other way. Never make a knot in the cord or tie it with other cables. The power cords should be routed so that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electric shock. Check the power cord once in a while. If you find it damaged, ask your nearest Pioneer authorized independent service company for a replacement.
• Do not use any power cord other than the one supplied with this unit.
• Do not use the supplied power cord for any purpose other than that described below.
• The system should be disconnected by removing the mains plug from the wall socket when not in regular use, e.g., when on vacation.

Chapter 3

Controls and displays

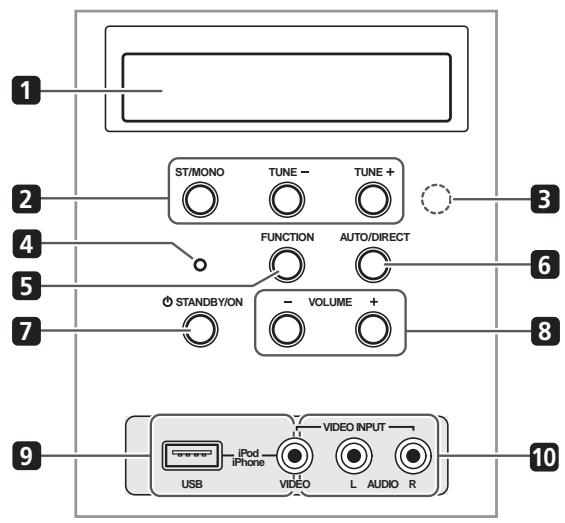

Front panel

1 Front panel display

See Display on page 39 for details.

2 Tuner control buttons

ST/MONO

Switches between auto stereo mode and mono reception mode (page 54).

TUNE + / -

Used to find radio frequencies (page 54).

3 IR remote sensor

4 Power indicator

5 FUNCTION button

Selects an input source.

6 AUTO/DIRECT

Switches between Auto surround mode (Auto playback on page 57) and Stream Direct playback.

7 STANDBY/ON

Switches the system on or into standby.

8 VOLUME + / -

Adjusts the volume.

9 iPod/USB terminal

Use to connect your Apple iPod or USB mass storage device as an audio source (page 49 and 52).

10 AUDIO/VIDEO input

See Connecting to the front panel video terminal on page 35.

Display

1 PHASE

Lights when the Phase Control is switched on (page 60).

2 AUTO

Lights when the Auto Surround feature is switched on (see Auto playback on page 57).

3 RDS

Lights when an RDS broadcast is received (page 56).

4ST

Lights when a stereo FM broadcast is being received in auto stereo mode.

5 TUNE

Lights when a normal broadcast channel is being received.

6 Sleep timer indicator

Lights when the system is in sleep mode (page 43).

7 Tuner preset indicators

PRESET

Shows when a preset radio station is registered or called.

MEM

Blinks when a radio station is registered.

8 PRESET Information or Input signal indicator

Shows the preset number of the tuner or the input signal type, etc.

9 Character display

Displays various system information.

10 DTS indicators

DTS

Lights when a source with DTS encoded audio signals is detected.

HD

Lights when a source with DTS-EXPRESS or DTS-HD encoded audio signals is detected.

ES

Lights when a source with DTS-ES encoded audio signals is detected.

96/24

Lights when a source with DTS 96/24 encoded audio signals is detected.

NEO:6

When one of the NEO:6 modes of the system is on, this lights to indicate NEO:6 processing (page 57).

11 Dolby Digital indicators

DD

Lights when a Dolby Digital encoded signal is detected.

D+

Lights when a source with Dolby Digital Plus encoded audio signals is detected.

DOHD

Lights when a source with Dolby TrueHD encoded audio signals is detected.

EX

Lights when a source with Dolby Digital EX encoded audio signals is detected.

PLII(x)

Lights to indicate Pro Logic II / Pro Logic IIx decoding (see Listening in surround sound on page 57 for more on this).

12 ADV.S.

Lights when one of the Advanced Surround modes has been selected (see Using the Advanced surround effects on page 58 for more on this).

13 SIGNAL SELECT indicators

DIGITAL

Lights when a digital audio signal is selected.
Blinks when a digital audio signal is not selected.

HDMI

Lights when an HDMI signal is selected.
Blinks when an HDMI signal is not selected.

14 UP MIX indicator

Lights when the UP MIX Setting is set to ON (page 62). Also, lights when DIMMER is set to off.

15 DIR.

Lights when the DIRECT or PURE DIRECT mode is switched on (page 59).

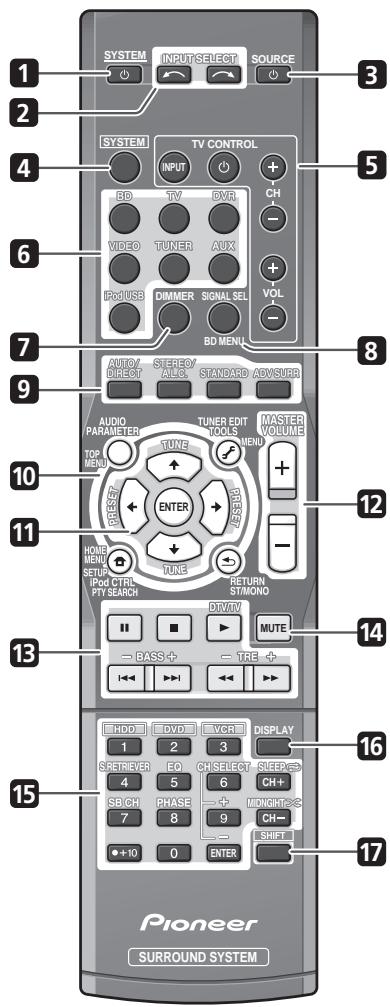

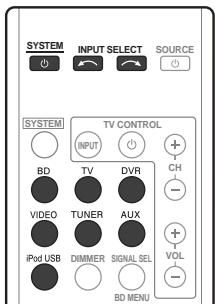

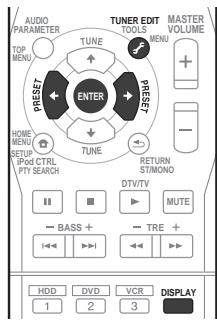

Remote control

1 SYSTEM

Switches the system between standby and on.

2 INPUT SELECT

Use to select the input source.

3 SOURCE

Press to turn on/off other components connected to the system (see page 71 for more on this).

4 SYSTEM

Switches the remote to control the system (used to select the white commands above the number buttons (S.RETRIEVER, etc)). Also use this button to set up surround sound (page 66) or Audio parameters (page 59).

5 TV CONTROL buttons

These buttons are dedicated to control the TV assigned to the TV button. Thus if you only have one TV to hook up to this system assign it to the TV button (see page 70 for more on this).

0

Use to turn on/off the power of the TV.

INPUT

Use to select the TV input signal.

CH+/-

Use to select channels.

VOL + / -

Use to adjust the volume on your TV.

6 MULTI CONTROL buttons

Press to select control of other components (see Controlling the rest of your system on page 69).

7 DIMMER

Dims or brightens the display. The brightness can be controlled in four steps.

8 SIGNAL SEL

Use to select an input signal (page 48).

Press BD first to access:

BD MENU

Displays the disc menu of Blu-ray Discs.

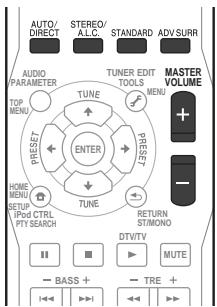

9 Listening mode buttons

AUTO/DIRECT

Switches between Auto surround mode (Auto playback on page 57) and Stream Direct playback. Stream Direct playback bypasses the tone controls for the most accurate reproduction of a source (page 59).

STEREO/A.L.C.

Switches between stereo playback, Auto level control stereo mode (page 58) and Front Stage Surround Advance modes (page 59).

STANDARD

Press for Standard decoding and to switch between Pro Logic II options (page 57).

ADV SURR

Switches between the various surround modes (page 58).

10 System Setup and Component control buttons

The following button controls can be accessed after you have selected the corresponding MULTI CONTROL button (BD, TV, etc.).

Press SYSTEM first to access:

AUDIO PARAMETER

Use to access the Audio options (page 59).

SETUP

Press to access the System Setup menu (page 66).

RETURN

Confirm and exit the current menu screen. Press BD or DVR first to access:

TOP MENU

Displays the disc 'top' menu of a BD/DVD.

HOME MENU

Displays the HOME MENU screen.

RETURN

Confirm and exit the current menu screen.

MENU

Displays the TOOLS menu screen of Blu-ray Disc player.

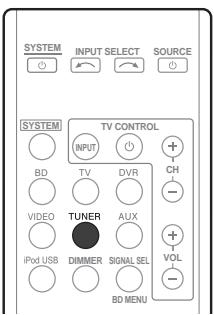

Press TUNER first to access:

TUNER EDIT

Memorizes/names stations for recall (page 54 and 55).

ST/MONO

Switches between auto stereo mode and mono reception mode (page 54).

PTY SEARCH

Use to search for RDS program types (page 56).

Press iPod USB first to access:

iPod CTRL

Switches between the iPod controls and the system controls (page 51).

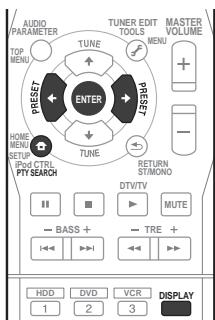

11 (TUNE / , PRESET / ), ENTER

Use the arrow buttons when setting up your surround sound system (page 66). Also used to control BD/DVD menus/options.

Use the TUNE / buttons can be used to find radio frequencies (page 54) and the PRESET / buttons can be used to select preset radio stations (page 55).

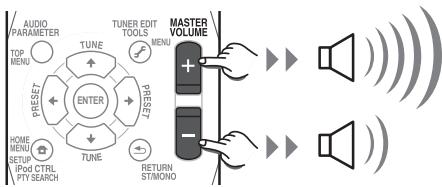

12 MASTER VOLUME + / -

Use to set the listening volume.

13 Component control buttons

The main buttons ( , ,etc.) are used to control a component after you have selected it using the input source buttons.

The controls above these buttons can be accessed after you have selected the corresponding input source button (for example BD, DVR or TV). These buttons also function as described below.

Press SYSTEM first to access:

BASS-/+

Use to adjust Bass

TRE -/+

Use to adjust Treble

Press TV first to access:

DTV/TV

Switches between the DTV and analog TV input modes for Pioneer flat screen TVs.

14 MUTE

Mutes/unmates the sound.

15 Number buttons and other component controls

Use the number buttons to directly select a radio frequency (page 54) or the tracks on a CD, DVD, etc. There are other buttons that can be accessed after the SYSTEM button is pressed. (For example MIDNIGHT, etc.)

HDD, DVD, VCR*

These buttons switch between the hard disk, DVD and VCR controls for HDD/DVD/ VCR recorders.

S.RETRIEVER

Press to restore CD quality sound to compressed audio sources (page 59).

EQ

Press to switch on/off Acoustic Calibration EQ setting (page 60).

CH SELECT

Press repeatedly to select a channel, then use + / - to adjust the level (page 68).

CH SELECT +/-

Use to adjust the channel level.

SB CH

Use to select the surround back channel mode (page 62).

PHASE

Press to switch on/off Phase Control (page 60).

MIDNIGHT

Switches to Midnight or Loudness listening (page 63).

SLEEP

Press to change the amount of time before the system switches into standby (30 min - 60 min - 90 min - Off). You can check the remaining sleep time at any time by pressing SLEEP once.

16 DISPLAY

Switches the display of this unit. The input name, listening mode or sound volume can be checked by selecting an input source.

17 SHIFT

Press to access the 'boxed' commands (above the buttons) on the remote. These buttons are marked with an asterisk (^*) in this section.

Putting the batteries in the remote control

Caution

Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:

• Don't mix new and old batteries together.
• Don't use different kinds of battery together — although they may look similar, different batteries may have different voltages.
• Make sure that the plus and minus ends of each battery match the indications in the battery compartment.
• Remove batteries from equipment that isn't going to be used for a month or more.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country/area.
• Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Using the remote control

Please keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit's remote sensor.
• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.
• Replace the batteries when you notice a fall off in the operating range of the remote.
• Use within the operating range in front of the remote control sensor on the unit, as shown.

Chapter 4 Getting started

Automatically setting up for surround sound (MCACC)

The Auto Multi-Channel Acoustic Calibration (MCACC) setup measures the acoustic characteristics of your listening area, taking into account ambient noise, speaker size and distance, and tests for both channel delay and channel level. After you have set up the microphone provided with your system, the system uses the information from a series of test tones to optimize the speaker settings and equalization for your particular room.

Important

• The Auto MCACC Setup will overwrite any existing speaker settings you've made.
• Before using the Auto MCACC Setup, the iPod USB function should not be selected as an input source.

Caution

• The test tones used in the Auto MCACC Setup are output at high volume.

1 Connect the microphone to the MCACC SETUP MIC jack on the rear panel.

Make sure there are no obstacles between the speakers and the microphone.

If you have a tripod, use it to place the microphone so that it's about ear level at your normal listening position. Otherwise, place the microphone at ear level using a table or a chair.

2 Switch on the system and your TV.

3 Press SYSTEM on the remote control, then press the SETUP button.

An on-screen display (OSD) appears on your TV. Use ↑/↓/←/→ and ENTER on the remote control to navigate through the screens and select menu items. Press RETURN to exit the current menu.

• Press SETUP at any time to exit the System Setup menu.1

Note

1 The screenshot automatically starts after three minutes of inactivity. If you cancel the Auto MCACC Setup at any time, the system automatically exits and no settings will be made.
- The OSD will not appear if you have connected using the HDMI output to your TV. Use composite connections for system setup.

4 Select 'Auto MCACC' from the System Setup menu then press ENTER.

Try to be as quiet as possible after pressing ENTER. The system outputs a series of test tones to establish the ambient noise level.

5 Follow the instructions on-screen.

• Make sure the microphone is connected.
  See below for notes regarding background noise and other possible interference.
• When using surround back speakers, turn on the power to the amplifier to which the surround back speakers are connected, and adjust the sound level to the desired level.

6 Wait for the test tones to finish.

• A progress report is displayed on-screen while the system outputs test tones to determine the speakers present in your setup. Try to be as quiet as possible while it's doing this.

• For correct speaker settings, do not adjust the volume during the test tones.

7 Confirm the speaker configuration.

The configuration shown on-screen should reflect the actual speakers you have.

• With error messages (such as Too much ambient noise) select RETRY after checking for ambient noise (see Other problems when using the Auto MCACC Setup on page 47).

If the speaker configuration displayed isn't correct, use / to select the speaker and / to change the setting. When you're finished, go to the next step.

If you see an error message (ERR) in the right side column, there may be a problem with the speaker connection. If selecting RETRY doesn't fix the problem, turn off the power and check the speaker connections.

8 Make sure 'OK' is selected, then press ENTER.

If the screen in step 7 is left untouched for 10 seconds and the ENTER button is not pressed in step 8, the Auto MCACC setup will start automatically as shown below.

A progress report is displayed on-screen while the system outputs more test tones to determine the optimum system settings for channel level, speaker distance, and Acoustic Calibration EQ.

Note

1 MIC IN blinks when the microphone is not connected to MCACC SETUP MIC.

1.Auto MCACC

Now Analyzing

Surround Analyzing

Speaker System

Speaker Distance Channel Level

Acoustic Cal EQ

Return

Again, try to be as quiet as possible while this is happening. It may take 1 to 3 minutes.

9 The Auto MCACC Setup has finished! You return to the System Setup menu.

• Be sure to disconnect the microphone from this unit upon completion of the Auto MCACC setup.

The settings made in the Auto MCACC Setup should give you excellent surround sound from your system, but it is also possible to adjust these settings manually using the System Setup menu (starting on page 66).

Other problems when using the Auto MCACC Setup

If the room environment is not optimal for the Auto MCACC Setup (too much background noise, echo off the walls, obstacles blocking the speakers from the microphone) the final settings may be incorrect. Check for household appliances (air conditioner, fridge, fan, etc.), that may be affecting the environment and switch them off if necessary. If there are any instructions showing in the front panel display, please follow them.

• Some older TVs may interfere with the operation of the microphone. If this seems to be happening, switch off the TV when doing the Auto MCACC Setup.

Basic operation

Procedures for listening to audio from a radio or connected other component.

1 Turn on the power of the playback component.
2 Press SYSTEM to turn on the power of this system.
3 Select the source you want to playback. Use the MULTI CONTROL (or INPUT SELECTOR) buttons.

• Select the type of audio input signal if required (see page 48).

4 Start playback of the component you selected in step 1.
5 Select the listening mode.

Use the listening mode buttons.

6 Press MASTER VOLUME + / - to adjust the volume.

Note

1 The subwoofer distance setting may be farther than the actual distance from the listening position. This setting should be accurate (taking delay and room characteristics into account) and generally does not need to be changed.

Choosing the input signal

On this system, it is possible to switch the input signals for the different inputs as described below.

1 Press SYSTEM on the remote control.

2 Press SIGNAL SEL to select the input signal corresponding to the source component.

When DIGITAL (C1/O1/O2) or HDMI (H) is selected and the selected audio input is not provided, A (analog) is automatically selected.

Each press cycles through the following:

• A - Selects the analog inputs.
• DIGITAL - Selects the digital input. The coaxial 1 input is selected for C1, and the optical 1 or 2 audio input is selected for O1 or O2.
• HDMI - Selects an HDMI signal. H can be selected for BD/DVD, TV/SAT or DVR/VCR input. For other inputs, HDMI cannot be selected.2

When set to DIGITAL or HDMI, DIO lights when a Dolby Digital signal is input, and DTS lights when a DTS signal is input.

When the HDMI is selected, the A and

DIGITAL indicators are off (see page 38).

Note

1 This system can only play back Dolby Digital, PCM (32 kHz to 96 kHz) and DTS (including DTS 96 kHz/24 bit) digital signal formats. The compatible signals via the HDMI terminals are: Dolby Digital, DTS, SACD (DSD 2 ch), PCM (32 kHz to 192 kHz sampling frequencies), Dolby TrueHD, Dolby Digital Plus, DTS-EXPRESSION, DTS-HD Master Audio and DVD Audio (including 192 kHz). With other digital signal formats, set to A (analog) (TUNER).
- You may get digital noise when a LD or CD player compatible with DTS is playing an analog signal. To prevent noise, make the proper digital connections (page 27) and set the signal input to C1/O1/O2 (DIGITAL).
- Some DVD players don't output DTS signals. For more details, refer to the instruction manual supplied with your DVD player.
2 When the HDMI option in Setting the Audio options on page 63 is set to THRU, the sound will be heard through your TV, not from this system.

Chapter 5 iPod/USB playback

Playing an iPod

This system has a dedicated iPod terminal that will allow you to control playback of audio content from your iPod using the controls of this system.

1 Switch on the system and your TV.

See Connecting an iPod/iPhone on page 35.

2 Press the iPod USB button to switch the system to the iPod/USB.

The front panel display shows Loading while the system verifies the connection and retrieves data from the iPod.

3 Use the TOP MENU button to display iPod Top menu.

When the display shows Top Menu you're ready to play music from the iPod.2

• If after pressing iPod the display shows NO DEVICE, try switching off the system and reconnecting the iPod to the system.

iPod playback

To navigate songs on your iPod, you can take advantage of the OSD of your TV connected to this system.3 You can also control all operations for music in the front panel display of this system.

Finding what you want to play

When your iPod is connected to this system, you can browse songs stored on your iPod by playlist, artist, album name, song name, genre or composer, similar to using your iPod directly.

1 Use the / buttons to select a category then press ENTER to browse that category.

• To return to the previous level any time, press RETURN.

Note

1 This system is compatible with the audio and the video of the iPod nano, iPod fifth generation, iPod classic, iPod touch and iPhone (iPod shuffle not supported). However, that some of the functions may be restricted for some models. Note, however, compatibility may vary depending on the software version of your iPod and iPhone. Please be sure to use the latest available software version.

• iPod and iPhone are licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.
• Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.
• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from the iPod failure.
• When connected to a television using HDMI output alone, the iPod Top menu will not be displayed. In this case, use composite connection instead.

2 The controls of your iPod (excluding iPod touch or iPhone) will be inoperable when connected to this system (Pioneer shows in the iPod display).
3 - Note that non-roman characters in the title are displayed as .
- This feature is not available for photos or video clips on your iPod.

2 Use the / buttons to browse the selected category (e.g., albums).

• Use / to move to previous/next levels.

3 Continue browsing until you arrive at what you want to play, then press to start playback.1

Navigation through categories on your iPod looks like this:

Playlists Songs

Artists Albums Songs

Albums Songs

Songs

Podcasts

Genres Artists Albums Songs

Composers Albums Songs

Audiobooks

Shuffle Songs

Tip

• You can play all of the songs in a particular category by selecting the All item at the top of each category list. For example, you can play all the songs by a particular artist.

Basic playback controls

The following table shows the basic playback controls for your iPod. Press iPod USB to switch the remote control to the iPod operation mode.

Button	What it does
▲	Press to start playback. If you start playback when something other than a song is selected, all the songs that fall into that category will play.
ENTER	Press to set the play and pause modes.
II	Pauses playback, or restarts playback when paused.
←/→	Press and hold during playback to start scanning.
I←/→I	Press to skip to previous/next track.
←	Press repeatedly to switch between Repeat One, Repeat All and Repeat Off.
×	Press repeatedly to switch between Shuffle Songs, Shuffle Albums and Shuffle Off.
DISPLAY	Press repeatedly to change the song playback information displayed in the front panel display.
←/→	When browsing, press to move to previous/next levels.
↑/↓	During Audiobook playback, press to switch the playback speed: Faster → Normal → Slower
TOP MENU	Press to return to the iPod Top menu screen.
RETURN	Press to return to the previous level.

Note

1 If you're in the song category, you can also press ENTER to start playback.

Watching photos and video content

To view photos or video on your iPod, since video control is not possible using this system, you must use the main controls of your iPod instead.

Important

• To play photos or video on your iPod, you must connect the composite MONITOR OUT jack and TV.

1 Press iPod CTRL to switch to the iPod controls for photo and video playback.

The system controls will be unavailable while you are watching iPod videos or browsing photos.

2 Press iPod CTRL again to switch back to the system controls when you're done.

About iPod

Made for iPod

Works with iPhone

'Made for iPod' means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

Works with iPhone' means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc.

Note

1 - iPod photos and video content can be viewed only when the iPod is connected to the iPod VIDEO input on the front panel.
- This feature can only be used with an iPod having video output.

Playing a USB device

It is possible to listen to two-channel audio using the USB interface on the front of this system.

1 Switch on the system and your TV.

2 Press iPod USB on the remote control to switch the system to the iPod/USB.

No Device appears in the OSD.

3 Connect your USB device.2

See Connecting a USB device on page 35.

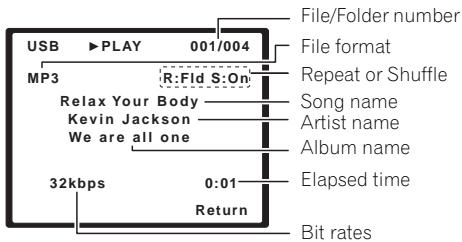

Loading appears in the OSD as this system starts recognizing the USB device connected. After the recognition, a playback screen appears in the OSD and playback starts automatically.3

Basic playback controls

The following table shows the basic controls on the remote for USB playback. Press iPod USB to switch the remote control to the iPod USB operation mode.

Button	What it does
►	Starts normal playback.
II	Pauses/unpauses playback.
←/→	Press to skip to previous/next track.
←/→	Press and hold during playback to start scanning.
←	Press repeatedly to switch between Repeat Folder, Repeat One and Repeat All.
×	Press repeatedly to switch between Shuffle On and Shuffle Off.
DISPLAY	Press repeatedly to change the song playback information displayed in the front panel display.
←/→	During playback, press to skip to previous/next track.
↑/↓
TOP MENU	Press to return to the menu screen.
RETURN	Press to return to the previous level.

Note

1 This includes playback of WMA/MP3/MPEG-4 AAC files (except files with copy-protection or restricted playback).
2 - Make sure the system is in standby when disconnecting the USB device.
- Compatible USB devices include external magnetic hard drives, portable flash memory (particularly keydrives) and digital audio players (MP3 players) of format FAT16/32. It is not possible to connect this system to a personal computer for USB playback.
- Pioneer cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this system.
- With large amounts of data, it may take longer for the system to read the contents of a USB device.
- When connected to a television using HDMI output alone, the USB playback window of the on-screen display (OSD) will not be displayed. In this case, use composite connection instead.
3 - If the file selected cannot be played back, this system automatically skips to the next file playable.
- When the file currently being played back has no title assigned to it, the file name is displayed in the OSD instead; when neither the album name nor the artist name is present, the row is displayed as a blank space.
Note that non-roman characters in the playlist are displayed as

Important

If a USB Error message lights in the display, try following the points below:

• Switch the system off, then on again.
• Reconnect the USB device with the system switched off.
• Select another input source (like BD), then switch back to iPod USB.
• Use a dedicated AC adapter (supplied with the device) for USB power.

For more information on error messages, see USB messages on page 81.

If this doesn't remedy the problem, it is likely your USB device is incompatible.

Compressed audio compatibility

Note that although most standard bit/ sampling rate combinations for compressed audio are compatible, some irregularly encoded files may not play back. The list below shows compatible formats for compressed audio files:

• MP3 (MPEG-1/2/2.5 Audio Layer 3) – Sampling rates: 8 kHz to 48 kHz; Bit rates: 8 kbps to 320 kbps (128 kbps or higher recommended); File extension:.mp3
• WMA (Windows Media Audio) - Sampling rates: 32 kHz / 44.1 kHz; Bit rates: 32 kbps to 192 kbps (128 kbps or higher recommended); File extension:.wma; WMA9 Pro and WMA lossless encoding: No
• AAC (MPEG-4 Advanced Audio Coding) - Sampling rates: 11.025 kHz to 48 kHz; Bit rates: 16 kbps to 320 kbps (128 kbps or higher recommended); File extension:.m4a; Apple lossless encoding: No

Other compatibility information

• VBR (variable bit rate) MP3/WMA/MPEG-4 AAC playback: Yes
• DRM (Digital Rights Management) protection compatible: Yes (DRM-protected audio files will not play in this system).

About MPEG-4 AAC

Advanced Audio Coding (AAC) is at the core of the MPEG-4 AAC standard, which incorporates MPEG-2 AAC, forming the basis of the MPEG-4 audio compression technology. The file format and extension used depend on the application used to encode the AAC file. This system plays back AAC files encoded by iTunes bearing the extension '.m4a'. DRM-protected files will not play, and files encoded with some versions of iTunes may not play.

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

About WMA

The Windows Media logo printed on the box indicates that this system can playback Windows Media Audio content.

WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. This system plays back WMA files encoded using Windows Media® Player bearing the extension .wma'. Note that DRM-protected files will not play, and files encoded with some versions of Windows Media® Player may not play.

Windows Media, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Chapter 6

Using the tuner

Listening to the radio

The following steps show you how to tune in to FM broadcasts using the automatic (search) and manual (step) tuning functions. Once you are tuned to a station you can memorize the frequency for recall later—see Saving station presets below for more on how to do this.

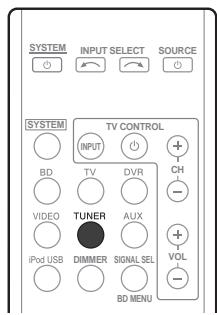

1 Press TUNER to select the tuner.

2 Tune to a station.

There are three ways to do this:

Automatic tuning

To search for stations in the currently selected band, press and hold TUNE / (remote control or front panel) for about a second. The system will start searching for the next station, stopping when it has found one. Repeat to search for other stations.

Manual tuning

To change the frequency one step at a time, press TUNE ↑/↓.

High speed tuning

Press and hold TUNE / for high speed tuning. Release the button at the frequency you want.

Improving FM stereo sound

If the TUNE or ST indicators don't light when tuning to an FM station because the signal is weak, press the ST/MONO button to select FM MONO and set the system to the mono reception mode. This should improve the sound quality and allow you to enjoy the broadcast.

Saving station presets

If you often listen to a particular radio station, it's convenient to have the system store the frequency for easy recall whenever you want to listen to that station. This saves the effort of manually tuning in each time. This unit can memorize up to 30 stations.

1 Tune to a station you want to memorize. See Listening to the radio above for more on this.

2 Press TUNER EDIT.

The display shows PRESET, then a blinking MEM and station preset.

Note

1 If the system is left disconnected from the AC power outlet for over a month, the station memories will be lost and will have to be reprogrammed.

3 Press PRESET / to select the station preset you want.

You can also use the number buttons.

4 Press ENTER.

After pressing ENTER, the preset number stop blinking and the system stores the station.

Listening to station presets

You will need to have some presets stored to do this. See Saving station presets on page 54 if you haven't done this already.

- Press PRESET / to select the station preset you want.

• You can also use the number buttons on the remote control to recall the station preset.

Naming preset stations

For easier identification, you can name all of your preset stations.

1 Choose the station preset you want to name.

See Listening to station presets above for how to do this.

2 Press TUNER EDIT twice.

The cursor at the first character position is blinking on the display.

3 Input the name you want.

Choose a name up to eight characters long.

• Use the PRESET / buttons to select character position.
• Use the TUNE ↑/↓ buttons to select characters.
• The name is stored when ENTER is pressed.

Tip

• To erase a station name, follow steps 1 and 2, and press ENTER while the display is blank. Press TUNER EDIT while the display is blank, to keep the previous name.

• Once you have named a station preset, press DISPLAY to show the name. When you want to return to the frequency display, press DISPLAY several times to show the frequency.

An introduction to RDS

Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information—the name of the station and the kind of show they're broadcasting, for example.

One feature of RDS is that you can search by type of program. For example, you can search for a station that's broadcasting a show with the program type, JAZZ.

You can search the following program types:

NEWS - News

AFFAIRS - Current Affairs

INFO - General Information

SPORT-Sport

EDUCATE - Educational

DRAMA - Radio plays, etc.

CULTURE - National or regional culture, theater, etc.

SCIENCE - Science and technology

VARIANT - Usually talk-based material, such as quiz shows or interviews.

POP M - Pop music

ROCK M - Rock music

EASY M - Easy listening

LIGHT M - 'Light' classical music

CLASSICS - 'Serious' classical music

OTHER M - Music not fitting above categories

WEATHER - Weather reports

FINANCE - Stock market reports, commerce, trading, etc.

CHILDREN - Programs for children

SOCIAL - Social affairs

RELIGION - Programs concerning religion

PHONE IN - Public expressing their views by phone

TRAVEL - Holiday-type travel rather than traffic announcements

LEISURE-Leisure interests and hobbies

JAZZ-Jazz

COUNTRY - Country music

NATION M - Popular music in a language other than English

OLDIES - Popular music from the '50s and '60s

FOLK M - Folk music

DOCUMENT -

Documentary

Note

1 In addition, there are three other program types, ALARMTST, ALARM, and NO TYPE. ALARM and ALARMTST are used for emergency announcements. NO TYPE appears when a program type cannot be found.

Searching for RDS programs

You can search for a program type listed above.

1 Press TUNER.
2 Press PTY SEARCH.

SEARCH shows in the display.

3 Press PRESET / to select the program type you want to hear.
4 Press ENTER to search for the program type.

The system starts searching through the station presets for a match, stopping when it was found one. Repeat to search for other stations.

If NO PTY is displayed it means the tuner couldn't find that program type at the time of the search.1

Displaying RDS information

Use the DISPLAY button to display the different types of RDS information available.2

Press DISPLAY for RDS information.

Each press changes the display as follows:

• Listening mode
• Master volume
• Radio Text (RT) - Messages sent by the radio station. For example, a talk radio station may provide a phone number as RT.
• Program Service Name (PS) - The name of the radio station.
• Program Type (PTY) - This indicates the kind of program currently being broadcast.
• Current tuner frequency (FREQ)

Note

1 RDS searches station presets only. If no stations have been preset, or if the program type could not be found among the station presets NO PTY is displayed. FINISH means the search is complete.
2. If any noise is picked up while displaying the RT scroll, some characters may be displayed incorrectly.

• If you see NO TEXT in the RT display, it means no RT data is sent from the broadcast station. The display will automatically switch to the PS data display (if no PS data, NO NAME is displayed).
• In the PTY display, NO PTY may be shown.

Chapter 7 Listening to your system

Important

• The listening modes and many features described in this section may not be available depending on the current source, settings and status of the system.

Selecting Listening mode

Various listening modes are available for enjoyment of diverse sound effects and for sound field correction according to your preference.

The best listening mode may vary, depending on the model. In order to ascertain the best settings for your listening conditions, use of the Auto MCACC function is recommended.

- HTP-700/HTP-600 model

Select one listening mode from the surround sound mode. See Listening in surround sound below.

HTP-FS500 model

Select one listening mode from the Front Stage Surround Advance mode. See Using Front Stage Surround Advance on page 59.

• When optional speakers are connected, select one listening mode from the surround sound mode. See Listening in surround sound below.

Auto playback

The simplest, most direct listening option is the Auto Surround feature. With this, the system automatically detects what kind of source you're playing and selects multichannel or stereo playback as necessary.

- While listening to a source, press AUTO/DIRECT² for auto playback of a source.

Press repeatedly until AUTO SURROUND shows briefly in the display (it will then show the decoding or playback format). Check the digital format indicators in the display to see how the source is being processed.

Listening in surround sound

For HTP-700/HTP-600:

Using this system, you can listen to any source in surround sound. However, the options available will depend on your speaker setup and the type of source you're listening to.

The following modes provide basic surround sound for stereo and multichannel sources.

Note

1 Stereo surround (matrix) formats are decoded accordingly using NEO:6 CINEMA or DOLBY PLII MOVIE (see Listening in surround sound above for more on these decoding formats).
2 For more options using this button, see Using Stream Direct on page 59.

While listening to a source, press STANDARD.

If the source is Dolby Digital, DTS, or Dolby Surround encoded, the proper decoding format will automatically be selected and shows in the display.

With two channel sources, you can select from:

DOLBY PLII MOVIE - Up to 5.1 channel sound, especially suited to movie sources
- DOLBY PLII MUSIC ^1 - Up to 5.1 channel sound, especially suited to music sources
DOLBY PLII GAME - Up to 5.1 channel sound, especially suited for video games
- NEO:6 CINEMA—Up to 5.1 channel sound, especially suited to movie sources
NEO:6 MUSIC - Up to 5.1 channel sound, especially suited to music sources
DOLBY PRO LOGIC - 4.1 channel surround sound

Using the Advanced surround effects

The Advanced surround feature creates a variety of surround effects. Try different modes with various soundtracks to see which you like.

- Press ADV SURR repeatedly to select a listening mode.

• ACTION - Designed for action movies with dynamic soundtracks.
• DRAMA - Designed for movies with lots of dialog.
• ENT.SHOW - Suitable for musical sources.
  ADVANCED GAME -Suitable for video games.
• SPORTS - Suitable for sports programs.

CLASSICAL - Gives a large concert hall-type sound.
- ROCK/POP - Creates a live concert sound for rock and/or pop music.
- UNPLUGGED - Suitable for acoustic music sources.
- EXT.STEREO - Gives multichannel sound to a stereo source, using all of your speakers.

Listening in stereo

When you select STEREO you will hear the source through just the front left and right speakers (and possibly your subwoofer depending on your speaker settings). Dolby Digital and DTS multichannel sources are downmixed to stereo.

In the Auto level control stereo mode (A.L.C.), this unit equalizes playback sound levels if each sound level varies with the music source recorded in a portable audio player.

While listening to a source, press STEREO/A.L.C. for stereo playback.

Press repeatedly to switch between:

STEREO - The audio is heard with your surround settings and you can still use the Midnight, Loudness, Phase Control, Sound Retriever and Tone functions.
- A.L.C. - Listening in Auto level control stereo mode.
F.S.S.ADVANCE - See Using Front Stage Surround Advance on page 59 for more on this.

Note

1 When listening to 2-channel sources in DOLBY PLII MUSIC mode, there are three further parameters you can adjust: C.WIDTH, DIMEN., and PNRM.. See Setting the Audio options on page 63 to adjust them.
2 When listening to 2-channel sources in NEO:6 CINEMA or NEO:6 MUSIC mode, you can also adjust the C.IMG effect (see Setting the Audio options on page 63).

Using Front Stage Surround Advance

The Front Stage Surround Advance function allows you to create natural surround sound effects using just the front speakers and the subwoofer.

While listening to a source, press STEREO/A.L.C. to select Front Stage Surround Advance modes.

STEREO - See Listening in stereo on page 58 for more on this.
A.L.C.-See Listening in stereo on page 58 for more on this.
- F.S.S.ADVANCE - Use to provide a rich surround sound effect directed to the center of where the front left and right speakers sound projection area converges.

F.S.S.ADVANCE position

Using Stream Direct

Use the Stream Direct modes when you want to hear the truest possible reproduction of a source. All unnecessary signal processing is bypassed.

While listening to a source, press AUTO/DIRECT to select Stream Direct mode.

• AUTO SURROUND - See Auto playback on page 57.
• DIRECT - Sources are heard according to the settings made in the Surround Setup (speaker setting, channel level, speaker distance), as well as with dual mono settings. You will hear sources according to the number of channels in the signal.
• PURE DIRECT - Analog and PCM sources are heard without any digital processing.2

Using the Sound Retriever

When audio data is removed during the compression process, sound quality often suffers from an uneven sound image. The Sound Retriever feature employs new DSP technology that helps bring CD quality sound back to compressed 2-channel audio by restoring sound pressure and smoothing jagged artifacts left over after compression.

• Press SYSTEM, then press S.RETRIEVER to switch the sound retriever on or off.

Note

1 In the DIRECT mode, Phase Control, Acoustic Calibration EQ, Sound Delay, Auto Delay, LFE Attenuate and Center image functions are available.
2 There are cases where a brief noise is heard before playback of sources other than PCM. Please select AUTO SURROUND or DIRECT if this is a problem.
3 The Sound Retriever is only applicable to 2-channel sources.

Listening with Acoustic Calibration EQ

• Default setting: ON

You can listen to sources using the Acoustic Calibration Equalization set in Automatically setting up for surround sound (MCACC) on page 45. Refer to these pages for more on Acoustic Calibration Equalization.

• While listening to a source, press SYSTEM, then press EQ to switch the Acoustic Calibration EQ on or off.1

Better sound using Phase Control

This system's Phase Control feature uses phase correction measures to make sure your sound source arrives at the listening position in phase, preventing unwanted distortion and/or coloring of the sound (see illustration below).

During multichannel playback, LFE (Low-Frequency Effects) signals as well as low-frequency signals in each channel are assigned to the subwoofer or other the subwoofer and the most appropriate speaker. At least in theory, however, this type of processing involves a group delay that varies with frequency, resulting in phase distortion where the low-frequency sound is delayed or

muffled by the conflict with other channels. With the Phase Control mode switched on, this system can reproduce powerful bass sound without deteriorating the quality of the original sound (see illustration below).

PHASE CONTROL QFF

Sound source

PHASE CONTROL ON

Sound source

Phase Control technology provides coherent sound reproduction through the use of phase matching for an optimal sound image at your listening position. The default setting is on and we recommend leaving Phase Control switched on for all sound sources.

• Press [SYSTEM], then press PHASE to switch on phase correction.

Note

1You can't use Acoustic Calibration EQ with Stream Direct mode.
2. Phase matching is a very important factor in achieving proper sound reproduction. If two waveforms are 'in phase', they crest and trough together, resulting in increased amplitude, clarity and presence of the sound signal. If a crest of a wave meets a trough (as shown in the upper section of the diagram above) then the sound will be 'out of phase' and an unreliable sound image will be produced.
- If your subwoofer has a phase control switch, set it to the plus (+) sign (or 0^ ). However, the effect you can actually feel when PHASE CONTROL is set to ON on this system depends on the type of your subwoofer. Set your subwoofer to maximize the effect. It is also recommended you try changing the orientation or the place of your subwoofer.
- Set the built-in lowpass filter switch of your subwoofer to OFF. If this cannot be done on your subwoofer, set the cutoff frequency to a higher value.
- If the speaker distance is not properly set, you may not have a maximized PHASE CONTROL effect.
- When the PURE DIRECT mode is selected, the PHASE CONTROL mode cannot be set to ON.

Functions when surround back speakers are connected

For HTP-700/HTP-600:

When surround back speakers are connected to a surround back amplifier, 7.1 ch surround sound is possible. In this case, it is possible to select a listening mode and make other settings supported by 7.1 ch playback.

See also Using surround back channel processing on page 62.

Surround sound mode

With two channel sources, you can select from:

• DOLBY PLIIx MOVIE – Up to 7.1 channel sound, especially suited to movie sources
• DOLBY PLIIx MUSIC – Up to 7.1 channel sound, especially suited to music sources²
• DOLBY PLIIx GAME – Up to 7.1 channel sound, especially suited to video games
• NEO:6 CINEMA - 6.1 channel sound, especially suited to movie sources
  NEO:6 MUSIC - 6.1 channel sound, especially suited to music sources
• DOLBY PRO LOGIC - 4.1 channel surround sound (sound from the surround speakers is mono)

With multichannel sources, if you have connected surround back speaker(s) and have selected SB ON, you can select (according to format):

• DOLBY PLIIx MOVIE - See above (only available when you're using two surround back speakers)
  DOLBY PLIIx MUSIC - See above
  DOLBY DIGITAL EX - Creates surround back channel sound for 5.1 channel sources and provides pure decoding for 6.1 channel sources (like Dolby Digital Surround EX)
• DTS-ES - Allows you to hear 6.1 channel playback with DTS-ES encoded sources
• DTS NEO:6 - Allows you to hear 6.1 channel playback with DTS encoded sources

Note

1. If surround back channel processing (page 62) is switched off, or the surround back speakers are set to NO, DOLBY PLIIx becomes DOLBY PLII (5.1 channel sound).
2. In modes that give 6.1 channel sound, the same signal is heard from both surround back speakers.
   2 When listening to 2-channel sources in DOLBY PLIIx MUSIC mode, there are three further parameters you can adjust: C.WIDTH, DIMEN., and PNRM.. See Setting the Audio options on page 63 to adjust them.
   3 When listening to 2-channel sources in NEO:6 CINEMA or NEO:6 MUSIC mode, you can also adjust the C.IMG effect (see Setting the Audio options on page 63).

Using surround back channel processing

- Default setting: SB ON

You can have the system automatically use 6.1 or 7.1 decoding for 6.1 encoded sources (for example, Dolby Digital EX or DTS-ES), or you can choose to always use 6.1 or 7.1 decoding (for example, with 5.1 encoded material). With 5.1 encoded sources, a surround back channel will be generated, but the material may sound better in the 5.1 format for which it was originally encoded (in which case, you can simply switch surround back channel processing off).

• With a 7.1-channel surround system, audio signals that have undergone matrix decoding processing through surround back channel processing to which the Up Mix function is added are output from the surround back speakers.

- Press SYSTEM, then press SB CH repeatedly to cycle the surround back channel options.

Each press cycles through the options as follows:

• SB ON - Matrix decoding processing for generating the surround back component from the surround component is turned on.
• SB AUTO - Matrix decoding processing for generating the surround back component from the surround component is switched automatically. Matrix decoding processing is only performed when surround back channel signals are detected in the input signals.
• SB OFF - Matrix decoding processing for generating the surround back component from the surround component is turned off.

Setting the Up Mix function

In a 7.1-channel surround system with surround speakers placed directly at the sides of the listening position, the surround sound of 5.1-channel sources is heard from the side. The Up Mix function mixes the sound of the surround speakers with the surround back speakers so that the surround sound is heard from diagonally to the rear as it should be.

• Using the Up Mix function is effective when the speakers in the 7.1-channel surround system are set up as recommended in the example below.
• Depending on the positions of the speakers and the sound source, in some cases it may not be possible to achieve good results. In this case, set the setting to OFF.

Up Mix OFF

Up Mix ON

1 Switch the system into standby.

2 While holding down the PRESET + on the front panel, and hold the STANDBY/ON for about two seconds.

UP MIX: OFF appears and the Up Mix function turns off. If you want to turn this function on, perform steps 1 and 2 again.

• When set to ON, the UP MIX indicator on the front panel lights.

Note

1 - Set to ON regardless of this setting when playing DTS-HD signals.
- May automatically be set to OFF even when set to ON, depending on the input signal and listening mode.

Setting the Audio options

There are a number of additional sound settings you can make using the AUDIO PARAMETER menu. The defaults, if not stated, are listed in bold.

Important

Note that if a setting doesn't appear in the AUDIO PARAMETER menu, it is unavailable due to the current source, settings and status of the system.

1 Press SYSTEM on the remote control, then press AUDIO PARAMETER button.
2 Use / to select the setting you want to adjust.

Depending on the current status/mode of the system, certain options may not be able to be selected. Check the table below for notes on this.

3 Use / to set it as necessary.

See the table below for the options available for each setting.

4 Press RETURN to confirm and exit the menu.

Setting	What it does	Option(s)
EQ(Acoustic Calibration EQ)	Switches on/off the effect of Acoustic Calibration EQ.	ON
		OFF
S.DELAY(Sound Delay)	Some monitors have a slight delay when showing video, so the soundtrack will be slightly out of sync with the picture. By adding a bit of delay, you can adjust the sound to match the presentation of the video.	0.0 to 9.0 (frames)1 second = 25 frames(PAL)Default: 0.0
\( MIDNIGHT^a \)	Allows you to hear effective surround sound of movies at low volumes.	M/L OFF
		MIDNIGHT
\( LOUDNESS^a \)	Used to get good bass and treble from music sources at low volumes.	LOUDNESS
\( S.RTV^b \)(Sound Retriever)	When audio data is removed during the WMA/MP3c compression process, sound quality often suffers from an uneven sound image. The Sound Retriever feature employs new DSP technology that helps bring CD quality sound back to compressed 2-channel audio by restoring sound pressure and smoothing jagged artifacts left over after compression.	OFF
		ON
DUAL MONOd	Specifies how dual mono encoded Dolby Digital soundtracks should be played.	CH1 – Channel 1 is heard only
		CH2 – Channel 2 is heard only
		CH1 CH2 – Both channels heard from front speakers
DRC (Dynamic Range Control)	Adjusts the level of dynamic range for movie soundtracks optimized for Dolby Digital, DTS, Dolby Digital Plus, Dolby TrueHD, DTS-HD and DTS Master Audio (you may need to use this feature when listening to surround sound at low volumes).	AUTOe
		MAX
		MID
		OFF
LFE ATT (LFE Attenuate)	Some Dolby Digital and DTS audio sources include ultra-low bass tones. Set the LFE attenuator as necessary to prevent the ultra-low bass tones from distorting the sound from the speakers. The LFE is not limited when set to 0 dB, which is the recommended value. When set to -10 dB, the LFE is limited by the respective degree. When OFF is selected, no sound is output from the LFE channel.	LFEATT 0 (0 dB)
		LFEATT 10 (-10 dB)/LFEATT ** (OFF)
HDMI (HDMI Audio)	Specifies the routing of the HDMI audio signal out of this system (amp) or through to a TV or flat screen TV. When THRU is selected, no sound is output from this system.	AMP
		THRU
A.DLY (Auto Delay)	This feature automatically corrects the audio-to-video delay between components connected with an HDMI cable. The audio delay time is set depending on the operational status of the display connected with an HDMI cable. The video delay time is automatically adjusted according to the audio delay time.f	OFF
		ON
The following settings are not supported by the HTP-FS500.
C.WIDTH9 (Center Width) (Applicable only when using a center speaker)	Spreads the center channel between the front right and left speakers, making it sound wider (higher settings) or narrower (lower settings).	0 to 7 Default: 3
DIMEN.9 (Dimension)	Adjusts the surround sound balance from front to back, making the sound more distant (minus settings), or more forward (positive settings).	-3 to +3 Default: 0
PNRM.9 (Panorama)	Extends the front stereo image to include surround speakers for a ‘wraparound’ effect.	OFF
		ON
C.IMGh (Center image) (Applicable only when using a center speaker)	Adjust the center image to create a wider stereo effect with vocals. Adjust the effect from 0 (all center channel sent to front right and left speakers) to 10 (center channel sent to the center speaker only).	0 to 10 Default: 3 (NEO:6 MUSIC), 10 (NEO:6 CINEMA)

a. You can change the MIDNIGHT/LOUDNESS options at any time by using MIDNIGHT button.
b. You can change the Sound Retriever feature at any time by using S.RETRIEVER button.
c. WMA and MP3 playback available only via iPod/USB input.
d. This setting works only with dual mono encoded Dolby Digital and DTS soundtracks.
e. The initial set AUTO is only available for Dolby TrueHD signals. Select MAX or MID for signals other than Dolby TrueHD.
f. This feature is only available when the connected display supports the automatic audio/video synchronizing capability ('lip-sync') for HDMI. If you find the automatically set delay time unsuitable, set A.DLY to OFF and adjust the delay time manually. For more details about the lip-sync feature of your display, contact the manufacturer directly.
g. Only available with 2-channel sources in DOLBY PLII MUSIC mode.
h. Only when listening to 2-channel sources in NEO:6 CINEMA and NEO:6 MUSIC mode.

Chapter 8

The System Setup menu

Using the System Setup menu

The following section shows you how to make detailed settings to specify how you're using the system, and also explains how to fine-tune individual speaker system settings to your liking.

1 Switch on the system and your TV.

Use the 心 SYSTEM button to switch on.

2 Press SYSTEM on the remote control, then press the SETUP button.1

An on-screen display (OSD) appears on your TV. Use / / / and ENTER on the remote control to navigate through the screens and select menu items. Press RETURN to confirm and exit the current menu.

3 Select the setting you want to adjust.

• Auto MCACC - This is a quick and effective automatic surround setup (see Automatically setting up for surround sound (MCACC) on page 45).
• Manual SP Setup - Specify the number, distance and overall balance of the speakers you've connected (see Manual speaker setup below).

Manual speaker setup

These settings are designed to fine-tune your system, but if you're satisfied with the settings made in Automatically setting up for surround sound (MCACC) on page 45, it isn't necessary to make all of these settings.

Caution

• The test tones used in the System Setup are output at high volume.

1 Select 'Manual SP Setup' then press ENTER.

2 Select the setting you want to adjust.

If you are doing this for the first time, you may want to adjust these settings in order:

• Speaker Setting - Specify the number of speakers you've connected (see below).
• Channel Level - Adjust the overall balance of your speaker system (see below).
• Speaker Distance - Specify the distance of your speakers from the listening position (see page 68).

3 Make the adjustments necessary for each setting, pressing RETURN to confirm after each screen.

Speaker Setting

Use this setting to specify your speaker configuration (number of speakers). It is a good idea to make sure that the settings made in Automatically setting up for surround sound (MCACC) on page 45 are correct.

1 Select 'Speaker Setting' from the Manual SP Setup menu.

2 Choose the set of speakers that you want to set then select a speaker setting.

Use / to select the number of each of the following speakers:

• Front - This setting cannot be changed, since it is already optimized for this unit.

• Center - Select SMALL if you connect a center speaker. If you didn't connect a center speaker, choose NO (the center channel is sent to the other speakers).

• Surr - Select SMALL if you connect surround speakers. If you didn't connect surround speakers choose NO (the sound of the surround channels is sent to the other speakers).

• Surr. Back - Select the number of surround back speakers you have (one, two or none). If you didn't connect surround back speakers choose NO.
• Subwoofer - This setting cannot be changed, since it is already optimized for this unit.

3 When you're finished, press RETURN.

You return to the Manual SP Setup menu.

Channel Level

Using the channel level settings, you can adjust the overall balance of your speaker system, an important factor when setting up a home theater system.

1 Select 'Channel Level' from the Manual SP Setup menu.

2 Select a setup option.

• Manual - Move the test tone manually from speaker to speaker and adjust individual channel levels.
• Auto - Adjust channel levels as the test tone moves from speaker to speaker automatically.

Note

1- If the surround speakers are set to NO, the surround back speakers will automatically be set to NO.

• If you select one surround back speaker only, make sure that additional amplifier is hooked up to the PRE OUT SURROUND BACK L (Single) terminal.

3 Confirm your selected setup option.

The test tones will start after you press ENTER. After the volume increases to the reference level, test tones will be output.

4 Adjust the level of each channel using

If you selected Manual, use ↑/↓ to switch speakers. The Auto setup will output test tones in the order shown on-screen:

Adjust the level of each speaker as the test tone is emitted.

5 When you're finished, press RETURN.

You return to the Manual SP Setup menu.

Tip

• You can change the channel levels at any time by press , then press CH SELECT and +/- on the remote control. You can also press CH SELECT and use / to select the channel, and then use / to adjust the channel levels.

Speaker Distance

For good sound depth and separation from your system, you need to specify the distance of your speakers from the listening position. The system can then add the proper delay needed for effective surround sound.

1 Select 'Speaker Distance' from the Manual SP Setup menu.

2 Adjust the distance of each speaker using / .

You can adjust the distance of each speaker in 0.1 m increments.

3 When you're finished, press RETURN.

You return to the Manual SP Setup menu.

Note

1. If you are using a Sound Pressure Level (SPL) meter, take the readings from your main listening position and adjust the level of each speaker to 75 dB SPL (C-weighting/slow reading).

2. The subwoofer test tone is output at low volumes. You may need to adjust the level after testing with an actual soundtrack.

Chapter 9

Controlling the rest of your system

Setting the remote to control other components

Most components can be assigned to one of the MULTI CONTROL buttons using the component's manufacturer preset code stored in the remote.

However, please note that there are cases where only certain functions may be controllable after assigning the proper preset code, or the codes for the manufacturer in the remote control will not work for the model that you are using.

Note

• You can cancel or exit any of the steps by pressing SYSTEM.
  After one minute of inactivity, the remote automatically exits the operation.

Selecting preset codes directly

1 While pressing the SYSTEM button, press and hold the '1' button for three seconds.
2 Press the MULTI CONTROL button for the component you want to control.

The component can be assigned to the BD, TV, DVR or VIDEO button.

3 Use the number buttons to enter the preset code.

You can find the preset codes on page 73.

If the correct code has been input the power of the component being input will turn on or off.

The power of the component being input will only turn on or off if that component is able to be turned on directly by remote control.

4 Repeat steps 2 through 3 to try a different code, or to enter a code for another component you want to control.
5 When you're done, press SYSTEM.

Clearing all the remote control settings

You can clear all presets and restore the factory default settings.

• While pressing the SYSTEM button, press and hold the '0' button for three seconds.

Default preset codes

MULTI CONTROL button	Preset code
BD	2126
TV	0120
DVR	2121
VIDEO	1120

Controls for TVs

This remote control can control components after entering the proper codes or teaching the system the commands (see Controlling the rest of your system on page 69 for more on this). Use the MULTI CONTROL buttons to select the component

• The TV CONTROL buttons on the remote control are dedicated to control the TV assigned to the TV button.

Button(s)	Function	Components
TV CONTROL ♂	Switches the DTV on or off.	DTV
	Switches the TV or CATV between standby and on.	Cable TV/Satellite TV/TV
TV CONTROL INPUT	Switches the TV input. (Not possible with all models.)	TV
TV CONTROL CH +/-	Selects channels.	Cable TV/Satellite TV/TV/DTV
TV CONTROL VOL +/-	Adjust the TV volume.	Cable TV/Satellite TV/TV/DTV
SOURCE	Press to switch the component assigned to the TV button on or off.	Cable TV/Satellite TV/TV/DTV
DTV/TV	Switches between the DTV and analog TV input modes for Pioneer flat screen TVs.	DTV/TV
TOP MENU	Switches TEXT ON/OFF for TVs.	TV
HOME MENU	Use as the GUIDE button for navigating.	Cable TV/Satellite TV/TV/DTV
RETURN	Use to select closed captioning with DTV.	DTV
Number buttons	Use to select a specific TV channel.	Cable TV/Satellite TV/TV/DTV
+10 button	Use to add a decimal points when selecting TV channels.	DTV
ENTER	Use to enter a channel.	Cable TV/Satellite TV/TV/DTV
MENU	Press to display the DTV menu.	DTV
	Select the menu screen.	Cable TV/Satellite TV/TV
←→↓↑ & ENTER	Press to select or adjust and navigate items on the menu screen.	Cable TV/Satellite TV/TV/DTV
CH +/-	Selects channels.	Cable TV/Satellite TV/TV/DTV

Controls for other components

This remote control can control these components after entering the proper codes or teaching the system the commands (see Controlling the rest of your system on page 69 for more on this). Use the MULTI CONTROL buttons to select the component.

Button(s)	Function	Components
SOURCE	Press to switch the component between standby and on.	BD/DVD player, DVR, VCR
←←	Press to return to the start of the current track. Repeated presses skips to the start of previous tracks.	BD/DVD player, DVR, VCR
▶→	Press to advance to the start of the next track. Repeated presses skips to the start of following tracks.	BD/DVD player, DVR, VCR
II	Pause playback or recording.	BD/DVD player, DVR, VCR
▶	Start playback.	BD/DVD player, DVR, VCR
▶	Hold down for fast forward playback.	BD/DVD player, DVR, VCR
←	Hold down for fast reverse playback.	BD/DVD player, DVR, VCR
■	Stops playback (on some models, pressing this when the disc is already stopped will cause the disc tray to open).	BD/DVD player, DVR, VCR
Number buttons	Directly access tracks on a program source.	VCR
	Use to enter a title/chapter/track number.	BD/DVD player, DVR
+10 button	Selects tracks higher than 10. (For example, press +10 then 3 to select track 13.)	BD/DVD player, DVR
ENTER	Use as the ENTER button.	BD/DVD player
	Displays the DISC NAVI screen for DVD recorder.	DVR
DISPLAY	Press to display information.	BD/DVD player, DVR
TOP MENU	Displays the disc 'top' menu of a BD/DVD player.	BD/DVD player, DVR
MENU	Displays menus for the current BD/DVD player or DVD recorder you are using.	BD/DVD player, DVR
←→↓↑, ENTER & RETURN	Navigates BD/DVD menu/options.	BD/DVD player, DVR
HOME MENU	Displays the HOME MENU.	BD/DVD player, DVR
CH +/-	Selects channels.	DVR, VCR
HDD (SHIFT + 1)	Switches to the hard disk controls when using an HDD/DVD recorder.	HDD/DVD/VCR recorder
DVD (SHIFT + 2)	Switches to the DVD controls when using an HDD/DVD recorder.	HDD/DVD/VCR recorder
VCR (SHIFT + 3)	Switches to the VCR controls when using an HDD/DVD/ VCR recorder.	HDD/DVD/VCR recorder

Preset Code List

You should have no problem controlling a component if you find the manufacturer in this list, but please note that there are cases where codes for the manufacturer in the list will not work for the model that you are using. There are also cases where only certain functions may be controllable after assigning the proper preset code.

BD/DVD/DVR

Manufacturer Code

AEG 2093

Aiwa 2054

Akai 2001

Akura 2091

Alba 2027, 2038, 2048

Amitech 2093

AMW 2094

Awa 2094

Bang & Olufsen 2096

Bellagio 2094

Best Buy 2090

Brainwave 2093

Brandt 2017, 2044

Bush 2027, 2048, 2082, 2089

Cambridge Audio 2085

CAT 2087, 2088

Centrum 2088

CGV 2085, 2093

Cinetec 2094

Clatronic 2089

Coby 2095

Conia 2082

Continental Edison 2094

Crown 2093

C-Tech 2086

CyberHome 2008, 2037

Daenyx 2094

Daewoo 2035, 2059, 2093, 2094

Daewoo International 2094

Dalton 2092

Dansai 2084, 2093

Daytek 2010, 2033, 2094

Dayton 2094

DEC 2089

Decca 2093

Denon 2066, 2068

Denver 2069, 2089, 2091, 2095

Denzel 2083

Diamond 2085, 2086

DK Digital 2034

Dmtech 2000

Dual 2083

DVX 2086

Easy Home 2090

Eclipse 2085

Electrohome 2093

Elin 2093

Elta 2047, 2093

Enzer 2083

Finlux 2085, 2093

Gericom 2050

Global Solutions 2086

Global Sphere 2086

Goodmans 2027, 2070, 2089

Graetz 2083

Grundig 2053

Grunkel 2093

H&B 2089

Haaz 2085, 2086

HiMAX 2090

Hitachi 2015, 2083, 2090

Innovation 2002

JVC 2024, 2041, 2057

Kansai 2095

Kennex 2093

Kenwood 2051

KeyPlug 2093

Kiiro 2093

Kingavon 2089

Kiss 2083

Koda 2089

KXD 2090

Lawson 2086

Lecson 2084

Lenco 2089, 2093

LG 2016, 2020, 2040, 2043, 2065, 2076

Life 2002

Lifetec 2002

Limit 2086

Loewe 2056

LogicLab 2086

Magnavox 2089

Majestic 2095

Marantz 2062

Marquant 2093

Matsui 2044

Mecotec 2093

Medion 2002

MiCO 2085

Micromaxx 2002

Microstar 2002

Minoka 2093

Mizuda 2089, 2090

Monyka 2083

Mustek 2006

Mx Onda 2085

Naiko 2093

Neufunk 2083

Nevir 2093

NU-TEC 2082

Onkyo 2072

Optim 2084

Optimus 2004

Orava 2089

Orbit 2094

Orion 2061

P&B 2089

Pacific 2086

Panasonic 2018, 2019, 2026, 2032, 2036, 2075

Philips 2005, 2011, 2022, 2023, 2031, 2039, 2062

Pioneer 2004, 2012, 2014, 2049, 2120, 2121, 2122, 2123, 2124, 2125, 2126

Pointer 2093

Portland 2093

Powerpoint 2094

Prosonic 2095

Provision 2089

Raite 2083

RedStar 2091, 2093, 2095

Reoc 2086

Roadstar 2021, 2089

Ronin 2094

Rowa 2082

Rownsonic 2088

Saba 2017, 2044

Sabaki 2086

Saivod 2093

Samsung 2015, 2042, 2063, 2078, 2081

Sansui 2085, 2086, 2093

Sanyo 2045, 2071

ScanMagic 2006

Schaub Lorenz 2093

Schneider 2000

Scientific Labs 2086

Scott 2025, 2092

SEG2021,2083,2086,2094

Sharp 2002, 2046, 2079

Sigmatek 2090

Silva 2091

Singer 2085, 2086

Skymaster 2058, 2086

Skyworth 2091

Slim Art 2093

SM Electronic 2086

Sony 2009, 2013, 2028, 2029, 2030, 2055, 2080

Soundmaster 2086

Soundmax 2086

Spectra 2094

Standard 2086

Star Cluster 2086

Starmedia 2089

Sunkai 2093

Supervision 2086

Synn 2086

Tatung 2035, 2093

TCM 2002

Teac 2067, 2082, 2086

Tec 2091

Technika 2093

Telefunken 2088

Tensai 2093

Tevion 2002, 2086, 2092

Thomson2003,2017,2060; 2064

Tokai 2083, 2091

Toshiba 2007, 2061, 2073, 2074, 2077

TRANScontinentns 2094

Trio 2093

TruVision 2090

Wharfedale 2085, 2086

Xbox 2003

Xlogic 2086, 2093

XMS 2093

Yamada 2094

Yamaha 2011

Yamakawa 2083, 2094

Yukai 2006, 2052

TV

Manufacturer Code

A.R. Systems 0040

Acme 0026

Acura 0027, 0039

ADC 0025

Admiral 0023, 0024, 0025, 0030, 0031

Adyson 0026, 0113, 0114

Agashi 0113, 0114

Agazi 0025

Aiko 0026,0027,0039, 0040,0113,0114

Aim 0040

Aiwa 0084

Akai 0027,0028,0034, 0037,0039,0040,0113, 0114

Akiba 0028, 0040

Akura 0025,0028,0039 0040

Alaron 0113

Alba 0010, 0026, 0027, 0028, 0032, 0035, 0037, 0039, 0040, 0075, 0078, 0088, 0113

Alcyon 0017

Allorgan 0114

Allstar 0034, 0040

AMOi 0109

Amplivision 0010, 0026, 0041, 0114

Amstrad 0025,0027,0028, 0039,0040

Anam 0027

Anglo 0027, 0039

Anitech 0017,0025,0027 0039,0040

Ansonic 0010, 0018, 0027, 0029, 0039, 0040

Arcam 0113, 0114

Arcam Delta 0026

Aristona 0034, 0037, 0040

Arthur Martin 0041

ASA 0023, 0031

Asberg 0017, 0034, 0040

Astra 0027

Asuka 0025,0026,0028, 0113,0114

Atlantic 0026,0034,0037 0040,0113

Atori 0027, 0039

Auchan 0041

Audiosonic 0010,0026, 0027,0028,0034,0037, 0040,0114

AudioTon 0010, 0026, 0114

Ausind 0017

Autovox 0017, 0023, 0025, 0026, 0114

Awa 0113, 0114

Baird 0114

Bang & Olufsen 0023, 0115

Basic Line 0027,0028, 0034,0039,0040,0114

Bastide 0026, 0114

Baur 0037, 0040

Bazin 0114

Beko 0010,0035,0040 0060

Benq 0104

Beon 0034, 0037, 0040

Best 0010

Bestar 0010, 0034, 0040

Binatone 0026, 0114

Blue Sky 0028, 0040

Blue Star 0036

Boots 0026, 0114

BPL 0036,0040

Brandt 0033,0038,0042, 0044

Brinkmann 0040

Brionvega 0023,0034, 0037,0040

Britannia 0026, 0113, 0114

Bruns 0023

BTC 0028

Bush 0027, 0028, 0030, 0032, 0034, 0036, 0037, 0039, 0040, 0065, 0078, 0114

Capsonic 0025

Carena 0040

Carrefour 0032

Cascade 0027, 0039, 0040

Casio 0106

Cathay 0034, 0037, 0040

CCE 0114

Centurion 0034, 0037, 0040

Century 0023

CGE 0010, 0017

Cimline 0027, 0039

City 0027, 0039

Clarivox 0037

Clatronic 0010, 0017, 0025, 0026, 0027, 0028, 0034, 0035, 0039, 0040, 0114

CMS 0113

CMS Hightec 0114

Concorde 0027, 0039

Condor 0010, 0026, 0034, 0035, 0039, 0040, 0113

Contec 0026, 0027, 0032, 0039, 0113

Continental Edison 0033

Cosmel 0027, 0039

Crosley 0017, 0023

Crown 0010, 0017, 0027, 0034, 0035, 0037, 0039, 0040

CS Electronics 0026, 0028, 0113

CTC Clatronic 0029

Cybertron 0028

Daewoo 0013,0026,0027, 0034,0039,0040,0054, 0064,0091,0113,0114

Dainichi 0028, 0113

Dansai 0025,0034,0037 0040,0113,0114

Dantax 0010, 0037

Dawa 0040

Daytron 0027, 0039

De Graaf 0030

Decca 0026,0034,0037 0040,0114

Denver 0098, 0103

Desmet 0034, 0037, 0040

Diamant 0040

Diamond 0113

Dixi 0027,0034,0037,0039, 0040,0114

DTS 0027, 0039

Dual 0026, 0040, 0114

Dual-Tec 0026, 0027

Dumont 0023, 0026, 0029, 0114

Dux 0037

Dynatron 0034, 0037, 0040

Elbe 0010, 0018, 0040, 0114

Elcit 0023

Electa 0036

ELECTROTECH 0027

Elin 0026,0034,0037,0039 0040,0113

Elite 0028, 0034, 0040

Elman 0029

Elta 0027, 0039, 0113

Emerson 0010, 0023, 0040

Epson 0101

Erres 0034, 0037, 0040

ESC 0114

Etron 0027

Eurofeel 0025, 0114

Euroline 0037

Euroman 0010,0025,0026, 0034,0040,0113,0114

Europhon 0026, 0029, 0034, 0040, 0113, 0114

Expert 0041

Exquisit 0040

Fenner 0027, 0039

Ferguson 0033,0037,0038, 0042

Fidelity 0026,0030,0040 0113

Filsai 0114

Finlandia 0030

Finlux 0017 0023, 0026, 0029, 0034, 0037, 0040, 0114

Firstline 0026,0027,0034, 0039,0040,0113,0114

Fisher 0010, 0023, 0026, 0032, 0035, 0114

Flint 0034, 0040

Formenti 0017,0023,0024, 0026,0037,0113

Formenti/Phoenix 0113

Fortress 0023, 0024

Fraba 0010, 0040

Friac 0010

Frontech 0025,0027,0030, 0031,0039,0114

Fujitsu 0114

Fujitsu General 0114

Funai 0025

Galaxi 0035, 0040

Galaxis 0010, 0040

GBC 0027, 0032, 0039

Geant Casino 0041

GEC 0026,0031,0034, 0037,0040,0114

Geloso 0027, 0030, 0039

General Technic 0027, 0039

Genexxa 0028,0031,0034 0040

Giant 0114

GoldHand 0113

Goldline 0040

GoldStar 0010,0026,0027, 0030,0034,0037,0039, 0040,0113,0114

Goodmans 0025,0027, 0032,0034,0037,0039, 0040,0107,0114

Gorenje 0010, 0035

GPM 0028

Graetz 0031

Granada 0017,0026,0030, 0032,0034,0037,0040, 0041,0114

Grandin 0027,0028,0036, 0037

Gronic 0114

Grundig 0009,0010,0017, 0040,0047

Halifax 0025, 0026, 0113, 0114

Hampton 0026, 0113, 0114

Hanseatic 0010,0018, 0026,0027,0032,0034, 0037,0039,0040,0114

Hantarex 0027, 0039, 0040

Hantor 0040

Harwood 0039, 0040

HCM 0025, 0026, 0027, 0036, 0039, 0040, 0114

Hema 0039, 0114

Higashi 0113

HiLine 0040

Hinari 0027, 0028, 0032, 0034, 0037, 0039, 0040

Hisawa 0028, 0036, 0041

Hitachi 0022, 0026, 0030, 0031, 0032, 0040, 0076, 0111, 0114

Hornyphon 0034, 0040

Hoshai 0028

Huanyu 0026, 0113

Hygashi 0026, 0113, 0114

Hyper 0026,0027,0039 0113,0114

Hypson 0025,0026,0034, 0036,0037,0040,0041, 0114

Iberia 0040

ICE 0025,0026,0027,0028, 0034,0039,0040,0113, 0114

ICeS 0113

Imperial 0010, 0017, 0031, 0034, 0035, 0040

Indiana 0034, 0037, 0040

Ingelen 0031

Ingersol 0027, 0039

Inno Hit 0017,0026,0027, 0028,0034,0037,0039, 0040,0114

Innovation 0025, 0027

Interactive 0010

Interbuy 0027, 0039

Interfunk 0010,0023,0031, 0034,0037,0040

International 0113

Intervention 0010,0025, 0026,0029,0040,0114

Irradio 0017,0027,0028, 0034,0037,0039,0040

Isukai 0028, 0040

ITC 0026, 0114

ITS 0028,0034,0036,0040, 0113

ITT 0027, 0031

ITV 0027,0037,0040

JVC 0019, 0020, 0032, 0034, 0077

Kaisui 0026, 0027, 0028, 0036, 0039, 0040, 0113, 0114

Kamosonic 0026

Kamp 0026, 0113

Kapsch 0031

Karcher 0010,0026,0027 0037,0040

Kawasho 0113

Kendo 0010,0029,0030 0040

KIC 0114

Kingsley 0026, 0113

Kneissel 0010, 0018, 0040

Kolster 0034, 0040

Konka 0028

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Take a look at the other components and electrical appliances being used, because sometimes the problem may lie there. If the trouble isn't sorted out even after going through the checks below, ask your nearest Pioneer authorized independent service company to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

Problem	Remedy
The power does not turn on.	·Disconnect the power plug from the outlet, and insert again. ·Make sure there are no loose strands of speaker wire touching the rear panel. This could cause the system to shut off automatically.
The system suddenly switches off.	·After about a minute (you won't be able to switch the unit on during this time), switch the system back on. If the message persists, call a Pioneer authorized independent service company.
No sound is output when a function is selected.	·Make sure the component is connected correctly (refer to Connecting up on page 26). ·Press MUTE on the remote control to turn muting off. ·Press SIGNAL SEL to select the proper input signal (see Choosing the input signal on page 48).
No image is output when a function is selected.	·Make sure the component is connected correctly (refer to Connecting up on page 26). ·Select the correct component (use the MULTI CONTROL buttons). ·The video input selected on the TV monitor is incorrect. Refer to the instruction manual supplied with the TV.
No sound from subwoofer.	·The Dolby Digital or DTS source you are listening to may not have an LFE channel. ·Switch the LFE ATT (LFE Attenuate) on page 64 to LFEATT 0 or LFEATT 10.
No sound from surround or center speakers. *HTP-700/HTP-600 only	·Connect the speakers properly (refer to page 14 or page 18). ·Refer to Speaker Setting on page 67 to check the speaker settings. ·Refer to Channel Level on page 67 to check the speaker levels.
The PHASE CONTROL feature doesn't seem to have an audible effect.	·Make sure the speaker distance setting is correct for all speakers (see Speaker Distance on page 68).
Considerable noise in radio broadcasts.	·Connect the antenna (page 36) and adjust the position for best reception. ·Route any loose cables away from the antenna terminals and wires. ·Fully extend the FM wire antenna, position for best reception, and secure to a wall (or connect an outdoor FM antenna). ·Turn off equipment causing interference or move it away from the system (or move antennas farther away from equipment causing noise).
Broadcast stations cannot be selected automatically.	·Connect an outdoor antenna (refer to page 36).
Noise during playback of a cassette deck.	·Move the cassette deck away from your system, until the noise disappears.
Sound is produced from other components, but not from LD or DVD player.	·Set the SIGNAL SEL to HDMI, C1/O1/O2 (DIGITAL) or A (analog) according to the type of connections made (refer to page 48). ·Set the digital input settings correctly (refer to page 48). ·Make digital connections (refer to page 27) and set the SIGNAL SEL to C1/O1/O2 (DIGITAL) (refer to page 48). ·Refer to the instruction manual supplied with the DVD player.
No sound is output or a noise is output when software with DTS is played back.	·Set the digital volume level of the player to full, or to the neutral position. ·Make sure the player's settings are correct and/or the DTS signal out is on. Refer to the instruction manual supplied with the DVD player. ·Set the input signal type to C1/O1/O2 (DIGITAL) (see Choosing the input signal on page 48).
During a playback search, noise is output from a DTS compatible CD player.	·This is not a malfunction, but be sure to turn the volume down to prevent the output of loud noise from your speakers.
Everything seems to be set up correctly, but the playback sound is odd.	·Check that the positive/negative speaker terminals on the system are matched with the corresponding terminals on the speakers (see page 14, 18 or 22).
There seems to be a time lag between the speakers and the output of the subwoofer.	·See Automatically setting up for surround sound (MCACC) on page 45 to set up your system again using MCACC (this will automatically compensate for a delay in the subwoofer output).
Can't operate the remote control.	·Replace the batteries (refer to page 44). ·Operate within 7 m, 30° of the remote sensor (refer to page 44). ·Remove the obstacle or operate from another position. ·Avoid exposing the remote sensor on the front panel to direct light.
The display is dark or off.	·Press DIMMER on the control repeatedly to return to the default.

HDMI

Symptom	Remedy
No picture or sound.	·If the problem still persists when connecting your HDMI component directly to your monitor, please consult the component or monitor manual or contact the manufacturer for support.
No picture.	·Depending in the output settings of the source component, it may be outputting a video format that can't be displayed. Change the output settings of the source, or connect using the composite jack. ·This system is HDCP-compatible. Check that the components you are connecting are also HDCP-compatible. If they are not, please connect them using the composite video jack. ·Depending on the connected source component, it's possible that it will not work with this system (even if it is HDCP-compatible). In this case, connect using the composite video jack between source and system. ·If video images do not appear on your TV or flat screen TV, try adjusting the resolution, DeepColor or other setting for your component. ·To output signals in DeepColor, use an HDMI cable (High Speed HDMITM Cable) to connect this system to a component or TV with the DeepColor feature.
OSD does not appear.	·The OSD will not appear if you have connected using the HDMI output to your TV. Use composite connections when setting up the system.
No sound, or sound suddenly ceases.	·If you've made separate connections for audio, make sure you have assigned the analog/digital jack(s) to the corresponding HDMI input for the component. ·Check the audio output settings of the source component. ·Check that the Audio Parameter setting is set to HDMI AMP/THRU (refer to page 64). ·If the component is a DVI device, use a separate connection for the audio.

Important information regarding the HDMI connection

There are cases where you may not be able to route HDMI signals through this system (this depends on the HDMI equipped component you are connecting-check with the manufacturer for HDMI compatibility information).

If you aren't receiving HDMI signals properly through this system (from your component), please try the following configuration when connecting up.

Configuration

Connect your HDMI-equipped component directly to the display using an HDMI cable. Then use the most convenient connection (digital is recommended) for sending audio to the system. See the operating instructions for more on audio connections. Set the display volume to minimum when using this configuration.

Note

If your display only has one HDMI terminal, you can only receive HDMI video from the connected component.
- Depending on the component, audio output may be limited to the number of channels available from the connected display unit (for example audio output is reduced to 2 channels for a monitor with stereo audio limitations).
- If you want to switch the input source, you'll have to switch functions on both the system and your display unit.
- Since the sound is muted on the display when using the HDMI connection, you must adjust the volume on the display every time you switch input sources.

iPod messages

Symptom	Cause	Action
iPod/USB Error 1 (I/U ERR1)	There is a problem with the signal path from the iPod to the system.	Switch off the system and reconnect the iPod to the system. If this doesn't seem to work, try resetting your iPod.
iPod/USB Error 2 (I/U ERR2)	The software version being used with the iPod needs to be updated.	Update the software being used with the iPod (please use the latest iPod software versions later than the iPod updater 2004-10-20).
	An iPod not supported by this system is connected.	Connect the iPod supported by this system.
iPod/USB Error 3 (I/U ERR3)	When there is no response from the iPod.	Update the iPod software to the latest version. If this doesn't seem to work, try resetting your iPod.
No Track	When there are no tracks in the category selected on the iPod.	Select a different category.

USB messages

Symptom	Cause	Action
iPod/USB Error 1 (I/U ERR1)	There is a problem with the signal path from the USB to the system.	Switch off the system and reconnect the USB to the system.
iPod/USB Error 3 (I/U ERR3)	When there is no response from the USB.	Switch off the system and reconnect the USB to the system.
iPod/USB Error 4 (I/U ERR4)	The power requirements of the USB device are too high for this system.	Switch off the system and reconnect the USB to the system.

Resetting the main unit

Use this procedure to reset all the system's settings to the factory default. Use the front panel controls to do this.

1 Switch the system into standby.
2 While holding down the ST/MONO button, press and hold the STANDBY/ON button for about two seconds.
3 When you see RESET? appear in the display, press TUNE - OK? shows in the display.

4 Press TUNE + to confirm.

OK appears in the display to indicate that the system has been reset to the factory settings.

Specifications

SX-SWR1 Receiver subwoofer

Audio section

Rated power output

Front, Center, Surround . . . 100 W per channel (1 kHz, 4 Ω, 10 %)

Subwoofer .100 W (100 Hz, 4 Ω, 10 %)

FM tuner Section

Frequency Range 87.5 MHz to 108 MHz

Antenna Input 75Ω unbalanced

Input/Output section

HDMI terminal:

Input. 19-pin x3

Output 19-pin (5 V, 100 mA)

Audio input . . . . . . Coaxial x1, Optical x2 (Digital)

RCA (2-pin) x4 (Analog)

Audio output .RCA (2-pin) x2 (Analog)

Video input . RCA x3

Video output . RCA x2

MCACC input ....... Mini jack

iPod terminal.......USB ^+ Video (Composite)

Speaker section

Enclosure. Bass-reflex floor type

System 16 cm 1-way system

Speakers 16 cm cone type x1

Impedance. 4Ω

Frequency range 35 Hz to 1 000 Hz

Maximum input power. 100 W

Miscellaneous

Power Requirements

AC 220 V to 240 V, 50 Hz/60 Hz

Power Consumption. 61 W

In standby 0.6 W

Dimensions

.230 mm (W) x 360.5 mm (H) x 422.5 mm (D)

Weight (without package) 11 kg

- Accessories

Remote control 1

Dry cell batteries (AAA size IEC R03). 2

iPod cable. 1

FM wire antenna 1

Microphone (for Auto MCACC setup) . . . . . . . . . . .

Power cords 2

Large non-skid pads (for receiver subwoofer) . . .4

Warranty card 1

Operating instructions (This document)

S-DV595T Speaker system

- Front/surround speakers

Enclosure . . . . . Closed-box floorstanding type (magnetically shielded)

System 2-way system

Speakers:

Woofer 7.7 cm cone type

Tweeter 2.6 cm semi-dome type

Impedance 4Ω

Frequency range 62 Hz to 20 kHz

Maximum input power 100 W

Dimensions

260 mm (W) x 1097 mm (H) x 260 mm (D)

Weight. 3.8 kg

Center speaker

Enclosure Closed-box bookshelf type (magnetically shielded)

System 7.7 cm 1-way system

Speakers. 7.7 cm cone type

Impedance 4Ω

Frequency range 72 Hz to 20 kHz

Maximum input power 100 W

Dimensions

220 mm (W) x 90 mm (H) x 100 mm (D)

Weight. 0.7 kg

- Accessories

Speaker cables. 5

Speaker stand bases 4

Screws 12

Small Non-skid pads

(for speaker stand bases) 16

S-SWR600 Speaker system

- Front/surround speakers

Enclosure ..Closed-box bookshelf type (magnetically shielded)
System .6.6 cm 1-way system
Speakers .6.6 cm cone type
Impedance .4Ω
Frequency range .82 Hz to 20 kHz
Maximum input power .100 W
Dimensions
96 mm (W) x 96 mm (H) x 96 mm (D)
Weight .0.5 kg

Center speaker

Enclosure ... Closed-box bookshelf type (magnetically shielded)
System ... 6.6 cm 1-way system
Speakers ... 6.6 cm cone type
Impedance ... 8 Ω
Frequency range ... 82 Hz to 20 kHz
Maximum input power ... 50 W
Dimensions ... 96 mm (W) x 96 mm (H) x 96 mm (D)
Weight ... 0.5 kg

- Accessories

Speaker cables. .5
Screws .8
Small Non-skid pads (for speakers) .18
Brackets .2
Mounting brackets .6

S-SWR500FS Speaker system

- Front speakers

Enclosure ..Closed-box floorstanding type (magnetically shielded)
System 2-way system
Speakers:
Woofer .5.2 cm cone type x2 Tweeter .2.6 cm semi-dome type
Impedance .4 Frequency range .200 Hz to 20kHz Maximum input power .100 W
Dimensions: Without speaker stand 77 mm (W) × 395 mm (H) × 55 mm (D)

With speaker stand 126 mm (W) x 462 mm (H) x 126 mm (D) Weight: Without speaker stand. 1.0 kg With speaker stand .1.3 kg

- Accessories

Speaker cables 2
Speaker stand bases 2
Poles 2
Gaskets 2
Screws (short) 8
Screws (long) 4

Note

• The specifications are applicable when the power supply is 230V .
• Specifications and the design are subject to possible modifications without notice, due to improvements.

Cleaning the unit

• Use a polishing cloth or dry cloth to wipe off dust and dirt.
• When the surface is dirty, wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water, and wrung out well, and then wipe again with a dry cloth. Do not use furniture wax or cleansers.
• Never use thinners, benzine, insecticide sprays or other chemicals on or near this unit, since these will corrode the surface.

Published by Pioneer Corporation.
Copyright © 2009 Pioneer Corporation.
All rights reserved.

IMPORTANT

Ambient Noise Speaker YES/NO

Return

45-47

6

1.Auto MCACC

Check!

Front [ Center ] Surr. [ Back ] Subwoofer

YES YES YES YESx2 YES

System Setup

1.Auto MCACC 2.Manual SP Setup

Home Cinéma

BD/DVD

Éteignez

Radio
1

Allumez

2

3

Éteignez

6 Prise MCACC SETUP MIC

7 Entrees/sorties video

Admiral 0023,0024,0025, 0030,0031

Adyson 0026, 0113, 0114

Agashi 0113, 0114

Agazi 0025

Aiko 0026, 0027, 0039, 0040, 0113, 0114

Aim 0040

Aiwa 0084

Akai 0027,0028,0034, 0037,0039,0040,0113, 0114

Akiba 0028, 0040

Akura 0025,0028,0039 0040

Alaron 0113

Alba 0010, 0026, 0027, 0028, 0032, 0035, 0037, 0039, 0040, 0075, 0078, 0088, 0113

Alcyon 0017

Allorgan 0114

Allstar 0034, 0040

AMOi 0109

Amplivision 0010, 0026, 0041, 0114

Amstrad 0025,0027,0028, 0039,0040

Anam 0027

Anglo 0027, 0039

Anitech 0017,0025,0027, 0039,0040

Ansonic 0010, 0018, 0027, 0029, 0039, 0040

Arcam 0113, 0114

Arcam Delta 0026

Aristona 0034, 0037, 0040

Arthur Martin 0041

ASA 0023, 0031

Asberg 0017, 0034, 0040

Astra 0027

Asuka 0025,0026,0028, 0113,0114

Atlantic 0026,0034,0037 0040,0113

Atori 0027, 0039

Auchan 0041

Audiosonic 0010,0026, 0027,0028,0034,0037, 0040,0114

AudioTon 0010, 0026, 0114

Ausind 0017

Autovox 0017,0023,0025, 0026,0114

Awa 0113,0114

Baird 0114

Bang & Olufsen 0023, 0115

Basic Line 0027,0028, 0034,0039,0040,0114

Bastide 0026, 0114

Baur 0037, 0040

Bazin 0114

Beko 0010,0035,0040 0060

Benq 0104

Beon 0034, 0037, 0040

Best 0010

Bestar 0010, 0034, 0040

Binatone 0026, 0114

Blue Sky 0028, 0040

Blue Star 0036

Boots 0026, 0114

BPL 0036, 0040

Brandt 0033,0038,0042, 0044

Brinkmann 0040

Brionvega 0023,0034, 0037,0040

Britannia 0026, 0113, 0114

Bruns 0023

BTC 0028

Bush 0027, 0028, 0030, 0032, 0034, 0036, 0037, 0039, 0040, 0065, 0078, 0114

Capsonic 0025

Carena 0040

Carrefour 0032

Cascade 0027, 0039, 0040

Casio 0106

Cathay 0034, 0037, 0040

CCE 0114

Centurion 0034, 0037, 0040

Century 0023

CGE 0010, 0017

Cimline 0027, 0039

City 0027, 0039

Clarivox 0037

Clatronic 0010, 0017, 0025, 0026, 0027, 0028, 0034, 0035, 0039, 0040, 0114

CMS 0113

CMS Hightec 0114

Concorde 0027, 0039

Condor 0010, 0026, 0034, 0035, 0039, 0040, 0113

Contec 0026, 0027, 0032, 0039, 0113

Continental Edison 0033

Cosmel 0027, 0039

Crosley 0017, 0023

Crown 0010, 0017, 0027, 0034, 0035, 0037, 0039, 0040

CS Electronics 0026, 0028, 0113

CTC Clatronic 0029

Cybertron 0028

Daewoo 0013,0026,0027, 0034,0039,0040,0054, 0064,0091,0113,0114

Dainichi 0028, 0113

Dansai 0025,0034,0037 0040,0113,0114

Dantax 0010, 0037

Dawa 0040

Daytron 0027, 0039

De Graaf 0030

Decca 0026,0034,0037 0040,0114

Denver 0098, 0103

Desmet 0034, 0037, 0040

Diamant 0040

Diamond 0113

Dixi 0027,0034,0037,0039 0040,0114

DTS 0027, 0039

Dual 0026, 0040, 0114

Dual-Tec 0026, 0027

Dumont 0023, 0026, 0029, 0114

Dux 0037

Dynatron 0034,0037,0040

Elbe 0010, 0018, 0040, 0114

Elcit 0023

Electa 0036

ELECTROTECH 0027

Elin 0026,0034,0037,0039 0040,0113

Elite 0028, 0034, 0040

Elman 0029

Elta 0027, 0039, 0113

Emerson 0010, 0023, 0040

Epson 0101

Erres 0034, 0037, 0040

ESC 0114

Etron 0027

Eurofeel 0025, 0114

Euroline 0037

Euroman 010, 0025, 0026, 0034, 0040, 0113, 0114

Europhon 0026,0029, 0034,0040,0113,0114

Expert 0041

Exquisit 0040

Fenner 0027, 0039

Ferguson 0033,0037,0038, 0042

Fidelity 0026,0030,0040, 0113

Filsai 0114

Finlandia 0030

Finlux 0017 0023, 0026, 0029, 0034, 0037, 0040, 0114

Firstline 0026,0027,0034, 0039,0040,0113,0114

Fisher 0010,0023,0026, 0032,0035,0114

Flint 0034, 0040

Formenti 0017,0023,0024, 0026,0037,0113

Formenti/Phoenix 0113

Fortress 0023, 0024

Fraba 0010, 0040

Friac 0010

Frontech 0025,0027,0030, 0031,0039,0114

Fujitsu 0114

Fujitsu General 0114

Funai 0025

Galaxi 0035, 0040

Galaxis 0010, 0040

GBC 0027, 0032, 0039

Geant Casino 0041

GEC 0026,0031,0034,0037, 0040,0114

Geloso 0027, 0030, 0039

General Technic 0027, 0039

Genexxa 0028,0031,0034, 0040

Giant 0114

GoldHand 0113

Goldline 0040

GoldStar 0010,0026,0027, 0030,0034,0037,0039, 0040,0113,0114

Goodmans 0025,0027, 0032,0034,0037,0039, 0040,0107,0114

Gorenje 0010, 0035

GPM 0028

Graetz 0031

Granada 0017,0026,0030, 0032,0034,0037,0040, 0041,0114

Grandin 0027,0028,0036, 0037

Gronic 0114

Grundig 0009,0010,0017, 0040,0047

Halifax 0025, 0026, 0113, 0114

Hampton 0026, 0113, 0114

Hanseatic 0010,0018, 0026,0027,0032,0034, 0037,0039,0040,0114

Hantarex 0027, 0039, 0040

Hantor 0040

Harwood 0039, 0040

HCM 0025, 0026, 0027, 0036, 0039, 0040, 0114

Hema 0039, 0114

Higashi 0113

HiLine 0040

Hinari 0027,0028,0032 0034,0037,0039,0040

Hisawa 0028, 0036, 0041

Hitachi 0022, 0026, 0030, 0031, 0032, 0040, 0076, 0111, 0114

Hornyphon 0034, 0040

Hoshai 0028

Huanyu 0026, 0113

Hygashi 0026, 0113, 0114

Hyper 0026, 0027, 0039, 0113, 0114

Hypson 0025, 0026, 0034, 0036, 0037, 0040, 0041, 0114

Iberia 0040

ICE 0025,0026,0027,0028, 0034,0039,0040,0113, 0114

ICeS 0113

Imperial 0010, 0017, 0031, 0034, 0035, 0040

Indiana 0034, 0037, 0040

Ingelen 0031

Ingersol 0027, 0039

Inno Hit 0017,0026,0027, 0028,0034,0037,0039, 0040,0114

Innovation 0025, 0027

Interactive 0010

Interbuy 0027, 0039

Interfunk 0010,0023,0031, 0034,0037,0040

International 0113

Intervention 0010, 0025, 0026, 0029, 0040, 0114

Irradio 0017,0027,0028, 0034,0037,0039,0040

Isukai 0028, 0040

ITC 0026, 0114

ITS 0028,0034,0036,0040, 0113

ITT 0027, 0031

ITV 0027, 0037, 0040

JVC0019,0020,0032,0034 0077

Kaisui 0026, 0027, 0028, 0036, 0039, 0040, 0113, 0114

Kamosonic 0026

Kamp 0026, 0113

Kapsch 0031

Karcher 0010,0026,0027 0037,0040

Kawasho 0113

Kendo 0010, 0029, 0030, 0040

KIC 0114

Kingsley 0026, 0113

Kneissel 0010, 0018, 0040

Kolster 0034, 0040

Konka 0028

Roadstar 0025,0027,0028, 0039

Robotron 0023

Rowa 0113, 0114

Royal Lux 0010

RTF 0023

Saba 0023, 0031, 0033, 0038, 0042, 0044

Saisho 0025, 0026, 0027, 0039, 0114

Salora 0030, 0031

Sambers 0017, 0029

Samsung 0004, 0005, 0010, 0025, 0026, 0027, 0034, 0035, 0037, 0039, 0040, 0062, 0063, 0066, 0089, 0093, 0113, 0114

Sandra 0026, 0113, 0114

Sansui 0034, 0040

Sanyo 0010, 0018, 0026, 0032, 0039, 0072, 0113, 0114

SBR 0037, 0040

SCHAUB LORENTZ 0031

Schneider 0026, 0028, 0034, 0037, 0040, 0075, 0114

SEG0025,0026,0029,0032, 0037,0039,0040,0075, 0113,0114

SEI 0040

SEI-Sinudyne 0023, 0029, 0031

Seleco 0030, 0031, 0032

Sencora 0027, 0039

Sentra 0039

Serino 0113

Sharp 0015, 0016, 0024, 0032, 0069, 0092

Siarem 0023, 0029, 0040

Sierra 0034, 0040

Siesta 0010

Silva 0113

Silver 0032

Singer 0023, 0029, 0041

Sinudyne 0023,0029,0037, 0040

Skantic 0031

Solavox 0031

Sonitron 0010, 0114

Sonoko 0025,0026,0027, 0034,0037,0039,0040, 0114

Sonolor 0031, 0041

Sontec 0010,0034,0037 0040

Sony 0001, 0003, 0027, 0032, 0046, 0053, 0057, 0070, 0073, 0082, 0086, 0096, 0110, 0112

Sound & Vision 0028, 0029

Soundwave 0034,0037, 0040

Standard 0026,0027,0028, 0034,0039,0040,0114

Starlight 0037

Starlite 0039, 0040

Stenway 0036

Stern 0030, 0031

Strato 0039, 0040

Stylandia 0114

Sunkai 0027

Sunstar 0039, 0040

Sunwood 0027, 0034, 0039, 0040

Superla 0026, 0113, 0114

SuperTech 0039, 0040, 0113

Supra 0027, 0039

Susumu 0028

Sutron 0027, 0039

Sydney 0026, 0113, 0114

Sysline 0037

Sytong 0113

Tandy 0024,0026,0028, 0031,0114

Tashiko 0026,0030,0032 0113,0114

Tatung 0026,0034,0037 0040,0114

TCM 0025, 0027

Teac 0040, 0114

Tec 0026, 0027, 0039, 0114

TEDELEX 0114

Teleavia 0033

Telecor 0040, 0114

Publication de Pioneer Corporation.

© 2009 Pioneer Corporation.

WAARSCHUWING NETSNOER

Doos van de receiver-subwoofer (SX-SWR1)

Receiver-subwoofer x1

Drogecel-batterijen (AAA-formaat IEC R03) x2

Doos van de receiver-subwoofer (SX-SWR1)

Receiver-subwoofer x1

Drogecel-batterijen (AAA-formaat IEC R03) x2

Doos van de receiver-subwoofer (SX-SWR1)
Receiver-subwoofer x1

Drogecel-batterijen (AAA-formaat IEC R03) x2

Surround links: Blauw

Surround links: Blauw

Naar de receiver-subwoofer

Speaker Distance Channel Level

Acoustic Cal EQ

Return

EASY M - Easy listening

Amstrad 0025,0027,0028, 0039,0040

Anam 0027

Anglo 0027, 0039

Anitech 0017,0025,0027, 0039,0040

Ansonic 0010, 0018, 0027, 0029, 0039, 0040

Arcam 0113, 0114

Arcam Delta 0026

Aristona 0034, 0037, 0040

Arthur Martin 0041

ASA 0023, 0031

Asberg 0017, 0034, 0040

Astra 0027

Asuka 0025,0026,0028, 0113,0114

Atlantic 0026,0034,0037 0040,0113

Atori 0027, 0039

Auchan 0041

Audiosonic 0010,0026, 0027,0028,0034,0037, 0040,0114

AudioTon 0010, 0026, 0114

Ausind 0017

Autovox 0017,0023,0025, 0026,0114

Awa 0113,0114

Baird 0114

Bang & Olufsen 0023, 0115

Basic Line 0027,0028, 0034,0039,0040,0114

Bastide 0026, 0114

Baur 0037, 0040

Bazin 0114

Beko 0010,0035,0040, 0060

Benq 0104

Beon 0034, 0037, 0040

Best 0010

Bestar 0010, 0034, 0040

Binatone 0026, 0114

Blue Sky 0028, 0040

Blue Star 0036

Boots 0026, 0114

BPL 0036, 0040

Brandt 0033,0038,0042, 0044

Brinkmann 0040

Brionvega 0023,0034, 0037,0040

Britannia 0026, 0113, 0114

Bruns 0023

BTC 0028

Bush 0027, 0028, 0030, 0032, 0034, 0036, 0037, 0039, 0040, 0065, 0078, 0114

Capsonic 0025

Carena 0040

Carrefour 0032

Cascade 0027, 0039, 0040

Casio 0106

Cathay 0034, 0037, 0040

CCE 0114

Centurion 0034, 0037, 0040

Century 0023

CGE 0010, 0017

Cimline 0027, 0039

City 0027, 0039

Clarivox 0037

Clatronic 0010, 0017, 0025, 0026, 0027, 0028, 0034, 0035, 0039, 0040, 0114

CMS 0113

CMS Hightec 0114

Concorde 0027, 0039

Condor 0010, 0026, 0034, 0035, 0039, 0040, 0113

Contec 0026, 0027, 0032, 0039, 0113

Continental Edison 0033

Cosmel 0027, 0039

Crosley 0017, 0023

Crown 0010, 0017, 0027, 0034, 0035, 0037, 0039, 0040

CS Electronics 0026, 0028, 0113

CTC Clatronic 0029

Cybertron 0028

Daewoo 0013,0026,0027, 0034,0039,0040,0054, 0064,0091,0113,0114

Dainichi 0028, 0113

Dansai 0025,0034,0037 0040,0113,0114

Dantax 0010, 0037

Dawa 0040

Daytron 0027, 0039

De Graaf 0030

Decca 0026,0034,0037 0040,0114

Denver 0098, 0103

Desmet 0034, 0037, 0040

Diamant 0040

Diamond 0113

Dixi 0027,0034,0037,0039 0040,0114

DTS 0027, 0039

Dual 0026, 0040, 0114

Dual-Tec 0026, 0027

Dumont 0023, 0026, 0029, 0114

Dux 0037

Dynatron 0034, 0037, 0040

Elbe 0010, 0018, 0040, 0114

Elcit 0023

Electa 0036

ELECTROTECH 0027

Elin 0026,0034,0037,0039 0040,0113

Elite 0028, 0034, 0040

Elman 0029

Elta 0027, 0039, 0113

Emerson 0010, 0023, 0040

Epson 0101

Erres 0034, 0037, 0040

ESC 0114

Etron 0027

Eurofeel 0025, 0114

Euroline 0037

Euroman 0010,0025,0026, 0034,0040,0113,0114

Europhon 0026,0029, 0034,0040,0113,0114

Expert 0041

Exquisit 0040

Fenner 0027, 0039

Ferguson 0033,0037,0038, 0042

Fidelity 0026,0030,0040, 0113

Filsai 0114

Finlandia 0030

Finlux 0017 0023, 0026, 0029, 0034, 0037, 0040, 0114

Firstline 0026, 0027, 0034, 0039, 0040, 0113, 0114

Fisher 0010,0023,0026, 0032,0035,0114

Flint 0034, 0040

Formenti 0017,0023,0024, 0026,0037,0113

Formenti/Phoenix 0113

Fortress 0023, 0024

Fraba 0010, 0040

Friac 0010

Frontech 0025,0027,0030, 0031,0039,0114

Fujitsu 0114

Fujitsu General 0114

Funai 0025

Galaxi 0035, 0040

Galaxis 0010, 0040

GBC 0027, 0032, 0039

Geant Casino 0041

GEC 0026,0031,0034,0037, 0040,0114

Geloso 0027, 0030, 0039

General Technic 0027, 0039

Genexxa 0028,0031,0034, 0040

Giant 0114

GoldHand 0113

Goldline 0040

GoldStar 0010,0026,0027, 0030,0034,0037,0039, 0040,0113,0114

Goodmans 0025,0027, 0032,0034,0037,0039, 0040,0107,0114

Gorenje 0010, 0035

GPM 0028

Graetz 0031

Granada 0017,0026,0030, 0032,0034,0037,0040, 0041,0114

Grandin 0027,0028,0036, 0037

Gronic 0114

Grundig 0009,0010,0017, 0040,0047

Halifax 0025, 0026, 0113, 0114

Hampton 0026, 0113, 0114

Hanseatic 0010,0018, 0026,0027,0032,0034, 0037,0039,0040,0114

Hantarex 0027, 0039, 0040

Hantor 0040

Harwood 0039, 0040

HCM 0025, 0026, 0027, 0036, 0039, 0040, 0114

Hema 0039, 0114

Higashi 0113

HiLine 0040

Hinari 0027,0028,0032 0034,0037,0039,0040

Hisawa 0028, 0036, 0041

Hitachi 0022,0026,0030, 0031,0032,0040,0076, 0111,0114

Hornyphon 0034, 0040

Hoshai 0028

Huanyu 0026, 0113

Hygashi 0026, 0113, 0114

Hyper 0026,0027,0039 0113,0114

Hypson 0025, 0026, 0034, 0036, 0037, 0040, 0041, 0114

Iberia 0040

ICE 0025,0026,0027,0028, 0034,0039,0040,0113, 0114

ICeS 0113

Imperial 0010, 0017, 0031, 0034, 0035, 0040

Indiana 0034, 0037, 0040

Ingelen 0031

Ingersol 0027, 0039

Inno Hit 0017,0026,0027, 0028,0034,0037,0039, 0040,0114

Innovation 0025, 0027

Interactive 0010

Interbuy 0027, 0039

Interfunk 0010, 0023, 0031, 0034, 0037, 0040

International 0113

Intervention 0010, 0025, 0026, 0029, 0040, 0114

Irradio 0017,0027,0028, 0034,0037,0039,0040

Isukai 0028, 0040

ITC 0026, 0114

ITS 0028,0034,0036,0040, 0113

ITT 0027, 0031

ITV 0027, 0037, 0040

JVC 0019, 0020, 0032, 0034, 0077

Kaisui 0026,0027,0028, 0036,0039,0040,0113, 0114

Kamosonic 0026

Kamp 0026, 0113

Kapsch 0031

Karcher 0010,0026,0027, 0037,0040

Kawasho 0113

Kendo 0010, 0029, 0030, 0040

KIC 0114

Kingsley 0026, 0113

Kneissel 0010, 0018, 0040

Kolster 0034, 0040

Konka 0028

SX-SWR1 receiver-subwoofer

- Audiogedeelte

Nominaal uitgangsvermogen Voor, midden, surround. 100 W per kanaal (1 kHz, 4 10% Subwoofer. 100 W (100 Hz, 4 10%

FM-tunergedeelte

Uitgeveen door Pioneer Corporation. Copyright © 2009 Pioneer Corporation.

http://www.pioneer.co.uk

http://www.pioneer.fr

http://www.pioneer.nl

http://www.pioneer.eu

Published by Pioneer Corporation.

Copyright © 2009 Pioneer Corporation.

All rights reserved.

Publication de Pioneer Corporation.

© 2009 Pioneer Corporation.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd. Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: [phone]
