USER MANUAL BCS-717 PIONEER

Discover the benefits of registering your product online at http:/{www.pioneer.co.uk (or http:/www.pioneer.eu).

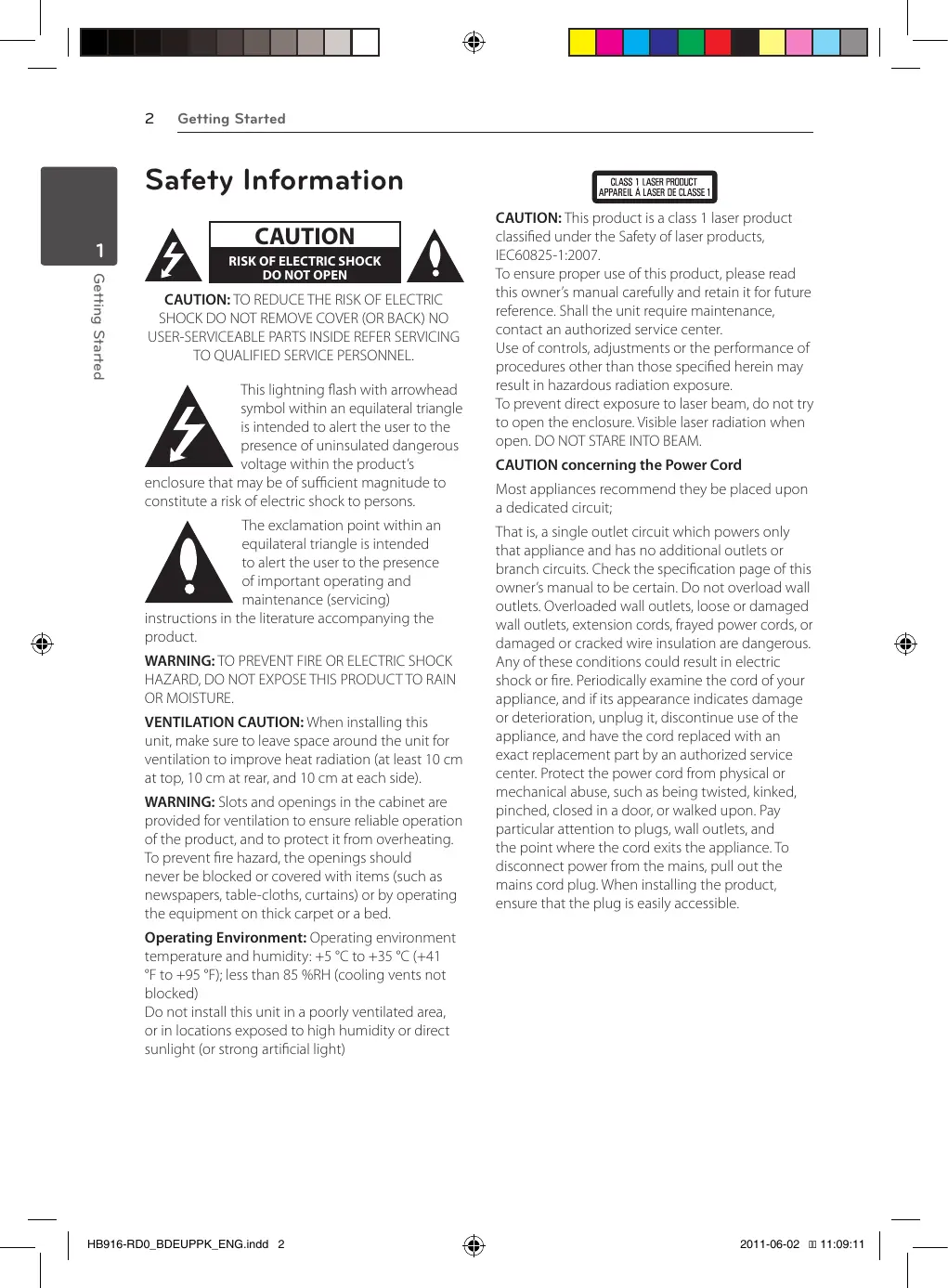

0 CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an

equilateral triangle is intended

to alert the user to the presence

ofimportant operating and

maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

VENTILATION CAUTION: When installing this

unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side)

WARNING: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation ofthe product, and to protect it from overheating. To prevent fire hazard, the openings should

never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or à bed!

Operating Environment: Operating environment temperature and humidity: +5 °C to +35 °C (+41

*F to +95 °F); less than 85 %RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, orin locations exposed to high humidity or direct sunlight (or strong artificial light)

HB916-RDO_BDEUPPK ENGiindd 2 &

CAUTION: This product is a class 1 laser product classified under the Safety of laser products, 1EC60825-1:2007.

To ensure proper use of this product, please read this owners manual carefuly and retain it for future reference. Shall the unit require maintenance, contact an authorized service center.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure

To prevent direct exposure to laser beam, do not try &o open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon à dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owners manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cord, or damaged or cracked wire insulation are dangerous. Any ofthese conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and ifits appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked pinched, closed in à door, or walked upon. Pay particular attention to plugs, wall outlets, and

the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure thatthe plug is easily accessible.

This device is equipped with a portable battery or accumulator

Safety way to remove the battery or the battery from the equipment: Remove the

old battery or battery pack, follow the steps

in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do

not dispose of batteries or battery together with other waste. It is recommended that you use local free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fre or the like

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside à car or near à heater. This can cause batteries to leak, overheat, explode or catch fie. t can also reduce the life or performance of batteries.

When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filed with liquid, such as vases, shall be placed on the

| HeoienDo epEupr ENGinas à

Information for users on collection and disposal of old equipment and used batteries

Symbol sample) for batteries

These symbols on the products, packaging, and/ or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctiy, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling,

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union: If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

For Wireless product European Union Notice PIONEER hereby declares that

C € O this/these product(s) is/are in compliance with the essential

requirements and other relevant provisions of

Directive 1999/5/EC, 2004/108/EC, 2006/95/EC and 2009/125/EC.

RF Radiation Exposure Statement

This equipment should be installed and operated with minimum distance 20 em between the radiator and your body.

WARNING: To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

WARNING: Before plugging in for the frst time, read the following section carefulÿ.

The voltage of the available power supply differs according to country or region. Be sure thatthe power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel.

CAUTION: The (1) STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as

the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit

has been installed so that the power cord can be easily unplugged from the AC outlet in case of

an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation)

CAUTION: This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period

Because AACS (Advanced Access Content System) is approved as content protection system for Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analog signal output, etc, of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product.

Furthermore, BD-ROM Mark and BD+ are additionally used as content protection systems for Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BD- ROM Mark, BD+, or this product, please contact an authorized Customer Service Center.

Many BD-ROM/DVD discs are encoded with copy protection, Because of this, you should only connect your player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected discs

This item incorporates copy protection technology that is protected by US. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Under the US, Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/ or criminel liability.

Important Notice for TV colour system

The colour system of this player differs according to currently playing discs

For example, when the player plays the disc recorded in the NTSC colour system, the image is output as an NTSC signal

Only the multi system colour TV can receive all signals output from the player.

+_IFyou have a PAL colour system TV, you wi see just distorted images when using discs or video contents recorded in NTSC.

The multi system colour TV changes the colour system automatically according to input signal. In case that the colour system is not changed automatically, turn it off and then on to see normal images on screen.

Even if the disc recorded in NTSC colour system are well displayed on your TV, these may not be recorded correctly on your recorder.

- Playable Discs and symbols used in this manual

— About the "@" Symbol Display - Supplied Accessories

— Accessories of speaker box (S-BD7OTT)

— Accessories of speaker box (S-BD7O7SW)

— Accessories of speaker box {S-BD303)

- File compatibility

— AVCHD (Advanced Video Codec High Definition)

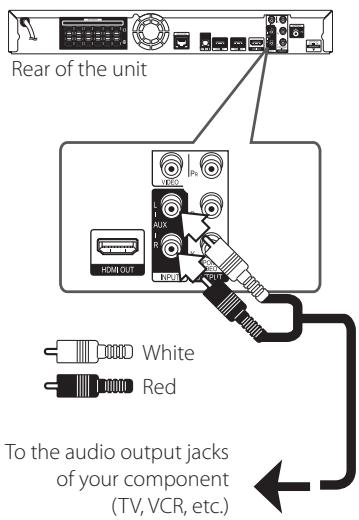

Connections with external device — AUX Connection

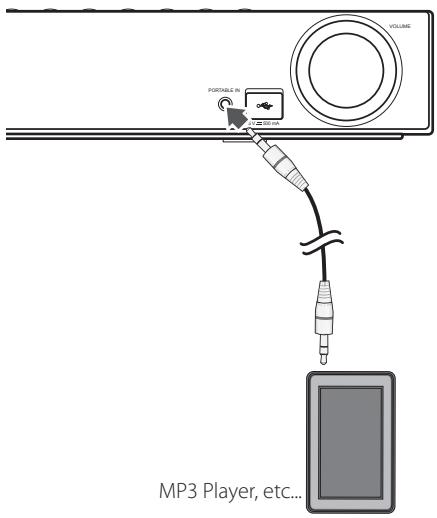

- PORTABLE IN connection

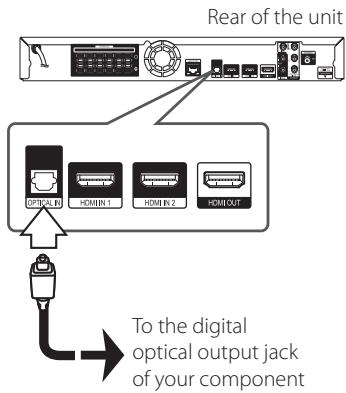

- OPTICAL IN connection

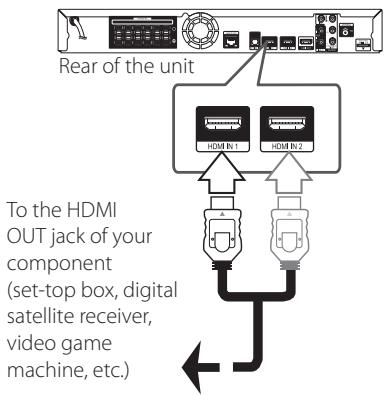

- HDMI IN 1/2 connection Connecting to your Home Network

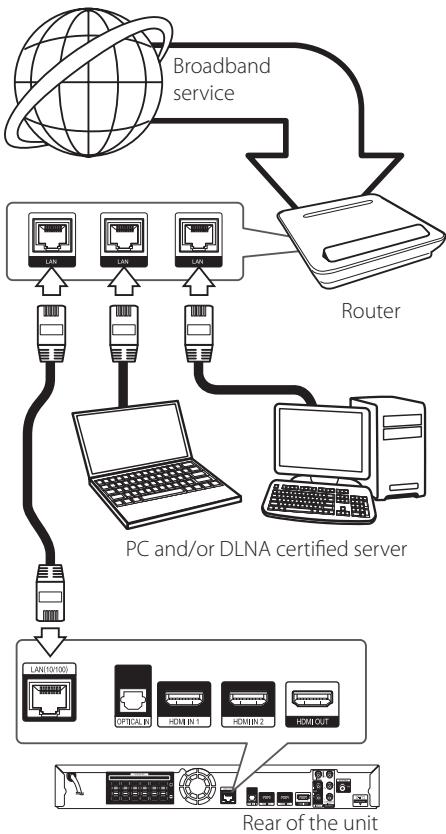

— Wired network connection

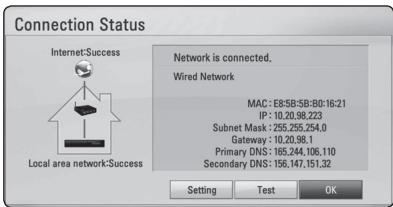

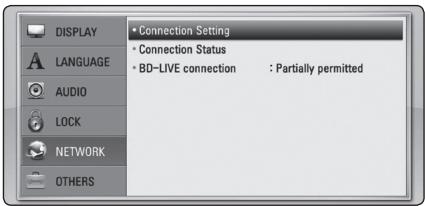

- Wired Network Setup

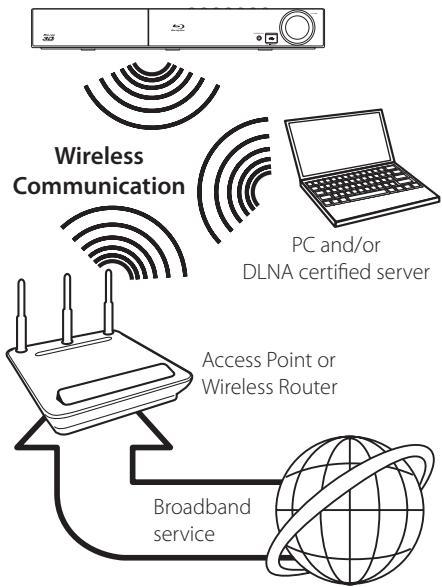

— Wireless Network Connection

- Wireless Network Setup

USB device connection

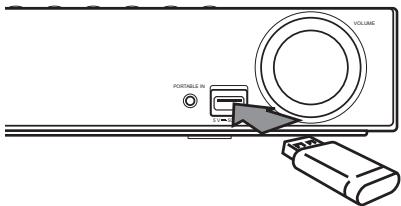

- Playback content in the USB device

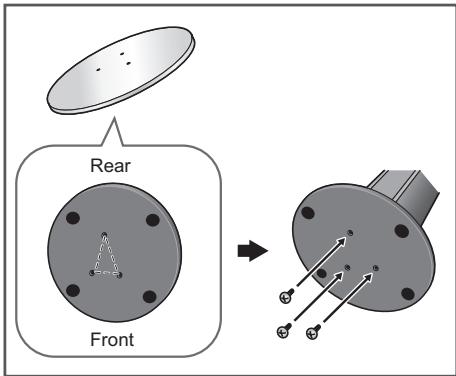

Assemble the speakers

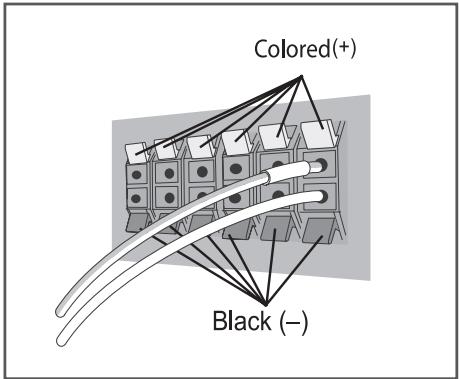

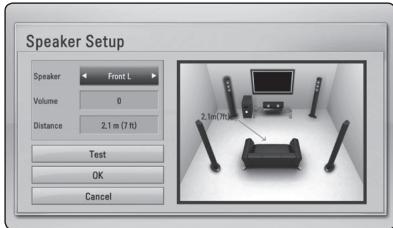

— Speaker Setup for BCS-717

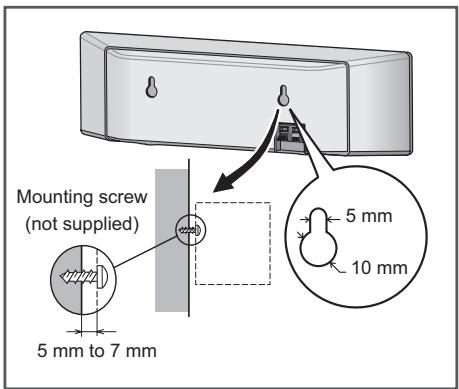

— Speaker Setup for BCS-313 Wall mounting the center speaker - Before mounting

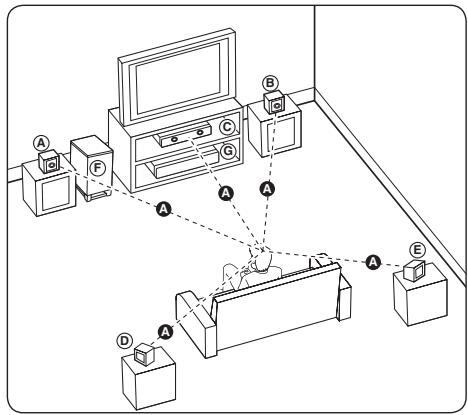

Additional notes on speaker Positioning the system Connecting to Your TV

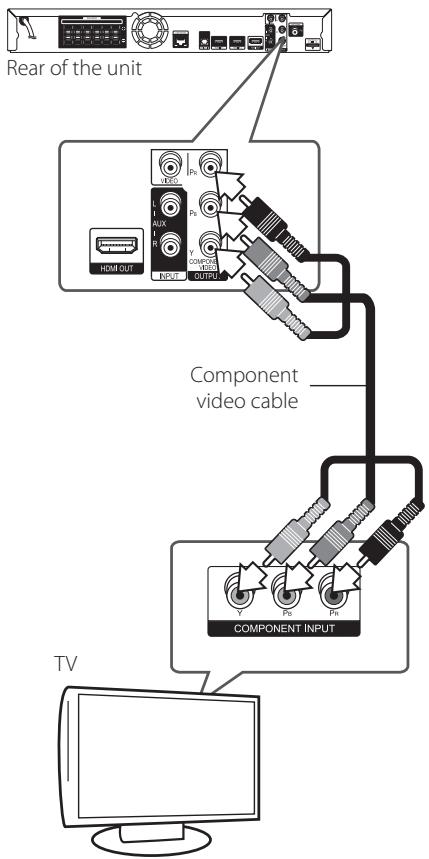

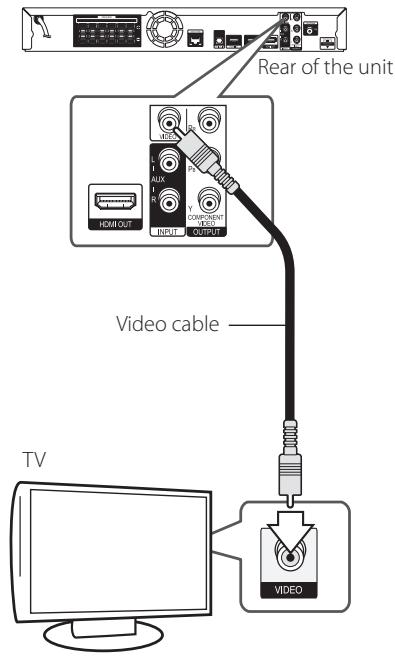

— ARC (Audio Return Channel) function — Component Video Connection — Video Connection

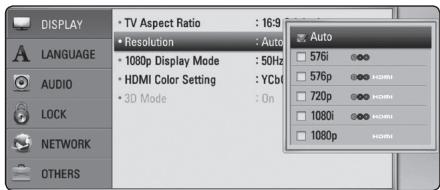

- Resolution Setting

— Playing a file on a disc/USB device — Playing Blu-ray 3D disc

— Playing a file on a network server - Basic operations for video and audio content

- Basic operations for photo content — Using the dise menu

- Repeating a specific portion

Enlarge the playback image — Marker Search — Using the search menu

Selecting a subtitle file - Last Scene Memory

— Playing from selected time

— Hearing à different audio

— Selecting a subtitle language

— Watching from a different angle

— Changing the TV Aspect Ratio

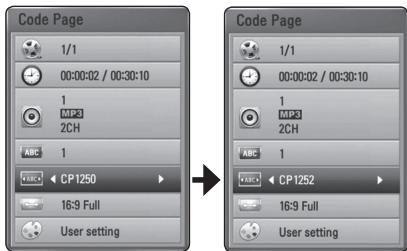

— Changing subtitle code page

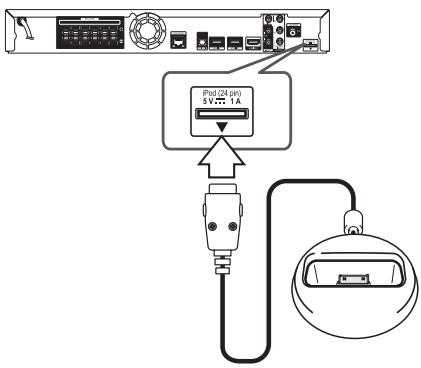

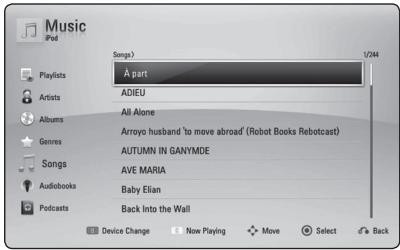

— Enjoying iPod on the screen

— Enjoying the iPod IN mode

-— Presetting the Radio Stations

- Deleting a saved station

— Deleting all the saved stations

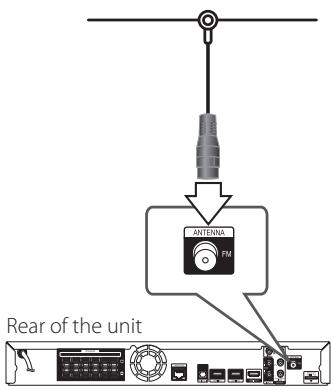

— Improving poor FM reception

— See information about a radio station Using the Online

62 63 65 66 69 69 69

Controlling a TV with the Supplied Remote Control

— Setting up the remote to control your

Trademarks and Licenses

Video Output Resolution

Introduction 1 Playable Discs and symbols used in this manual o Es Media/Term Logo Symbol Description & + Discs such as movies that can be purchased or mn 2 rented ë > Blu-ray 3D'discs al 27272 + BD-R/RE discs that are recorded in BDAV format. u-ray Bray [MOVIE | + BD-R/RE discs that contain Movie, Music or 772 music] Photo files. (PHOTO) +10 9660+JOLIET, UDF and UDF Bridge format + Dises such as movies that can be purchased or [Du | rented DVD-ROM RER + Video mode and finalized only DVD-R 2 + Supports the dual layer disc also DUDRU 22 Finalized AVCHD format TA — [AVCHD|

. Misc [MOVIE | + CD-R/RW discs that contain Movie, Music or EMA Photo files. Gen, | DÉC | CI

[Recordable | +_ ISO 9660+JOLIET, UDF and UDF Bridge format ri [PHoro] °

ndicates special notes and operating features.

Note _- : ndicates cautions for preventing possible Caution - ; g pe damages from abuse. || Henténpe epEuPr ENGiad 8 F aire mio |

& CESSER CCE Getting Started 9

+ Depending on the conditions of the recording equipment or the CD-R/RW (or DVD4R/RW) disc itself, some CD-R/RW (or DVD=R/RW) discs cannot be played on the unit

Depending on the recording software &the finalization, some recorded discs (CD-R/RW, DVD+R/RW, BD-R/RE) may not be playable

BD-R/RE, DVD2R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD Recorder may not play ifthe disc is damaged or dirty, or if there is dirt or condensation on the player lens.

Ifyou record a disc using a personal computer even fit is recorded in à compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

This player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality.

Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions to ensure compatible playback

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

You have to set the disc format option

to [Masteredl] in order to make the

discs compatible with the players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on the player. (Mastered/Live File System : Disc format system for Windows Vista® and Windows 7°)

BDXL cannot be supported.

| HeoienDo epEuprk EnGinas 9

About the “@" Symbol Display

*@' may appear on your TV display during operation and indicates that the function explained in this owners manual is not available on that specific media

& 2011-06-02 m 11:09:12 —_—

Supplied Accessories

Accessories of speaker box

; s o $ Es L 5 ” Video cable (1) Remote control (1) 5 CF n ë ê 12 Q Battery (1) FM antenna (1) ———— Re,

CA Colour-coded Speaker Screws (12)

Accessories of speaker box (S-BD707SW)

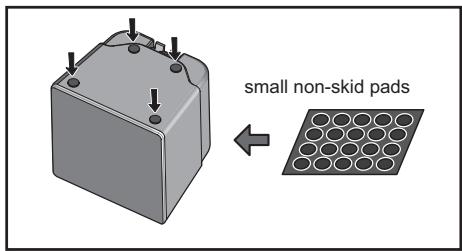

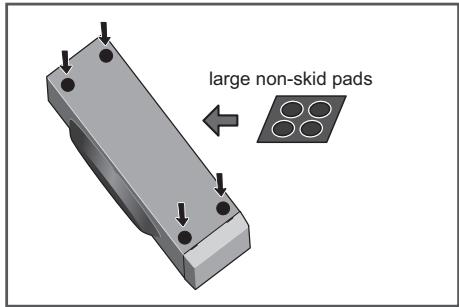

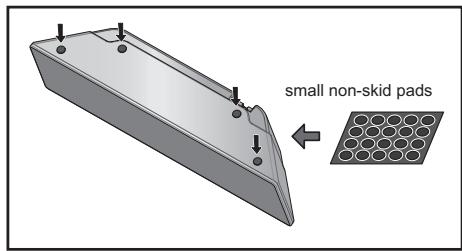

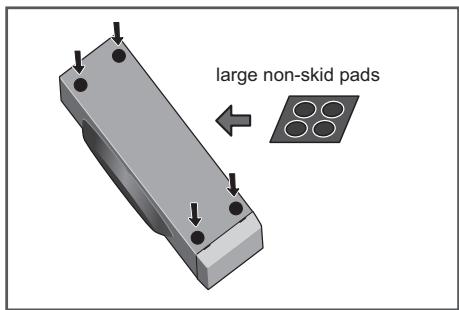

Speaker cable (1) Large non-skid pads

Accessories of speaker box (S-BD303)

File File . k naten Extension | SemPling Frequency Bitrate Note within 32-48 kHz (WMA), | within 20 - 320 kbps | Some wav files are within 16-48 kHz (MP3) | (WMA), within not supported on this DLNA, PC 32-320 kbps (MP3) | player Photo files File File Recommanded Note Location Extension Size Disc, Less than 4,000 x 3,000 x 24 bit/pixel | Progressive and lossless USB, Less than 3,000 x 3,000 x 32 bit/pixel | compression photo image files DLNA, PC are not supported

Maximum files/folder: Less than 2 000 {total number of files and folders)

restrictions by file features and media server's ability.

Playing a movie subtitle files are not supported on this player.

may not be shared properly.

This unit cannot support the ID3 Tag embedded MP3 file:

The total playback time of audio file

1.0/1.1 may not played properly. Blu-ray

play back HD movie files.

This player supports H.264/MPEG-4 AVC profile Main, High at Level 4.1. For a file

appear on the screen.

recorded with GMC*' or Qpel*?

+2 Qpel - Quarter pixel

+ The file nameis limited to 180 characters.

+ Depending on the size and number ofthe

files, it may take several minutes to read the File compatibility may differ depending on

The file requirements on page 11 are not always compatible. There may have some

The files from removable media such as USB drive, DVD-drive etc. on your media server

indicated on the screen may not correct for

HD movie files contained on the CD or USB Disc, DVD or USB 2.0 are recommended to

with higher level, the warning message will This player does not support files that are

#1. GMC - Global Motion Compensation

|| eoienDo epeupr ENGinas 12

AVCHD (Advanced Video Codec High De: on)

This player can playback AVCHD format discs. These discs are normally recorded and used in camcorders.

The AVCHD format is a high definition digital video camera format.

The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than that of the conventional image compressing format

This player can playback AVCHD discs using “xwColour format

Some AVCHD format discs may not play. depending on the recording condition.

AVCHD format discs need to be finalized.

“Colour” offers a wider colour range than normal DVD camcorder discs.

About DLNA This Player is a DLNA Certified digital media player that can display and play movie, photo and music content from your DLNA-compatible digital media server (PC and Consumer Electronics)

The Digital Living Network Alliance (DLNA) is à cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through your home network

The DLNA certification logo makes it easy

to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5

When à PC running DLNA server software or

other DLNA compatible device is connected to

this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

Certain System Requirements For high definition video playback:

+ High definition display that has COMPONENT or HDMI input jacks.

BD-ROM disc with high definition content

HDMI or HDCP capable DVI input on your display device is required for some content (as specified by disc authors)

For playing files on your PC'S share folder via your home network, the PC requires below.

+ Windows® XP (Service Pack 2 or higher), Windows Vista® (no Service Pack required) Windows 7° (no Service Pack required)

1.2 GHz Intel® Pentium® III or AMD Sempron" 2200+ processors

Network environment: 100 Mb Ethernet, WLAN (IEEE 802.11a/b/g/n)

More than 1 folder on your PC has to be shared Visit support link of your operating system for more information on file share settings.

This unit has a regional code printed on the rear of the unit. This unit can play only BD-ROM or DVD discs labeled same as the rear of the unit or'ALL!

| eoienDo speuprK ENGinas 19

Because BD-ROM is a new format, certain disc, digital connection and other compatibility issues are possible. I you experience compatibilty problems, please contact an authorized Customer Service Center.

This unit allows you to enjoy functions such 35 picture-in-picture, secondary audio and Virtual packages, etc, with BD-ROM supporting BONUSVIEW (BD-ROM version 2 Profile 1 version 1.1/ Final Standard Profile). Secondary video and audio can be played from a disc compatible with the picture-in-picture function. For the playback method, refer to the instructions in the disc.

Viewing high-definition content and up- converting standard DVD content may require à HDM-capable input or HDCP-capable DVI input on our display device.

Some BD-ROM and DVD discs may restrict the use of some operation commandés or features. Dolby TrueHD, Dolby Digital Plus and DTS-HD are supported with maximum 5.1 channels if you use HDMI connection for the audio output of the unit

You can use à USB device to store some disc related information, including downloaded on- line content. The disc you are using wil control how long this information is retained!

Battery Installation

Remove the battery cover on the rear of the Remote Control, and insert an RO3 (size AAA) battery with ® and © matched correctly.

|| eoienDo epeupr ENGinas 14

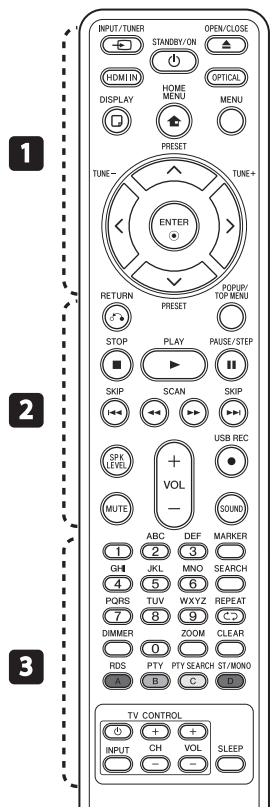

2 INPUT/TUNER: Changes input mode.

€) (STANDBY/ON): Switches the player ON or OFF

Æ OPEN/CLOSE: Opens and closes the disc tray.

HDMI IN: Changes input mode to HDMIIN directly.

OPTICAL: Changes input mode to optical directly.

© DISPLAY: Displays or exits On-Screen Display.

HOME MENU: Displays or exits the [Home Menu].

MENU: Accesses the menu on à disc.

© ENTER: Acknowledges menu selection.

TUNE (+/-): Tunes in the desired radio station:

PRESET (A / V} Selects programme of Radio.

8 RETURN: Ets the menu or resumes playback. The resume play function may not work depending on the BD-ROM disc. POPUP/TOP MENU: Displays the DVD title menu or BD-ROMS pop-up menu, if available.

M STOP: Stops playback

D PLAY: Starts playback

11 PAUSE/STEP: Pauses playback Hd /»»1 SKIP: Goes to the next or previous chapter / track / file.

Æ</»> SCAN: Searches backward or forward

SPK LEVEL: Sets the sound level of desired speaker.

@ USB REC: Records an audio (eo)

MARKER: Marks any point during playback

SEARCH: Displays or exits the search menu.

C2 REPEAT: Repeats a desired section or sequence

DIMMER: Dims the light on the unit.

ZOOM: Accesses the zoom menu.

CLEAR: Removes a mark on the search menu or a number when setting the password.

Coloured (A, B, C, D) buttons: Use to navigate on menus.

- A button (RDS): Radio Data System

-B button (PTY): Views the programme type of the RDS

- D button: Selects MONO or STEREO in FM mode.

SLEEP: Sets a certain period of time after which the unit will switch to off.

Assemble the speakers

Speaker Setup for BCS-717

Preparing the speakers

Attach the non-skid pads to the base of each speaker stand bases, the subwoofer and the center speaker.

For speaker stand bases: Use the supplied adhesive to attach four middle pads to the base (bottom) of each speaker stand base.

middle non-skid pads

For subwoofer: Use the supplied adhesive to attach four large pads to the base of subwoofer.

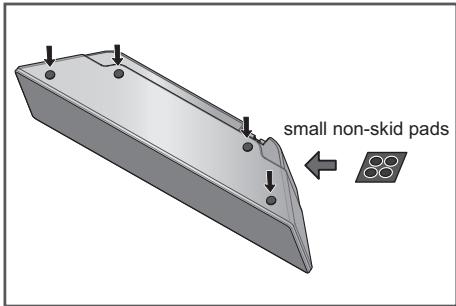

For center speaker: Use the supplied adhesive to attach four small pads to the base of center speaker.

2. Attach the speaker stand bases to the stems using the screws provided.

Once you have aligned the stem and base, secure with the small screws at the points shown below. Note that the speaker should face in the direction ofthe base ofthe isosceles triangle.

3. Connect the wires to the player. Connect the white wire with gray line into (+) side and the other wire into (-) side. To connect the cable to the player, press each plastic finger pad to open the connection terminal. Insert the wire and release the finger pad

+_ Do not connect any speakers other than those supplied to this system:

Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.

Please connect the speaker cable of subwoofer (purple) to orange of the player. These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric. shock when connecting or disconnecting the speaker cables, disconnect the power

cord before touching any uninsulated parts.

| eoienDo epeuprk ENGinas 17

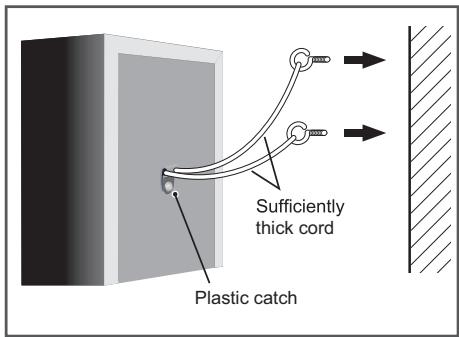

Securing your front and surround speakers

Secure each of the front and surround speakers using the plastic catch provided. Screw two supporting hooks into the wall behind the speaker. Pass a thick cord around the hooks and through the plastic catch so that the speaker is stabilized {make sure to test that it supports the weight of the speaker). After installing, make sure the speaker is securely fixed

U U Suffcientiy thick cord

The plastic catch is not a mounting fixture, and the speaker should not be hung directly from the wall using this catch. Always use à cord when stabilizing the speaker.

Pioneer disclaims all responsibility for any losses or damage resulting from improper assembly, installation, insuffcient strength ofthe installation materials, misuse, or natural disasters.

When placing this unit, ensure that it is

firmly secured and avoid areas where it may be likely to fall and cause injury in the event of a natural disaster (such as an earthquake)

Do not stand on the speaker stand base ofthe tall speaker to push or swing the speaker The speaker may fall and break, or someone may be injured. Pay special attention to children.

& 2011-06-02 m 11:09:15

Speaker Setup for BCS-313

Preparing the speakers 1. Attach the non-skid pad to the base of each speaker For speakers: Use the supplied adhesive to attach four small pads to the base (bottom) of each speaker.

For subwoofer: Use the supplied adhesive to attach four large pads to the base of subwoofer.

For center speaker: Use the supplied adhesive to attach four small pads to the base of center speaker.

2. Connect the wires to the player.

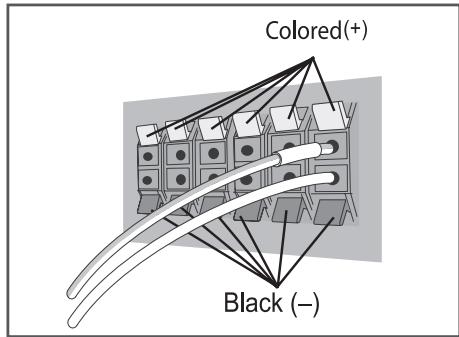

Connect the white wire with gray line into (+) side and the other wire into (-) side. To connect the cable to the player, press each plastic finger pad to open the connection terminal. Insert the wire and release the finger pad.

+_Do not connect any speakers other than those supplied to this system

Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fre.

Please connect the speaker cable of subwoofer (purple) to orange of the player.

+ These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.

Wall mounting the center speaker

The center speaker have à mounting hole which can be used to mount the speaker on the wal

Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fai to support it, resulting in the speaker falling. Make sure that

the wall you intend to mount the speakers on is strong enough to support them. Do not mount on phywood or soft surface walls

Mounting screws are not supplied. Use screws suitable for the wall material and support the weight ofthe speaker.

+_Ifyou are unsure of the qualities and strength of the wall, consult a professional for advice.

+ Pioneer is not responsible for any accidents or damage that result from improper installation.

Mounting screw {not supplied)

|| eoienDo speupr ENGinas 19

Additional notes on speaker

Install the main front left and right speakers at an equal distance from the TV.

Meke sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. Ifany ofthe bare speaker wire touches the back panel it may cause the power to cut off as a safety measure.

The front, center and surround speakers supplied with this system are magnetically shielded However, depending on the installation location, colour distortion may occur ifthe speaker is installed extremely close to the screen of a television set. this case happens, turn the power switch of the television set OFF, and turn it ON after 15 min, to 30 min. Ifthe problem persists, place the speaker system away from the television set.

The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the subwoofer.

Do not attach the front/surround speakers and

subwoofer to a wall or ceiling. They may fall off and cause injury.

& 2011-06-02 m 11:09:15

Positioning the system

The following illustration shows an example of positioning the system. Note that the illustrations in these instructions differ from the actual unit for explanation purposes.

For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position (@).

@ Front left speaker (L)/

© Front right speaker (R):

Place the front speakers to the sides of the monitor or screen and as flush with the screen surface as possible.

Place the center speaker above or below the monitor or screen

© Surround left speaker (L)/

© Surround right speaker (R):

Place these speakers behind your listening position,

facing slightly inwards.

The position of the subwoofer is not so critical, because low bass sounds are not highly directional But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce the wall reflections.

|| eoieno epeupr eNGinas 20

— (D Caution + Be careful to make sure children do not put their hands or any objects into the *subwoofer duct. *subwoofer duct: A hole for plentiful bass sound on subwoofer cabinet (enclosure).

Place the center speaker at a safe distance from the child's reach

Otherwise it may result in the speaker falling down and causing personal injury and/or property damage

+_ The speakers contain magnetic parts, so colour irregularity may ocur on the TV screen or PC monitor screen. Please use the speakers away from the TV screen or PC monitor screen.

Connecting to Your TV Make one of the following connections, depending on the capabiliies of your existing equipment.

+ HDMI connection (page 21) + Component Video connection (page 23) + Video connection (page 23)

+ Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual.

Please refer to the manuals of your TV, stereo system or other devices as necessary to make the best connections.

Make sure the player is connected directly to the TV. Tune the TV to the correct video input channel

Do not connect your player via your VCR The image could be distorted by the copy protection system

|. eotenDo speuprK ENGinee 21

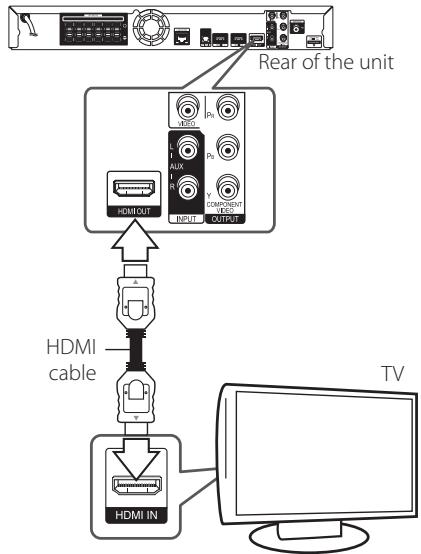

If you have a HDMI TV or monitor, you can connect itto this player using a HDMI cable (Type A, High Speed HDMI" Cable with Ethernet). Connect the HDMI jack on the player to the HDMI jack on a HDMI compatible TV or monitor.

Set the TV5 source to HDMI (refer to TV Owners manual)

Additional Information for HDMI

+ When you connect a HDMI or DVI compatible device make sure ofthe following; = Try switching off the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.

The connected devices video input is set correctly for this unit.

The connected device is compatible with 720x576p, 1280x720p, 1920x1080i or 1920x1080p video input

+_ Not all HDCP-compatible HDMI or DVI devices will work with this player.

= The picture will not be displayed properly with non-HDCP device.

+_Ifa connected HDMI device does not accept the audio output ofthe player, the HDMI devices audio sound may be distorted or may not output.

+_ When you use HDMI connection, you can change the resolution for the HDMI output. {Refer to "Resolution Setting'on page 24.)

+ Select the type of video output from the HDMI OUT jack using [HDMI Color Setting] option on the [Setup] menu (see page 32)

Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn offthe player and then turn it on again.

When the HDMI connection with HDCP

is not verified, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.

Ithere are noises or lines on the screen, please check the HDMI cable (length is generally limited to 4.5 m(15 ft).

|| eoienDo epeupr ENGins 22

The ARC function enables an HDMI capable TV to

send the audio stream to HDMI OUT of this player.

To use this function:

= Your TV must support the ARC function and the ARC of this player must be set to On (Initial setting is"Of)

= The setting method of ARC may differ depending on the TV. For details about ARC function, refer to your TV manual

= You must use the HDMI cable (Type À, High Speed HDMI” Cable with Ethernet).

= You must connect with the HDMI IN ofTV that supports the ARC function using the HDMI OUT on this player.

= You can connect only one Home Theater to TV

compatible with ARC.

The ARC function does not warrant that the

function works in all cases even ifthe above

conditions are satisfied.

- When you use the ARC function, CEC (Consumer Electronics Control) may work. If you do not want to use CEC, you can stop it work by setting "ARC Off" on Home Menu. In this case, it is needed to connect TV and this player by an optical cable to send the audio stream to this player.

Connect the COMPONENT VIDEO OUT jacks on the player to the corresponding input jacks on the TV using component video cable. You can hear the sound the through the systemis speaker.

Component video cable

© \cte When you use COMPONENT VIDEO OUT connection, you can change the resolution for the output. (Refer to"Resolution setting” on page 24)

|| eoienDo speupr ENGinas 23

Connect the VIDEO OUT jack on the player to the video in jack on the TV using a video cable. You can hearthe sound through the systems speakers.

Resolution Setting Antenna connection The player provides several output resolutions for

HDMI OUT and COMPONENT VIDEO OUTPUT jack. Connect the supplied antenna for istening tothe You can change the resolution using [Setup] menu. radio,

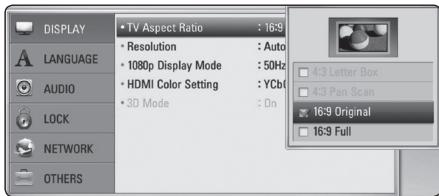

1. Press HOME MENU (À).

2. Use </ > to select the [Setup] and press ENTER (©). The [Setup] menu appears.

3. Use A / V to select [DISPLAY] option then press > to move to the second level.

4. Use A/ V to select the [Resolution] option then press ENTER (©) to move to the third level

5. Use A7 V to select the desired resolution then press ENTER (©) to confirm your selection.

+_fyour TV does not accept the resolution After connecting the FM wire antenna, keep & you have set on the player, you can set it as horizontal as possible. Be sure to fully & resolution to 576p as follows: extend the FM wire antenna.

1. Press & to open the disc tray. 2. Press I (STOP) for more than 5 seconds

+_ Since several factors affect the resolution of video output, see “Video Output Resolution on page 65.

un & CESSER CCE Connecting 25

Connections with PORTABLE IN connection + | devi You can enjoy the sound from your portable audio external device player through the speakers of this systern.

Connect the headphones (or line out ) jack of the portable audio player into the PORTABLE IN socket AUX Connection of this unit. And then select the [PORTABLE] option by pressing INPUT/TUNER and ENTER (©). You can also use the FUNCTION button on the front panel to select the input mode

You can enjoy the sound from an external component through the speakers of this system.

Connect the analog audio output jacks of your 2 component into the AUX L/R (INPUT) on this unit. as And then select the [AUX] option by pressing F 9 INPUT/TUNER and ENTER (©) à You can also use the FUNCTION button on the front \ ) ] panel select the input mode EN Z2 ë

of your component + (TV, VCR, etc.)

OPTICAL IN connection

You can enjoy the sound from your component with a digital optical connection through the speakers of this system.

Connect the optical output jack of your component

into the OPTICAL IN jack on the unit. And then select the (OPTICAL] option by pressing INPUT/ TUNER and ENTER (®). Or press OPTICAL to select directly.

You can also use the FUNCTION button on the front

panel to select the input mode.

To the digital 2 optical output jack of your component

|| eoienDo epeupr ENGinas 26

HDMI IN 1/2 connection

You can enjoy the pictures and sound from your component through this connection:

Connect the HDMI OUT jack of your component

into the HDMI IN 1 or 2 jack on this unit. And then

select the (HDMI IN 1/2] option by pressing INPUT/

You can also use the FUNCTION button on the front

panel to select the input mode.

To the HDMI OUT jack of your component (set-top box, digital satellite receiver, video game machine, etc)

+ You cannot change the video resolution in the HDMI IN 1/2 mode. Change the video resolution ofthe connected component.

Ithe video output signal is abnormal when your personal computer is connected to HDMI IN 1/2 jack, change the resolution

of your personal computer to 576p, 720p. 1080i or 1080p.

+_ The video signal from the HDMI input cannot be output from the component or composite video outputs.

+_ The player sends audio from the HDMI inputs to both the HDMI output and to the units speakers.

Connecting to your Home Network

service This player can be connected to a local area

network (LAN) via the LAN port on the rear panel or the internal wireless module.

By connecting the unit to a broadband home network, you have access to services such as BD- LIVE interactivity and Online content services

Wired network connection

Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference.

Suyseuuos [A Please refer to the documentation for your network device for further instructions

Connect the player LAN port to the corresponding port on your Modem or Router using à PC and/or DLNA certified server commercially available LAN or Ethernet cable Ea

æ +_ When plugging or unplugging the LAN cable, hold the plug portion ofthe cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.

Do not connect a modular phone cable to the LAN port.

Since there are various connection configurations, please follow the specifications of your telecommunication carrier or internet service provider.

If you want to access content from PCs

or DLNA servers, this player must be connected to the same local area network with them via a router.

_— HB916-RDO BDEUPPK ENGindé 27 r 2011-06-02 m 11:09:18 —

Ifthere is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the players network setting to be adjusted. Adjust the [NETWORK] setting as follow.

EN Preparation 4 o Before setting the wired network, you need to 5. 2 connect the broadband internet to your home

È 1. Select [Connection Setting] option in the é

“Canne Sat BD-UVE connection

2. The [Connection Setting] menu appear on the screen. Use A / V to select the [Wired] and press ENTER (©).

3. Use A/V/</3 to select the IP mode between [Dynamic] and [Staticl

Normally, select [Dynamic] to allocate an IP address automatically.

Ifthere is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using À / V / <1> and numerical buttons. f you make a mistake while entering a number, press CLEAR to clear the highlighted part.

Select [OK] and press ENTER (©) to apply network settings.

The player will ask you to test the network connection. Select [OK] and press ENTER (©) to complete the network connection:

you select [Test] and press ENTER (©) at step 5 above, the network connection status is displayed on the screen

You can also test it on the [Connection Status] in the [Setup] menu.

Wireless Network Connection

Another connection option is to use an Access Point or a wireless router. The network configuration and connection method may vary depending on the equipment in use and the network environment.

This player is equipped with an IEEE 802.1 1n (Dual- band, 5 GHz and 2.4 GHz band) wireless module, which also supports the 802.1 1a/b/g standards. For the best wireless performance, we recommend using a IEEE 802.1 1n certified Wi-Fi network (access point or wireless router).

EZ XZ Wireless Communication (

PC and/or DLNA certified server

Access Point or Wireless Router

Refer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings.

For best performance, a direct wired connection from this player to your home network router or cable/DSL modem is always the best option.

If you do chose to use the wireless option, note that performance can sometimes be affected by other electronic devices in the home.

|| eoienDo speupr ENGinas 29

Available frequency range and channels for 5 GHz band are listed as below. But, there may have the differences and restrictions depending on the country. Try setting your access point with other channel if you have difficukies in wireless network connection.

Area Frequency Range North [5.15-5.25 GHz (ch. 36-48), America _ |5.725-5.825 GHz (ch. 149-161), 5.825- 5.850 (ch.165) Europe, UAË [5.15-5.25 GHz (ch. 36-48) Others [5.15-5.25 GHz (ch. 36-48), 5725-5825 GHz (ch. 149-161), 5.825- 5.850 (ch.165)

Wireless Network Setup

For the wireless network connection, the player need to be set up for network communication: This adjustment can be done from the [Setup] menu. Adjust the [NETWORK] setting as follow. Setting up the access point or the wireless router is required before connecting the player to the network.

Preparation Before setting the wireless network you need to

-_ connect the broadband internet to the wireless home network.

- set the access point or wireless router. = note the SSID and security code ofthe network

1. Select [Connection Setting] option in the [Setup] menu then press ENTER (©).

2. The [Connection Setting] menu appear on the

screen. Use A/ V to select [Wireless] and press

3. Select [Yes] and press ENTER (©) to continue. The new connection settings reset the current network settings.

4. The player scans the all available access points or wireless routers within range and display them as a list. Use A / V to select an access

2 point or wireless router on the list, and then

If you have security on your access point or wireless router, verify that the WEP or WPA key that was entered into the player matches the router information exactly. You need to input the security code as necessary.

+ WEP security mode generally have 4 keys available on an access point or wireless router setting. If your access point or wireless router use WEP security, enter the. security code of the key“No.1’to connect on your home network.

An Access Point is a device that allows you to connect to your home network wirelessiy.

Ifyour access point or wireless router supports the PIN Code configuration method based on WPS(Wi-Fi Protected Setup), press yellow (C) coloured button and note the code number on the screen. And then, enter the PIN number on a setting menu of your access point or wireless router to connect. Refer to the documentation for your network device

|| eoieno epeupr EenGinas 30

[Manual] - Your access point may not be broadcasting its access point name (SSID) Check your router settings through your computer and either set your router to broadcast SSID, or manually enter the access point name (SSID) in [Manual]

{Push Button] - If your access point or

wireless router that supports the Push Button Configuration method, select this option and press the Push Button on your access point or wireless router within 120 counts. You do not need to know the access point name (SSID) and security code of your access point or wireless router.

Use AV 1</J> to select the IP mode between [Dynamic] and [Static]

Normally, select [Dynamic] to allocate an IP address automatically

Ifthere is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using À / V / <1> and numerical buttons. f you make a mistake while entering a number, press CLEAR to clear the highlighted part.

EN Select [OK] and press ENTER (©) to apply network settings.

The player will ask you to test the network connection. Select [OK] and press ENTER (©) to complete the network connection.

you select [Test] and press ENTER (©) at step 7 above, the network connection status is displayed on the screen. You can also test it on the [Connection Status] in the [Setup] menu.

Notes on Network Connection:

Many network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the player

to the home network, quickly power off and/

or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.

Our company is not responsible for any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.

The features of BD-ROM discs made available through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player f you have questions about such content, please contact the producer of the disc.

Some internet contents may require à higher bandwidth connection

Even ifthe player is properly connected and configured, some internet contents may not operate properly because of internet congestion, the quality or bandwidith of your internet service, or problems at the provider of the content.

Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (SP) supplying your broadband Internet connection.

Any fees charged by an ISP including, without limitation, connection charges are your responsibility.

A 10 Base-T or 100 Base-TX LAN port is required for wired connection to this player. f your internet service does not allow for such à connection, you will not be able to connect the player.

You must use a Router to use xDSL service.

|| eoienDo speuprK ENGine s1

A DSL modem is required to use DSL service and à cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP. you may not be able to use the internet connection feature contained in this player or you may be limited

to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)

The use of a ‘Router may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP For details, contact your ISP directly.

The wireless network operate at 2.4 GHz

radio frequencies that are also used by other household devices such as cordless telephone, Bluetooth® devices, microwave oven, and can be affected by interference from them:

Turn off all unused network equipment in your local home network. Some devices may generate network traffic.

For the purpose of the better transmission, placing the player from the access point as close 35 possible.

In some instances, placing the access point or wireless router at least 0.45 m (1.5 ft) above the floor may improve the reception

Move closer to the access point if possible or re- orient the player so there is nothing between it and the access point

The reception quality over wireless depends on many factors such as type of the access point, distance between the player and access point, and the location of the player.

Set your access point or wireless router to Infrastructure mode. Ad-hoc mode is not supported

USB device connection

This player can play movie, music and photo files contained in the USB device.

Playback content in the USB device

Insert a USB device to the USB port until it fits into place.

6. Withdraw the USB device carefully.

|| eoieno epeupr ENGinas 52

+_ This player supports USB flash drive/ external HDD formatted in FAT16, FAT32 and NTFS when accessing files (music, photo, movie). However, for BD-LIVE and Audio CD recording, only FAT16 and FAT32 formats are supported. Use the USB flash drive/ external HDD formatted in either FAT16 or FAT32 when using BD-LIVE and Audio CD recording,

The USB device can be used forthe local storage for enjoying BD-LIVE discs with Internet.

This unit can support up to 8 partitions of the USB device.

Do not extract the USB device during operation (play, etc)

A USB device which requires additional program installation when you have connected it to a computer, is not supported.

USB device: USB device that supports USB1.1 and USB2.0

+ Movie, music and photo files can be played For details of operations on each file, refer to relevant pages.

Regular back up is recommended to prevent data loss

If you use a USB extension cable, USB HUB or USB Multi-reader, the USB device may not be recognized

Some USB device may not work with this unit

Digital camera and mobile phone are not supported.

USB Port of the unit cannot be connected to PC. The unit cannot be used as a storage device.

Adjust the Setup Settings

You can change the settings of the player in the [Setup] menu.

1. Press HOME MENU (Tr

2. Use </> to select the [Setup] and press ENTER (©). The [Setup] menu appears.

IV Aspect Rate 168 gra “Rate se 218 pla Mode 0e HO Cor Setng — 2YCRGE

3. Use A / V to select the first setup option, and press > to move to the second level

4. Use A/V to select a second setup option, and press ENTER (©) to move to the third level.

“Rarolton pr 2180 Dsl bre HO Co Seti

5. Use A / V to select a desired setting, and press ENTER (©) to confirm your selection.

Select a TV aspect ratio option according to your TV type.

Select when a standard 43 TV is connected Displays theatrical images with masking bars above and below the picture.

Select when a standard 43 TV is connected Displays pictures cropped to fill your TV screen Both sides of the picture are cut off.

Select when a 169 wide TV is connected. The 43 picture is displayed with an original 43 aspect ratio, with black bars appearing at the left and right sides.

Select when a 16:9 wide TV is connected. The 43 picture is adjusted horizontally (in a linear proportion) to fill the entire screen.

You cannot select [4:3 Letter Box] and [43 Pan Scan] option when the resolution is set to higher than 720p.

Sets the output resolution ofthe Component and HDMI video signal. Refer to page 24 and 65 for details about the resolution setting

Select the type of output from the HDMI OUT jack. For this setting, please refer to the manuals of your display device.

Ifthe HDMI OUT jack is connected to

TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV.

Outputs 1080 lines of progressive video [1080i]

Outputs 1080 lines of interlaced video. [720p]

Outputs 720 lines of progressive video. [576p]

Outputs 576 lines of progressive video. 1576i]

Outputs 576 lines of interlaced video

Select when connecting to a HDMI display device.

Blu-ray 3D disc playback will output as 2D mode like a normal BD-ROM disc playback.

Blu-ray 3D disc playback will output as 3D mode

When the resolution is set to 1080p, select

124 Hz] for smooth presentation of film material (1080p/24 Hz) with a HDMI-equipped display compatible with 1080p/24 Hz input.

+ When you select (24 Hz], you may experience some picture disturbance when the video switches video and film material In this case, select (50 Hz

Even when [1080p Display Mode] is set to {24 Hz], if your TV is not compatible with 1080p/24 Hz, the actual frame frequency of the video output will be 50 Hz to match the video source format.

Since several factors affect the resolution of video output, see Video Output Resolution” on page 65.

Display Menu Select a language for the [Setup] menu and on- screen display.

Disc Menu/Disc Audio/ Disc Subtitle

Select the language you prefer for the audio track (disc audio), subtiles, and the disc menu

[Original] Refers to the original language in which the disc was recorded

Press ENTER (©) to select another language. Use number buttons then press ENTER (©) to enter the corresponding 4-digit number according to the language code list on page 62

1Off] (Disc Subtitle only) ‘Turn off Subtitle.

Depending on the disc, your language setting may not work.

To obtain the best possible sound, use the speaker setup display to specify the volume ofthe speakers you have connected and their distance from your listening position. Use the test to adjust the volume of the speakers to the same level

[Speaker] Select a speaker that you want to adjust.

[Volume] Adjust the output level of each speaker.

Adjust the distance between each speaker and the listening position.

[Test/ Stop test tone] The speakers will emit a test tone.

[OK] Confirms the setting.

[Cancel] Cancels the setting.

& 2011-06-02 m 11:09:20

Suyes mess PA Buyes wasis KA]

Sometimes Digital TV encounters a delay between picture and sound. this happens you can compensate by setting a delay on the sound so that it effectively‘waits for the picture to arrive: this is called HD AV Sync. Use A / V to scroll up and don through the delay amount, which you can set at anything between O and 300 ms.

DRC (Dynamic Range Control)

This function allows you to listen to a movie at a lower volume without losing clarity of sound.

[off] Turns of this function:

Compress the dynamic range of the Dolby Digital, Dolby Digital Plus or Dolby TrueHD audio output.

The dynamic range of the Dolby TrueHD audio output is specified by itself.

And the dynamic range ofthe Dolby Digital and Dolby Digital Plus are operated as same as the [On] mode.

The DRC setting can be changed only when a disc is not inserted or the unit is in complete stop mode.

|| eoienDo epeupr EnGinas 36

The [LOCK] settings affect only Blu-ray Disc and DVD playback

To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created

I you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press ENTER (©) to create a new password.

You can create or change the password

Enterthe current password and press ENTER (©). Enter a 4-digit password twice, and press ENTER (©) to create a new password.

If you forget your password

I you forget your password, you can clear it using

the following steps:

1. Remove any disc that might be in the player

2. Select [Password] option in the [Setup] menu.

3. Use Number buttons to enter*210499° The password is cleared

Ifyou make a mistake before pressing ENTER (©), press CLEAR. Then input the correct password

Blocks playback of rated DVD based on their content. (Not all discs are rated.)

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive. [Unlock]

Ifyou select [Unlock], parental control is not active and the disc plays in full

Set an age limit of BD-ROM play. Use number buttons to input an age limit for BD-ROM viewing

1255] AI BD-ROM can be played

Prohibits play of BD-ROM with corresponding ratings recorded on them:

The [NETWORK settings are needed to use the BD- Live and Online content services.

If your home network environment is ready to connect the player, the player needs to be set the wired or wireless network connection for network communication. (See“Connecting to your Home Network’ on pages 27-31)

If you want to check the network status on this player, select the [Connection Status] options and press ENTER (©) to check whether a connection to the network and the internet have been established

You can restrict Internet access when BD-LIVE functions are used.

The (Blu-ray Disc Rating] will be applied only for the Blu-ray disc that containing the Advanced Rating Control

Enterthe code ofthe area whose standards were used to rate the DVD video disc, based on the list on page 61

|| eoienDo epeupr ENGinas 37

Internet access is permitted for all BD-LIVE contents.

[Partially permitted]

Internet access is permitted only for BD- LIVE contents which have content owner certificate, Internet access and AACS Online functions are prohibited for all BD-LIVE contents without a certificate.

Internet access is prohibited for all BD-LIVE contents.

& 2011-06-02 m 11:09:20

Suyes mess PA Buyes wasis KA]

ARC (Audio Return Channel)

You can set ARC (Audio Return Channel) function [On] or [Off]. The ARC function enables an HDMI capable TV to send the audio stream to HDMI OUT ofthis player. Refer to page 22 for details about this function.

DivX° VOD ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divxcom for more information on how to complete your registration.

[Register] Displays the registration code of your player.

Deactivate your player and display the deactivation code.

© \cte Allthe downloaded videos from DivX VOD with this players registration code can only be

played back on this unit.

The screen saver appears when you leave the player in Stop mode for about five minutes. If

you set this option to [On], the unit automatically turns off within 25 minutes since the Screen Saver is displayed. Set this option to [Off] to leave the screen saver until the unit is operated by the user.

reset the player to its original factory

[BD-LIVE Storage Clear]

Initializes the BD-LIVE contents from the connected USB storage

Ifyou reset the player to its original factory settings using [Factory Set] option, you have to set all the activation for the Online services and network settings again:

Software Information

Displays the current software version

You can select a suitable sound mode. Press SOUND repeatedly until the desired mode appears on the front panel display or the TV screen. The displayed items for the equalizer maybe different depending on sound sources and effects.

[Mode 1]: Gives you suitable sound setting with connecting small type of speakers (S-BD303) [Mode 2]: Gives you suitable sound setting with connecting tall type of speakers (S-BD707T) [Bypass]: Software with multichannel surround

audio signals is played according to the way itwes recorded

[Bass Blast]: Reinforce the bass sound effect from front left and right speaker and subwoofer.

[PL II Movie]: Performs Pro Logic Il movie mode decoding to the input signal and produces five ful-bandwidth output channels from 2 channel sources. This setting is ideal for watching videos of overdubbed or old movies. This mode is available only to 2 channel sources.

& {PL II Music]: Performs Pro Logic || music mode & decoding to the input signal and produces five ful-bandwidth output channels from 2 channel sources. This setting is ideal for normal stereo sources such as CD. This mode is available only to 2 channel sources.

[Clear Voice]: This mode makes voice sound clear, improving the quality of voice sound.

[Game]: You can enjoy more virtual sound while playing video games

{Night}: This may be useful when you want to watch movies at low volumes late at night. [Mus. ReTouch]: When listening to MP3 files or other compressed music, you can enhance the sound. This mode is available only to 2 channel sources.

[Loudness]: Improves bass and treble sound.

General Playback Playing a Disc

: 1. Press & (OPEN/CLOSE), and place a disc on the Using [HOME] menu disc try, The home menu appears when you press HOME 2. Press & (OPEN/CLOSE) to close the disc tray.

MENU (@r). Use A/ V /</> to select a category or the most Audio CD, 8D-ROM and

DVD-ROM discs, playback starts automatically.

+ Playback functions described in this manual are not always available in every files and media. Some functions can be restricted depending on many factors.

Depending on the BD-ROM titles, a USB [Music] - Plays audio contents. device connection may be needed for the proper playback.

IMovie] - Plays video contents.

[Photo] - Plays photo contents.

Unfinalized DVD VR format discs may not be played in this player.

Some DVD-VR discs are made with CPRM [Setup] - Adjusts the system settings data by DVD RECORDER. This unit cannot support these kinds of discs.

Online] - Displays the Online Home screen

Input] - Changes input mode.

Playing a file on a disc/USB device

[MOVIE [MUSIC [PHOTO]

This player can play movie, music and photo files contained in the disc or USB device.

1. Insert a data disc on the tray or connect a USB device.

2. Press HOME MENU (@).

This player can play the Blu-ray 30 discs which contains separate views for the left and right eyes.

In order to playback Blu-ray 3D title in

stereoscopic 3D mode, you need to:

+ Check your TV is 3D capable and has HDMI (D) input(s)

+ Wear 3D glasses to enjoy the 3D experience ifitis necessary.

+ Check whether the BD-ROM title is the Blu- ray 3D disc or not.

+ Connect an HDMI cable (High Speed HDMI" Cable with Ethernet) between the players HDMI output and TV HDMI input

Press HOME MENU (7), and set the [3D Mode] option on the [Setup] menu to [On] (page 34).

Press & (OPEN/CLOSE), and place a disc on the disc tray.

Press & (OPEN/CLOSE) to close the disc tray. The playback starts automatically.

Refer to the owner manual of your 3D-ready TV for the further instruction.

You may need to adjust the display settings and focus on your TV setting for the improved 3D effect.

+ Watching a 3D content for a long period time may cause dizziness or tiredness.

It is not recommended to watch a movie in 3D mode for infirm, child (particularly under 6) and pregnant woman:

Ifyou are experiencing headache, tiredness or dizziness while viewing contents in 3D, it is strongly recommended to stop the playback and rest until you feel normal

|. eoieno speuprk ENGine 41

BD-ROM supporting BD-Live (BD-ROM version 2 Profile 2) that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

1. Check the network connection and settings (pages 27-31)

2._ Insert a USB storage device to the USB port on the front panel

A USB storage device is needed to download bonus content.

3. Press HOME MENU (Tr), and set the [BD-LIVE connection] option on the [Setup] menu (page 37)

Depending on a disc, the BD-Live function may not be operated if [BD-LIVE connection] option is set to [Partially Permitted]

4. Insert a BD-ROM with BD-Live.

The operations are differ depending on the disc. Refer to the manual supplied with the disc

-— (D Caution Do not extract the connected USB device while content is being downloaded or a Blu- ray disc is stil in the disc tray. Doing so may damage the connected USB device and BD- Live features may not operate properly with the damaged USB device anymore. Ifthe connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player.

+ Some BD-Live contents may be restrictively accessed in some territories by contents providers own decision.

+ lt may take up to several minutes to load and start enjoying BD-Live contents.

Playing a file on a network server

[MOVIE [MUSIC [PHOTO]

This player can play movie, music and photo files

located in a PC or a DLNA server through your

1. Checkthe network connection and settings (pages 27-31).

See a Device orSener,

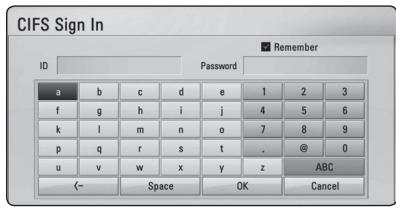

Entering a network user ID and the password Depending on your PCs environment, you may

need to enter a network user ID and the password

for accessing a shared folder.

1. The keyboard menu appears automatically ifthe network user ID and the password are required

2. Use A/V/</> to select a character then press ENTER (©) to confirm your selection on the virtual keyboard To enter a letter with an accent mark, press DISPLAY ([4) to display the extended character

Ifyou want to rescan available media server, press the green (8) coloured button

5. Select a file using A/V/</>,and press ENTER (©) to play the file.

+_ The file requirements are described on page 11

The thumbnail ofthe unplayable files can be displayed, but those cannot be played on this player.

The subtitle file name and movie file name have to be the same and located at the same folder.

The playback and operating quality may be affected by your home network condition

You may experience connection problems depending on your server environment.

DTCP-P cannot be supported

|| eoieno epeupr EnGinas 42

[Cancel] - Returns to the previous screen!

[Space] — Inserts a space at the cursor position

[<-1- Deletes the previous character atthe cursor position.

[ABC / abc / #+-=&] - Change the keyboard menu settings to capital letters, small letters or symbol.

3. When you finish entering the network user ID and password, select [OK] using A/V/</> and press ENTER (®) to access the folder.

The network user ID and password will be remembered after accessing the folder for your convenience. you do not want the network user ID and password to be remembered, press red (A) coloured button to un-tick the [Remember] check box before accessing the folder.

Basic operations for video and audio content

To stop playback Press M (STOP) while playback.

Press I (PAUSE/STEP) while playback. Press à (PLAY) to resume playback

To play frame-by-frame (Video)

Press I (PAUSE/STEP) while movie playback

Press I (PAUSE/STEP) repeatediy to play Frame-by- Frame playback.

To scan forward or backward Press 44 or Bb to play fast fonward or fast reverse during playback

You can change the various playback speeds by pressing 44 or Bb repeatediy.

To slow down the playing speed

While the playback is paused, press be repeatediy to play various speeds of slow motion.

To skip to the next/previous chapter/track/file

During playback, press 4 or Bb to go to the next chapter/track/fle or to return to the beginning of the current chapter/track/fle.

Press Hd twice briefly to step back to the previous chapter/track/file.

In the fill list menu of a server, there may have many types of contents in a folder together. In this case, press Hd or BB to go to the previous or next content with same type.

|| eoienDo epeupr EnGinas 43

Basic operations for photo content

To play a slide show

Press (PLAY) to start slide show

To stop a slide show Press M (STOP) while slide show.

To pause a slide show

Press I (PAUSE/STEP) while slide show. Press (PLAY) to re-start the slide show

To skip to the next/previous photo

While viewing a photo in full screen, press < or > &0 go to the previous or next photo

To display the dise menu The menu screen may be displayed first after loading a disc which contains a menu. If you want to display the disc menu while playback press

MENU Use A/ V /</> buttons to navigate through menu items.

To display the Pop-up menu Some BD-ROM discs contain Pop-up menu that appears while playback

Press POPUP/TOP MENU while playback, and use

AIVI<J> buttons to navigate through menu items.

[eo Eovo FavcHp [MOVIE LacD | [MUSIC]

The unit records the point where you pressed the

M (TOP) depending on the disc. F

point) If you press I (STOP) twice or unload the disc,

“BComplete Stop)" appears on the screen. The unit

will clear the stopped point.

+_ The resume point may be cleared when à button is pressed (for example © (STANDBY/ON), & (OPEN/CLOSE), etc).

On BD-ROM discs with BD-J, the resume playback function does not work

{Resume Stop)" appears on the screen briefy, press à (PLAY) to resume playback (from the scene

If you press I (STOP) once during BD-ROM interactive title playback, the unit will be in

|| eoienDo epeuprK ENGinas as

Leo Lovo FAVCHD | ACD | MUSIC]

During playback, press REPEAT (C9) repeatedly to select a desired repeat mode

DA: - Selected portion will be repeated continually. 9 Chapter - The current chapter will be played back repeatedly.

Title - The current tite will be played back repeatedly.

To return to normal playback, press REPEAT (C2) repeatedly to select [Off]

Audio CDs/Music files

GTrack- The current track or ile will be played back repeatedly.

AI - Al the tracks or files will be played back repeatedhy

2G The tracks orfiles will be played back in random order.

2G AI - All the tracks or files will be played back repeatedy in random order.

SAB - Selected portion will be repeated continually. (Audio CD only)

To return to normal playback, press CLEAR

+ IFyou press 1 once during Repeat Chapter/Track playback, the repeat playback cancels.

+_ This function may not work on some disc or title.

| eoieno epeupr EnGinas 45

Repeating a specific portion

Len Lovp FAVCHD] ACD |

This player can repeat a portion you have selected

1. While playback, press REPEAT (CD) to select [A at the beginning of the portion you wish to repeat.

2. Press ENTER (©) at the end of the portion. Your selected portion will be repeated continually.

3. To return to normal playback, press (CD) repeatedy to select [Of]

+ You cannot select a portion less than 3 seconds

+_ This function may not work on some disc or title.

Enlarge the playback Dre

9 O9 ELEC EU During playback or pause mode, press ZOOM to display the [Zoom] menu

2. Use red (A) or green (8) coloured button to zoom out or in the picture. You can move through the zoomed picture using A/ V/</ > buttons.

3. To retum to the normal picture size, press yellow (C) coloured button

4. Press RETURN (4) to exit the [Zoom] menu

& 2011-06-02 m 11:08:21

You can start playback from up to nine memorized points.

1. While playback, press MARKER at the desired point. The Marker icon appears on the TV screen briefly.

2. Repeat step 1 to add up to nine markers.

To recall a marked scene

1. Press SEARCH and the search menu appears on the screen.

2. Press a number button to select a marker number that you want to recall. Playback starts from the marked scene.

1. Press SEARCH and the search menu appears on the screen.

2. Press V tohighlight a marker number. Use </ > to select a marked scene that you want to delete.

3. Press CLEAR and the marked scene is erased from the search menu

+_ This function may not work depending on discs, titles, server ability.

+ All marked points are cleared ifthe title is in complete stop (I) mode, the title is changed or if you unload the disc.

+_ifthe total length of the title is less than 10 seconds, this function is not available.

Using the search menu

BD LDVD TAVCHD [MOVIE Using search menu, you can easily to find the point where you want to start playback

1. During playback, press SEARCH to display the search menu

2. Press </> to skip the playback 15 seconds forward or backward. You can select a point that you want to skip by pressing and holding </> button.

To start playback from a marked

1. Press SEARCH and the search menu appears on the screen.

2. Press V to highlight a marker number. Use <> to select a marked scene that you want to start playback.

3. Press ENTER (©) to start playback from the marked scene.

+_ This function may not work depending on discs, titles, server ability.

+_ This function may not work depending on the file type and ability of the media server.

Selecting a subtitle file

[MOVIE Ithe subtile file name is different from the movie

file name, you need to select the subtitle file on the

[Movie] menu before playing the movie:

1. Use A/V/</3 to select the subtitle file you wish to play in the [Movie] menu

Press ENTER (©) again to deselect the subtitle file. Selected subtitle file will be displayed when you play the movie file

+_lfyou press I (STOP) while playback, the subtitle selection is cancelled

+ This function is not available for playing file on a server via home network.

|| eoienDo epeupr ENGinas 47

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch off the unit. I you load a disc that has the scene memorized, the scene is automatically recalled

+_ Last Scene Memory function for a previous disc is erased once a different disc is played

+_ This function may not work depending on the disc.

+ On BD-ROM discs with BD-J, the last scene memory function does not work

+_ This unit does not memorize settings of a disc if you switch off the unit before commencing to play it

& 2011-06-02 m 11:08:21

Options while viewing a photo

PHOTO You can use various options during viewing a photo in full screen.

1. While viewing a photo in full screen, press DISPLAY ([) to display the option menu.

2. Select an option using A/ V.

E E EX Current photo/Total number of photos — Use </ > to view previous/next photo:

Music Select - Select the background music for the slide show (page 48).

Rotate - Press ENTER (©) to rotate the photo clockwise.

Zoom - Press ENTER (©) to display the [Zoom] menu.

Listening to music while slide show

You can display photo files while listening to music

Device that you can select are differ depending on the location of the photo file you are displaying in full screen.

Photo location Available Device Disc, USB Disc, USB Share Folder (PC) Share Folder (PC) DLNA server DLNA server

4. Use A J V to select a file or a folder you wish to play.

Music -Press ENTER (©) to start or pause E [6]

Effect - Use </> to select a transition effect between photos in a slide show.

E Speed - Use </> to select a delaying speed between photos in a slide show.

3. Press RETURN (8) to exit the option menu.

When selecting music ile from a server, folder selection is not available. Only file selection is available.

5. Use > to select [OK], and press ENTER (©) to complete music selection.

You can display and adjust various information and

settings about the content.

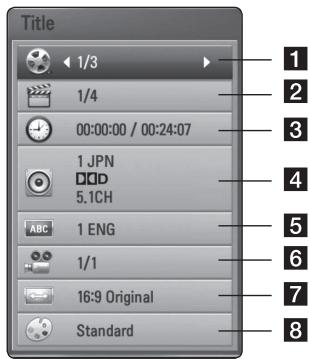

Displaying content information

various playback information.

Title - current title number/total number of

Time — elapsed playing time/total playback time

Audio - selected audio language or channel

le - selected subtitle.

TV Aspect Ratio - selected TV aspect Ratio

|| eoieno epeupr ENGinas 49

Press RETURN (8) to exit the On-Screen display.

+_IFno button is pressed for a few seconds, the on-screen display disappears.

+_Atitle number cannot be selected on some discs

+_ Available items may differ depending on dises or titles

+_ IFan interactive Blu-ray Disc is playing back, some setting information is displayed on the screen but prohibited to be changed

Playing from selected

BD LDVD TAVCHD [MOVIE

1. Press DISPLAY ([J) during playback. The time search box shows the elapsed playing time

2. Select the [Time] option and then input the required start time in hours, minutes, and seconds from left to right. For example, to find a scene at 2 hours, 10 minutes, and 20 seconds, enter"21020" Press </ > to skip the playback 60 seconds forward or backward

3. Press ENTER (©) to start playback from selected time.

+_ This function may not work on some disc or titles.

+_ This function may not work depending on the fill type and ability ofthe DLNA server.

Hearing a different audio

D'ENARNEE During playback, press DISPLAY (09) to display the On-Screen display.

2. Use A/V to select the [Audio] option.

3. Use </> to select desired audio language, audio track or audio channel.

+ Some discs allow you to change audio selections only via the disc menu. In this case, press POPUP/TOP MENU or MENU button and choose the appropriate audio from the selections on the disc menu.

immediately after you have switched sound there may be a temporary discrepancy between the display and actual sound

On BD-ROM disc, the multi audio format (5.1CH or 7.1CH) is displayed with [MultiCH] in the on-screen display.

|| eoienDo epeupr ENGina 50

Selecting a subtitle language

BD LDVD AVCHD [MOVIE During playback, press DISPLAY (09) to display the On-Screen display.

2. Use A/ V to select the [Subtitle] option Use </ > to select desired subtitle language.

Press RETURN (8) to exit the On-Screen display.

Some discs allow you to change subtitle selections only via the disc menu. this is the case, press POPUP/TOP MENU or MENU button and choose the appropriate subtitle from the selections on the disc menu.

Watching from a different angle

Ifthe disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback

1. During playback press DISPLAY (C3) to display the On-Screen display.

2. Use A / V to select the [Angle] option 3. Use </> to select desired angle.

4. Press RETURN (8) to exit the On-Screen display.

Changing the TV Aspect Ratio

BD LDVD TAVCHD [MOVIE You can change the TV aspect ratio setting while playback.

During playback, press DISPLAY ([) to display the On-Screen display.

Use A / V to select the [TV Aspect Ratio] option.

Use </ > to select desired option

Press RETURN (4) to exit the On-Screen display.

Even if you change the value ofthe [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Setup] menu is not changed

Changing subtitle code page

[MOVIE Ithe subtitle is displayed in broken letter, you can

change the subtitle code page to view the subtitle

1. During playback, press DISPLAY (C9) to display the playback menu

3. Use </> to select desired code option.

Press RETURN (4) to exit the On-Screen display.

BD LDVD TAVCHD [MOVIE You can change the [Picture mode] option while playback.

During playback, press DISPLAY ([) to display the On-Screen display.

Use A / V to select the [Picture Mode] option. Use </ > to select desired option.

Press RETURN (8) to exit the On-Screen display.

Setting the [User] option

During playback, press DISPLAY ([) to display the On-Screen display.

Use A / V to select the [Picture Mode] option.

Use </> to select the [User setting] option, and press ENTER (®).

Color Sharpness Noise Reduction

Use A/V /</> to adjust the [Picture Mode] options.

Select [Default] option then press ENTER (©) to reset the all video adjustments.

Use A/V /</J> to select the [Close] option, and press ENTER (©) to finish setting.

You can record one desired track or all of the tracks in Audio CD to a USB storage device.

Suyesdo EN Insert à USB storage device to the USB port on

Press À (OPEN/CLOSE), and place an Audio CD

Press & (OPEN/CLOSE) to close the disc tray.

The playback starts automatically.

Press DISPLAY ([J) to display the option menu. Or

Press @ USB REC button on the remote control

You can record all musics in the audio CD.

Use A / V to select [CD Recording] option, and

Use A / V to select a track you wish to copy on

the menu, and press ENTER (©)

Repeat this step to select tracks as many as you

Selects allthe tracks on an Audio CD.

Selects an encoding option

Cancels the recording and returns to the previous screen.

from the pop-up menu (128 kbps, 192 kbps, 320 kbps

Use A /V /<J> to select [Start], and press ENTER (©)

Use A /V/</J> to select a destination folder to be copied

IFyou want to create a new folder, use AINJ<J> to select [New Folder] and press ENTER (©)

Enter a folder name using virtual keyboard, and

|" Hesréano epeurPx ENGinca 52

press ENTER (©) while [OK] is selected.

8. Use A/V/</> to select [OK], and press

ENTER (©) to start Audio CD recording,

If you want to stop in progressing Audio CD recording, press ENTER (©) while [Cancel] is highlighted

9._ A message appears when Audio CD recording is

completed. Press ENTER (©) to check the audio file created in the destination folder.

+_ The table below shows the average recording time from an music track with 4 minutes of playback time to a audio file with

192 kbps as an example. stop mode while playback

Recording times in the table above are approximate.

Actual recording time for USB storage device varies depending on the USB storage devices ability.

Make sure that there is minimum of 50 MB free space is needed when recording into the USB storage device.

The length of the audio should be longer than 20 secondk for the proper recording

Do not turn off this player or extract the connected USB storage device during Audio CD recording,

-— (À Caution The making of unauthorized copies of copy-protected material including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense This equipment should not be used for such purposes.

Be responsible Respect copyrights

You can enjoy the sound with your iPod. For details about iPod, refer to the iPod's User Guide.

+_ To view iPod's Videos and Photos on the TV screen.

Be sure to use the video connection through the VIDEO OUT jack on the rear panel of this unit, Select the appropriate video input mode on the TV.

Depending on the iPod, make sure that select Videos > Video settings, and then set TV Out to Ask or On from your iPod

For details about Video Settings, refer to the iPod User Guide.

is in iPod IN mode and you can view photos only as à slide show. You have to start a slide show on your iPod to view a photo on a TV. For details about à slide show, refer to the iPod User Guide.

Before connecting the iPod, turn this unit off and reduce the volume of this unit to its minimum

Connect the cradle so thatthe mark is dounwards. Put your iPod on it

Connect the iPod firmiy.

Ifyou turn this unit on, your iPod is automatically tumed on and recharging starts.

|| eoienDo epeupr ENGinas 9

The viewing photos is available only ifthis unit

Select a file using A/V/</>, and press ENTER (©) to play the file.

Enjoying iPod on the screen

Ifyou connected the other device {CD or USB), select the iPod on the menu.

Enjoying the iPod IN mode

You can operate your iPod by using the supplied remote control and controls on your iPod. 1. Connect the cradle so thatthe mark Y is downwards. Put your iPod on it. Connect the iPod firm. Ifyou turn this unit on, your iPod is automatically turned on and recharging starts

2. Press INPUT/TUNER to select [iPod in] mode.

To pause while it is playing. u To resume playing, press (PLAY) again.

Fast-fonward or rewind a song

DIR Skip the playback forward or backward To select a desired repeat

REPEAT mode: Track (5), Al ({5), Of

This system is compatible with the audio and video of the iPod (4th generation), iPod nano, iPod classic, iPod mini, iPod touch and iPhone (iPod shuffle is not supported

|| eoienDo epeupr ENGinas 54

+_ An error message "CHECK IPOD'"or “Connected IPod model is not supported!" appears when: = youriPod is not available for the function to be operated

Ithis unit displays an error message, follow the message. An error message "CHECK IPOD' or ‘Please check your iPod” appears when: - the communication between this unit and your iPod is failed Undock & re-dock your iPod in this unit = youriPod is not connected firmiy. -_ this unit recognises your iPod as unknown device. = youriPod is exceptionally low on power. The battery needs to be charged you charge the battery while iPod is extremely low in power, it may take longer to charge.

Compatibility with your iPod may vary depending on the type of your iPod

iPod touch and iPhone have any difference in operation other than iPod. You may need any additional control to use them with this unit. (e.g."slide to unlock‘)

If you use an application, make a call, or send and receive SMS text message, etc. on iPod touch or iPhone, disconnect it from iPod dock of this unit and then use it.

This unit has been developed and tested for the software version of iPod/iPhone indicated on the website of Pioneer.

Installing sofoware versions other than indicated on the website of Pioneer to your iPod/iPhone may result in incompatibility with this unit.

The video quality depends on the video sources on our iPod

If you have a problem with your iPod, please visit wwwapple.com/support/iPod:

Be sure that the antennas are connected. {Refer to the page 24)

Listening to the radio

1. Press INPUT/TUNER until TUNER (FM) appears in the display window. The last received station is tuned in.

2. Press and hold TUNE (+) for about two seconds until the frequency indication starts to change. Scanning stops when the unit tunes in station. Or Press TUNE (-/+) repeated.

3. Adjust the volume by rotating VOLUME on the front panel or by pressing VOL (+/-) on the remote control

Presetting the Radio Stations

You can preset 50 stations for FM. Before tuning, make sure that you have tumed down the volume.

1. Press INPUT/TUNER until the TUNER (FM) appears in the display window.

2. Select the desired frequency by using TUNE t/#).

3. Press ENTER (©) a preset number will flash in the display window

4. Press PRESET (A / V) to select the preset number you want

5. Press ENTER (©). The station is stored 6. Repeat the steps 2 to 5 to store other stations.

|| eoienDo epeupr ENGinas 55

Deleting a saved station

1. Press PRESET (A / V) to select a preset number you want to delete.

2. Press CLEAR, the preset number will blink in the display window.

3. Press CLEAR again, to delete the selected preset number.

Deleting all the saved stations

Press and hold CLEAR for two seconds. “ERASE ALL'will flash up. Press CLEAR again. Then all the saved stations are deleted.

Improving poor FM reception

Press blue (D) (ST/MONO) coloured button on the remote control. This will change the tuner from stereo to mono and usually improve the reception.

See information about a radio station

The FM tuner is supplied with the RDS (Radio Data System) facility. This shows information about the radio station being listened to. Press RDS repeatedly to cycle through the various data types:

(Programme Service Name) PS | The name ofthe channel will appear in the display

(Programme Type Recognition) PTY_ | The programme type (e.g. Jazz or News) will appear in the display.

A text message contains special information from the broadcast station This text may scroll across the display.

(Time controlled by the channel) CT | This shows the time and date as broadcast by the station.

You can use various content services via Internet with the Online feature.

+ Detailed information of each service, contact to the content provider or visit support link ofthe service.

+_ The content of Online services and service related information, including user interface, is subject to changes. Please refer to the web site of each service for most up-to-date information

+ Using Online features with wireless network connection may result in improper streaming speed by interference from household devices that are using radio frequencies

+ Please note that the related privacy policy will be applied to your privacy and legal rights of you when you provide the online services with user names, passwords, or other login information or personal information and when Pioneer stores them: Please refer to Pioneer Privacy Policy on the WEB site.

|| eoieno epeupr ENGinas 56

Troubleshooting General Symptom Cause & Solution

The Power does not turned on.

+ Plug the power cord into the wall outlet securely.

The unit does not start playback

Insert a playable disc. (Check the disc type, colour system, and regional code.)

Place the disc with the playback side down.

Place the disc on the disc tray correctly inside the guide.

Cancel the Rating function or change the rating level

The angle cannot be changed

Multi-angles are not recorded on the DVD Video being played

Cannot play movie, photo or music files.

The files are not recorded in a format that the unit can play.

The unit does not support the codec ofthe movie file.

The remote control does not work properiy.

The remote control is not pointed at the remote sensor of the unit.

The remote control is too far from the unit.

There is an obstacle in the path ofthe remote control and the unit.

The batteries in the remote control are exhausted.

The unitis plugged in, but the power will not turn on or off.

The unit is not operating normally.

You can reset the unit as follows.

1. Press and hold the STANDBY/ON button for at least five seconds. This will force the unit to power off then turn the unit back on.

2. Unplug the power cord, wait at least five seconds, and then plug itin again

|| eoieno epeupr ENGines 57

BD-LIVE feature does not work

+_ The connected USB storage may not have enough space. Connect the USB storage with at least 1GB free space.

Ensure that the unit is correctly connected to the local area network and can access the internet (see page 27-31).

Your broadband speed may not fast enough to use the BD-LIVE features. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

The (BD-LIVE connection] option in the [Setup] menu is setto {Prohibited]. Set the option to [Permitted]

Streaming video services (such 25 YouTube" etc) are often stopped or"buffer” during playback

Your broadband service speed may not be fast enough to stream video services. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended:

Shared folder or files from your PC or a media server are not displayed on the device list

The firewall or anti-virus software on your media server is running) Turn off the firewall or anti-virus software running on your PC or media server.

The player is not connected to the local area network that your PC or the media server are connected

Cannot connect the player to the access point or wireless LAN router.

The wireless communication may be interrupted from household devices that are using radio frequencies. Move the player away from them

Access point is not displayed on the‘Access point name'list.

The access point or wireless LAN router may not broadcast its SSID. Set your access point to broadcast its SSID through your computer.

Your network device such as access point may not set with available frequency range and channel that this player can support.

Try setting the frequency range and channel on the network device setting.

|| eoienDo epeupr Nina se

There is no picture.

+_ Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen.

Connect the video connection securely.

Check the [HDMI Color Setting] in the [Setup] menu is set to the appropriate item that conforms to your video connection

Your TV may not support the resolution you have set on the player. Change the resolution that your TV accepts.

The players HDMI OUT jack is connected to a DVI device that does not support copyright protection.

Picture noise appears

You are playing a disc recorded in à colour system that is different from your TV.

Set the resolution which your TV accepts

Blu-ray 3D disc playback does not output 3D views.

Connect the player to your TV with HDMI cable (Type À, High Speed HDMI* Cable with Ethernet)

Your TV may not support" HDMI 3D mandatory format"

The [3D Mode] option in the [Setup] menu is set to [Of] Set the option to [On]

Sound n 3 Symptom Cause & Solution 3 cs There is no sound or the sound | + The unit is in scan, slow motion, or pause mode. a z is distorted +_ The sound volume is low 8 + Check the speaker cable connection. (page 16) É Updates Note that information on this product is available on the Pioneer website. Please check the website for information on updating or servicing this player.

|| eoieno epeupr EnGinas 59

r 2011-06-02 m 11:09:23

Controlling a TV with the Supplied Remote

You can control your TV using the buttons below

By pressing You can O(TVPOWER) | Turn the TV on or off. Switch the TV' input source INPUT between the TV and other input sources Scan up or down through CH +/- | memorized channels VOL 4 Adjust the volume ofthe TV. —@ Note Depending on the unit being connected, you may not be able to control your TV using some ofthe buttons.

|| eoieno epeupr ENGinas 60

Setting up the remote to

control your TV You can operate your TV with the supplied remote control.

If your TVis listed in the table below, set the appropriate manufacturer code

While holding down © (TV POWER) button, and press the manufacturer code for your TV with the numerical buttons (see the table

below) Manufacturer Code Number Pioneer 1 (Default) Sony 23 Panasonic 4,5 Samsung 67 LG 8,9

2. Release the (1) (TV POWER) button to complete

Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code. When you replace the batteries ofthe remote, the code number yo have set may be reset to the default setting. Set the appropriate code number again

Use this list to input your desired language for the following initial settings: [Disc Audiol, [Disc Subtitle] and [Disc Menu]

VIDEO BV is a trademark of DVD Format/Logo Licensing Corporation:

Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners.

DM! the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

IDOLBY TRUE DIGITAL PLUS Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HD DivX®, DivX Certified® and associated logos are trademark of DivX, Inc. and are used under icense.

|. eoienDo epeupr ENGinas 63

Master Audio | Essential

Manufactured under license under US. Patent #5:5,451,942; 5,956,674; 5,974,380; 5,978,762; 6226616; 6,487,535; 7,392,195; 7,272,567: 7,333,929; 7,212,872 & other US. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks & DTS-HD, DTS-HD Master Audio | Essential and the DTS logos

are trademarks of DTS, Inc. Product includes software. © DTS, Inc. AI Rights Reserved

DLNA", the DLNA Logo and DLNA CERTIFIED"* are trademarks, service marks, or certification marks ofthe Digital Living Network Alliance.

The Wi-Fi CERTIFIED Logo is a certification mark ofthe Wi-Fi Alliance.

ED The Wi-Fi Protected Setup Mark is a trademark of the Wi-Fi Alliance.

“xvColour’ xxColour and xvColor are trademarks of Sony Corporation.

“AVCHD' and the‘AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation:

“Made for iPod” and*Made for iPhone" mean

that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use

of this accessory with iPod or iPhone may affect wireless performance.

iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc, registered in the US. and other countries.

YouTube" is a trademark of Google Inc.

Web Albums is a trademark of Google

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without à license from Microsoft Licensing, Inc.

|| eoieno epeupr ENGinas 64

Video Output Resolution

When the non-copy protected media is playing back

Video Out COMPONENT VIDEO OUT Resolution HOMIOUT HDMI connected HDMI disconnected 576 576p S7éi S76p 576p S7ép 720p 720p 720p 1080 10801 1080i 1080p/24 Hz 1080p / 24 Hz 576 1080) 1080p / 50 Hz 1080p / 50 Hz 576) 1080) When the copy protected media is playing bac Video Out Resolution HDMI OUT. COMPONENT VIDEO OUT S7éi S7ép 576p S7ép 720p 720p S7éi or 576p 1080 1080i S7éi or 576p 1080p/24 Hz 1080p / 24 Hz S7éi or 576p 1080p/ 50 Hz 1080p / 50 Hz S7éi or 576p

+_lfyou select a resolution manually and then connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Autol

If you select a resolution that your TV does not accept, the warning message will appear. After

resolution change, if you cannot see the screen,

please wait 20 seconds and the resolution will automatically revert back to the previous resolution:

The 1080p video output frame rate may. be automatically set to either 24 Hz or 50 Hz depending both on the capability and preference ofthe connected TV and based on

the native video frame rate of the content on the

|| eoienDo epeupr ENGinas 65

Blu-ray Disc, DVD video stream could prevent up-

scaling on analog output

VIDEO OUT connection

The resolution of the VIDEO OUT jack is always outputted at 576i resolution.

150 W (In Standby mode: Less than 0.3 W)

Dimensions (W x H x D)

Approx. 430 x 64 x 304 mm:

DIGITAL IN (OPTICAL)

Appendix 67 System Laser Semiconductor laser Wavelength 405 nm/ 650 nm Signal system Standard PAL/NTSC colour TV system Frequency response 20 Hz to 18 kHz (48 KHz, 96 kHz, 192 kHz sampling) larmonic distortion Less than 0.05 % Dynamic range More than 80 dB LAN port Ethernet jack x 1, 1OBASE-T / 10OBASE-TX Integrated IEEE 802.1 1n (5 GHz and 2.4 GHz bands) wireless ” (inter Wireless LAN (internal antenne) | ioing access, compatible with 802.1 1a/b/g Wi-Fi networks. Bus Power Supply (USB) DCS V2 500 mA Speakers for BCS-717 S-BD707T + Front/Surround speaker (Left/ Right) Net Dimensions Type 2Way (WxHx D) 260 x 1097 x 260 mm mpedance Rated | 4Q Net Weight 38kg + Center speaker Net Dimensions u Type ia x HxD) 300 x 87 x 65 mm mpedance Rated | 4Q Net Weight 06kg S-BD707SW + Subwoofer Net Dimensions 5 Type ia (x Hx D) 130.5 x 420 x 375 mm mpedance Rated | 3Q Net Weight 4449 È Ë & HB916-RDO_ BDEUPPK ENG.ndd 67

r 2011-06-02 m 11:09:25

Speakers for BCS-313

+ Front/Surround speaker (Left/ Right)

mpedance Rated | 4Q Net Weight

Impedance Rated | 40 Net Weight

Impedance Rated | 30 Net Weight

+_ Design and specifications are subject to change without notice.

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

+ Do not use volatile liquids such as insecticide spray near the unit

Wiping with strong pressure may damage the surface.

Do not leave rubber or plastic products in contact with the unit for a long period of time.

To clean the player, use a soft, dry cloth. Fthe surfaces are extremely dirty, use à soft cloth lightiy moistened with à mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

The unit is a high-tech, precision device. IFthe optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished For details, please contact your nearest authorized service center.

|| eoienDo epeupr ENGinas 69

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth.Wipe the disc from the center to out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Important Information Relating to Network Services

Al information, data, documents, communications, downloads, files, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content (‘Content”) and all services and offerings ('Services") provided or made available by or through any

third party (each a“Service Provider‘) is the sole responsibility ofthe Service Provider from whom it originated.

The avallability of and access to Content and Services furished by the Service Provider through the PIONEER Device are subject to change at

any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part of the Content or Services.

Should you have any inquiry or problem related to the Content or Services, you may refer to the Service Provider s website for the most up-to-date information. PIONEER is neither responsible nor liable for customer service related to the Content and Services. Any question or request for service relating to the Content or Services should be made directly to the respective Content and Service Providers

Please note that PIONEER is not responsible for any Content or Services provided by the Service Provider or any changes to, removal of, or cessation of such Content or Services and does not warrant or guaranty the availability of or access to such Content or Services.

|| eoienDo epeupr ENGinas 70

Software License Notice

The licenses for the open source software used on this player can be found at the end of this

[eo Eovo FavcHp [MOVIE LacD | [MUSIC]

Leo Lovo FAVCHD | ACD | MUSIC]

Len LovD FAVCHD [MOVIE [PHOTO]

[BD [DVD TAVCHD [MOVIE

Master Audio | Essential

Dimensions (Lx H x P)

2 Vrms (1 kHz, 0 dB), 600 ©, prise RCA (G, D) x 1

DIGITAL IN (OPTICAL)

3 V (crête à crête), prise optique x 1

btp//wmoss-pioneercom/homeav/hts/

expat: Copyright © 2006 Expat

= Copyright © 2000 Keith Packard

= Copyright © 2005 Keith Packard

freetype : Copyright © 2003 The

Freelype Project (mwfreetype.org)

Unicode: copyright © 1995-2010

= Copyright 1987, 1988, 1989 Digital Equipment Corporation

= Copyright 1999, 2004, 2008 Keith Packard

= Copyright 2000 SuSE, nc. Copyright 2000 Keith Packard,

= Copyright 2007 Luca Barbato

= Copyright 2008 Aaron Platiner, NVIDIA Corporation:

= Copyright 2008 Rodrigo Kumpera

= Copyright 2008 André Tupinambé

= Copyright 2008 Mozilla Corporation

= Copyright 2009 Sun Microsystems, Inc.

ofthe University of Calfomia.

= Copyright © 1988-1997 Sam Leffler

= Copyright © 1991-1997 Silicon Graphics, Inc.

tinyxml: Fichier d'origine de Yves

= Copyright © 2001-2002 Daniel Veillard.

Copyright © 2001-2002 Thomas

Broyer, Chatie Bozeman et Daniel

Copyright © 198, 1991 Free Software Foundation Ine, 51 Franklin Street, Ffth Floor

Copyright © 1991, 1999 Free Sofaviare Foundarion, nc.

00 Annie HOMI-Fabeinst,

iT Z.B. MP3-Player. |]

ueBunpeysurewests PA

ueBunpeysurewests PA

ueBunpeysurewests PA

[eo Eovo FavcHp [MOVIE LacD | [MUSIC]

Leo Lovo FAVCHD | ACD | MUSIC]

[BD LDVD TAVCHD [MOVIE

Master Audio | Essential

DIGITAL IN (OPTICAL)

AVCHD (Advanced Video Codec High Definition)

[eo Eovo FavcHp [MOVIE LacD | [MUSIC]

|. monronon eneupric mas as & ares ao |

Leo Lovo FAVCHD | ACD | MUSIC]

router LAN wireless.

Master Audio | Essential

DIMENSIONI (L x À x P)

2,0 Vrms (1 kHz, O dB), 600 Q, jack RCA (L, R) x 1

DIGITAL IN (OPTICAL)

3V(p-p}. jack ottico x 1

[eo Eovo FavcHp [MOVIE LacD | [MUSIC]

Len Lovo FAVCHD | ACD | MUSIC]

C8D Loup [AVCHD MOVIE) L8D Loup [AVCHD I MOVIE)

Master Audio | Essential

2,0 Vrms (1 kHz, 0 dB), 600 Q, toma RCA (L, R) x 1

DIGITAL IN (OPTICAL)

3V (p-p}, Toma éptica x 1

180 W x 2 (1 kHz, 4 Q, THD 10%)

180 W (1 kHz, 4 0, THD 10%)

180 W x 2 (1 kHz, 4 Q, THD 10%)

@ Frontluidspreker links (L) © Frontluidspreker rechts (R}:

[eo Eovo FavcHp [MOVIE LacD | [MUSIC]

Leo Lovo FAVCHD | ACD | MUSIC]

Master Audio | Essential

DIGITAL IN (OPTICAL)

You can get correspanding open source code from the following URL. btip//wmoss-pioneercom/homeau/hts/ We are unable to answer any question

about the source code far the apen source software.

This product includes

Crypt Data Packaging : Copyright © Tranter Standard Systems Inc, 2001 cu copyright © 1996 - 2008, Daniel Stenberg

expat copyright © 2006 expat maintainers

= Copyright © 2000 Keith Packard

= Copyright © 2005 Patrick Lam freetype: copyright © 2003 The Freelype Project (mwvfreetypeorg). International Components for Unicode: copyright © 1995-2010 International Business Machines Corporation and others

ipeg This sofrware is based in part on the wark ofthe Independent JPEG Group copyright © 1991 - 1998, Thomas G. Lane.

mng: copyright © 2000-2007 Gerard Juyn, Glenn Randers-Pehrson

tp: copyright © David L. Mis 1992- 2006

OpenssL: = cryptographie software written by. Eric Young (eay@cryptsoft com)

= sofivare written by Tim Hudson

|. eoi-nDo epEurrk purinoa 71

= sofware developed by the OpensSL. Praject for use in the OpenSSL Toolki. (nttp//AvawopenssLorg)

pcre : Copyright © 1997-2010 University

Equipment Corporation

Copyright 1999, 2004, 2008 Keith

Copyright 2000 SusE, Inc.

= Copyright 2000 Keith Packard, member of The XFre886 Project, Inc.

= Copyright 2004, 2005, 2007, 2008 Red Hat, Inc.

= Copyright 2004 Nicholas Miel

1png: copyright © 2004 Glenn Randers-

porimap : copyright © 1890 The

Regents ofthe University of California

Protocol Buffer : Copyright 2008, Google

= Copyright © 1988-1997 Sam Leffler

= Copyright © 1991-1997 Silicon Graphics, Inc.

inv : Original le by Yves Berquin.

UnitTest++ : copyright © 2006 Noel

Lopis and Charies Nicholson

= Copyright © 2001-2002 Daniel Veilard.

= Copyright © 2001-2002 Thomas Broyer, Charlie Bozeman and Daniel

Veilar. +" WPA Supplicant: Copyright © 2003- 2007, Jouni Malinen <j@ut.> and contrbutors

lb: copyright © 1995-2002 Jean-loup Gally and Mark Adler.

Permission is hereby granted, free ofcharge, o any person obtaining a copy ofthis sofowate and associated documentation files (the "Software, to deal in the Software without restriction, including without limitation the rights to use, copy, modif, merge, publish, distibute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do 50, subject to the following conditions:

THE SOFTWARE 1S PROVIDED ‘AS 15, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES

(OF MERCHANTABILITY FITNESS FOR À PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM,

IDAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE ORTHE USE OR OTHER DEALINGS INTHE SOFTWARE GNU GENERAL PUBLIC LICENSE Version 2, June 1991

Copyright © 1989, 1991 Free Software Foundation, Inc.

51 Franklin Street Fifth Floor, Boston, MA

02110-1301, USA Everyone is permitted to copy and distibute verbatim copies of this license document, but changing i is not allowed.

The licenses for most sofware are designed a take away our freedom to share and change it By contrast, the GNU General Public License is intended to guarantee

your freedam ta share and change free sofnare-to make sure the software is free for al ts users, This General Public License applies to most of the Free Software Foundation's sofiware and to any other program whose authors commit to using

it. (Some other Free Software Foundation sofare is covered by the GNU Lesser General Public License instead) You can apply to yeur programs, 100.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure hat you have the freedom 10 disribute copies of free software (and charge for this service you wish) that you receive source code ar can get if you want i, that you can change the software ar use pieces ofit in new free programs and that you know you can do these things.

To protect our rights, e need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsible for you if you distrbute copies of the software, or you modif it. For example if you distribute copies of such program, whether gratis or for a fee, you must give the récipients al the rights that you have. You must make sure that they, 00, receive or can getthe source code. And you must show them these terms s0 they kon their rights.

(We protect your rights wth two steps:

(1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each authors protection and ours, we want to make certain that everyone understand that there is no warranty

For this free software. the software is modified by someone else and passed on, e want its recipients to know that what they have is not the original, so that any. problems introduced by others ill not reflect on the original authors’ reputations Final any free program is threatened constantiÿ by sofowate patents. We wish

0 avoid the danger that redistrbutors of a free program will individually obtain patent licenses,in effect making the program proprietary To prevent this, we have made it clear that any patent must be licensed for everyane's free use or not licensed at all

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other mork which contains a notice placed by the copyright halder saying it may be distributed under the erms of this General Public License. The “Program below, refers to any such program or work, and a “work based on the Program* means either

| eoienDo speupr purinad 72

the Program ar any derivative work {under copyright law: that is to say,

8 work containing the Program or

a portion of it, either verbatim or with modifications and/or translated into another language (Hereinafter, translation is included without limitation in the term “modifcation‘) Each license is addressed as ‘you Activities other than copying, distribution and modification are net cavered by this License: they are outside ts scope. The act ofrunning the Program is not restricted, and the output fm the Program is covered nb fits contents constitute a work based on the Program (independent of having been made by running the Program) Whether that is true depends on what the Program does

You may copy and distribute verbatim copies ofthe Program source code as you receive in any medium, provided that you conspicueusly and appropriate} publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and ta the absence of any warranty; and give any other recipients of the Pragram a copy ofthis License along with the Program.

You may chatge a fe for the physical act oftransfering a copy, and you may at your option offer warranty protection in exchange for a fee.

You may modify your copy or copies ofthe Program or any portion of, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: 4) You must cause the modified files 0 carry praminent notices stating hat you changed the fes and he date of any change. You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any. part thereof to be licensed as à whale at no charge to all third parties under the terms of this License. ©) the modif program normally reads commands interactively when run, you must cause when started running for such interactive use in the most ordinary waÿ, to print or display an announcement including an appropriate copyright notice and anotice that there is no warranty (or else, saying that you provide à warranty) and that users may. redistribute the program under these conditions, and teling he user how ta view a copy of this License. (Exception ifthe Program itself is interactive but

does not normal} print such an announcement, your work based en the Pragram is not required to prit an announcement} These requirements apply to the modified work as a hole. F identifable sections of that work are not derived fiom the Program, and can be reasonabiy considered independent and separate os in themseWes then his License, and is terms, do not app} ta those sections when you distbute them as separate morts, But when you distibute the same sections as par of a whole which is a work based on the Program the distibution ofthe whole must be on the terms of this License, whose permissions or other icensees extend to the entire whole, and thus to each and'every part regardless of who wrote Thus itis notthe tent of this section Lo clim rights or contest your rights to workwritten entire) by you: rether, the intent is ta exercise the right to central the distribution of deratie or callctive works based on the Program In addition, mere aggregation of another work not based on the Pragram with the Program (or th a work based on the Pragram) an a volume fa storage or distribution medium does not bring the other work under the scope of this License

You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one ofthe following:

2) Accompanyit with the complete corresponding machine-readable

source code, which must be

distributed under the terms of

Sectians 1 and 2 above on à

medium eustamari used for

software interchange: or,

Accompany it with a written

offer, valid for at least three

years ta give any third party

or a charge no mare than your

cost of physical performing

source distribution, a complete machine-teadable copy of the corresponding source code, to be distributed under the terms

ofSectians 1 and 2 above on à

medium custamari used for

d Accompanyit with the information you received as to the offer to distribute corresponding source code (This alternative is llewed onfy for noncommercial distribution and onby if you received the program in object code or executable form with such an offer in accord with Subsection b above)

The source code far a work means the prefeted form of the work for making modifications to 1. For an executable work complete source code means althe source code for all modules & contains plus any associated interface definition fles, plus the scripts used to control compilation and instalation fthe executable. However as à special exception the source code distributed need not include anything thatis normal} distributed (in fther source or binary form th the major companents (compiler, kernel, and

0 ar) ofthe operating system on which the executable runs, unless that component itself accompanies the executable.

Idisibution of executable or object code is made by afering access ta copy from a designated place, then cfering equivalent acces to copy the source code fom the same place counts as distribution af the source code, even though third partis are not compelled to copy the source along with the object code

You may not copy, modify sublicense, cr distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modif sublicense or distribute the Program void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from your under this License wil not have their lcenses terminated so long as such parties remain in full compliance.

You are not required to accept this License, since you have not signed

it However, nothing else grants you permission ta modify or distribute the Program ar its derivative works These actions are prohibited by law you do not accept this License. Therefore, by madifing or distrlbuting the Program {or any work based on the Program, you indicate your acceptance of this License to do so, and al its terms and conditions for copying, distributing or modifing the Pragram or works based ont.

Each time you redistrbute the Program {or any woïk based on the Program, the recipient automatically receives license from the original icensor 10 copy, distibute or modify the Program subject ta these terms and conditions. You may nat impose any further restrictions on the recipients' exercise of the rights granted herein You are not responsible for enforcing, compliance by third parties to this License.

I as a consequence ofa court udgment ar allegation of patent infingement or for any other reason (not limited to patent issues), conditions are imposed on you

| eoienDo speupr purinad 72

{uhether by court order, agreement Or others) that contradiet the conditions of this License, they do not excuse you fram the conditions of this License. you cannot distribute 50 28 to satisfy simultaneousty your bligations under this License and any other pertinent obligations,

then as à consequence you may

not distribute the Program at all For exemple ia patent icense would not permit royales redistribution of the Program by al those who receive copies direct orincrecty through yeu then the only veay You could satisfy both and this License would be ta refrain entire) om distribution ofthe Program.

IFany portion of this section is held invalid er unenforceable under any particule drcumstance,the balance fthe section is intended to apply and the section as a whole is intended to apply other ccumstances.

Ki not the purpose of this section

to induce you toinfinge any patents or other praperty right claims or to contest validity of any such claims; this section has the sole purpose of pretecting the integriy of the free Software distribution system, ich isimplemented by publi license practices, Many people have made generous contributions to the wide range of sofvare distributed through that system in relance on consistent application of that systems its pt the author/Gonor to decide f he or she s wiling to distibure sofa Ehrough any other system and a license cannot mpose that choice This section is intendecl to make thoroughhy clear what is believed to be a consequence af the est of this License.

IFthe distribution and/or use of

the Programis restricted in certain countries erher by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explck geographical distribution limitation excluding those countries, 50 that distribution is permitted ont in er among countries not thus excluded. In such case, this License incorporates the imitation as written in he body ofthis License.

The Free Sofiware Foundation may publish revised and/or new versions of he General Public License from time to time. Such new versions will be similar in spin to the present version, Put may difer in detail 0 address new problems or concerns

Each version is given a distinguishing version number. the Program speciies a version number of this License which applies t it and''any later version! you have the option of following the terms and conditions

either ofthat version or of any later version published by the Free Software Foundation. the Program does

not speafy a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. IFyou wish to incorparate parts of the Program into other free programs whose distribution conditions are diferent, write to the author ta ask for permission. For software which is copyrighted by the Free Software Foundation, write ta the Free Software Foundation: we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the fre status of all derivatives of our free software and of promcting the sharing and reuse of software general.

11. BECAUSE THE PROGRAM !S LICENSED FREE OF CHARGE, THERE 1S NO WARRANTY FOR THE PROGRAM, TOTHE EXTENT PERMITTED 8Y APPLICABLE LAW. EXCEPT WHEN (OTHERWISE STATED IN WWRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM AS IS'WITHOUT WARRANTY OF ANY KIND, ETHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR À PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM 5 WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO INWVRING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM UNCLUDING BUT NOT LIMITED TO LOSS (OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU ORTHIRD PARTIES OR À FAILURE (OFTHE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OFTHE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS How to Apply These Terms to Your New Programs

you develop a new program, and you ant ta be of the greatest possible use to

the public, the best way 10 achieve this is to make it free software which everyone can redistibute and change under these terms. To do s9,attach the fellewing notices to the program. is safest to attach them to the Stat of each source file to most effectively convey the exclusion of warranty: and each file should have at least the "copyright line and à pointer to vihere the ful notice is found

<ane line to give the programs name andan idea of what it does.>

Copyright © <year> <name of author>

This program is free sofiware: you can redistibute it and/or modify i under the terms of the GNU General Public License as published by the Free Software Foundation, either version 2 ofthe License, or {at your option) any later version

This program is distributed in the hope thatit will be useful, but WITHOUT ANY WARRANTY:ithout even the implied warranty of MERCHANTABILITY or FITNESS FOR À PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program, not, write ta the Free Software Foundation, Inc, 51 Franklin Streer, Ffih Floor, Boston, MA

0210-1301, USA Also add information on how to contact you by electronic and paper mail.

Ifthe program is interactive, make it output 2 short notice Ike this when start in an interactive mode:

Gnomovision version 69, Copyright © year name of author

Gnomovision comes with ABSOLUTELY NO WARRANTY: for details type "shows wi. Thisis free software, and you are welcome to redistribute i under certain conditions: type "shou € for details

The hypothetcal commands show and show € should show the appropriate parts fthe General Publi License. Of course, the commands you use may be called something ather than ‘show w and show €ithey could even be mouse-clicks or menu items-Whatever suis your program. You should also get your employer (Fyau ork as à programmer or your school if anÿito sign a “copyright disclaimer for the program, ffnecessany. Here is a sample; Alter the names: Yoyodyne,Ine, hereby discaims all copyrightinterestin the program “Gnomavision' which makes passes at compilers written by James Hacker. <signature of Ty Coon», 1 April 1989 y Coon, President of Vice ‘This General Public License does not permit incorporating your program into. proprietary programs. your program is

| eoienDo speupr purinad 74

2 subroutine library you may consider it more useful to permit linking proprietary applications wéth the library. 1Fthis is what you want to de, use the GNU Lesser General Public License instead of this License.

GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999 Copyright © 1991, 1999 Free Software Foundation, Inc.

51 Frankin Street, Fifth Floor Boston, MA

02110-1307 USA Everyone is permitted to copy and distibute verbatim copies of this license document, but changing it is not allowed. {his is the ft released version ofthe Lesser GPL. also counts as the successor ofthe GNU Library Public License, version 2,hence the version number 21]

The licenses for most software are designed 0 take away your freedom to share and change it. By contrast the GNU General Public Licenses are intended to guarantee your freedam ta share and change free sofare-to make sure the sofruiare is free for als users.

This license, he Lesser General Public License, applis to some special designated sofiware packages-typically libraries--ofthe Free Sofoware Foundation and other authors who decide to use it. You can use it t90, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations beloux.

When we speak of free software, we are referring ta freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distibute copies of free software (and charge for this service if you wish) that you receive source code or can getit if you ent that you can change the software and use pieces of iin new free programs, and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distibutors to deny you these rights or to ask you to surrender these rights. These restrictions translate

1 certain responsible for you if you distibute copies of the library or if you modify.

For example, f you distribute copies ofthe library, whether gratis or for a fee, you must ge the recipients al the rights that we gave yeu. You must make sure that they, 100, receive ar can getthe saurce code. IF you link other code with the library. your must provide complete object files to the recipients so that they can relink he with the library after making changes to the library and recompiling i. And you must

show them these terms sa they know their rights.

We protect your rights with a Bo-step method. (1) we copyright the library, and {)we offer you this license, which gives you legal permission to copy, distrlbute and/or modif the library.

To protect each distrlbutor, we want to make it very clear that there is no warranty for the free library. Also. Fthe library is modified by someone else and passed

on, the recipients should know that what they have is not the original version, so. hat the original authors reputation will not be affected by problems that might be introduced by others.

Final sofoware patents pose a constant threat ta the existence of any free program. We wish ta make sure that a company cannot effectivelyrestict the users of a free program by obtaining a restrictive license from a patent holder Therelore, we insis that any patent license obtained for a version ofthe library must be consistent va the fl freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU! General Public License. This license, the GNU Lesser General Public License, applies 10 certain designated libraries, and is quite diferent from the ordinary General Public License. We use this license far certain libraries in order to permit inking those libraries into nonr-free programs.

‘When a program is linked with a library, whether staticall ar using a shared Ibrary, the combination ef the two is legal speaking a combined mark, a derivative of the original library. The ordinary General Public License therefore permits such linking onbyiFthe entire combination fs its criteria of freedom. The Lesser General Public License permis more lax criteria for linking other code with the library.

We cal this license the “Lesser' General Public License because it does Less to protect the users freedom than the ordinary General Public License. also provides other free software developers Less of an advantage over competng non- free programs, These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides ackantages in certain special cicumstances.

For example, on rare occasions, there may be a special need to encourage the midest possible use of a certain library 0 that becomes a de-facto standard. To achieve this non-ree programs must be allowed to use the library. À more frequent case is that 2 free library does the same job as wide used non-fre libraries. In this case, there is tie to gain by limiting the free library to free sofowate oniy, sa we use the Lesser General Public License.

In other cases, permission to use à particular library in non-free programs “enables a greater number of people to use alarge body of fee software. For example.

permission to use the GNU C Library in non-fiee programs enables many more people to use the whole GNU operating system, as wel as it variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users freedom, it does ensure that the user of a program that is linked with the Library has the freedom andthe wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying distribution and modification follow. Pay close attention to the difference between à work based on the library and a "work that uses the library’. The former contains code derived from the library, whereas the latter must be combined with he library in order to run.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0." This License Agreement applies to any software library er other program which contains a notice placed by the copyright holder ar ather authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License” Each license is addressed as

Atibrary" means a collection of sofowate functions and/or data prepared s0 2s to be conveniently linked with application programs {which use some of those functions and data) to form executables.

The “Library below, refers to any such sofovare library or work which has been distributed under these terms. A'wark based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library

or à portion of either verbatim or vath modifications and/or translated straightionwardhy into another language. (Hereinaftr, translation

is included without imitation in the term'modification‘)

"Source cade” for a work means the preferted form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, Plus any associated interface definition files, plus the scripts used to contra compilation and instalation of the library.

Activities other than copying, distribution and modification are

not covered by this License; they are outside ts scope. The act ofrunning

à program using the Library is not restricted, and output from such a pragram is covered only its contents constitute a work based on the Library {independent of the use of the Library in a tool for writing it. Whether that

|| eoienDo speupr purinad 75

is true depends on what the Library does and what the program that uses the Library does.

You may copy and disribute verbatim copies of the Librars complete source code as you receive in any medium, provided that you conspicuausly and apprepriately publish on each copy

an appropriate copyright notice and disclaimer of warranty keep intact all the notices that refer to this License and io the absence of any warranty; and distribute a copy ofthis License along with the Library:

You may charge a fee for the physical act oftransfening a copy, and you may at your option offer warranty protection in exchange for a fee.

You may modify your copy or copies fthe Library or any portion of, thus forming a work based on the Library and copy and distribute such modifcations or work under the terms fSection 1 above, provided that you also meet al afthese conditions 2) | The modifed work must itself be à software library. eu must cause the les modifed to carry preminent notices stating that you changed the les and the date of any change. eu must cause the whole of the ok to be licensed at no charge to al third parties under the terms ofthis License. Ia faclty in the modif Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility s invoked, then you must make à good faïth effort to ensure that in the event an application does not supply such function or table, the faciiy st aperates, and performs hatever part ofits purpose remains meaningful. fFor example, a function in a library to compute square roots has a purpose that is entiely elkdefned independent ofthe application. Therefore Subsection 24 requires that any application supplied function or table used by this function must be optional: ithe application does not supply the square root function must st compute square roots) These requirements apply to the modified work as a whole. F identifiable sections of that work are not derived fem the Library, and can be teasanaby considered independent and separte works in themseWes then this License and its terms, do not apply to those sections when you disibute them as separate works But when yeu dstribute the same sections as par of a whole sich is work based on the Library,

the distribution ofthe whole must be on the terms ofthis License, whose permissions for other licensees extend tothe entire whole, and thus to each and every part regardes of who wrote

Thu itis not the intent of this section 0 claim rights or contest your rights to work writen entirely by your rather, the intent is to exercise the right to contral the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (ar with a work based on the Library) on a volume of a Storage or distribution medium does not bring the other mark under the scope of this License:

You may opt t0 apply the terms ofthe ordinary GNU General Public License instead ofthis License to a given copy ofthe Library Te de this, you must alter all the notices that refer to this License, sa that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (F a never version than version 2 ofthe ordinary GNU General Public License as appeared, then you can specify that version instead you wish) Do not make any other change in these notices.

Once this change is mac in a given Copy it is ireversible For that copy,

50 the ordinary GNU General Public License applis to al subsequent copies and derivative works made from that copy.

This option is useful when you wish 0 copy part ofthe code ofthe Library into program that is not library:

You may copy and distribute the Library (r portion or derative of i, under Section 2) in object code

er executable form under the terms fSections 1 and 2 above provided that you accompany with the complete corresponding machine- readable source code, ich must be distributed under the terms of Sections 1 and 2 above on a medium customarly used far sofrare interchange.

I distribution of object code is made by cfering access to copy from

à designated place, then offering equivalent access to copy the source cod fiom the same place satisñes the requirement t distibure the source code, even though third parties are not compelled to copy the source along with the object code

AA program that contains no derivative of any portion of the Library. but is designed to work with the Library By. being compiled or linked with it is called a "work that uses the Libranÿ. Such a work, in isolation, is not a

derivative work ofthe Library, and therefore fa outside the scope of this License.

However, inking a “work that uses the Library” with the Library creates an executable that is a derivative ofthe Library (because it contains portions ofthe Library, rather than a “work. hatuses the library. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables,

When a work that uses the Library" {ses material from a header file that

is part of the Library the object code for the wark may be a derivative work ofthe Library even though the source code is not. Whether this is true is especially significant the work can be linked without the Library or the work is sel a library: The threshold for this to be tue is not precisely defined bylaw.

Isuch an object file uses on numerical parameters, data structure layouts and accessors and small macros and smal inline functions

{ten lines or less in length), then the Use ofthe object fl is unrestricted, regardless ofwhether it is legal

à derivative work (Executables containing this object code plus portions ofthe Library wil sil Fall under Section 6)

Otherwise, the work is a derivative ofthe Library you may istribute the object code far the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they ate linked directly with the Library itseE

6. As an exception to the Sections above, you may als combine or link a “work hat uses the Library” with the Library 0 produce a work containing portions ofthe Library and distribute that work. under terms of your choice, provided that the terms permit modification ofthe work for the customers own Use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy ofthe work that the Library is usedin it and that the Library and its use are covered by this License. Your must supply a copy of this License.F the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things 8) Accompany the work with

the complete corresponding

machine-teadable source code

or the Library including whatever

changes were used in the work z

{which must be distributed under Sections 1 and 2 above); and, ifthe work is an executable

| eorenDo speupr purinad 76

linked with the Library, with the complete machine-readable

object code and/ar source code, so that the user can modify

the Library and then relink to produce à modifed executable containing the modified Library {is understooë that the user who changes the contents of definitions fles in the Library

il ot necessary be able ta recomple the application to use the modifed definitions)

Use 2 suitable shared library mechanism for inking with the Library À suitable mechanism

is ane that {1} uses at run time à copy ofthe library aezdy present on the users computer ystem rather than copying library functions into the executable, and (2 ill operate prapery nith 2 modified version ef the Hbrary iFthe user install one, a long as the modifed version is inteface- compatible with the version that the work was made vit Accompany the work mith a written of, valid for atleast three years to give the same

user the materials specified

in Subsection 62, above fra charge no more than the cost of performing this distribution

K distribution of the mork is made by ofering access to copy from a designated place, offer equivalent access to copy the above specified material from the same place

Very that the user has already received a copy of these materials rthat you have aready sent his User a copy.

For an execurable,the required form fthe "ork that uses the Library" mustinclude any data and utty programs needed for reproducing

the executable from i. Honvever, as a special exception, the materials to be distributed need not ncude anything thatis normal} distilbute (in either source or binar form) th the major components (compil, kernel and

so or) ofthe operating system on which he executable runs, unless that component itsel accompanies the executable.

Ie may happen that this requirement cantradicts the license restrictions of other prapretary libraries that do not normall accompany the operating system, Such a contradiction means yeu cannot use bath them andthe Library tagetherin an executable that you distribue.

You may place library faclities that are a work based on the Library side-by- side in a single library together with other library facilities not covered

by this License, and distrlbute such 2 combined library, provided that

the separate distnbution of the work based on the Library and ofthe other library facilities is otherwise permitted, and provided that you do these two things:

2) Accompany the combined library with a copy ofthe same work based on the Library uncombined

with any other library facilities, This must be distributed under the terms ofthe Sections above. Give prominent notice with the combined library ofthe fact hat part of is à work based

on the Library, and explaining where to find the accompanying uncombined form of the same werk.

You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise 0 copy, modif, sublicense, link with er distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights from you under this License will not have theirlicenses terminated se lang as such parties remain in full complance.

You are not required to accept this License, since you have not signed

it However, nothing else grants you permission to modify or distribue the Library or is derivative works. These actions are prohibited by law you do not accept this License. Therefore, by modifing or distributing the Library {or any work based on the Library), you indicate your acceptance of this License t0 do so, and llits terms and conditions far copying,distibuting or modifng the Library or works based ent

Each time you redistribute the Library {or any work based on the Library), the recipient automatically receives

a license from the original icensor to Copy, distibute, ink with or modif the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients” exercise ofthe rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

If sa consequence of a court judgment ar allegation of patent infrngement or far any other

reason {not limited to patent issues) conditions are imposed on you {whether by court order, agreement or otherwise) that contradict the conditions ofthis License, they da not excuse you from the conditions of this License. you cannot distribute se as to satisfy simultaneousy your

cbligations under this License and any other pertinent obligations then as à consequence you may not isribute the Librry tal. For example, a patent license would not permit royakyree redistribution of the Library by al those who receive copies directly or indirect} threugh you, then the any way you could satisfy both and his License would be to refrain entireiy fiom distribution ofthe Library.

IFany portion of his section is held invalid or unenforceable under any parteular crcumstnce the balance of the section is intended! ta apply, and the section as a whole is intended to apply other crcumstances.

Ii not the purpose f this section

Lo induce you toinfinge any patents or other praperty right claims or to contest valiity of any such claims; {his section has the sole purpose of pratecting the integrty of the free software distribution system sihich

is implemented by pub license practices. Many people have made generous cantibutions to the wide range of sofrare distributed thraugh hat system in relance on consistent application of that system its pt the author/donor to decide he or she s wiling to istibute software hrough any other system and a licensee cannot impose that choice. This sectian is intended to make thoroughhy clear what is elieved to be a consequence of the rest of this License.

Ithe distribution and/or use ofthe Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explcit geographical distibution limitation exduding those countries s that distribution is permitted only in or among countries not thus excluded.

In such case, this License incorporates the limitation as ifwriten in the body ofthis License.

The Free Sofrware Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may diferin detail to address new problems or concerns.

Each version is given a distinguishing version number. the Library species aversion number of this License which applies to k and "any later version’ have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. IFthe Library des not specfy a license version number, you may choose any version ever published by the Free Software Foundation

| eoienDo speuprx ourincd 77

14. 1Fyou wish to incorparate parts of the Library into other free programs whose distribution conditions are incompatible with these, write 10 the author to ask for permission. For sofovare which is copyrighted by the Free Softare Foundation, write tothe Free Software Foundation: we sometimes make exceptions for this. Our decision will be guided by the bo goals of preserving the free status of all derivatives of our free sofonare and of pramoting the sharing and reuse of software general

15. BECAUSE THE LIBRARY 1 LICENSED FREE OF CHARGE, THERE 1S NO WARRANTY FOR THE LIBRARY TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED INWRITINGTHE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WING WILL ANY COPYRIGHT. HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, 8E LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY UNCLUDING BUT NOT LIMITED TO LOSS (OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED 8Y YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OFTHE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS How to Apply These Terms to Your New Libraries

Hyou develop a new library, and you want itto be ofthe greatest possible use ta

the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms {o, Alternative), under the terms of the ordinary General Publi License)

To apply these terms attach the following notices to the library. is safest to attach

them to the start ofeach source fl to most effectively canvey the exclusion of warranty and each file should have at least the “copyright line and a pointer to where the ful notice is found.

<ane lineto give the library's name and an idea of what it does.>

Copyright © <year <name of author

This library is free software: you can redistribute it and/or modify i under the terms ofthe GNU Lesser General Public License as published by the Free Software Foundation: either version 2.1 of he License, or (at your option) any later This library is distributed in the hope that t will be useful but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR À PARTICULAR PURPOSE. See the GNU Lesser General Publi License for more detaik. You sheuld have received a copy ofthe GNU Lesser General Public License along with this library not, write to the Free Software Foundation, Inc, 51 Franklin Street iih Floor, Boston, MA 021 10-1301 Usa Also add information on how to contact you by electronic and paper mail. You sheuld also get your employer (f you work as à programme) or your school. if any: to sign a “copyright disclaimer for the library Ifnecessary. Here à sample alter the names Yoyodyne, Ine, hereby discaims all copyright interest in the library ‘Frob (library or tweaking knobs) written by lames Random Hacker. signature of Ty Coon, 1 April 1990 y Coon, President ofVice

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC Manufacturer: Pioneer Corporation

CEO English: Hereby, Pioneer, declares that this BCS-717 (BCS-313) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Published by Pioneer Corporation. Copyright © 2011 Pioneer Corporation. All rights reserved Publication de Pioneer Corporation
