Brand	PIONEER
Model	PDK-TS25(B)
Product Type	Table stand for plasma screen
Compatibility	Pioneer plasma screens PDP-507XD/507XA (50 inches) and PDP-427XD/427XA (42 inches)
Dimensions (with S columns)	577 mm (width) x 305 mm (height) x 380 mm (depth)
Weight	10.7 kg
Maximum load capacity	34.1 kg (50-inch screen) / 29.0 kg (42-inch screen)
Rotation	10° to the left and 10° to the right
Tilt	Approximately 2° forward and backward
Material	Steel with black finish
Color	Black
Main functions	Swivel, adjustable tilt, integrated cable management
Safety	Installation requiring two people; fall prevention by fixing to wall or furniture
Included accessories	Hex keys (6 mm and 10 mm), cable ties, installation screws, instruction manual
Maintenance	Clean with a soft dry cloth; do not use solvents
Warranty	Consult the retailer or manual for conditions

Frequently Asked Questions - PDK-TS25(B) PIONEER

Which plasma screens are compatible with the PDK-TS25(B) stand?

This stand is designed exclusively for Pioneer PDP-507XD/507XA (50 inches) and PDP-427XD/427XA (42 inches) plasma screens. Use with other models may result in instability.

How to install the plasma screen on the stand?

After attaching the appropriate support columns to the base, place the screen on the columns aligning the slots, then screw in the installation screws ②, ③ or ④ according to the model. Tighten firmly with the supplied hex key.

Can I adjust the tilt of the screen after installation?

Yes, the screen can be tilted approximately 2° forward or backward. Loosen the anchor bolts with the hex key, adjust the angle, then retighten the bolts.

What is the maximum weight supported by the stand?

The stand can support a 50-inch screen up to 34.1 kg and a 42-inch screen up to 29.0 kg.

How to prevent the screen from tipping over?

Secure the stand to the furniture or wall using strong screws and cables (not supplied). Use 6 mm diameter screws for furniture attachment or M8 bolts for wall attachment.

Can the stand swivel the screen?

Yes, the stand swivels 10° to the left and 10° to the right. Ensure the screen does not overhang the furniture during rotation.

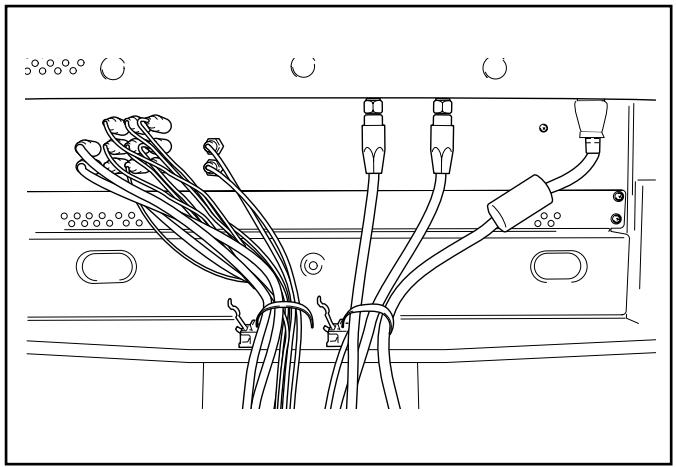

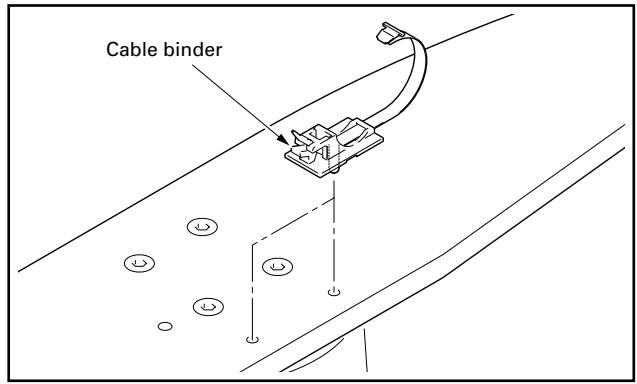

How to manage cables with this stand?

Use the supplied cable ties by inserting them into the holes of the swivel platform. Group the cables and close the cable tie.

Can I install the stand alone?

No, installation must always be carried out by at least two people due to the weight and size of the screen.

What to do if I need to disassemble the screen from the stand?

Follow the reverse procedure: remove the installation screws ②, ③/④, then lift the screen vertically holding it by the handles and the bottom. Place it flat on a protected surface.

Does the stand come with all necessary screws?

Yes, the box contains installation screws (M8 of different lengths), hex keys, and cable ties. Screws for furniture or wall attachment are not supplied.

USER MANUAL PDK-TS25(B) PIONEER

Operating instructions

Mode d'emploi

Bedienungsanleitung

Technical line drawing of a mechanical component with mounting brackets and a curved base (no text or symbols)

• 支柱 L × 2 [長い支柱]

Technical line drawing of two rectangular metal bars with holes, no text or symbols present

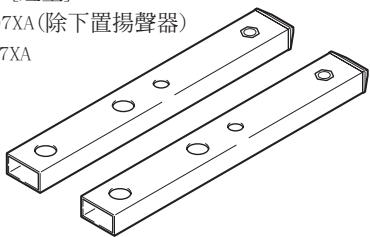

• 支柱 S × 2 [短い支柱]

Pure electrical circuit lines without any symbols

Line drawing of a hand holding a device panel, no text or symbols present

設置上のご注意

Line drawing of cable connectors and connectors in a server rack (no text or symbols)

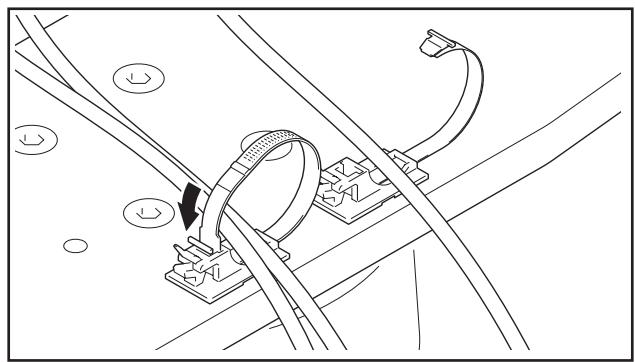

ケーブルバインダーの使い方

Technical line drawing of railway tracks with overhead cable and support structures (no text or symbols)

3 ケーブルバインダーをロックする

Technical line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a flat-screen TV rear panel with mounting hardware and screw holes (no text or symbols)

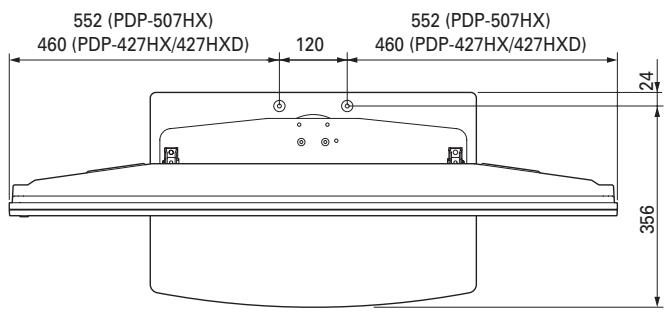

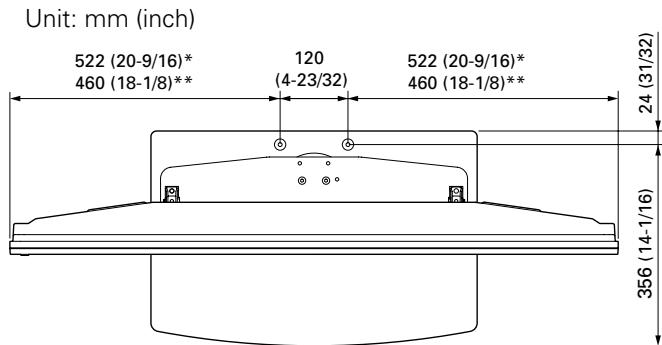

◆固定ねじ取付位置

单位：mm

552 (PDP-507HX) 460 (PDP-427HX/427HXD) 120 552 (PDP-507HX) 460 (PDP-427HX/427HXD) 24 356

壁を利用する方法

Technical line drawing of a mechanical assembly with mounting brackets and structural supports (no text or symbols)

Thank you for buying Pioneer's product.

Please read through the Operating Instructions to learn how to operate your model safely and properly.

Please be advised to keep the Operating Instructions in your place for future reference.

IMPORTANT NOTICE – RECORD THE MODEL NUMBER AND SERIAL NUMBERS OF THIS EQUIPMENT BELOW.

MODEL NO. ____

SERIAL NO.

KEEP THESE NUMBERS FOR FUTURE USE.

Installation

• Consult your dealer if you encounter any difficulties with this installation.
• Pioneer is not liable for any damage resulting from improper installation, improper use, modification, or natural disasters.

Contents

Cautions 12

Checking the Enclosed Parts.... 13

Support Columns Used / Not Used Table ...... 13

Assembling the Stand 14

Attaching the Plasma Display 15

Forward/Backward Angle of Inclination Adjustment Mechanism .... 16

Installing the Product on a TV table etc. 17

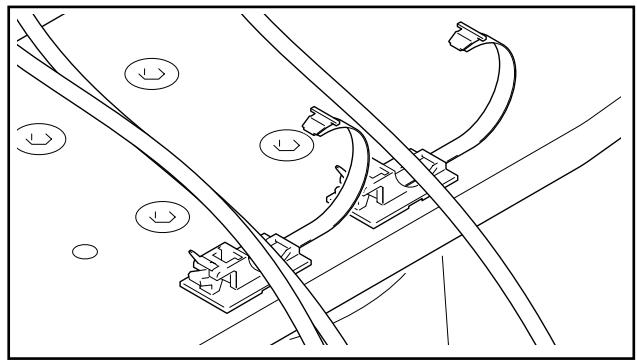

Preparing the Cables.... 18

Preventing Equipment from Falling Over 19

Fixing the rotation to the front 20

Detaching the Plasma Display from the Stand .... 20

Specifications 20

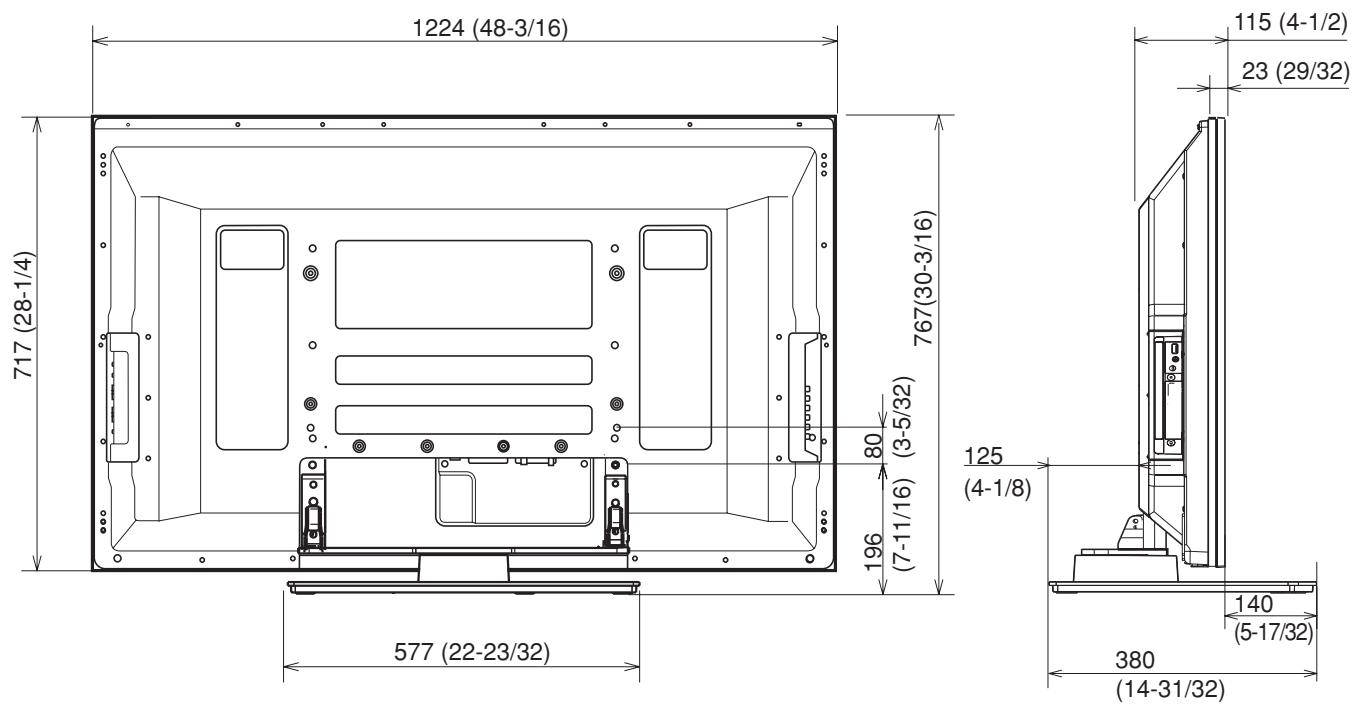

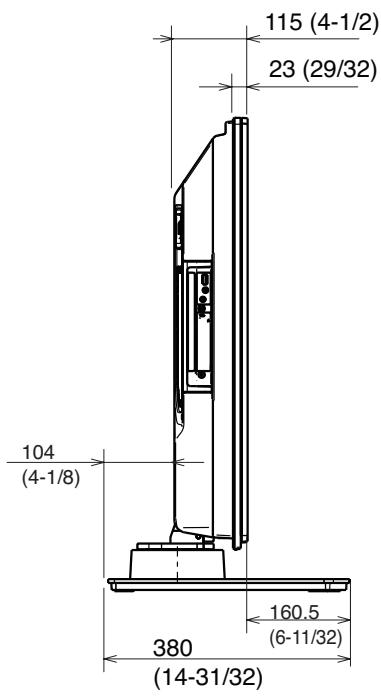

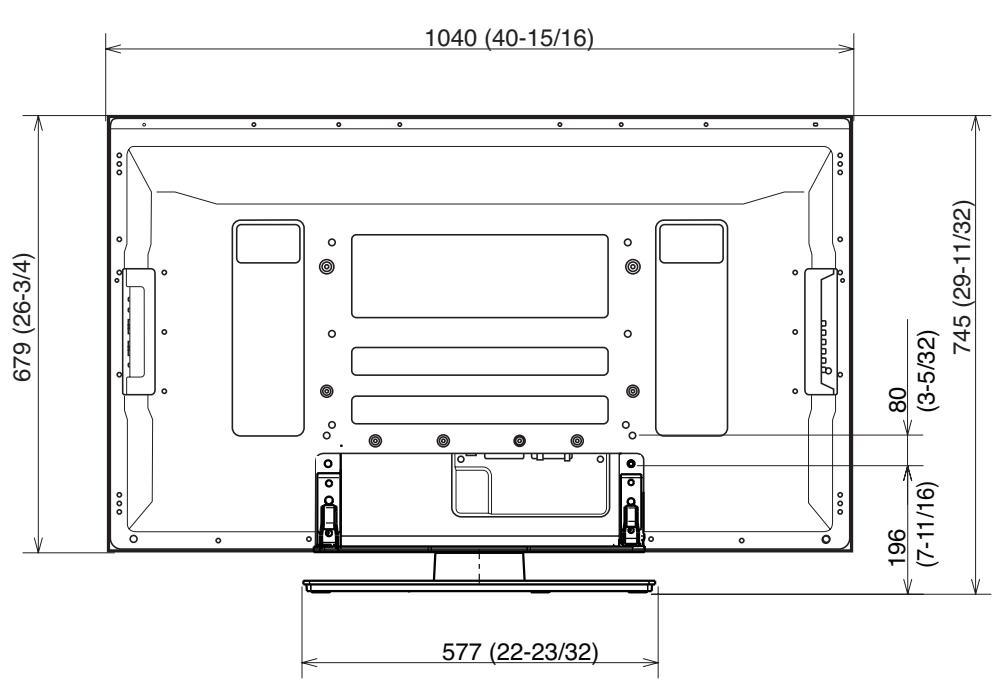

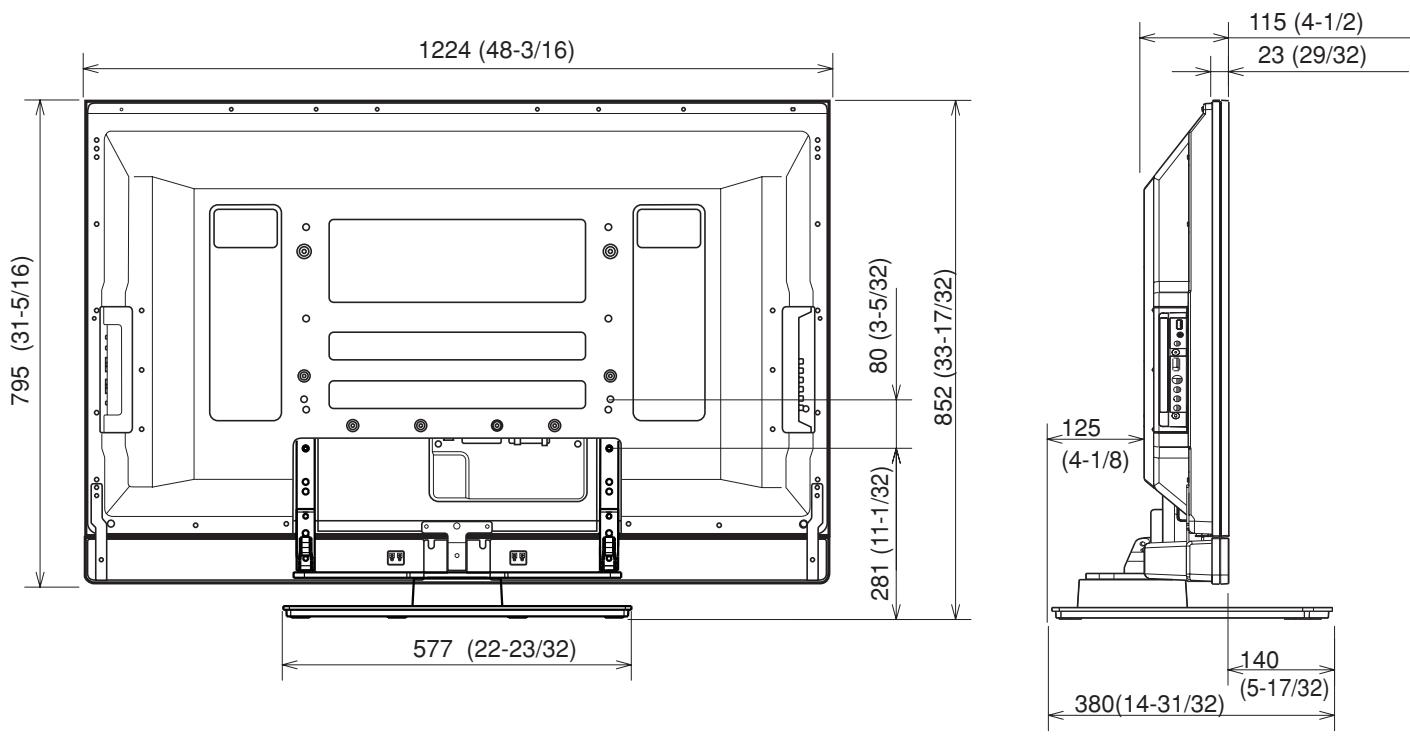

Dimensions Diagram 21

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

Cautions

This product is a table top stand exclusively designed for Plasma Displays (PDP-507XD / PDP-427XD / PDP-507XA / PDP-427XA) from Pioneer.

Use with other model is capable of resulting in instability causing possible injury. For further information, please contact the store where you purchased your display.

Do not install or modify the product other than specified.

Do not use this stand for a Plasma Display other than those designated and do not modify it or use it for other purposes.

Improper installation is extremely dangerous because it may result in it falling over or other accident.

Installation Location

• Select a location that is strong enough to support the weight of the stand and the displays.
• Make sure to place it in a level and stable location.
• Do not install it outdoors or in a wet place such as at a hot spring or near a beach.
• Do not install the stand where it may be subjected to vibration or shock.

Assembling and Installation

• Assemble the stand in accordance with the assembly instructions and securely attach all screws at the designated locations.
  There have been cases where unforeseen accidents such as the equipment breaking or falling over occurred after the installation of the display because the stand was not installed as instructed.
• The display must always be installed by two or more people to assure it is installed safely.
• Before installation, turn off the power for the display and peripheral devices then remove the power cord plug from the power outlet.

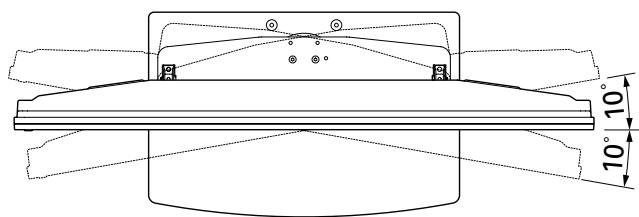

This product rotates 10^ to the left and right and inclines approximately 2^ forward and backward.

Do not place objects within the range of rotation of this product and the Plasma Display. Install this product so that during routine use or when it is rotated, it does not protrude from the TV table or other location it has been installed. Failure to do so could cause unforeseen accidents such as the equipment breaking or falling over (see page 17).

While adjusting its angle forward and backward, be extremely careful to keep your hands out of the space between the bottom of the plasma display and the stand (see page 16).

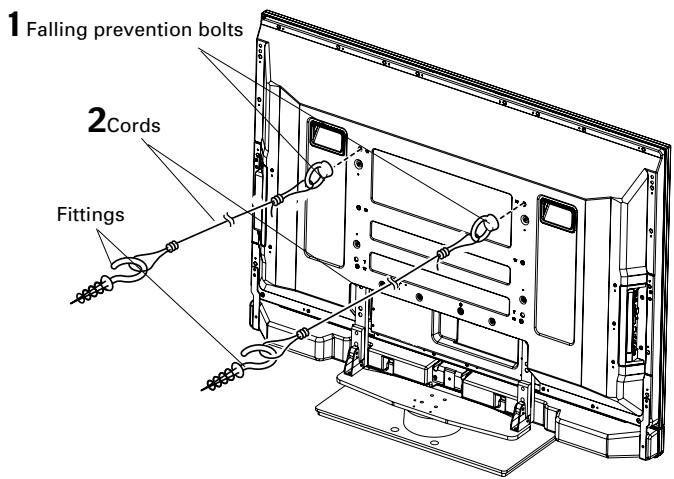

Prevent accidents caused by the product falling over, by taking reliable measures to prevent it from falling over (see page 19).

Checking the Enclosed Parts

Check to make sure that you have all the enclosed parts before assembly and installation.

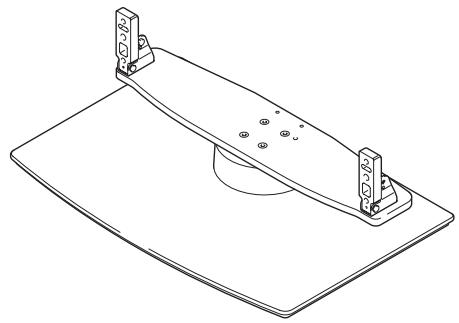

• Table top stand x 1


Technical line drawing of a mechanical support bracket with mounting holes (no text or symbols)

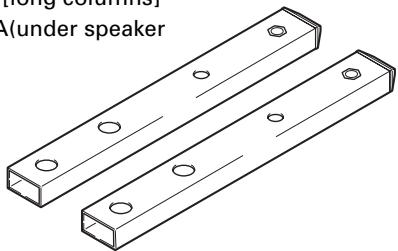

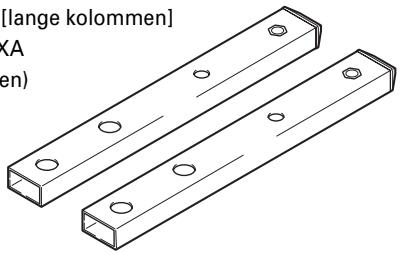

• Support columns L x 2 [long columns]
  * For PDP-507XD/507XA(under speaker models)

Technical line drawing of two rectangular metal bars with holes, no text or symbols present

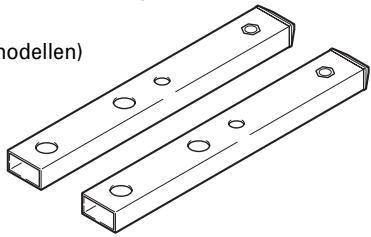

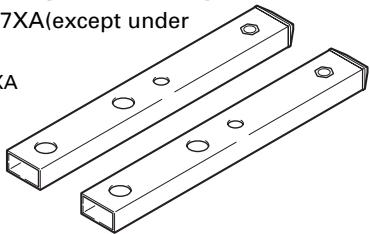

• Support columns S x 2 [short columns]
  * For PDP-507XD/507XA(except under speaker models)
  * For PDP-427XD/427XA

Technical line drawing of two rectangular metal plates with holes, labeled '7XA(except under)' and 'A' (no text or symbols on the plates themselves)

• Hexagonal wrench x 1 (Diagonal size: 6 mm)

• C wrench x 1 (10 mm)

• Cable binders x 2


Pure electrical circuit lines without any symbols

• Installation screws ① (M8 x 16 mm: silver) x 4 [used to anchor the support columns and the table top stand]


• Installation screws ② (M8 x 30 mm: silver) x 2


• Installation screws ③ (M8 x 40 mm: black) x 2 * For PDP-507XD/507XA


• Installation screws ④ (M8 x 60 mm: silver) x 2 * For PDP-427XD/427XA

• Operating instructions (this document) x 1

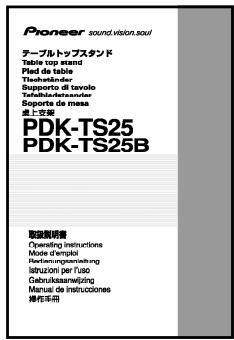

Pioneer sound vision soul テーブルトップスタンド Table top stand Pied de table Tshahänder Supporte di lavoro Tolksbederstander Soporte de mesa 桌面空间 PDK-TS25 PDK-TS25B 取組説明書 Operating instructions Move diagram1 Restruanungsrechnung luzioni per 1/2 Gebutskaamajing Manual de instrucciones 操作手写

Support Columns Used / Not Used Table

The support columns of this stand vary depending on the Plasma Display and speakers you have purchased. Please select the support columns according to the following table.

Your home region	Product you purchased		Support columns S (short columns)	Support columns L (long columns)	Installation screws 3 (M8 x 40 mm: black)	Installation screws 4 (M8 x 60 mm: silver)
	Plasma Display	Speaker
Japan	PDP-507HX	under speaker models	Cannot be used	Used	Used	Not used
		except under speaker models	Recommended	*Can be used	Used	Not used
	PDP-427HX/427HXD	Built-in speaker type	Recommended	*Can be used	Not used	Used
Europe	PDP-507XD/507XA	under speaker models	Cannot be used	Used	Used	Not used
		except under speaker models	Recommended	*Can be used	Used	Not used
	PDP-427XD/427XA	Built-in speaker type	Recommended	*Can be used	Not used	Used
Other than Japan, North America, and Europe	50 inch model	under speaker models	Cannot be used	Used	Used	Not used
		except under speaker models	Recommended	*Can be used	Used	Not used
	42 inch model	Built-in speaker type	Recommended	*Can be used	Not used	Used

*: Can be used when the screen is located in a high position.

Assembling the Stand

Note

● Always assemble it on a flat table etc.
- Insert the screws in the holes vertically and do not tighten them with more force than necessary.

Assembly Procedure

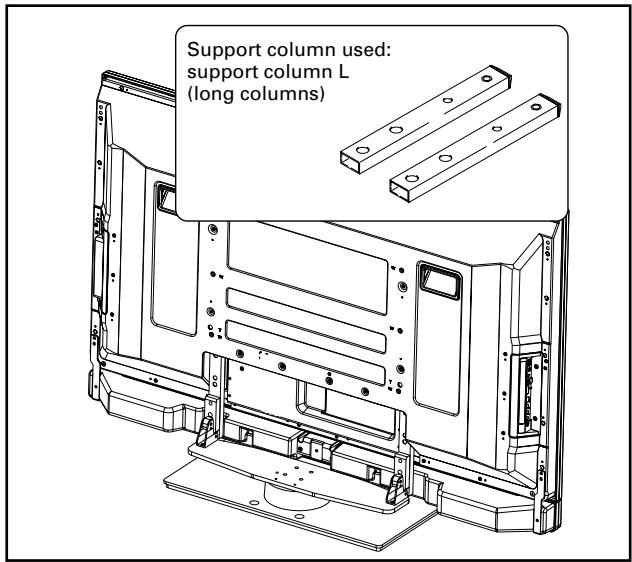

1 Select the support columns to attach.

Select the support columns according to the plasma display that you have purchased (Only one type of the two types of available support columns should be used).

When the plasma display you have purchased is PDP-507XD/507XA(under speaker models).

[Support column used: support column L (long columns)]

Support column used: support column L (long columns)

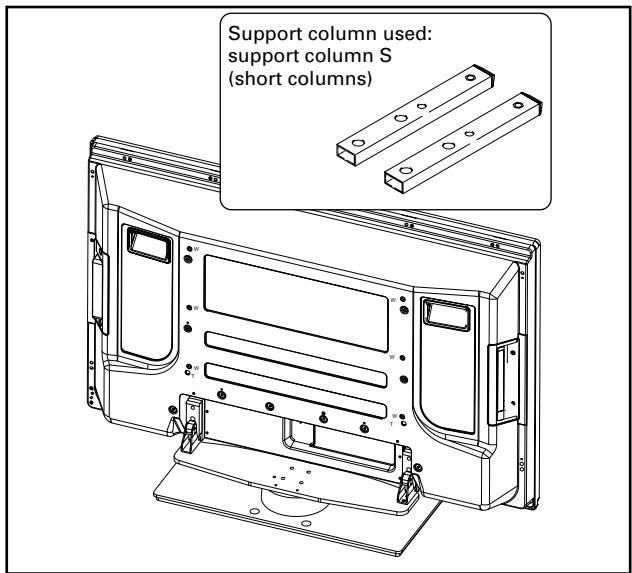

When the plasma display you have purchased is PDP-507XD/507XA(except under speaker models)/PDP-427XD/427XA.

[Support column used: support column S (short columns)]

Support column used: support column S (short columns)

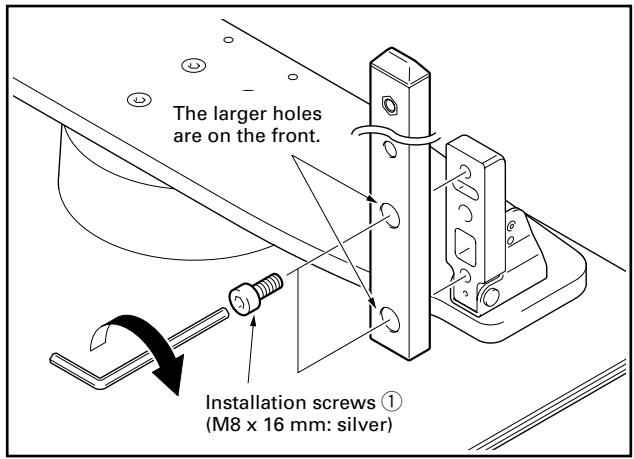

2 Secure the support column to the stand with the Installation screws ① (4 locations on the left and right).

Using the enclosed hexagonal wrench, first loosely attach the top attachment screw, then loosely attach the bottom attachment screw.

The larger holes are on the front. Installation screws ① (M8 x 16 mm: silver)

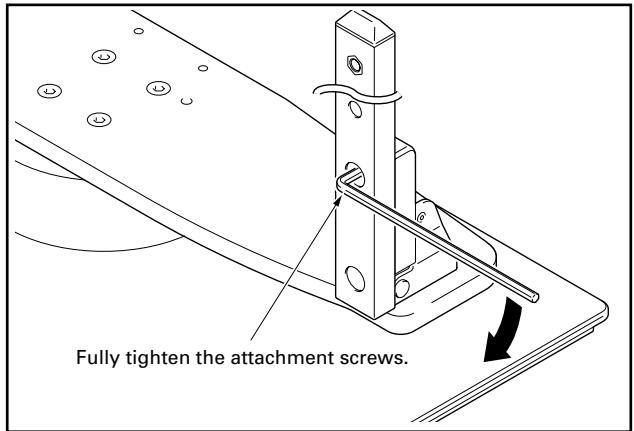

3 Fully tighten the Installation screws (4 locations on the left and right).

Fully tighten the attachment screws.

Note

Be sure to carefully store the unused support columns, the hexagonal wrench, the C wrench, and the Operating Instructions together.

The weight of a 50 inch Plasma Display(without speaker) is about 34.1 kg (75.2 lbs), that of a 42 inch model is about 29.0 kg (63.9 lbs), they have no depth, and are unstable. Therefore, at least two people must assemble and install them.

Note

• Be sure to install it on a flat stable location.
• Insert the screws in the holes vertically and do not tighten them with more force than necessary.
• Make sure that you install the support columns reliably with reference to the procedure in "Assembling the Stand".

Attaching the Plasma Display

Attachment Method

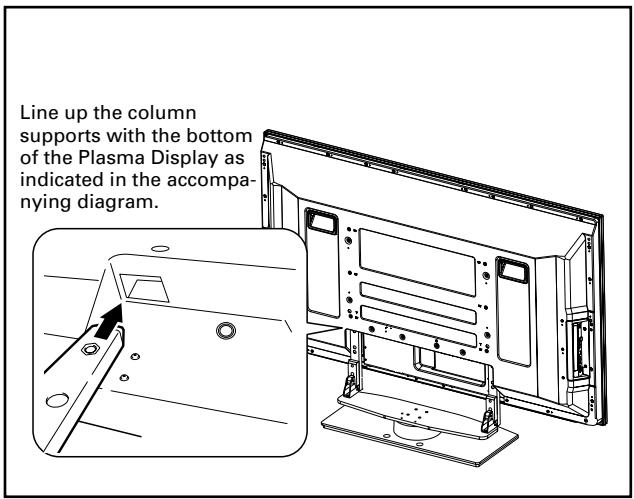

1 Attaching the Plasma Display to the stand.

Fit the stand's support columns to the bottom of the Plasma Display as indicated by the arrows, then slowly insert them vertically. Be extremely careful not to insert the support columns of the stand into any part of the Plasma Display other than the stand insertion slots. Note that doing so might damage the Plasma Display panel or its ports or result in the warping of the stand.

Line up the column supports with the bottom of the Plasma Display as indicated in the accompa- nying diagram.

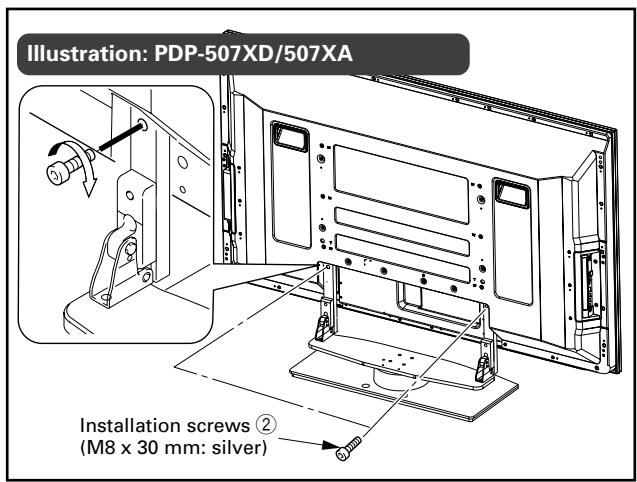

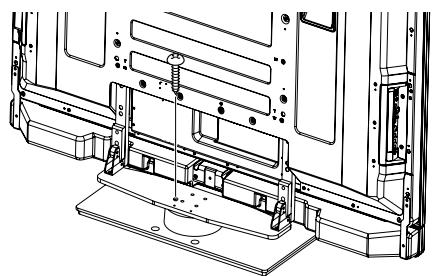

2 Securing the Plasma Display with Installation screws ②.

Secure them using the enclosed hexagonal wrench.

Illustration: PDP-507XD/507XA Installation screws ② (M8 x 30 mm: silver)

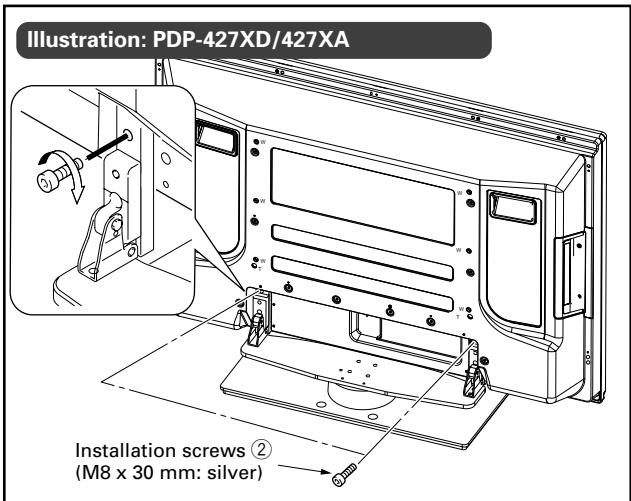

Illustration: PDP-427XD/427XA Installation screws ② (M8 x 30 mm: silver)

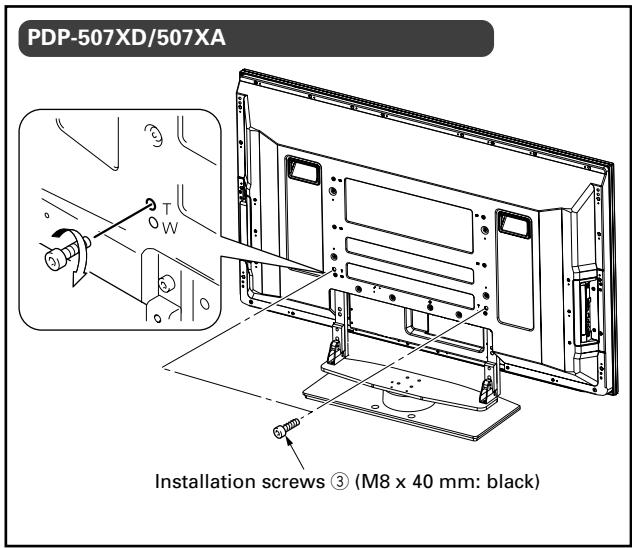

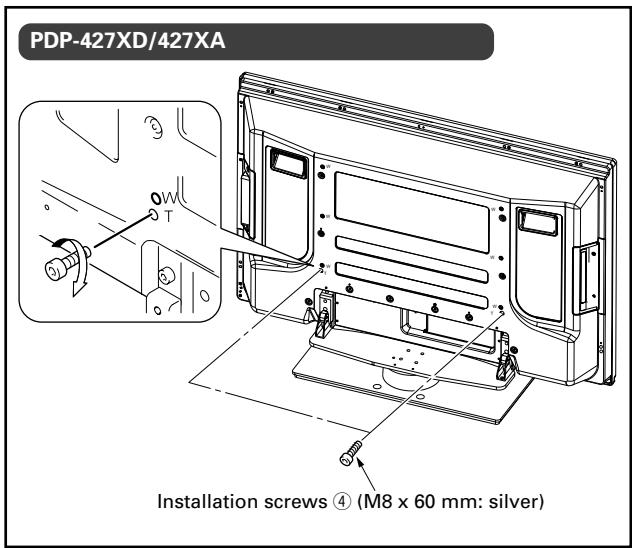

3 Securing the Plasma Display with Installation screws ③/④.

Attach the Plasma Display at the points marked with "T" using the enclosed hexagonal wrench.

There have been cases where unforeseen accidents such as the equipment breaking or falling over occurred because the stand was installed with wrong screws.

PDP-507XD/507XA T W Installation screws ③ (M8 x 40 mm: black)

PDP-427XD/427XA Installation screws ④ (M8 x 60 mm: silver)

4 Attaching the speakers.(PDP-507XD/507XA)

Refer to the operating instructions for the speaker for the installation method.

Forward/Backward Angle of Inclination Adjustment Mechanism

On this stand, you can adjust the angle of inclination of the Plasma Display within a range of approximately 2^ forward or backward according to your preference.

Note

• Be sure to adjust the angle only after you have attached the Plasma Display.
• Be sure to install it on a flat table or other flat surface.
• Be sure to hold the top of the Plasma Display with your hand while adjusting the angle.

Adjustment Procedure

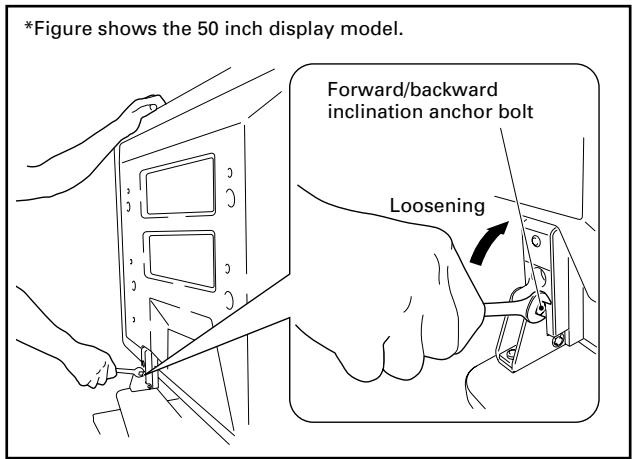

1 Loosen the forward/backward inclination anchor bolts using the enclosed C wrench (2 locations on the left and right).

While being sure to hold the top of the Plasma Display with your hand, loosen the forward/backward inclination anchor bolts on the left and right sides by rotating them upwards using the enclosed C wrench.

*Figure shows the 50 inch display model. Forward/backward inclination anchor bolt Loosening

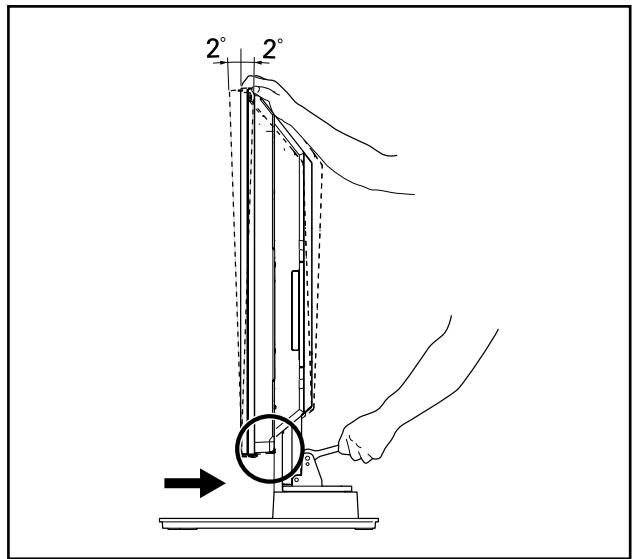

2 Set the angle you prefer.

Set the angle you prefer by slowly moving the Plasma Display.

2° 2°

Note

While adjusting the angle, be very careful to keep your hands out of the place indicated by the arrow on the figure.

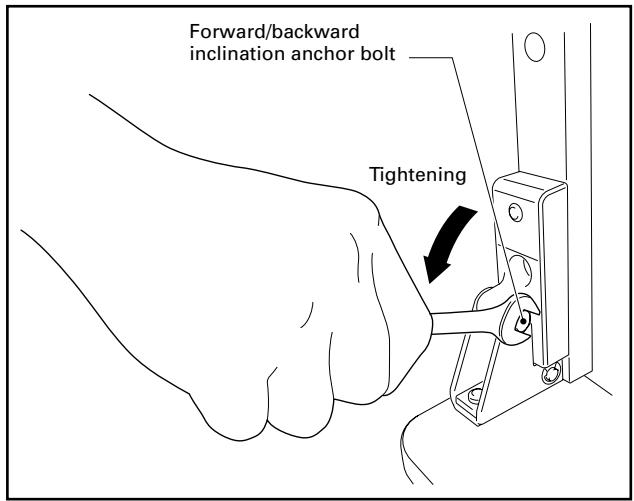

3 Tighten the forward/backward inclination anchor bolts (2 locations on the left and right).

Firmly tighten the forward/backward inclination anchor bolts on the left and right sides by rotating them downward using the enclosed C wrench. Be sure to hold the top of the Plasma Display with your hand until you have fully tightened the bolts.

Forward/backward inclination anchor bolt Tightening

4 Check once more to make sure that the forward/backward inclination anchor bolts are fully tightened.

Installing the Product on a TV table etc.

Be sure to observe the following precautions when moving or installing this product with a Plasma Display into a TV table or other enclosure.

Precautions when moving

Caution

• When moving the product more than a few meters, first remove the speaker, then remove the Plasma Display from the stand and move the speaker, Plasma Display, and stand separately.
• When detaching the Plasma Display from the stand, be sure to follow the procedure described in "Detaching the Plasma Display from the Stand" on page 20.

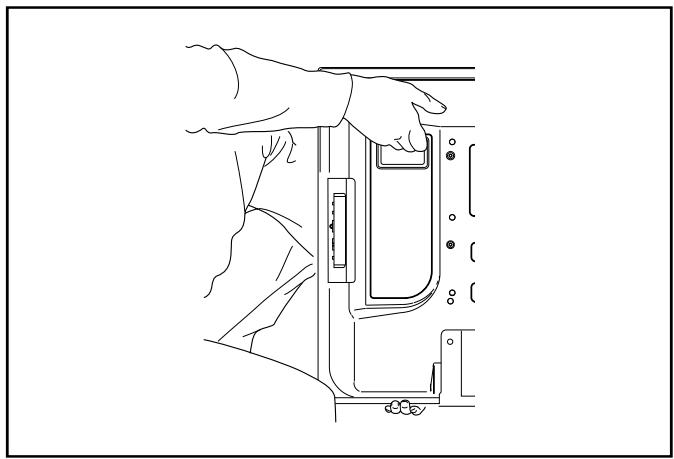

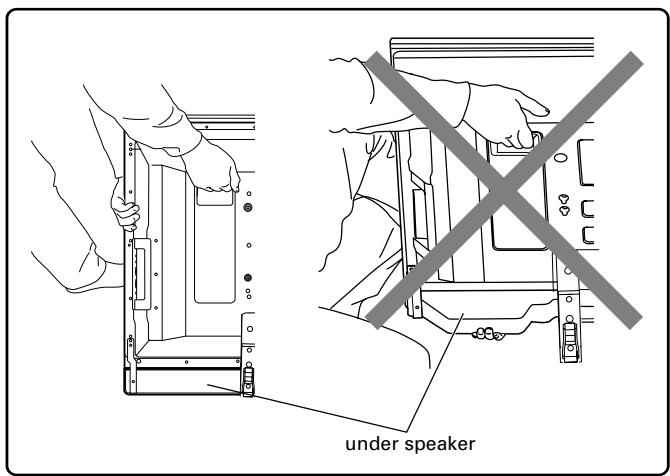

Precautions when installing in a TV table or other enclosure

Caution

When installing in a TV table or other enclosure, hold the Plasma Display by the handles located on the rear of the Plasma Display. If you hold the speakers, they may be damaged or twisted.

When the plasma display you have purchased is PDP-507XD/507XA(under speaker models).

Hold the Plasma Display by its handles and from the sides.

under speaker

When the plasma display you have purchased is PDP-507XD/507XA(except under speaker models)/PDP-427XD/427XA.

Hold the Plasma Display by its handles and from the bottom.

Line drawing of a hand adjusting a mechanical component (no text or symbols)

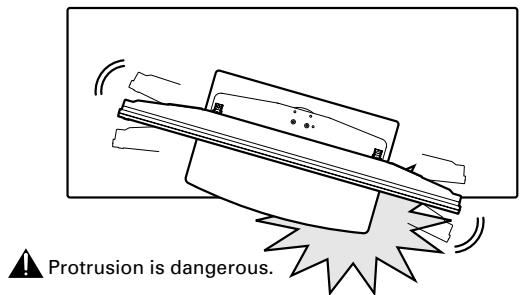

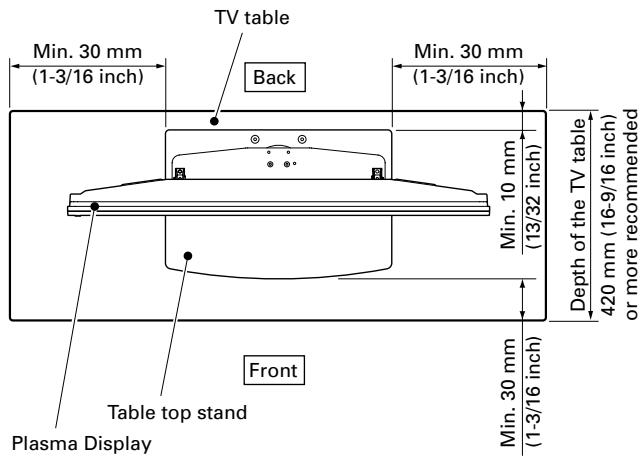

Installation precautions

Make sure that you always secure a space at least as large as that shown in the following diagram in front of and behind the table top stand.

TV table Min. 30 mm (1-3/16 inch) Back Min. 30 mm (1-3/16 inch) Min. 10 mm (13/32 inch) Depth of the TV table 420 mm (16-9/16 inch) or more recommended Front Table top stand Plasma Display Min. 30 mm (1-3/16 inch)

Caution

• If the stand protrudes from the TV table, it could cause unforeseen accidents such as the equipment breaking or falling over.
• When rotating, take care not to allow the display to bump into walls or surrounding objects.

Protrusion is dangerous.

◆ Range of angle rotation

10° 10°

Preparing the Cables

Use the enclosed cable binders to bind the cables.

Note

Be very careful not to apply force to the bases of the cables.

Diagram of cable connections between two electronic devices (no text or symbols present)

Using the cable binders

1 Insert the cable binder through the hole on the top of the rotating platform of the stand.

Cable binder

2 Gathering cables and placing them on the cable binder.

Pure technical line drawing of railway tracks with no text, numbers, or symbols

3 Locking the cable binder.

Technical line drawing of a mechanical assembly with wires and a clamp (no text or symbols)

◆ Removing a cable binder

The lock is released by pushing the part indicated by the arrow in the figure.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Preventing Equipment from Falling Over

After installing the stand, be sure to take special care to ensure that the Plasma Display will not fall over.

• Because of the plasma display's weight, if it could fall down, this can result in injury.
• For safety, be sure to take special care to ensure that the Plasma Display will not fall over.

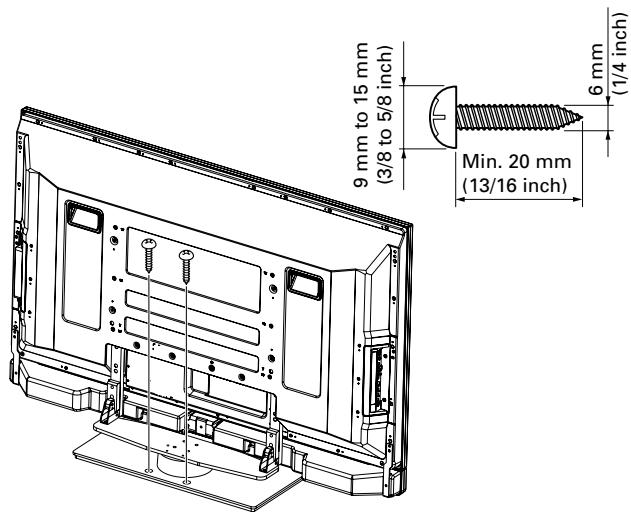

Stabilizing on TV table or other location

Stabilize the equipment as shown in the diagram using screws that are available on the market.

Note

● A TV table with adequate strength, width and depth should always be used to support the Plasma Display. Failure to do so could result in falling over.
- To stabilize the Plasma Display on a TV table, use screws that have a nominal diameter of 6 mm (1/4 inch). Select the appropriate screws after consulting a professional installer if necessary.

9 mm to 15 mm (3/8 to 5/8 inch) 6 mm (1/4 inch) Min. 20 mm (13/16 inch)

Caution

• A table with adequate strength should always be used to support the Plasma Display. Failure to do so could result in personal injury and physical damage.
• When installing the Plasma Display, please take the necessary safety measures to prevent it from falling or overturning in case of emergencies, such as earthquakes, or of accidents.
• If you do not take these precautions, the Plasma Display could fall down and cause injury.
• The screws, hooks and other fittings that you use to secure the Plasma Display to prevent it from overturning will vary according to the composition and thickness of the surface to which it will be attached.
• Select the appropriate screws, hooks and other fittings after first inspecting the surface carefully to determine its thickness and composition and after consulting a professional installer if necessary.

Using a wall for stabilization

1 Attaching falling prevention bolts to the Plasma Display.
2 Using strong cords to stabilize it appropriately and firmly to a wall, pillar, or other sturdy element.
- Perform this work in the same way on the left and right sides.
- The length of the cords used must be long enough to allow the stand to rotate freely.

Note

Use falling prevention bolts, ropes and fittings that are available on the market.

Recommended bolts:

Nominal diameter M8

Length 12 mm to 15 mm (1/2 to 5/8 inch)

inch) 12 mm to 15 mm (1/2 to 5/8 inch) M8

1 Falling prevention bolts 2 Cords Fittings

❖ Position of table screws: Without speakers

Unit: mm (inch) 522 (20-9/16)* 460 (18-1/8)** 120 (4-23/32) 522 (20-9/16)* 460 (18-1/8)** 24 (31/32) 356 (14-1/16)

* : 50 inch display model
** : 42 inch display model

Fixing the rotation to the front

Stabilize the equipment as shown in the diagram using screws that are available on the market.

Note

Use a screw that has a nominal diameter of M4 and length from 20 mm to 30 mm (13/16 to 1-3/16 inch) to fix the rotation to the front.

7 mm to 12 mm (5/16 to 1/2 inch) M4 20 mm to 30 mm (13/16 to 1-3/16 inch)

Technical line drawing of a mechanical assembly with mounting brackets and structural supports (no text or symbols)

Detaching the Plasma Display from the Stand

To remove the Plasma Display from the stand, be sure to always follow the procedure described below to prevent accidents.

1 First, confirm that the forward/backward inclination anchor bolt is securely tightened.
2 First clear a space on a flat floor etc. where you can lay the Plasma Display flat, then lay a sheet to protect it from scratches or other damage.
3 Remove the speakers.(PDP-507XD/PDP-507XA)

4 Referring to steps 2 and 3 in "Attaching the Plasma Display" (Page 15.), remove the installation screws (4 screws).

Note

Do not remove the screws (M8 x 16 mm: silver) by procedure 2 in Page 14. The support columns might slip out of place and fall over.

5 Holding the Plasma Display by its handles and from the bottom, lift the display vertically.

6 Place the Plasma Display slowly onto the sheet laid out in step 2 with its screen facing downwards.

Note

When reattaching the Plasma Display to the stand, be certain that the left/right support columns are set at the same angle.

Specifications

External dimensions 577 mm (W) x 305 mm (H) x 380 mm (D) (22-23/32 in. (W) x 12 in.(H) x 14-31/32 in. (D))

[When using the support columns S]

Weight 10.7 kg (23.6 lbs)

- The above specifications and exterior may be modified without prior notice to improve the product.

Dimensions Diagram

Unit: mm (inch)

50 inch display model (under speaker models)

1224 (48-3/16) 795 (31-5/16) 80 (3-5/32) 852 (33-17/32) 281 (11-1/32) 577 (22-23/32) 115 (4-1/2) 23 (29/32) 125 (4-1/8) 140 (5-17/32) 380(14-31/32)

50 inch display model (except under speaker models)

1224 (48-3/16) 717 (28-1/4) 767(30-3/16) 80 (3-5/32) 196 (7-11/16) 125 (4-1/8) 577 (22-23/32) 140 (5-17/32) 380 (14-31/32) 115 (4-1/2) 23 (29/32)

42 inch display model

1040 (40-15/16) 679 (26-3/4) 745 (29-11/32) 80 (3-5/32) 196 (7-11/16) 577 (22-23/32)

115 (4-1/2) 23 (29/32) 104 (4-1/8) 380 160.5 (6-11/32) (14-31/32)

Technical line drawing of a mechanical support base with mounting flanges and a central circular component (no text or symbols)

Technical line drawing of two rectangular metal components with holes, no text or symbols present

Illustration of two rectangular metal beams with holes, no text or symbols present

Pure electrical circuit lines without any symbols

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Line drawing of cable connectors and connectors in a device panel (no text or symbols)

Technical line drawing of railway tracks with overhead cable and support structures (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a cable clamp or connector assembly (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and structural components (no text or symbols)

Technical line drawing of a mechanical support bracket with mounting holes and a central circular component (no text or symbols)

Technical line drawing of two rectangular metal plates with holes, no text or symbols present

Technical illustration of two rectangular metal bars with holes, no text or symbols present

Pure electrical circuit lines without any symbols

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Diagram of cable connectors and connectors in a device panel, showing various wires and connectors (no text or labels)

Technical line drawing of railway tracks with overhead cable and support structures (no text or symbols)

Technical line drawing of a mechanical assembly with wires and a clamp (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and structural supports (no text or symbols)

Technical line drawing of a mechanical support bracket with mounting holes and a central circular component (no text or symbols)

Technical line drawing of two rectangular metal beams with holes, labeled 'x 2 [colonne lunghe]' and '(e inferiore)' (no other text or symbols)

Two rectangular metal bars with circular holes, one labeled 'A' and the other 'A' (no text or symbols on the bars themselves)

Pure electrical circuit lines without any symbols

Line drawing of a hand operating a door panel with a handle, showing no text or symbols

Line drawing of cable connectors and connectors in a device panel (no text or symbols)

Pure technical line drawing of railway tracks with no text, numbers, or symbols

Technical line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

Technical line drawing of a cable clamp or connector assembly (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and structural supports (no text or symbols)

Technical line drawing of a mechanical support base with mounting brackets and a central circular component (no text or symbols)

• Steunkolommen L x 2 [lange kolommen]
  * Voor PDP-507XD/507XA (onderspeakermodellen)

Technical line drawing of two rectangular metal plates with holes, no text or symbols present

• Steunkolommen S x 2 [korte kolommen]
  * Voor PDP-507XD/507XA ( behalve onderspeakermodellen ) * Voor PDP-427XD/427XA

Technical illustration of two rectangular metal beams with holes, labeled 'modellen' (no other text or symbols)

Pure electrical circuit lines without any symbols

Line drawing of a person's hand holding a door panel, no text or symbols present

Line drawing of a server rack with multiple cables and connectors (no text or symbols)

Pure technical line drawing of railway tracks with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with wires and a clamp (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Technical line drawing of a mechanical support base with mounting brackets and a central circular component (no text or symbols)

Technical line drawing of two rectangular metal plates with holes, no text or symbols present

Two 3D rectangular metal bars with circular holes, no text or symbols visible

Pure electrical circuit lines without any symbols

Line drawing of a hand holding a device component, no text or symbols present

Line drawing of cable connectors and connectors in a device panel (no text or symbols)

Pure technical line drawing of railway tracks with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a cable clamp or connector assembly with a magnified view of the connector (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and structural components (no text or symbols)

Technical line drawing of a mechanical support base with mounting brackets and a central circular component (no text or symbols)

線捆 x 2

Pure electrical circuit lines without any symbols

Technical line drawing of two rectangular metal beams with holes, labeled (下置揚聲器) in Chinese (no other text or symbols)

- 操作手册
(本分文件) x 1

• 安裝螺絲 ②
  (M8 x 30 mm: 銀色) x 2


• 小型支撐柱狀條 x 2 [短型]
  * 適用 PDP-507XD/507XA(除下置揚聲器)
  * 適用 PDP-427XD/427XA


7XA(除下置揚聲器) 7XA

• 安装螺絲 ③

Line drawing of a person's hand opening a door panel (no text or symbols)

安裝的預防措施

Diagram of cable connections between two electronic devices (no text or symbols present)

使用線捆

Pure technical line drawing of railway tracks with no text, numbers, or symbols

3 將線捆扣上。

Technical line drawing of a mechanical assembly with wires and a clamp (no text or symbols)

◆移除線捆

依圖所示的箭頭方向推開線捆，使其鬆開。

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and structural supports (no text or symbols)

從支架拆卸電漿顯示器

AFTER-SALES SERVICE FOR PIONEER PRODUCTS

Please contact the dealer or distributor from where you purchased the product for its after-sales service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the Pioneer's subsidiaries (regional service headquarters) listed below:

PLEASE DO NOT SHIP YOUR PRODUCT TO THE COMPANIES at the addresses listed below for repair without advance contact, for these companies are not repair locations.

AMERICA

PIONEER ELECTRONICS (USA) INC.

CUSTOMER SUPPORT DIVISION

P.O. BOX 1760, LONG BEACH, CA 90801-1760, U.S.A.

CUSTOMER SERVICE HOTLINE : [phone]

EUROPE

PIONEER EUROPE NV

EUROPEAN SERVICE DIVISION

HAVEN 1087, KEETBERGLAAN 1, B-9120 MELSELE, BELGIUM

ASEAN

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

SERVICE DEPARTMENT

253, ALEXANDRA ROAD #04-01 SINGAPORE 159936

JAPAN AND OTHERS

PIONEER CORPORATION (HEAD OFFICE)

CUSTOMER SUPPORT CENTER

Printed on recycled paper.

Published by Pioneer Corporation.

Copyright © 2006 Pioneer Corporation.

All rights reserved.

パイオニア株式会社

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90810-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: [phone]
