LE40K507 - Television HITACHI - Free user manual and instructions

Product Type	LED LCD Television
Model	LE40K507
Screen Size (Diagonal)	40 inches (101.6 cm)
Display Resolution	1920 x 1080 (Full HD)
Refresh Rate	120 Hz (effective)
Backlight Type	LED
Aspect Ratio	16:9 (with switching options)
Power Supply	AC 120V, 60 Hz
Power Consumption (Operation)	100 W
Power Consumption (Standby)	< 1 W
Weight (with Stand)	9.6 kg (21.2 lbs)
Dimensions (W x H x D) with Stand	933 x 612.7 x 245.7 mm
Audio Output Power	6 W + 6 W
Sound System	Dolby Digital, MTS Stereo, SAP

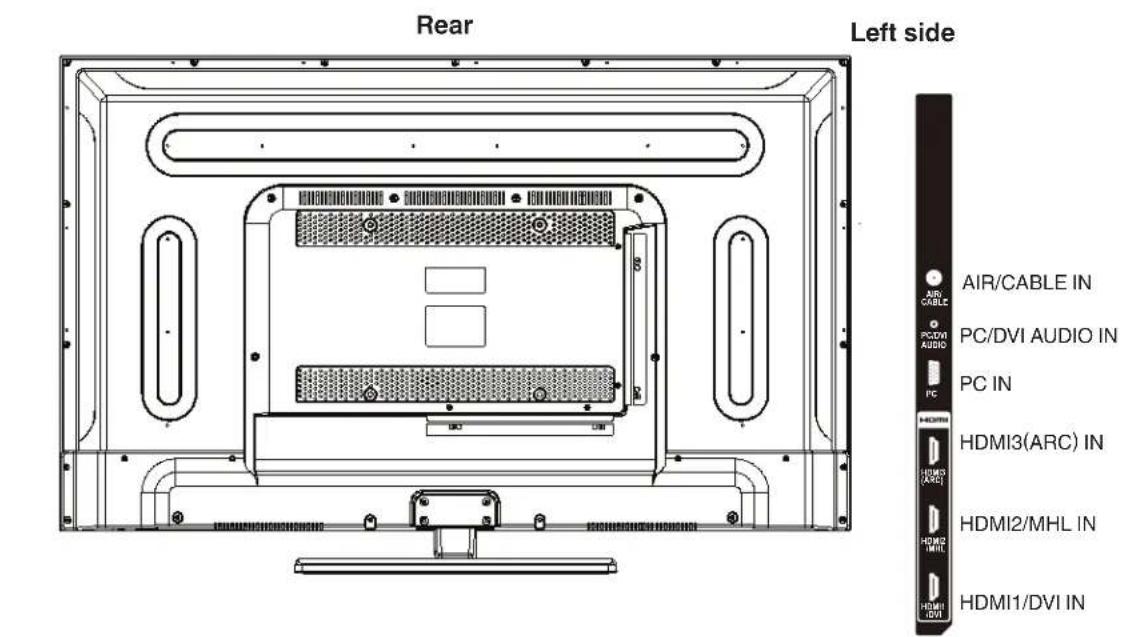

Video Inputs	HDMI (3), Component (Y/Pb/Pr), Composite, PC (VGA), USB (JPEG/Updates), Antenna (RF)
Audio Inputs	PC/DVI Audio (3.5mm), Composite Audio (RCA)

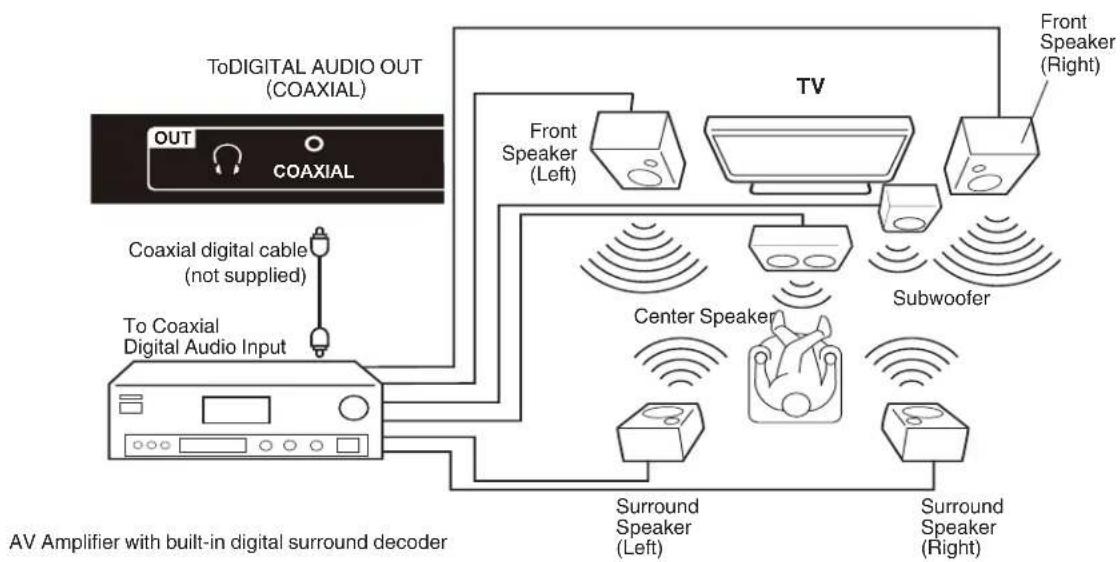

Audio Outputs	Digital Audio (Coaxial), Headphone (3.5mm)
Special Features	MHL (HDMI2), Sleep Timer, Closed Caption, Parental Control, JPEG Viewer, 120Hz Motion
Wall Mount Compatibility	Yes (screws M6, insertion length 10-12mm)
Energy Star Certified	Yes (Home mode default)
Warranty	1 year parts and labor (limited)
Accessories Included	Remote control, AAA batteries (2), Stand and screws, Owner's Guide, Quick Start Guide

Frequently Asked Questions - LE40K507 HITACHI

How do I set up the TV for the first time?

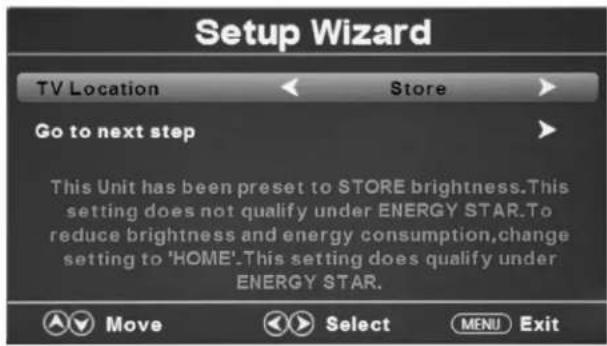

Connect antenna or cable, plug in power, press POWER. The Initial Setup Wizard appears. Select TV Location (Home or Store), time zone, daylight saving, time format, signal type (Air/Cable), then Auto Channel Scan. Allow scan to complete (up to 30 min for digital cable).

How can I adjust the picture settings?

Press MENU, select Video icon. Choose Picture Mode (Dynamic, Standard, Movie, Custom). Adjust Brightness, Contrast, Color, Tint, Sharpness. Advanced settings include Color Temperature, Noise Reduction, Dynamic Contrast, HDMI Mode, Reel120 Motion.

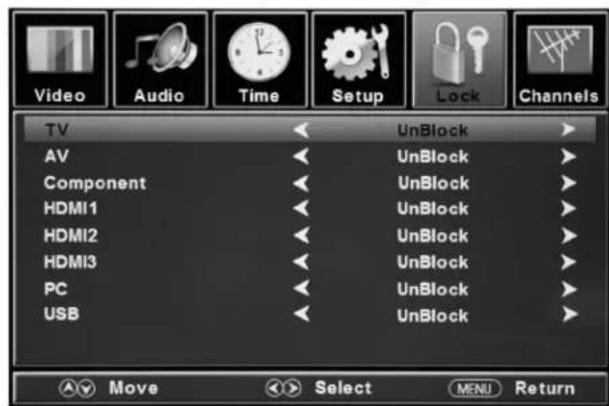

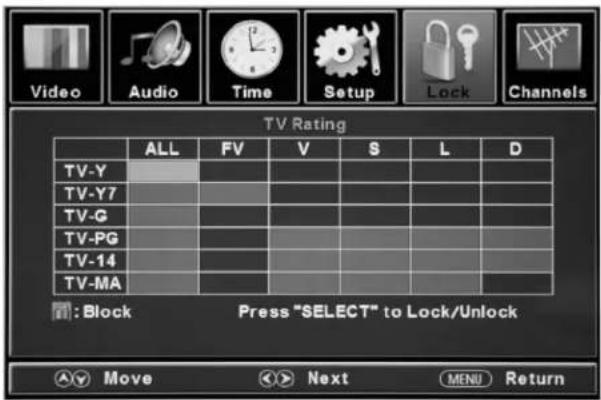

How do I use the Parental Control feature?

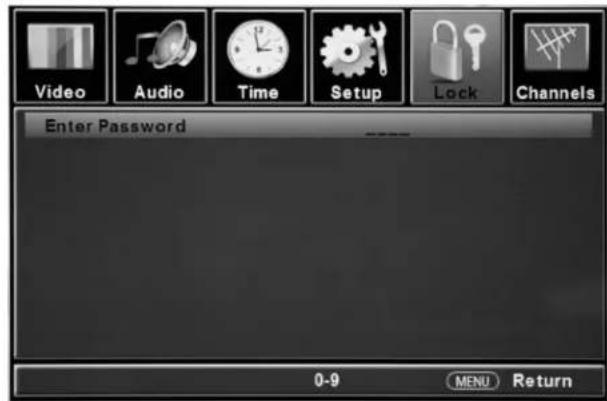

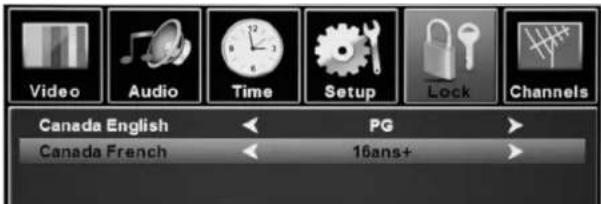

Press MENU, select Locks icon. Enter default password 0000 (or 7777 if forgotten). Set Parental Control to On. Then set US Rating (TV, Movie) or Canada Rating (English/French) by age and content. You can also lock specific inputs via Input Lock.

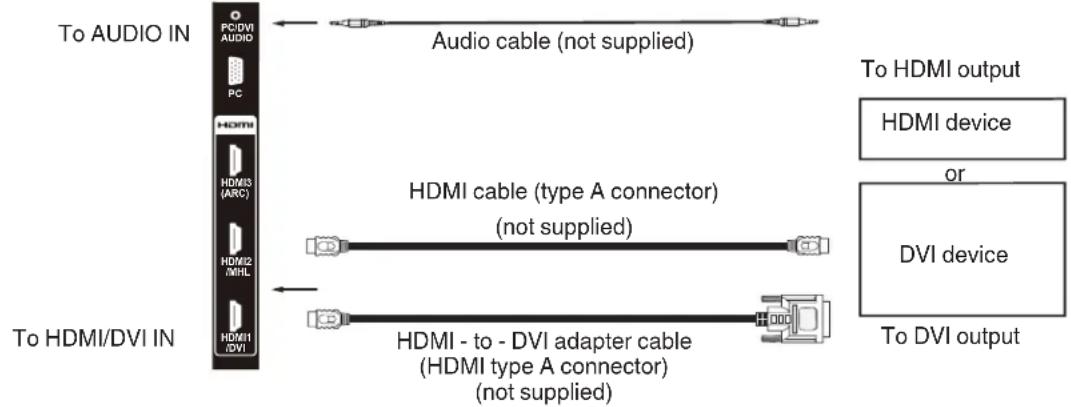

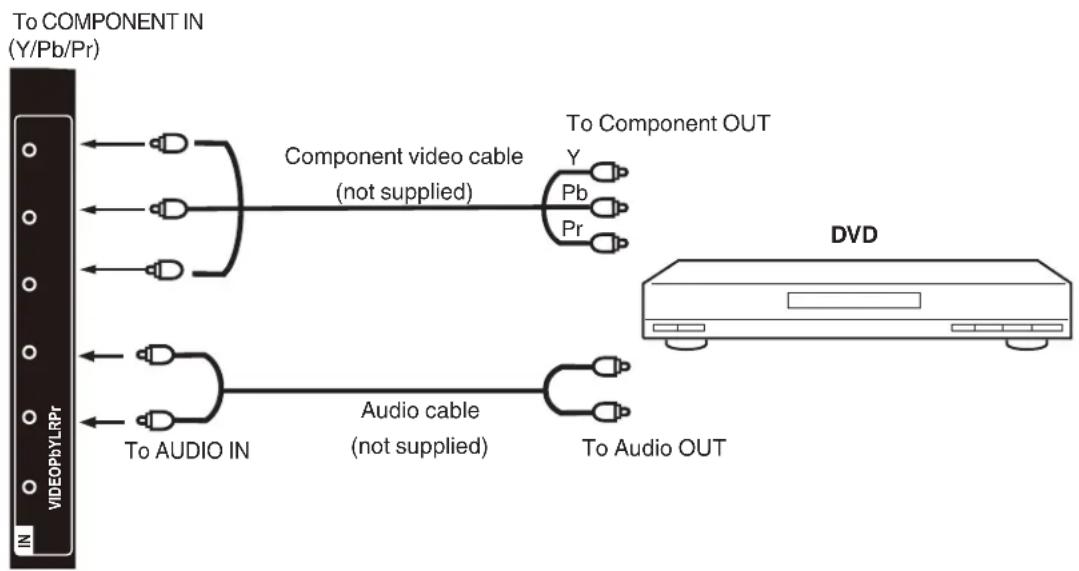

How do I connect external devices like a DVD player or game console?

Use appropriate inputs: HDMI for best quality, Component for DVD/HD sources, Composite for older devices, or PC for computer. Connect cables, then press INPUT on remote to select the corresponding source. For MHL devices (e.g., smartphone), connect to HDMI2/MHL port.

Why is there no picture or sound?

Check power cord and outlet. Ensure TV is on (power indicator blue). Verify input source is correct. For antenna/cable, ensure connection is secure and channels are scanned. If sound is missing, check volume and mute status. Try another channel or source.

How do I enable Closed Captioning?

Press MENU, go to Setup > Closed Captions. Set CC Setting to CC On or CC with Mute. Then choose Analog Caption (CC1-4, Text1-4) or Digital Caption (Service1-6). Customize font, size, color, etc., in Digital Caption Style if desired.

Can I mount this TV on the wall?

Yes. Remove the stand first (screws on back). Use a wall mount recommended by manufacturer and listed by UL/CSA/ETL. Use M6 screws with insertion length between 10-12mm. Ensure wall is suitable (not steel studs or cinder block if not designed). Professional installation recommended.

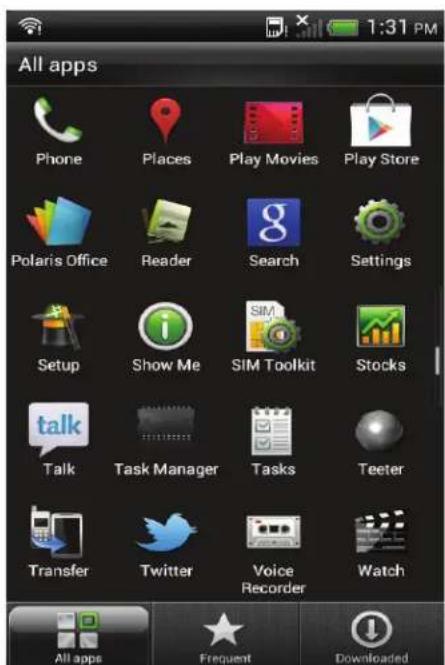

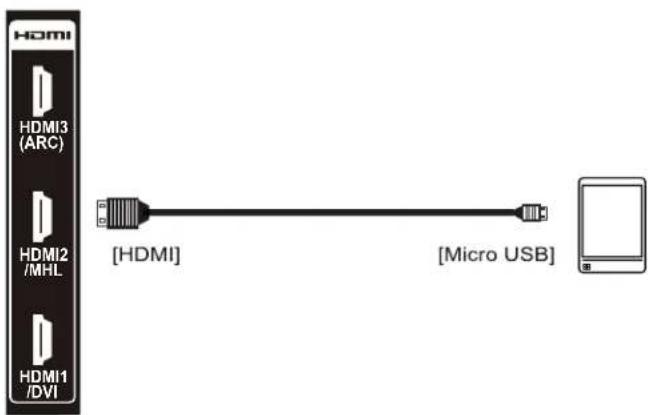

How do I use the MHL feature to connect my smartphone?

Connect an MHL cable to your phone's micro USB port and the other end to HDMI2/MHL jack on TV. Press INPUT and select HDMI2. Your phone screen will display on TV and charge simultaneously. Use remote's cursor buttons to navigate on phone if applicable.

What is the Reel120 Motion feature?

It is a video processing technology that displays movies at 120 frames per second, smoothing motion. It can be set to Off, Low, Mid, or High in Video > Advanced Settings. Effect depends on content and may not be immediately noticeable.

How do I update the TV's software?

Download the latest software from Hitachi's website (www.hitachi.us/tv) to a USB drive. Insert USB into TV's USB port. Press INPUT and select USB. The TV should recognize the update file. Follow on-screen instructions. Do not disconnect USB during update.

USER MANUAL LE40K507 HITACHI

40" Class (40.00" Diag.)

Serial No.

CONGRATULATIONS

Thank you for purchasing this Hitachi product. Please read these instructions carefully.

For additional assistance please call Toll Free 800.HITACHI (800.448.2244). or visit our website at www.hitachi.us/tv. Keep this owner's guide for future reference.

Record the model name and serial number of your LCD Television for future reference. This information is located on the back of the television.

TABLE OF CONTENTS

2-6 IMPORTANT SAFETY INSTRUCTIONS
7 HOW TO ATTACH/REMOVE THE STAND
8-12 FIRST TIME USE
13-23 TV OPERATION
24-27 CONNECTIONS TO OTHER EQUIPMENT
28 RECEPTION DISTURBANCES
29 TROUBLESHOOTING
30 SPECIFICATIONS
31-33 LIMITED WARRANTY

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS TELEVISION'S AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES AND GROUND PRONG CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

Location of the required Marking

The rating sheet and the safety caution are on the rear of the unit.

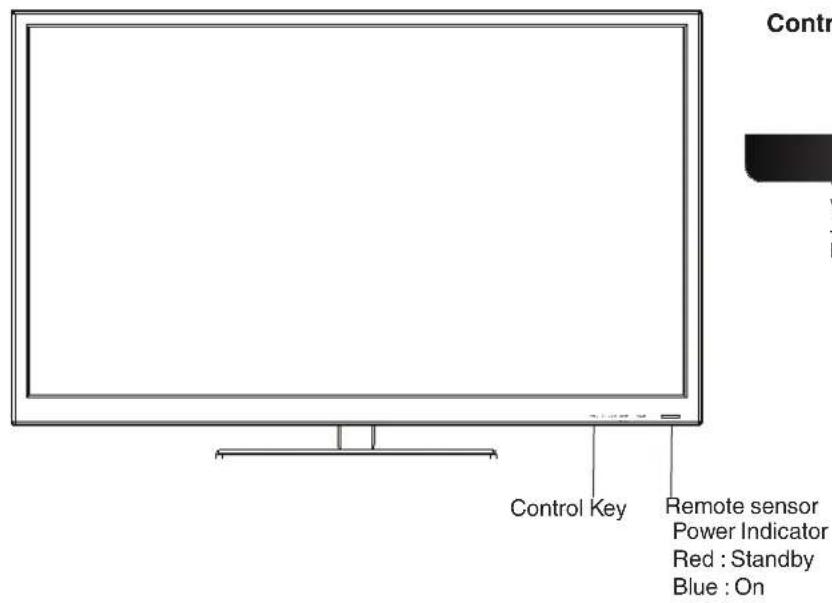

Technical line drawing of a front view of an electronic device with internal components (no text or symbols)

ENERGY STAR®

This television's factory default settings as shipped meet ENERGY STAR requirements.

LEAD NOTICE

This product contains lead. Dispose of this product in accordance with applicable environmental laws. For product recycling and disposal information, contact your local government agency or www.eRecycle.org (in California), the Electronic Industries Alliance at www.ecyclingcentral.com (in the U.S.) or the Electronic Product Stewardship Canada at www.epsc.ca (in Canada). FOR MORE INFORMATION, call 800.HITACHI (800.448.2244) (USA/CANADA).

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus.

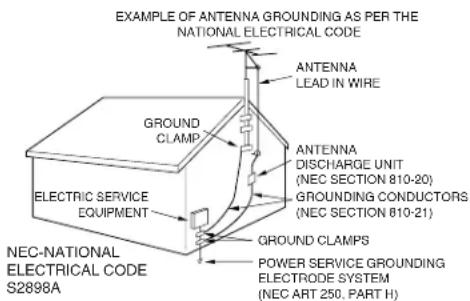

16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.

17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

20) When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock or other hazards.

21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

22) When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other equipment carefully and follow the instructions when making any connections.

IMPORTANT SAFETY INSTRUCTIONS (continued)

23) Do not allow the product to output distorted sound for an extended period of time. It may cause speaker overheating and fire.
24) This reminder is provided to call the cable TV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
25) This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
26) The mains plug is used as the disconnect and shall remain readily operable.

CONDENSATION

Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, unit's performance will be impaired. To prevent this, let the unit stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.

Condensation may also form during the summer if the unit is exposed to the breeze from an air conditioner. In such cases, change the location of the unit.

HOW TO HANDLE THE LCD PANEL

• Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.
• If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation. If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD Panel for long periods of time, the image can become permanently engrained in the LCD Panel and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your LCD Panel on for long periods of time while it is displaying the following formats or images:

• Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
• Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (black bars on left and right sides of screen).

The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility for these symptoms.

• LCD Panels are manufactured using an extremely high level of precision technology, however sometimes parts of the screen may be missing picture elements or have luminous spots.
  This is not a sign of a malfunction.
• Do not install the LCD Panel near electronic equipment that produces electromagnetic waves. Some equipment placed too near this unit may cause interference.
• Effect on infrared devices – There may be interference while using infrared devices such as infrared cordless headphones.

Power source

This television is designed to operate on 120 volts 60 Hz, AC current. Insert the power cord into a 120 volts 60 Hz outlet. To prevent electric shock, do not use the television's (AC) plug with an extension cord, receptacle, or other outlet unless the blades and ground prong can be fully inserted to prevent blade exposure.

Never connect the television to 50 Hz, direct current, or anything other than the specified voltage.

Warning

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Caution

Never remove the back cover of the television as this can expose you to very high voltages and other hazards. If the television does not operate properly, unplug the television and call your authorized dealer or service center.

Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by Hitachi could void the user's warranty.

Declaration of Conformity

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation.

For questions regarding this declaration, contact:

Hitachi America, Ltd.

900 Hitachi Way

Chula Vista, CA 91914-3556

ATTN: Customer Relations

CHILD SAFETY:

It Makes A Difference How and Where You Use Your Flat Panel Display

Congratulations on your purchase!

As you enjoy your new product, please keep these safety tips on mind:

Prohibition sign with red circle and no text, featuring a blackboard, wooden crate, basketball, and toy (no readable text or symbols)

HITACHI CARES!

• The consumer electronics industry is committed to making home entertainment enjoyable and safe.
• Please note the American Academy of Pediatrics discourages television viewing for children younger than two years of age.
• The home theater entertainment experience is a growing trend and larger flat displays are popular purchases. However, flat panel displays are not always supported on the proper stands or installed according to the manufacturer's recommendations.
• Flat Panel displays that are inappropriately situated on dresser, bookcases, shelves, desks, speakers, chest or carts may fall over and cause injury.

TUNE INTO SAFETY

• One size does NOT fit all. Follow the manufacturer's recommendations for the safe installation and use of your flat panel display.
• Carefully read and understand all enclosed instructions for proper use of this product.
• Don't allow children to climb on or play with furniture and television sets.
• Don't place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.
• Remember that children can become excited while watching a program, especially on a "larger than life" flat panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down.
• Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL).
• Follow all instructions supplied by the display and wall mount manufacturers.
- If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation.
• Make sure that the wall where you are mounting the display is appropriate.
- Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction.
• If you are unsure, contact a professional installer.
- A minimum of two people are required for installation. Flat panel displays can be heavy.

Prohibition symbol showing a black monitor with a red diagonal line crossing it, set against a white background (no text or symbols)

CEA

www.CE.org/safety

SAFETY PRECAUTIONS

The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunlight. When placing on a shelf leave 4 inches (10 cm) free space around the entire unit.

Notes when mounting the TV on a wall

If the unit is to be mounted on the wall, contact the retailer where you purchased the TV for advice, and have the equipment professionally installed. Incomplete or improper installation may cause injury to you, and/or damage to the TV.

The screws ISO M6 thread type should be used. The insertion length must be within 10 - 12mm.

If the insertion length is less than 10mm, the weight can not be maintained.

If the insertion length is more than 12mm, a space is created between the Wall Mount Bracket and the Television.

(Insertion Length) = (Screw Length) - (Washers Thickness) - (Mounting Bracket Thickness)

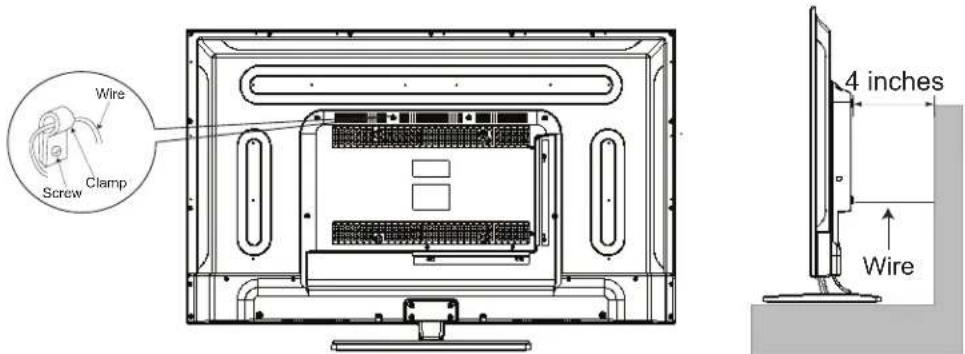

Securing to a Wall

1. Use metallic wire, screw and clamp (not provided) on the rear of the TV as shown below.

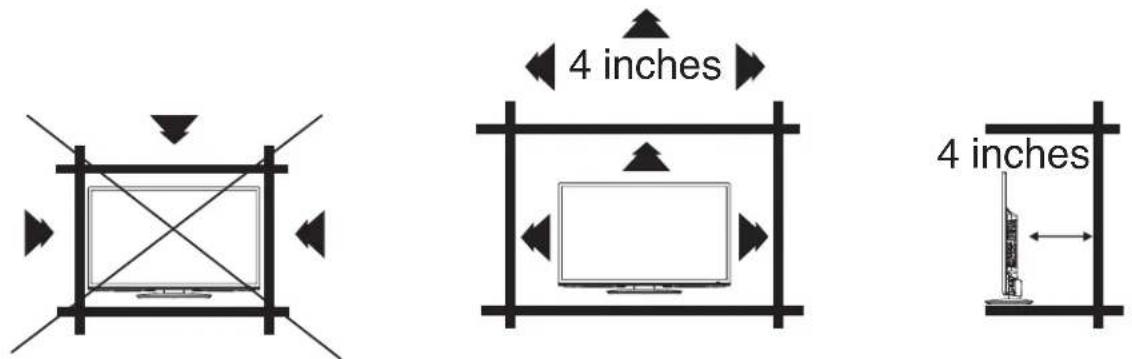

2. Keep the TV 4 inches away from the wall except when mounted using the wall mount bracket and secure to the wall as shown below:

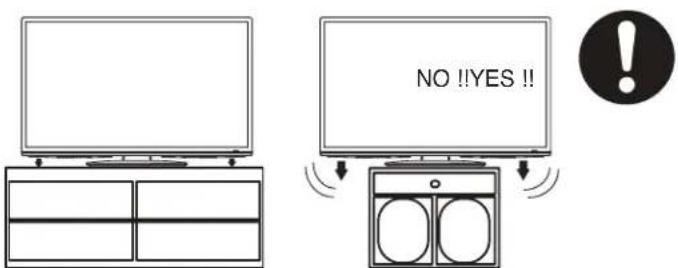

NOTICE FOR TV CABINET

If the unit is to be mounted on a cabinet smaller than length of the unit, it could result in an unstable location and the unit may tumble over, making a risk of personal, possibly fatal injury. Also, this would damage the product seriously. Accordingly, Hitachi accepts no responsibility or liability for any injuries or property damage resulting from the improper installation.

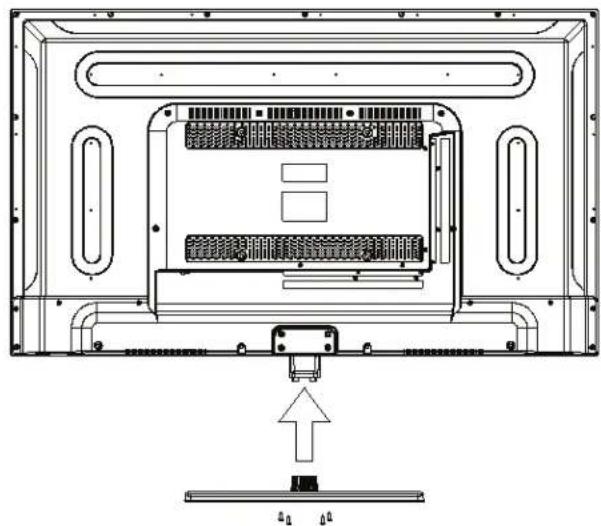

How to attach the stand

NOTE:

• Assure the AC cord is not connected to AC outlet.
- Before beginning this process, assure that TV is laid on a clean, safe, and cushioned space to avoid any damage to the unit.
- Do not touch or press the LCD screen, the glass might break under pressure.

1. Carefully place the TV screen face-down on a clean, cushioned surface.

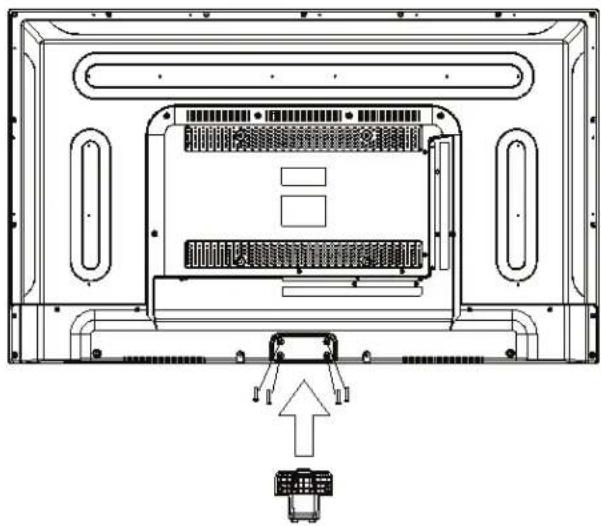

2. Insert the stand neck and secure the neck with 4 screws (supplied) (M4x25) as shown in Figure 1. It will fit in only one direction.

Technical line drawing of a front-mounted electronic device with internal components and an external connector (no text or symbols)

Figure 1

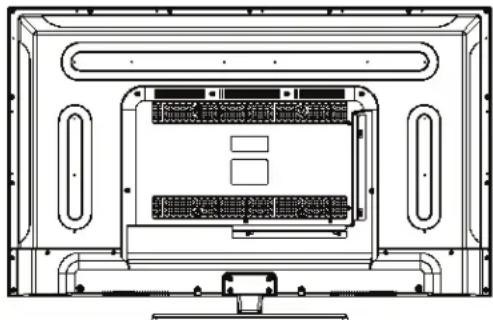

Technical line drawing of a computer monitor rear panel with internal components and an upward arrow indicating motion (no text or symbols)

Figure 2

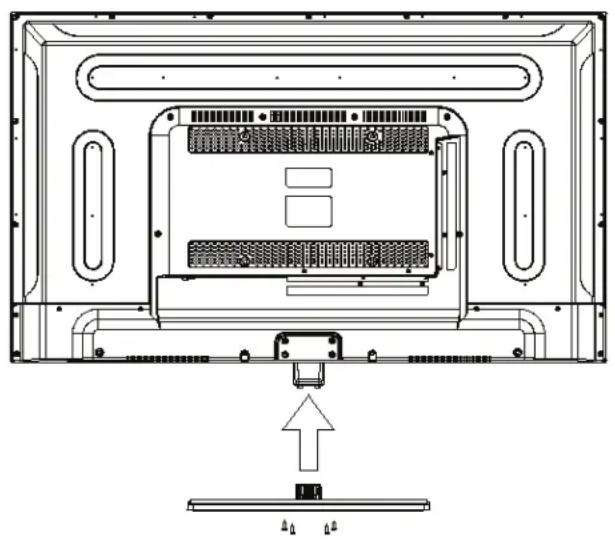

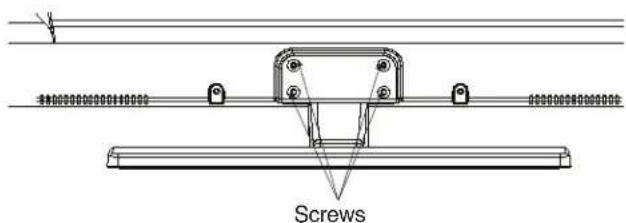

1. Insert and Secure the stand with 4 screws (supplied) (4x16mm) as shown in Figure 2.
2. Be sure to follow above instructions. Insufficient tightening or incorrect installation of the stand will not support your TV correctly, and could result in damage or injury from tip-over.

How to remove the stand

When you transport this product, remove the stand and pack flat against the back of the unit in the carton. To remove the stand, perform the above steps in reverse order.

When you mount the TV on the wall, remove the stand. To disconnect the base/stand remove the screws from the back as below.

NOTE:

- Before wall-mounting, please check carefully the location of the TV's mounting-holes.

Contents

Before using your unit

IMPORTANT SAFETY INSTRUCTIONS....3

CHILD SAFETY NOTICE....5

SAFETY PRECAUTIONS 6

How to attach the stand 7

How to remove the stand 7

Contents 8

Features....9

Location of controls....10

Remote control 11

Antenna connections 12

Cable TV connections....12

TV operation

Starting setup 13

TV operation 13

Quick guide for menu operation 14

Convenience functions 15

Channels setup....18

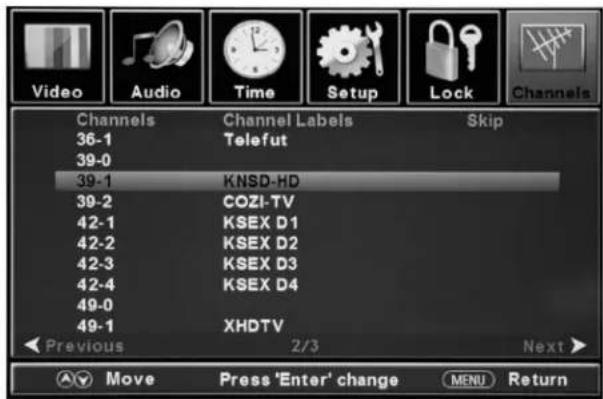

Labeling channels....19

Setting the Parental Control 19

Closed Caption 21

CC options....22

Aspect Switching 22

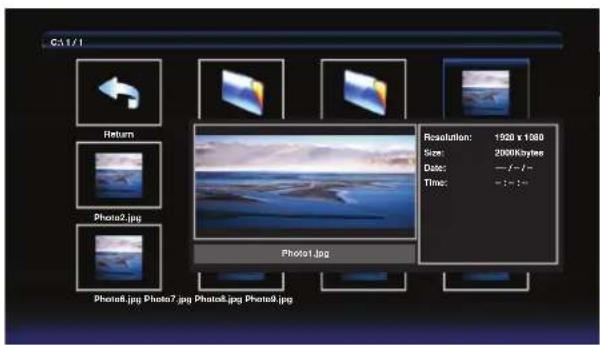

JPEG Viewer 23

Additional information

Connections to other equipment 24

Reception disturbances....28

Troubleshooting 29

Specifications 30

LIMITED WARRANTY 31

Features

HDTV

Unique space saving design in a 40" class TV.

Picture Performance

• Long Life LED Backlight
  • 120Hz/1080p Perfected
  • Super Clear Anti-Glare Screen

Convenience

• PC Input (RGB)
• USB Input (JPEG Photo Viewer, Software Updates)
• MHL ^TM (Mobile High Definition Link)
• Sleep Timer (5-240 min)

Audio Performance

• Dolby® Digital/MTS Stereo/SAP

This Television receiver will display television closed captioning, (co), in accordance with FCC rules.

* The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
* Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
* VGA and XGA are trademarks of International Business Machines Corporation.
* MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of the MHL, LLC.

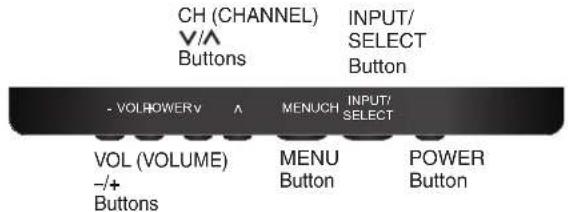

Front

Control Key

MENU button, CH (CHANNEL) √/∧ buttons, VOL (VOLUME) -/+ buttons and INPUT/ SELECT button can be used to select the desired setting during the menu screen operations.

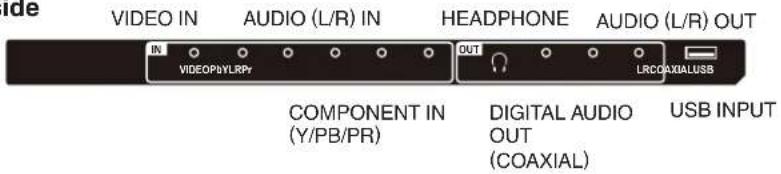

Bottom side

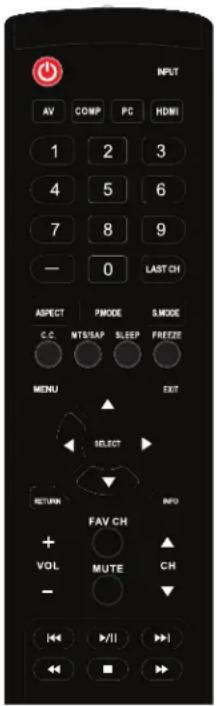

POWER Button - Press to turn the TV's power on/off.

MTS/SAP Button - Press to change the audio language.

Direct Channel Selection Buttons (0-9) - Allows direct access to any channel of the TV.

- Button -This button is the “-” button used when selecting digital channels.

MENU Button - Use to display the On-Screen menu function.

CURSOR ▲/▼/◄/► Buttons - Use to navigate and select menu functions of the TV.

SELECT Button - Press to enter or select functions for the On-Screen menu.

EXIT Button - Press to exit the On-Screen menu.

VOL (VOLUME) + / - Buttons - Press the + button to increase, or the - button to decrease the sound level.

LAST CH Button - Pressing this button allow you to go back to the previous channel selected. Press this button again to return to the channel you were watching.

MUTE Button - To turn off the sound, press this button once. The TV will be silenced and the symbol will appear on the screen. The muting feature can be released by pressing the MUTE button again or one of the VOL (VOLUME) + / - buttons.

SLEEP Button - To set the TV to turn off after a preset amount of time, use the SLEEP button on the remote control.

C.C. Button - Use to select Closed Caption to "CC Off", "CC On" or "CC with Mute".

INFO Button - When you press this button the current information will be displayed on the screen.

INPUT Button - Press to change the TV's input.

ASPECT Button - Press to change the picture size.

CH (CHANNEL) ✗ Buttons - Press to change the channel of the TV.

Control Buttons (Previous, Next, Play & Pause, Rewind, Stop, Fast Forward) These buttons are for controlling devices with Consumer Electronics Control (CEC) through the HDMI connection like Blu-Ray or DVD players.

P.MODE Button - Press to change the picture mode.

S.MODE Button - Press to change the sound mode.

FAV CH Button - Press to access the Favorite Channel list.

FREEZE Button - Press to freeze or unfreeze the picture.

RETURN Button - Press to return to the previous menu.

AV Button - Press to directly access the AV Input.

COMP Button - Press to directly access the Component Input.

PC Button - Press to directly access the PC Input.

HDMI Button - Press to directly access the HDMI Inputs.

BATTERY PRECAUTIONS

These precautions should be followed when using batteries in this device:

- Use only the size and type of batteries specified.

- Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

- Do not mix different types of batteries together (e.g. Alkaline, Carbon-zinc or Rechargeable) or old batteries with fresh ones.

- If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

- Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer's directions.)

- Please use caution when inserting batteries to avoid battery damage. If the spring terminal in the remote control remains in contact with a side of a damaged battery it can cause a short circuit. Never use damaged batteries as they can become very hot and are dangerous.

Before using the remote control, batteries must first be installed. Use two "AAA" size batteries. The batteries may last approximately one year depending on how much the remote control is used. For best performance, it is recommended that batteries should be replaced on a yearly basis, or when the remote operation becomes erratic. Do not mix old and new batteries or different types.

HOW TO INSTALL BATTERIES

1. Open the battery compartment cover.

2. Install two "AAA" batteries (supplied).

1. Replace the battery compartment cover.

Antenna connections

If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a Cable TV service, see Cable TV connections.

Combination VHF/UHF Antenna (Single 75 ohm cable)

Connect the 75 ohm cable from the combination VHF/UHF antenna to the Antenna Jack.

Cable TV connections

This TV has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the Cable TV company.

For subscribers to basic Cable TV service

For basic Cable TV service not requiring a Converter/Descrambler box, connect the 75 ohm Coaxial Cable directly to the Antenna Jack on the back of the TV.

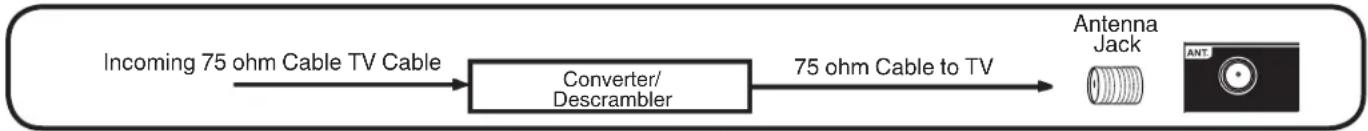

For subscribers to scrambled Cable TV service

If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV. Follow the connections shown below. Set the TV to the output channel of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to select channels.


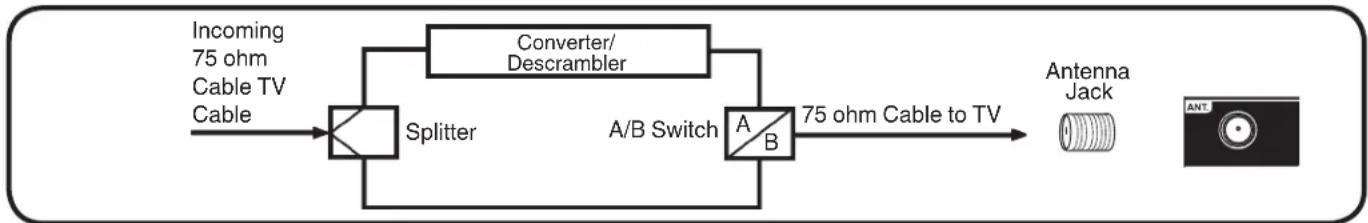

For subscribers to unscrambled Cable TV service with scrambled premium channels

If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require the use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from the Cable TV company or an electronics supply store). Follow the connections shown below. With the switch in the "B" position, you can directly tune any non-scrambled channels on your TV. With the switch in the "A" position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to tune scrambled channels.

Starting setup

The Initial Setup menu appears the first time you turn on the TV, and assists you to specify the Air/Cable setting, and program your channels automatically.

IMPORTANT: Make sure that the antenna or cable TV system connection is made!

1 To turn on the TV, press POWER. (POWER indicator on the front of the unit changes green. It may take approx. 10 seconds for a picture to appear on screen.) The Initial Setup Wizard begins.

2 Press ▲ or ▼ to select "TV Location", then press ◀ or ▶ to select "Home" or "Store". This product qualifies for ENERGY STAR in Home mode default setting. Then press ▼ or SELECT
3 Press ▶ or SELECT to go to next step.
4 Press ◀ or ▶ to select your time zone, then press ▼ or SELECT.

- In the rare event that you live within broadcast range of two stations in two different time zones, the TV may recognize the wrong station for the auto clock set.

5 Press ◀ or ▶ to select daylight saving time on or off, then press ▼ or SELECT.
6 Press ◀ or ▶ to select desired time format, then press ▼ or SELECT.
7 Press ▶ or SELECT to go to next step.
8 Press ◀ or ▶ to select signal type that you using, then press ▼ or SELECT.
9 Press ▶ or SELECT to go to next step.

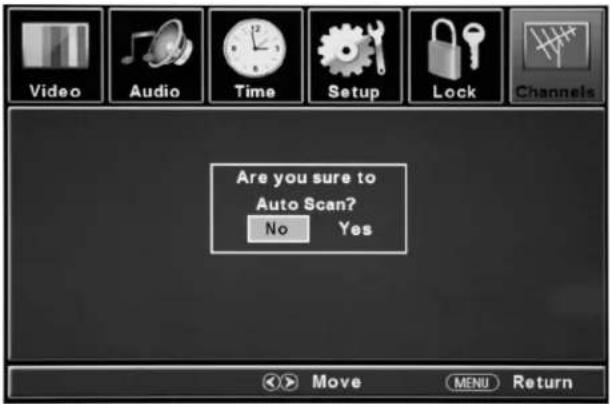

10 Auto Channel Scan will begin. After scan is completed, the TV channel appears on the screen.

- Depending on the reception condition, it may take up to 30 minutes to complete memorizing digital cable channels. Please allow the process to complete without interruption.

NOTE:

• If you press EXIT in the process of "Auto Channel Scan", the Auto Channel Scan stops and changes to the normal screen.
• When you make a menu selection, your changes occur immediately. You do not have to press EXIT to see your changes.

TV operation

1 To turn on the TV, press POWER. (POWER indicator on the front of the unit changes blue. It may take approx. 10 seconds for a picture to appear on screen.)
2 Adjust the volume level by pressing VOL (VOLUME) + or - . The volume level will be indicated on the screen by bars. If the volume increases, the number of bars also increases. If the volume decreases, the number of bars also decreases.

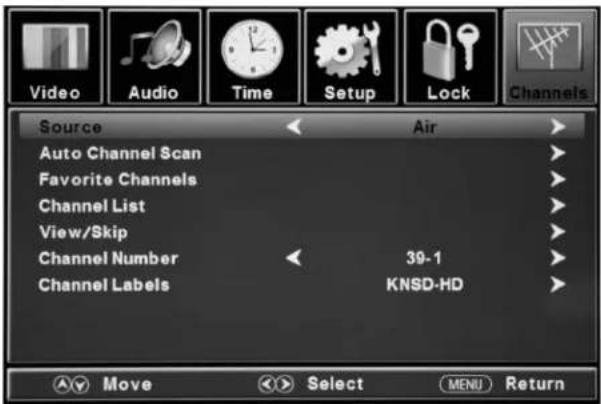

3 Set the Source option to the appropriate position (see "Air/Cable selection" on page 18).
4 Press the Direct Channel Selection Buttons (0-9, -) buttons to select the channel. (If you press only the channel number, channel selection will be delayed for a few seconds.)

TO SELECT ANALOG CHANNELS

1-9: Press 1-9 as needed. Example, to select channel 2, press 2, then press or SELECT..
10-99: Press the 2 digits in order. Example, to select channel 12, press 1, 2, then press SELECT. 100-135: Press the 3 digits in order. Example, to select channel 120, press 1, 2, 0, then press SELECT.

TO SELECT DIGITAL CHANNELS

Press the first 1-3 digits, then press the - button followed by the remaining number.

Example, to select channel 15-1, press 1, 5, -, 1, then press SELECT.

• If a channel is selected with only audio content, "Audio Only" will be displayed on the screen.
• If a channel is selected with a weak digital signal, "No Signal" will be displayed on the screen.
• The same program may be available on either an analog channel or a digital channel. You may choose to watch either format.

VHF/UHF/CABLE CHANNELS

Air Cable
VHF2-13	VHF2-13
UHF14-69	STD/HRC/IRC14-36 (A) (W)37-59 (AA) (WW)60-85 (AAA) (ZZZ)86-94 (86) (94)95-99 (A-5) (A-1)100-135 (100) (135)01 (4A)

NOTE:

• If a channel with no broadcast is selected, the sound will automatically be muted.
• It may take a few seconds for a digital channel picture to appear on screen after being selected.
• To direct tune to a digital channel that is not stored in the channel list: For example, want to select channel 15-2. Press 1, 5, -, then press SELECT. After that, press 1, 5, -, 2 again, then press SELECT.

To select the video input source

To view a signal from another device connected to your TV, such as a VCR player, press INPUT, then press ▲ or ▼, then press SELECT.

CH ↗ √

Press and release CH ↗. The channel automatically stops at the next channel.

For proper operation, before selecting channels, they should be set into the memory. See "Channels setup" on page 18.

INFO

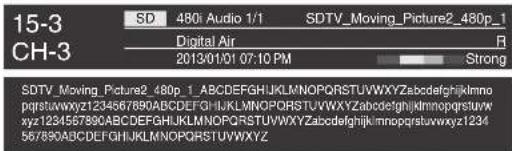

Press INFO to display the current information on the screen.

When the TV receives a digital signal, the digital information will appear.

• Channel number • DTV Signal condition

- Channel label (if preset) - Broadcast program name

- Parental Control - Signal Type

- Program guide • Current date and time

- Resolution • Audio language

Press INFO again to clear the display.

NOTE:

- After a few seconds the TV will return to normal operation automatically.

LAST CH

This button allows you to go back to the last channel selected by pressing LAST CH. Press LAST CH again to return to the last channel you were watching.

MUTE

Press MUTE to switch off the sound. The TV's sound will be silenced and "will appear on the screen. The sound can be switched back on by pressing this button again or by pressing the VOL (VOLUME) + or - buttons.

SLEEP

To set the TV to turn off after a preset amount of time, press SLEEP on the remote control. The clock will change for each press of the SLEEP button (Off, 5 min, 10 min, ..., 240 min). To confirm the sleep timer setting, press SLEEP and the remaining time will be displayed for a few seconds. To cancel the sleep timer, press SLEEP repeatedly until the display turns to Off.

Quick guide for menu operation

Example: Select Menu Language.

1 Press INPUT to select TV mode.

2 Press MENU. The TV menu screen will appear.

3 Press ◀ or ▶ to select "Setup", then press ▼.

4 Press ▲ or ▼ to select "Menu Language", then press ◀ or ▶ to select the desired language.

5 Press EXIT to return to the normal screen.

NOTE:

- On the following pages, the menu can be called in the same way described above, by pressing the MENU button.

- If no buttons are pressed for more than about 15 (depending on your setting) seconds, the TV will return to normal operation automatically.

- During TV or external input mode (except PC input mode), if there is no signal reception, the TV will change to standby after approx. 15 minutes (in PC input mode: 1 minute).

Convenience functions

You can change the default settings by pressing the MENU button on your remote, then select the one of the icons at the top of the menu - follow the On-Screen prompts to set your preferences.

Icon Selected Items Setup hint
Video
	Picture Mode
	Power Saving Reduced brightness saves energy.
	Standard Standard picture quality
	Dynamic Bright and dynamic picture
	Movie Soft edge picture setting
	Custom Your personal preferences
	Brightness You can adjust the picture quality to your preference. Available only when you selected “Custom”.
	Contrast
	Color
	Tint (except PC input mode)
	Sharpness
	Color Temperature Cool (Bluish) / Standard (Neutral) / Warm (Reddish)
	Advanced Settings
	Aspect Ratio See page 22.
	Noise Reduction Set the level of decreasing noise included in the video signal.
	Off/Low/Medium / High
	Dynamic Contrast	Use this feature to change the black level automatically according to the brightness of an image. The black level will become dark in a dark scene.
	Off / On
	HDMI Mode Select Video mode for general use (i.e. with a STB, BD Player, DVD Player, or Game Console). Select Graphic mode for use with a PC.
	Video / Graphic
	Reel120 Motion	Hitachi's advanced video processor can display movies at 120 frames per second. The following settings are available to smooth the motion of movie sources.
	Off/Low/Mid/High

NOTE:

- The device may not conform to the Energy Star standard after Video setting (e.g., Dynamic Contrast, Picture Mode) and Audio setting (e.g., volume, Equalizer Settings) are adjusted.

- When using HDMI Graphic mode only two aspect ratios will be available (Normal/Wide). These aspect ratios show the image at 100%

• The effect of Reel120 Motion may not be immediately noticeable and the effect depends on the content of the movie.

Convenience functions

Icon Selected Items Setup hint
Audio
	Equalizer Settings
	Sound Mode
	Standard / Music / Movie / Sports	You can choose a basic equalizer mode. Depending on this setting, the following detail setting is set to default value of each mode.
	Custom
	150 Hz / 500 Hz/1K Hz/5K Hz/10K Hz	The setting of this item adjusts the audio level of its frequency corresponding to each setting.• Available only when you selected “Custom”.
	Balance Adjust the left and right sound channel volume.
	MTS The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound. MTS also can transmit a second audio program (SAP) containing a second language or other audio information. This item is valid only when the analog broadcast.
	Stereo / SAP / Mono
	Audio Language When two or more audio languages are included in a digital signal, you can select one of the audio languages. (This function is available only for digital broadcasts.)
	English / French / Spanish
	Digital Output Select the format for your digital audio output If you have connected an amplifier / receiver to the digital audio jack on your TV.
	Raw / PCM
	Surround Sound	The dynamic presence and sound created offers a thoroughly enjoyable listening experience.
	Off / On
	Perfect Volume Volume level is adjusted automatically to lower volume of loud scenes and to raise volume of quieter scenes.
	Off / On
Time
	Sleep Timer Sleep Timer switches the TV to standby after a defined period of time. To cancel the Sleep Timer, set to “Off”.
	Off / 5 / 10 / 15 / 30 / 60 / 90 / 120 / 180 / 240 min
	Time Zone Select your local time zone for auto clock feature. You can select Newfoundland, Atlantic, Eastern, Central, Mountain, Pacific, Alaska, Hawaii and Samoa.
	Daylight Savings If you want to activate Daylight Saving Time, select “On”.
	Off / On
	Time Format	Select the time format.
	12-hour / 24-hour
	Time Mode	The Auto Clock function will automatically set the built-in clock (Year, Month, Day and Time) when the TV is connected to an antenna or cable TV system and it is turned off. As the TV searches for a receivable station in your area and it receives a broadcast signal for Auto Clock, the Auto Clock needs several minutes to set itself.
	Manual/Auto
	Time	Using the ▲/▼/◄/►, to set the clock.• Available only when you selected “Time Mode” to “Manual”.

Convenience functions

Icon Selected Items Setup hint

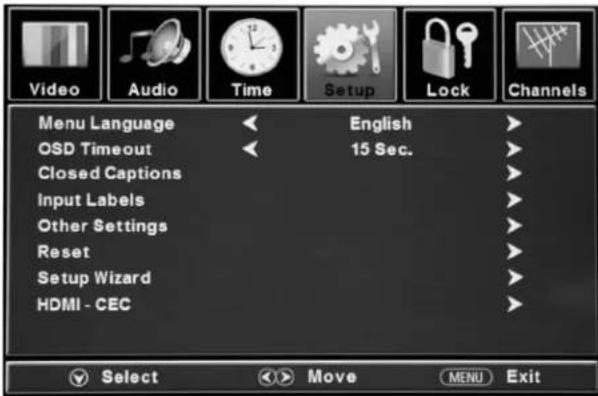

Setup
	Menu Language
	English / Français / Español	You can choose from three different languages (English, Français (French) and Español (Spanish)) for the on-screen displays.Select the language you prefer first, then proceed with the other menu options.
	OSD Timeout
	5 / 15 / 30 / 45 / 60 Sec. You can set the display time of OSD Menu.
	Closed Captions See page 21.
	Input Labels The Input Label feature allows you to label each input source for your TV.
	Default / Antenna / Cable /Satellite / DTV / DVD / Blu-ray /HD-DVD / XBOX / Wii / PS3 /Game / Computer / VCR / DV /Custom (10 characters)	You can select a label from a default value or input by yourselfwith ▲/▼ (alphabet select) / ◀/► (select character / position).
	PC Settings (available only for PC mode)
	H Position To adjust the horizontal placing of the image.
	V Position To adjust the vertical placing of the image.
	Clock Eliminates the vertical (CLOCK) interfering lines.
	Phase Eliminates the horizontal (PHASE) interfering lines.
	Auto To adjust the all PC settings automatically.
	Other Settings
	Audio Only You can turn off the picture on your TV and listen to the programs audio only.
	TV Location	Select location of TV, “Home” or “Store”.
	Store / Home
	Reset	Select “Yes”, then press SELECT. Restore Video, Audio (except “Audio Language”), Time (Sleep Timer, Time Format and Auto Sleep only) and Setup (except “Menu Language”) settings to the default factory settings.
	No / Yes
	Setup Wizard	See page 13.
	HDMI - CEC
	CEC Enable	Select “On” to enable CEC features.
	Device Auto Off	When the user turns off the TV, all active CEC enabled devices on the HDMI input will go to Standby.
	TV Auto On	Pushing the “Play” button on the CEC enabled device will command the device to play , turn the TV on, and the HDMI input, that the device is connected to, will become the active input device for the TV.
	ARC	To enable the audio through an AV receiver using HDMI (ARC).
	Device Lists	Display devices that are connected to TV.
	Connect	To make a connection to a device shown on the device list.
	Root Menu To access the device menu.
Lock		See page 19.
Channels		See page 18. (Only accessible in TV input).

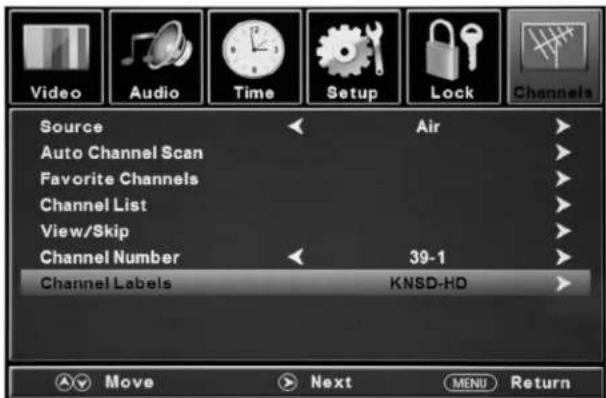

Channels setup

This TV is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV's memory. To use this TV with an antenna, set the signal type option to the Air mode. When shipped from the factory, this menu option is in the Cable mode.

Air/Cable selection

1 Select "Channels ⇒ Source".
2 Press ◀ or ▶ to select "Air" or "Cable".

Air - VHF/UHF channels Cable - CABLE TV channels

NOTE:

- It may take a few seconds for a digital channel picture to appear on screen after being selected.

Auto Channel Scan

1 Select "Channels Auto Channel Scan", then press or SELECT.

2 In confirmation window, Press ▶ to select "Yes", then press SELECT. The TV will begin memorizing all the channels available in your area.
- It may take from 15 minutes to 30 minutes to complete channel scan.
- Depending on the reception condition, a bar display may not advance for several minutes, please be patient.
- If you press MENU during scan, channel scan will stop.

NOTE:

• If you are unsure of the digital channels available in your area, you may visit www.antennaweb.org to receive a list based on your address or zip code. If you require further assistance you may call our toll-free customer service line at 800.HITACHI (800.448.2244) (USA/CANADA).
• New channels may be added to your area periodically, it is recommended to perform the "Auto Channel Scan" procedure regularly.

3 The new channel will be added into the channel memory.

Channel Manager

You can select the channel that you want to skip.

1 Select "Channels View/Skip", then press or SELECT.
2 Press ▲ or ▼ to select the channel that you want to skip.

3 Press SELECT to assign √ mark for unwanted channel.
4 Repeat steps 2 - 3 for other channels you want to skip.

Labeling channels

Channel labels appear with the channel number display each time you turn on the TV, select a channel, or press DISPLAY.

You can choose any 7 characters to identify a channel.

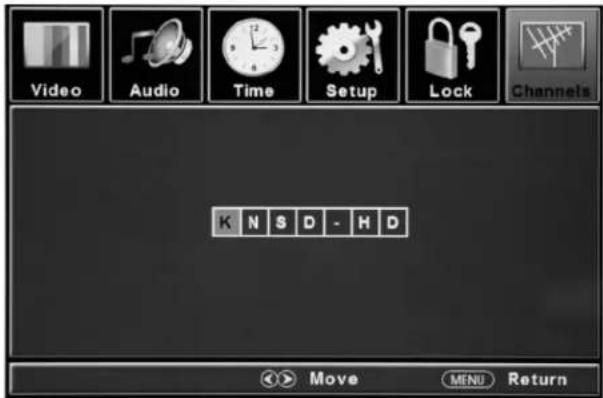

To create channel labels

1 Select "Channels Channel Number".

2 Press ◀ or ▶ to select a channel you want to label, then press ▼ to select "Channel Labels". Then press ▶ or SELECT.

3 Press ▲ or ▼ repeatedly until the character you want appears in the first space.

If the character which you desire appears, press ▶. You can move back or forward by pressing the ◀ or ▶. Repeat this step to enter the rest of the characters, then press SELECT.

4 Repeat steps 2-3 for other channels. You can assign a label to each channel.
5 When you finish inputting the label name, press EXIT to return to the normal screen.

NOTE:

- The channel labels will be reset after "Auto Channel Scan" on page 18.

Setting the Parental Control

An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures that you may choose to exclude. The restriction applies to "TV", "Movie", "Canada English Rating" and "Canada French Rating" if this data is transmitted. You may set this restriction separately. To use the Parental Control function, you must register a password.

To enter a password

1 Select "Locks", then press ▼.
2 Press 0000 using Number buttons(0-9). (This is default password.)

"*appears instead of the number."

NOTE:

• If you forget your password, use the factory password 7777, you can then gain access to change your password if necessary.
• To avoid forgetting the password, write it down and keep in a safe place.

How to enter the Parental Control menu

1 Select "Locks" menu, then press ▼.
2 Use Number buttons (0-9) to enter your password.

To Lock the connected devices

1 In the Locks menu, press ▲ or ▼ to select "Parental Control", then press ◀ or ▶ to set to "On".
2 Press ▲ or ▼ to select "Input Lock", then press ▶ or SELECT.

3 Press ▲ or ▼ to select which input will be blocked, then press ◀ or ▶ to select "Block".

To set the Parental Control

1 In the Locks menu, press ▲ or ▼ to select "Parental Control" then press ◀ or ▶ to set to "On".
2 Press ▲ or ▼ to select "US Rating", then press ▶ or SELECT.
3 Press ▲ or ▼ to select which rating will be used, then press ◀/▶ or SELECT. Each rating below will appear.

TV

You can set the rating using age level and genre.

Age:

TV-Y : All children

TV-Y7 : 7 years old and above

TV-G : General audience

TV-PG : Parental guidance

TV-14 : 14 years old and above

TV-MA : 17 years old and above

Genre:

FV : Fantasy Violence

D : Dialogue

L : Language

S : Sex

V : Violence

Press ▲/▼ to select the desired rating, then press SELECT.

Movie

Off : None

G : All ages

PG : Parental guidance

PG-13 : Parental guidance less than 13 years old

R : Under 17 years old parental guidance suggested

NC-17 : 17 years old and above

X : Adult only

Press ◀/▶ to select the desired rating.

4 Press EXIT to return to the normal screen.

Parental Control function is activated now.

Canadian rating systems

1 In the Locks menu, press ▲ or ▼ to select "Parental Control" then press ◀ or ▶ to set to "On".
2 Press ▲ or ▼ to select "Canada Rating", then press ▶ or SELECT.
3 Press ▲ or ▼ to select "Canada English" or "Canada French", then press ◀ or ▶ to select the desired rating.

Canada English ratings

You can set the rating using age level.

Off : Exempt

C : Programming intended for children under age 8

C8+ : Programming generally considered acceptable for children 8 years and over to watch on their own

G : General Audience

PG : Parental Guidance

14+ : Programming contains themes or content which may not be suitable for viewers under the age of 14

18+ : Adult

Canada French ratings

Off : Exempt programming

G : General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner.

8ans+ : General but inadvisable for young children: May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with parent.
13ans+ : Over 13 years: Could contain scenes of frequent violent scenes and therefore recommended for viewing with parent.
16ans+ : Over 16 years: Could contain frequent violent scenes and intense violence.
18ans+ : Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

4 Press EXIT to return to the normal screen.

Parental Control function is activated now.

NOTE:

- The Parental Control function is activated only on programs and input sources that include a rating signal.

To change the password

1 In the Locks menu, press ▲ or ▼ to select "Change Password", then press ▶ or SELECT.
2 Enter your old password using Number buttons (0-9).
3 Enter your new password using Number buttons (0-9).
4 Enter the new password again to confirm. Your new password is now registered.

Downloading the additional Parental Control rating system (Region5)

As a supplement to the standard Parental Control rating system, your television is able to download an additional rating system, if such a system becomes available in the future.

To download the additional Parental Control rating system (when available)

1 In the Locks menu, press ▲ or ▼ to select "Parental Control" then press ◀ or ▶ to set to "On".
2 Press ▲ or ▼ to select "Region 5", then press ▶ or SELECT.
3 If the TV is not storing the additional rating system, the TV will begin downloading it, which may take some time to be completed.
4 Set your preferred content rating limits for the additional rating system.

NOTE:

• You can only download the additional Parental Control rating system when your TV is receiving a digital signal.
• When you download the additional rating system, it may take some time for the download to occur.
• The Parental Control rating information and system are not determined or controlled by the TV.
• The standard Parental Control rating system is available whether your TV is receiving a digital signal or not, and will block both analog and digital programs. To set the restriction level using the standard Parental Control rating system, select "US Rating" in step 2.
• The downloadable Parental Control rating system is an evolving technology, and availability, content, and format may vary.

To clear the Region 5

1 In the Locks menu, press ▲ or ▼ to select "Parental Control" then press ◀ or ▶ to set to "On".
2 Press ▲ or ▼ to select "Reset Region 5", then press ▶ or SELECT. The confirmation window will appear.
3 Press ▶ to select "Yes", then press SELECT. Your Region 5 will clear.

Closed Caption

WHAT IS CLOSED CAPTIONING?

This television has the capability to decode and display Closed Captioned television programs. Closed Captioning will display text on the screen for hearing impaired viewers.

Captions: This Closed Caption mode will display text on the screen in English or another language. Generally, Closed Captions in English are transmitted on CC1 and Closed Captions in other languages are transmitted on CC2.

Text: The Text Closed Caption mode will usually fill 1/2 of the screen with a programming schedule or other information.

1 Select "Setup ⇒ Closed Captions", then press ▶ or SELECT.

2 Press ◀ or ▶ to set "CC Setting" to "CC On" or "CC with Mute".

CC On: Captions will be displayed on the screen.

CC with Mute: Only when you press MUTE, captions will be displayed.

CC Off: Captions will not be displayed on the screen.

3 Press ▲ or ▼ to select "Analog Caption" or "Digital Caption".

When you select "Analog Caption", you can choose from CC1\~4, Text1\~4.

When you select "Digital Caption", you can choose from Service1\~6 and Off.

4 Press ◀ or ▶ to select the desired Closed Caption mode for both Digital and Analog Captions.

NOTE:

- Depending on the broadcast signal, some Analog Captions will function with a Digital broadcast signal. This step prevents two types of captions from overlapping.

NOTE:

• If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the CC Setting to "CC Off".
• When selecting Closed Captions, the captioning will appear after approx. 10 seconds.
• Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed Captioning, especially with live programs. This is because during live programs, captions are also entered live. These transmissions do not allow time for editing.
• When Captions are being displayed, on-screen displays, such as volume may be seen but may interfere with Closed Captions.
• Some cable systems and copy protection systems may interfere with the Closed Captioned signal.
• If using an indoor antenna or if TV reception is very poor, the closed caption may not appear or may appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna.

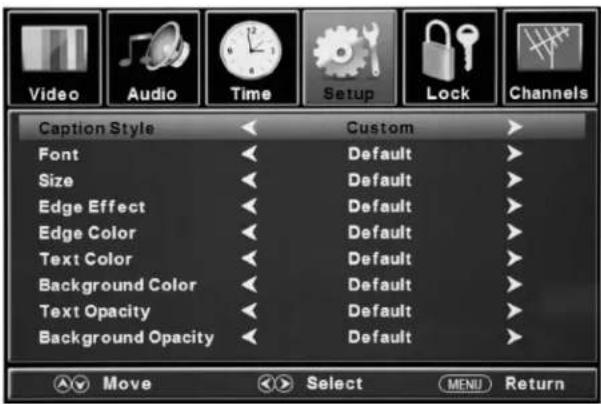

CC options

When you have selected "Custom" as the display method, you can adjust the various setting listed below.

This feature is designed to customize Digital Caption only.

1 Select "Setup ⇒ Closed Captions", then press ▶ or SELECT.
2 Press ◀ or ▶ to set "CC Setting" to "CC On" or "CC with Mute".
3 Press ▲ or ▼ to select "Digital Caption Style", then press ▶ or SELECT.
4 Press ◀ or ▶ to set the "Digital CC Preset" to "Custom".
5 Press ▲ or ▼ to select the desired item, then press ◀ or ▶ to change the setting.

You can select from among the following items and parameters.

Font:

Select display font style.

Size:

Select display font size.

Edge Effect.

Select display font edge style.

Edge Color:

Select display font edge color.

Text Color:

Select foreground color.

Background Color:

Select background color.

Text Opacity:

Select foreground opacity level.

Background Opacity:

Select background opacity level.

NOTE:

• You cannot set both "Font Color" and "Background Color" as a same color.
• You cannot set both "Font Opacity" and "Background Opacity" to "Transparent".

Aspect Switching

You can change picture sizes of display — Normal, Wide, Cinema.

Selecting the picture size

1 Select "Video ⇒ Advanced Settings ⇒ Aspect".
2 Press ◀ or ▶ to select the desired aspect ratio, as described below.

NOTE:

• Selectable aspect ratios may vary depending on the input source or broadcast signal.
• You can be select desired size of picture by pressing ASPECT on the remote control.

Wide

Full will display the picture at the maximum size.

Cinema (for letter box programs)

The entire picture is uniformly enlarged—it is stretched the same amount both wider and taller (retains its original proportion). The top and bottom edges of the picture may be hidden.

Normal

In some cases, this image will display the size of standard 4:3 with a black side bar.

JPEG Viewer

You can enjoy viewing pictures from your USB storage device.

1 Connect the USB storage device into the USB Input terminal.

2 Press INPUT then press ▲ or ▼ to select "USB", then press SELECT.

NOTE:

• Do not disconnect a USB storage device while it is being accessed. Doing so can damage the device or the files stored on the device. You can safely connect or disconnect the USB storage device when the TV is not in USB mode.
• Back up all the data in the USB storage device in case if data was lost due to unexpected accident. We do not assume any liability for the losses by misuse or malfunction.
• Not all USB storage devices are compatible with this TV.
• The character that exceeds the display area is not displayed.
• Do not use a USB extension cable.
• Playable files are JPEG (.jpg/.jpeg).

USB Browser

File Selection

NOTE:

- The content will change in accordance with each media setting screen.

Playback files

1 Press ◀ or ▶ to select Photo and press SELECT.
2 Press ◀ or ▶ to select "C", then press SELECT.
3 Select folder or file with ▲/▼/◄/►, and then start the playback with SELECT.

Connections to other equipment

The exact arrangement you use to interconnect various video and audio components to this TV is dependent on the model and features of each equipment. Check the Owner's Manual provided with each component for the location of video and audio inputs and outputs.

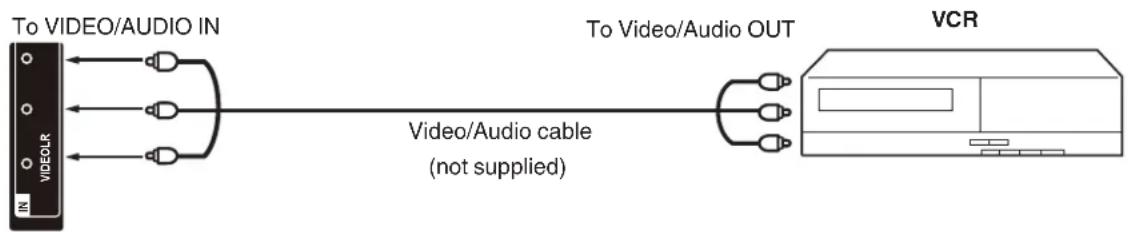

To connect the TV to a VCR

Bottom of the TV

To connect the TV to a DVD player with Component Video Input

You can enjoy a high quality picture by connecting the unit's COMPONENT VIDEO OUT jacks of your DVD player with the component video cables (not supplied).

Bottom of the TV

NOTE:

- The Component Video input of this TV is compatible with 480i/1080i interlaced signals and 480p/720p progressive signals.

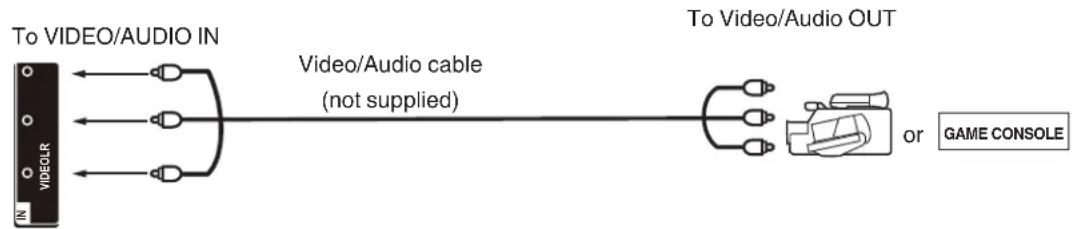

To connect the TV to a camcorder or a game console

To playback from a camcorder, connect the camcorder to the TV as shown.

This TV can also be used as a display device for many video game consoles. However, due to the wide variety of signals generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You'll need to refer to each equipment's Owner's Manual for additional information.

Bottom of the TV

Connections to other equipment (continued)

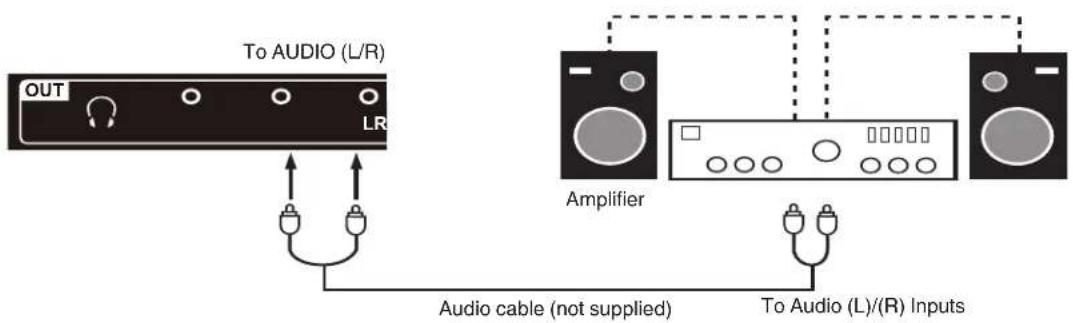

To connect the TV to an audio system

This connection allows you to use an audio amplifier and external speakers.

Bottom of the TV

Using an AV Amplifier with built-in digital surround

If you are using an AV Amplifier with built-in digital surround sound, you can enjoy broadcast or cable programs that provide Dolby Digital sound.

Connect an AV amplifier with built-in Dolby Digital decoder, etc. as shown below.

Bottom of the TV

Connections to other equipment (continued)

To connect the TV to a HDMI or a DVI device to the TV

The HDMI/DVI input receives digital audio and video from an HDMI device or digital video from a DVI device.

When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only the video signal. Separate analog audio cables are needed for audio when using a DVI source device.

Left of the TV

NOTE:

- HDMI input audio does not support DTS audio.

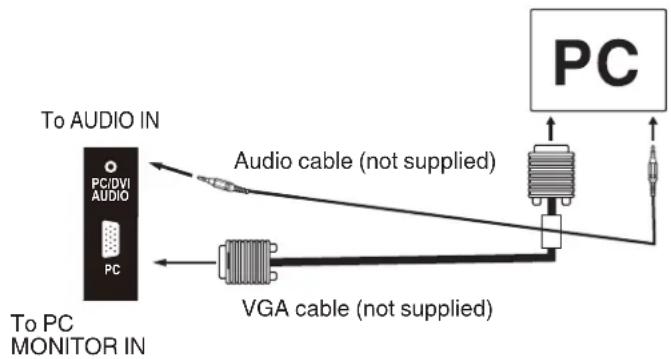

To connect the TV to a PC (Personal Computer)

BEFORE YOU CONNECT THIS TV TO YOUR PC, CHANGE THE ADJUSTMENT OF YOUR PC'S RESOLUTION AND REFRESH RATE (60 Hz).

Connect one end of a (male to male) VGA cable to the video cable of the computer and the other end to the VGA connector PC MONITOR IN on the rear of the TV. Attach the connectors firmly with the screws on the plug. In case of a Multimedia computer, connect the audio cable to the audio output of your Multimedia computer and to the PC Audio In jack of the TV. You can also connect the PC with HDMI cable. If you use HDMI cable, you don't have to connect the audio cable. If you use DVI-to-HDMI cable, please connect audio cable as same way as VGA cable.

Press INPUT on the remote control to select PC Input.

Switch on the computer. The TV can operate as the computer monitor.

Left of the TV

Monitor Display modes

Mode Resolution Refresh rate

VGA 640x480 60/75 Hz

VGA 720x400 70Hz

SVGA 800x600 60/75 Hz

XGA 1024x768 60/70/75 Hz

WXGA 1280x720 60Hz

WXGA 1360x768 60Hz

SXGA 1280x1024 60Hz

WXGA+ 1440x900 60Hz

WSXGA+ 1680x1050 60Hz

FHD 1920x1080 60Hz

NOTE:

• The on-screen displays will have a different appearance in PC mode than in TV mode.
• If there is no video signal from the PC when the unit is in PC mode, "No Signal" will appear on the TV-screen.
• When the PC's resolution is set to 1920 x 1080/60 Hz (FHD mode), a signal that differs from the FHD signal, which has been confirmed operational on this TV, may appear depending on the PC used. In this case, "Auto" adjust or other position adjustment functions may fail to correct the image position. To solve this problem, change the PC settings to select another resolution.

To connect the TV to a MHL device

CONNECTING A MHL-ENABLED DEVICE:

You can connect a MHL-enabled device, such as a SmartPhone or MHL dongle to show its screen image on your TV, while simultaneously charging the phone.

1. Connect a MHL cable (not provided) to the micro USB port on the device, then connect the other end of the cable to the HDMI2 /MHL jack on the side of your TV.

2. Press the INPUT button on the remote control and select HDMI2 input source.

1. Your device's menu opens. You can use CURSOR left, right, down, or up buttons to navigate on your device, and press the SELECT button on the remote control to access its menu.

NOTE:

- Your device's menu varies with the device and the apps you have loaded.

Reception disturbances

Black-and-white photo of three people: a woman, an elderly person, and a young child (no text or symbols visible)

IGNITION NOISE:

Black spots or horizontal streaks may appear, picture may flutter or drift. Usually caused by interference from automobile ignition systems, neon lamps, electrical drills, and other electrical appliances.

Black-and-white photo of three people smiling together (no text or symbols visible)

GHOSTS:

Ghosts are caused by the television signal following two paths. One is the direct path and the other is reflected from tall buildings, hills or some other objects. Changing the direction or position of the antenna may improve reception. Ghosting may also be caused by defects in the antenna system such as unshielded leads or connecting several sets to the same antenna without using multiple antenna couplers.

Black-and-white photo of three people posing together (no visible text or symbols)

SNOW:

If your receiver is located in the fringe area of a television station where the signal is weak, your picture may be marred by the appearance of small dots. When the signal is extremely weak, it may be necessary to install a special antenna to improve the picture.

Abstract pattern of diagonal striped lines with no text or symbols

RADIO FREQUENCY INTERFERENCE:

The interference produces moving ripples or diagonal streaks, and in some cases, causes loss of contrast in the picture.

PREVENTION OF AN OBSTACLE TO RADIO RECEIVERS

This television has been designed pursuant to the FCC class B Rules. This is to prevent a problem to Radio receivers. If this television causes a problem to Radio receivers, then take the following steps:

• Keep the television away from Radio.
• Adjust Radio antennas in order for the television not to receive interference.
  • The antenna cable of Radio should be kept away from the television.
  • Use a coaxial cable for antenna.
  You can check if this television influences Radio receivers by turning off all other equipment other than the television. If you find a problem receiving Radio when using the television, check the instructions mentioned above.

Black-and-white photo of three people outdoors, no visible text or symbols

BLOCK NOISE or FREEZE (DIGITAL INPUT):

Fuzzy blocks may appear in some area or the whole area of the screen. This is usually caused by interference from automobile ignition systems, neon lamps, electrical drills, ghosting of the image and lost or weak receiving signals.

NOTE:

- The TV set can generate sound distortion in external devices such as a radio. Please separate radio equipment from the TV set to a considerable distance.

Troubleshooting

Use the following checklist for troubleshooting if you have problems with your TV. Consult your local dealer or service outlet if problems persist. Be sure all connections are properly made when using with other units.

SYMPTOMS POSSIBLE SOLUTIONS
TV does not operate.	Make sure the power cord is plugged in.Try another AC outlet.Power is off, check fuse or circuit breaker.Unplug unit for an hour, then plug it back in.
Poor sound or no sound.	Station or Cable TV experiencing problems, tune to another station.Check sound adjustments (Volume or Mute).Check for sources of possible interference.
Poor picture or no picture.	Station or Cable TV experiencing problems, tune to another station.Make sure channels are set into memory.Check antenna or Cable TV connections, adjust antenna.Check for sources of possible interference.Check picture control adjustments.
Poor reception on some channels.	Station or Cable TV experiencing problems, tune to another station.Make sure channels are set into memory.Station is weak, adjust antenna to receive desired station.Check for sources of possible interference.
Poor color or no color.	Station or Cable TV experiencing problems, tune to another station.Make sure channels are set into memory.Check picture control adjustments.Check antenna or Cable TV connections, adjust antenna.Check for sources of possible interference.
Picture wobbles or drifts.	Station or Cable TV experiencing problems, tune to another station.Make sure channels are set into memory.Cable TV company is scrambling signal.Adjust antenna.

SYMPTOMS POSSIBLE SOLUTIONS
Digital broadcasting screen problem.	Check digital signal strength.
No CATV reception.	Check all Cable TV connections.Set Source menu option to the Cable mode.Station or Cable TV system problems, try another station.
Horizontal or diagonal bars on screen.	Check antenna connections, adjust or redirect antenna.Check for sources of possible interference.
No reception above channel 13.	Make sure the appropriate Source (Air or Cable) has been selected.If using antenna, check UHF antenna connections.
No Remote operation.	Batteries are weak, dead or inserted incorrectly.Remote is out of range, move closer to TV (within 15 feet).Make sure Remote is aimed at sensor.Confirm there are no obstructions between the Remote and the TV.Make sure the power cord is plugged in.
TV shuts off.	Sleep Timer is set.Power interrupted.
Closed Caption is not activated.	TV station experiencing problems or program tuned is not closed captioned. Try another channel.Check Cable TV connection or VHF/UHF antenna, reposition or rotate antenna.Set Closed Caption Decoder in the menu.
TV is not shown in your language.	Select proper language in the menu options.

If the problem cannot be solved with the suggested procedures, contact 800.HITACHI.

For your safety, never try to repair the product yourself.

Specifications

	LE40K507
GENERAL
Power supply AC 120V,	60Hz
Power consumption Operation: 100WStandby: <1W
Weight 9.6kg (21.2lbs)
Dimensions Width: 933mm (36-13/16"), Height: 612.7mm (24-1/8"), Depth:245.7mm (9-11/16")
Operating temperature 5°C - 40°C
Operating humidity Less than 80% RH
TELEVISION
Panel size	40" class/ diagonal (101.6mm)
Display method Transmission TFT color LCD panel
Number of Pixels 1920(H) × 1080(V)
Broadcasting system US system MATSC standard (8VSB), QAM
Receiving channels VHF 2-13UHF 14-69CATV 14-36 (A)-(W)37-59 (AA)-(WW)60-85 (AAA)-(ZZZ)86-94 (86)-(94)95-99 (A-5)-(A-1)100-135 (100)-(135)01 (4A)
Tuner type	Frequency synthesized
Inputs	Video: 1.0 V (p-p),75 ohmsAudio: 2Vrms Max.Component video: (Y) 1.0 V (p-p), 75 ohms, (Pb)/(Pr) 0.7 V (p-p), 75 ohmsHDMI: HDMI compliant (type A connector)HDCP compliantE-EDID compliantSuggested scan rates: 480i, 480p, 720p, 1080i, 1080pHDMI Audio: 2-channel PCM32/44.1/48 kHz sampling frequency16/20/24 bits per samplePC Monitor: Mini-Dsub 15pinAntenna: VHF/UHF In 75 ohms coaxial
Outputs	Audio: 470 mVrms, 1k ohmsDigital audio: 0.5 V (p-p), 75 ohms terminatedHeadphone (3.5mm Stereo)
Speakers	132 mm × 23.5 mm × 30 mm (5.2 inches × 0.9 inches × 1.2 inches). 8 ohms × 2,
Audio output power	6.0W + 6.0W
ACCESSORIES	Remote controlBatteries (AAA) × 2Stand, Stand Screws x 4 (M4 x 25)Neck, Neck Screws x4 (4 x 16)Owner's GuideQuick Start Guide

• Designs and specifications are subject to change without notice.
• For information on our other products, please visit our website at www.hitachi.us

800.HITACHI

(800.448.2244)

Monday \~ Friday 8:00 am - 7:00 pm CST

www.hitachi.us/tv

Sincere - Prompt - Efficient

HITACHI

Inspire the Next

HITACHI AMERICA, LTD., DIGITAL MEDIA DIVISION

HITACHI has made every effort to assure you enjoy trouble free operation from your Hitachi product. Should you require service assistance with OPERATIONAL, HOOK UP, TECHNICAL ASSISTANCE OR WARRANTY SERVICE SUPPORT, please contact one of our knowledgeable Customer Service Advocates at 800.HITACHI (800.448.2244).

Please be prepared to submit proof of purchase and/or delivery receipts to your 800.HITACHI Customer Service Representative. Warranty coverage will be provided in accordance with the provisions of your Limited Warranty (see the Limited Warranty page in this operating guide).

Customer Service Support

P.O. Box 99652

Troy, MI 48099

[e-mail]

HITACHI Inspire the Next

Congratulations on your purchase of a new Hitachi display product.

LIMITED WARRANTY:

Hitachi America Ltd., Digital Media Division warrants this product in accordance with the terms and conditions applicable to the products identified below:

Conditions of Hitachi Limited Warranty This Hitachi display product (the "Product") is warranted to be free from defects in materials and workmanship beginning date of purchase by the origin continuing for the duration of the applicable time periods specified below. If the Product is found to be defective, Hitachi will repair or replace (at Hitachi's option) defective parts at no charge, subject to the conditions of this Limited Warranty. If the original owner rejects, refuses or otherwise does not accept Hitachi's offer to repair or replace such defective parts under this Limited Warranty, this Limited Warranty shall be void and of no further force or effect. This Limited Warranty extends to the original owner only and is not transferable, and such owner must provide a dated sales receipt for the Product to qualify for parts or service under this Limited Warranty. The original owner must notify Hitachi of a defect claim by calling 800.HITACHI during the applicable Limited Warranty period for this Limited Warranty to be effective. This Limited Warranty is valid only in the U.S.A. and Puerto Rico.

Hitachi Product: LED/LCD Flat Panel Televisions PARTS: The Limited Warranty period for parts is 1 year from the date of original purchase. During the Limited Warranty period for parts, Hitachi will replace defective parts with new or rebuilt parts (at Hitachi's option) at no charge for such parts. Any replacement part will be warranted for the remainder of the original warranty period applicable to the part replaced. LABOR: The Limited Warranty period for labor is 1 year from the date of original purchase. During the Limited Warranty period for labor, Hitachi will repair or replace (at Hitachi's option) defective parts without charge for labor. SERVICE LOCATION: In-home warranty service, which includes either in-home repair or free pick-up and delivery (at Hitachi's option), applies to all Hitachi products except: (i) 42-inch and smaller LED/LCD Flat Panel Televisions; (ii) Products located outside the U.S.A. or Puerto Rico; (iii) Products located more than seventy-five (75) driving miles from Hitachi's nearest Authorized Service Facility. If the foregoing clauses (i), (ii), (iii) apply, then the Product owner will be responsible for bringing/delivering the Product to a Hitachi Authorized Service Facility and, following warranty service, retrieving the Product from such Authorized Service Facility.

IMPORTANT: Before using or installing your Product, please complete this form and attach your sales receipt and retain them for your records. This will help facilitate proper warranty coverage.

MODEL NO. SERIAL NO.

DEALER NAME DATE OF PURCHASE

DEALER ADDRESS

CITY STATE

Warranty Limitations This Hitachi Limited Warranty does not cover: A. Any Product that has been modified or repaired in a manner not previously authorized by Hitachi in writing. B. Any Product whose serial number has been removed, altered, replaced, defaced or rendered illegible. C. Any defect, malfunction, or failure caused by or resulting from improper or unauthorized service, maintenance or repair. D. Damage resulting from abuse, misuse, mishandling, neglect or damage caused by exposure to hostile operating environments such as areas containing dust and/or smoke. E. Damage caused by power surges, accidents, natural disasters or any other events or circumstances outside Hitachi's control. F. Any Product used in any manner inconsistent with the acceptable set-up, usage, safety or installation configurations identified in the Product's Operating Guide. G. Any Product used for purposes or applications, or subjected to operating conditions, other than those identified as

acceptable in the Product's Operating Guide. H. Product repairs (including any product whose case has been opened), or part replacements provided or, installed person other than an Authorized Deita Facility Representative. I. Improper uncrating, set-up or installation or any misadjustments caused by user-operated controls. J. Any labor or costs associated with the Product from a custom cab that specialized product installation that impedes direct and immediate removal of the Product from the owner's premises (must be arranged and paid by the owner). K. Product cabinets, cabinet parts, knobs, batteries or accessories. L. Product screens that have been cleaned by any method other than as specified in the Product's Operating Guide. M. Normal usage, degraded brightness caused by backlight aging and/or cell defects or ordinary wear and tear, including, without limitation, heater marks on the Product's sheet appearance of bright or dark screen pixels. N. Any Product returned for service that is damaged due to improper packaging, mishandling or shipping. (IMPORTANT: When shipping any Product to a Hitachi Authorized Service Facility, Product owner must package it securely in the original shipping container or its equivalent to prevent damage. The Product must be returned with the shipping charges prepaid and proof of purchases included in the shipping container. Failure to properly package such product during such shipment will void all warranties.) O. Any Product purchased or serviced outside the United States of America and Puerto Rico. P. Any Product that has been used for commercial purposes.

NO PERSON, AGENT, DISTRIBUTOR, DEALER, SERVICE FACILITY, OR COMPANY IS AUTHORIZED TO CHANGE, MODIFY OR AMEND THE TERMS OF THIS LIMITED INWARRANTMANNER WHATSOEVER. EXCE PROVIDED IN THIS LIMITED WARRANTY, HITACHI MAKES NO EXPRESS WARRANTY REGARDING THIS HITACHI PRODUCT. FURTHER, ALL IMPLIED WARRANTIES RELATING TO ANY PORTION OF THIS PRODUCT, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION SPECIFIED UNDER THIS LIMITED WARRANTY. HITACHI SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY OTHER PERSON FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFIT OR PRODUCT RESULTING FROM ANY DEFECT IN, OR MAJORNEAVOLURE OF, THIS HITACHI PRO BECAUSE SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY CONFERS SPECIFIC LEGAL RIGHTS, INCLUDING CERTAIN OTHER RIGHTS THAT MAY VARY DEPENDING ON YOUR JURISDICTION.

Memo

Memo

PRECAUCIÓN

RIESGO DE DESCARGA ELECTRICA NO ABRIR

AVISO: PARA REDUCIR EL RIESGO DE DESCARGA ELECTRICA, NO RETIRE LA CUBIERTA (O POSTERIOR). EN EL INTERIOR DEL APARATO NO HAY COMPONENTE ALGUNO QUE PRECISE SERVICIO DE MANTENIMIENTO A CARGO DEL USUARIO. SOLICITE CUALQUIER OPERACION DE MANTENIMIENTO A PERSONAL DE SERVICIO CALIFICADO.

Technical line drawing of a front-mounted electronic device with internal components (no text or symbols)

ENERGY STAR®

ATTN: Customer Relations

SEGURIDAD INFANTIL:

Prohibition sign with red circle and no text, featuring a basketball on wooden blocks and a screen (no readable text)

HITACHI SE PREOCUPA!

Prohibition sign showing a TV with a red prohibition symbol (no text or symbols present)

MONTAJE SOBRE PARED: SI USTED DECIDE MONTAR SU PANTALLA DE PANEL DELGADOSOBRE LA PARED, SIEMPRE:

Technical line drawing of a computer monitor rear panel with internal components and an external connector (no text or symbols)

Figura 1 Figura 2

Technical line drawing of a computer monitor rear panel with an arrow pointing to the front panel (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and alignment lines (no text or symbols)

Tornillos

NOTA:

Sincere - Prompt - Efficient

HITACHI Inspire the Next

HITACHI AMERICA, LTD., DIGITAL MEDIA DIVISION

Customer Service Support

P.O. Box 99652

Troy, MI 48099

[e-mail]
