USER MANUAL C36WF830N HITACHI

Dear HITACHI customer

Congratulations on your purchase of the very latest state of the art technology. At Hitachi we pride ourselves on producing high quality televisions with outstanding picture and audio capabilities, coupled with Hitachi's reputation for superior reliability. You should enjoy many years of trouble free operation from your TV. Take some time to read this Users Guide thoroughly, and if you encounter any difficulty, firstly refer to the Trouble Shooting Guide at the rear of this manual. In the unlikely event of a problem occurring with your TV, contact your dealer immediately.

...notes on digital sound

Your Hitachi television is capable of decoding advanced forms of digital audio (such as Dolby Digital, DTS, MPEG and PCM) coding that makes it possible to reproduce high-quality digital sound. Being the next step forward from analogue sound, digital sounds sonic realism and listener involvement will change the way you experience sound from your Hitachi television. Digital sound works by delivering at maximum 5 separate audio channels - left, right, centre, left surround, right surround and also a LFE (Low Frequency Effects) channel. These independent channels allow for a more precise localisation of sounds and a more convincing, realistic ambience.

Dolby Digital

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992 - 1997 Dolby Laboratories, Inc. All rights reserved.

DTS

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world wide patents issues and pending. "DTS" and "DTS Digital Surround" are trademarks of Digital Theater Systems, Inc. © 1996 Digital Theater Systems, Inc. All rights reserved.

Software Notice

It is prohibited for the end user of this product to copy, reverse engineer or reverse compile the software included therein save to the extent permitted by law.

contents

safety aspects

television safety ....4

battery safety and installation ....5

set-up and tuning in

aerial and VCR installation 6

aerial, satellite and VCR installation....7

TV set up and automatic tuning procedure ....8

manual tuning procedure 9

handset controls

program tuning ....11

television operation ....12

teletext functions ....13

program, sound and vision adjustment

picture controls ....14

program swap....15

program name change ....16

sound and language controls ....17

audio and equaliser controls ....18

sound mode ....20

speaker setup 22

digital audio setup ....26

digital audio status - decode mode .....27

digital audio status - display format 28

television features

wide screen viewing 29

sleep timer and default viewing controls....31

teletext operation ....32

teletext dual page 33

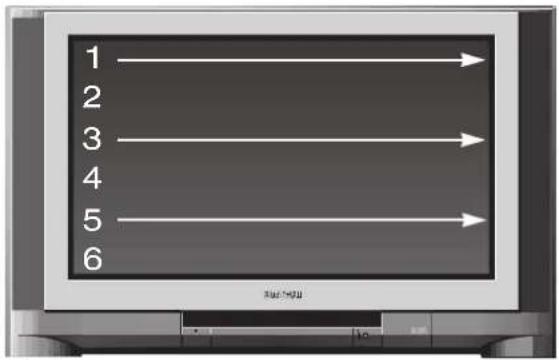

progressive scan and 100Hz picture....34

multi-picture 35

other equipment connection

rear socket and scart details. 36

DVD, CD and laserdisc connection ....37

external speaker socket details ....38

external speaker setup ....39

audio visual setup 40

camcorder and computer connection ....41

signal source entry 42

front control panel details 44

television information

trouble shooting guide - digital sound....45

trouble shooting guide - television operation ....47

guarantee 48

Hitachi Environmental Notice ....49

technical data ....50

This television has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all connections, (including the mains plug, extension leads and inter-connections between the pieces of equipment), are properly made and in accordance with the manufacturers instructions. Switch off and withdraw the mains plug before making or changing connections.

DO observe the manufacturers instructions when connecting extension leads to your TV. The fuse should be a 5 Amp fuse with the safety symbols and displayed. If you are in any doubt about the extension installation, please consult a competent electrician.

Should you require to replace the fuse in the moulded mains plug with a new fuse then please replace with one of the same value, type and approval as the original. Ensure the fuse cover is returned to its original position.

DO consult your dealer if you are in any doubt about installation, operation or safety of your equipment.

DO be careful with any glass panels or doors on equipment.

DO place your TV on a flat surface, or if supplied, the stand accessory.

DO NOT remove any fixed cover as this may expose dangerous voltages.

DO NOT cut off the fitted mains plug as it may contain a special radio interference filter, the removal of which could lead to impaired performance. If you wish to extend the lead, obtain an appropriate extension lead or consult your dealer.

DO NOT continue to operate the equipment if you are in any doubt about it working normally or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

IF you intend placing this TV into a cabinet or a wall alcove, please ensure there is at least a 100mm (10cm) gap to the sides, rear and top of the TV. This is to allow for adequate ventilation during your TV's operation.

DO NOT leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a stand-by mode. Switch off using the switch on the equipment and show your family how to do this. Make special arrangements for infirm or handicapped people.

DO NOT obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the lifespan of your equipment.

DO NOT use makeshift stands and NEVER fix legs with wood screws - to ensure complete safety, always fit the manufacturers approved stand or legs with the fixings provided according to the instructions.

DO NOT allow electrical equipment to be exposed to rain or moisture.

DO NOT place hot objects such as candles or nightlights on, or close to, equipment. High temperatures can melt plastic and lead to fires.

DO NOT listen to headphones at high volume, as such use can permanently damage your hearing.

NEVER let anyone, especially children, push anything into holes, slots, or any other opening in the case - this could result in a fatal electrical shock.

NEVER guess or take chances with electrical equipment of any kind - it is better to be safe than sorry!

DO NOT use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal to watch television whilst

always

3D diagram of a remote control device with internal components and directional arrows (no text or symbols)

Take care to fit your batteries correctly, observing the plus '+' and minus '-' marks on the battery and appliance. Incorrect fitting can cause leakage, or in extreme cases, fire or explosion.

always

3D illustration of a remote control device with attached motors and a handle (no text or symbols)

Replace the whole set of batteries at one time, taking care not to mix old and new batteries of different types, since this can result in leakage, or in extreme cases, fire or explosion.

always

Illustration of a battery and a crossed-out fork (no text or symbols)

Store unused batteries in their packaging and away from metal objects which may cause a short circuit resulting in leakage, or in extreme cases, fire or explosion.

always

Illustration of two cylindrical batteries with crosses, casting a shadow (no text or symbols)

Remove dead batteries from equipment, and all batteries from equipment that is to be left for long periods of time without any use. Otherwise the batteries may leak and cause damage.

never!

Illustration of a firecracker crossing a tree line with a cross symbol (no text or labels)

Never dispose of batteries in fire as this can cause an explosion.

Respect the environment - always dispose of batteries in an environmentally friendly manner.

never!

CHARGE

Never attempt to recharge ordinary batteries, either in a charger or by applying heat to them. They may leak, cause fire or even explode.

Rechargeable NiCAD batteries and chargers can be purchased from any good High Street electrical retailer.

battery installation

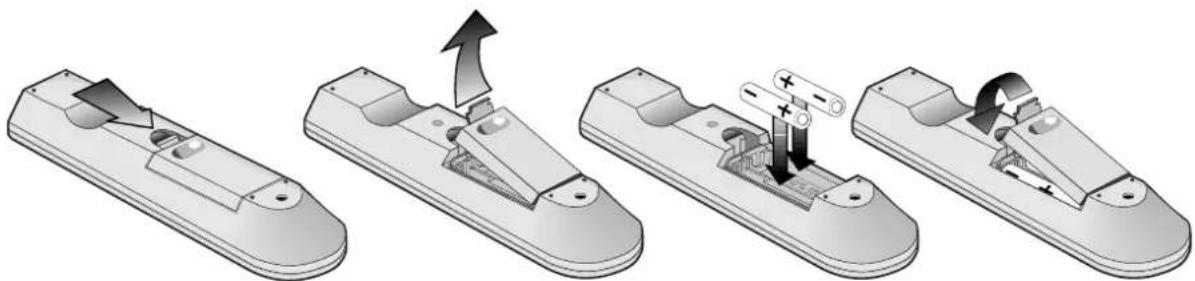

Four-step diagram showing a remote control panel with internal components and directional arrows (no text or symbols)

1) Remove cover of handset by lifting up the cover at the recess.

2) Insert batteries into handset as shown and replace cover.

1. When inserting the batteries make sure the polarities are correct, that is, '+' to '+', '-' to '-'
2. Replace the batteries with the equivalent 'AA' type.
3. Discard old batteries safely, following the battery safety guidelines.

aerial connection

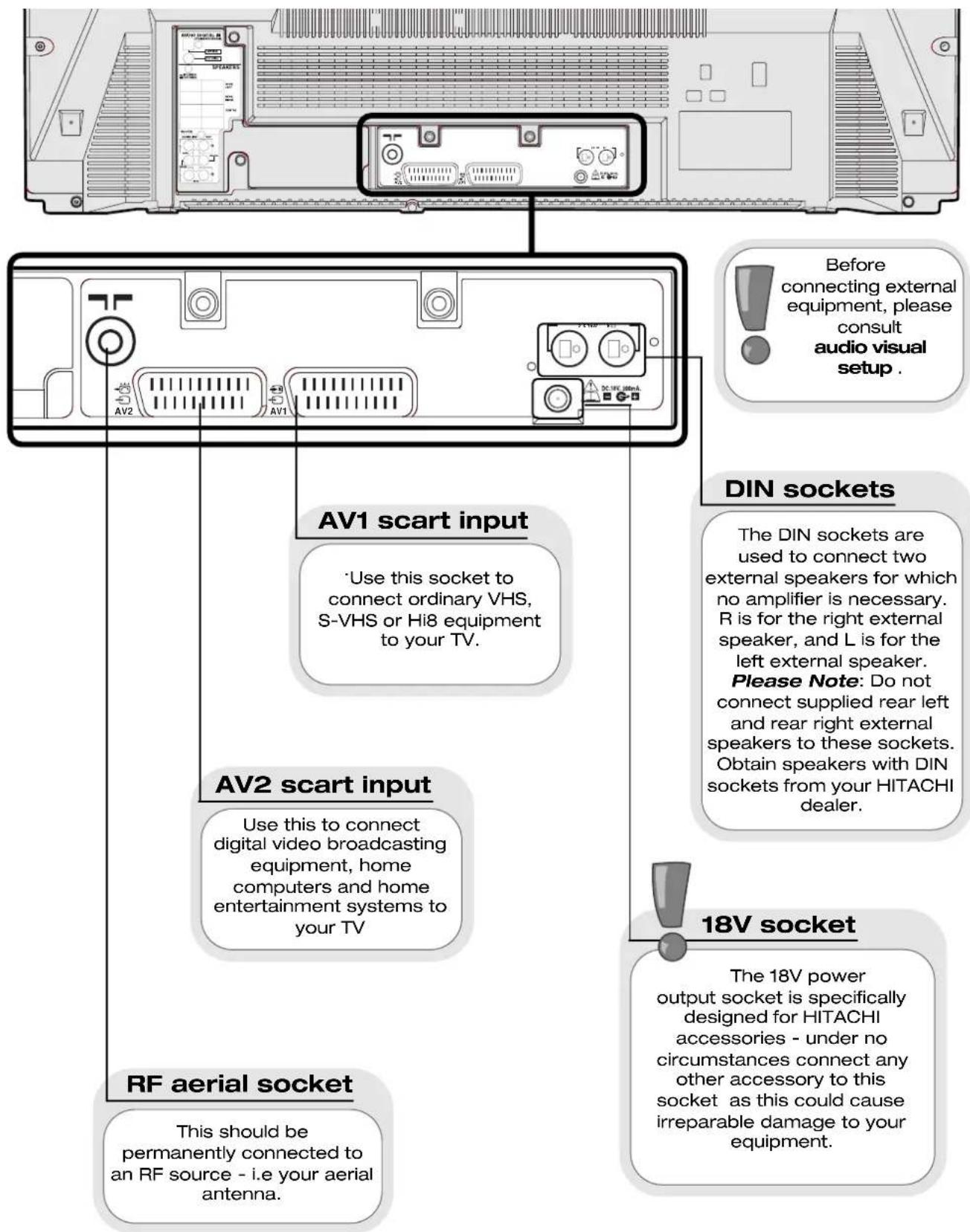

receiving aerial aerial wall socket 1 connect aerial connection lead to the analogue 'in' socket marked

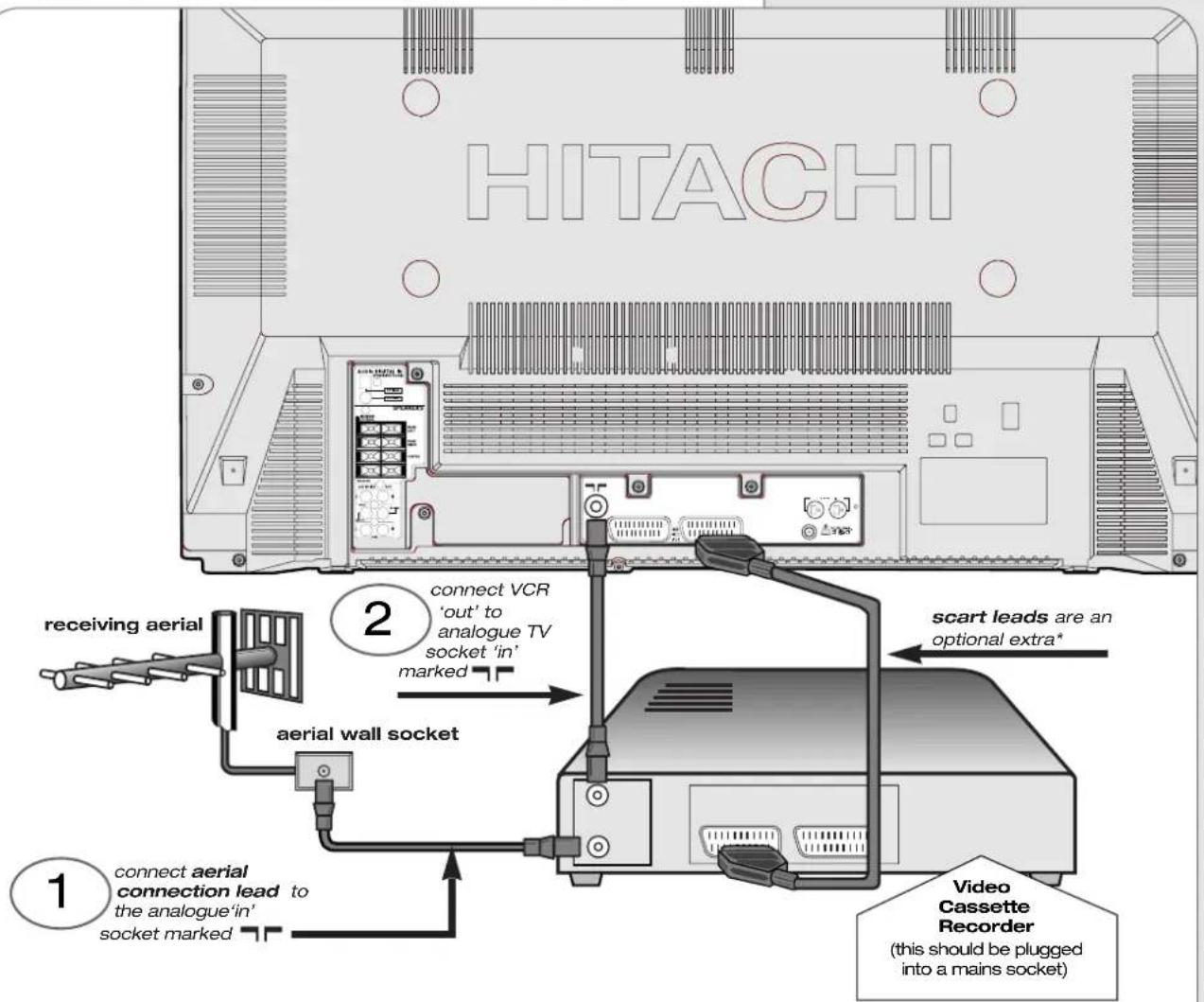

aerial and VCR connection

HITACHI ① connect aerial connection lead to the analogue 'in' socket marked ② connect VCR 'out' to analogue TV socket 'in' marked receiving aerial aerial wall socket scart leads are an optional extra* Video Cassette Recorder (this should be plugged into a mains socket)

*IMPORTANT NOTE. The best way to connect your VCR to the television is via one of the Audio Visual sockets. When you connect your VCR to your television, the Audio Visual value has to be set correctly to ensure best picture quality - see other equipment connection-audio visual setup.

satellite and VCR installation

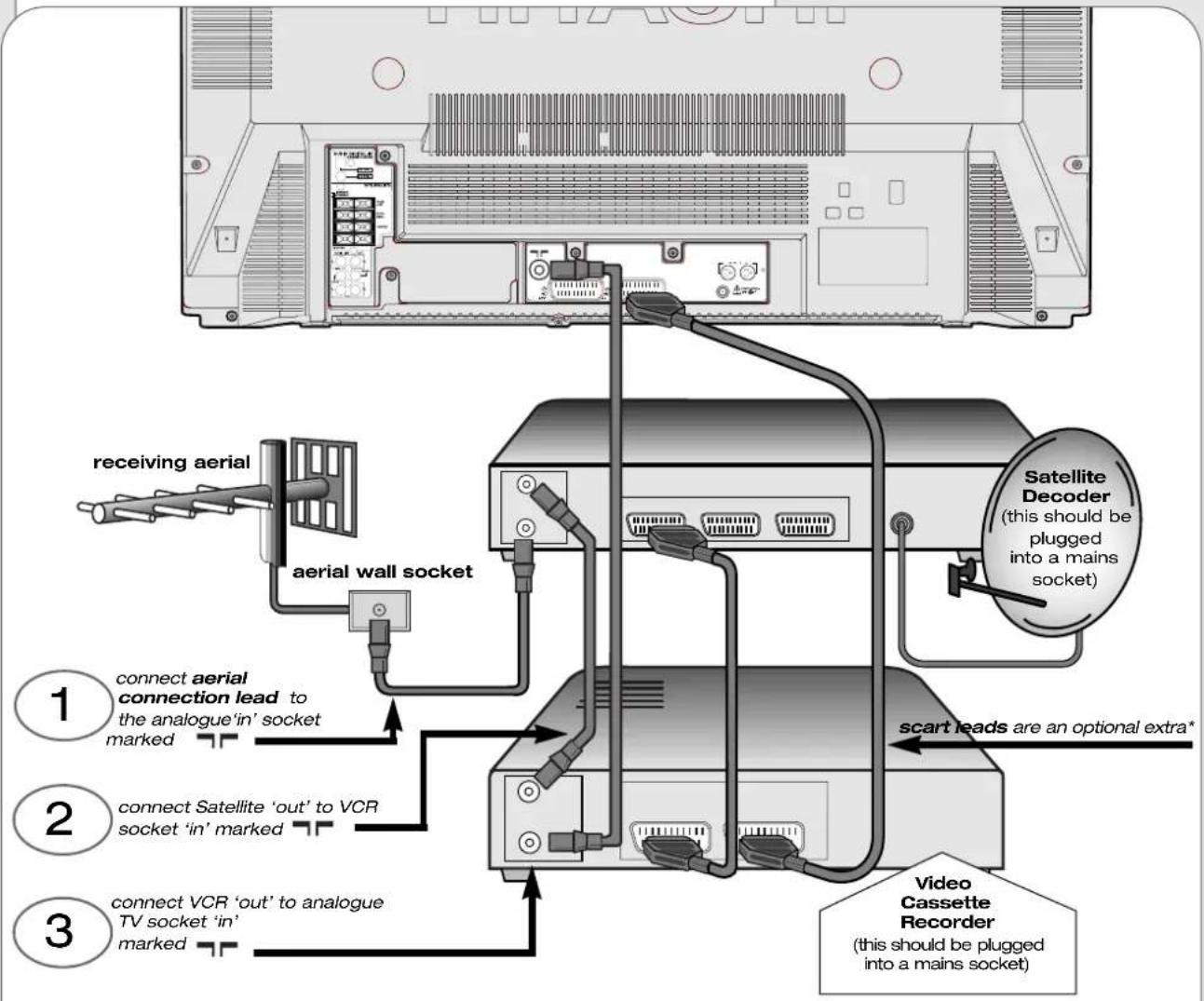

receiving aerial aerial wall socket ① connect aerial connection lead to the analogue'in' socket marked ② connect Satellite 'out' to VCR socket 'in' marked ③ connect VCR 'out' to analogue TV socket 'in' marked Satellite Decoder (this should be plugged into a mains socket) scart leads are an optional extra* Video Cassette Recorder (this should be plugged into a mains socket)

*A scart lead should be fitted between your TV and VCR to enhance your picture and sound quality. Scart leads are essential if you have a stereo TV and VCR and wish to obtain stereo sound from your equipment. These leads can also be purchased from your Hitachi dealer or any good High Street electrical retailer.

VHS video equipment should be connected to the AV1 scart socket located at the rear of your TV. A dedicated program number may be assigned to AV1, allowing you easier access to view external equipment broadcasts. How to assign an AV signal to dedicated program numbers is explained in signal source sntry.

Before you switch on your television, it is important that the external speakers supplied with your television are connected. This can be seen in the sections centre speaker and sub-woofer/external left and right speakers.

connecting to the mains socket

Please Note - If you have not already done so, please read television safety before connecting your television and external equipment.

insert plug... and switch on

important note on VCR and satellite

Do not switch your TV on until all external equipment is connected. If you have a Video Cassette Recorder or a Satellite receiver connected to this TV please ensure that they are switched on before automatic tuning begins. In the case of a VCR, insert a pre-recorded tape and begin playback of your equipment. With a Satellite receiver select Sky News. These measures ensure that all your external equipment is tuned in during the autotune procedure.

1

To make your program tuning easier, HITACHI have installed an automatic tuning procedure to find the programs. Switch your TV on.

Illustration of a hand pointing at a computer monitor (no text or symbols visible)

2

If you are satisfied all external equipment has been connected, press the OK button on your handset and AUTOTUNE will begin.

INSTALLATION

AV2 AV1

Insert aerial lead in Ⓞ. Press OK to continue.

3

Your TV will now search through the frequencies, listing them into the following order - 1.BBC1, 2.BBC2, 3.ITV 4.CH4/S4C, 5.CH5 (subject to availability) 6.Satellite.

Note: If there is no station name information on broadcasting signal, the sorting order is decided on signal strength.

AUTOTUNE Program 3 Name <511> Frequency 526.62 MHz Progress OK→Stop & Edit →Exit X→Go Back

4

By using the up and down buttons you can view all the programs found and stored during AUTOTUNE.

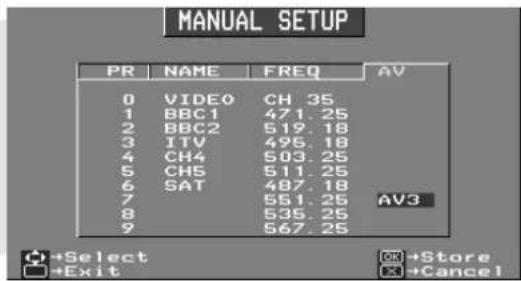

MANUAL SETUP

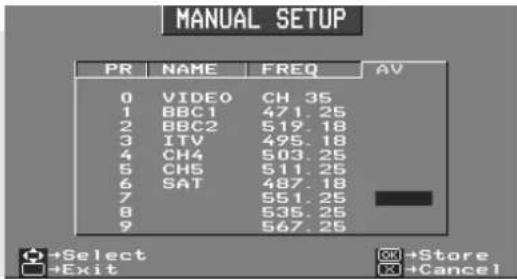

PR	NAME	FREQ	AV
0	VIDEO	CH 35
1	BBC1	471.25
2	BBC2	519.18
3	ITV	495.18
4	CH4	503.25
5	CHS	511.25
6	SAT	487.18
7		535.25
8		551.25
9		567.25

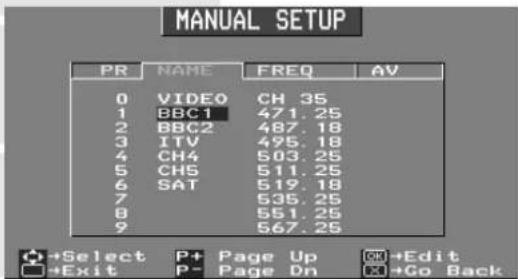

+Select P+ Page Up OK +Edit +Exit P- Page Dn X +Go Back

5

To finish the installation process and return to normal TV operation press the menu button on your handset twice.

...notes on manual tuning

As well as an automatic tuning procedure your HITACHI television also allows you to input broadcast frequencies through a number of different entry methods. Follow the below steps and choose one of the 5 entry methods to input broadcast frequencies.

VCR should be tuned into Program 0.

1

Press and hold the MENU button for 5 seconds. The INSTALL option in the MAIN MENU appears.

2

Press the cursor down button to select INSTALL.

3

Once highlighted, accept selection.

OK II

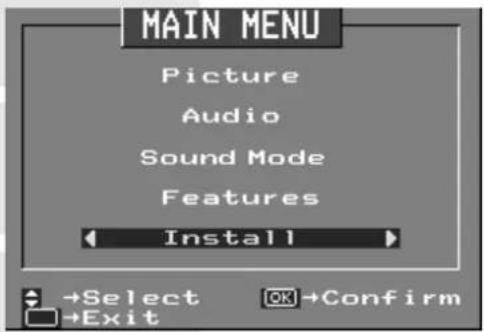

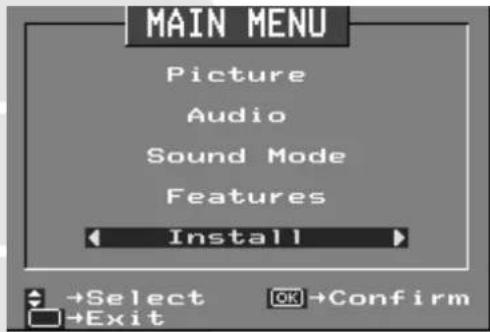

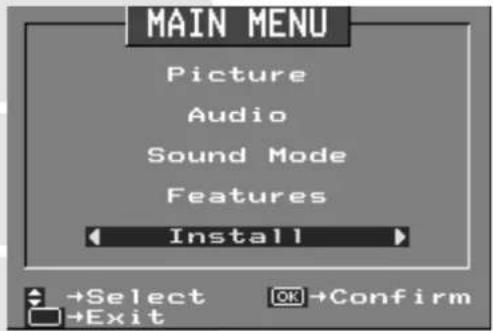

MAIN MENU Picture Audio Sound Mode Features Install →Select →Confirm →Exit

4

Press the cursor down button to select MANUAL SETUP.

5

Once highlighted, accept selection

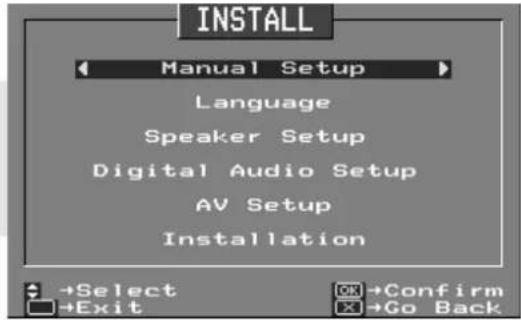

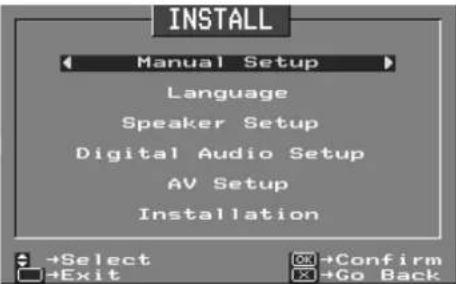

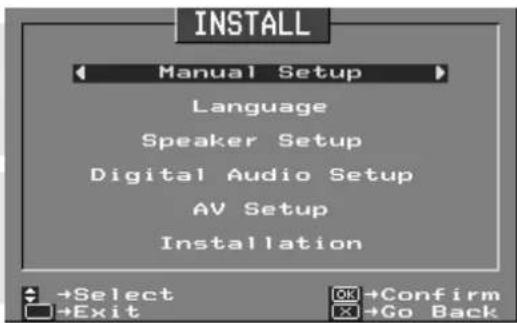

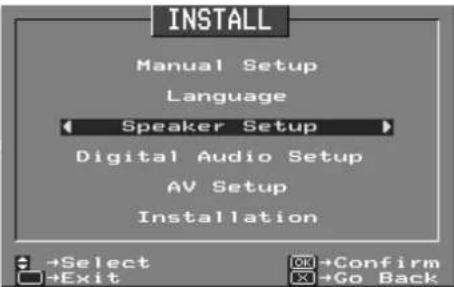

INSTALL Manual Setup Language Speaker Setup Digital Audio Setup AV Setup Installation +Select +Exit +Confirm +Go Back

6

Use the cursor keys to move the selection bar over the program FREQUENCY required to be adjusted.

7

Once highlighted, accept the selection to change the frequency and you will see the selection bar turn red - it is ready to be changed.

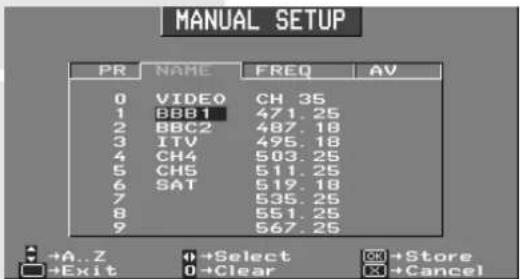

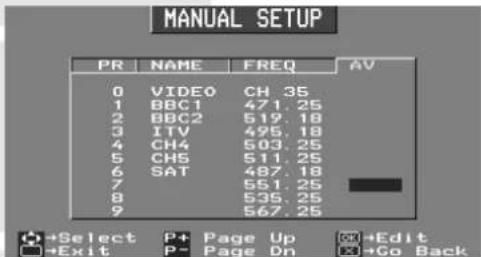

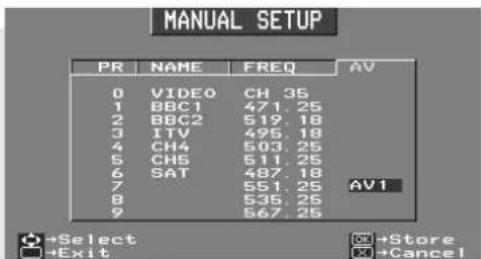

MANUAL SETUP PR NAME FREQ AV 0 VIDEO CH 35 1 BBC1 471.25 2 BBC2 487.18 3 ITV 495.18 4 CHE 509.25 5 CHE 511.25 6 SAT 519.18 7 535.25 8 551.25 9 567.25 →Fine →Next →Store →Exit →Cancel

8

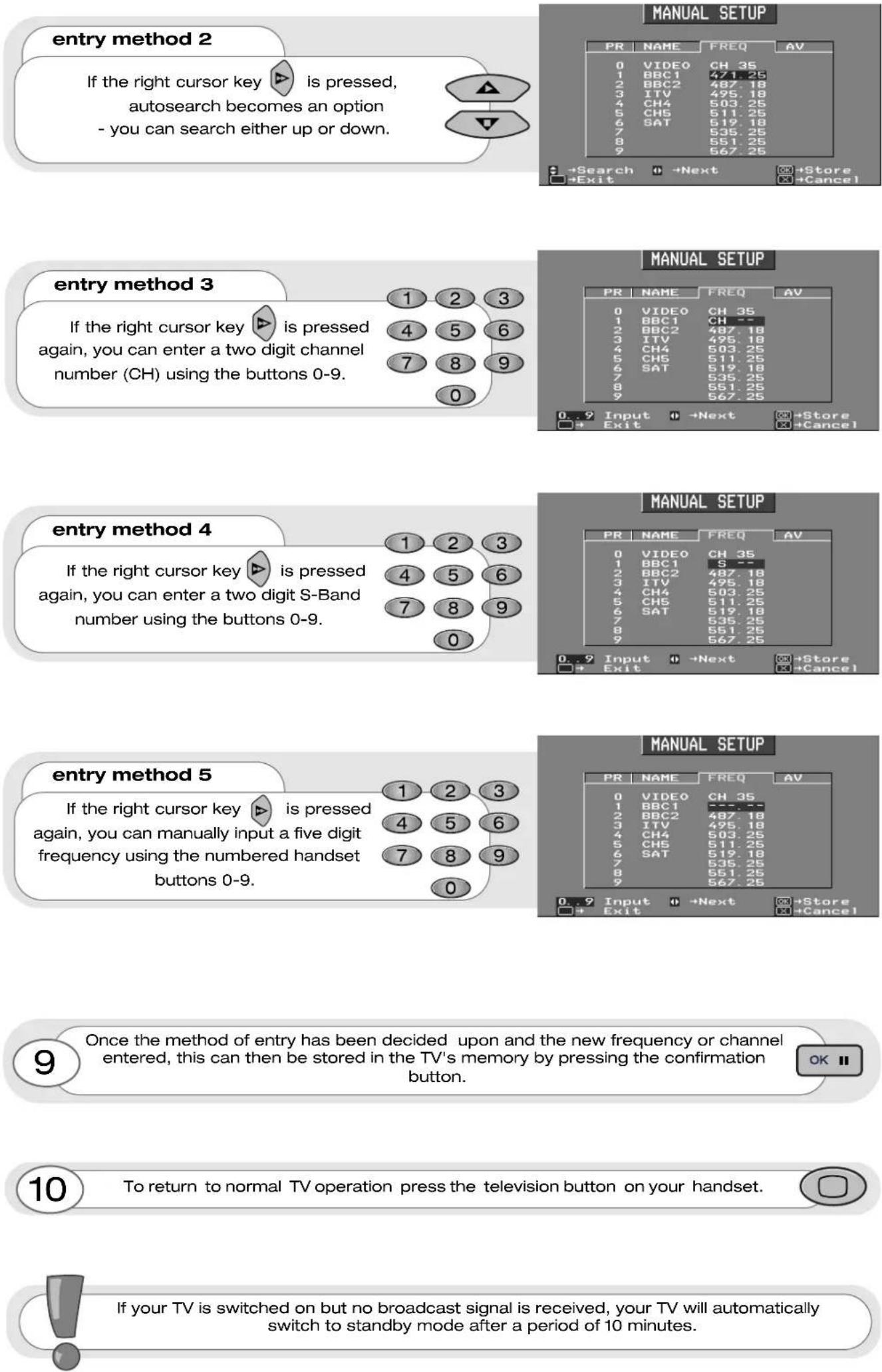

Select your choice of FREQUENCY entry method using the left/right cursor keys.

entry method 1

The first option will be to fine tune the chosen frequency either up or down.

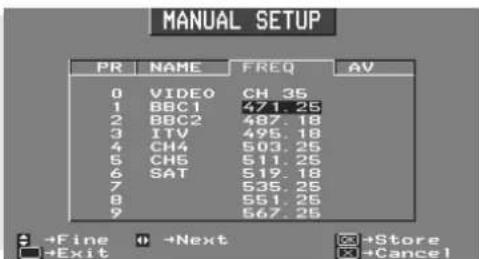

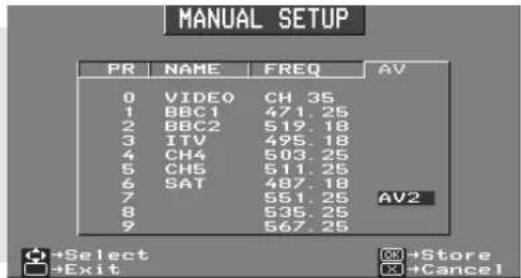

MANUAL SETUP PR NAME FREQ AV 0 VIDEO CH 35 1 BBC1 471.25 2 BBC2 487.18 3 ITV 495.18 4 CH4 509.25 5 CHE 511.25 6 SAT 519.18 7 535.25 8 551.25 9 567.25 →Fine →Next →Store →Exit →Cancel

If the right cursor key is pressed, autosearch becomes an option - you can search either up or down.

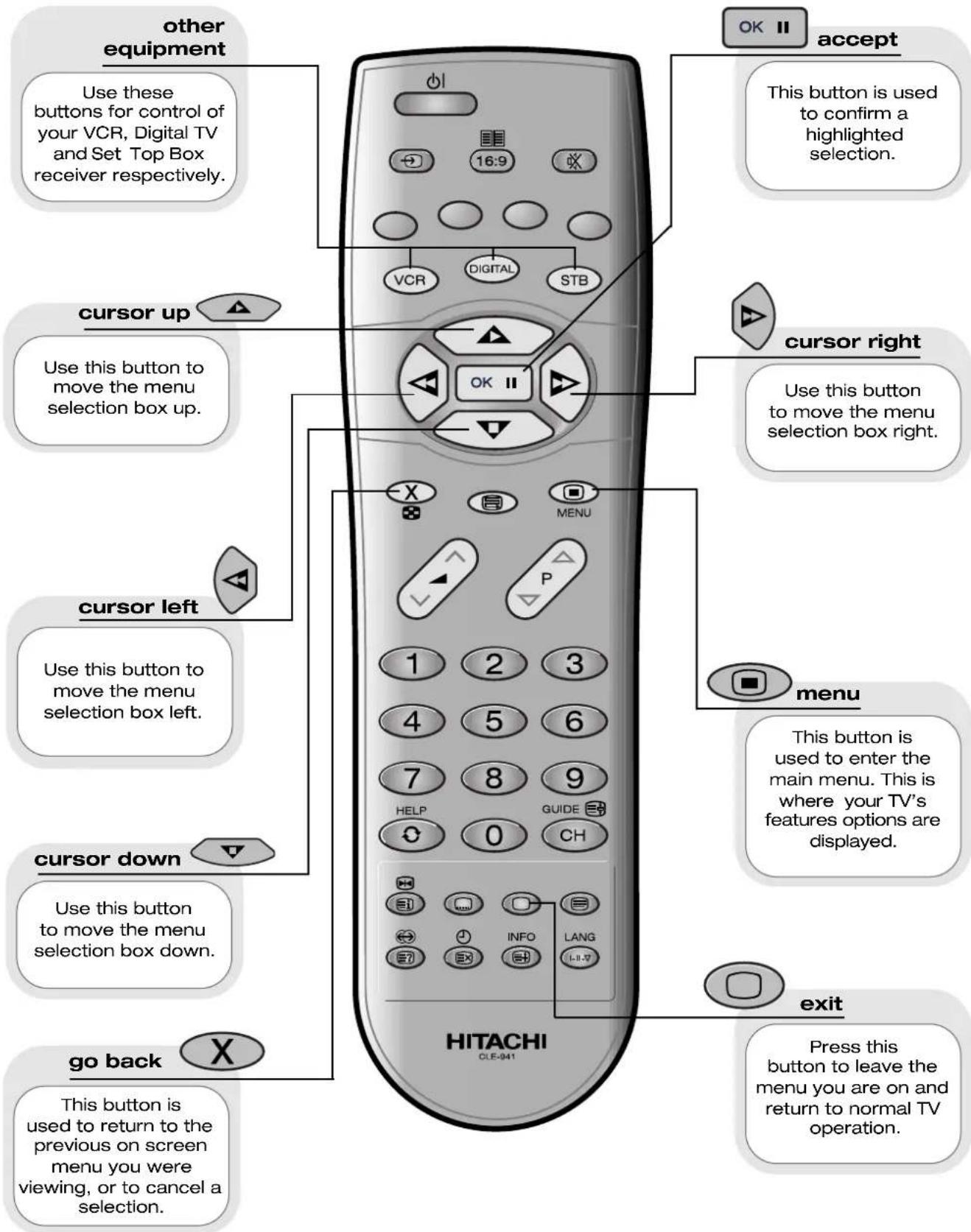

The handset controls shown below are used when programming your TV and to adjust the sound and picture features.

other equipment Use these buttons for control of your VCR, Digital TV and Set Top Box receiver respectively. curser up Use this button to move the menu selection box up. curser left Use this button to move the menu selection box left. curser down Use this button to move the menu selection box down. go back This button is used to return to the previous on screen menu you were viewing, or to cancel a selection. HITACHI CLE-941 OK II accept This button is used to confirm a highlighted selection. curser right Use this button to move the menu selection box right. menu This button is used to enter the main menu. This is where your TV's features options are displayed. exit Press this button to leave the menu you are on and return to normal TV operation.

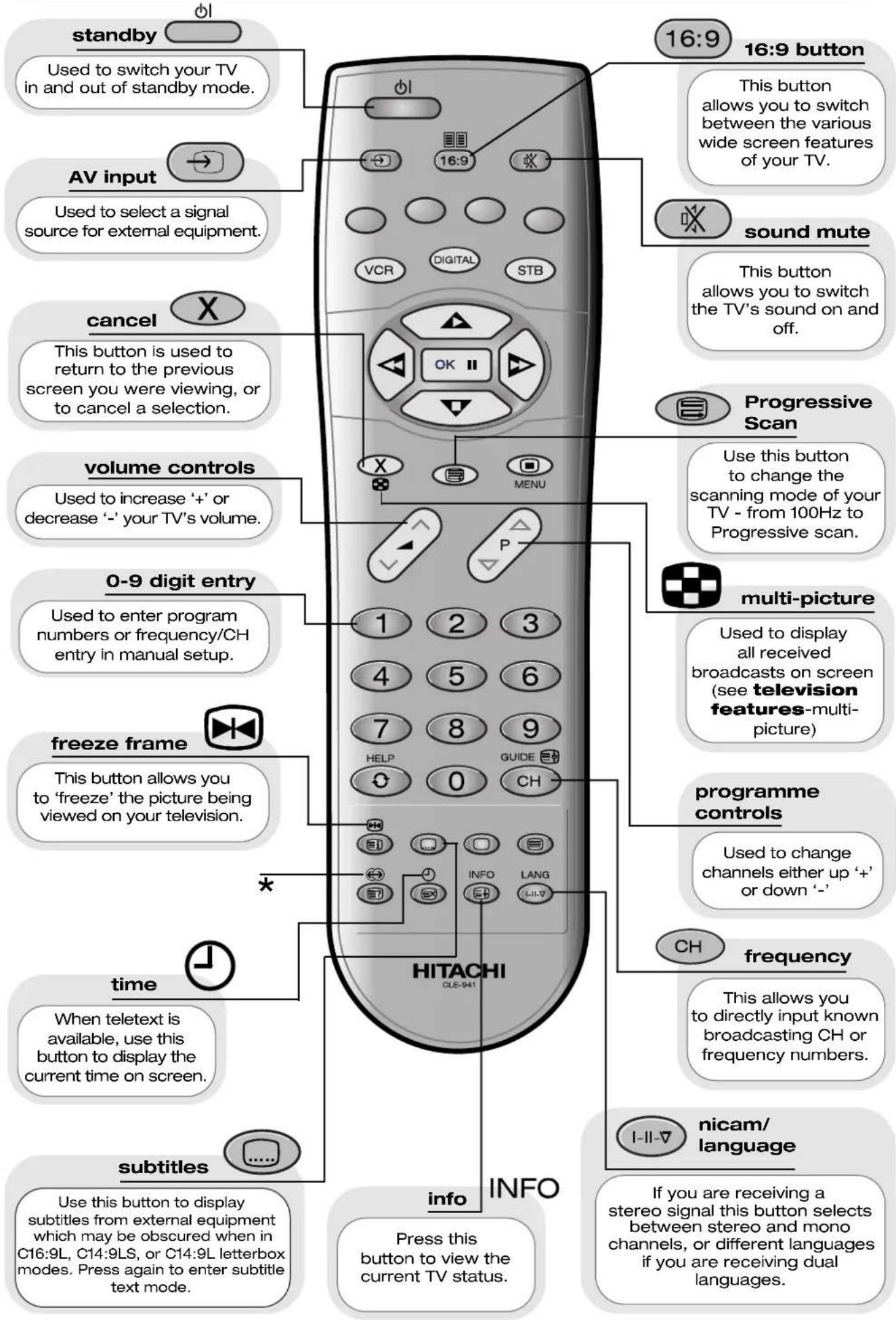

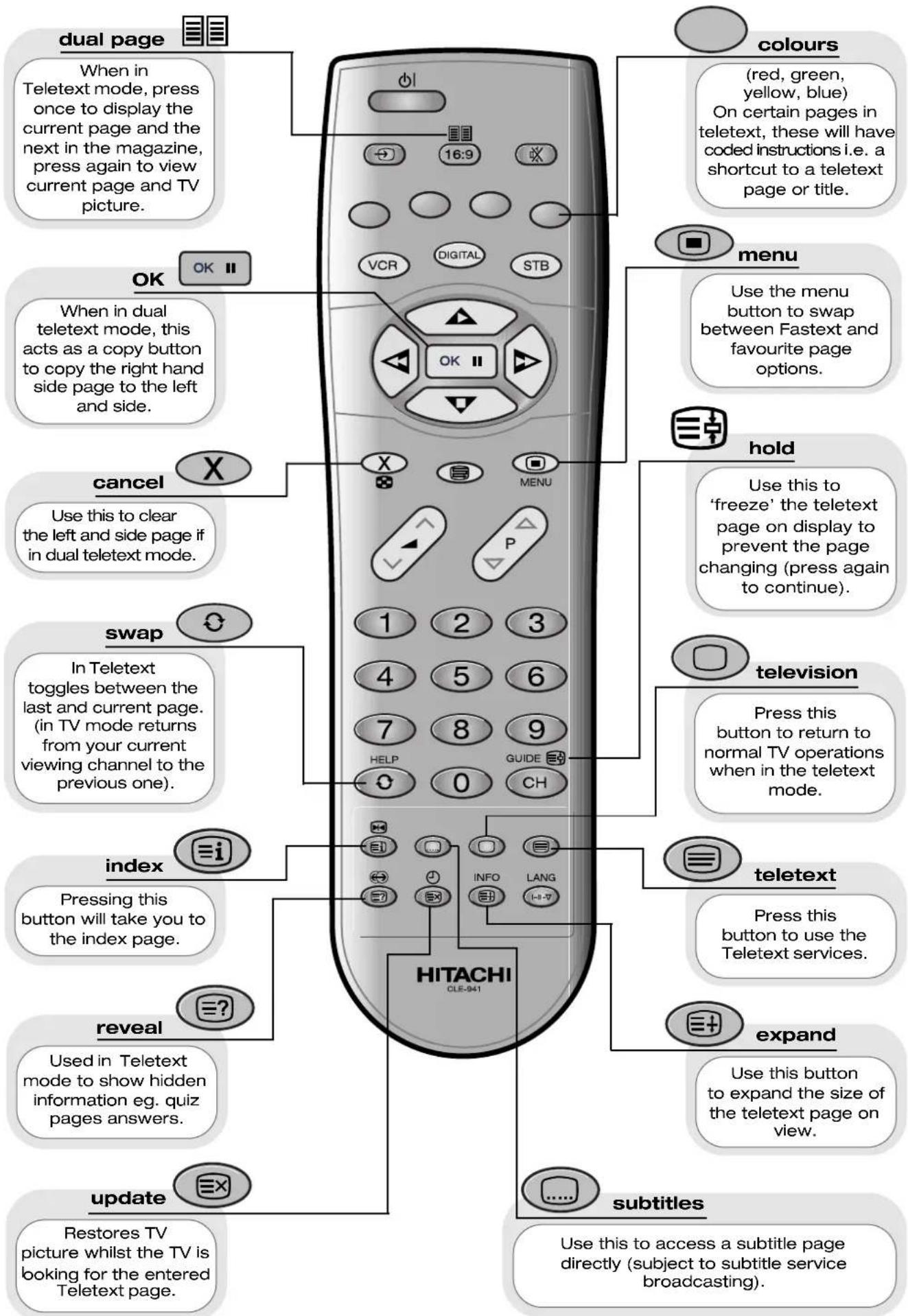

The handset controls shown here are used when your TV is in normal operation. Note: Items marked are not available on this model.

standby Used to switch your TV in and out of standby mode. AV input Used to select a signal source for external equipment. cancel This button is used to return to the previous screen you were viewing, or to cancel a selection. volume controls Used to increase '+' or decrease '-' your TV's volume. 0-9 digit entry Used to enter program numbers or frequency/CH entry in manual setup. freeze frame This button allows you to 'freeze' the picture being viewed on your television. time When teletext is available, use this button to display the current time on screen. subtitles Use this button to display subtitles from external equipment which may be obscured when in C16:9L, C14:9LS, or C14:9L letterbox modes. Press again to enter subtitle text mode. 16:9 16:9 button This button allows you to switch between the various wide screen features of your TV. sound mute This button allows you to switch the TV's sound on and off. PROGRESSIVE Scan Use this button to change the scanning mode of your TV - from 100Hz to Progressive scan. multi-picture Used to display all received broadcasts on screen (see television features-multi- picture) programme controls Used to change channels either up '+' or down '-'' frequency This allows you to directly input known broadcasting CH or frequency numbers. I-II-7 nicam/ language info Press this button to view the current TV status. HITACHI INFO

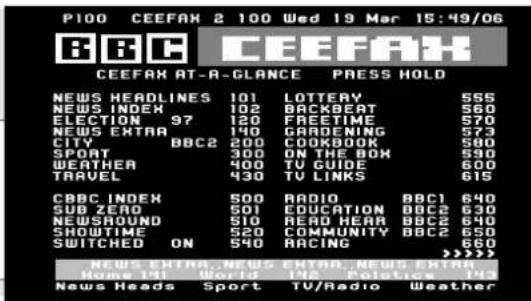

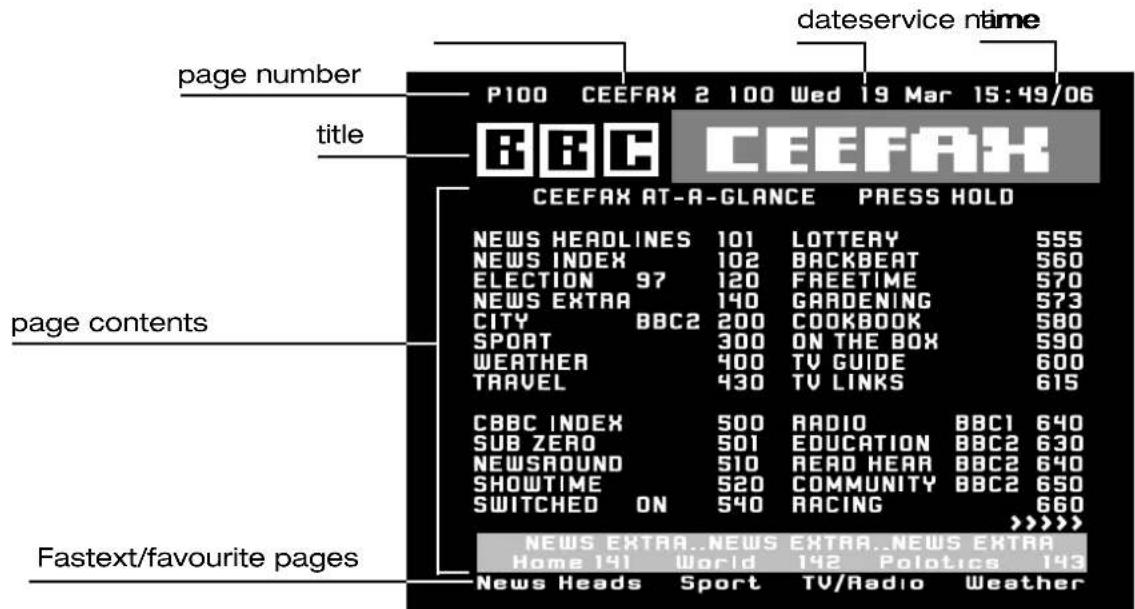

The handset controls shown here are used when you are operating Teletext.

dual page When in Teletext mode, press once to display the current page and the next in the magazine, press again to view current page and TV picture. colours (red, green, yellow, blue) On certain pages in teletext, these will have coded instructions i.e. a shortcut to a teletext page or title. OK When in dual teletext mode, this acts as a copy button to copy the right hand side page to the left and side. menu Use the menu button to swap between Fastext and favourite page options. cancel Use this to clear the left and side page if in dual teletext mode. hold Use this to 'freeze' the teletext page on display to prevent the page changing (press again to continue). swap In Teletext toggles between the last and current page. (in TV mode returns from your current viewing channel to the previous one). television Press this button to return to normal TV operations when in the teletext mode. index Pressing this button will take you to the index page. theletext Press this button to use the Teletext services. reveal Used in Teletext mode to show hidden information eg. quiz pages answers. expand Use this button to expand the size of the teletext page on view. update Restores TV picture whilst the TV is boking for the entered Teletext page. subtitles Use this to access a subtitle page directly (subject to subtitle service broadcasting).

For picture and sound values, moving the cursor left will decrease values, whilst moving the cursor right will increase values. Also note that in the COLOUR adjustment the first two steps of the control bar will have a dramatic effect. This is normal operation.

1

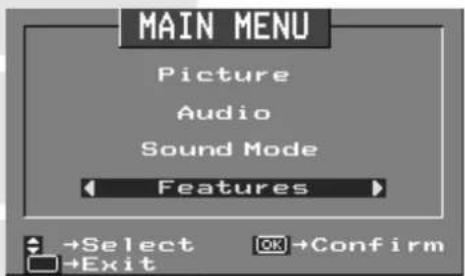

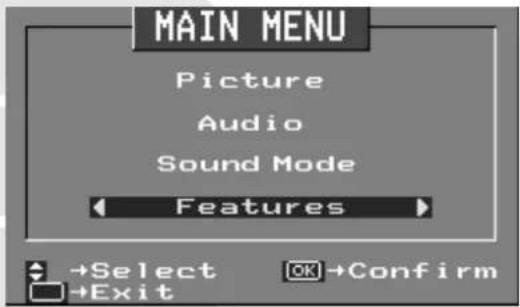

Press the MENU button to obtain MAIN MENU.

2

The MAIN MENU highlights the PICTURE option automatically - press OK to select.

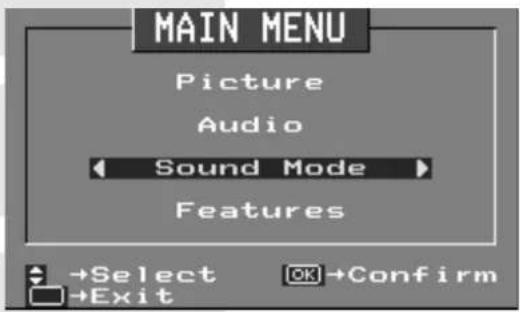

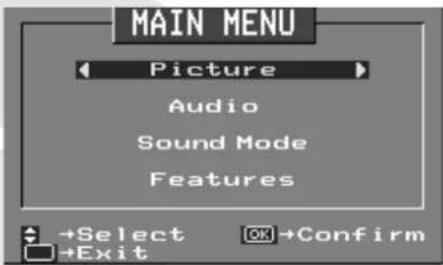

MAIN MENU Picture Audio Sound Mode Features +Select +Exit OK→Confirm

3

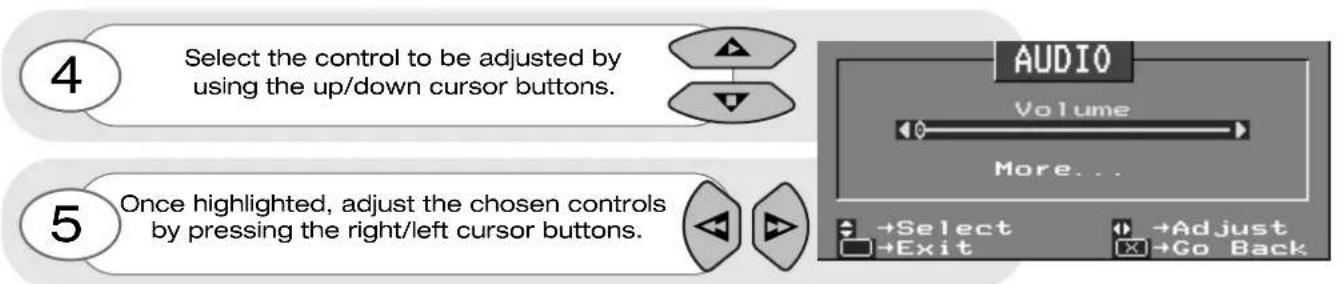

Select the picture control to be adjusted by using the up / down cursor buttons.

4

Once highlighted, adjust the chosen controls by pressing the right / left cursor buttons.

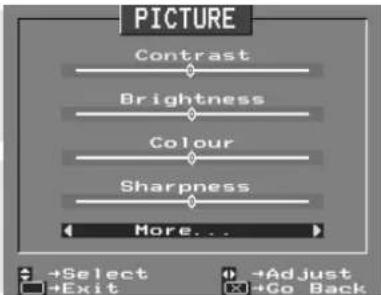

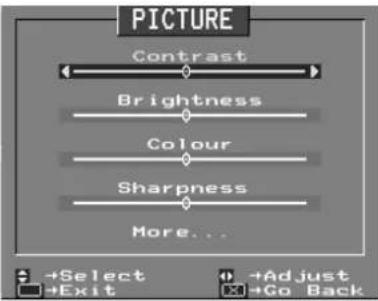

PICTURE Contrast Brightness Colour Sharpness More... +Select +Exit +Adjust +Go Back

5

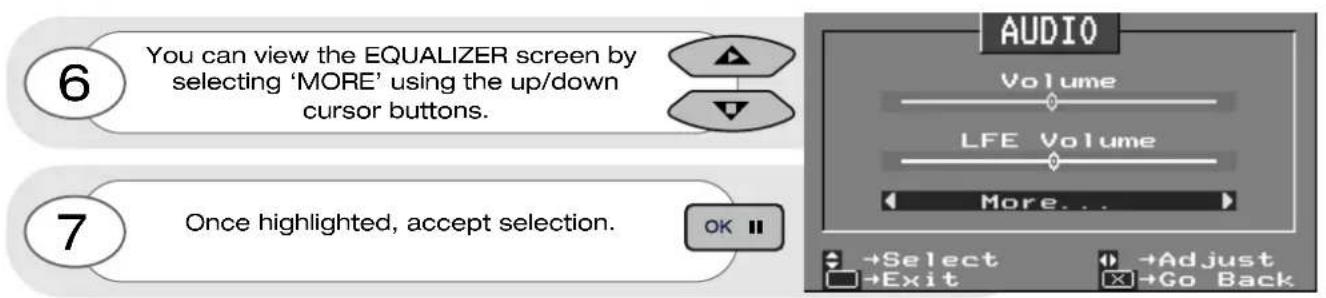

To select MORE options use the up/down buttons to highlight selection and then press OK to confirm.

6

Select the picture control to be adjusted by using the up/down cursor buttons.

PICTURE Contrast Brightness Colour Sharpness More... +Select +Exit +Adjust +Go Back

7

Once highlighted, adjust the chosen controls by pressing the right/left cursor buttons (for explanation see below)

8

The values changed will remain until they are next altered. Press the TV button on your handset to return to normal TV operation.

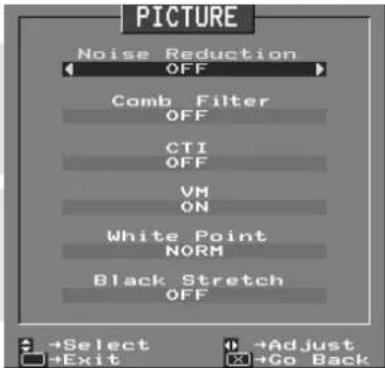

PICTURE Noise Reduction OFF Comb Filter OFF CTI OFF VM ON White Point NORM Black Stretch OFF →Select →Adjust →Exit →Go Back

Noise Reduction

Helps reduce the noise interference visible on your television, especially in weaker signal reception areas.

Comb Filter

This control lets you remove 'swirling' cross colour when your picture contains close or small check patterns.

CTI

Colour Transient Improvement - This control lets you improve the clarity of your televisions colour edges.

White Point

NORMAL - gives an equally balanced spectrum of colour.

COOL - exaggerates the blue tones of your television picture.

WARM - this exaggerates the red tones of your television picture.

Black Stretch

This control turns all dark areas of your television picture black.

Hue

This option is only available when receiving a NTSC broadcast. Controls the colour 'tint' transmitted from your picture.

Press and hold the MENU button for 5 seconds. The INSTALL option in the MAIN MENU appears.

Press the cursor down button to select INSTALL.

Once highlighted, accept selection.

The INSTALL menu highlights the MANUAL SETUP option automatically - press OK to select.

Select your program to swap by moving the selection bar using the up/down cursor buttons over a channels PR number, highlighted in blue.

Once highlighted, accept the selection and you will see the selection bar turn red - it is ready to be swapped.

When a channel has been selected, you also have the option to 'hide' a program - this makes your TV skip the hidden channel when the program controls are used to change channels. Press the '0' digit on your handset and you will see the text within your chosen selection turn red. Your selection is hidden. Pressing the '0' button again to 'unhide' the selection. If a hidden channel is to be viewed, this can be achieved by entering the channel number with the handset digits 0 to 9.

Using the up/down buttons again you can move the selection to occupy a new position of your choice.

Once this has been done, accept selection and the chosen programs will now occupy its new position - repeat if necessary.

To return to normal TV operation press the television button on your handset.

...notes on program name change

Program name change can be very useful if you connect external equipment to your television. For example, if you have a DVD player connected, you can allocate the name 'DVD' to the program number allocated for that piece of external equipment.

1

Press and hold the MENU button for 5 seconds. The INSTALL option in the MAIN MENU appears.

2

Press the cursor down button to select INSTALL.

3

Once highlighted, accept selection.

MAIN MENU Picture Audio Sound Mode Features Install →Select OK→Confirm →Exit

4

the INSTALL menu highlights the MANUAL SETUP option automatically - press OK to select.

OK II

INSTALL Manual Setup Language Speaker Setup Digital Audio Setup AV Setup Installation +Select +Exit +Confirm +Go Back

5

Use the cursor keys to move the selection bar over the NAME required to be adjusted.

Once highlighted, accept the selection to change the name and you will see the selection bar turn red and the chosen character will flash on and off - it is ready to be changed.

Note: Pressing the '0' button will clear all the characters of the chosen name.

MANUAL SETUP PR NAME FREQ AV 0 VIDEO CH 35 1 BBB1 471.25 2 BBC2 487.18 3 ITV 495.18 4 CH4 503.25 5 CHS 511.25 6 SAT 519.18 7 535.25 8 551.25 9 567.25 +A..Z +Select OK +Store +Exit 0 +Clear K3 +Cancel

7

You can input up to 5 characters - to change each character use the up/down cursor buttons.

8

To move from character to character use the right/left cursor buttons.

MANUAL SETUP PR NAME FREQ AV 0 VIDEO CH 35 1 BBC1 471.25 2 BBC2 487.18 3 ITV 495.18 4 CH4 503.25 5 CH5 511.25 6 SAT 519.18 7 535.25 8 551.25 9 567.25 +Select P+ Page Up OK +Edit +Exit P- Page Dn OK +Go Back

9

If a mistake is made re-naming channel, less CANCEL before pressing OK to return to the original name.

10

Once the new NAME has been chosen and entered, confirm your entry to be stored and repeat if necessary.

To return to normal TV operation press the television button on your handset.

...notes on nicam features

Nicam is a method for transmitting and receiving stereo sound. If your TV is unable to receive Nicam because of the wrong geography, climate etc., or when Nicam in not transmitted in your location it will produce a monaural sound source.

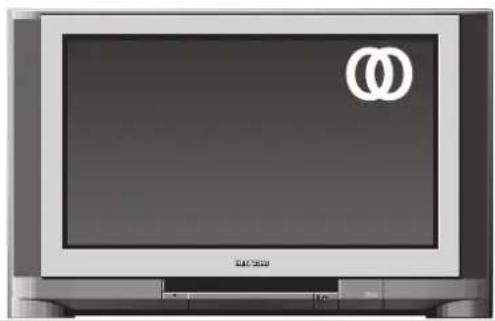

stereo

This effect produces nicam digital stereo sound from your TV. Use this mode for the majority of TV viewing. When selected the stereo symbol appears.

Use the 1-11-7 button on your handset to switch between stereo and monaural

Front view of a modern flat-screen TV with a logo on the screen (no visible text or symbols on the device itself)

monaural

In this mode the TV produces a single sound source. The TV will automatically select this sound when a mono signal is found. Some stereo signals can be poor in adverse weather conditions, and mono should be selected to avoid poor sound.

Use the ⏻-H-7 button on your handset to switch between monaural and stereo.

Front view of a flat-screen CRT television with a white triangular logo on the screen (no visible text or symbols)

...notes on dual language transmissions

A dual language transmission is where channel 1 and channel 2 of the Nicam stereo broadcast carry completely separate information i.e. soundtracks in two different languages for a movie. A dual language broadcast is denoted by a symbol (I or II) in the top right hand corner of the screen. This can be seen on first entry to the channel by pressing the INFO button on your handset.

The user can select which of the two is heard through both the left and right television speakers by using the Ⓗ-Ⅱ-▽ button on your handset. In the case of a Nicam dual language broadcast, this will also allow the mono FM broadcast to be selected.

channel 1

When this symbol is displayed, channel 1 of a dual language broadcast is being received. Use the 1-8-7 button to access this mode while receiving a dual language broadcast.

Front view of a flat-screen CRT television with a large 'I' symbol on the screen (no readable text or labels)

channel 2

When this symbol is displayed, channel 2 of a dual language broadcast is being received. Use the button to access this mode while receiving a dual language broadcast.

三联产版

The sound source, when chosen, will be stored with the program number being viewed.

1 Press the MENU button to obtain MAIN MENU. 2 Press the cursor down button to select AUDIO. 3 Once highlighted, accept selection. MAIN MENU Picture Audio Sound Mode Features →Select →Confirm →Exit

4 Select the control to be adjusted by using the up/down cursor buttons. 5 Once highlighted, adjust the chosen controls by pressing the right/left cursor buttons.

volume control This control is used to increase, or decrease the sound from your TV's speakers. When exiting the on-screen menu this will be the initial volume setting when the TV is switched on.

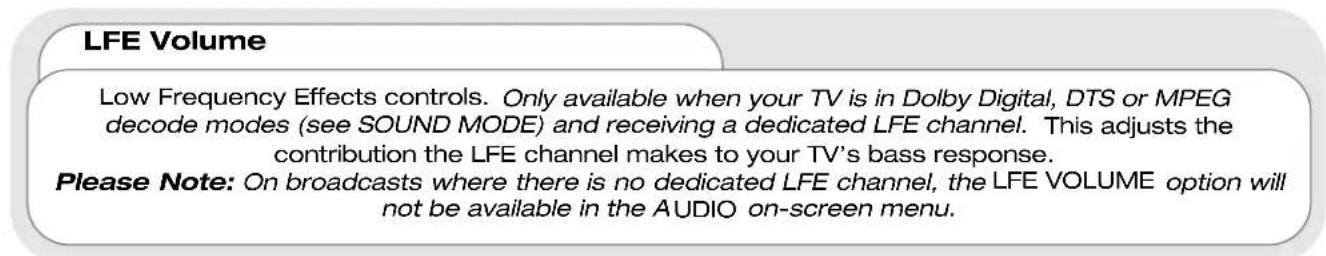

LFE Volume Low Frequency Effects controls. Only available when your TV is in Dolby Digital, DTS or MPEG decode modes (see SOUND MODE) and receiving a dedicated LFE channel. This adjusts the contribution the LFE channel makes to your TV's bass response. Please Note: On broadcasts where there is no dedicated LFE channel, the LFE VOLUME option will not be available in the AUDIO on-screen menu.

6 You can view the EQUALIZER screen by selecting 'MORE' using the up/down cursor buttons. 7 Once highlighted, accept selection. OK AUDIO Volume LFE Volume More... +Select →Adjust →Exit →Go Back

equalizer

The EQUALIZER menu is used to adjust the tonal ranges of your TV's sound.

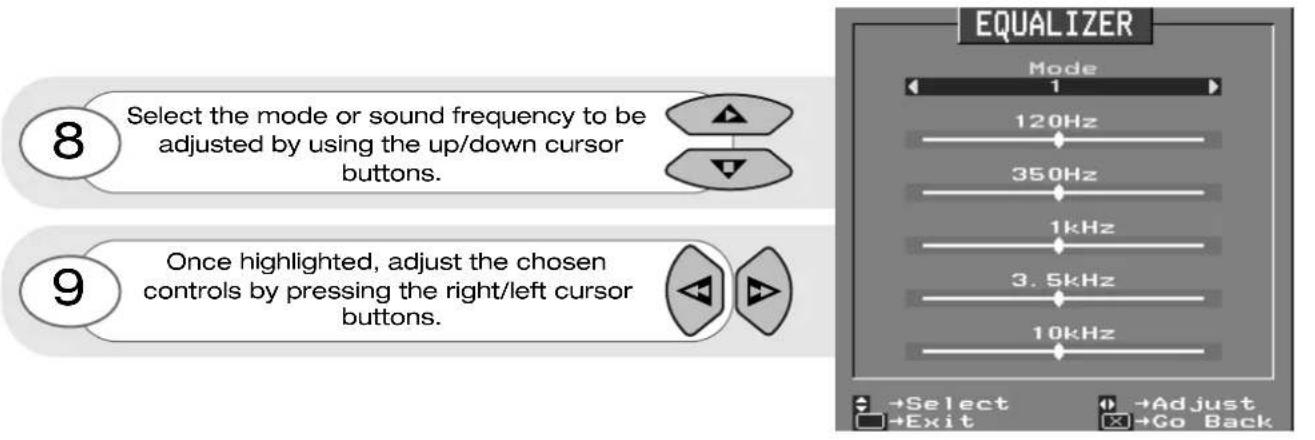

8 Select the mode or sound frequency to be adjusted by using the up/down cursor buttons. 9 Once highlighted, adjust the chosen controls by pressing the right/left cursor buttons.

mode

You have a choice of 3 individual 'modes' which can be adjusted to suit personal needs. Set a complete range value (detailed below) and your TV will remember the settings in the appropriate mode number.

120Hz bass range

This range controls the bass sound from your television - if the bass sound from your TV is too 'boomy' turn this control down.

350Hz mid bass range

This range is the basis of your sound - if your televisions sound is to rich, or not rich enough, adjust this control to enhance the TV's sound.

1kHz mid range

Use this control to adjust the mid-range voice area of your TV's sound.

3.5kHz mid high range

When this control is increased it emphasises the flute and string instruments of your TV's sound - when decreased it has a soothing effect on the sound.

10kHz high range

The sharp sound of triangles and cymbals are emphasised if this control is increased.

To return to normal TV operation press the television button on your handset.

...notes on sound mode

The Sound Mode menu is used to adjust and display the signal sources available from your TV's speakers, whether the output be analogue or digital.

1

Press the MENU button to obtain MAIN MENU.

2

Press the cursor down button to select SOUND MODE.

3

Once highlighted, accept selection.

OK II

MAIN MENU Picture Audio Sound Mode Features +Select OK +Confirm +Exit

4

Use up/down cursor buttons to select your choice of sound mode.

5

Once highlighted, accept selection - when you turn your TV off, by default this will be the sound mode when it is switched back on.

SOUND MODE Dolby Pro Logic Stereo +Select +Exit +Go Back

analogue options in sound mode

When the Audio signal source is analogue - that is, a television broadcast, a connection to either the video in or audio in found on the front control panel, or if you have any equipment connected to a scart input socket found at the rear of your television the sound mode gives you two options to choose from - Dolby Pro logic or stereo.

Dolby Pro Logic

In this mode surround sound can be created using the TV's internal amplifiers. This mode is particularly suitable for films and programmes that display the Dolby Pro Logic caption. This mode is recommended for the viewing movies.

stereo

When stereo mode is selected, your TV produces high quality stereo sound. Select this mode when viewing general TV and music programs.

when using headphones

When the headphones are in use the only sound mode available will be the STEREO option. When the headphones are removed your TV will remain in STEREO mode.

digital options in sound mode

When your television is switched to an AV scart input whose decode mode is set to AUTO/DIGITAL and a digital signal source is connected and playing on the coaxial or optical connectors, the options found in the SOUND MODE menu become dependant on the type of digital signal being received.

Please note: to enjoy the sound benefits of Dolby Digital, DTS etc. you will require software (eg. DVD disc, in which Dolby-D, DTS etc. signals are recorded.) and suitable hardware (some form of disc player, which can pick up a digital signal).

DTS signal options

DTS Digital x/y.z* -

Stereo -

Digital Theater Surround mode which gives the ambience and presence of being in a theater.

Stereo mode which provides a downmix** of the above through your televisions internal left and right speakers.

Dolby Digital signal options

Dolby Digital x/y.z*-

Dolby ProLogic - Stereo -

In this mode surround sound can be created, with the digital audio capabilities increasing the precise localisation of sounds, improving the ambience experienced.

In this mode surround sound can be created. Stereo downmix** mode which inputs the Dolby Digital x/y.z information through your televisions internal left and right speakers.

MPEG signal options

MPEG Multichannel -

MPEG Stereo -

Stereo -

In this mode surround sound can be created using the five audio channels (from your left speaker, right speaker, centre speaker, left surround speaker and right surround speaker) and also the LFE channel.

Stereo mode which provides signals for your televisions internal left and right speakers.

Stereo mode which provides a downmix** of the multi-channel signal through your televisions internal left and right speakers.

44.1/48kHz PCM signal options

Dolby Pro Logic - Stereo -

In this mode surround sound can be created. Stereo mode which provides signals for your televisions internal left and right speakers.

96 KHz signals

Stereo -

A maximum audio sample rate in which stereo is the only available option. No surround sound can be created when you are receiving this signal. (Although Dolby Pro Logic is displayed in the Sound Mode menu, Dolby Pro Logic will not be available).

*x/y.z - display format of audio digital channels present which is explained in greater detail in digital audio status section where X = front channel Y = rear channel Z = sub woofer

**Downmix - this is when all the five multi-channels (left, right, surround left, surround right, centre) are outputted through the televisions left and right speakers

Please note: When the television is set to digital mode and no external equipment is connected, your television will assume PCM mode and will offer the options listed above in the PCM signal options. It must also be noted that the type of audio signal which will be outputted can usually be found on your external equipment.

To return to normal TV operation press the television button on your handset.

...notes on speaker setup

The Speaker Setup menu allows you to customise the televisions audio performance to your own requirements. These requirements might be the use of external amplifiers on one or more sound channels, or to use alternative speakers. This menu can help you organise the bass (or 'boom') redirection by specifying whether large, small or no speaker at all has been connected. Whatever your choice, this menu allows for greater flexibility and ultimately an improved sound performance.

1

Press and hold the MENU button for 5 seconds. The INSTALL option in the MAIN MENU appears.

2

Press the cursor down button to select INSTALL

3

Once highlighted, accept selection.

OK II

MAIN MENU Picture Audio Sound Mode Features Install →Select OK→Confirm →Exit

4

Press the cursor down button to select SPEAKER SETUP.

5

Once highlighted, accept selection.

OK II

INSTALL Manual Setup Language Speaker Setup Digital Audio Setup AV Setup Installation +Select +Exit +Confirm +Go Back

sound sequencer

The sound sequencer is automatic when entering the Speaker Setup menu. This relays sound in sequence amongst the available output channels. From this you can judge what speaker volume has to be adjusted so you get the impression you are sitting within the centre of the sound.

6

Select the speaker to be adjusted by using the up/down cursor buttons.

7

Once highlighted, adjust the chosen speaker by pressing the right/left cursor buttons.

speaker environment display

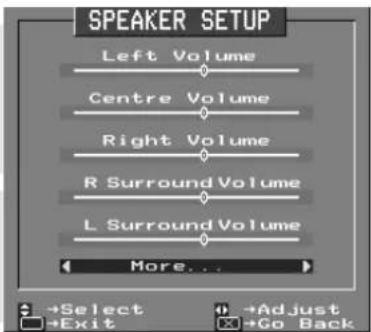

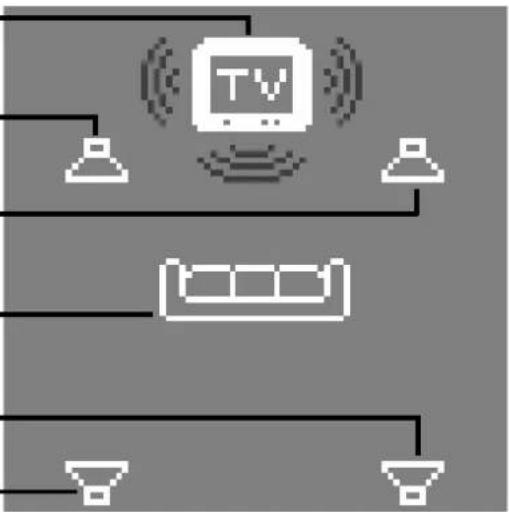

The effect of your adjustments can be heard, and also seen by looking at the display which accompanies your Speaker Setup menu. This diagram is a representation of your living area and its contents are explained on the following page.

...notes on speaker environment display

your TV and internal speakers

front left external speaker

front right external speaker

seating position see ...notes on seating position

rear right external speaker

rear left external speaker

no sound from speaker

sound from speaker

The other available Speaker Setup menus will also show an accompanying display and this will also be affected by the adjustments you make to the available controls

8

To view other Speaker Setup options use the up/down buttons to highlight MORE...

9

Once highlighted, accept selection.

OK II

To return to normal TV operation without viewing other options press the television button on your handset.

10

Select the control to be adjusted by using the up/down cursor buttons.

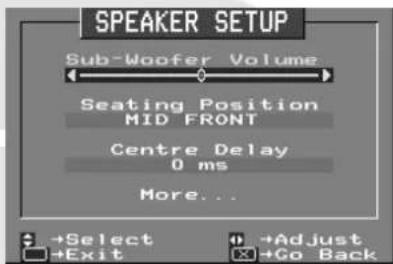

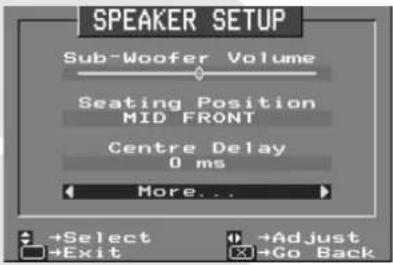

SPEAKER SETUP Sub-Woofer Volume Seating Position MID FRONT Centre Delay 0 ms More... →Select →Adjust →Exit →Co Back

11

Once highlighted, adjust the chosen controls by pressing the right/left cursor buttons.

Sub-Woofer Volume

The sub woofer channel carries the Bass or 'Boom' sound effect information. If you have one connected, use this control to adjust your sub-woofers volume.

...notes on seating position

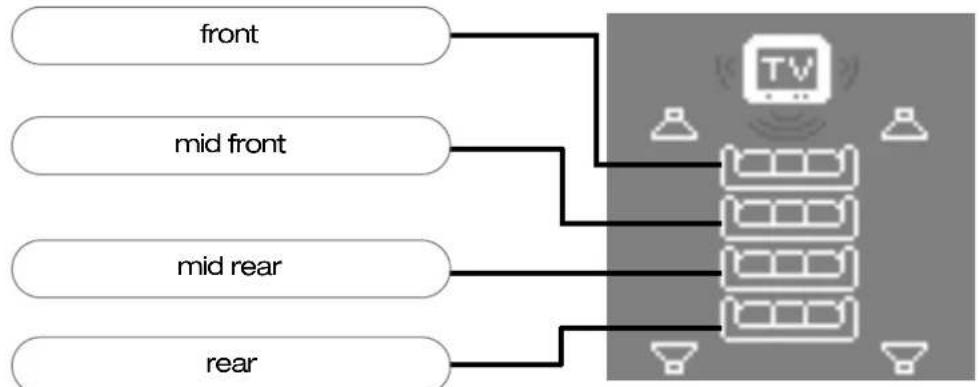

The seating position control accommodates the position of the speakers with regard to your seating position, and so further creates an atmosphere where improved sound qualities are obtained from your TV.

• If you are seated near the front speakers, adjust the seating position to FRONT.
• If you are seated between the front and rear speakers, but closer to the front speakers, adjust the seating position to MID FRONT.
• If you are seated between the front and rear speakers, but closer to the rear speakers, adjust the seating position to MID REAR.
• If you are seated at a position close to the rear speakers, adjust the seating position to REAR.

Centre Delay

If your environment is set up in such a way that external speakers (if connected) are behind your television, increase the Centre Delay so that the sound from external speakers and your TV's centre speaker arrive at your seating position at the same time, ensuring no drop in sound quality. Please Note: For approximately each 30cm that your external speakers are placed behind your TV the Centre Delay value should increase by 1ms - see diagram below.

example 1 (showing top view)

speakers connected to rear of TV speakers connected to rear of TV

30cm30cm

If speakers are placed 30cm behind TV, Centre Delay value should be set to 1ms.

example 2 (showing top view)

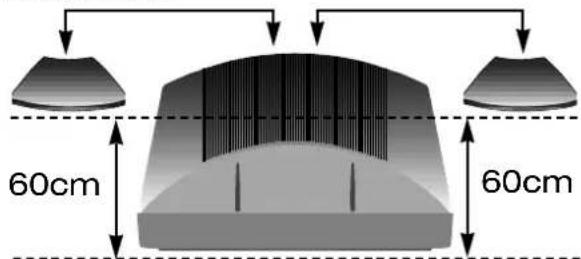

60cm 60cm

If speakers are placed 60cm behind TV, Centre Delay value should be set to 2ms.

The Centre Delay value can be set to a maximum of 5ms. Therefore to enjoy the full sound capabilities of your television do not place your external speakers more than 150cm behind the front of your TV.

12

To view other Speaker Setup options use the up/down buttons to highlight MORE...

13

Once highlighted, accept selection.

SPEAKER SETUP Sub-Woofer Volume Seating Position MID FRONT Centre Delay 0 ms More... +Select +Adjust +Exit +Go Back

To return to normal TV operation without viewing other options press the television button on your handset.

14

Select the control to be adjusted by using the up/down cursor buttons.

15

Once highlighted, adjust the chosen controls by pressing the right/left cursor buttons.

SPEAKER SETUP Front L/R Speakers SMALL Centre Speaker SMALL Surround Speaker(s) LARGE SubWoofer Speaker LARGE More... +Select +Adjust +Exit +Go Back

...notes on speaker options

The speaker controls can be set to either SMALL or LARGE. This is to specify the type of speaker connected. If your connected speakers low frequency response (the bass or 'boom' sound) is poor adjust the chosen speaker value to SMALL. If the low frequency response is good set the speaker value to LARGE - this allows the bass performance to be optimised. The Centre Speaker and Surround Speaker(s) also have a setting of NONE. Use this as the setting if you have no centre or surround speakers connected, or you do not want to hear the sound from these speakers.

16

To view other Speaker Setup options use the up/down buttons to highlight MORE...

17

Once highlighted, accept selection.

SPEAKER SETUP Front L/R Speakers SMALL Centre Speaker SMALL Surround Speaker(s) LARGE SubWoofer Speaker LARGE More...

To return to normal TV operation without viewing other options press the television button on your handset.

...notes on amplifier options

This menu allows your TV's own internal amplifiers to be switched off to prevent sound from appearing from the appropriate speakers. This is useful if connecting external amplifier equipment to the RCA phono line outputs of the TV.

18

Select the control to be adjusted by using the up/down cursor buttons.

19

Once highlighted, adjust the chosen controls by pressing the right/left cursor buttons.

SPEAKER SETUP Front Amplifier ON Surround Amplifier ON Centre Amplifier ON SubWoofer Amplifier ON +Select +Exit +Adjust +Go Back

...notes on digital audio setup

The Digital Audio Setup menu allows you to control the sound output of any external equipment you have connected through the Audio Visual sockets. For example, if the connection from your external equipment to the television is via AV1, the Digital Audio source should be set as AV1.

1

Press and hold the MENU button for 5 seconds. The INSTALL option in the MAIN MENU appears.

2

Press the cursor down button to select INSTALL

3

Once highlighted, accept selection.

OK II

MAIN MENU Picture Audio Sound Mode Features Install →Select OK→Confirm →Exit

4

Press the cursor down button to select DIGITAL AUDIO SETUP.

5

Once highlighted, accept selection.

INSTALL Manual Setup Language Speaker Setup (Digital Audio Setup) AV Setup Installation +Select +Exit +Confirm +Go Back

6

Select the control to be adjusted by using the up/down cursor buttons.

7

Once highlighted, adjust the chosen controls by pressing the right/left cursor buttons.

DIGITAL AUDIO SETUP Digital Input Source AV1 Decode Mode AUTO Listening Mode STANDARD →Select →Exit →Adjust →Go Back

digital input source

The digital audio setup menu allows the digital audio decoder in your television to be assigned to the AV scart input that your DVD, CD player is connected to.

decode mode

see also Sound Mode for effects

There are three possible decode modes...

Digital Your television ignores the analogue input on the selected AV and instead uses the optical or coaxial input as its source.

Auto Your television will automatically select between digital and analogue sources. If both are present, the digital source takes priority.

Analogue The television ignores the digital input in either the optical or coaxial connector and instead uses the analogue information on the selected AV as its source.

listening mode

When listening to a Dolby Digital source with the television sound mode set to Dolby Digital this control allows you to take advantage of special codes stored on the disc to reduce, or increase sound effects.

Maximum makes the best use of the televisions dynamic range. It will enhance sound effects such as explosions or screams

Standard is the normal listening mode. It does not make full use of your televisions dynamic range, but is a good compromise for all day viewing/listening.

Night mode allows the audio to be reproduced in such a way that the impact of soundtrack extremes (such as explosions) are reduced while quiet passages are 'boosted', allowing all the audio information to be heard at a low volume level. As it's name suggests, this mode is intended for nighttime viewing.

8

To return to normal TV operation press the television button on your handset.

...notes on digital audio status

When your television is in its appropriate Audio Visual mode and a digital signal is being played and applied through one of the Audio Digital in connections (either optical or coaxial), the input status and incoming format will be displayed in the top right hand corner of the screen.

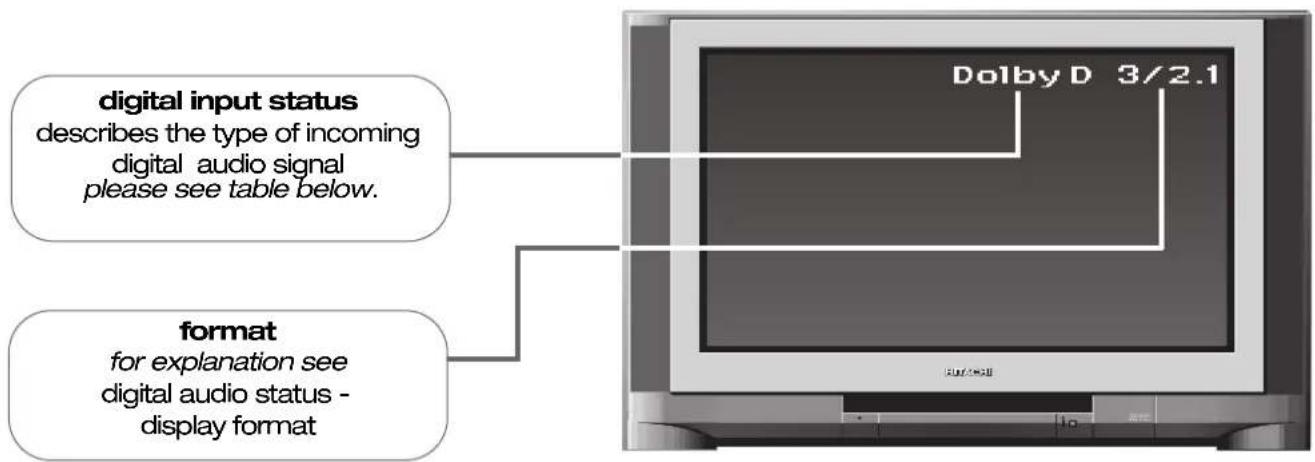

digital input status describes the type of incoming digital audio signal please see table below. format for explanation see digital audio status - display format Dolby D 3/2.1

decode mode	explanation
PCM(Pulse Code Modulation)	This is the decode mode for a digital signal encoded by PCM. This is a two channel audio source which may, or may not be encoded in Dolby Pro Logic - its encoding depends on the source material. It can be regarded as a better quality version of the left and right analogue audio signals heard from your TV through a scart input connection. This format is used for standard Audio CD's.
Dolby Digital(Dolby D)	This is the decode mode for a digital signal encoded by Dolby Digital. This is capable of delivering a maximum of 5 main channels (left, right, surround left, surround right and centre) and a Low Frequency Effects (LFE) channel. Your television takes advantage of data on the disc to tell you the number of different channels available on the decoded track
DTS(Digital Theater Systems)	This is the decode mode for a digital signal encoded by DTS. This has the same capabilities as Dolby Digital and is displayed when receiving a DTS encoded digital source.
MPEG(Moving Pictures Experts Group)	This is the decode mode for digital signals encoded by MPEG. MPEG tracks are either encoded as stereo or as having 5 main channels plus a LFE channel

...notes on Laserdisc connection

A Laserdisc source with a Dolby Digital RF output cannot be connected to this TV directly.

Please obtain an adaptor from an electrical retailer.

Also note that when using a Laserdisc player in conjunction with an RF demodulator to decode Dolby digital sound, Hitachi recommend putting the Decode mode to DIGITAL. This will avoid dropping in and out of analogue sound while searching or pausing the disc that is playing.

Pressing the INFO button on your handset reveals the format of the incoming signal not the way it is being processed i.e. pressing the INFO key on the handset might reveal Dolby D 3/2.1, but your TV might be set to stereo mode - see digital audio setup. Also note only analogue output is available for both AV2 and AV3 as a monitor out signal, even if digital audio has been selected.

This chart explains what sound channels are present when listening to the connected external equipment which has a digital output. These values can be viewed by pressing the INFO button on your handset when a digital signal is being received.

Display Value	Channels Present in Digital Input (for Dolby Digital and DTS)						Comments
x/y.z	Front Left Front Right Centre Left Surround Right Surround					Low Frequency Effects (LFE)
3/2.1	√	√	√	√	√	√	Full multi-channel encoding, all active
3/1.1	√	√	√	√		√	Surround is mono in this case
3/0.1	√	√	√			√	No surround channels available
3/2.0	√	√	√	√	√		Main channels but no LFE channel
3/1.0	√	√	√	√			Surround mono in this case, no LFE channel
3/0.0	√	√	√				No surround or LFE channels available
2/2.1	√	√		√	√	√	All channels except centre
2/1.1	√	√		√		√	Left, Right, mono surround and LFE
2/0.1	√	√				√	Left, right and LFE only
1/0.1			√			√	Centre and LFE only
2/2.0	√	√		√	√		All channels except centre and LFE
2/1.0	√	√		√			Left, right and mono surround only
2/0.0	√	√					Left and right channels only (may be encoded in ProLogic)
1/0.0			√				Centre channel only (mono)

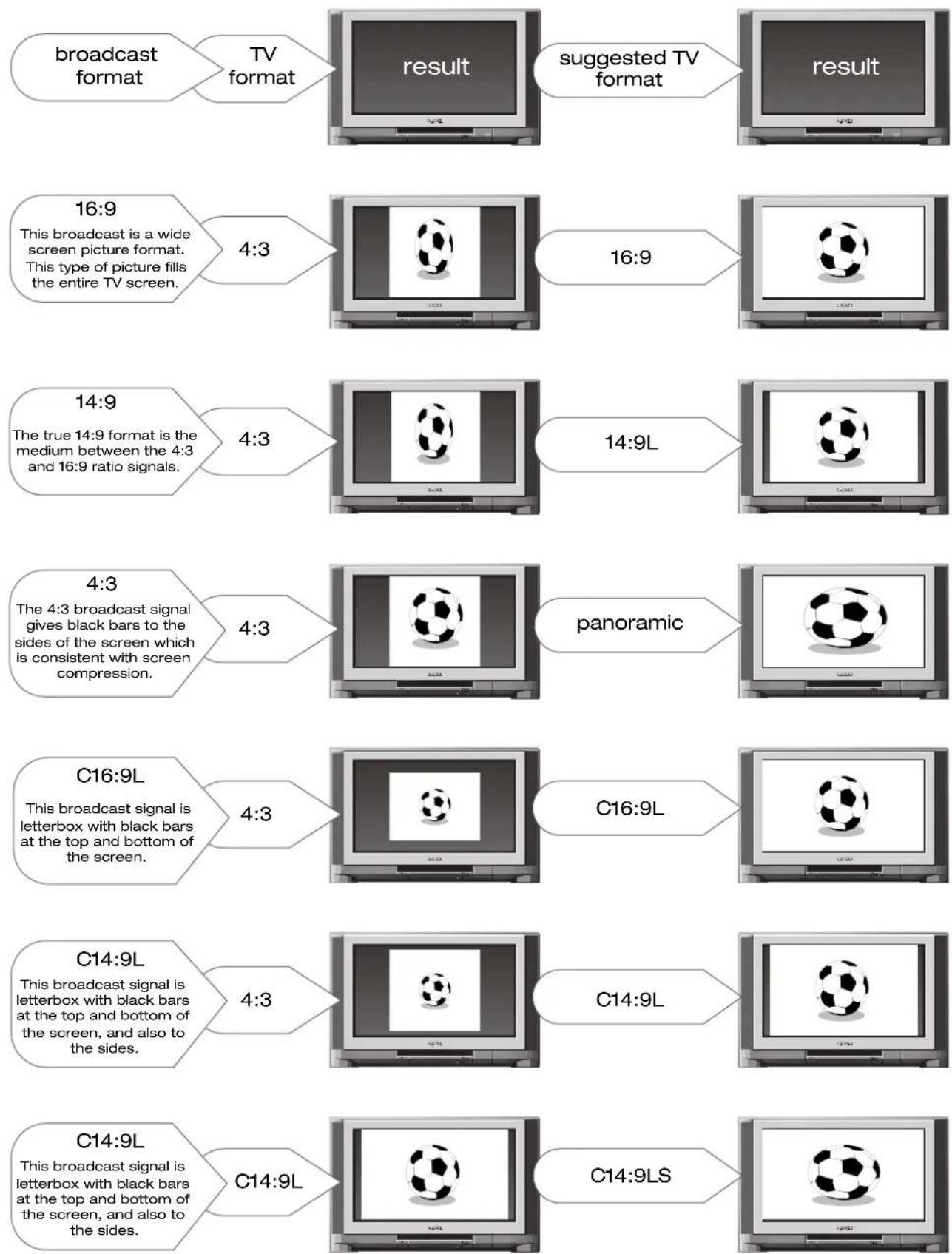

...notes on wide screen features

Various broadcast stations now transmit movies and programs in true wide screen format. Your TV can detect these signals and automatically switch to the correct format (when in AUTO mode). However, some broadcasters do not transmit this automatic sensing signal, and so your TV will not recognise which format is being transmitted. This situation can be overcome by simply pressing the 16:9 key on your handset.

16:9 format

The picture (right) illustrates a true 16:9 wide screen picture format. This type of picture fills the entire TV screen. The 16:9 mode can also be manually selected if desired by pressing the button 16:9 on your handset.

Note: Your TV will automatically switch to 16:9 mode when it receives a true 16:9 Wide Screen Signal through the external RF aerial or external AV sockets. You can override this change by pressing the 16:9 button on your handset to switch to the desired aspect ratio.

Illustration of a classic cartoon soccer ball displayed on a flat-screen TV (no text or symbols visible)

4:3 format

The conventional picture format for most broadcasts is the 4:3 ratio signal which gives black bars to the sides of the screen and this is consistent with screen compression (see right).

Illustration of a vintage CRT television displaying a soccer ball on screen (no text or symbols visible)

14:9 format

The 14:9 format (right) is the medium between the 4:3 and 16:9 ratio signals. When this mode is selected thin black bars appear to the sides of the screen.

Illustration of a soccer ball displayed on a flat-screen monitor (no text or symbols visible)

auto format

The Auto format is also one which can be selected manually. Auto mode automatically detects various screen formats that are transmitted in either conventional (4:3) or wide screen (16:9 or 14:9) format. After detecting which signal is being transmitted the TV will automatically switch to the correct screen ratio.

Illustration of a classic cartoon soccer ball displayed on a flat-screen monitor (no text or symbols visible)

...notes on aspect ratios for external equipment

Laserdisc and videotape players will normally provide either a full 4:3 or letterbox widescreen format picture with black bands at the top and bottom. For viewing such widescreen picture formats, Hitachi recommend the C16:9L mode. DVD players will normally give an option of either 4:3 or 16:9 output mode (dependant on player and software - please refer to player instructions) For a full 16:9 picture, Hitachi recommend using the 16:9 mode.

Note: Your TV will automatically switch to 16:9 mode when it receives a true 16:9 Wide Screen Signal through the external RF aerial or external AV sockets. You can override this change by pressing the 16:9 button on your handset to switch to the desired aspect ratio.

...notes on wide screen features

Your viewing format can be selected manually by simply pressing the 16:9 key on your handset to scroll through the viewing format options See the examples below for the available viewing formats.

...notes on Sleep Timer

This feature is used to automatically place your TV into standby mode after a set number of minutes - use the right/left cursor buttons to set the timer between 5 and 120 minutes. When the timer has only a minute left this will be shown on the screen as a countdown from 59 seconds to zero, after which your TV's status will be standby.

1

Press the MENU button to obtain MAIN MENU.

2

Press the cursor down button to select FEATURES.

3

Once highlighted, accept selection.

MAIN MENU Picture Audio Sound Mode Features +Select OK→Confirm +Exit

4

Use up/down cursor buttons to select option to adjust.

5

Use right/left buttons to adjust chosen feature.

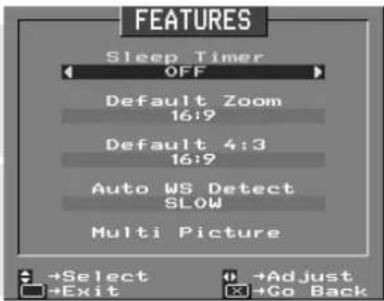

FEATURES Sleep Timer OFF Default Zoom 16:9 Default 4:3 16:9 Auto WS Detect SLOW Multi Picture +Select +Exit +Adjust +Go Back

6

Once highlighted, accept selection - when you turn your TV off, the TV will memorise your adjustments

OK II

...notes on Default features

Your TV also has default features which can control the viewing format of your TV's picture. See above for entry into and adjustment of these features. These features and their settings will only be effective if the widescreen picture format is set to AUTO.

...notes on Default Zoom

Various broadcast stations now transmit WSS (Wide Screen Signals) which identifies the picture format movies and programs are broadcast in. Your TV can detect these Wide Screen Signals and automatically switches your TV to the correct format (when in AUTO mode). However, some broadcasters do not transmit this WSS, and so your TV will not recognise which format is being transmitted. Therefore, DEFAULT ZOOM is used to choose your picture requirements when a Wide Screen Signal has not been sent or has not been detected.

...notes on Default 4:3

If your TV is receiving a 4:3 Wide Screen Signal, the viewing format displayed can be set using the default 4:3.

...notes Auto WS Detect

Auto Wide Screen Detect, when switched ON (and there is no WSS signal) enables your TV to look for the black bands at the top and bottom of the broadcast received and expands the picture in the appropriate aspect ratio. If this is set to 'OFF', these black bands cannot be detected. Therefore the picture format will revert to the setting specified in the DEFAULT ZOOM option if there is no WSS signal.

When watching some programs with Auto WS Detect ON, the C16:9L mode may result in unnecessary cropping at the top and bottom of the picture resulting in lost subtitles etc. To overcome this, please use the 16:9 or subtitle button on your handset.

When using external equipment with on-screen displays, incorrect operation of the Auto WS switching may occur while performing certain operations. For example, while watching a 16:9 cinema scope format film on a DVD player, pressing the pause button may result in the TV switching from the C16:9L mode to the default zoom. Visual forward and rewind operations may result in similar results. This action will also show your DVD players software menus on your television screen. This is normal operation.

Note: If you can see the screen format changing frequently after setting to 'ON' mode, set Auto WS Detect option to 'OFF' to stay at one fixed aspect ratio.

...notes on Teletext

Teletext is an on screen information magazine and it is entered by pressing the teletext button on your handset - a page similar to the one below will appear. Select the topic you want to view by entering a three digit number on your handset corresponding to the page number eg. press 1,0,1 for the News Headlines. Alternately, press a coloured button which relates to one of the topics at the bottom of the screen (the Fastext service) eg. press the green button on your handset for the sport magazine. Also, your Hitachi television can store upto 100 Teletext pages (English, French, German, Italian, Portuguese, Spanish, Romanian, Swedish, Finnish, and Turkish are available) which allows quick and easy access to any page.

dateservice ntime P100 CEEFAX 2 100 Wed 19 Mar 15:49/06 title CEEFAH CEEFAX AT-A-GLANCE PRESS HOLD NEWS HEADLINES 101 LOTTERY 555 NEWS INDEX 102 BACKBEAT 560 ELECTION 97 120 FREETIME 570 NEWS EXTRA 140 GARDENING 573 CITY BBC2 200 COOKBOOK 580 SPORT 300 ON THE BOX 590 WEATHER 400 TV GUIDE 600 TRAVEL 430 TV LINKS 615 CBBC INDEX 500 RADIO BBC1 640 SUB ZERO 501 EDUCATION BBC2 630 NEWSROUND 510 READ HERR BBC2 640 SHOWTIME 520 COMMUNITY BBC2 650 SWITCHED ON 540 RACING 660 >>>

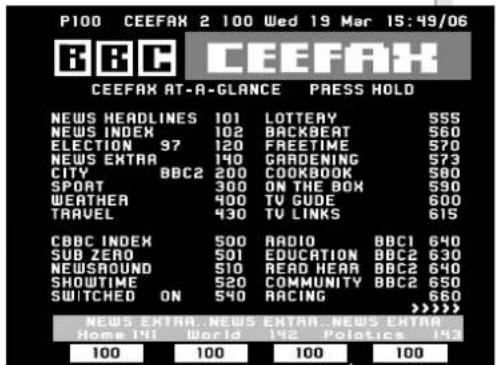

...notes on favourite pages

Your TV is capable of storing up to four of your favourite Teletext pages (per program) - maybe the sports page, cookery page or gardening page - the choice is yours. These are accessed, like Fastext, by pressing the colour coded buttons on your handset. Follow the steps below to enter your favourite pages.

1 Enter Teletext by pressing the Teletext button.

2 Enter favourite page mode by pressing the menu button (this allows you to swap between Fastext and favourite page mode).

3 Press a colour coded key you wish to use as a favourite page.

4) Enter the 3-digit page number using the buttons.

5 and hold the same colour coded button until the favourite page box turns white, then returns to its original colour.

6 Repeat if necessary using a different coloured key, or press the TV button to return to normal viewing.

P100 CEEFAX 2 100 Wed 19 Mar 15:49/06 BBC CEEFAX CEEFAX AT-A-GLANCE PRESS HOLD NEWS HEADLINES 101 LOTTERY 555 NEWS INDEX 102 BACKBEAT 560 ELECTION 97 120 FREETIME 570 NEWS EXTRA 140 GARDENING 573 CITY BBC2 200 COOKBOOK 580 SPORT 300 ON THE BOX 590 WEATHER 400 TV GUDE 600 TRAVEL 430 TV LINKS 615 CBBC INDEX 500 RADIO BBC1 640 SUB ZERO 501 EDUCATION BBC2 630 NEWSROUND 510 READ HEAR BBC2 640 SHOWTIME 520 COMMUNITY BBC2 650 SWITCHED ON 540 RACING 660 >>>> NEWS EXTRA NEWS EXTRA NEWS EXTRA Home 191 World 192 Politics 193 100 100 100 100

favourite page box

...notes on teletext dual page feature

At Hitachi we are committed to the constant development of our televisions capabilities. One of the features developed for the benefit of you, the customer, is the expansion of the Teletext service

from a one page screen display to a feature that can be manipulated in a number of ways. The instructions below show how to take advantage of this excellent feature whatever your viewing environment or demands.

option 1

standard teletext

Standard teletext can be entered by pressing the teletext button on your handset ☐ - this screen must be entered before any of the dual page options can be used.

P100 CEEFAX 2 100 Wed 19 Mar 15:49/06 BBC CEEFAXH CEEFAX AT-A-GLANCE PRESS HOLD NEWS HEADLINES 101 LOTTERY 565 NEWS INDEX 102 BACKBEAT 560 ELECTION 97 120 FREETIME 570 NEWS EXTRA 140 GARDENING 573 CITY BBC2 200 COOKBOOK 580 SPORT 300 ON THE BOM 530 WEATHER 400 TV GUIDE 500 TRAVEL 430 TV LINKS 615 CBC INDEX 500 RADIO BBC1 640 SUB ZERO 501 EDUCATION BBC2 630 NEWS ROUND 510 REEND WARR BBC2 640 SHOWTIME 520 COMMUNITY BBC2 650 SWITCHED ON 540 RACING 660 >>> News EXTRA NEWS EXTRA NEWS EXTRA News Head Sports Radio Weather

option 2

dual teletext page operation

This option splits the viewable screen area in half so that two teletext pages can be viewed together - although only one page can be changed at a time. This is achieved by pressing the 16:9 button on your handset once. Pressing the OK button on your handset places the right hand screen on the left side and 'freezes' the page. When a new page number is entered, the right hand side will change while the left will remain the same. Pressing the 'X' button on your handset will erase the left hand page.

P100 CEEFAX 2 100 Wed 15 Mar 15:49/06 BCC CEEFAX CEEFAX AT-A-GLANCE PRESS HOLD NEWS HEADLINES 101 LOTTERY 555 NEWS INDEX 102 BACKBEAT 563 ELECTION 97 120 FREETIME 570 NEWS EXTRA 140 GARDEWING 573 CITY BBC2 200 COOKBOOK 580 SPORT 300 ON THE BOX 590 WEATHER 130 TO GUIDE 600 TRAVEL 130 TO LIMKS 615 CBDC INDEX 500 RADIO BBC1 640 SUB ZERO 691 EDUCTION BBC2 630 NEWSGROUND 710 READ HEAR BBC2 643 SHOWING 530 COMMUNITY BBC2 653 SWITCHEN ON 510 RACING 660 >>>> NEXT EXTRA NEWS EARTH NEWS EARTH News Heads Sport TV/Radio Weather P300 CEEFAX 2 100 Wed 15 Mar 15:49/06 SPORT CEEFAX AT-A-GLANCE PRESS HOLD HEADLINES 300 SUMMARY 372 RESULTS 303 FISHING 373 FOOTBALL 310 BOXING 374 SUMMING 320 DRAYS 330 RUGBY 340 HOCKEY 350 TEINNS 355 RACING 361 ROEBBALL 385 ANTREE 362 BISKE TROLL 386 ASCOT 363 YCHEUNG 387 HROCKD 364 WIN CUP FINAL TICKETS TO WEMBLEY >>>> NEXT EXTRA NEWS EARTH NEWS EARTH News Heads Sport TV/Radio Weather

option 3

teletext page and TV viewing

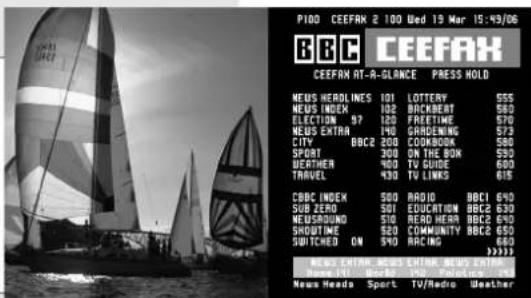

An advance on the previous 'mixing' facility where a transparent page overlaps the program on view, this option splits the screen in half. Press the 16:9 button twice on your handset (from option 1) to use this feature. This option has the same function as the standard teletext page (see option 1) but with the capacity to also view the program being watched before Teletext was entered.

PDD CEEFRX 2 100 Wed 19 Mar 15:49/06 BBC CEEFRX CEEFRX AT-A-GLANCE PRESS HOLD NEUS HERDLINES 101 LOTTERY 555 NEUS INDEX 102 BACKBENT 580 ELECTION 97 125 FREETIME 570 NEUS EXTRA 140 GARDENING 573 CITY BBC2 200 COOKBOOK 580 SPORT 300 ON THE BOK 590 BEETHER 400 TV GUIDE 600 TRAVEL 430 TV LINKS 615 CBC INDEX 500 RADI0 BBC1 640 SUB ZERO 501 EDUCATION BBC2 630 NEUSROUND 510 HEADWARI BBC2 630 SHOOTTIME 525 COMMUNITY BBC2 650 SWITCHED ON 540 RACING 660 >>>> NEUS ENTER NEUS ENTER NEUS ENTER News Made Sport TV/Radio Weather

standard 50Hz picture

1 2 3 4 5 6

first stage
+

1 2 3 4 5 6

second stage

[NO TEXT]

1 2 3 4 5 6

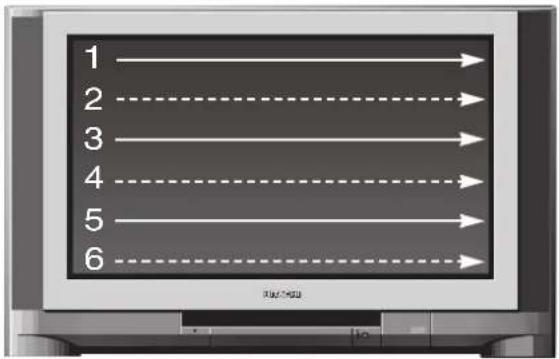

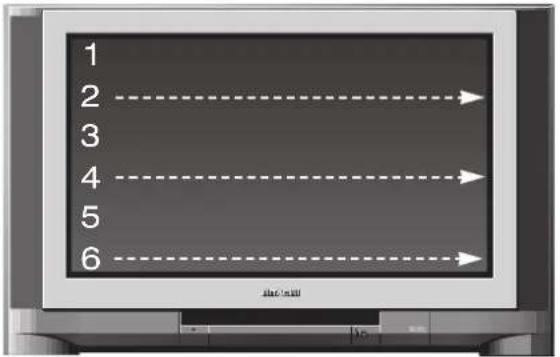

In a standard 50Hz television the picture is created in two separate stages. For example, scan lines 1, 3, and 5 etc. are filled in first. Once this stage is complete scan lines 2, 4, and 6 etc. are filled. This means that after these two stages all the lines on your television screen have been filled (625 in total) resulting in a complete frame. This process is then repeated creating the picture you see on the screen of a conventional TV.

Note: a standard 50Hz picture is not available on your model

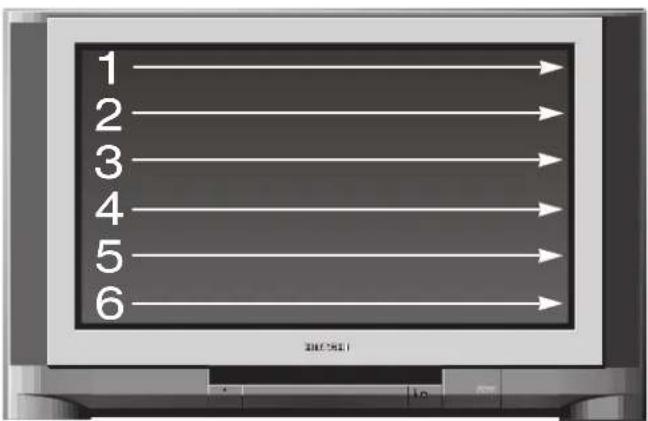

Progressive Scan

1 2 3 4 5 6

Hitachi's Progressive Scan TV's are constantly thinking ahead, filling in all the 625 scan lines in one go to make up a complete frame. This progressive addition of extra line information produces a picture that is brighter, more detailed than conventional televisions and displays the picture without the line 'flicker' often associated with 50Hz sets.

100Hz Natural Scan

Our 100Hz TV's create double the number of images per second, compared to a conventional 50Hz set. This delivers sharper, clearer, more stable total pictures which are flicker free. Our 100Hz sets also feature "Natural Scan" technology. This process eliminates the slight trembling of lines on the picture that is visible on conventional TV sets giving a rock steady picture which is clear and detailed. To switch between Progressive Scan and 100Hz press the button (displayed alongside the title) on your handset.

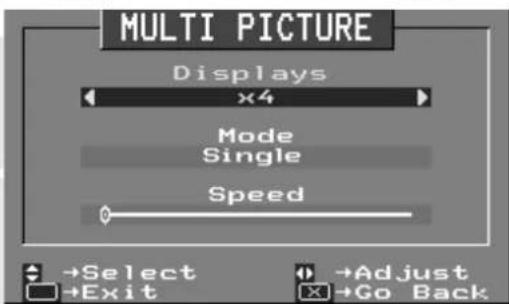

...notes on multiple picture

By pressing the multiple picture button on the handset ( ☑ ) your TV screen will step through and display all channels received through your aerial (depending on the display mode - see below).

Example on right shows a Display Mode of

Black-and-white photo collage showing four nature scenes: sun, solar eclipse, water tower, and daisy flower (no text or symbols)

1

Press the MENU button to obtain MAIN MENU.

2

Press the cursor down button to select FEATURES.

3

Once highlighted, accept selection.

OK II

MAIN MENU Picture Audio Sound Mode Features →Select →Exit OK→Confirm

4

Use up/down cursor buttons to select MULTI PICTURE feature.

5

Press the OK button on your handset to accept selection.

FEATURES Sleep Timer OFF Default Zoom 16:9 Default 4:3 16:9 Auto WS Detect SLOW Multi Picture +Select +Exit +Adjust +Go Back

6

Use the up and down buttons to select an option, use the left and right keys to adjust values.

Note: If the Display Mode is set to 16 and you can only receive 10 channels, 6 of these will be repeated.

MULTI PICTURE Displays ×4 Mode Single Speed →Select →Adjust →Exit →Go Back

display

This determines the amount of channels which can be viewed at one time - either 4, 12, or 16.

mode

Use this to show multi-pictures of different channels (option 'Single'), or multiple pictures of the same channel (option 'Multiple').

speed

This is used to decide the time delay between the pictures appearing on your TV screen when in Multi Picture mode - the pointer to the left means a slower speed and so a longer delay, pointer to the right means a faster speed and so a shorter delay.

7

To return to normal TV operation press the television button on your handset.

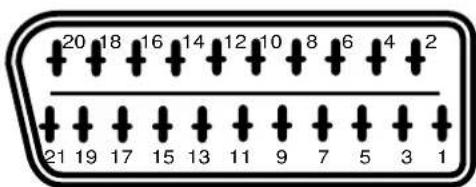

AV1 scart input • Use this socket to connect ordinary VHS, S-VHS or Hi8 equipment to your TV. AV2 scart input Use this to connect digital video broadcasting equipment, home computers and home entertainment systems to your TV RF aerial socket This should be permanently connected to an RF source - i.e your aerial antenna. Before connecting external equipment, please consult audio visual setup . DIN sockets The DIN sockets are used to connect two external speakers for which no amplifier is necessary. R is for the right external speaker, and L is for the left external speaker. Please Note: Do not connect supplied rear left and rear right external speakers to these sockets. Obtain speakers with DIN sockets from your HITACHI dealer. 18V socket The 18V power output socket is specifically designed for HITACHI accessories - under no circumstances connect any other accessory to this socket as this could cause irreparable damage to your equipment.

...notes on audio equipment

If you have purchased your TV complete with Hitachi's power console please refer to the Users Guide that is supplied with the equipment.

Your HITACHI dealer can also advise you on the correct amplifier and speaker choice for your TV.

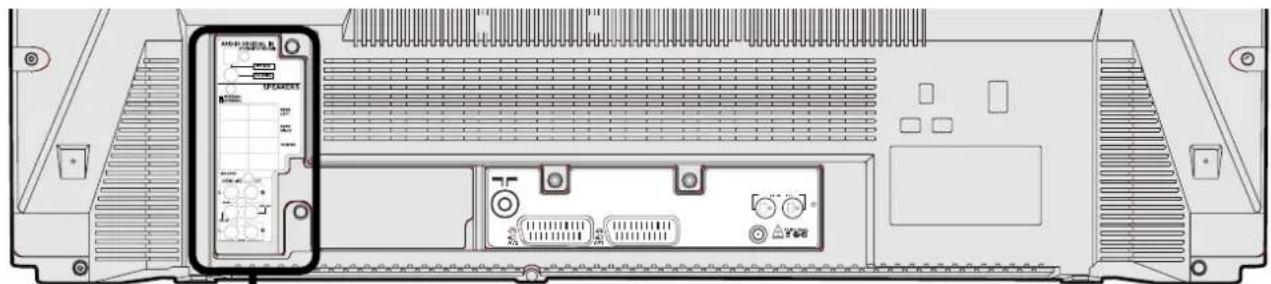

...notes on disc playing equipment

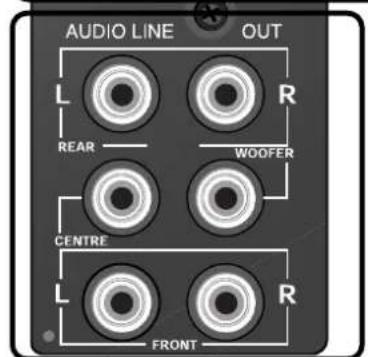

The Audio Visual output of a Digital Versatile Disc, Compact Disc, or laser disc can be connected to any of the 3 Audio Visual sockets of your TV, but for better quality it is recommended that they are connected to either scart sockets AV1 or AV2.

If digital Audio, such as PCM, Dolby Digital, DTS or MPEG multichannel is to be employed, a special connection will need to be made to your television. You have a choice of two formats when connecting this type of equipment - an optical connection or a co-axial connection.

television co-axial and optical connections scart leads are an optional extra* Digital audio out OPTICAL CO-AXIAL ANALOGUE AUDIO OUT VIDEO OUT Disc playing equipment (this should be plugged into a mains socket) The Dolby Digital RF output of a laserdisc player cannot be connected to the digital audio input directly. Please obtain an RF demodulator from an electrical retailer. When using a Laserdisc player in conjunction with an RF digital demodulator, 'popping' may occur while carrying out various search operations with the player. co-axial connection If the coaxial connection is to be used, connect a 75Ωphono cable between the coaxial output of your Digital Versatile Disc, Compact Disc or laser Disc and the coaxial input of your television. optical connection Remove the dust covers from the optical output of the external disc player you wish to connect to your television. Store these in a safe place. Using a special optical lead available from high street retailers make the connection between the two points. You are now ready to view the contents of your chosen disc.

Only one connection should be made - if both the optical an co-axial formats are connected, the optical link will take priority.

Diagram of an internal device rear panel with labeled ports and a zoomed-in view showing internal components like 'SPARANT' and 'Tee'.

AUDIO DIGITAL IN PCM/BITSTREAM) OPTICAL CO AXIAL SPEAKERS INTERNAL EXTERNAL REAR LEFT REAR RIGHT CENTRE WOOFER

AUDIO LINE OUT L R REAR WOOFER CENTRE L R FRONT

plastic dust cap

This is used to protect the optical digital connection from foreign bodies.

The plastic dust cap protecting the optical digital in socket has to be removed before connection with external equipment. DO NOT THROW THE DUST COVER AWAY. KEEP THE DUST COVER AWAY FROM YOUNG CHILDREN.

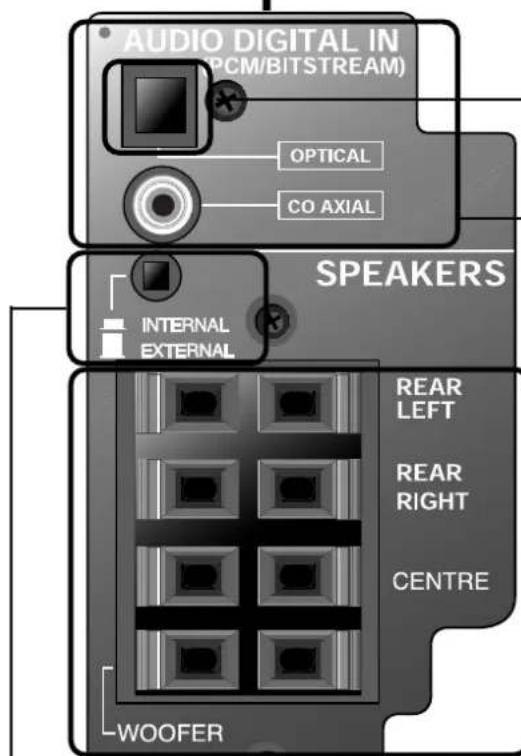

coaxial and optical digital connectors

Use one of these connections to connect your TV to external equipment such as a DVD, LaserDisc or Compact Disc player.

external speaker terminal block

The speaker terminals are used to connect external speakers for which no amplifier is necessary

REAR RIGHT is for the rear right external speaker, and REAR LEFT is for the rear left external speaker.

Connect the BLACK lead to the BLACK sockets Connect the STRIPED lead to the RED sockets.

Please Note: The REAR LEFT and REAR RIGHT speakers should have an impedance of 6 - 8Ω. The FRONT LEFT and FRONT RIGHT speakers should have an impedance of 8Ω.

amplifier

These sockets are used in conjunction with an external amplifier. Their volume output can be controlled via the main volume control and also the Speaker Setup menu - see Speaker Setup in the program, sound and vision adjustment section.

internal/external speaker switch\*

Use this button to switch between your TV's internal speakers and connected external speakers *not available on model C36WF810N

Please ensure that the speakers are of the correct impedance and power rating before attempting to connect to any of the audio sockets (please refer to technical data)

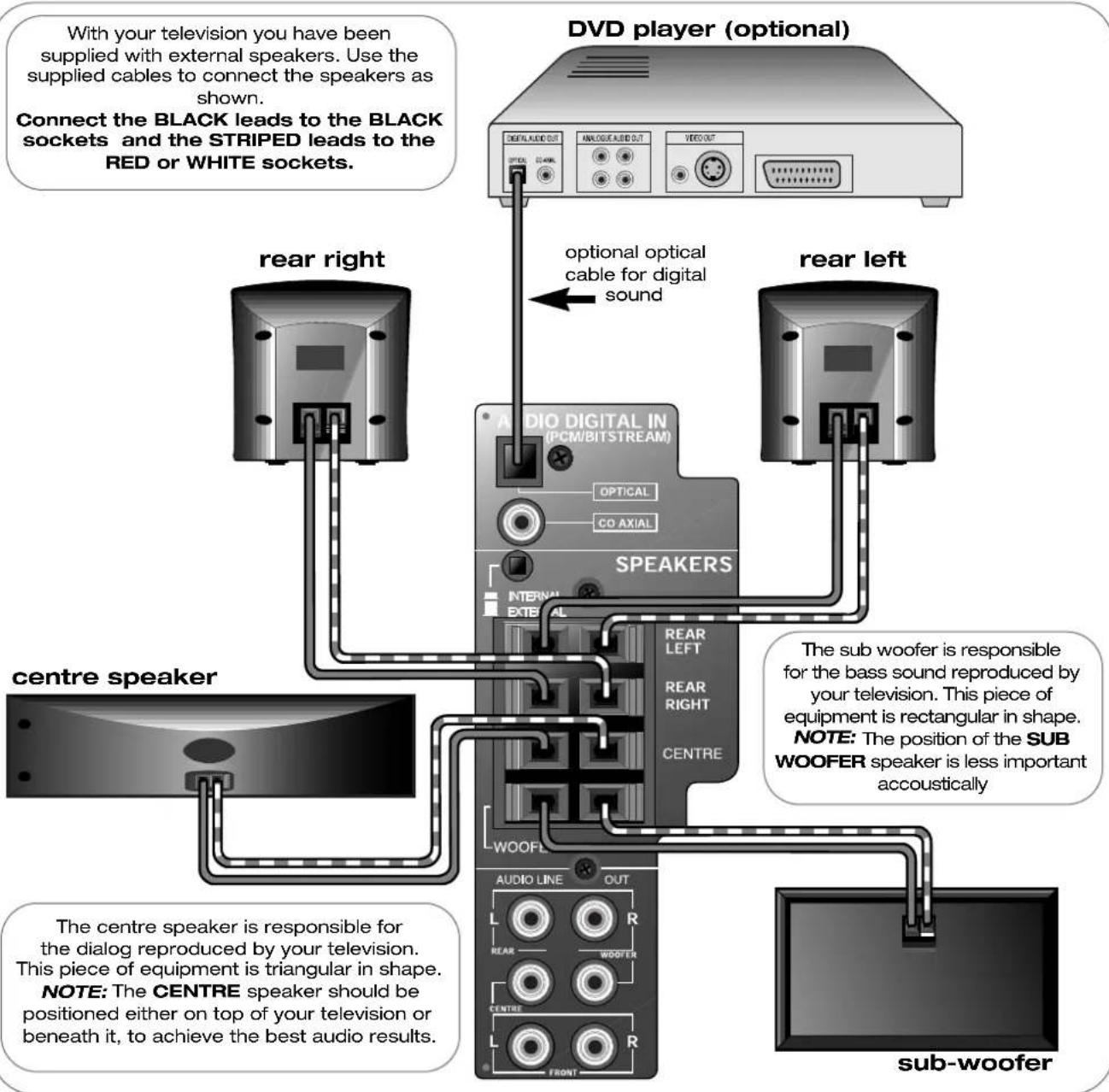

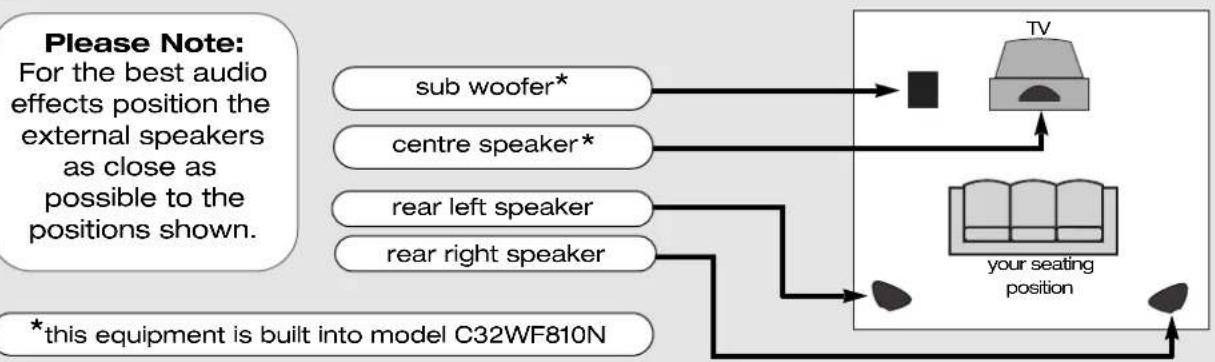

...notes on external speaker setup

The external speaker equipment supplied with your television also comes with connecting cables. Use these cables to connect the sockets at the rear of your speakers to those found at the rear of your television.

	rear right external	rear left external	front right external	front left external	centre speaker	sub-woofer
C32WF810N	√	√	optional optional	optional	√ integral	√ integral
C36WF810N	√	√	optional optional	optional	√ separate	√ separate
    note1["With your television you have been supplied with external speakers. Use the supplied cables to connect the speakers as shown. Connect the BLACK leads to the BLACK sockets and the STRIPED leads to the RED or WHITE sockets."]
    note2["The centre speaker is responsible for the dialog reproduced by your television. This piece of equipment is triangular in shape. NOTE: The CENTRE speaker should be positioned either on top of your television or beneath it, to achieve the best audio results."]
    note3["The sub woofer is responsible for the bass sound reproduced by your television. This piece of equipment is rectangular in shape. NOTE: The position of the SUB WOOFER speaker is less important accoustically"]
    note4["The center speaker is responsible for the dialog reproduced by your television. This piece of equipment is triangular in shape. NOTE: The CENTRE speaker should be positioned either on top of your television or beneath it, to achieve the best audio results."]

important note

It is very important that the AV menu setup is adjusted correctly when connecting external equipment to your TV - the incorrect setting may lead to picture breaking and splitting. It must also be noted that when this external equipment is a VCR or camcorder, and your VCR mode is set to 'ON' Progressive Scan is not an option during playback and your TV automatically displays the picture at 100Hz.

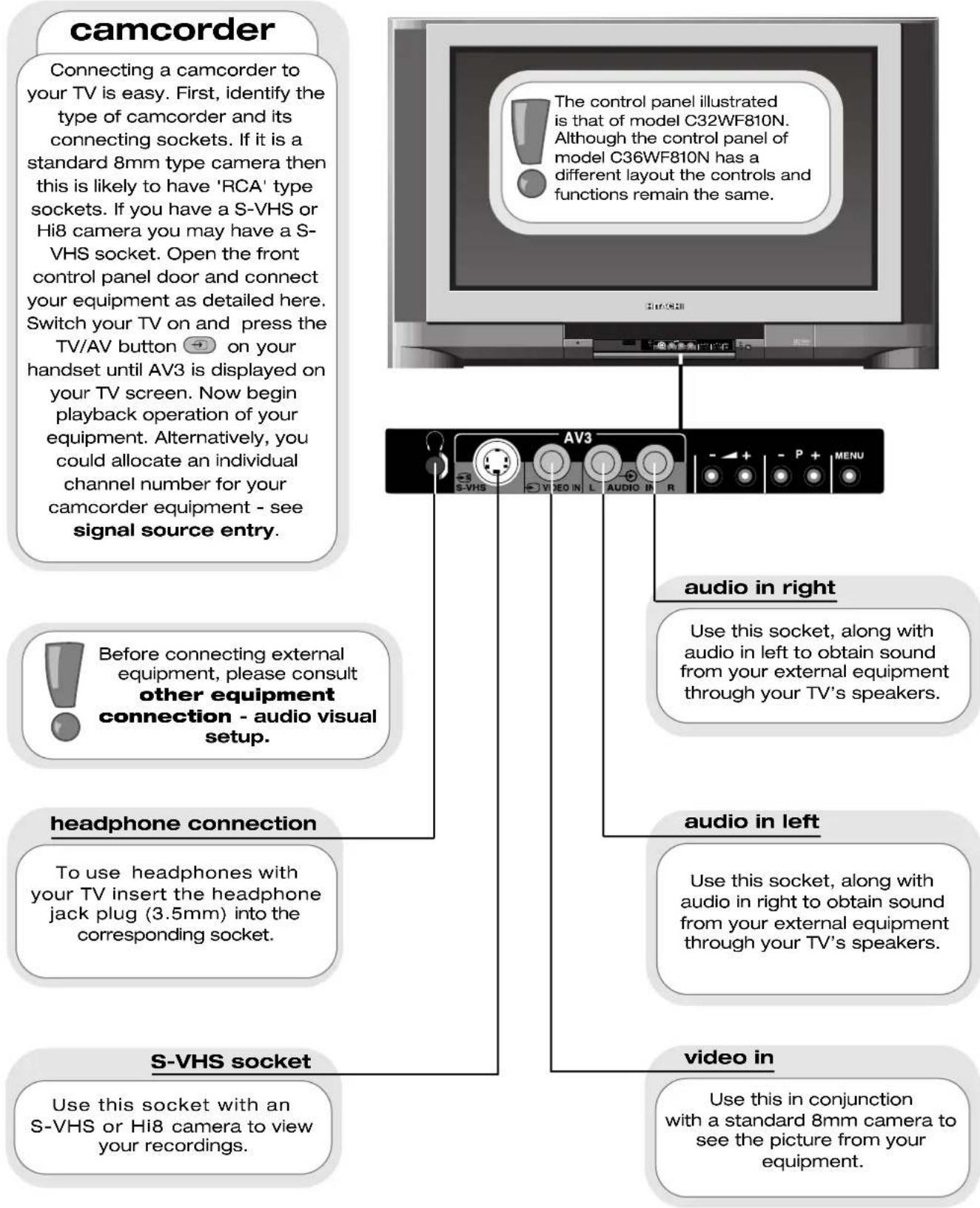

...notes on using VCR's, camcorders and LaserDiscs played through AV input

The AV SETUP menu is used as a means of instructing your television to recognise what external equipment is being connected to your TV's scart, S-VHS and/or phono sockets. If you have any equipment connected to your TV (either permanently, like a VCR, or temporary, like a camcorder) it is important that your TV recognises which kind of equipment is connected. For VCR's, camcorders and LaserDiscs the appropriate AV VCR mode should be set to ON in the menu. This helps to provide a steady picture when playing back a recorded picture. If an S-VHS or Hi8 piece of equipment is to be used, these should be connected to either AV2 or AV3.

1

Press and hold the MENU button for 5 seconds. The INSTALL option in the MAIN MENU appears.

2

Press the cursor down button to select INSTALL.

3

Once highlighted, accept selection.

OK II

MAIN MENU


Audio

Sound Mode

Features

Install

→Select →Exit

→Confirm

4

Press the cursor down button to select AV SETUP.

5

Once highlighted, accept selection.

OK II

INSTALL

Manual Setup

Language

Speaker Setup

Digital Audio Setup

AV Setup

Installation

+Select +Exit

+Confirm +Go Back

6

Use the up/down cursor keys to select AV to adjust.

7

Adjust chosen AV by using the left/right cursor buttons.

8

Once highlighted, accept selection.

OK II

AV SETUP

AV1 SAV Mode AUTO

AV2 VCR Mode ON

AV2 Output RF

AV3 VCR Mode OFF

→Select →Exit

→Adjust →Go Back

connecting to the mains socket

Important - Please read television safety before connecting your television and external equipment.

If digital video broadcasting equipment, computer equipment or video games are to be connected to this TV, use the AV2 located on the rear of your TV for RGB input. PLEASE NOTE: Prolonged use of computer equipment or games on this TV may cause permanent damage to your picture tube. To avoid such damage, reduce the brightness and contrast to an acceptable level and limit the duration of use of computer equipment.

...notes on signal source entry

Each piece of external equipment connected to your TV must have its own input socket. It would also be easier, and more organised, if the external equipment connected also had its own program number. Signal Source entry allows us to tell the allocated program what equipment is connected to which socket. This would make the switching between normal operation and the connected equipment much smoother.

For example, if you want to connect a games machine to your TV -

1. connect to socket AV2 via a scart lead.

2. give your games machine an empty program number of its own.

3. if desired change this program name.

4. give this channel the correct AV program source (in this case AV2).

1

Press and hold the MENU button for 5 seconds. The INSTALL option in the MAIN MENU appears.

2

Press the cursor down button to select INSTALL.

3

Once highlighted, accept selection.

OK II

MAIN MENU Picture Audio Sound Mode Features Install →Select OK→Confirm →Exit

4

Press the cursor down button to select MANUAL SETUP.

5

Once highlighted, accept selection.

OK II

INSTALL Manual Setup Language Speaker Setup Digital Audio Setup AV Setup Installation →Select →Exit →Confirm →Go Back

6

Use the cursor keys to move the selection bar over the AV required to be adjusted.

7

Once highlighted, accept the selection to change your TV's Audio Visual setting and you will see the selection bar turn red - it is ready to be changed.

OK II

MANUAL SETUP PR NAME FREQ AV 0 VIDEO CH 35 1 BBC1 471.25 2 BBC2 519.18 3 IV 495.18 4 CH4 503.25 5 CHS 511.25 6 SAT 487.18 7 551.25 8 535.25 9 567.25 +Select P+ P Page Up +Edit +Exit P- P Page Dn +Go Back

8

Select your method of signal source entry using the up/down cursor buttons.

option 1

AV1 is the signal source used when connecting external equipment (eg. VCR) through a scart lead to the AV1 socket at the rear of your TV.

MANUAL SETUP PR NAME FREQ AV 0 VIDEO CH 35 1 BBC1 471.25 2 BBC2 519.18 3.ITV 495.18 4 CHE 503.25 5 CHS 511.25 6 SAT 487.18 7 551.25 AV1 8 535.25 9 567.25 →Select →Store →Exit →Cancel

option 2

AV2 is the signal source used when connecting external equipment such as home entertainment systems and satellite decoders through a scart lead to the AV2 socket at the rear of your TV.

MANUAL SETUP PR NAME FREQ AV 0 VIDEO CH 35 1 BBC1 471.25 2 BBC2 519.18 3.ITV 495.18 4 CH4 503.25 5 CH5 511.25 6 SAT 487.18 7 551.25 AV2 8 535.25 9 567.25 +Select Store =Exit +Cancel

option 3

AV3 is the signal source used when connecting temporary equipment like a camcorder to your TV through the audio/video sockets at the front of your TV.

MANUAL SETUP PR NAME FREQ AV 0 VIDEO CH 35 1 BBC1 471.25 2 BBC2 519.18 3.ITV 495.18 4 CH4 503.25 5 CH5 511.25 6 SAT 487.18 7 551.25 AV3 8 535.25 9 567.25 +Select +Store +Exit +Cancel

option 4

RGB is the signal source used when connecting digital video broadcasting equipment or home entertainment systems to your TV through the AV2 scart lead at the rear of your TV.

MANUAL SETUP PR NAME FREQ AV 0 VIDEO CH 35 1 BBC1 471.25 2 BBC2 519.18 3.ITV 495.18 4 CH4 503.25 5 CH5 511.25 6 SAT 487.18 7 551.25 RGB 8 535.25 9 567.25 +Select +Store +Exit +Cancel

...notes on RF signal source

RF is the signal source used for standard television broadcasting and this should be used as the setting for programs BBC1, BBC2, ITV, CH4/S4C, and CH5 (where available). This source appears blank.

MANUAL SETUP PR NAME FREQ AV 0 VIDEO CH 35 1 BBC1 471.25 2 BBC2 519.18 3.ITV 495.18 4 CH4 503.25 5 CH5 511.25 6 SAT 487.18 7 551.25 8 535.25 9 567.25 +Select +Store +Exit +Cancel

9

Once the signal source for each relevant program number has been decided, this can be stored in your TV's memory by pressing the conformation button.

OK II

10

To return to normal TV operation press the television button on your handset.

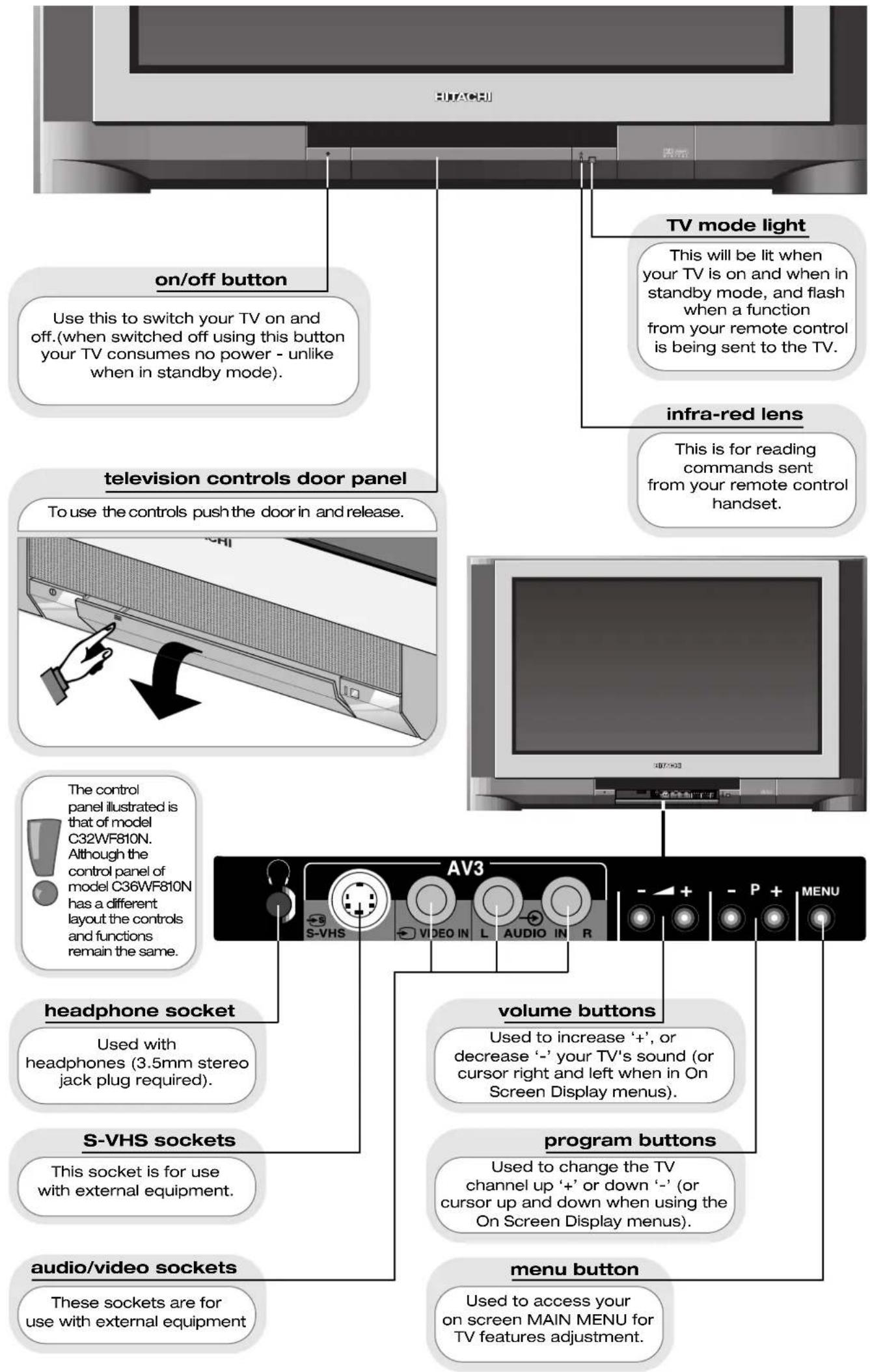

on/off button Use this to switch your TV on and off.(when switched off using this button your TV consumes no power - unlike when in standby mode). TV mode light This will be lit when your TV is on and when in standby mode, and flash when a function from your remote control is being sent to the TV. infra-red lens thelevision controls door panel To use the controls push the door in and release. The control panel illustrated is that of model C32WF810N. Although the control panel of model C36WF810N has a different layout the controls and functions remain the same. AV3 S-VHS VIDEO IN L AUDIO IN R volume buttons Used to increase '+', or decrease '-' your TV's sound (or cursor right and left when in On Screen Display menus). S-VHS sockets This socket is for use with external equipment. program buttons Used to change the TV channel up '-' or down '-' (or cursor up and down when using the On Screen Display menus). audio/video sockets These sockets are for use with external equipment. menu button Used to access your on screen MAIN MENU for TV features adjustment.

problem identification		remedypossible cause
1. No digital audio. Pressing the info/recall button on your handset doesn't show Digital audio modes or format in top right hand corner of screen.	No or poor digital connection between television and external equipment	See ‘DVD, CD and LaserDisc player connection’
	Incorrect Decode Mode	Set the Decode Mode to correct AV (see Decode Mode set up procedure)
	Laserdisc with Dolby Digital RF signal cannot be detected	Fit adaptor as described in ‘DVD, CD and LaserDisc player connection’
	Decode Mode is set for wrong AV (you will have the correct picture from your external equipment but no sound)	Set the Decode Mode to Digital or Auto (see ‘Digital Audio Status - Decode Mode’ set up procedure)
	Television is set to the wrong AV (you will have the wrong picture or no picture at all)	Use the Manual Setup procedure to set the AV correctly, or use the AV key to cycle through the Audio Visual options.
	Player is not playing because it has been switched off or placed in ‘Pause’ mode.	Refer to external equipments instructions
	Invalid or damaged disc has been placed in player.	Refer to external equipment instructions. Is the disc compatible with the external equipment you are using?
	Signal options not supported by television.	See Digital Audio Status for list of modes available.
	Digital audio out has not been enabled on player.	Refer to external equipment instructions on how to enable the digital audio output.
2. Digital audio works but only PCM mode is available even when playing a DTS, Dolby Digital or MPEG encoded disc.	Your external equipment has not been configured to output a digital bitstream, does not support DTS, Dolby Digital or MPEG output, or the correct format is not enabled on the external equipment.	Refer to external equipment instructions for compatibility.
	You have not selected a DTS, Dolby Digital or MPEG track from the DVD title menu	Refer to title menu on disc to set audio format
3. No sound even at maximum volume, although the correct picture can be seen.	Amplifiers muted or set to ‘NONE’.	See the Speaker Setup menu.
	Headphones have been inserted into front control panel.	Remove headphones.
	External/internal speaker switch is in the incorrect position.	Place in correct position to use appropriate speakers.
4. Picture is OK, but digital audio is intermittent.	Poor connections.	Check your coaxial/optical connections.
	Faulty disc.	Try an alternative disc.
	Faulty external equipment.	Try alternative equipment or contact your equipments supplier.
5. Picture and digital audio are intermittent.	Has a scart lead connection been made between TV and external equipment?	Check quality of connection.
	Faulty external equipment.	Try alternative equipment or contact your equipments supplier.
6. One or more of the rear channels is not working.	The disc placed in your external equipment has no surround information on it.	This is normal operation
	The rear speakers are switched off.	Check the Speaker Setup menu.
	You are in Stereo mode.	Change the mode in the Sound Mode menu.
	The cables are connected incorrectly.	Check the speaker connections.
	You have Surround Speakers set to 'NONE' in the Speaker Setup menu.	Check the Speaker Setup menu.
	You are playing a disc with an incompatible sample rate.	This is normal operation
	The speaker cables are connected incorrectly.	Check the speaker connections. Use the noise sequencer in the speaker setup menu to check the speakers are positioned and connected properly.
	Your external equipment has not been configured to output a digital bitstream, does not support DTS, Dolby Digital or MPEG output, or the correct format is not enabled on the external equipment.	Refer to external equipment instructions for compatability.
	You have not selected a DTS, Dolby Digital or MPEG track from the DVD title menu	Refer to title menu on disc to set audio format
7. The sound from the external speakers seems to be coming from the wrong source (ie. the left speaker sound is coming from the centre speaker).	The speaker cables are connected incorrectly.	Check the speaker connections. Use the noise sequencer to check the speakers are positioned and connected properly.
8. No digital mode options available in Sound Mode Menu.	Are headphones inserted into front control panel?	Remove headphones to adjust Surround Mode.
	You are playing a disc with a high sample rate.	This is normal operation.
9. Only left and right speakers are working.	You are in stereo mode.	Change the mode in the Sound Mode menu.
	The Rear, Centre and Subwoofer speakers are set to 'NONE' or the Rear, Centre and Subwoofer amplifiers are switched off.	Check the Speaker setup menu
	There is no surround/centre/ LFE information encoded onto the disc.	This is normal operation.
	Your external equipment has not been configured to output a digital bitstream, does not support DTS, Dolby Digital or MPEG output, or the correct format is not enabled on the external equipment.	Refer to external equipment instructions for compatability.
	You have not selected a DTS, Dolby Digital or MPEG track from the DVD title menu	Refer to title menu on disc to set audio format

questions

Why won't my TV switch on?

Why doesn't my remote control handset work?

answers

Check that your plug is connected to the socket and switched on, check fuse and make sure TV is not in standby mode (see below)

Make sure there are no obstructions between the handset and the TV's infra-red lens, or the batteries may be exhausted - replace the whole set of batteries.

problem identification

Black-and-white photo of a waterfront scene with a traditional boat on the water, city buildings in the background (no visible text or symbols)

snowy picture - poor sound

Black and white photo of a tiger's face on a flat-screen TV (no visible text or symbols)

multiple images - sound O.K

Black-and-white photo of a flat-screen TV displaying a person in motion (no visible text or symbols)

intermittent interference

Front view of a flat-screen CRT television displaying the screen (no visible text or symbols)

no picture or sound

Connection of aerial lead to the TV is poor.

Corroded or poor aerial connections.

Aerial has moved position.

Adverse weather conditions.

Transmitter problems.

Aerial has moved position.

TV not tuned correctly.

Adverse weather conditions.

Transmitter problems.

AV Input not set correctly.

Magnetic interference from electrical or mechanical motors, fluorescent lights, portable radios etc.

TV may be in AV mode.

Picture/sound controls set to minimum.

TV in standby mode.

remedypossible cause

Make new connection and/or change aerial plug.

Make new connections or renew lead.

Re-align aerial.

None.

Check with local Operator.

Re-align aerial.

Re-tune or fine tune TV.

None.

Check with local Operator.

Check what external equipment is connected and check its scart AV status.

Check devices for shielding and renew if necessary or move further from TV.

Press television button or 0 to 9 buttons on your handset to return to normal TV mode.

Check picture/sound controls (go to MAIN MENU).

press one of the buttons 0 to 9.

If a problem still continues after referring to this guide contact your dealer immediately.

Under NO circumstances remove the rear cover of your TV.

Guarantee

Thank You for purchasing this Hitachi Television.

In the unlikely event that this product should develop a fault, we undertake to repair or replace any part of the product which fails due to a manufacturing defect within 12 months of the date of purchase provided that...

1. the product has been installed and used only in accordance with the instructions supplied with the product.
2. the product has not been repaired, maintained, or modified by any person other than a Hitachi authorised dealer.
3. the product serial number has not been removed or altered.

- this guarantee does not apply to a product acquired second hand or for commercial or communal use.

- this guarantee does not cover the replacement of exhausted batteries, the adjustment of user controls, or aerial alignment.

•any parts replaced under this guarantee shall become the property of Hitachi Home Electronics (Europe) Ltd,
- please note that evidence of the date of purchase will be required before any service under this guarantee is carried out

Use the boxes provided below to record your TV's Model and Serial Number - these are found on the rating plate located on the rear of the TV. Also, record where and when you purchased this T.V. This information will help any future queries you may have and should be used in all correspondence with Hitachi service centres.

This guarantee does not affect your statuary rights.

In all cases of difficulty please consult your Hitachi dealer.

HITACHI

Environmental Notice

Hitachi are signatories to the commitment made by the consumer electronics industry on reducing energy consumption by televisions and video recorders on standby.

Even though your TV has a low power consumption, you can reduce waste to zero if you switch off the set at the mains after use. Your TV should certainly be switched off overnight or when you are away from home. Other factors should also be considered when operating your TV. Reducing volume settings to sensible levels can reduce power consumption as well as reducing noise pollution, and reducing contrast can provide a more pleasing picture as well as reducing power consumption.

Hitachi Home Electronics (Europe) Ltd. manufacturing site in Wales is a BSI Registered Company, and has been assessed to ISO 9001 Quality Management Standard, certificate FM32366. Your television has been manufactured under the Environmental Quality Management Standard ISO14001, certificate EMS 36168.

The paper used for this Users Guide has been produced from sustainable forests, part of Hitachi's on going commitment to the global environment.

television specification

Interlace	100Hz
Progressive Scan	50Hz
Aerial Impedance	75Ω unbalanced
Picture Tube	C32WF810N = 76cm typeC36WF810N = 86cm type
Mains Voltage	220 - 240V AC 50 Hz
Internal Speakers	6 x 12cm type x 2
Power Consumption	C32WF810N = 126W (approx)C36WF810N = 140W (approx)Standby <6W (all models)
Weight	C32WF810N = 59Kg (NET)C36WF810N = 75Kg (NET)
Dimensions (W x D x H)	C32WF810N = 883x572x551 mmC36WF810N = 956x580x623 mm
Remote Control Batteries	2 X HITACHI UM-4(equivalent 'AA')

scart socket AV1

20 18 16 14 12 10 8 6 4 2 21 19 17 15 13 11 9 7 5 3 1

1	AUDIO OUT (RIGHT)
2	AUDIO INPUT (RIGHT)
3	AUDIO OUT (LEFT)
4	GROUND (AUDIO)
5	NOT USED
6	AUDIO INPUT (LEFT)
7	NOT USED
8	SWITCHING INPUT
9	NOT USED
10	NOT USED
11	NOT USED
12	NOT USED
13	CHROMINANCE GROUND
14	NOT USED
15	CHROMINANCE INPUT S-VHS
16	NOT USED
17	GROUND (VIDEO)
18	GROUND (VIDEO)
19	COMPOSITE VIDEO OUTPUT
20	COMPOSITE VIDEO OR
	COMPOSITE LUMINANCE S-VHS
21	GROUND

scart socket AV2

20 18 16 14 12 10 8 6 4 2 21 19 17 15 13 11 9 7 5 3 1

1	AUDIO OUT (RIGHT)
2	AUDIO INPUT (RIGHT)
3	AUDIO OUT (LEFT)
4	GROUND (AUDIO)
5	GROUND (BLUE)
6	AUDIO INPUT (LEFT)
7	BLUE INPUT
8	SWITCHING INPUT
9	GROUND (GREEN)
10	NOT USED
11	GREEN INPUT
12	NOT USED
13	GROUND (RED)
14	GROUND (BLANKING)
15	RED INPUT
16	STATUS (BLANKING) INPUT
17	GROUND (VIDEO)
18	GROUND (VIDEO)
19	COMPOSITE VIDEO OUTPUT
20	COMPOSITE VIDEO INPUT
21	GROUND

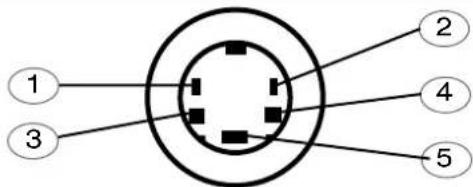

S-VHS socket

1 3 2 4 5

PIN 1 2 3 4 5

FUNCTION Chrominance input Luminance input Chrominance ground Luminance ground Frame ground

Due to the continual development of Hitachi products the features, functions and specifications of the television models in this guide are subject to change without notice. Weights and dimensions shown are approximate.

HITACHI

Hitachi, Ltd. Tokyo, Japan

International Sales Division

THE HITACHI ATAGO BUILDING,

No. 15–12 Nishi Shinbashi, 2 – Chome,

Minato - Ku, Tokyo 105-8430, Japan.

Tel: [phone]

HITACHI EUROPE LTD,

Whitebrook Park

Lower Cookham Road

Maidenhead

Berkshire

SL6 8YA

UNITED KINGDOM

Tel: [phone]

Fax: [phone]

Email: [e-mail]

HITACHI EUROPE S.A.

364 Kifissias Ave. & 1, Delfon Str.

152 33 Chalandri

Athens

GREECE

Tel: [phone]

Fax: [phone]

Email: [e-mail]

HITACHI EUROPE GmbH

Munich Office

Dornacher Strasse 3

Email: [e-mail]

HITACHI EUROPE S.A.

Gran Via Carlos III, 86, planta 5

Email: [e-mail]

HITACHI Europe AB

Box 77 S-164 94 Kista

SWEDEN

Tel: [phone]

Fax: [phone]

Email: [e-mail]

HITACHI EUROPE S.A.S

Lyon Office

B.P. 45, 69671 BRON CEDEX

FRANCE

Tel: [phone]

Fax: [phone]

HITACHI EUROPE LTD (Norway) AB

STRANDVEIEN 18

1366 Lysaker

NORWAY

Tel: [phone]

Fax: [phone]

Email: [e-mail]

HITACH EUROPE AB

Egebækgård

Egebækvej 98

DK-2850 Nærum

DENMARK

Tel: [phone]

Fax: [phone]

Email: [e-mail]

HITACHI EUROPE AB

Neopoli / Niemenkatu 73

FIN-15140 Lahti

FINLAND
