CVP-409-407-405-403-401-CGP-1000-PSR-S900-S700-PSR-OR700 - Numeric keypad YAMAHA - Free user manual and instructions

Product Type	Digital Keyboard / Workstation
Brand	YAMAHA
Compatible Models	CVP-409, CVP-407, CVP-405, CVP-403, CVP-401, CGP-1000, PSR-S900, PSR-S700, PSR-OR700
Number of Keys	88 keys (CVP/G) or 61 keys (PSR)
Keyboard	Weighted / Heavy Touch (GH/GHE) on CVP; Light Touch on PSR
Maximum Polyphony	128 notes
Number of Voices	Over 500 voices (XG, MegaVoice, Sweet!, Cool!, Live!)
Accompaniment Styles	Over 300 styles
Effects	Reverb, Chorus, DSP, Master EQ
Connectivity	USB TO HOST, USB TO DEVICE, MIDI In/Out, Headphone jack, Audio outputs L/R, Audio input
Power Supply	12V AC adapter (included) or batteries (PSR models)
Dimensions (approx.)	CVP: 1400 x 500 x 900 mm; PSR: 1000 x 400 x 150 mm
Weight (approx.)	CVP: 50-65 kg; PSR: 8-12 kg
Included Accessories	CD-ROM with drivers and software, USB cable, music stand, installation manual
Main Functions	Song playback, recording, sequencer, accompaniment style, built-in lesson
Maintenance and Cleaning	Clean with a soft dry cloth; avoid solvents and abrasives
Safety	Do not expose to moisture or shocks; use the original adapter
Spare Parts and Repairability	Contact an authorized Yamaha service center for repairs
General Information	Made in Japan / China; Compatible with Windows XP/2000 for software

Frequently Asked Questions - CVP-409-407-405-403-401-CGP-1000-PSR-S900-S700-PSR-OR700 YAMAHA

How to install the USB-MIDI driver under Windows XP?

Connect the instrument to the computer via USB, then insert the CD-ROM. The Add New Hardware Wizard appears. Follow the instructions by selecting 'Install the software automatically'. Restart the computer after installation.

What to do if the Add New Hardware Wizard does not appear?

Check that the USB cable is properly connected and that the USB port is enabled in Device Manager. If an 'Unknown device' appears, delete it and reinstall the driver.

How to install the MEGAEnhancer or Musicsoft Downloader software?

Insert the CD-ROM and click the corresponding menu in the startup window. This will redirect you to the download page on the Yamaha website. Download and install the software following the instructions.

Why does my computer not detect the instrument after USB connection?

Make sure the instrument is turned on and the USB-MIDI driver is installed. Check in Device Manager that no conflict appears. Disconnect and reconnect the USB cable.

How to uninstall software installed from the CD-ROM?

Go to Control Panel, Add/Remove Programs, select the software and click Remove. Follow the on-screen instructions.

Can I use Musicsoft Downloader with all listed models?

Yes, Musicsoft Downloader is compatible with these models. It is the only valid file transfer software for these instruments.

What to do if the sound is delayed when playing via the computer?

Check that your computer meets the minimum system requirements and that no other resource-intensive applications are running in the background. Reduce the latency in the sequencer software settings.

How to clean my Yamaha digital keyboard?

Use a soft, dry cloth. Never use solvents, alcohol, or abrasive products. For keys, a slightly damp cloth may be used, but wipe immediately.

Where can I find the latest version of the USB-MIDI driver?

Visit the Yamaha download site at http://music.yamaha.com/download. Check for updates regularly.

My instrument does not turn on, what should I do?

Check the connection of the AC adapter and the battery status (for PSR models). Make sure the power switch is in the ON position. If the problem persists, contact an authorized Yamaha service center.

USER MANUAL CVP-409-407-405-403-401-CGP-1000-PSR-S900-S700-PSR-OR700 YAMAHA

Accessory CD-ROM for Windows

Installation Guide/Installationshandbuch/Manuel d'installation/Guía de instalación

SPECIALNOTICES

• The software and this Installation Guide are exclusive copyrights of Yamaha Corporation.
• Use of the software and this guide is governed by the SOFTWARE LICENSE AGREEMENT which the purchaser fully agrees to upon breaking the seal of the software packaging. (Please read carefully the AGREEMENT at the end of this guide before installing the application.)
• Copying of the software or reproduction of this guide in whole or in part by any means is expressly forbidden without the written consent of the manufacturer.
• Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for the results of the use of this guide and the software.
• Copying of the commercially available music data is strictly prohibited except for your personal use.
  The company names and product names in this Installation Guide are the trademarks or registered trademarks of their respective companies.
  Software such as the USB-MIDI driver may be revised and updated without prior notice. Make sure to check and download the latest version of the software from the following site. http://music.yamaha.com/download
• Future upgrades of application and system software and any changes in specifications and functions will be announced separately.

BESONDERE HINWEISE

This CD-ROM includes application software. Please refer to page 4 for software installation instructions.

CAUTION

Never attempt to play back the CD-ROM on an audio CD player. Doing so may result in damage to your hearing as well as to your CD player/audio speakers.

Operating System (OS)

The applications in this CD-ROM are provided in versions for Windows operating systems.

CD-ROM Installation Procedure

Before breaking the seal of the software packaging, please read carefully the Software License Agreement at the end of this guide.

Insert "Accessory CD-ROM for Windows" into the CD-ROM drive (or compatible) of the computer.

The Start window appears on the screen. Each menu item on the window indicates the application or data contained in the Accessory CD-ROM. See page 3 for details.

Connect the instrument and the computer via a USB cable.

Refer to the Owner's Manual of the instrument.

Install the USB-MIDI driver to the computer (page 4).

5NOTE Musicsoft Downloader can be used on the instrument by direct connection to a computer. When using Musicsoft Downloader, make sure to execute steps 2 and 3.

4 Install the software (page 6).

Start up the software.

For subsequent operations, refer to the owner's manual for each software program (online help/PDF manual).

NOTE

To view PDF files, you must install Adobe Reader on your computer. If you do not have Adobe Reader, you can download the application from the Adobe website at the following URL: http://www.adobe.com

Quick solutions

• The driver cannot be installed. page 7
• Playback response is not correct. page 7

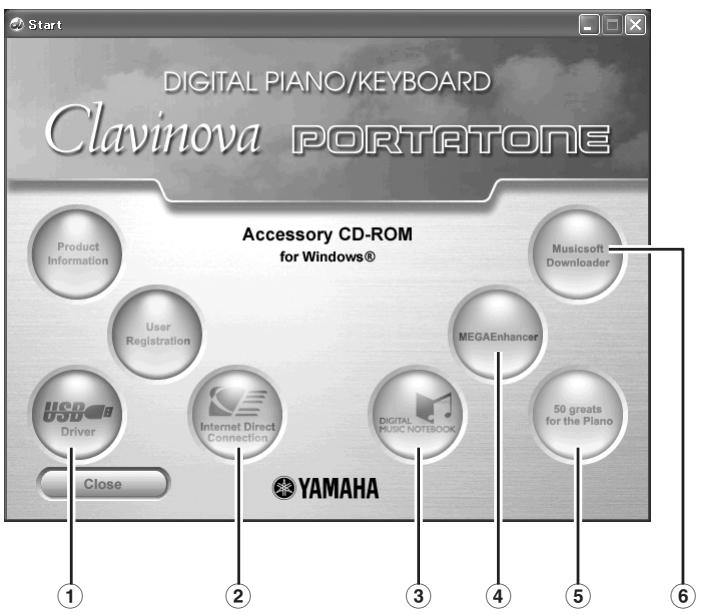

By clicking each menu on the Start window, you can access the User Registration page on the Internet and download some of the wide variety of application software available. The USB-MIDI driver and Piano song files are contained in the folder described in the following list.

	Application / Data Name	Folder Name	Contents
①	Yamaha USB-MIDI Driver (for Win XP, 2000)	USBdrv2k_	This software is necessary when using your instrument with a computer via a USB connection. It enables MIDI communication and control between the instrument and the computer.
②	Internet Direct Connection Flash Demo	IDCFLASHDemo	Full-motion demo software which introduces all features of the Internet Direct Connection, from within the program.Please note that the Internet Direct Connection function may not be available depending on your instrument.
③	Digital Music Notebook	(Available at Yamaha website.)	Digital Music Notebook is a combination music learning program and online service that makes it easy and fun to practice and master your favorite songs.Digital Music Notebook can be downloaded from the Internet.
	Digital Music Notebook Flash Demo	DMN_FLASHDemo	Full-motion demo software which introduces all features of the Digital Music Notebook, from within the program.
④	MEGAEnhancer	(Available at Yamaha website.)	Allows conversion of conventional XG/GM song data to song data optimized for use with the Mega Voice feature (on a compatible instrument or tone generator.MEGAEnhancer makes MIDI guitar and bass tracks come to life, with enhanced realism and expression.MEGAEnhancer can be downloaded from the Internet.
⑤	50 greats for the Piano	SongData	Piano Song files which can be played back via the song playback function of the instrument.
⑥	Musicsoft Downloader	(Available at Yamaha website.)	Utilizing a connection between the instrument and a computer, this application allows you to directly download song data to the instrument.Microsoft Downloader can be downloaded from the Internet.

• All the applications listed above are supplied with online/PDF manuals.

Minimum System Requirements

Verify that your system meets the operating requirements of the software. The system requirements below may differ slightly depending on the particular operating system.

- USB-MIDI Driver

OS:

Windows XP Professional/XP Home Edition/2000

Computer:

166 MHz or higher; Intel® Pentium®/Celeron® processor

Available Memory:

32 MB or more (64 MB or more is recommended)

Hard Disk:

2 MB or more

For the System Requirements of the other software available in the CD-ROM, see the respective download page on the web. The download page can be displayed by clicking the software menu on the Start window and the "download" button in the next page.

Uninstall (Removing the installed application)

To remove any installed application software:
Select [START] [Settings] [Control Panel] [Add/Remove Programs] [Install/Uninstall], then select the application to be removed and click [Add/Remove...].
Follow the on-screen instructions to uninstall the application.

NOTE The button names or menus may differ depending on the computer OS.

USB-MIDI Driver

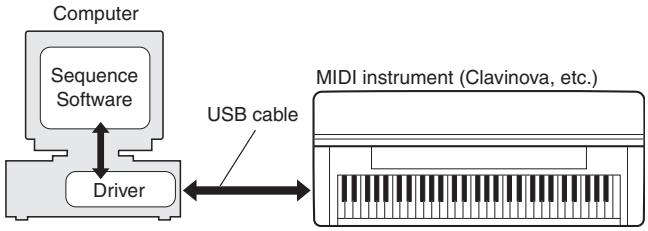

To operate the instrument from your computer via USB, you'll need to install the appropriate driver software. The USB-MIDI driver is software that transfers MIDI data back and forth between sequence software and the instrument via a USB cable.

For Windows XP: See the column at right. For Windows 2000: See page 5.

1. NOTE See the Yamaha Download page at the following URL for up-to-date news on USB-MIDI driver: http://music.yamaha.com/download/

Check the drive name of the CD-ROM drive you will be using (D:, E:, Q:, etc.) The drive name is displayed beside the CD-ROM icon in your "My Computer" folder. The root directory of the CD-ROM drive will be D:\, E:\, or Q:\, respectively.

■ Installing the driver on Windows XP

1 Start the computer and use the "Administrator" account to log into Windows XP.
Insert the included CD-ROM into the CD-ROM drive.

First, make sure the POWER switch on the instrument is set to OFF, then use a USB cable to connect the USB connector of the computer to the USB TO HOST connector of the instrument. When the instrument is turned on, the computer automatically displays the "Found New Hardware Wizard."

If the Wizard window is not displayed automatically, refer to "Troubleshooting."

If the system displays "Found New Hardware" in the lower right corner, wait until "Found New Hardware Wizard" is displayed. (The Wizard window may take a while to display on some computers.)

If the Wizard window prompts you to specify whether or not to connect to Windows Update, select the radio button for "No, not this time," then click [Next].

Check the radio button to the left of "Install the software automatically (Recommended)." Click [Next]. The system starts the installation.

NOTE If during the installation the system displays "...has not passed Windows Logo testing to verify its compatibility with Windows XP," click [Continue Anyway].

When the installation is complete, the system displays "Completing the Found New Hardware Wizard." Click [Finish]. (The Wizard window may take a while to display on some computers.)

Restart the computer. If the system displays "Found New Hardware" in the lower right corner, wait until "System Settings Change" is displayed. (The Wizard window may take a while to display on some computers.)

The USB-MIDI driver installation is complete.

■ Installing the driver on Windows 2000

1 Start the computer and use the "Administrator" account to log into Windows 2000.
Insert the included CD-ROM into the CD-ROM drive.
3 First, make sure the POWER switch on the instrument is set to OFF, then use a USB cable to connect the USB connector of the computer to the USB TO HOST connector of the instrument. When the instrument is turned on, the computer automatically displays the "Found New Hardware Wizard." Click [Next].

(The Wizard window may take a while to display on some computers.) If the Wizard window is not displayed automatically, refer to "Troubleshooting."

Check the radio button to the left of "Search for a suitable driver for my device (Recommended)." Click [Next].
5. NOTE If the Wizard panel informs you that "The software you are about to install does not contain a Microsoft digital signature," click [Yes].
Check the "CD-ROM drives" box and uncheck all other items. Click [Next].
NOTE The system may ask you to insert a Windows CD-ROM while it checks for the driver. Specify the "USBdrv2k" directory of the CD-ROM drive (such as D:\USBdrv2k) and continue the installation.
Uncheck the item "Install one of the other drivers," then click [Next].
When the installation is complete, the system displays "Completing the Found New Hardware Wizard." Click [Finish]. (The Wizard window may take a while to display on some computers.)
Restart the computer. The USB-MIDI driver installation is complete.

MEGAEnhancer

IMPORTANT

• Instruments not compatible with the Mega Voice feature cannot properly play back song data created with the MEGAEnhancer program.
• When installing MEGAEnhancer to Windows XP or 2000, make sure to log on to the Administrator account.

Insert "Accessory CD-ROM for Windows" into the CD-ROM drive of the computer.
The Start window appears on the screen. Each menu on the window indicates the application or data contained in the Accessory CD-ROM.
Click "MEGAEnhancer" on the Start window.
The page which explains the details about MEGAEnhancer is displayed on the window.
3 Click "MEGAEnhancer Download" button at the bottom of the window.
The Download page on the web is displayed. Verify that your system meets the requirements before installing the software.

Digital Music Notebook

IMPORTANT

• When installing Digital Music Notebook to Windows XP or 2000, make sure to log on to the Administrator account.
• To install Digital Music Notebook, your computer must be connected to the Internet and be online.

Insert "Accessory CD-ROM for Windows" into the CD-ROM drive of the computer.
The Start window appears on the screen. Each menu on the window indicates the application or data contained in the Accessory CD-ROM.
Click "DIGITAL MUSIC NOTEBOOK" on the Start window.
The page which explains the details about Digital Music Notebook is displayed on the window.
Click "Digital Music Notebook Download" button at the bottom of the window.
4 Automatically jump at the site of Digital Music Notebook. Follow the on-screen instructions to download the application.

IMPORTANT

Credit card settlement is required to purchase Digital Music Notebook content. Credit card processing may not be possible for some areas, so please check with your local authorities to make sure that your credit card can be used.

Musicsoft Downloader

IMPORTANT

• When installing Musicsoft Downloader to Windows XP or 2000, make sure to log on to the Administrator account.

Insert "Accessory CD-ROM for Windows" into the CD-ROM drive of the computer.

The Start window appears on the screen. Each menu on the window indicates the application or data contained in the Accessory CD-ROM.

Click "Musicsoft Downloader" on the Start window.

The page which explains the details about Musicsoft Downloader is displayed on the window.

Click "Musicsoft Downloader Download" button at the bottom of the window.

The Download page on the web is displayed. Verify that your system meets the requirements before installing the software.

NOTE

For the instrument including this Accessory CD-ROM, you can use only the Musicsoft Downloader as a file transfer application software. Other applications such as File Utility and Song Filer cannot be used.

The driver cannot be installed.

• Is the USB cable connected correctly?
  Check the USB cable connection.
  Disconnect the USB cable, then connect it again.

• Is the USB function enabled on your computer?

When you connect the instrument to the computer for the first time, if the "Add New Hardware Wizard" does not appear, the USB function on the computer may be disabled. Perform the following steps.

① Select [Control Panel]* → [System] → [Hardware] → [Device Manager].

• Classic View only in Windows XP.

② Make sure that no “!” or “x” marks appear at “Universal serial bus controller” or “USB Root Hub.” If you see an “!” or “x” mark, the USB controller is disabled.

• Is any unknown device registered?

If driver installation fails, the instrument will be marked as an "Unknown device," and you will not be able to install the driver. Delete the "Unknown device" by following the steps below.

① Select [Control Panel]* → [System] → [Hardware] → [Device Manager].

• Classic View only in Windows XP.

② Look for “Other devices” in the menu “View devices by type.”
③ If you find "Other devices," double-click it to extend the tree to look for "Unknown device." If one appears, select it and click the [Remove] button.
④ Remove the USB cable from the instrument, and make the connection again.
⑤ Install the driver again. (See page 4.)

When controlling the instrument from your computer via USB, the instrument does not operate correctly or no sound is heard.

• Did you install the driver?
• Is the USB cable connected correctly?
• Are the volume settings of the instrument, playback device, and application program set to the appropriate levels?
• Have you selected an appropriate port in the sequence software?
• On the Clavinova, check whether the Piano Lock is engaged or not.

Playback response is delayed.

• Does your computer satisfy the system requirements?
• Is any other application or device driver running?

Cannot suspend or resume the computer correctly.

• Do not suspend the computer while the MIDI application is running.
• If you are using Windows 2000, you may not be able to suspend/ resume normally, depending on the particular environment (USB Host Controller, etc.). Even so, simply disconnecting and connecting the USB cable will allow you to use the instrument functions again.

Datentypen

Yamaha hereby grants you the right to use one copy of the software program(s) and data ("SOFTWARE") accompanying this Agreement. The term SOFTWARE shall encompass any updates to the accompanying software and data. The SOFTWARE is owned by Yamaha and/or Yamaha's licensor(s), and is protected by relevant copyright laws and all applicable treaty provisions. While you are entitled to claim ownership of the data created with the use of SOFTWARE, the SOFTWARE will continue to be protected under relevant copyrights.

• You may use the SOFTWARE on a single computer.
• You may make one copy of the SOFTWARE in machine-readable form for backup purposes only, if the SOFTWARE is on media where such backup copy is permitted. On the backup copy, you must reproduce Yamaha's copyright notice and any other proprietary legends that were on the original copy of the SOFTWARE.
• You may permanently transfer to a third party all your rights in the SOFTWARE, provided that you do not retain any copies and the recipient reads and agrees to the terms of this Agreement.

2. RESTRICTIONS

• You may not engage in reverse engineering, disassembly, decomposition or otherwise deriving a source code form of the SOFTWARE by any method whatsoever.
• You may not reproduce, modify, change, rent, lease, or distribute the SOFTWARE in whole or in part, or create derivative works of the SOFTWARE.
• You may not electronically transmit the SOFTWARE from one computer to another or share the SOFTWARE in a network with other computers.
• You may not use the SOFTWARE to distribute illegal data or data that violates public policy.
• You may not initiate services based on the use of the SOFTWARE without permission by Yamaha Corporation.

Copyrighted data, including but not limited to MIDI data for songs, obtained by means of the SOFTWARE, are subject to the following restrictions which you must observe.

Data received by means of the SOFTWARE may not be used for any commercial purposes without permission of the copyright owner.
- Data received by means of the SOFTWARE may not be duplicated, transferred, or distributed, or played back or performed for listeners in public without permission of the copyright owner.
- The encryption of data received by means of the SOFTWARE may not be removed nor may the electronic watermark be modified without permission of the copyright owner.

3. TERMINATION

This Agreement becomes effective on the day that you receive the SOFTWARE and remains effective until terminated. If any copyright law or provisions of this Agreement is violated, the Agreement shall terminate automatically and immediately without notice from Yamaha. Upon such termination, you must immediately destroy the licensed SOFTWARE, any accompanying written documents and all copies thereof.

4. LIMITED WARRANTY ON MEDIA

As to SOFTWARE sold on tangible media, Yamaha warrants that the tangible media on which the SOFTWARE is recorded will be free from defects in materials and workmanship under normal use for a period of fourteen (14) days from the date of receipt, as evidenced by a copy of the receipt. Yamaha's entire liability and your exclusive remedy will be replacement of the defective media if it is returned to Yamaha or an authorized Yamaha dealer within fourteen days with a copy of the receipt. Yamaha is not responsible for replacing media damaged by accident, abuse or misapplication. TO THE FULLEST EXTENT PERMITTED BY LAW, YAMAHA EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTY ON THE TANGIBLE MEDIA, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

5. DISCLAIMER OF WARRANTY ON SOFTWARE

You expressly acknowledge and agree that use of the SOFTWARE is at your sole risk. The SOFTWARE and related documentation are provided "AS IS" and without warranty of any kind. NOTWITHSTANDING ANY OTHER PROVISION OF THIS AGREEMENT, YAMAHA EXPRESSLY DISCLAIMS ALL WARRANTYES AS TO THE SOFTWARE, EXPRESS, AND IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTYES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. SPECIFICALLY, BUT WITHOUT LIMITING THE FOREGOING, YAMAHA DOES NOT WARRANTY THAT THE SOFTWARE WILL MEET YOUR REQUIREMENTS, THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR-FREE, OR THAT DEFECTS IN THE SOFTWARE WILL BE CORRECTED.

6. LIMITATION OF LIABILITY

YAMAHA'S ENTIRE OBLIGATION HEREUNDER SHALL BE TO PERMIT USE OF THE SOFTWARE UNDER THE TERMS HEREOF. IN NO EVENT SHALL YAMAHA BE LIABLE TO YOU OR ANY OTHER PERSON FOR ANY DAMAGES, INCLUDING, WITHOUT LIMITATION, ANY DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, EXPENSES, LOST PROFITS, LOST DATA OR OTHER DAMAGES ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THE SOFTWARE, EVEN IF YAMAHA OR AN AUTHORIZED DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. In no event shall Yamaha's total liability to you for all damages, losses and causes of action (whether in contract, tort or otherwise) exceed the amount paid for the SOFTWARE.

7. THIRD PARTY SOFTWARE

Third party software and data ("THIRD PARTY SOFTWARE") may be attached to the SOFTWARE. If, in the written materials or the electronic data accompanying the Software, Yamaha identifies any software and data as THIRD PARTY SOFTWARE, you acknowledge and agree that you must abide by the provisions of any Agreement provided with the THIRD PARTY SOFTWARE and that the party providing the THIRD PARTY SOFTWARE is responsible for any warranty or liability related to or arising from the THIRD PARTY SOFTWARE. Yamaha is not responsible in any way for the THIRD PARTY SOFTWARE or your use thereof.

• Yamaha provides no express warranties as to the THIRD PARTY SOFTWARE. IN ADDITION, YAMAHA EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTYES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, as to the THIRD PARTY SOFTWARE.
• Yamaha shall not provide you with any service or maintenance as to the THIRD PARTY SOFTWARE.
• Yamaha is not liable to you or any other person for any damages, including, without limitation, any direct, indirect, incidental or consequential damages, expenses, lost profits, lost data or other damages arising out of the use, misuse or inability to use the THIRD PARTY SOFTWARE.

8. GENERAL

This Agreement shall be interpreted according to and governed by Japanese law without reference to principles of conflict of laws. Any dispute or procedure shall be heard before the Tokyo District Court in Japan. If for any reason a court of competent jurisdiction finds any portion of this Agreement to be unenforceable, the remainder of this Agreement shall continue in full force and effect.

9. COMPLETE AGREEMENT

This Agreement constitutes the entire agreement between the parties with respect to use of the SOFTWARE and any accompanying written materials and supersedes all prior or contemporaneous understandings or agreements, written or oral, regarding the subject matter of this Agreement. No amendment or revision of this Agreement will be binding unless in writing and signed by a fully authorized representative of Yamaha.
