First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides: First off, the Setup Poster helps you get started with setting up your computer.

The Quick Guide introduces you to the basic features and functions of your new computer.

For more on how your computer can help you to be more productive, please refer to the TravelMate User's Manual. The TravelMate User's Manual contains useful information applying to your new computer. It covers basic topics such as using the keyboard and audio, etc.

This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook.

Follow these steps to access it:

1 Type "User" from Start.
2 Click on Acer User's Manual.

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster, let us show you around your new Acer notebook.

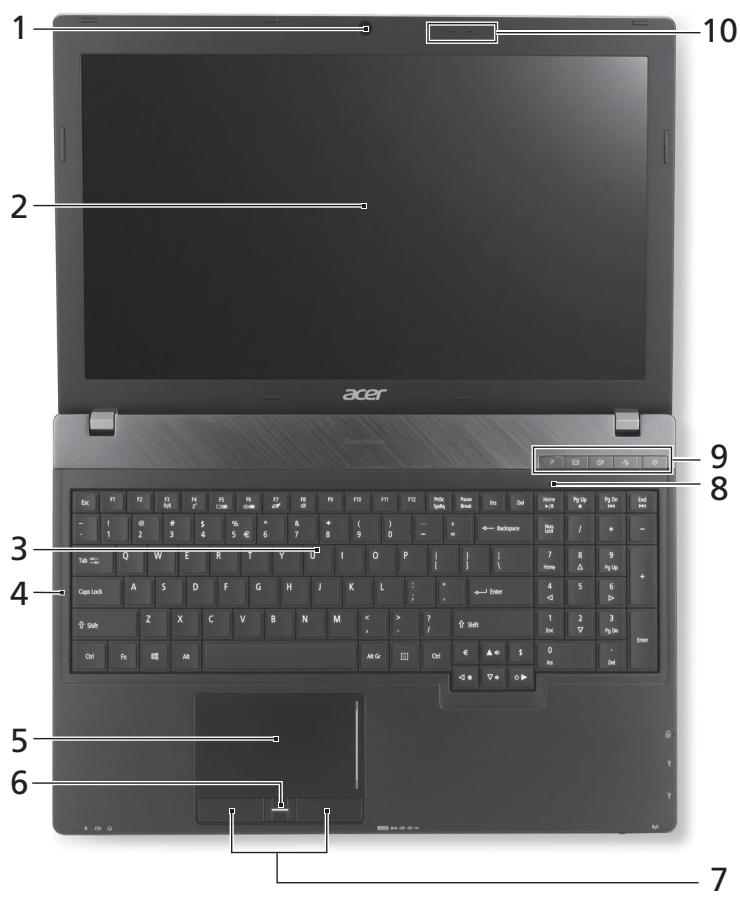

Top view

#	Icon	Item	Description
1		Integrated webcam	Web camera for video communication. A light next to the webcam indicates that the webcam is active.
2		Screen	Also called Liquid-Crystal Display (LCD), displays computer output (configuration may vary by model).
3		Keyboard	For entering data into your computer.
4	A	Caps Lock	Lights up when Caps Lock is activated.
5		Touchpad	Touch-sensitive pointing device which functions like a computer mouse.
6		Fingerprint reader	Fingerprint reader for Acer ProShield Security Suite.
7		Click buttons (left and right)	The left and right buttons function like the left and right mouse buttons.
8	1	Num Lock	Lights up when Num Lock is activated.
9	P	P key	Programmable key (configuration may vary by model).
	Q	Acer email key	Opens your default email application.
	R	Backup key	Launches Acer Backup Management for three-step data backup.
	O	Microphone mute	Mutes the microphone.
	U	Power button / indicator	Turns the computer on and off. Indicates the computer's power status.
10		Microphones	Two internal microphones for stereo sound recording.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey	Icon	Function	Description
+Fn> + <F3>	( )	Communicatio n	Enables/disables the computer's communication devices.
+Fn> + <F4>	Z	Sleep	Puts the computer in Sleep mode.
+Fn> + <F5>	☐	Display toggle	Switches display output between the display screen, external monitor (if connected) and both.
+Fn> + <F6>	☐	Screen blank	Turns the display screen backlight off to save power. Press any key to return.
+Fn> + <F7>	☐	Touchpad toggle	Turns the internal touchpad on and off.
+Fn> + <F8>	☐	Speaker toggle	Turns the speakers on and off.
+Fn> + <☐>		Brightness up	Increases the screen brightness.
+Fn> + <☐>		Brightness down	Decreases the screen brightness.
+Fn> + <☐>		Volume up	Increases the sound volume.
+Fn> + <☐>		Volume down	Decreases the sound volume.
+Fn> + <Home>	/II	Play/Pause	Play or pause a selected media file.
+Fn> + <Pg Up>		Stop	Stop playing the selected media file.
+Fn> + <Pg Dn>	|	Previous	Return to the previous media file.
+Fn> + <End>	▶	Next	Jump to the next media file.

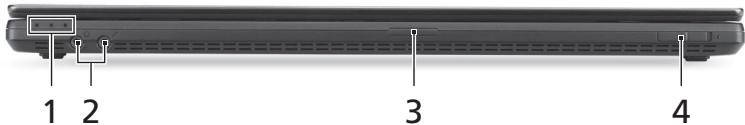

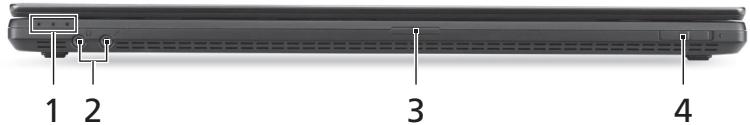

Closed front view

#	Icon	Item	Description
1		Power indicator	Indicates the computer's power status.
		Battery indicator	Indicates the computer's battery status. 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows blue when in AC mode.
		HDD indicator	Indicates when the hard disk drive is active.
2		Microphone jack	Accepts inputs from external microphones.
		Headphones/speaker jack	Connects to audio devices (e.g., speakers, headphones).
3	MULTIMEDICARD PRO	Multi-in-1 card reader	Accepts Secure Digital (SD), MultiMediaCard (MMC), Memory Stick PRO (MS PRO), xD-Picture Card (xD). Note: Push to remove/install the card. Only one card can operate at any time.
4		Communication switch / indicator	Enables/disables the computer's communication devices / indicates the computer's wireless connectivity device status.

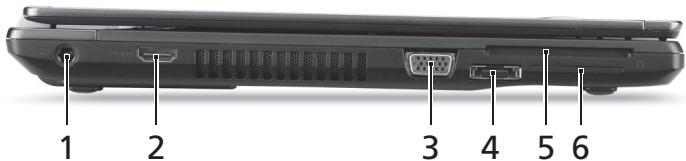

Left view

#	Icon	Item	Description
1		DC-in jack	Connects to an AC adapter.
3		External display(VGA) port	Connects to a display device (e.g.,external monitor, LCD projector).
2	HDMI	HDMI port	Supports high-definition digital video connections.
4	/e SATA	USB / eSATA port	Connects to USB or eSATA devices (only for certain models).Note: If you plug in an eSATA device you will have three USB ports available.
5		SmartCard slot	Accepts a SmartCard.
6		ExpressCard/34 slot	Accepts one ExpressCard/34 module.Note: Push to remove/insert the module.

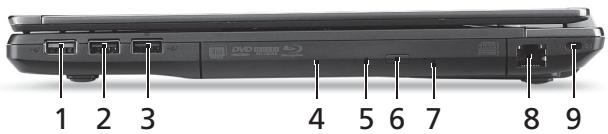

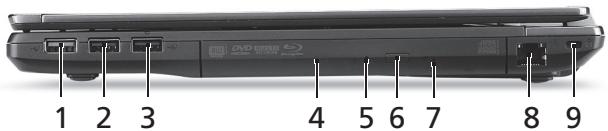

Right view

#	Icon	Item	Description
1	+	USB port
2	+	USB port	Connects to USB devices. If a port is black, it is USB 2.0 compatible; if it is blue it is also USB 3.0 compatible.
3	USB	USB port with power-off charging
4		Optical drive	Internal optical drive; accepts CDs or DVDs.
5		Optical disk access indicator	Lights up when the optical drive is active.
6		Optical drive eject button	Ejects the optical disk from the drive.
7		Emergency eject hole	Ejects the optical drive tray when the computer is turned off. Note: Insert a paper clip to the emergency eject hole to eject the optical drive tray when the computer is off.
8	+	Ethernet (RJ-45) port	Connects to an Ethernet 10/100/1000-based network.
9	K	Kensington lock slot	Connects to a Kensington-compatible computer security lock. Note: Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

Information on USB 3.0

Compatible with USB 3.0 and earlier USB devices.
- For optimal performance, use USB 3.0-certified devices.
- Defined by the USB 3.0 (SuperSpeed USB) specification.

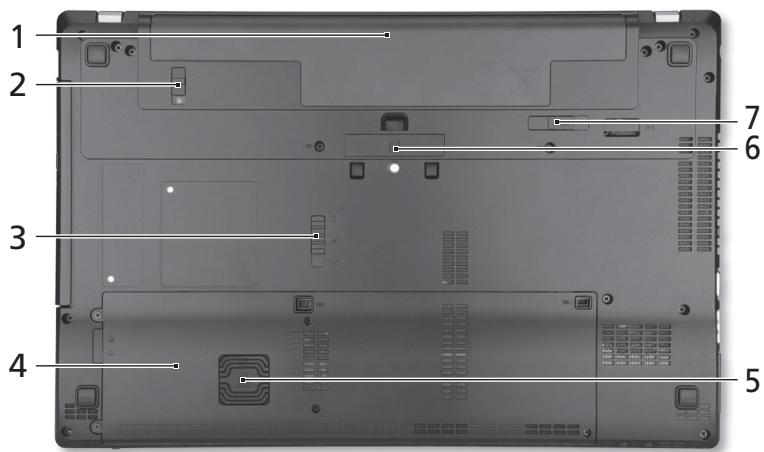

Base view

#	Icon	Item	Description
1		Battery bay	Houses the computer's battery pack.
2		Battery lock	Locks the battery in position.
3		Acer MediaBay release latch	Releases the Acer MediaBay module.
4		Hard disk bay	Houses the computer's hard disk (secured with screws).
		Memory compartment	Houses the computer's main memory.
5		Acer DASP (Disk Anti-Shock Protection)	Protects the hard disk from shocks and bumps.
6		Acer ProDock connector	Connects to the optional Acer ProDock.
7		Battery release latch	Releases the battery for removal.

Environment

Temperature:

• Operating: 5^ C to 35^ C
  Non-operating: -20 °C to 65 °C

• Humidity (non-condensing):

Operating: 20% to 80%
Non-operating: 20% to 80%
