Product type	Corded electric hedge trimmer
Brand	Bosch
Model	AHS 6000 PRO T
Power consumption	700 W
No-load speed	1500 rpm
Blade gap	34 mm
Cutting length	600 mm
Weight	4.1 kg
Protection class	II (double insulation)
Power supply	230 V~, 50 Hz (220-240 V depending on country)
Maximum cutting capacity	Up to 34 mm diameter
Sound pressure level	85 dB(A)
Guaranteed sound power level	100 dB(A)
Vibration (forearm)	< 2.5 m/s²
Safety	Double insulation, two-hand switch, slip coupling, blade guard
Maintenance and cleaning	Clean blades after use, lubricate with maintenance spray, check screws
Spare parts and repairability	Original Bosch parts available, repair by authorized service center
Included accessories	Blade guard (ref. 2 605 411 208), instruction manual
Dimensions (L x W x H)	Approximately 1000 x 200 x 200 mm (estimate)
Recommended trimming period	Leaf hedges: June and October; conifers: April and August
Warranty	Consult Bosch customer service

Frequently Asked Questions - AHS 6000 PRO T BOSCH

How to start the Bosch AHS 6000 PRO T hedge trimmer?

Press and hold the On/Off switch on the rear handle, then press the switch lever on the front handle. Release either to stop the tool.

What are the essential safety precautions?

Wear closed shoes, gloves, and safety glasses. Do not work in rain or on wet hedges. Hold the tool with both hands and keep people and animals at least 3 meters away.

How to maintain the hedge trimmer blades?

After each use, clean the blades with a soft brush and apply Bosch maintenance spray. For prolonged work, lubricate regularly. Check the tightness of the blade bar screws.

What to do if the hedge trimmer does not start?

Check the power supply, outlet, cable, and fuse. If the problem persists, contact Bosch customer service.

How to safely store the hedge trimmer?

Unplug the tool, clean it, and install the blade guard. Store it in a dry place out of reach of children.

What is the maximum cutting capacity of this model?

The Bosch AHS 6000 PRO T can cut branches up to 34 mm thick thanks to its 34 mm blade gap.

Can I use an extension cord with this tool?

Yes, use an approved extension cord of type H05VV-F or H05RN-F. Protect the connection from water splashes and use a cable clamp. A 30 mA residual current device is recommended.

How to get spare parts?

Contact Bosch customer service or an authorized dealer. Provide the ten-digit reference number (3 600 H48 A..) to order original parts.

What to do if the blades overheat?

Dull or chipped blades, or insufficient lubrication can cause overheating. Have the blade bar sharpened or checked by a professional and apply maintenance spray.

What is the ideal period for trimming hedges?

Trim leaf hedges in June and October, conifers in April and August. For fast-growing hedges, trim every 6 weeks from May.

USER MANUAL AHS 6000 PRO T BOSCH

Operating instructions

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

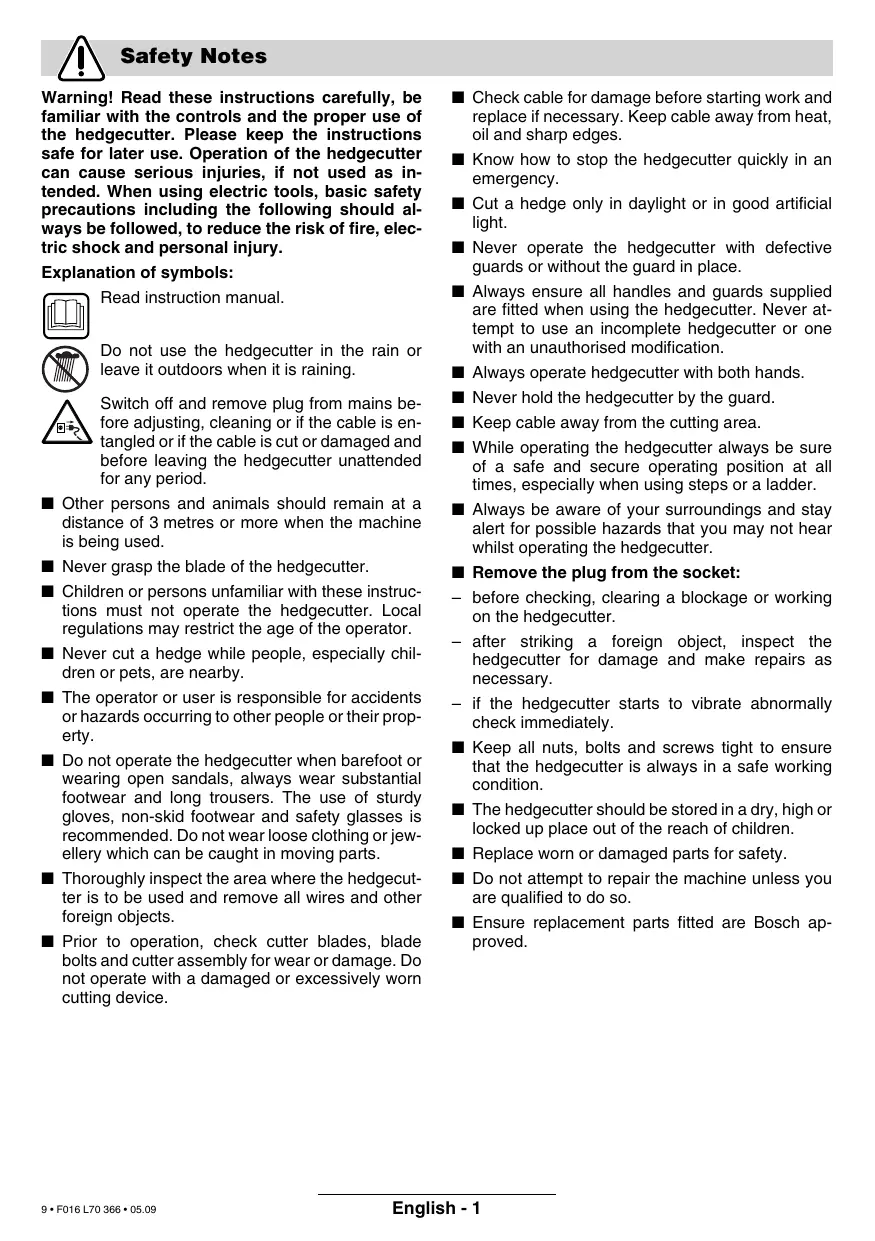

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the hedgecutter. Please keep the instructions safe for later use. Operation of the hedgecutter can cause serious injuries, if not used as intended. When using electric tools, basic safety precautions including the following should always be followed, to reduce the risk of fire, electric shock and personal injury.

Explanation of symbols:

Read instruction manual.

Do not use the hedgecutter in the rain or leave it outdoors when it is raining.

Switch off and remove plug from mains before adjusting, cleaning or if the cable is entangled or if the cable is cut or damaged and before leaving the hedgecutter unattended for any period.

Other persons and animals should remain at a distance of 3 metres or more when the machine is being used.
Never grasp the blade of the hedgecutter.
Children or persons unfamiliar with these instructions must not operate the hedgecutter. Local regulations may restrict the age of the operator.
- Never cut a hedge while people, especially children or pets, are nearby.
The operator or user is responsible for accidents or hazards occurring to other people or their property.
- Do not operate the hedgecutter when barefoot or wearing open sandals, always wear substantial footwear and long trousers. The use of sturdy gloves, non-skid footwear and safety glasses is recommended. Do not wear loose clothing or jewellery which can be caught in moving parts.
Thoroughly inspect the area where the hedgecutter is to be used and remove all wires and other foreign objects.
Prior to operation, check cutter blades, blade bolts and cutter assembly for wear or damage. Do not operate with a damaged or excessively worn cutting device.

Check cable for damage before starting work and replace if necessary. Keep cable away from heat, oil and sharp edges.

■ Know how to stop the hedgecutter quickly in an emergency.

Cut a hedge only in daylight or in good artificial light.

• Never operate the hedgecutter with defective guards or without the guard in place.

Always ensure all handles and guards supplied are fitted when using the hedgecutter. Never attempt to use an incomplete hedgecutter or one with an unauthorised modification.

Always operate hedgecutter with both hands.

Never hold the hedgecutter by the guard.

• Keep cable away from the cutting area.

While operating the hedgecutter always be sure of a safe and secure operating position at all times, especially when using steps or a ladder.

Always be aware of your surroundings and stay alert for possible hazards that you may not hear whilst operating the hedgecutter.

Remove the plug from the socket:

• before checking, clearing a blockage or working on the hedgecutter.
• after striking a foreign object, inspect the hedgecutter for damage and make repairs as necessary.
• if the hedgecutter starts to vibrate abnormally check immediately.
• Keep all nuts, bolts and screws tight to ensure that the hedgecutter is always in a safe working condition.
  The hedgecutter should be stored in a dry, high or locked up place out of the reach of children.
  Replace worn or damaged parts for safety.
• Do not attempt to repair the machine unless you are qualified to do so.
  ■ Ensure replacement parts fitted are Bosch approved.

Product Specification

Hedgecutter	AHS 400 - 24T	AHS 480 - 24T	AHS 550 - 24ST	AHS 600 - 24ST
Part number	3 600 H48 0..	3 600 H48 1..	3 600 H48 2..	3 600 H48 3..
Rated power	550 W	550 W	600 W	600 W
No-load stroke rate	1400 spm	1400 spm	1400 spm	1400 spm
Blade spacing	24 mm	24 mm	24 mm	24 mm
Cutting length	400 mm	480 mm	550 mm	600 mm
Weight	3.95 kg	4.05 kg	4.1 kg	4.2 kg
Protection class	☐ / II	☐ / II	☐ / II	☐ / II
Hedgecutter	AHS 650 - 24ST	AHS 6000 PRO-T	AHS 7000 PRO-T
Part number	3 600 H48 4..	3 600 H48 A..	3 600 H48 B..
Rated power	600 W	700 W	700 W
No-load stroke rate	1400 spm	1500 spm	1500 spm
Blade spacing	24 mm	34 mm	34 mm
Cutting length	650 mm	600 mm	700 mm
Weight	4.25 kg	4.1 kg	4.2 kg
Protection class	☐ / II	☐ / II	☐ / II

Intended Use

The product is intended for cutting and trimming hedges and bushes in domestic use.

Introduction

This manual gives instructions on the correct assembly and safe use of your hedgecutter. It is important that you read these instructions carefully.

Delivered Items

Carefully remove the machine from its packaging and check for complete contents:

Hedgecutter
- Blade guard
- Operating instructions

When parts are missing or damaged, please contact your dealer.

Operating Controls

1 Cutting blade
2 Front handle guard
3 Front handle switch levers
4 Ventilation slots
5 Rear handle with switch lever
6 Mains plug**
7 Blade guard
8 Serial Number

**Country specific

Not all of the accessories illustrated or described are included as standard delivery.

For Your Safety

Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.

The blades continue to move for a few fractions of a second after the hedgecutter is switched off. Caution! Do not touch the moving blades.

Electrical Safety

Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230V AC, 50Hz (for non-EU countries 220V , 240V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details.

Extension cords/leads should only be used if they comply with H05VV-F or H05RN-F types.

It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30mA . Always check your RCD every time you use it.

For products not sold in GB: WARNING: For safety, it is essential that the mains plug 6 attached to the machine is fitted to the power supply cable 9 as shown.

The couplings of connection leads must be protected against splashes and the coupling sockets on the leads must be made of rubber or coated with rubber.

Fixing means for the connection leads must be used.

The connection lead must be inspected for signs of damage at regular intervals and may only be used if in perfect condition.

If the supply cord is damaged, it must be replaced by a Bosch Service Centre.

Products sold in GB only: Your hedgecutter is fitted with an approved 13 A (BS 1363/A) electric plug and is protected by a 13 A fuse (ASTA Approved to BS 1362).

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a 13 A socket elsewhere.

A Starting and Stopping

Starting:

Press and hold rear switch lever 5. Squeeze any front lever 3.

Stopping:

Release any of switch levers 3 and 5.

Note: The machine is fitted with a sliding clutch which protect the motor from being damaged should be the blade lock against a solid object.

Should the machine lockup switch off immediately and pull mains plug before removing the object from the blade.

B C D Tips on Cutting

Hold the hedgecutter away from yourself using both hands. Stand in a secure and stable position.

Position the extension cord over your shoulder to the rear and ensure that the cord is behind you at all times during cutting. Never place the cable over the hedge, where it could easily be cut by the blades.

Cut stems up to 24 mm (34 mm, AHS 6000/7000 PRO-T) in thickness. When cutting, move steadily along the line of cut, so that stems are fed directly into the cutter blades. The double edge of the cutting blade enables cutting to either direction, or with a side to side motion.

Cut the sides of the hedge first, then the top.

To keep the sides flat, cutting upwards with the growth is recommended. Younger stems tend to move outwards when cutting them from top to bottom, resulting in shallow patches or holes in the hedge.

To reach a level finish, fasten a piece of string along the length of the hedge at the required height and use as an alignment guide. Cut the hedge just above the string.

Take care to avoid cutting into objects such as wire, which could cause damage to the cutting blades and the drive.

Recommended cutting/trimming times:

• Cut hedges with deciduous leaves in June and October.
• Cut evergreen hedges in April and August.
• Cut conifer and other fast growing shrubs approx. every six weeks from May onwards.
• Shaping hedges should be cut to achieve a form as shown in figure.

Maintenance

Before any work on the machine itself, pull the mains plug.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

Check for obvious defects such as loose, dislodged or damaged blade, loose fixings and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

If the hedgecutter should happen to fail despite the care taken in manufacturing and testing, repair should be carried out by an authorized customer service agent for Bosch garden products.

For all correspondence and spare parts orders, always include the 10-digit part number (TYP) from the nameplate of the machine!

Blade Maintenance

Before any work on the machine itself, pull the mains plug.

Wear gloves when handling or cleaning the cutting blade.

Always clean the cutting blade after operation and lubricate with protective spray. During longer cutting jobs, we recommend periodically lubricating the cutting blade with protective spray.

Visually check the condition of the cutting edges of the cutting blade 1. Check tightness of blade bolts.

Ensure that the blade is covered with the blade guard 7 supplied.

Cleaning/Storage

Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all debris, especially from the ventilation slots 4.

Store the hedgecutter in a secure, dry place out of the reach of children. Do not place other objects on top of the machine.

Accessories

Blade guard AHS 400 - 24T 2605 411 160

Blade guard AHS 480 - 24T 2605 411 160

Blade guard AHS 550 - 24ST 2605 411 208

Blade guard AHS 600 - 24ST 2 605 411 208

Blade guard AHS 650 - 24ST 2605 411 158

Blade guard AHS 6000 PRO-T 2605 411 208

Blade guard AHS 7000 PRO-T 2605 411 158

Collecto AHS 400 - 24T 2608 005 112

Collecto AHS 480 - 24T. 2608005114

Collecto AHS 550 - 24ST 2608 005 115

Collecto AHS 600 - 24ST. 2608005115

Collecto AHS 650 - 24ST. 2608005113

Collecto AHS 6000 PRO-T. 2608 005 115

Collecto AHS 7000 PRO-T. 2608 005 113

Lubricant spray 1609200399

Clipping sheet F 016 800 055

Protective goggles. 2607990041

Gloves 2607000134

Fault Finding

The following table gives checks and actions that you can perform if your machine does not operate correctly. If these do not identify/remedy the problem, contact your service agent.

Warning: Switch off and remove plug from mains before investigating fault.

Symptom	Possible Cause	Remedy
Hedgecutter fails to operate	No power	Check power
	Mains socket faulty	Check other socket, replace
	Extension cord damaged	Check cord, replace
	Fuse faulty	Replace fuse
Hedgecutter operates intermittently	Extension cord damaged	Check cord, replace
	Internal wiring defective	Contact service agent
	On/Off switch(es) defective	Contact service agent
Motor runs but blades remain stationary	Internal fault	Contact service agent
Cutting blade hot	Cutting blade blunt	Have blade sharpened
	Cutting blade has dents	Have blade overhauled
	Too much friction, due to lack of lubricant	Apply lubricant spray

Disposal

Power tools, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of power tools into household waste!

According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law, power tools

that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.

Service

Exploded views and information on spare parts can be found under: www.bosch-pt.com

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham-Uxbridge

MIDDLEX UB 9 5HJ

Service +44 (0) 18 95 / 83 87 82

Fax Service +44 (0) 18 95 / 83 87 89

Advice line+44 (0) 18 95 / 83 87 91

Fax Advice. +44 (0) 18 95 / 83 87 93

Ireland

Beaver Distribution Ltd.

Greenhills Road

Tallaght-Dublin 24

Service. +353(0)1 / 4515211

Fax +353 (0)1 / 45 17 127

Malaysia

Robert Bosch (SEA.) Pte. Ltd.

No. 8a, Jalan 13/6

Selangor Darul Ehsan

Petaling Jaya 46200

Malaysia

C [phone]

Fax (EW Dept.) [phone]

www.bosch.com.sg

Australia

Robert Bosch Australia Ltd.

RBAU/SPT2

1555 Centre Road

P.O. Box 66 Clayton

3168 Clayton/Victoria

+61 (0)1 / 800 804 777

Fax +61 (0)1 / 800 819 520

www.bosch.com.au

E-Mail: [e-mail]

New Zealand

Robert Bosch Limited

14-16 Constellation Drive

Mairangi Bay

Auckland

New Zealand

+64(0)9/4786158

Fax +64 (0)9 / 47 82 914

Declaration of Conformity

Measured values determined according to 2000/14/EC (1.60 m height, 1 m distance away) and EN 25 349.

Typically the A-weighted noise level of the product is: sound pressure level 82 dB (A) (AHS 400-24T / 480-24T / 550-24ST / 600-24ST / 650-24ST), 85 dB (A) (AHS 6000/7000 PRO-T); sound power level 96 dB (A) (AHS 400-24T / 480-24T / 550-24ST / 600-24ST / 650-24ST), 99 dB (A) (AHS 6000/7000 PRO-T).

The typical hand/arm vibration is below 2.5m / s^2

We declare under our sole responsibility, that this product is in conformity with the following standards or standardized documents: EN 774, EN 50 144 according to the provisions of the directives 89/336/EEC, 98/37/EC, 2000/14/EC.

2000/14/EC: The guaranteed sound power level L_WA is lower than 98 dB (A) (AHS 400-24T / 480-24T / 550-24ST / 600-24ST / 650-24ST), 100 dB (A) (AHS 6000/7000 PRO-T). Conformity assessment procedure according to Annex V.

Leinfelden, 01.10.2005.

Dr. Egbert Schneider
Dr. Eckerhard Strötgen
Senior Vice President
Head of Product

Engineering Certification

paa / 100 i.v. nuoy

Robert Bosch GmbH, Power Tools Division

Subject to change without notice

Robert Bosch France S.A.S.

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

Leia a instrucao de service.

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

ppa.

i.v. Mo Tu We Th Fr So Su

Robert Bosch GmbH, Power Tools Division

Senior Vice President

Head of Product

Engineering

Certification

Robert Bosch GmbH, Power Tools Division

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen
Head of Product Certification

i.v. NiOgcu

Robert Bosch GmbH, Power Tools Division

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

Ändringar forbéhalles

OBS! Les nôve gjennom nedenstäende anvisninger og gjör deg kjent med betjeningsellementene og korrekt bruk av hekksaksen. Ta godt vare pa bruksanvisingen til senere bruk. Hvis hekksaksen ikke brukes på forskriftsmessig mæte, kan det före til alvorlige skader. Ved bruk av elektroverktoy ma de generelle og nedenstäende sikkerhetsreglene folges, for a redusere risikoen forbrann, elektriske stót og skader.

Forklaring av bildesymbolene:

Les bruksanvisingen.

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mo Tu We Th Fr So Su

Robert Bosch GmbH, Power Tools Division

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

Móvo yia xwpeC tnc EE:

Mn pixvETa nEeKTPiKa epyaEia
ota anoppimuata Tou ontiou oac!
SuuwpovA ME TIV KoivotIK Odbnyia
2002/96EKoETiKAeTIC naalaeC
nEeKTPiKc KaI NkTPOVIOKc
OuokueC kI TIV mEtapopatnc

0e 8viko diikaio, ta axpnoTa nEktpiKa
epyaia deiv aunoxpewtko nEvov va
oulambdaoytai eXwpiota npiv va avakukawoou
mu TPOnO pIAIKo PPOC TO pEPIaALov.

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

ppa.

i.v. Mo Tu We Th Fr So Su

Robert Bosch GmbH, Power Tools Division

Tnpouε to δikaiωμa aλλayωv

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Müsteri Danisman +90 (0)212 / 335 06 66

Müsteri Servis Hatti. +90 (0)212 / 335 07 52

Uygunluk beyani

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

DeGISiklikermumkundur

BOSCH

Robert Bosch GmbH

Power Tools Division

70745 Leinfelden-Echterdingen

www.bosch-pt.com

F016 L70 366 (05.09) O/70
