OBJ_BUCH-939-001.book Page 1 Friday, April 24, 2009 9:17 AM Robert Bosch GmbH Power Tools Division
70745 Leinfelden-Echterdingen Germany
2 609 140 620 (2009.04) T / 168 WEU OBJ_BUCH-939-001.book Page 2 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 3 Friday, April 24, 2009 9:07 AM
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 4 Friday, April 24, 2009 9:07 AM
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 5 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 6 Friday, April 24, 2009 9:07 AM
Sicherheitshinweise de
OBJ_BUCH-939-001.book Page 7 Friday, April 24, 2009 9:07 AM Deutsch | 7
OBJ_BUCH-939-001.book Page 8 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 9 Friday, April 24, 2009 9:07 AM Deutsch | 9
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 10 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 11 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 12 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 13 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 14 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 15 Friday, April 24, 2009 9:07 AM Deutsch | 15
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 16 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 17 Friday, April 24, 2009 9:07 AM Deutsch | 17
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 18 Friday, April 24, 2009 9:07 AM

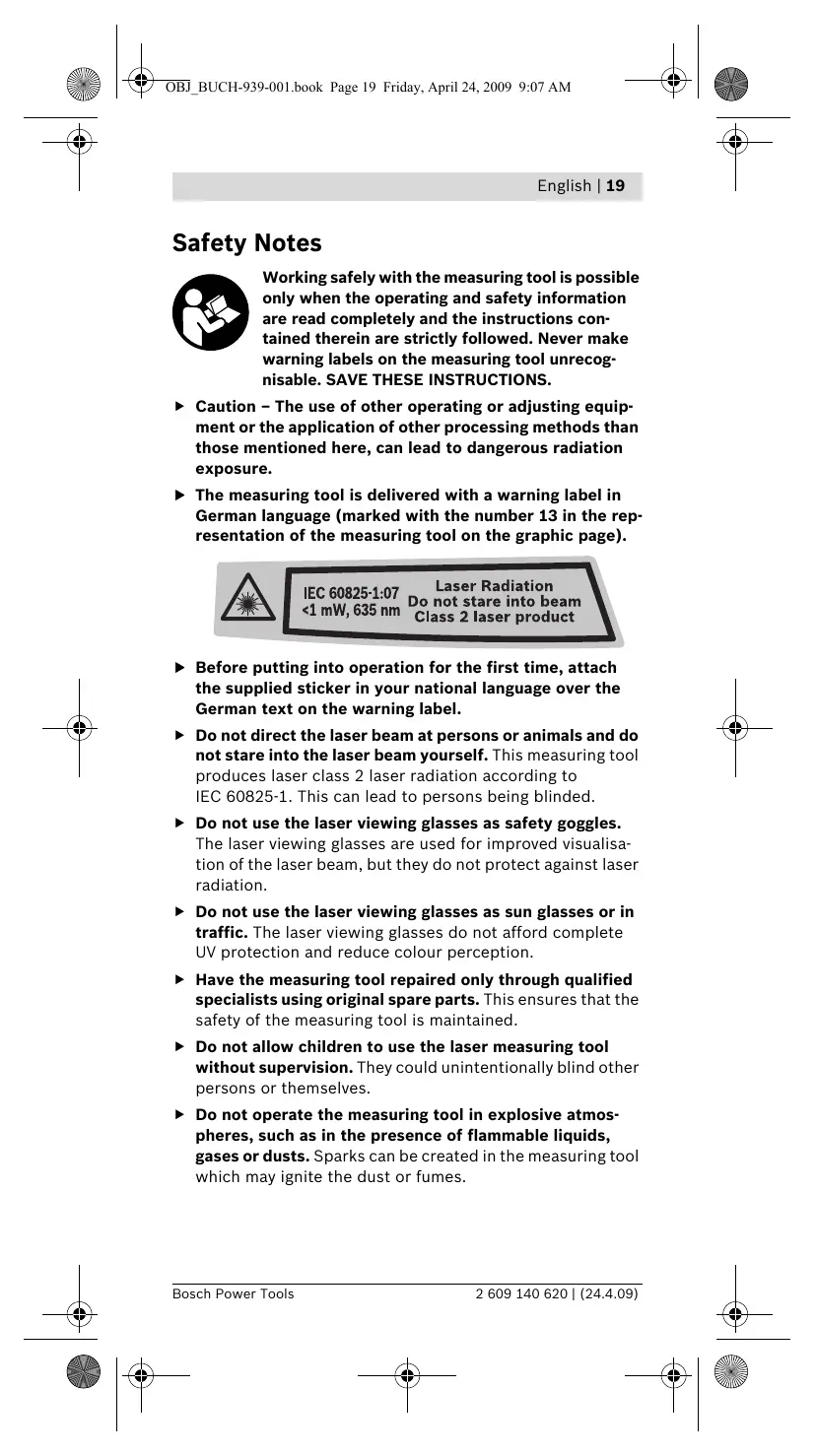

OBJ_BUCH-939-001.book Page 19 Friday, April 24, 2009 9:07 AM English | 19
Working safely with the measuring tool is possible only when the operating and safety information are read completely and the instructions contained therein are strictly followed. Never make warning labels on the measuring tool unrecognisable. SAVE THESE INSTRUCTIONS. f Caution – The use of other operating or adjusting equipment or the application of other processing methods than those mentioned here, can lead to dangerous radiation exposure. f The measuring tool is delivered with a warning label in
German language (marked with the number 13 in the representation of the measuring tool on the graphic page).
f Before putting into operation for the first time, attach the supplied sticker in your national language over the
German text on the warning label. f Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself. This measuring tool produces laser class 2 laser radiation according to IEC 60825-1. This can lead to persons being blinded. f Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation. f Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception. f Have the measuring tool repaired only through qualified specialists using original spare parts. This ensures that the safety of the measuring tool is maintained. f Do not allow children to use the laser measuring tool without supervision. They could unintentionally blind other persons or themselves. f Do not operate the measuring tool in explosive atmospheres, such as in the presence of flammable liquids, gases or dusts. Sparks can be created in the measuring tool which may ignite the dust or fumes.
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 20 Friday, April 24, 2009 9:07 AM
Functional Description
Intended Use The measuring tool is intended for measuring distances, lengths, heights, clearances, and for the calculation of areas and volumes. The measuring tool is suitable for measuring indoors and outdoors.
The numbering of the product features shown refers to the illustration of the measuring tool on the graphic page. 1 On/Off and memory delete button 2 Button for selection of the reference level 3 Memory subtraction button “M–” 4 Memory add button “M+” 5 Area measurement button 6 Length measurement button 7 Display 8 Alignment aid 9 Measuring button 10 Volume measurement button 11 Memory retrieve button “M=” 12 Tracking (continuous measurement) button 13 Laser warning label 14 Latch of battery lid 15 Battery lid 16 Laser beam outlet 17 Reception lens 18 Serial number 19 Laser viewing glasses* 20 Laser target plate* 21 Protective pouch * The accessories illustrated or described are not included as standard delivery.
Display Elements a Measuring functions
Length measurement Tracking (continuous measurement) Area measurement Volume measurement b Battery low indicator c Temperature warning d Measured value/result e Unit of measure f Measurement reference level g Laser switched on h Individual measured value (for length measurement: result) i Measured values stored 2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 21 Friday, April 24, 2009 9:07 AM English | 21
Digital Laser Rangefinder Article number Measuring range Measuring accuracy (typically) Lowest indication unit Operating temperature Storage temperature Relative air humidity, max.
Laser beam diameter (at 25 °C) and at 10 m distance, approx.
Batteries Rechargeable batteries Battery live, approximately – Individual measurements – Continuous measurement Weight according to EPTA-Procedure 01/2003 Dimensions Degree of protection (excluding battery compartment)
4 x 1.5 V LR03 (AAA) 4 x 1.2 V KR03 (AAA) 30000 D) 5 h D) 0.18 kg 58 x 104 x 36 mm IP 44 (splash water protected)
A) The working range increases depending on how well the laser light is reflected from the surface of the target (scattered, not reflective) and with increased brightness of the laser point to the ambient light intensity
(interior spaces, twilight). In unfavourable conditions (e.g. when measuring outdoors at intense sunlight), it may be necessary to use the target plate. B) In unfavourable conditions (e.g. at intense sunlight or an insufficiently reflecting surface), the maximum deviation is ± 7 mm per 25 m. In favourable conditions, a deviation influence of ± 0.05 mm/m must be taken into account. C) In the continuous measurement function, the maximum operating temperature is +40 °C. D) Fewer measurements are possible when using 1.2 V rechargeable batteries as compared with 1.5 V batteries. Please observe the article number on the type plate of your measuring tool. The trade names of the individual measuring tools may vary. The measuring tool can be clearly identified with the serial number 18 on the type plate.
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 22 Friday, April 24, 2009 10:01 AM
Inserting/Replacing the Battery Using alkali-manganese or rechargeable batteries is recommended for operation of the measuring tool. Fewer measurements are possible when using 1.2 V rechargeable batteries as compared with 1.5 V batteries. To open the battery lid 15, press the latch 14 in the direction of the arrow and remove the battery lid. Insert the supplied batteries/rechargeable batteries. When inserting, pay attention to the correct polarity according to the representation on the inside of the battery compartment. When the battery symbol appears for the first time on the display, at least 100 measurements are still possible. When the battery symbol flashes, the batteries/rechargeable batteries must be replaced; measurements are no longer possible. Replace all batteries/rechargeable batteries at the same time. Do not use different brands or types of batteries/rechargeable batteries together. f Remove the batteries/rechargeable batteries from the measuring tool when not using it for longer periods. When storing for longer periods, the batteries/rechargeable batteries can corrode and discharge themselves.
Initial Operation f Protect the measuring tool against moisture and direct sun irradiation. f Do not subject the measuring tool to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the measuring tool can be impaired. f Avoid heavy impact to or falling down of the measuring tool. After severe exterior effects to the measuring tool, it is recommended to carry out an accuracy check (see “Accuracy Check of the Measuring Tool”, page 29) each time before continuing to work.
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 23 Friday, April 24, 2009 9:07 AM English | 23
Switching On and Off To switch on the measuring tool, briefly press the On/Off button 1 or measuring button 9. When switching on the measuring tool, the laser beam is not switched on yet. To switch off the measuring tool, press the On/Off button 1 for a few seconds. If none of the measuring tool buttons are pressed for approx. 5 minutes, the measuring tool switches off automatically in order to extend the service life of the battery. When a measured value has been stored, it is retained in automatic switch-off mode. When switching on the measuring tool again, “M” is indicated in the display. Measuring Procedure After switching on, the measuring tool is in the length measurement mode. Other measuring modes can be switched to by pressing the respective function/mode button (see “Measuring Functions”, page 24). After switching on, the rear edge of the measuring tool is preset as the reference level for the measurement. To change the reference level, see “Selecting the Reference Level”, page 24. Upon selection of the measuring function and the reference level, all further steps are carried out by pushing the measuring button 9. With the reference level selected, place the measuring tool against the desired measuring line (e.g. a wall). Push the measuring button 9 to switch on the laser beam. f Do not point the laser beam at persons or animals and do not look into the laser beam yourself, not even from a large distance. Aim the laser beam at the target surface. Push the measuring button 9 again to initiate the measurement. In the tracking function, the measurement already starts upon first actuation of the measuring button 9. Typically, the measured value appears after 0.5 and latest after 4 seconds. The duration of the measurement depends on the distance, the light conditions and the reflection properties of the target surface. The end of the measurement is indicated by a signal tone. The laser beam is switched off automatically upon completion of the measurement. When no measurement has taken place approx. 20 seconds after sighting, the laser beam is switched off automatically to save the batteries.
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 24 Friday, April 24, 2009 9:07 AM
Selecting the Reference Level (see figures A–B) Two different reference levels are available for measuring: – The rear edge of the measuring tool (e.g. when placing against a wall), – The front measuring-tool edge (e.g. when measuring onward from a table edge). To change the reference level, press button 2 until the requested reference level is indicated on the display. Each time after switching on the measuring tool, the rear end of the measuring tool is preset as the reference level.
Length Measurement For length measurement, push button 6. The indicator for length measurement appears in the display . Push the measuring button 9 once for sighting and once more to take the measurement. The measured value is indicated at the bottom in the display. Area Measurement For area measurements, push button 5. The indicator for area measurement appears in the display . Afterwards, measure the length and the width, one after another, in the same manner as a length measurement. The laser beam remains switched on between both measurements. After taking the second measurement, the area/surface is automatically calculated and displayed. The last individual measured value is indicated at the bottom in the display, while the final result is shown at the top. Volume Measurement For volume measurements, push button 10. The indicator for volume measurement appears in the display . Afterwards, measure the length, width and the height, one after another, in the same manner as for a length measurement. The laser beam remains switched on between all three measurements. After taking the third measurement, the volume is automatically calculated and displayed. The last individual measured value is indicated at the bottom in the display, while the final result is shown at the top.
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 25 Friday, April 24, 2009 9:07 AM English | 25
Continuous Measurement (Tracking) (see figure C) The continuous measurement function (tracking) is used for the transferring of measurements, e.g., from construction plans. In continuous measurement mode, the measuring tool can be moved relative to the target, whereby the measured value is updated approx. every 0.5 seconds. As an example, the user can move from a wall to the required distance, while the actual distance can be read continuously. For continuous measurements, push button 12. The indicator for continuous measurement (tracking) appears in the display . Press the measuring button 9 to initiate the measuring procedure. Move the measuring tool until the required distance value is indicated at the bottom of the display. Pushing the measuring button 9 interrupts the continuous measurement. The current measured value is indicated in the display. Repeated pushing of the measuring button 9 starts the continuous measuring again. The continuous measurement automatically switches off after 5 minutes. The last measured value remains indicated on the display. The continuous measuring can also be ended by pushing the buttons 6, 5 or 10 which changes the measuring function. Deleting Measured Values Briefly pressing button 1 deletes the last individual measuring value determined in all measuring functions. Briefly pressing the button repeatedly deletes the individual measured values in reverse order.
When switching off the measuring tool, the value in the memory is retained. Storing/Adding Measured Values Push the memory add button 4 in order to store the current measured value – a length, area or volume value, depending on the current measuring function. As soon as a value has been stored, “M” is indicated in the display and the “+” behind it briefly flashes. If a value is already stored in the memory, the new value is added to the memory contents, however, only when the measures of unit correspond. As an example, when an area value is in the memory and the current measured value is a volume value, the addition cannot take place. “Error” briefly flashes in the display. Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 26 Friday, April 24, 2009 9:07 AM
Subtracting Measured Values Push the memory subtraction button 3 in order to subtract the current measured value from the memory value. As soon as a value has been subtracted, “M” is indicated in the display and the “–” behind it briefly flashes. If a value is already stored in the memory, the new measured value can be subtracted only when the measures of unit correspond (see “Storing/Adding Measured Values”). Displaying the Stored Value Push the memory retrieve button 11 in order to display the value stored in the memory. “M=” is indicated in the display. When the memory contents “M=” is indicated in the display, it can be doubled by pushing the memory add button 4 or set to zero by pushing the memory subtract button 3. Deleting the Memory To delete the memory contents, first push the memory retrieve button 11, so that “M=” is indicated in the display. Then briefly press button 1; “M” is no longer indicated in the display.
General Information The reception lens 17 and the laser beam outlet 16 must not be covered when taking a measurement. The measuring tool must not be moved while taking a measurement (with the exception of the continuous measurement function). Therefore, place the measuring tool, as far as this is possible, against or on the measuring points. Measurement takes place at the centre of the laser beam, even when target surfaces are sighted at an incline. Influence Effects on the Measuring Range The measuring range depends upon the light conditions and the reflection properties of the target surface. For improved visibility of the laser beam when working outdoors and when the sunlight is intense, use the laser viewing glasses 19 (accessory) and the laser target plate 20 (accessory), or shade off the target surface.
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 27 Friday, April 24, 2009 9:07 AM English | 27
Influence Effects on the Measuring Result Due to physical effects, faulty measurements cannot be excluded when measuring on different surfaces. Included here are: – – – –
Transparent surfaces (e.g., glass, water),
Reflecting surfaces (e.g., polished metal, glass), Porous surfaces (e.g. insulation materials), Structured surfaces (e.g., roughcast, natural stone).
If required, use the laser target plate 20 (accessory) on these surfaces.
Also, air layers with varying temperatures or indirectly received reflections can affect the measured value. Sighting with the Alingment Aid (see figure D) With the alignment aid 8, sighting over larger distances is a lot easier. For this, look alongside the aligning aid on the top side of the measuring tool. The laser beam runs parallel to this line of sight.
Troubleshooting – Causes and Corrective Measures
Temperature warning indicator (c) flashing; measurement not possible
The measuring tool is outside Wait until the measuring tool the operating temperature has reached the operating range from – 10 °C to + 50 °C temperature (in the function continuous measurement up to +40 °C). Battery low indicator (b) appears Battery voltage decreasing (measurement still possible)
Replace batteries/ rechargeable batteries
Battery low indicator (b) flashing; measurement not possible
Battery voltage too low
Replace batteries/ rechargeable batteries
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 28 Friday, April 24, 2009 9:07 AM
“Error” and “––––” indication in display
The angle between the laser beam and the target is too acute.
Enlargen the angle between the laser beam and the target
The target surface reflects
Work with the laser target too intensely (e.g. a mirror) plate 20 (accessory) or insufficiently (e.g. black fabric), or the ambient light is too bright. The laser beam outlet 16 or Wipe the laser beam outlet 16 and/or the reception lens 17 the reception lens 17 are misted up (e.g. due to a rapid dry using a soft cloth temperature change). Calculated value is greater than 99999 m/m2/m3.
Divide calculation into intermediate steps
“Error” indication flashes at in display (top)
Addition/Subtraction of measured values with different units of measure
Only add/subtract measured values with the same units of measure
Unreliable measuring result
The target surface does not reflect correctly (e.g. water, glass).
Cover off the target surface
The laser beam outlet 16 or the reception lens 17 are covered.
Make sure that the laser beam outlet 16 or the reception lens 17 are unobstructed
Measuring result not plausible
Wrong reference level set
Select reference level that corresponds to measurement
Obstruction in path of laser beam
Laser point must be completely on target surface.
The measuring tool monitors the correct function for each measurement. When a defect is determined, only the symbol shown aside flashes in the display. In this case, or when the above mentioned corrective measures cannot correct an error, have the measuring tool checked by an after-sales service agent for Bosch power tools.
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 29 Friday, April 24, 2009 9:07 AM English | 29
Accuracy Check of the Measuring Tool The accuracy of the measuring tool can be checked as follows: – Select a permanently unchangeable measuring section with a length of approx. 3 to 10 metres; its length must be precisely known (e.g. the width of a room or a door opening). The measuring distance must be indoors; the target surface for the measurement must be smooth and reflect well. – Measure the distance 10 times after another. The measuring error must not amount to more than a maximum of ±3 mm. Keep a record of the measurements in order to compare the accuracy at a later time.
Maintenance and Service
Maintenance and Cleaning Store and transport the measuring tool only in the supplied protective pouch. Keep the measuring tool clean at all times. Do not immerse the measuring tool into water or other fluids. Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents. Maintain the reception lens 17 in particular, with the same care as required for eye glasses or the lens of a camera. If the measuring tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorized after-sales service centre for Bosch power tools. Do not open the measuring tool yourself. In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the measuring tool. In case of repairs, send in the measuring tool packed in its protective pouch 21.
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under: www.bosch-pt.com Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories.
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 30 Friday, April 24, 2009 9:07 AM
Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ Tel. Service: +44 (0844) 736 0109 Fax: +44 (0844) 736 0146 E-Mail: SPT-Technical.de@de.bosch.com Ireland Origo Ltd. Unit 23 Magna Drive Magna Business Park City West Dublin 24 Tel. Service: +353 (01) 4 66 67 00 Fax: +353 (01) 4 66 68 88 Australia, New Zealand and Pacific Islands Robert Bosch Australia Pty. Ltd. Power Tools Locked Bag 66 Clayton South VIC 3169 Customer Contact Center Inside Australia: Phone: +61 (01300) 307 044 Fax: +61 (01300) 307 045 Inside New Zealand: Phone: +64 (0800) 543 353 Fax: +64 (0800) 428 570 Outside AU and NZ: Phone: +61 (03) 9541 5555 www.bosch.com.au Republic of South Africa Customer service Hotline: +27 (011) 6 51 96 00 Gauteng – BSC Service Centre 35 Roper Street, New Centre Johannesburg Tel.: +27 (011) 4 93 93 75 Fax: +27 (011) 4 93 01 26 E-Mail: bsctools@icon.co.za KZN – BSC Service Centre Unit E, Almar Centre 143 Crompton Street Pinetown Tel.: +27 (031) 7 01 21 20 Fax: +27 (031) 7 01 24 46 E-Mail: bsc.dur@za.bosch.com
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 31 Friday, April 24, 2009 9:07 AM English | 31
Western Cape – BSC Service Centre Democracy Way, Prosperity Park Milnerton Tel.: +27 (021) 5 51 25 77 Fax: +27 (021) 5 51 32 23 E-Mail: bsc@zsd.co.za Bosch Headquarters Midrand, Gauteng Tel.: +27 (011) 6 51 96 00 Fax: +27 (011) 6 51 98 80 E-Mail: rbsa-hq.pts@za.bosch.com
Measuring tools, accessories and packaging should be sorted for environmental-friendly recycling. Only for EC countries: Do not dispose of measuring tools into household waste! According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, measuring tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner. Battery packs/batteries: Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should be collected, recycled or disposed of in an environmental-friendly manner. Only for EC countries: Defective or dead out battery packs/batteries must be recycled according the guideline 91/157/EEC. Battery packs/batteries no longer suitable for use can be directly returned at: Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ Tel. Service: +44 (0844) 736 0109 Fax: +44 (0844) 736 0146 E-Mail: SPT-Technical.de@de.bosch.com Subject to change without notice.
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 32 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 33 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 34 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 35 Friday, April 24, 2009 9:07 AM Français | 35
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 36 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 37 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 38 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 39 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 40 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 41 Friday, April 24, 2009 9:07 AM Français | 41
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 42 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 43 Friday, April 24, 2009 9:07 AM Français | 43
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 44 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 45 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 46 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 47 Friday, April 24, 2009 9:07 AM Español | 47
OBJ_BUCH-939-001.book Page 48 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 49 Friday, April 24, 2009 9:07 AM Español | 49
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 50 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 51 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 52 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 53 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 54 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 55 Friday, April 24, 2009 9:07 AM Español | 55
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 56 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 57 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 58 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 59 Friday, April 24, 2009 9:07 AM Português | 59
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 60 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 61 Friday, April 24, 2009 9:07 AM Português | 61
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 62 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 63 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 64 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 65 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 66 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 67 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 68 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 69 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 70 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 71 Friday, April 24, 2009 9:07 AM Italiano | 71
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 72 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 73 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 74 Friday, April 24, 2009 9:07 AM
4 x 1,5 V LR03 (AAA) 4 x 1,2 V KR03 (AAA)
OBJ_BUCH-939-001.book Page 75 Friday, April 24, 2009 9:07 AM Italiano | 75
OBJ_BUCH-939-001.book Page 76 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 77 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 78 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 79 Friday, April 24, 2009 9:07 AM Italiano | 79
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 80 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 81 Friday, April 24, 2009 9:07 AM Italiano | 81
OBJ_BUCH-939-001.book Page 82 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 83 Friday, April 24, 2009 9:07 AM Italiano | 83
OBJ_BUCH-939-001.book Page 84 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 85 Friday, April 24, 2009 9:07 AM Nederlands | 85
Veiligheidsvoorschriften nl
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 86 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 87 Friday, April 24, 2009 9:07 AM Nederlands | 87
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 88 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 89 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 90 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 91 Friday, April 24, 2009 9:07 AM OBJ_BUCH-939-001.book Page 92 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 93 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 94 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 95 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 96 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 97 Friday, April 24, 2009 9:07 AM Dansk | 97
Sikkerhedsinstrukser da
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 98 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 99 Friday, April 24, 2009 9:07 AM Dansk | 99
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 100 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 101 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 102 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 103 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 104 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 105 Friday, April 24, 2009 9:07 AM Bosch Power Tools
OBJ_BUCH-939-001.book Page 106 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 107 Friday, April 24, 2009 9:07 AM Bosch Power Tools
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 108 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 109 Friday, April 24, 2009 9:07 AM Svenska | 109
Säkerhetsanvisningar sv
2 609 140 620 | (24.4.09)
OBJ_BUCH-939-001.book Page 110 Friday, April 24, 2009 9:07 AM
OBJ_BUCH-939-001.book Page 111 Friday, April 24, 2009 9:07 AM Svenska | 111
4 x 1,5 V LR03 (AAA) 4 x 1,2 V KR03 (AAA)
ManualGo.com
