Type	Cross-line Laser Level
Model	Bosch Professional PLL 360
Article Number	3 603 F63 000
Working Range (Diameter)	Up to 20 m
Levelling Accuracy	±0.4 mm/m
Self-levelling Range	±4°
Levelling Duration	Typically 4 s
Operating Temperature	+5 °C to +40 °C
Storage Temperature	-20 °C to +70 °C
Laser Class	2 (IEC 60825-1:2007)
Laser Type	635 nm, <1 mW
Power Supply	4 x 1.5 V LR6 (AA) or 4 x 1.2 V HR6 (AA)
Battery Life	Approx. 12 h
Weight (EPTA 01/2003)	0.5 kg
Dimensions (L x W x H)	125 x 85 x 70 mm
Tripod Mount	1/4"
Operating Modes	Cross-line, horizontal, vertical (with/without automatic levelling)
Automatic Levelling	Yes (±4° range, 4 s duration)
Accessories Included	Universal holder, tripod, protective pouch, laser viewing glasses
Maintenance	Clean with soft cloth; store in protective pouch
Safety	Class 2 laser; do not stare into beam; keep away from children

Frequently Asked Questions - PLL 360 BOSCH

What is the working range of the Bosch PLL 360?

The working range is up to 20 m in diameter under favorable conditions. It may decrease in direct sunlight or poor environmental conditions.

How do I change the batteries?

Press the latch 6 on the battery lid 5 and fold it up. Insert 4 x AA batteries (alkaline or rechargeable) observing correct polarity. Always replace all batteries at the same time.

What operating modes are available?

The PLL 360 offers three modes: cross-line (horizontal 360° plane + vertical line), horizontal only, and vertical only. Each can be used with or without automatic levelling.

How do I switch between operating modes?

Press the Mode button 8 repeatedly until the desired mode is indicated by the illuminated operating-mode indication 10.

What does the red levelling warning indicator mean?

The red levelling warning indicator 9 lights up if the measuring tool is tilted more than ±4° from horizontal. The laser automatically switches off. Place the tool on a level surface and wait for self-levelling.

Can I use the measuring tool on an inclined surface?

Yes, by pressing the Lock button 7 to disable automatic levelling. The indicator 11 lights up red. In this mode, the laser lines are not guaranteed to be perpendicular.

How do I attach the universal holder?

Fold the holding plate 14 upward until it engages. Lower it with the rotary knob 13 to desired height. Screw the 1/4 screw 16 into the tripod mount 3 of the measuring tool.

Is the laser safe for eyes?

This is a Class 2 laser (<1 mW, 635 nm). Avoid direct eye exposure. Do not stare into the beam. The laser viewing glasses improve visibility but do not protect against radiation.

What is the levelling accuracy?

The levelling accuracy is ±0.4 mm per meter (i.e., ±0.4 mm/m).

How do I clean and store the measuring tool?

Clean with a soft, damp cloth; do not use solvents. Store in the provided protective pouch 18. Keep away from moisture and extreme temperatures.

USER MANUAL PLL 360 BOSCH

Power Tools Division

70745 Leinfelden-Echterdingen

Germany

www.bosch-pt.com

1 609 929 T98 (2009.12) T/72 WEU

1609929T98

PLL 360

BOSCH

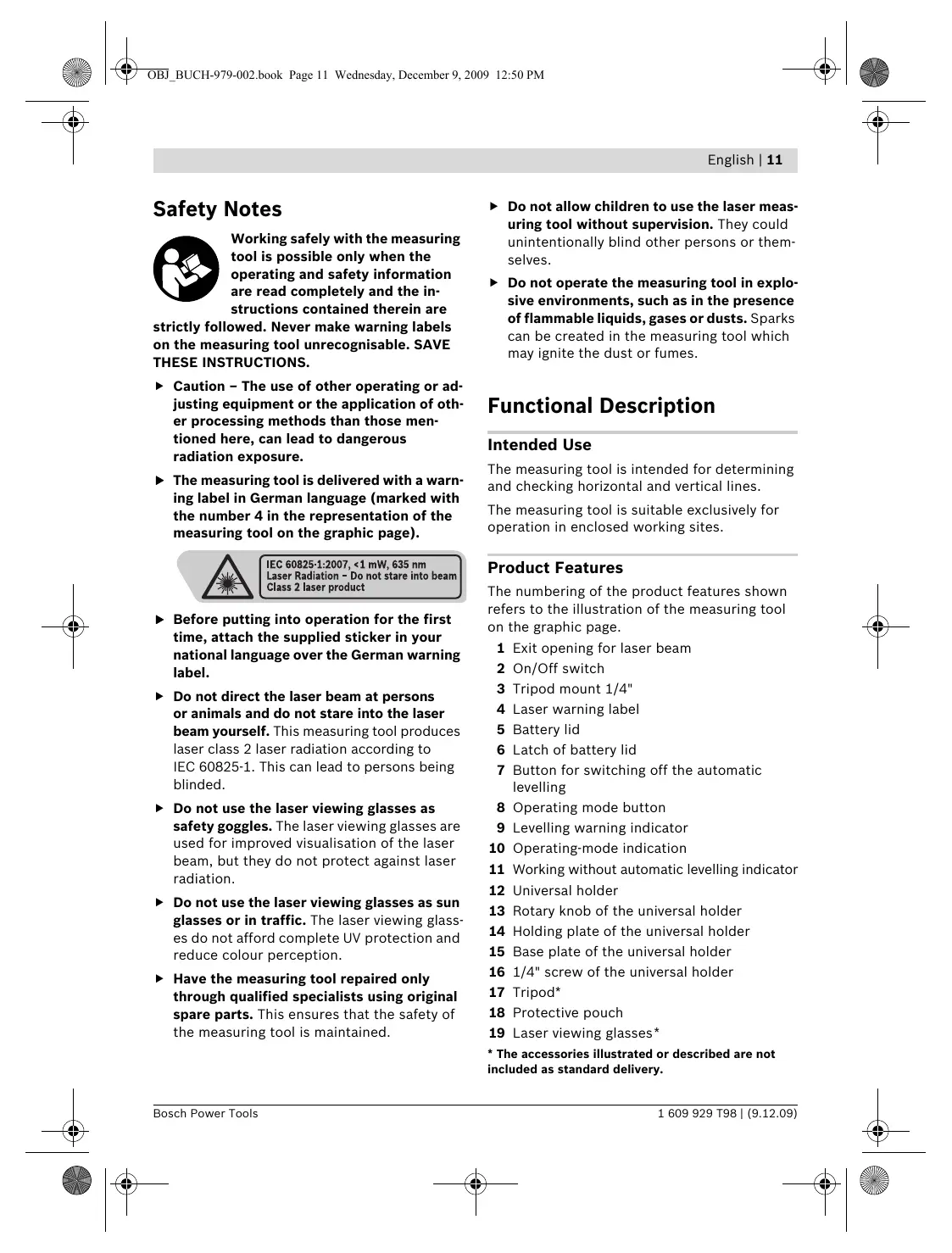

Working safely with the measuring tool is possible only when the operating and safety information are read completely and the instructions contained therein are

strictly followed. Never make warning labels on the measuring tool unrecognisable. SAVE THESE INSTRUCTIONS.

• Caution - The use of other operating or adjusting equipment or the application of other processing methods than those mentioned here, can lead to dangerous radiation exposure.
  The measuring tool is delivered with a warning label in German language (marked with the number 4 in the representation of the measuring tool on the graphic page).

IEC 60825-1:2007, <1 mW, 635 nm
Laser Radiation - Do not stare into beam
Class 2 laser product

Before putting into operation for the first time, attach the supplied sticker in your national language over the German warning label.
Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself. This measuring tool produces laser class 2 laser radiation according to IEC 60825-1. This can lead to persons being blinded.
- Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.
Have the measuring tool repaired only through qualified specialists using original spare parts. This ensures that the safety of the measuring tool is maintained.

Do not allow children to use the laser measuring tool without supervision. They could unintentionally blind other persons or themselves.
Do not operate the measuring tool in explosive environments, such as in the presence of flammable liquids, gases or dusts. Sparks can be created in the measuring tool which may ignite the dust or fumes.

Functional Description

Intended Use

The measuring tool is intended for determining and checking horizontal and vertical lines.

The measuring tool is suitable exclusively for operation in enclosed working sites.

Product Features

The numbering of the product features shown refers to the illustration of the measuring tool on the graphic page.

1 Exit opening for laser beam
2 On/Off switch
3 Tripod mount 1/4"
4 Laser warning label
5 Battery lid
6 Latch of battery lid
7 Button for switching off the automatic levelling
8 Operating mode button
9 Levelling warning indicator

10 Operating-mode indication
11 Working without automatic levelling indicator
12 Universal holder
13 Rotary knob of the universal holder
14 Holding plate of the universal holder
15 Base plate of the universal holder
16 1/4" screw of the universal holder
17 Tripod
18 Protective pouch
19 Laser viewing glasses

• The accessories illustrated or described are not included as standard delivery.

12 | English

Technical Data

Cross-line Laser	PLL 360
Article number	3 603 F63 000
Working range (diameter), to approx.1)	20 m
Levelling Accuracy	±0.4 mm/m
Self-levelling range, typically	±4°
Levelling duration, typically	4 s
Operating temperature	+5 °C ... +40 °C
Storage temperature	-20 °C ... +70 °C
Relative air humidity, max.	90 %
Laser class	2
Laser type	635 nm, <1 mW
C6	1
Tripod mount	1/4"
Batteries	4 x 1.5 V LR6 (AA)
Rechargeable batteries	4 x 1.2 V HR6 (AA)
Operating life time, approx.	12 h
Weight according to EPTA-Procedure 01/2003	0.5 kg
Dimensions	125 x 85 x 70 mm
1) The working range can be decreased by unfavourable environmental conditions (e.g. direct sun irradiation). Please observe the article number on the type plate of your measuring tool. The trade names of the individual measuring tools may vary.

Assembly

Inserting/Replacing the Battery

Using alkali-manganese or rechargeable batteries is recommended for operation of the measuring tool.

To open the battery lid 5, press on the latch 6 and fold the battery lid up. Insert the batteries/rechargeable batteries. When inserting, pay attention to the correct polarity according to the representation on the inside of the battery lid.

Always replace all batteries/rechargeable batteries at the same time. Do not use different brands or types of batteries/rechargeable batteries together.

• Remove the batteries/rechargeable batteries from the measuring tool when not using it for longer periods. When storing for longer periods, the batteries/rechargeable batteries can corrode and discharge themselves.

Operation

Initial Operation

Protect the measuring tool against moisture and direct sun light.
Do not subject the measuring tool to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the measuring tool can be impaired.
- Avoid heavy impact to or falling down of the measuring tool. Damage to the measuring tool can impair its accuracy. After heavy impact or shock, compare the laser line with a known horizontal or vertical reference line.
- Switch the measuring tool off during transport. When switching off, the levelling unit, which can be damaged in case of intense movement, is locked.

Switching On and Off

To switch on the measuring tool, slide the On/Off switch 2 to the "On" position. Immediately after switching on, the measuring tool sends laser beams out of the exit openings 1.

Do not point the laser beam at persons or animals and do not look into the laser beam yourself, not even from a large distance.

To switch off the measuring tool, slide the On/Off switch 2 to the "Off" position. When switching off, the levelling unit is locked.

Do not leave the switched on measuring tool unattended and switch the measuring tool off after use. Other persons could be blinded by the laser beam.

Operating Modes

After switching on, the measuring tool is in crossline operating mode with automatic levelling.

To change the operating mode, press the "Mode" button 8 until the requested operating mode is indicated by the corresponding illuminated operating-mode indication 10.

The following operating modes are available:

Indica- tion	Operating Mode
●	Cross-line operation (see figures A, B and E): The measuring tool gener- ates a horizontal laser plane (360° rotating laser line) and a vertical laser line.
●	Horizontal operation (see figure C): The measuring tool generates a horizontal laser plane.
I	Vertical operation (see figure D): The measuring tool generates a vertical laser line.

All three operating modes can be selected either with or without automatic levelling.

Automatic Levelling

Working with Automatic Levelling (see figure F-G)

When working with automatic levelling, the indicator for working without automatic levelling 11 may not be lit. If required, switch the automatic levelling on again by pressing the "Lock" button 7 so that the indicator 11 goes out.

Position the measuring tool on a level and firm support, attach it to the holder 12 or to the tripod 17.

After switching on, the levelling function automatically compensates irregularities within the self-levelling range of ± 4^ . The levelling is finished as soon as the laser beams do not move any more.

If the automatic levelling function is not possible, e.g. because the surface on which the measuring tool stands deviates by more than 4^ from the horizontal plane, the levelling warning indicator 9 lights up red and the laser is automatically switched off. In this case, bring the measuring tool to the level position and wait for the self-levelling to take place. As soon as the measuring tool is within the self-levelling range of ± 4^ , the levelling warning indicator 9 goes out and the laser is switched on.

When not within the self-levelling range of ± 4^ , working with automatic levelling is not possible, because it cannot be assured that the laser lines run at a right angle to each other.

In case of ground vibrations or position changes during operation, the measuring tool is automatically levelled in again. To avoid errors, check the position of the horizontal and vertical laser line with regard to the reference points upon re-levelling.

Working without Automatic Levelling (see figure E)

When working without automatic levelling, press the "Lock" button 7. When the automatic levelling is switched off, indicator 11 lights up red.

When the automatic levelling is switched off, the measuring tool can be held by hand or placed on an inclined surface. In cross-line operation, the two laser lines do not necessarily run at a right angle to each other.

14 | English

Working Advice

Always use the centre of the laser line for marking. The width of the laser line changes with the distance.

Working with the Tripod

A tripod 17 offers a stable, height-adjustable measuring support. Place the measuring tool via the tripod mount 3 onto the 1/4'' male thread of the tripod 17 or a commercially available camera tripod and screw the locking screw of the tripod tight.

Adjust the tripod roughly before switching on the measuring tool.

Fastening with the Universal Holder (Accessory) (see figures H-K)

With the universal holder 12, you can fasten the measuring tool, e.g., to vertical surfaces. The universal holder is also suitable for use as a ground tripod and makes the height adjustment of the measuring tool easier.

Fold the holding plate 14 of the universal holder 12 upward (a) as shown in the figure, so that it engages in this position. Lower the holding plate with adjustment knob 13 to the desired height (b).

When using as a wall mount, fasten the universal holder 12 as vertical as possible to a wall with the holding plate folded up. Secure it safely against slipping off, e.g., with a fastening screw (commercially available).

To use the universal holder as a table tripod, fold out the base plate 15 until parallel to the holding plate (c).

Screw the 1 / 4'' screw 16 of the wall mount into the tripod mount 3 of the measuring tool.

Adjust the universal holder roughly before 12 switching on the measuring tool.

To fold the universal holder 12 together, push the base plate 15 back against the corpus of the holder. Raise the holding plate 14 with adjustment knob 13 to the highest position. Then push the holding plate downward against the corpus.

Laser Viewing Glasses (Accessory)

The laser viewing glasses filter out the ambient light. This makes the red light of the laser appear brighter for the eyes.

Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
- Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.

Maintenance and Service

Maintenance and Cleaning

Store and transport the measuring tool only in the supplied protective pouch.

Keep the measuring tool clean at all times.

Do not immerse the measuring tool in water or other fluids.

Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents.

Regularly clean the surfaces at the exit opening of the laser in particular, and pay attention to any fluff of fibres.

If the measuring tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorised after-sales service centre for Bosch power tools. Do not open the measuring tool yourself.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the measuring tool.

In case of repairs, send in the measuring tool packed in its protective pouch 18.

After-sales Service and Customer Assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 95HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

16 | English

Disposal

Measuring tools, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of measuring tools into household waste!

According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national

right, measuring tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/ batteries should be collected, recycled or disposed of in an environmental-friendly manner.

Only for EC countries:

Defective or dead out battery packs/batteries must be recycled according the guideline 2006/66/EC.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB95HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Subject to change without notice.

Robert Bosch (France) S.A.S.

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tel. Service Center: [phone]

Fax: [phone]

E-Mail: [e-mail]
