TM1014 - Blender VOX - Free user manual and instructions

Product Type	Blender
Brand	VOX
Model	TM1014
Dimensions (approx.)	20 x 20 x 40 cm
Weight (approx.)	2 kg
Power Supply	220-240V, 50-60Hz
Power Consumption	500 W
Capacity	1.5 L
Speed Settings	2 speeds + pulse
Functions	Blending, pureeing, crushing ice, mixing
Blade Material	Stainless steel
Jar Material	Glass or Tritan plastic
Safety Features	Non-slip feet, overload protection, safety lock
Maintenance	Detachable jar for easy cleaning; wipe base with damp cloth
Dishwasher Safe	Jar and lid (top rack recommended)
Spare Parts	Available separately: jar, lid, blade assembly
Warranty	2 years
Manual Languages	EN, ES, MK, PT, SQ, EL

Frequently Asked Questions - TM1014 VOX

How do I clean the blender?

Unplug the blender. Remove the jar and lid. Wash the jar, lid, and blade assembly with warm soapy water or place on the top rack of the dishwasher. Wipe the motor base with a damp cloth. Do not immerse the base in water.

Can I blend hot liquids?

Avoid blending hot liquids directly. Let them cool to at least 60°C (140°F) before blending to prevent pressure build-up and possible lid ejection. Always start at low speed.

What is the maximum capacity?

The maximum capacity for liquids is 1.5 liters. For solid foods, do not fill beyond 1 liter. Overfilling may cause spillage or motor strain.

Why won't the blender start?

Ensure the jar is properly locked onto the base. Check that the power cord is plugged in and the outlet is functioning. If the overload protection has tripped, unplug and wait 10 minutes before trying again.

Is it safe to blend ice?

Yes, the stainless steel blades are designed to crush ice. Use the pulse function or start at low speed and gradually increase. Do not add too much ice at once.

How long should I blend for?

For most recipes, blend for 30-60 seconds. For heavy mixtures, operate in short bursts of 15-20 seconds with pauses to avoid overheating. Do not run continuously for more than 2 minutes.

Can I replace the jar or blades?

Yes, replacement parts are available separately. Contact VOX customer support or your local retailer for spare parts like the jar, lid, blade assembly, and sealing ring.

What is the warranty period?

The VOX TM1014 blender comes with a 2-year warranty against manufacturing defects. Keep your proof of purchase. The warranty does not cover normal wear and tear or misuse.

How do I use the pulse function?

Press and hold the Pulse button for short bursts. Release to stop. This is ideal for chopping, crushing ice, or controlling texture. Do not hold continuously for more than 10 seconds.

Can I grind coffee beans or dry spices?

This blender is not designed for dry grinding. Use a dedicated coffee or spice grinder. The blender may overheat or damage the blades if used for dry hard materials.

USER MANUAL TM1014 VOX

GBR

SRB

SVN

HRV

BIH-MNE

ESP

GRC

MKD

ALB

PRT

TM-1013/1014

OPERATING INSTRUCTIONS BLENDER TM-1013

Read this booklet thoroughly before using appliance and save it for future reference.

IMPORTANT SAFEGUARDS

When using this electrical appliance, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Before using, check that the voltage indicated on the product corresponds with the voltage of your electrical outlet.
3. Do not let the cord touch a hot surface or hang over the edge of a table or counter.
4. Do not operate any appliance with a damaged cord or plug, or after the appliance has malfunctioned, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.
6. Close supervision is necessary when any appliance is used by or near children.
7. Avoid contact with moving parts.
8. Keep hands and utensils out of the container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used, but must be used only when the blender is not running.
9. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
10. Unplug the appliance from the outlet when not in use, before putting on or taking off parts, and before cleaning. To disconnect, turn any control to “off”, then remove the plug from the wall outlet by grabbing the plug, not the cord.
11. To reduce the risk of injury, never place the blade assembly on the motor unit without the jar properly attached.
12. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
13. Children should be supervised to ensure that they do not play with the appliance.
14. Do not leave the machine on unattended.
15. When removing the blender from the motor unit, wait until the blades have completely stopped.
16. Always operate the blender with the cover in place.
17. Always use the appliance on a secure, dry level surface.
18. Never place this appliance on or near a hot gas or an electric burner or where it could touch a heated appliance.
19. Do not use outdoors.
20. Do not use the appliance for other than its intended use.

HOUSEHOLD USE ONLY

KNOW YOUR BLENDER

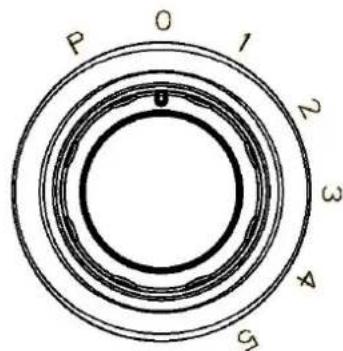

SPEED KNOB Fig.1

HOW TO USE

Before initial use

1. Before first use, unpack the appliance and place all parts on a horizontal surface.
2. The jar assembly (including the measuring cup, lid, seal ring 1, jar unit, seal ring 2, and blade assembly) has already been assembled into the motor unit. Disassemble to wash all detachable parts except the motor unit. Refer to the latter chapter CARE AND CLEANING.
3. Once all pieces have been cleaned and thoroughly dried, reassemble.
   1) Invert the jar unit onto a level surface, holding the jar handle, put the seal ring 2 and blade assembly onto the jar base bottom and secure the blade assembly by turning it counter-clockwise until it is tight (See Fig.3.)
   2) Reposition the jar assembly with its open end upwards. Wrap the seal ring 1 around the lid bottom and put the lid onto the jar assembly. Place the measuring cup exactly into the lid by fitting the small projection on both sides of the cup into the slots of the lid and turn the cup clockwise until tight. (See Fig.4)
   3) Finally, place the assembled jar onto the motor unit by aligning the strip on the assembled jar bottom. (See Fig.5)

CAUTION: Jar and jar base is now secure. Do not try to twist the jar and jar base onto motor unit

Fig.3 Fig.4 Fig.5

How to use

1. Peel or core the fruit or vegetables and then cut them into small pieces.
2. Place the food to be blended into the jar (See Fig.6). Usually, a certain amount of purified water has to be added to facilitate the smooth running of the appliance. The proportion of the food and water is 2:3. The amount of mixture should not exceed the max level as indicated on the jar.

RECIPE

FOOD TYPE	SPEC	WEIGHT	SPEED
Carrot (apple, pear etc.)	Cut into 15mm*15mm*15mm m	Carrot: 600g Water: 900g	High speed

Note: never use boiling liquids or run the appliance empty.

1. Put the lid on the jar. Be sure the measuring cup is in place.
2. Plug the power cord into a standard wall outlet.
3. Turn the speed knob to the appropriate speed setting for your task.
4. For quick or delicate blending tasks, turn the speed knob to the P position and hold for a few seconds and then release. The knob will reset to the O position automatically. Operate several times until reaching the desired consistency.
5. If you want to add ingredients while the blender is working, remove the measuring cup and place food through the lid opening. (See Fig.7)
6. When crushing ice or hard food, keep one hand firmly on the lid.
7. When the desired consistency is reached, turn the knob to the O position.

Note: 1) For each use, the consecutive operation time should not exceed 3 minutes. At least 10 minutes rest time must be maintained between two continuous cycles, let the unit cool to room temperature before performing the next operation cycle.

2) If you want to stop the machine during operation, turn the knob to the O position anytime.

Fig.6

Important operating tips

• For best circulation of food to be blended with some liquid, pour the liquid into the jar first, then add solids.
• Some of the tasks that cannot be performed efficiently with a blender are: beating egg whites, whipping cream, mashing potatoes, grinding meat, mixing dough, and extracting juice from fruit and vegetables.
• The following items should never be placed in the unit as they may cause damage: bones, large pieces of solids, frozen food, or tough foods such as turnips.
• To crush ice, add up to 6 ice cubes. If more ice is needed, remove the cup and add cubes one by one through the lid opening.

Do not run the appliance for more than 3 minutes per time, and only wait until the unit is cooled to room temperature before performing the next operation cycles.

CARE AND CLEANING

This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Before cleaning, unplug the blender.
2. Always wash immediately after use for easier cleaning. Don't let food dry on the jar assembly as this will make cleaning difficult.
3. Pour a little warm soapy water into the jar and turn the knob to the P position for a few seconds. Then empty the jar.

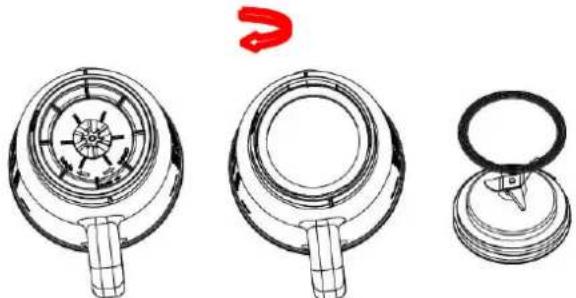

4. Dismantle all detachable parts. Lift the jar assembly off the motor unit. To detach the blade assembly, turn it clockwise from the jar base bottom, and remove the seal ring 2 and blade assembly (see fig.8). In addition, detach the jar cover seal ring 1 from the jar cover.

Three technical line drawings of a mechanical component with no visible text or symbols

Fig.8

1. Rinse the measuring cup, lid, seal ring 1, jar unit, seal ring 2 and blade assembly by hand or in a dishwasher and then dry. They are dishwasher safe components, but the temperature setting should not exceed 65°C.
2. Brush the blade clean using warm soapy water, then rinse thoroughly under the tap. Don't touch the sharp blades, and handle carefully. Don't immerse the blade assembly in water. Leave to dry upside down away from children.
3. Wipe the motor unit with a damp cloth and dry thoroughly. Remove the stubborn spots by rubbing with non-abrasive cleaner. If liquids spill into the motor unit; first unplug the unit, then wipe with a damp cloth and dry thoroughly.

CAUSION

1) Do not immerse the motor unit in liquid to prevent the risk of electric shock.
2) Do not use rough scouring pads or cleansers on parts or finish.

ENVIRONMENT FRIENDLY DISPOSAL

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

UPUTSTVO ZA UPOTREBU BLENDER

Model: TM1013/1014

Model: TM1013

Pažljivo pročitajte ovo uputstvo pre korišćenja i sačuvajte ga za kasniju upotrebu

VAŽNA BEZBEDNOSNA UPUTSTVA

Kada koristite električni uređaj, neophodno je pridržavati se osnovnih mera opreza navedenih u nastavku:

1. Pročitajte sve instrukcije.
2. Pre upotrebe, proverite da li napon u zidnoj utičnici odgovara onom prikazanom na pločici aparata.
3. Ne dozvolite da kabl visi preko ivice stola ili pulta.
4. Nemojte koristiti bilo koji uređaj sa oštećenim kablom ili utikačem, ili ukoliko je aparat u kvaru ili je oštećen na bilo koji način. Vratite uređaj u najbliži ovlašćeni servis na ispitivanje, popravku ili podešavanje.
5. Ako je napojni kabl oštećen, mora biti zamenjen od strane proizvođača ili njegovog servisera ili slično kvalifikovane osobe, kako bi se izbegla opasnost.
6. Strogi nadzor je neophodan kada se bilo koji uređaj koristi od strane dece ili u njihovoj blizini.
7. Izbegavajte kontakt sa pokretnim delovima.
8. Držite ruke i pribor van posude dok je uređaj u upotrebi da bi se smanjio rizik od ozbiljne povrede osobe ili da ne dođe do oštećenja blendera. Strugalica može da se koristi, ali samo kada blender nije uključen.
9. Upotreba dodataka koji nisu preporučeni ili prodati od strane proizvođača, uključujući i posudu i poklopac posude, može dovesti do požara, strujnog udara ili povrede.
10. Isključite uređaj iz utičnice kada nije u upotrebi, pre stavljanja ili skidanja delova, i pre čišćenja. Da biste ga isključili, pritisnite dugme "off", zatim uklonite utikač iz zidne utičnice, povlačeći utikač a ne kabl.
11. Da biste smanjili rizik od povrede, ne postavljajte deo sa sečivom na postolje ukoliko posuda nije pravilno postavljena.
12. Ovaj uređaj nije namenjen za upotrebu od strane osoba (uključujući decu) sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima, ili nedostatkom iskustva i znanja, osim ako su pod nadzorom ili su im date instrukcije za upotrebu aparata na bezbedan način.
13. Decu treba nadzirati kako bi se uverili da se ne igraju sa uređajem.
14. Nemojte ostavljati uređaj da radi sam bez nadzora.
15. Kada uklanjate blender sa postolja s motorom, sačekajte da se sečiva u potpunosti zaustave.
16. Uvek koristite blender kada je stavljen poklopac.
17. Uvek koristite uređaj na sigurnoj, ravnoj i suvoj površini.
18. Nikada ne stavljajte na ili u blizini vrućeg gasa ili električnog gorionika, ili u zagrejanoj rerni.
19. Nemojte koristiti na otvorenom.
20. Nemojte koristiti uređaj u svrhe za koje nije predviđena njegova upotreba.

ISKLJUČIVO ZA KUĆNU UPOTREBU

UPOZNAJTE SVOJ BLENDER

Regulator brzine

Fig.2

KAKO KORISTITI

Pre prve upotrebe

1. Pre prve upotrebe, raspakujte uređaj i postavite sve delove na horizontalnu površinu.
2. Sklop posude (uključujući šolju za merenje, poklopac, zaptivni prsten 1, posudu, zaptivni prsten 2 i sklop sečiva) je već dodat na postolje s motorom. Odvojite kako biste oprali sve odvojive delove osim postolja s motorom. Pogledajte odeljak Čišćenje i održavanje.

3. Kada su svi delovi očišćeni i potpuno osušeni, sastavite ih.

4. Okrenite posudu na ravnu površinu, držeći ručku posude, stavite zaptivni prsten 2 i sklop sečiva okrećući u smeru suprotnom kazaljci na satu dok se ne učvrsti (videti Fig.3).

5. Vratiti sklop posude sa otvorenim krajem nagore. Postaviti zaptivni prsten 1 oko dna poklopca i staviti poklopac na sklop posude. Postavite šolju za merenje tačno na poklopac uklapajući mali prostor sa obe strane šolje u označeni prostor na poklopcu a zatim okrenite šolju u smeru kazaljke na satu dok se ne učvrsti. (videti Fig.4)
6. Na kraju, postavite sklopljenu posudu na postolje s motorom ravnajući traku na dno sklopljene posude. (videti Fig.5)

Fig.3 Fig.4 Fig.5

Kako da koristite

1. Oljuštite ili odvojite jezgro iz voća ili povrća a zatim ga isecite na male komade.
2. Stavite hranu za blendiranje u posudu (videti Fig.6). Obično, određena količina prečišćene vode treba da se doda kako bi se olakšao nesmetani rad uređaja. Odnos hrane i vode je 2:3. Količine smese ne sme da pređe maksimalni nivo kao što je prikazano na posudi.

RECEPT

VRSTA HRANE	SAVET	TEŽINA	BRZINA
Šargarepa (jabuka, kruška, itd)	Iseći na kocke 15mm*15mm*15mm	Šargarepa: 600g Voda: 900g	Velika brzina

Napomena: nikada ne koristite ključale tečnosti i ne uključujte prazan aparat.

1. Stavite poklopac na posudu. Uverite se da je šolja za merenje na mestu.
2. Priključite kabl za napajanje u standardnu zidnu utičnicu.
3. Podesite regulator brzine na odgovarajuću brzinu.
   6.Za brzo ili osetljivo blendiranje, podesite regulator na P poziciju, držite nekoliko sekundi a zatim pustite. Regulator će se automatski vratiti na O poziciju. Ponovite nekoliko puta ovaj postupak dok ne dobijete željenu smesu.
4. Ukoliko želite da dodate sastojke dok je blender u upotrebi, uklonite šolju za merenje i stavite hranu kroz otvor na poklopcu. (videti Fig.7)
5. Kada lomite led ili tvrdu hranu, jednom rukom čvrsto držite poklopac.
6. Kada ste dobili željenu smesu, okrenite regulator na O poziciju.

Technical line drawings of three mechanical components: a circular knob with internal blades, a circular dial with handle, and a flat plate with compass (no text or symbols)

Fig.8

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

EKOLOŠKO ODLAGANJE

Fig.2

KAKO UPORABLJATI

Pred prvo uporabo

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Fig.2

KAKO KORISTITI

Prije prve uporabe

Kako da koristite

1. Oljuštite ili odvojite jezgro iz voća ili povrća a zatim ga isecite na male komade.
2. Stavite hranu za blendiranje u posudu (videti Fig.6). Obično, određena količina prečišćene vode treba da se doda kako bi se olakšao nesmetani rad uređaja. Odnos hrane i vode je 2:3. Količine smjese ne smije da pređe maksimalni nivo kao što je prikazano na posudi.

RECEPT

VRSTA HRANE	SAVET	TEŽINA	BRZINA
Šargarepa(jabuka, kruška, itd)	Isjeći na kocke15mm*15mm*15mmm	Šargarepa: 600gVoda: 900g	Velika

Technical line drawing of a mechanical component with a circular housing and handle (no text or symbols)

Technical line drawing of a mechanical component with a circular top and handle (no text or symbols)

Fig.8

1. Isperite šolju za mjerenje, poklopac, zaptivni prsten 1, posudu, zaptivni prsten 2 i dodatak sa sječivima ručno ili u mašini za sudove, potom osušite. Ovo su dijelovi koji se mogu bezbjedno prati u mašini za sudove, ali temperatura ne smije prelaziti 65°C.
2. Očistiti sječivo koristeći toplu vodu sa sapunicom, zatim detaljno isprati pod mlazom vode. Ne dodirujte oštre noževe, i pozorno rukujte. Ne uranjajte dodatak sa sječivima u vodu.
3. Obrišite bazu motora vlažnom krpom i detaljno osušite.
   Uklonite tvrdokorne mrlje trljanjem sa neabrazivnim sredstvom za čišćenje. Ako tekućina uđe u bazu motora, najpre isključite uređaj, a zatim obrišite vlažnom krpom i potpuno osušite.

POZOR

Ne uranjajte bazu motora u tekućinu kako biste sprečili rizik od strujnog udara.

Ne koristite grube podloge za ribanje ili jaka sredstva za čišćenje dijelova ili samog uređaja.

Symbol of a trash bin crossed with a diagonal line, indicating no waste or discharge (no text or labels present)

EKOLOŠKO ODLAGANJE

Fig.2

KAKO KORISTITI

Prije prve upotrebe

Fig.3 Fig.4 Fig.5

Kako da koristite

1.Oljuštite ili odvojite jezgro iz voća ili povrća a zatim ga isjecite na male komade. 2.Stavite hranu za blendiranje u posudu (videti Fig.6). Obično, određena količina prečišćene vode treba da se doda kako bi se olakšao nesmetani rad uređaja. Odnos hrane i vode je 2:3. Količine smjese ne sme preći maksimalni nivo kao što je prikazano na posudi.

RECEPT

VRSTA HRANE	SAVJET	TEŽINA	BRZINA
Šargarepa (jabuka, kruška, itd)	Iseći na kocke 15mm*15mm*15mm m	Šargarepa: 600g Voda: 900g	Velika brzina

Napomena: nikada ne koristite ključale tečnosti i ne uključujte prazan aparat.

1. Stavite poklopac na posudu. Uvjerite se da je šolja za mjerenje na mjestu.
2. Priključite kabl za napajanje u standardnu zidnu utičnicu.
3. Podesite regulator brzine na odgovarajuću brzinu.
   6.Za brzo ili osetljivo blendiranje, podesite regulator na P poziciju, držite nekoliko sekundi a zatim pustite. Regulator će se automatski vratiti na O poziciju. Ponovite nekoliko puta ovaj postupak dok ne dobijete željenu smjesu.
4. Ukoliko želite da dodate sastojke dok je blender u upotrebi, uklonite šolju za mjerenje i stavite hranu kroz otvor na poklopcu. (videti Fig.7)
5. Kada lomite led ili tvrdu hranu, jednom rukom čvrsto držite poklopac.
6. Kada ste dobili željenu smjesu, okrenite regulator na O poziciju.

Napomena: 1) Kod svake upotrebe, uzastopno vrijeme rada ne bi trebalo da prelazi 3 minute. Najmanje 10 minuta je vrijeme odmora između dva uzastopna ciklusa, ostavite uređaj da se ohladi do sobne temperatura prije nego što ponovo pustite uređaj u rad.

Technical line drawing of a circular mechanical component with radial slots and a handle (no text or symbols)

Technical line drawing of a mechanical component with a circular top and handle (no text or symbols)

Fig.8

1. Isperite šolju za mjerenje, poklopac, zaptivni prsten 1, posudu, zaptivni prsten 2 i dodatak sa sječivima ručno ili u mašini za sudove, potom osušite. Ovo su dijelovi koji se mogu bezbjedno prati u mašini za sudove, ali tempreatura ne smije prelaziti 65°C.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

EKOLOŠKO ODLAGANJE

Three technical line drawings of a mechanical component with no visible text or symbols

Fig.8

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Eik.5

Simple line drawing of a kitchen appliance with a red arrow pointing to the top portion (no text or symbols)

Technical line drawings of three mechanical components: a circular dial with internal blades, a ring with a handle, and a flat plate (no text or symbols)

Fig.8

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Fig.2

КАКО ДА СЕ КОРИСТИ

Technical line drawings of three mechanical components: a circular dial with internal blades, a flat plate with handle, and a ring-shaped base (no text or symbols)

Fig.8

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Pik.2

PËRDORIMI

Three technical line drawings of a mechanical component with no visible text or symbols

Pik.8

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

MANUAL DE INSTRUÇÕES

LIQUIDIFICADOR

Modelo: TM1013/1014

Modelo: TM1013

APENAS PARA USO DOMÉSTICO

CONHEÇA O SEU LIQUIDIFICADOR

Tampa medidora

Tampa

Jarra de vidro

Guarnição de

borracha

Conjunto de lâminas

COMO UTILIZAR

Simple line drawing of a kitchen appliance with a handle and lid (no text or symbols)

Simple line drawing of a mechanical component or bracket (no text or symbols)

Conselhos úteis

Three technical line drawings of a mechanical component with no visible text or symbols

Fig.8

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or restriction (no text present)
