Product Type	Blender
Brand	VOX
Model	TM6006
Dimensions (mm)	180 x 180 x 370
Weight (kg)	1.5
Power Consumption (W)	600
Voltage (V)	220-240
Frequency (Hz)	50/60
Capacity (L)	1.5
Jug Material	Glass
Blade Material	Stainless Steel
Number of Speeds	2 + Pulse
Safety Lock	Yes
Non-Slip Feet	Yes
Dishwasher Safe Parts	Jug and Lid
Cleaning	Wipe base with damp cloth
Spare Parts Available	Jug, Lid, Blades
Certifications	CE, RoHS
Warranty (Years)	2

Frequently Asked Questions - TM6006 VOX

How do I clean the VOX TM6006 blender?

Clean the jug and lid in warm soapy water or in the dishwasher. Wipe the motor base with a damp cloth. Do not immerse the base in water.

What is the maximum capacity of the blender?

The blender has a maximum capacity of 1.5 liters. Do not exceed the marked maximum level.

Can I blend hot liquids?

No, do not blend hot liquids as the steam pressure may cause the lid to blow off. Allow liquids to cool before blending.

How do I use the pulse function?

The Pulse function is activated by pressing the pulse button. Use it for short bursts to control the texture.

What should I do if the blender stops working?

Check that the power cord is plugged in and the safety lock is engaged. If it still doesn't work, refer to the troubleshooting section in the manual or contact VOX support.

Can I crush ice with this blender?

Yes, the TM6006 can crush ice. Use the Pulse function for best results and do not exceed the recommended quantity.

What is the warranty period?

The VOX TM6006 blender comes with a 2-year warranty covering manufacturing defects. Proof of purchase is required.

Are spare parts available for purchase?

Yes, you can order spare parts such as the jug, lid, and blade assembly from VOX authorized service centers.

How do I disassemble the blender for cleaning?

Unplug the blender. Remove the jug by lifting it off the base. Unscrew the blade assembly from the bottom of the jug for thorough cleaning.

Is the blender BPA-free?

Yes, the jug and all plastic parts are made from BPA-free materials, ensuring safe food contact.

USER MANUAL TM6006 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

TM-6006

GBR

SRB

ESP

PRT

GRC

SVN

HRV

BIH

MNE

MKD

ALB

OPERATING INSTRUCTIONS STAND BLENDERUPUTSTVO ZA UPOTREBU BLENDER

When using this electrical appliance, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Before using check that the voltage indicated on the product corresponds with the voltage of your electrical outlet.

3. Do not let cord hang on hot surface or over edge of table or counter.

4. Do not operate any appliance with a damaged cord or plug or after the appliance malfunction or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.

5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

6. Close supervision is necessary when any appliance is used by or near children.

7. Avoid contacting the moving parts.

8. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.

9. The use of attachments not recommended or sold by manufacturer may cause on fire, electric shock or injury.

10. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To disconnect, turn any control to "off", then remove plug from wall outlet by grasping the plug, not the cord.

11. To reduce the risk of injury, never place blade assembly on motor unit without the jar properly attached.

12. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

13. Children should be supervised to ensure that they do not play with the appliance.

14. Do not leave the machine on unattended.

15. When removing the blender from the motor unit, wait until the blades have completely stopped.

16. Always operate blender with cover in place.

17. Always use the appliance on a secure, dry level surface.

18. Never place this appliance on or near a hot gas or an electric burner or where it could touch a heated appliance.

19. Do not use outdoors.

20. Do not use appliance for other than its intended use.

WARNING: Potential injury from misuse. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

CAUTION: Ensure that the blender is switched off before removing it from the stand. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

HOUSEHOLD USE ONLY

KNOW YOUR BLEANDER

measure cup cover jar blade asm seal ring blade base motor unit speed knob

Fig.1

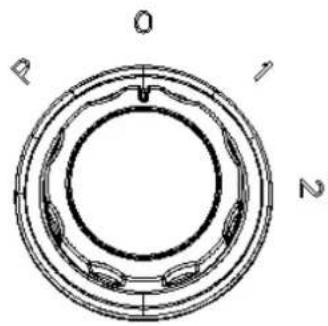

SPEED KNOB

P O 1 N

Fig.2

HOW TO USE

Before initial use

1. Before first use, unpack the appliance and place all parts on a horizontal surface.

2. The jar assembly (including the measure cup, lid, seal ring 1, jar, seal ring 2, blade assembly and jar base) has already been assembled into the motor unit. Disassemble to wash all detachable parts except the motor unit. Refer to the latter chapter CARE AND CLEANING.

3. Once all pieces have been cleaned and dry thoroughly, reassemble.

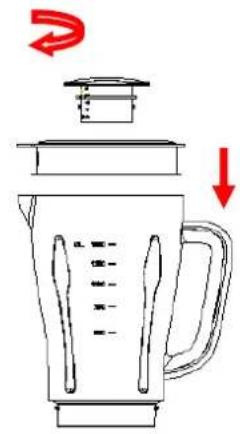

1) Invert the jar onto a level surface, holding the jar handle, put the the seal ring 2 and blade assembly onto the jar base bottom and secure the blade assembly by turning it anti-clockwise until tight (See Fig.3)
2) Reposition the jar assembly with its opening upwards. Wrap the seal ring 1 around the lid bottom and put the lid onto the jar assembly. Place the measure cup exactly into the lid by fitting the small projection on the both sides of the cup into the slots of the lid and turning the cup clockwise until tight. (See Fig.4)
3) Finally, place the assembled jar onto the motor unit by aligning the strip on the assembled jar bottom. (See Fig.5)

CAUSION: Jar and jar base is now secure. Do not try to twist the jar and jar base onto motor unit

Fig.3
Fig.4

Line drawing of a blender with red directional arrows indicating speed (no text or symbols)

Fig.5

How to use

1. Peeled or cored the fruit or vegetables and then cut it into small dices.
2. Place the food to be blended into the jar (See Fig.6). Usually, certain amount of purified water has to be added to facilitate the smooth running of appliance. The proportion of the food and water is 2:3. The amount of mixture should not exceed the max level as indicated on the jar.

RECIPE

FOOD TYPE SPEC WEIGHT SPEED
Carrot (apple, pear etc.)	Cut into 15mm*15mm*15mmm	Carrot: 600gWater: 900g	High speed

Note: never use boiling liquids or run the appliance empty.

1. Put the lid on the jar. Be sure the measuring cup is in place.
2. Plug the power cord into a standard wall outlet.
3. Turn the speed knob to the appropriate speed setting for your task.
4. For quick or delicate blending tasks, turn the speed knob to P position and hold for a few seconds and then release, the knob will reset to O position automatically. Operate several times until the consistence you want is obtained

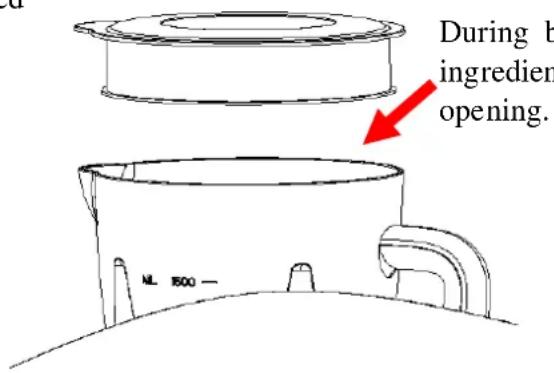

5. If you want to add ingredients while the blender is working, remove the measuring cup and place through the lid opening. (See Fig.7)
6. When crushing ice or hard food, keep one hand firmly on the lid.
7. When the consistence you desire is obtained, turn the knob to O position.

Note: 1) For each use, the consecutive operation time should not exceed 3 minutes. at least 10 minutes rest time must be maintained between two continuous cycles, let the unit cool to room temperature before performing next operation cycle.

2) If you want to stop the machine during operation, turn the knob to O position anytime.

Before blending, add food to be blended into the jar.

Technical line drawing of a cylindrical tank with a curved handle and labeled dimension (no text or symbols beyond measurement)

Fig.6

During b ingredient opening. NL 500 —

Fig.7

Important operating tips

• For best circulation of food that are to be blended with some liquid, pour the liquid into the jar first, then add solids.
• Some of the tasks that cannot be performed efficiently with a blender are: beating egg whites, whipping cream, mashing potatoes, grinding meat, mixing dough, extracting juice from fruit and vegetable
• The following items should never be placed in the unit as they may cause damage: bones, large pieces of solid, frozen food, or tough foods such as turnips.
• To crush ice, add up to 6 ice cubes. If more ice is needed, remove the cup and add cubes one by one through the lid opening.

CARE AND CLEANING

This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Before cleaning, unplug the blender.
2. Always wash immediately after use for easier cleaning. Don't let food dry on the jar assembly as this will make cleaning difficult.
3. Pour a little warm soapy water into the jar and turn the knob to P position for a few seconds. And then empty the jar.
4. Dismantle all detachable parts. Lift the jar assembly off the motor unit, To detach the blade assembly by turning it clockwise from the jar base bottom, and remove the seal ring 2 and blade assembly (see fig.8). In addition, detach the jar cover seal ring 1 from the jar cover.

Line drawings of two types of kitchen mugs with a side view showing a small dish (no text or symbols)

Fig.8

1. Rinse the measure cup, lid, seal ring 1, jar, seal ring 2 and blade assembly by hands or in a dishwasher and then dry. They are dishwasher safe components, but the temperature setting shall not exceed 70°C.
2. Brush the blade clean using warm soapy water, then rinse thoroughly under the tap. Don't touch the sharp blades, handle carefully. Don't immerse the blade assembly in water. Leave to dry upside down away from children.
3. Wipe the motor unit with a damp cloth and dry thoroughly. Remove the stubborn spots by rubbing with non-abrasive cleaner. If liquids spill into the motor unit; first unplug the unit, then wipe with a damp cloth and dry thoroughly.

CAUSION

1) Do not immerse the motor unit in liquid to prevent the risk of electric shock.
2) Do not use rough scouring pads or cleansers on parts or finish.
3) Do not place any parts of this unit into dishwasher for cleaning. This unit is not available for dishwasher.

12 Month Warranty

Thank you for your purchase from VOX.

UPUTSTVO ZA UPOTREBU

BLENDER

Model: TM-6006

ML 1500 - 1250 - 1000 - 750 - 500 -

VAŽNA BEZBEDNOSNA UPUTSTVA

Line drawing of a blender with handle and side blades (no text or symbols)

Line drawing of a kitchen toaster with handle and side legs (no text or symbols)

Slika 1

Regulator brzine

P O 1 2

Slika 2

UPOTREBA BLENDERA

Pre prve upotrebe

1. Pre prve upotrebe, raspakujte uređaj i postavite sve delove na horizontalnu površinu.

2. Posuda sa dodacima (Slika 1, uključujući čašu sa merama, poklopac, zaptivni prsten, posudu, kućište sa sečivima) je već postavljena na kućište motora. Rasklopite sve delove da biste ih oprali osim kućišta s motorom. Molimo konsultujte deo ČIŠĆENJE I ODRŽAVANJE.

3. Nakon što ste sve delove očistili i temeljno osušili, ponovo ih sastavite.

1) Okrenite posudu i postavite je na ravnu površinu, držeći ručku posude, postavite zaptivni prsten 2 i dodatak sa sečivima na dno posude i osigurajte postolje sa sečivima okrećući u smeru suprotnom kazaljci na satu dok se dobro ne zatvori. (Vidi sliku 3)
2) Ponovo stavite posudu sa dodacima okrenutu nagore. Obmotajte zaptivni prsten 1 oko dna poklopca, zatim stavite poklopac na posudu. Postavite čašu za merenje u otvor na sredini poklopca i okrenite posudu u smeru kazaljke na satu dok dobrone zatvorite. (Vidi sliku 4)

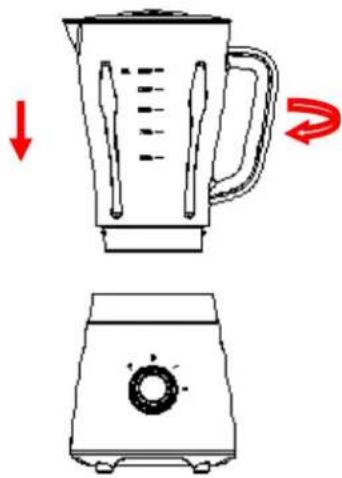

3) Na kraju, postavite posudu sa dodacima na kućište motora, ravnajući indikatore na dnu posude I dobro zategnite. (Vidi sliku 5)

Diagram showing a kettle with a lid and a rotating arrow indicating rotation direction, with a red downward arrow below.

Slika 3

Diagram of a blender with red directional arrows indicating rotation and drop, showing internal structure and color change.

Slika 4

Line drawing of a blender with a red arrow indicating rotation (no text or symbols)

Slika 5

Kako da koristite blender

1. Oljuštite voće ili povrće i izvadite koštice, zatim ga isecite na male kocke.

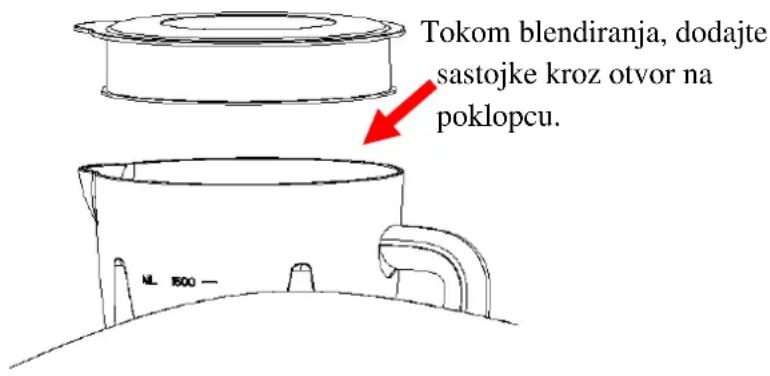

2. Stavite hranu u posudu blendera (Vidi Sliku 6). Obično je potrebno dodati određenu količinu čiste vode da bi se olakšao rad blendera. Odnos hrane i vode je 2:3. Količina smese za obradu ne sme preći maksimalni nivo označen na posudi.

RECEPT

Vrsta hrane Uputstvo T		ežina Brzina
Šargarepa (jabuka, kruška itd)	Isecite na 15mm*15mm*15mmm	Šargarepa: 600gVoda: 900g Velika brzina

Line drawings of two types of kitchen mugs with a small stand, no text or symbols present

Slika 8

1. Operite čašu sa merama, poklopac, posudu, zaptivni prsten, postolje sa sečivima za mlevenje, postolje sa sečivima za seckanje ručno ili u sudomašini. To su delovi bezbedni za pranje u sudomašini, ali temperatura pranja ne sme prelaziti70°C.
2. Očistite sečivo koristeći toplu, sapunjavu vodu i temeljno isperite pod tekućom vodom. Ne dodirujte oštro sečivo i rukujte njime pažljivo. Ne potapajte sečivo u vodu. Okrenite ga nakon pranja naopačke i ostavite ga dase osuši, držeći ga podalje od dece.
3. Obrišite motornu jedinicu vlažnom krpom i osušite temeljno. Uklonite tvrdokorne flekenekom neabrazivnom tečnošću. Ako se desi da se prospe tečnost na motornu jedinicu, prvo iskopčajte uređaj iz struje, a zatim prebrišite temelino suvom krpom i ostavite da se osuši.

PAŽNJA

1- Ne potapajte motornu jedinicu u tečnost kako biste sprečili rizik od strujnog udara.
2- Ne koristite grube četke za čišćenje i jaka sredstva za čišćenje.
3- Ne stavljajte postolje sa motorom u sudomašinu radi čišćenja. Ovaj deo nije prikladan za pranie u sudomašini.

12 Meseci garancije

Diagram showing a kettle with a lid and a rotating arrow indicating rotation or change, with a red downward arrow below.

Fig.3

Diagram of a blender with red directional arrows indicating rotation and drop, showing internal structure and color change.

Fig.4

Diagram showing a blender with handle and blade, and a separate blender with a knob (no text or symbols)

Fig.5

Cómo utilizar

Line drawing of a cylindrical tank with a curved handle and a circular top, no text or symbols present

Fig.6

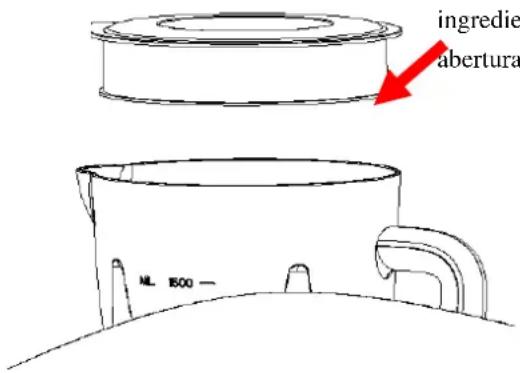

ingredient abertura NL 1500

Fig.7

Technical line drawing of a kettle with internal blades and a separate view showing internal structure (no text or symbols)

MANUAL DE INSTRUÇÕES

LIQUIDIFICADOR

Model:TM-6006

ML 1500 - 1250 - 1000 - 750 - 500 -

POR FAVOR MANTENHA ESTAS INSTRUÇÕES PARA NECESSIDADES

FUTURAS

PRECAUÇÕES IMPORTANTES

Line drawing of a blender with handle and spout (no text or symbols)

Line drawing of a kitchen toaster with handle and side legs (no text or symbols)

Fig. 1

BOTÃO DE VELOCIDADE

P O 1 2

Fig. 2

COMO UTILIZAR

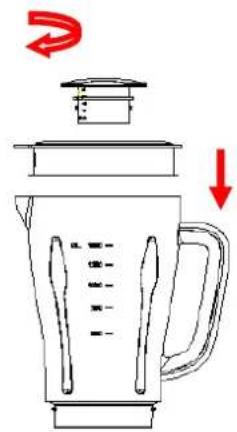

Diagram showing a kettle with a lid and a flame, illustrating the process of cooling or boiling.

Fig.3

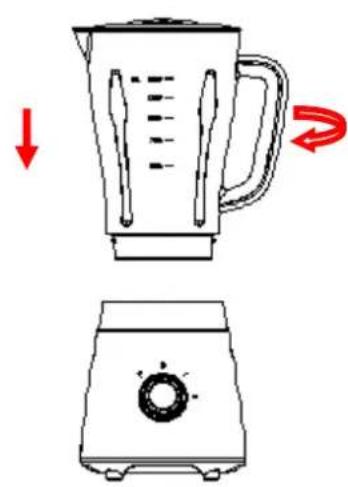

Diagram of a blender with red directional arrows indicating motion or flow, showing internal structure and handle mechanism.

Fig.4

Diagram showing a blender with a red arrow indicating rotation and a smaller blender with a circular knob.

Fig.5

Como usar

ML 1500 =

Fig.6

Line drawings of a kettle and a filter with a red arrow indicating rotation (no text or symbols)

Fig.8

Diagram showing a kettle with liquid and a lid, illustrating a process with rotation arrow and downward arrow.

Eik. 3

Diagram of a blender with red directional arrows indicating rotation and drop, showing liquid level changes.

Euk. 4

Illustration of a blender and a toaster with directional arrows indicating motion (no text or symbols)

Euk 5

Line drawings of two types of kitchen thermos with a small fan base (no text or symbols)

Euk. 8

Diagram showing a kettle with a lid and a rotating arrow indicating rotation direction, with a red downward arrow below.

Slika 3

Diagram of a blender with red directional arrows indicating rotation and drop, showing internal structure and color change.

Slika 4

Line drawing of a blender with a red arrow indicating rotation (no text or symbols)

Slika 5

Technical line drawing of a cylindrical tank with a curved handle and labeled dimension (no text or symbols beyond measurement)

Slika 6

sesta na po NL 500

Line drawings of two types of kitchen mugs with a small stand, no text or symbols present

Slika 8

Exploded diagram of a blender with labeled parts in Chinese

Line drawing of a blender with handle and side blades (no text or symbols)

Line drawing of a toaster oven with no text or symbols

Slika 1

Regulator brzine

P Q A0

Slika 2

UPORABA BLENDERA

Prije prve uporabe

Diagram showing a kettle with a lid and a rotating arrow indicating rotation direction, with a red downward arrow below.

Slika 3

Diagram of a blender with red directional arrows indicating rotation and drop, showing internal structure and color change.

Slika 4

Line drawing of a blender with red directional arrows indicating speed (no text or symbols)

Slika 5

Kako da koristite blender

1. Oljuštite voće ili povrće i izvadite koštice, zatim ga isijecite na male kocke.
2. Stavite hranu u posudu blendera (Vidi Sliku 6). Obično je potrebno dodati određenu količinu čiste vode da bi se olakšao rad blendera. Odnos hrane i vode je 2:3. Količina smjese za obradu ne smije preći maksimalnu razinu označen na posudi.

RECEPT

Vrsta hrane Uputa	Težina Brzina
Mrkva (jabuka, kruška itd)	Isijecite na 15mm*15mm*15mmm	Mrkva: 600gVoda: 900g	Velika brzina

Napomena: nikada ne koristite ključalu tekućinu niti puštajte uređaj u rad ukoliko je posuda prazna.

1. Stavite poklopac na posudu. Provjerite da li je čaša s mjerama postavljena u otvor poklopca.
2. Uključite utikač u standardnu zidnu utičnicu.
3. Okrenite gumb za reguliranje brzine na željenu razinu.
4. Za brza ili gruba mljevenja, okrenite regulator brzine na poziciju P i držite nekoliko sekundi, a zatim pustite. Regulator brzine će se automatski vratiti u poziciju O, zatim pustite. Ukoliko je to nephodno ponovite ovaj proces više puta dok ne dobijete željeni rezultat.
5. Ukoliko želite da dodate neke sastojke dok blender radi, skinite čašu sa mjerama sa vrha poklopca i kroz otvor dodajte sastojke. (Vidi Sliku 7)
6. Kada lomite led ili tvrdu hranu, čvrsto držite poklopac.
7. Kada je hrana obrađena u skladu sa Vašim potrebama, stavite regulator u položaj O.

Napomena: 1) Kod svake uporabe, kontiniurani rad ne smije preći 3 minuta. Najmanje 10 minuta uređaju treba da se ohladi između dva uzastopna ciklusa rada, sačekajte da se uređaj ohladi do razine sobne temperature prije nego što nastavite s radom.

2) Ukoliko želite da zaustavite rad mašine tjekom korišćenja, stavite regulator upoziciju O u bilo kom trenutku.

Prije blendiranja, dodajte hranu u posudu.

Technical line drawing of a cylindrical tank with a curved handle and labeled dimension (no text or symbols beyond measurement)

Slika 6

Tokom blendiranja, dodajte sastojke kroz otvor na poklopcu.

Slika 7

Važni savjeti

Line drawings of two types of kitchen mugs with a side view showing a small dish (no text or symbols)

Slika 8

Exploded diagram of a blender with labeled parts in Chinese

Line drawing of a blender with handle and side blades (no text or symbols)

Line drawing of a toaster oven with no text or symbols

Slika 1

Regulator brzine

P Q A0

Slika 2

UPOTREBA BLENDERA

Prije prve upotrebe

Diagram showing a kettle with a lid and a rotating arrow indicating rotation direction, with a red downward arrow below.

Slika 3

Diagram of a blender with red directional arrows indicating rotation and drop, showing internal structure and color change.

Slika 4

Illustration of a blender with a red arrow indicating rotation (no text or symbols)

Slika 5

Kako da koristite blender

1. Oljuštite voće ili povrće i izvadite koštice, zatim ga isijecite na male kocke.
2. Stavite hranu u posudu blendera (Vidi Sliku 6). Obično je potrebno dodati određenu količinu čiste vode da bi se olakšao rad blendera. Odnos hrane i vode je 2:3. Količina smjese za obradu ne smije preći maksimalni nivo označen na posudi.

RECEPT

Vrsta hrane Uputstvo	Težina Brzina
Šargarepa (jabuka, kruška itd)	Isijecite na 15mm*15mm*15mmm	Šargarepa: 600gVoda: 900g	Velika brzina

Technical line drawing of a cylindrical tank with a curved handle and labeled dimension (no text or symbols beyond measurement)

Slika 6

Tokom blendiranja, dodajte sastojke kroz otvor na poklopcu.

Slika 7

Važni savjeti

Line drawings of two types of kitchen mugs with a side view showing a small dish (no text or symbols)

Slika 8

1. Operite čašu sa mjerama, poklopac, posudu, zaptivni prsten, postolje sa sječivima za mljevenje, postolje sa sječivima za sjeckanje ručno ili u sudomašini. To su dijelovi bezbjedni za pranje u sudomašini, ali temperatura pranja ne smije prelaziti70°C.
2. Očistite sječivo koristeći toplu, sapunjavu vodu i temeljno isperite pod tekućom vodom. Ne dodirujte oštro sječivo i rukujte njime pažljivo. Ne potapajte sječivo u vodu. Okrenite ga nakon pranja naopačke i ostavite ga da se osuši, držeći ga podalje od djece.
3. Obrišite motornu jedinicu vlažnom krpom i osušite temeljno. Uklonite tvrdokorne fleke nekom neabrazivnom tečnošću. Ako se desi da se prospe tečnost na motornu jedinicu, prvo iskopčajte uređaj iz struje, a zatim prebrišite temeljno suvom krpom i ostavite da se osuši.

PAŽNJA

Diagram showing a kettle with a lid and a side panel, illustrating a process with red arrows indicating rotation or change.

Слика 3

Diagram of a blender with red directional arrows indicating rotation and drop, showing liquid level changes.

Слика 4

Line drawing of a blender with red directional arrows indicating speed (no text or symbols)

Слика 5

Technical line drawing of a mechanical component with no visible text or symbols

Слика 6

Line drawings of two types of kitchen mugs with a small dish on the right (no text or symbols)

Слика 8

Diagram showing a kettle with a lid and a rotating knob, illustrating the process of rotation or cooling.

Fig.3

Line drawing of a blender with red arrows indicating rotation and drop (no text or symbols)

Fig.4

Illustration of a blender and a toaster with directional arrows indicating motion (no text or symbols)

Fig.5

Line drawings of two types of kitchen thermos (no text or symbols present)

Fig.8
