USER MANUAL PDA 240 E BOSCH
Power Tools Division
70745 Leinfelden-Echterdingen
www.bosch-pt.com
1609929M19(2007.08)PS/108
BOSCH
Dr. Egbert Schneider
Dr. Eckerhard Ströttgen
Senior Vice President
Head of Product
Engineering
Certification
ppa. Maee i.v. Nogcu
20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Montage
General Power Tool SafetyWarnings
WARNING
Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Machine-specific SafetyWarnings
Use the machine only for dry sanding. Penetration of water into the machine increases the risk of an electric shock.
- Caution, fire hazard! Avoid overheating the object being sanded as well as the sander. Always empty the dust collector before taking breaks. In unfavourable conditions, e.g., when sparks emit from sanding metals, sanding debris in the dust bag, micro filter or paper sack (or in the filter sack or filter of the vacuum cleaner) can self-ignite. Particularly when mixed with remainders of varnish, polyurethane or other chemical materials and when the sanding debris is hot after long periods of working.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
- Keep your workplace clean. Blends of materials are particularly dangerous. Dust from light alloys can burn or explode.
- Never use the machine with a damaged cable. Do not touch the damaged cable and pull the mains plug when the cable is damaged while working. Damaged cables increase the risk of an electric shock.
Functional Description
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Intended Use
The machine is intended for dry sanding and polishing of wood, plastic, metal, filler, as well as for painted surfaces. It is 1st especially suitable for profiles, corners or hard to reach locations.
Product Features
The numbering of the product features refers to the illustration of the machine on the graphics page.
1 Vacuum connection
2 Thumbwheel for orbit frequency preselection
3 On/Off switch
4 SDS button for release of the sanding plate
5 Sanding sheet
6 Sanding plate
7 Pad extender
8 Sanding plate for extender
9 Velcro backing for sanding tongue
10 Narrow pad extender
11 Narrow rounded pad extender
*The accessories illustrated or described are not included as standard delivery.
Technical Data
| Delta Sander | PDA 240 E | |
| Article number | 0 603 346 7.. | |
| Rated power input | W | 240 |
| Output power | W | 95 |
| No-load speed | rpm | 6500 – 8500 |
| Orbital stroke rate | opm | 13000 – 17000 |
| Sanding plate size (corner to corner) | mm | 93 |
| Orbit diameter | mm | 2,0 |
| Weight according to EPTA-Procedure 01/2003 | kg | 1.1 |
| Protection class | ☐/II | |
The values given are valid for nominal voltages [U] of 230/240 V. For lower voltage and models for specific countries, these values can vary.
Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.
Declaration of Conformity C
We declare under our sole responsibility that the product described under "Technical Data" is in conformity with the following standards or standardization documents: EN 60745 according to the provisions of the directives 2004/108/EC, 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009 on).
Technical file at: Robert Bosch GmbH, Dept. PT/ESC, D-70745 Leinfelden-Echterdingen
Dr. Egbert Schneider
Dr. Eckerhard Strötgen
Senior Vice President
Head of Product
Engineering
Certification
ppa. Maee i.v. Nogc
20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Noise/Vibration Information
Measured values determined according to EN 60745.
Typically the A-weighted sound pressure level of the product is 80dB(A) Uncertainty K = 3 dB.
The noise level when working can exceed 80 dB(A).
Wear hearing protection!
Vibration total values (triax vector sum) determined according to EN 60745:
Vibration emission value a_h = 6m / s^2 Uncertainty K = 1.5m / s^2
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Assembly
Before any work on the machine itself, pull the mains plug.
Dust/Chip Extraction
Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.
Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.
- Use dust extraction whenever possible.
- Provide for good ventilation of the working place.
- It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the materials to be worked.
External Dust Extraction
You can either attach a vacuum hose or a Bosch all-purpose vac with remote starting control to the vacuum connection 1.
Connecting a 35 mm vacuum hose:
- Attach a suitable adapter to the vacuum connection 1.
- Connect the adapter with the vacuum hose (Ø 35 mm) of a vacuum cleaner.
Connecting a 19 mm vacuum hose:
- Firmly attach the vacuum hose (Ø 19 mm) to the vacuum connection 1.
- Attach a suitable adapter to the vacuum hose and connect to a vacuum cleaner.
The vacuum cleaner must be suitable for the material being worked.
When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.
Replacing the Sanding Sheet (see figure A)
The sanding plate 6 is fitted with Velcro backing for quick and easy fastening of sanding sheets with Velcro adhesion.
- When attaching a new sanding sheet, remove any dust or debris from the sanding plate 6 (e. g. with a brush).
Before attaching the sanding sheet 5, free the Velcro backing of the sanding plate 6 from any debris by tapping against it in order to enable optimum adhesion. - To ensure optimum dust extraction, pay attention that the punched holes in the sanding sheet match with the holes in the sanding plate.
- Position the sanding sheet 5 flush alongside one edge of the sanding plate 6, then lay the sanding sheet onto the sanding plate and press it against it with a light turning motion in clockwise direction.
- To remove the sanding sheet 5, grasp it at one of the tips and pull it off from the sanding plate 6.
Sanding accessories, such as fleece pads/polishing cloth pads, are attached to the sanding plate in the same manner.
Selecting the Sanding Sheet
Depending on the material to be worked and the required rate of material removal, different sanding sheets are available:
Grain size
red:Wood
red:Wood
For the working of all wooden materials
For coarse-sanding, e. g. of rough, unplaned beams and boards
40-240
coarse 40,60
| Grain size | ||
| For face sanding and planing small irregularities | medium | 80, 100, 120 |
| For finish and fine sand- ing of hard woods | fine | 180, 240 |
| White Paint | 40-320 | |
| For the working of paint/enamel coats or primers and fillers | ||
| For sanding off paint | coarse | 40, 60 |
| For sanding primer | medium | 80, 100, 120 |
| For final sanding of primers before coating | fine | 180, 240, 320 |
| Black:Stone | 60-400 | |
| For working extremely hard materials such as stone, glass, Plexiglas, car paint | ||
| For pre-sanding | coarse | 60 |
| For shaping and braking edges | medium | 80, 100, 120 |
| For final sanding and forming | fine | 180, 240, 320, 400 |
| For polish-sanding and rounding off edges | very fine | 600, 1200 |
| For reworking or polishing, especially of metal and stone, use fleece/polishing cloth pad. Depending on the desired surface quality of the workpiece, different fleece types or polishing cloth pads are to be used. | ||
Replacing the Sanding Plate (see figure B)
Slide the SDS button for release of the sanding plate 4 all the way to the right.
Remove the sanding plate 6.
Guide the sanding plate 6 from below against the sanding plate holder and firmly press them together.
Slide the SDS button for release of the sand-ing plate 4 all the way to the left.
If, e. g., the front tip of the sanding sheet is worn, you can also remove the complete sanding plate and reattach it turned by 120^ .
Specialty Sanding Plates
You can replace the supplied sanding plate 6 with a specialty sanding plate, which is available as an accessory.
The specialty sanding plate is attached in the same manner as the one supplied.
Attach and remove the respective sanding sheets in the same manner as when changing original sanding sheets.
Pad Extender (see figure C)
With the pad extender 7 you can sand surfaces that are difficult to access, such as sills on windows, cabinets or doors.
Pad Extender, Narrow (see figure D)
With the narrow pad extender 10 you can sand narrow openings, slots and passages.
On the top side, a velcro backing 9 can additionally be attached for fastening sanding sheets.
Pad Extender, Narrow Rounded (see figure E)
The narrow rounded pad extender 11 allows you to sand curved and hollow areas or surfaces that are curved inward, such as on furniture, rails or heating radiators.
It is fitted with velcro backing on each side, which allows for sanding sheets to be fitted on both sides.
Operation
Starting Operation
Observe correct mains voltage! The voltage of the power source must agree with the voltage specified on the nameplate of the machine. Power tools marked with 230V can also be operated with 220V .
Switching On and Off
- To start the machine, push the On/Off switch 3 towards the front to "I".
- To switch off the machine, push the On/Off switch 3 towards the rear to "0".
Preselecting the Orbital Stroke Rate
The required stroke rate depends on the material and the working conditions and can be determined through practical testing.
With the thumbwheel for preselection of the orbital stroke rate 2, you can preselect the required orbital stroke rate, even during operation.
Operating Instructions
Wait until the machine has come to a standstill before placing it down.
The removal capacity during sanding is mainly determined by the selection of the sanding sheet as well as the preselected orbital stroke rate.
Only flawless sanding sheets achieve good sand-ing capacity and extend the service life of the machine.
Pay attention to apply uniform sanding pressure; this increases the working life of the sanding sheets.
Intensifying the sanding pressure does not lead to an increase of the sanding capacity, but to increased wear of the machine and the sanding sheet.
For precise on-the-spot sanding of edges, corners and hard to reach areas, it is also possible to work only with the tip or an edge of the sand-ing plate.
A sanding sheet that has been used for metal should not be used for other materials.
Application examples, see figures F-L.
Use only original Bosch sanding accessories.
Maintenance and Service
Maintenance and Cleaning
Before any work on the machine itself, pull the mains plug.
For safe and proper working, always keep the machine and ventilation slots clean.
If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.
In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.

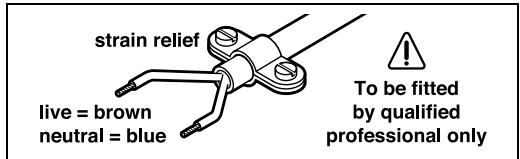

WARNING! Important instructions for connecting a new 3-pin plug to the 2-wire cable.
The wires in the cable are coloured according to the following code:
Do not connect the blue or brown wire to the earth terminal of the plug.
Important: If for any reason the moulded plug is removed from the cable of this power tool, it must be disposed of safely.
After-sales service and customer assistance
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:
www.bosch-pt.com
Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O.Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 95HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: +61 (01300) 307 044
Fax: +61 (01300) 307 045
Inside New Zealand:
Phone: +64 (0800) 543 353
Fax: +64 (0800) 428 570
Outside AU and NZ:
Phone: +61 (03) 9541 5555
www.bosch.com.au
Disposal
The machine, accessories and packaging should be sorted for environmental-friendly recycling.
Only for EC countries:
Do not dispose of power tools into household waste!
According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right,
power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
Subject to change without notice.
Robert Bosch GmbH, Dept. PT/ESC,
D-70745 Leinfelden-Echterdingen
Dr. Egbert Schneider
Dr. Eckerhard Strötgen
Senior Vice President
Head of Product
Engineering
Certification
20.08.2007, Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
Montage
Robert Bosch (France) S.A.S.
Robert Bosch GmbH, Dept. PT/ESC,
D-70745 Leinfelden-Echterdingen
Dr. Egbert Schneider
Dr. Eckerhard Strötgen
Senior Vice President
Head of Product
Engineering
Certification
ppa. Maee i.v. Nogcu
20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Montaje
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
ppa. Maee i.v. Nogcu
20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Montagem
Antes de todoseworkos na ferramentalelectricadeferapeuxaraficha de rede da to-mada.
Senior Vice President Head of Product
Engineering Certification
ppa. Maee i.v. Nogcu
20.08.2007, Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
Montaggio
Robert Bosch GmbH, Dept. PT/ESC,
D-70745 Leinfelden-Echterdingen
Dr. Egbert Schneider
Dr. Eckerhard Strötgen
Senior Vice President
Head of Product
Engineering
Certification
ppa. 11. i.v. uogcu
20.08.2007, Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
Montage
Dr. Egbert Schneider
Dr. Eckerhard Strötgen
Senior Vice President
Head of Product
Engineering
Certification
ppa. /maee i.v. nuoycu
20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Stoj-/vibrationsinformation
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Tel. Service Center: +45 (04489) 8855
Fax: +45 (04489) 87 55
E-Mail: vaerktoej@dk.bosch.com
Bortskaffelse
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
ppa. Maee i.v. Nogcu
20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Buller-/vibrationsdata
Dr. Egbert Schneider
Dr. Eckerhard Ströttgen
Senior Vice President
Head of Product
Engineering
Certification
ppa. Maee i.v. Nogcu
20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Robert Bosch GmbH, Dept. PT/ESC,
D-70745 Leinfelden-Echterdingen
Dr. Egbert Schneider
Dr. Eckerhard Strötgen
Senior Vice President
Head of Product
Engineering
Certification
AiaBaTe oLeC tic npoetdoonoiuKec unoeiEic.
Aeiec kata nTv thponTsw npoeiDonoiNTikwv unodeiEewu npoei va npokaéouv nektpoanlqia, kivduvo npkayiac n/ka oβapouc tpaumatioouc.
IIInpoopoeCi yia OpuBo kai dovnoeiC
Oi tuec metpnonc eEakpiBwOngav ouuwova nTnv npoDiaypaqn EN 60745.
H xapaKtnpiotikn oTaOuTiknc nieoNc tou uXavnatoC eXaKpIbWOnke ouφwva Te Nv kaunA kai avepxetai 0E 80 dB(A).
Avaσρaλεια K=3dB.
Otau epyaεoθe nστaθμn θopβou μnopei vaξεπρaσeɪ ta 80 dB(A).
Φopáte ωτασιβες!
Oloikec tiuoc kpaedaaow (a0poia auvuamaw Tpiw dyueuovoew) EaekpiBw0nKav oupwa to npotuno EN 60745:
Tɪŋ ᵋκπομπɪç κραδασμων aₙ = 6 m/s², ᵶασφá-λεια K = 1,5 m/s².
H oraoukpaabaovouavapepetaouatec tocobnyieexei metpnoeoiuwova emuia diaibkaiaouetponanctunonoinevnoto nlaio tounpotunou EN 60745 kaiponei va xpoionoin
e otn ouykpion twv diapopwov mnxavnpaTow. Eiva enionc katalnnyia evav npoawpivo unoloyio tnc emiapuvoc ano touk kpaabaouc. H oratounk pabaodau vnu avaepetai avtnpoomegauei tic baoikec xnooeic tou nlektipokou epyaoleiou. Zepintwn, omuoc, nou to nlektpiok epyaleio thxnpoiomointhe diapopetika, me napekkivovta epyaleia n wopic enapkn ouvt-npnon, tote n otahm kpaadaosuv mopei va eiva ku autn biapopetikn. Auto mnpei va auhneoi onavtka tnv emiapuvan ano touc kpaabaouc kata tn ouvoilki diapkeia olokknpou tou xovikou diaatmuotc nou epyzoe.
Tia nV akpiBn ektiunon Tnc eniIapuvanc ano touc kpaadaouc th npenei va lauabavovtai enionc unown kal oXpovl kat aT n diapkeia twv onoiwTu mXxavnua Bpiaketai EKTOC leitoupyiac n LEITOUyei, xwpic oMwoc tnynpayatikotnta va xpnoiponoiteiAuro nopei va eiooei onav-tkTnv ENIbapuvan ano Touc kpaadaouc kat aT ndiapkeia oloknpou Tou xpvikoudeltaTmaoc nou epyaZeOe.
T'auto, npiv apxioe n 8paan Twv kpaadaawv, va kathetae npo0eeta metpa aopaaieiac yia tny npooataia tou xeiipoi nOWC: ouvtnpon Tou nlektpiou epyaleiou kai twv epyaleiwv nou xpnoiopoite, zotapa twv xepiwv, opyawon TNC ekTeaocnTwv diapopwv epyaowv.
Anawon ouuβatotntra C
uneunovoc ot to npoiov nou nepiypaepal oTo «Texvika xaapaktipotiká» eknnpowel touc eHc kavovioouc n kataokeuaotikec ouotaeic:EN 60745 ouuwova me tic diataeic twv obnyiw 2004/108/EK,98/37/EK (ewc 28.12.2009), 2006/42/EK (ano 29.12.2009).
Texvikoç pakeoacnó:
Robert Bosch GmbH, Dept. PT/ESC,
D-70745 Leinfelden-Echterdingen
Dr. Egbert Schneider
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
20.08.2007, Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
Συναρμολόγηση
ByaZeTeTo ano Tnv npiz a npiv ano onoi- δhnote epyaia oTo nLeKTpiKo epyaieio.
Avappofoan oKovnc/ypεζωv/pokaviδιωv
H oKovn ano opiaeva ulika. n. x. ano
moLuBdoUxec mnoiyec, ano epiKa eIDN Eulou,
anO opukta ulka kai ano metaIaa mnpoei va eivai
avOuyieivn. H enaPn me Tn oKovn n/ka i n eIantvon
Tnc mnpoei va npokaolei aAeepyikc avtbpaoic
n/ka aOtheveic twv avanveuotikw ovawtou
XpOtn n tuxov napepuiokoevw v atoWv.
Opiaeva iDn oKovnc, n. x. oKovn ano Eluo
BeLavidiac n Oxiac 0ewpuvtai av Kapkivoyova,
Idiaitepa oe ouvduaogo me diapopa
ounnpomegaatika ulka nou xpoiaonoiuVTai
OTNV katepyaia Eulaw (evwaic xpwoiou,
Eulonpootateutiká peoa). H katepyaia
auiavTuXwU ulikw eITIpTeal Movo e EIidka
eknaiidemueva atoua.
Tnpoume to 6ikaiwma aalayov.
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Montaj
Bosch San. ve Tic. A.S.
Ahi Evran Cad. No:1 Kat:22
Polaris Plaza
80670 Maslak/Istanbul
Müsteri Danismani: +90 (0212) 335 06 66
Müstleri Servis Hatti: +90 (0212) 335 07 52
