AD 1186 X - Basket BRANDT - Free user manual and instructions

Brand	BRANDT
Model	AD 1186 X
Product type	Wall-mounted hood
Width	90 cm (model 900) or 60 cm (model 600)
Depth	50 cm
Minimum height	270 mm
Maximum height (with chimney)	980 mm
Power supply	220-240 V, 50 Hz, single phase
Motor power	260 W
Lighting	2 halogen lamps (40 W total)
Recommended fuse	10 A or 16 A
Exhaust duct diameter	125 mm or 150 mm
Operating modes	External evacuation or recirculation (with charcoal filter)
Controls	Push buttons for speeds (low, medium, high) and lighting
Grease filter	Washable metal cassette filter (dishwasher safe)
Charcoal filter	Replaceable active filter (ref. on rating plate)
Grease filter cleaning frequency	Every 30 hours of use or once a month
Charcoal filter replacement frequency	Every 120 hours of use or at least once a year
Minimum safety distance above cooking surface	70 cm (or more according to hob instructions)
Mounting type	Wall mounting with bracket and telescopic chimney
Important safety instructions	Do not flambé under the hood, monitor frying, clean filters regularly, disconnect before maintenance
Original spare parts	Use only certified original parts for repairs
After-sales service	Contact: FAGOR Consumer Service, BP 9526, 95069 CERGY PONTOISE CEDEX, Tel. [phone] (€0.34/min)

Frequently Asked Questions - AD 1186 X BRANDT

What is the minimum distance between the hood and the cooking surface?

The minimum distance is 70 cm. If your hob instructions specify a greater distance, that distance applies.

How to clean the grease filters?

The cassette filters must be cleaned every 30 hours of use or at least once a month. You can wash them in the dishwasher in an upright position, or by hand with warm water and mild detergent. Dry them thoroughly before reinstalling.

When should the charcoal filter be replaced?

The active charcoal filter must be replaced every 120 hours of use or at least once a year, depending on usage. The reference is indicated on the rating plate inside the hood.

How to change the bulb?

Before any intervention, disconnect the hood or turn off the circuit breaker. Remove the lens, replace the halogen lamp (40 W), then reassemble the lens by reversing the steps.

Can I use the hood without the grease filter?

No, it is forbidden to use the hood without the cassette filters. Grease buildup could cause a fire.

How to install the hood in recirculation mode?

If you do not have an external outlet, use the hood in recirculation mode by adding an active charcoal filter (not supplied). Follow the installation instructions: place the chimneys, install the deflector and filter, then connect the duct in a closed circuit.

What to do if the hood does not work?

Check that there is no power outage, that the fuse has not blown, and that a speed has been selected. If the problem persists, contact an approved professional.

What type of lighting and how to change it?

The hood is equipped with 2 halogen lamps. To change them, remove the lens, replace the lamp with a new one of the same type (40 W max), then replace the lens.

Can I use abrasive products to clean the hood?

No, never use scouring creams, corrosive detergents, scouring pads or hard brushes. Use soapy water and a soft cloth.

Where to find the reference of my hood to order parts?

The rating plate is located inside the hood. It indicates the model, type and serial number, as well as the charcoal filter reference. Use this information to order original parts.

USER MANUAL AD 1186 X BRANDT

EN GUIDE TO INSTALLATION

FR GUIDE D'UTILISATION

SE GUIDE FÖR INSTALLATION

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning :

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

TABLE OF CONTENTS

EN

1 / NOTICES TO THE USER

• Safety recommendations ____ 4
  • Environmental protection ____ 5
  • Description of your appliance ____ 6

2 / INSTALLING YOUR APPLIANCE

• Using the evacuation mode ____ 7
• Using the recycling mode ____ 7
• Electrical connections 8
• Assembling the hood ____ 9
• Assembling the ventilation shaft ° Outdoor evacuation ____ 10 ° Recycling ____ 11

3 / USING YOUR APPLIANCE

• Description of control panel ____ 12

4 / CARING FOR AND CLEANING YOUR APPLIANCE

• Cleaning the filter cartridges 13
• Changing the carbon filter 13
• Cleaning the outer surfaces 14
• Changing the light bulb 14
• Maintaining your appliance 15

5 / TROUBLESHOOTING 16

6 / AFTER-SALES SERVICE 17

EN

1 / NOTICES TO THE USER

Attention

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your appliance. They were written for your safety and the safety of others.

• SAFETY RECOMMENDATIONS

— This appliance was designed for use by private persons in their homes.

— This appliance is to be used by adults. Make sure that children do not touch and that they do not treat it as a toy. Make sure that they do not touch the appliance's control panel.

— When you receive the appliance, unpack or have it unpacked immediately. Give it an overall general inspection. Make note of any concerns or reservations on the delivery slip and make sure to keep a copy of this form.

— Your appliance is intended for standard household use. Do not use it for commercial or industrial purposes or for any other purpose than that for which it was designed.

— Do not modify or attempt to modify any of the characteristics of this appliance. This would be dangerous to your safety.

— Repairs must only be carried out by an approved specialist.

— Always unplug the hood before cleaning it or performing other maintenance acts.

— Provide adequate ventilation for the room in the case of simultaneous use of the hood and other appliances powered by an energy source other than electricity. This will prevent the hood from aspirating the combustion gases.

— You should never “flambé” dishes under the hood or operate gas rings under the hood without placing cookware on them (the flames sucked up into the hood can damage the appliance).

— When frying food under the appliance,

you must carefully monitor the preparation at all times.

Oils and grease brought to very high temperatures can catch fire.

— Respect the recommended frequency of cleanings and filter replacements. The accumulation of grease deposits may cause a fire.

— The hood should never be used over a combustible fuel burning stove (wood, coal, etc.).

— Never use steam or high-pressure devices to clean your appliance (requirement imposed by electrical safety).

— With a view to constantly improving our products, we reserve the right to modify their technical, functional or aesthetic characteristics, making any changes to their features considered necessary or desirable in view of technical progress.

— In order to easily locate the reference information for your appliance, we recommend that you note these data on the “After-Sales Service Department and Customer Relations” page.

(This page also explains to you where to find this information on your appliance.)

- This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities, or persons lacking experience or awareness, unless using it with the help of a person responsible for their safety, or under supervision and with prior instruction in its use.

Warning

In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "recycling" version of the hood should be installed. Do not use the hood without metal filters.

Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

1 / NOTICES TO THE USER

EN

• ENVIRONMENTAL PROTECTION

- This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose. - Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way,

the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home. — We thank you doing your part to protect the environment.

Warning

Installation should only be performed by installers and qualified technicians.

Warning

Remove the protective film from the cartridge filter before use.

EN 1 / NOTICES TO THE USER

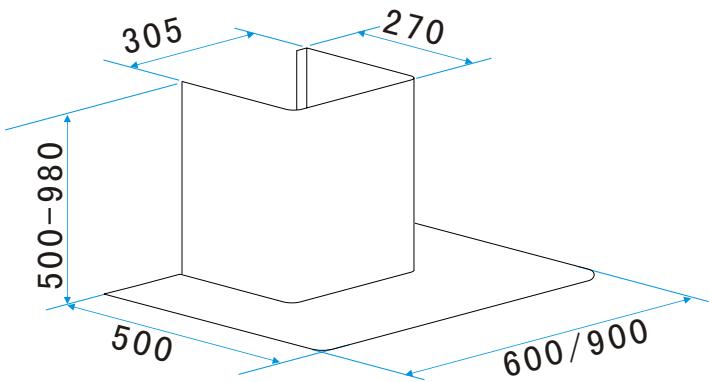

• DESCRIPTION OF YOUR APPLIANCE

2 / INSTALLING YOUR APPLIANCE

EN

— The appliance must be unplugged during installation or when any repairs or maintenance work is being performed.
— Ensure that the network voltage corresponds to the voltage noted on the identification plate located inside the hood.
— If the electrical installation at your residence requires any changes in order to hook up your Appliance, call upon a professional electrician.
— If the hood is being used in evacuation mode, do not connect the appliance to a combustion gas exhaust duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system.
— Under no circumstances should the exhaust duct empty into the attic.
— Install the hood at a safe distance of at least 70 cm from an electric, gas or combined cooking hob.

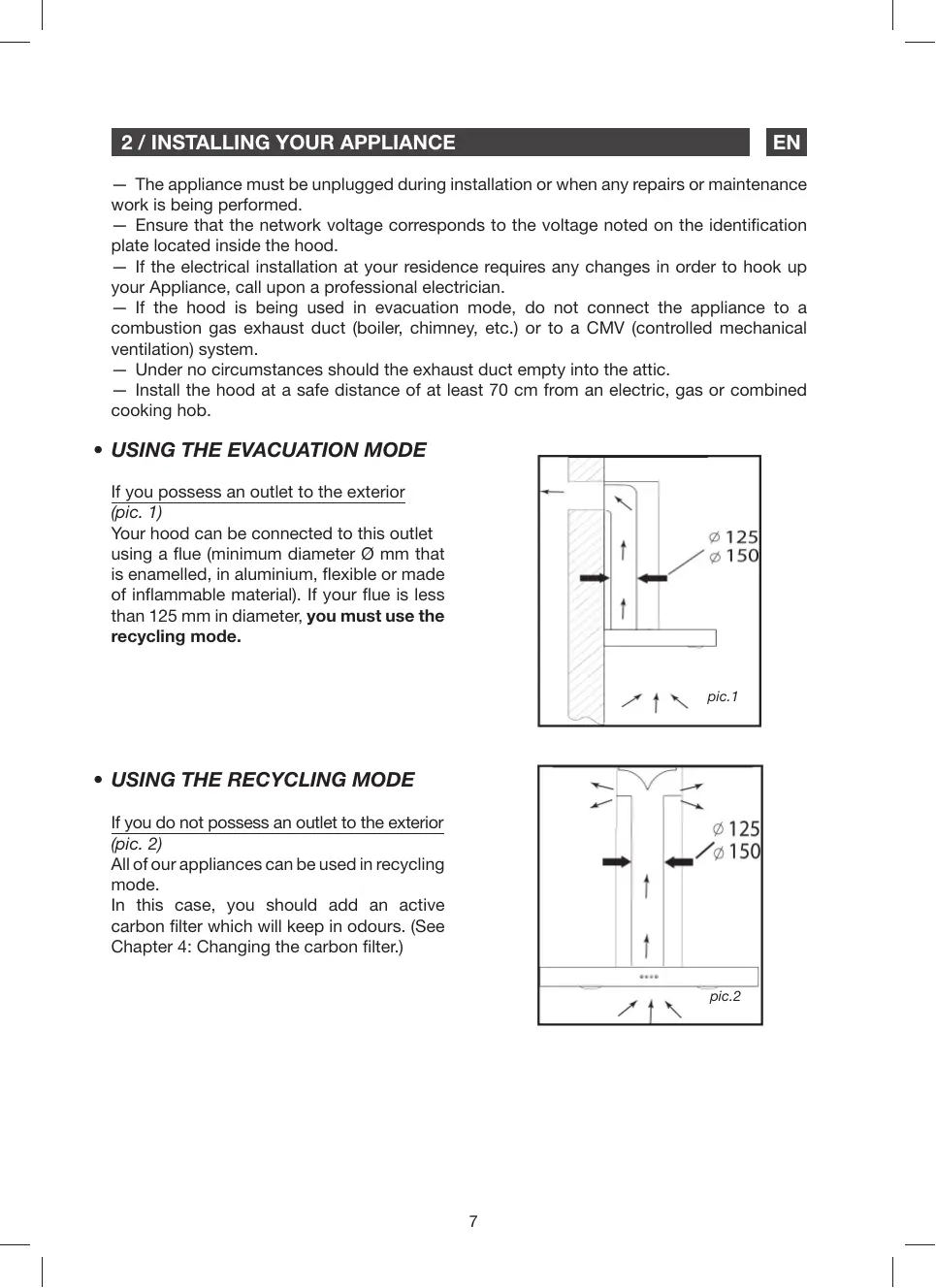

• USING THE EVACUATION MODE

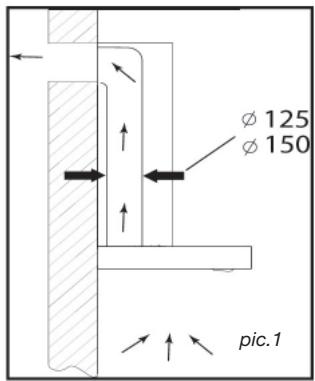

If you possess an outlet to the exterior (pic. 1)

Your hood can be connected to this outlet using a flue (minimum diameter ∅ mm that is enamelled, in aluminium, flexible or made of inflammable material). If your flue is less than 125 mm in diameter, you must use the recycling mode.

• USING THE RECYCLING MODE

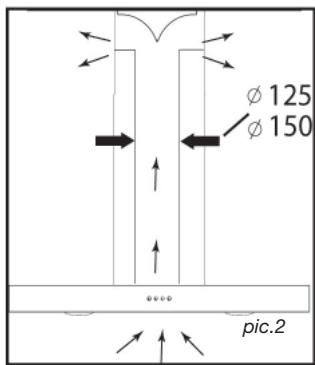

If you do not possess an outlet to the exterior (pic. 2)

All of our appliances can be used in recycling mode.

In this case, you should add an active carbon filter which will keep in odours. (See Chapter 4: Changing the carbon filter.)

EN 2 / INSTALLING YOUR APPLIANCE

• ELECTRICAL CONNECTIONS

During installation and maintenance operations, the appliance must be unplugged from the electrical grid; fuses must be cut off or removed.

The electrical connections are made before the appliance is installed in its housing.

Ensure that:

— the electrical installation has sufficient voltage,
— the electrical wires are in good condition,
— the diameter of the wires complies with the installation requirements.

Warning

This appliance is delivered with a H 05 VVF power cord that has three- 0.75mm^2 conductors (neutral, phase and ground). It must be connected to the main power supply (which should be a 220-240 V single phase current) via a CEI 60083 standardised socket that should remain accessible after installation, in keeping with installation guidelines.

We cannot be held responsible for any accident resulting from an inexistent, defective or incorrect ground lead. The fuse for your installation must be 10 or 16A. If the power cable is damaged, call the after-sales service department in order to avoid danger.

Warning

If the electrical installation at your residence requires any changes in order to hook up your appliance, call upon a professional electrician.

Warning

If the hood displays any malfunctions, unplug the appliance or remove the fuse corresponding to the electrical socket where your appliance is plugged in.

• ASSEMBLING THE HOOD

Warning

The hood must be installed in compliance with all applicable regulations concerning the ventilation of premises. In France these regulations are described in DTU 61.1 from the CSTB. In particular, the evacuated air should never be conveyed to a duct used to evacuate smoke from appliances that use gas or other combustible fuels. Unused ducts may only be used after approval from a competent specialist.

The minimum distance between the cooking surface and the lowest part of the hood must be 70 cm at least. If the instructions for the hob installed under the hood specify a distance of more than 70 cm, this requirement must be respected.

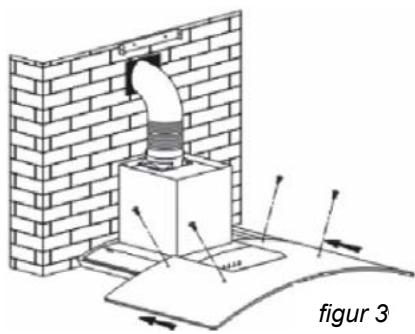

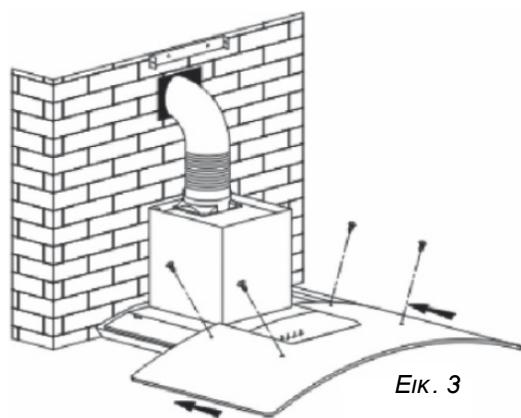

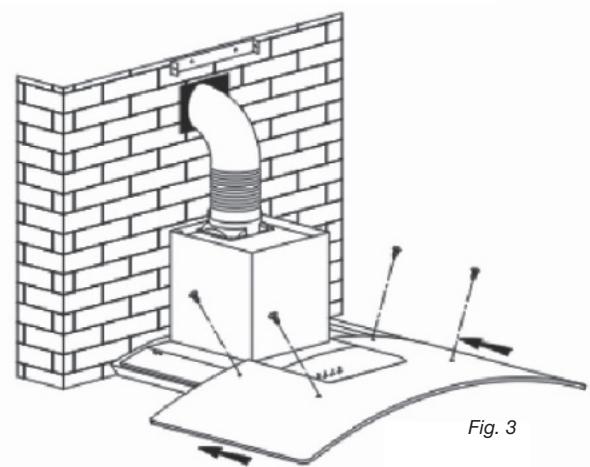

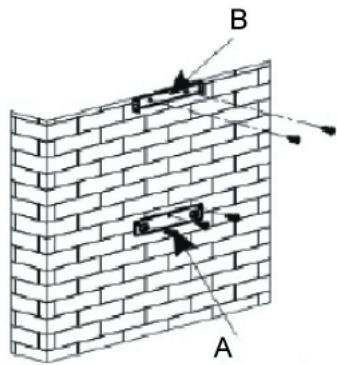

Fixing to the wall :

— Mark a vertical line on the wall centred on the cooktop.
— Mark on the wall the three holes that have to be drilled, using the supplied hood suspension hook and observing the recommended distance.
— Drill the three 8 mm diameter holes in a suitable position and insert the plugs (part A Pic. 1).
— Before fixing the hood, mount the non-return valve on the motor outlet -Secure the hood's fixing support, ensuring that it is perfectly level. (part A Pic. 1)

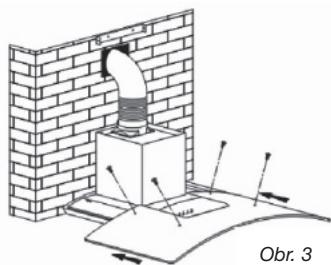

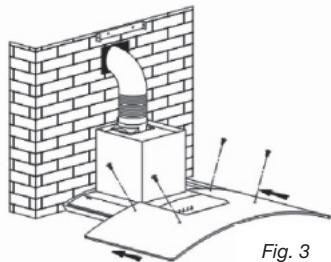

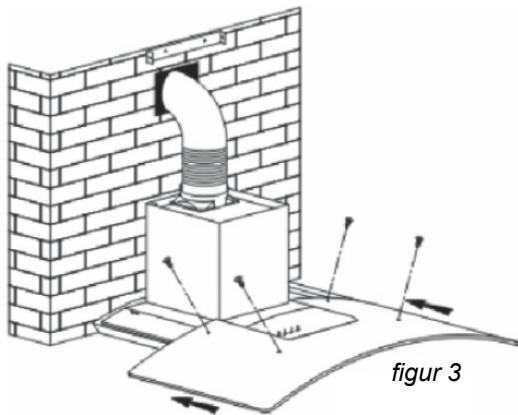

— Fix the extendable evacuation sleeve (not included) to the motor outlet without impeding the movement of the non-return valve.
— Fit and secure the body of the hood on this support with the screws provided for this purpose.

Pict 1

Gaine extensible (non fourni)

Simple line drawing of a mechanical setup with a cylindrical component and a base (no text or symbols)

Diagram showing a brick wall and a cylindrical object mounted on a base, with no visible text or symbols.

Pict 2

EN 2 / INSTALLING YOUR APPLIANCE

• ASSEMBLING THE VENTILATION SHAFT

• Outdoor evacuation

— Calculate the final height for fixing the duct support U-bracket (part B Pic. 1)

— Mark the two holes accordingly

— Drill 8 mm diameter holes and secure the duct support bracket, ensuring that it is fixed on the same axis as the hood (part B Pic. 1)

— Fix the flat bracket behind the lower duct. (part C Pic. 4).

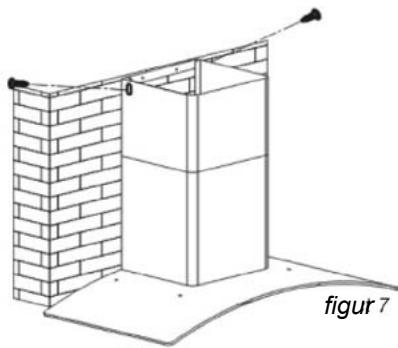

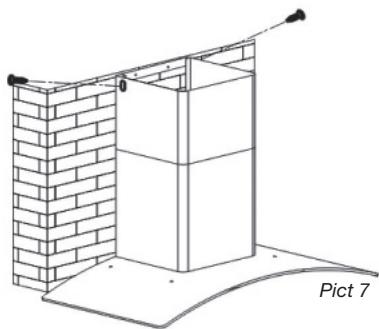

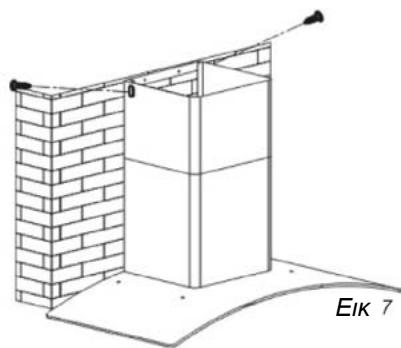

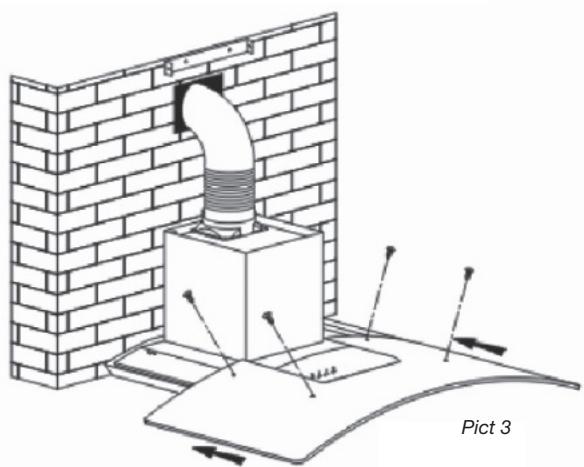

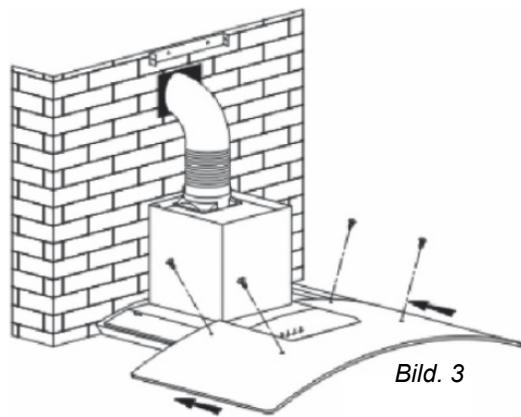

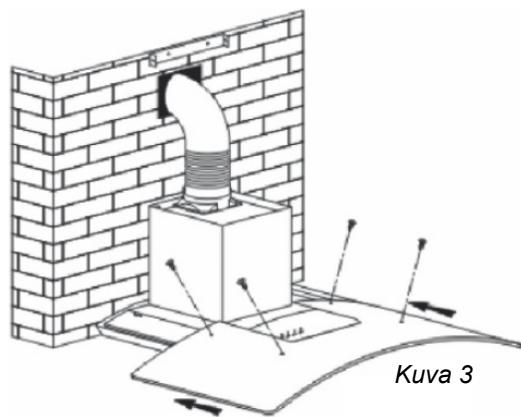

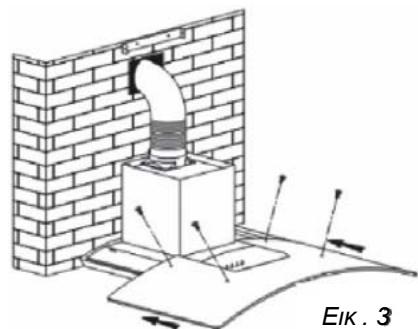

— Place the glass on the guides. Slide the glass in and secure it with the 4 screws with rubber seal (glass safety). Tighten the screws slightly.

— Fix the two ducts to the hood.

— Connect the sleeve to the air outlet to the outside.

— Make the electrical connection to the hood using the mains supply cable.

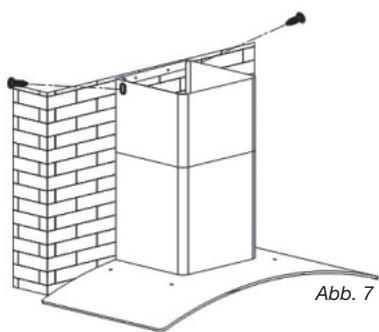

— Lift the upper duct up to the ceiling and fix it to the bracket using the screws.

Architectural line drawing of a brick wall and support structure (no text or symbols)

Diagram of a brick wall with a pipe and support structure, labeled 'Pict 3' (no text or symbols on the diagram itself)

3D diagram of a cabinet with an arrow indicating direction, labeled 'Pict 4' (no text or symbols on the diagram itself)

2 / INSTALLING YOUR APPLIANCE

EN

- Recycling

— Calculate the final height for fixing the duct support U-bracket (part B Pic. 1).
— Mark the two holes.
— Drill 8 mm diameter holes and secure the duct support bracket, ensuring that it is fixed in the same axis as the hood (part B Pic. 1).
— Fix the flat bracket behind the lower duct part C Pic. 4).
— Place the glass on the guides. Slide the glass in and secure it with the 4 screws.
— Fit the sleeve adapter on the deflector (Pic. 8).
— Connect the extendable sleeve (not included) to the deflector (Pic. 8).
— Fit the two parts of the duct on to the hood.
— Fit the deflector (Pic. 8) into the upper duct by the ventilation inlets (Pic. 6)
— Make the electrical connection to the hood using the mains supply cable.

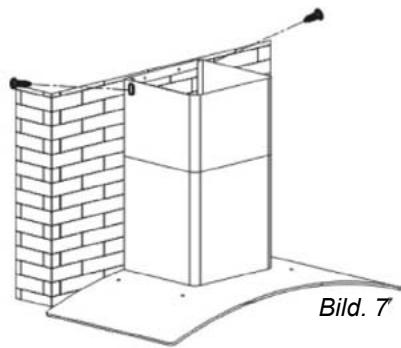

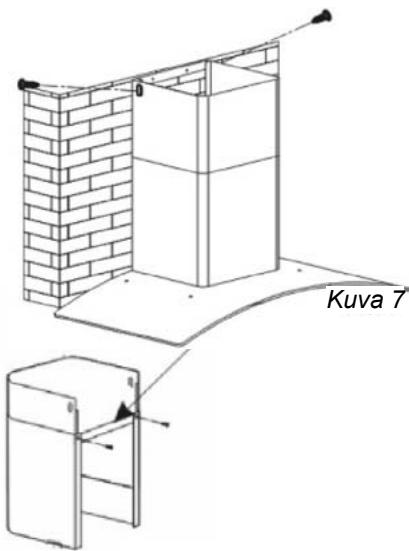

— Lift the upper duct up to the ceiling and fix it to the bracket using the two screws (Pic. 7).

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Pict 8

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

Pict 6

Architectural diagram of a brick wall structure with support beams and a curved base, labeled 'Pict 7' (no text or symbols on the diagram itself)

Diagram of a chimney mounted on a brick wall, with arrows indicating airflow or movement (no text or symbols)

Simple line drawing of a refrigerator with a label 'C' pointing to the side panel (no text or symbols on the diagram itself)

Pict 4

Tip

For optimal use of your appliance, we recommend that you connect the hood to a 150 mm-diameter flue (not delivered with the appliance). Minimise the number of angles and bends and the lengths of the flue. In the event that the hood will be operated using outdoor evacuation, you should ensure a sufficient inflow of fresh air to avoid a pressure deficiency in the room.

Warning

Do not use tools to remove the safety film of hood.

EN 3 / USING YOUR APPLIANCE

• TO USE YOUR COOKER HOOD

How to use the control panel.

a. Press the button "Low", the inner indicator light of switch starts shining, the motor is running at low speed. Press the button again, the motor stop.
b. Press the button "Mid", the inner indicator light of switch starts shining, the motor is running at medium speed. Press the button again, the motor stop.
c. Press the button "High", the inner indicator light of switch starts shining, the motor is running at high speed. Press the button again, the motor stop.
d. Press the button "Light", both lights start shining. Press the button again, the lights are switched off then.

4 / CARING FOR AND CLEANING YOUR APPLIANCE

EN

Warning

Always unplug the hood before cleaning it or performing other maintenance acts. Regular maintenance of your appliance is a guarantee of proper functioning, good performance and durability.

Warning

Failure to respect the guidelines for cleaning the appliance and filters may cause fires. Please carefully adhere to the maintenance recommendations.

- CLEANING THE FILTER CARTRIDGES

They must be cleaned after approximately 30 hours of use or at least once a month. These filters can be cleaned in a vertical position in your dishwasher.

Use a brush, hot water and mild detergent. Rinse and dry them thoroughly before returning them to the hood.

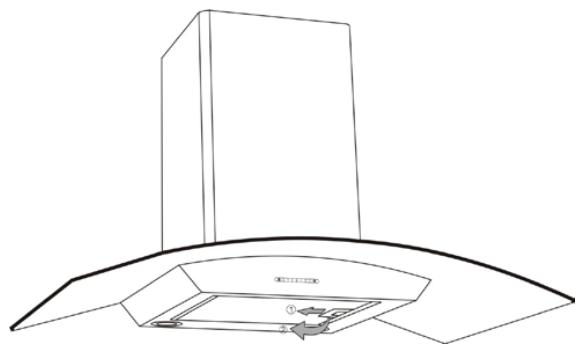

- Dismantling the filter cartridge

— Turn the built-in filter cartridge handle.
— Tilt the filter cartridge downward.

Line drawing of a kitchen chimney with an open lid and internal structure (no text or symbols)

- CHANGING THE CARBON FILTER (optional)

Replace it after approximately 120 hours of use.

— Remove the filter cartridge.
— Turn the carbon filter to remove it.
— Do the operation in the reverse order to put a new filter back.
— Put the filter cartridges back.

EN 4 / CARING FOR AND CLEANING YOUR APPLIANCE

- CLEANING THE OUTER SURFACES

To clean the outside of your hood, use soapy water, but never use abrasive creams, corrosive detergents, scrubbing sponges or brushes. Wipe down with a soft, damp cloth.

• CHANGING THE LIGHT BULB

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

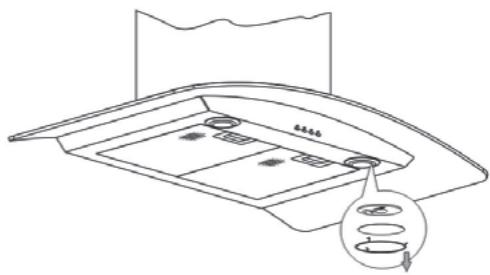

Model with halogen bulb

— Remove the lighting port

— Change the halogen bulb.

— Replace the bulb by repeating these steps in reverse order.

Line drawing of a boat hull with a magnified inset showing internal components (no text or symbols)

4 / CARING FOR AND CLEANING YOUR APPLIANCE

EN

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

• MAINTAINING YOUR APPLIANCE

MAINTENANCE	WHAT TO DO	PRODUCTS/ACCESSORIES TO USE
Top surface and accessories	Never use metal scouring pads, abrasive products or excessively stiff brushes.	To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth.
Filter cartridge	This filter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood.In the event of tough stains, use a non-abrasive cream, then rinse with clean water.	Use a commercial household cleaning product then rinse abundantly and dry. These filters can be cleaned in a vertical position in your dishwasher.(Do not allow them to touch dirty dishes or silverware.)

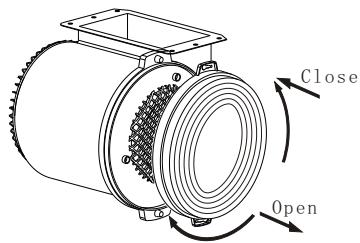

Activated carbon filter	This filter traps odours and must be changed at least once a year depending on your level of use.You should order these filters from your dealer (quoting the reference shown on the identification plate located inside the hood) and note the date the filter was changed.

To preserve your appliance, we recommend that you use Clearit cleaning products.

Professional expertise

serving individuals

Clearit offers you professional products and solutions designed for the daily care of your household appliances and kitchens.

They are on sale at your regular retailer, along with a complete line of accessories and consumable products.

EN 5 / TROUBLESHOOTING

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that:• The power is not cut off.• A speed has been selected.
The hood is not operating effectively...	Ensure that:• The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared.• The kitchen is sufficiently ventilated to allow for fresh air intake.• The carbon filter is not worn (hood operating in recycling mode).
The hood stopped working.	Ensure that:• The power is not cut off.• The single-pole cut-off device was not activated.

6 / AFTER-SALES SERVICE

EN

Any maintenance on your equipment should be undertaken by :

— either your dealer,
— or another qualified mechanic who is an authorized agent for the brand appliances.
When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

18

Simple line drawing of a mechanical setup with a cylindrical component and base (no text or symbols)

Diagram showing a brick wall and a cylindrical object mounted on a base, with no visible text or symbols.

Fig. 2

FR 2 / INSTALLATION DE VOTRE APPAREIL

• MONTAGE DE LA CHEMINEE

Isometric line drawing of a brick wall structure with support beams and a curved base (no text or symbols)

Technical diagram of a ceiling structure with pipe connection and support components, labeled as Fig. 3 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

2 / INSTALLATION DE VOTRE APPAREIL

FR

- Recyclage

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Fig. 8

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

Fig. 6

Architectural diagram of a brick wall structure with support beams and a curved base, labeled Fig. 7 (no text or symbols on the diagram itself)

Diagram of a chimney mounted on a brick wall, with arrows indicating airflow or movement (no text or symbols)

Simple line drawing of a 3D rectangular object with a labeled point C and internal lines, no text or symbols present.

Fig. 4

Conseil

4 / ENTRETIEN ET NETTOYAGE DE VOTRE APPAREIL

FR

Attention

Line drawing of a kitchen chimney with an open lid and ventilation duct (no text or symbols)

Line drawing of a boat hull with a magnified inset showing internal components (no text or symbols)

4 / ENTRETIEN ET NETTOYAGE DE VOTRE APPAREIL

FR

Attention

Simple line drawing of a mechanical setup with a cylindrical component and a base (no text or symbols)

Diagram showing a brick wall and a cylindrical object mounted on a base, with no visible text or symbols.

Fig. 2

Isometric line drawing of a brick wall structure with support beams and a curved base (no text or symbols)

Technical diagram of a ceiling structure with pipe connection and support components, labeled as Fig. 3 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Fig. 8

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

Fig. 6

Architectural diagram of a brick wall structure with support beams and a curved base, labeled Fig. 7 (no text or symbols on the diagram itself)

Diagram of a chimney mounted on a brick wall, with arrows indicating airflow or movement (no text or symbols)

Simple line drawing of a 3D rectangular box with a label 'C' pointing to its side (no text or symbols on the object itself)

Fig. 4

Conselho

Five circular icons with leaf and sun symbols, no text or labels present

Line drawing of a kitchen air duct with a chimney and ventilation cover (no text or symbols)

Line drawing of a boat hull with a magnified inset showing internal components (no text or symbols)

Simple line drawing of a mechanical setup with a cylindrical component and a base (no text or symbols)

Diagram showing a brick wall and a cylindrical object mounted on a base, with no visible text or symbols.

Abb. 2

DE 2 / ANSCHLIESSEN DES GERÄTS

• MONTAGE DER ROHRABDECKUNG

Architectural line drawing of a brick wall structure with support beams and a curved base (no text or symbols)

Technical diagram of a brick wall with a pipe and support structure, labeled Abb. 3 (no text or symbols on the diagram itself)

Technical line drawing of a refrigerator with ladder and door, no text or symbols present

2 / ANSCHLIESSEN DES GERÄTS

DE

• Umluft

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Abb. 8

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

Abb. 6

Architectural diagram of a brick wall structure with support beams and a curved base, labeled Abb. 7 (no text or symbols on the diagram itself)

Diagram of a pipe installation inside a brick wall, showing support structure and directional arrows (no text or symbols)

Simple line drawing of a 3D rectangular prism with labeled point C and internal lines, no text or symbols present.

Abb. 4

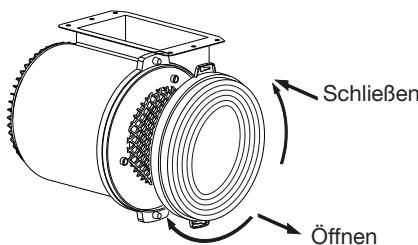

Hinweis

Five circular icons with leaf symbols: sun, wind turbine, sun, moon, and a leaf (no text or labels)

Line drawing of a kitchen air conditioner unit with a curved top and ventilation duct (no text or symbols)

Line drawing of a boat hull with a magnified inset showing internal components (no text or symbols)

2 / INSTALACE PŘÍSTROJE

2 / INSTALACE PŘÍSTROJE

CZ

CZ 2 / INSTALACE PŘÍSTROJE

• ELEKTRICKÉ ZAPOJENÍ

Simple line drawing of a mechanical component with a cylindrical top and base, no text or symbols present.

Diagram showing a brick wall and a cylindrical object mounted on a base, with no visible text or symbols.

Obr. 2

CZ 2 / INSTALACE PŘÍSTROJE

• MONTÁŽ KOMÍNA

• Vypouštění ven

Architectural line drawing of a brick wall structure with support beams and ground level (no text or symbols)

Technical diagram of a brick wall with a pipe and support structure, labeled 'Obr. 3' (no text or symbols on the diagram itself)

Technical line drawing of a cabinet with ladder and door, labeled 'Obr. 4' (no other text or symbols)

2 / INSTALACE PŘÍSTROJE

CZ

- Recyklování

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Obr. 8

Pure technical line drawing of a mechanical assembly with no text or symbols

Obr. 6

Architectural diagram of a brick structure with support beams and a curved base, labeled 'Obr. 7' (no text or symbols on the diagram itself)

Diagram of a pipe installation with brick wall and support structure, showing directional arrows (no text or symbols)

Simple line drawing of a 3D rectangular box with a label 'C' pointing to its side (no text or symbols on the box itself)

Obr. 4

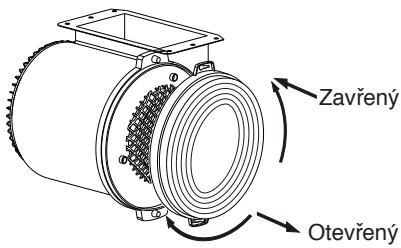

Rada

Five circular icons with leaf and sun symbols, no text or labels present

Line drawing of a kitchen chimney with ventilation duct and door panel (no text or symbols)

Line drawing of a boat hull with a magnified inset showing helical motion (no text or symbols)

Pozor

2 / INSTALLATION AF APPARATET

2 / INSTALLATION AF APPARATET

DK

• BRUG MED RECIRKULERINGSVERSIONEN

Two technical diagrams showing a mechanical assembly and brick wall installation (no text or symbols)

Illu. 2

DK 2 / INSTALLATION AF APPARATET

• SAMLING AF VENTILATIONSSKAKTEN

Architectural line drawing of a brick wall structure with support beams and ground level (no text or symbols)

Diagram of a ventilation duct mounted on a brick wall, with directional arrows indicating airflow or movement (no text or symbols)

Technical line drawing of a refrigerator with ladder and door, no text or symbols present

2 / INSTALLATION AF APPARATET

DK

- Recirkulering

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Illu. 8

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

Illu. 6

Architectural diagram of a brick wall structure with support beams and a curved base, labeled 'Illu. 7' (no text or symbols on the diagram itself)

Diagram of a pipe installation inside a brick wall, showing support structure and directional arrows (no text or symbols)

Simple line drawing of a 3D rectangular prism with labeled point C and internal lines, no text or symbols present.

Illu. 4

Råd

Five circular icons with leaf and sun symbols, no text or labels present

Lav

Middel

Høj

-ys

4 / PLEJE OG RENG∅RING AF APPARATET

DK

Advarsel

Line drawing of a kitchen chimney with a curved roof and ventilation duct (no text or symbols)

DK 4 / PLEJE OG RENG∅RING AF APPARATET

- RENG∅RING AF DE YDRE OVERFLADER

Line drawing of a boat hull with a magnified inset showing internal components (no text or symbols)

Advarsel

Technical line drawings showing two mechanical assembly setups: one with a cylindrical component inserted into a base, the other with a brick wall and a cylindrical component mounted on a base (no text or symbols present)

Kuva 2

• TUULETUSRUNGON ASENNUS

- Poistoilma

Architectural line drawing of a brick wall and adjacent structure with support beams (no text or symbols)

FI 2 / LAITTEEN ASENNUS

- Kiertoilma

Diagram of a chimney mounted on a brick wall, with directional arrows indicating airflow or movement (no text or symbols)

Kuva 8

3D diagram of a layered structure with labeled 'Kuva 6' (no other text or symbols)

Kuva 4

Vinkki

Five circular icons with leaf and sun symbols, no text or labels present

Low Mid High Light

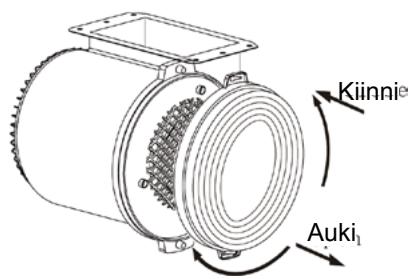

Varoitus

Line drawing of a kitchen chimney with a curved roof and ventilation duct (no text or symbols)

- ULKOPINTOJEN PUHDISTUS

Line drawing of a curved mechanical component with internal slots and a circular inset showing a spiral (no text or symbols)

FI

4 / LAITTEEN HUOLTO JA PUHDISTUS

Varoitus

ELEKTRISKE TILKOBLINGER

Technical line drawings showing a mechanical assembly and brick wall installation (no text or symbols)

figur 2

● MONTERING AV VENTILASJONSSJAKT

Architectural line drawing of a brick wall structure with support beams and a curved base (no text or symbols)

Diagram of a chimney mounting a brick wall, showing airflow direction and component labels (no text or symbols on the diagram itself)

Diagram of a 3D rectangular prism with internal structure and directional arrows, labeled 'figur 4' (no text or symbols on the diagram itself)

NO

2 / INSTALLERING AV DITT APPARAT

- Resirkulering

Isometric line drawing of a mechanical assembly with no text or symbols

figur 6

Architectural diagram showing a brick wall structure with a support frame and a curved base, labeled 'figur 7' (no text or symbols on the diagram itself)

Diagram of a chimney mounted on a brick wall, with arrows indicating airflow or movement (no text or symbols present)

Simple line drawing of a rectangular container with a side panel and labeled point C (no text or symbols beyond label)

figur 4

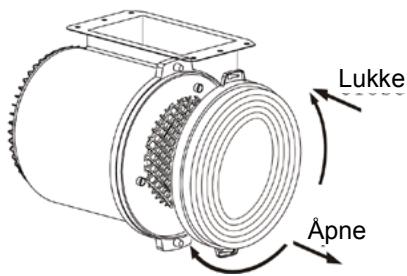

Tips

Line drawing of a kitchen chimney with a curved roof and ventilation duct (no text or symbols)

●RENGJ∅RING AV DE YTRE VERFLATENE

Line drawing of a curved mechanical component with internal components and a magnified inset showing a spiral (no text or symbols)

Advarsel

• VEDLIKEHOLD AV APPARATET

INNEHÅLLSFÖRTECKNING

SE

1 / INFORMATION TILL ANVÄNDAREN 137

● SÄKERHETSINFORMATION 137
- MILJÖSKYDD 138
● BESKRIVNING AV APPARATEN 139

2 / INSTALLERA DIN APAPRAT 140

● ANVÄND UTSUGNINGSLÄGET 140
● ANVÄND ÅTERVINNINGSLÄGET 140
● ELEKTRISKA ANSLUTNINGAR 141
● SÄTT IHOP SPISKÅPAN 142
● SÄTTA IHOP VENTILATIONSTRUMMAN 143
- Utsug till utomhusmiljö.... 143
- Återvinning.... 144

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Two technical diagrams showing a bolt installation on a base and a brick wall with curved arrows indicating motion (no text or symbols)

Bild. 2

- SÄTTA IHOP VENTILATIONSTRUMMAN

Architectural line drawing of a brick wall and adjacent structure with support beams (no text or symbols)

Bild. 5

Diagram of a pipe installation inside a brick wall, showing directional arrows and a labeled section 'Bild. 3' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

- Återvinning

Diagram of a pipe installation inside a brick wall, showing support structure and directional arrows (no text or symbols)

Bild. 8

Isometric line drawing of a mechanical assembly with a central block and two parallel beams (no text or symbols)

Bild. 6

Architectural diagram of a brick wall structure with support beams and a labeled section (Bild. 7), no text or symbols present.

Simple line drawing of a refrigerator with a handle and label 'C' (no text or symbols on the diagram itself)

Bild. 4

Tips

Five circular icons with leaf and sun symbols, no text or labels present

Line drawing of a kitchen chimney with a curved roof and ventilation duct (no text or symbols)

- Plocka isär filterpatronerna

Line drawing of a boat hull with a circular inset showing a helical component (no text or symbols)

Varning

Two technical diagrams showing a bolt installation on a base and brick wall with arrows indicating direction (no text or symbols)

Eik. 2

Architectural line drawing of a brick wall structure with support beams and a curved base (no text or symbols)

Diagram of a pipe installation inside a brick wall, showing airflow direction and component labels (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

Isometric line drawing of a mechanical assembly with transparent housing and internal components (no text or symbols)

Eik. 6

Architectural diagram of a brick wall structure with a support structure, labeled 'EIK 7' (no text or symbols on the diagram itself)

Diagram of a chimney mounted on a brick wall, with directional arrows indicating airflow or movement (no text or symbols)

Pure technical line drawing of a mechanical part with no text or symbols

Eik 4

Συμβουλή

Five circular icons with leaf symbols and sun icons arranged horizontally (no text or labels)

Line drawing of a kitchen chimney with a curved roof and ventilation unit (no text or symbols)

Line drawing of a boat hull with a magnified inset showing a coiled spring (no text or symbols)

Προειδοποίηση
