Product type	Air-to-water heat pump
Brand	Panasonic
Model	WHSDC07H3E5
Outdoor unit dimensions (W x H x D)	800 x 620 x 370 mm
Outdoor unit weight	45 kg
Power supply	230 V / 50 Hz
Nominal heating capacity	7 kW
COP (Coefficient of Performance)	Up to 4.2
Refrigerant	R410A
Main functions	Heating, cooling, domestic hot water production
Special modes	Silent mode, Turbo, Forced backup heating, Forced backup DHW
Programming	Weekly programming
Maintenance and cleaning	Clean air filters every month, check circuit pressure
Safety	Anti-freeze protection, automatic shutdown in case of overheating, remote control lock
Spare parts and repairability	Filters, sensors, remote control available
General information	User manual available in several languages

Frequently Asked Questions - WHSDC07H3E5 PANASONIC

How to activate silent mode?

Press the Menu button, select the Silent mode icon, then confirm with the ↓ button. The mode starts about 1 minute after activation.

What to do in case of an error code?

Select the 'Error code initialization' option in the quick menu to restore previous settings. Make sure all units are turned off before.

How to lock the remote control?

In the quick menu, choose 'Remote control lock', then select 'Yes'. To unlock, press any key and enter the 4-digit code (default 0000).

How to force backup heating?

In the quick menu, select 'Force backup heating' and confirm with ↓. The mode starts after about 1 minute. It deactivates when the system is in normal operation.

How to program the week?

Select 'Weekly prog.' in the quick menu, then 'Clock programming'. Choose the days, set the times, mode and temperature. You can copy a setting with 'Clock copy'.

How to force backup DHW?

In the quick menu, select 'Force backup DHW' and confirm with ↓. Note that this mode is disabled if 'Force heating' is active.

What is Turbo mode?

Turbo mode allows you to reach the set temperature for heating or cooling faster. Select the Turbo icon in the quick menu and confirm.

How to force defrost?

In the quick menu, choose 'Force defrost' to defrost frozen pipes. The screen will display 'Request accepted'.

Where to find the complete manual?

You can download the PDF manual for free on notice-facile.com by selecting your language.

How to reset the remote control password?

On the OFF screen, press the ▲, ▼ and ↓ buttons simultaneously for 5 seconds. Select 'Reset' to reset the code to 0000.

USER MANUAL WHSDC07H3E5 PANASONIC

Air-to-Water Heatpump

Model No.

Indoor Unit

WH-SDC07H3E5

WH-SDC09H3E5

Outdoor Unit

WH-UD07HE5

WH-UD09HE5

Panasonic

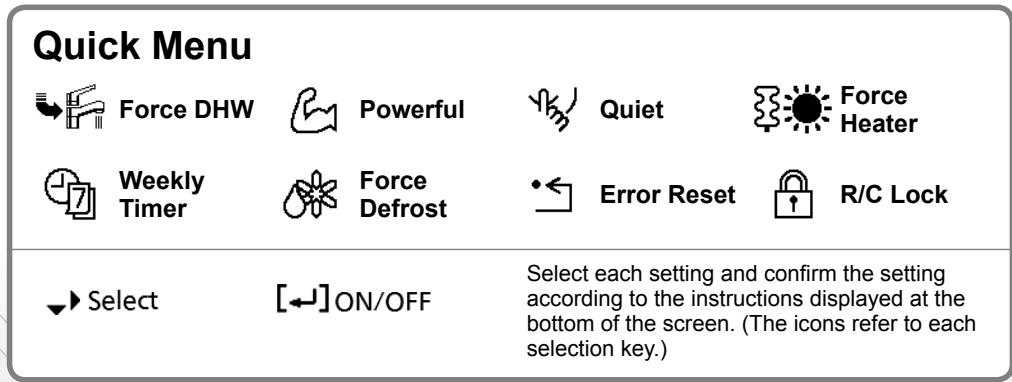

Quick Menu Guide

Air-to-Water Heatpump

2-7

English

Please read the Operating Instructions thoroughly before using the Quick Menu.

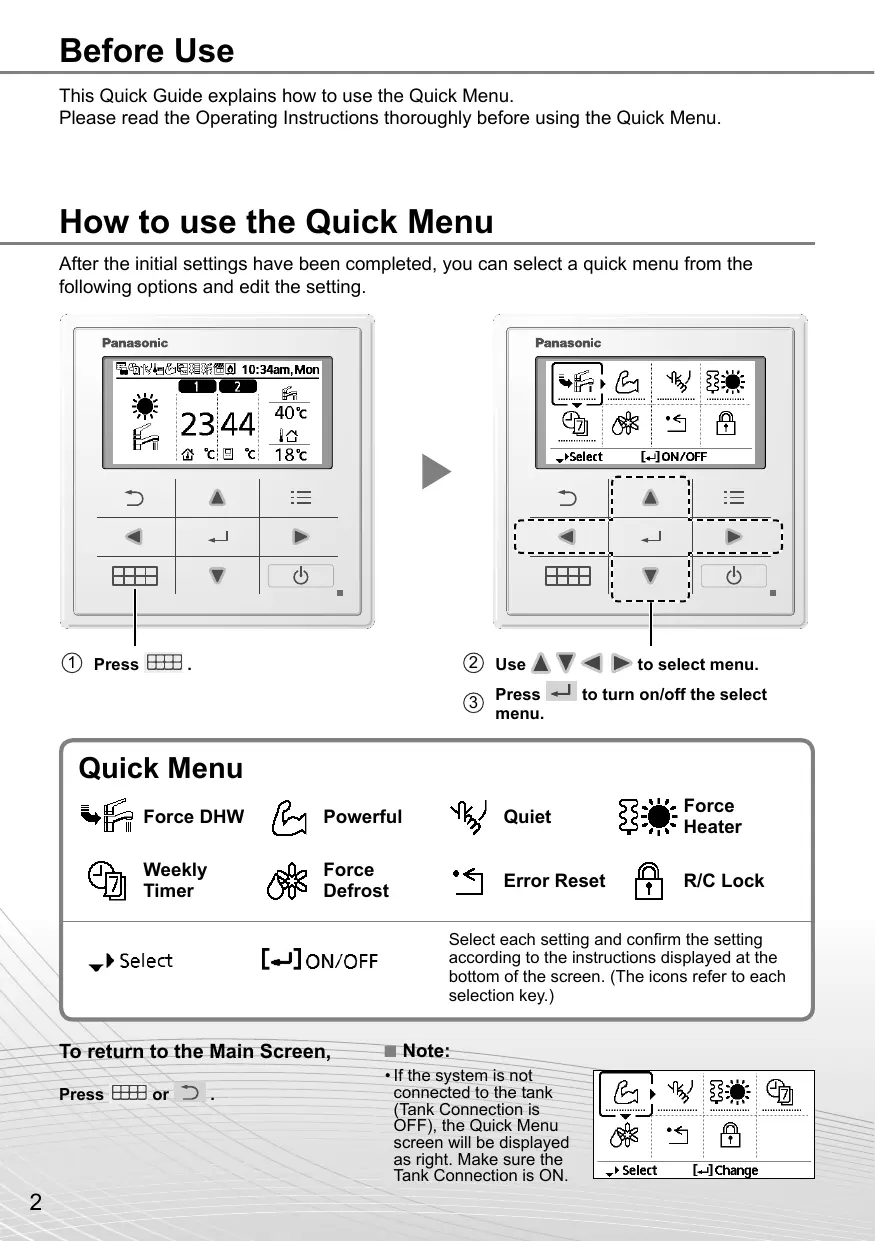

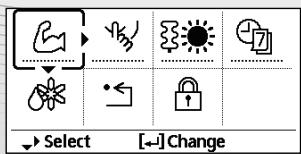

How to use the Quick Menu

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

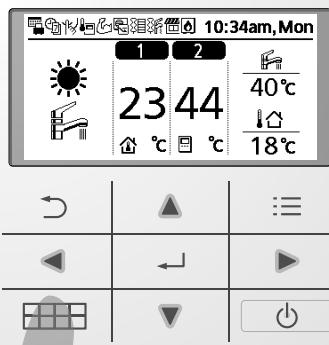

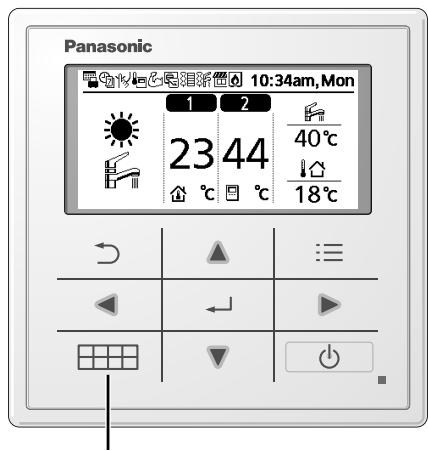

① Press .

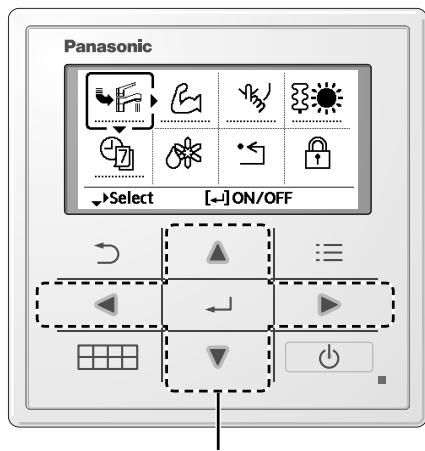

② Use ▲ ▼ ▶ ▷ to select menu.
③ Press to turn on/off the select menu.

To return to the Main Screen,

Press or

Note:

• If the system is not connected to the tank (Tank Connection is OFF), the Quick Menu screen will be displayed as right. Make sure the Tank Connection is ON.

Notes on operation icon

Example:

Operation icon indicate with "..........." = OFF

Operation icon indicate with “——” = ON

Force DHW

Select this icon to turn the Tank DHW on or off.

Press to confirm your selection.

• Force DHW is turned off.
• Force DHW is turned on.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorized status.

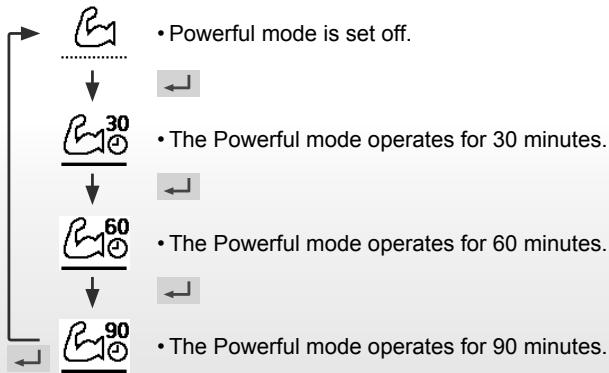

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press to confirm your selection.

(The powerful operation starts approximately 1 minute after is pressed.)

Note:

• Powerful is disabled when operation is turned OFF.

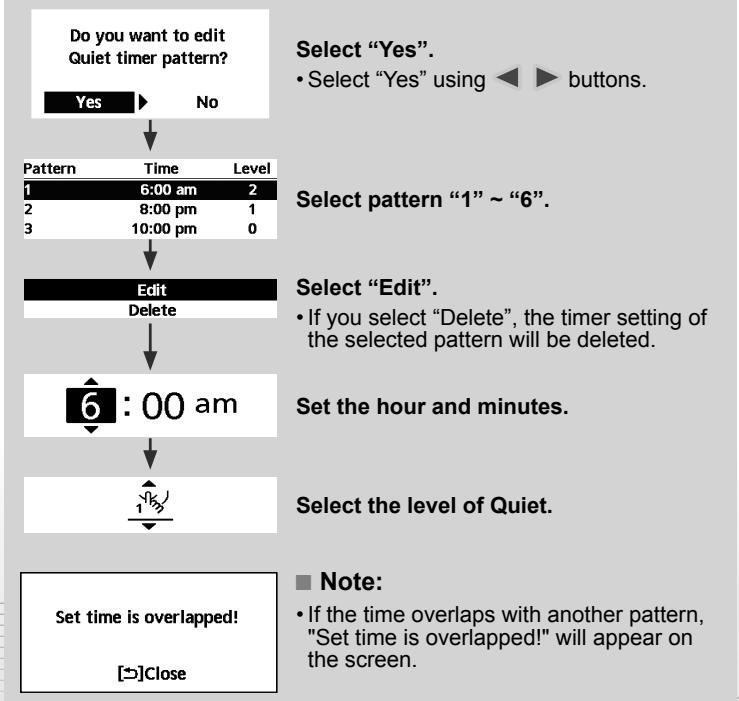

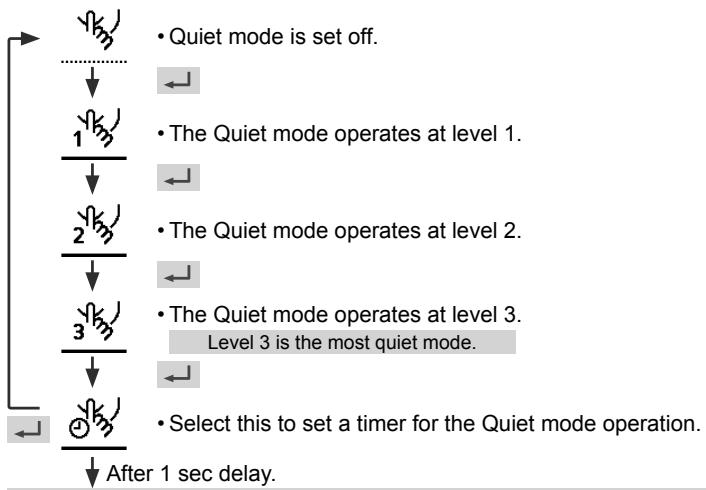

Quiet

Select this icon to operate quietly.

Press to confirm your selection.

(The quiet operation starts approximately 1 minute after is pressed.)

Force Heater

Select to force the Heater on.

Press to confirm your selection.

(The Force Heater mode starts approximately 1 minute after is pressed.)

Note:

• Force Heater is disabled whenever operation is already on and 'Disabled due to operation ON!' will be displayed.

Disabled due to

operation ON!

[Close

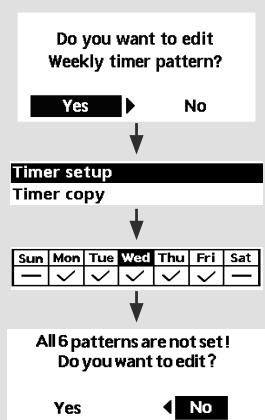

Weekly Timer

Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press to confirm your selection.

Select "Yes".

• If you select "No", the screen will return to the Main Screen.

• Timer setup: Select Timer setup to edit the Weekly Timer.

• Timer copy: Select to copy a timer setting.

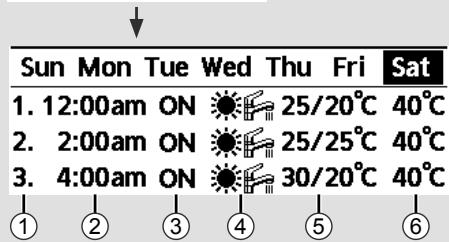

[Example of a Timer setup]

Select the day(s) which you wish to edit using buttons.

If all 6 patterns are not preset, this screen will be displayed.

④ Select the operation mode.

① Select pattern "1" ~ "6".
② Set the hour and minutes of the Timer.
③ Select ON/OFF of the Timer.

• Select mode using buttons.

⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
  If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Force Defrost

Select to defrost the frozen pipes.

Press to confirm your selection.

(When the mode is accepted, below screen will be displayed.)

Request accepted!

[ ] Close

Error Reset

Select to restore the previous settings when error has occurred.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Request accepted!

[ ] Close

• Make sure all units are turned off before selecting this mode which restores the whole system to the previous settings.

R/C Lock

Select to lock the Remote Controller.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Do you want to lock remote control?

Yes No

Select "Yes".

(The Main Screen will be locked.)

• If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller

Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen)

Press , and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select "Reset".

1. Password is reset to 0000
2. Remote control is unlocked

(The screen will be off after 3 seconds.)

Disabled due to operation ON!

[Close

Week-timer

Sun Mon Tue Wed Thu Fri Sat

1. 12:00am ON 25/20°C 40°C
2. 2:00am ON 25/25°C 40°C
3. 4:00am ON 30/20°C 40°C

① Selecteer schema "1" ~ "6".
② Stel de uren en Minutes van de timer in.
③ Selecteer AAN/UIT van de timer.
④ Selecteer de gewenste stand.

Saturday: Pattern 1: Set Temp
Zone1	Zone2
ON	25 °C	ON	25 °C

Do you want to lock remote control?

Yes

No

Disabled due to operation ON!

[Close

Saturday: Pattern 1: Set Temp
Zone1	Zone2
ON	25°C	ON	25°C

Do you want to lock remote control?

Yes No

ETIIAEETE "Yes".

1 Password is reset to 0000

2.Remote control is unlocked

Zone1		Zone2
ON	25°C	ON	25°C

Disabled due to operation ON!

[Close

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Tank sicutligini ayarlayin.

Not:

Kraftfull inaktiveras nar driften stangs AV.

Tystläge

Väljennaikonforattdravystyst.

Disabled due to operation ON!

[Close

Viikkoajastin

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25 °C	ON	25 °C

⑥ Aseta sällön lämpötila.

Huomautus:

Do you want to lock remote control?

Yes No
