(4) About descriptions in this Owner’s Manual ≥ The illustrations shown may differ from your unit. Accessories ∏ 4 Spikes (RGQ0860) ∏ 4 Spike shoes (RGQ0861) ∏ 4 Spacers (RGQ0862) ∏ 1 Cleaning cloth (RGQ0863) ∏ 2 Short wires (RJL1W001B02) ∏ 1 Speaker net (RYB0402) ≥ Product numbers provided in this Owner’s Manual are correct as of November 2014. These may be subject to change. ≥ The speakers are not supplied with speaker cables. For connection, use commercially-available speaker cables. (5)

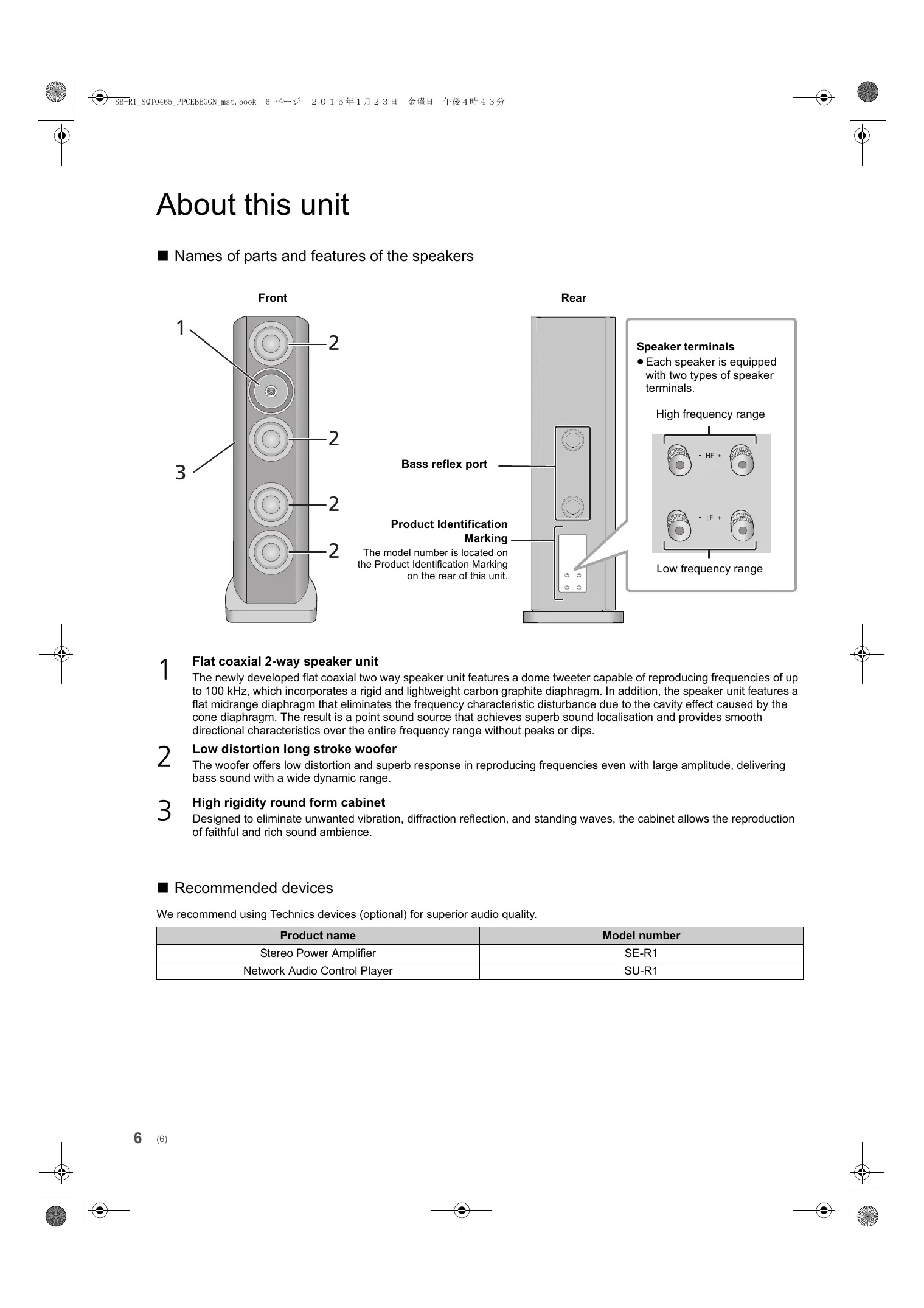

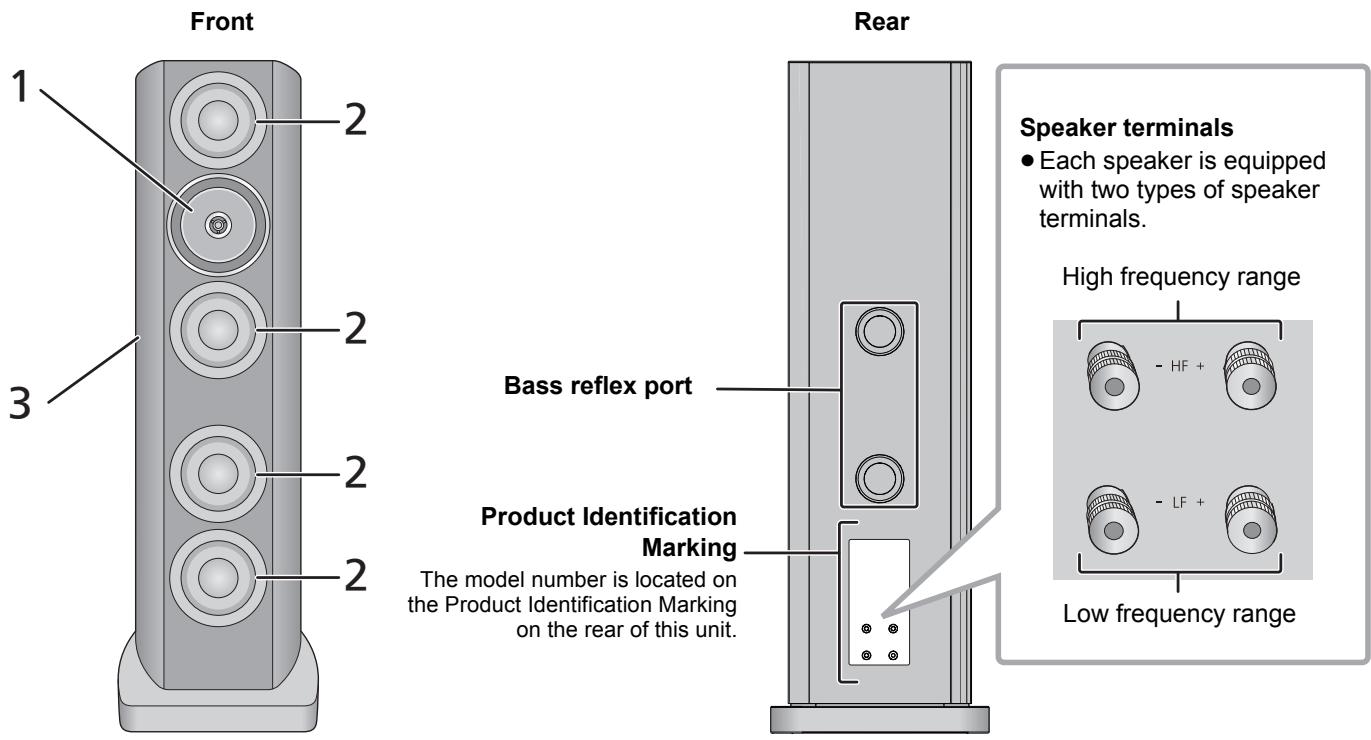

About this unit ∫ Names of parts and features of the speakers Front

Speaker terminals ≥ Each speaker is equipped with two types of speaker terminals. High frequency range Product Identification Marking The model number is located on the Product Identification Marking on the rear of this unit.

Flat coaxial 2-way speaker unit

Low distortion long stroke woofer

High rigidity round form cabinet Low frequency range The newly developed flat coaxial two way speaker unit features a dome tweeter capable of reproducing frequencies of up to 100 kHz, which incorporates a rigid and lightweight carbon graphite diaphragm. In addition, the speaker unit features a flat midrange diaphragm that eliminates the frequency characteristic disturbance due to the cavity effect caused by the cone diaphragm. The result is a point sound source that achieves superb sound localisation and provides smooth directional characteristics over the entire frequency range without peaks or dips. The woofer offers low distortion and superb response in reproducing frequencies even with large amplitude, delivering bass sound with a wide dynamic range. Designed to eliminate unwanted vibration, diffraction reflection, and standing waves, the cabinet allows the reproduction of faithful and rich sound ambience. ∫ Recommended devices We recommend using Technics devices (optional) for superior audio quality.

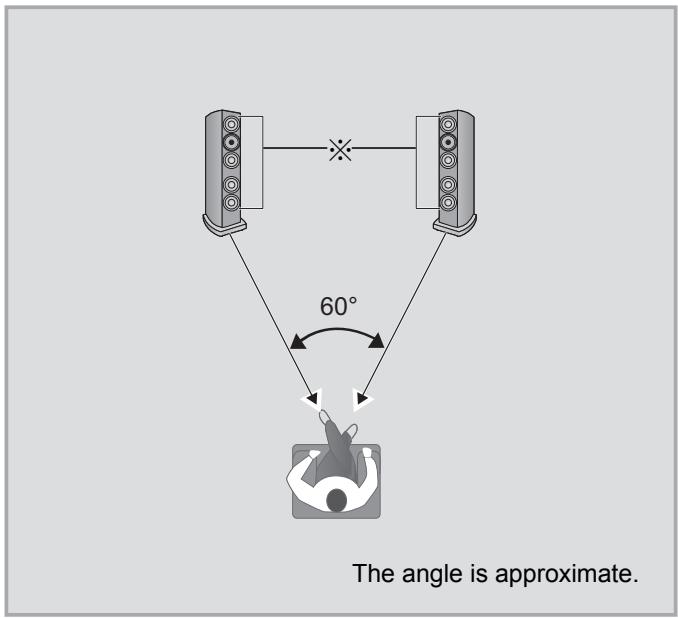

(6) Product name Model number Network Audio Control Player SU-R1 The angle is approximate. ≥ Each speaker must be carried and installed by at least two people. ≥ Do not touch the speaker units. Doing so may result in incorrect audio quality. ≥ Place the speakers at approximately the same distance from the listening position. ≥ The speakers produce bass sound from the bass reflex ports on the rear as well as from the front. Install the speakers at least 5 cm (2z) away from the walls so that they do not cover the bass reflex ports on the rear. ≥ Keep the amplifier or any other device and the speakers at least 1 cm (13/32z) away from each other. ∫ For optimum position The quality and volume of the bass sound, sound localisation performance, sound ambience, and other factors that determine the audio quality vary depending on the installation location of this unit, listening position, room conditions, and other factors. Refer to the information below when installing the speakers. Determining an installation location. ≥ Each speaker has a mass of approximately 72 kg (159 lbs). Check that the installation location is strong enough to bear this mass. ≥ If you need to secure the speakers against tipping over, consult an installation specialist. The strength of the floor and wall must be verified. (> 10) ≥ Put the speakers on a flat safe surface. If the speakers wobble when placed, use the spacers. (> 8) ≥ To minimise the gap in audio quality between the left and right speakers, install them so that acoustic conditions (reflection and absorption of sound) around them are the same. Adjusting the distances between the rear of the speakers and the walls If you install the speakers close to a wall or in a corner, the bass sound will be more powerful; however, when the speakers are too close to it, sound localisation performance and sound ambience may deteriorate. If this occurs, adjust the distance between the speakers and the front wall, which should be between 30 cm (12z) to 60 cm (24z). (Please note that the distance between the speakers and the side walls should be greater than 60 cm (24z).) ≥ Do not drag the speakers with force. Doing so may cause the pads on their feet to peel off, damaging the speakers and floor. Adjusting the angle of the speakers Angle the front side of the speakers toward the listener. Following these steps will help the speakers deliver more precise sound localisation. Adjusting the acoustics of the room and speaker layout Depending on the room environment (including the size and shape of the room, distance to the walls and reverberation level), certain sounds may be exaggerated or suppressed, making them difficult to hear. In such cases, adjusting the reverberation level by moving the speakers, changing your listening position or covering the walls and windows with thick curtains may help resolve the problem. ≥ The spikes may enhance the audio quality. (> 8) (7)

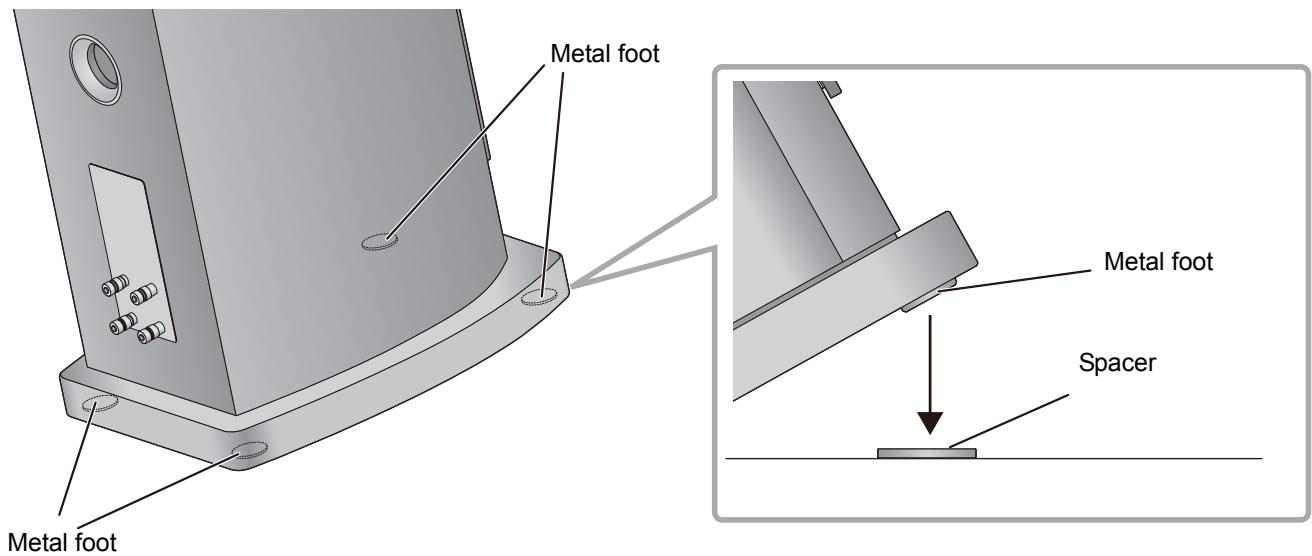

About the spacers and spikes ≥ Keep the spikes out of reach of children to prevent swallowing. ∫ Attaching the spacers Place the speakers on a surface that will not be damaged, such as a carpeted floor, or on a surface that you do not mind damaging. ≥ If the speakers wobble, place the spacers under the metal feet. This will prevent the metal feet from wobbling on the speaker locations. Metal foot Metal foot Spacer Metal foot ∫ Attaching the spikes The spikes may enhance the audio quality. ≥ Panasonic is not responsible for any accidents or damage caused by improper assembly or handling of the product. Do not attach the accessories in any other way than instructed in this Owner’s Manual. ≥ Each speaker has a mass of approximately 72 kg (159 lbs). When tilting the speakers to attach the spikes, ensure that the work is done by at least two people. When attaching the spikes, exercise caution to avoid catching your fingers or toes between the speakers and floor or tipping the speakers over. In addition, ensure that you spread a thick mat or similar item on the side of the floor where you will be tilting the speakers to prevent damage to the floor. ≥ Since each spike supports a mass of at least approximately 18 kg (39.68 lbs), the spikes may leave marks and indentations on the installation location. To prevent the spikes from damaging the area, use the supplied spike shoes or purchase spike shoes with large contact surfaces and adequate strength. ≥ Moving the speakers with the spikes attached may cause damage to the floor. Before changing the installation location, remove the spikes.

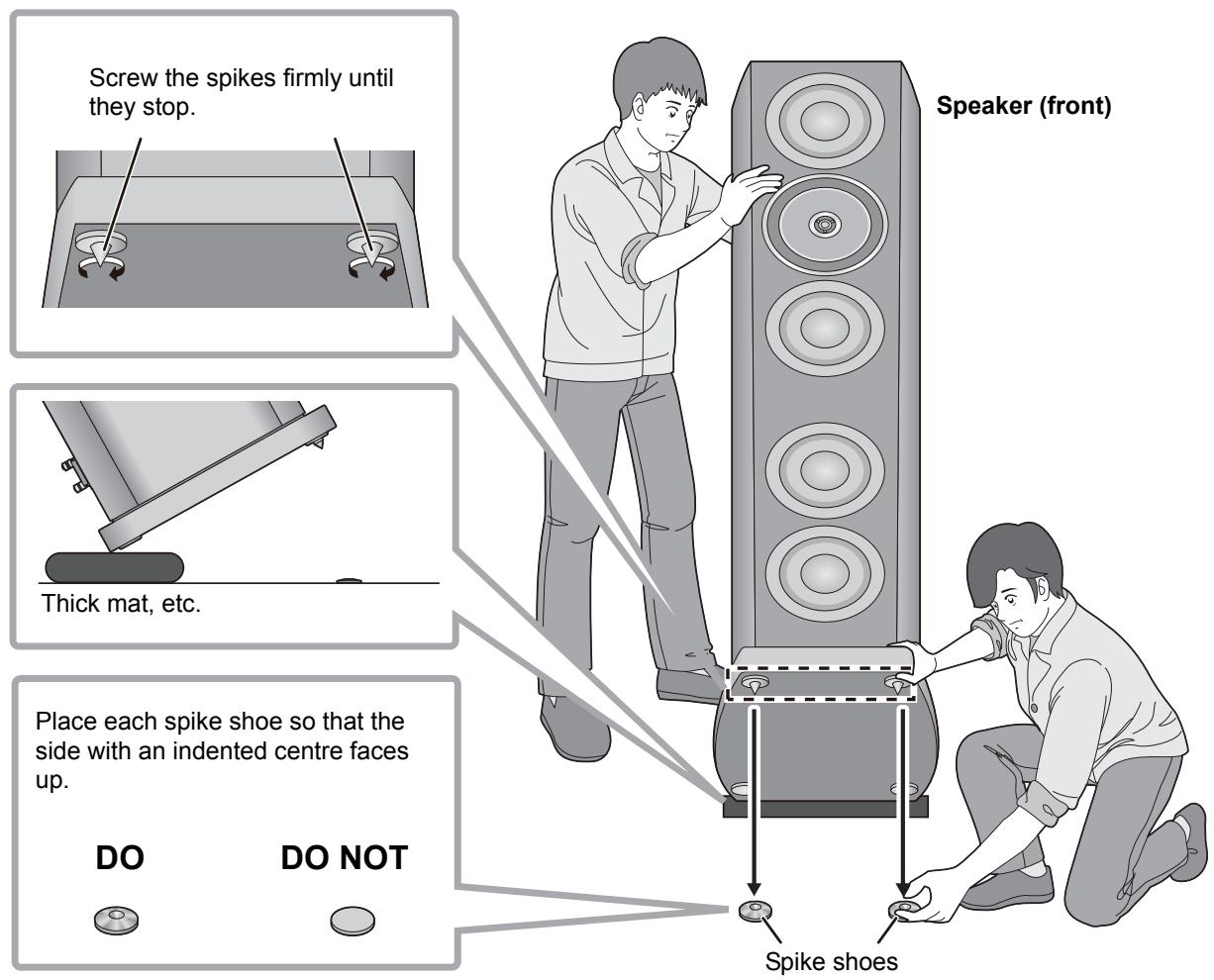

(8) Screw the spikes firmly until they stop. English 1 Tilt the speaker backwards, and screw the spikes into the screw holes on the front metal feet. When using the spike shoes, place them under the spikes. Speaker (front) Thick mat, etc. Place each spike shoe so that the side with an indented centre faces up.

DO NOT Spike shoes 2 While aligning the tips of the spikes with the indentations on the spike shoes, slowly bring the speaker back to the upright position. 3 In the same way as Step 1, tilt the speaker forward and screw the spikes into the screw holes on the rear metal feet. When using the spike shoes, place them under the spikes. 4 If the speakers wobble, place the spacers under the spike shoes. (> 8) (9)

Preventing the speakers from tipping over The speakers may tip over in a disaster such as a powerful earthquake or in an accident. For your safety, be sure to secure the speakers against tipping over. Each speaker weighs approximately 72 kg (159 lbs) in total. Verify that the speaker locations are strong enough to withstand this weight. For details, consult an installation specialist. ∫ When securing the speakers to a horizontal surface (floor, etc.) ∫ When securing the speakers to a vertical suface (wall, etc.) Secure each speaker to the floor with wires or similar items as shown in the illustration. Loop a band or similar item around each speaker, and connect it to a sturdy wall or column with a stout wire, chain or similar item, as shown in the illustration. ≥ The measures described above do not guarantee protection against all disasters and accidents, including earthquakes. Please note that Panasonic is not responsible for any damage to the speakers, their installation locations or other objects caused by the work performed to secure the speakers from tipping over. ≥ Use of the spikes will make the speakers more vulnerable to tipping over.

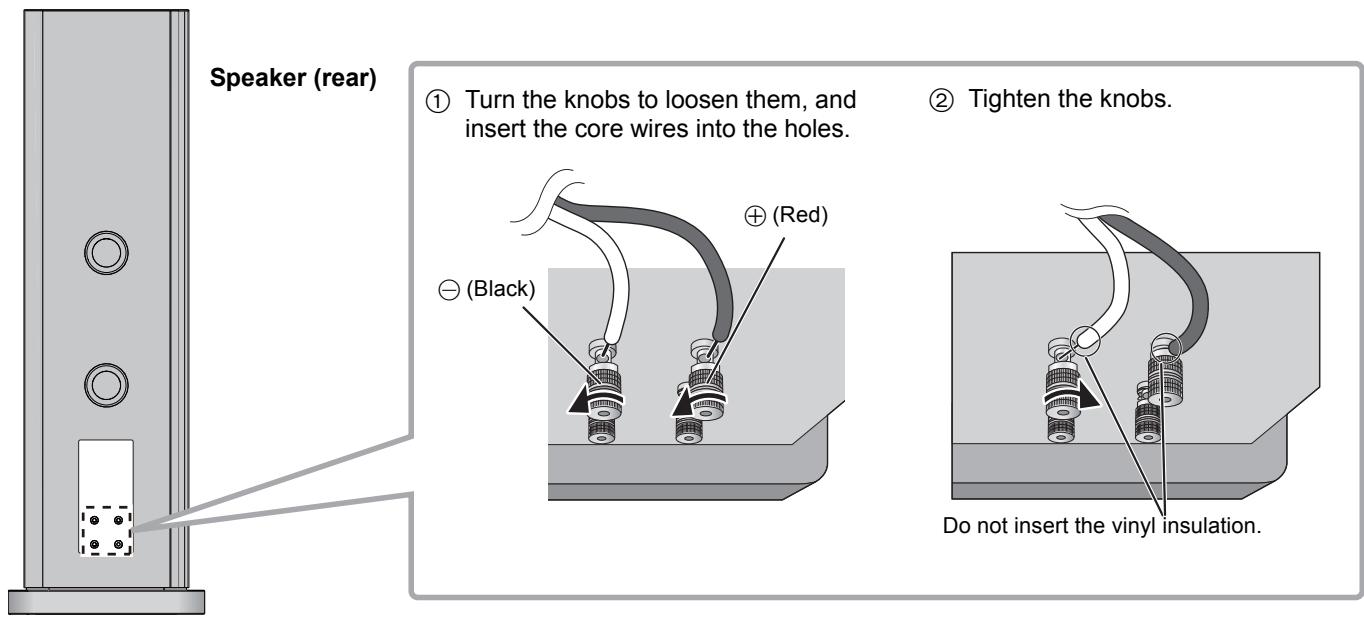

(10) Connections Connecting the speaker cables Speaker (rear) 1 Turn the knobs to loosen them, and insert the core wires into the holes. English The speakers are not supplied with speaker cables. For connection, use commercially-available speaker cables. 2 Tighten the knobs. + (Red) - (Black) Do not insert the vinyl insulation. ≥ Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the amplifier. DO NOT (11)

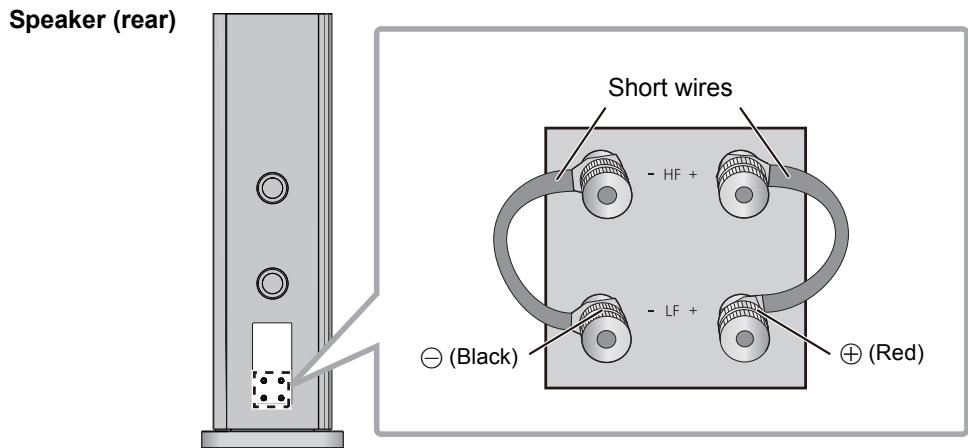

Connecting with an amplifier ≥ Before connection, turn off the amplifier and disconnect its power cord. ≥ For details, refer to the operating instructions of the amplifier. ∫ Single wiring connection 1 Connect the short wires. Speaker (rear) Short wires - (Black) + (Red) 2 Connect the amplifier and speakers with speaker cables (commercially-available). e.g., Speaker (right)

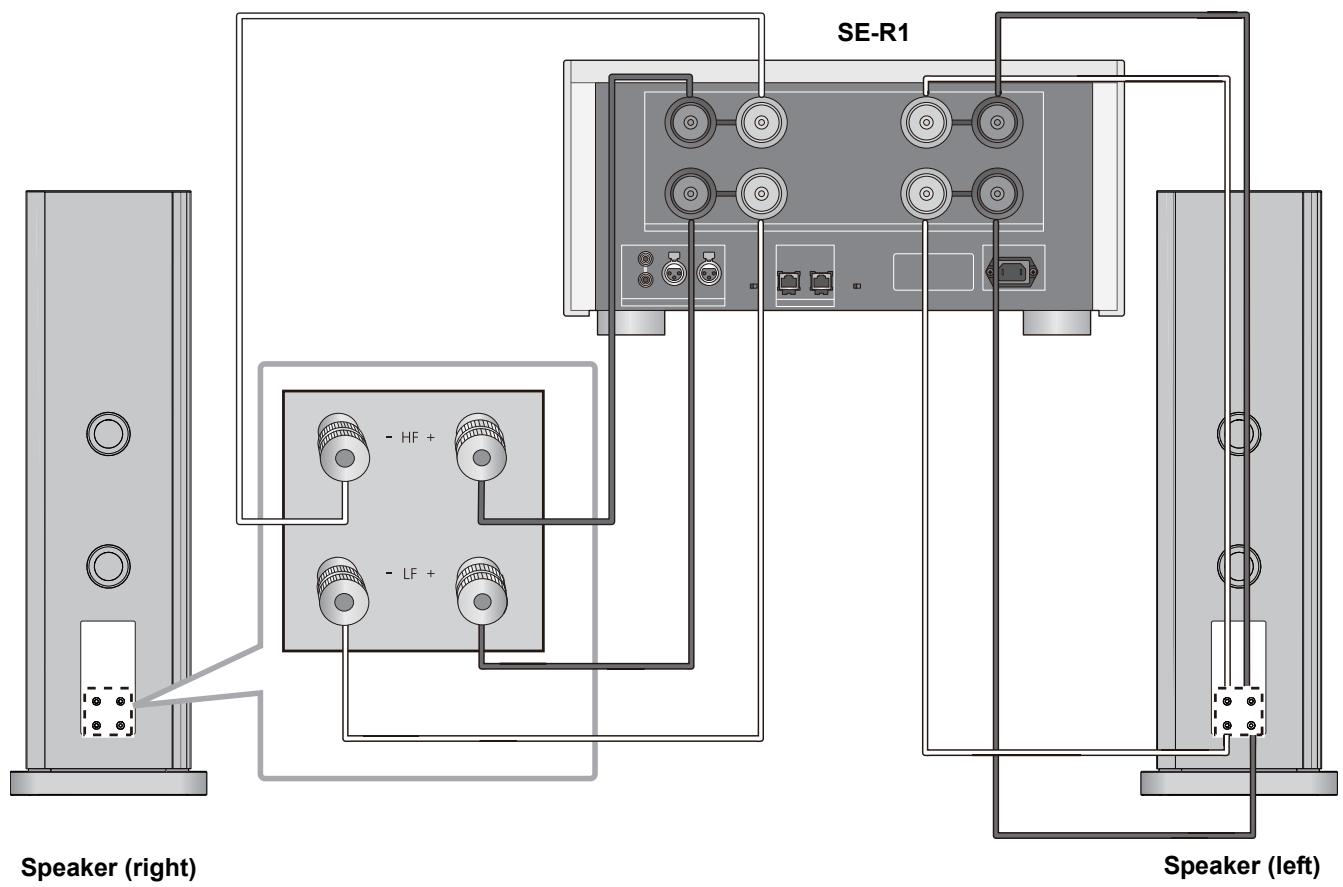

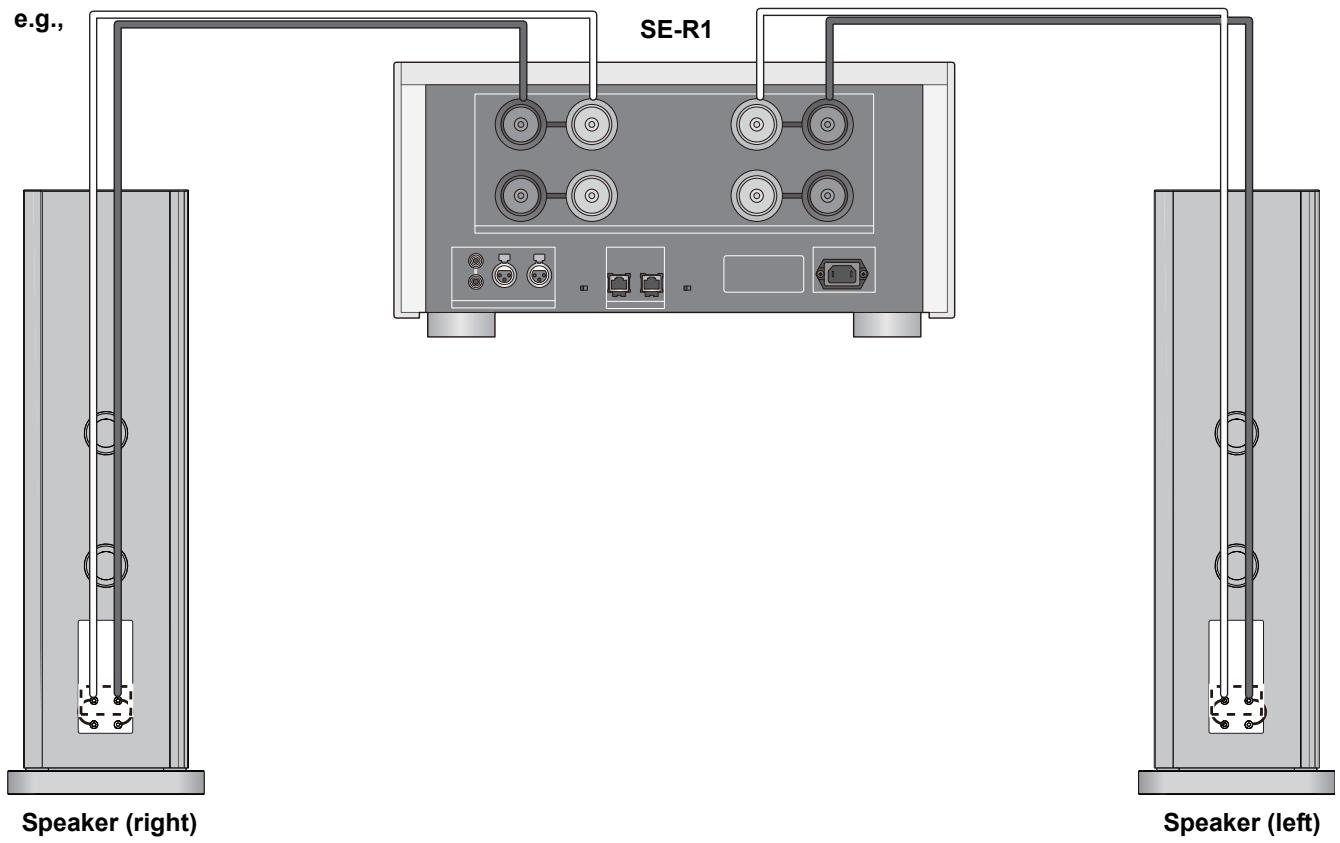

(12) SE-R1 Speaker (left) ∫ Bi-wiring connection ≥ The short wires (supplied) are not used for bi-wiring connection. English e.g., SE-R1 Speaker (right) Speaker (left) ≥ Do not move the speaker while the speaker cables are connected. This may cause a short circuit. ≥ When the connections are completed, pull the speaker cables lightly to check that they are connected firmly. ≥ Wire the polarity (+/-) of the terminals correctly. Not doing so may adversely affect stereo effects or cause malfunction. (13)

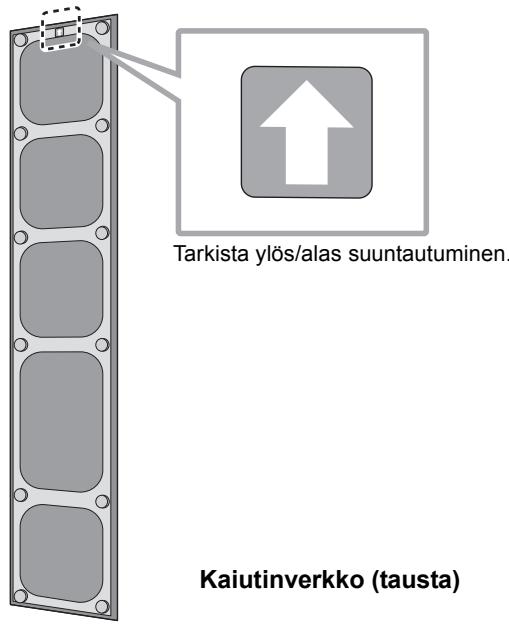

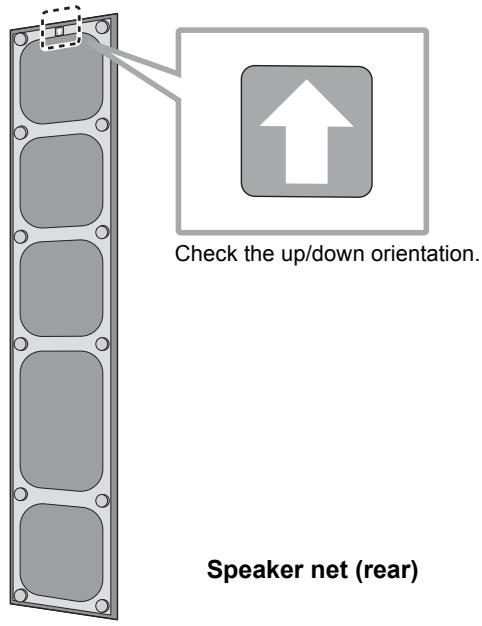

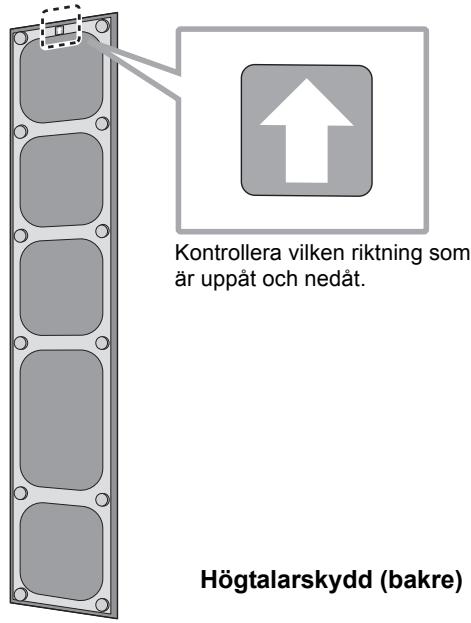

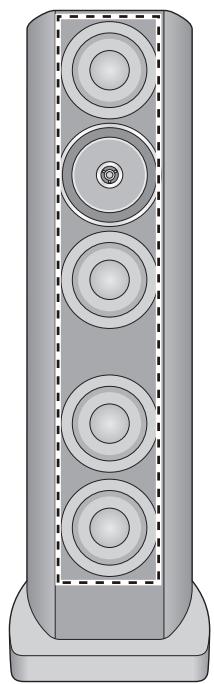

Attaching the speaker nets The speakers are supplied with speaker nets, which protect the speaker units from dust. Use the magnets to fix the speaker nets to the speaker units. To attach the speaker nets correctly, check their up/down orientation by referring to the illustration below. Speaker (front)

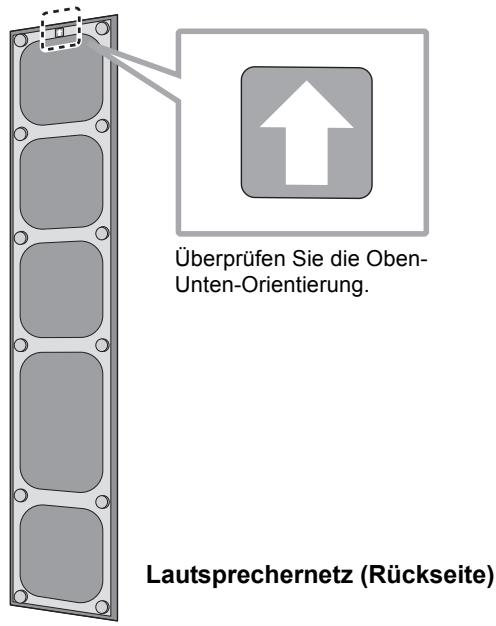

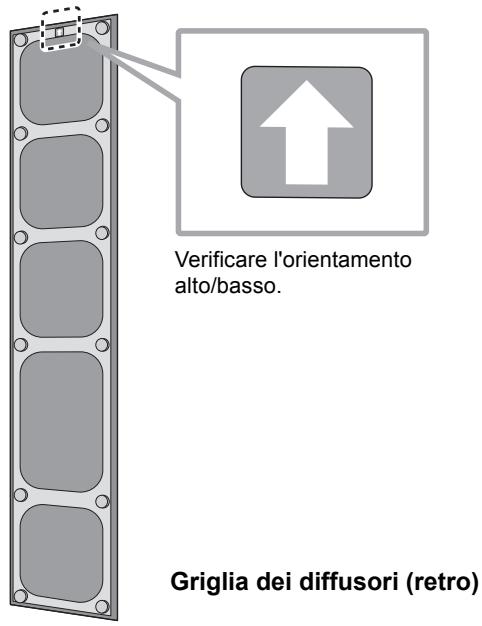

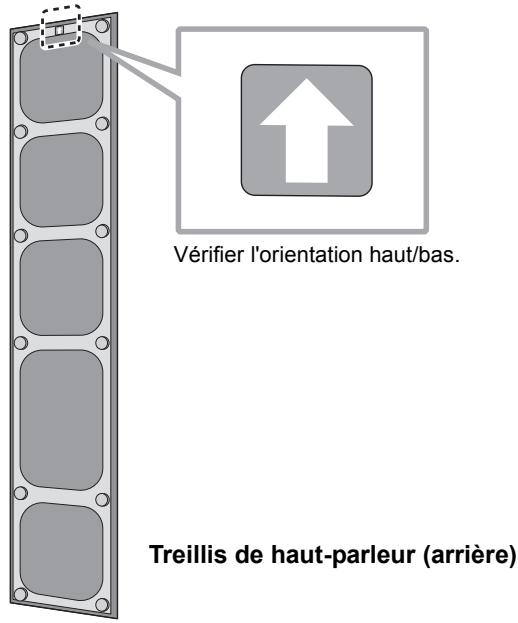

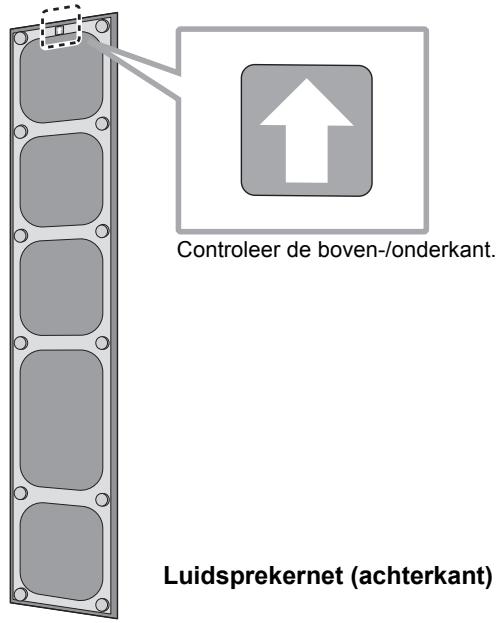

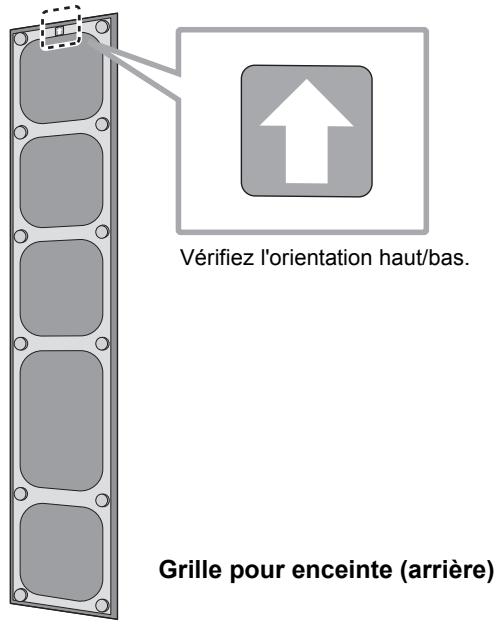

DO NOT Check the up/down orientation. Speaker net (rear) ≥ You can enjoy superior quality audio by removing the speaker nets before playback.

(14) To protect the speakers from damage caused by excessive input, observe the following precautions: ≥ Reduce the volume in the following cases to avoid damage: jWhen playing distorted sound. jWhen the speakers are receiving howling from a microphone or record player, noise from FM broadcasts, or continuous signals from an oscillator, test disc, or electronic instrument. jWhen adjusting the sound quality. jWhen turning the amplifier on or off. ≥ Avoid raising the volume level too much when enhancing the treble sound with a graphic equalizer or any other controls. ≥ Avoid outputting excessively loud sound with a small power amplifier. Doing so will increase the amplifer’s harmonic distortion and may damage the speakers. ≥ You can damage your speakers and shorten their useful life if you play sound at high levels over extended periods. ≥ Do not touch the speaker terminals with your hands or other objects while the speakers are in use. Depending on the conditions of use, doing so may expose you to high voltage. Unit care Wipe the speakers with the supplied cleaning cloth. ≥ When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a dry cloth. ≥ Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior case to be deformed or the coating to come off. Specifications Type Speaker unit Woofer Midrange/Tweeter Impedance Input power (IEC) Sound pressure level Frequency range Crossover frequency Dimensions (WkHkD) Mass (Weight) Operating temperature range Operating humidity range 3.5-way 6 speakers, bass-reflex type (coaxial 2-way midrange/built-in tweeters) 16 cm (6 1/2q) cone type k4 Coaxial 16 cm (6 1/2q) flat type k1 / 2.5 cm (1q) dome type k1 300 W (MAX) 150 W (RATED) 88 dB (2.83 V/m) 85 dB (W/m) 20 Hz to 100 kHz (-16 dB) 28 Hz to 90 kHz (-10 dB) 300 Hz, 3 kHz 408 mmk1,260 mmk522 mm (16 1/16qk49 19/32qk20 9/16q) Approx. 72 kg (159 lbs) 0 oC to i40 oC (i32 oF to i104 oF) 20 % to 80 % RH (no condensation) ≥ Specifications are subject to change without notice. ≥ Mass and dimensions are approximate. (15)
