USER MANUAL EH5264 PANASONIC

Operating Instructions Hair Dryer Model No. EH5263/EH5264 English 2 Norsk 23 Română

Deutsch 5 Svenska 26 Magyar

Français 8 Dansk 29 Türkçe

Italiano 11 Suomi 32 Русский

Español 14 Polski 35 Українська

Português 20 Slovenčina

Before operating this hair dryer, please read these instructions completely and save this manual for future use. EH5263-5264_EU.indb

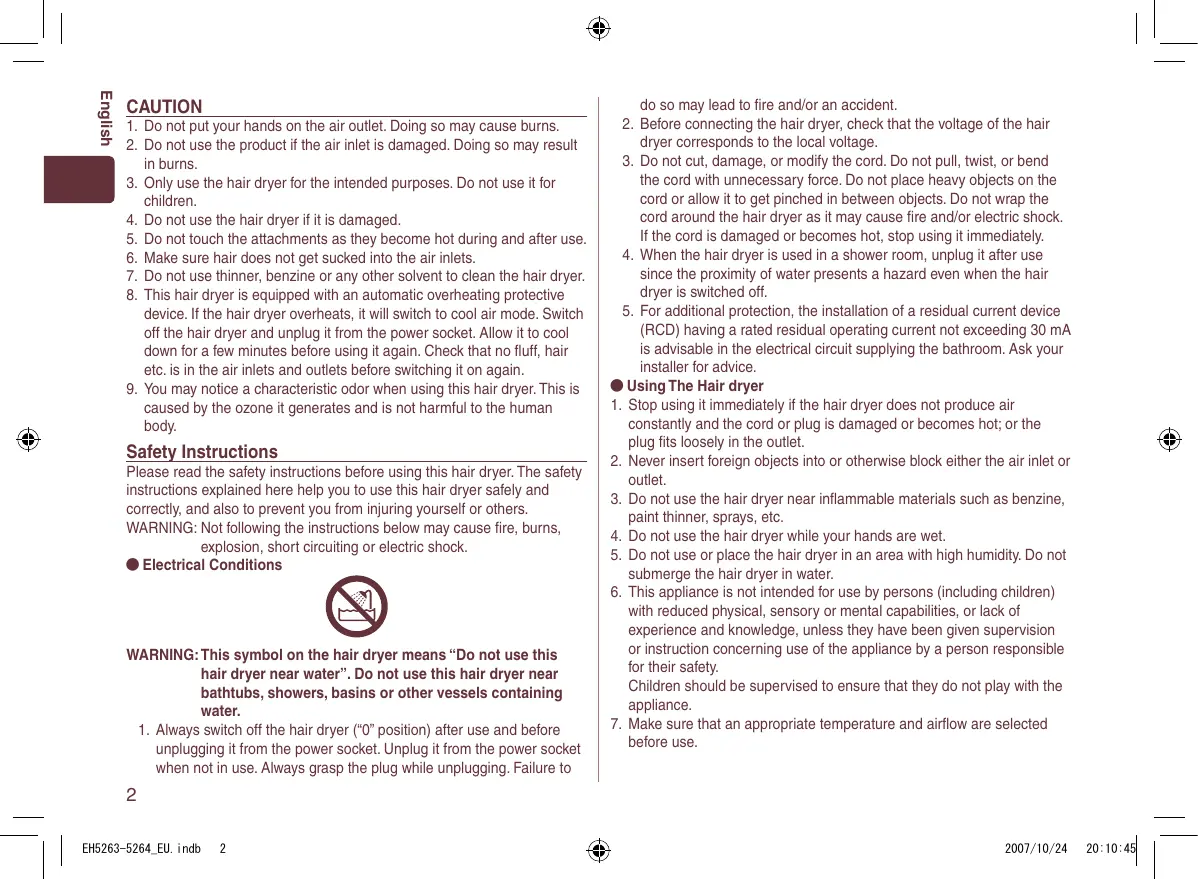

2007/10/24 20:10:45 English CAUTION

1. Do not put your hands on the air outlet. Doing so may cause burns.

2. Do not use the product if the air inlet is damaged. Doing so may result

3. Only use the hair dryer for the intended purposes. Do not use it for

4. Do not use the hair dryer if it is damaged.

5. Do not touch the attachments as they become hot during and after use.

6. Make sure hair does not get sucked into the air inlets.

7. Do not use thinner, benzine or any other solvent to clean the hair dryer.

8. This hair dryer is equipped with an automatic overheating protective

device. If the hair dryer overheats, it will switch to cool air mode. Switch off the hair dryer and unplug it from the power socket. Allow it to cool down for a few minutes before using it again. Check that no fluff, hair etc. is in the air inlets and outlets before switching it on again.

9. You may notice a characteristic odor when using this hair dryer. This is

caused by the ozone it generates and is not harmful to the human body. Safety Instructions Please read the safety instructions before using this hair dryer. The safety instructions explained here help you to use this hair dryer safely and correctly, and also to prevent you from injuring yourself or others.

WARNING: Not following the instructions below may cause fire, burns,

explosion, short circuiting or electric shock. Electrical Conditions

WARNING: This symbol on the hair dryer means “Do not use this

hair dryer near water”. Do not use this hair dryer near bathtubs, showers, basins or other vessels containing water.

1. Always switch off the hair dryer (“0” position) after use and before

unplugging it from the power socket. Unplug it from the power socket when not in use. Always grasp the plug while unplugging. Failure to do so may lead to fire and/or an accident.

2. Before connecting the hair dryer, check that the voltage of the hair

dryer corresponds to the local voltage.

3. Do not cut, damage, or modify the cord. Do not pull, twist, or bend

the cord with unnecessary force. Do not place heavy objects on the cord or allow it to get pinched in between objects. Do not wrap the cord around the hair dryer as it may cause fire and/or electric shock. If the cord is damaged or becomes hot, stop using it immediately.

4. When the hair dryer is used in a shower room, unplug it after use

since the proximity of water presents a hazard even when the hair dryer is switched off.

5. For additional protection, the installation of a residual current device

(RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice. Using The Hair dryer

1. Stop using it immediately if the hair dryer does not produce air

constantly and the cord or plug is damaged or becomes hot; or the plug fits loosely in the outlet.

2. Never insert foreign objects into or otherwise block either the air inlet or

3. Do not use the hair dryer near inflammable materials such as benzine,

paint thinner, sprays, etc.

4. Do not use the hair dryer while your hands are wet.

5. Do not use or place the hair dryer in an area with high humidity. Do not

submerge the hair dryer in water.

6. This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

7. Make sure that an appropriate temperature and airflow are selected

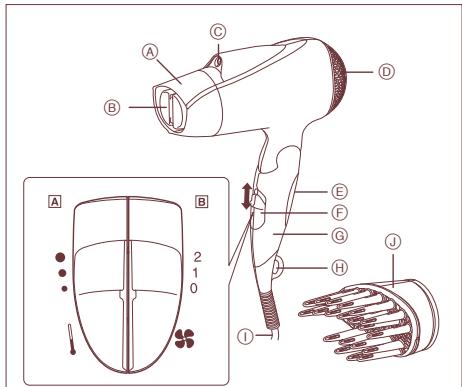

2007/10/24 20:10:45 Healthy quick drying nozzle B Air outlet C Negative ion outlet D Air inlet E Ion charge panel EH5264 F Switch

G Handle H Ring for hanging I Cord J Diffuser EH5264 (For creating full-bodied hair with lots of volume and styling)

How to use the hair dryer A. Temperature Selector : Cool (Cool air) : Healthy (Warm air) : Hot (Hot air) English Parts Identification B. Main Switch 0: Off 1: Set (Gentle airflow) 2: Dry (Strong airflow) Notes

1. Negative ions are produced when the main switch is set to

2. Negative ions are invisible to the naked eye.

3. When negative ions continue to strike hair, hair becomes

negatively charged. As a result, the negative ions and negatively charged hair repel each other, making it difficult for negative ions to reach hair. With the Ion Charge System, by just gripping the panel together with the handle, the negative charge accumulated on hair is released. Because of this, negative ions continue to penetrate into hair, supplying moisture and thoroughly moistening down to the tips of hair. EH5264

4. If you are worried about hair damage, set the switch to “

Healthy (Warm air)” and “1: Set (Gentle airflow)” before use.

5. If you want to dry your hair quickly, set the healthy quick drying

nozzle in the direction shown in the illustration.

6. For people who want (hair with) volume: Apply your brush to

your scalp, and turn and move the diffuser around as if drawing large circles.

7. If you want to style your hair, brush your hair from the top of

your head to the ends of your hair with the brush on the diffuser.

8. When using the diffuser, make sure that an appropriate

temperature and airflow are selected before use. Panasonic Ionic Technology The Panasonic Hair Dryer uses negative ions to reduce the heat damage when drying hair. Negative ions reduce the build-up of static electricity and help to keep your hair in excellent condition by allowing moisture to penetrate deep into hair and then locking it in. Notes - The effects of ions might not be felt by the following

2007/10/24 20:10:46 English people. People with crimpy hair, strong curly hair, very smooth hair, short hair, or who have had a hair straightening perm in the last three or four months. Repair and Maintenance of the Hair dryer

1. Do not attempt to repair, disassemble, or modify the hair dryer

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent, or similarly qualified persons in order to avoid a hazard.

3. If the cord or plug is damaged, stop using it immediately and

contact an authorized Panasonic service center.

4. If air frequently becomes cold and sparks are sometimes seen

when the hair dryer is blowing hot air, dust has accumulated at the air inlet and/or the air outlet or the air inlet is being blocked by your hair or your hands. (This phenomenon is the result of the hair dryer’s thermal switch. The sparks do not pose a danger in and/or themselves.) Slide the main switch to the “off” position and remove any dust that has accumulated.

5. If sparks occur inside the negative ion outlets, the electrodes

have become dirty resulting in abnormal discharge. If this happens, clean the inside of the negative ion outlets. Cleaning method Clean only after turning off the power and removing the power cord from the power outlet. Use a cotton swab to lightly rub (about 5 times) the center of the part that is inside of the negative ion outlets. We recommend the thin cotton swabs made for use with babies. Although regular cotton swabs will work, they may be hard to insert into the outlets. Specifications Model No.: EH5263/EH5264 220 V Voltage 50-60 Hz Output 1350 W 230 V 50-60 Hz 1500 W 240 V 50-60 Hz 1600 W Dimensions Healthy quick drying nozzle, Diffuser EH5264 Airborne Acoustical Noise with healthy quick drying nozzle: 79 (dB(A) re 1pW) with diffuser: 81 (dB(A) re 1pW) EH5264 CAUTION! Failure to follow these safeguards could result in injury to fingers. When extending the handle When retracting the handle DO NOT TOUCH the shaded DO NOT TOUCH the shaded area in the diagram below area in the diagram below when holding the handle or when retracting the handle. using the hair dryer.

2007/10/24 20:10:46 76 (B) 185 (D) 218 (H) mm Tilbehør 76 (B) 185 (D) 218 (H) mm Tilbehør 76 (L) 185 (S) 218 (K) mm Lisävarusteet 76 (G) 185 (D) 218 (Y) mm Aksesuar English Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Panasonic Electric Works Wanbao (Guangzhou) Co., Ltd. Wanbao Base Shiguang Road, Panyu District, Guangzhou, Guangdong, 511495 CHINA P-No. 001 EN, GE, FR, IT, SP, DU, PT, NW, SW, DA, FI, PL, CZ, SK, RO, HU, TK, RU, UA EH5263-5264_EU.indb

Printed in China 2007/10/24 20:11:07
