USER MANUAL C1080PBL-IR48-AF Webgate
1. Precautions for different DVR
Please use it with the corresponding PoC DVR. With PoC(Power over Coax) function, the DVR is able to supply camera with the power. And with CoC(Control over Coax) function, the DVR is able to send RS485 to the camera
- PoC DVR : When connecting to WEBGATE's PoC DVR, only the coaxial cable is needed between the camera and DVR to supply power and send RS485.
- Non PoC DVR : When connecting to Non PoC DVR, the user must use repeater, RP101P, to connect to the camera (but RP101P needs additional adapter)
2. Check Frame rate setting based on power frequency
- Set Frame rate to 25Hz if your region is using 50Hz(PAL) power frequency, or set to 30Hz for 60Hz(NTSC) region. (OSD : System → Frame rate).
3. Focus setup
To aviod losing focus at night time, please adjust camera focus as follows.
1) Open the camera cover, and connect the OSD remote controller to the camera.
2) Press [SET] on the OSD remote controller and select "FOCUS ADJ" to enable "Adjust Focusing" mode.
3) Use the lens' lever to adjust zoom and focus. (※Check the Focus Gauge)
4) End the "Adjust Focusing" mode by pressing the [SET] on the OSD remote controller.
※ What is Focus Gauge?
When the user is manually adjusting the focus, the camera shows graphical bar to have the user look at the focus visually. When the yellow and green bar meets together that's where the camera is focused.
4. Shutter mode setup based on installation environment
- INDOOR : Controls brightness for the best video quality at indoor environment.
- OUTDOOR : Controls brightness for the best video quality at outdoor environment.
-
INDOOR/OUTDOOR-ANTI BLUR : Improves the motion blurring phenomenon than Indoor/Outdoor mode under dark environment but the brightness decreases relatively.
-
Please contact to qualified service personnel in case of product damage. Do not attempt to repair product by yourself.
-
Please avoid external shock and vibration on the product.
-
Do not install product under excessive heat or cold environment. (recommended operation temperature is -10^ 50^ )
-
Do not target lens to the sun. Image sensor might be damaged
-
Do not open the product under any circumstances, it could void the warranty. Natural disaster like lightning, flood will need charge for repair.
Feature
PoC / CoC
PoC(Power over Coax) : WEBGATE PoC DVR supplies camera with power through connected coaxial cable.
CoC(Control over Coax) : WEBGATE PoC DVR supplies camera with RS485 without additional communication line. Allowing OSD control, zoom, focus, f/w upgrade and more.
※ All PoC supported cameras support CoC function as well.
2MP, Full HD high resolution picture quality
Full HD(1920x1080) provides 6 times higher resolution than SD level camera, and more clear video image can be achieved through 1/3", 2Megapixel progressive CMOS.
High performance under low light environment
High performance quality can be achieved under low light environment by optimizing the image handling technology on CMOS sensor.
(B/W : 0.0005 Lux / Color : 0.2Lux@50IRE, F.1.4, 3100K, DSS OFF)
Indoor/Outdoor function
Minimizes the motion blur of object from slowly moving person(Indoor) to fast moving vehicle(outdoor) by optimizing the signal processing and controls brightness automatically to perform the best video image
3D-DNR
3D-DNR function efficiently removes video noise in dark environment, and shows clear image as a result.
True Day & Night function
Camera senses the surrounding brightness automatically, and insert/remove the IR-CL filter to get the best sensitivity performance.
WDR/BLC/ACE/HLC
Under backlight condition, you can select the most suitable function among WDR, BL ACE and HLC.
DEFOG Function
Provides clear and undistorted images from fog, dust, sea fog and any bad weather conditions.
Auto Focusing function (AF models)
Auto Focusing function performs Correct and Quick focusing of camera by just one click.
After the power is turned on, camera can judge reasonable brightness to execute A Focusing. If the environment is bright enough, it performs Auto focusing, meanwhile keeps previous focus condition if the environment is dark.
Adjust Focusing function
Even though D&N lens is in use, focus might be distorted in night time. To prevent this problem, camera supports Adjust Focusing function. After use this function, you can get clear video image both daytime and night time.
Privacy support
Camera can support up to 15 privacy masking areas.
Supplied accessories
Please check if all the supplied accessories are included.
 |  |  |
| C1080PBL-IR48-AF | C1080PBL-IR18-AFC1080PBL-IR18 | Installation / User Manual |
 |  |  |
| Camera Remote Controller | Hood Screw(IR18) | Screw & Plastic Anchor |
 |  |  |
| L Wrench | Hood(IR48) | Hood(IR18) |
Product description

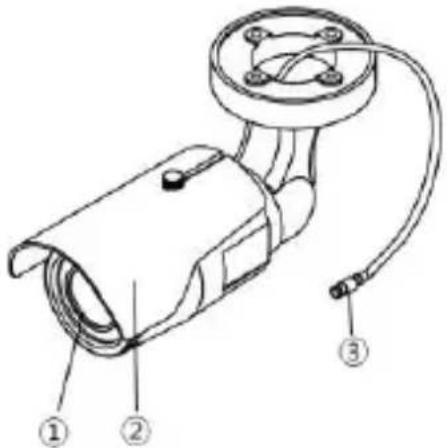

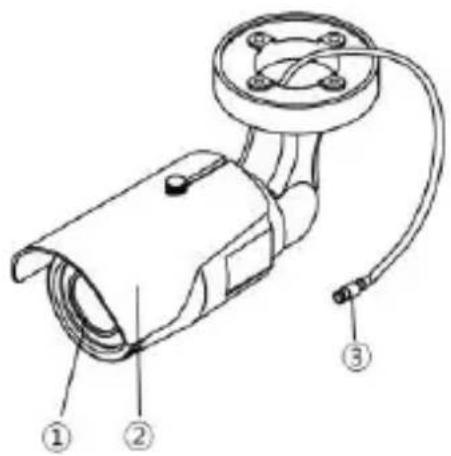

| No | Name |
| 1 | Camera |
| 2 | Hood |
| 3 | Video Out Port(PoC,CoC) |
Camera installation
- How to connect it with the WEBGATE PoC DVR

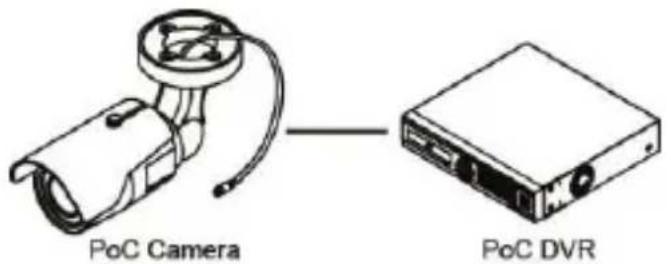

- Does not need any additional power adapter. Just connect coaxial cable higher than 4C-HFBT to the DVR.
- How to connect it with the conventional DVR

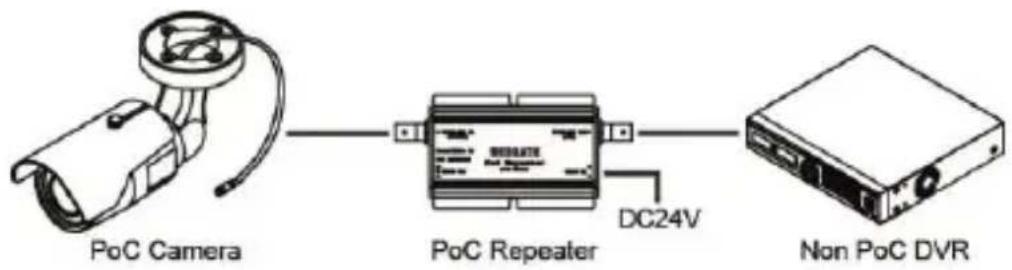

- Connect the PoC repeater, RP101P, between the camera and DVR. And put additional power adopter.
How to Set up Auto Focus
- Manual Focus Model : C1080PBL-IR18
To prevent out focus due to weather or environmental changes, please follow the bottom instruction.
1) Press [SET] on the OSD remote controller and select "FOCUS ADJ" to enable "Adjust Focusing" mode.
2) Use the lens' lever to adjust zoom and focus.
3) End the "Adjust Focusing" mode by pressing the [SET] on the OSD remote controller.
- Auto Focus Model : C1080PBL-IR18-AF / C1080PBL-IR48-AF
1) Press [SET] on the OSD remote controller and select "FOCUS ADJ" to enable "Adjust Focusing" mode.
2) Hit "MANUAL", go into "Manual Focusing mode".
3) Hit "Tele" or "Wide" button to adjust.
4) Press [SET] on the OSD remote controller and to end Manual Focusing Mode.
5) Select "CORRECT AF" and hit [SET] to run "Auto Focusing function".
1) When adjusting focus, AF Models(C1080PBL-IR18-AF, C1080PBL-IR48-AF) will automatically run "Adjust Focusing function".
How to use OSD remote controller
-
CVBS output
-
Connect CCTV monitor to OSD remote controller's CVBS outport to check the image. (SD quality)
- When images stop coming out, press any button on the OSD remote controller to see the image again.
2. OSD Control
- Press OSD remote controller to control camera's OSD menu after connected.
Notice for Auto Focus operation
Following conditions might make failure of auto focusing.
- When there are changes of the scene while Auto Focus is working(sudden movement, appearance or disappearance).
- When there are sudden change of the brightness.
- When shooting low contrast image.
- When there is strong light in the scene.
- When there is foreign substance on the lens.
- If auto focusing is failed, please try to adjust focus manually or try auto focus again with the scene which have strong contrast.
Cautions when you connect BNC cable
The impedance of BNC connector should be 75Ω.
If 50 connector is used, the transmission distance will be reduced approx. 10m.
Caution in cable selection
The maximum transmission distance can be varied by the cable manufacturer or installed environment. For further reference, please refer to the below cable recommendation as follows
| Cable type | Distance | Details |
| 5C2V | Approx. 90M | Analogue Cable |
| 4C-FB(T), 4C-HFB(T), RG59 | Approx. 140M | High-expansion foam cable, recommends double (or triple) shielded cable |
| 5C-FB(T), 5C-HFB(T), L-6CHD, RG6 | Approx. 180M | Customized HD-SDI cable |
How to upgrade F/W by using CoC(RS485)
- Connect WEBGATE DVR with camera.

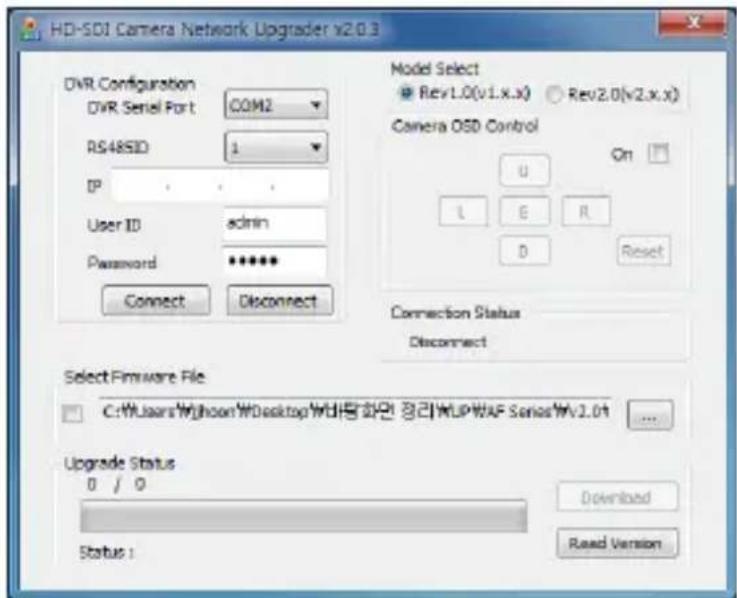

- Run [HD-SDI Camera Network Upgrader] and select [CoC] on [Serial Port].
- PC and DVR must be connected through network.
- Select the desired camera's channel, then write down that DVR's IP address.
- HD camera upgrade program and F/W can be downloaded from the website.
(http://www.webgateinc.com/)
-
Insert DVR's Port, User ID, Password and press "Connect" to log-in to the DVR.
-
Select [ON] in Camera OSD Control, then press E,L,R,U,D buttons to check camera's OSD control.
- When OSD control is not available, check DVR and camera's configuration.
- Select the F/W and press "Load" to upgrade the camera. The camera will reboot.
- Images will be stopped until the boot is complete.
- When the upgrade is finished, the DVR and CMS (Control Center) can be used to remotely change the camera's settings.
1) When upgrading F/W, the setting will be reset.
How to use OSD menu
OSD menu function
Press [SET] on the OSD remote controller to show OSD configuration menu.
- If OSD menu is not closed, it will be closed automatically in 1 minute.
(Changed configuration value will not be saved)
- Bold font with underline means factory default.
| OSD MENU | Function | |
| FOCUS ADJ (C1080PBL-IR18) | This mode is only enabled in manual lens model. This function prevents out-focus during day/night. | |
| LENS | DC | Only in AF models : focus can be adjusted either automatically or manually.- PWR-ON AF : After power is turned on, camera judges the ambient brightness. If the brightness is enough, it performs Auto Focusing automatically, but if the brightness is not enough, it keeps the previous focus condition.- Correct AF : Camera performs focusing over the full-range (it takes max. 40seconds)- Quick AF : If the angle of view and focus is roughly adjusted condition, Quick AF performs fast focusing.But, if the focus is vague condition, Quick AF ma not show good result. (it takes max. 10seconds)- Manual : Move joystick to up(Tele), down(Wide), left(Near),right(Far) to adjust angle and focus manually. When controlling "Zoom", "Zoom Tracking" function will run automatically. This function only works if the camera is focused correctly |
| DAY & NIGHT | Color | Maintains Color(Day) mode regardless brightness. |
| B&W | Maintains B&W(Night) mode regardless brightness. | |
| Auto | In accordance with brightness, camera switches Color mode and B&W mode automatically.- LUX LEVEL(LOW, MIDDLE, HIGH) : This value is th standard for Day & Night switching. If high is selected, camera will turn to Night(B/W) mode at higher LUX level than MIDDLE or LOW.- ANTI HUNT(LOW, MIDDLE, HIGH) : This value is th standard for threshold of Day & Night switching. Higher setting value will reduce the flickering by IR- CUT filter switching caused from misjudgment.- DELAY TIME(3~30sec) : Judgment period for Day & Night switching | |
| D-EXPOSURE / N-EXPOSURE | BRIGHTNESS(8, 0~20) | Adjust the brightness of image.The more High value it has, the more bright image it shows |
| SHUTTER | - INDOOR : controls brightness to show the best video quality at indoor environment.- OUTDOOR : controls brightness to show the best video quality at outdoor environment.- INDOOR-ANTI BLUR : It shows better anti-blur performance at dark indoor environment, but the brightness level decrease a little.- OUTDOOR-ANTI BLUR : It shows better anti-blur performance at dark outdoor environment, but the brightness level decrease a little.- MANUAL : It fixes shutter speed within 1/30 ~ 1/60000. | |
| ANTI-FLICKER | Removes Flicker problem due to the discordance of light frequency. | |
| DSS(AUTO, OFF, x2~x10) | During night or low light environment, increase thescale factors to maintainet the clear image. However larger scales will have motion blurring effect on moving objects. In AUTO mode, DSS is ON when there are no motion detection. And when the camera detects a movement, DSS mode is automatically turned off for better quality. | |
| AGC (4, 1~10) | It will amplify video gain according to the light condition, but it will also increase noise level. | |
| COLOR | AWB | -AUTO: This mode automatically adjusts color white balance between 1,700°K ~ 11,000°K.- PRESET: Shoot a white paper in front of camera and press MENU button then white balance working will stop suitable for the condition. You must do this process again if light condition is changed.- MANUAL: User can select color temperature among 3300°K, 4300°K, 7600°K and adjust the details by KELVIN, R-GAIN and B-GAIN value. |
| CHROMA (10, 0~20) | Adjust Chroma level. | |
| IMAGE | SHARPNESS (5, 0~10) | Adjust sharpness. The higher value will show more clear video image |
| H-MIRROR | Mirror image. Left and right will be reversed | |
| V-MIRROR | Flip image. Up and down will be reversed. | |
| Digital ZOOM | Zoom image by 16 steps. (1~16) | |
| PRIVACY | This is for privacy zone masking-ZONE NO: Supports total 15 areas (1~15)- ZONE OP: Whether to use or not of selected area-X, Y-POS: Set the X,Y start position of an area-X, Y-SIZE: Set the width and height of an area-COLOR(WHT,YEL,CYN,GRN,MAG,RED,BLU,BLK): Select color for masking.- TRANS(0~4): Set transparency of masking. | |
| SHADING DET | Before execute the SHADING function, shoot a white paper in front of the camera, and do SHADING DET. If not, abnormal video might be output. | |
| SHADING | It compensates the difference of light caused by lens. To use this function, you should run Shading DET function first at System menu. | |
| DEFOG | Images can be corrected on Fog, Dust environment.- AUTO: Automatically corrects the images.- MANUAL: can be set to LOW, MIDDLE, HIGH | |
| COLOR BAR | Prints "COLOR BAR" for testing. (2 types)If there are no action, it will close in one minute. | |
| WDR | This 3D backlight compensation function allows bright and dark area to be seen clearly together.- WDR WGT(0~4) : Select image mix ratio. The higher value, the bright part of the image appear more clearly | |
| BLC | Back light compensation function.- BLC LEVEL(LOW, MIDDLE, HIGH) : Set BLC level.- BLC OSD : Displays BLC area on the screen.- BLC POS-X, Y : Set X, Y start position.- BLC SIZ-X,Y : Set Width and Height size.- MASK : If there is very bright portion inside BLC area, this portion can be removed from the calculation of BLC compensation. This brightness level for masking can be decided by below MASK LEVEL.- MASK LEVEL(0~10) : Set brightness level for Masking. | |
| HLC | High Light Compensation. If there is very bright portion inside a scene, camera can mask the portion, and the portion is removed from the calculation for exposure control.- LEVEL(5, 0~10) : Set the brightness level for masking.- Color : Set masking color | |
| ACE(ON, OFF) | Adaptive Contrast Enhancement. Enhances image quality by raising the brightness of dark areas. | |
| DNR(LOW, MIDDLE, HIGH) | Reduce image noise under low light condition | |
| FRAMERATE(25Hz, 30Hz) | Power frequency 60Hz(NTSC) : 30Hz(fps) video outputPower frequency 50Hz(PAL) : 25Hz(fps) video output | |
| SYSTEM | MODEL | Displays model name |
| CAM ID | Max. 8 digits for camera name.Supports alphanumeric and some special characters | |
| RS485 ID | Set ID for RS485 | |
| VERSION | Displays firmware version | |
| VIDEO | Full-Scale(BT 709), Comp-Scale(BT 601) support | |
| RESOLUTION | Set output resolution (1080p/720p). | |
| IR-LED(ON.OFF) | - Controls IR-LED.- Smart-IR : When there are no motion detected. It keeps the image at the brightest. When the camera detects a motion, it automatically controls its shutter speed to acquire the best image. | |
| BAUDRATE(9600, 57600) | Set RS485 communication speed. | |
| RESET | Makes all setting values to factory default condition | |
| EXIT | SAVE&EXIT | Save configuration and exit menu. |
| EXIT | Without saving configuration, exit menu. | |
| If there is no further action in menu, after 1 minute OSD menu will exit without saving changes. | ||
Product Specification
| Model | C1080PBL-IR48-AF / C1080PBL-IR18-AF / C1080PBL-IR18 | ||
| Video | |||
| Sensor Type | 1/3" 2.1Megapixel CMOS | ||
| Total Pixels | 1920(H) x 1080(V) = 2.1M pixels | ||
| Scanning System | Progressive Scan | ||
| MinIllumination | B/W | 0.0005Lux@50IRE, F1.4, 3100K, DSS(OFF), AGC(10) | |
| Color | 0.2Lux@50IRE, F1.4, 3100K, DSS(OFF), AGC(10) | ||
| Lens | Lens | DC iris, 2.8mm~11mm, F1.4, IR Corrective Mega Pixel Lens | |
| type | DC Auto Iris | ||
| Video Output | Output | 1(BNC 1.0 Vp-p, 75Ω) | |
| Resolution | 1080p 30fps / 25fps, 720p 25fps / 30fps | ||
| HD-SDI | SMPTE 292M compatible | ||
| Distance | approx. 180m of RG6, 140m of RG59 | ||
| Control Method | DVR, CMS(Control Center),Remocon(5Push Bottoms) | ||
| Filter | True Day & Night | ||
| AGC | 1 ~ 10 steps | ||
| Mirror | Horizontal / Vertical | ||
| WDR | OFF, 0 ~ 4 setup | ||
| BLC | OFF, LOW, MIDDLE, HIGH | ||
| ACE | OFF, ON | ||
| DNR | OFF, LOW, MIDDLE, HIGH | ||
| DSS | AUTO, OFF, x2 ~ x10 | ||
| White Balance | AUTO, PRESET, MANUAL | ||
| Defog | OFF, AUTO, MANUAL | ||
| Electric Shutter | INDOOR, OUTDOOR, INDOOR-ANTI BLUR, OUTDOOR-ANTI BLUR, MANUAL(12 steps), ANTI-FLICKER ANTI-FLICKER | ||
| Digital Zoom | 0 ~ 16 steps | ||
| Lens Shading | OFF, ON | ||
| HLC | 0 ~ 10 steps | ||
| Privacy | OFF/ON (15 Zones) | ||
| Smart IR | OFF/ON | ||
| Control Interface | |||
| CoC | Upgrade Firmware / OSD Control | ||
| Strobe for internal light | C1080PBL-IR18 | 18 PCS | |
| C1080PBL-IR18-AF | |||
| C1080PBL-IR48-AF | 48 PCS | ||
| Camera Control Remocon | OSD Control / 5Push Bottoms | ||
| CVBS(NTSC/PAL-Auto change) | |||
| Electricity | |||
| Power Consumption | C1080PBL-IR18 | PoC(DC 24V ± 10%), 4W | |
| C1080PBL-IR18-AF | |||
| C1080PBL-IR48-AF | PoC(DC 24V ± 10%), 6W | ||
| Mechanical | |||

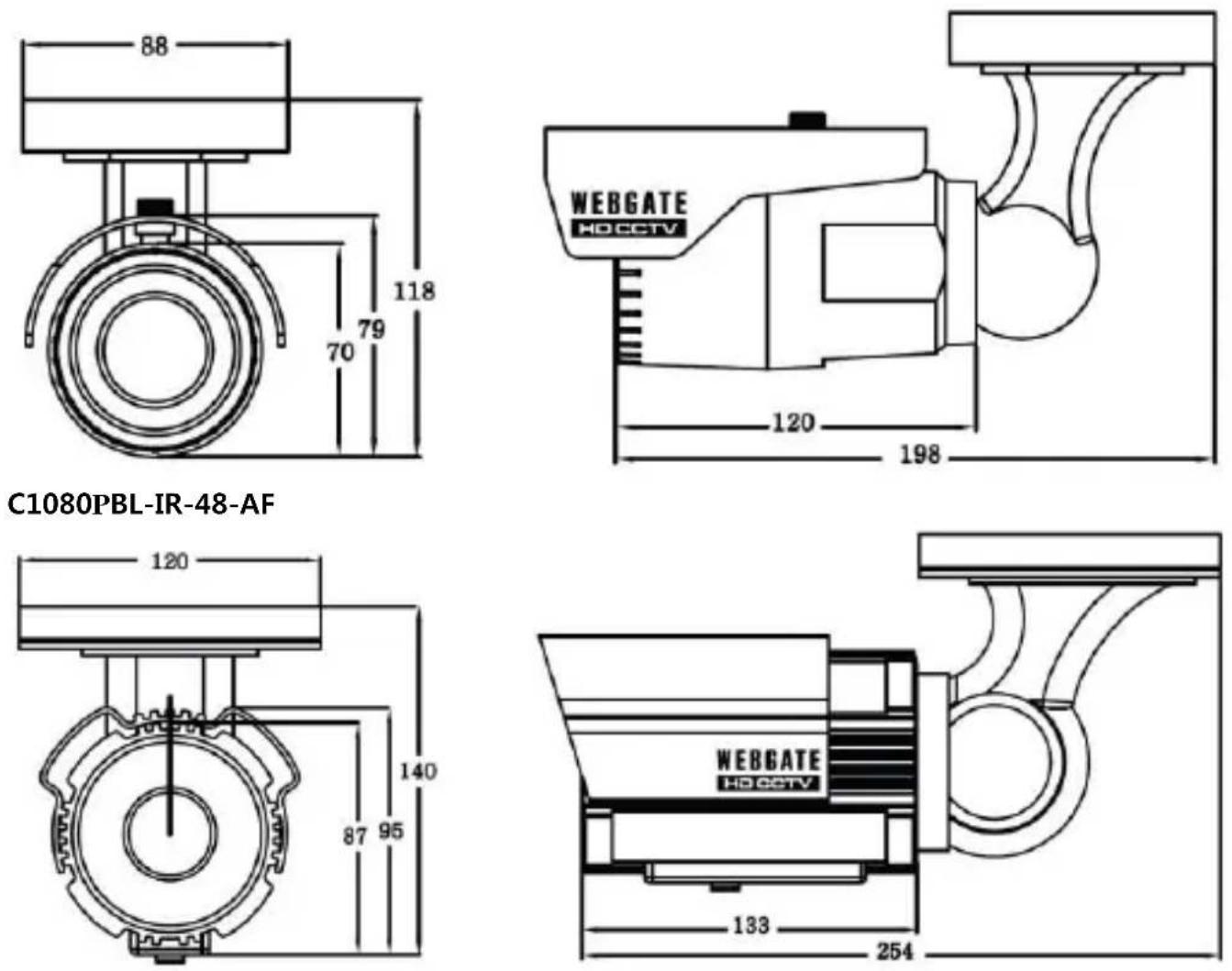

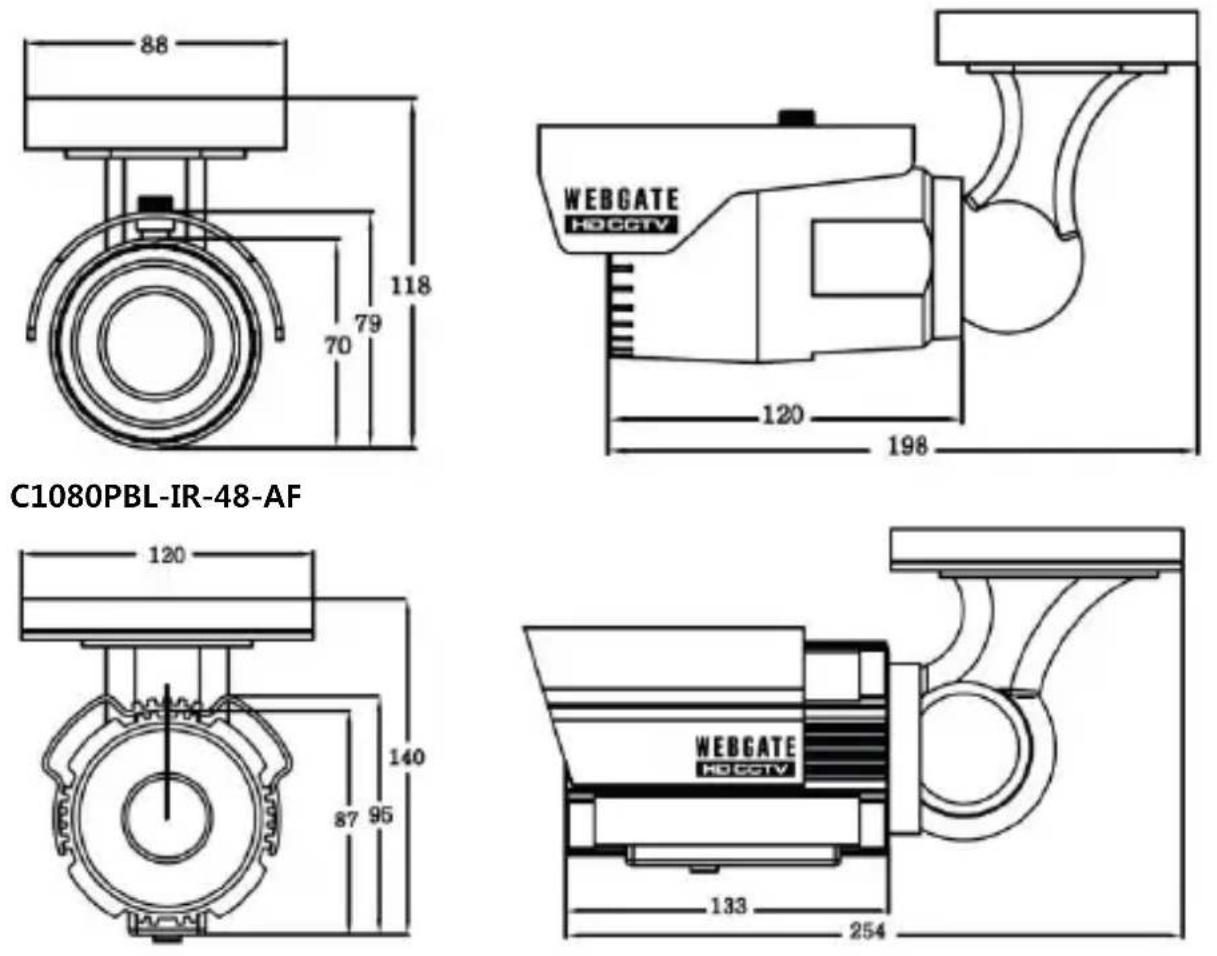

| Dimension | C1080PBL-IR18 | 88(W) x 118(H) x 198(D) mm | |
| C1080PBL-IR18-AF | |||
| C1080PBL-IR48-AF | 120(W) x 140(H) x 254(D) mm | ||
| Weight | C1080PBL-IR18 | 710g | |
| C1080PBL-IR18-AF | 720g | ||
| C1080PBL-IR48-AF | 1600g | ||
| Environments | |||
| Operation Temp. / Humidity | -10 °C ~ 50 °C / 0%RH ~ 80%RH | ||
| Certifications | |||
| Certifications | KC, FCC, CE, RoHS, HD cctv | ||
Dimension (unit : mm)
C1080PBL-IR18-AF / C1080PBL-IR18
Warranty
| Product name | HD-SDI Camera | Warranty term |
| Model name | C1080PBL-IR48-AF, C1080PBL-IR18-AFC1080PBL-IR18 | 2 years after purchase |
| Date of purchase | 20 - - | |
| Warranty term | 20 - - | |
| Serial number |
| Customer's address | Name | |
| Contact | ||
| Address of shop(Company name) | Name | |
| Contact |
◆ Please fill out vacant area before sending products.
★ For customer service ★
Please read this manual again before requesting customer service.
Any simple malfunctions due to customer's misunderstanding on the product could be resolved by customer.
How to request service?
Please inform details of malfunctions correctly.
Free or non free repair will be decided based on details of warranty card.
WebGate Division Daemyung Enterprise Co., Ltd.
6F Hanlim Venture Town B/D 689-6, Geumjeong Dong, Gunposi, Gyeonggido,Korea
The damages caused from following conditions will be repaired by customer's cost.
- Any damage comes from customer's carelessness
- When improper power is entered
- When you repair unit by yourself
- Any damage comes from natural disaster like lightning, flood, etc.
- Consumable parts replacement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with t instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product or their local government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.
1. DVR에 따른 설치 방법 확인
 |  |  |
| C1080PBL-IR48-AF | C1080PBL-IR18-AFC1080PBL-IR18 | Installation / User Manual |
 |  |  |
| Camera Remote Controller | Hood Screw(IR18) | Screw & Plastic Anchor |
 |  |  |
| L Wrench | Hood(IR48) | Hood(IR18) |
제품 설명
2.일반 DVR 연결 방법
포커스 설정
- Manual Focus 모델 : C1080PBL-IR18
C1080PBL-IR18-AF / C1080PBL-IR18
품질보증서
ENTERPRISE
WEBGATE
- 一般的なDVRの接続方法
C1080PBL-IR18-AF / C1080PBL-IR18
保証書
Описание изделия
Фокус установка
- Ручной Модель Focus: C1080PBL-IR18
C1080PBL-IR18-AF / C1080PBL-IR18
гарантия
2。如何传统的非PoC录像机
- PoC摄像机和非PoC DVR之间连接的PoC_中继器RP101P。并连接电源给RP101P。
- 手动对焦型号：C1080PBL-IR18
C1080PBL-IR18-AF / C1080PBL-IR18
质保书
