Please read this operating instruction manual thoroughly. Under no circumstances open the equipment or complete any repair work yourself. In the case of claims under the terms of guarantee, contact your sales outlet. We reserve the right to make technical and appearance modifications to the product during the course of product improvement.

Intended use

The baby monitor serves to monitor rooms. The baby unit (sender) transmits vocal sounds and other noises from the baby to the parent unit (receiver). Any other use is considered unintended use.

Use of the equipment is no substitute for personal attention and supervision of a child. Rights to claims for liability beyond the scope of legal regulations are excluded.

Safety notes

The baby monitor has been designed to provide added reassurance for those times when you cannot be in the same room as your baby. It is NOT a substitute for adult supervision. A parent must always stay within range of the monitor during use. Your baby monitor is not a medical device, nor a device to prevent cases of Sudden Infant Death Syndrome or `cot death`, and you should not rely on it for your baby's wellbeing. It is important that you regularly check on your baby personally.

• Never place anything over your baby monitor or cover it in any way.
• Do not place your parent or baby unit near water or in a damp environment.
• If travelling abroad, make sure that the voltage shown on the mains power adaptor corresponds to the local mains power supply.

• Never dispose of batteries in the household rubbish. Check with you local authority for correct disposal options.

• Never use non-rechargeable batteries in your parent unit. Use only the recommended type 2.4 V, 550 mAh.

• Use only the mains adaptors supplied or you may risk damaging your baby monitor.
• When your baby monitor is not in use, it is recommended that you disconnect it from the mains supply and remove the battery.
• Do not spray it with cleaning polish. Disconnect it from the mains power before cleaning.
• The adaptors may become warm during use, please take care when handling.
• Do not place your parent or baby unit in direct sunlight.

The charge capacity of the re-chargeable battery in the parent unit will reduce with time and will eventually need to be replaced. New rechargeable batteries are obtainable from our Helpline.

Power consumption

The power adapter plugs supplied fulfils the eco-design directive of the European Council (Directive 2005/32/EC).

This means that power consumption is considerably lower than power adapter plugs of an earlier design both in operating and idling modes.

2 Operating Elements

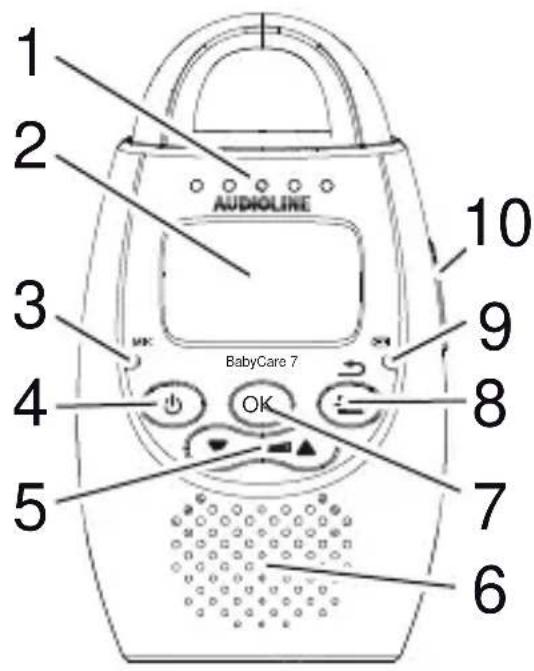

Receiver (Parent unit)

1 Noise indicator

Flashes when noise is detected.

2 Display

3 Microphone

4 On/Off key

Press and hold down for approx. 2 seconds to switch on the unit.

Press and hold down for approx. 2 seconds to switch off the unit.

5 Volume keys (▼ - increase / ▲ - decrease)

6 Loudspeaker

7 OK key for confirmation of a menu item.

8 Menu key

In idle mode: Open the menu

In menu: Back

9 Charging indicator

Permanently on: battery is being charged.

Flashes: battery needs recharging.

Note: Off even if connected with power

adapter but without battery pack installed.

10Talk key: press and hold to talk with baby unit.

Display icons (Parent unit)

On when parent unit is connected with baby unit and in valid range. Flashes when parent unit is out of range or not connected.

On when auto nightlight is enabled.

On when SOUND ALERT is enabled (-> p. 22). Flashes when SOUND ALERT is triggered.

On when the speaker volume is turned off.

Battery level (empty, 1/3, 2/3, full).

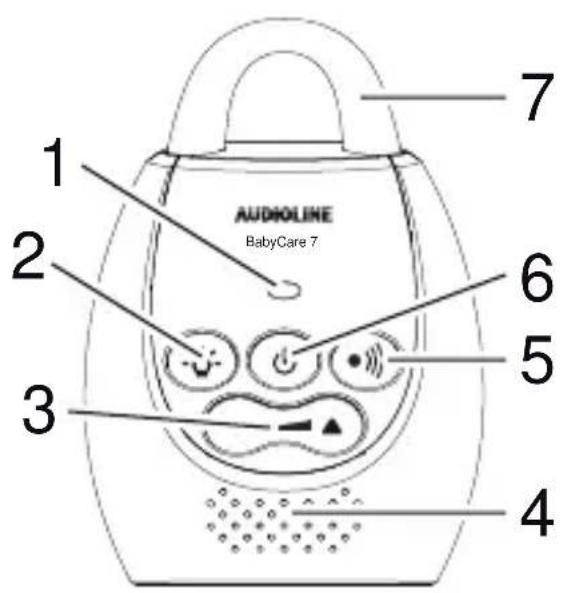

Sender (Baby unit)

1 Power on LED
2 Night light on/off
3 Volume keys (▼ - increase / ▲ - decrease)
4 Loudspeaker
5 Paging key

Press briefly to "page" the parent unit with an audible alert. Useful to call for assistance or to locate a missing parent unit.

6 On/Off key

Press and hold down for approx. 2 seconds to switch on the unit.

Press and hold down for approx. 2 seconds to switch off the unit.

7 Night light

3 Starting Up

Safety notes

Attention: It is essential to read chapter 1 "Important Information" at the beginning of this manual before starting up.

Package contents

1 Parent unit (receiver) 1 Baby unit (sender)
2 Mains adapter 1 Rechargeable battery pack 1 User guide

Parent unit

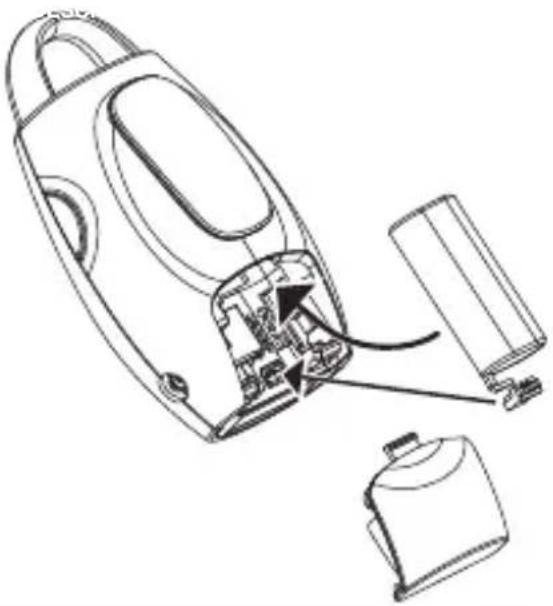

1 Remove the battery cover on the back of the parent unit by applying pressure and sliding it down. Insert the rechargeable battery, connect the cable and close the cover again.
2 Connect the power supply to the parent unit.
3 Connect the power supply to a mains power socket. The red charging LED comes on.
4 If necessary press and hold the On/Off key to switch on the parent unit.

Line drawing of a vacuum cleaner internal structure with exploded view (no text or symbols)

⚠ Attention: Only use the power adapter plug supplied. Ensure access to the power adapter plug is not obstructed by furniture or such.

Note: Before first use, or if it has been out of use for a long time, the parent unit will need to be charged for 13 hours if you want to operate it without mains adapter.

Baby unit

1 Connect the power supply to the baby unit.
2 Connect the power supply to a mains power socket.
3 If necessary press and hold the On/Off key to switch on the baby unit.

⚠ Attention: Only use the power adapter plug supplied. Ensure access to the power adapter plug is not obstructed by furniture or such.

Note: The baby unit should be placed about 1 m to 1.5 m away from the baby's cot on a flat surface. Never place the baby unit inside the cot, bed or playpen. Make sure the unit, cords and mains adaptor are out of reach of the baby and other young children.

4 Operation

Powering on/off the baby monitor

After having connected the baby monitor you will have to switch on both units. Press and hold down the On/Off key on each unit. To switch off the unit press and hold down the On/Off key. Once communication is established "LINKED" is shown in the display.

Volume

You can adjust the volume at which you hear your baby by using the keys ▼ and ▲ on the parent unit.

You can adjust the volume at which your baby hears you by using the keys ▼ and ▲ on the baby unit.

Battery charge indicator and battery low warning

The parent unit will work approx. 18 hours without connected to the mains. If the battery charge becomes low, the charging icon will start to flash. Connect it to the mains adapter to charge the battery. Nevertheless you can use the parent unit during charging.

Intercom parent unit / baby unit

You can talk to your baby via the loudspeaker on the baby unit. Press and hold down the talk key on the right hand side of the parent unit. During Intercom, you will not be able to hear your baby until you release the talk key again.

Paging

Press the page key on the baby unit briefly. The parent unit will emit a tone. The tone can be switched off by pressing any key on the parent unit or by pressing the page key on the baby unit once again.

Setting the display language (parent unit)

≡ -> ▼ / ▲ -> LANGUAGE -> OK -> ▼ / ▲ select language (German/English/Turkçe) -> OK

Setting the sensitivity for the microphone on the baby unit (parent unit)

≡ -> ▼ / ▲ -> SENSITIVITY -> ⓄOKOK-> ▼ / ▲ Level 1...5 -> ○

(1 = lowest sensitivity / 5 = highest sensitivity)

Setting the sound alert (parent unit)

If the volume on the parent unit is set to "0" (icon) sounds are only indicated with the sound indicator LEDs. In addition you can switch on a short beep that sounds whenever a noise reaches the sensitivity level.

Switch on:
≡ -> ▼ / ▲ -> SOUND ALERT -> OK
- if ON? appears in the display press .ok
- if OFF? appears in the display press ≡
Switch off:
≡ -> ▼ / ▲ -> SOUND ALERT -> OK
- if OFF? appears in the display press OK
- if ON? appears in the display press ≡

Night light

The baby unit has a night light which emits a soft starry glow, providing comfort and re-assurance for your baby and allowing you to see them in a darkened room.

1 On the baby unit you can switch on the night light permanently by pressing the key 🔍.
2 On the parent unit you can switch on and off the function "Night light" in the menu. With this function enabled, the night light will automatically be switched on, when a noise above the sensitivity level will be detected. After a few minutes without any noise it will be switched off again.

Switch on: ->

• if YES ? appears in the display press .ok
• if NO ? appears in the display press ≡

Switch off:

• if NO ? appears in the display press OK
• if YES ? appears in the display press ≡

Resetting the unit (parent unit)

5 Appendix

Troubleshooting

Should problems arise with the telephone, please refer to the following information first. In the case of technical problems, contact our Hotline tel. [phone] (costs for call from german landline at time of print: 14 ct/min, max. 42 ct/min.

from mobile phone providers). In the case of claims under the terms of guarantee, contact your sales outlet.

There is a 2 year period of guarantee.

- On the parent unit flashes and a beep is audible.

• You may have moved out of range –move closer to the baby unit.
• Check whether there is a power failure on the baby unit or the baby unit is switched on.

- On the parent unit the battery level icon is flashing.

- The rechargeable battey is nearly exhausted. Connect the mains adapter to recharge the battery.

- Your baby monitor is emitting an high pitched ear-piercing noise.

- This may happen if your parent and baby units are too close together. Move them further apart.

Cleaning and upkeep

Clean the equipment with a dry, soft, lint-free cloth. Never use cleaning agents or solvents.

Declaration of Conformity

This device fulfils the requirements stipulated in the EU directives:

- 1999/5/EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. - 2005/32/EU directive “Energy-using products”.

Conformity with the above mentioned directive is confirmed by the CE symbol on the device. Please refer to the free download in our Website www.audioline.de for complete declaration of conformity.

Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container.

The adjacent symbol indicates that the device must not be disposed of in normal domestic waste!

Batteries represent a hazard to both health and the environment! Never open, damage or swallow batteries, nor allow them to get into the environment.

They may contain toxic and ecologically hazardous heavy metals. You are legally obliged to dispose of batteries at the point of sale or at appropriate collection points provided by your local public waste authorities. Disposal is free of charge. The adjacent symbols indicate that batteries must not be disposed of in normal domestic waste and but at authorised collection points.

Packaging materials must be disposed of according to local regulations.

Technical data

Operating frequency 1,89 GHz

Range Up to 300 m under optimum conditions. It

Up to 50 m in buildings (as a result of walls, doors etc.)

Power supplies, baby unit/parent unit Model S004LV0600045

Input: 100\~240 V AC, 50/60 Hz

Output: 6 V DC, 450 mA, Center = +

Transmitting power Average: 10 mW

Maximum: 250 mW

Rechargeable battery for parent unit NiMH 2,4 V, 550 mAh

Operating time with charged battery Approx. 18 hours

Permissible ambient temperature 10 °C to 40 °C

Permissible relative humidity 20 % to 75 %

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. Carefully selected materials and highly developed technology ensure perfect functioning and a long service life.

The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair defect parts, replace them or replace the entire de-

vice. Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device does show signs of a defect within the period of guarantee, please contact the sales outlet where you purchased the AUDIOLINE device, producing the purchase receipt as evidence. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.
