USER MANUAL Watch & Care V132 AUDIOLINE
Operating Instructions
Watch & Care V130/V132
D
GB
Bedienelemente 2
Pure diagram of a mechanical component with an arrow indicating downward force (no text or symbols)natural_image
Line drawings of two mobile phone devices with arrows indicating ports and function buttons (no text or symbols)Den Sender bedienen
Starting Up ....3
Checking the package contents 3
Connecting and aligning the transmitter ....3
Operating with batteries (not supplied) 3
Operating with a power adapter plug ....3
Connecting the receiver 4
Operating with a power adapter plug 4
Operation with rechargeable batteries 4
Mounting/dismounting the belt clip 4
Optimization of range 4
Operating the Transmitter ....5
Switching the transmitter on/off 5
Connecting and aligning the transmitter 5
Night vision 5
Operating the Receiver 6
Switching the receiver on/off 6
Setting the volume 6
Setting the brightness 6
Temperature option (setting the display unit) 6
Temperature option (setting the range) 6
Switching the night light on/off 7
Switching the vibration alarm on/off 7
Adjusting the VOX sensitivity 7
Video/Audio switching 7
Setting the zoom .8
Selecting a lullaby 8
Intercom function 8
Range 8
Registration 8
Multi camera mode .9
External shaker option 9
Appendix 10
Safety Information 10
Intended use 10
Installation location and safety information ....10
Power adapter plug 10
Rechargeable batteries 10
Power failure 10
Medical equipment 11
Disposal 11
Helpline 11
Troubleshooting guide - Problems and solutions .....11
Declaration of conformity 12
Maintenance 12
Technical data 13
Guarantee 13
Operating Elements

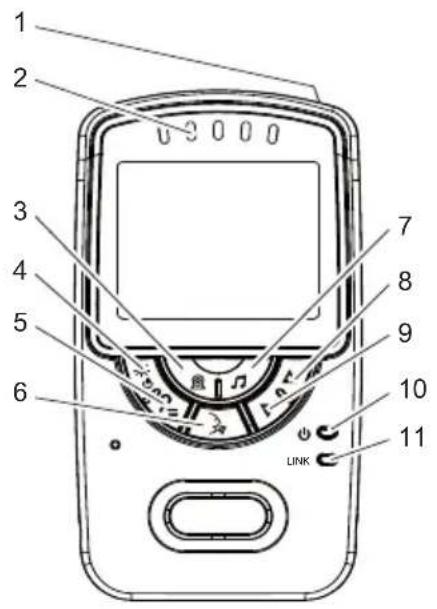

Monitor unit (receiver)
1 Antenna (fold-out)
2 Sound level LEDs
3 Camera selection / Registration
4 On/Off switch / Video/audio switching
5 Menu button / Zoom on/off
6 Talk button
7 Lullaby (on/off / selection)
8 Increase volume / menu options selection
9 Reduce volume / menu options selection
10 Power LED
11 Link LED

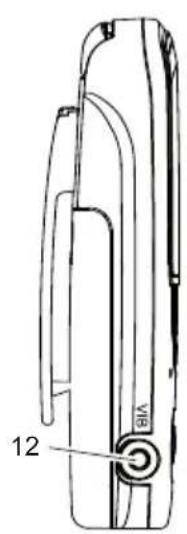

12 Socket for external vibration alert device
(e. g. Amplicomms PTV 100, refer to page 9)

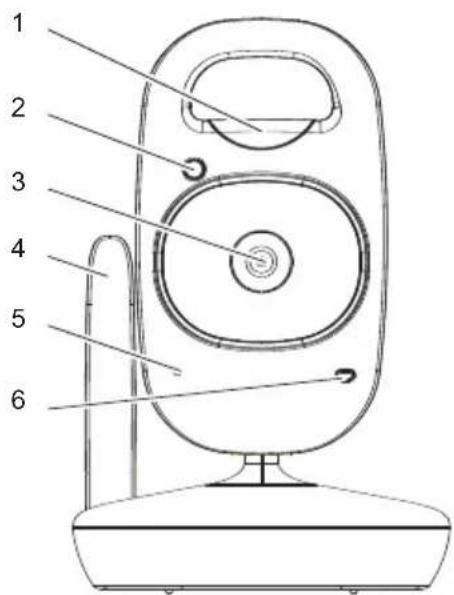

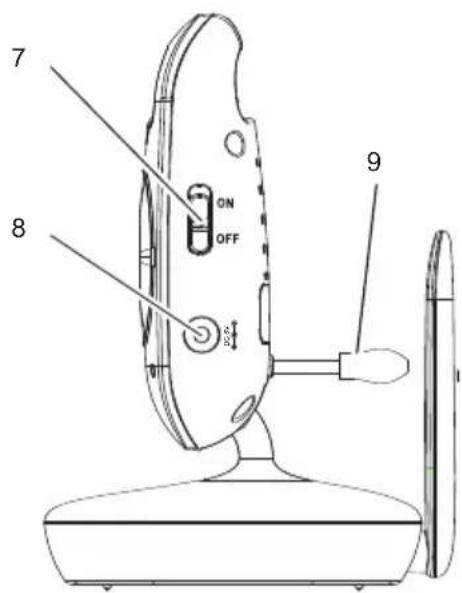

Camera unit (transmitter)
1 Night light
2 Light sensor
3 Camera lens
4 Antenna
5 Microphone
6 Power LED
7 ON/OFF switch
8 Socket for power adapter plug
9 Temperature sensor
Starting Up
⚠️ Important: please make sure you’ve read the safety information on page 10 before you set up your system. The data transmitted (image and/or sound) are digitally coded.
Checking the package contents
The package contains: V130 V132
• One camera unit (transmitter) 1 2
• One monitor unit (receiver) with belt clip 1 1
• One rechargeable battery pack for the receiver 1 1
• One power adapter plug for the transmitter 1 2
• One charger with power adapter plug for the receiver 1 1
• One operating manual 1 1
Connecting and aligning the transmitter
⚠ Attention: Position the transmitter with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance. Point the upper section of the transmitter towards the baby or object you want to monitor. Check that the baby or object is suitably displayed on the receiver.
Operating with batteries (not supplied)
Use a small screwdriver to open the transmitter's battery compartment on the underside. Insert the batteries, paying attention to correct polarity. Refer to the diagrams in the battery compartment. Close the battery compartment again.
In the case of a low battery charge, the Power LED flashes slowly. The batteries must be replaced.

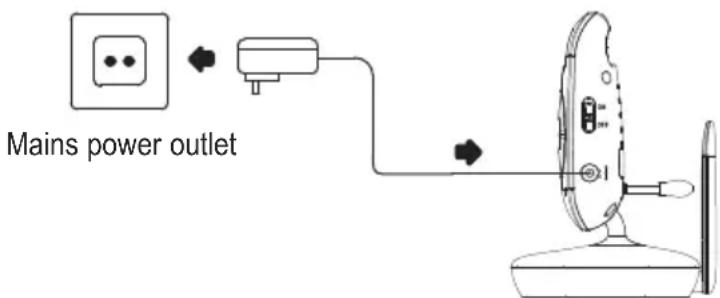

Operating with a power adapter plug
Connect the transmitter as illustrated in the diagram. For safety reasons, only use the power adapter plug supplied.
Connecting the receiver
⚠ Attention: Position the receiver with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance.

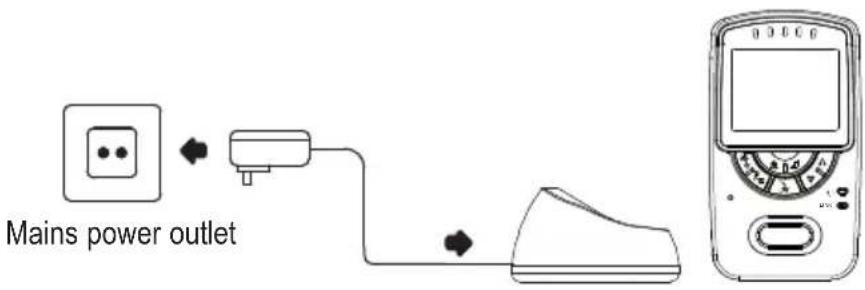

Operating with a power adapter plug
Connect the receiver as illustrated in the diagram. For safety reasons, only use the power adapter plug supplied.
Operation with rechargeable batteries
- Open the battery compartment on the rear side of the receiver.
- Insert the battery pack, and connect it with the socket. The connector can only be fitted one way.
- Close the battery compartment again.
The receiver is powered by a Lithium-ion battery pack of 3.7 V, 1500 mAh.
The rechargeable battery pack can be recharged directly in the receiver when it is inserted in the charging station. The Power LED lights up when the receiver is being charged.
In the case of a low battery charge, the Power LED flashes slowly. The battery pack must then be recharged.
Mounting/dismounting the belt clip
Prize the latch (see figure) with a suitable tool (such as a small screwdriver) a little bit away from the chassis and move the belt clip down simultaneously. To attach the belt clip slide it into the guide towards the top until it snaps in.


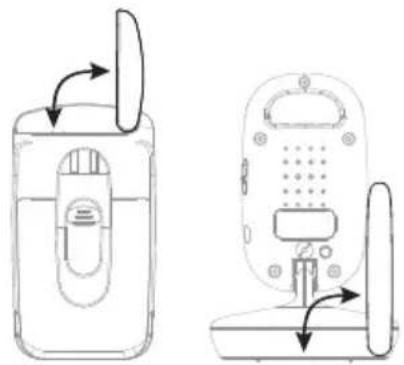

Baby unit and parent unit come with fold-out antennas. If necessary, optimum range can be achieved if both the Baby unit and Parent unit antennas are extended vertically.
Check the transmitter and receiver are working properly each time before the equipment is put into operation.
Switching the transmitter on/off
Position the transmitter in a good position for the monitoring tasks required and align the camera lens to the area to be monitored.
Slide the switch to ON. The Power LED lights up.
The transmitter is now ready to operate.
To switch the unit off, slide the switch to OFF.
In the case of a low battery voltage, the Power LED flashes slowly. In this event replace the 4 x AAA batteries with fresh alkaline cells.
Connecting and aligning the transmitter
⚠ Attention: Position the transmitter with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance. Point the upper section of the transmitter towards the baby or object you want to monitor. Check that the baby or object is suitably displayed on the receiver.
Night vision
The transmitter is equipped with 6 infrared diodes. This enables the transmission of pictures from areas which are not illuminated. The night vision function is activated automatically when the light conditions make it necessary.
When the night–time vision function is activated, the screen display on the receiver turns to black and white.
Operating the Receiver
Check the transmitter and receiver are working properly each time before the equipment is put into operation.
Switching the receiver on/off
Press and hold this button until the logo appears first then the image being taken by the transmitter camera.
Press and hold the button for approx. 1 second to switch the unit off.
In the case of a low battery charge, the Power LED flashes slowly. Place the receiver in the charger to recharge the battery pack.
Setting the volume
Use these buttons to adjust the volume to one of five settings or "Off".
Setting the brightness
Press the button once.
This icon appears in the display.
Use these buttons to adjust the brightness to one of five settings.
Temperature option (setting the display unit)
In the lower right hand corner the temperature in the baby's room is shown.
IMPORTANT INFORMATION The ideal temperature for a baby to sleep is 16^ - 18^ C. Please set or adjust the room temperature accordingly.
Press the button twice.
This icon appears in the display.
Use these buttons to set temperature measurement to ^ C or ^ F.
Temperature option (setting the range)
You can adjust the upper and lower limit for the temperature monitor. An alert will occur if the temperature becomes outside the preset temperature range.
Press the button three times (lower limit) or four times (upper limit).
This icon appears with the current setting in the display (Lo = lower limit / Hi = upper limit).
Use these buttons to adjust the limits (lower limit Off, 12, 15, 18 / upper limit: 20, 23, 26, Off). When set to "Off" the temperature monitoring is deactivated.
Switching the night light on/off
Press the button five times.
This icon appears in the display.
Use these buttons to switch the night light on the transmitter on or off.
Switching the vibration alarm on/off
Press the button six times.
This icon appears in the display.
Use these buttons to switch the vibration alarm on or off.
When the vibration alarm is activated, the receiver vibrates when sounds in the room being monitored are so loud that the red Sound Level LEDs are activated.
Adjusting the VOX sensitivity
(VOX: Voice Operated Transmission = Sound detection)
The VOX function (sound detection) causes the system to start transmitting automatically from the transmitter to the receiver immediately a voice or sound is detected.
Press the button seven times.
This icon appears in the display.
Use these buttons to set VOX to OFF or adjust the sensitivity to one of 5 levels (5 = highest sensitivity). When one of the five levels has been set, the VOX icon lights up in the display.
If the receiver is placed on the charger the display will switch off after approx. one minute of inactivity, but will switch back on if triggered by the vox detector in the transmitter or by pressing any button on the receiver.
However if VOX is set to OFF, the display will remain on all the time.
Video/Audio switching
You can manually switch off the display to save battery power. The sound from the baby's room are to be heard permanently and the display will automatically switch on again if triggered by the vox detector.
Press this button briefly.
For switching the display on again press this button again briefly.
GB
Setting the zoom
You can zoom in on the image.
Press and hold this button for approx. 2 seconds.
The zoom will be activated. You can move the selection, as long as four arrows are shown in the display (approx. 5 seconds), by pressing the button to the left, to the right, upwards or downwards.
To deactivate the zoom function press and hold this button again for approx. 2 seconds.
Selecting a lullaby
Switch on: press the button briefly.
This icon appears in the display.
Use these buttons to select one of the 5 lullabies (1-5).
Switch off: press the button briefly.
Intercom function
Press and hold the button.
This icon appears in the display.
Speak into the microphone to talk with the person near the other unit. When the talking button is pressed, any playing of lullabies will be aborted.
Range
When the distance between the transmitter and receiver is too far, the message "Out of Range" appears in the display and you hear a beep. Move the receiver nearer to the transmitter. If necessary, optimum range can be achieved if both the Baby unit and Parent unit antennas are extended vertically.
Registration
In delivery state the transmitter is pre-registered at the receiver (Watch&Care V132: both transmitters). If necessary or if a another camera is added to the system, registration can also be completed manually:
1 Switch the transmitter off (switch set to OFF). Remove the batteries of the receiver for a few seconds if necessary.
2 Switch the receiver on.
3 Press and hold down the button until appears in the display.
4 Use the butt s to select the desired camera [C1] ... [C4].
5 Press the button briefly. The Link LED flickers for approx. 10 seconds. During this time, you must perform steps 6 and 7.
6 Switch the transmitter on (switch set to ON).
7 Press the registration key on the rear of the transmitter and hold it down until the LED on the transmitter blinks. After a short time the video from the transmitter will appear on the screen if the registration was successful. If the registration failed, "Out of Range" appears on the screen.
If you registered several cameras (up to 4) to your system, you can select a single camera or switch to scan mode. In scan mode, the signals from all activated cameras are continuously displayed alternately each for about 10 seconds.
Press this button briefly. The number of the selected camera is shown.
Select another camera or the scan mode by pressing this button repeatedly.
Press this button to confirm your selection.
Selecting the cameras for the scan mode
When performing the selection of the camera (see above), you can set by pressing these buttons for each of the registered cameras, whether it should be assigned to the scan mode (e.g. "C2 x" = not assigned to the scan mode / "C2 √" = assigned to the scan mode).
For each of the four cameras you can select the features settings individually.
External shaker option
- The external shaker (Amplicomms PTV100) is an optional device which is supplied separately to this system. The external shaker can be plugged into the designated output at the side of the display on the parent unit, to enable use as a powerful under-pillow vibrating alert. The external shaker operates when the parent unit built-in vibrator does. Therefore the vibrator option must be enabled within the menu.
- The parent unit display and sound, is activated when the system detects the baby crying, the sensitivity level of which can be adjusted in the VOX setting. A single activation of the external vibrator/shaker also occurs. The parent unit stays active for 60 seconds following the trigger, during which time any further triggering of the vibrator/shaker will only occur when either of the two sound level LEDs are activated by the incoming sound. Therefore the incoming sound level has to be reasonably loud (at least 75dB@0.5mtrs) in order to trigger the 2nd highest LED. This is set to avoid false triggering the system by one-off low level sounds such as baby sighing for example.
GB
Appendix
Safety Information
Please read this operating instruction manual thoroughly.
Intended use
The surveillance system has been developed to monitor rooms. The transmitter sends acoustic and video signals from its point of installation to the receiver. Any other use is considered unintended use. The use of this equipment does not substitute personal supervision, e.g. of a child. Users are not relieved of their personal liability. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.
Installation location and safety information
- Never lay the transmitter in a baby's/child's bed or playpen.
- Ensure that the transmitter and power cable are out of reach of babies/children, i.e. they are at least one meter away.
- Pay attention that the components are sufficiently well-ventilated when in operation. Do not lay a cushion, towel or such over the devices.
- The devices are not intended for medical purposes. Warning and signal tones from respiratory or heartbeat monitoring equipment are not transmitted.
- The installation location plays a decisive role in ensuring proper operation. Therefore, maintain a distance of at least one meter from other electronic equipment, such as microwave ovens or hi-fi devices, otherwise they could cause mutual interference/faults.
- Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight. Do not use the equipment in potentially explosive areas.
Power adapter plug
⚠ Attention: Only use the power adapter plugs contained in the material supplied since other power adapter plugs could damage the surveillance system. Ensure access to the power adapter plug is not obstructed by furniture or such.
When using the equipment with a power adapter plug, pay attention that the plug and cable are in perfect condition. Kinked or worn cable represents the risk of a fatal accident!
The power adapter plug supplied fulfils the ecodesign requirements of the European Union (Directive 2005/32/EC). This means that, both in an operating state and in an idling state, the power consumption is considerably lower compared to power adapter plugs with an older design.
- Energiesparend
- Economisant l'énergie
• A risparmio di energia
• Energy efficient
Rechargeable batteries
⚠ Attention: Never throw batteries into a fire. Only use batteries of the same type! Pay attention to correct polarity.
Power failure
In the event of a power failure, the devices only operate through battery power. Disconnect the power adapter plugs from the devices in this case.
Medical equipment
⚠ Attention: Never use the devices in the vicinity of medical equipment.
Effects on such equipment cannot be fully ruled out.
Disposal
In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The adjacent symbol indicates that the device must not be disposed of in normal domestic waste!
Batteries represent a hazard to health and the environment! Never open, damage or swallow batteries or allow them to pollute the environment. They may contain toxic, ecologically hazardous heavy metals. You are legally obliged to dispose of power packs and batteries at the point of sale or in the corresponding containers provided at collection points provided by local public waste authorities. Disposal is free of charge. The adjacent symbols indicate that the batteries must not be disposed of in normal domestic waste and must be brought to collection points provided by local public waste authorities.
Packaging materials must be disposed of according to local regulations.
Helpline
Should problems arise with the device, please refer to the following information first. In the case of technical problems, contact our Hotline. Please refer to our website www.audioline.de for the telephone number.
In the case of claims under the terms of guarantee, contact your sales outlet.
There is a 2 year period of guarantee.
Troubleshooting guide - Problems and solutions
Equipment does not function
- Transmitter and/or receiver are not switched on.
- The batteries are empty or defective.
- The power adapter plugs are not connected.
No reception
- Transmitter and receiver are not registered.
- Transmitter is too far from object being monitored, e.g. baby.
Observe the minimum distance of one meter. - The receiver and transmitter are too far apart.
• The VOX sensitivity is set too low.
GB
Reception interference
- The receiver and transmitter are too far apart.
• The battery power is too low.
- Other electronic devices are causing interference in the field of transmission.
Common wireless networks faults (WLAN)
- The transmission between the transmitter and receiver is on a permanently set channel in the 2.4 GHz frequency range. Wireless radio networks (WLAN) also work in this frequency range. In the event of interference, reception interruptions, etc., set your WLAN router to a different channel.
Howling or squealing noise (acoustic feedback)
- Increase the distance between receiver and transmitter.
- Reduce the volume on the receiver.
Noise
• The battery power is too low.
Picture but no sound transmission
• Volume setting is too low.
Picture is in black and white
• The night vision function is active.
The battery pack in the receiver is not charged
- The power adapter plug is not connected.
Declaration of conformity
CE
This device fulfils the requirements stipulated in the EU directive:
1999/5 EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.
Conformity with the above mentioned directive is confirmed by the CE symbol on the device.
To view the complete Declaration of Conformity, please refer to the free download available on our website www.audioline.de
Maintenance
- Clean the housing surfaces with a soft, fluff-free cloth.
- Never use cleaning agents or solvents.
Technical data

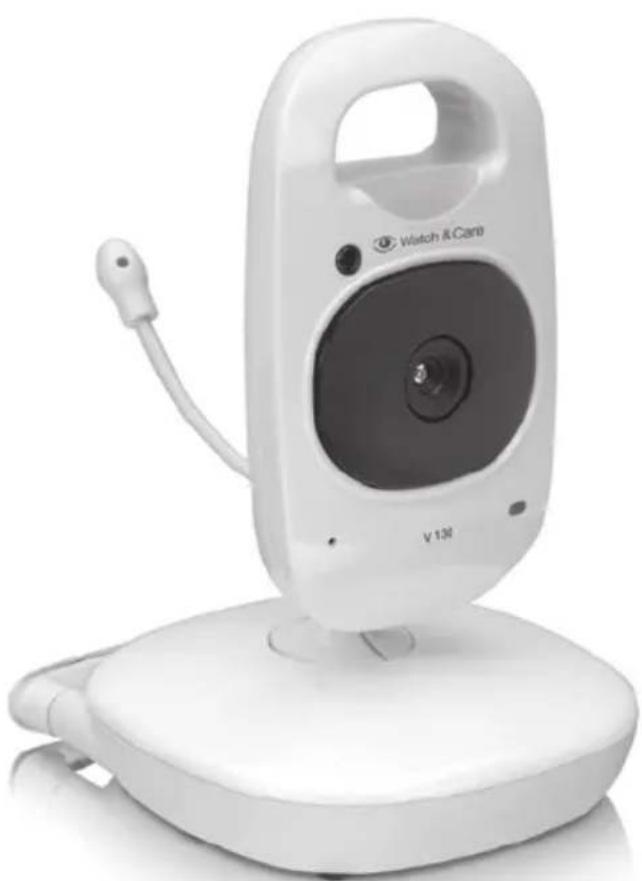

Camera (transmitter) Socket: 6 V DC
Sensor: 1 night light sensor
IR diodes: 6
Monitor (receiver) Screen: 2,4" LC display
Socket: 6 V DC
Power supply (receiver) Power adapter plug, input:
100-240 VAC, 50-60Hz, 150 mA
Power adapter plug, output: 6 VDC, 800 mA
or Lithium-ion battery pack 3.7 Volt / 1500 mAh
Initial charging time for battery Up to 16 h
Power supply (transmitter) Power adapter plug, input:
100-240 VAC, 50-60Hz, 150 mA
Power adapter plug, output: 6 VDC, 800 mA
or 4 AAA Alkaline batteries
Range Up to 150 meters under optimum conditions. Range is
reduced in buildings through walls, doors etc.
Frequency range 2.4 GHz (digital)
Permissible ambient temperature 0°C to 40°C
Transmission power (TX PA power) 15 \~ 17 dBm
Guarantee
AUDIOLINE equipment is produced and tested according to the latest production methods. Carefully selected materials and highly developed technology ensure perfect functioning and a long service life. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.
All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair defect parts, replace them or replace the entire device. Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.
If your device does show signs of a defect within the period of guarantee, please contact the sales outlet where you purchased the AUDIOLINE device, producing the purchase receipt as evidence. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.
