| Product Type | Baby Monitor |
| Brand | Audioline |
| Model | Watch & Care V110 |
| Parent Unit Display | 2.4" color LCD |
| Video Resolution | 320x240 pixels |
| Night Vision | Yes, infrared LEDs |
| Audio | Two-way talk (intercom) |
| Range (indoor) | Up to 50 meters |
| Range (outdoor) | Up to 300 meters |
| Power Supply Parent Unit | Rechargeable battery (3.7V 1000mAh) or AC adapter |
| Power Supply Baby Unit | AC adapter (5V 1A) |
| Battery Life (Parent Unit) | Approximately 6 hours |
| Temperature Sensor | Yes, baby room temperature |
| Sound Activation (VOX) | Yes |
| Lullabies | Pre-installed lullabies |
| Pairing | Automatic digital pairing |
| Frequency | 2.4 GHz FHSS |
| Dimensions (Parent Unit) | 130 x 80 x 25 mm |
| Dimensions (Baby Unit) | 110 x 70 x 65 mm |
| Weight (Parent Unit) | 210 g |
| Weight (Baby Unit) | 150 g |
| Cleaning | Wipe with a soft, dry cloth; do not use solvents |
| Safety | CE, RoHS compliant; low radiation |
| Spare Parts / Repairability | Replacement power adapters and batteries available from Audioline |
| General Information | User manual available in multiple languages; supports up to 2 cameras |
Frequently Asked Questions - Watch & Care V110 AUDIOLINE
User questions about Watch & Care V110 AUDIOLINE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Baby monitor in PDF format for free! Find your manual Watch & Care V110 - AUDIOLINE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Watch & Care V110 by AUDIOLINE.
USER MANUAL Watch & Care V110 AUDIOLINE
Technical line drawing of a mechanical device with labeled part '8' (no text or symbols beyond label)natural_image
Pure diagram of a mechanical component with an arrow indicating downward force (no text or symbols)natural_image
Line drawings of two mobile phone devices with arrows indicating internal components (no text or symbols)Den Sender bedienen
Starting Up 3
Checking the package contents 3
Connecting and aligning the transmitter ....3
Operating with a power adapter plug 3
Connecting the receiver 3
Operating with a power adapter plug 4
Operation with rechargeable batteries 4
Mounting/dismounting the belt clip 4
Optimization of range 4
Operating the Transmitter ....5
Switching the transmitter on/off 5
Connecting and aligning the transmitter 5
Night vision 5
Operating the Receiver 6
Switching the receiver on/off 6
Setting the brightness 6
Switching the night light on/off 6
Adjusting the VOX sensitivity 6
Setting the zoom 7
Range 7
Registration 7
Multi camera mode 8
Appendix 9
Safety Information 9
Intended use 9
Installation location and safety information 9
Power adapter plug 9
Rechargeable batteries 9
Power failure 10
Medical equipment 10
Disposal 10
Helpline 10
Troubleshooting guide - Problems and solutions 10
Declaration of conformity 11
Maintenance 11
Technical data 12
Guarantee 12

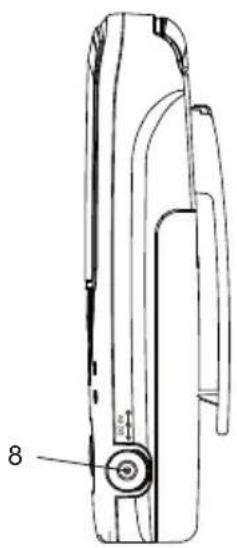

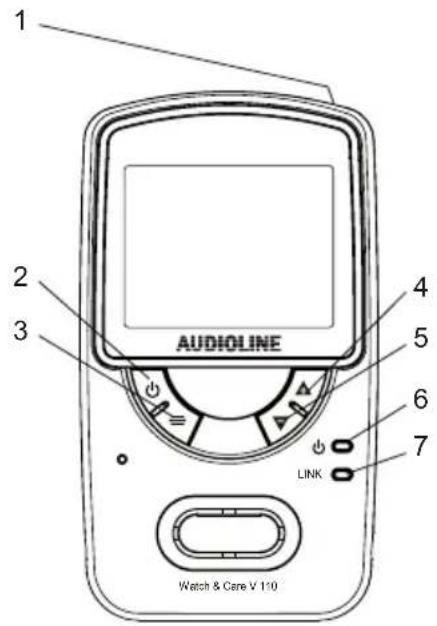

Operating Elements
1 Antenna (fold-out), refer to page 4
2 On/Off switch
3 Menu button
4 Increase volume / menu options selection
5 Reduce volume / menu options selection
6 Power LED
7 Link LED
8 Socket for power adapter plug

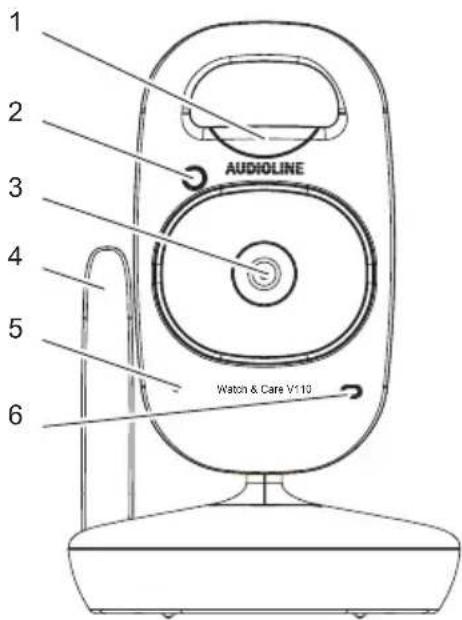

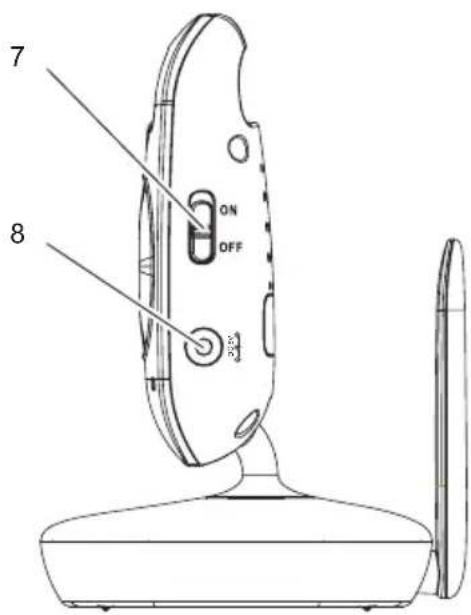

Camera unit (transmitter)
1 Night light
2 Light sensor
3 Camera lens
4 Antenna
5 Microphone
6 Power LED
7 ON/OFF switch
8 Socket for power adapter plug
Starting Up
⚠️ Important: please make sure you’ve read the safety information on page 9 before you set up your system. The data transmitted (image and/or sound) are digitally coded.
Checking the package contents
The package contains:
• One camera unit (transmitter)
• One monitor unit (receiver) with belt clip
• One rechargeable battery pack for the receiver
• One power adapter plug for the transmitter
• One power adapter plug for the receiver
• One operating manual
Connecting and aligning the transmitter
⚠ Attention: Position the transmitter with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance. Point the upper section of the transmitter towards the baby or object you want to monitor. Check that the baby or object is suitably displayed on the receiver.

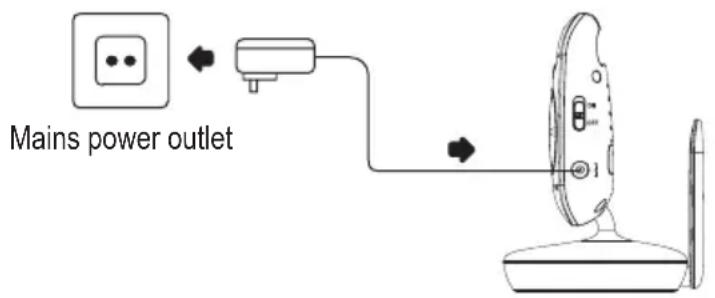

Operating with a power adapter plug
Connect the transmitter as illustrated in the diagram. For safety reasons, only use the power adapter plug supplied.
Connecting the receiver
⚠ Attention: Position the receiver with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance.

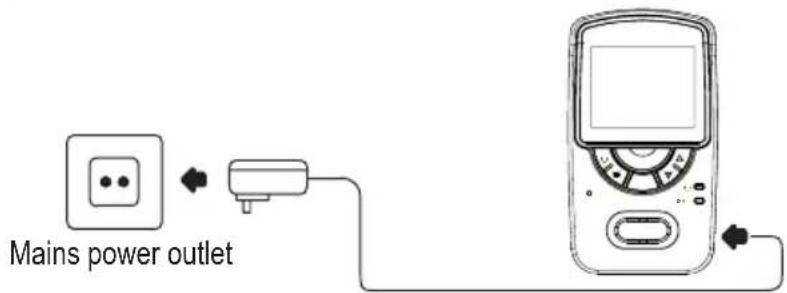

Operating with a power adapter plug
Connect the receiver as illustrated in the diagram. For safety reasons, only use the power adapter plug supplied.
Operation with rechargeable batteries
- Open the battery compartment on the rear side of the receiver.
- Insert the battery pack, and connect it with the socket. The connector can only be fitted one way.
- Close the battery compartment again.
The receiver is powered by a Lithium-ion battery pack of 3.7 V, 1500 mAh. The rechargeable battery pack can be recharged directly in the receiver when it is connected to the mains. The Power LED lights up red when the receiver is being charged. In the case of a low battery charge, the Power LED flashes slowly. The battery pack must then be recharged.
Mounting/dismounting the belt clip
Prize the latch (see figure) with a suitable tool (such as a small screwdriver) a little bit away from the chassis and move the belt clip down simultaneously. To attach the belt clip slide it into the guide towards the top until it snaps in.


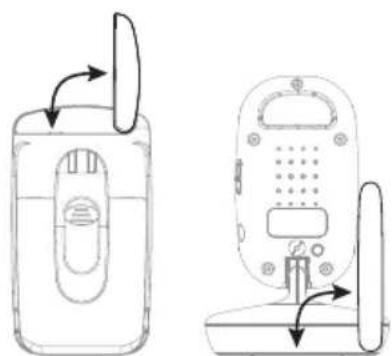

Baby unit and parent unit come with fold-out antennas. If necessary, optimum range can be achieved if both the Baby unit and Parent unit antennas are extended vertically.
Check the transmitter and receiver are working properly each time before the equipment is put into operation.
Switching the transmitter on/off
Position the transmitter in a good position for the monitoring tasks required and align the camera lens to the area to be monitored. For best results the antenna can be extended vertically.
Slide the switch to ON. The Power LED lights up.
The transmitter is now ready to operate.
To switch the unit off, slide the switch to OFF.
Connecting and aligning the transmitter
⚠ Attention: Position the transmitter with a minimum distance of 1 m to other electronic devices, otherwise there is a risk of mutual disturbance. Point the upper section of the transmitter towards the baby or object you want to monitor. Check that the baby or object is suitably displayed on the receiver.
Night vision
The transmitter is equipped with 6 infrared diodes. This enables the transmission of pictures from areas which are not illuminated. The night vision function is activated automatically when the light conditions make it necessary.
When the night–time vision function is activated, the screen display on the receiver turns to black and white.
Operating the Receiver
Check the transmitter and receiver are working properly each time before the equipment is put into operation.
Note: For best results the antenna can be extended vertically.
Switching the receiver on/off
Press and hold this button until the logo appears first then the image being taken by the transmitter camera.
Press and hold the button for approx. 1 second to switch the unit off.
In the case of a low battery charge, the Power LED flashes slowly. Connect the receiver to the mains to recharge the battery pack.
Setting the brightness
Press the button once.
This icon appears in the display.
Use these buttons to adjust the brightness to one of five settings.
Switching the night light on/off
Press the button twice.
This icon appears in the display.
Use these buttons to switch the night light on the transmitter on or off.
Adjusting the VOX sensitivity
(VOX: Voice Operated Transmission = Sound detection)
The VOX function (sound detection) causes the system to start transmitting automatically from the transmitter to the receiver immediately a voice or sound is detected.
Press the button three times.
This icon appears in the display.
Use these buttons to set VOX to OFF or adjust the sensitivity to one of 5 levels. When one of the five levels has been set, the VOX icon lights up in the display. The display goes out after 10 seconds. The display is reactivated when a sound is detected or a button on the receiver is pressed.
If the receiver is operated by battery power that the display will switch off after 10 seconds of inactivity, but will switch back on if triggered by the vox detector in the transmitter.
However if the receiver is connected to the charger, or VOX is set to OFF, the display will remain on all the time.
Setting the zoom
You can zoom in on the image.
Press the button four times.
A magnifying glass icon appears on the display.
Use these buttons to set the zoom.
Range
When the distance between the transmitter and receiver is too far, the message "Out of Range" appears in the display and you hear a beep. Move the receiver nearer to the transmitter. If necessary, optimum range can be achieved if both the Baby unit and Parent unit antennas are extended vertically.
Registration
In delivery state the transmitter is pre-registered at the receiver. If necessary or if a another camera is added to the system, registration can also be completed manually:
1 Switch the transmitter off (switch set to OFF). Remove the batteries of the receiver for a few seconds if necessary.
2 Switch the receiver on.
3 Press the menu key repeatedly until €1 appears in the display.
4 Use the butt-1s to select the desired camera [C1] ... [C4].
5 Press and hold down the butt for approx. 2 seconds. appears in the display.
6 Press the button briefly. The Link LED flickers for approx. 10 seconds.
7 Switch the transmitter on (switch set to ON).
8 Press the registration key on the back side of the transmitter. After a short time the video from the transmitter will appear on the screen if the registration was successful.
If the registration failed, "Out of Range" appears on the screen.
Multi camera mode
If you registered several cameras (up to 4) to your system, you can select a single camera or switch to scan mode. In scan mode, the signals from all cameras are continuously displayed alternately each for about 7 seconds.
Press the button five times.
The number of the selected camera is shown.
Use these buttons to select a camera or the scan mode.
For each of the four cameras you can select the features settings individually.
Appendix
Safety Information
Please read this operating instruction manual thoroughly.
Intended use
The surveillance system has been developed to monitor rooms. The transmitter sends acoustic and video signals from its point of installation to the receiver. Any other use is considered unintended use. The use of this equipment does not substitute personal supervision, e.g. of a child. Users are not relieved of their personal liability. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.
Installation location and safety information
- Never lay the transmitter in a baby's/child's bed or playpen.
- Ensure that the transmitter and power cable are out of reach of babies/children, i.e. they are at least one meter away.
- Pay attention that the components are sufficiently well-ventilated when in operation. Do not lay a cushion, towel or such over the devices.
- The devices are not intended for medical purposes. Warning and signal tones from respiratory or heartbeat monitoring equipment are not transmitted.
- The installation location plays a decisive role in ensuring proper operation. Therefore, maintain a distance of at least one meter from other electronic equipment, such as microwave ovens or hi-fi devices, otherwise they could cause mutual interference/faults.
- Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight. Do not use the equipment in potentially explosive areas.
Power adapter plug
⚠ Attention: Only use the power adapter plugs contained in the material supplied since other power adapter plugs could damage the surveillance system. Ensure access to the power adapter plug is not obstructed by furniture or such.
When using the equipment with a power adapter plug, pay attention that the plug and cable are in perfect condition. Kinked or worn cable represents the risk of a fatal accident!
The power adapter plug supplied fulfils the ecodesign requirements of the European Union (Directive 2005/32/EC). This means that, both in an operating state and in an idling state, the power consumption is considerably lower compared to power adapter plugs with an older design.
• Energiesparend
• Economisant
l'énergie
• A risparmio di
energia
• Energy efficient
Rechargeable batteries
⚠ Attention: Never throw batteries into a fire. Only use batteries of the same type! Pay attention to correct polarity.
Power failure
In the event of a power failure the transmitter will not function. Alternative arrangements should be made to monitor your baby until power is restored.
Medical equipment
⚠ Attention: Never use the devices in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.
Disposal
In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The adjacent symbol indicates that the device must not be disposed of in normal domestic waste!
Batteries represent a hazard to health and the environment! Never open, damage or swallow batteries or allow them to pollute the environment. They may contain toxic, ecologically hazardous heavy metals. You are legally obliged to dispose of power packs and batteries at the point of sale or in the corresponding containers provided at collection points provided by local public waste authorities. Disposal is free of charge. The adjacent symbols indicate that the batteries must not be disposed of in normal domestic waste and must be brought to collection points provided by local public waste authorities.
Packaging materials must be disposed of according to local regulations.
Helpline
Should problems arise with the device, please refer to the following information first. In the case of technical problems, contact our Hotline. Please refer to our website www.audioline.de for the telephone number.
In the case of claims under the terms of guarantee, contact your sales outlet.
There is a 2 year period of guarantee.
Troubleshooting guide - Problems and solutions
Equipment does not function
- Transmitter and/or receiver are not switched on.
- The battery pack is empty or defective.
- The power adapter plugs are not connected.
No reception
- Transmitter and receiver are not registered.
- Transmitter is too far from object being monitored, e.g. baby.
Observe the minimum distance of one meter. - The receiver and transmitter are too far apart.
• The VOX sensitivity is set too low.
Reception interference
- The receiver and transmitter are too far apart.
• The battery power is too low. - Other electronic devices are causing interference in the field of transmission.
Howling or squealing noise (acoustic feedback)
- Increase the distance between receiver and transmitter.
- Reduce the volume on the receiver.
Noise
• The battery power is too low.
Picture but no sound transmission
• Volume setting is too low.
Picture is in black and white
• The night vision function is active.
The battery pack in the receiver is not charged
- The power adapter plug is not connected.
Declaration of conformity
CE
This device fulfils the requirements stipulated in the EU directive:
1999/5 EU directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.
Conformity with the above mentioned directive is confirmed by the CE symbol on the device.
To view the complete Declaration of Conformity, please refer to the free download available on our website www.audioline.de
Maintenance
- Clean the housing surfaces with a soft, fluff-free cloth.
- Never use cleaning agents or solvents.
GB
Technical data
Camera (transmitter) Socket: 6 V DC
Sensor: 1 night light sensor
IR diodes: 4
Monitor (receiver) Screen: 2,4" LC display
Socket: 6 V DC
Power supply (receiver) Power adapter plug, input:
100-240 VAC, 50-60Hz, 150 mA
Power adapter plug, output: 6 VDC, 800 mA
or Lithium-ion battery pack 3.7 Volt / 1500 mAh
Initial charging time for battery Up to 16 h
Power supply (transmitter) Power adapter plug, input:
100-240 VAC, 50-60Hz, 150 mA
Power adapter plug, output: 6 VDC, 800 mA
Range Up to 150 meters under optimum conditions. Range is
reduced in buildings through walls, doors etc.
Frequency range 2.4 GHz (digital)
Permissible ambient temperature 0°C to 40°C
Transmission power (TX PA power) 15 \~ 17 dBm
Guarantee
AUDIOLINE equipment is produced and tested according to the latest production methods. Carefully selected materials and highly developed technology ensure perfect functioning and a long service life. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.
All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair defect parts, replace them or replace the entire device. Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.
If your device does show signs of a defect within the period of guarantee, please contact the sales outlet where you purchased the AUDIOLINE device, producing the purchase receipt as evidence. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.
