Product Type	Range Hood
Brand	Franke
Model	1261A
Motor Type	AC Motor
Lighting	LED, 6.5 W
Filter Material	Aluminium
Cleaning System	Easy Clean
Minimum Distance from Electric Hob	42 cm
Minimum Distance from Gas Hob	65 cm
Power Supply	230 V ~, earthed plug
Fan Speeds	3 speeds (standard, 1, 2)
Ventilation Mode	Exhaust air (ducting required)
Filter Cleaning Interval	Every 2 months (normal use)
Filter Dishwasher Safe	Yes
LED Replacement	By qualified professional only
Product Label Location	Left side under filter/bottom plate
Warranty	Covered by applicable AP-PLiA provisions
Environmental Compliance	RoHS Directive, Eco-design Regulation 66/2014

Frequently Asked Questions - 1261A FRANKE

What is the minimum installation height above a gas hob?

The minimum distance from a gas hob is 65 cm. For electric hobs, it is 42 cm, but always follow the hob manufacturer's recommendations if they specify a higher height.

How often should I clean the grease filters?

Under normal usage, clean the aluminium grease filters every two months. For intensive use, clean more frequently. They can be washed in a dishwasher or soaked in warm water with washing-up liquid.

Can I wash the blower and impeller?

Yes, the blower and impeller can be cleaned with warm water and washing-up liquid or in a dishwasher. Always disconnect the power before removing the bottom plate for cleaning.

How do I replace the LED lighting?

The LED lighting (6.5 W) must be replaced by a qualified professional using an equivalent special light fixture from the manufacturer. To remove, press the snap retainers from the sides and pull the light fixture straight down.

What should I do if the hood is not working?

Check the fuse, disconnect and reconnect the power, and verify the connector is not bent. If the issue persists, contact Franke Service with the FUN number, S/N, and manufacturing date from the product label.

Can I use the hood without ducting?

The product is designed for exhaust air diversion (ducting). It must be installed according to local regulations. The room must have adequate air supply if used simultaneously with combustion appliances.

Is it safe to flambé food under the hood?

No, you must never flambé food underneath the product as it poses a fire risk.

How do I adjust the air flow speeds?

Air flow for ventilation mode and speeds 1 and 2 can be adjusted by moving cables on the transformer. This must be done by a qualified professional. Contact Franke Service for assistance.

Where can I find the product label?

The product label is located on the left side of the hood, underneath the filter/bottom plate. It contains the FUN number, S/N, and manufacturing date.

What is the warranty coverage?

The product is covered by the relevant AP-PLiA provisions. For service, contact Franke Service at [phone] or visit www.franke.se/service.

USER MANUAL 1261A FRANKE

Exterior view of a white industrial air purifier with two circular outlets and a ventilation grille (no text or symbols visible)

BRUKSANVISNING

Safety Instructions 8

Instructions for use 10

Servicing and warranty....13

Electrical installation....29

Installation 30

Adjusting air flow....32

BRUKSANVISNING

Sikkerhetsforskrifter 24

Bruk....25

Simple line drawing of a circular object with an oval and a vertical line, no text or symbols present.

B
Fig.1

Simple line drawing of a blank whiteboard with a small inset showing a folded paper clip and an upward arrow (no text or symbols)

Fig.2

Technical line drawing of a fan assembly with mounting brackets and internal blades (no text or symbols)

Fig.3

Fig.4

Technical diagram of a gear assembly with internal components and a black arrow indicating rotation direction (no text or labels)

Fig.5

Technical line drawing of a mechanical gear or cam mechanism with a central arrow indicator (no text or symbols present)

Fig.6

Fig.8

Fig.9

Please read this installation and user guide carefully before installing and using the product, paying special attention to the safety instructions.

Keep the instructions for reference or for the next owner.

Disconnect the product from the power supply prior to cleaning or maintenance.

§ The diversion of exhaust air must be carried out in accordance with instructions issued by the appropriate authority.
§ Exhaust air must not be directed into flues that are used for fumes from items such as gas, wood or oil-burning stoves or fireplaces.

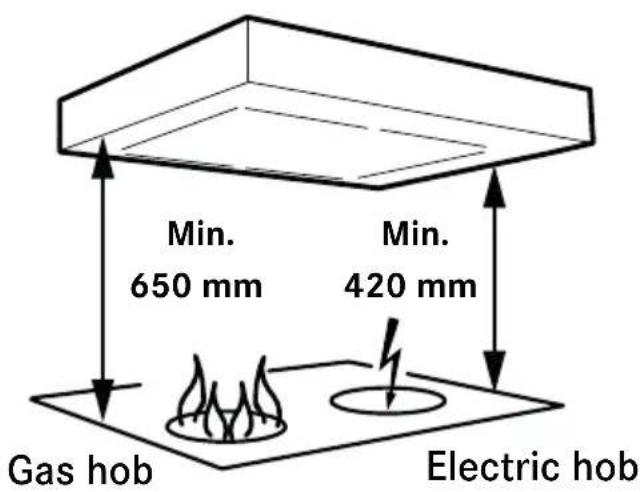

§ The distance between the stove and the product must be at least 42 cm. For gas hob, the distance should be increased to 65 cm. Adjust accordingly if the stove manufacturer recommends a higher mounting height.
§ For safety reasons, the installation and replacement of cables or other types of connectors should only be carried out by a qualified professional.

§ You must not flambé food underneath the product.
§ If the product is to be used at the same time as products that use energy sources other than electricity, i.e., gas hobs, gas, wood or oil-burning stoves or fireplaces, etc, the room must have an adequate supply of air.
§ The product may be used by children from 8 years of age and persons with mental, sensory or physical impairment, or a lack of experience and knowledge, provided they are given information about how the product is to be used.
§ Children should not be allowed to play with the product. Children must not undertake cleaning or maintenance of the product unsupervised.
§ Accessible parts of the product may become hot when food is being prepared.
§ A fire is more likely to spread if the product is not cleaned as frequently as indicated.

Attention!

The developer or proprietor is responsible for ensuring installation is carried out correctly and complies with the applicable building regulations.

GENERAL INFORMATION

The product features LED lighting (6.5 W), aluminium filters, an AC motor and the Easy Clean system.

FUNCTIONS

A

Simple line drawing of a circular object with a horizontal bar and a small sun icon above it (no text or symbols)

B
Fig. 1

The fan motor always runs in standard mode when the product is powered up.

A. Fan speeds.

1. Ventilation mode.
2. Speed 1.
3. Speed 2.

B. Lighting.

It is a good idea to turn on the fan before starting to cook, as this prevents cooking smells spreading into the room. Adjust the speed of the fan depending on the type of food you are preparing. If possible, allow the fan to run at a low speed for a few minutes after you've finished cooking. You may also wish to run the fan on the low setting when the oven is in use or after using the dishwasher.

CARE AND MAINTENANCE

Attention!

In order to ensure operation, quality and safety after servicing and maintenance, use only original parts.

Cleaning the filter

The cooker hood should be cleaned with a damp cloth and washing-up liquid. With normal usage, the filters must be cleaned at least every other month. Clean more often after intensive use.

Simple line drawing of a blank rectangular board with a small inset showing a folded paper or clip (no text or symbols)

Fig. 2

Remove the grease filter by opening the snap retainer, Fig. 2.

Handle the filter carefully, taking care not to bend it.

Soak the filter in a solution of warm water and washing-up liquid. The filter can also be washed in a dishwasher.

Refit the grease filter after cleaning, making sure it snaps firmly into place.

Cleaning other parts

Attention!

When cleaning other parts, always disconnect the power to the cooker hood by pulling out the plug before removing the bottom plate.

The interior of the cooker hood and removable parts should be cleaned at least twice a year.

Technical line drawing of a fan assembly with mounting brackets and internal blades (no text or symbols)

Fig. 3

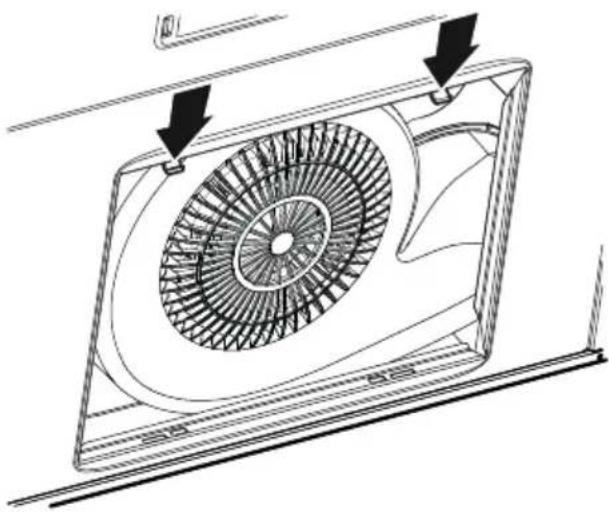

Remove the bottom plate by pushing the snap retainers in the direction of the arrows. Fig. 3

Fig. 4

Release the blower by bending the snap retainer outwards in the direction of the arrow (1) and pushing the blower away from you and down (2), Fig. 4.

Technical diagram of a gear assembly with a black arrow indicating rotational direction (no text or labels)

Fig. 5

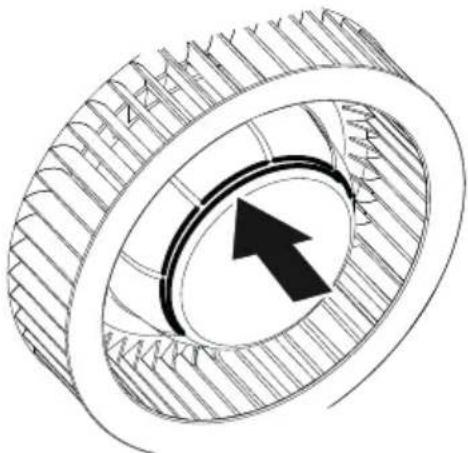

Release the impeller by pulling in the direction of the arrow, Fig. 5

Clean the bottom plate, blower and impeller using warm water and washing-up liquid. The blower and impeller can also be washed in a dishwasher. After washing and drying, assemble the parts in reverse order.

Technical line drawing of a mechanical gear or cam component with a black arrow indicating direction (no text or symbols)

Fig. 6

Refit the impeller. Make sure that it is level in the groove on the motor.

Fig. 7

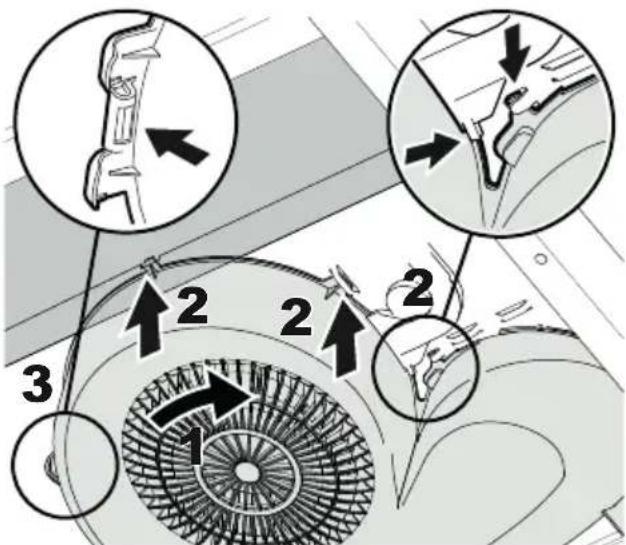

Refit the blower by inserting the supports in the rear of the hood (1). Bend up the blower (2). Fig. 7

Fig. 8

Make sure all the snap retainers fit onto the cooker hood lugs. Twist the blower (1) into the lugs (2). Press the blower's snap retainer back into the lug (3). Fig. 8

Attention!

Check that the parts snap firmly into place.

REPLACEMENT OF LED LIGHTING

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Fig. 9

The lighting must be replaced with an equivalent special light fixture from the manufacturer or its service agent.

The lighting is removed by pressing the snap retainers from the sides and pulling the light fixture straight down so that the lighting cable can be accessed. Fig. 9

TROUBLESHOOTING

Check that the fuse is intact. Go through all the functions to check what is not working. Start by disconnecting the product from the power supply and switching it on again. Check that the connector is not bent or twisted at the connection point.

SERVICING

Fig. 10

Before contacting servicing, check the product label and note down the FUN number, S/N number and manufacturing date of the product.

The product label is located on the left side, underneath the filter/bottom plate.

Franke Service

Tel. [phone]

www.franke.se/service

They can help you fix the problem or refer you to the nearest service agent for fast and effective service.

The product is covered by the relevant AP-PLiA provisions.

ENVIRONMENTAL INFORMATION

The main raw materials used in Franke's products are:

• Metals: stainless sheet metal, galvanised sheet metal, zinc, aluminium
• Plastics: polypropylene, polyamide, polycarbonate, polybutylene terephthalate (PBT)
• Glass

All components comply with the RoHS Directive. Several of Franke's products have undergone environmental assessment by a third party. For more detailed environmental information, go to www.franke.se

PACKAGING AND PRODUCT RECYCLING

The packaging should be deposited at your nearest recycling point.

The symbol means that the product must not be treated as household waste. It should instead be taken to a collection point for the recycling of electrical and electronic components. By ensuring that the product is dealt with in the correct manner, you are helping to prevent the adverse environmental and health effects that could arise if the product was disposed of as regular waste. For further information on recycling, contact your local authority or waste disposal service, or the store where you purchased your product.

ECO-DESIGN DIRECTIVE

The product meets and is tested in accordance with the eco-design requirements of European Regulation 66/2014.

Simple line drawing of a circular object with a horizontal bar and a small sun icon, no text or symbols present.

B
Fig. 1

Simple line drawing of a blank whiteboard with a small inset showing an arrow and a small square (no text or symbols)

Fig. 2

Technical line drawing of a fan with visible blades and mounting brackets (no text or symbols)

Fig. 3

Fig. 4

Technical diagram of a mechanical gear assembly with a black arrow indicating rotational direction (no text or labels)

Fig. 5

Technical line drawing of a mechanical gear or cam mechanism with a central arrow indicator (no text or symbols present)

Fig. 6

Fig. 8

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Fig. 9

Simple line drawing of a circular object with an oval and a vertical line, no text or symbols present.

B

Kuva 1

Simple line drawing of a blank whiteboard with a small inset showing an arrow and a small square (no text or symbols)

Kuva 2

Technical line drawing of a fan assembly with mounting brackets and internal blades (no text or symbols)

Kuva 3

Kuva 4

Technical diagram of a mechanical gear assembly with no visible text or symbols

Kuva 5

Technical line drawing of a mechanical gear or wheel with a black arrow indicating direction (no text or symbols)

Kuva 6

Kuva 8

Diagram showing two mechanical components with arrows indicating direction of movement, no text or symbols present

Kuva 9

Simple diagram of a circular object with a horizontal bar and labeled point B, no text or symbols present.

Fig. 1

PLEIE OG VEDLIKEHOLD

Merk:

Simple line drawing of a blank whiteboard with a small square and a black arrow symbol on the top (no text or labels)

Fig. 2

Technical line drawing of a fan with visible blades and mounting brackets (no text or symbols)

Fig. 3

Fig. 4

Technical line drawing of a mechanical gear assembly with no visible text or symbols

Fig. 5

Technical line drawing of a mechanical gear or cam mechanism with no visible text or symbols

Fig. 6

Fig. 8

Påse at alle klipsene passer mot flikene på ventilatoren. Skru inn ventilatorhuset (1) i flikene (2). Trykk ventilatorhusklipsen tilbake i fliken (3). Fig. 8

Merk:

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Fig. 9

Belysningen må skiftes ut med en tilsvaren- de spesialarmatur fra produsenten eller de- res serviceagent.

etrical connection for 230 V\~ earthed.

The product is supplied with a cable and earthed plug for connection to an earthed socket. The socket should be accessible after installation is complete.

The junction box or wall socket must be accessible after installation is complete.

If the connector is damaged, it must be replaced with an equivalent special cable from the manufacturer or their service agent.

ktrisk tilslutning til 230 V\~ med jordforbindelse.

Technical line drawings of four mechanical components: a screw, a washer, a ring, and a nut (no text or symbols)

Ax4 Bx4 Cx1 Dx2

JUSTERING AF LUFTMÆNGDE

TILPASNING AV LUFTSTR∅MMEN

ILMAVIRTAUKSEN SÄÄTÖ

ADJUSTING AIR FLOW

EN Note! Speed changes must be carried out by a qualified professional.

Changing the voltage in the transformer: The air flow for ventilation mode and speed 1 and 2 can be changed by moving the cables on the transformer. At delivery 60, 145 and 230 V are connected. (Contact Franke Service).

Static pressure in ventilation duct

Measurement of air flow is done with an air flow meter e.g. SwemaFlow
