USER MANUAL BFF60 Beemoo

Beemoo·BFF ^60.2

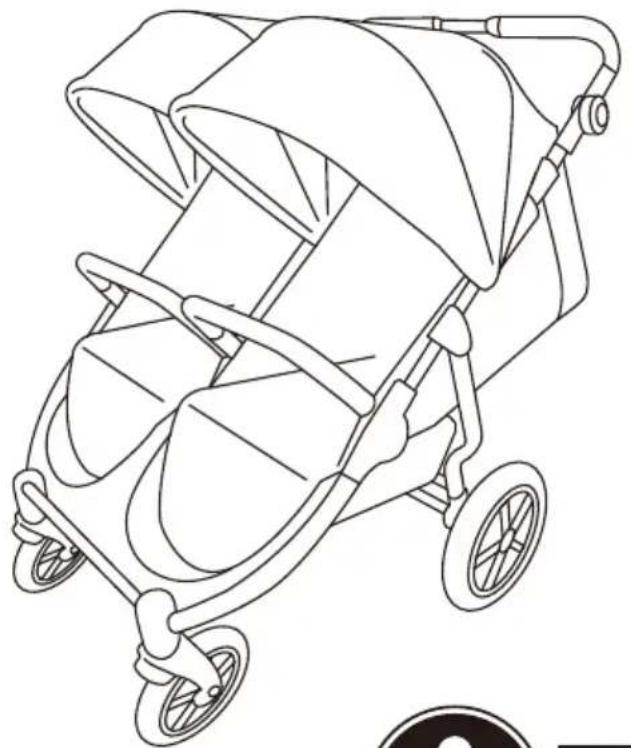

Line drawing of a baby stroller with four wheels and a back cover (no text or symbols)

IMPORTANT!VIKTIGT!ADVARSEL!

READ CAREFULLY AND

KEEP FOR FUTURE

REFERENCE.

Model: Beemoo BFF60 2

LÄS NOGA OCH

BEHÅLL FÖR FRAMTIDA

REFERENS.

Modell: Beemoo BFF60 2

LES N∅YE OG BEHOLD

FOR FREMTIDIG

REFERANSE.

Modell: Beemoo BFF60 2

ADVARSEL!TÄRKEÄÄ!

LÆS OMHYGGELIGT

OG GEM TIL

FREMTIDIG

REFERENCE.

Model: Beemoo BFF60 2

LUE OHJEET

HUOLELLISESTI JA

SÄILYTÄ NE TULEVAA

TARVETTA VARTEN.

Malli: Beemoo BFF60 2

WICHTIG!

LESEN SIE DIESE HINWEISE

AUFMERKSAM UND

BEWAHREN SIE SIE FÜR

ZUKÜNFTIGE FRAGEN AUF.

Modell: Beemoo BFF60 2

WARNING!

• Please read these instructions carefully before use and keep them for later reference. The safety of your child could be put at risk if you do not follow these instructions.
• WARNING! Never leave the child unattended.
• WARNING! Ensure that all the locking devices are engaged before use.
• WARNING! To avoid injury ensure that the child is kept away when unfolding and folding this product.
• WARNING! Do not let the child play with this product.
• WARNING! This seat unit is not suitable for children under 6 months.
• WARNING! Always use the restraint system.
• WARNING! Check that the pram body, seat unit, carrycot unit and/or car seat attachment devices are correctly engaged before use.
• WARNING! This product is not suitable for running or skating.
• WARNING! Maximum weight of a child for which the product is intended is up to 22 kg/seat or 4 years, whichever comes first.
• Beemoo BFF60 2 stroller is intended for no more than two (2) children. Do not carry extra children or bags on the stroller.
  • APPLY THE PARKING DEVICE WHENEVER YOU PARK THE STROLLER, ALWAYS MAKE SURE THE PARKING DEVICE IS ENGAGED CORRECTLY.
  • ALWAYS APPLY THE PARKING DEVICE WHENEVER THE STROLLER IS STATIONARY AND HOLD ON TO THE HANDLE.
• Before folding, remove all contents from the storage basket. Failure to do this could damage stroller and contents of storage basket.
• Do not place items on the top of the hood.
• Accessories which are not approved by the manufacturer shall not be used. Only replacement parts supplied or recommended by the manufacturer shall be used.
• Do not insert any additional mattresses into the stroller.
  • The maximum loading weight for the basket is 3 kg.

- Any load attached to the handle and on the back of the backrest and on the sides of the vehicle will affect the stability of the vehicle.

- Do not hang weight on the handle.

- This product is tested and approved according to European Standards: EN 1888-1 & EN 1888-2:2018+A1:2022.

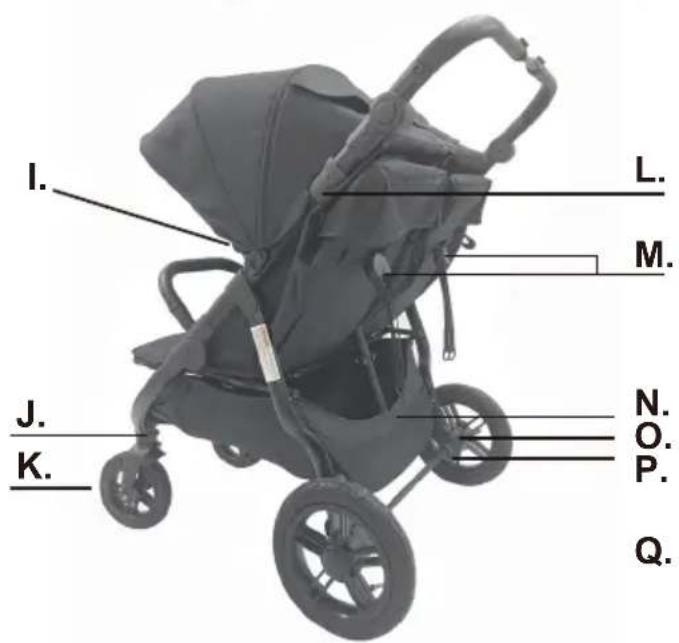

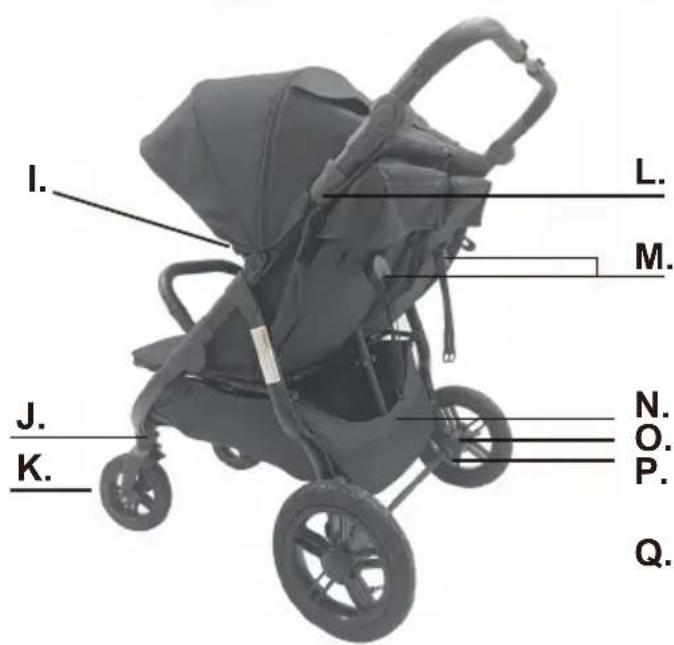

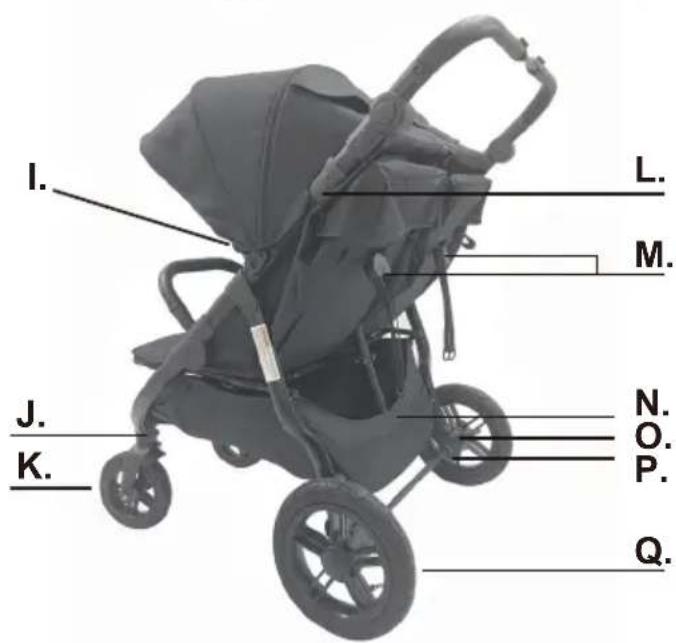

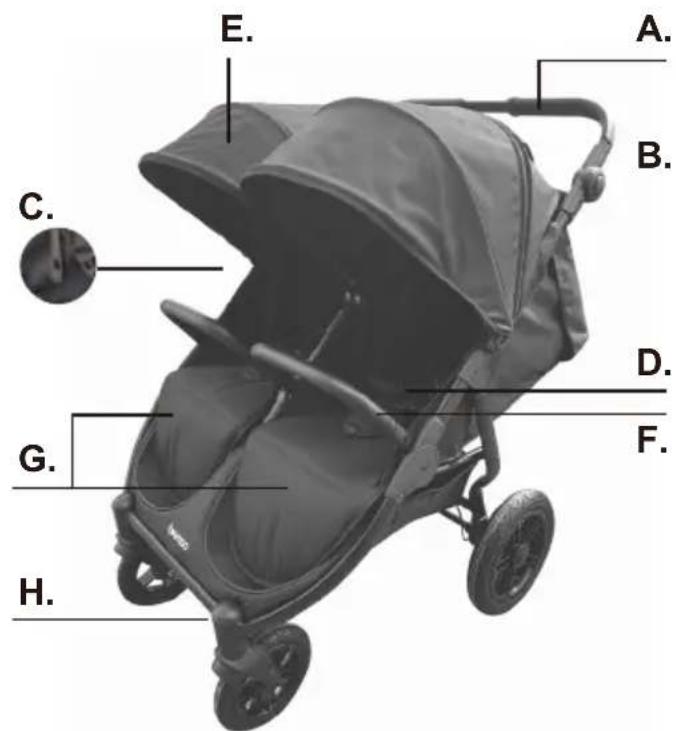

PARTS LIST

A. Handlebar
B. Handle height adjuster
C. Folding lock
D. Harness system
E. Canopy
F. Bumper bar
G. Leg rest adjuster (underneath leg rest)
H. Front wheel release button

I. Canopy connector
J. Swivel lock
K. Front wheel
L. Frame release levers
M. Seat recline adjuster
N. Storage basket
O. Parking device
P. Rear wheel release button
Q. Rear wheel

ASSEMBLY & FUNCTIONS

NOTE: All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

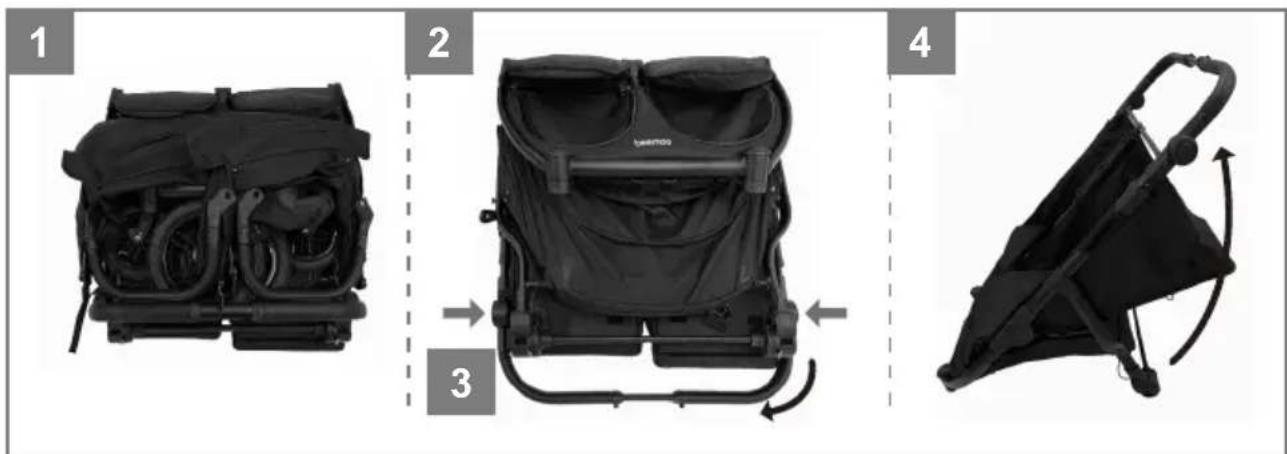

Open and Unfold the Stroller Frame:

(1) Take stroller out from the box and remove the plastic bag.
(2) Remove the following parts from the top of stroller frame: Canopy x2, Bumper bar x2, Wheels x4.
(3) Straighten the handlebar by pressing down both handle height adjuster buttons and adjust the handlebar down gently.
(4) Carefully flip the stroller frame over and open the folding lock. Then lift the handlebar until stroller frame engaged to opened position.

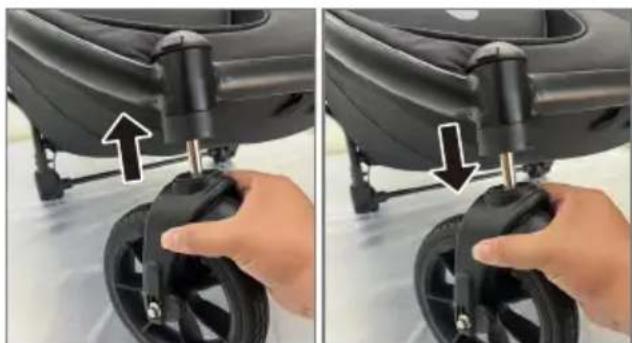

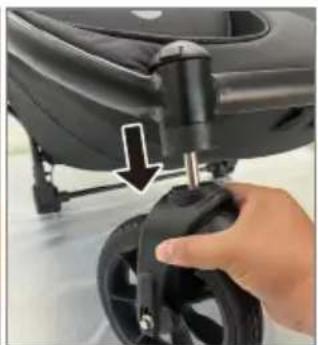

Install the Front Wheels:

(1) Put the front wheel assembly shaft into the housings on the frame until they lock into place.
(2) Pull on both front wheels to ensure they are properly locked.

Close-up of a black athletic scooter seat with hand positioning and mounting hardware (no text or symbols visible)

Remove the Front Wheels:

(1) Press and hold the release button on the top of the front wheel housing and pull out to detach the wheel from the stroller.

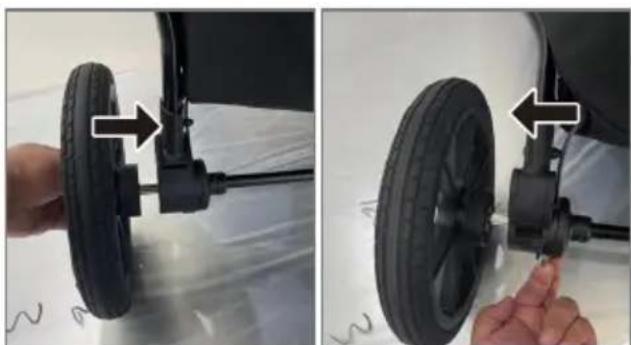

Install the Rear Wheels:

(1) Slide the assembly shaft into the housing on the rear axle.
(2) Pull on both rear wheels to ensure they are properly locked.

Remove the Rear Wheels:

(1) Push the rear wheel release button placed underneath the wheel housing and pull the wheel outwards to detach the rear wheel.

Close-up of hands adjusting a black tire component with a hand pointing to the wheel (no text or symbols visible)

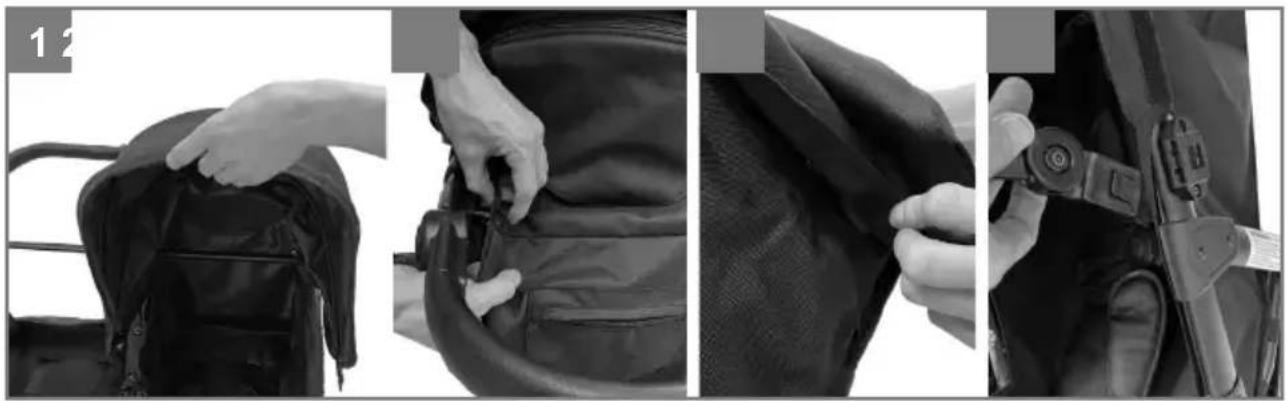

Attach the canopy:

(1) Wrap the horizontal bar above seat with the rear fabric portion of canopy.
(2) Fix the canopy to the horizontal bar using snap buttons.
(3) Attach the canopy to the back of the seat using Velcro tapes inside of the canopy.
(4) Fit the canopy connectors into the sockets on both sides of stroller seat.
(5) Open the canopy by pulling forward or withdraw by pushing it backward.

Remove the canopy:

(1) Apply the canopy attachment instruction in reverse order to detach the canopy from the stroller seat.

NOTE! Always close the canopy before folding the stroller.

Three-panel black-and-white photo sequence showing a person adjusting a seatbelt, with no visible text or symbols.

Install the Seat Bumper Bar:

(1) Place the bumper bar connectors on both sides of seat unit and slide the connectors into the sockets until a ‘click’ sound is heard.
(2) Gently pull on the bumper bar to ensure it is properly locked into place.

Remove the Seat Bumper Bar:

NOTE! The bumper bar can be opened from either side of the seat, and swinged to the side, without removing the bar entirely.

(1) Press the button in the center of bumper bar socket and pull the bumper bar upward. Rotate the bumper bar out and clear from the seat unit. Reattach the bumper bar after fastening the child in the harness.

(2) Press both release buttons and pull the bumper bar connectors out if the sockets to remove entirely.

Close-up of hands adjusting a black leather seatbelt component, showing structural details (no text or symbols visible)

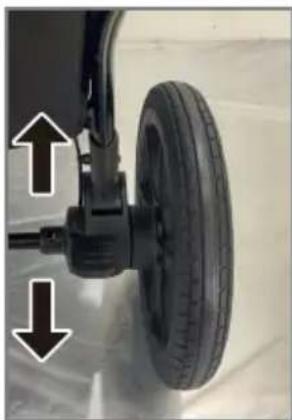

Using the Parking Device:

WARNING! ALWAYS APPLY THE PARKING DEVICE WHEN THE STROLLER IS STATIONARY.

(1) To lock the rear wheels, push down the parking lever on the rear wheel axel.
(2) To unlock the rear wheels, lift the lever up, using your foot, to release the parking device.

Close-up of a car wheel and suspension bracket with directional arrows indicating motion (no text or symbols)

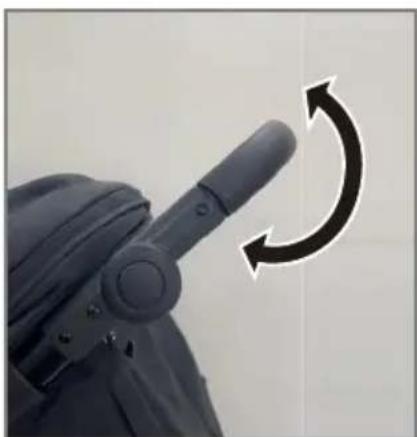

Adjust Handlebar Height:

(1) Press both buttons positioned on both sides of the handle and hold while raising or lowering the handle to the desired position.

Close-up of a hand holding a dark mechanical device with a curved arrow indicating rotational motion (no text or symbols)

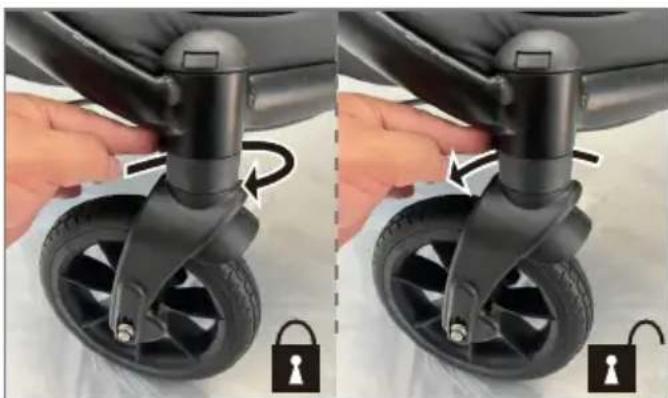

Use the Front Wheel Swivel Lock:

NOTE! Always lock the swivel wheels when using the stroller on rough terrain and surfaces to minimize wheel wobble. You may need to rotate the wheels to the correct position to engage the swivel lock.

(1) Rotate the swivel lock outward to lock the front wheels.

(2) Rotate the swivel lock inward to apply the swivel function.

Close-up of a black stroller with wheels and a hand adjusting the wheel (no text or symbols visible)

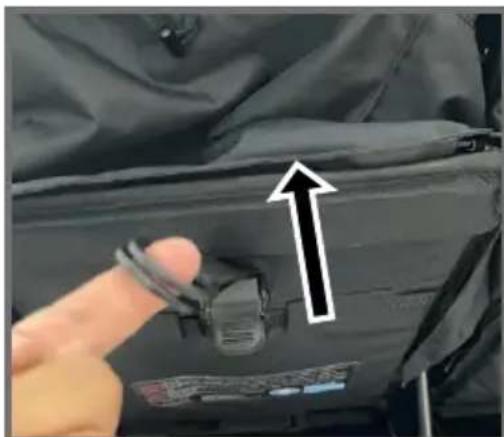

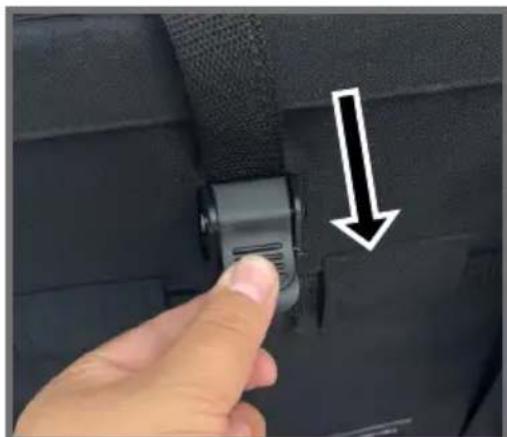

Adjust the Backrest:

WARNING! To avoid serious injury, DO NOT raise nor recline the seats backrest while the child is in the stroller.

(1) Press the adjustment button and pull downwards for reclined position.
(2) Pull the strap upwards for upright sitting position.

Hand inserting a cable into a car seatbelt, with a white arrow indicating the cable's direction (no text or symbols present)

Close-up of a hand holding a small black object with an arrow pointing upward, next to a dark jacket (no visible text or symbols)

Adjust the Leg Rest:

NOTE! The leg rest is not intended to support any additional weight.

WARNING! Do not allow children to stand nor sit on the leg rest.

(1) Press both adjustment buttons located underneath the leg rest and hold while adjusting the height to the desired position.

NOTE! If leg rest disengages, simply lift it up again, to reset the leg rest position.

Close-up of hands holding a dark gray car seat with two arrows pointing to the side (no visible text or symbols)

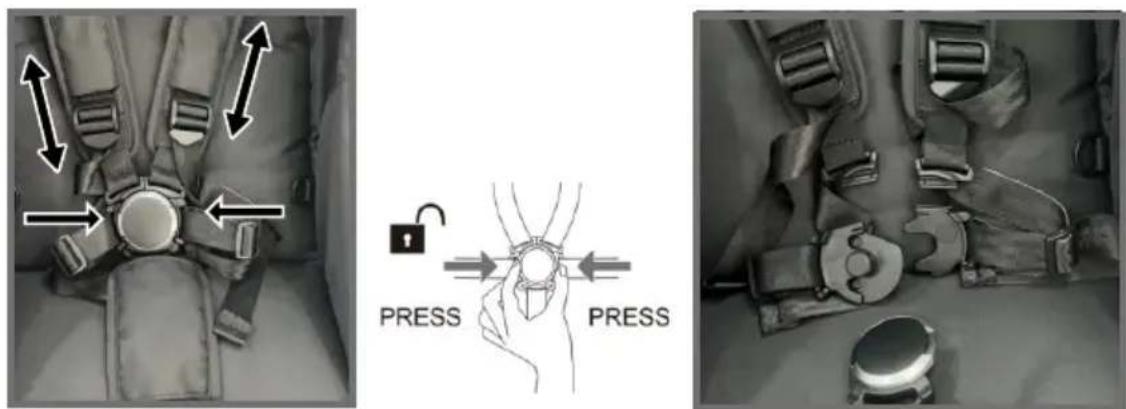

Adjust the Seat Belt:

WARNING! Always use the restraint system.

(1) Pull the strap upwards or downwards to adjust the length of the harness.

(2) Press the buckle to release the harness.

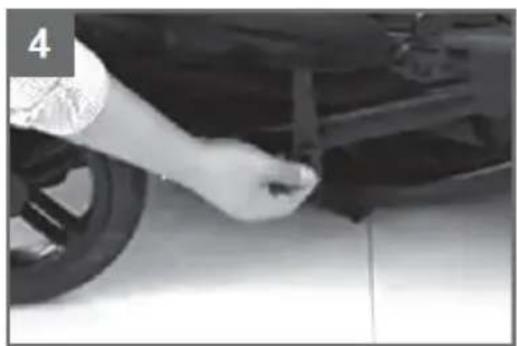

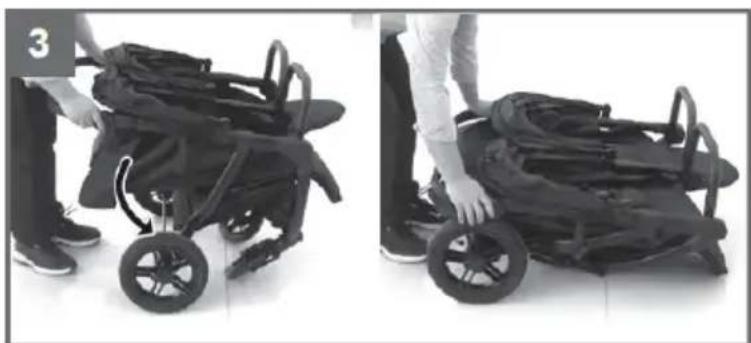

Fold the Stroller:

WARNING! To avoid injury ensure that the child is kept away when unfolding and folding this stroller.

NOTE! Fold the stroller carefully and be mindful where you place your hands. Be aware of the danger of being injured by moving parts and locking devices during the process. Keep hands and limbs clear of these parts.

(1) Close both canopies.

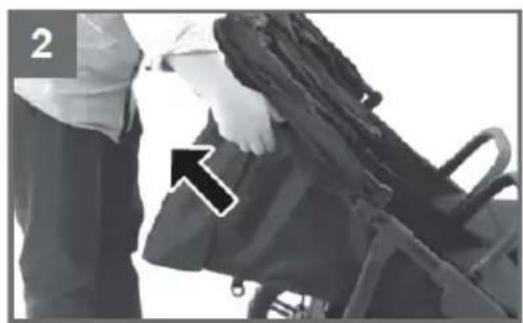

(2) Pull up both frame release levers located below the stroller handle, and step back while guiding stroller downwards into folded position.

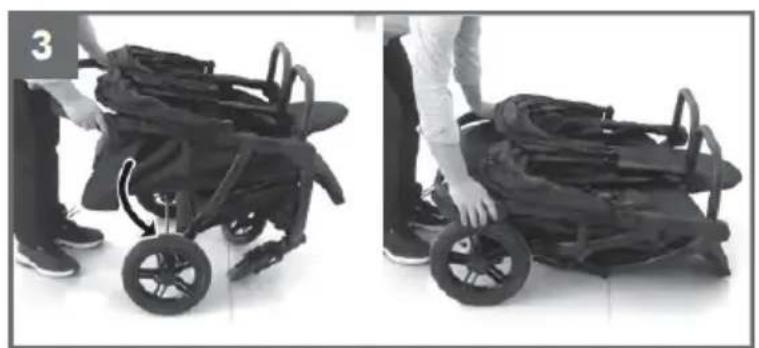

(3) Fold until the folding lock, located on the side of the chassis, engages.

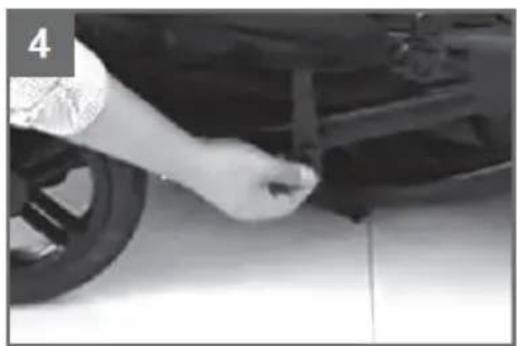

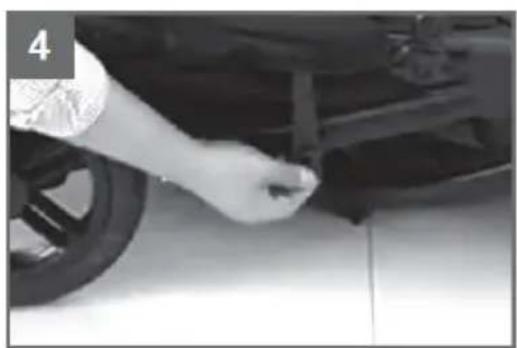

(4) You may manually engage the folding lock to the frame.

CAUTION! Ensure the folding lock is properly engaged before lifting the stroller.

Unfold the Stroller:

(1) Push the release on the folding lock and open the frame.

(2) Lift the handle until the frame locks into upright position.

Two-step black-and-white photo showing a person adjusting a jacket, with arrows indicating movement (no text or symbols)

Close-up of a person handling a backpack with an arrow pointing to the chest area (no text or symbols visible)

Two black strollers with wheels, one being adjusted and the other holding the wheel (no text or symbols visible)

Close-up of a hand adjusting a small component on a car wheel (no visible text or symbols)

CARE & MAINTENANCE

Five abstract geometric line patterns with no text or symbols

• To preserve the longevity of the product, it is important to perform regular maintenance. From time to time, make sure that the joints and folding mechanism areas are in good condition.
- Clean and inspect the product regularly.
- Check on a regular basis that the brakes, wheels, latches, connecting elements, belt systems and seams are properly functional.
- Use only accessories and spare parts provided and approved by the manufacturer.

Seat Fabric:

IMPORTANT! Ensure the seat fabric is correctly reattached to the frame after cleaning, incorrect installation may cause danger to your child.

• Do not use harsh cleaning detergent (such as solvents).
  • To minimize shrinkage, after washing, reattach the seat to the frame to dry.
• Do not press, iron, dry clean, tumble dry or wring the fabric.

Plastic/Metal Parts:

• Wipe clean using a mild soap and warm water.
• You must not remove, dismantle, or alter any part of the seat folding mechanism or brakes.

Wheel Care:

- Clean wheels by using a damp cloth. After washing, make sure to dry the wheels completely with a soft towel or cloth.

Storage:

• Exposing the stroller in strong sunshine can fade the fabric. Please store the stroller indoors.
• Ensure that the stroller is completely dry before storing for prolonged periods.
  • Always store the stroller in a dry environment.
• Store the stroller in a safe place when not in use (i.e., where children cannot play with it).
  • DO NOT place heavy objects on top of the stroller.
• DO NOT store the stroller near a direct heat source such as a radiator or fire.

WARNING!

Close-up of a hand adjusting a black bicycle seat with adjustment arrows (no text or symbols visible)

Ta av framhjulen:

Close-up of hands adjusting a black bicycle tire with a handle, showing mechanical assembly (no text or symbols visible)

Fäst sufflett:

Four-panel black-and-white photo showing a person adjusting a backpack, being adjusted, and adjusting a seatbelt (no text or symbols visible)

Installera Bygel:

Close-up of hands adjusting a black leather seatbelt component, showing structural details (no text or symbols visible)

Close-up of a car wheel and suspension bracket with directional arrows indicating motion (no text or symbols)

Close-up of a hand holding a dark mechanical device with a curved arrow indicating rotational motion (no text or symbols)

Close-up of a hand adjusting a black stroller wheel with a padlock, showing mechanical adjustment (no text or symbols visible)

Justera ryggstödet:

Hand inserting a USB into a black plastic component, with a white arrow indicating the insertion direction (no text or symbols present)

Close-up of a hand adjusting a black plastic clip with an arrow pointing upward (no text or symbols visible)

Justera benstödet:

Close-up of hands installing a dark gray car seat cover with two arrows pointing to the side (no text or symbols visible)

Fäll ut vagnen:

Two-step black-and-white photo showing a person adjusting a jacket, with arrows indicating movement (no text or symbols)

Person handling a jacket with an arrow pointing to the chest area (no visible text or symbols)

Two black strollers with hands placed on wheels, shown from different angles (no text or symbols visible)

Close-up of a hand adjusting a small component on a vehicle wheel (no visible text or symbols)

SKÖTSEL OCH UNDERHÅLL

Five abstract geometric line drawings with intersecting and overlapping shapes (no text or symbols)

Close-up of a hand adjusting a black bicycle seat with wheels, showing adjustment arrows (no text or symbols)

Close-up of hands adjusting a black tire component with a hand adjusting the wheel (no text or symbols visible)

Fest kalesjen:

Four-panel black-and-white photo sequence showing a person adjusting a jacket, being adjusted, and adjusting a seatbelt (no text or symbols visible)

Monter frontbøylen på setet:

Close-up of hands installing or adjusting a black leather seatbelt component, no visible text or symbols

Close-up of a car wheel and suspension bracket with directional arrows indicating motion (no text or symbols)

Juster styrehøyden:

Close-up of a dark-colored stroller handle with a curved arrow indicating rotational motion (no text or symbols)

Bruk svinglåsen på forhjulet:

Close-up of a black stroller with wheels and a hand adjusting the wheel (no text or symbols visible)

Juster ryggstøtten:

Close-up of a hand inserting a black cable clip into a car seat, with a white arrow pointing to the clip (no text or symbols visible)

Close-up of a hand inserting a clip into a black jacket, with an arrow indicating the clip's direction (no text or symbols visible)

Juster benstøtten:

Close-up of hands holding a dark gray car seat cover with two arrows pointing to the sides (no text or symbols visible)

Juster sikkerhetsbeltet:

Folde sammen vognen:

Two-step black-and-white photo showing a person adjusting a jacket, with arrows indicating movement (no text or symbols)

Person handling a large bag with an arrow pointing to it (no visible text or symbols)

Two black strollers with wheels, one being adjusted and the other holding the wheel (no text or symbols visible)

Close-up of a hand adjusting a car wheel component on tiled floor (no visible text or symbols)

RENGJ∅RING OG VEDLIKEHOLD

Five abstract geometric symbols with intersecting lines, no text or labels present

Close-up of a hand adjusting a black bicycle seat with arrows indicating motion (no text or symbols visible)

Close-up of hands adjusting a black tire component with a hand pointing to the wheel (no text or symbols visible)

Montering af kalechen:

Four-panel black-and-white photo sequence showing a person adjusting a jacket, being adjusted, and opening a car seat (no text or symbols visible)

Montering af bøjle:

Close-up of hands installing or adjusting a black leather seatbelt component, no visible text or symbols

Close-up of a car tire mounted on a lift, with two arrows pointing to the wheel (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating rotational motion (no text or symbols)

Close-up of a black stroller with hand and lock mechanism, showing wheel assembly and adjustment (no text or symbols)

Close-up of a finger pressing a button on a black vehicle (no text or symbols visible)

Close-up of a hand adjusting a black plastic clip with an arrow pointing upward (no text or symbols visible)

Close-up of hands installing a dark gray backpack cover with a white logo and two arrows pointing to the sides (no text or symbols visible)

Two-step black-and-white photo showing a person adjusting a jacket, with arrows indicating movement (no text or symbols)

Close-up of a person handling a backpack with an arrow pointing to the chest area (no text or symbols visible)

Two black strollers with different back cover designs, shown from side-by-side angles (no text or symbols visible)

Close-up of a hand adjusting a small black component on a vehicle wheel (no visible text or symbols)

PLEJE OG VEDLIGEHOLDELSE

Five abstract geometric symbols with crossed and straight lines, no text or labels present

KOKOAMINEN JA TOIMINNOT

Close-up of a hand adjusting a black stroller with arrows indicating motion (no text or symbols visible)

Close-up of a hand adjusting a black tire with a hand operating the wheel (no text or symbols visible)

Four-panel black-and-white photo showing a person adjusting a jacket, being adjusted, and opening a car seat (no text or symbols visible)

Close-up of hands adjusting a black leather seat component, showing structural details (no text or symbols visible)

Close-up of a car's wheel and suspension components with directional arrows indicating motion (no text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotational motion (no text or symbols)

Close-up of a black stroller with wheels and a hand adjusting the wheel (no text or symbols visible)

Close-up of a finger pressing a black cable clip on a car interior, with a white arrow pointing to the clip (no text or symbols visible)

Close-up of a hand adjusting a black plastic clip with an arrow pointing upward (no text or symbols visible)

Close-up of hands holding a dark gray car seat cover with two arrows pointing to the side (no text or symbols visible)

Two-step black-and-white photo showing a person adjusting a jacket, with arrows indicating movement (no text or symbols)

Close-up of a person holding a jacket with an arrow pointing to the chest area (no visible text or symbols)

Two black strollers with hand gestures, one being lifted by a person (no text or symbols visible)

Close-up of a hand adjusting a small component on a vehicle wheel (no visible text or symbols)

HUOLTO JA PUHDISTUS

Five abstract geometric line patterns with no text or symbols

Close-up of a hand adjusting a black bicycle stroller with a hand holding the wheel (no text or symbols visible)

Close-up of a hand adjusting a black bicycle seat with a hand operating the wheel (no visible text or symbols)

Two-panel photo showing hands assembling a black tire with a cable, no text or symbols visible

Four-panel black-and-white photo sequence showing a person adjusting a jacket, being adjusted, and adjusting a seatbelt (no text or symbols visible)

Close-up of hands adjusting a black leather seatbelt component, showing repair and mounting details (no text or symbols visible)

Close-up of a car tire mounted on a vehicle wheel, with two arrows pointing to the side (no text or symbols visible)

Griffhöhe anpassen:

Close-up of a hand holding a mechanical component with a curved arrow indicating rotational motion (no text or symbols)

Close-up of a hand adjusting a black stroller wheel with a lock mechanism (no text or symbols visible)

Hand inserting a cable into a car seatbelt, with a white arrow indicating the cable's direction (no text or symbols present)

Close-up of a hand inserting a small object into a dark jacket, with an arrow indicating upward motion (no text or symbols visible)

Close-up of hands installing a car seat cover with arrows pointing to the buttons (no text or symbols visible)

Two-step black-and-white photo showing a person adjusting a jacket, with arrows indicating movement (no text or symbols)

Close-up of a person in a wheelchair with an arrow pointing to the seat area (no text or symbols visible)

Two black strollers with handles and wheels, shown from side-by-side angles (no text or symbols visible)

Close-up of a hand adjusting a small black component on a vehicle wheel (no visible text or symbols)

PFLEGE UND WARTUNG

Five abstract geometric line patterns with crossed and straight lines, no text or symbols present

Produced by: Jollyroom AB

Sörredsvägen 111

SE- 418 78 Göteborg

SWEDEN

Contact:

[phone]

Produceret af: Jollyroom AB

Sörredsvägen 111

SE-418 78 Gøteborg

SVERIGE

Kundeservice:

[phone]

Producerad av:

Jollyroom AB

Sörredsvägen 111

SE-418 78 Göteborg

SVERIGE

Konsumentkontakt:

[phone]

Tuottanut:

Jollyroom AB

Sörredsvägen 111

SE-418 78 Göteborg

RUOTSI

Asiakaspalvelu:

09-42 41 55 55

Produsert av :

Jollyroom AB

Sörredsvägen 111

SE-418 78 Göteborg

SWEDEN

Kundekontakt:

[phone]

Produziert von:

Jollyroom AB

Sörredsvägen 111

SE-418 78 Göteborg

SCHWEDEN

Kundenservice:

[phone]
