Activity Twin - Stroller Beemoo - Free user manual and instructions

Product Type	Twin Stroller
Model	Activity Twin
Dimensions (Open)	120 x 80 x 100 cm
Dimensions (Folded)	90 x 60 x 40 cm
Weight	15 kg
Maximum Weight per Seat	15 kg
Suitable Age	From birth up to 3 years
Harness Type	5-point harness
Seat Recline	Multiple recline positions
Canopy	Adjustable with UV protection
Wheel Type	4-wheel, front swivel
Brake System	Foot-operated parking brake
Storage Basket	Under-seat basket, capacity up to 5 kg
Frame Material	Aluminum
Fabric Material	Polyester, removable and washable
Cleaning Instructions	Hand wash fabric parts, wipe frame with damp cloth
Safety Certification	EN 1888
Included Accessories	Rain cover, shopping basket, adjustable canopy
Spare Parts Availability	Yes, through authorized service centers

Frequently Asked Questions - Activity Twin Beemoo

How do I assemble the twin stroller?

Can I use the stroller for newborns?

How do I clean the fabric?

What is the weight limit per seat?

Can I fold the stroller easily?

Is the canopy adjustable?

How do I use the parking brake?

Can I attach a car seat to this stroller?

What is the warranty period?

Where can I find the user manual?

USER MANUAL Activity Twin Beemoo

Line drawing of a two-wheeled stroller with front and rear panels (no text or symbols)

IMPORTANT!VIKTIGT!ADVARSEL!

READ CAREFULLY AND

KEEP FOR FUTURE

REFERENCE.

Model: Beemoo ACTIVITY TWIN

LÄS NOGA OCH

BEHÅLL FÖR FRAMTIDA

REFERENS.

Modell: Beemoo ACTIVITY TWIN

LES N∅YE OG BEHOLD

FOR FREMTIDIG

REFERANSE.

Modell: Beemoo ACTIVITY TWIN

ADVARSEL!TÄRKEÄÄ!

LÆS OMHYGGELIGT

OG GEM TIL

FREMTIDIG

REFERENCE.

Model: Beemoo ACTIVITY TWIN

LUE OHJEET

HUOLELLISESTI JA

SÄILYTÄ NE TULEVAA

TARVETTA VARTEN.

Malli: Beemoo ACTIVITY TWIN

WICHTIG!

LESEN SIE DIESE HINWEISE

AUFMERKSAM UND

BEWAHREN SIE SIE FÜR

ZUKÜNFTIGE FRAGEN AUF.

Modell: Beemoo ACTIVITY TWIN

WARNING

• Please read these instructions carefully before use and keep them for later reference. The safety of your child could be put at risk if you do not follow these instructions.
• WARNING! Never leave the child unattended.
• WARNING! Ensure that all the locking devices are engaged before use.
• WARNING! To avoid injury ensure that the child is kept away when unfolding and folding this product.
• WARNING! Do not let the child play with this product.
• WARNING! This seat unit is not suitable for children under 6 months.
• WARNING! Always use the restraint system.
• WARNING! Check that the pram body and seat unit attachment devices are correctly engaged before use.
• WARNING! This product is not suitable for running or skating.
• WARNING! Maximum weight of a child for which the product is intended is up to 22 kg/seat or 4 years whichever comes first.
• No additional mattress should be used in the stroller unless it is recommended by the manufacturer.
• The maximum loading weight for the basket is 3 kg.
• Never use this stroller to carry more than two children at the same time.
• Never allow more than one child per seat.
• Use only accessories and spare parts provided and approved by the manufacturer.
• Any load attached to the handle and on the back of the backrest and on the sides of the vehicle will affect the stability of the vehicle.
• The parking device shall be engaged when placing and removing the child from the stroller.

• Assembly, folding and unfolding this stroller must be carried out by an adult!

• When crossing steps or stairs, or when the stroller is being lifted or carried, the child should always be taken out of the stroller.

• The accessories which are not approved by the manufacturer shall not be used.
• This product is tested and approved according to European Standards: EN 1888-2:2018+A1:2022.

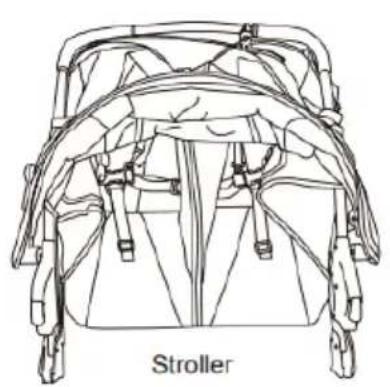

PARTS LIST

Line drawing of a stroller with attached harnesses and wheels (no text or symbols)

→ Parent Tray Screws

Front Wheel
Axel Nuts

Retainer plate
Rear Wheels

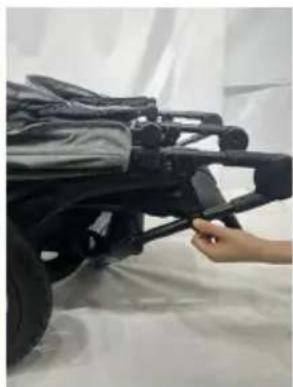

ASSEMBLY

Note! Color and features of the product may differ from the images shown in this manual.

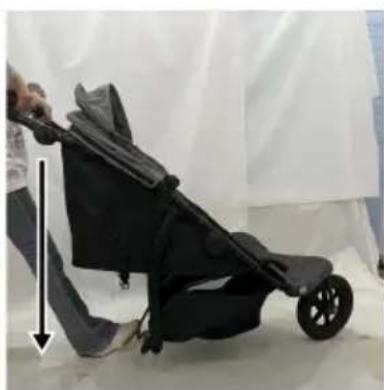

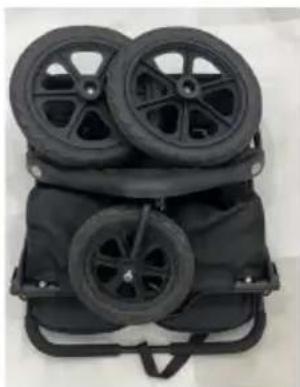

• Take out the stroller from carton. (1)
- Release the locking hook from side tube. (2)
- Use your foot to fix stroller then lift the handle upwards with both hands until the frame is fully open with a "click" sound from locking. (3)

Black compact toy vehicle with two wheels, shown in a flat case (no text or symbols visible)

1a

Black and gray backpack case with straps and accessories (no visible text or symbols)

1b 2 3

Hand adjusting a black athletic vehicle chassis on a white cloth (no visible text or symbols)

Black stroller with black seat and white body, viewed from side (no text or symbols visible)

REAR WHEELS ASSEMBLY

• Push the rear wheel into the rear leg tube until the spring-loaded pin engages. Repeat assembly on the other side. Check that the wheels are properly locked into position. (4)
  • To remove the wheel: Press down the button on top of the side linking bar. (5)

Close-up of a car wheel and mechanical component with an arrow indicating direction (no visible text or symbols)

4a 4b

Close-up of a tire mounted on a vehicle chassis, with a white plastic sheet in the background (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with directional arrows (no text or symbols visible)

5

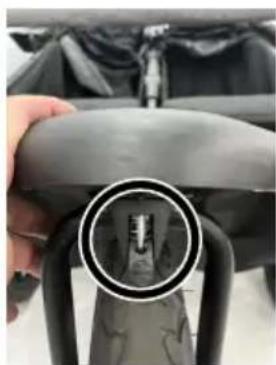

SWIVELING FRONT WHEELS

- Place the wheel in a straight forward position and pull up lever to lock the wheels. Press the lever down to set the wheels in swivel position. (6)

Close-up of a black bicycle's wheel and suspension system on snow (no text or symbols visible)

6-1

Close-up of a hand holding a black bicycle seatbelt with a circular inset showing a mechanical component (no text or symbols visible)

6-2

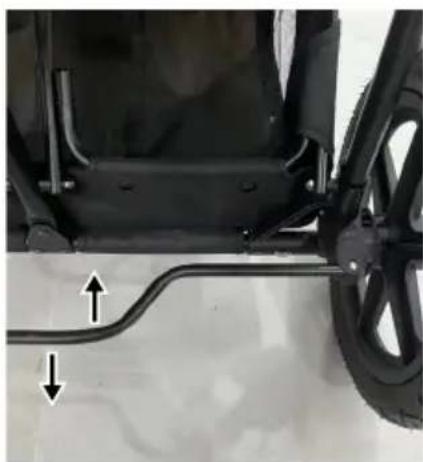

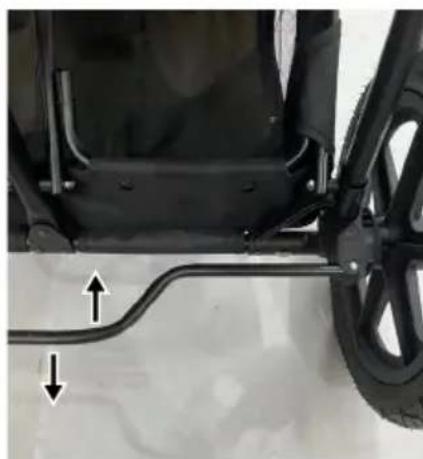

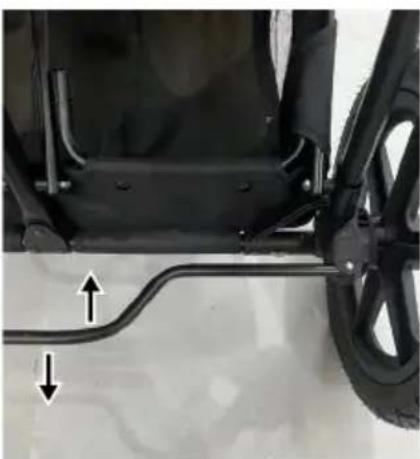

PARKING DEVICE

• Use your foot to press down the center tube to park. (7a)
• Lift the center tube to release the parking device. (7b)

WARNING: ALWAYS APPLY THE PARKING DEVICE WHENEVER THE STROLLER IS STATIONARY.

Close-up of a black bicycle chassis frame with two directional arrows indicating movement or force (no text or symbols)

7a,b

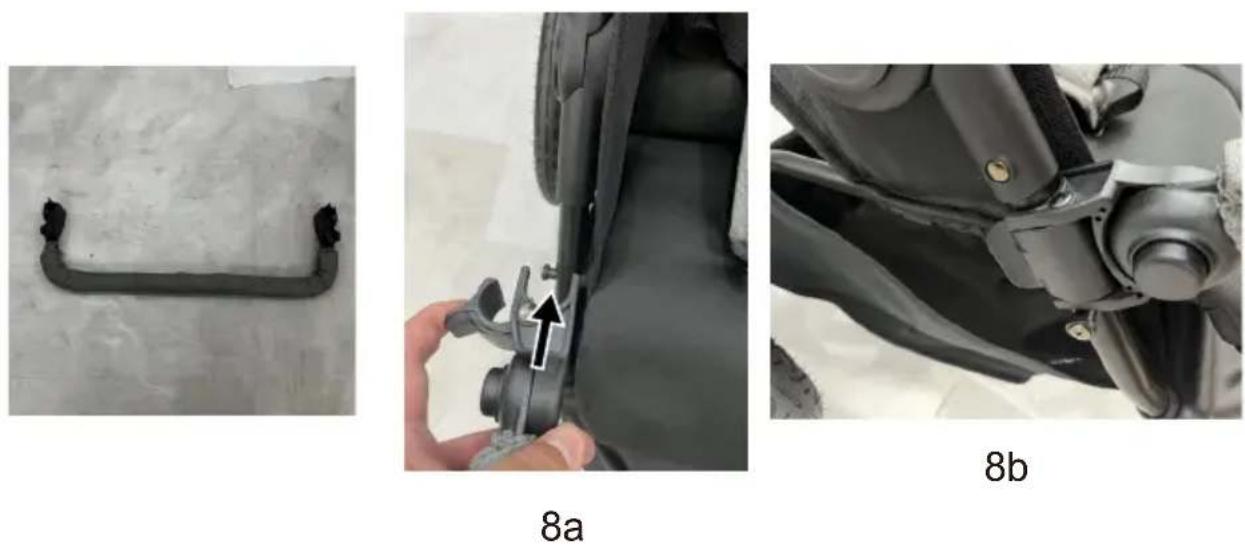

BUMPER BAR ASSEMBLY

• Install the front bar on the two side tubes (8a) and lock each side with the plastic clips (8b).
- Pull the front bar to make sure it is properly locked into place.

WARNING: NEVER ALLOW THE CHILD TO SIT OR STAND ON THE BUMPERBAR.

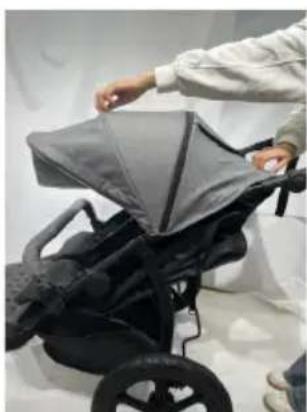

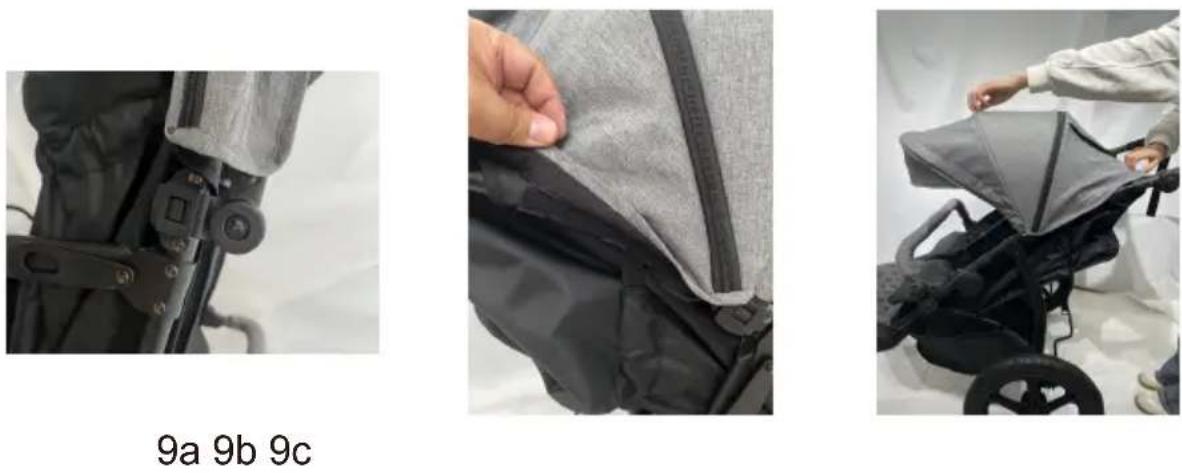

CANOPY ASSEMBLY

- Insert both sides of the canopy into the corresponding socket, then attach the velcro tabs & snap button on right position. (9a,9b,9c)

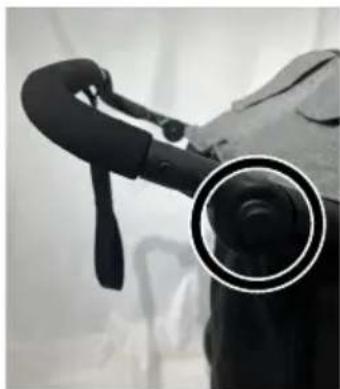

HANDLE HEIGHT ADJUSTABLE

- The handle can be adjusted by pressing down the two buttons, one on each side of the handlebar. (10)

Close-up of a black mechanical device with a circular highlight on the shoulder (no visible text or symbols)

10

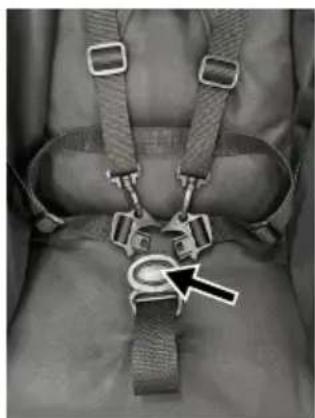

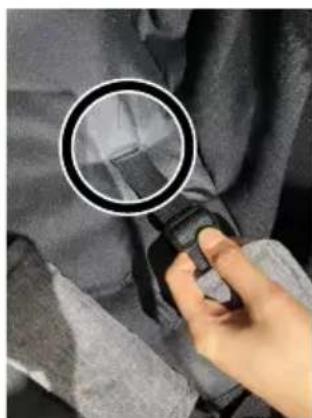

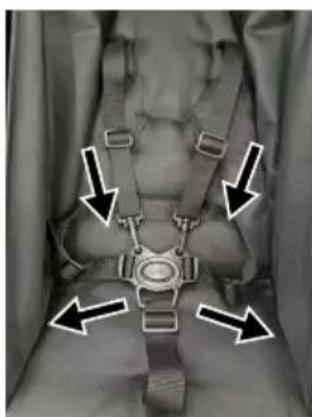

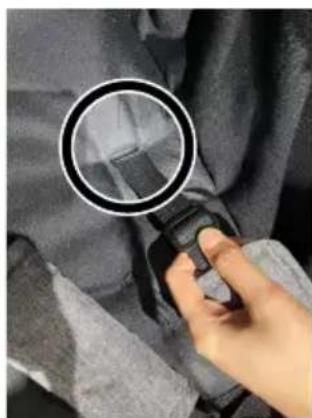

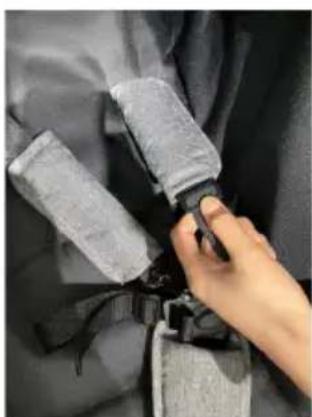

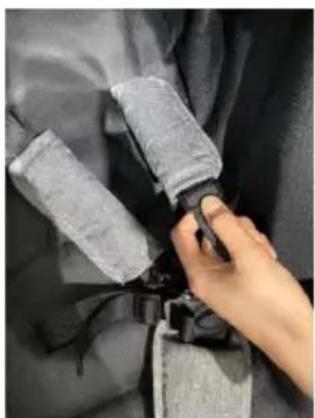

TO USE HARNESS

• To attach the harness and waist straps into the crotch buckle, click shoulder straps onto the waist straps, then click them into the crotch buckle.
• To adjust harness around your child, tighten shoulder and waist straps by pulling on the free end of the straps as shown. (11a)

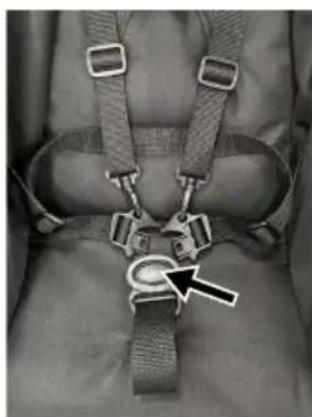

- To unlock harness, push the button on the crotch buckle to release the waist straps. (11b)
- Adjust height of the shoulder straps by the eyelets on backrest. (11c)

Medical illustration of a car seatbelt with directional arrows indicating movement or force (no text or symbols present)

Close-up of a person's seatbelt with straps and a circular connector (no text or symbols visible)

Close-up of a hand holding a magnifying glass over a dark fabric garment (no text or symbols visible)

Close-up of a hand adjusting a gray belt buckle (no text or symbols visible)

11a 11b 11c

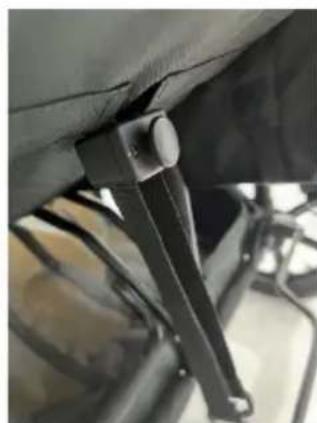

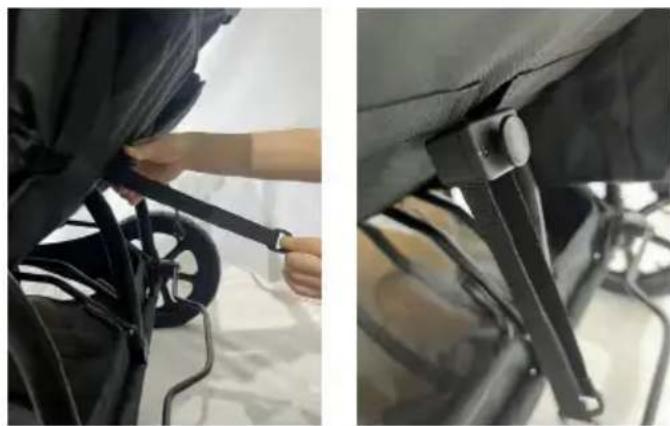

BACKREST

• To adjust the backrest, place one hand to hold the rings on the end of the strap while the other hand presses down the button on the top of the strap. Pull upwards to adjust the backrest to its upright position. (12)
• Press down the button and pull downwards to adjust backrest to reclined position. (13)

NOTE! DO NOT ADJUST THE BACKREST WHILE YOUR CHILD IS IN THE SEAT.

Two-panel image showing a person adjusting a black cable buckle, with no visible text or symbols.

12 13

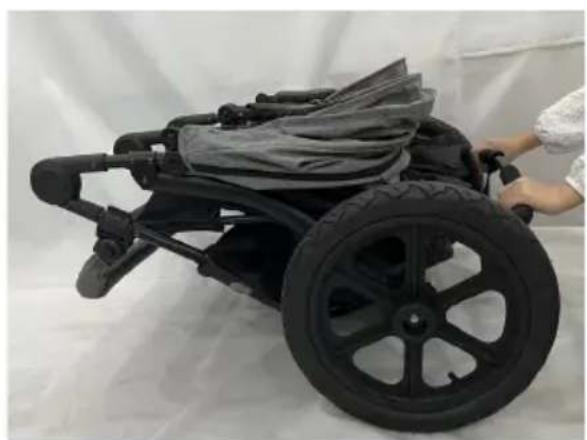

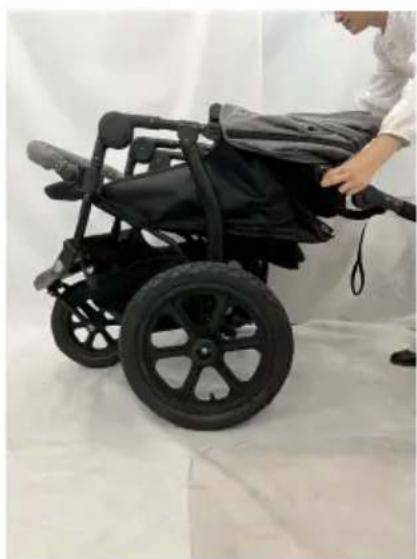

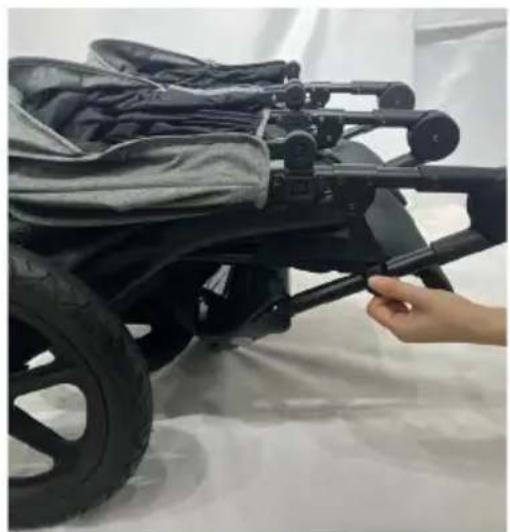

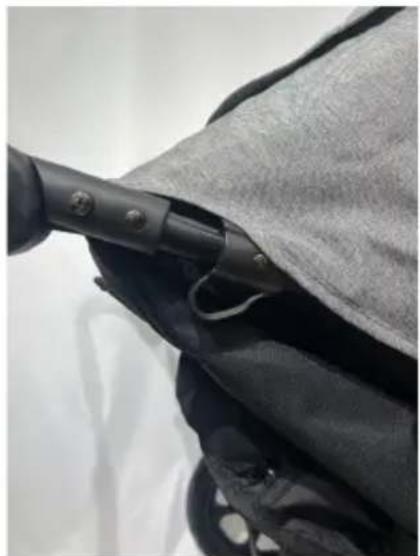

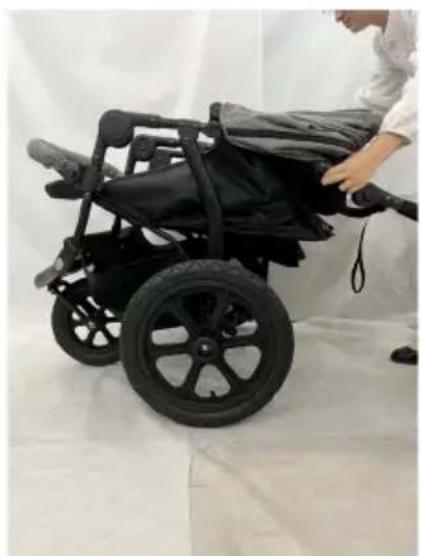

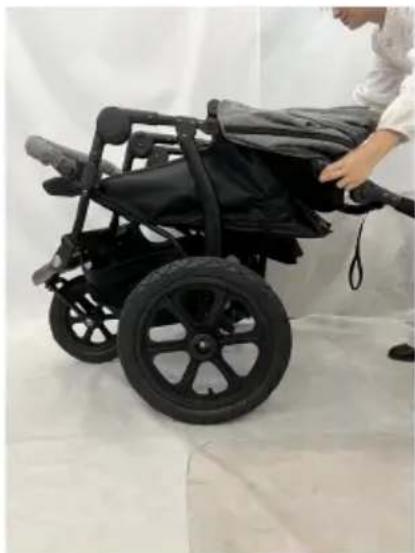

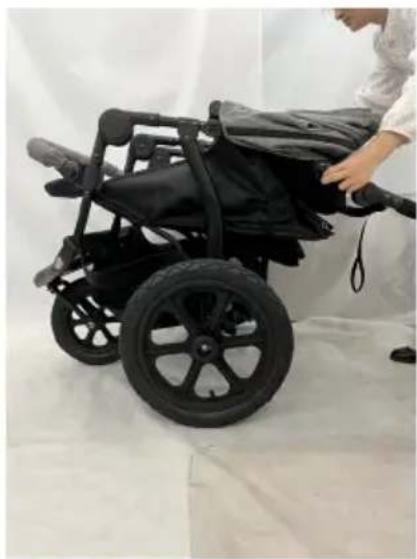

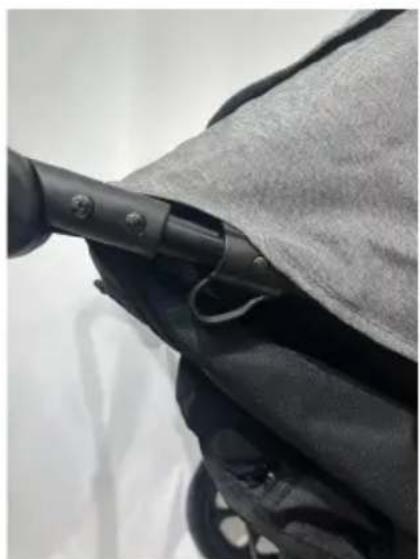

WARNING! To avoid injury ensure that the child is kept away when unfolding and folding this product.

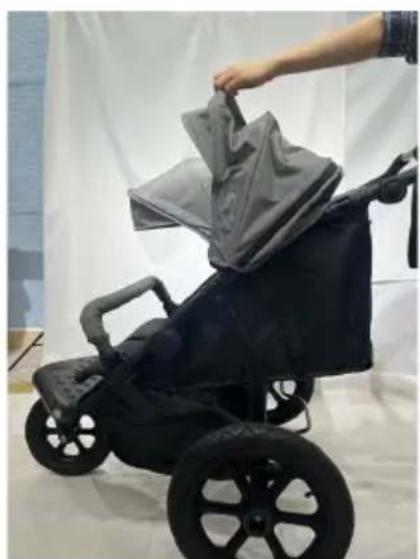

• Retract the canopy completely.
• Pull the two side locks towards you (in the direction of the arrow) to unlock the chassis. (14a)

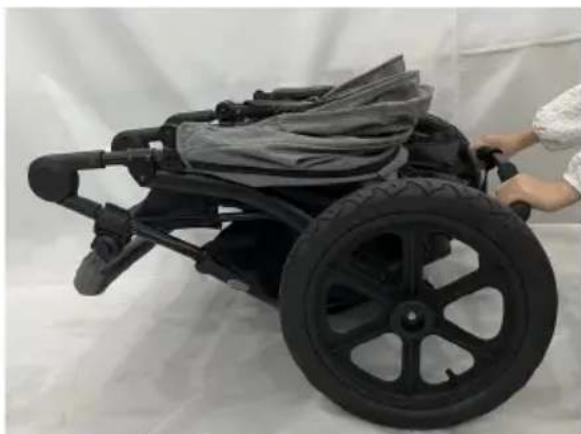

• Push the handle downwards and continue this action until the stroller is folded. (14b)
• Engage the folding latch. (14c)

Note: Before folding the stroller check the following:

• Remove all accessories from the stroller.
• The brake has been applied.
  • The backrest is in its full upright position.
  • The canopy is retracted.
• Never attempt to fold the stroller while a child is sitting in it.

Black stroller with a hand holding a gray fabric item, displayed indoors against a white backdrop (no text or symbols visible)

Close-up of a black stroller attached to a gray fabric item (no visible text or symbols)

Person adjusting a black stroller with a cloth cover, no visible text or symbols

14a 14b

Black stroller with gray fabric and black handle, being handled by a person (no text or symbols visible)

Close-up of a hand adjusting a black stroller with a handle, no visible text or symbols

14c

CARE AND MAINTENANCE

WHEEL ADJUSTMENT

In some cases, three-wheeled strollers can tend to pull to the right/left due uneven tire pressure, improper wheel installation, road conditions or manufacturing tolerances. If you find your stroller to significantly track or pull to the left or right while used on flat terrain, please contact the manufacturer for advice.

FLAT TIRE

The stroller features air tires. Just like a bicycle tire, flat tires can occur. A standard bicycle tire repair kit can be used to repair damaged tires. The correct wheel-size for each wheel is shown on the side of the tire.

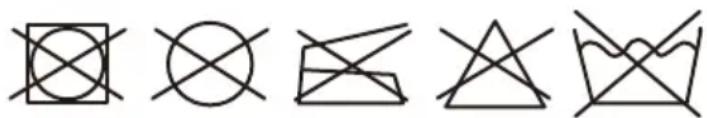

WASH AND CARE

• Clean and inspect the product regularly.
• Check on a regular basis that the brakes, wheels, latches, connecting elements, belt systems and seams are intact and properly functional.
• Do not expose the product to strong sunlight. Bleaching may occur.
  • After use in rain or snow, the wheels should be lubricated.
• If stroller is wet due to washing or rain/snow, make sure it dries completely.
• Stop using the stroller if it is damaged.
• Only use spare parts provided and approved by the manufacturer.

FABRIC: Use mild soap or detergent and warm water on a sponge or clean cloth. Let fabric air dry completely.

FRAME: Wipe with soft, clean cloth and mild soap.

NOTE! Do not use harsh cleaning detergent (such as solvents).

Five abstract geometric line drawings with intersecting and overlapping shapes (no text or symbols)

WARNING

Line drawing of a stroller with attached straps and wheels (no text or symbols)

→ Parent Tray Screws

Axel Nuts

Front Wheel
Retainer plate
Rear Wheels

MONTERING

Four-panel image showing a stroller with film reels and a black trolley, plus a hand adjusting the seat (no text or symbols visible)

1a 1b 2 3

MONTERING AV BAKHJUL

Close-up of a car wheel and mechanical bracket with a black arrow pointing to the wheel (no visible text or symbols)

4a 4b

Close-up of a tire mounted on a vehicle chassis, with a white cloth background (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a gear mechanism (no visible text or symbols)

5

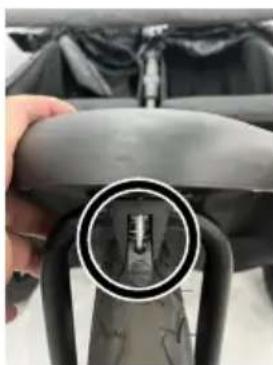

SNURRBART FRAMHJUL

Close-up of a motorcycle's wheel and tire, showing tread pattern and mounting bracket (no text or symbols visible)

6-1 6-2

Close-up of a hand holding a bicycle seatbelt with a circular inset showing internal components (no text or symbols visible)

PARKERINGSBROMS

Close-up of a black bicycle chassis frame with visible structural details and two directional arrows indicating movement or force (no text or symbols)

7a,b

MONTERING AV BYGEL

Close-up of a mechanical clamp or bracket component (no visible text or symbols)

9a 9b 9c

Close-up of a hand adjusting a gray fabric with a zipper, partially visible in black jacket (no text or symbols)

Person assembling a baby stroller with a gray cover (no visible text or symbols)

HÖJDJUSTERING AV HANDTAG

Close-up of a black mechanical device with a circular highlight on the left side (no visible text or symbols)

10

ANVÄNDNING AV SELE

Four-panel image showing a car seatbelt buckle assembly process: adding force arrows, adjusting the seatbelt, and adjusting the seatbelt with hands (no text or symbols visible)

11a 11b 11c

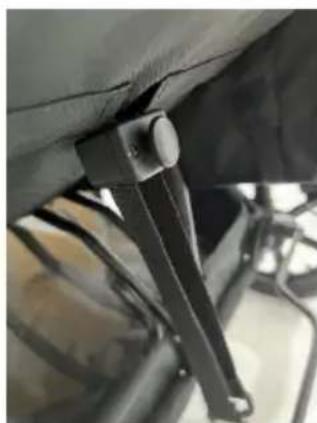

RYGGSTÖD

Person wearing a black seatbelt and holding a black cable, with a white background (no visible text or symbols)

Close-up of a black mechanical component with attached brackets, no visible text or symbols

12 13

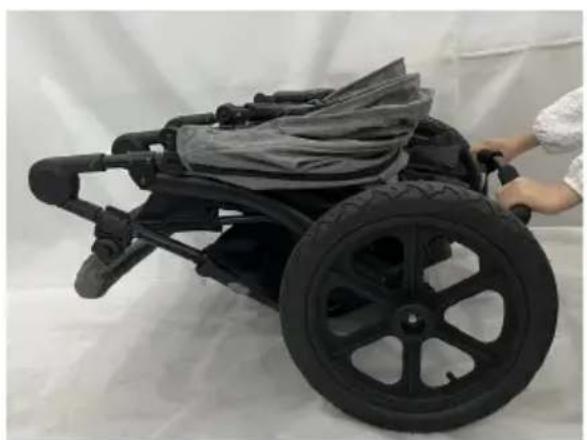

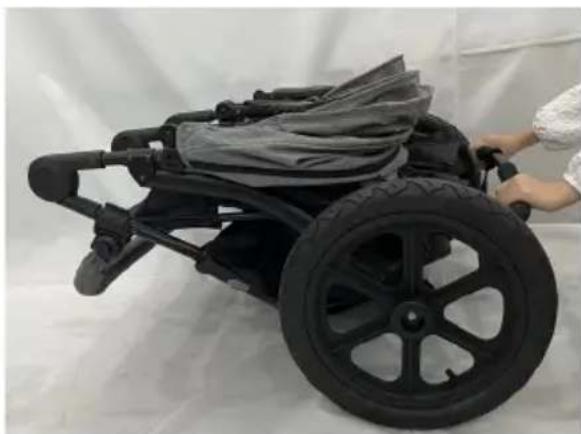

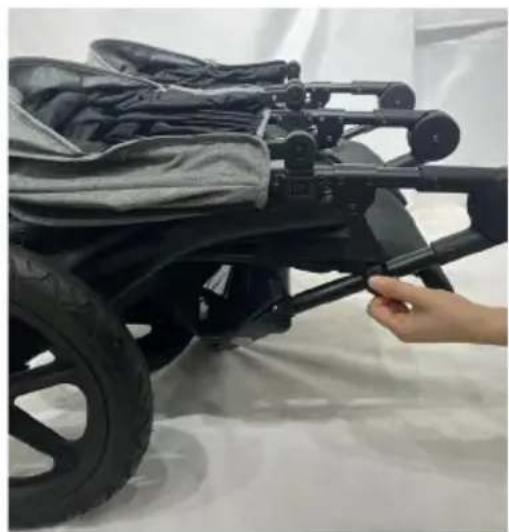

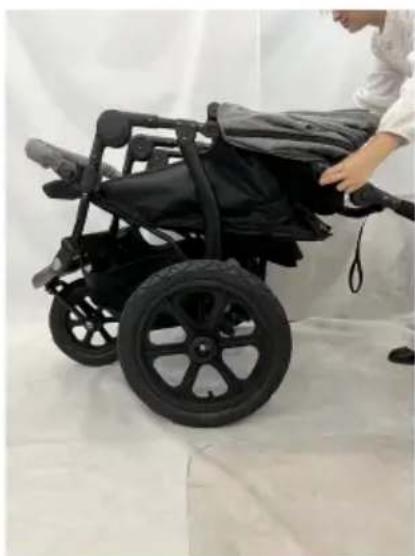

ATT FÄLLA IHOP BARNVAGNEN

Black stroller with a hand holding a gray fabric item, displayed against a white backdrop (no text or symbols visible)

Close-up of a black plastic bag with a button, partially covered by a gray fabric or cushion (no visible text or symbols)

Person assembling a black stroller with a gray cushion, no visible text or symbols

14a 14b

Black stroller with gray fabric and black handle, being handled by a person (no text or symbols visible)

Close-up of a baby stroller with a hand adjusting the wheel (no visible text or symbols)

14c

SKÖTSEL OCH UNDERHÅLL

HJULJUSTERING

Five abstract geometric line drawings with intersecting and overlapping shapes (no text or symbols)

ADVARSEL

Black toy vehicle pack with two wheels, no visible text or symbols

1a

Black and gray backpack case with straps and straps, no visible text or symbols

1b 2 3

Hand adjusting a black athletic vehicle chassis on a white fabric background (no visible text or symbols)

Person pushing a black stroller with a large arrow pointing to the side (no text or symbols visible)

MONTERING AV BAKHJUL

• Skyv bakhjulet inn i det bakre røret til den fjærbelastede pinnen aktiveres. Gjenta på den andre siden. Kontroller at hjulene er låst på plass. (4)
• Slik fjerner du hjulet: Trykk ned knappen på toppen av akslingen. (5)

Close-up of a car wheel and mechanical component with a directional arrow indicating motion (no text or symbols visible)

4a 4b

Close-up of a black bicycle wheel with a white plastic cover in the background (no text or symbols visible)

5

Close-up of a hand adjusting a black mechanical component with directional arrows (no text or symbols visible)

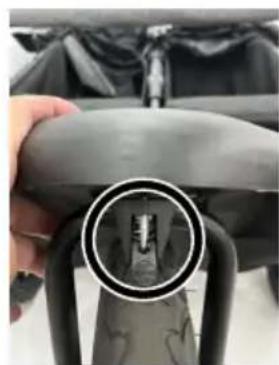

ROTERBARE FORHJUL

Close-up of a car's wheel and suspension system on snow (no text or symbols visible)

Close-up of a hand holding a bicycle seatbelt with a circular inset showing internal components (no text or symbols visible)

6-1 6-2

PARKERINGSBREMS

Close-up of a black bicycle chassis frame with visible structural details and two directional arrows indicating movement or force (no text or symbols)

7a,b

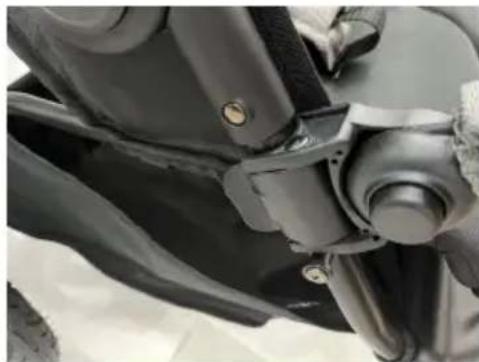

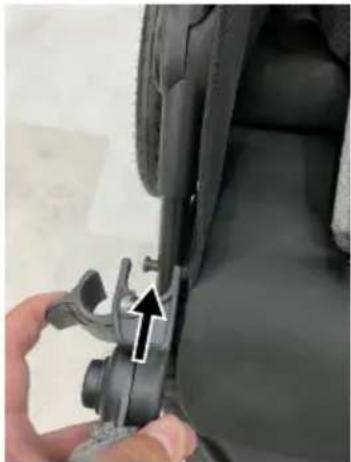

MONTERING AV FRONTB∅YLEN

Metal pipe with two protruding ends, lying on a textured surface (no text or symbols visible)

Close-up of a hand adjusting a mechanical component with an arrow pointing to the part (no visible text or symbols)

Close-up of mechanical components including a brake and suspension system (no visible text or symbols)

8b
8a

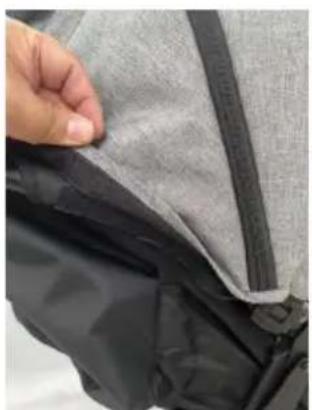

KALESJE MONTERING

Close-up of a mechanical device with black clamps and adjustment knobs (no visible text or symbols)

9a 9b 9c

Close-up of a hand adjusting a gray textured fabric with a zipper, partially visible in black and white (no text or symbols)

Person assembling a black stroller with a gray canopy cover (no text or symbols visible)

JUSTERING AV H∅YDEN PÅ HÅNDTAKET

Close-up of a person wearing a black ergonomic device with a circular highlight on the shoulder (no visible text or symbols)

10

BRUK AV SELEN

Close-up of a car seatbelt with black arrows pointing to the seat (no text or symbols visible)

Close-up of a person's seatbelt with straps and a circular connector (no text or symbols visible)

Close-up of a hand holding a magnifying glass over a dark fabric garment (no text or symbols visible)

Close-up of a hand adjusting a mechanical component on a dark fabric background (no visible text or symbols)

11a 11b 11c

RYGGST∅TTE

Two-panel image showing a person adjusting a black cable buckle with a hand adjusting the seat (no text or symbols visible)

12 13

FOR Å KLAPPE SAMMEN BARNEVOGNEN

Black stroller with gray fabric being handled by a hand, displayed against a white backdrop (no text or symbols visible)

Close-up of a black plastic bag with a button and textured fabric, no visible text or symbols

Person assembling a black stroller with a strap, no visible text or symbols

14a 14b

Black stroller with gray fabric being handled, no visible text or symbols

Close-up of a baby stroller with a hand adjusting the wheel (no visible text or symbols)

14c

RENGJ∅RING OG VEDLIKEHOLD

JUSTERING AV HJUL

Five abstract geometric line drawings with intersecting and overlapping shapes (no text or symbols)

ADVARSEL

Line drawing of a stroller with attached harnesses and wheels (no text or symbols)

Parent Tray Screws

Axel Nuts

Retainer plate
Rear Wheels

MONTERING

Four-panel photo collage showing a stroller with film reels, back cover, and hand positioning of the seat (no text or symbols visible)

1a 1b 2 3

MONTERING AF BAGHJUL

Close-up of a black bicycle's wheel and suspension system on snow (no text or symbols visible)

6-1 6-2

Close-up of a hand holding a black bicycle seatbelt with a circular inset showing internal components (no text or symbols visible)

PARKERINGSBREMSE

• Brug din fod til at trykke midterrøret ned for at aktivere bremsen. (7a)
  • Løft midterrøret for at frigøre bremsen. (7b)

OBS: BRUG ALTID PARKERINGBREMSEN, NÅR VOGNEN STÅR STILLE.

Close-up of a black bicycle chassis frame with visible wheels and a curved metal rail (no text or symbols)

7a,b

MONTERING AF B∅JLE

Close-up of a black mechanical device with a circular highlight on the shoulder (no visible text or symbols)

10

BRUG AF SELEN

Four-panel image showing a car seatbelt buckle assembly with arrows indicating movement, and a close-up of hands adjusting the belt (no text or symbols visible)

11a 11b 11c

JUSTERING AF RYGLÆN

Person wearing a black seatbelt and holding a black cable, with a white background (no visible text or symbols)

Close-up of a black mechanical component with attached clamps, no visible text or symbols

12 13

SAMMENFOLDNING AF VOGNEN

Black stroller with gray fabric being handled by a hand, displayed on a white surface (no text or symbols visible)

Close-up of a black stroller with a gray fabric cover and black buttons, no visible text or symbols

Person adjusting a black stroller with a white cloth, no visible text or symbols

14a 14b

Person pushing a black stroller with a large gray tassel, no visible text or symbols

Close-up of a stroller with black frame and handle, being adjusted by hand (no visible text or symbols)

14c

PLEJE OG VEDLIGEHOLDELSE

HJULJUSTERING

Five abstract geometric line drawings with intersecting and overlapping shapes (no text or symbols)

VAROITUS

Line drawing of a stroller with attached straps and wheels (no text or symbols)

Parent Tray Screws

Fender Screws

Simple line drawing of a funnel shape with two oval cutouts (no text or symbols)

Fender

Front Wheel

Axel Nuts

Rear Wheels

Retainer plate

TUOTTEEN KOKOAMINEN

Top-down view of a black toy vehicle chassis with two wheels, mounted on a black frame (no text or symbols visible)

1a

Back view of a black and gray backpack with straps, no visible text or symbols

1b 2 3

Hand adjusting a black mechanical component with a white cloth background (no visible text or symbols)

Person pushing a black stroller with a large arrow pointing to the side (no text or symbols visible)

TAKAPYÖRIEN ASENNUS

Close-up of a mechanical component with a black gear and arrow indicator (no visible text or symbols)

4a 4b

Close-up of a tire mounted on a vehicle wheel, with a white fabric background (no visible text or symbols)

5

Close-up of a hand adjusting a black mechanical component with directional arrows (no text or symbols visible)

KÄÄNTYVÄT ETUPYÖRÄT

Close-up of a black electric scooter's wheel and side panel, showing tread pattern and mounting bracket (no text or symbols visible)

Close-up of a hand holding a bicycle seatbelt with a circular inset showing a mechanical component (no text or symbols visible)

6-1 6-2

SEISONTAJARRU

• Aktivoi jarru painamalla jarrutanko jalallasi alas. (7a)
  • Vapauta jarru nostamalla jarrutanko ylös. (7b)

VAROITUS: AKTIVOI JARRU AINA PYSÄKÖIDESSÄSI RATTAAT.

Close-up of a black bicycle chassis frame with visible wheels and a curved metal rail (no text or symbols)

7a,b

TURVAKAAREN ASENNUS

Close-up of a person's torso with a black mechanical device and a circular highlight on the shoulder (no text or symbols visible)

10

TURVAVALJAIDEN KÄYTTÖ

Close-up of a car seatbelt with black arrows pointing to specific seats (no text or symbols visible)

Close-up of a car seatbelt with straps and a circular connector (no text or symbols visible)

Close-up of a hand holding a magnifying glass over a dark fabric garment (no text or symbols visible)

Close-up of a hand adjusting a car seatbelt on a dark fabric background (no text or symbols visible)

11a 11b 11c

SELKÄNOJA

Two-panel image showing a person adjusting a black bicycle seatbelt, with no visible text or symbols.

12 13

RATTAIDEN TAITTAMINEN

Black stroller with gray fabric being handled by a hand, displayed against a white backdrop (no text or symbols visible)

Close-up of a stroller with black handle and gray fabric, no visible text or symbols

Person adjusting a black stroller with a strap, displayed on a white surface (no text or symbols visible)

14a 14b

Person pushing a black stroller with gray fabric, no visible text or symbols

Close-up of a hand adjusting a black stroller with a handle, no visible text or symbols

14c

HUOLTO JA PUHDISTUS

PYÖRÄN SÄÄTÖ

Five abstract geometric line drawings with intersecting and overlapping shapes (no text or symbols)

WARNUNG

Line drawing of a stroller with attached harnesses and straps (no text or symbols)

Parent Tray Screws

Fender

Front Wheel

Rear Wheels

Retainer plate

MONTAGE

Four-panel photo sequence showing a stroller with film reels, back cover, and handle, plus a hand adjusting the seat (no text or symbols visible)

1a 1b 2 3

MONTAGE DER HINTERRÄDER

Close-up of a scooter's wheel and handle assembly, showing part with a hand holding a key (no text or symbols visible)

6-1 6-2

FESTSTELLBREMSE

Close-up of a black bicycle chassis frame with two directional arrows indicating movement or force (no text or symbols)

7a,b

MONTAGE DES FRONTBÜGELS

Close-up of a black mechanical device with a circular highlight on the side (no visible text or symbols)

10

Four-panel image showing a car seatbelt buckle assembly with arrows indicating movement, and a close-up of hands adjusting the buckle (no text or symbols visible)

11a 11b 11c

RÜCKENLEHNE

Person adjusting a black bicycle seatbelt with a hand adjusting the belt (no visible text or symbols)

Close-up of a black mechanical component with attached brackets, possibly a seat or bracket (no visible text or symbols)

12 13

DEN KINDERWAGEN ZUSAMMENKLAPPEN

Black stroller with a hand holding a gray bag, displayed against a white backdrop (no text or symbols visible)

Close-up of a stroller with black handle and gray fabric, no visible text or symbols

Person assembling a black stroller with a handle, no visible text or symbols

14a 14b

Black stroller with gray fabric being handled, no visible text or symbols

Close-up of a baby stroller with a hand adjusting the wheel (no visible text or symbols)

14c

PFLEGE UND WARTUNG

RADEINSTELLUNG

Five abstract geometric line drawings with intersecting and overlapping shapes (no text or symbols)

Beemoo

Produced by: Jollyroom AB

Sörredsvägen 111

SE- 418 78 Göteborg

SWEDEN

Contact:

[phone]

Fremstillet af: Jollyroom AB

Sörredsvägen 111

SE-418 78 Gøteborg

SVERIGE

Kundeservice:

[phone]

Producerad av: Jollyroom AB

Sörredsvägen 111

SE-418 78 Göteborg

SVERIGE

Konsumentkontakt:

[phone]
