BFF20 - Stroller Beemoo - Free user manual and instructions

Product Type	Stroller
Model	BFF20
Brand	Beemoo
Weight	8 kg (approx.)
Dimensions Unfolded	105 x 60 x 75 cm
Dimensions Folded	75 x 60 x 30 cm
Age Range	0 to 36 months
Maximum Weight Capacity	15 kg
Frame Material	Aluminum
Fabric Material	Polyester
Recline Positions	3 (including flat)
Canopy Type	UPF 50+ extendable
Wheel Type	All-terrain, front swivel
Brake System	Flip-flop friendly foot brake
Harness	5-point with shoulder pads
Storage Basket	Large under-seat basket
Cleaning Instructions	Wipe clean with damp cloth
Maintenance	Regular check of brakes, harness, and wheels
Safety Certification	EN 1888 compliant
Spare Parts Availability	Available from Beemoo authorized dealers

Frequently Asked Questions - BFF20 Beemoo

How do I assemble the Beemoo BFF20 stroller?

Attach the wheels to the frame until they click. Then, attach the seat and canopy using the provided clips. Ensure all connectors are securely locked. Refer to the manual for detailed assembly steps.

How do I clean the stroller fabric?

Remove the fabric seat pad if possible, and hand wash with mild soap and water. The frame can be wiped with a damp cloth. Avoid harsh chemicals.

How do I fold and unfold the stroller?

To fold, pull the folding mechanism trigger and push the handlebar forward. The stroller will collapse. To unfold, lift the handlebar until the frame locks. Always check locking indicators.

How do I adjust the recline position?

Locate the recline strap or button at the back of the seat. Pull to release and adjust to one of the three positions. Ensure the seat clicks into place for safe reclining.

What safety features does the BFF20 have?

It features a 5-point harness with shoulder pads, a flip-flop friendly foot brake, and an adjustable canopy. The stroller meets EN 1888 safety standards.

What is the maximum weight limit for the stroller?

The maximum weight capacity is 15 kg (approx.) for the seat. The storage basket can hold up to 5 kg. Overloading may affect stability.

How do I engage the brake?

Push the foot lever downwards to engage the brake. To release, lift the lever. The brake is flip-flop friendly, so you can use any shoe type.

Is the canopy removable?

Yes, the UPF 50+ canopy can be detached by unzipping or unclipping it from the frame. It is also extendable for extra sun protection.

Can the stroller be used on rough terrain?

The all-terrain wheels and front swivel feature provide good maneuverability on grass, gravel, and pavement. However, avoid extreme off-road conditions for safe use.

How should I store the stroller when not in use?

Fold the stroller and store it in a dry, cool place. Ensure it is completely dry before storing to prevent mold. Keep away from direct sunlight for prolonged periods.

USER MANUAL BFF20 Beemoo

Line drawing of a baby stroller with a circular icon indicating a babybirth (no text or symbols on the device itself)

max 22 kg

max 4 years

IMPORTANT!VIKTIGT!ADVARSEL!

READ CAREFULLY AND

KEEP FOR FUTURE

REFERENCE.

Model: Beemoo BFF20

LÄS NOGA OCH

BEHÅLL FÖR FRAMTIDA

REFERENS.

Modell: Beemoo BFF20

LES N∅YE OG BEHOLD

FOR FREMTIDIG

REFERANSE.

Modell: Beemoo BFF20

ADVARSEL!TÄRKEÄÄ!

LÆS OMHYGGELIGT

OG GEM TIL

FREMTIDIG

REFERENCE.

Model: Beemoo BFF20

LUE OHJEET

HUOLELLISESTI JA

SÄILYTÄ NE TULEVAA

TARVETTA VARTEN.

Malli: Beemoo BFF20

WICHTIG!

LESEN SIE DIESE HINWEISE

AUFMERKSAM UND

BEWAHREN SIE SIE FÜR

ZUKÜNFTIGE FRAGEN AUF.

Modell: Beemoo BFF20

Close-up of a hand adjusting a black stroller with visible straps and wheels (no text or symbols)

Black stroller with a curved arrow indicating motion, no text or symbols visible

Black and white photo of a stroller with a hand adjusting the seat, showing a downward arrow (no text or symbols)

Black and white photo of a baby stroller with wheels and a handle, no visible text or symbols

Black-and-white photo of a small wooden stroller with metal wheels and a handle, no visible text or symbols.

Close-up of hands holding a black children's stroller with a cloth, no visible text or symbols

Close-up of a hand holding a black stroller with wheels, no visible text or symbols

Close-up of a stroller with a curved wheel and arrow indicating motion (no text or symbols)

Close-up of a stroller with wheels and a circular arrow indicating motion (no text or symbols)

Close-up of a hand holding a black bicycle steering wheel, with arrows pointing to the wheel (no text or symbols visible)

Close-up of a stroller with wheels and a handrail, showing a directional arrow (no text or symbols)

Close-up of a hand using a bicycle pedal with a circular wheel and a downward arrow indicating motion (no text or symbols)

Close-up of a car's seatbelt and steering wheel (no visible text or symbols)

Close-up of hands cleaning a car wheel rim (no visible text or symbols)

Close-up of hands adjusting a car seatbelt buckle, showing a black-and-white photo with a white arrow pointing to the buckle (no text or symbols visible)

Close-up of hands adjusting a black belt buckle with a white arrow pointing to the buckle (no text or symbols visible)

Close-up of a black and white car seatbelt device with straps, placed on a checkered fabric background (no text or symbols visible)

Close-up of a stroller with a bag and wheels, no visible text or symbols

Close-up of a person adjusting a backpack cover on a stroller, no visible text or symbols

Black-and-white photo of a child in a stroller being held by a hand, no visible text or symbols

Close-up of a person adjusting a bicycle seatbelt, with arrows indicating the motion direction (no text or symbols visible)

Medical or medical image showing a seated patient's seat with arrows indicating movement or pressure points (no text or symbols present)

Close-up of a black athletic bag with two white arrows indicating compression or movement (no text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component, with arrows indicating direction (no text or symbols visible)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a mechanical component with a tool and a magnified inset showing a metallic part (no visible text or symbols)

Close-up of a mechanical device with a cylindrical component and a side-mounted sensor or clamp (no visible text or symbols)

Close-up of a hand adjusting a dark garment with a circular detail highlighting a small hole (no text or symbols visible)

Close-up of hands adjusting a dark fabric zipper with a white arrow pointing to a button (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a textured material on a chair (no visible text or symbols)

Close-up of a mechanical component with a circular highlight, no visible text or symbols

Close-up of a person in a wheelchair holding a dark fabric item, with two white circles highlighting areas (no text or symbols visible)

Close-up of a hand adjusting a zipper on a garment sleeve, with a white arrow pointing to the zipper detail (no text or symbols visible)

WARNING! WARNING!

Please read these instructions carefully before use and keep them for later reference. The safety of your child could be put at risk if you do not follow these instructions.

• WARNING! Never leave the child unattended.
• WARNING! Ensure that all the locking devices are engaged before use.
• WARNING! To avoid injury ensure that the child is kept away when unfolding and folding this product.

- WARNING! Do not let the child play with this product.

- WARNING! This seat unit is not suitable for children under 6 months.

- WARNING! Always use the restraint system.

- WARNING! Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

- WARNING! This product is not suitable for running or skating.

- WARNING! Maximum weight of a child for which the product is intended is up to 22 kg/seat or 4 years whichever comes first.

- Do not insert any additional mattresses into the stroller.

- The maximum loading weight for the basket is 2 kg.

- This pushchair has been designed for one child and shall be used for the transport for only one child!

- Use only accessories and spare parts provided and approved by the manufacturer.

- Any load attached to the handle and on the back of the backrest and on the sides of the vehicle will affect the stability of the vehicle.

- The parking device shall be engaged when placing and removing the child.

- This product is tested and approved according to European Standards: EN 1888-1 & EN 1888-2:2018+A1:2022.

PARTS LISTPARTS LIST

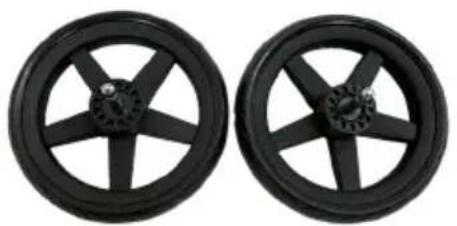

Two black plastic wheel rim wheels with five spokes and a central hub (no text or symbols visible)

Black curved object with pointed ends, resembling a stylized bow or handle (no text or symbols)

Bumper x1Rear wheel x2

Two black bicycle wheels with five spokes, shown from different angles (no text or symbols visible)

Black fabric garment with arched waist and zipper (no text or symbols)

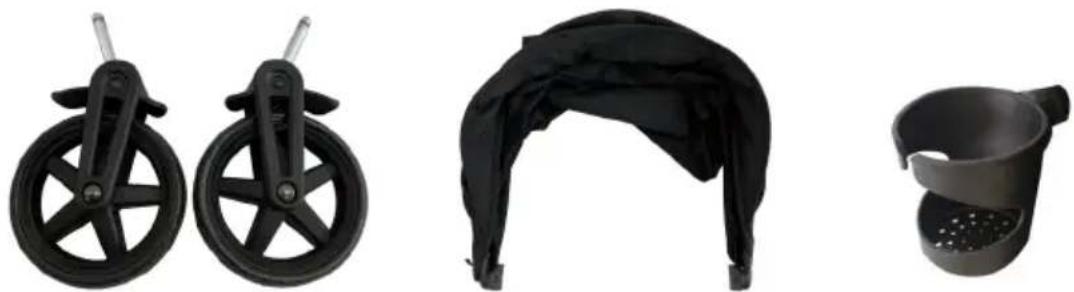

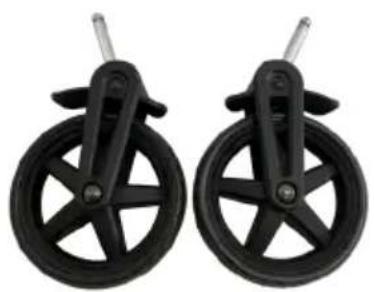

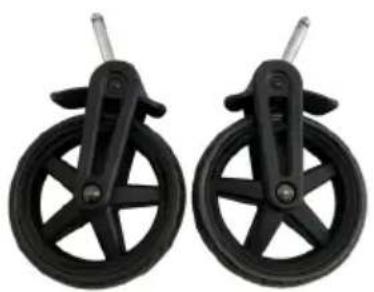

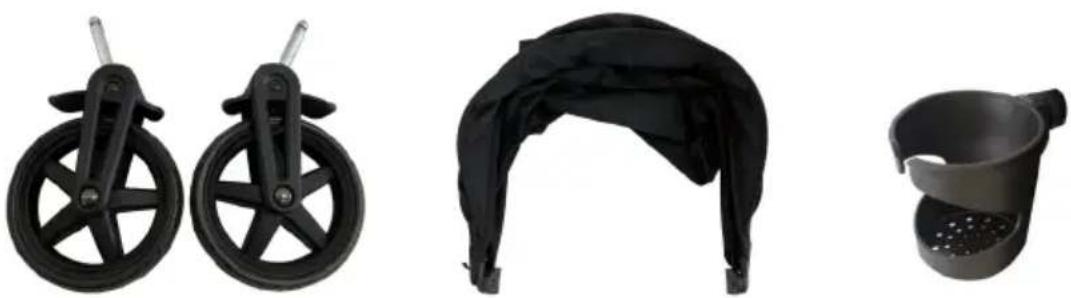

Front wheel x2 Canopy x1 Cup holder x1

ASSEMBLING

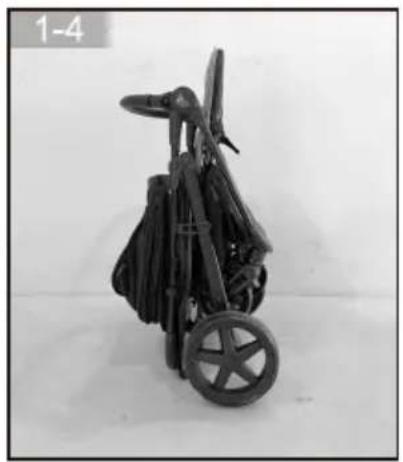

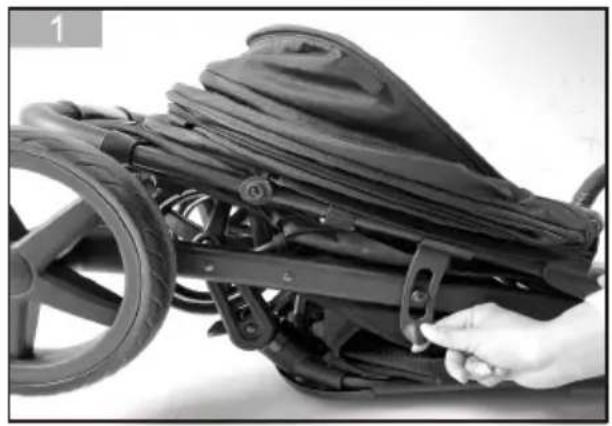

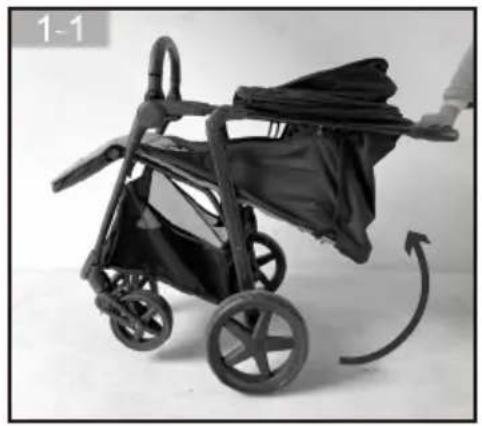

1. Open the folding lock to open the stroller, as pic 1, Lift up the handle to open frame until joints locked, as pic 1-1.

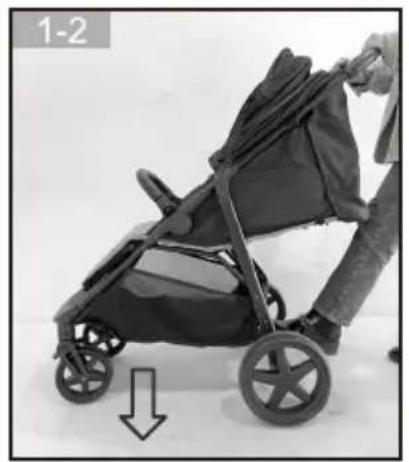

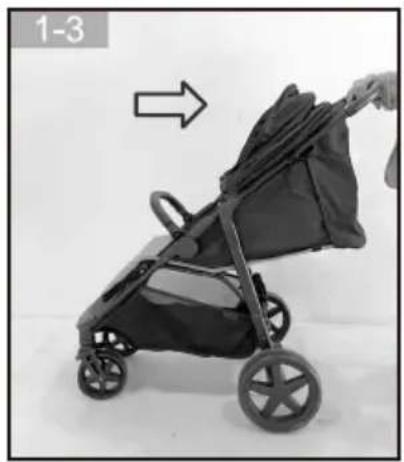

   Fold the canopy and then press the brake to stop stroller, push second lock and press
   folding button to fold stroller. As Pic-1-2, 1-3, 1-4.

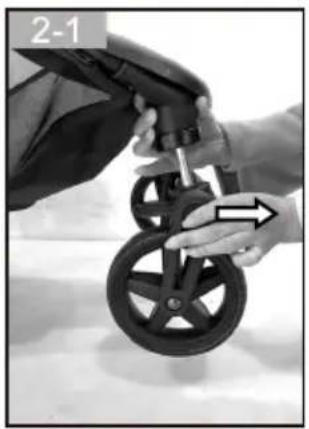

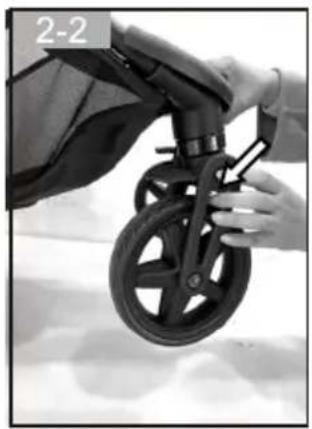

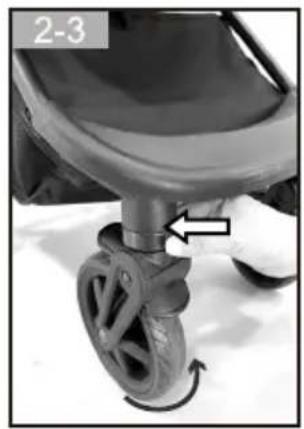

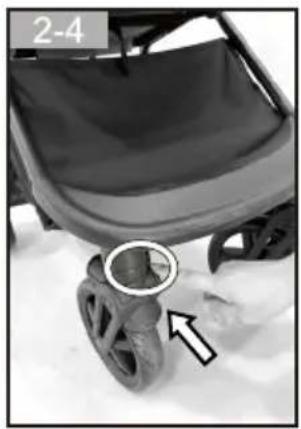

2. Place the front wheel into the housing until it locked, as pic 2-1/2, Front wheel can fix the direction, as pic 2-3/4.

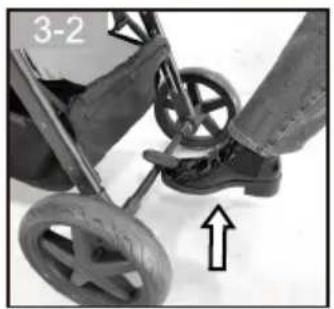

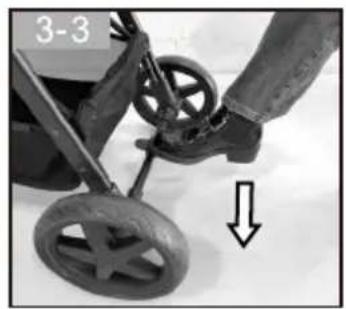

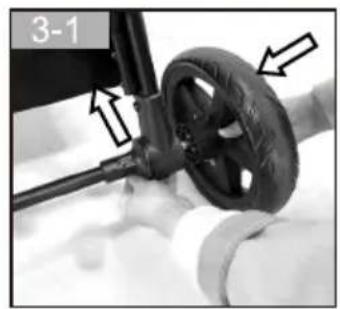

3. Insert rear wheels into axle and use the metal pins to release it see pic-3-1,

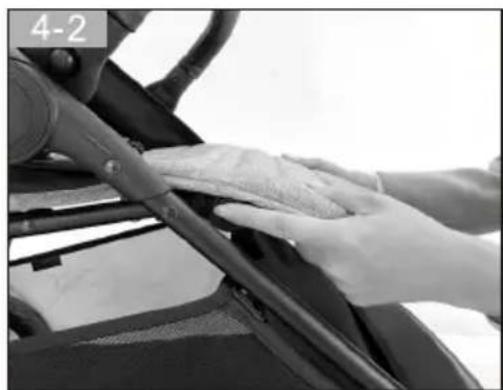

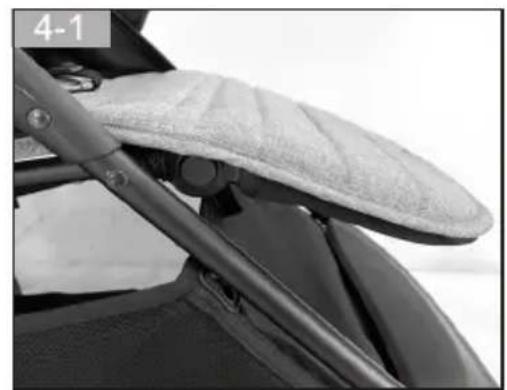

4. Press the adjustable button and adjust the footrest as shown in pic 4-1/2.

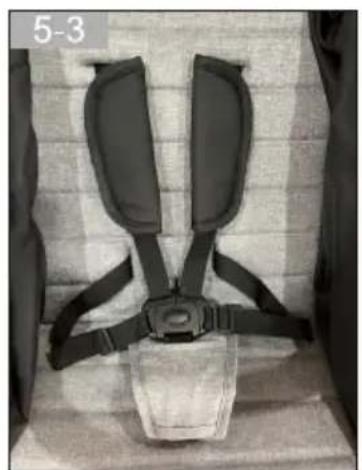

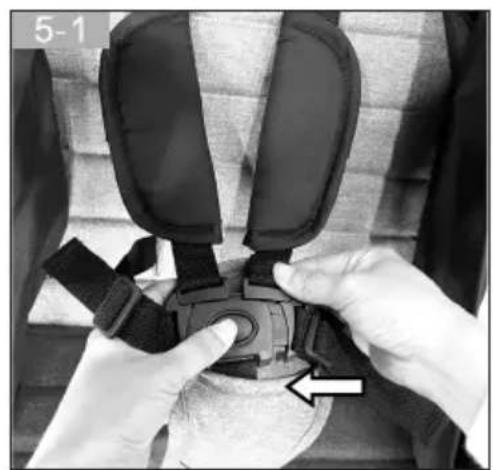

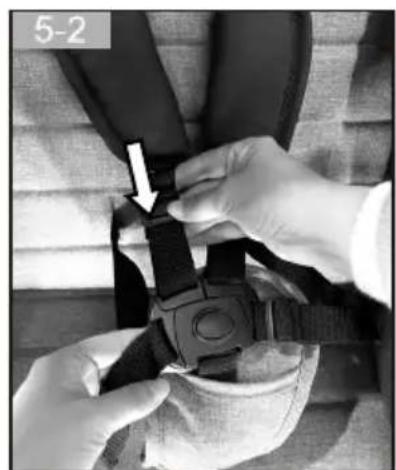

5. Use the safety belt as pic 5-1/2/3, once the buckles have been snapped in, waist straps can be adjusted to desired length.

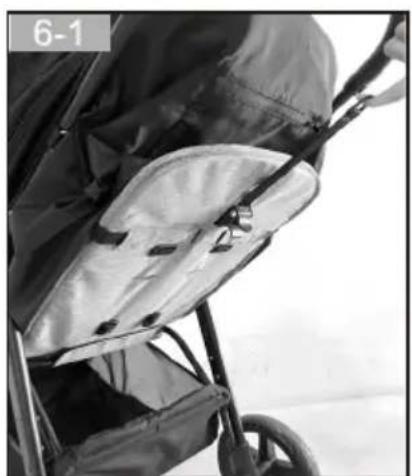

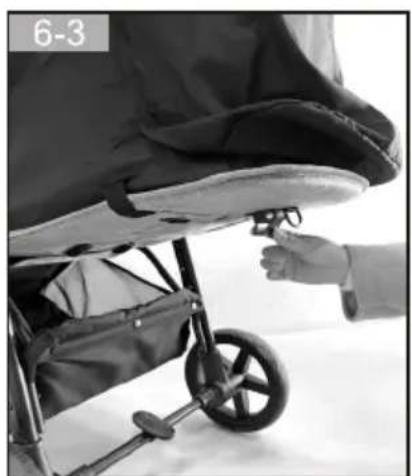

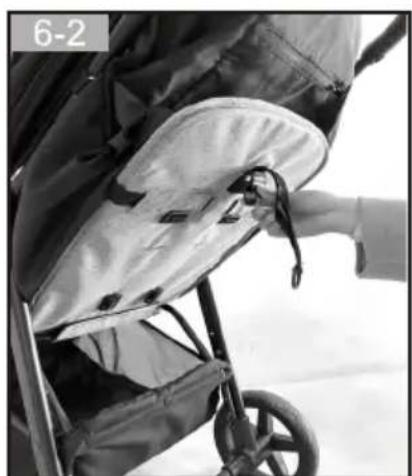

6. Adjust the back rest belt as Pic 6-1/2/3, press the adjusting button to slip down or up to adjust backrest.

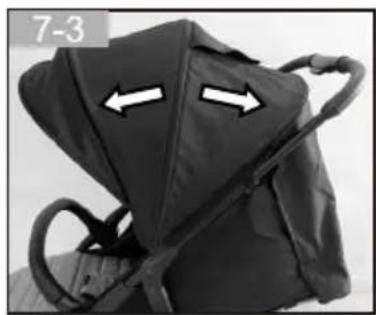

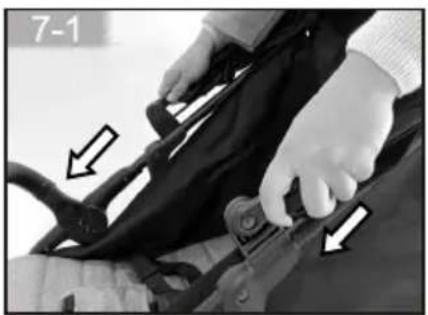

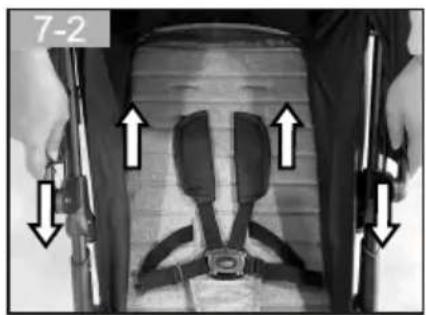

7. Insert the canopy match with side joint as shown in pic 7-1, drop the rear Vcanopy match with the seat as shown in pic 7-2, open the canopy as pic 7-3.

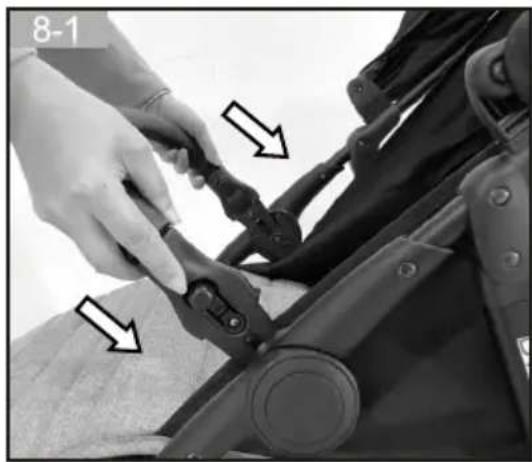

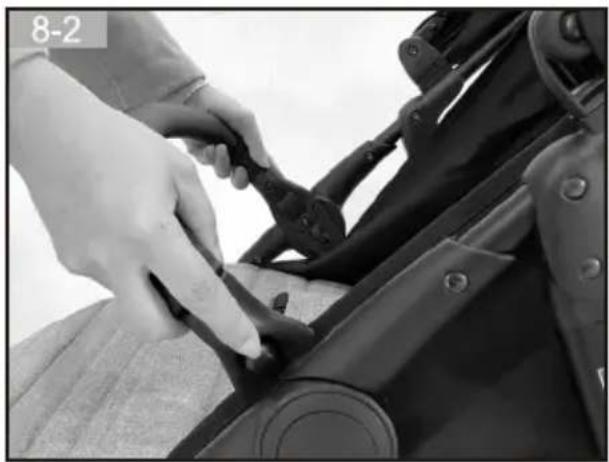

8. Insert the dinning tray in holes on sides of plastic joints until it locked as pic 8-1, release the front bar, press the button on both side as pic 8-2.

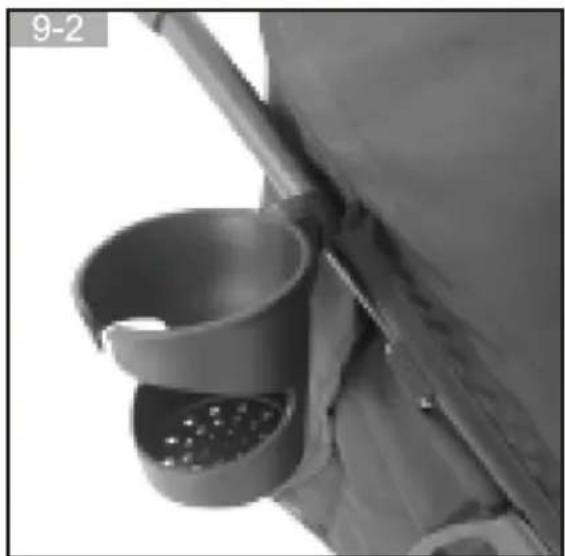

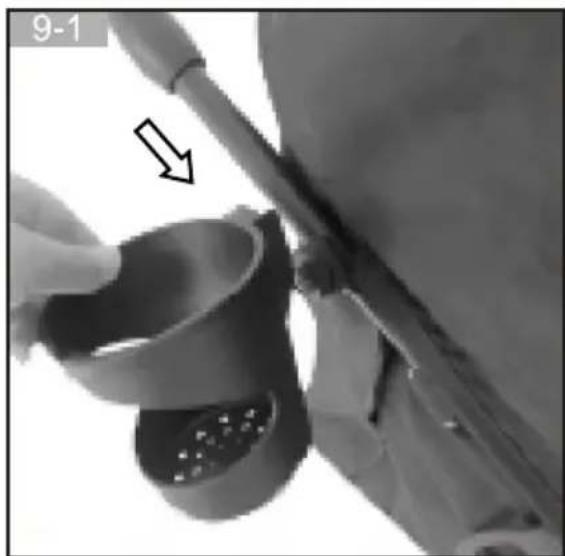

9. Fix the cup holder on plastic bean of tube.

Detach the soft parts

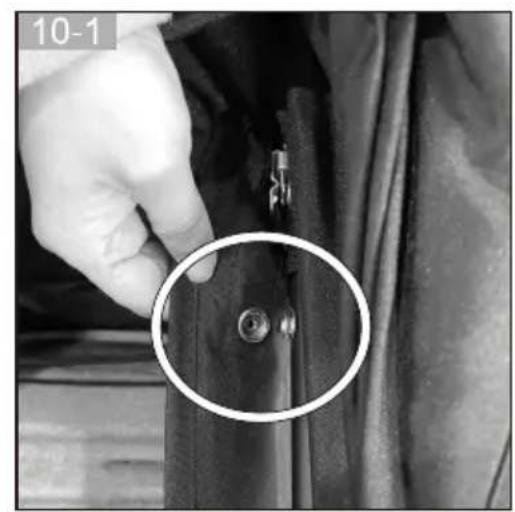

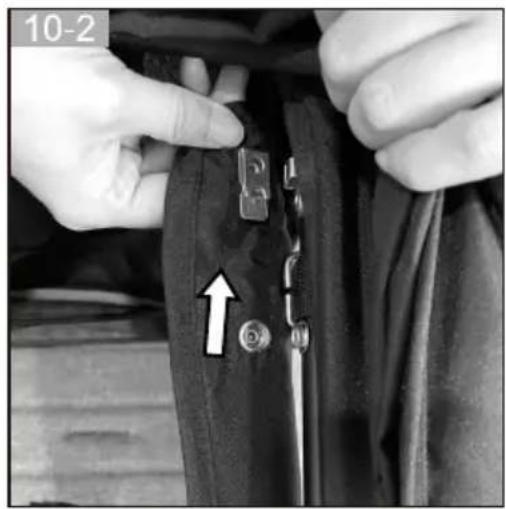

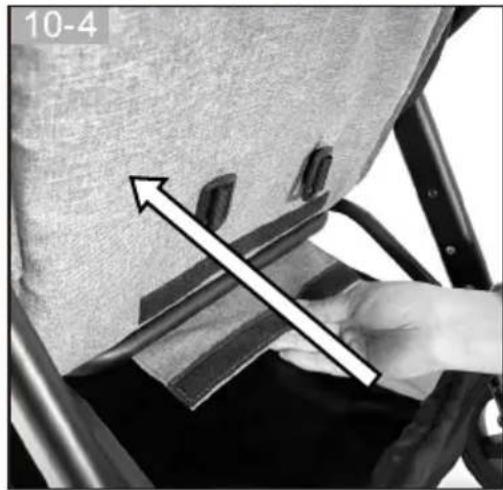

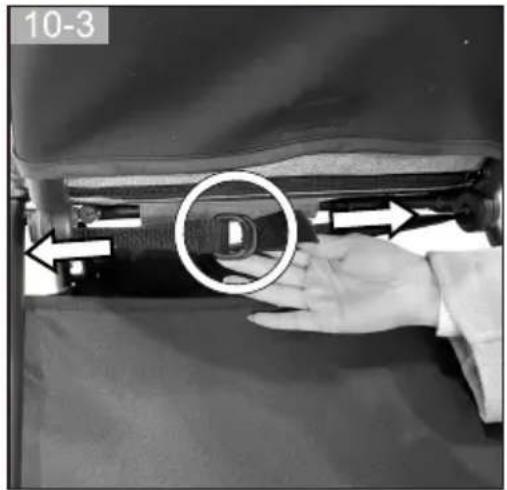

1. Release the snap on side wing as shown in pic 10-1, then take off the hook above on side wing as shown in pic 10-2. then detach the buckle under footrest as shown in pic 10-3, finally tear down the velcro under seat part as shown in pic 10-4, to take off the soft parts.

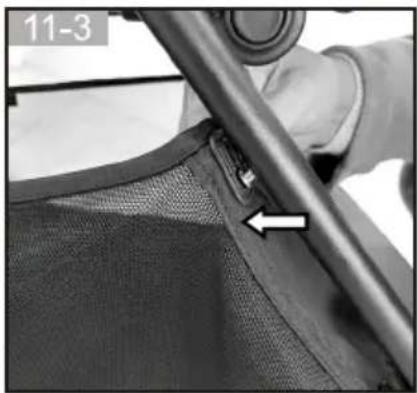

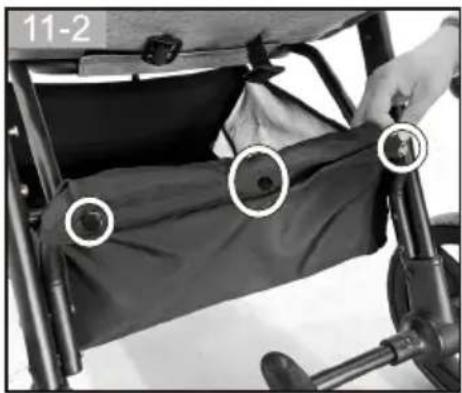

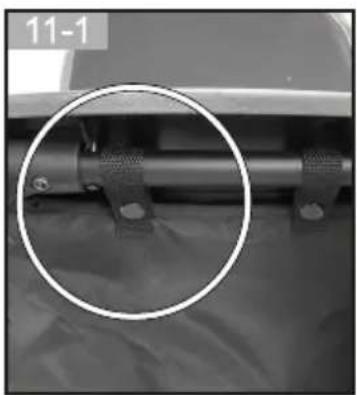

2. To detach the basket, release the snap under footplate and backside as shown in pic 11-1/2, release the snap and take off the hook on on both side of tube as shown in pic 11-3, then can detach the basket.

CARE AND MAINTENANCE

• Clean and inspect the product regularly.
• Check on a regular basis that the brakes, wheels, latches, connecting elements, belt systems and seams are properly functional.
• Do not expose the product to strong sunlight.
  • After use in rain or snow, the wheels should be lubricated, and the vehicle dried to prevent rust.
• If stroller is wet due to washing or rain/snow, make sure it dries entirely.
• Stop using the stroller if it is damaged.

WARNING!

Two black plastic wheel stators with five spokes, shown from different angles (no text or symbols visible)

Black curved object with pointed ends, resembling a stylized bow or handle (no text or symbols)

Frontbygel x1Bakhjul x2

Pair of black bicycle wheels with five spokes, no text or symbols visible

Black fabric garment with arched waist and flared skirt (no text or symbols)

Detach the soft parts

Three black plastic wheel components: two with five spokes and one with a curved handle (no text or symbols visible)

Frontbøyle x1Bakhjul x2

Product photo of four different types of bicycle levers and a plastic cover (no text or symbols visible)

Framhjul x2 Kalesje x1 Koppholderen x1

MONTERING

Two black plastic wheels with five spokes, no text or symbols visible

Black curved object with pointed ends, resembling a stylized arch or bracket (no text or symbols)

Bøjle x 1Baghjul x 2

Pair of black bicycle wheels with five spokes, no text or symbols visible

Black fabric garment with arched waist and small buttons at the base (no text or symbols)

Black plastic cup with a side tab and perforated base (no text or symbols visible)

Forhjul x 2 Kaleche x1
Kopholderen x1

MONTERING

Two black plastic wheel rim wheels with five spokes, no text or symbols visible

Takapyörät x2

Black curved object with pointed ends, resembling a handle or bracket (no text or symbols)

Turvakaari x1

Two black bicycle wheels with five spokes, no text or symbols visible

Black fabric garment with arched waist and small buttons at the base (no text or symbols)

Black plastic cup with a side tab and perforated base (no text or symbols visible)

Two black plastic wheel rim wheels with five spokes and a central hub (no text or symbols visible)

Hinterräder x 2

Black curved object with pointed ends, resembling a stylized garment or tool (no text or symbols)

Schiebebügel x 1

Product photos of four different bicycle seat components: two wheels, a black canopy cover, and a filter (no text or symbols visible)

Vorderräder x 2 Verdeck x1 Becherhalter x1

MONTAGE
