Move Shopper - Stroller Beemoo - Free user manual and instructions

Product Type	Stroller
Brand	Beemoo
Model	Move Shopper
Recommended Age	From birth to 36 months
Maximum Child Weight	15 kg (33 lb)
Stroller Weight	7.5 kg (16.5 lb)
Folded Dimensions	75 x 50 x 30 cm
Unfolded Dimensions	90 x 55 x 105 cm
Handlebar Height	105 cm
Seat Orientation	Forward-facing only
Recline Positions	Multiple adjustable positions
Canopy	Large extendable canopy with UV protection
Harness Type	5-point safety harness
Brake Type	Rear wheel brakes
Suspension	Front wheel suspension
Wheels	4 wheels, swivel front wheels with lock
Folding Mechanism	One-hand compact fold
Storage Basket	Large under-seat basket
Accessories Included	Rain cover, shopping basket
Frame Material	Aluminum
Fabric Care	Seat pad removable and washable (30°C)
Safety Standards	EN 1888

Frequently Asked Questions - Move Shopper Beemoo

How do I fold the Beemoo Move Shopper stroller?

To fold the stroller, first lock the rear brakes, then press the folding button on the handlebar while pushing the stroller forward. It will collapse into a compact stand-alone position.

What is the maximum weight limit for the stroller?

The stroller is suitable for children up to 15 kg (33 lb), approximately up to 3 years old.

Can the seat recline fully for newborns?

Yes, the seat reclines to multiple positions, including a near-flat position suitable for newborns from birth when used with the included newborn insert (sold separately for some models).

How do I clean the stroller fabric?

The seat pad can be removed and machine washed at 30°C on a gentle cycle. The canopy and harness should be spot cleaned with mild soap and water.

Is the stroller compatible with a car seat?

Yes, the Move Shopper is compatible with most infant car seats using an adapter (sold separately). Refer to the manual for a list of compatible brands.

How do I adjust the 5-point harness?

To adjust the harness, press the button to release the buckle, then move the shoulder straps to the desired height holes. Ensure the straps are snug but comfortable against your child's body.

What type of wheels does the stroller have?

The stroller features swivel front wheels that can be locked for straight-line movement, and rear wheels with brakes. The tires are made of EVA foam, which is puncture-proof.

Can I use the stroller for jogging?

No, this stroller is not designed for jogging or off-road use. It is intended for everyday urban walks on pavement and smooth surfaces.

How do I attach the rain cover?

Place the rain cover over the canopy and seat, securing it with the elastic bands and clips at the front and handles. Ensure it covers the entire seating area without blocking vents.

Where can I find replacement parts?

Replacement parts such as wheels, canopy, and harness can be ordered through the Beemoo website or authorized retailers. Contact customer service for assistance.

USER MANUAL Move Shopper Beemoo

Line drawing of a stroller with four wheels and a canopy cover (no text or symbols)

IMPORTANT! VIKTIGT! ADVARSEL!

READ CAREFULLY AND

KEEP FOR FUTURE

REFERENCE.

Model: Beemoo Move

Shopper Buggy

LÄS NOGA OCH

BEHÅLL FÖR FRAMTIDA

REFERENS.

Modell: Beemoo Move

Shopper Sulky

LES N∅YE OG BEHOLD

FOR FREMTIDIG

REFERANSE.

Modell: Beemoo Move

Shopper Trille

ADVARSEL! TÄRKEÄÄ!

LÆS OMHYGGELIGT

OG GEM TIL

FREMTIDIG

REFERENCE.

Model: Beemoo Move

Shopper Klapvogn

LUE OHJEET

HUOLELLISESTI JA

SÄILYTÄ NE TULEVAA

TARVETTA VARTEN.

Malli: Beemoo Move

Shopper Matkarattaat

WICHTIG!

LESEN SIE DIESE HINWEISE

AUFMERKSAM UND

BEWAHREN SIE SIE FÜR

ZUKÜNFTIGE FRAGEN AUF.

Modell: Beemoo Move Shopper

Buggy

WARNING

IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

• WARNING! Never leave the child unattended.
• WARNING! Ensure that all the locking devices are engaged before use.
• WARNING! To avoid injury ensure that the child is kept away when unfolding and folding this product.
• WARNING! Do not let the child play with this product.
• WARNING! This seat unit is not suitable for children under 6 months.
• WARNING! Always use the restraint system.
• WARNING! Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
• WARNING! This product is not suitable for running or skating.
• This stroller is suitable for a child from 6 months with a maximum weight of 15kg.
• The stroller is recommended for children from 6 months to about 3 years.
• Do not hang weight on the handles.
• This stroller is designed for one child and may only be used to transport one child.
• Only use spare parts approved by the manufacturer.
• Do not allow your child to stand on the stroller or footrest.
• The weight limit for the basket is 5 kg. The maximum load of cup holder is 0,5 kg.
• This stroller is tested and approved according to: EN1888-1:2018+A1:2022.

ASSEMBLING

Close-up of a hand adjusting a bicycle seatbelt, no visible text or symbols

Close-up of a black stroller with wheels and handle, no visible text or symbols

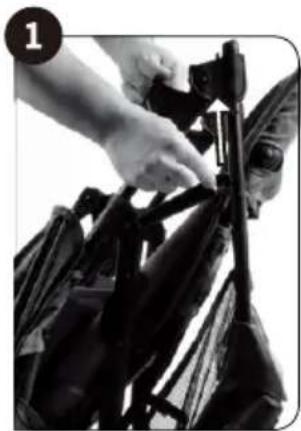

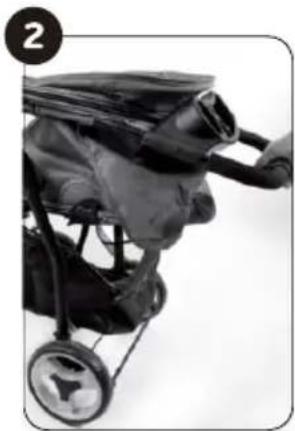

UNFOLD THE STROLLER

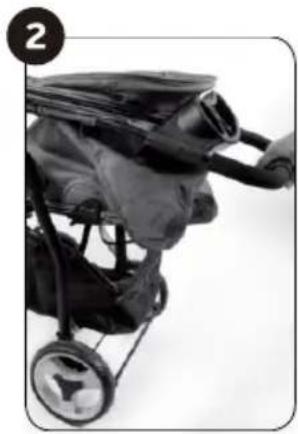

Unlock the latch (Fig. 1) and unfold the stroller (Fig. 2). Make sure that the entire stroller folds out properly and locks into place.

WARNING! Make sure that the child is kept at a safe distance, when folding and unfolding the stroller.

Close-up of a hand using a tool to adjust or install a mechanical component, with an arrow indicating the process (no text or symbols visible)

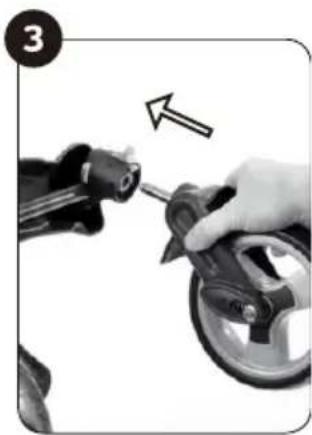

FITTING THE FRONT WHEELS

Attach the wheels onto the stroller and make sure they are fastened securely (Fig. 3). WARNING! Before fastening the wheels, make sure they are turning in the right direction.

Mechanical component diagram showing a wheel with attached parts, no text or symbols present

Close-up of a car wheel with a spool and handle, no visible text or symbols

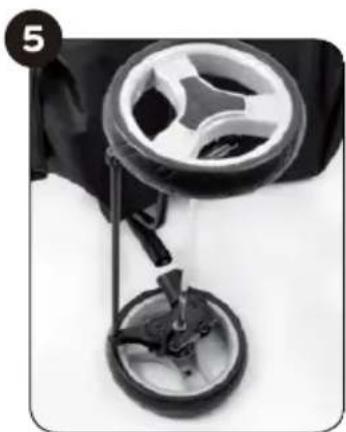

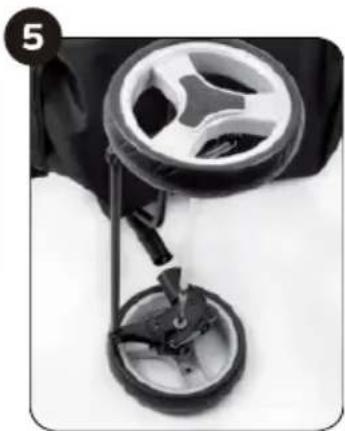

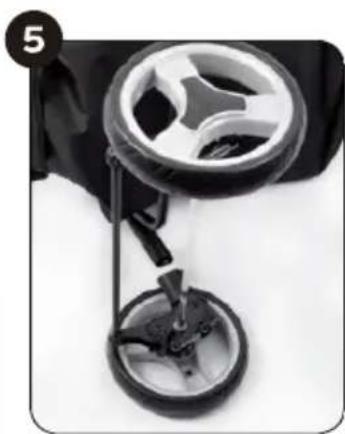

FITTING THE REAR WHEELS

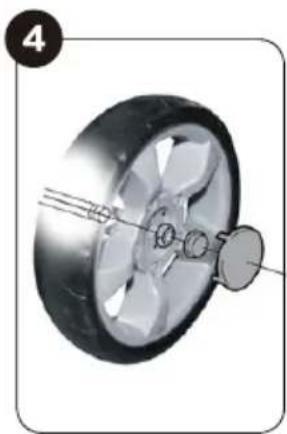

Attach the wheels on the rear axle and secure fuses and caps (Fig. 4). The entire rear axle set put into the stroller (Fig. 5). WARNING! Make sure the wheels are properly secured.

Close-up of a person's hand placing a bag onto a stroller (no text or symbols visible)

Close-up of a hand holding a fabric or garment with a downward arrow indicating a step (no text or symbols visible)

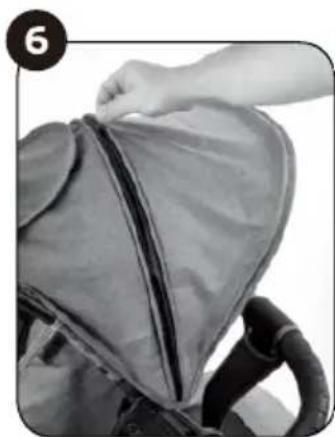

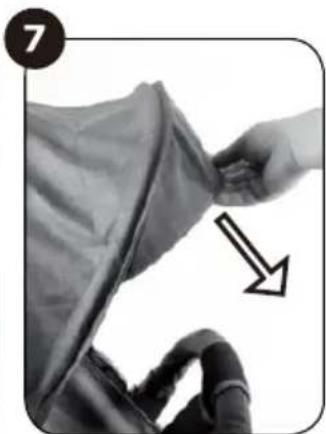

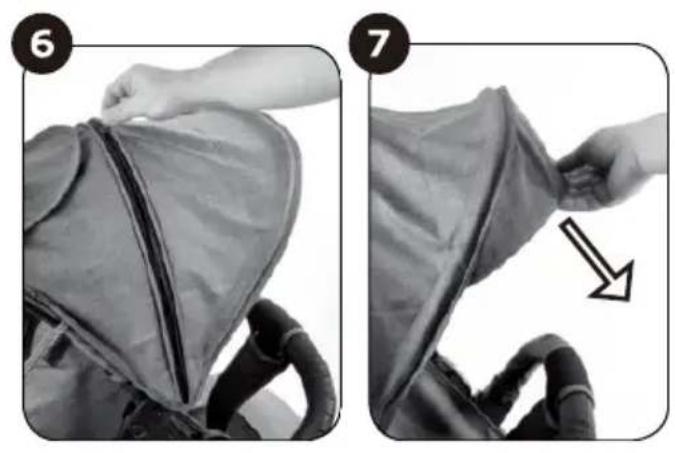

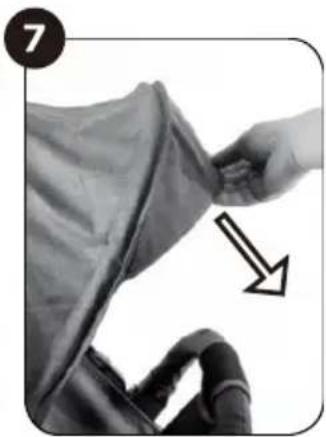

SETTING CANOPY

Adjust the canopy as needed. If you need more shade, open the zipper on top of the canopy to extend it (Fig. 6). You can also fold out the front cap on the front hood (Fig. 7).

WARNING! Never use the canopy as carrying handle.

Close-up of a person's backpack with a white arrow pointing to a cable or connector (no text or symbols visible)

ADJUSTING BACKREST

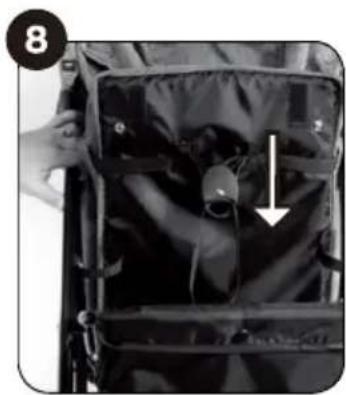

Pull the loop on the back of the backrest (Fig. 8) and recline the backrest to the desired position. To raise the backrest up, release the loop again.

WARNING! Always use safety straps when adjusting the backrest.

Close-up of a hand adjusting a black bicycle tire (no text or symbols visible)

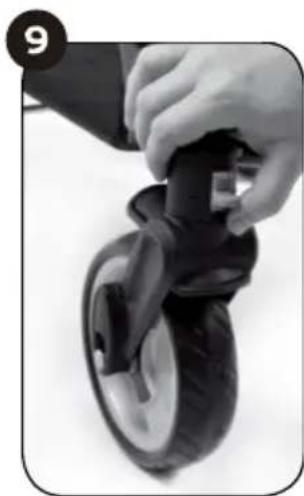

FRONT SWIVEL WHEEL

Lift the lever lock up on both the front wheels to unlock the swivel wheels.

To fix the front wheels, press the lever down (Fig. 9). Please note that both wheels always must be simultaneously locked/unlocked.

WARNING! The swivel front wheels are designed for easy handling on a flat surface, when driving on uneven surfaces, like sand or gravel, we recommend using locked position.

Close-up of hands adjusting a black mechanical component (no visible text or symbols)

FRONT BAR

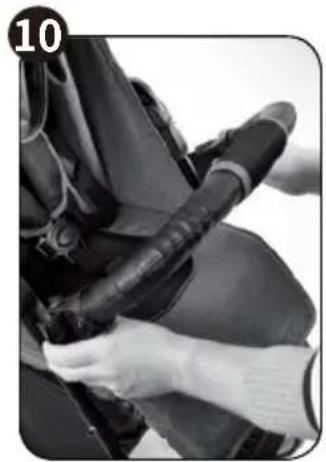

Connect the front bar to both sides of the chassis (Fig. 10).

WARNING! Never carry the stroller, using the front bar as a handle.

Close-up of hands installing or adjusting a car seat cover (no visible text or symbols)

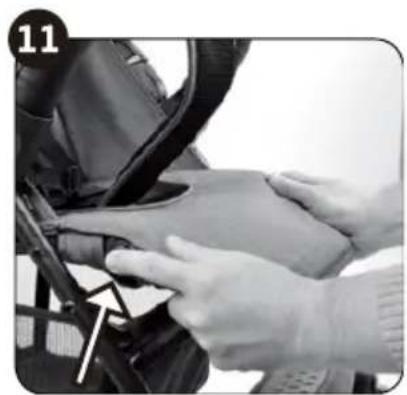

FOOTREST

Press the two buttons that are located on the sides of the seat and adjust to the desired position (Fig. 11).

WARNING! Never let the child sit on the footrest.

Make sure that the footrest is not excessively loaded.

Close-up of a black stroller with wheels and a foot, no visible text or symbols

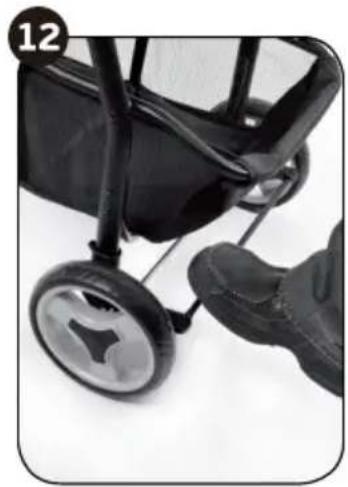

To Park the stroller by pushing the foot parking device down as shown in Fig. 12. To release the parking device, lift the bar up using your foot.

WARNING! Always apply parking device when placing a child in or taking it out of the stroller.

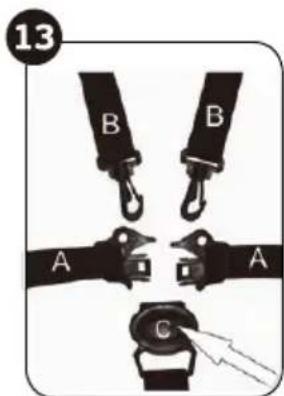

SAFETY HARNESS

The stroller has a 5-point safety harness. Fasten the seat belt (fig. 13). If necessary, adjust the length of each strap (fig. 14). WARNING! Always use the safety harness.

Close-up of a mechanical component with a circular opening and curved handle (no visible text or symbols)

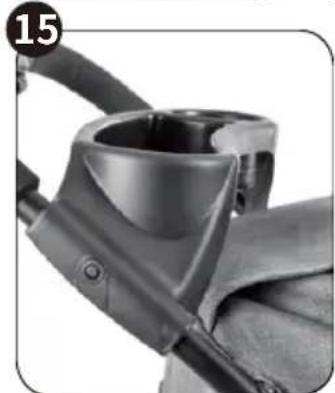

CUP HOLDER

Attach the cup holder on to the handle, and make sure it is secured on both sides (Fig.15). WARNING! Do not put hot beverages in the cupholder. Hazard of burn injuries.

Close-up of a car battery pack with a cable and plug, showing a highlighted section (no text or symbols visible)

Close-up of a hand adjusting a black stroller handle (no text or symbols visible)

Close-up of a person's stroller with wheels and a hand holding a device, no visible text or symbols

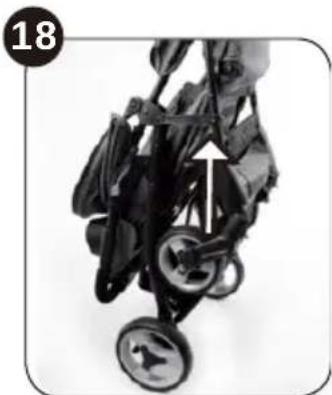

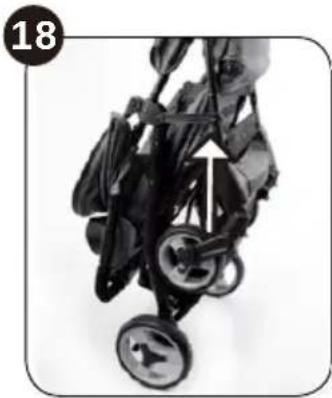

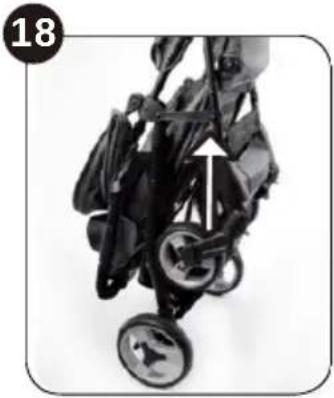

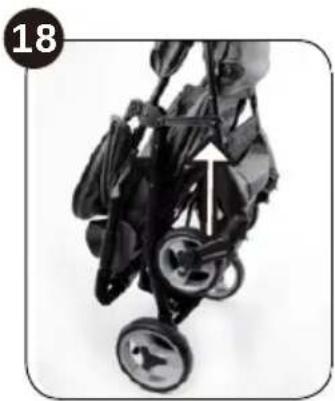

Make sure the basket is empty, before folding the stroller. Fold the canopy first and adjust the back rest to a horizontal position. Press the release button on the handle (Fig. 16) and simultaneously press the button (fig. 17). This unlocks the stroller, so it can be folded. Push the handle down and fold the stroller. When stroller has been folded, ensure that the latch is lock properly. The latch is located on the side of the pushchair (Fig. 18). WARNING! When folding the stroller, ensure that the child is at a safe distance.

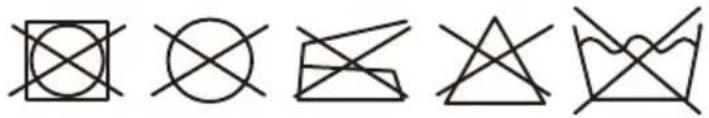

CARE AND MAINTENANCE

• Clean and inspect the product regularly.
• Wipe the metal and plastic surfaces with a damp cloth and warm water. Use mild soap solution.
• Check regularly whether the buggy has lost screws, worn out parts or torn materials.
• Do not expose the product to strong sunlight.
• If stroller is wet due to washing or rain/snow, make sure it dries entirely.
• Lubricate the wheels to prevent rust.
• Stop using the stroller if it is damaged.

Five abstract geometric line drawings with intersecting and overlapping shapes (no text or symbols)

VIKTIGT

VIKTIGT – LÄS NOGGRANT OCH SPARA FÖR FRAMTIDA BRUK.

Close-up of hands adjusting a black object with a tool, no visible text or symbols

Close-up of a black stroller with a circular gumbbell and handle, no visible text or symbols

FÄLL UT VAGNEN

Close-up of a hand using a tool to adjust or install a mechanical component, with an arrow indicating the process (no text or symbols visible)

MONTERING AV FRAMHJULEN

Mechanical component diagram showing a wheel with attached parts, no text or symbols present

Close-up of a car tire with a spool and lever mechanism (no text or symbols visible)

MONTERING AV BAKHJULEN

Close-up of a hand adjusting a gray backpack with a zipper, no visible text or symbols

Close-up of a hand holding fabric with a downward arrow indicating size (no text or symbols)

MONTERA SUFFLETT

Person installing a backpack with a white arrow pointing to the pocket area (no text or symbols visible)

JUSTERA RYGGSTÖD

Close-up of a hand adjusting a black bicycle tire (no text or symbols visible)

FRÄMRE SVÄNGHJUL

Close-up of hands holding a black mechanical device, possibly a vehicle or device, with no visible text or symbols.

BYGEL

Close-up of hands installing or adjusting a component on a vehicle wheel (no visible text or symbols)

FOTSTÖD

Close-up of a black stroller with wheels and a hand adjusting the seat (no visible text or symbols)

SÅ PARKERAR DU VAGNEN

Close-up of a metallic mechanical component with a circular opening, no visible text or symbols

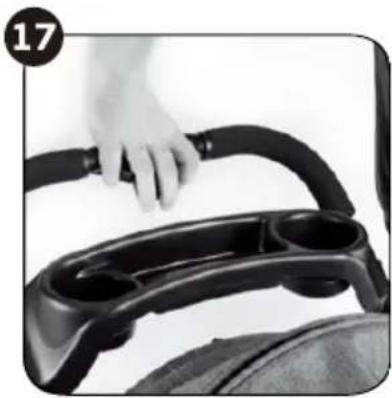

MUGGHÅLLARE

Close-up of a car's electrical plug and cable assembly (no visible text or symbols)

Close-up of a hand adjusting a black stroller handle (no text or symbols visible)

Close-up of a hand holding a stroller with wheels and a hand elevated, no visible text or symbols

HUR DU FÄLLER IHOP VAGNEN

Five abstract geometric line drawings with intersecting and curved shapes (no text or symbols)

ADVARSEL

VIKTIG – LES N∅YE OG OPPBEVAR FOR FREMTIDIG BRUK.

Close-up of a hand using a tool to adjust a car wheel (no text or symbols visible)

MONTERING AV FORHJULENE

Fest hjulene på vognen og sørg for at de sitter godt fast (fig. 3).

Mechanical component diagram showing a wheel with attached parts, no text or symbols present

Close-up of a car steering wheel with a black handle and three blades, no visible text or symbols

MONTERING AV BAKHJULENE

Fest hjulene på bakakselen og fest sikringer og hetter (fig. 4). Hele bakakselsettet settes inn i vognen (fig. 5).

ADVARSEL! Sørg for at hjulene er ordentlig festet.

JUSTERE KALESJEN

Close-up of a person's backpack with a white arrow pointing to the pocket area, no visible text or symbols

JUSTERE RYGGST∅TTEN

Close-up of a hand adjusting a black and silver tire (no text or symbols visible)

SVINGHJUL FORAN

Løft spaklåsen opp på begge forhjulene for å låse opp svinghjulene.

Close-up of hands adjusting a black mechanical component (no visible text or symbols)

FRONTB∅YLE

Koble frontbøylen til begge sider av chassiset (fig. 10).

Close-up of hands installing or adjusting a mechanical component (no visible text or symbols)

FOTST∅TTE

Close-up of a black stroller with wheels and a foot, no visible text or symbols

HVORDAN PARKERE VOGNEN

Close-up of a black plastic mechanical component with a circular opening, no visible text or symbols

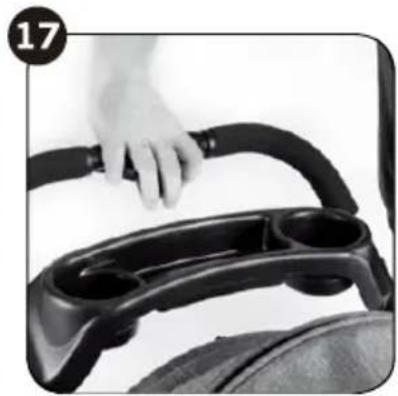

KOPPHOLDER

Close-up of a car tire with a cable connector and a white arrow pointing to the wheel (no text or symbols visible)

Close-up of a hand adjusting a black car seatbelt (no text or symbols visible)

Close-up of a stroller with wheels and a hand mechanism, no visible text or symbols

KLAPPE SAMMEN VOGNEN

Five abstract geometric line drawings with intersecting and curved shapes, no text or symbols present

ADVARSEL

VIGTIGT – LÆS OMHYGGELIGT OG GEM TIL SENERE BRUG.

Close-up of hands installing or adjusting a black mechanical component (no visible text or symbols)

Black stroller with wheels and a handle, no visible text or symbols

FOLD KLAPVOGNEN UD

Close-up of a hand using a tool to adjust or install a mechanical component, with an arrow indicating the process (no text or symbols visible)

MONTERING AF FORHJULENE

Mechanical component diagram showing a wheel with attached parts, no text or symbols present

Close-up of a car tire with a spool and handle attachment (no visible text or symbols)

MONTERING AF BAGHJUL

Close-up of a person's backpack with a white arrow pointing to the pocket area (no text or symbols visible)

JUSTERING AF RYGLÆN

Close-up of a hand adjusting a black bicycle tire (no visible text or symbols)

DREJELIGE FORHJUL

Løft håndtagslåsen op på begge forhjul for at låse de drejelige hjul op.

Close-up of hands adjusting a black mechanical component (no visible text or symbols)

FRONTB∅JLE

Close-up of hands installing or adjusting a mechanical component (no visible text or symbols)

FODST∅TTE

Close-up of a black stroller with wheels and a foot, no visible text or symbols

SÅDAN PARKERER DU VOGNEN

Close-up of a mechanical component with a circular opening and metal bracket (no visible text or symbols)

KOPHOLDER

Close-up of a car body panel with a cable connector and a white arrow pointing to a component (no text or symbols visible)

Close-up of a hand pressing down on a black plastic car seat cover (no text or symbols visible)

Close-up of a stroller with wheels and a hand handle, no visible text or symbols

SAMMENFOLDNING AF KLAPVOGN

Five abstract geometric line drawings with intersecting and overlapping shapes (no text or symbols)

TÄRKEÄÄ

TÄRKEÄÄ – LUE HUOLELLISESTI JA SÄILYTÄ VASTAISUUDEN VARALLE.

Two-step black-and-white photo showing a person adjusting a stroller and carrying a small device, no text or symbols visible.

RATTAIDEN AVAAMINEN

Close-up of a hand using a tool to adjust a mechanical component (no text or symbols visible)

ETUPYÖRIEN ASENNUS

Two-step diagram showing a car wheel assembly and a close-up of the wheel rim (no text or symbols)

TAKAPYÖRIEN ASENNUS

Close-up of a hand placing a bag onto a stroller, showing the spine and handle (no text or symbols visible)

Close-up of a hand holding fabric with a downward arrow indicating a step (no text or symbols)

Person holding a backpack with a device inside, showing a white arrow pointing to the pocket area (no text or symbols visible)

SELKÄNOJAN SÄÄTÄMINEN

Close-up of a hand adjusting a black bicycle tire (no text or symbols visible)

KÄÄNTYVÄT ETUPYÖRÄT

Close-up of hands adjusting a black mechanical component (no visible text or symbols)

TURVAKAARI

Close-up of hands installing or adjusting a mechanical component (no visible text or symbols)

JALKATUKI

Close-up of a black stroller with wheels and a foot, no visible text or symbols

RATTAIDEN PYSÄKÖIMINEN

Close-up of a mechanical component with a circular opening and curved handle (no visible text or symbols)

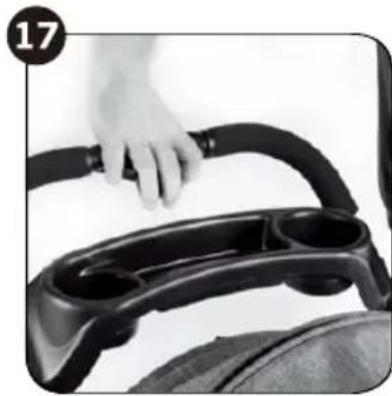

MUKITELINE

Close-up of a black automotive component with a white arrow pointing to a cable or connector (no text or symbols visible)

Close-up of a hand adjusting a black stroller handle (no text or symbols visible)

Close-up of a hand holding a stroller with wheels and a hand valve, no visible text or symbols

RATTAIDEN KOKOONTAITTAMINEN

Five abstract geometric line drawings with intersecting and overlapping shapes (no text or symbols)

WICHTIG

WICHTIG – BITTE SORGFÄLTIG LESEN UND FÜR SPÄTERES NACHLESEN UNBEDINGT AUFBEWAHREN.

Close-up of a person adjusting dark fabric or metal components, no visible text or symbols

Close-up of a black stroller with wheels and a handle, no visible text or symbols

Close-up of a hand using a tool to adjust a car tire (no text or symbols visible)

MONTAGE DER VORDERRÄDER

Mechanical component diagram showing a wheel with internal components and a separate cylindrical part inserted (no text or symbols)

Close-up of a car tire being held by a mechanical device, no visible text or symbols

MONTAGE DER HINTERRÄDER

Two-step illustration showing a person adjusting a gray fabric bag, labeled 6 and 7 (no text or symbols on the bag itself)

ANPASSEN DES VERDECKS

Person adjusting a backpack with a white arrow pointing to the pocket area (no text or symbols visible)

Close-up of a hand adjusting a black bicycle tire (no visible text or symbols)

VORDERES SCHWENKRAD

Close-up of hands adjusting a black mechanical component (no visible text or symbols)

FRONTBÜGEL

Close-up of hands installing or adjusting a mechanical component (no visible text or symbols)

FUSSSTÜTZE

Close-up of a black stroller with wheels and a foot, no visible text or symbols

Close-up of a mechanical component with a circular opening and metal bracket (no visible text or symbols)

GETRÄNKEHALTER

Close-up of a black automotive connector with a white arrow pointing to a component (no text or symbols visible)

Close-up of a hand adjusting a black stroller handle (no text or symbols visible)

Close-up of a person's stroller with wheels and a hand pointing to the handle (no text or symbols visible)

ZUSAMMENKLAPPEN DES KINDERWAGENS

Five abstract geometric line drawings with intersecting and overlapping shapes (no text or symbols)

Beemoo

Produced by: Jollyroom AB

Sörredsvägen 111

SE- 418 78 Göteborg

SWEDEN

Contact:

[phone]

Fremstillet af: Jollyroom AB

Sörredsvägen 111

SE-418 78 Gøteborg

SVERIGE

Kundeservice:

[phone]

Producerad av: Jollyroom AB

Sörredsvägen 111

SE-418 78 Göteborg

SVERIGE

Konsumentkontakt:

[phone]
