USER MANUAL 805-891 Nordic Play

Exterior view of a modern orange sports car with black racing wheel and front grille (no text or symbols visible)

Size 108 x 60,5 x 43,5 cm

Art. no. 805-890 _ 805-891

EAN 5705858718767_5705858718774

Imported by / Importeret af

NSH NORDIC A/S

Virkefeltet 4

DK-8740 Braedstrup

Made in China / produceret i Kina

General safety rules for NORDIC PLAY products

Warning:

• The vehicle may not be used on roads, sidewalks, in hills or sand.
• The vehicle should only be used on flat surfaces.
• Do not overload the vehicle. Pay attention to the maximum weight limits. Typical maximum total weight is 25 - 35 kg. Please check for your specific model.
• Only adults may charge the battery.
• Children using the vehicle should always be supervised by a responsible adult.
• Do not charge the vehicle's circuit.
• Do not drive in water or other fluids.
• Stop the vehicle when it is approaching an obstacle, turn away from the obstacle and drive somewhere else.
• Please charge the battery when the vehicle starts to drive slowly, otherwise the battery's lifespan can be shortened.
• Please charge the battery fully before the battery is stored for longer periods without use. Charge the battery every three months to extend the battery's lifespan.
• Do not drive during rain.
• Battery, charger, electrical cables, outlets and other parts should periodically be checked. If damages are discovered, the vehicle may not be used until these are fixed.
• The charger should be checked for damages on cord, plug and other parts periodically. If there are damages, the charger may not be used until the damage is fixed.
• Vehicle with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without a battery can be used from 1 year of age.
• The vehicle may only be used with the recommended charger.
  • The charger is not a toy.
• Only clean with a damp cloth.
• Check that all parts are undamaged. If not, repair or change these.
• It is a good idea to use safety equipment, depending on the vehicle.
• Worn out batteries should be removed/changed from the vehicle.
• The battery should be removed before the vehicle is disposed of.
• Declaration of conformity: This product is in accordance with EU directive 2014/53 / EU.

Warning:

For your child's safety, pay attention to the following:

• Only adults may assemble the product.
• Small parts and plastic parts should be kept away from the child to avoid risk of suffocation.
• Children may not touch or open the battery holder.
  • Adult supervision is required.
• Vehicles with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without battery can be used from 1 year of age.
• Use the vehicle with caution, since driving skills are required to avoid falls or crashes that can result in injuries to the user or third party.
• Instructions on how the vehicle is used should be given to the child before use – especially for the braking system.
• May not be used in traffic. Only use the vehicle on private property.
• Only drive on flat surfaces away from other vehicles and obstacles.

General safety rules for NORDIC PLAY products

• Avoid sharp bumps and sudden changes of the surface.
• Avoid roads and surfaces with water, sand, gravel, dirt, leaves and other debris.
• Wet weather can reduce the traction, brake effect and visibility.
• Do not drive when it is dark.
• Avoid excessive speed in conjunction with downhill driving.
• Watch out for pedestrians.
• Check and tighten all screws before every drive. Do not allow two or more children to use the vehicle at once.
• Do not use the vehicle if it has damages.

• Change damaged parts immediately.

• Insert 220V/12V charger cable's connector to the vehicle.

• Insert actual 220V/12V charger unit to your 220V power outlet. The battery will start charging.
• Detach after 8-12 hours

IMPORTANT NOTE: When shifting (forward/backward), please make sure the vehicle is completely stopped, otherwise it will damage the gear box and motor.

Forward: 1. Press the "Forward/backward switch" to the "Forward" position.

1. Press the "Foot pedal", the vehicle drives forward.

Stop: 1. The vehicle will brake automatically, when foot is lifted from the "foot-pedal".

Back Up: 1. Press the "Forward/backward switch" to the "Backward" position.

1. Press the "Foot pedal", the vehicle will back up.

Loosen the screw from the back of the seat seat, take away the seat. Then connect the battery line red wire to the red terminal of the battery and finally then connect black wire to black battery terminal. Never connect wires into the uncorrect battery terminals. After the connections, please assemble the seat back to the original place and tighten the screw.

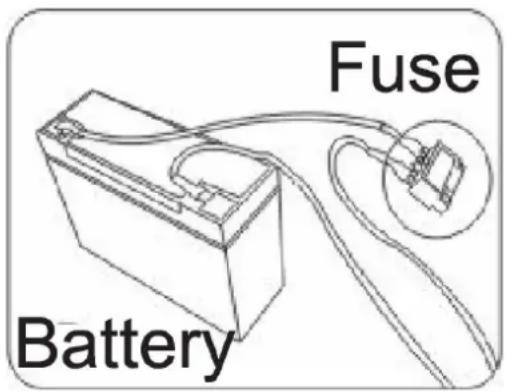

Battery replacement and fuse

The battery is equipped with a thermal fuse which blows if the motor, battery or electrical circuit is overloaded. The vehicle must then be switched off for at least 5 minutes, after which the fuse will restore itself. If the product does not work, the fuse may therefore be the problem. To avoid this, read the following points:

• Do not overload the vehicle.
• Do not pull anything behind the vehicle.
• Do not drive up steep hills.
• Do not run into motionless objects that cause the wheels to spin.
• Do not drive at extreme temperatures.
• Make sure the product does not come into contact with liquids.
• Do not touch the electrical circuit.

As the battery gets older it will start to lose some of its capacity. Depending on the conditions, it can last anywhere from 1 - 3 years. If the battery needs a replacement, follow these steps:

1. Loosen the crew and remove the seat.
2. Disconnect the cables from the battery terminals.
3. Remove the battery cover.
4. Carefully lift the battery out of the vehicle. Depending on the condition of the battery (leakage or similar), safety equipment may be required. Do not lift the battery from its wires but from the battery itself.
5. Put the battery in a plastic bag and dispose it responsibly. NEVER put the battery to general waste.
6. Insert the new battery into the vehicle.
7. Reconnect the cables to the new battery. Red wire to red terminal (+) and black wire to black terminal (-) of the battery.
8. Slide the seat into place. Tighten the screw.

To protect the environment, batteries and electrical equipment must be disposed separately from household waste. Contact the municipality for the nearest collection point.

Problem Possible Cause Solution
Vehicle does not run Battery low on power Recharge battery.
		Thermal fuse has tripped Let the vehicle cool down for 5 minutes.Do not overload the vehicle.
		Battery connector or wires are looseCheck that the battery connectors and wires are firmly connected.
		Battery is dead Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
		Electrical system is damagedContact your distributor please.
		Motor is damagedContact your distributor please.
Vehicle does not run very long Battery is not properly charged. Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
Vehicle runs sluggishly Battery low on power Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
			Vehicle is overloadReduce weight on vehicle.Maximum user weight is 25 kgs.
			Vehicle is being used in unsuitable conditionsUse the vehicle on flat, even surfaces.
Vehicle needs a push to go forward	Poor contact of wires or connectors	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	“Dead Spot” on motor A dead spot means the electric power is not being delivered to the terminal con nection and the vehicle needs repair.Contact your distributor please.
Difficult shifting from forward to reverse or vice-versa	Attempting to shift while the vehicle is motion	Always completely stop the vehicle before shifting.
Loud grinding or clicking noises coming from motor or gear box	Motor or gears are damagedContact your distributor please.
Battery will not recharge	Battery connector or adapter connector is loose	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	Charger not plugged in	Check that the battery charger is plugged into a working wall outlet.
	Charger is not working	Contact your distributor please.
Charger feels warm when recharging	This is normal and not a cause for concern

Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem Contact your distributor please.

Maintenance

• Check all screws periodically and tighten as needed.
• Check the vehicle's plastic components frequently for damage.
• The mechanical parts of the vehicle can be lubricated with oil if necessary.
• Store the product indoors to protect it from the weather.
• Keep product away from hot items such as stove and the likes.
• Do not clean the product with a garden hose and do not use soap. A dry or moist cloth is enough.
• Do not drive in rain, snow, sand and gravel as this may damage the product.
  If the product is not to be used for an extended period, recharge the battery and then disconnect all cables

Installation and Operating Instructions

Please read the operating instructions carefully before use

Before using the vehicle the child should understand the vehicle controls and safety issues. They must also demonstrate the capability to handle the vehicle and operate its controls. It is the responsibility of the adult to educate the child and supervise the vehicles use. Read the following safety warnings to any child using the vehicle before riding.

Suitable age: 37 -	95 months Battery:		12V 4.5Ah / 12V 7Ah
Load Capacity: 30	kg Size of car: 108 x 60,5 x 43,5 cm
Speed: 3-5 km/h	Remote batteries 2 x AAA
Material: Metal and plastic		Optimum temperature:	0 - 40°
Charger:	Input: 110-220V AC Charging time: 8 - 12 hours
	Output: DC 12V 500 - 1000mA	Motor DC 12V

Charging the drive battery:

IMPORTANT! Before using the unit for the first time the battery needs to be charged for at least 8 to 12 hours - no more than 20 hours. Once battery is depleted, recharge for 8 to 12 hours - no more than 20 hours

IMPORTANT!

Check the drive battery and charger (supply cord, connector) for wear and damage before charging. Do not charge the battery if damage has occurred. Only replace with the same type and voltage rechargeable battery and charger supplied by the manufacturer.

• Only use the rechargeable battery (or equivalent replacement) and charger supplied with your vehicle.
  • Always turn power off and charge battery after riding.
• The drive battery should be charged when depleted, or if not used regularly, once a month. Failure to charge the battery as directed will cause permanent damage to the battery and will void the warranty.

STEPS:

1. Locate charging port.
2. Plug charger plug into unit charging port.
3. Plug charger into wall outlet.
4. When battery is fully charged, unplug charger from the wall outlet and disconnect from charger port.

NOTE: The charger may feel warm during the charging. If excessively hot, unplug and replace.

NOTE: This product has charging protection: When charging, all functions are turned OFF.

Installation Steps

Spare parts when open the box:

Car body 1 pc Front window shield 1 pc Steering wheel 1 pc
Seat 1 pc Front wheels 2 pcs Rear wheels 2 pcs
Wheel covers 4 pcs Rear view mirrors 1 pair Charger 1 pc
Instruction manual 1 pc Remote control 1 pc Bag of screw & nuts 1 bag
Keys 2 pcs Spanner 2 pcs Sticker of wheel cover 4 pcs

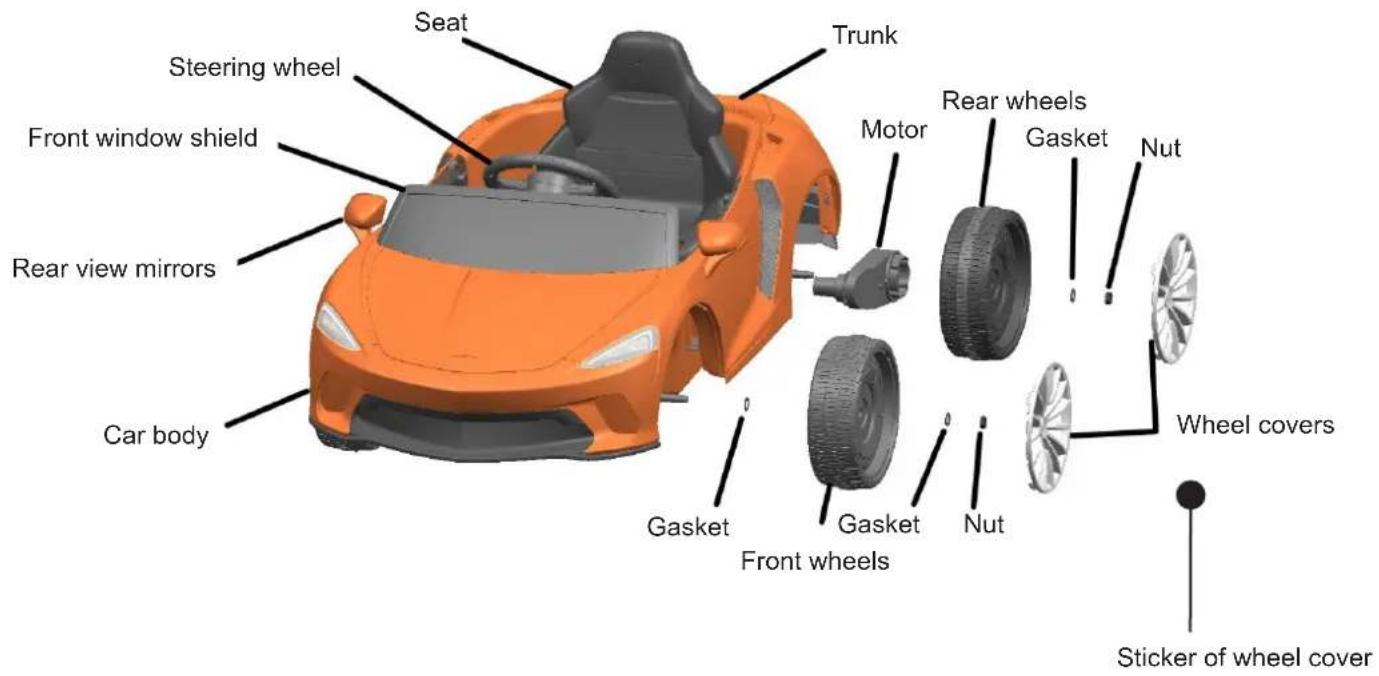

Spare parts list:

Seat Trunk Steering wheel Front window shield Rear view mirrors Car body Motor Rear wheels Gasket Nut Gasket Front wheels Nut Wheel covers Sticker of wheel cover

1. Install front wheels.

A. Gasket-front wheels-gasket-M10 nut
B. Wheel cover-Sticker of wheel cover

Wheel covers Nut Gasket Front wheels Gasket Front wheels Gasket Gasket Nuts Wheel covers

Sticker of wheel cover Sticker of wheel cover

2. Install rear wheels.

A. Motor-rear wheel-gasket-nut
B. Wheel cover-Sticker of wheel cover

Wheel covers Nut Gasket Sticker of wheel cover Rear wheels Gasket Nuts Wheel covers Nuts Rear motors Rear motors Rear wheels Sticker of wheel cover

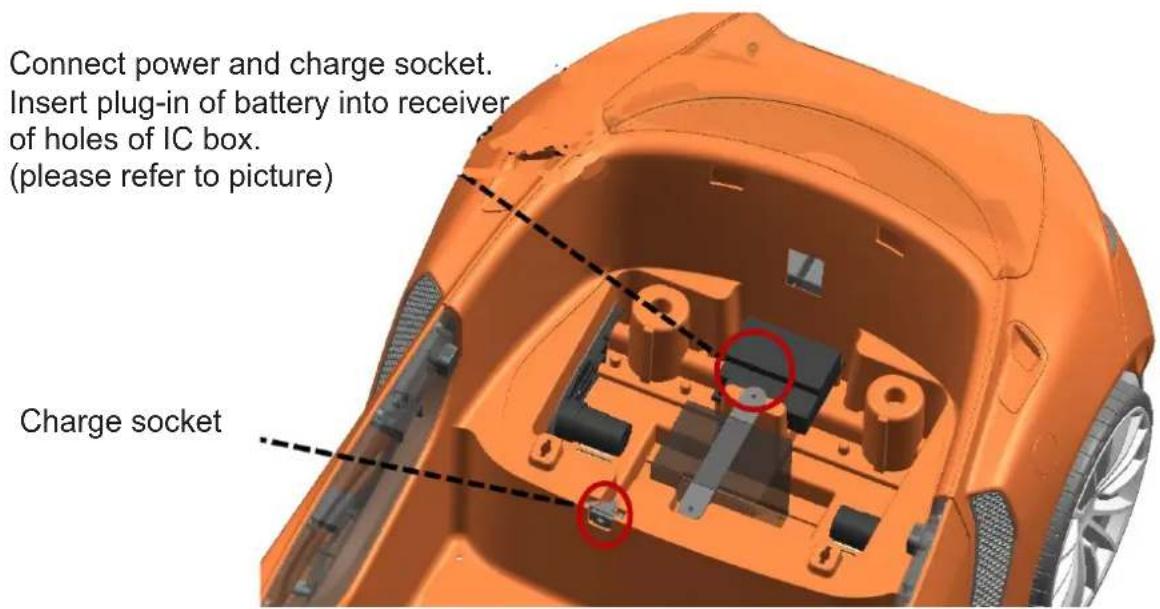

3. Connect power and charge socket

Insert plug-in of battery into receiver of holes of IC box. (Please refer to picture)

Connect power and charge socket. Insert plug-in of battery into receiver of holes of IC box. (please refer to picture) Charge socket

4. Install seat.

Install seat and make the fastener into the sockets, and rotate 90^ to lock well.

3D CAD model of an orange sports boat interior with highlighted seat and lock mechanism (no text or symbols)

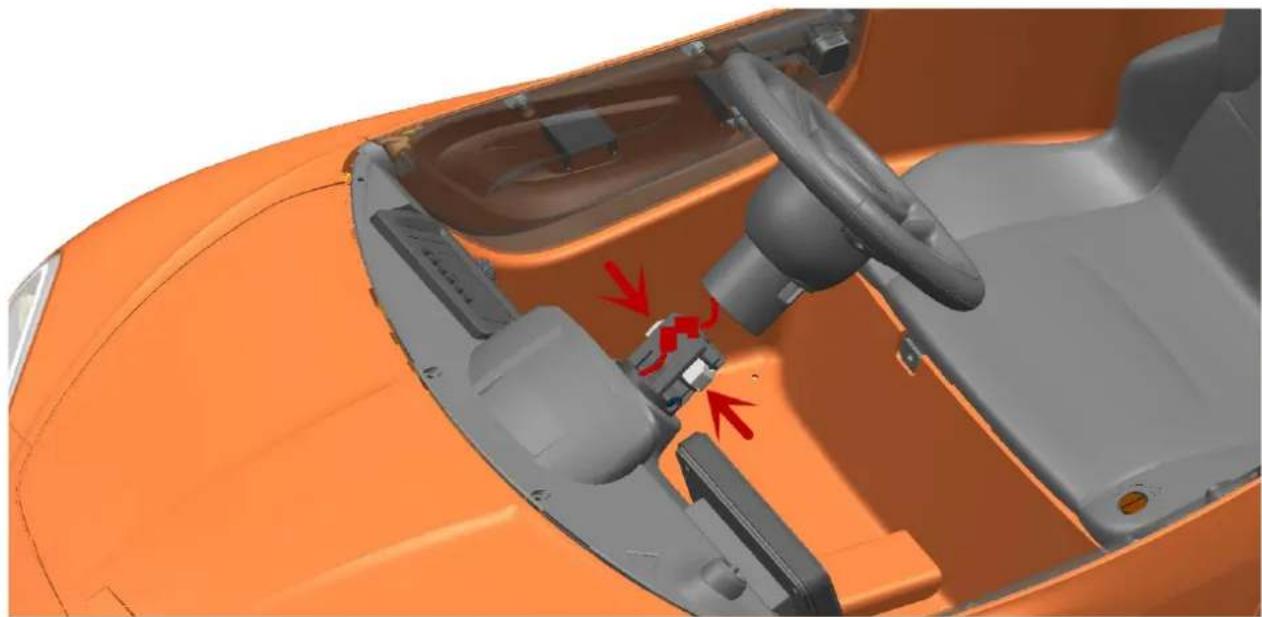

5. Connect steering wheels

A. Connect lines of steering wheel and lines of dashboard.

B. Insert steering wheel directly

Interior view of a vehicle's steering wheel and dashboard (no text or symbols visible)

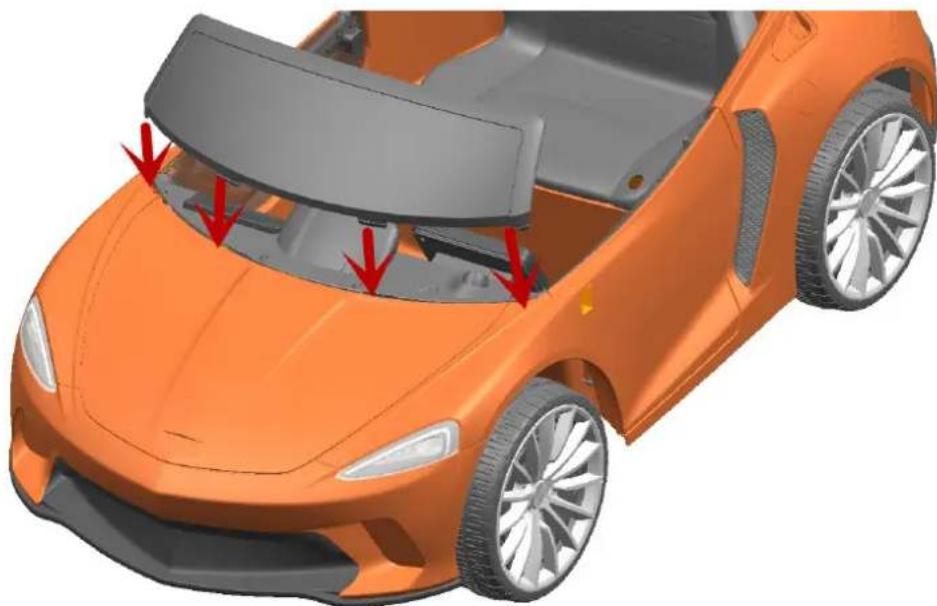

6. Install front window shield.

Make two sides of the window shield into the sockets and insert directly.

3D rendering of an orange sports car with red arrows pointing to the dashboard compartment (no text or symbols visible)

7. Install rear view mirrors

Install rear view mirrors into the sockets of both sides of dashboard.

Front view of an orange sports car with a red circular annotation highlighting the dashboard area (no text or symbols present)

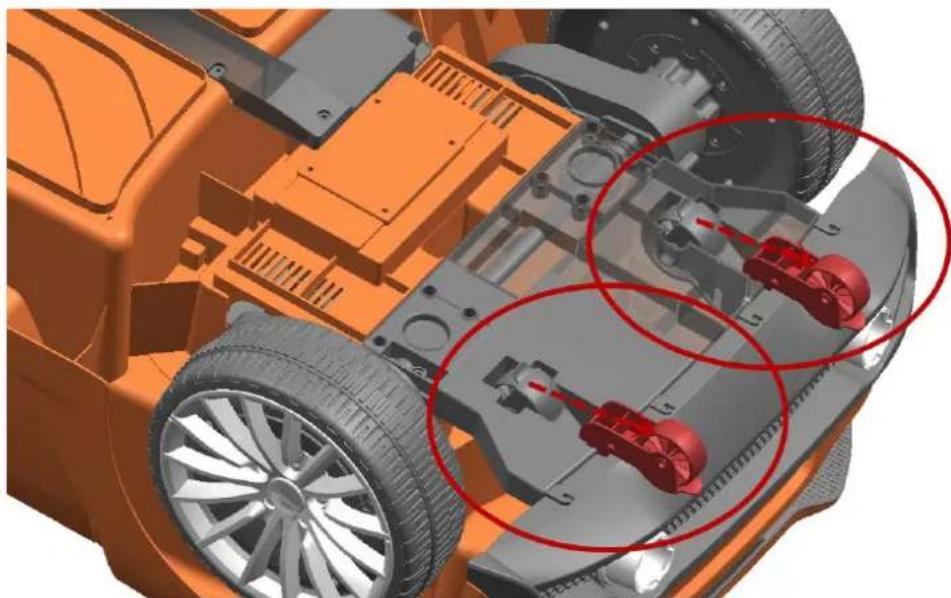

8. Sketch-map of hidden wheels

3D rendering of an electric vehicle chassis with highlighted red components (no text or symbols)

There are sketch-map of hidden wheels at the back of the car. Please refer to the picture.

Instruction: When the car is out of battery, user can take out the hidden wheels to drag the car very easily

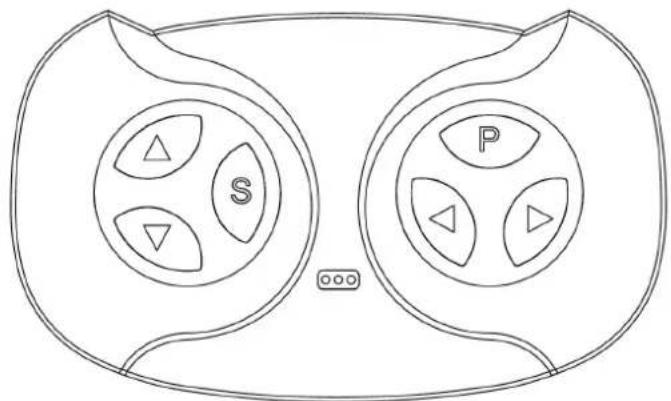

Connect with Remote Control

S P

2.4G Remote Control Instructions

Step 1: The Remote Controller is loaded with two AAA batteries.

Step 2: Turn off the power switch on the vehicle.

Step 3: Hold down "▲" & "▼" keys for 3 seconds start match code, the first LED flicker, now turn on the vehicle power switch. The red indicator lights stop flashing, and the code is successful.

Keys caption: "S" set up speed, 1 led lit up is low speed, 2 leds lit up is medium speed, 3 leds lit up is high speed, "▲" Forward, "▼" Back, "◀" Left, "▶" Right, Press" P" key hold the brake, All LED flicker

Forward Speed Back S P Brake Right Left Speed display Loosen the screw Load two AAA (1,5V) batteries

WARNING! Not for children under 3 years. Small parts. Choking hazard

-Load two AAA (1.5V) batteries according to the diagram.

-Non-rechargeable batteries are not to be recharged.

-Different types of batteries or new and used batteries are not to be mixed.

-Batteries are to be inserted with the correct polarity.

-Exhausted batteries are to be removed from the toy.

-The supply terminals are not to be short-circuited.

-The packaging must be retained since it contains important information.

*Manufactured according to FCC certification testing and ECM credential.

*This remote is to be used by adult only.

INSTALLATION PROCEDURE

(1) (3) (4) (5) DIGITAL AUDIO PLAYER AUX EDUCATION/V - STORE/V+1 MUSE/V + MODE (2) (6) (8) (7)

1. USB socket
2. TF socket
3. MP3 socket
4. Display
5. MODE choose (Radio/Bluetooth/TF card/USB connector)
6. Education (Pressing for a longer time and it will lower the volume)
7. Story (Play/ Pause under the Bluetooth/TF/USB functions)
8. Music (Pressing for a longer time and it will higher the volume)

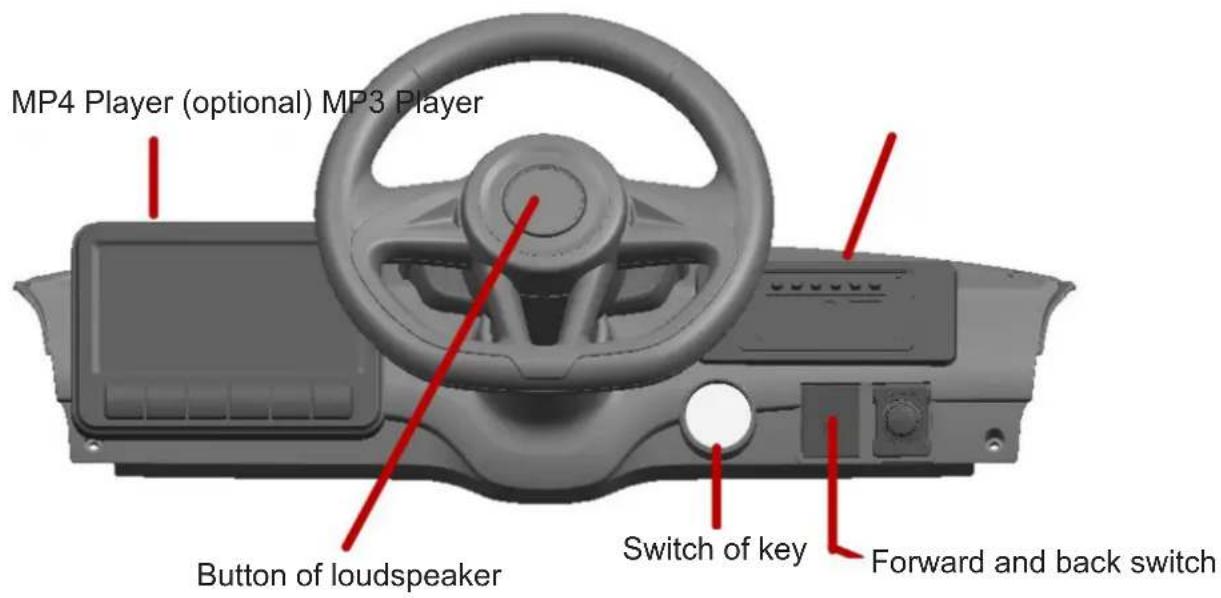

Function indication

On the premise that the battery has been correctly connected, start the trolley circuit system.

MP4 Player (optional) MP3 Player Button of loudspeaker Switch of key Forward and back switch

Be careful

1. When the vehicle is running, do not switch the push handle forward and backwad to avoid damaging the gearbox and motor.
2. In manual mode the vehicle can run only when the foot switch is pressed.
3. The remote control is used by the guardian.

Problem: the car does not move.

Answer: the battery is low, please charge for 8-12 hours but not exceeding 20 hours.

Charge at least once a month to keep the battery cells active.

Fuse Battery

To avoid short fuse or power cut off:

1. Do not overload the product. Max load is 30 Kg.
2. Do not drag any item behind this product.
3. Do not allow water or any liquid into electric parts.
4. Do not charge wire system without a professional.

WARNING

Warning-When replacing a replaceable battery, first open the lid and take out the old battery. Put in the new battery, pay attention to the positive and negative poles, cover the lid.

For safety reasons,

*Please use this vehicle under adult guidance and supervision.
*Do not use this product on main roads, slopes, highways or other dangerous places.
*Children must wear shoes and protective gears when operating the vehicle.
*Children should be seated with the seat belt fasten when driving.
*Only load a maximum of 30 Kg on the vehicle.
*Only children aged 37 - 95 months should be allowed on this vehicle.
*Use this toy strictly according to safety manual.
*Please check the tires, breaks, steering wheels, seats and seat belts before operating vehicle.
*This toy vehicle should be used with caution and requires skill to avoid fall or collision with third parties.

*Non-rechargeable batteries are no to be recharged;

*The supply terminals are not to be short-circuited.

*Rechargeable batteries are to be removed from the toy before being charged;

*The toy should be regularly examined for damage to the cord, plug, enclosure and other parts and in the event of such damage, they must not be used until the damage has been repaired.

-Only use the battery specified by the manufacturer

-Only use the charger specified by the manufacturer.

Pictures are for reference only, please adhere to the original products as standard.

3D CAD model of an orange sports boat interior with highlighted seat and lock mechanism (no text or symbols)

Interior view of a vehicle's steering wheel and dashboard (no text or symbols visible)

3D rendering of an orange sports car with red arrows pointing to the front panel (no text or symbols)

3D model of an orange sports car front view with red annotation arrows indicating specific components (no text or symbols present)

8. Nødhjul

3D rendering of an electric vehicle chassis with red automotive components highlighted (no text or symbols)

Fuse Battery

3D CAD model of an orange sports boat interior with highlighted seat and lock mechanism (no text or symbols)

Interior view of a vehicle's steering wheel and dashboard (no text or symbols visible)

3D rendering of an orange sports car with red arrows pointing to the front panel (no text or symbols)

7. Montering av sidospeglar

Front view of an orange sports car with a red circular annotation highlighting the dashboard area (no text or symbols present)

8. Nödhjul

3D rendering of an electric vehicle chassis with red-labeled components and a highlighted circular region (no text or symbols)

Fuse Battery

3D CAD model of an orange sports boat interior with red annotation arrows indicating features, including a lock and lock icon (no text or symbols present)

Interior view of a vehicle's steering wheel and dashboard, showing orange body, gray seats, and red directional arrows indicating motion (no text or symbols)

3D rendering of an orange sports car with red arrows pointing to the dashboard compartment (no text or symbols visible)

Front view of an orange sports car with a red circular annotation highlighting the dashboard area (no text or symbols present)

8. Apupyörät

3D rendering of an electric vehicle chassis with highlighted red components (no text or symbols)

Fuse Battery

Orange toy car with black wheels and seat, shown in studio setting (no text or symbols visible)
