805-749 - Toy Nordic Play - Free user manual and instructions

Product Type	Toy
Brand	Nordic Play
Model	805-749
Dimensions	30 x 20 x 15 cm
Weight	500 g
Power Supply	2 x AA batteries (not included)
Age Range	3+ years
Material	Plastic, metal parts
Color	Multi-color
Sound Effects	Yes, electronic sounds
Lights	LED lights
Interactive Features	Buttons, motion sensor
Safety Warnings	Choking hazard, small parts
Battery Life	Approx. 2 hours continuous use
Cleaning Instructions	Wipe with damp cloth; do not submerge
Storage	Store in dry place, away from direct sunlight
Replacement Parts	Available through Nordic Play support
Warranty	1 year limited warranty
Certification	CE, EN71 compliant

Frequently Asked Questions - 805-749 Nordic Play

What kind of batteries does the toy require?

The toy requires 2 x AA batteries (not included). Please use alkaline batteries for best performance.

Is the toy suitable for children under 3 years?

No, this toy is recommended for ages 3 and up due to small parts that may pose a choking hazard.

How do I clean the toy?

Clean the toy with a damp cloth and mild soap if needed. Do not immerse in water or use abrasive cleaners.

The toy is not making any sounds. What should I check?

First, ensure the batteries are installed correctly (+/-). If still not working, try fresh batteries. Also check the battery compartment for corrosion.

Can I get replacement parts for this toy?

Yes, replacement parts are available through Nordic Play customer support. Contact them with your model number (805-749).

What is the warranty period?

This toy comes with a 1-year limited warranty against manufacturing defects. Proof of purchase is required.

How long do the batteries last?

Under normal use, batteries last approximately 2 hours of continuous play. Actual life may vary based on usage.

Does the toy have lights?

Yes, the toy features LED lights that activate during play. They are energy-efficient.

Is the toy safe for outdoor use?

The toy is intended for indoor use only. Exposure to moisture or extreme temperatures may damage it.

What should I do if a part breaks?

If a part breaks, discontinue use immediately. Contact Nordic Play support to inquire about replacement or repair options.

USER MANUAL 805-749 Nordic Play

White BMW 6 GT toy car with black seat cover and chrome finish, shown from front and side (no text or symbols on body)

Size 106 x 64 x 51 cm

Art. no. 805-749

EAN 5705858707020

Imported by / Importeret af

NSH NORDIC A/S

Virkefeltet 4

DK-8740 Braedstrup

Made in china / produceret i Kina

General safety rules for NORDIC PLAY products

Warning:

• The vehicle may not be used on roads, sidewalks, in hills or sand.
• The vehicle should only be used on flat surfaces.
• Do not overload the vehicle. Pay attention to the maximum weight limits. Typical maximum total weight is 25 - 35 kg. Please check for your specific model.
• Only adults may charge the battery.
• Children using the vehicle should always be supervised by a responsible adult.
• Do not charge the vehicle's circuit.
• Do not drive in water or other fluids.
• Stop the vehicle when it is approaching an obstacle, turn away from the obstacle and drive somewhere else.
• Please charge the battery when the vehicle starts to drive slowly, otherwise the battery's lifespan can be shortened.
• Please charge the battery fully before the battery is stored for longer periods without use. Charge the battery every three months to extend the battery's lifespan.
• Do not drive during rain.
• Battery, charger, electrical cables, outlets and other parts should periodically be checked. If damages are discovered, the vehicle may not be used until these are fixed.
• The charger should be checked for damages on cord, plug and other parts periodically. If there are damages, the charger may not be used until the damage is fixed.
• Vehicle with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without a battery can be used from 1 year of age.
• The vehicle may only be used with the recommended charger.
  • The charger is not a toy.
• Only clean with a damp cloth.
• Check that all parts are undamaged. If not, repair or change these.
• It is a good idea to use safety equipment, depending on the vehicle.
• Worn out batteries should be removed/changed from the vehicle.
• The battery should be removed before the vehicle is disposed of.
• Declaration of conformity: This product is in accordance with EU directive 2014/53 / EU.

Warning:

For your child's safety, pay attention to the following:

• Only adults may assemble the product.
• Small parts and plastic parts should be kept away from the child to avoid risk of suffocation.
• Children may not touch or open the battery holder.
  • Adult supervision is required.
• Vehicles with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without battery can be used from 1 year of age.
• Use the vehicle with caution, since driving skills are required to avoid falls or crashes that can result in injuries to the user or third party.
• Instructions on how the vehicle is used should be given to the child before use – especially for the braking system.
• May not be used in traffic. Only use the vehicle on private property.
• Only drive on flat surfaces away from other vehicles and obstacles.

General safety rules for NORDIC PLAY products

• Avoid sharp bumps and sudden changes of the surface.
• Avoid roads and surfaces with water, sand, gravel, dirt, leaves and other debris.
• Wet weather can reduce the traction, brake effect and visibility.
• Do not drive when it is dark.
• Avoid excessive speed in conjunction with downhill driving.
• Watch out for pedestrians.
• Check and tighten all screws before every drive. Do not allow two or more children to use the vehicle at once.
• Do not use the vehicle if it has damages.

• Change damaged parts immediately.

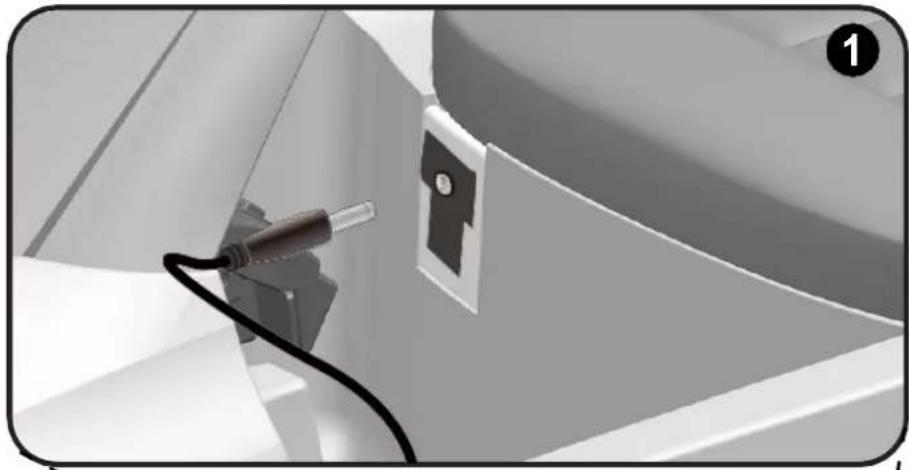

• Insert 220V/12V charger cable's connector to the vehicle.

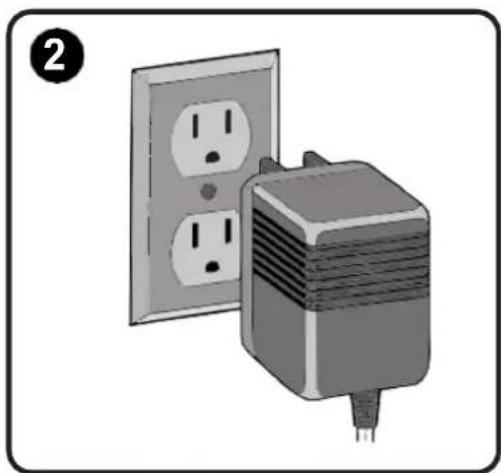

• Insert actual 220V/12V charger unit to your 220V power outlet. The battery will start charging.
• Detach after 8-12 hours

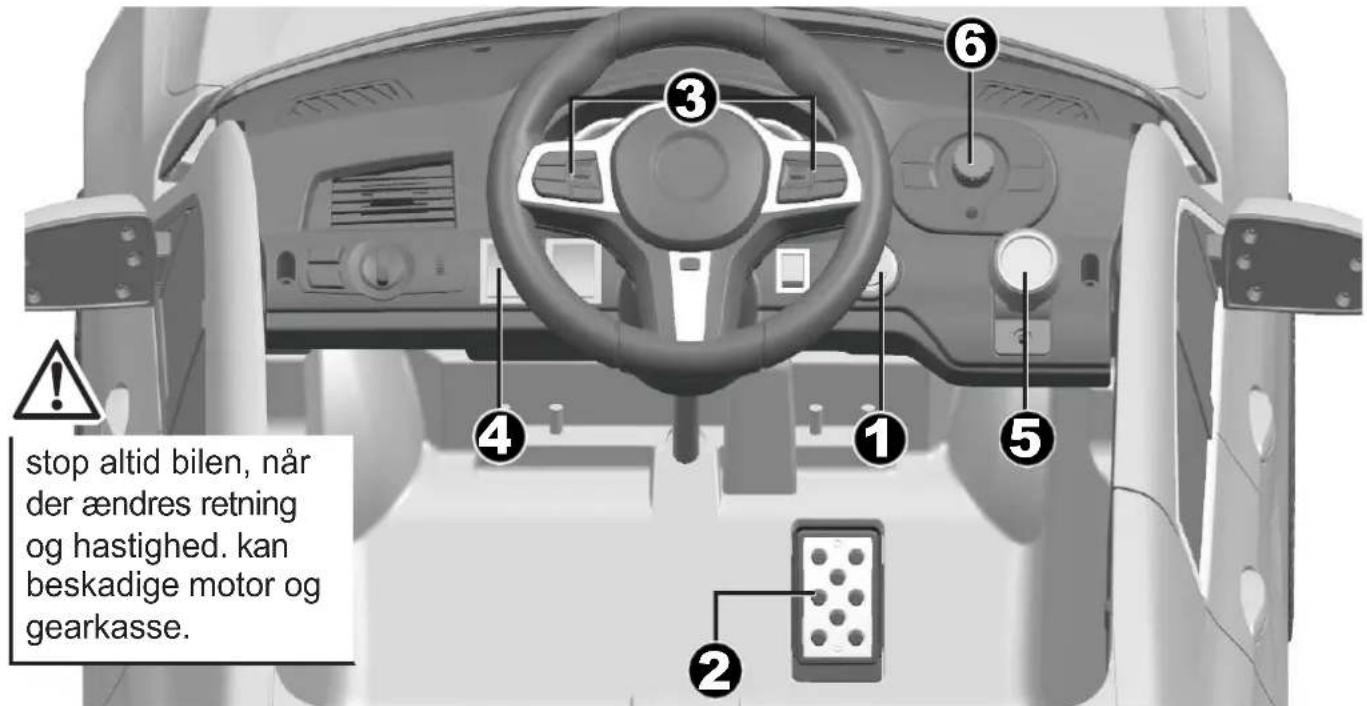

IMPORTANT NOTE: When shifting (forward/backward), please make sure the vehicle is completely stopped, otherwise it will damage the gear box and motor.

Forward: 1. Press the "Forward/backward switch" to the "Forward" position.

1. Press the "Foot pedal", the vehicle drives forward.

Stop: 1. The vehicle will brake automatically, when foot is lifted from the "foot-pedal".

Back Up: 1. Press the "Forward/backward switch" to the "Backward" position.

1. Press the "Foot pedal", the vehicle will back up.

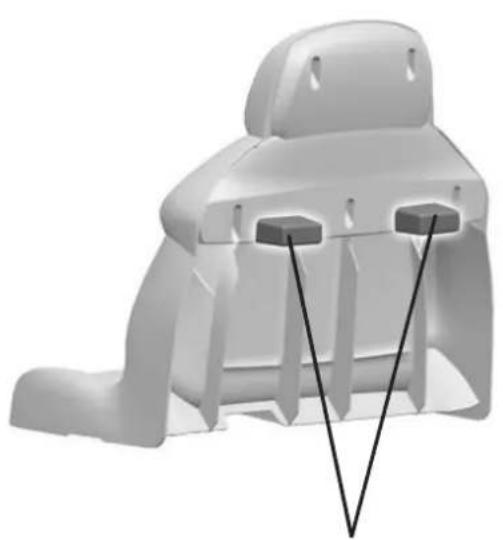

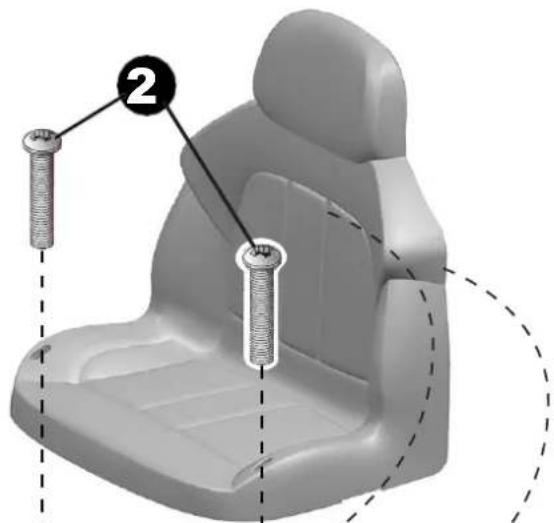

Loosen the screw from the back of the seat seat, take away the seat. Then connect the battery line red wire to the red terminal of the battery and finally then connect black wire to black battery terminal. Never connect wires into the uncorrect battery terminals. After the connections, please assemble the seat back to the original place and tighten the screw.

Battery replacement and fuse

The battery is equipped with a thermal fuse which blows if the motor, battery or electrical circuit is overloaded. The vehicle must then be switched off for at least 5 minutes, after which the fuse will restore itself. If the product does not work, the fuse may therefore be the problem. To avoid this, read the following points:

• Do not overload the vehicle.
• Do not pull anything behind the vehicle.
• Do not drive up steep hills.
• Do not run into motionless objects that cause the wheels to spin.
• Do not drive at extreme temperatures.
• Make sure the product does not come into contact with liquids.
• Do not touch the electrical circuit.

As the battery gets older it will start to lose some of its capacity. Depending on the conditions, it can last anywhere from 1 - 3 years. If the battery needs a replacement, follow these steps:

1. Loosen the crew and remove the seat.
2. Disconnect the cables from the battery terminals.
3. Remove the battery cover.
4. Carefully lift the battery out of the vehicle. Depending on the condition of the battery (leakage or similar), safety equipment may be required. Do not lift the battery from its wires but from the battery itself.
5. Put the battery in a plastic bag and dispose it responsibly. NEVER put the battery to general waste.
6. Insert the new battery into the vehicle.
7. Reconnect the cables to the new battery. Red wire to red terminal (+) and black wire to black terminal (-) of the battery.
8. Slide the seat into place. Tighten the screw.

To protect the environment, batteries and electrical equipment must be disposed separately from household waste. Contact the municipality for the nearest collection point.

Problem Possible Cause Solution
Vehicle does not run Battery low on power Recharge battery.
		Thermal fuse has tripped Let the vehicle cool down for 5 minutes.Do not overload the vehicle.
		Battery connector or wires are looseCheck that the battery connectors and wires are firmly connected.
		Battery is dead Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
		Electrical system is damagedContact your distributor please.
		Motor is damagedContact your distributor please.
Vehicle does not run very long Battery is not properly charged. Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
Vehicle runs sluggishly Battery low on power Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
			Vehicle is overloadReduce weight on vehicle.Maximum user weight is 25 kgs.
			Vehicle is being used in unsuitable conditionsUse the vehicle on flat, even surfaces.
Vehicle needs a push to go forward	Poor contact of wires or connectors	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	“Dead Spot” on motor A dead spot means the electric power is not being delivered to the terminal con nection and the vehicle needs repair.Contact your distributor please.
Difficult shifting from forward to reverse or vice-versa	Attempting to shift while the vehicle is motion	Always completely stop the vehicle before shifting.
Loud grinding or clicking noises coming from motor or gear box	Motor or gears are damagedContact your distributor please.
Battery will not recharge	Battery connector or adapter connector is loose	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	Charger not plugged in	Check that the battery charger is plugged into a working wall outlet.
	Charger is not working	Contact your distributor please.
Charger feels warm when recharging	This is normal and not a cause for concern

Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem Contact your distributor please.

Maintenance

• Check all screws periodically and tighten as needed.
• Check the vehicle's plastic components frequently for damage.
• The mechanical parts of the vehicle can be lubricated with oil if necessary.
• Store the product indoors to protect it from the weather.
• Keep product away from hot items such as stove and the likes.
• Do not clean the product with a garden hose and do not use soap. A dry or moist cloth is enough.
• Do not drive in rain, snow, sand and gravel as this may damage the product.
  If the product is not to be used for an extended period, recharge the battery and then disconnect all cables

3D rendering of a BMW convertible car with sleek design and alloy wheels (no visible text or symbols)

Owner's Manual with Assembly Instructions

Styles and colo(u)rs may vary. Made in China.

The owner's manual contains important safety information as well as assembly, use and maintenance instructions.

The Ride-on Car must be assembled by an adult who has read and understands the instructions in this manual.

Keep the package away from children and dispose of properly before use. Keep this manual for future reference.

About Your New Ride-On | 1

On the purchase of your new BMW Ride-On.

This ride-on will provide your child with many miles of riding of enjoyment. To help assure you and your rider a safe ride we ask you to please read this manual carefully, and keep it for future reference.

Follow the recommendations in this manual, they are designed to improve the safety and operation of your ride-on car and it's rider.

The BMW logo and the BMW word mark are trademarks of BMW AG and are used under license.

SPECIFICATIONS:

Battery	6V4AH*1 or 6V7AH*1 or 6V10AH*1	6V4AH*2 or 12V7AH *1
Charger	6V500mA or 6V1000mA	12V500mA or 12V1000mA

Suitable age: 37-96 months

Load Capacity: Under 30kg

Speed: 1WD 3km/h 2WD 3-5km/h

Size of car: 106 x 64 x 51 CM

Power way: Charging type

Charge time: 8-12 hours

Parts List 2

PART NO.	PART NAME	Q'ty (pcs)		REMARKS
		1WD	2WD
1	Vehicle body	1	1

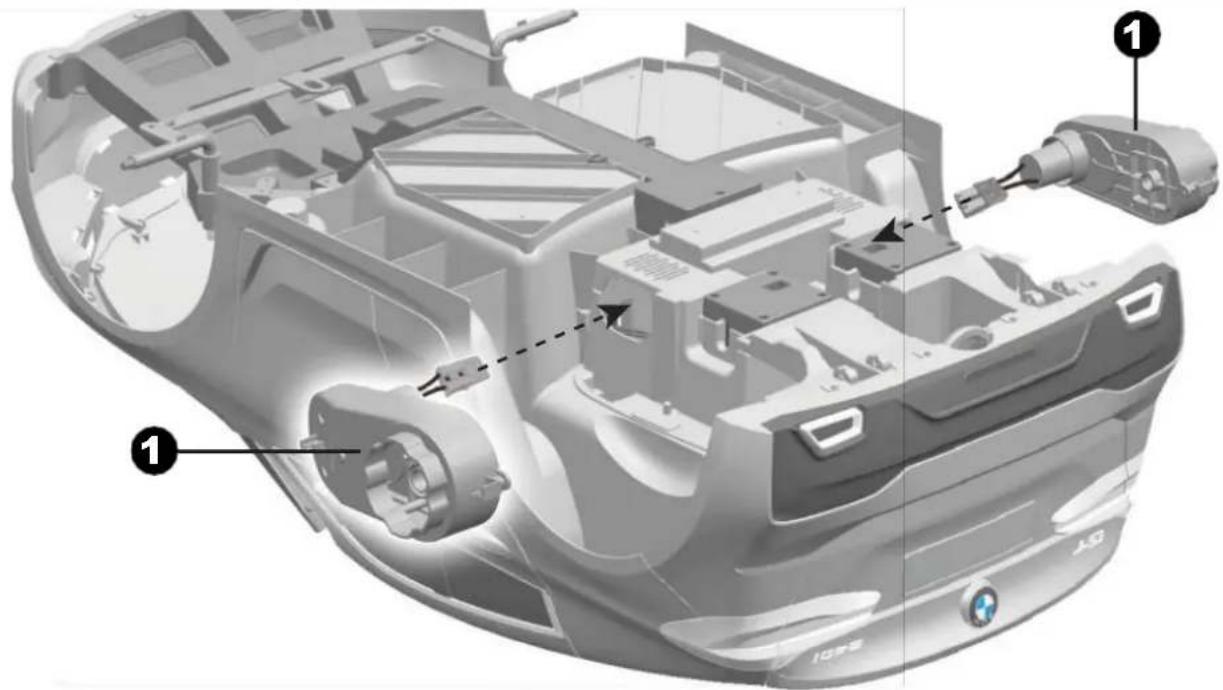

2	Gear box	1	2	2WD one labeled “R”, the other one labeled “L”

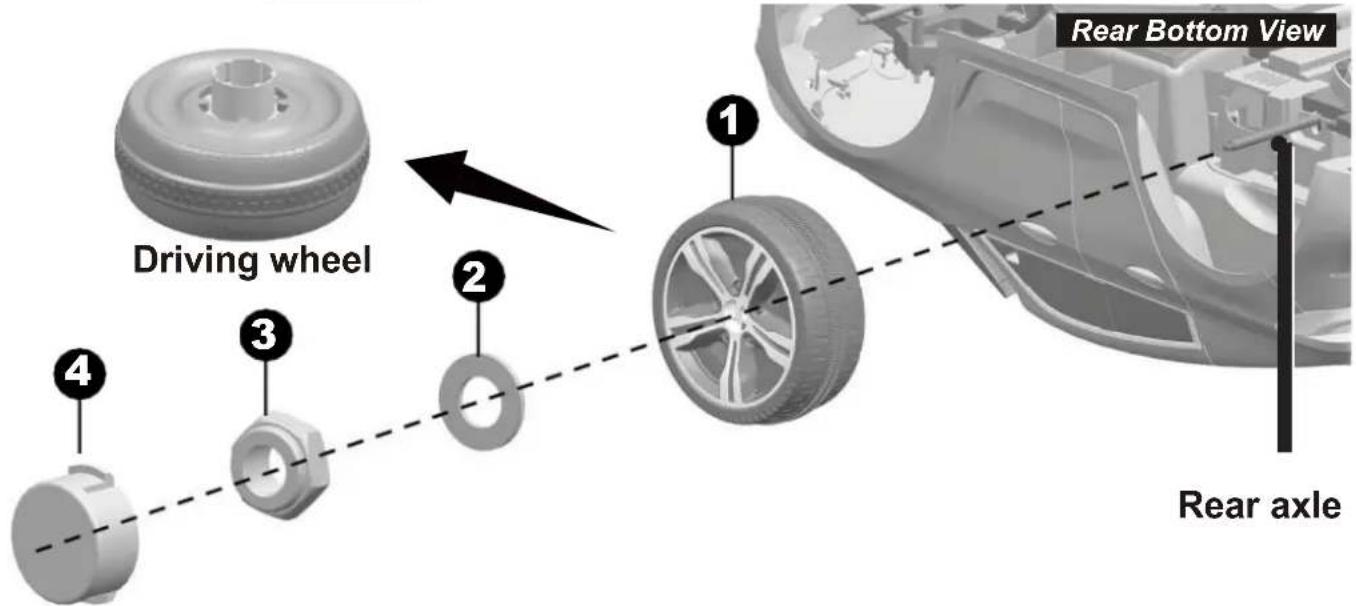

3	Driving wheel	1	2
4	Normal wheel	3	2
5	Bushing	3	2
6	∅10 washer	8	6
7	Lock nut	4	4
8	Hubcap	4	4
9	Steering column	1	1

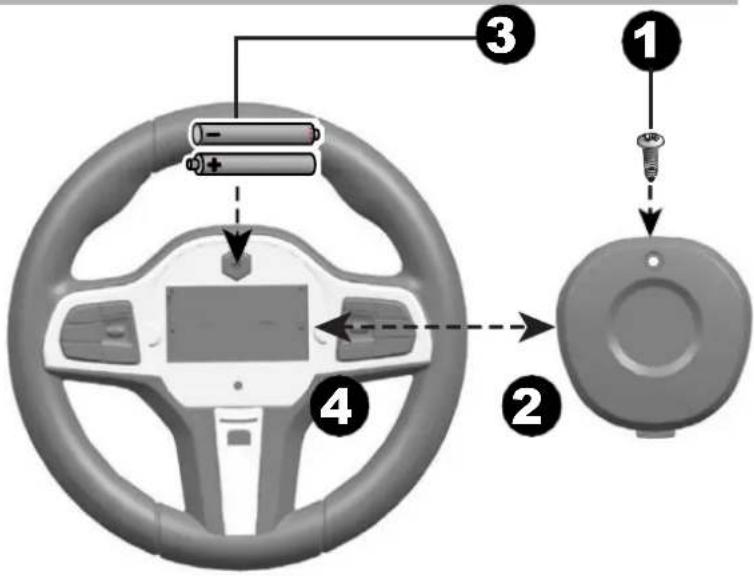

10	Steering wheel	1	1
11	M5x35 machine screw	1	1	Placed on the steering wheel
12	∅5 nut	1	1	Placed on the steering wheel
13	Motor hood	1	2
14	∅4x12 screw	4	8
15	Seat	1	1
16	M5x16 machine screw	2	2

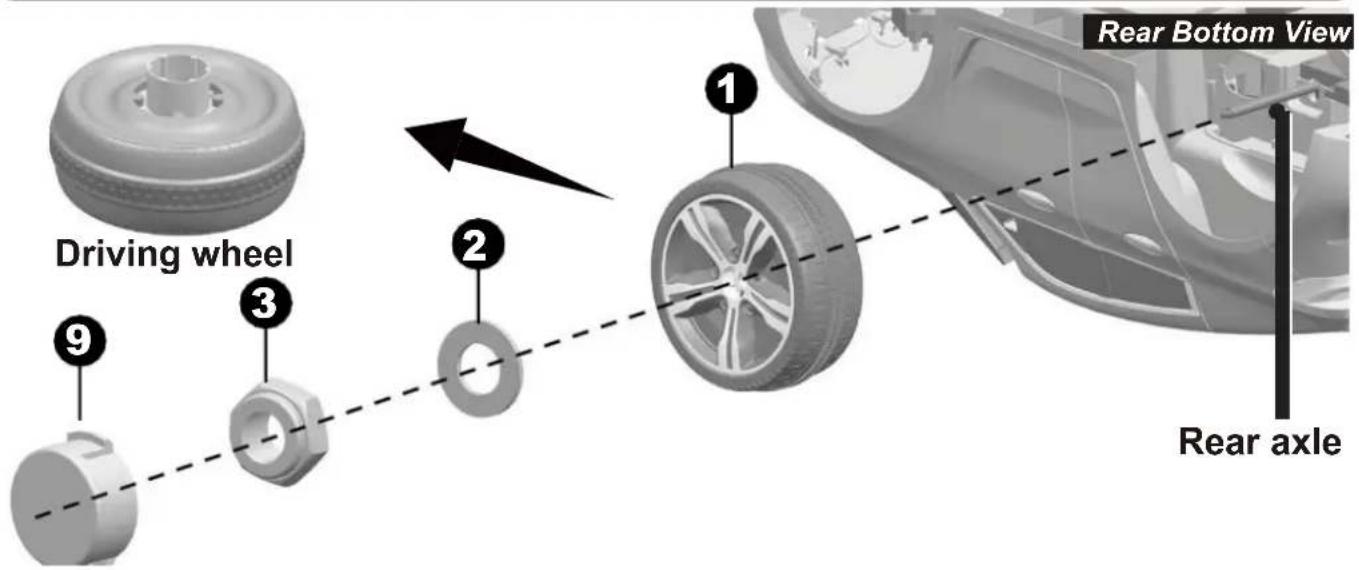

17	Rear axle	1	1

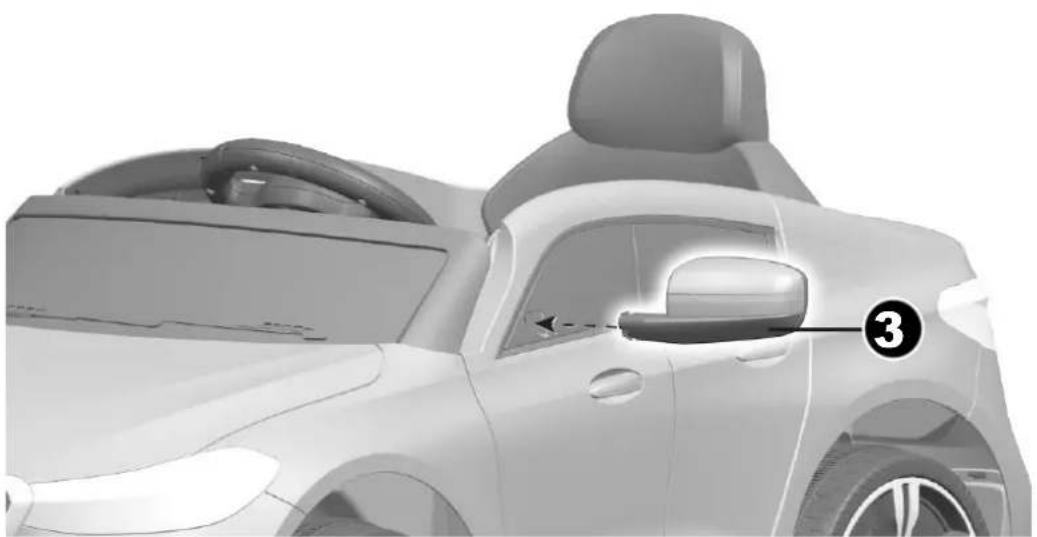

18	Wing mirror	2	2	Left and right
19	Spanner	2	2
20	Charger	1	1
21	Remote controller	1	1	Only for R/C type
22	M5x25 machine screw	1	1	Only for R/C type
23	∅5 nut	1	1	Only for R/C type
24	R/C driver	1	1	Only for R/C type
25	∅10 washer	2	2	Only for Normal type
26	Snap ring	1	1	Only for Normal type

HINT: Some parts shown are assembled on both sides of vehicle

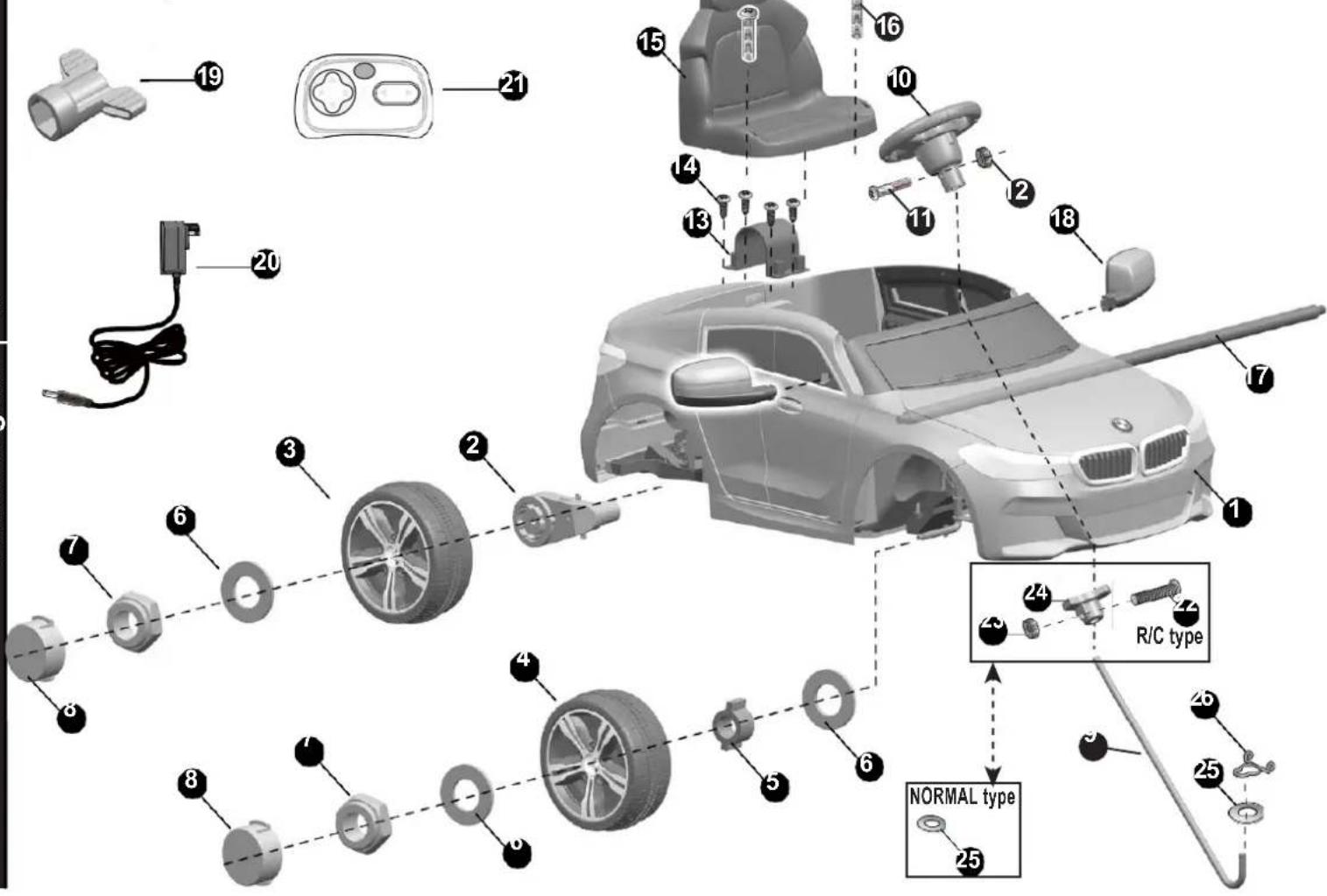

Exploded view diagram of a BMW car showing component labels and parts with numbered annotations

WARNING!

• CHOKING HAZARD - Small parts. Not suitable for children under 36 months. The product contains small parts, keep children away when assembling.
  • ADULT ASSEMBLY REQUIRED.
  • Always remove protective material and poly bags and dispose before assembly.

• Make sure that the power switch is turned "OFF" before assembling the ride-on.

• Before first time use, charge the battery for at least 4 to 6 hours.
• Assembly tools required:

Metal screwdriver with a flat blade and handle (no text or symbols visible)

Screwdriver (not included)

Illustration of a pair of pliers with black handles and gray blades (no text or symbols)

Long nose pliers (not included)

3D rendered image of a metallic T-shaped connector or fitting (no text or symbols visible)

Spanner

• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the toy before being charged.
• Rechargeable batteries are only to be charged under adult supervision.
• Different types of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the toy.
• The supply terminals are not to be short-circuited.

1WD Attach the Rear Axle | 5

Technical diagram of a car body with labeled parts and assembly instructions in Chinese

Remove all the parts from the rear axle.

1. Slide a ∅10 washer onto the rear axle from the longer end.
2. Slide the motor and the connector on the gear box through the larger hole on the rear of the vehicle body and out where the battery sits.

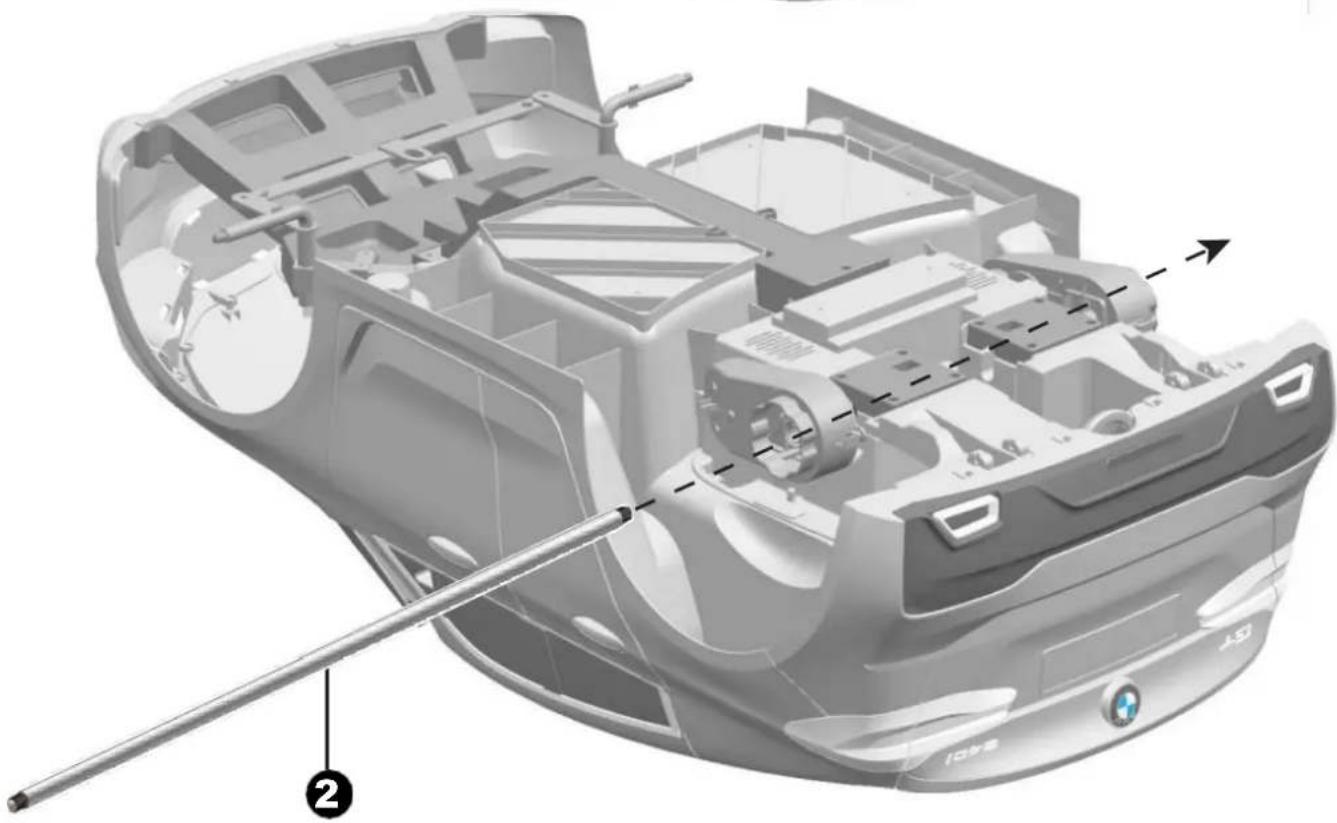

3. Insert the longer end of the rear axle into the smaller hole on the rear vehicle body and through the hole on the gear box.

Technical diagram of a car body with labeled components, showing internal structural and assembly views

Cutaway diagram of a car's internal components, showing structural parts and a tool (no text or symbols)

Remove all the parts from the rear axle.

1. HINT: "R" labeled gear box should be fit to "R" side of vehicle body;

“L” labeled gear box should be fit to “L” side of vehicle body.

Slide the motor and the connector on the gear box through the larger hole on the rear of the vehicle body and out where the battery sits.

Repeat for the other gear box.

1. Insert the rear axle through the hole on the gear box, into the hole on the vehicle body and out through the hole on the gear box on the other side.

HINT: If your vehicle is Two Wheels Driving Type, see the next page please.

Driving wheel 9 3 2 1 Rear Bottom View Rear axle

Remove all the parts from the rear axle.

1. Slide the driving wheel onto the rear axle. Keep it match up with the gear box.
2. Slide a ∅10 washer onto the rear axle.
3. Tighten a lock nut to the end of the rear axle with a spanner.

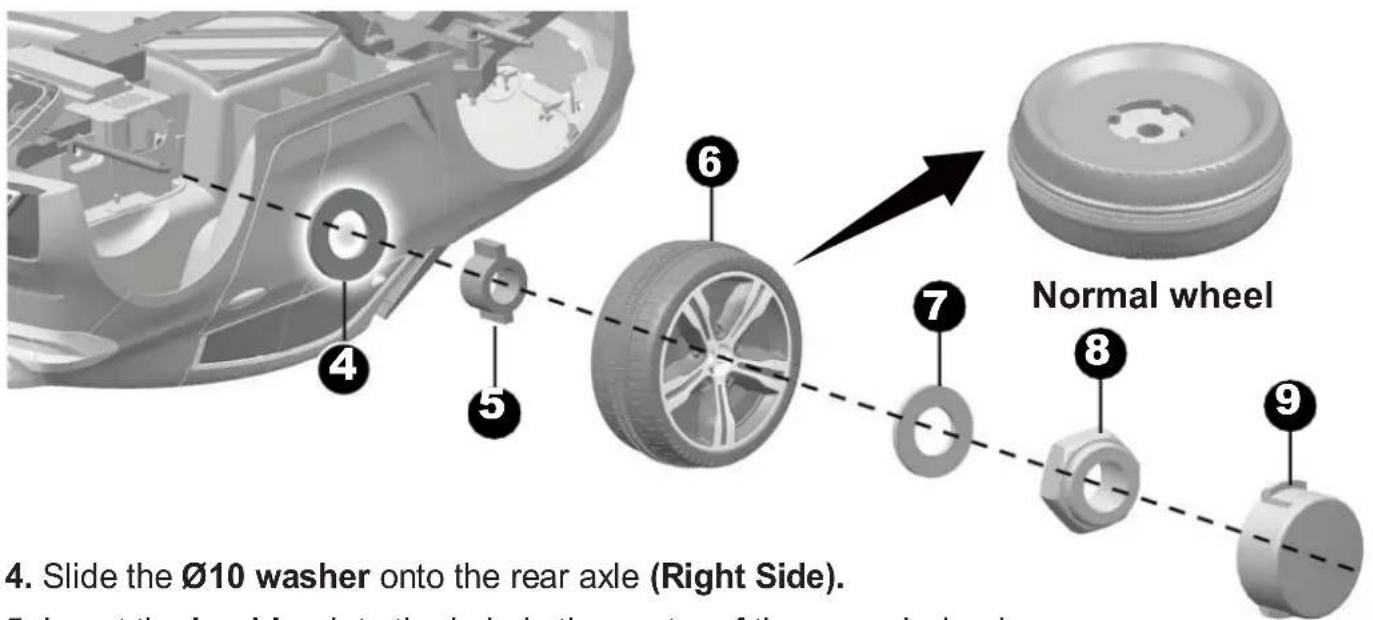

4. Slide the Ø10 washer onto the rear axle (Right Side). 5. Select the washer into the wheel in the rear axle. 6. Normal wheel 7. 8. 9.

1. Slide the ∅10 washer onto the rear axle (Right Side).
2. Insert the bushing into the hole in the center of the normal wheel.
3. Slide the normal wheel onto the rear axle.
4. Slide the ∅10 washer onto the rear axle.

5. Fit the hubcaps to the wheels.

6. Tighten a lock nut to the end of the rear axle with a spanner. HINT: An extra spanner has been provided to hold the Lock Nut on the other side of the rear axle while tightening the Lock Nut on the other side.

Driving wheel Rear Bottom View Rear axle

Remove all the parts from the rear axle.

1. Slide the driving wheel onto the rear axle. And keep the driving wheel match up with the gear box.
2. Slide the ∅10 washer onto the rear axle.
3. Tighten a lock nut to the end of the rear axle with a spanner. HINT: An extra spanner has been provided to hold the Lock Nut on the other side of the rear axle while tightening the Lock Nut on the other side.

Repeat the above procedure to assemble the other driving wheel.

1. Fit the hubcaps to the wheels.

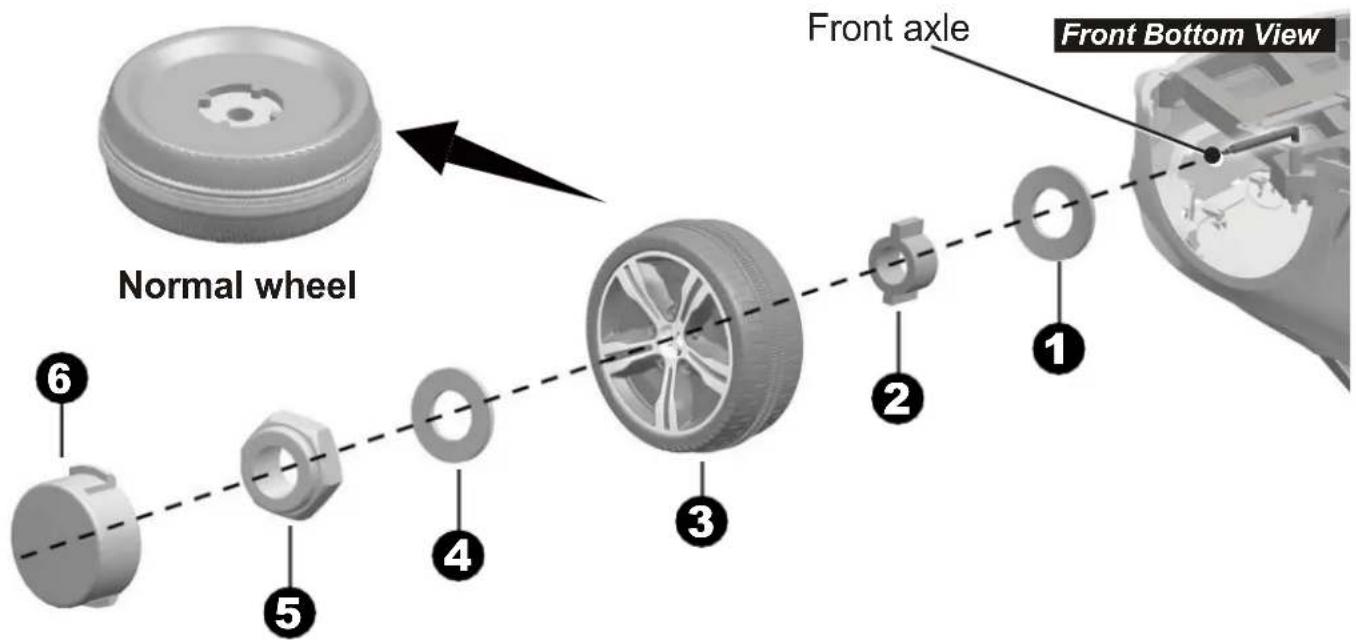

Normal wheel Front axle Front Bottom View

Remove all the parts from the front axle.

1. Slide a ∅10 washer onto the front axle.
2. Slide a bushing onto the front axle.
3. Slide a normal wheel onto the front alxe. Ensure the bushing match with the driving wheel.
4. Slide a ∅10 washer onto the front axle.
5. Tighten a Lock nut to the end of the front axle with a spanner.
6. "Snap" the hubcap to the wheel.

Repeat the above procedure to assemble the other normal wheel.

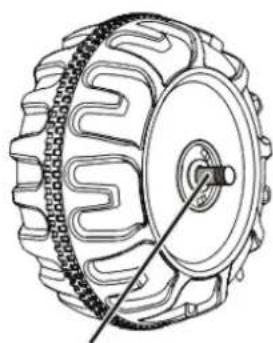

Technical line drawing of a mechanical tire assembly with chain and wheel components (no text or symbols)

GAP

After assembling any wheel to the axles, please check the gap between the screw thread and the collapsible (refer to below picture), if the gap is too big, please add two or three washers inside the wheel, but after tightening the nut outside the wheel, please turn the wheel by your finger to check if the wheel can run smoothly, this is very important, because if the wheel can run smoothly, it is ok, but if the nut press the wheel and the wheel can't run smoothly, the motor will be broken easily! Then you need to decrease one or two washers to make sure the wheel can run smoothly!

HINT: If your vehicle equipped with the Remote Control Function, see the next page please.

Front Bottom View Steering column Turn the vehicle body on its side

- Turn the vehicle body on its side.

1. Slide a ∅10 washer onto the steering column from the straight end.

2. Insert the straight end of steering column up through the hole on the front of vehicle body from bottom side, and out through the hole on the dash.

3. Insert the bent end of steering column through the hole on the steering linkage.

4. Fit a ∅10 washer onto the bent end of the steering column.

5. Slide a snap ring into the grooved on the bent end of the steering column.

Front Bottom View Hole onthe steering linkage Steering Gear Box

- Turn the vehicle body on its side. Remove the M5x25 machine screw and ∅5 nut from the R/C driver with a screwdriver.

1. Attach the R/C driver to the steering gear box, and make it match with steering gear box.
2. Insert the straight end of steering column up through the hole on the R/C driver, the hole on the steering gear box from the bottom side, and out through the hole on the dash.
3. Insert the bent end of steering column through the hole on the front axle linkage.
4. Line up the holes on the R/C driver and the hole on the steering column, tighten a M5x25 machine screw and ∅5 nut back in the same location with a screwdriver.

HINT: If the steering wheel of your vehicle equipped with the sound function, please follow the steps 1\~4 to add the batteries (Not Included), and refer to the battery information on page 4.

1. With a screwdriver remove the screw on the battery cover located in the center of the steering wheel.
2. Remove the battery cover from the top of the battery compartment.
3. Insert 2x1.5 AA batteries in their correct polarities.
4. Place the battery cover over the battery compartment and fasten with the screw you removed in step one.

Diagram of a car steering wheel with labeled components including battery, screwdriver, and dashboard parts

Attache the Steering Wheel

Remove the M5x35 machine screw and ∅5 nut from the steering wheel.

Turn the vehicle body upright.

1. Place the steering wheel over the the steering column, protruding from the middle of the steering wheel base.
2. Align the holes on each side of steering wheel with the holes at the end of the steering column.
3. Fasten a nut on the opposite end of the screw to secure the steering wheel to the steering column.

the holes at the end of the steering column. 7. Fasten a nut on the opposite end of the screw to secure the steering wheel to the steering column. End of steering column 6 7 5

Connect the Power Supply

Rear Top View

Fuse box Battery Vehicle connector Motor connector

1WD

1. Plug the red fuse connector into the terminal on battery.
2. Plug the vehicle connector into the motor connector on body as shown above.

2WD

1. Plug the red fuse connector into the terminal on battery.
2. Plug the vehicle connector into the motor connector on body as shown above. Repeat for the other side.

x4 ① ②

1WD

1. Fit the motor hood over the motor.
2. Insert two ∅4x12 screws and tighten.

2WD

1. Fit the motor hood over the motor.
2. Insert two ∅4x12 screws and tighten.
   Repeat for the other motor hood.

3D model of a car body panel with mounting holes and a triangular guide pin (no text or symbols)

Tabs on back of seat

Diagram of a car seat with two screws, labeled with number 2 pointing to the screw position.

1
1

1. Fit the tabs on back of the seat into the slots on the rear of the vehicle.
2. Insert two M5x16 machine screws through the seat and into the vehicle body, and tighten them with a screwdriver.
3. Fit the wing mirror into the hole on the door. Repeat for the other side.

Side view of a car with a highlighted door and numbered marker (3), showing no visible text or symbols.

PREVENT INJURIES AND DEATHS:

- NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle.

• This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
• Protective equipment should be worn.
• Never use in roadways, near cars, on or near steep inclines or steps, swimming pools or other bodies of water.
  • Always wear shoes.
  • Always sit on the seat.
• Not to be used in traffic.
• This toy is unsuitable for children under 36 months due to its maximum speed; Maximum user weight is 30kg.
  • This toy has no brake.

Rules for Safe Riding

• Keep Children within Safe Riding Areas:
• Never use in roadway, near motor vehicles, on lawn space, on or near steep inclines or steps, swimming pools or other bodies of water;
• Use the toy only on flat surfaces. Such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident. Operate the vehicle only in the daytime or a well-lit area.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• Do not let any child touch the wheels or be near them when the car is moving.
• This vehicle has adjustable play seat belts. Please instruct children how to tie the safety belt before using, guarantee the security.

Simple line drawing of a person driving a car (no text or symbols)

Use the vehicle on generally level ground ONLY!

Simple line drawing of a person on a vehicle with crossed arms, standing in grass (no text or symbols)

DO NOT Use the vehicle on Lawn space!

Use Your Ride-on | 17

Your vehicle may be equipped with the Mp3 player, see the next page please!

Always stop vehicle when changing the speed or direction to avoid damage the gears and motor.

1. Power Switch: Turns the vehicle on and off.
2. Foot pedal: Applies power (speed) to the vehicle.

• To move the car, press the pedal down.
- To brake or slow down, release pressure from the pedal.

1. Sound buttons (if equipped): Press for sounds playing.
2. High/Low speed switch (if equipped):

The switch operates the vehicle move forward in high speed or low speed.

HINT: The vehicle is designed to operate in low speed only in reverse.

1. Forward/reverse switch:

Changes the direction that vehicle moves from forward to reverse.

• To move the vehicle forward, shift the lever to top position.

• To move the vehicle backward, shift the lever to down position.

• Volumn knob (if equipped): +/- volume of vehicle.

Make sure your child knows how to steer, how to start and stop the vehicle and knows the rules for safe driving. The vehicle can be driven at a maximum of 5 km/h.

H G A MP3 TF USB ABC B C D E F V+ V-

A. Digital voltmeter: Check the power remaining of your battery, refer to page 22.

B. English learning mode

C. Storytelling mode

D. Nursery rhyme singing mode

E. Increase volume

F. Decrease volume

G. TF (Micro SD) card slot: Allow the audio from your TF card to be played through the vehicle speakers. MP3 format ONLY.

H. 3.5mm AUX input (AUX input): Allow the audio from your portable music player or phone to be played through the vehicle speakers. MP3 format ONLY.

I. USB interface: Allow the audio from your portable device to be played through the vehicle speakers. MP3 format ONLY.

WARNING:

The remote control has precedence over foot pedal operation.

(The foot pedal won't work while you operate the Remote Controller)

INSERT THE BATTERIES

Lift the battery compartment door on the back of the controller and insert two AAA(LR03) batteries.

NOTE: Batteries not included.

Refer to the battery information on page 4.

1. Connection button (build connection)

Long press the Connection button for 2-4 seconds first, then turn on the power button located on the vehicle dashboard console, when the low speed indicator goes from flashes into long bright, means the connection successful. If the low speed indicator only flashes, means the connection failed. Replace the batteries and repeat the steps above.

2. Brake button

Press the button to stop the vehicle, press it again to release the brake.

3. Speed select button

The switch operates the vehicle to move in low, normal or high speed.

HINT: The vehicle is designed to operate in low speed only in reverse.

NOTE:

• Leave the remote controller idling for about 10 seconds, it will shut down automatically.
• Repeat step 1 when you replace the batteries of the remote controller.

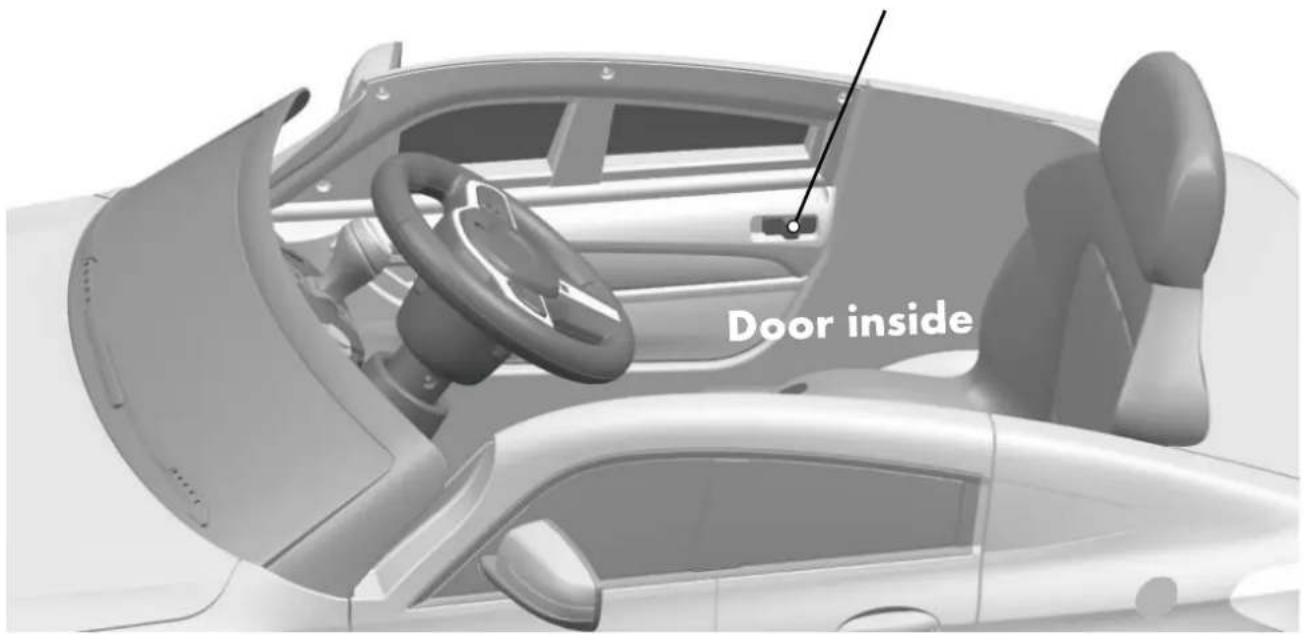

Door Lock

Door inside

NOTE:

Please close the door and ensure the lock snap into place when riding for safety consideration.

ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!

WARNING!

• PREVENT FIRE AND ELECTRIC SHOCK:

• Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another battery or charger may cause a fire or explosion.
• Do not use the battery or charger for any other product. Overheating, fire or explosion could occur.
• NEVER modify the electric circuit system. Tampering with the electric system may cause a shock, fire or explosion or may permanently damage the system.
• Do not allow direct contact between battery terminals. Fire or explosion can occur.
• Do not allow any type of liquid on the battery or its components.
• Explosive gasses are created during charging. Do not charge near heat or flammable materials. Charge the battery in a well-ventilated area ONLY.
• NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may cause a fire. Pick up the battery by the case ONLY.
• Charge the battery in a dry area ONLY.

- Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to cause cancer and reproductive harm. Wash hands after handling.

- Do not open the battery. Battery contains lead acid and other materials that are toxic and corrosive.

- Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock.

- Only adults may handle or charge the battery. NEVER allow child to handle or charge the battery. Battery is heavy and contains lead acid (electrolyte).

- Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.

- Before charging the battery, check for wear or damage to the battery, charger, its supply cord and the connectors. DO NOT charge the battery if any damage to parts has occurred.

- Do not allow the battery to drain completely. Recharge the battery after each use or once a month if not used regularly.

- Do not charge battery upside down.

- Always secure the battery with the bracket. Battery can fall out and injure a child if vehicle tips over.

• The POWER SWITCH must be turned in OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery for more than 10 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
  • After each use or once a month minimum recharge time as 8 to 12 hours, less than 20 hours at most.

Charging

- If your ride-on with a Digital voltmeter(IF EQUIPPED), the magnitude of voltage will tell you how much power is remaining in the battery when you must recharge the battery. Make sure the vehicle is stop!

BATTERY	MAGNITUDE OF VOLTAGE	BATTERY STATE
6V4Ahx1, 6V7Ahx1, 6V10Ahx1	≥ 6.6	The battery is full.
	6.5~6.3	The vehicle can work normally.
	≤ 6.2	The battery needs to be charge.
6V4Ahx2, 12V7Ahx1,	≥ 13.2	The battery is full.
	13.1~12.6	The vehicle can work normally.
	≤ 12.5	The battery needs to be charge.

Close-up of a car electrical outlet with a black cable inserted, no visible text or symbols

Illustration of a wall-mounted power socket connected to a transformer (no text or symbols)

3D rendering of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols visible)

1. Plug the charger port into the input socket. (the socket is below the seat)
2. Plug the charger plug into a wall outlet. The battery will begin charging.

This product with Charging Protection: when charging, all functions will be cut off! Only an adult can charge and recharge the battery!

The battery features a thermal fuse with a rest fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for 20 seconds and then turned ON again. If the thermal fuse trips repeatedly during normal use, the vehicle may need repair. Contact your distributor please.

To avoid losing power, follow these guidelines:

• Do not overload the vehicle.
• Do not tow anything behind the vehicle.
• Do not drive up steep slopes.
• Do not drive into fixed objects, which may cause the wheels to spin, causing the motor to overheat.
• Do not drive in very hot weather, components may overheat.
• Do not allow water or other liquids to come in contact with the battery or other electric components.
• Do not tamper with the electric system. Doing so may create a short, causing the fuse to trip.

Battery Replacement and Disposal

The battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. Follow these steps to replace and dispose the battery:

1. Remove the car seat.
2. Disconnect the battery connectors.
3. Remove the battery bracket.
4. Remove the battery cover.
5. Carefully lift the battery.
6. Depending on the condition of the battery (i.e.: leakage) you may want to wear protective gloves before removal.

7. Do not lift the battery by its connectors or cables.

8. Place the dead battery in a plastic bag.

Important! Recycle the dead battery responsibly. The battery contains lead acid (electrolyte) and must be disposed of properly and legally. It is illegal in most areas to incinerate lead acid batteries or dispose of them in landfills. Take it to a federal or state-approved lead acid battery recycler, such as local automotive battery retailer. Do not throw the battery away with your regular household waste!

1. Replace the battery and reconnect the connectors.
2. Replace the metal battery bracket.
3. Replace the seat.

Troubleshooting Guide
24

Problem	Possible Cause	Solution
Vehicle does not run	Battery low on power	Recharge battery.
	Thermal fuse has tripped	Reset fuse, see
	Battery connector or wires are loose	Check that the battery connectors are firmly plugged into each other. If wires are loose around the motor contact your distributor please.
	Battery is dead	Replace battery, contact your distributor please.
	Electrical system is damaged	Contact your distributor please.
	Motor is damaged	Contact your distributor please.
Vehicle does not run very long	Battery is under charged	Check that the battery connectors are firmly plugged into each other when recharging
	Battery is old	Replace battery, contact your distributor please.
Vehicle runs sluggishly	Battery low on power	Recharge battery, contact your distributor please.
	Battery is old	Replace battery, contact your distributor please.
	Vehicle is overload	Reduce weight on vehicle. Maximum user weight is 30kg.
	Vehicle is being used in harsh conditions	Avoid using vehicle in harsh conditions ,see
Vehicle needs a push to go forward	Poor contact of wires or connectors	Check that the battery connectors are firmly plugged into each other. If wires are loose around the motor, contact your distributor please.
	“Dead Spot” on motor	A dead spot means the electric power is not being delivered to the terminal connection and the vehicle needs repair. Contact your distributor please.
Difficult shifting from forward to reverse or vice-versa	Attempting to shift while the vehicle is motion	Completely stop the vehicle and shift, see
Loud grinding or clicking noises coming from motor or gear box	Motor or gears are damaged	Contact your distributor please.
Battery will not recharge	Battery connector or adapter connector is loose	Check that the battery connectors are firmly plugged into each other.
	Charger not plugged in	Check that the battery charger is plugged into a working wall outlet.
	Charger is not working	Contact your distributor please.
Charger feels warm when recharging	This is normal and not a cause for concern

Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem Contact your distributor please.

• It is parents' responsibility to check main parts of the toy before using, Must regularly examine for potential hazard, such as the battery, charge, cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed.
• Make sure the plastic parts of the vehicle are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts may melt.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge the battery at least once a month when the vehicle Raider is not being used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do not drive the vehicle in rainy or snowy weather. Water will damage the motor, electric system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax furniture polish. Do not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine gravel which could damage the moving parts, motors or the electric system.
• When not using, all the electrical source should be turn off. Turn off the power switch and disconnect the battery connection.

Our products are suitable for

ASTM F963; GB6675; EN71 and EN62115 standard.

BMW 6 GT

BATTERIDREVET OPLADELIG BIL

3D rendering of a BMW convertible car with visible grille and alloy wheels (no text or symbols)

SPECIFIKATIONER:

Alder for brug: 37-96 måneder

Max vægt: 30 kg

Hastighed: 3-5 km/t

Mål på bil: 106 x 64 x 51 CM

Power: Opladning

Ladetid: 8-12 timer

Battery	12V7AH x 1	12V7AH x 1	VER: SMS-JJ2164-EN-190625
Charger	12V1000mA	12V1000mA

Del liste 2

Illustration of a screwdriver with a flat blade and handle (no text or symbols)

Skruetrækker

Illustration of a pair of needle pliers with black handles and gray blades (no text or symbols)

Spidstang

3D rendered image of a metallic T-shaped pipe fitting (no text or symbols)

Fastnøgle medfølger

Cutaway diagram of a car's internal components, showing engine, battery, and housing (no text or labels)

Cutaway diagram of a car's internal components, showing structural parts and a tool (no text or symbols)

Technical line drawing of a mechanical tire assembly with chain and guide components (no text or symbols)

gap

Diagram showing car steering wheel and dashboard components with numbered parts and battery labels

Montering af rat

Fuse box Battery Vehicle connector Motor connector

2WD

Side view of a car's front wheel and side mirror, showing structural components (no text or symbols)

B. English: Undervisning

Close-up of a car electrical outlet with a black cable inserted, no visible text or symbols

Illustration of a wall-mounted power socket connected to a transformer (no text or symbols visible)

3D rendering of a car interior showing steering wheel, dashboard, and seat (no text or symbols)

3D rendering of a BMW convertible car with visible grille and alloy wheels (no text or symbols)

SPECIFIKATIONER:

Battery	12V7AH x 1	12V7AH x 1
Charger	12V1000mA	12V1000mA

Dellista
2

Metal screwdriver with a flat blade and ridged handle (no text or symbols visible)

Skruvmejsel

Illustration of a pair of pliers with black handles and gray blades (no text or symbols)

Spetstång

3D rendered image of a metallic T-shaped connector or fitting (no text or symbols visible)

Technical illustration of a car's internal components and suspension system, showing exploded and assembled views with no visible text or symbols.

Technical line drawing of a mechanical tire assembly with chain and wheel components (no text or symbols)

gap

Diagram showing car steering wheel and dashboard components with numbered parts and directional arrows indicating assembly or movement.

Montering av ratt

Side view of a car with a visible door and handle, marked with number 3 (no text or symbols on the car itself)

B. English: Undervisning

C. Berättelser

D. Vaggvisor

E. Ljudstyrka upp

F. Ljudstyrka ner

Close-up of a black cable inserted into a wall-mounted electrical outlet (no visible text or symbols)

Illustration of a wall-mounted power socket connected to a transformer (no text or symbols visible)

3D rendering of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols visible)

White BMW 6 GT toy car with black seat cover and chrome design (no visible text or symbols)
