805-686 - Toy Nordic Play - Free user manual and instructions

Product Type	Toy
Brand	Nordic Play
Model	805-686
Dimensions	Approx. 30 x 20 x 15 cm
Weight	Approx. 0.5 kg
Power Supply	2 x AA batteries (not included)
Age Recommendation	3+ years
Material	Plastic and electronic components
Functions	Interactive play, lights, sounds
Cleaning Instructions	Wipe with a damp cloth, do not immerse
Safety Warnings	Contains small parts, choking hazard
Battery Safety	Do not mix old and new batteries
Spare Parts Availability	Contact Nordic Play for parts
Repairability	Not user-serviceable, refer to manual
Manual Format	PDF available for download
Warranty	Standard 1 year warranty

Frequently Asked Questions - 805-686 Nordic Play

What type of batteries does the Nordic Play 805-686 toy require?

The toy requires 2 x AA batteries (not included). Always use fresh batteries of the same type.

Is the toy suitable for children under 3 years?

No, it is recommended for children aged 3 and above due to small parts that may pose a choking hazard.

How do I clean the Nordic Play 805-686 toy?

Clean the toy with a damp cloth. Do not immerse in water or use harsh chemicals.

Can I download the user manual for free?

Yes, you can download the manual in PDF format from the manual provider's website.

What should I do if the toy stops working?

First check the batteries and ensure they are correctly installed. If it still doesn't work, consult the troubleshooting section of the manual.

Are replacement parts available for this toy?

Spare parts may be available by contacting Nordic Play customer service. Check the manual for contact details.

Does the toy make loud sounds?

The toy produces moderate sound levels suitable for indoor play. If needed, volume may be adjustable (check manual).

What materials is the toy made from?

The toy is primarily made of plastic with electronic components. It meets standard safety regulations.

How long do the batteries last?

Battery life depends on usage, but typically several hours of play. Replace when performance diminishes.

Is there a warranty for the Nordic Play 805-686?

Yes, it comes with a standard 1-year warranty against manufacturing defects. Keep your receipt.

USER MANUAL 805-686 Nordic Play

Black convertible toy car with chrome design and silver accents, no visible text or symbols

Size H: 43 x L: 108 x D: 60 cm

Art. no. 805-686

EAN 5705858702803

Imported by / Importeret af

NSH NORDIC A/S

Virkefeltet 4

DK-8740 Braedstrup

Made in PRC

General safety rules for NORDIC PLAY products

Warning:

• The vehicle may not be used on roads, sidewalks, in hills or sand.
• The vehicle should only be used on flat surfaces.
• Do not overload the vehicle. Pay attention to the maximum weight limits. Typical maximum total weight is 25 - 35 kg. Please check for your specific model.
• Only adults may charge the battery.
• Children using the vehicle should always be supervised by a responsible adult.
• Do not charge the vehicle's circuit.
• Do not drive in water or other fluids.
• Stop the vehicle when it is approaching an obstacle, turn away from the obstacle and drive somewhere else.
• Please charge the battery when the vehicle starts to drive slowly, otherwise the battery's lifespan can be shortened.
• Please charge the battery fully before the battery is stored for longer periods without use. Charge the battery every three months to extend the battery's lifespan.
• Do not drive during rain.
• Battery, charger, electrical cables, outlets and other parts should periodically be checked. If damages are discovered, the vehicle may not be used until these are fixed.
• The charger should be checked for damages on cord, plug and other parts periodically. If there are damages, the charger may not be used until the damage is fixed.
• Vehicle with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without a battery can be used from 1 year of age.
• The vehicle may only be used with the recommended charger.
  • The charger is not a toy.
• Only clean with a damp cloth.
• Check that all parts are undamaged. If not, repair or change these.
• It is a good idea to use safety equipment, depending on the vehicle.
• Worn out batteries should be removed/changed from the vehicle.
• The battery should be removed before the vehicle is disposed of.
• Declaration of conformity: This product is in accordance with EU directive 2014/53 / EU.

Warning:

For your child's safety, pay attention to the following:

• Only adults may assemble the product.
• Small parts and plastic parts should be kept away from the child to avoid risk of suffocation.
• Children may not touch or open the battery holder.
  • Adult supervision is required.
• Vehicles with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without battery can be used from 1 year of age.
• Use the vehicle with caution, since driving skills are required to avoid falls or crashes that can result in injuries to the user or third party.
• Instructions on how the vehicle is used should be given to the child before use – especially for the braking system.
• May not be used in traffic. Only use the vehicle on private property.
• Only drive on flat surfaces away from other vehicles and obstacles.

General safety rules for NORDIC PLAY products

• Avoid sharp bumps and sudden changes of the surface.
• Avoid roads and surfaces with water, sand, gravel, dirt, leaves and other debris.
• Wet weather can reduce the traction, brake effect and visibility.
• Do not drive when it is dark.
• Avoid excessive speed in conjunction with downhill driving.
• Watch out for pedestrians.
• Check and tighten all screws before every drive. Do not allow two or more children to use the vehicle at once.
• Do not use the vehicle if it has damages.

• Change damaged parts immediately.

• Insert 220V/12V charger cable's connector to the vehicle.

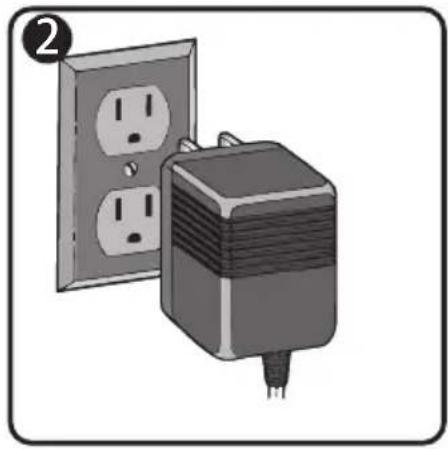

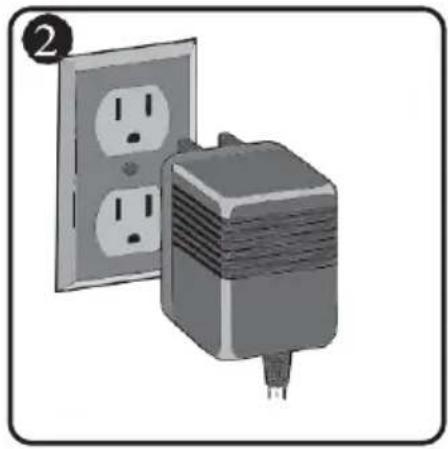

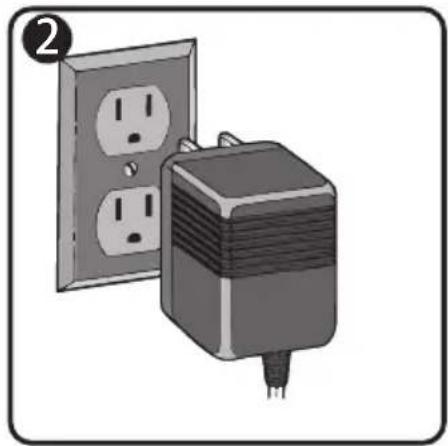

• Insert actual 220V/12V charger unit to your 220V power outlet. The battery will start charging.
• Detach after 8-12 hours

IMPORTANT NOTE: When shifting (forward/backward), please make sure the vehicle is completely stopped, otherwise it will damage the gear box and motor.

Forward: 1. Press the "Forward/backward switch" to the "Forward" position.

1. Press the "Foot pedal", the vehicle drives forward.

Stop: 1. The vehicle will brake automatically, when foot is lifted from the "foot-pedal".

Back Up: 1. Press the "Forward/backward switch" to the "Backward" position.

1. Press the "Foot pedal", the vehicle will back up.

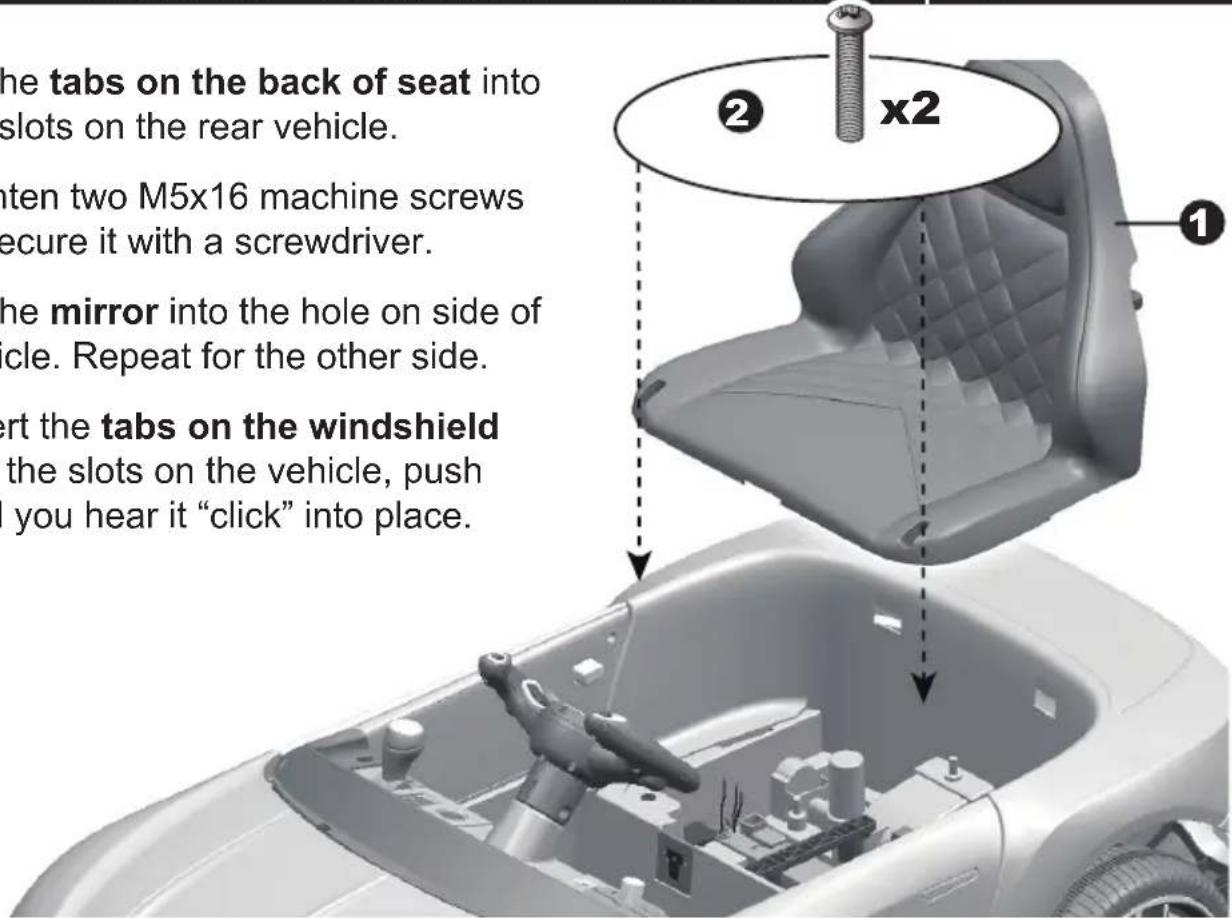

Loosen the screw from the back of the seat seat, take away the seat. Then connect the battery line red wire to the red terminal of the battery and finally then connect black wire to black battery terminal. Never connect wires into the uncorrect battery terminals. After the connections, please assemble the seat back to the original place and tighten the screw.

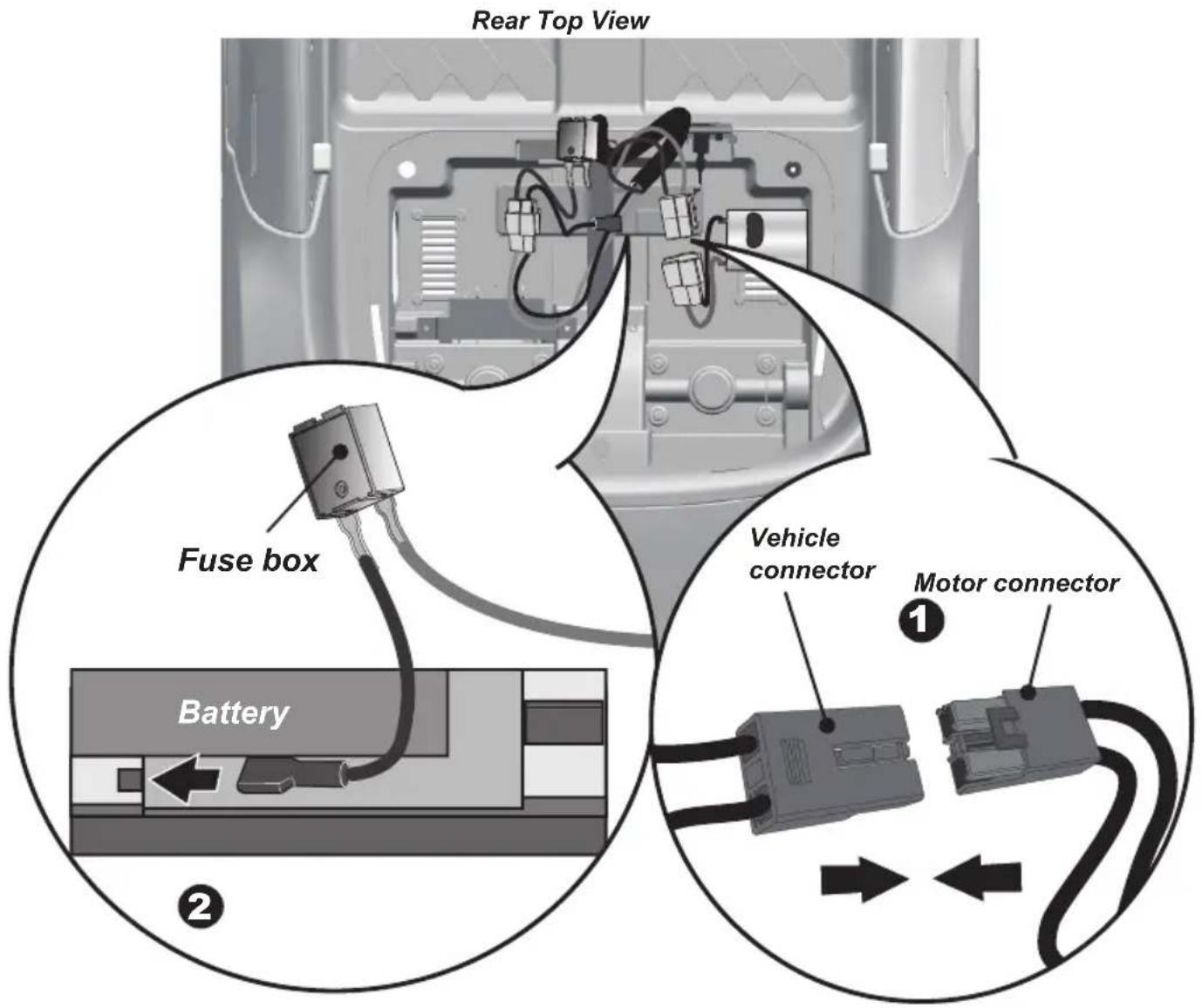

Battery replacement and fuse

The battery is equipped with a thermal fuse which blows if the motor, battery or electrical circuit is overloaded. The vehicle must then be switched off for at least 5 minutes, after which the fuse will restore itself. If the product does not work, the fuse may therefore be the problem. To avoid this, read the following points:

• Do not overload the vehicle.
• Do not pull anything behind the vehicle.
• Do not drive up steep hills.
• Do not run into motionless objects that cause the wheels to spin.
• Do not drive at extreme temperatures.
• Make sure the product does not come into contact with liquids.
• Do not touch the electrical circuit.

As the battery gets older it will start to lose some of its capacity. Depending on the conditions, it can last anywhere from 1 - 3 years. If the battery needs a replacement, follow these steps:

1. Loosen the crew and remove the seat.
2. Disconnect the cables from the battery terminals.
3. Remove the battery cover.
4. Carefully lift the battery out of the vehicle. Depending on the condition of the battery (leakage or similar), safety equipment may be required. Do not lift the battery from its wires but from the battery itself.
5. Put the battery in a plastic bag and dispose it responsibly. NEVER put the battery to general waste.
6. Insert the new battery into the vehicle.
7. Reconnect the cables to the new battery. Red wire to red terminal (+) and black wire to black terminal (-) of the battery.
8. Slide the seat into place. Tighten the screw.

To protect the environment, batteries and electrical equipment must be disposed separately from household waste. Contact the municipality for the nearest collection point.

Problem Possible Cause Solution
Vehicle does not run Battery low on power Recharge battery.
		Thermal fuse has tripped Let the vehicle cool down for 5 minutes.Do not overload the vehicle.
		Battery connector or wires are looseCheck that the battery connectors and wires are firmly connected.
		Battery is dead Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
		Electrical system is damagedContact your distributor please.
		Motor is damagedContact your distributor please.
Vehicle does not run very long Battery is not properly charged. Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
Vehicle runs sluggishly Battery low on power Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
			Vehicle is overloadReduce weight on vehicle.Maximum user weight is 25 kgs.
			Vehicle is being used in unsuitable conditionsUse the vehicle on flat, even surfaces.
Vehicle needs a push to go forward	Poor contact of wires or connectors	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	“Dead Spot” on motor A dead spot means the electric power is not being delivered to the terminal con nection and the vehicle needs repair.Contact your distributor please.
Difficult shifting from forward to reverse or vice-versa	Attempting to shift while the vehicle is motion	Always completely stop the vehicle before shifting.
Loud grinding or clicking noises coming from motor or gear box	Motor or gears are damagedContact your distributor please.
Battery will not recharge	Battery connector or adapter connector is loose	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	Charger not plugged in	Check that the battery charger is plugged into a working wall outlet.
	Charger is not working	Contact your distributor please.
Charger feels warm when recharging	This is normal and not a cause for concern

Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem Contact your distributor please.

Maintenance

• Check all screws periodically and tighten as needed.
• Check the vehicle's plastic components frequently for damage.
• The mechanical parts of the vehicle can be lubricated with oil if necessary.
• Store the product indoors to protect it from the weather.
• Keep product away from hot items such as stove and the likes.
• Do not clean the product with a garden hose and do not use soap. A dry or moist cloth is enough.
• Do not drive in rain, snow, sand and gravel as this may damage the product.
  If the product is not to be used for an extended period, recharge the battery and then disconnect all cables

3D rendered image of a screwdriver with metal ferrule (no text or symbols)

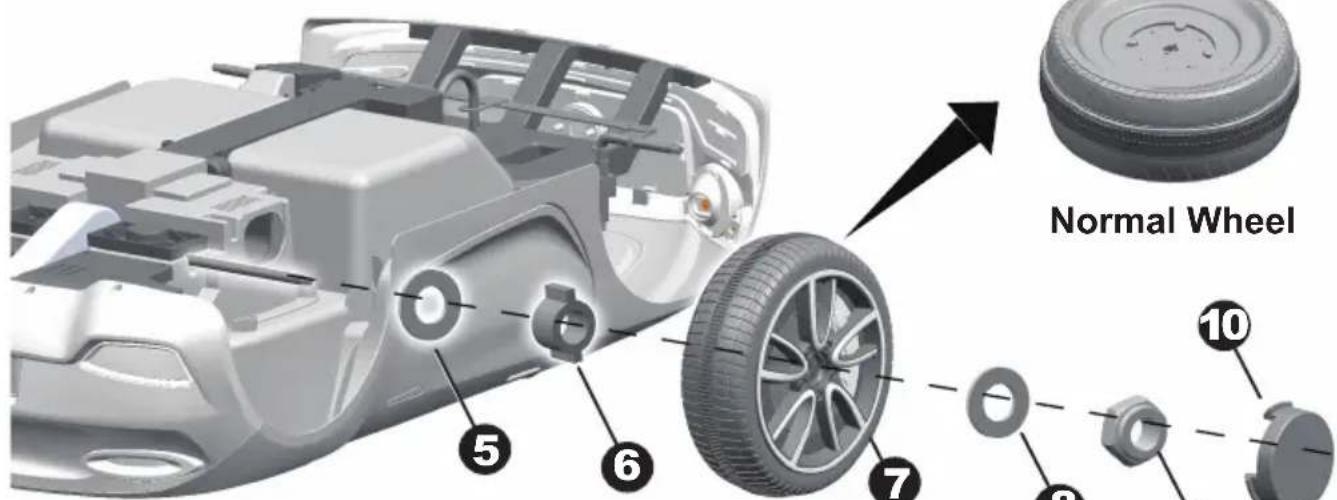

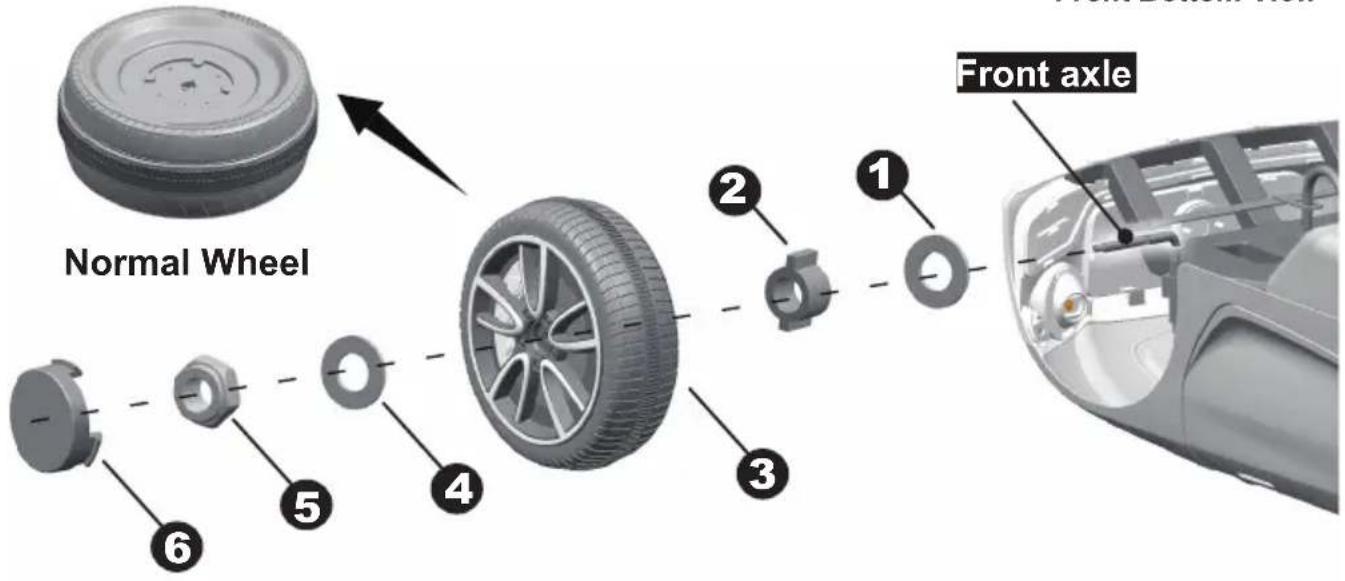

Forhjul Front side door Front axle 1 2 3 4 5 6

Diagram of a car steering wheel with labeled parts including battery, screw, and dial indicator

Montering af bilrat

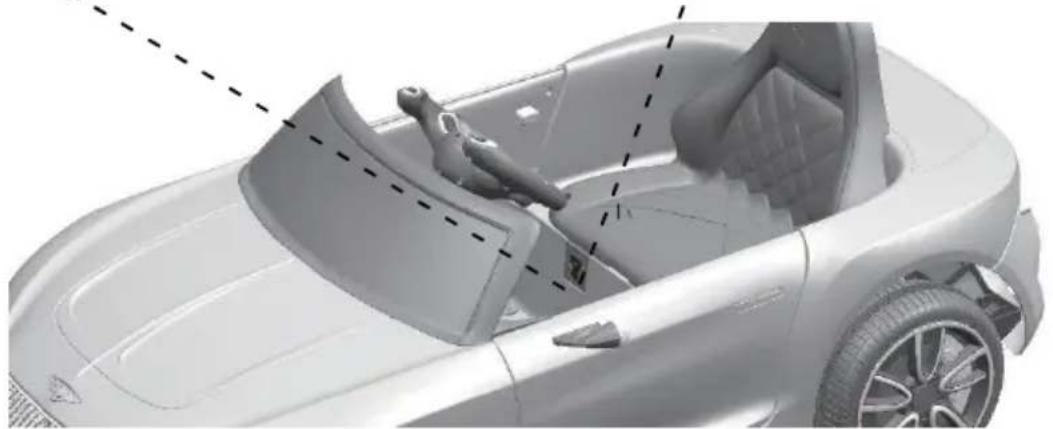

3D rendering of a sports car interior showing steering wheel, dashboard, and side-mounted blade (no text or symbols)

Fra siden

Diagram showing car interior components with labeled parts and directional arrows indicating movement or positioning.

Fra fronten

Advarsel!

Undgå skader:

Simple line drawing of a person driving a car (no text or symbols)

Cartoon illustration of a person in a car with two crossed poles, standing on grass (no text or symbols)

Close-up of a cable inserted into an electrical outlet socket (no text or symbols visible)

Illustration of a wall-mounted electrical socket connected to a power transformer (no text or symbols)

3D rendering of a car interior showing driver seat, dashboard, and wheel (no text or symbols)

Stylized emblem featuring a circular emblem with the number 8, surrounded by wings and a checkered background (no text or symbols)

BENTLEY

Officially Licensed Product

Vores produkter er godkendt ifølge nedenstående standarder. ASTM F963; GB6675; EN71 og EN62115 standard

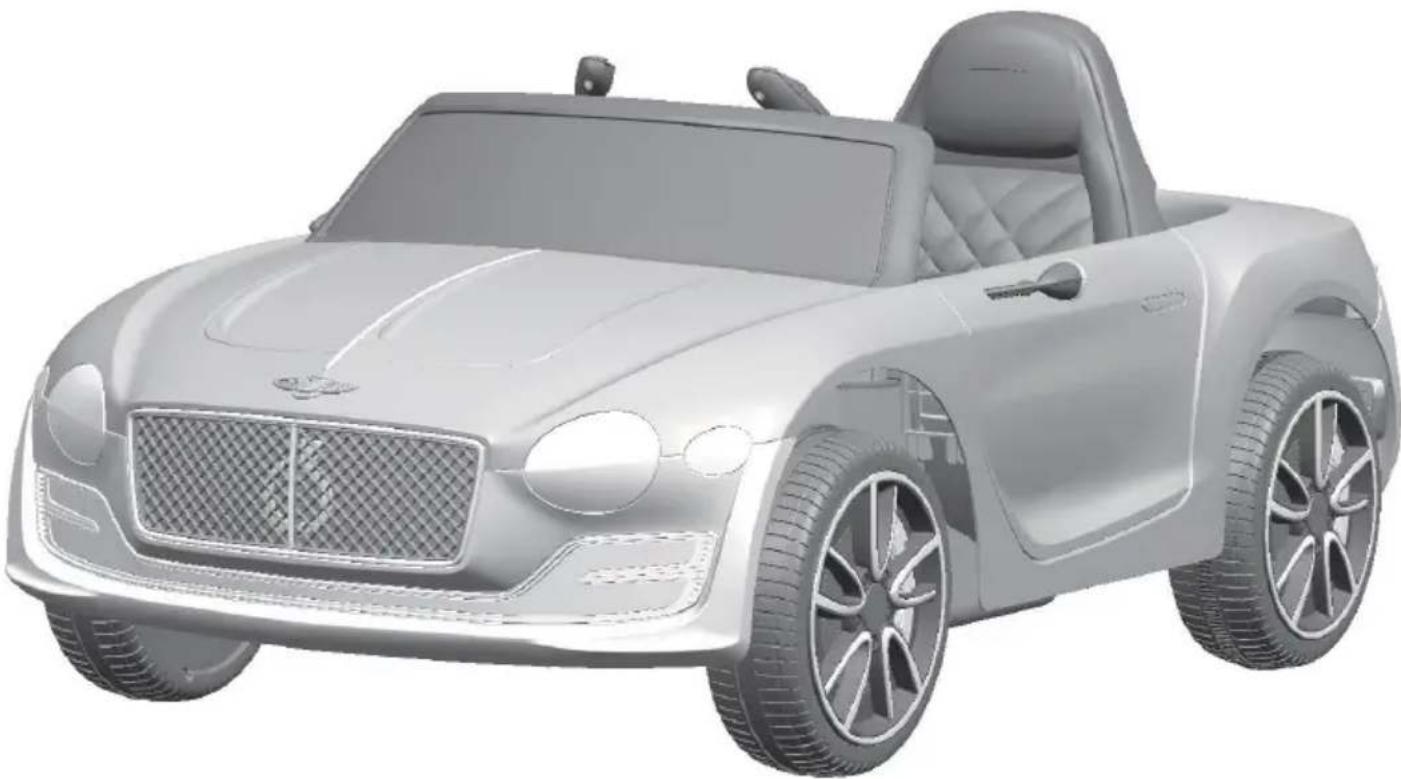

BENTLEY EXP12

Elbil till barn

8 BENTLEY Officially Licensed Product

3D rendering of a modern convertible sports car with sleek design and alloy wheels (no text or symbols visible)

Färger kan variera

Producerad i Kina

Instruktionsmanual

Illustration of a screwdriver with metal handle and threaded grip (no text or symbols)

Diagram of a car steering wheel with labeled parts including battery, key, and adjustment mechanism

Montering av ratt

3D rendering of a silver convertible sports car with visible steering wheel, dashboard, and side panel (no text or symbols)

Från sidan

Diagram showing car interior components with labeled parts and directional arrows indicating assembly or movement.

Från fronten

⚠ Varning

Undvik skador:

Simple line drawing of a person driving a car (no text or symbols)

Simple line drawing of a person in a car with two crossed poles, standing on grass (no text or symbols)

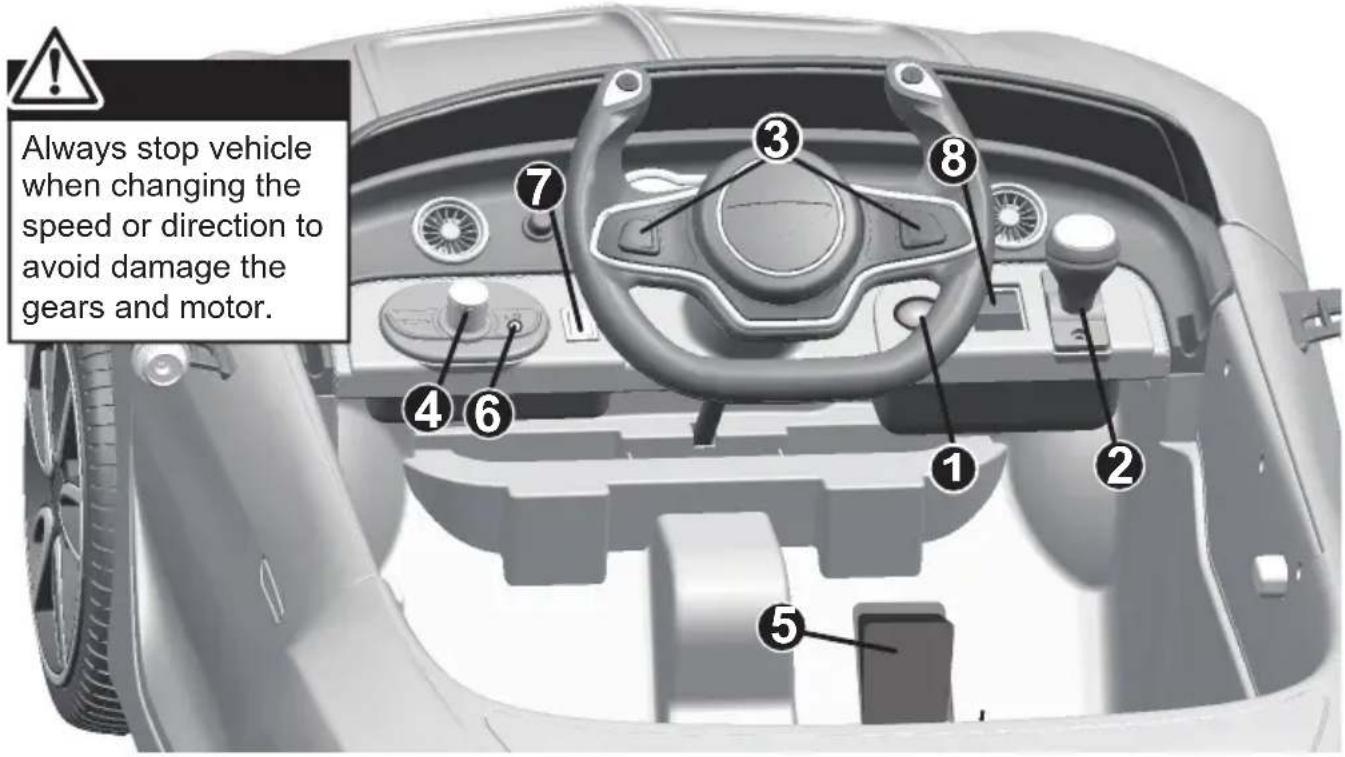

Diagram of a car dashboard with numbered parts for identification

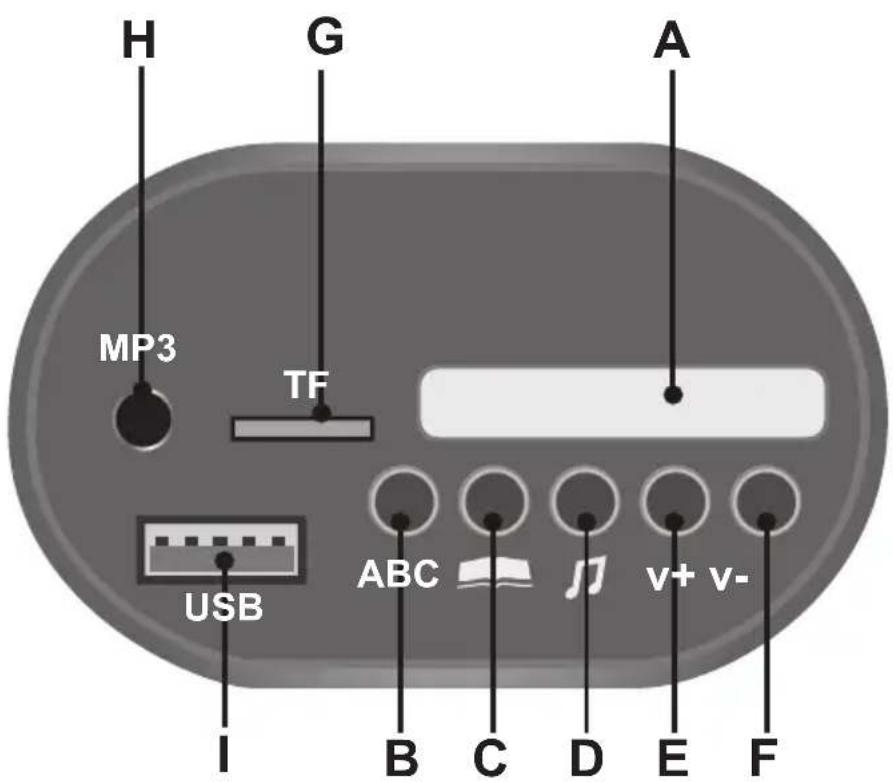

H G A MP3 TF USB ABC V+ V- I B C D E F

Close-up of a cable inserted into a wall socket, no visible text or symbols

Illustration of a wall socket connected to a power plug, showing internal components (no text or symbols)

3D rendering of a car interior showing driver seat, dashboard, and wheel (no text or symbols)

Stylized emblem featuring a circular emblem with the number 8, surrounded by wings (no text or symbols)

BENTLEY

Officially Licensed Product

3D rendering of a modern convertible sports car with sleek design and alloy wheels (no text or symbols visible)

Illustration of a screwdriver with metal handle and threaded shaft (no text or symbols)

Diagram of a car steering wheel with labeled parts including battery, gear shift, and control knob

3D rendering of a car's front wheel and steering wheel, showing key components (no text or symbols)

Diagram showing car interior components with labeled parts and directional arrows indicating assembly or movement.

Simple line drawing of a person driving a car (no text or symbols)

Cartoon illustration of a person in a rowing cart with two crossed poles, set against grass (no text or symbols)

Diagram of a car dashboard with numbered parts for identification

Close-up of a cable inserted into a wall-mounted electrical socket (no text or symbols visible)

Illustration of a wall-mounted electrical socket connected to a power plug (no text or symbols)

3D rendering of a car interior showing driver seat, dashboard, and wheel (no text or symbols)

Symbolic emblem featuring a stylized 'B' with wings, no text or symbols present

BENTLEY

8 BENTLEY Officially Licensed Product

3D rendering of a modern convertible sports car with sleek design and alloy wheels (no text or symbols visible)

Owner's Manual with Assembly Instructions

Styles and colo(u)rs may vary.

Made in China.

The owner's manual contains important safety information as well as assembly, use and maintenance instructions.

The Ride-on Car must be assembled by an adult who has read and understands the instructions in this manual.

Keep the package away from children and dispose of properly before use.

Keep this manual for future reference.

About Your New Ride-On | 1

On the purchase of your new Bentley Ride-On.

This ride-on car will provide your child with many miles of riding of enjoyment. To help assure you and your rider a safe ride we ask you to please read this manual carefully, and keep it for future reference.

Follow the recommendations in this manual, they are designed to improve the safety and operation of your ride-on car and it's rider.

The Bentley Exp12 Battery operated Ride-On Manufactured by Zhejiang Jiajia Ride-On Co., Ltd (Add: Xincang Industrial Zone, Pinghu City, Zhejiang Province, P.R.China) under licence from Bentley Motors Limited England. “Bentley”, the ‘B’ in wings device and other associated logos and names are trademarks of Bentley Motors Limited. The body designs of Bentley motor cars are protected by Bentley Motors Limited under design, trademark and trade dress regulations.

Battery	6V4Ah*1 or 6V7Ah*1	6V4Ah*2 or 6V7Ah*2
Charger	6V500mA or 6V1000mA	12V500mA or 12V1000mA

Suitable age: 37\~96 Months

Load Capacity: Under 30 kgs

Speed: 1WD: 2.5 km/h 2WD: 2.5\~5 km/h

Size of car: 108*60*43 CM

Power way: Charging type

Charge time: 8 \~ 12 hours

Parts List			2
PART NO.	PART NAME	Q'ty (pcs)		REMARKS
		1WD	2WD
1	Vehicle body	1
2	Gear box	1	2	2WD One labeled “L”, and the other one labeled “R”
3	Driving wheel	1	2
4	Normal wheel	3	2
5	Bush	3	2
6	∅12 washer	8	6
7	Motor hood	1	2
8	∅4x12 flat head screw	4	8
9	Lock nut	4
10	Hubcap	4
11	M5x16 machine screw	2		for seat
12	Seat	1
13	Mirror	2		Left and right
14	Steering Wheel	1
15	M5x40 machine screw	1		Placed on the steering wheel
16	∅5 nut	1		Placed on the steering wheel
17	Windshield	1
18	panner	2
19	Charger	1
20	Remote controller	1		IF EQUIPPED, for R/C type only

HINT: Some parts shown are assembled on both sides of vehicle

CONTROLLER STYLES MAX VERRY 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 9 10

CONTROLER STYLES MAY VERIFY

WARNING!

• CHOKING HAZARD - Small parts. Not suitable for children under 36 months. The product contains small parts, keep children away when assembling.
  • ADULT ASSEMBLY REQUIRED.

• Always remove protective material and poly bags and dispose before assembly.

• Make sure that the power switch is turned "OFF" before assembling the ride-on.

• Before first time use, charge the battery for at least 4 to 6 hours.
• Assembly tools required:

3D rendered image of a screwdriver with metal ferrule (no text or symbols)

Screwdriver (not included)

Spanner

BATTERY INFORMATION

• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the toy before being charged.
• Rechargeable batteries are only to be charged under adult supervision.
• Different types of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the toy.
• The supply terminals are not to be short-circuited.

HINT: If your vehicle is Two Wheels Driving Type, see the next page please.

Rear Bottom View Driving Wheel 10 4 3 2 1 Rear axle

1. Slide the gear box onto the rear axle (Left Side). Keep the motor and the connector on the gear box through the larger hole on the rear of the vehicle and out where the battery sits.
2. Slide the driving wheel onto the rear axle. And keep the driving wheel match up with the gear box.
3. Slide the ∅10 washer onto the rear axle.
4. Tighten a lock nut to the end of the rear axle with a spanner.

Normal Wheel 5 6 7 8 9 10

1. Slide the ∅10 Washer onto the rear axle (Right Side).
2. Insert the bush into the hole in the center of the normal wheel.
3. Slide the normal wheel onto the rear axle.
4. Slide the ∅10 washer onto the rear axle.
5. Tighten a lock nut to the end of the rear axle with a spanner. HINT: An extra spanner has been provided to hold the Lock Nut on the other side of the rear axle while tightening the Lock Nut on the other side.
6. Fit the hubcaps to the wheels.

Rear Bottom View Driving Wheel 1 2 3 4 5 Rear axle

1. Slide the gear box onto the rear axle. “R” labeled gear box should be fit to the “R” side of vehicle body; “L” labeled gear box should be fit to “L” side of vehicle body. Keep the motor and the connector on the gear box pass through the larger hole on the rear of the vehicle and out where the battery sits.
2. Slide the driving wheel onto the rear axle. And keep the driving wheel match up with the gear box.
3. Slide the ∅10 washer onto the rear axle.
4. Tighten a lock nut to the end of the rear axle with a spanner. HINT: An extra spanner has been provided to hold the Lock Nut on the other side of the rear axle while tightening the Lock Nut on the other side.

Repeat the above procedure to assemble the other driving wheel.

1. Fit the hubcaps to the wheel.

Attach the Front Wheels | 7

Front Bottom View

Normal Wheel Front axle

Remove all the parts from the front axle.

1. Slide a ∅10 washer onto the front axle.
2. Slide a bush into the hole in the center of the normal wheel.
3. Slide the normal wheel onto the rear axle. And keep the normal wheel match up with the bush.
4. Slide a ∅10 washer onto the front axle.
5. Tighten a lock nut to the end of the front axle with a spanner.
6. "Snap" the hubcap to the wheel.

Repeat the above procedure to assemble the other front wheel.

HINT: Batteries not included. Refer to the battery information on page 4.

Add the Batteries (Not included) of Steering Wheel

1. With a screwdriver remove the screw on the battery cover located in the center of the steering wheel.
2. Remove the battery cover from the top of the battery compartment.
3. Insert two AA batteries in their correct polarities.
4. Place the battery cover over the battery compartment and fasten with the screw you removed in step one.

Diagram of a car steering wheel with labeled parts including battery, screw, and dial indicator

Attache the Steering Wheel

Remove the M5x40 machine screw and ∅5 nut from the steering wheel.

1. Place the steering wheel over the steering column, protruding from the middle of the steering wheel base.

2. Align the holes on each side of steering wheel with the holes at the end of the steering column.

3. Fasten a nut on the opposite end of the screw to secure the steering wheel to the steering column.

7. Fasten a nut on the opposite end of the screw to secure the steering wheel to the steering column. End of Steering column 6 5 7

Connect the Power Supply

Rear Top View Fuse box Battery Vehicle connector Motor connector ① ②

1WD

1. Plug the vehicle connector into the motor connector on vehicle body as shown above.
2. Plug the red fuse connector into the terminal on battery.

2WD

1. Plug the vehicle connector into the motor connector on body as shown above. Repeat for the other side.
2. Plug the red fuse connector into the terminal on battery.

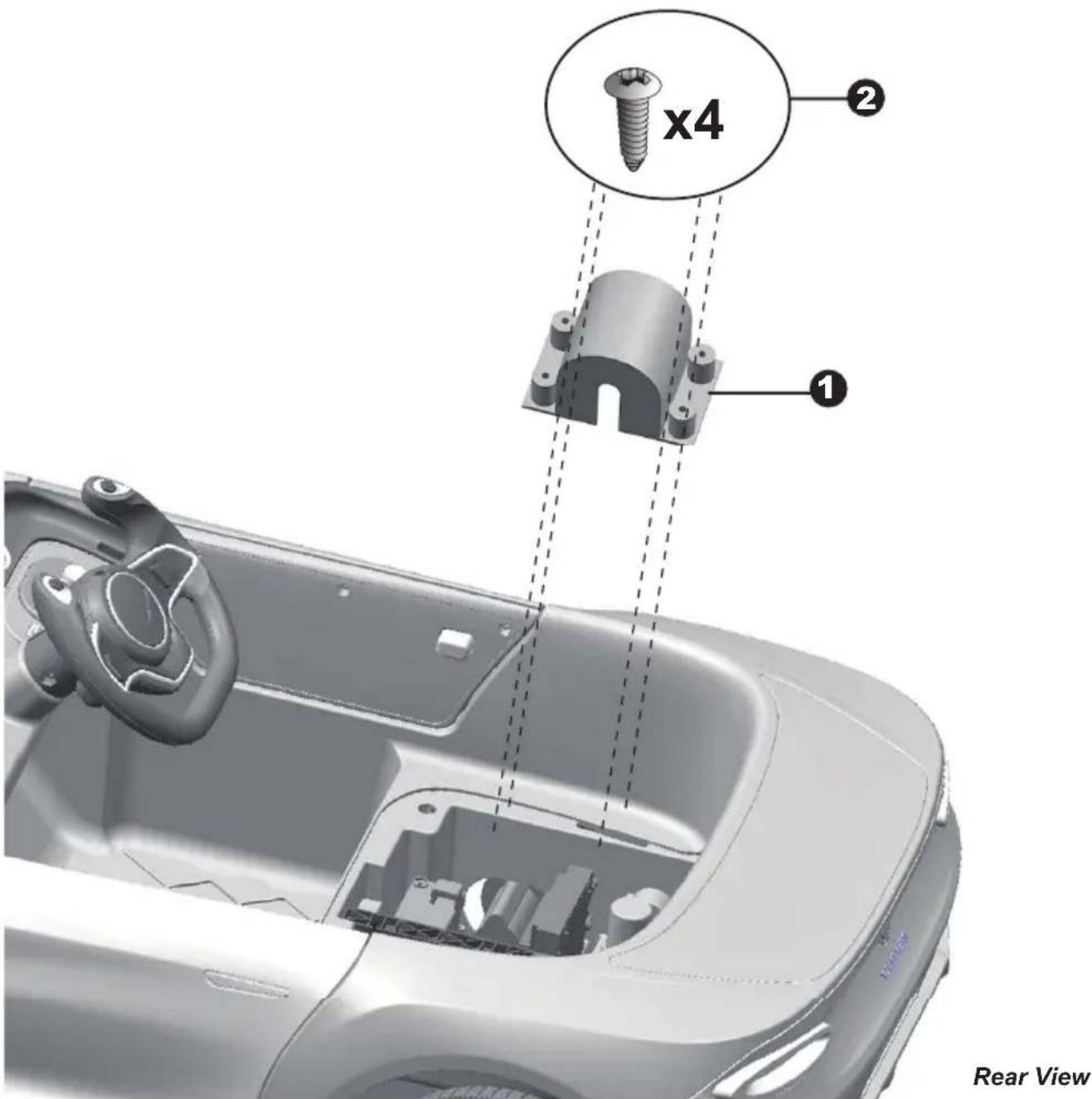

Attach the Motor Hood | 10

x4 ① ② Rear View

1WD

1. Fit the motor hood on the motor.
2. Tighten four ø4x12 flat head screws to secure it.

2WD

1. Fit the motor hood on the motor.
2. Tighten four ø4x12 flat head screws to secure it.
   Repeat the above steps for the other motor hood.

Attach the Seat, Mirrors & Windshield

1. Fit the tabs on the back of seat into the slots on the rear vehicle.
2. Tighten two M5x16 machine screws to secure it with a screwdriver.

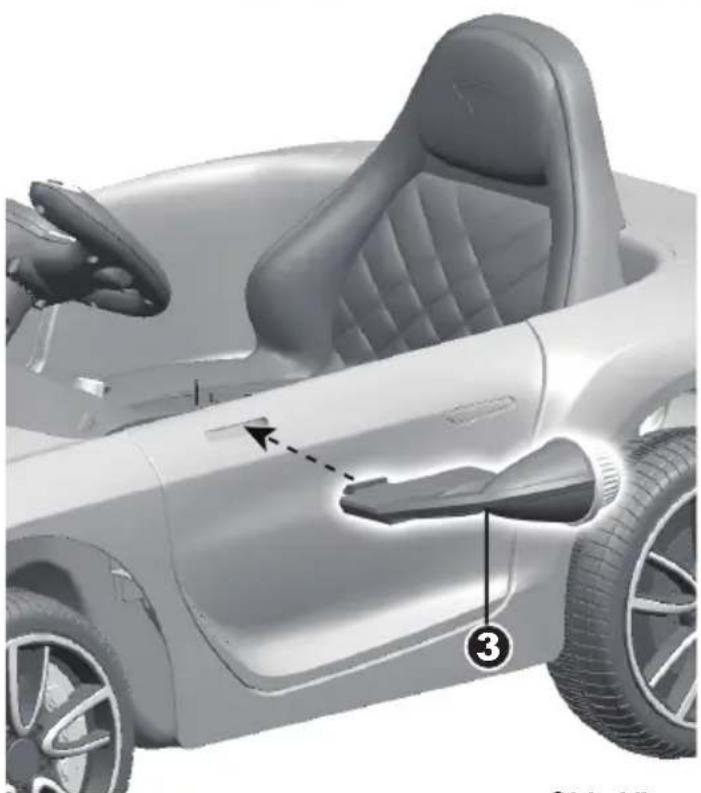

3. Fit the mirror into the hole on side of vehicle. Repeat for the other side.

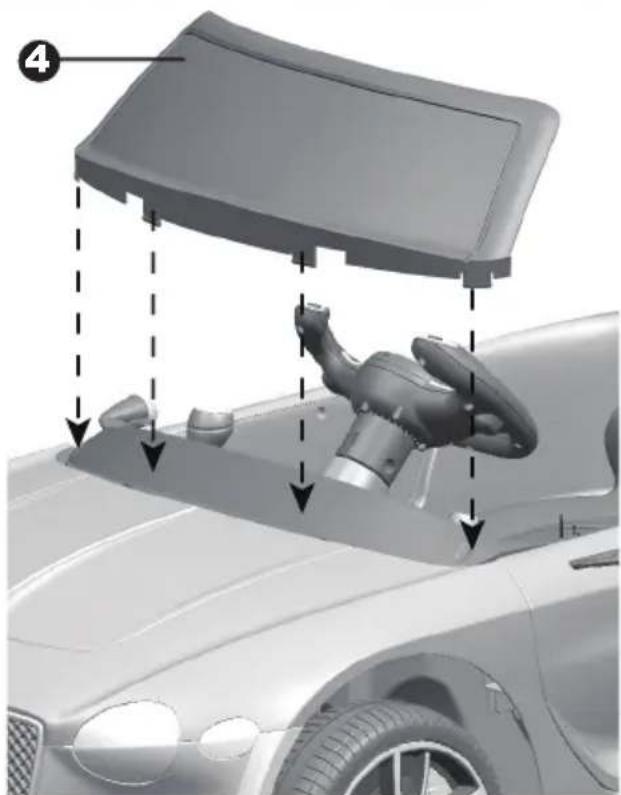

4. Insert the tabs on the windshield into the slots on the vehicle, push until you hear it "click" into place.

the tabs on the back of seat into slots on the rear vehicle. then two M5x16 machine screws ecure it with a screwdriver. the mirror into the hole on side of cle. Repeat for the other side. ert the tabs on the windshield the slots on the vehicle, push you hear it "click" into place.

3D rendering of a car's front wheel and steering wheel, showing key components (no text or symbols)

Side View

Diagram showing car interior components with labeled parts and directional arrows indicating movement or positioning.

Front View

WARNING!

PREVENT INJURIES AND DEATHS:

• NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle.
• This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
• Protective equipment should be worn.
• Never use in roadways, near cars, on or near steep inclines or steps, swimming pools or other bodies of water.
  • Always wear shoes.
  • Always sit on the seat.
  • Not to be used in traffic.
• This toy is unsuitable for children under 36 months due to its maximum speed; Maximum user weight is 30 kgs.
  • This toy has no brake.

Rules for Safe Riding

• Keep Children within Safe Riding Areas:
• Never use in roadway, near motor vehicles, on lawn space, on or near steep inclines or steps, swimming pools or other bodies of water;
• Use the toy only on flat surfaces. Such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident. Operate the vehicle only in the daytime or a well-lit area.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• Do not let any child touch the wheels or be near them when the car is moving.
• This vehicle has adjustable play seat belts. Please instruct children how to tie the safety belt before using, guarantee the security.

Simple line drawing of a person driving a car (no text or symbols)

Use the vehicle on generally level ground ONLY!

Cartoon illustration of a person in a car with two crossed poles, standing on grass (no text or symbols)

DO NOT Use the vehicle on Lawn space!

Use Your Ride-on

Your vehicle may be equipped with the MP3 player, see the next page please!

Always stop vehicle when changing the speed or direction to avoid damage the gears and motor.

1. Power Switch: Turns the vehicle on and off.

2. Forward/reverse switch: Changes the direction that vehicle moves from forward to reverse.

3. To move the car forward, rock the switch to "forward" position.

4. To move the car backward, rock the switch to "reverse" position.

5. Sounds buttons (IF EQUIPPED): Press for sounds playing.

6. Volume knob (IF EQUIPPED): Turn the knob clockwise to increase the volume; Turn the knob counterclockwise to decrease the volume.
7. Foot pedal: Applies power (speed) to the vehicle.

• To move the car, press the pedal down.
- To brake or slow down, release pressure from the pedal.

1. Auxiliary input (IF EQUIPPED): Allow the audio from your portable music player or phone to be played through the vehicle speakers.
2. NO FUNCTION.
3. High/Low speed switch (IF EQUIPPED): The switch operates the vehicle to move forward in low or high speed.

ADVANCED USE - High speed Drive

Make sure your child knows how to steer, how to start and stop the vehicle and knows the rules for safe driving. The vehicle can be driven at a maximum of 2.5\~5 km/h.

H G A MP3 TF USB ABC v+ v- B C D E F

A. Digital voltmeter: Check the power remaining of your battery, refer to page 19.

B. English learning mode

C. Storytelling mode

D. Nursery rhyme singing mode

E. Increase volume

F. Decrease volume

G. TF (Micro SD) card slot: Allow the audio from your TF card to be played through the vehicle speakers. MP3 format ONLY.

H. 3.5mm AUX input (AUX input): Allow the audio from your portable music player or phone to be played through the vehicle speakers. MP3 format ONLY.

I. USB interface: Allow the audio from your portable device to be played through the vehicle speakers. MP3 format ONLY.

WARNING:

Your vehicle may be equipped with a 2.4G REMOTE CONTROLLER, see the next page please.

LEFT JOYSTICK INDICATOR LIGHT ON-OFF SWITCH RIGHT JOYSTICK

This remote controller may with function of firt priority

The remote control has precedence over foot pedal operation. (The foot pedal won't work while you operate the Remote Controller)

ASSEMBLY

1. Insert the antenna into the controller by tweak the antenna clockwise;
2. Lift the battery compartment door on the back of the controller and insert two AA(LR6) batteries.

NOTE: Batteries not included.

Refer to the battery information on page 4.

WARNING:

The remote control has precedence over foot pedal operation.

(The foot pedal won't work while you operate the Remote Controller)

INSERT THE BATTERIES

Lift the battery compartment door on the back of the controller and insert two AAA(LR03) batteries.

NOTE: Batteries not included.

Refer to the battery information on page 4.

1. Connection button (build connection)

Long press the Connection button for 2\~4 seconds first; Then turn on the power button located on the vehicle dashboard console, when the low speed indicator goes from flashes into long bright, means the connection successful. If the low speed indicator only flashes, means the connection failed. Replace the batteries and repeat the steps above.

2. Brake button

Press the button to stop the vehicle, press it again to release the brake.

3. Speed select button

The switch operates the vehicle to move in low, normal or high speed.

HINT: The vehicle is designed to operate in low speed only in reverse.

NOTE:

• Leave the remote controller idling for about 10 seconds, it will shut down automatically.
• Repeat step 1 when you replace the batteries of the remote controller.

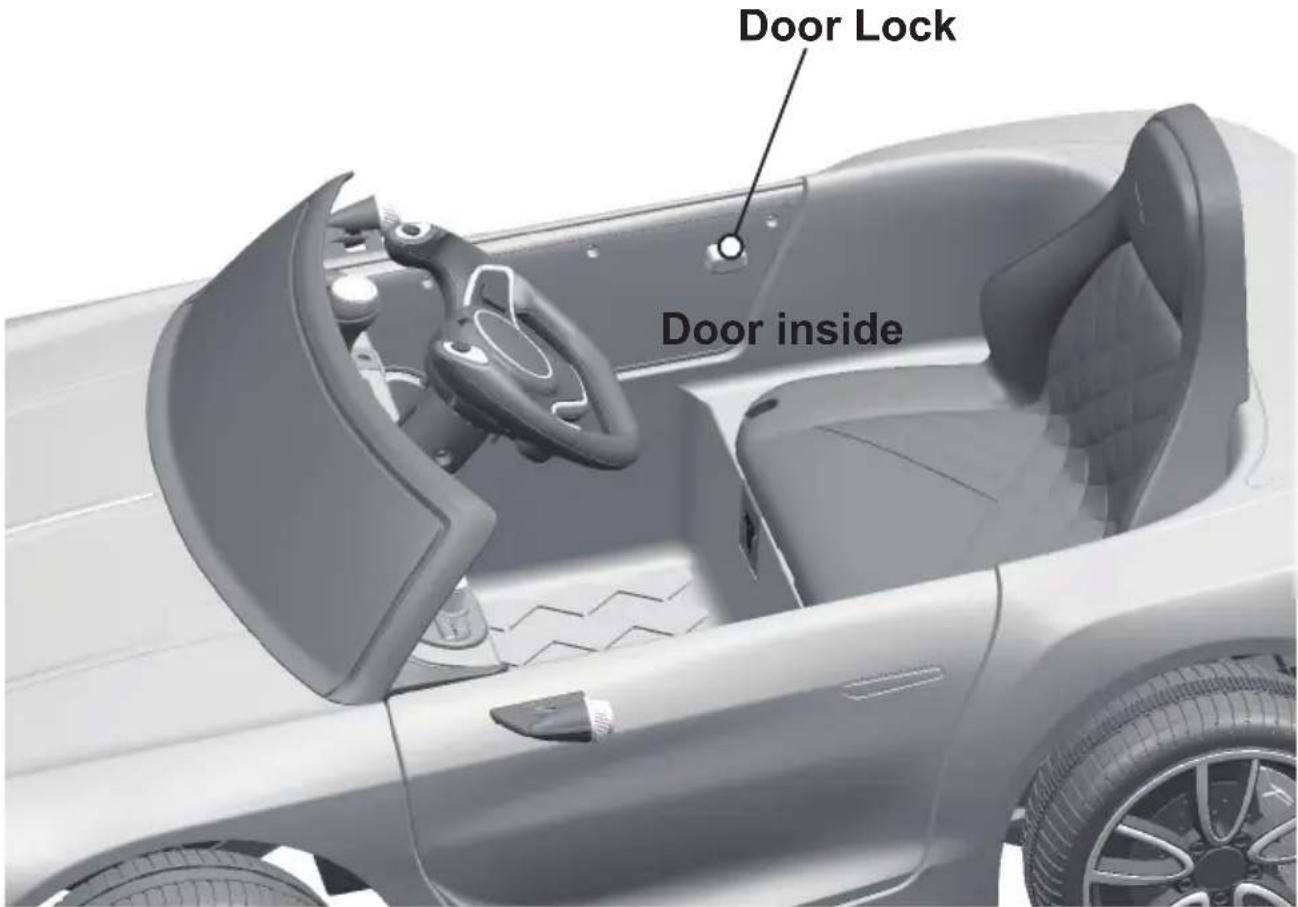

Door Lock Door inside

NOTE:

Please close the door and ensure the lock snap into place when riding for safety consideration.

ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!

WARNING!

• PREVENT FIRE AND ELECTRIC SHOCK:

• Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another battery or charger may cause a fire or explosion.
• Do not use the battery or charger for any other product. Overheating, fire or explosion could occur.
• NEVER modify the electric circuit system. Tampering with the electric system may cause a shock, fire or explosion or may permanently damage the system.
• Do not allow direct contact between battery terminals. Fire or explosion can occur.
• Do not allow any type of liquid on the battery or its components.
• Explosive gasses are created during charging. Do not charge near heat or flammable materials. Charge the battery in a well-ventilated area ONLY.
• NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may cause a fire. Pick up the battery by the case ONLY.

• Charge the battery in a dry area ONLY.

• Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

• Do not open the battery. Battery contains lead acid and other materials that are toxic and corrosive.
• Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock.
• Only adults may handle or charge the battery. NEVER allow child to handle or charge the battery. Battery is heavy and contains lead acid (electrolyte).
• Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.
• Before charging the battery, check for wear or damage to the battery, charger, its supply cord and the connectors. DO NOT charge the battery if any damage to parts has occurred.
• Do not allow the battery to drain completely. Recharge the battery after each use or once a month if not used regularly.
• Do not charge battery upside down.

• Always secure the battery with the bracket. Battery can fall out and injure a child if vehicle tips over.

• The POWER SWITCH must be turned in OFF position when charging.

• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery for more than 10 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge time as 8 to 12 hours, less than 20 hours at most.

Charging

19

- If your ride-on with a Digital voltmeter(IF EQUIPPED), the magnitude of voltage will tell you how much power is remaining in the battery when you must recharge the battery. Make sure the vehicle is stop!

BATTERY	MAGNITUDE OF VOLTAGE	BATTERY STATE
6V4Ahx1, 6V7Ahx1	≥ 6.6	The battery is full.
	6.5~6.3	The vehicle can work normally.
	≤ 6.2	The battery needs to be charge.
6V4Ahx2, 6V7Ahx2,	≥ 13.2	The battery is full.
	13.1~12.6	The vehicle can work normally.
	≤ 12.5	The battery needs to be charge.

Close-up of a black cable inserted into a wall-mounted electrical outlet (no text or symbols visible)

Illustration of a wall-mounted power socket connected to a terminal block (no text or symbols)

3D rendering of a car interior showing the dashboard and seat area, with no visible text or symbols.

1. Plug the charger port into the input socket. (the socket is below the seat)
2. Plug the charger plug into a wall outlet. The battery will begin charging.

WARNING!

This product with Charging Protection: when charging, all functions will be cut off! Only an adult can charge and recharge the battery!

The battery features a thermal fuse with a rest fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for 20 seconds and then turned ON again. If the thermal fuse trips repeatedly during normal use, the vehicle may need repair. Contact your distributor please.

To avoid losing power, follow these guidelines:

• Do not overload the vehicle.
• Do not tow anything behind the vehicle.
• Do not drive up steep slopes.
• Do not drive into fixed objects, which may cause the wheels to spin, causing the motor to overheat.
• Do not drive in very hot weather, components may overheat.
• Do not allow water or other liquids to come in contact with the battery or other electric components.
• Do not tamper with the electric system. Doing so may create a short, causing the fuse to trip.

Battery Replacement and Disposal

The battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. Follow these steps to replace and dispose the battery:

1. Remove the car seat.
2. Disconnect the battery connectors.
3. Remove the battery bracket.
4. Remove the battery cover.
5. Carefully lift the battery.
6. Depending on the condition of the battery (i.e.: leakage) you may want to wear protective gloves before removal.

7. Do not lift the battery by its connectors or cables.

8. Place the dead battery in a plastic bag.

Important! Recycle the dead battery responsibly. The battery contains lead acid (electrolyte) and must be disposed of properly and legally. It is illegal in most areas to incinerate lead acid batteries or dispose of them in landfills. Take it to a federal or state-approved lead acid battery recycler, such as local automotive battery retailer. Do not throw the battery away with your regular household waste!

1. Replace the battery and reconnect the connectors.
2. Replace the metal battery bracket.
3. Replace the seat.

Troubleshooting Guide
21

Problem Possible Cause Solution
Vehicle does not run	Battery low on power	Recharge battery.
	Thermal fuse has tripped	Reset fuse, see
	Battery connector or wires are loose	Check that the battery connectors are firmly plugged into each other. If wires are loose around the motor contact your distributor please.
	Battery is dead	Replace battery, contact your distributor please.
	Electrical system is damaged	Contact your distributor please.
	Motor is damaged	Contact your distributor please.
Vehicle does not run very long	Battery is under charged	Check that the battery connectors are firmly plugged into each other when recharging
	Battery is old	Replace battery, contact your distributor please.
Vehicle runs sluggishly	Battery low on power	Recharge battery, contact your distributor please.
	Battery is old	Replace battery, contact your distributor please.
	Vehicle is overload	Reduce weight on vehicle. Maximum user weight is 30 kgs.
	Vehicle is being used in harsh conditions	Avoid using vehicle in harsh conditions ,see
Vehicle needs a push to go forward	Poor contact of wires or connectors	Check that the battery connectors are firmly plugged into each other. If wires are loose around the motor, contact your distributor please.
	“Dead Spot” on motor	A dead spot means the electric power is not being delivered to the terminal connection and the vehicle needs repair. Contact your distributor please.
Difficult shifting from forward to reverse or vice-versa	Attempting to shift while the vehicle is motion	Completely stop the vehicle and shift, see
Loud grinding or clicking noises coming from motor or gear box	Motor or gears are damaged	Contact your distributor please.
Battery will not recharge	Battery connector or adapter connector is loose	Check that the battery connectors are firmly plugged into each other.
	Charger not plugged in	Check that the battery charger is plugged into a working wall outlet.
	Charger is not working	Contact your distributor please.
Charger feels warm when recharging	This is normal and not a cause for concern

Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem Contact your distributor please.

• It is parents' responsibility to check main parts of the toy before using, Must regularly examine for potential hazard, such as the battery, charge, cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed.
• Make sure the plastic parts of the vehicle are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts may melt.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge the battery at least once a month when the vehicle Raider is not being used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do not drive the vehicle in rainy or snowy weather. Water will damage the motor, electric system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax furniture polish. Do not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine gravel which could damage the moving parts, motors or the electric system.
• When not using, all the electrical source should be turn off. Turn off the power switch and disconnect the battery connection.

Stylized emblem featuring a circular emblem with the number 8, surrounded by wings and a checkered background (no text or symbols)

BENTLEY

Officially Licensed Product

Our products are suitable for

ASTM F963; GB6675; EN71 and EN62115 standard.

NORDIC

PLAY

Black convertible toy car with chrome and silver design, no visible text or symbols
