Product Type	Toy
Brand	Nordic Play
Model	805-778
Dimensions	20 cm x 15 cm x 10 cm
Weight	0.5 kg
Material	Plastic
Power Source	2 x AA batteries (not included)
Recommended Age	3 years and up
Functions	Interactive sounds, movable parts
Safety Warnings	Contains small parts, choking hazard for children under 3
Cleaning Instructions	Wipe clean with a damp cloth; do not immerse in water
Battery Life	Approximately 20 hours of continuous use
Assembly Required	No
Number of Pieces	1
Certifications	CE
Manufacturer	Nordic Play
Country of Origin	China
Warranty	1 year against manufacturing defects
Package Dimensions	25 cm x 20 cm x 15 cm
Package Weight	0.6 kg

Frequently Asked Questions - 805-778 Nordic Play

What kind of batteries does the Nordic Play 805-778 require?

The toy requires 2 x AA batteries (not included). Use alkaline batteries for best performance.

Is the toy suitable for children under 3?

No, the toy is recommended for ages 3 and up due to small parts that may pose a choking hazard.

How do I clean the toy?

Clean the toy with a damp cloth. Do not submerge in water or use harsh chemicals.

Does the toy make sounds?

Yes, it has interactive sound effects activated by pressing buttons or moving parts.

What is the weight of the toy?

The toy weighs approximately 0.5 kg (1.1 lbs).

Is assembly required?

No, the toy comes fully assembled and ready to use out of the box.

What material is the toy made of?

The toy is made of durable, BPA-free plastic.

Does the toy have lights?

This model does not include lights; it focuses on sound and movement features.

How long do the batteries last?

With normal use, batteries last approximately 20 hours. Replace when sound quality diminishes.

What should I do if the toy stops working?

First, check the batteries. If problem persists, contact Nordic Play customer support for warranty assistance.

USER MANUAL 805-778 Nordic Play

Red fire truck toy with checkered pattern and 'FIRE' branding, no visible text or symbols on the vehicle itself.

Size 79,5 x 36,5 x 44,5 cm

Art. no. 805-778

EAN 5705858711720

Imported by / Importeret af

NSH NORDIC A/S

Virkefeltet 4

DK-8740 Braedstrup

Made in China / produceret i Kina

General safety rules for NORDIC PLAY products

Warning:

• The vehicle may not be used on roads, sidewalks, in hills or sand.
• The vehicle should only be used on flat surfaces.
• Do not overload the vehicle. Pay attention to the maximum weight limits. Typical maximum total weight is 25 - 35 kg. Please check for your specific model.
• Only adults may charge the battery.
• Children using the vehicle should always be supervised by a responsible adult.
• Do not charge the vehicle's circuit.
• Do not drive in water or other fluids.
• Stop the vehicle when it is approaching an obstacle, turn away from the obstacle and drive somewhere else.
• Please charge the battery when the vehicle starts to drive slowly, otherwise the battery's lifespan can be shortened.
• Please charge the battery fully before the battery is stored for longer periods without use. Charge the battery every three months to extend the battery's lifespan.
• Do not drive during rain.
• Battery, charger, electrical cables, outlets and other parts should periodically be checked. If damages are discovered, the vehicle may not be used until these are fixed.
• The charger should be checked for damages on cord, plug and other parts periodically. If there are damages, the charger may not be used until the damage is fixed.
• Vehicle with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without a battery can be used from 1 year of age.
• The vehicle may only be used with the recommended charger.
  • The charger is not a toy.
• Only clean with a damp cloth.
• Check that all parts are undamaged. If not, repair or change these.
• It is a good idea to use safety equipment, depending on the vehicle.
• Worn out batteries should be removed/changed from the vehicle.
• The battery should be removed before the vehicle is disposed of.
• Declaration of conformity: This product is in accordance with EU directive 2014/53 / EU.

Warning:

For your child's safety, pay attention to the following:

• Only adults may assemble the product.
• Small parts and plastic parts should be kept away from the child to avoid risk of suffocation.
• Children may not touch or open the battery holder.
  • Adult supervision is required.
• Vehicles with a battery may not be used by children under 3 years of age.
• Push/foot-to-floor vehicles without battery can be used from 1 year of age.
• Use the vehicle with caution, since driving skills are required to avoid falls or crashes that can result in injuries to the user or third party.
• Instructions on how the vehicle is used should be given to the child before use – especially for the braking system.
• May not be used in traffic. Only use the vehicle on private property.
• Only drive on flat surfaces away from other vehicles and obstacles.

General safety rules for NORDIC PLAY products

• Avoid sharp bumps and sudden changes of the surface.
• Avoid roads and surfaces with water, sand, gravel, dirt, leaves and other debris.
• Wet weather can reduce the traction, brake effect and visibility.
• Do not drive when it is dark.
• Avoid excessive speed in conjunction with downhill driving.
• Watch out for pedestrians.
• Check and tighten all screws before every drive. Do not allow two or more children to use the vehicle at once.
• Do not use the vehicle if it has damages.

• Change damaged parts immediately.

• Insert 220V/12V charger cable's connector to the vehicle.

• Insert actual 220V/12V charger unit to your 220V power outlet. The battery will start charging.
• Detach after 8-12 hours

IMPORTANT NOTE: When shifting (forward/backward), please make sure the vehicle is completely stopped, otherwise it will damage the gear box and motor.

Forward: 1. Press the "Forward/backward switch" to the "Forward" position.

1. Press the "Foot pedal", the vehicle drives forward.

Stop: 1. The vehicle will brake automatically, when foot is lifted from the "foot-pedal".

Back Up: 1. Press the "Forward/backward switch" to the "Backward" position.

1. Press the "Foot pedal", the vehicle will back up.

Loosen the screw from the back of the seat seat, take away the seat. Then connect the battery line red wire to the red terminal of the battery and finally then connect black wire to black battery terminal. Never connect wires into the uncorrect battery terminals. After the connections, please assemble the seat back to the original place and tighten the screw.

Battery replacement and fuse

The battery is equipped with a thermal fuse which blows if the motor, battery or electrical circuit is overloaded. The vehicle must then be switched off for at least 5 minutes, after which the fuse will restore itself. If the product does not work, the fuse may therefore be the problem. To avoid this, read the following points:

• Do not overload the vehicle.
• Do not pull anything behind the vehicle.
• Do not drive up steep hills.
• Do not run into motionless objects that cause the wheels to spin.
• Do not drive at extreme temperatures.
• Make sure the product does not come into contact with liquids.
• Do not touch the electrical circuit.

As the battery gets older it will start to lose some of its capacity. Depending on the conditions, it can last anywhere from 1 - 3 years. If the battery needs a replacement, follow these steps:

1. Loosen the crew and remove the seat.
2. Disconnect the cables from the battery terminals.
3. Remove the battery cover.
4. Carefully lift the battery out of the vehicle. Depending on the condition of the battery (leakage or similar), safety equipment may be required. Do not lift the battery from its wires but from the battery itself.
5. Put the battery in a plastic bag and dispose it responsibly. NEVER put the battery to general waste.
6. Insert the new battery into the vehicle.
7. Reconnect the cables to the new battery. Red wire to red terminal (+) and black wire to black terminal (-) of the battery.
8. Slide the seat into place. Tighten the screw.

To protect the environment, batteries and electrical equipment must be disposed separately from household waste. Contact the municipality for the nearest collection point.

Problem Possible Cause Solution
Vehicle does not run Battery low on power Recharge battery.
		Thermal fuse has tripped Let the vehicle cool down for 5 minutes.Do not overload the vehicle.
		Battery connector or wires are looseCheck that the battery connectors and wires are firmly connected.
		Battery is dead Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
		Electrical system is damagedContact your distributor please.
		Motor is damagedContact your distributor please.
Vehicle does not run very long Battery is not properly charged. Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
Vehicle runs sluggishly Battery low on power Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
			Battery is old Battery lasts 1-3 years. Replace battery and recycle the old battery responsibly.
			Vehicle is overloadReduce weight on vehicle.Maximum user weight is 25 kgs.
			Vehicle is being used in unsuitable conditionsUse the vehicle on flat, even surfaces.
Vehicle needs a push to go forward	Poor contact of wires or connectors	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	“Dead Spot” on motor A dead spot means the electric power is not being delivered to the terminal con nection and the vehicle needs repair.Contact your distributor please.
Difficult shifting from forward to reverse or vice-versa	Attempting to shift while the vehicle is motion	Always completely stop the vehicle before shifting.
Loud grinding or clicking noises coming from motor or gear box	Motor or gears are damagedContact your distributor please.
Battery will not recharge	Battery connector or adapter connector is loose	Check that the battery connectors are firmly plugged into each other when recharging. Recharge battery again.
	Charger not plugged in	Check that the battery charger is plugged into a working wall outlet.
	Charger is not working	Contact your distributor please.
Charger feels warm when recharging	This is normal and not a cause for concern

Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem Contact your distributor please.

Maintenance

• Check all screws periodically and tighten as needed.
• Check the vehicle's plastic components frequently for damage.
• The mechanical parts of the vehicle can be lubricated with oil if necessary.
• Store the product indoors to protect it from the weather.
• Keep product away from hot items such as stove and the likes.
• Do not clean the product with a garden hose and do not use soap. A dry or moist cloth is enough.
• Do not drive in rain, snow, sand and gravel as this may damage the product.
  If the product is not to be used for an extended period, recharge the battery and then disconnect all cables

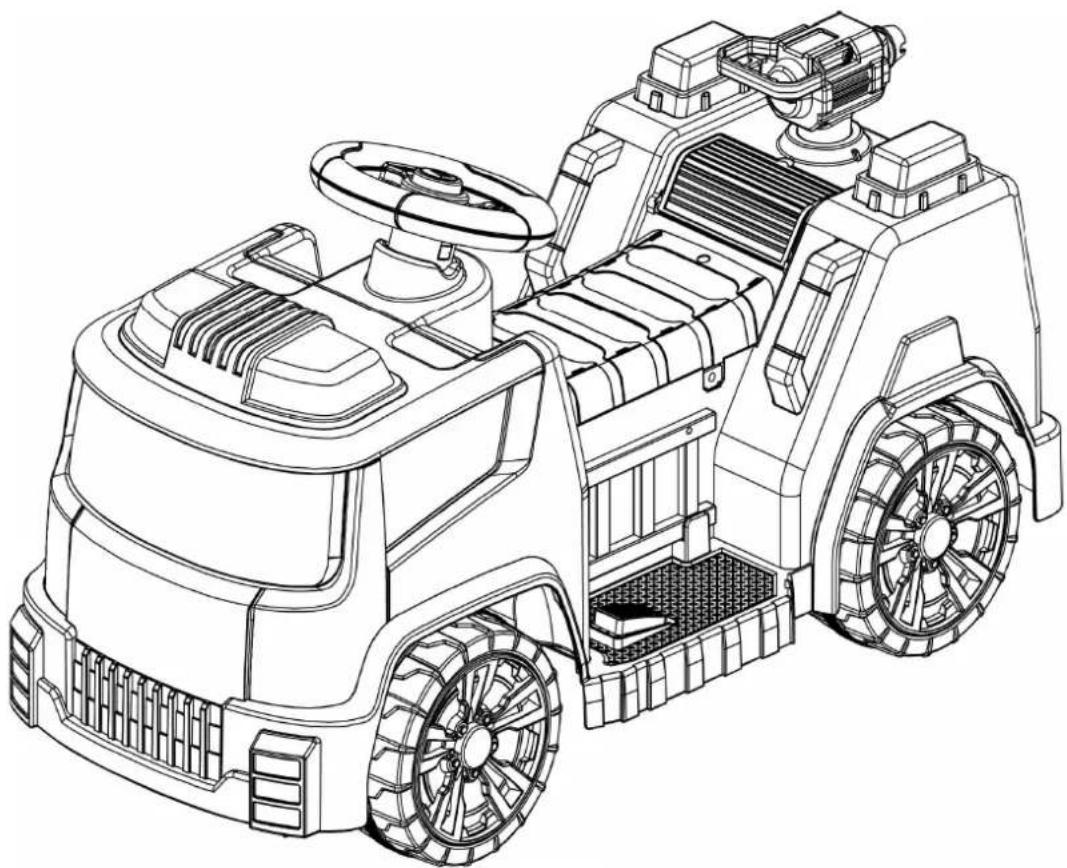

Installation and Operating Instructions

Technical line drawing of a toy car with visible wheels, steering wheel, and dashboard (no text or symbols)

Suitable age: 2+ years Battery: DC 6V 4.0AH *1
Load Capacity: 25 kg Size of car: 795 x 365x 445 mm
Speed: 2,5 - 3 km/h Carton size: 805 x 675 x 405 mm
Material:	PP (polypropylene) and iron	Optimum temperature:	Below 40°C Avoid to use under burning sun
Input: 110V Charger: Output: - 240V Charging time: 8 - 12 hours

Our products are suitable for ASTM F963; GB6675,GB19865; EN71 and EN62115 standard.

Table of contents

1. About Your New Vehicle
2. Parts List
3. Parts Diagram
4. Assembly Steps
5. How To Operation Your Vehicle
6. Charging The Vehicle

About your new vehicle

Thank you for your purchasing our products, we wants your child to enjoy this product for years to come. Keep these points in mind as you read this guide:

Components list

NO	PART NAME	PICTURE QTY NO			PART NAME	PICTURE QTY
1	VEHICLE BODY		1	2	STEERING WHEEL		1
3	FIRE HOSE		1

Assembly package

NO	PART NAME	PICTURE QTY NO		PART NAME	PICTURE QTY
4 Charger 15				Instruction manual		1

Parts diagram

1 Vehicle body *1 2 Steering wheel *1
3 Fire hose *1

Technical diagram of a vehicle's internal components with numbered parts for identification

NOTE: Some parts shown are assembled on both sides of vehicle.

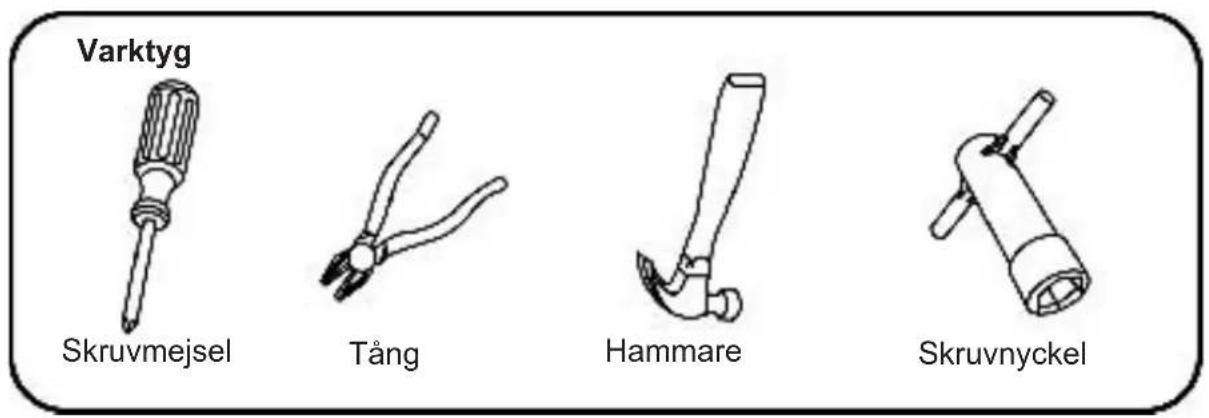

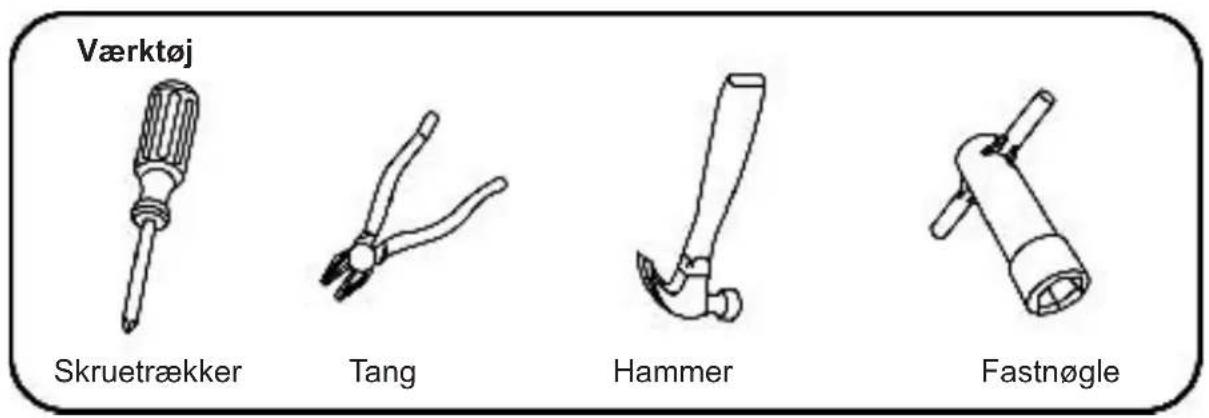

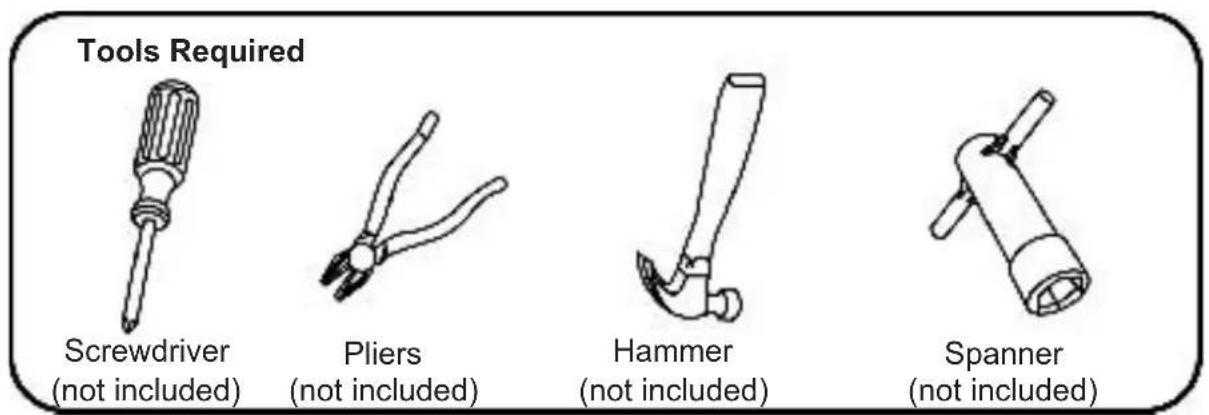

Tools Required Screwdriver (not included) Pliers (not included) Hammer (not included) Spanner (not included)

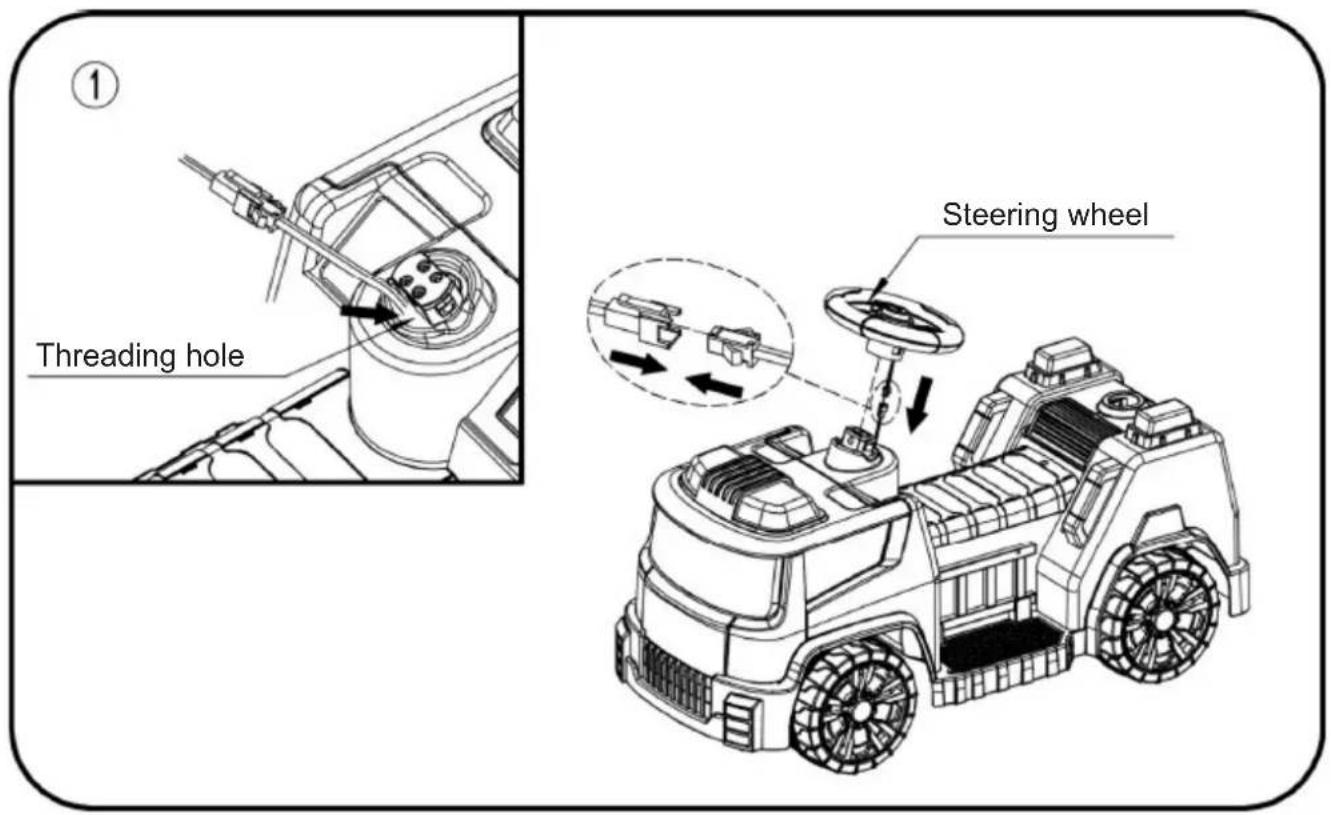

1. Install the steering wheel.

① Threading hole Steering wheel

• The plug butt.
• As shown in the picture, put the plug into threading hole, don't have a wire exposed.
• As showed in the picture, press the steering wheel, downward to fix it.

2. Connect the power supply.

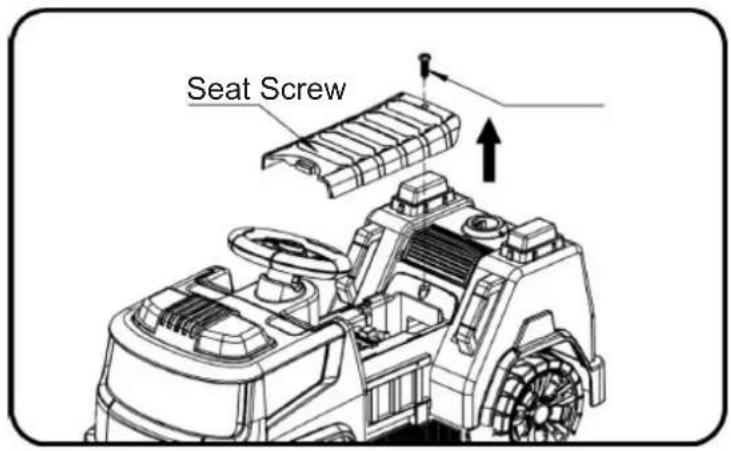

Seat Screw

As showed in the picture, unscrew the screw, and open the seat.

2. Connect the power supply.

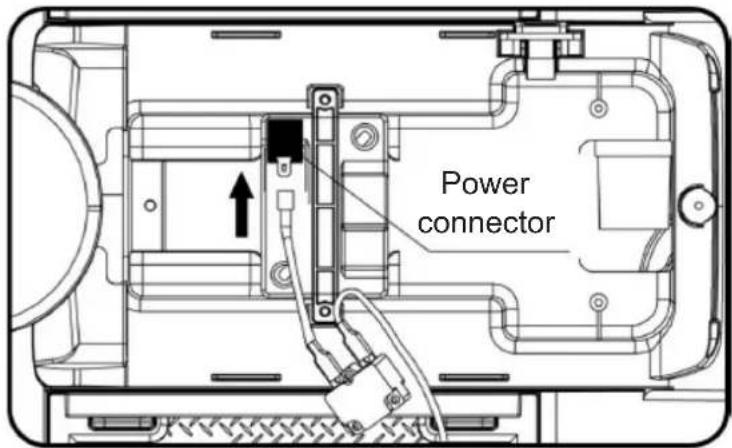

Power connector

Plug the power connector into the terminal on battery as shown. Then install the seat to the corresponding place, and fasten with the screw.

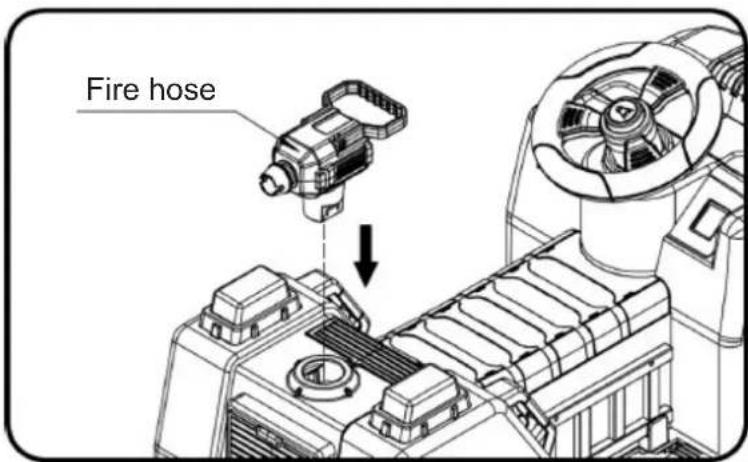

3. Install the fire hose.

Fire hose

As showed in the picture, press the fire hose, downward to fix it.

Use operation

Music button Forward & stop & reverses switch Pedal switch

IMPORTANT!

Always stop vehicle when changing the speed or direction to avoid damage the gear box and motor.

(1) Forward

Press the "Forward and Stop and Reverse switch" to the "Forward" position.

Press the Power Button. The vehicle drives forward.

(2) Stop

Press the "Forward and Stop and Reverse switch" to the "Stop" position.

Release the Power Button to stop.

(3) Reverse

Press the "Forward and Stop and Reverse switch" to the "Reverse" position.

Press the Power Button. The vehicle drives backward.

(4) You can enjoy music by push any music button.

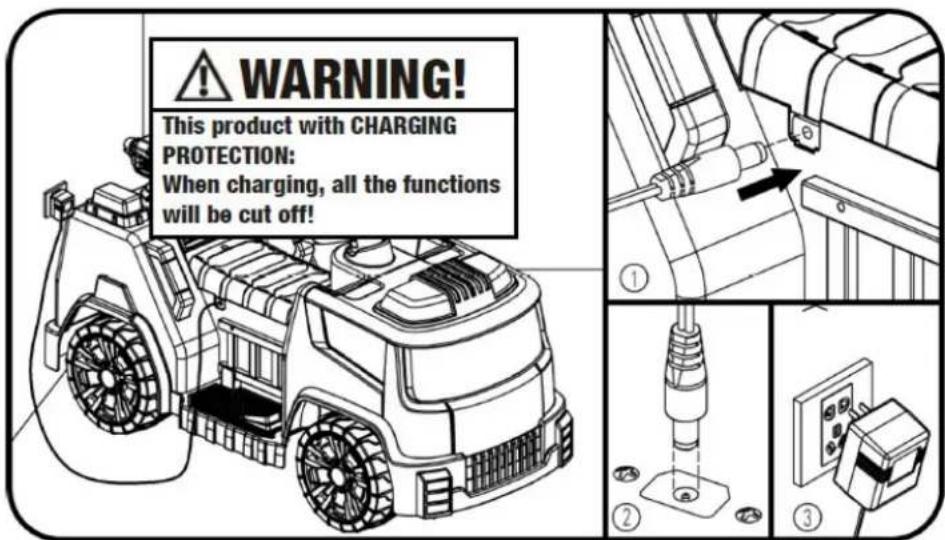

8. Charging instructions

• The charging input socket is BELOW THE SEAT.
- The POWER SWITCH must be turned in OFF position when charging.
- Before the first use, you should charge the battery for 8-12 hours. Do not recharge the battery for more than 20 hours to avoid overheating the charger.
- When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge time as 8 to 12 hours, no more than 20 hours.

WARNING! This product with CHARGING PROTECTION: When charging, all the functions will be cut off!

1. Find The charging input socket below the seat;
2. Plug the charger port into the input socket;
3. Plug the charger plug into a wall outlet. The battery will begin charging.

Technical line drawing of a toy car with visible wheels, dashboard, and control panel (no text or symbols)

Aldersgruppe: 2 år+ Batteri: DC 6V 4.0AH *1
Maks. belastning: 25 kg Størrelse bil: 795 x 365x 445 mm
Hastighed: 2,5 - 3 km/h Størrelse karton: 805 x 675 x 405 mm
Materiale:	PP (polypropylene) og jern	Optimal temperatur:	Under 40°C
Input: 110V - 240V Ladetid: 8 - 12 timer
Oplader: Output: DC 6V Sikring: F 5A, automatisk

Technical diagram of a vehicle's internal components with numbered parts for identification

Power connector

WARNING! This product with CHARGING PROTECTION: When charging, all the functions will be cut off!

Technical line drawing of a toy car with visible wheels, dashboard, and control panel (no text or symbols)

Åldersgrupp: 2 år+	Batteri: DC 6V 4.0AH *1
Maxbelastning: 25 kg Storlek bil: 795 x 365x		445 mm
Hastighet: 2,5 - 3 km/h Storlek kartong: 805 x 675 x 405 mm
Material:	PP (polypropylene)och järn	Optimaltemperatur:	Under 40°C
Input: 110V Laddtid: 8 - 12 timmar
Laddare: Output: DC 6V Säkring: F 5A, Automatisk

Technical diagram of a vehicle's internal components with numbered parts for identification

WARNING! This product with CHARGING PROTECTION: When charging, all the functions will be cut off!

Technical line drawing of a toy car with visible wheels, dashboard, and control panel (no text or symbols)

Technical diagram of a vehicle's internal components with numbered parts for identification

WARNING! This product with CHARGING PROTECTION: When charging, all the functions will be cut off!

Front view of a red fire truck with 'FIRE' branding and white painted stripes (no additional text or symbols)
