Product type	Vacuum cleaner
Brand	Grundig
Model	VCC 4150 L
Power consumption	800 W
Supply voltage	220-240 V ~, 50-60 Hz
Operating radius	9 m
Dust capacity	4 L
Filter type	HEPA 13
Recommended dust bag	Swirl Y 05 MicroPor Plus AntiBac

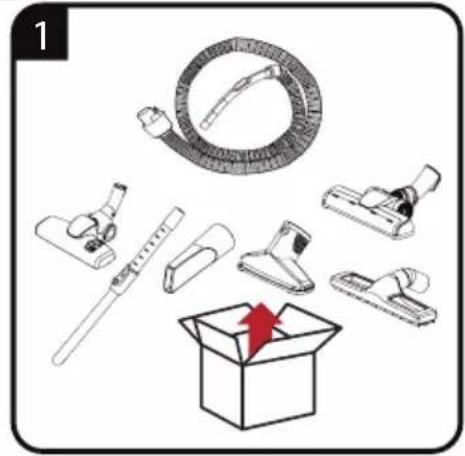

Included accessories	Crevice tool, Upholstery brush, Telescopic tube
Parquet/carpet brush parking groove	Yes
Power cord winding button	Yes
Dust bin indicator	Yes (turns red when bag full)
Carrying handle	Yes
Hose length (approx.)	2 m (estimated)
Net weight (approx.)	4.5 kg
Dimensions (approx.)	40 x 25 x 30 cm
Safety features	Overheat protection, auto shut-off on overheat (typical)
Maintenance	Replace dust bag when indicator red; clean/replace HEPA filter as needed
Warranty	Standard manufacturer warranty (check manual for details)

Frequently Asked Questions - VCC 4150 L GRUNDIG

How do I know when to change the dust bag?

The dust bin indicator on the appliance turns red when the dust bag is full. Change the bag immediately.

Can I use any brand of dust bags?

It is recommended to use only original Grundig accessories or Swirl Y 05 MicroPor Plus AntiBac bags for optimal performance.

How do I clean the HEPA filter?

Switch off and unplug the appliance. Remove the filter and gently tap it clean. Do not wash the HEPA filter. Replace it when necessary.

Can I vacuum wet surfaces or liquids?

No. This vacuum cleaner is designed for dry vacuuming only. Do not use on wet surfaces or to pick up liquids.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer, its service center, or a similarly qualified person to avoid hazard.

Can I use this vacuum on hardwood floors?

Yes. It includes a parquet/carpet brush parking groove and suitable brushes. Use the appropriate setting or brush for hard floors.

How often should I replace the dust bag?

Replace the dust bag when the indicator turns red, or when suction seems reduced. Frequency depends on usage.

Is the vacuum suitable for pet hair?

Yes, the vacuum can handle pet hair with its main brush and upholstery tool. For heavy pet hair, a turbo brush (available on VCC 6250 ECO) is recommended.

How do I store the vacuum cleaner?

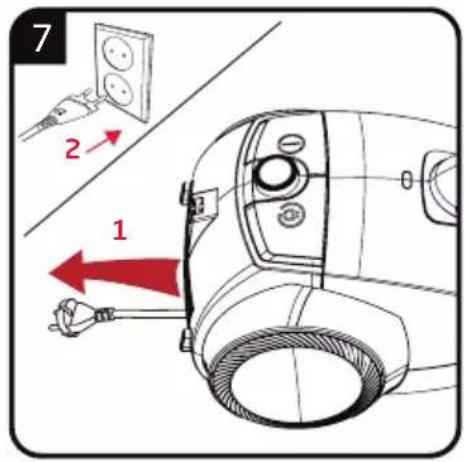

Unplug the appliance, wind the cord using the power cable winding button, and store it in a dry place out of reach of children.

What does the red indicator on the dust bin mean?

The red indicator signals that the dust bag is full and needs immediate replacement to maintain suction and protect the motor.

USER MANUAL VCC 4150 L GRUNDIG

Abstract geometric pattern composed of interlocking black lines forming a symmetrical design (no text or symbols)

Simple line drawing of a decorative patterned square with circular motifs (no text or symbols)

VCC 4150 L

VCC 6250 ECO

DE - EN - TR - HR - PL - SV - NO - FI - DA - CS - SK

DEUTSCH 07 - 14

ENGLISH 15 - 19

TÜRKÇE 20 - 28

HRVATSKI 29-33

POLSKI 34 - 39

SVENSKA 40 - 44

NORSK 45 - 49

SUOMI 50-54

DANISH 55 - 59

ČESKY 60 - 64v

SLOVENČINA 65 - 69

Illustration of various cleaning and repair tools including a tire, brush, and a box with a red arrow (no text or symbols)

Line drawing of a hand using a handheld device to press or install a vacuum cleaner (no text or symbols present)

Illustration of a hand holding a pipe fitting with a red arrow indicating motion (no text or symbols)

Illustration of hands holding a cylindrical object with a red double-headed arrow indicating motion (no text or symbols)

Diagram of a vacuum cleaner with a red arrow indicating motion (no text or symbols)

Diagram showing a tool interacting with a cylindrical object, with a red arrow indicating the process (no text or symbols present)

Diagram of a vacuum cleaner with a red upward arrow indicating motion (no text or symbols)

Diagram showing a hand holding a cleaning tool with a red arrow indicating motion (no text or symbols)

Technical illustration of a mechanical component with a red arrow indicating a downward motion (no text or symbols present)

DE	BETRIEB REINIGUNG UND	PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMÍZLEME VE	BAKIM
HR	RAD ČIŠĆENJE I ODRŽAVANJE
PL	OBSŁUGA CZYSZCZENIE I	KONSERWACJA
SV	ANVÄNDNING RENGÖRING	OCH SKÖTSEL
NO	DRIFT RENGJ∅RING OG PLEIE
FI	KÄYTTÖ ČIŠĆENJE I ODRŽ	AVANJE
DA	BETJENING RENG∅RING	OG VEDLIGEHOLDELSE
CS	ÚKON ČIŠTĚNÍ A PÉČE
SK	PREVÁDZKA ČISTENIE A STAROSTLIVOST

Line drawing of a hand holding a vacuum cleaner with a red arrow indicating the motion (no text or symbols present)

Technical illustration of a hand operating a device with red arrows indicating motion (no text or symbols)

Diagram showing a hand inserting a component into a vehicle chassis, with no visible text or symbols.

Diagram showing a hand inserting a component into a device, with no visible text or symbols.

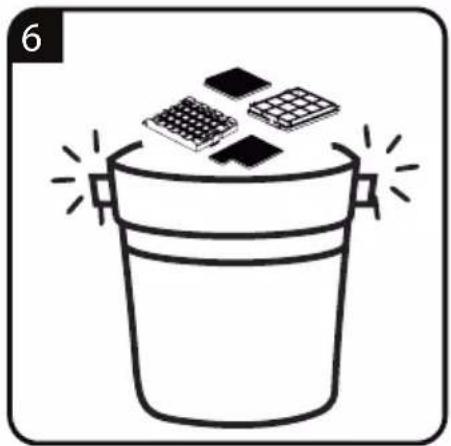

Simple line drawing of a bucket with floating electronic components and sparks (no text or symbols)

Hand holding a game controller with a red arrow indicating motion (no text or symbols)

Technical illustration of a hand operating a mechanical device with red arrows indicating motion (no text or symbols present)

Line drawing of a hand holding a vacuum cleaner device with a red arrow indicating the motion (no text or symbols present)

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appli-ance be given to a third party, then this instruction manual must also be handed over.

■ The appliance is designed for domestic use only. Improper use will void the warranty.
- Observe these instructions in order to prevent damage to the appliance or danger arising from improper use.
■ Do not use on wet surfaces and do not attempt to use on wet objects.
■ Do not use the appliance in wet surroundings.
■ Do not use the appliance with wet hands.
■ This appliance is designed for vacuuming dirt and dust particles. Do not attempt to use it on large objects which could block the appliance and damage the appliance.

■ Do not use to clean cigarette stubs, ash from a fireplace or matches. This could cause a fire.
■ This appliance is not designed for cleaning people or animals.
- Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.
■ Do not stand the appliance up-right while you are cleaning.
■ Do not roll the appliance over the power cord.
■ Do not close any doors on top of the power cord.
■ Do not pull the power cord around sharp edges and do not squash it.
■ If you move the appliance to another room, always disconnect the power cord and carry the appliance by the handle.
■ Never move the appliance by pulling on the power cord.
■ Never operate the appliance without the dust bag or filter.
■ Change the filter when necessary.

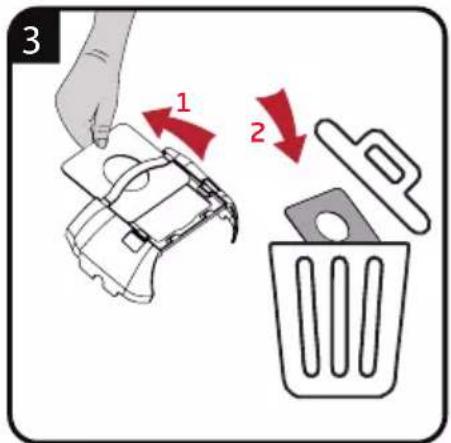

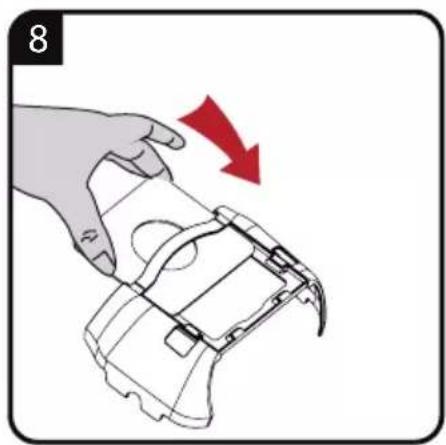

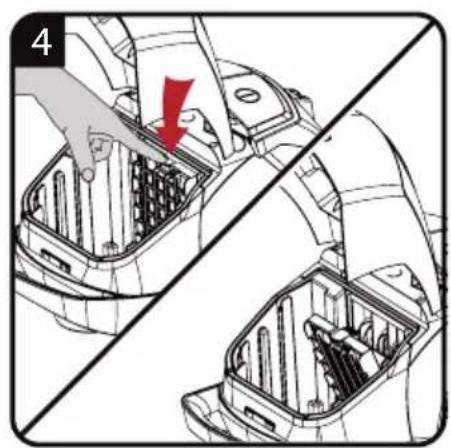

■ Change the dust bag, if the indicator switches to red.

- Only use original GRUNDIG accessories or Swirl® dust bags for replacement.

■ Always pull out the power cord before cleaning or carrying out any maintenance on the appliance.

■ Whenever possible, insert the power cord plug directly into the socket. Avoid using extension cables or multipoint connectors.

■ Pull out the power plug after use. Do not disconnect the plug by pulling on the cable.

■ Never use if the appliance or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact a service centre in this case.

■ If the power cord is damaged, it must be replaced by the manufacturer, its service centre or a similarly qualified person to prevent danger arising.

- Keep the appliance away from children.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not open the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG Compact Vacuum Cleaner VCC 4150 L - VCC 6250 ECO.

Please read the following user guide carefully to ensure that you have many years of enjoyment from your quality Grundig product at home.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual waste reduction of several

tonnes of plastic each year – and availability of at least 5 years for all accessories.

For a future worth living.

Grundig.

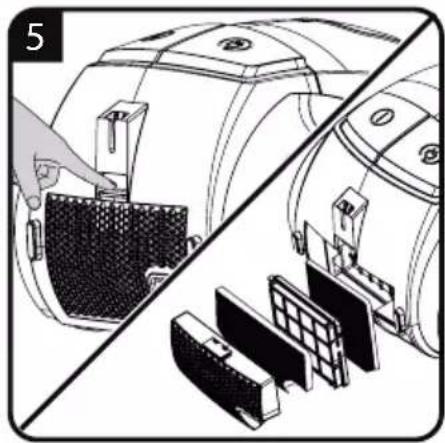

HEPA-Filter

HEPA stands for High Efficiency Particulate Air. HEPA filters are particulate air filters, which filter more than 99.9% of all dust particles larger than 0.1 to 0.3 micrometres out of the air. Viruses, respirable dusts, mite eggs and mite excrement, pollen, smoke particles, asbestos, bacteria, diverse toxic dusts and aerosols are removed from the air.

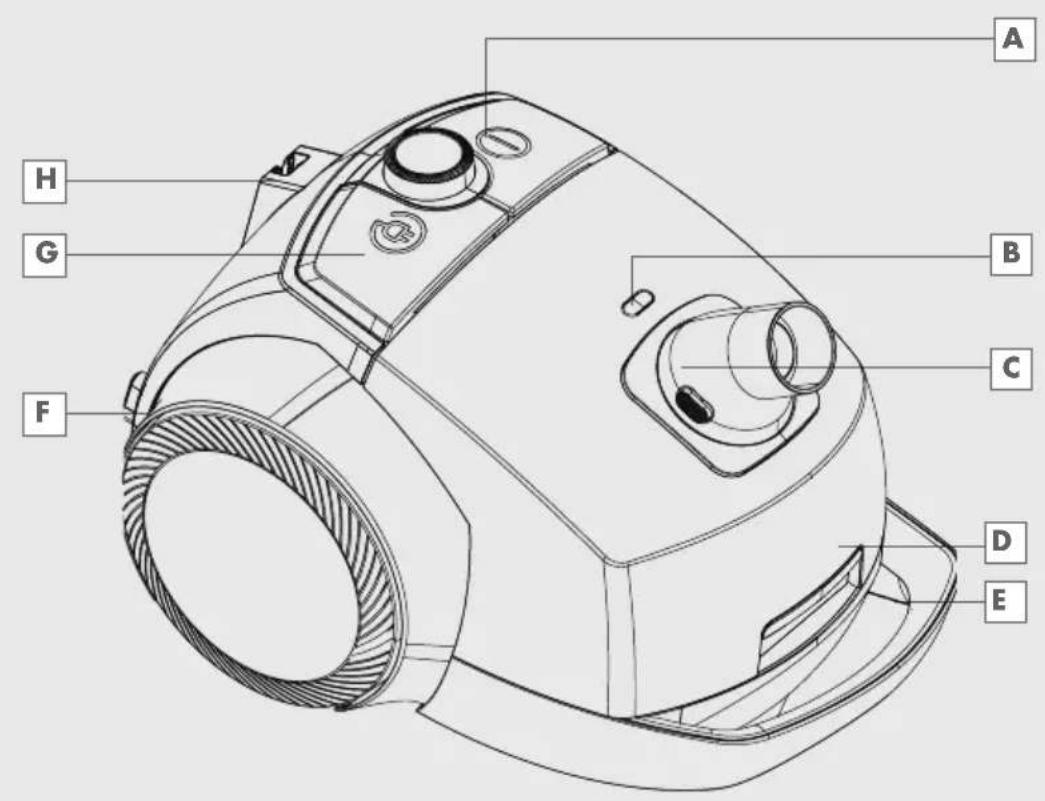

Controls and parts

See the figure on page 3.

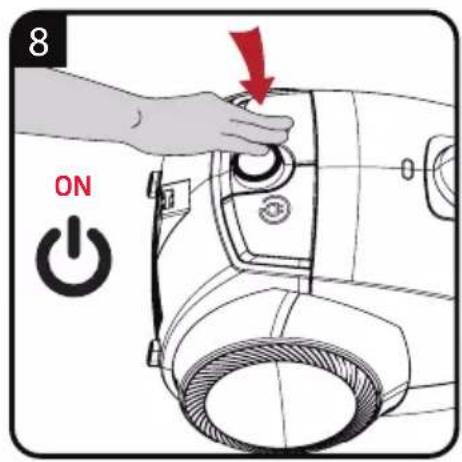

A ON/OFF button

B Dust bin indicator

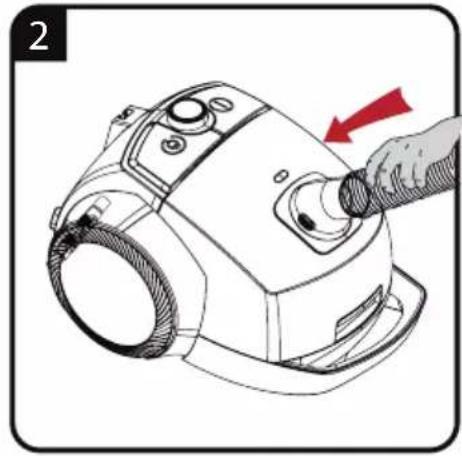

C Hose inlet

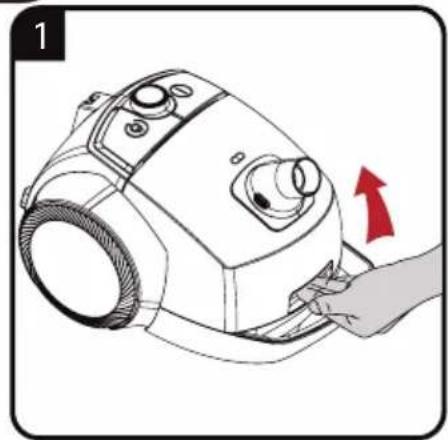

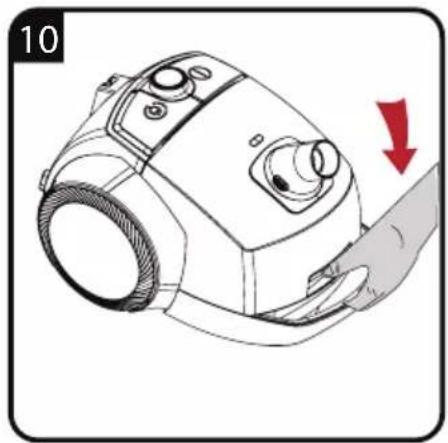

D Dust container opening latch

E Carriage handle

F Power cord

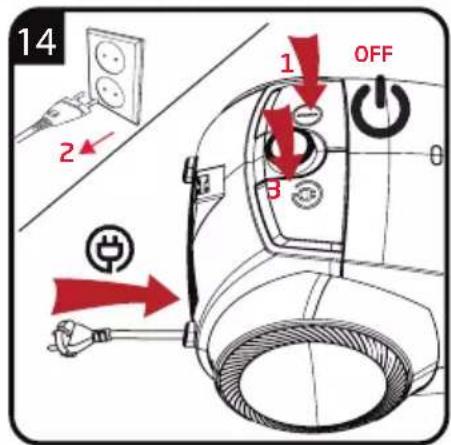

G Power cable winding button

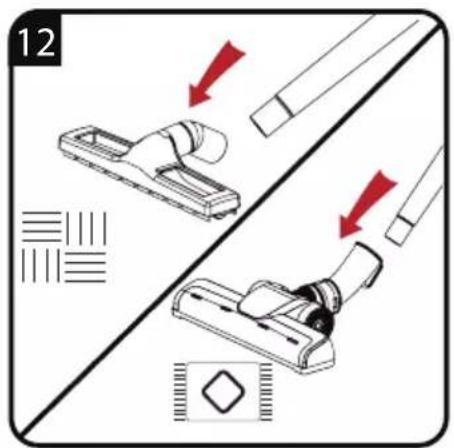

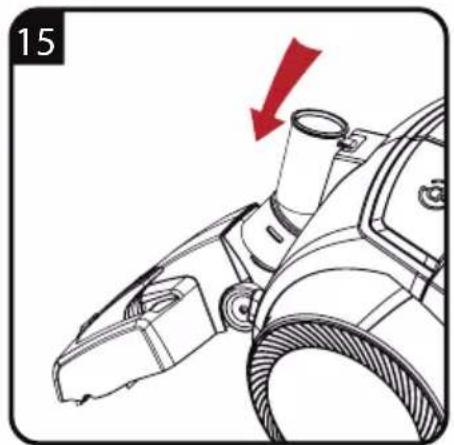

H Parquet/carpet brush parking groove

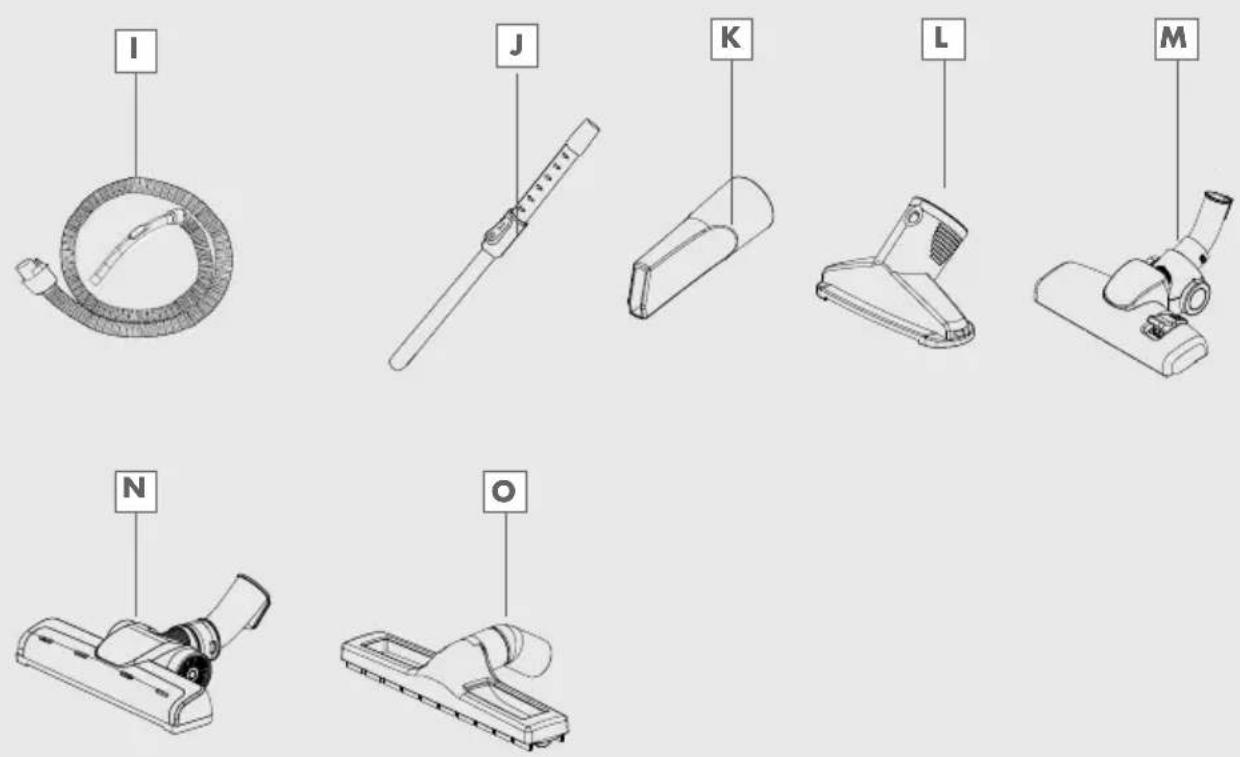

I Hose

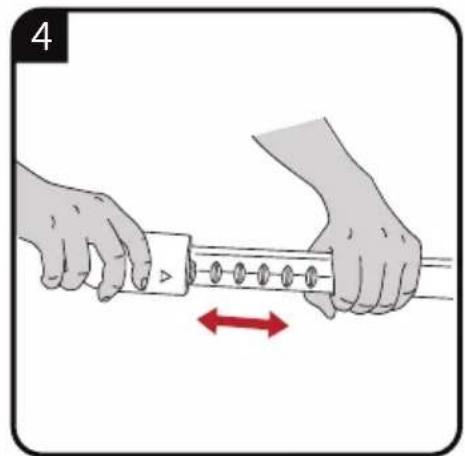

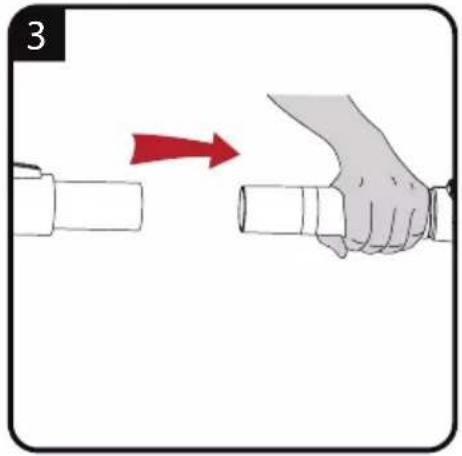

J Telescopic tube

K Crevice tool

L Upholstery brush

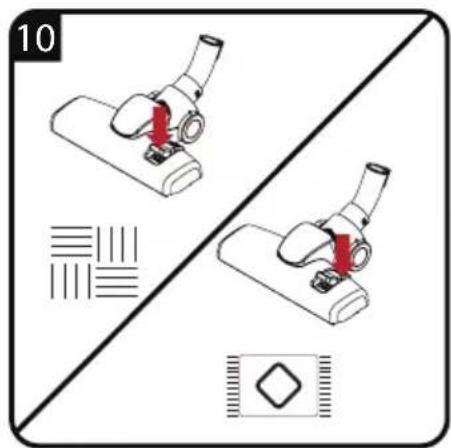

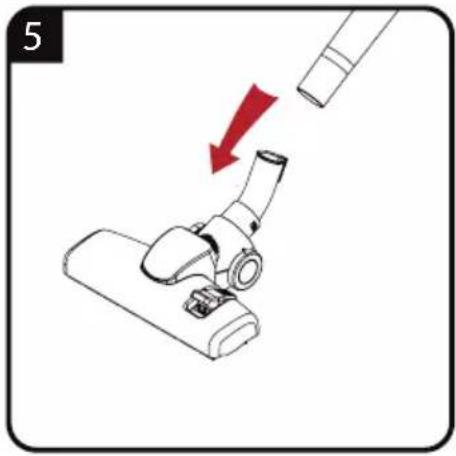

M Main brush

N Turbo brush (VCC 6250 ECO)

Parquet brush (VCC 6250 ECO)

Usage areas of accessories

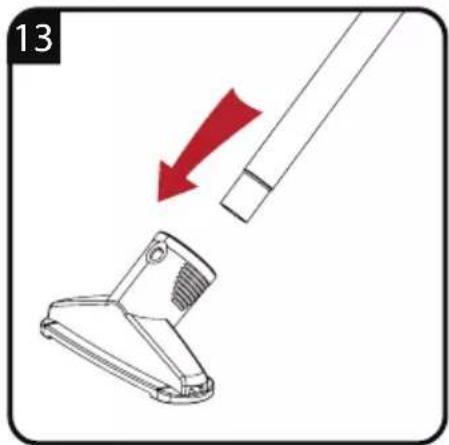

Upholstery tool: Curtains, cushions, sofas and upholstery fabrics.

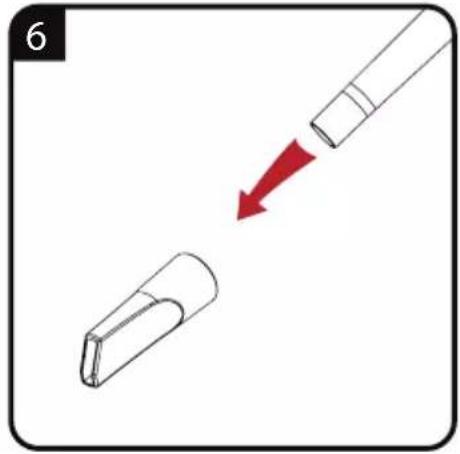

Crevice tool: Hard-to-reach areas and narrow gaps.

Recommended vacuum cleaner bag

We recommend: Swirl® Y 05® MicroPor® Plus AntiBac vacuum cleaner bags.

Swirl®, MicroPor® and Y 05® are registered trade marks of a company of the Melitta group and used with their permission.

Cleaning and care

Switch off and unplug the appliance, before cleaning it.

Warning

■ Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

Storage

If you do not intend to use the appliance for a long time, store it carefully.
■ Unplug the appliance.
- Keep the appliance out of the reach of children.

Handling and transportation

During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
- Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
■ Dropping the appliance may render it non-operational or cause permanent damage.

Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electri-

cal and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Supply voltage : 220-240 V \~, 50-60 Hz

Power : 800 W

Operating radius : 9 m

Dust capacity : 4 L

Filter : HEPA13

Rights to make technical and design changes are reserved.
