USER MANUAL SP100W VIVANCO

Exterior view of a black plastic heat exchanger or cooling unit panel with slots and mounting holes (no text or symbols visible)

GB Operating instructions

S Bruksanvisning

GB Operating instructions

03 - 06

Please read this manual carefully BEFORE using the device to make it safe and reliable to use, and keep the instructions safe and pass it to any subsequent owners.

Table of contents

1. Technical data 4. Operation / assembly / disassembly
2. Scope of delivery 5. FAQ section
3. Intended use 6. Proper disposal
   3.1 Safety instructions

1. Technical Data

General information

Weight: 4.8Kg

Dimensions folded: 59.8*34.3*4.0cm

Dimensions unfolded: 128.5*59.8*2.0cm

Operating temperature: -10°C ~ +65°C

Solar cell surface coating: ETFE/PET

Peak power (Pm): 100.0W (4x 25,0W)

Cell efficiency: up to 23.5

Cell type: Mono (182*182mm)

Maximum operating voltage (Vmp): 18.0V

Maximum operating current (Imp): 5.55A

Open circuit voltage (Voc): 18.0 ~ 21.6V

Short circuit voltage (Isc): DC 7,326 ~ 6,105A, USB-A 1,8 ~ 3,6A

Connections

DC 5521 output: 16.0~18.0V, 6.25~5.55A, max. 100.0W

USB A output: QC3.0, 5.0V, 3.0A, max. 15.0W / 9.0V, 2.0A, max. 18.0W / 12.0V, 1.5A, max. 18.0W

USB-C output: QC3.0, 5.0V, 3.0A, max. 15.0W / 9.0V, 2.0A, max. 18.0W / 12.0V, 1.5A, max. 18.0W

XT30 input and output: 16.0~18.0V, 6.25~5.55A, max. 100.0W

XT60 output: 16.0~18.0V, 6.25~5.55A, max. 100.0W

2. Scope of delivery

1x solar panel, 1x instruction manual, 1x DC5521 connection cable

3. Intended use

This solar panel is used for mobile charging of mobile power stations and for operating electrical devices. Only use the device in accordance with these instructions. It is intended exclusively for private use in accordance with these instructions and must not be used for commercial purposes. It is not permitted to feed this solar panel into existing electrical systems.

3.1 Safety instructions

Danger of operating errors

The Solar Panel may only be used by persons who are sufficiently familiar with its operation and handling. Make sure that children and disabled persons also observe these instructions!

Fire hazard

• By opening:
• DO NOT open the solar panel and DO NOT use it in a damaged condition.
• By short-circuiting:
• DO NOT short circuit the contacts.
• By damage:
• DO NOT use the unit if it appears to be damaged. DO NOT bend, scratch or twist.
• Only place the solar panel on a level surface to avoid damage from tipping over or falling down.
  DO NOT use damaged cables / power supplies on the solar panel.
• Due to contact with moisture:
• If the solar panel gets wet, allow them to dry completely before further use. It is IP 44 splash-proof, but must not be exposed to direct moisture at the connections.

Danger: Injury

- By electric shock / fire

• The solar panel is NOT suitable for feeding into an existing power grid.
• DO NOT expose the solar panel to direct water.
  DO NOT touch or short-circuit the contacts.

- By opening

- The junction box may only be opened by trained personnel.

- By interfering with other equipment

• DO NOT use solar panel if other devices are disturbed by its operation.
• Must NOT be used to operate medical devices.

GB

- By looking directly into the sunlight for prolonged periods.

- DO NOT look directly into the sun. This can permanently damage your eyesight.

- Connected devices may start up unattended.

- Switch off connected devices before starting up the solar panel. Disconnect non-switchable devices from the solar panel before commissioning.

CAUTION: Material damage

- Due to operation in wet conditions

- DO NOT expose the solar panel to direct water.

- DO NOT continue to use defective solar panels and dispose of them.

- By using the wrong connection cable

- Only use the USB A, USB C, DC5521, XT30 or XT60 connection cables that match the connections.

Incorrect or insufficient cables can cause damage.

4. Operation / Assembly / Disassembly

Product details, front view

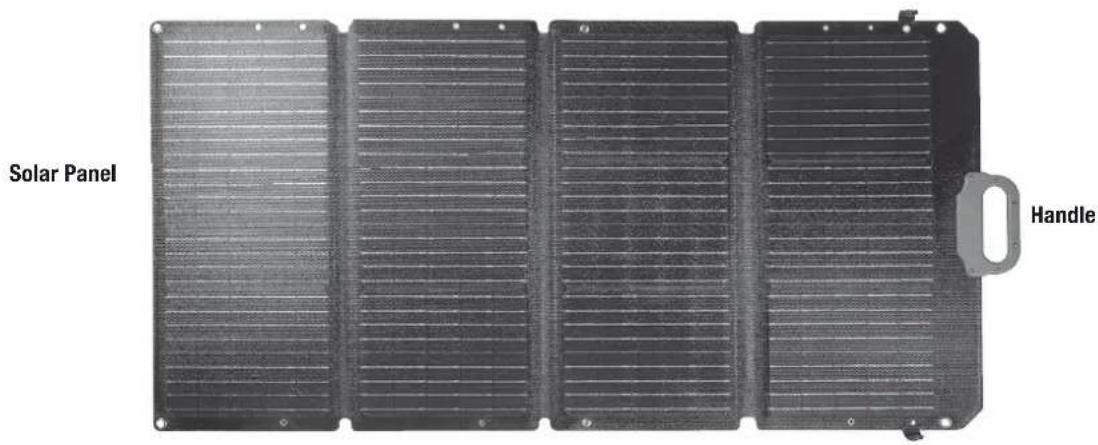

Product details, backside view

Installation of the solar panel

Diagram of a mechanical device with a grid-patterned base and directional arrows indicating motion (no text or symbols)

1. Set up the solar panel1. Unfold the solar panel

Diagram of a solar panel array with grid patterns and directional arrows indicating orientation (no text or symbols)

GB

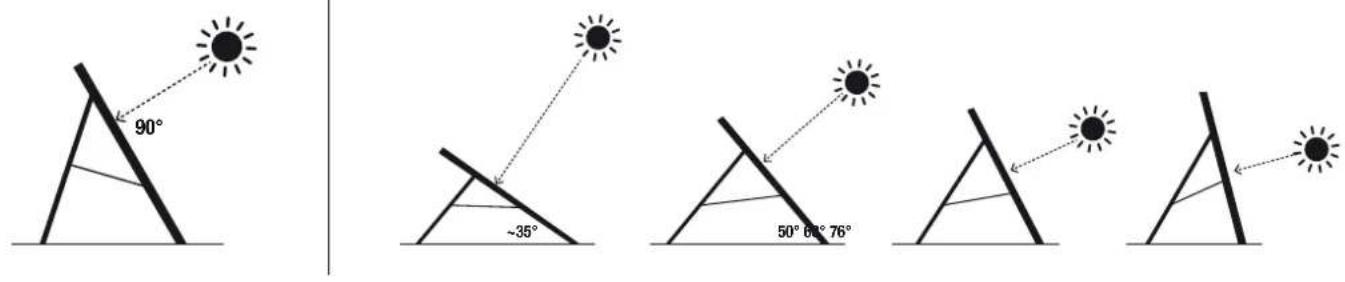

1. Finding the right position 4. Adjust the angle according to the sun position ( 35^, 50^, 63^ and 76^ )

1. Period of use of the set up function

1. Connecting the devices

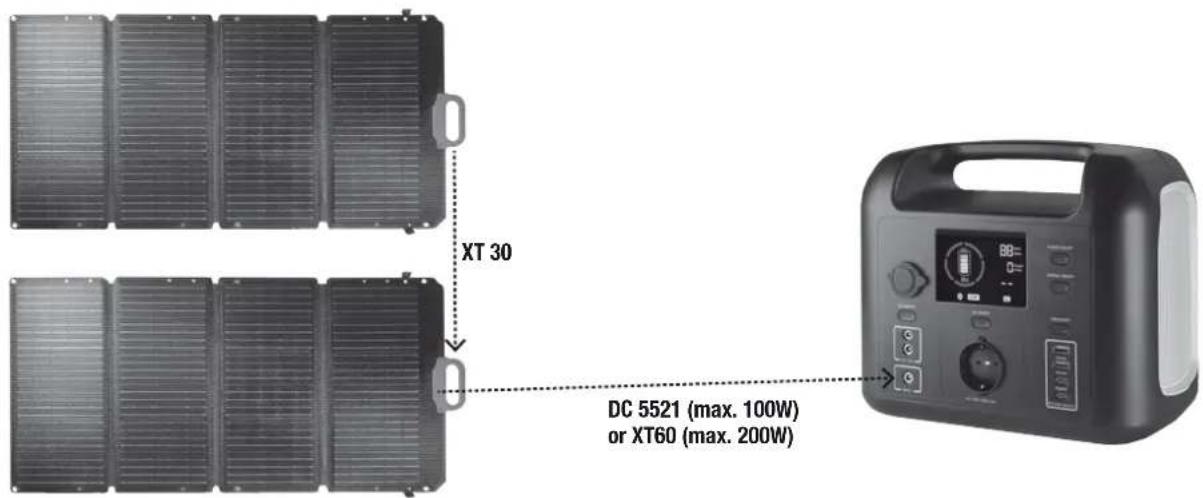

1. Use of more than one solar panel in parallel

GB

5. FAQ

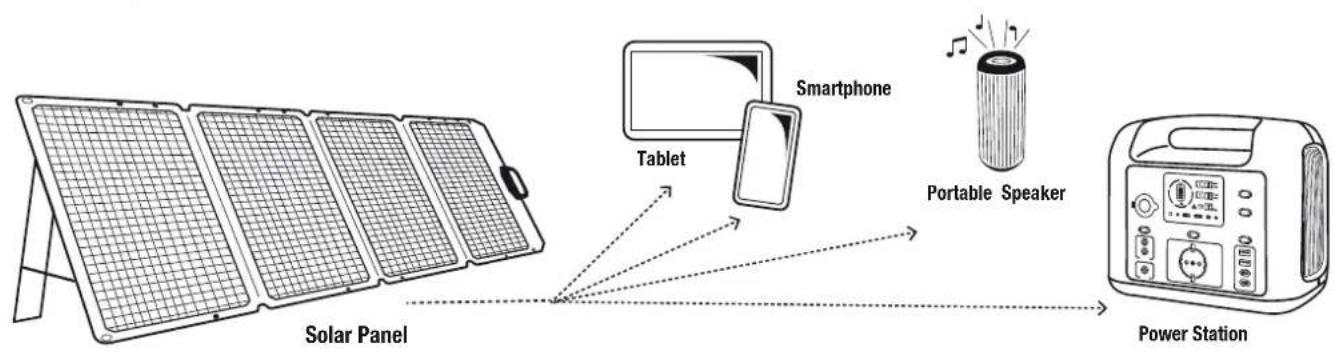

Q1: Which devices can be connected to the solar panel?

A: This solar panel is for charging power stations and other mobile devices such as tablets, smartphones, power banks and others.

Check the technical data to see if your device will be supported.

Q2: Can the solar panel be operated or left standing in the rain?

A: No. This product is IP44 certified, whereas the actual panel without the connection unit even meets IP67 requirements.

However, due to the connection unit, permanent contact with moisture and water such as rain must be avoided.

Q3: What should I do if the solar panel has been standing or lying in the rain?

A: Dry the panel with a soft cloth and let the connection unit to dry out completely. We strongly recommend that you do not continue

to use the solar panel after this, as moisture may have penetrated the connection unit. Danger of short circuit/fire!

Q4: Can I use the solar panel on a cloudy day?

A: Yes, but you will only achieve best results in direct sunlight.

Q5: What can be the reason that the solar panel does not charge the device I have connected?

A: - Please check if the technical data of the device which should be charged match those of the solar panel. Bad weather conditions such as cloud cover can affect the output power of the solar panel. Check whether the solar panel orientation can be changed to improve the situation.

- Check that all connection cables are correctly connected and undamaged. Replace them if necessary.

- Check whether the solar panel has a visible defect or has been exposed to moisture, rain, extreme cold or shocks, strong pressure or similar.

If so, please disconnect it from all connected devices and do not continue to operate it.

6. Proper waste disposal

Disposal of the packaging

The packaging must not be disposed of with household waste. Please act in accordance with local disposal regulations.

Disposal of the appliance

The appliance must not be disposed of with household waste.

Please hand it in at a collection point for electrical appliances in your municipality or district.

D

Solarpanel 100W (62662)

Diagram of a mechanical device with a grid-patterned panel and directional arrows indicating motion (no text or symbols)

Diagram of a four-panel solar panel with grid patterns and directional arrows indicating orientation (no text or symbols)

D

Diagram of a mechanical device with a grid-patterned panel and directional arrows indicating motion (no text or symbols)

Diagram of a four-panel solar panel with grid patterns and directional arrows indicating orientation (no text or symbols)

E

Diagram of a mechanical device with a grid-patterned base and directional arrows indicating motion (no text or symbols)

Diagram of a four-panel solar panel with grid patterns and directional arrows indicating orientation (no text or symbols)

s

Diagram of a mechanical device with a grid-patterned panel and directional arrows indicating motion (no text or symbols)

Diagram of a four-panel solar panel with grid patterns and directional arrows indicating orientation (no text or symbols)
