Product Type	Laptop
Brand	Dell
Model	Latitude D500
Processor	Intel Pentium M or Celeron
Memory (RAM)	256 MB to 1 GB DDR
Storage	20-60 GB HDD
Display Size	14.1 inches
Display Resolution	1024 x 768 pixels
Dimensions (W x D x H)	330 x 270 x 30 mm
Weight	2.8 kg
Power Supply	AC adapter 65W, 19.5V
Battery Type	Lithium-Ion, 6-cell
Operating System	Windows XP Professional
Connectivity	Ethernet, Modem, USB 2.0
Wireless	Wi-Fi 802.11b/g
Optical Drive	CD-RW/DVD-ROM
Ports	2x USB 2.0, VGA, Serial, Parallel
Audio	Stereo speakers, headphone/mic jack
Maintenance	Clean with soft dry cloth; avoid liquids
Safety	Do not block vents; use only approved charger
Spare Parts	Battery, AC adapter, keyboard, hard drive
Repairability	Modular design; easy access to RAM and HDD
General Information	Business laptop with durable construction

Frequently Asked Questions - Latitude D500 DELL

How do I reset my Dell Latitude D500 to factory settings?

To reset, restart the laptop and press F8 during boot to access Advanced Boot Options. Select Repair Your Computer, then choose Dell Factory Image Restore if available. Alternatively, use the Windows XP installation disc and follow on-screen prompts.

The Latitude D500 won't turn on. What should I do?

First, ensure the AC adapter is connected and the battery has charge. Try a hard reset: disconnect the battery and AC power, hold the power button for 15 seconds, then reconnect and try again. If it still doesn't turn on, the motherboard may need repair.

How can I upgrade the RAM on my Dell Latitude D500?

The Latitude D500 has two SODIMM slots supporting up to 1 GB total (512 MB per slot). To upgrade, remove the RAM cover on the bottom, gently spread the clips to release the old module, and insert the new module at a 45-degree angle, pushing down until it clicks.

Why is my Latitude D500 running slowly?

Common causes include insufficient RAM (recommended at least 512 MB), a fragmented hard drive, or malware. Try disk cleanup, defragmentation, and running antivirus software. Upgrading to a solid-state drive (SSD) can also improve performance.

How do I replace the hard drive on a Dell Latitude D500?

Turn off the laptop, remove the battery, and locate the hard drive bay (marked with a small icon). Remove the two screws securing the drive, slide it out, and replace with a compatible 2.5-inch PATA/IDE hard drive. Reinstall screws and battery.

The battery on my Latitude D500 doesn't charge. What can I do?

Check the AC adapter for any damage and ensure it's firmly plugged in. Try a different power outlet. If the battery is old, it may need replacement. You can also calibrate the battery by fully charging, then fully discharging it.

How do I connect to Wi-Fi on a Latitude D500?

The Latitude D500 has a physical Wi-Fi switch on the side or front — ensure it's turned on. Then, click the wireless icon in the system tray, select your network, and enter the password. If no wireless icon appears, install the correct drivers from Dell's support site.

Can I use a Dell Latitude D500 battery in other models?

Batteries are often model-specific. The Latitude D500 uses a 6-cell battery with part number 312-0070 or similar. It may be compatible with some other Dell Latitude models from the same era (e.g., D505, D510) but always verify physical fit and voltage.

How do I clean the screen of my Dell Latitude D500?

Turn off the laptop and unplug it. Use a soft, lint-free cloth slightly dampened with water or a screen-cleaning solution. Wipe gently in circular motions. Never spray liquid directly on the screen.

The Latitude D500 beeps multiple times on startup. What does it mean?

Beep codes indicate hardware issues. For example, 1 beep is memory error, 2 beeps is motherboard failure, 3 beeps is video card error. Count the beeps and consult Dell's documentation for the specific code to diagnose.

USER MANUAL Latitude D500 DELL

System Information Guide

Příručka k zařízení

Systeminformation

Järjestelmätiedot

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Abbreviations and Acronyms

For a complete list of abbreviations and acronyms, see the User's Guide (depending on your operating system, double-click the User's Guide icon on your desktop, or click the Start button, click Help and Support Center, and then click User and system guides).

If you purchased a Dell ^™ n Series computer, any references in this document to Microsoft ^® Windows ^® operating systems are not applicable.

Information in this document is subject to change without notice. © 2003 Dell Computer Corporation. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, TrueMobile, Inspiron, Dell Precision, Dimension, OptiPlex, and Latitude are trademarks of Dell Computer Corporation; Intel, Pentium, and Celeron are registered trademarks of Intel Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation; EMC is a registered trademark of EMC Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names other than its own.

Model PP05L

February 2003 P/N 4Y240 Rev. A00

Contents

CAUTION: Safety Instructions 5

General 5

Power 6

Battery 7

Air Travel 8

EMC Instructions 8

When Using Your Computer 9

Ergonomic Computing Habits 10

When Working Inside Your Computer 10

Protecting Against Electrostatic Discharge ..... 11

Battery Disposal 11

Finding Information for Your Computer 12

Setting Up Your Computer 14

About Your Computer 16

Front View 16

Left View 17

Right View 17

Back View 18

Bottom View.... 19

Removing a Battery 20

Removing and Installing a Reserve Battery 21

Installing a Battery 23

Running the Dell Diagnostics 23

Regulatory Notices 26

CAUTION: Safety Instructions

Use the following safety guidelines to help ensure your own personal safety and to help protect your computer and working environment from potential damage.

General

• Do not attempt to service the computer yourself unless you are a trained service technician. Always follow installation instructions closely.
• If you use an extension power cable with your AC adapter, ensure that the total ampere rating of the products plugged in to the extension power cable does not exceed the ampere rating of the extension cable.
• Do not push objects into air vents or openings of your computer. Doing so can cause fire or electric shock by shorting out interior components.
• Do not store your computer in a low-airflow environment, such as a carrying case or a closed briefcase, while the computer is turned on. Restricting airflow can damage the computer or cause a fire.
• Keep your computer away from radiators and heat sources. Also, do not block cooling vents. Avoid placing loose papers underneath your computer; do not place your computer in a closed-in wall unit or on a bed, sofa, or rug.
• Place the AC adapter in a ventilated area, such as a desk top or on the floor, when you use it to run the computer or to charge the battery. Do not cover the AC adapter with papers or other items that will reduce cooling; also, do not use the AC adapter inside a carrying case.
• The AC adapter may become hot during normal operation of your computer. Use care when handling the adapter during or immediately after operation.
• Do not allow your portable computer to operate with the base resting directly on exposed skin for extended periods of time. The surface temperature of the base will rise during normal operation (particularly when AC power is present). Allowing sustained contact with exposed skin can cause discomfort or, eventually, a burn.
• Do not use your computer in a wet environment, for example, near a bath tub, sink, or swimming pool or in a wet basement.
• If your computer includes an integrated or optional (PC Card) modem, disconnect the modem cable if an electrical storm is approaching to avoid the remote risk of electric shock from lightning via the telephone line.

CAUTION: Safety Instructions (continued)

• To help avoid the potential hazard of electric shock, do not connect or disconnect any cables or perform maintenance or reconfiguration of this product during an electrical storm. Do not use your computer during an electrical storm unless all cables have been disconnected and the computer is operating on battery power.
• If your computer includes a modem, the cable used with the modem should be manufactured with a minimum wire size of 26 American wire gauge (AWG) and an FCC-compliant RJ-11 modular plug.
• Before you open the memory module/Mini PCI card/modem cover on the bottom of your computer, disconnect all cables from their electrical outlets and disconnect the telephone cable.
• If your computer has both a modem RJ-11 connector and a network RJ-45 connector, which look alike, make sure you insert the telephone cable into the RJ-11 connector, not the RJ-45 connector.
• PC Cards may become very warm during normal operation. Use care when removing PC Cards after their continuous operation.
• Before you clean your computer, disconnect the computer from the electrical outlet. Clean your computer with a soft cloth dampened with water. Do not use liquid or aerosol cleaners, which may contain flammable substances.

Power

• Use only the Dell-provided AC adapter approved for use with this computer. Use of another AC adapter may cause a fire or explosion.
• Before you connect the computer to an electrical outlet, check the AC adapter voltage rating to ensure that the required voltage and frequency match the available power source.
• To remove the computer from all power sources, turn the computer off, disconnect the AC adapter from the electrical outlet, and remove any battery installed in the battery bay or module bay.
• To help prevent electric shock, plug the AC adapter and device power cables into properly grounded power sources. These power cables may be equipped with 3-prong plugs to provide an earth grounding connection. Do not use adapter plugs or remove the grounding prong from the power cable plug. If you use a power extension cable, use the appropriate type, 2-prong or 3-prong, to mate with the AC adapter power cable.

CAUTION: Safety Instructions (continued)

• Be sure that nothing rests on your AC adapter's power cable and that the cable is not located where it can be tripped over or stepped on.
• If you are using a multiple-outlet power strip, use caution when plugging the AC adapter's power cable into the power strip. Some power strips may allow you to insert the plug incorrectly. Incorrect insertion of the power plug could result in permanent damage to your computer, as well as risk of electric shock and/or fire. Ensure that the ground prong of the power plug is inserted into the mating ground contact of the power strip.

Battery

• Use only Dell™ battery modules that are approved for use with this computer. Use of other types may increase the risk of fire or explosion.
• Do not carry a battery pack in your pocket, purse, or other container where metal objects (such as car keys or paper clips) could short-circuit the battery terminals. The resulting excessive current flow can cause extremely high temperatures and may result in damage to the battery pack or cause fire or burns.
• The battery poses a burn hazard if you handle it improperly. Do not disassemble it. Handle a damaged or leaking battery pack with extreme care. If the battery is damaged, electrolyte may leak from the cells and may cause personal injury.
• Keep the battery away from children.
• Do not store or leave your computer or battery pack near a heat source such as a radiator, fireplace, stove, electric heater, or other heat-generating appliance or otherwise expose it to temperatures in excess of 60^ C ( 140^ F). When heated to excessive temperatures, battery cells could explode or vent, posing a risk of fire.
• Do not dispose of your computer's battery in a fire or with normal household waste. Battery cells may explode. Discard a used battery according to the manufacturer's instructions or contact your local waste disposal agency for disposal instructions. Dispose of a spent or damaged battery promptly.

CAUTION: Safety Instructions (continued)

Air Travel

- Certain Federal Aviation Administration regulations and/or airline-specific restrictions may apply to the operation of your Dell computer while you are on board an aircraft. For example, such regulations/restrictions may prohibit the use of any personal electronic device (PED) that has the capacity for intentional transmission of radio frequency or other electromagnetic signals while on an aircraft.

• In order to best comply with all such restrictions, if your Dell portable computer is equipped with Dell TrueMobile™ or some other wireless communication device, please disable this device before you board the aircraft and follow all instructions provided by airline personnel with regard to such device.
• Additionally, the use of any PED, such as a portable computer, may be prohibited in aircraft during certain critical phases of flight, for example, takeoff and landing. Some airlines may further define the critical flight phase as any time the aircraft is below 3050m (10,000 ft). Please follow the airline's specific instructions as to when the use of a PED is allowed.

EMC Instructions

Use shielded signal cables to ensure that you maintain the appropriate EMC classification for the intended environment. For parallel printers, a cable is available from Dell. If you prefer, you can order a cable from Dell at its worldwide website at www.dell.com.

Static electricity can harm electronic components inside your computer. To prevent static damage, discharge static electricity from your body before you touch any of your computer's electronic components, such as a memory module. You can do so by touching an unpainted metal surface on the computer's input/output panel.

When Using Your Computer

Observe the following safe-handling guidelines to prevent damage to your computer:

- When setting up the computer for work, place it on a level surface.

- When traveling, do not check the computer as baggage. You can put your computer through an X-ray security machine, but never put your computer through a metal detector. If you have the computer checked by hand, be sure to have a charged battery available in case you are asked to turn on the computer.

- When traveling with the hard drive removed from the computer, wrap the drive in a nonconducting material, such as cloth or paper. If you have the drive checked by hand, be ready to install the drive in the computer. You can put the hard drive through an X-ray security machine, but never put the drive through a metal detector.

- When traveling, do not place the computer in overhead storage compartments where it could slide around. Do not drop your computer or subject it to other mechanical shocks.

- Protect your computer, battery, and hard drive from environmental hazards such as dirt, dust, food, liquids, temperature extremes, and overexposure to sunlight.

- When you move your computer between environments with very different temperature and/or humidity ranges, condensation may form on or within the computer. To avoid damaging the computer, allow sufficient time for the moisture to evaporate before using the computer.

NOTICE: When taking the computer from low-temperature conditions into a warmer environment or from high-temperature conditions into a cooler environment, allow the computer to acclimate to room temperature before turning on power.

- When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. As you pull out the connector, keep it evenly aligned to avoid bending any connector pins. Also, before you connect a cable make sure both connectors are correctly oriented and aligned.

- Handle components with care. Hold a component such as a memory module by its edges, not its pins.

- When preparing to remove a memory module from the system board or disconnect a device from the computer, turn off the computer, disconnect the AC adapter cable, remove any battery installed in the battery bay or module bay, and then wait 5 seconds before proceeding to help avoid possible damage to the system board.

When Using Your Computer (continued)

• Clean the display with a soft, clean cloth and water. Apply the water to the cloth; then stroke the cloth across the display in one direction, moving from the top of the display to the bottom. Remove moisture from the display quickly and keep the display dry. Long-term exposure to moisture can damage the display. Do not use a commercial window cleaner to clean your display.
• If your computer gets wet or is damaged, follow the procedures described in "Solving Problems" in your User's Guide. If, after following these procedures, you confirm that your computer is not operating properly, contact Dell (see "Getting Help" in your User's Guide for the appropriate contact information).

Ergonomic Computing Habits

CAUTION: Improper or prolonged keyboard use may result in injury.

CAUTION: Viewing the display or external monitor screen for extended periods of time may result in eye strain.

For comfort and efficiency, observe the ergonomic guidelines in the Appendix of your online User's Guide when setting up and using your computer.

This portable computer is not designed for continuous operation as office equipment. For extended use in an office, it is recommended that you connect an external keyboard.

When Working Inside Your Computer

Before removing or installing memory modules, Mini PCI cards, or modems, perform the following steps in the sequence indicated.

NOTICE: The only time you should ever access the inside of your computer is when you are installing memory modules, a Mini PCI card, or a modem.

NOTICE: Wait 5 seconds after turning off the computer before disconnecting a device or removing a memory module, Mini PCI card, or modem to help prevent possible damage to the system board.

1 Shut down your computer and turn off any attached devices.
2 Disconnect your computer and devices from electrical outlets to reduce the potential for personal injury or shock. Also, disconnect any telephone or telecommunication lines from the computer.
3 Remove the main battery from the battery bay and, if necessary, the second battery from the module bay.

When Using Your Computer (continued)

4 Ground yourself by touching any unpainted metal surface on the back of the computer. While you work, periodically touch the unpainted metal surface to dissipate any static electricity that might harm internal components.

Protecting Against Electrostatic Discharge

Static electricity can harm electronic components inside your computer. To prevent static damage, discharge static electricity from your body before you touch any of your computer's electronic components, such as a memory module. You can do so by touching any unpainted metal surface on the back of the computer.

As you continue to work inside the computer, periodically touch any unpainted metal surface on the back of the computer to remove any static charge your body may have accumulated.

You can also take the following steps to prevent damage from electrostatic discharge (ESD):

• When unpacking a static-sensitive component from its shipping carton, do not remove the component from the antistatic packing material until you are ready to install the component. Just before unwrapping the antistatic packaging, be sure to discharge static electricity from your body.
• When transporting a sensitive component, first place it in an antistatic container or packaging.
• Handle all sensitive components in a static-safe area. If possible, use antistatic floor pads and workbench pads.

Battery Disposal

Your computer uses a lithium-ion battery. For instructions about replacing the lithium-ion battery in your computer, see "Removing a Battery" later in this document and "Using a Battery" in your online User's Guide.

Do not dispose of the battery along with household waste. Contact your local waste disposal agency for the address of the nearest battery deposit site.

Finding Information for Your Computer

What are you looking for? Find It Here

·A diagnostic program for my computer ·Drivers for my computer ·My computer documentation ·My device documentation ·	Drivers and Utilities CD (also known as the ResourceCD)Documentation and drivers are already installed on your computer when shipped from Dell. You can use the CD to reinstall drivers, run the Dell Diagnostics, or access your documentation.Readme files may be included on your CD to provide last-minute updates about technical changes to your computer or advanced technical-reference material for experienced users or technicians.
·How to set up my computer ·Warranty Information ·Safety Instructions	Dell System Information Guide
·Express Service Code and Service Tag ·Microsoft® Windows® License Label	Express Service Code and Product Key LabelThese labels are located on your computer.
·Latest drivers for my computer ·Answers to technical service and support questions ·Online discussions with other users and technical support ·Documentation for my computer	Dell Support Website — support.dell.comThe Dell Support website provides several online tools, including:·Solutions — Troubleshooting hints and tips, articles from technicians, and online courses·Community Forum — Online discussion with other Dell customers·Upgrades — Upgrade information for components, such as memory, the hard drive, and the operating system·Customer Care — Contact information, order status, warranty, and repair information·Downloads — Drivers, patches, and software updates·Reference — Computer documentation, product specifications, and white papers

What are you looking for? Find It Here

How to remove and replace partsHow to obtain technical specificationsHow to configure system settingsHow to troubleshoot and solve problems	User’s GuideWindows Help and Support Center1 Click the Start button and click Help and Support.2 Click User’s and system guides and click User’s guides.Microsoft Windows 2000Double-click the User’s Guides icon on your desktop.
How to use Windows XPDocumentation for my computerDocumentation for devices (such as a modem)	Windows Help and Support Center1 Click the Start button and click Help and Support.2Type a word or phrase that describes your problem and click the arrow icon.3Click the topic that describes your problem.4Follow the instructions on the screen.

- How to reinstall my operating system Operating System CD

After you reinstall your operating system using the Operating System CD, use the Drivers and Utilities CD to reinstall drivers for the devices that came with your computer.

The product key for your operating system is located on your computer.

Setting Up Your Computer

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions at the beginning of this document.

1 Unpack the accessories box.

2 Set aside the contents of the accessories box, which you will need to complete the setup of your computer.

The accessories box also contains user documentation and any software or additional hardware (such as PC Cards, drives, or batteries) that you have ordered.

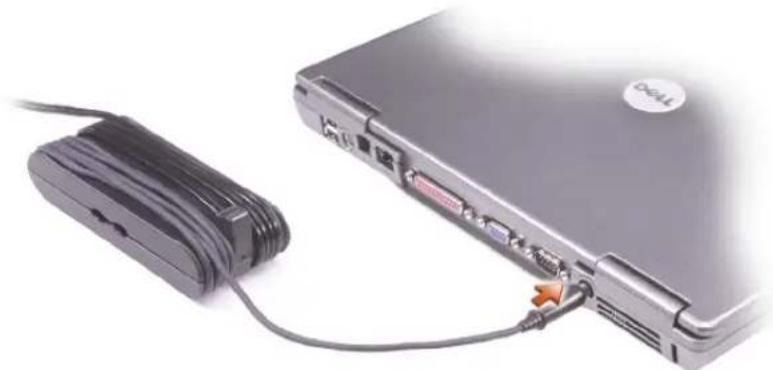

3 Connect the AC adapter to the AC adapter connector on the computer and to the electrical outlet.

Close-up of a laptop connected to a cable with a connector, no visible text or symbols

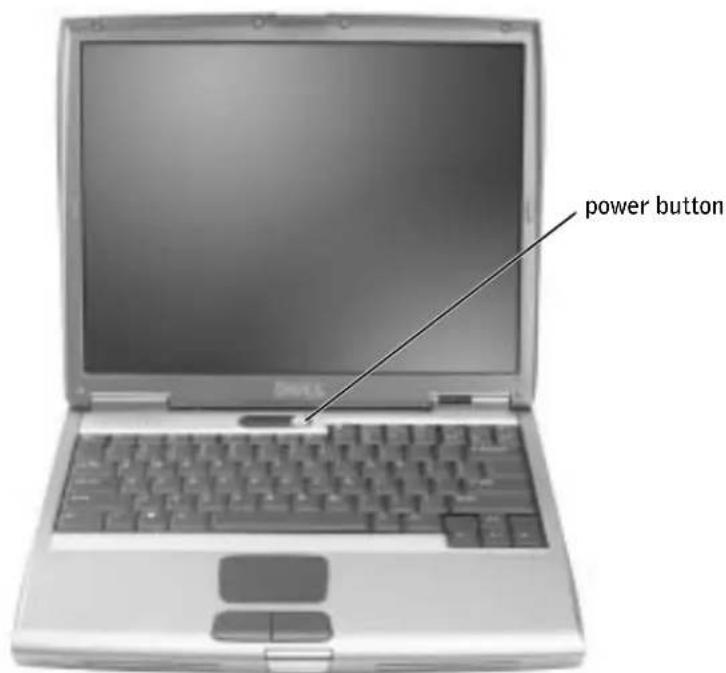

4 Open the computer display and press the power button to turn on the computer.

NOTE: Do not connect the computer to the docking device until the computer has been turned on and shut down at least once.

About Your Computer

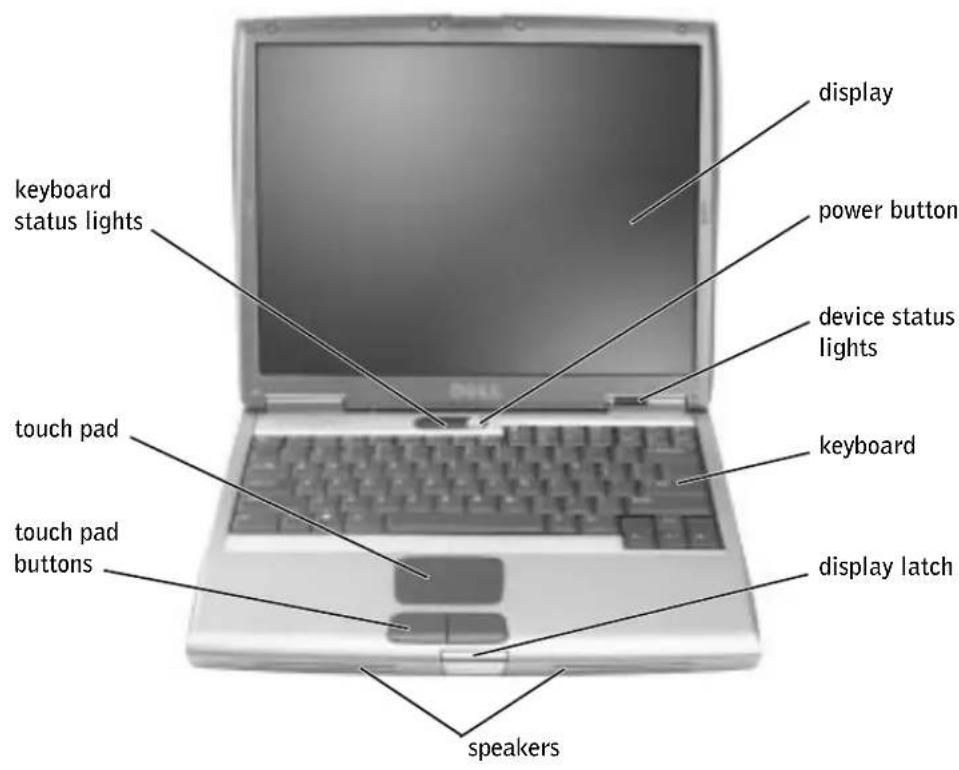

Front View

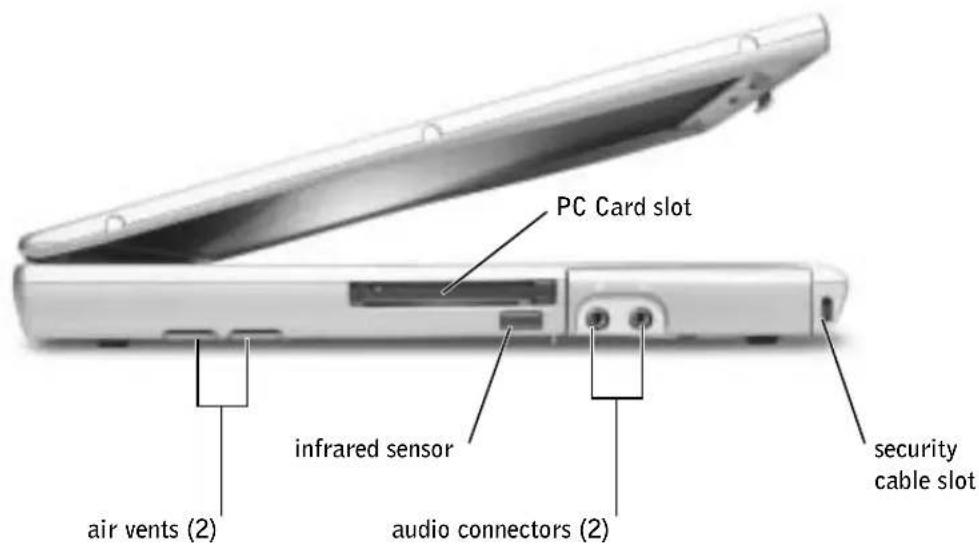

Left View

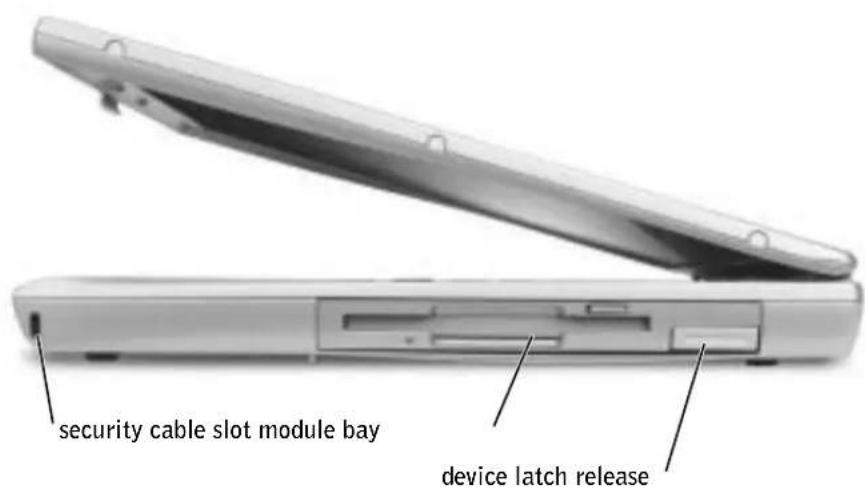

Right View

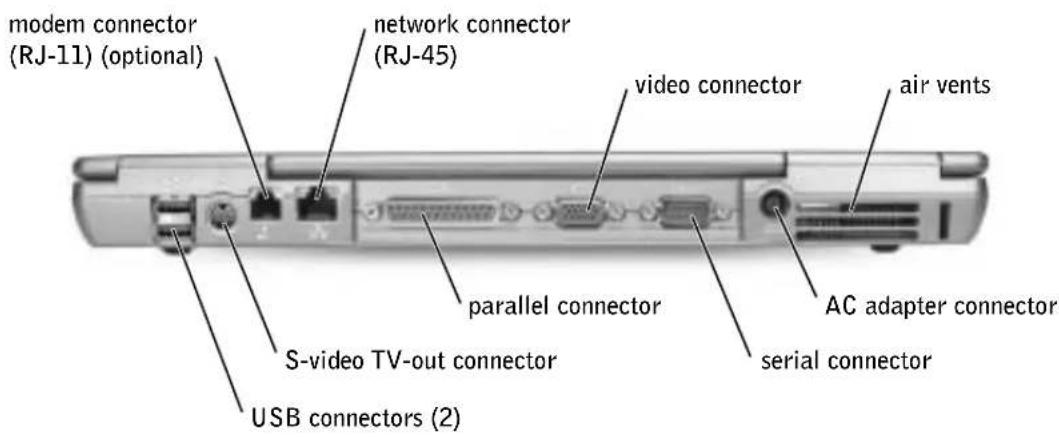

Back View

NOTICE: To avoid damaging the computer, wait 5 seconds after turning off the computer before you disconnect an external device.

CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.

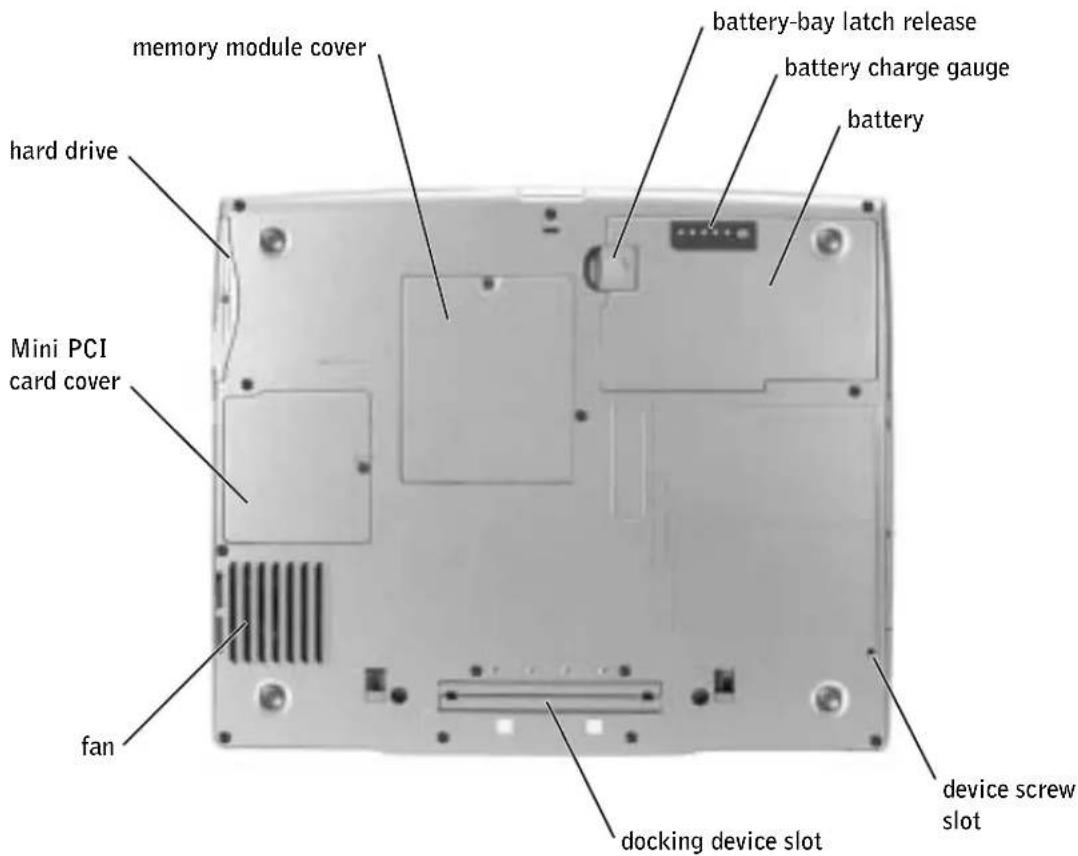

Bottom View

Removing a Battery

For more information about removing the second battery, see "Using the Module Bay" in your online User's Guide.

CAUTION: Before performing these procedures, turn off the computer, disconnect it from the electrical outlet, and disconnect the modem from the telephone wall jack.

NOTICE: If you choose to replace the battery with the computer in standby mode, you have up to 90 seconds to complete the battery replacement before the computer shuts down and loses any unsaved data.

1 Ensure that the computer is turned off, disconnected from an electrical outlet, and disconnected from the telephone wall jack.
2 If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

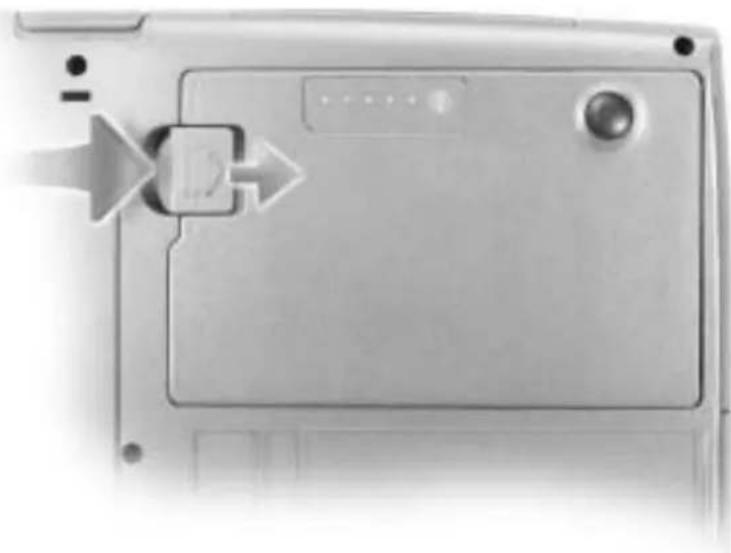

3 Slide and hold the battery-bay latch release on the bottom of the computer, and then remove the battery from the bay.

Front view of a laptop with a triangular icon and arrow pointing to the front panel (no visible text or symbols)

Removing and Installing a Reserve Battery

1 Remove the battery.

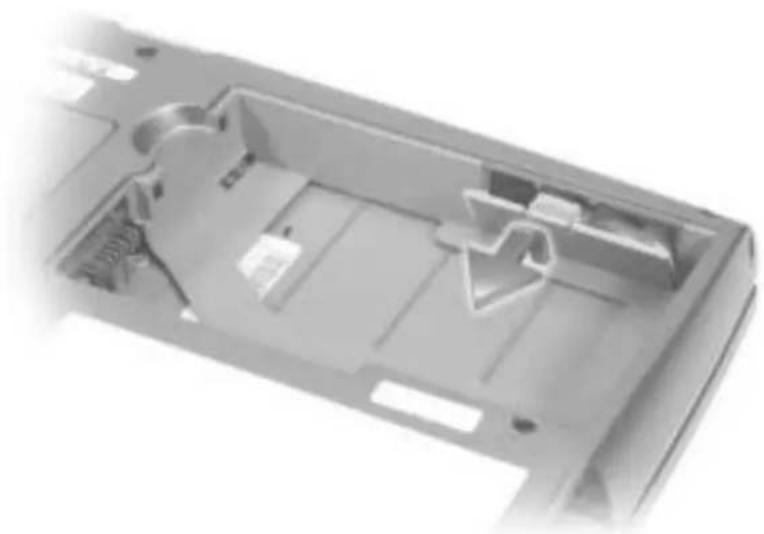

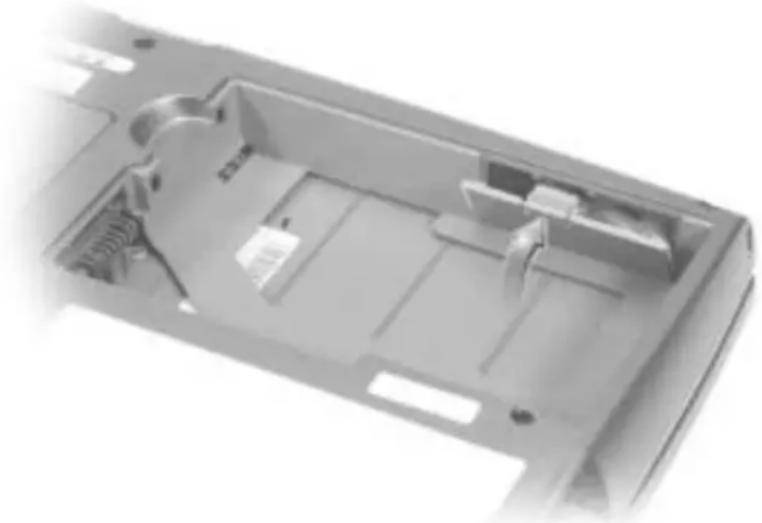

2 Remove the reserve battery cover.

Interior view of a computer case with visible internal compartments and mounting holes (no text or symbols)

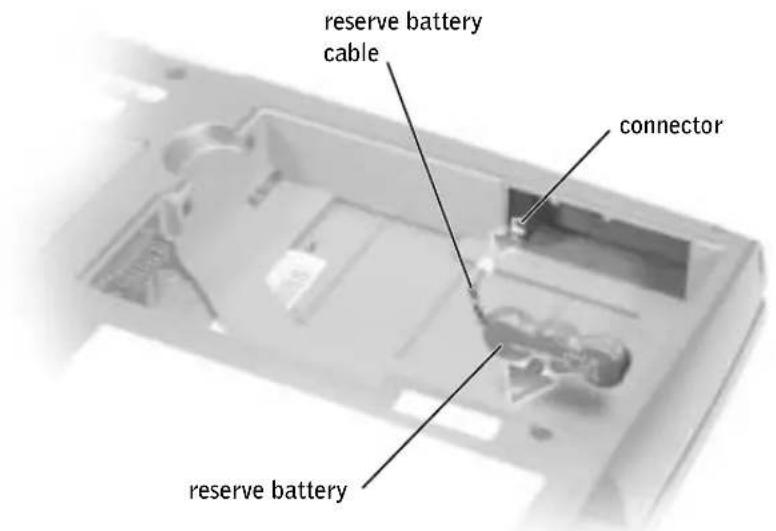

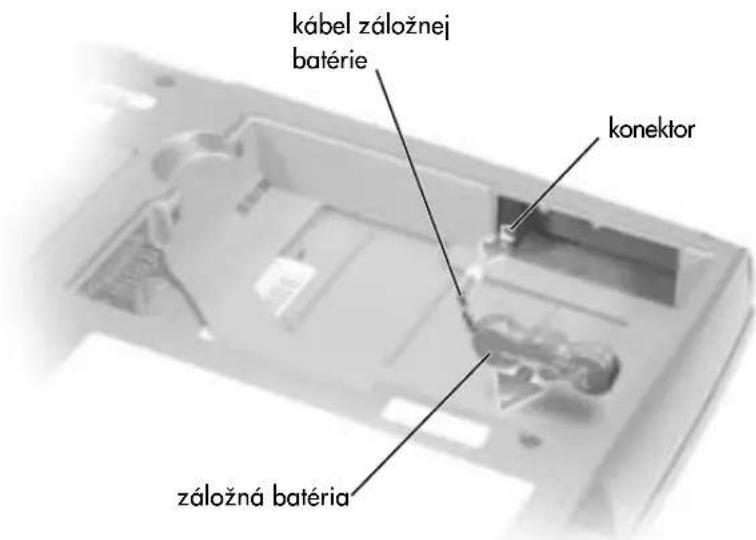

3 Pull the reserve battery out of its compartment, and disconnect the cable from the connector.

4 Connect the reserve battery cable to the connector in the reserve battery compartment.

5 Place the reserve battery in the compartment, and replace the reserve battery cover.

Interior view of a device casing showing internal compartments and mounting holes (no text or symbols visible)

Installing a Battery

Slide the battery into the bay until the latch release clicks.

For more information about installing the second battery, see "Using the Module Bay" in your online User's Guide.

Running the Dell Diagnostics

The Dell Diagnostics is located on a hidden Diagnostic utility partition on your hard drive.

NOTE: If your computer cannot display a screen image, contact Dell (see "Getting Help" in your User's Guide for the appropriate contact information).

1 Shut down the computer.
2 If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.
3 Connect the computer to an electrical outlet.

4 Turn on the computer. When the DELL ^™ logo appears, press F12 immediately.

NOTE: If you see a message stating that no diagnostics utility partition has been found, run the Dell Diagnostics from your Drivers and Utilities CD.

If you wait too long and the Microsoft ^® Windows ^® logo appears, continue to wait until you see the Windows desktop. Then shut down your computer and try again.

When the boot device list appears, highlight Diagnostics and press Enter

The computer begins to run the Pre-boot System Assessment, a series of embedded diagnostics that perform initial testing on your system board, keyboard, hard drive, and display.

• During the assessment, answer any questions that appear.
• If a failure is detected, the computer stops and displays an error message. To stop the assessment and reboot to the operating system, press N; to continue to
  the next test, press Y; to retest the component that failed, press . R

- If failures are detected during the Pre-boot System Assessment, write down the error code(s) and contact Dell (see "Getting Help" in your User's Guide for the appropriate contact information) before continuing on to the Dell Diagnostics.

If the Pre-boot System Assessment completes successfully, you receive the message Booting Dell Diagnostic Utility Partition. Press any key to continue.

6 Press any key to start the Dell Diagnostics from the Diagnostics utility partition on your hard drive.

7 After the Dell Diagnostics loads and the Main Menu screen appears, click the button for the option you want.

Option Function
Express Test Performs a quick test of devices. The test typically takes 10 to 20 minutes and requires no interaction on your part. Run Express Test first to increase the possibility of tracing the problem quickly.
Extended Test	Performs a thorough check of devices. This test typically takes 1 hour or more and requires you to answer questions periodically.

Option Function

Custom Test Tests a specific device. You can customize the tests you want to run.

Symptom Tree Lists the most common symptoms encountered and allows you to select a test based on the symptom of the problem you are experiencing.

8 If a problem is encountered during a test, a message appears, displaying the error code and a description of the problem. Write down the error code and problem description and follow the instructions on the screen.

If you cannot resolve the error condition, contact Dell (see "Getting Help" in your User's Guide for the appropriate contact information).

NOTE: The Service Tag for your computer is located in the title bar of each screen.

9 If you run a test from the Custom Test or Symptom Tree option, click the applicable tab described in the following table for more information.

Tab Function
Results Displays the results of the test and any error conditions encountered.
Errors Displays error conditions encountered, error codes, and problem description.
Help Describes the test and may indicate requirements for running the test.
Configuration Displays your hardware configuration for the selected device.The Dell Diagnostics obtains your configuration information for all devices from the system setup program, memory, and various internal tests and displays the information in the device list in the left pane of the screen. The device list may not display the names of all the components installed on your computer or all devices attached to your computer.
Parameters	Allows you to customize the test by changing the test settings.

10 When the tests are complete, close the test screen to return to the Main Menu screen. To exit the Dell Diagnostics and restart the computer, close the Main Menu screen.

Regulatory Notices

Electromagnetic Interference (EMI) is any signal or emission, radiated in free space or conducted along power or signal leads, that endangers the functioning of a radio navigation or other safety service or seriously degrades, obstructs, or repeatedly interrupts a licensed radio communications service. Radio communications services include but are not limited to AM/FM commercial broadcast, television, cellular services, radar, air-traffic control, pager, and Personal Communication Services (PCS). These licensed services, along with unintentional radiators such as digital devices, including computers, contribute to the electromagnetic environment.

Electromagnetic Compatibility (EMC) is the ability of items of electronic equipment to function properly together in the electronic environment. While this computer has been designed and determined to be compliant with regulatory agency limits for EMI, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference with radio communications services, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:

• Reorient the receiving antenna.
- Relocate the computer with respect to the receiver.
- Move the computer away from the receiver.
- Plug the computer into a different outlet so that the computer and the receiver are on different branch circuits.

If necessary, consult a Dell Technical Support representative or an experienced radio/television technician for additional suggestions.

For additional regulatory information, see "Regulatory Notices" in the Appendix of your online User's Guide. The sections specific to each regulatory agency provide country-specific EMC/EMI or product safety information.

Instalace počítače

Close-up of a laptop connected to a cable with a cable connector (no visible text or symbols)

Front view of a laptop with a control panel and directional arrow (no visible text or symbols)

Interior view of a computer case with visible internal compartments and mounting holes (no text or symbols)

Interior view of a device casing showing internal compartments and mounting holes (no text or symbols visible)

Instalace baterie

Opstilling af computeren

Close-up of a laptop connected to a cable with a connector, no visible text or symbols

Close-up of a silver computer monitor with a control panel and directional arrow (no visible text or symbols)

Interior view of a computer case with visible internal components and mounting holes (no text or symbols)

Interior view of a computer case with visible internal compartments and mounting holes (no text or symbols)

Close-up of a laptop connected to a cable with a connector, no visible text or symbols

Front view of a silver computer case with a control panel and directional arrow (no visible text or symbols)

Interior view of a computer case with visible internal compartments and mounting holes (no text or symbols)

Interior view of a computer case with visible internal compartments and mounting holes (no text or symbols)

Akun asentaminen

Close-up of a laptop connected to a cable with a connector, no visible text or symbols

Front view of a laptop with a control panel and directional arrow (no visible text or symbols)

Interior view of a computer case with visible internal compartments and mounting holes (no text or symbols)

Interior view of a computer case with visible internal compartments and mounting holes (no text or symbols)

Close-up of a laptop connected to a cable with a connector, no visible text or symbols

Front view of a laptop with a triangular icon and arrow pointing to the front panel (no visible text or symbols)

Interior view of a 3D printer case with visible internal compartments and mounting holes (no text or symbols)

Interior view of a computer case with visible internal compartments and mounting holes (no text or symbols)

Close-up of a laptop connected to a cable with a cable connector (no visible text or symbols)

Front view of a laptop computer with a control panel and directional arrow (no visible text or symbols)

Interior view of a computer case with visible internal compartments and mounting holes (no text or symbols)

Interior view of a computer case with visible internal compartments and mounting holes (no text or symbols)

Kjøre Dell Diagnostics

Dell Diagnostics ligger i en skjult diagnostikkverktøypartisjon på harddisken.

Close-up of a laptop connected to a cable with a cable connector (no visible text or symbols)

Top-down view of a computer monitor with control buttons and an arrow pointing to the front panel (no visible text or symbols)

Interior view of a 3D printer casing showing internal components and mounting holes (no text or symbols visible)

Interior view of a computer case showing internal components and mounting holes (no text or symbols visible)

Close-up of a laptop connected to a cable with an attached cable (no visible text or symbols)

Top-down view of a laptop with a control panel and directional arrow (no visible text or symbols)

Interior view of a device casing with internal compartments and mounting holes (no visible text or symbols)

Interior view of a computer case with visible internal components and mounting holes (no text or symbols)

Close-up of a laptop connected to a cable with a connector, no visible text or symbols

Front view of a silver computer RAM module with a control panel and directional arrow (no text or symbols visible)

Interior view of a computer case with visible internal compartments and mounting holes (no text or symbols)

3 Záložnú batériu vyberte z priehradky. Kábel odpojte od konektora.

Interior view of a computer case with visible internal components and mounting holes (no text or symbols)

Inštalácia batérie

• namestitev računalnika
  • informacije o garanciji
  • varnostna navodila

- koda za ekspresno servisiranje (Express Service Code) in servisna oznaka (Service Tag)

- nalepka z licencó za Windows®

Dellov priročnik z informacijami o sistemu

Koda za ekspresno servisiranje in nalepka s ključem izdelka

Close-up of a laptop connected to a cable with a connector, no visible text or symbols

Front view of a laptop computer with control panel and drive button (no visible text or symbols)

Interior view of a 3D printer case with visible internal compartments and mounting holes (no text or symbols)

Interior view of a computer case with visible internal components and mounting holes (no text or symbols)

Close-up of a laptop connected to a cable with a cable connector (no visible text or symbols)

Front view of a laptop with a control panel and directional arrow (no visible text or symbols)

Interior view of a remote control box with visible internal compartments and mounting holes (no text or symbols)

Interior view of a computer case showing internal components and mounting holes (no text or symbols visible)

.Drivers and Utilities Dell

Microsoft® Window® Windows 70

Enter Diagnostics

Interior view of a gray electronic device casing showing internal components and a highlighted green component (no text or symbols visible)

תַלְרָה בְּרָה

Interior view of a gray electronic device casing showing internal components and a highlighted orange arrow (no text or symbols)

תַלְרָה בַעִי

Close-up of a silver laptop back panel with an orange arrow pointing to the left side (no visible text or symbols)

תְקַרִי בְּשָׁ

בְרָה אַתִים

Laptop rear open and back view showing internal components (no text or symbols visible)

הכלההוּרָה אַלְבָרִים, which is a whole of all possible forms.

Laptop connected to a cable with an attached USB port, no visible text or symbols

User and System (הכלה) Help and Support Center

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה
