Product Type	Freestanding Refrigerator
Brand	Scandomestic
Model	SKB 190 W
Color	White
Total Capacity	Approx. 190 liters
Height	145 cm
Width	55 cm
Depth	60 cm
Weight	45 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	~150 kWh/year
Climate Class	N (16-32°C)
Adjustable Thermostat	Yes, inside
Reversible Door	Yes
Defrost Type	Automatic (frost-free)
Interior Light	Yes
Number of Shelves	3 glass shelves
Vegetable Drawer	1
Door Balcony	Yes, 2 tiers
Warranty	2 years
Spare Parts Availability	From authorized service centers

Frequently Asked Questions - SKB 190 W Scandomestic

How do I adjust the temperature on my Scandomestic SKB 190 W?

Use the thermostat dial located inside the fridge compartment. Turn it clockwise for colder, counterclockwise for warmer.

How do I clean the refrigerator?

Unplug the fridge, remove food and shelves, and wipe interior with a mild detergent and warm water. Do not use abrasive cleaners.

The fridge is making unusual noise. What should I do?

Some noise is normal. Check if it's level and not touching walls. If loud, ensure condenser coils are clean and the fridge has proper ventilation.

How do I reverse the door opening direction?

Refer to the manual. Typically, remove top hinge, door, bottom hinge, and screws. Then reposition hinges on the opposite side. Tools required: screwdriver and wrench.

How much space should be left around the fridge for ventilation?

Leave at least 5 cm at the sides, 10 cm at the top, and 5 cm at the back for proper airflow.

Why is water pooling inside the fridge?

Check if the defrost drain is blocked. Clean with a pipe cleaner or warm water. Also ensure door is closed properly.

How do I save energy with this refrigerator?

Keep the fridge away from heat sources, avoid leaving the door open, set temperature to 4°C, and defrost regularly if not frost-free.

What should I do during a power failure?

Keep the door closed. The fridge will keep food cold for about 4 hours. If power is out longer, use ice packs or transfer food to a freezer.

How do I replace the interior light bulb?

Unplug the fridge, remove the light cover (usually snaps off), and replace bulb with same type and wattage (e.g., 10W E14).

Where can I find spare parts for my Scandomestic SKB 190 W?

Contact Scandomestic authorized service centers or the retailer. Use model number for identification.

USER MANUAL SKB 190 W Scandomestic

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. To avoid contamination and depravity of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the of the appliance.
• Cleaning regularly surfaces that can come in contact with food and is accessible for drainage systems.
• Clean water tanks if they have not been used for 48 h. or more; Flush the water system connected to a water supply if water has not been drawn for 5 days or more.
• Store raw meat and fish in suitable containers in the refrigerator, so it is not in contact with, or can drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- This refrigerating appliance is not intended to be used as a built-in appliance.

- Note: When operating in an environment other than the specified climate type (i.e., beyond the rated ambient temperature range), the appliance may not be able to maintain the desirable compartment temperatures.

- How to use the ice-making box. Place the ice-making box in the upper position of the freezer compartment, so that it ices up as soon as possible.

- Lamp type: LED-light. Energy efficiency level: G

- Light source in this product is replaceable only by a professional

DEUTSCHE

Installation

A	550
B	560
C	1220
D	Min. 50
E	Min. 50
F	Min. 50
G	940
H	1160

Pladskrav

- An alarm will sound when the door is left open for more than 90 seconds. It will not stop until the door has been closed.

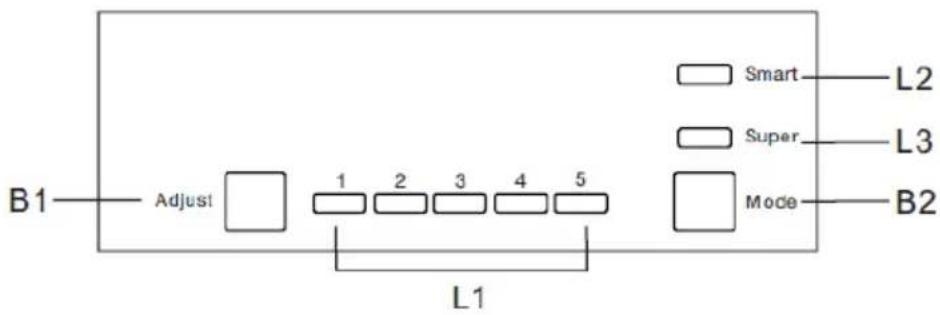

Temperaturindstilling

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignition thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING! The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "special use lamp" is not usable for domestic lighting.

• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can come to the mains plug of the appliance.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the lamp.

• This appliance is heavy. Care should be taken when moving it.

• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

• Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufactures instructions.
• Appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.

Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

• Ice lollies can cause frost burns if consumed straight from the appliance.
• To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the

appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
• If the drain is blocked, water will collect in the bottom of the appliance.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall

to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);
• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• All accessories, such as drawers, shelves balconies, should be kept there for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat

exchanger.

Correct Disposal of this product

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will

help prevent potential negative consequences for the environment and human health. which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased

the product

Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Packaging materials

The materials with the symbol are recyclable.

Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.

2. Cut off the mains cable and discard it.

WARNING!

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

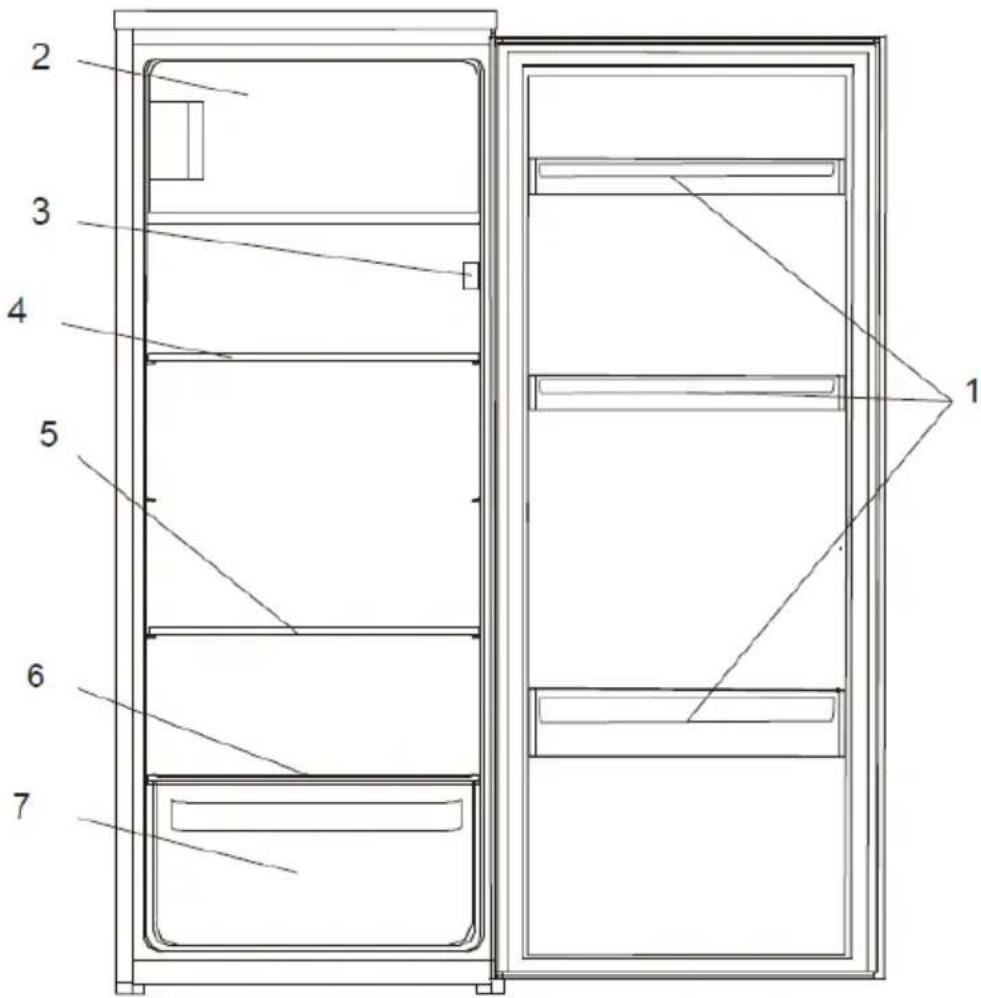

Product overview

1. Balconies
2. Freezer
3. Thermostat and light
4. Glass shelves
5. Glass shelves
6. Crisper cover
7. Crisper

This illustration is only for illustration.

For details, please check your appliance.

How to reverse the door

Tool required: Philips screwdriver, Flat bladed screwdriver, hexagonal spanner.

Ensure the unit is unplugged and empty.

All parts removed must be saved to do the reinstallation of the door. Do not lay the unit flat as this may damage the coolant system.

It's better that 2 people handle the unit during assembly.

1. Remove the two screws at the rear side of the top.

1. Remove the top cover and place it aside.

1. Unscrew top hinge and then remove the door and place it on a blanket to avoid scratches.

1. Unscrew the bottom hinge of the freezer door and place it on a blanket to avoid scratches.

1. Move the door holder from left side to right side.

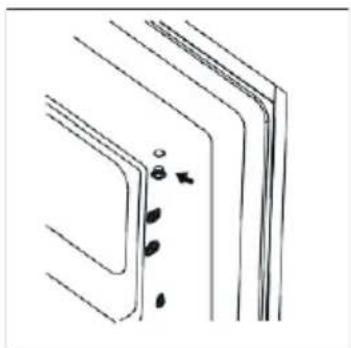

1. Move the hinge hole cover from the left side to the right side.

1. Rotate the freezer door and place the hinges to the left side. Fit the door to the holder.

1. Unscrew the bottom hinge. Remove the adjustable feet from both sides.

1. Unscrew and remove the bottom hinge pin, turn the bracket to the other side and replace it.

1. Refit the bracket fitting the bottom hinge pin. Replace the two adjustable feet.

1. Install the door back on. Ensure that the door is aligned horizontally and vertically to the cabinet, so that the seals are closed on all sides before finally tightening the top hinge.

1. Place back the top cover and fix it with the 2 screws on the back.

1. Detach the fridge and freezer door gaskets and then reattach them after rotating.

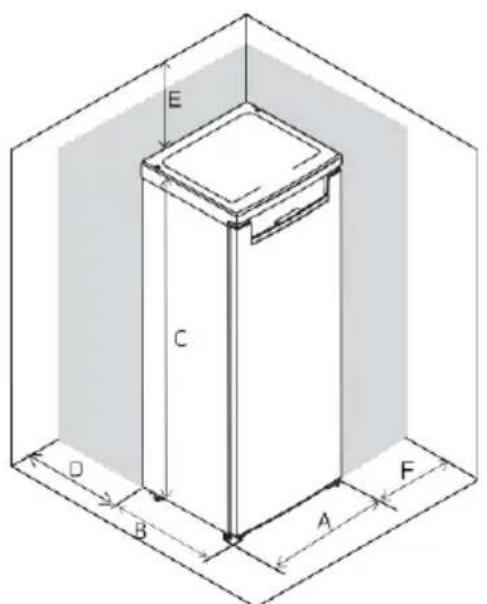

Installation

A	550
B	560
C	1220
D	Min. 50
E	Min. 50
F	Min. 50
G	940
H	1160

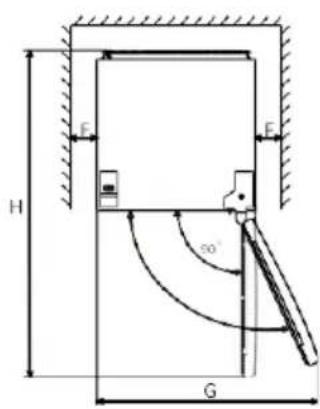

Space Requirement

• Keep enough space of door open.
• The appliance is not intended to be used as a built-in appliance.
• It is advisable to keep at least 50mm gap at two sides.

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Placement

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

For refrigerating appliances with climate class:

• extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C (SN);
• temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C (N);
• subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C (ST);
• tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C (T);

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessor es with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Control panel

Buttons

• B1 – Press to adjust setting of fridge compartment in cycle of 1, 2, 3, 4 to 5.
• B2 – Press to select Smart or Super mode.

Lights

L1 – shows the setting of fridge compartment.
L2 – lights once Smart mode is selected.
L3 – lights once Super mode is selected.

Operation

Temperature setting

1. Press button (B2) to select Super or Smart mode.
2. Press button (B1) to adjust the setting of the fridge. Higher setting means lower temperature. The temperature of the freezer is automatically controlled at around -18°C.

Smart Mode

• Press Mode button (B2) to select Smart mode.
• The appliance will run automatically according to ambient temperature around the appliance.

Super Mode

• Press Mode button (B2) to select Super mode.
• The appliance will run to make the freezer compartment coldest. After 54 hours, the original temperature setting will be automatically restored.

Turn off the appliance

- Press and hold button (B1) for 5 seconds, the appliance will turn off. Press for 5 seconds again to turn on the appliance.

Door alarm

An alarm will sound when the door is left open for more than 90 seconds. It will not stop until the door has been closed.

Temperature setting

To adjust the temperature inside the refrigerator, choose between setting 1-5, where 1 is the warmest and 5 is the coldest.

The freezer compartment is automatically set at around -18°C.

Impact on Food Storage

Position different food in different compartments according to the below table.

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	Foods with natural preservatives, such as jams, juices, drinks, condiments.Do not store perishable foods.
Crisper drawer (salad drawer)	Fruits, herbs and vegetables should be placed separately in the crisper bin.Do not store bananas, onions, potatoes, garlic in
Fridge shelf – middle	Dairy products, eggs
Fridge shelf – top	Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	Food for long time-term storage

Note: This appliance is not suitable for freezing.

Daily use

Freezing Fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours; during this period do not add other food to be frozen.

Storing Frozen food

When first starting-up or after a period out of use let the appliance run for at least 2 hours on the high setting before putting products in the compartment.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice cube

This appliance may be equipped with one or two ice cube molds to produce ice.

Accessories Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free.

Helpful hints and tips

To help you make the most out of the freezing process, here are some important hints:

• The maximum quantity of food which can be frozen in 24 hrs. Is shown on the rating plate;
• The freezing process takes 24 hours. Additional food should not be added during this period
• Only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• Wrap up the food in aluminum foil or polythene and make sure that the packages are airtight; do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• Lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• Water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
  • It is advisable to show the freezing in

date on each individual pack to enable you removal from the freezer compartment, Can possibly cause the skin to be freeze burnt;

- It is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should;

• Make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- Be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
- Not open the door frequently or leave it open longer than absolutely necessary. Once defrosted, food deteriorates rapidly and cannot be refrozen.
- Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator.
• Do cover or wrap the food, particularly if it has a strong flavor.
  • Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked food, cold dishes etc.: these should he covered and placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

• Butter and Cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polytene bags to exclude as much air as possible.

• Milk bottle: these should have a cap and should be stored in the balconies on the door.

• Bananas, potatoes, onions, and garlic, if not packed must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning turn the appliance off and remove the plug from the mains or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner.

Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g., lemon juice or the juice form orange peel, butyric.

Do not allow such substances to come into contact the appliance parts.

• Do not use any abrasive cleaners
- Remove the food from the freezer. Store them in a cool place, well covered.
- Switch the appliance off and remove the plug from the mains or switch off or turn out the circuit breaker of fuse.
- Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
• After everything is dry place appliance back into service.

Clean drain hole

- To avoid defrost water overflowing into the fridge, periodically clean the drain hole at the back of the fridge compartment. Use a cleaner to clean the hole.

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed.

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:

• Pull out the plug from the socket;
- Remove all stored food, wrap it in several layers of newspaper and put it in a cool place;
- Keep the door open, and placing a basin underneath of the appliance to collect the defrost water; when defrosting is completed, dry the interior thoroughly
- Replace the plug in the power socket to run the appliance again.

Replace the lamp

Lamp type: LED-light. Energy efficiency level: G

Light source in this product is replaceable only by a professional.

CE declaration of conformity

CE This appliance has been manufactured to the strictest standards and complies with all applicable legislations, Low Voltage

Directive (LVD) and Electromagnetic Compatibility (EMC).

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Temperature regulation knob is set at number "O".	Set the knob at other number to switch on the appliance.
	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold.	Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g., a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning and Care section.
Side panel is hot.	Condenser is inside the panel.	Its normal.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

Sicherheitshinweise

Installation

A	550
B	560
C	1220
D	Min. 50
E	Min. 50
F	Min. 50
G	940
H	1160

Platzbedarf

Installation

A	550
B	560
C	1220
D	Min. 50
E	Min. 50
F	Min. 50
G	940
H	1160

Utrymmeskrav

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: SKB 190 W

Aftersales service station list:

Address	Scandomestic A/S	QR code
Contact Number	7242 5571
Website	www.scandomestic.dk
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;			Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available; (years)			7
defined in Regulation EU 2019/2016 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)			www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE
